Region-Based Image Retrieval Revisited

09/26/2017 ∙ by Ryota Hinami, et al. ∙ 0

Region-based image retrieval (RBIR) technique is revisited. In early attempts at RBIR in the late 90s, researchers found many ways to specify region-based queries and spatial relationships; however, the way to characterize the regions, such as by using color histograms, were very poor at that time. Here, we revisit RBIR by incorporating semantic specification of objects and intuitive specification of spatial relationships. Our contributions are the following. First, to support multiple aspects of semantic object specification (category, instance, and attribute), we propose a multitask CNN feature that allows us to use deep learning technique and to jointly handle multi-aspect object specification. Second, to help users specify spatial relationships among objects in an intuitive way, we propose recommendation techniques of spatial relationships. In particular, by mining the search results, a system can recommend feasible spatial relationships among the objects. The system also can recommend likely spatial relationships by assigned object category names based on language prior. Moreover, object-level inverted indexing supports very fast shortlist generation, and re-ranking based on spatial constraints provides users with instant RBIR experiences.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 3

page 5

page 8

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Searching images by describing their content, a task known as content-based image retrieval (CBIR), is one of the most exciting and successful applications of multimedia processing. The pipeline of typical CBIR is as follows. An image in a collection is indexed by its category tag and/or image descriptor. For example, given an image of a dog, a label ‘dog’ can be assigned, and/or an image feature vector can be extracted. In the query phase, the user can search for images by specifying a tag or a query image. A tag-based search can be performed by simply looking for images with the specified keyword, while an image-based search can be accomplished by performing a nearest-neighbor search on feature vectors.

Despite the success of current CBIR systems, there are three fundamental problems that narrow the scope of image searches. (1) Handling multiple objects: Typically, an image is indexed by a global feature that represents a whole image. This makes it hard to search by making multiple queries with a relationship such as “a human is next to a dog” because the global feature does not contain spatial information. (2) Specifying spatial relationship: Even if multiple objects can be handled by some other means, specifying spatial relationship of objects is not straightforward. Several studies have tried to tackle this problem by using graph-based queries (Johnson et al., 2015; Prabhu and Babu, 2015) that represent relationships of objects; however, such queries are not suitable for end-user applications because their specification and refinement are difficult. Several interactive systems (Smith and Chang, 1996; Chang et al., 1997) can specify a simple spatial query intuitively, but cannot specify complex relationships between objects. (3) Searching visual concepts: Tag-based searches with keyword queries are a simple way to search for images with specific visual concepts, such as object category (‘dog’) and attribute (‘running’). However, managing tags is not so easy if we have to consider multiple objects. For example, consider an image showing a human standing and a dog running; it is not clear whether we should assign a tag ‘running’ to this image. Moreover, the query of a tag-based search is limited to be within the closed vocabulary of the assigned tags, and annotating images involves huge amounts of manual labor.

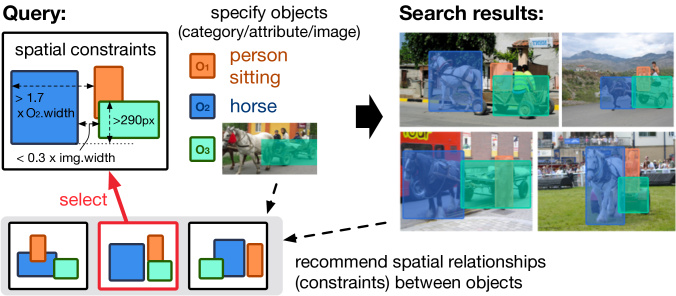

Figure 1. Our system enables users to intuitively search the images that accord with their complex search intention.

We created an interactive region-based image retrieval system (Fig. 1) that solves the above three problems, as follows:

  1. Our system provides an interactive spatial querying interface by which users can easily locate multiple objects (see the supplemental video). Our system is inspired by classical region-based image retrieval (RBIR) systems (Carson et al., 1999), but is substantially faster, more scalable, and more accurate as it takes advantage of recent advances in CNNs and state-of-the-art indexing.

  2. Our system provides recommendation functions that make it easy for users to specify spatial relationships. Given initial search results or a query, the system suggests possible spatial relationships among objects. Since the suggestions are given as position constraint equations that are unambiguous and understandable, users can interactively refine the suggested query.

  3. Our system incorporates a multitask CNN feature for searching visual concepts, which is effective at looking for similar objects and discriminative to the object category and attribute. By learning classifiers on this feature space, users can search for objects by category (‘dog’) and by attribute (‘running’) with high accuracy without relying on tag-based searches.

The combination above enables users to search images that match their complex search intention. Figure 1 shows an example where search intention is “a person is sitting on horse carriage”. The diverse intention can be represented by combining the query of category, attribute, and image. The spatial constraints can be easily specified by interactive interface and recommendations.

2. Related Work

Region-based image retrieval. RBIR was proposed as an extension of global feature-based CBIR that had received much attention in the late 90s and early 00s (Carson et al., 1999; Wang et al., 2001). Unlike global feature-based approaches, RBIR extracts features from multiple sub-regions, which correspond to objects in the image. RBIR provided the way to focus on the object details, which have much benefit such as that 1) the accuracy of queried object was improved by using region-based matching, and 2) spatial localization of queried object is easy.

Recently, region-based approach has attracted a lot of attention because of the success in object detection of R-CNN (Girshick et al., 2014), which is based on the region proposals (Uijlings et al., 2013)

and CNN features extracted from the regions. Several studies

(Bhattacharjee et al., 2016a; Xie et al., 2015; Bhattacharjee et al., 2016b; Kiapour et al., 2016; Sun et al., 2015; Hinami and Satoh, 2016) incorporated this approach into image retrieval. They incorporated region-based CNNs that localize objects (Bhattacharjee et al., 2016a, b) and/or enhance the accuracy of matching images by capturing detailed information on objects  (Sun et al., 2015). Hinami and Satoh (Hinami and Satoh, 2016) succeeded in retrieving and localizing objects of a certain category (e.g., dog) by indexing region-based CNN features. The reason for success of region-based CNN features is that they can describe more detailed properties of objects than global features can and are able to capture higher-level object semantics than local descriptors (e.g., SIFT) can.

Spatial query and relationship. Several early CBIR studies (Smith and Chang, 1996; Chang et al., 1997) investigated interactive specifications of spatial queries by using sketches, etc. VisualSEEk (Smith and Chang, 1996) searched for images by using spatial queries such as those indicating the absolute and relative locations of objects, which were specified by diagramming spatial arrangements of regions. VideoQ (Chang et al., 1997) used sketch-based interactive queries to specify spatiotemporal constraints on objects, such as motion in content-based video retrieval. More recent studies (Liu et al., 2010; Xu et al., 2010; Long Mai et al., 2017) can handle the query composed of semantic concepts (i.e., object categories) and their spatial layout. Other studies (Lokoč et al., 2014; Blazek et al., 2015) demonstrated the effectiveness of spatial position-based interactive filtering for video search in the competitions (Snoek, 2014). Although interactive systems make it easy for the user to specify and refine spatial queries, they have trouble specifying complex relationships among objects.

Other approaches (Johnson et al., 2015; Prabhu and Babu, 2015; Cao et al., 2015; Malisiewicz and Efros, 2009; Lan et al., 2012; Siddiquie et al., 2011) encode relationships between objects within a graph or a descriptor, where images with similar contexts are retrieved by matching them. The query is represented by graph in (Johnson et al., 2015; Prabhu and Babu, 2015) that includes object class information as well as spatial contexts among objects. Guerrero et al. (Guerrero et al., 2015) encoded the spatial relationship into the descriptor; their work shows the effectiveness in describing complex spatial relationship between two objects. Cao et al. (Cao et al., 2015) encode high-order contextual information among objects into the descriptor to measure the strength of interaction, where the objects with similar context can be retrieved by the value. While these approaches can handle complex relationships, query specification and refinement are generally difficult for the user and not suitable for interactive end-user applications.

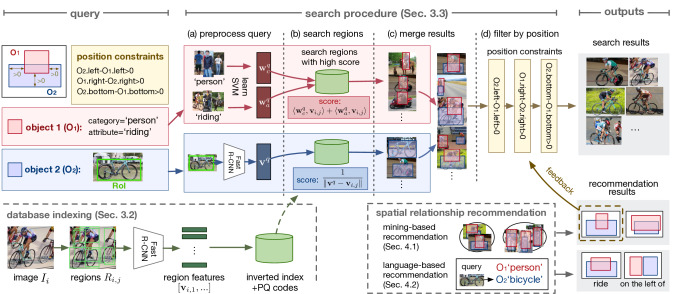

Figure 2. Pipeline of our region-based image retrieval system.

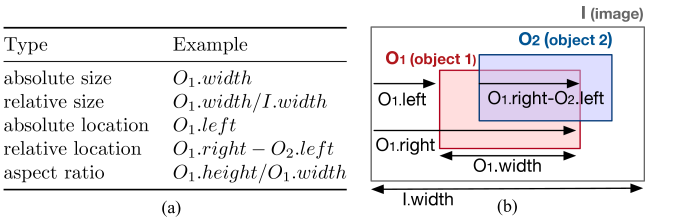

Figure 3. Position feature (a) examples and (b) illustrations.

3. The Proposed System: Overview

The pipeline of our system is illustrated in Fig. 2. Our system is distinct from typical global feature-based image retrieval; features of multiple regions in image are indexed following previous RBIR systems, where regions generally correspond to the object candidates in the image. This region-level indexing allows us to 1) describe the semantics of objects in more detail and 2) identify the spatial position of each retrieved object. The user specifies objects as a query; our system can take an example image as in previous RBIR systems (Carson et al., 1999), as well as an object category (e.g., ‘dog’, ‘person’) and object attributes (e.g., ‘running’, ‘white’). The user can retrieve objects in any type of query by describing regions with multitask CNN features (see Sec. 5). Moreover, our system can easily handle queries of multiple objects, wherein different types of query can be specified for each object. In the example shown in Fig. 2, the number of queried objects is two; a category (‘person’) and an attribute (‘riding’) are specified in the first object-level query , and an image of a bicycle is specified within an region-of-interest (RoI) in the second object-level query .

After the objects are specified, the system retrieves candidate images and allows users to specify position constraints among the objects. Our position constraints are specified using a position feature that is computed from the geometric locations of the objects ,…, in the image . As illustrated in Fig. 3, each position feature corresponds to meaningful positional information such as object size (e.g., ), distance between objects (e.g., ), and aspect ratio (e.g., ). The number of position feature types is 19, 82, and 213 when =1, 2, and 3, respectively (breakdown of =82 when =2: size=16, location=32, relation between multiple objects=32, and aspect ratio=2). A position constraint consists of the type of position feature and its threshold (the position feature is above or below the threshold). The spatial location, size, and relationship among objects can be specified by appropriately specifying the position constraints; for example, ‘’ (location in the image), ‘’ (object size), or ‘’ (relationship between objects).

3.1. Position Query Specification

Our system provides three ways to specify the position constraints. The first way is to specify the constraints manually by the user selecting a feature type and threshold. This method works well for specifying simple constraints such as ‘’, (e.g., is big), or ‘’, (e.g., is on the left of ). However, manual specification is frustrating especially when there are many constraints.

The second way is by using our interactive interface. The user interactively specifies the position of objects by dragging and resizing the boxes on the canvas, and the search results are updated immediately in synchronization with the interface. Our system maps the box positions on the interface into constraints regarding the four position features that determine the relative position of the region in the image , namely, , , , and . The boxes on the canvas (specified by the user) also represents specific values of these four position features. To convert these values into position constraints, each of four position features is constrained to be ¡¡ (i.e., ), where is the position feature computed from the boxes on the canvas. Although this specification with an interactive interface is easy and intuitive, the type of position features are limited and relationships between regions cannot be specified.

The third way is recommendation. The system automatically infers and recommends relevant spatial constraints from initial query and results. The recommendation results are displayed in an understandable way (e.g., text, graphics), so that the user can intuitively select preferable recommendation results. By using recommendation, users can easily specify complex queries that describe relationships between objects. The idea is developed in Sec. 4.

3.2. Database Indexing

We first index the region-based CNN features of the image database by taking an approach similar to (Hinami and Satoh, 2016), which consists of the following two steps. (1) Extract features: Given a database that consists of images, for each image (), regions () are detected by performing a selective search (Uijlings et al., 2013) (). A -dimensional CNN feature is then extracted from each region , as , where is the bounding box of , and represents the trained region-based CNN feature extractor. We use the multitask Fast R-CNN feature, as explained later in Sec. 5. (2) Index features: All extracted features are indexed following IVFADC (Douze et al., 2011), which is based on an inverted index and product quantization (PQ), a state-of-the-art indexing for the approximate nearest neighbor search (each feature is compressed into 128-bit codes by using PQ, and the number of codewords is used as an inverted index). Since IVFADC can approximately compute both the distance and inner product, a nearest neighbor search and linear classification (i.e., maximum inner product search) can be handled in one system.

3.3. Search Procedure

Given objects as a query ( in the example in Fig. 2), we first process the query of each object independently and then merge the results into an image-level result. The results are ranked by image-level score and presented to the user after filtering them by the position constraints. The details are as follows (each step corresponds to Fig. 2 (a)–(d)):

(a) Preprocess object-level queries: A category name or an image with a RoI is given as a query for each object. When an image with a RoI is given, we first extract feature from the RoI: . When a name of category or attribute is given, we learn a linear SVM classifier by using the images of the category (e.g., a ‘person’ classifier is learned using ‘person’ images), where the SVM weight vector is used to score the regions. We pre-compute a number of popular category classifiers offline in the same way as R-CNN (Girshick et al., 2014) by using images in the COCO (Lin et al., 2014) and Visual Genome (Krishna et al., 2016). If the classifier of is has not been computed, we train the SVM online by crawling images by using Google image search, in a similar way to VISOR (Chatfield and Zisserman, 2012). The weights are cached so that learning does not have to be done again.

(b) Search regions: This part is also processed for each object independently (). Given the object-level query vectors obtained in the previous step, we retrieve the regions with high relevance scores for each object. When a feature vector is given (when the query is an example image with an RoI), the relevance score of region is computed as . When the weight of the classifier is given (when the query is the name of object category), the relevance score of region is computed as . In either case, we can immediately search the regions with high relevance scores by using IVFADC; we select the inverted lists with the highest score (=64) and compute the score between query and features in the selected lists by PQ. When the attribute with the weight of classifier is also given as a query, the relevance score is also computed by using PQ and added to the region score.

(c) Merge object-level results: Image-level scores are computed by aggregating the object-level scores. For each image , the maximum region score is computed as an image score for each object and the image scores of all objects are summed into a final score of that is then used to rank the images.

(d) Filtering by position constraints: The value of each position feature (Fig. 3) is computed for the search results, and the search results are filtered using position constraints given as a query. The constraints can be refined by interactive feedback, which can be processed in real-time because only this stage (d) is re-calculated on the client-side and involves no communication with the server.

4. Spatial Relationship Recommendation

The position query of our system is represented as a set of position constraints. Users can easily refine them because the constraints are unambiguously defined by equations. However, their specification becomes more complicated as the number of constraints increases. An alternative way of specifying a position query is by using text such as ‘A is at the top of the image’ or ‘A is on the left of B’. Although this way is intuitive, it is ambiguous and difficult to refine. There is a trade-off between intuitiveness and unambiguousness, although both characteristics are important in query specification.

We hence developed a recommendation system that bridges the gap between intuitive and unambiguous query specifications. Our system presents position query candidates with graphics or text so that the user can intuitively choose one. In addition, each recommended position query is represented as a set of position constraints so that the user can easily refine their query. This procedure enables users to intuitively specify and unambiguously refine the query. We propose two types of recommendation (Fig. 2 lower right):

  • Mining-based approach: mining typical patterns of the object spatial positions from the initial search results

  • Language-based approach: predicting the spatial relationship between objects from a pair of object-level queries (text or image) on the basis of the language prior

These two methods are complementary; the mining-based approach depends on the database and not on the query, while the language-based approach depends on the query and not on the database. Therefore, the mining-based approach can search for typical relationships that frequently occur in the target database even if they cannot be represented in language (e.g., Fig. 4a shows three different contexts of ‘ride’). On the other hand, the language-based approach can recommend relationships that are rare in the database, and the results are presented along with the label of relationship (e.g., ‘next to’), which allows users to make selections intuitively.

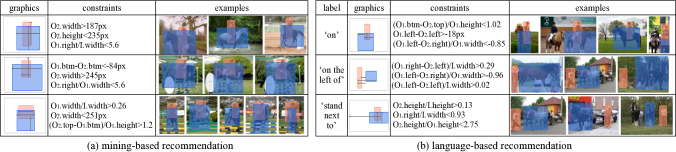

Figure 4. Examples of spatial relationship recommendation (query=‘person’, ‘horse’).

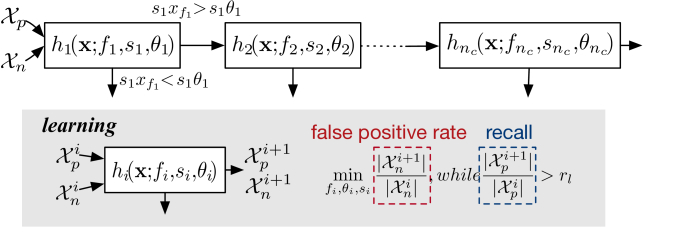

Figure 5. Illustration of position constraint learning.

4.1. Mining-Based Recommendation

When users specify objects as a query, they want to search for images in which the objects are in a specific context. For example, suppose we want to search for a “person riding horse”. Other results such as a “person is standing next to horse” become noise. However, in existing search systems, including popular search engines, it is difficult to make queries that focus on specific contexts of objects. Although some methods specify the relationship between objects by using language (Cao et al., 2015; Johnson et al., 2015) (e.g., A is in front of B), object contexts often cannot be represented in language. To deal with this problem, we developed a way of automatically finding typical spatial contexts of objects in database by mining the search results that are used for making recommendations. By mining search results, we can find object contexts that cannot be represented in language and are specific to the target database.

First, we find typical spatial patterns by clustering the initial search results on the basis of position features (described in Sec. 3). The initial search results, each of them regarded as a point in a high-dimensional space defined by the set of all

position features, are clustered by k-means (the number of cluster

=10), where each cluster (=1,…,) corresponds to one typical pattern (small clusters with are removed). Second, because the clustering results do not always perfectly match the user’s search intention, we map them into position constraint queries so that user can interactively refine the suggested query. The position constraints are learned for each cluster in order to distinguish samples in the target cluster from others (explained later).

Figure 4a shows the learned constraints and search results with the query ‘person’ and ‘horse’. This approach retrieves images showing ‘person riding horse’ in particular contexts. A representative spatial layout of each cluster is also displayed (Fig 4a ‘graphics’) so that users can intuitively select recommendations; the sample closest to the centroids of the cluster is selected as a representative example. The method to learn position constraints is as follows.

Learning of position constraints. The goal is to learn a set of position constraints that can be used to extract data in the target cluster while filtering out the data in clusters other than . As shown in Fig. 5, the constraints can be regarded as a cascade classifier (Viola and Jones, 2001)

, i.e., a degenerate decision tree, where each constraint corresponds to a stage of the cascade. Examples that satisfy all constraints are classified as positive in our case. Each constraint function is denoted as

, which is parameterized by the type of position feature , threshold of feature , and sign of inequality ; the example that has position features with is rejected by the constraint . The parameters of the constraints are learned in a way that is similar to cascade classifier learning. In the training, the data in the target cluster are regarded as positive examples, and the data in other clusters are regarded as negative examples. Formally, we learn a set of constraints that separate positive examples (=) from negative examples . Each constraint is learned by minimizing the false positive rate while maintaining a recall of more than ( was used in this study). The optimal type of feature and threshold is then found for each constraint. constraints are learned in this way ( is used unless otherwise specified).

4.2. Language-Based Recommendation

The user intention can be estimated to some extent from a query that contains a pair of object categories. For example, given the query ‘person’ and ‘bicycle’, it is likely that the user wants to search for images showing a person riding a bicycle. Because some of such language-based relationships (e.g., ride, on the left of) are spatial, the results with a specific type of language-based relationship can be extracted from the search results by properly designing the spatial position constraints. Our language-based recommendation method estimates relationships on the basis of the language prior and provides corresponding position constraints, where the correspondence between the relationships and constraints is learned in advance on the dataset of visual relationship detection

(Lu et al., 2016).

The language-based recommendation has two key components: 1) predicting relationships from the query on the basis of the language prior and 2) learning position constraints for each relationship. The relationship prediction is the same as used in Lu et al. (Lu et al., 2016)

. Two input object category names are mapped to a word embedding space by using a pre-trained word2vec. If an image is given as a query, its object category name is selected from ImageNet 1000-class by predicting the class of the image with AlexNet

(Krizhevsky et al., 2012). Two word2vec vectors are concatenated and input to the relationship classifier. We used the language module in Lu et al. (Lu et al., 2016) as the relationship classifier; it learns a linear projection that maps concatenated word2vec vectors into likelihoods of relationships in the vocabulary (e.g., ‘ride’, ‘on’, ‘next to’). Relationships with high likelihoods are selected as recommendations.

A set of position constraints corresponding to each relationship is learned using the training set of the visual relationship detection (VRD) dataset (Lu et al., 2016). This dataset includes annotations of object pairs and their relationships. An object category name and bounding box are annotated for each object. To learn a set of position constraints of the relationship , a set of positive features is extracted from the object pairs with the relationship and a set of negative features is extracted from relationships other than . Since the VRD dataset provides only one relationship for each object pair, the training data, especially the negative samples, may be very noisy. Note that the nominal number of object pairs may have multiple relevant relationships, while they are annotated only by one of such relationships; hence, they can be potential noisy negative samples of the other relationships. For example, an image of “person rides a bicycle”, when annotated as ‘ride’ but not as ‘on’, this image is an potential noise of the relationship ‘on’. In addition, the numbers of positives and negatives are unbalanced (). These problems make it difficult to learn a standard classifier (e.g., SVM), as is shown in the experiments in Sec. 6.1. We learn the constraints from and by using the same algorithm as in Sec. 4.1. Because the algorithm guarantees the lower bound of the recall (i.e., it guarantees the fraction of positive examples and minimizes the fraction of negative examples including nominal amount of noise), the learned constraints can detect relationships with high recall despite these problems. Examples of learned constraints and corresponding search results are shown in Fig. 4b. Note that this language-based recommendation can be made to work for a larger number of objects by specifying multiple pairwise relationships (e.g., ride and is next to ).

5. Multitask CNN Feature

The purpose of this section is to learn a CNN feature that performs well in multiple tasks, which we call the multitask CNN feature, to use it in our system ( in Sec. 3.2). Our search system deals with multiple search tasks, namely, instance search, object category search, and object attribute search, although the optimal feature is different in each task. Features that are effective in multiple visual search tasks have not received much attention because previous systems generally deal with different tasks independently. However, a system that performs well at multiple tasks would be useful in various situations, such as might a generic image search engine where users have very diverse search intentions. While CNN features generalize well to multiple visual tasks, their performance deteriorates if the tasks between the source and target are not similar, such as between instance retrieval and category classification (Azizpour et al., 2015). Therefore, we investigated several multitask CNN architectures that can extract features that perform well in multiple tasks.

Architectures. Figure 6 shows three architectures of multitask CNN: Joint, Concat, and Merge. To obtain features that perform well in multiple tasks, we designed architectures that leverage the information in multiple tasks by combining features trained on single-task and/or by jointly learning the multiple tasks. Our architectures are based on AlexNet (Krizhevsky et al., 2012) or VGG (Simonyan and Zisserman, 2015), which consists of a set of convolutional and pooling layers (Convs), two fully connected layers (FCs), and an output layer for classification. The architectures can be made compatible with the Fast R-CNN-based architecture by simply replacing the last pooling layer (pool5) with a RoI pooling layer. We removed the bounding box regression layer from the Fast R-CNN, because we only wanted to extract features.

(a) Joint is the same architecture as in the standard single-task model, except for it having multiple classification layers, where Convs and FCs are shared in all tasks. Since Joint is only single-branch, its feature extraction is the fastest of all architectures. However, its training converges much more slowly than the training of other architectures because it learns all tasks jointly in a single branch. (b) Concat concatenates the features of each task’s trained model. This model learns each task separately in different branches; i.e., it does not use multitask learning. Its feature extraction is the slowest of the three architectures. While it is the most accurate in classification because it leverages the features of multiple tasks, its accuracy in nearest neighbor-based retrieval tasks is poor (see the experiments in Sec. 6.2). (c) Merge is a compromise between Joint and Merge, where separate Convs are used for each and FCs are shared among the tasks. It merges conv5 feature maps of multiple tasks into one map by concatenating feature, and reducing dimension with 11 convolutional layer (we call it the merge layer) similar to the approach in (Bell et al., 2016). This model learns Convs for each task separately and then learns the merge layer and FCs for all tasks jointly. The multitask learning of Merge converges faster than Joint because it does not have to learn Convs. Merge is more accurate than Joint because it uses separate Convs optimized for each task.

Training. Training the multitask feature consists of single-task and multitask training. First, every branch of our models is pre-trained by using single-task training following the standard approach of every base network (Krizhevsky et al., 2012; Simonyan and Zisserman, 2015; Girshick et al., 2014; Girshick, 2015). If a pre-trained model is available, we can omit the single-task training. Multitask training is then performed in the Joint and Merge models, where the network is trained to predict multiple tasks. In each iteration, a task is first randomly selected out of all tasks, and a mini-batch is sampled from the dataset of the selected task. The loss of each task is then applied to its classification layer and all Convs and FCs. The Merge model pre-trains the merge layer alone by freezing other layers and then fine-tunes the merge layer and FCs by freezing the Convs.

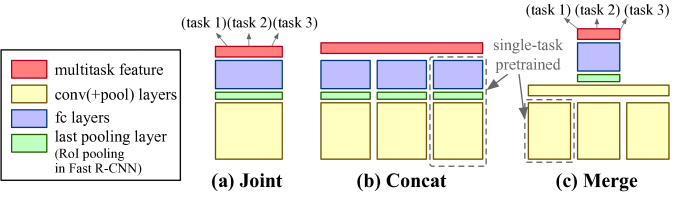

Figure 6. CNN architecture for the multitask feature.

6. Experiments

6.1. Spatial Relationship Recommendation

The experiments described in this subsection evaluate the position constraints used in spatial relationship recommendation. As the goal of spatial relationship recommendation is to bridge the gap between intuitive specification and unambiguous refinement of spatial position queries, each recommended spatial relationship was represented by position constraints. The experiments tested whether the learned position constraint could extract appropriate spatial relationships or not.

Mining-based recommendation. We evaluated the accuracy of position constraint learning in mining-based recommendation. We defined the initial clustering result obtained by k-means as the ground truth and determined whether position constraints could be learned to reproduce the clustering result. As explained in  4.1, position constraints were learned for each cluster as a cascade-style classifier by regarding the data in the cluster to be positive. Precision, recall, and F-value of the learned classifier were computed for each cluster, and the mean values over all clusters were used as performance measures of the position constraint learning. Table 1 lists these measures for different numbers of constraints . We used the PASCAL VOC dataset as the image database and used various combinations of two categories in PASCAL as the query. The table shows mean values over all queries (190 category pairs in total). It shows that the position constraints can accurately reproduce the clustering results in high accuracy even with only three constraints (87% in mean F-value). The examples in the supplementary video demonstrate the effectiveness of this recommendation.

Language-based recommendation. We determined whether the position constraints corresponding to each language-based relationship (e.g., ride, on) can accurately extract only the target relationship. The constraints of relationships are learned with the VRD training set (Lu et al., 2016), which is evaluated with the VRD test set in a similar way to that of the mining-based approach. The recall and selectivity (# of detected data / # of all data) were used as the measures. Precision was not used because the VRD dataset sometimes has potential noisy negative samples (explained in Sec. 4.2), and detection of such samples is heavily penalized in the precision evaluation. In addition, relationships with fewer than ten test samples were removed from the test set. We tested a set of baselines: 1) Visual relationship detection (VRD) in (Lu et al., 2016) was the main competitor. VRD computes the relationship score when given two objects, as in the predicate detection task of (Lu et al., 2016)

. We used this score to obtain the detection results for each relationship, where the threshold of the score was determined from the training set to achieve 90% recall. 2) We tested the combination of our position feature and standard classifiers (linear SVM and random forest (RF)). The classifiers were learned from the same positive and negative position features as our approach. 3) We tested another version using a linear SVM adapted to our task (SVM (adapt)); the threshold of the score was determined so as to achieve 90% recall on the training data.

Table 2

shows the recall, selectivity, and harmonic mean of recall and 1 - selectivity of relationship detection. The mean performance for all relationships is shown on the left (All relationships), and the performance for only spatial relationships (e.g., on the left of, below) is shown on the right (Spatial only). Although our method performed almost as well as VRD on “All relationships”, it significantly outperformed the baseline in terms of spatial relations. In addition, the combination of position features and the standard classifier did not achieve high recall. Our approach learned a constraint that maintained high recall by determining a lower bound of recall that was effective in this problem. In addition, our method based on position features is faster at both feature computation and classification than VRD is. Figure

7 plots the recall and selectivity of every relationship. It shows that spatial relations such as ‘on the right of’ and ‘below’ are accurately detected by using the constraints, while the relationships that are not much related to spatial position (e.g., ‘touch’ and ‘look’) cannot be detected by using the constraints.

Mean precision 59.0 80.9 89.1 93.3 95.5
Mean recall 93.0 90.6 86.5 82.7 79.4
Mean F-value 69.6 84.7 87.2 87.3 86.3
Table 1. Results of clustering-based query recommendation.
All relationships Spatial only
Method Rec. Sel. Har. Rec. Sel. Har.
Ours 84.3 47.0 65.0 88.9 64.9 60.9
(posfeat. 78.2 38.5 68.8 84.5 72.4 76.3
+consts.) 73.7 32.9 70.3 80.5 76.3 76.8
68.0 29.0 69.5 75.4 23.4 76.0
VRD (Lu et al., 2016) 69.3 27.7 70.8 60.4 42.6 58.8
posfeat. + RF 5.0 0.9 9.5 11.8 2.4 21.0
posfeat. + SVM 9.6 6.3 17.4 6.1 3.3 11.4
posfeat. + SVM (adapt) 84.2 75.2 38.3 93.2 76.1 38.1
Table 2. Relationship detection performance.

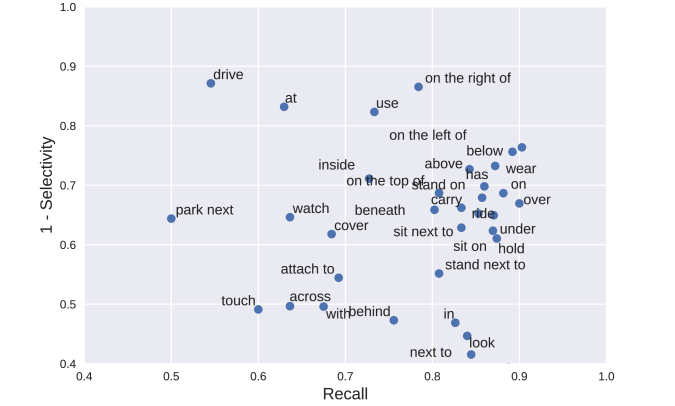

Figure 7. Results of language-based query recommendation.

6.2. Evaluation of Multi-task Feature

The experiments described in this subsection compare the performances of several multitask and single-task CNN features on multiple tasks. We first evaluate our method in a simple image classification and retrieval task using the whole image feature (an evaluation using region-based features is described in the next subsection). A multitask CNN was learned with three datasets, namely, ImageNet (Deng et al., 2009), Places (Zhou et al., 2014), and Landmarks (Babenko et al., 2014), which corresponded to the tasks of the object category, scene, and object instance classification. We tested the performance of these tasks by using PASCAL VOC 2007, CUB-200-2011 (Gavves et al., 2013) (object classification), MIT indoor scenes (Quattoni and Torralba, 2009), SUN-397 scenes (Xiao et al., 2010)

(scene classification), Oxford

(Philbin et al., 2007), and Paris (Philbin et al., 2008) (instance retrieval). In the classification task, we learned a linear SVM classifier on image features in the manner described in (Azizpour et al., 2015). In the retrieval task, we simply performed a nearest neighbor search on the whole image feature space. We post-processed the image feature with -normalization, PCA-whitening, and -normalization, following (Jégou and Chum, 2012) for all tasks. We used AlexNet as the base architecture, whose parameters were initialized using the models pre-trained on ImageNet. All models are trained and tested with Chainer (Tokui et al., 2015).

Table 3 shows the performances of the features obtained by the multitask (Joint, Concat, and Merge) and single-task (ImageNet, Places, and Landmarks) models. In Joint (freeze) and Merge (freeze), the parameters of Convs were frozen (not updated) in the multitask learning. In Concat (4096), Concat features were reduced to 4096-dim by using PCA. Following the standard metrics, mean average precision (mAP) was used on the VOC, Oxford, and Paris datasets, and accuracy was used on the CUB, MIT, and SUN datasets. We can see that Concat performs best in classification tasks (category and scene), while Joint and Merge performs best in instance retrieval tasks. These results imply that features from other unrelated tasks become noise in the nearest neighbor search task, whereas SVM classifiers can ignore unimportant features. Merge performs better than Joint in the scene classification task, which shows that even with multitask learning, Convs in a single branch has difficulty capturing features that are effective in multiple tasks. The performance of Merge (freeze) is almost the same as that of Merge, which means fine-tuning Convs has no effect on the Merge model.

object scene instance
VOC CUB MIT SUN Oxford Paris
Joint 74.8 41.4 63.9 51.5 42.2 49.6
Joint (freeze) 74.6 41.8 63.6 51.1 40.9 49.3
Concat 76.2 43.3 70.6 57.3 36.5 43.3
Concat (4096) 76.0 43.2 70.7 57.0 36.8 43.4
Merge 76.0 41.5 67.1 53.1 42.8 48.1
Merge (freeze) 76.0 41.5 67.2 53.1 42.8 48.1
ImageNet 74.5 42.2 53.1 40.2 30.8 35.2
Places 72.7 22.6 67.1 53.6 30.8 39.5
Landmarks 65.1 30.7 45.7 36.8 42.9 51.2
Table 3. Comparison of different CNN features.
Method VOC Oxford Visual Phrase
Aytar et al. (Aytar and Zisserman, 2014) 27.5 - -
Large-scale R-CNN (Hinami and Satoh, 2016) 50.0 - -
R-MAC (Tolias et al., 2016) - 66.9 -
Gordo et al. (Gordo et al., 2016) - 81.3 -
Visual phrase (Zhang et al., 2011) - - 38.0
VRD (Lu et al., 2016) - - 59.2
Ours (Joint) 56.1 64.3 65.2
Ours (Concat) 57.7 57.6 66.3
Ours (Merge) 57.1 64.1 64.9
Table 4. Retrieval performance of our system. The same feature is used in the evaluation of every dataset.

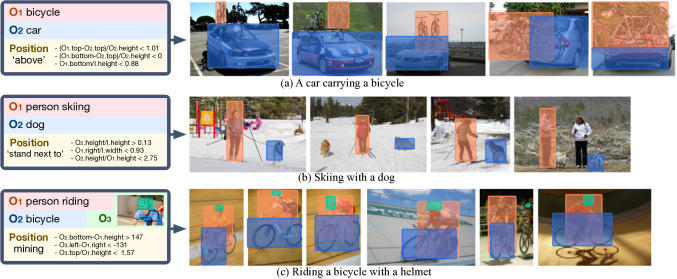

Figure 8. Examples of search results. Query consists of objects (, , and ) and their spatial constraints which are automatically suggested by recommendations. Our system enable to capture various search intentions and retrieve accurately.

6.3. Search Performance

We evaluated the performance of our search system on datasets of three tasks: object category retrieval (PASCAL VOC), instance search (Oxford 5K (Philbin et al., 2007)), and visual phrase detection (Zhang et al., 2011). We trained the multitask Fast R-CNN model on the COCO, Landmarks, and Visual Genome datasets. We used Visual Genome to learn attributes; 72 frequently appearing attribute categories (color, action, etc.) were selected for training. We used the VGG16 model as the base architecture. We used the same hyper-parameters as in Fast R-CNN. The object category retrieval task was evaluated with the same settings of (Hinami and Satoh, 2016). In the instance search, we extracted the query feature from the provided query image and RoI and scored each image by using the distance between the query and its nearest feature of the image. In the visual phrase detection, we evaluated the system on 12 phrases that represented a object1()-relationship()-object2() (e.g., person riding bicycle) as in  (Lu et al., 2016). We manually converted each visual phrase into a query for our system; two objects were specified by category names ( and ) and position constraints is selected from the recommendation result without manual refinement. Table 4 compares the mAPs of our method with those of other state-of-the-art methods tuned for each task. Although the other methods were tuned for each task, our method performed as well or better than them on all datasets.

Finally, let us discuss the search time of our system. The query feature extraction and SVM training highly depends on the CNN architecture and machine resources (e.g., CPU or GPU). Although online SVM training is slow (around 5s per region) because of image crawling and feature extraction, it only has to be done once per one category because we cache all trained classifiers. The speed of region search part is the same as in (Hinami and Satoh, 2016); 130 ms on a 100K database for each object-level query. The time taken by the recommendation part is negligible, less than 0.1 second.

Figure 8 shows examples of the results of our system, which demonstrate that system can flexibly handle queries that have diverse intentions and it produces promising results that match the query with high accuracy. Position query are specified by recommendation. More examples are provided in the supplemental video.

7. Conclusion

We presented region-based image retrieval (RBIR) system that supports semantic object specification and intuitive spatial relationship specification. Our system supports multiple aspects of semantic object specification by example images, categories, and attributes. In addition, users can intuitively specify the spatial relationship between objects with system’s recommendations and interactively refine the suggested queries. This semantic and spatial object specification allows users to make queries that match their intentions. The examples shown in this paper demonstrate the effectiveness of our system as well as the potential of RBIR. RBIR provides a way for users to access the detailed properties of objects (e.g., category, attribute, and spatial position) in image retrieval and we expect it to bring forth promising and exciting applications.

Acknowledgements: This work was supported by JST CREST JPMJCR1686 and JSPS KAKENHI 17J08378.
