Recognizing Fine-Grained and Composite Activities using Hand-Centric Features and Script Data

02/23/2015 ∙ by Marcus Rohrbach, et al. ∙ 0

Activity recognition has shown impressive progress in recent years. However, the challenges of detecting fine-grained activities and understanding how they are combined into composite activities have been largely overlooked. In this work we approach both tasks and present a dataset which provides detailed annotations to address them. The first challenge is to detect fine-grained activities, which are defined by low inter-class variability and are typically characterized by fine-grained body motions. We explore how human pose and hands can help to approach this challenge by comparing two pose-based and two hand-centric features with state-of-the-art holistic features. To attack the second challenge, recognizing composite activities, we leverage the fact that these activities are compositional and that the essential components of the activities can be obtained from textual descriptions or scripts. We show the benefits of our hand-centric approach for fine-grained activity classification and detection. For composite activity recognition we find that decomposition into attributes allows sharing information across composites and is essential to attack this hard task. Using script data we can recognize novel composites without having training data for them.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 8

page 11

page 13

page 24

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

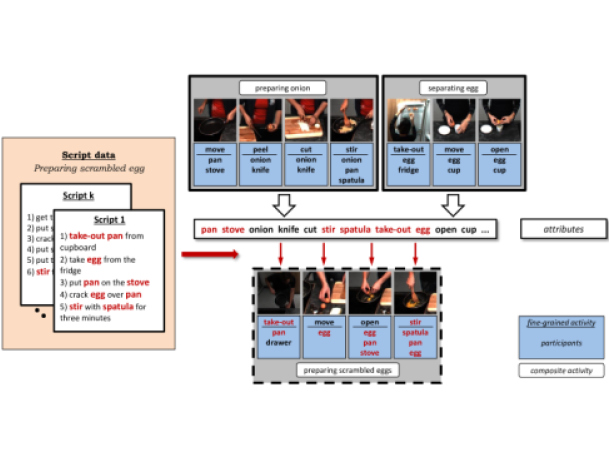

Figure 1:

Sharing or transferring attributes of composite activities using script data. Composite activities (gray boxes) are composed of activities and their participants (light-blue boxes), modeled as attributes. These attributes can be transferred to unseen composite activities (dashed-line box) with the help of script data which allows estimating the relevant attributes (red). Our activities have the additional challenge of being fine-grained, we thus refer to them as fine-grained activities.

Human activity recognition in video is a fundamental problem in computer vision. State-of-the-art methods

(e.g. Tang et al., 2012; Wang et al., 2013b; Wang and Schmid, 2013; Karpathy et al., 2014) achieve near perfect results for simple actions (e.g. KTH dataset, Schuldt et al., 2004) and robustly recognize actions in realistic settings such as Hollywood movies (Marszalek et al., 2009), videos from YouTube (Liu et al., 2009), or sport scenes (Rodriguez et al., 2008).

While impressive progress has been made, we argue that most works are addressing only a part of the overall activity recognition challenge. Many application scenarios, such as human-robot interaction or elderly care require to understand complex activities (e.g. does the person prepare food?), consisting of multiple fine-grained activities and object manipulations (e.g. is it fried and what is in it?). Frequently it is important to recognize both, the individual steps and the high level composite activities, e.g. as we have shown for the task of video description (Rohrbach et al., 2014). Consequently we approach both problems in this work: recognizing fine-grained activities and recognizing composite activities. Fine-grained activities are defined as a set of activities which are visually very similar, i.e. have a low inter-class variability. Composite activities are activities which can be temporally decomposed into multiple shorter activities, i.e. they consist of multiple steps. We note that both the terms are not exclusive, i.e. composite activities can also be fine-grained. In fact some of our composites are very similar. However, in our work we consider composite activities which consist of fine-grained activities.

When surveying the field we also noticed a lack of datasets allowing to pursue the challenges of fine-grained and composite activity recognition. Specifically this is reflected in the following limiting factors of current benchmark databases. First, while datasets with large numbers of activities exist, the typical inter-class variability is high. This seems rather unrealistic for many domains such as surveillance or elderly care where we need to differentiate between consequentially different but visually similar activities e.g. hug someone versus hold someone or throw in garbage versus put in drawer. Second, the activities considered so far are full-body activities, e.g. jumping or running. This appears rather untypical for many applications where we want to differentiate between more small motion and frequently hand centric activities. Consider e.g. the cutting activity in domains such cooking (see Figure 1), handicraft work or surgeries, as well as different repairing activities in the domain of house keeping or machine maintenance with subtle difference in motion and low inter-class variability. As a third limitation we found that many available databases contain videos of few second length and focus on simple basic-level activities such as walking or drinking. In contrast, the recognition of longer-term, complex, and composite activities such as assembling furniture, food preparation, or surgeries have been rarely addressed in computer vision. Notable exceptions exist (see Section 2) even though these have other limiting factors such as small number of classes.

In this work, which is an extension of our original publications (Rohrbach et al., 2012a) and (Rohrbach et al., 2012b), we recorded, annotated, and publicly released a large-scale dataset in a kitchen scenario which addresses the discussed limitations. This allows us to work on the challenges of fine-grained and composite activity recognition as follows.

Recognizing fine-grained activities is challenging due to their low inter-class variability. In contrast to fine-grained object recognition challenges where the same object category typically is also visually consistent, activities of the same category are frequently very diverse, i.e. have a high intra-class variability. Consider e.g. the activities peeling, which can be very different depending of the participating object: peeling a carrot versus peeling a pineapple. At the same time, we have to handle small differences between categories, i.e. low inter-class variability, consider e.g. mix versus stir or slice versus cut dice. This typically requires to understand the difference between fine-grained body motions. To approach both of these challenges we propose to focus on body pose and hands. As can be seen in Figures 1 and 2 many fine-grained activities, especially in our kitchen scenario, are hand-centric. Here it is not only important to understand the activity but also the participating object, e.g. open egg versus open tin. We thus propose to focus on the hand regions for extracting visual features. However, hand detection is a challenging problem in itself in real-world scenarios due to a large variability in shape and frequent partial occlusions (Mittal et al., 2011; Gkioxari et al., 2013). To get reliable hand detections, we integrate a hand detector into an articulated pose estimation. Consequently we use the hand position to extract color Sift and Dense Trajectories (Wang et al., 2013a) and learn detectors for fine-grained activities and their participating objects. Recently, Jhuang et al. (2013) showed that exploiting body pose in form of body joints can be beneficial for full-body activities. We explore two approaches based on body pose tracks, motivated from work in the sensor-based activity recognition community (Zinnen et al., 2009).

For recognizing composite activities, state-of-the-art methods, which build on discriminative learning from low-level activity features, experience scalability issues due to the typically highly diverse composite activities and little training data. A promising approach towards scaling activity recognition methods to a large number of complex activities is to use intermediate representations that are shared and transferred across activities by exploiting their compositional nature. We exploit this technique and propose building on an attribute-based representation, with attributes denoting the fine-grained activities and the participating objects. For example in Figure 1 the composite activity preparing scrambled egg shares the attributes stir and spatula with the composite activity preparing onion and the attributes open and egg with the composite activity separating egg. Instead of learning a holistic model for each composite activity we learn models for a large set of attributes shared across composite activity classes. Such approaches have been shown effective to recognize previously unseen object categories (Lampert et al., 2013) and have also been applied to activity recognition (Liu et al., 2011). A major challenge to recognize everyday activities is that these composite activities can often be performed in a wide variety of ways, and it is practically infeasible to create a visually annotated training set with all possible alternatives. Instead, we collect a large number of textual descriptions (scripts) for a composite activity to compute the association strength between attributes and composite activities. Using this script data we can not only handle the inherent variation of composites but also recognize unseen composite activities. As illustrated in Figure 1, the attributes in red are determined to be important for preparing scrambled eggs using script data and can be transferred from known composites such as separating egg and preparing onion.

Our main contributions are as follows. First, we propose several hand- and pose-based activity recognition approaches to recognize fine-grained activities and their object participants. We benchmark them together with state-of-the-art activity recognition features on our dataset. Second, we contribute an attribute-based approach which shares knowledge across composite activities and exploits textual script data to handle their large variability and allows transfer to unseen composite activities. Third, we recorded and annotated a video dataset called MPII Cooking 2. It provides challenges for classification and detection of fine-grained activities and their participants, human pose estimation, and composite activity recognition (optionally) using script data. In addition to activity recognition, which is the focus of this work, the dataset is also being used for 3D human pose estimation (Amin et al., 2013), multi-frame pose estimation (Cherian et al., 2014), discovering object categories from activities (Srikantha and Gall, 2014), grounding semantic similarities of natural language sentences in video (Regneri et al., 2013), and for generating natural language descriptions (Rohrbach et al., 2013b, 2014).

The remaining article is structured as follows. We first make an extensive review of related datasets, activity recognition approaches, and the use of text data for visual recognition in Section 2. Then we introduce our MPII Cooking 2 dataset in Section 3 which we benchmark in the subsequent sections. In Section 4 we make a quantitative comparison of our pose-recognition and hand detection with related work on the pose challenge of our dataset. Using the pose-estimation and hand detections we define several visual features and discuss fine-grained activity detection in Section 5. In Section 6 we present our approach to combine the fine-grained activities to composite activities and integrate script data. In Section 7 we evaluate fine-grained and composite activity recognition and then we conclude with the most important findings and directions for future work in Section 8.

2 Related work

We first present an overview of the different video activity recognition datasets (Section 2.1) and then review recent approaches to activity recognition (Section 2.2), putting a focus on works which use human pose as a cue. Next we discuss works which use textual information for improved recognition of activities (Section 2.3). We conclude by relating them to our work (Section 2.4).

Dataset cls ,det classes clips /videos subjects # frames resolution
 Full body pose datasets
KTH (Schuldt et al., 2004) cls 6 2,391 25 200,000 160x120
USC gestures (Natarajan and Nevatia, 2008) cls 6 400 4 740x480
MSR action (Yuan et al., 2009) cls ,det 3 63 10 320x240
 Movie and web video datasets
Hollywood2 (Marszalek et al., 2009) cls 12 1,707 /69
UCF 101 (Soomro et al., 2012) cls 101 13,320 2,400,000 320x240
Sports-1M (Karpathy et al., 2014) cls 487 1.1 mil
HMDB51 (Kuehne et al., 2011) cls 51 6,766 height:240
ASLAN (Kliper-Gross et al., 2012) cls 432 3,631 /1,571
Coffee and Cigarettes (Laptev and Pérez, 2007)  det 2 264 /11
High Five (Patron-Perez et al., 2010) cls ,det 4 300 /23
MPII Movie Description (Rohrbach et al., 2015) cls ,det 68,327 /94 1920x1080
 Surveillance datasets
PETS 2007 (Ferryman, 2007)  det 3 10 32,107 768x576
UT interaction (Ryoo and Aggarwal, 2009) cls ,det 6 120 6
VIRAT (Oh et al., 2011)  det 23 17 1920x1080
 Assisted daily living datasets
TUM Kitchen (Tenorth et al., 2009)  det 10 20 /4 36,666 384x288
CMU-MMAC (la Torre et al., 2009) cls ,det 130  26 1024x768
URADL (Messing et al., 2009) cls 17 150 /30 5 50,000 1280x720
MPII Cooking 2 (our dataset) cls ,det 67/ 59 14,105 /273 30 2,881,616 1624x1224
Table 1: Overview of activity recognition datasets: We list if datasets allow for classification (cls), detection (det); number of activity classes; number of clips extracted from full videos (only one listed if identical), number of subjects, total number of frames, and resolution of videos. We leave fields blank if unknown or not applicable.

2.1 Activity Datasets

Even when excluding single image action datasets such as the Stanford-40 Action Dataset (Yao et al., 2011b) or the Pascal Action Classification Challenge (Everingham et al., 2011), the number of proposed activity datasets is quite large (Chaquet et al. (2013) survey 68 datasets). Here, we focus on the most important ones with respect to database size, usage, and similarity to our proposed dataset (see Table 1). We distinguish four broad categories of datasets: full body pose, movie and web, surveillance, and assisted daily living datasets – our dataset falls in the last category.

The full body pose datasets are defined by actors performing full body actions. KTH (Schuldt et al., 2004), USC gestures (Natarajan and Nevatia, 2008), and similar datasets (Singh and Nevatia, 2011)

require classifying simple full body and mainly repetitive activities. The MSR actions

(Yuan et al., 2009) pose a detection challenge limited to three classes. In contrast to these full body pose datasets, our dataset contains more and in particular fine-grained activities.

The second category consists of movie clips or web videos with challenges such as partial occlusions, camera motion, and diverse subjects. UCF50111http://vision.eecs.ucf.edu/data.html and similar datasets (Liu et al., 2009; Niebles et al., 2010; Rodriguez et al., 2008) focus on sport activities. Kuehne et al.’s evaluation suggests that these activities can already be discriminated by static joint locations alone (Kuehne et al., 2011). UCF50 has been extended to UCF 101 (Soomro et al., 2012), significantly increasing the number of categories to 101 and including 2.4 million frames at a rather low resolution of 320x240. The Sports-1M dataset exceeds all datasets with respect to number of clips (1.1 million) and categories (487 different sports), which are, however, only weakly labeled. Hollywood2 (Marszalek et al., 2009), HMDB51 (Kuehne et al., 2011), and ASLAN (Kliper-Gross et al., 2012) have very diverse activities. Especially HMDB51 (Kuehne et al., 2011) is an effort to provide a large scale database of 51 activities while reducing the database bias. Although it includes similar, fine-grained activities, such as shoot bow and shoot gun or smile and laugh, most classes have a large inter-class variability and the videos are low-resolution. ASLAN (Kliper-Gross et al., 2012) focuses on a larger number of activities but with little training data per category. The task is to identify similar videos rather than categorising them. A significantly larger video collection is evaluated during the TRECVID challenge (Over et al., 2012). The 2012 challenge consisted of 291h of short videos from the Internet Archive (archive.org) and more than 4,000h of multi-media (audio and video) data. The challenge covers different tasks including semantic indexing and multi-media event recognition of 20 different event categories such as making a sandwich and renovating a home. Large parts of the data are, however, only available to the participants during the challenge. Although our dataset is easier in respect to camera motion and background, it is challenging with respect to a smaller inter-class variability.

The datasets Coffee and Cigarettes (Laptev and Pérez, 2007) and High Five (Patron-Perez et al., 2010) are different to the other movie datasets by promoting activity detection rather than classification. This is clearly a more challenging problem as one not only has to classify a pre-segmented video but also to detect (or localize) an activity in a continuous video. As these datasets have a maximum of four classes, our dataset goes beyond these by distinguishing a large number of classes. The recent MPII Movie Description dataset (Rohrbach et al., 2015) does not label clips with labels but with natural sentences which are sourced from movie scripts and audio descriptions for the blind.

The third category of datasets is targeted towards surveillance. The PETS (Ferryman, 2007) or SDHA2010222http://cvrc.ece.utexas.edu/SDHA2010/ workshop datasets contain real world situations from surveillance cameras in shops, subway stations, or airports. They are challenging as they contain multiple people with high partial occlusion. The UT interaction (Ryoo and Aggarwal, 2009) requires to distinguish 6 different two-people interaction activities, such as punch or shake hands. The VIRAT (Oh et al., 2011) dataset is a recent attempt to provide a large scale dataset with 23 activities on nearly 30 hours of video. Although the video is high-resolution people are only of 20 to 180 pixel height. Overall the surveillance activities are very different to ours which are challenging with respect to fine-grained hand motion.

Next we discuss the domain of Assisted daily living (ADL) datasets, which also includes our dataset. The University of Rochester Activities of Daily Living Dataset (URADL) (Messing et al., 2009) provides high-resolution videos of 10 different activities such as answer phone, chop banana, or peel banana. Although some activities are very similar, the videos are produced with a clear script and contain only one activity each. In the TUM Kitchen dataset (Tenorth et al., 2009) all subjects perform the same composite activity (setting a table) and rather similar actions with limited variation. Roggen et al. (2010) and la Torre et al. (2009) present recent attempts to provide several hours of multi-modal sensor data (e.g. body worn acceleration and object location). But unfortunately people and objects are (visually) instrumented, making the videos visually unrealistic. In the CMU-MMAC dataset (la Torre et al., 2009) all subjects prepare the identical five dishes with very similar ingredients and tools. In contrast to this our dataset contains 59 diverse dishes, where each subject uses different ingredients and tools in each dish. The authors also record an egocentric view. Similarly to (Farhadi et al., 2010; Fathi et al., 2011; Stein and McKenna, 2013) the camera view mainly shows hands and manipulated cooking ingredients. Also recorded in an egocentric view, Pirsiavash and Ramanan (2012) propose a dataset of 18 diverse daily living activities, not restricted to the cooking domain, recorded in different houses in non-scripted fashion.

Overall our dataset fills the gap of a large database with on the one hand a detection challenge of fine-grained activities and on the other hand a recognition challenge of highly variable composite activities.

2.2 Advances in activity recognition

Activity recognition for still images has been advanced e.g. by jointly modeling people and objects (Yao and Li, 2012) or scenes and objects (Li and Li, 2007). In the following we focus on recognizing activities in video, distinguishing three aspects: holistic features for activity recognition, exploiting body pose, and modelling the temporal structure of activities.

To create a discriminative feature representation of a video, many approaches first detect space-time interest points (Chakraborty et al., 2011; Laptev, 2005) or sample them densely (Wang et al., 2009a) and then extract diverse descriptors in the image-time volume, such as histograms of oriented gradients (HOG) and histograms of oriented flow (HOF) (Laptev et al., 2008) or local trinary patterns (Yeffet and Wolf, 2009). Messing et al. (2009) found improved performance by tracking Harris3D interest points (Laptev, 2005). The state-of-the-art Dense Trajectories approach from Wang et al. (2013a) uses this idea: it tracks dense feature points and extracts strong video features around these tracks, namely HOG, HOF, and Motion Boundary Histograms (MBH, Dalal et al., 2006). They report state-of-the art results on several datasets including KTH (Schuldt et al., 2004), UCF YouTube (Liu et al., 2009), Hollywood2 (Marszalek et al., 2009), and HMDB51 (Kuehne et al., 2011). Recently, Wang and Schmid (2013)

improved their approach by removing background flow and by ensuring that detected humans do not contribute to the background motion estimation. Additionally they replace the BoW encoding with Fisher vectors. The computational effort of this approach can be significantly reduced by replacing dense flow with motion information from video compression

Kantorov and Laptev (2014). As alternative to manually defined activity features, Taylor et al. (2010), Baccouche et al. (2011), Le et al. (2011), and Ji et al. (2013)

use deep learning with convolutional neural networks to learn an activity feature representation. So far these approaches cannot reach the manually defined Dense Trajectories even when learning on a database of over a 1 million videos

(Karpathy et al., 2014).

Human body poses and their motion frequently characterize human activities and interactions. This has been exploited in Microsoft’s Kinect, which uses human pose as a game controller but relies on a depth sensor to recognize human pose (Shotton et al., 2011). Earlier work in human pose based activity recognition employed motion capture systems using physical on-body markers to reliably capture human poses, e.g. (Campbell and Bobick, 1995). Such an approach is impractical for recording realistic data. Recently a number of hand and pose-centric approaches have been proposed for activity recognition for more realistic video recordings (Fathi et al., 2011; Packer et al., 2012; Yao et al., 2011a; Sung et al., 2011; Raptis and Sigal, 2013; Jhuang et al., 2013) as well as in static images (Yang et al., 2011; Yao and Li, 2012). Packer et al. demonstrate impressive results in recognition of kitchen activities using body poses recovered from depth images. Fathi et al. (2011) propose a hand-centric approach for learning effective models of activities from egocentric video by observing regularities in hand-object interactions. Hand poses have been shown to facilitate extraction of appearance features for activity recognition in static images (Karlinsky et al., 2010). Pose-based models are effective for activity recognition when body poses can be estimated reliably, as e.g. in depth images (Packer et al., 2012; Sung et al., 2011). Mittal et al. (2011) and Gkioxari et al. (2013) aim for specialized representations for hands, but do not apply them to pose estimation or activity recognition. Jhuang et al. (2013) study the benefits of pose estimation for activity recognition on a subset of the HMDB dataset (Kuehne et al., 2011). They show that ground truth pose, estimated over time can significantly outperform the holistic Dense Trajectories features (Wang et al., 2013a); this is also true for estimated pose using (Yang and Ramanan, 2013) but only on a subset where the full body is visible.

Although several interesting techniques have been proposed to model the temporal structure of videos, they typically perform only below or on par with bag-of-word based approaches: A simple temporal structure is encoded in the template-based Action MACH from Rodriguez et al. (2008), Brendel and Todorovic (2011) model temporal and spatial structure by segmenting the space-temporal volume, and Niebles et al. (2010) model activities as a temporal composition of primitive actions and discriminatively learn such models. While Niebles et al. fix anchor points and the length of the temporal segments before training, Tang et al. (2012)

learn all parameters from data using a variable-duration hidden Markov model. An AND/OR graph structure can be used to combine different features at its nodes

(Tang et al., 2013) or model co-occurring and consecutive actions (Gupta et al., 2009). Recently Pirsiavash and Ramanan (2014) have shown how to efficiently parse activity videos with segmental grammars.

2.3 Natural language text for activity recognition

Natural language descriptions have shown beneficial for image segmentation (Socher and Fei-Fei, 2010) or recognizing object categories (Wang et al., 2009b; Elhoseiny et al., 2013). Similar to our work, Elhoseiny et al. use classifiers trained on the known classes. Representing the text descriptions with tfidf (term frequency times inverse document frequency) vectors for relevant encyclopedic entries, they compare a regression, a domain adaptation, and a newly proposed constrained optimization formulation to learn a function from the textual vector to the visual classifier space. On two fine-grained visual recognition datasets, CU200 Birds (Welinder et al., 2010) and Oxford Flower-102 (Nilsback and Zisserman, 2008), they show the benefit of their constraint optimization approach. Semantic similarity from linguistic resources has also been used to allow zero-shot recognition in images via attributes and direct similarity (Rohrbach et al., 2010) and by learning an embedding into a linguistic word vector space (Socher et al., 2013; Frome et al., 2013). Additionally to transferring knowledge one can exploit the unlabeled instances to improve recognition, assuming a transductive setting. For this, Fu et al. (2013) exploit the test-data distribution by performing a single round of self-training by averaging over the k-nearest neighbors.

Teo et al. (2012) improve activity recognition by adding object detectors, which are selected based on the linguistic co-occurrence statistics in the newswire Gigaword Corpus. A similar idea is pursued by Motwani and Mooney (2012), who mine and cluster verbs from descriptions of the video snippets in the MSVD dataset (Chen and Dolan, 2011). Zhang et al. (2011) show that tfidf can identify the most relevant terms in text descriptions collected for seven video scenes allowing to yields close to perfect (98%) recognition accuracy on their dataset. Ramanathan et al. (2013) jointly recognize actions and roles in YouTube videos using their captions. They mine a large number of YouTube descriptions and use a topic model to estimate the semantic relatedness between an action/role and a description.

Another line of work focuses on describing videos with natural language descriptions. Recently Guadarrama et al. (2013) generated simple sentences for the Microsoft Video Description corpus (Chen and Dolan, 2011) containing challenging web videos. Das et al. (2013) compose descriptions for kitchen videos of their YouCook dataset showing YouTube cooking videos. Finally, we have shown how to learn a translation model for generating natural sentences on our dataset (Rohrbach et al., 2013b).

2.4 Relations to our work

Most of the activity recognition approaches and datasets have been evaluated on full-body motion or challenging web or movie datasets but not on fine-grained motions with low inter-class variability. We therefore evaluate the holistic Dense Trajectories approach from Wang et al. (2013a) as well as two pose-based and two hand centric approaches on our MPII Cooking 2 dataset. Our pose-based approach encodes trajectories of body joints using features motivated from the sensor-based activity recognition community (Zinnen et al., 2009). The features are also similar to the relational and distance features defined on joints by Jhuang et al.. Similarly to their work we define relational and distance metrics between joints per frame and over time. However, our activities contain very subtle motions and the people have a very similar pose for most activities, which reduces the benefits of this feature representation. Jhuang et al. examine the advantages of focusing Dense Trajectories (Wang et al., 2013a) on body joints. In our static scene (holistic) Dense Trajectories are already restricted to human body as the features are only extracted on moving points. However, in this work we propose to focus on hands, as they are the main cue for recognizing our fine-grained activities and participating objects.

In (Amin et al., 2013) we improve the hand localization by leveraging multiple cameras to handle self-occlusion. In this work we remain monocular and propose to use a specialized hand detector to improve pose estimation and activity recognition.

To improve fine-grained activities and their participating objects we train a classifier on stacked classifier scores from co-occurring activities/objects as well as from temporal context after max pooling. Classifier stacking has previously been explored e.g. in

(Ting and Witten, 1997; Liu et al., 2012; Sill et al., 2009). Most relevant to our work, Liu et al. (2012) try to optimize the usage of training data and avoid over-fitting when learning stacked video classifiers. This could be beneficial when applied to our approach.

In this work we exploit cooking instructions (script data) to extract which activities, tools, and ingredients are relevant for a certain dish (composite activity). For this we compare co-occurrence statistics with tfidf, which has also been used by Zhang et al. (2011) and Elhoseiny et al. (2013) to extract relevant concepts for video scene and object recognition. We find that tfidf better discriminates different dishes and improves performance in most cases. Script data allows for zero-shot recognition, which has mainly been used for object recognition, but also for multi-media data by Fu et al. (2013). Fu et al. learn a latent attribute representation on the known classes, but then use manually defined attribute associations to transfer.

While the temporal structure, i.e. temporal ordering, seems an important component to recognize activities, so far mainly the short term structure of short video clips has been explored (e.g. Gupta et al., 2009; Brendel and Todorovic, 2011; Tang et al., 2012). In this work we exploit temporal co-occurrence within the same time interval and context of short actions and their participating objects within the entire video using max pooling. For long term composite activities we aggregate its components with max pooling ignoring the temporal order. Nevertheless, we believe that the temporal structure of scripts (Regneri et al., 2010) might form a good prior for the temporal structure of videos and vise-versa. Bojanowski et al. (2014) have recently shown the benefit of movie scripts as a weak supervision. They use the ordering constraints provided by the script data to localize the actions and to learn action models.

Finally we shortly summarize how this work extends our original publications (Rohrbach et al., 2012a) and (Rohrbach et al., 2012b). First, we updated the dataset by correcting and unifying some of the annotations and adding a few more videos. We refer to this new version as MPII Cooking 2. It supersedes both previous datasets, see Table 3. Second, we present hand-centric approaches for fine-grained recognition, namely an integration of pose-estimation and hand detector and Hand centric features for activity recognition (arXiv: Senina et al., 2014). Third, we integrated our Propagated Semantic Transfer (PST) from Rohrbach et al. (2013b) for composite recognition. Fourth, we extended qualitative and quantitative results. Fifth, we extended the discussion of related work. Sixth, we rerun experiments with updated version of Dense Trajectories (Wang and Schmid, 2013). And last, we will release the updated version of the dataset, new intermediate features as well as the script data.

3 Dataset “MPII Cooking 2”

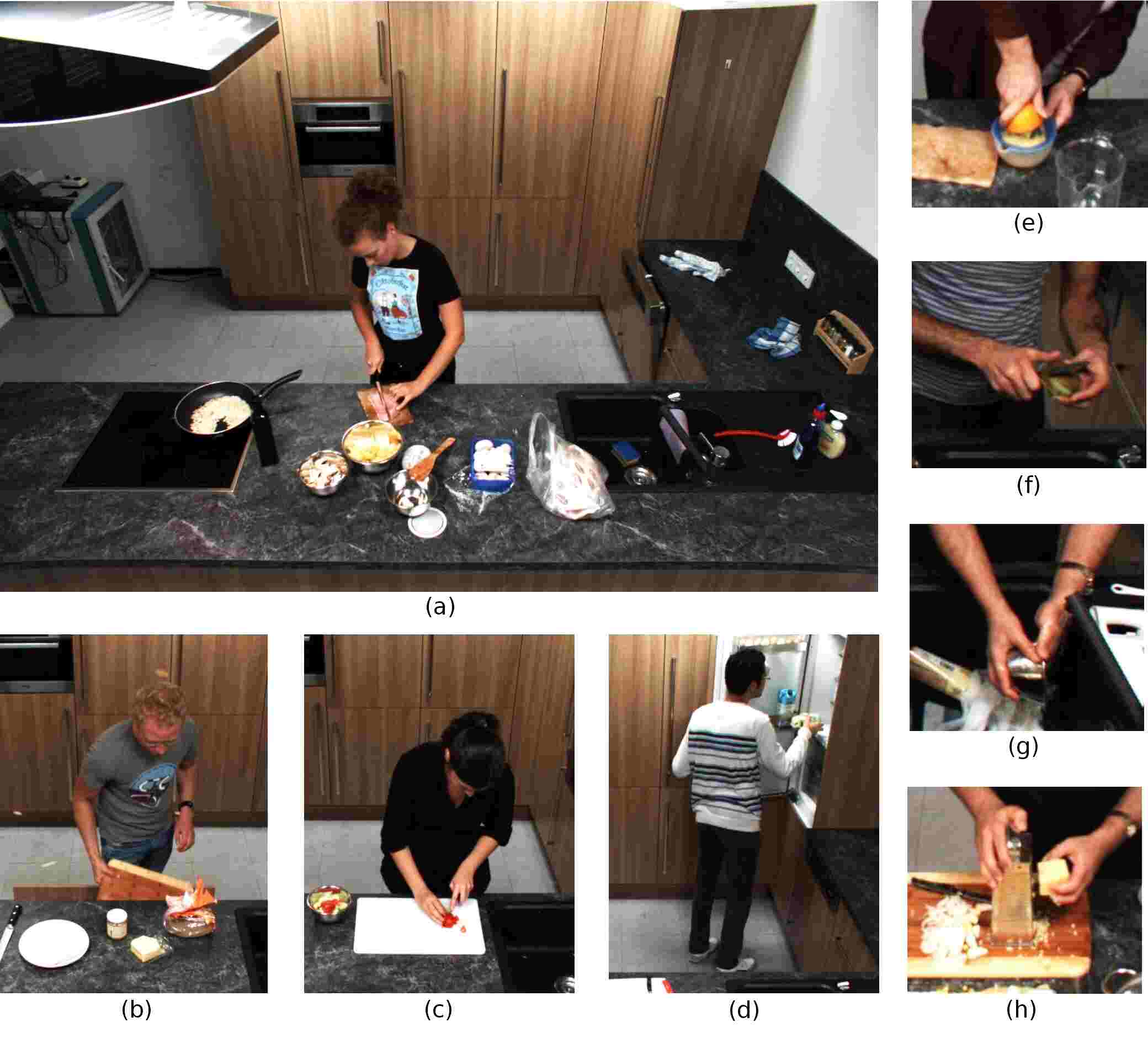

Figure 2: Single frames from the dataset depicting fine-grained cooking activities and diverse sets of tools and ingredients (participants). (a) Full scene of slicing in the composite activity omelet, and crops of (b) take out, (c) dicing, (d) take out, (e) squeeze, (f) peel, (g) wash, (h) grate

For our dataset we video-recorded human subjects cooking a diverse set of dishes, e.g. making pizza or preparing cucumber. The dishes form the composite activities and the individual steps taken are the fine-grained activities, e.g. cut, pour, or spice. All videos have a composite label and are annotated with time intervals. Each time interval has a fine-grained activity and the participating objects as labels. A subset of frames was annotated with human pose and hands. In the following we provide details and statistics of the dataset, Figures 1 and 2 show example frames of the dataset.

3.1 Dataset statistics and versions

We recorded 30 subjects in 273 videos with a total length of more than 27 hours or 2,881,616 frames. Each video contains a single subject preparing a certain dish.

The dataset was recorded in two batches. The first part contains few, but very diverse and complex dishes (see upper part of Table 2) and was presented in (Rohrbach et al., 2012a). The second part, presented in (Rohrbach et al., 2012b), focuses on composite activities and thus contains significantly more dishes/composites which are slightly shorter and simpler, see lower part of Table 2. The second set of composite activities are selected according to our script corpus which we describe below in Section 3.4. We ignored some of them which were either too elementary to form a composite activity (e.g. how to secure a chopping board), were duplicates with slightly different titles, or because of limited availability of the ingredients (e.g. butternut squash).

For this work we corrected and unified some of the annotations and added a few more videos. We refer to this new dataset version as MPII Cooking 2. It supersedes both previous datasets. Table 3 compares the different versions and shows different statistics about them. The table also shows the proposed training/validation/test split, which is selected in a way that for all 31 composite activities in the test set, there are at least 3 training/validation videos and there is no overlap between training, validation, and test subjects. In contrast to the earlier versions we avoid multiple test splits for simpler evaluation and to reduce the computational burden for other researchers evaluating on the dataset.

MPII Cooking sandwich, salad, fried potatoes, potato pancake, omelet, soup, pizza, casserole, mashed potato, snack plate, cake, fruit salad, cold drink, and hot drink
MPII Composites cooking pasta, juicing {lime, orange}, making {coffee, hot dog, tea}, pouring beer, preparing {asparagus, avocado, broad beans, broccoli and cauliflower, broccoli, carrots and potatoes, carrots, cauliflower, chilli, cucumber, figs, garlic, ginger, herbs, kiwi, leeks, mango, onion, orange, peach, peas, pepper, pineapple, plum, pomegranate, potatoes, scrambled eggs, spinach, spinach and leeks}, separating egg, sharpening knives, slicing loaf of bread, using {microplane grater, pestle and mortar, speed peeler, toaster, tongs}, zesting lemon
Table 2: Composite activities (dishes) of MPII Cooking 2 dataset, composites marked in bold are part of the test split.
videos subjects categories ground truth attribute video
composites attributes time intervals instances duration
MPII Cooking (Rohrbach et al., 2012a) 44 12 14 218 3,824 15,382  3-41 min
MPII Composites (Rohrbach et al., 2012b) 212 22 41 218 8,818 33,876  1-23 min
combined 256 30 55 218 12,642 49,258  1-41 min
MPII Cooking 2 273 30 59 222 14,105 54,774  1-41 min
- Training set 201 24 58 222 10,931 42,619 1-41 min
- Validation set 17 1 17 107 445 1,662 1-8 min
- Test set 42 5 31 169 2,102 8,023 1-13 min
Table 3: Dataset statistics. Note that the train/val/test split do not add up to the full dataset, as some videos of the test subjects are not used as they have less than three train/val videos.
1. get a large sharp knife 1. gather your cutting board and knife. 1. wash the cucumber
2. get a cutting board 2. wash the cucumber. 2. peel the cucumber
3. put the cucumber
on the board
3. place the cucumber flat
on the cutting board.
3. place cucumber on
a cutting board.
4. hold the cucumber
in your weak hand
4. slice the cucumber
horizontally into round slices.
4. take a knife and rock it
back and forth on the cucumber
5. chop it into slices with
your strong hand
5. make a clean thin slice each time.
Table 4: Three example scripts for the composite activity preparing cucumber.

3.2 Datasetß recording and annotation protocol

To record realistic behavior we neither asked subjects to perform certain activities nor to follow a certain recipe but we told them only which dish they should prepare. This resulted in a larger variety of how subjects prepared things. This means subjects used different tools for preparation (knife or peeler for peeling), took different steps (e.g. some people cooked the vegetables some did not), and did things in different temporal orders for the same dish (e.g. washed the vegetable before or after they peeled it). Before the recording the subjects were shown our kitchen and places of tools and ingredients to feel at home. During the recording subjects could ask questions in case of problems and some listened to music. We always started the recording with an empty and clean kitchen, prior to the subject entering the kitchen and ended it once the subject declared to be finished, i.e. we did not include the final cleaning process. Most subjects were university students from different disciplines recruited by e-mail and publicly posted flyers. Subjects were paid per hour and cooking experience ranged from beginner cookers to amateur chefs.

Composite activities are annotated on the level of each video. Fine-grained activities were annotated with a two-stage revision phase with start and end frame using the annotation tool Advene (Aubert and Prié, 2007). In addition to the activity category each annotation consists of used tools, ingredients, and locations (we refer to them as participants). Composite activities were chosen as described in Sections 3.1 and 3.4. Activity, tool, ingredient, and location categories were chosen to describe all activities the human subjects were performing. The decision was made after the recording on the base what the human subjects did. With respect to the level of detail, we do not annotate the specific motions (e.g. move arm up or down) but what effect or semantic they have (e.g. open versus close). See Table 7 for the chosen granularity.

We recorded in our kitchen (see Figure 2(a)) with a 4D View Solutions system using a Point Grey Grasshopper camera with 1624x1224 pixel resolution at 29.4fps and global shutter. The camera is attached to the ceiling, recording a person working at the counter from the front. We provide the sequences as single frames (jpg with compression set to 75) and as video streams (compressed weakly with mpeg4v2 at a bit-rate of 2500). For most videos we recorded 7 additional camera views on the kitchen, a subset was used and released by Amin et al. (2013). Although they are not used in this work we will make the remaining 7 views available upon publication. All fine-grained and composite activity annotations are also valid for the other cameras as each frame was synchronized across all 8 cameras.

We also provide intermediate representations of holistic video descriptors, human pose detections, tracks, and features defined on the body pose. We hope this will foster research at different levels of activity recognition.

The dataset provides furthermore human body pose annotations (see Section 3.3), script data (see Section 3.4) and there exist textual descriptions in the TACoS (Regneri et al., 2013) and TACoS multi-level corpus (Rohrbach et al., 2014). The descriptions in TACoS describe what happens in a specific video and are temporally aligned to the video, i.e. they provide a textual annotation. In contrast, the scripts used in this work are collected independently of the video and thus contain domain or script knowledge, i.e. what activities and what objects are likely used for a certain dish. As they are not specific to the training videos they allow to transfer and generalize to novel test scenarios.

3.3 Pose Challenge

A subset of frames have articulated human pose and hand annotations to learn and evaluate pose estimation approaches and hand detectors. For human pose we annotated the frames with right and left shoulder, elbow, wrist, and hand joints as well as head and torso. We have 2,994 frames of 10 subjects for training of pose annotation and an additional of 4,250 training images with hand points used for training the hand detector. For testing we sample 1,277 frames from all activities with 7 subjects as test set for the pose challenge. All training and test frames are from MPII Cooking (Rohrbach et al., 2012a) and thus avoid an overlap with the test subjects and test composites in MPII Cooking 2.

3.4 Mining script data for composite activities

Linguistics and psychology literature knows prototypical sequences of certain activities as so-called scripts (schank77book; Barr and Feigenbaum, 1981). Scripts describe a certain scenario which corresponds to composite activities in our case. Scenarios (e.g. eating in a restaurant) are temporally ordered events (the patron enters restaurant, he takes a seat, he reads the menu,…) and subjects (patron, waiter, food, menu,…). Written event sequences for a scenario can be collected on a large scale using crowd-sourcing (Regneri et al., 2010). We make use of this method to collect scripts for our composite activities and assembling a large number of written sequences for each of those.

We collect natural language sequences similar to Regneri et al. (2010) using Amazon’s Mechanical Turk333http://www.mturk.com. For each composite activity, we asked the subjects to give tutorial-like sequential instructions for executing the respective kitchen task. The instructions had to be divided into sequential steps with at most 15 steps per sequence. We select 53 relevant kitchen tasks as composite activities by mining the tutorials for basic kitchen tasks on the webpage “Jamie’s Home Cooking Skills”444http://www.jamieshomecookingskills.com. All those tasks/scenarios are about processesing ingredients or using certain kitchen tools. In addition to the data we collected in this experiment, we use data from the OMICS corpus (Singh et al., 2002) and Regneri et al. (2010) for 6 kitchen-related composite activities. This results in a corpus with 59 composite activities and 2,124 sequences in sum, having a total of 12,958 individual event descriptions. Note that for practical reasons we only recorded videos for 35 of these composite activities as discussed in Section 3.1. They are listed in Table 2 under “MPII Composites”.

This script corpus provides much more variation than the limited number of video training examples can capture. Of course this also poses a challenge, because we need to overcome the problem of different wordings and coordinated events: Table 4 shows three examples we collected for the composite activity preparing cucumber. They differ in verbalization (e.g. slice, chop, and make a slice) and granularity (getting something is often left out). Further, the sequences reflect different ways of preparing the vegetable, some include peeling it, some do not wash it, and so on. Some sentences contain conjugated events (take a knife and rock it…). While we clean the data to a certain degree by fixing spelling mistakes and resolving pronouns with the method from Bloem et al. (2012), we end up with both challenges and blessings of a noisy but big script corpus.

In Section 6.4 we will describe how we extract semantic relatedness from this data.

4 Hand detection and pose estimation

One goal of this paper is to investigate the applicability of state-of-the-art pose estimation methods in the context of activity recognition. Therefore, in this section we propose our new pose estimation method based on Andriluka et al. (2011) and benchmark it on our dataset together with state-of-the-art pose estimation methods. Another goal is to demonstrate the importance of hand-based features for recognizing activities and their participants. For this we need to localize hands, which is in itself a challenging task due to partial occlusions, obstruction by manipulated objects, and variability of hand postures. In order to achieve high quality hand localization we leverage two complementary sources of information. We exploit the characteristic appearance of hands in order to train an effective hand detector. We then integrate observations from this detector in our pose estimation approach to take advantage of the context provided by the other body parts. As another finding, we show that localization of all body parts benefits significantly from our specialized hand detector.

In the following we introduce our hand detector (Section 4.1) and pose estimation method (Section 4.2) as well as how we combine them (Section 4.3). In Section 4.4 we evaluate our proposed approaches as well as state-of-the-art pose estimation methods on our dataset.

4.1 Hand detection based on local appearance

As a basis for our hand detector we rely on the deformable part models (DPM, Felzenszwalb et al., 2010). We discuss several design choices in order to achieve best performance.

Detection of left and right hands.

We aim for a hand detector that can correctly distinguish the left and right hand of a person. The rationale behind this is that for many activities left and right hands have different roles (e.g. for a cutting activity the dominant hand is typically holding a knife while the supporting hand is holding the object that is being cut). Further, we would like to avoid situations when two strong hypotheses for one of the hands are chosen over two hypotheses for both hands. We achieve this by dedicating separate DPM components to left and right hands and jointly training them within the same detector (see examples in Figure 3). Note that in contrast to the default setting mirroring is switched off in DPM. At test time we pick the best scoring hypothesis among the components corresponding to left and right hands.

Component initialization.

We capture the variance of hand postures by decomposing the hands’ appearance into multiple modes and representing each mode with a specific DPM component. We found that a rather large number of components is necessary to achieve good detection performance. We initialize the components by clustering the HOG descriptors of the training examples using K-means as in

Divvala et al. (2012). The detection further improves by first clustering the training examples by hand orientation and then by HOG.

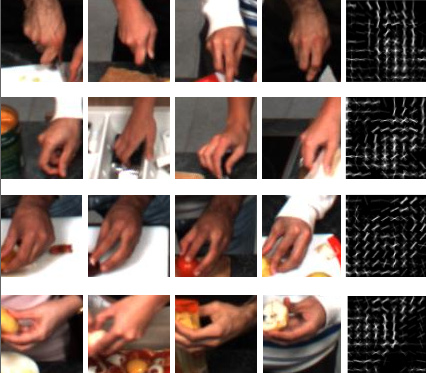

Figure 3: Examples of training images assigned to 4 different hand components, each row shows images from one component. Rows 1 and 2 correspond to right hand components, and rows 3 and 4 to left hand components.
Body context.

We improve the hand localization by augmenting the hand detector with the context provided by a person detector. We rely on the person detector to constrain the search for hands to the image locations within the extended person bounding box and also constrain the scale of the hands detector to the scale of the person hypothesis.

4.2 Pose estimation

upper arm lower arm Method Torso Head r l r l All Original models CPS Sapp et al. (2010) 67.1 0.0 53.4 48.6 47.3 37.0 42.2 FMP Yang and Ramanan (2011) 63.9 72.1 60.2 59.6 42.1 46.7 57.4 PS Andriluka et al. (2009) 58.0 45.5 50.5 57.2 43.3 38.8 48.9 Trained on our data FMP Yang and Ramanan (2011) 79.6 67.7 60.7 60.8 50.1 50.3 61.5 PS Andriluka et al. (2009) 80.1 80.0 67.8 69.6 48.9 49.6 66.0 FPS 78.5 79.4 61.9 64.1 62.4 61.0 67.9 FPS + data 79.3 85.0 64.3 64.6 60.0 59.8 68.8 FPS + data + hand det 79.6 84.9 70.9 70.0 73.5 70.2 74.9 FPS + data + color 80.7 85.8 69.1 67.4 69.3 65.5 73.0 FPS + data + hand det + color 81.3 86.1 72.4 71.3 74.4 70.3 75.9
Figure 4: (a) 2D upper body pose estimation results on the “Pose Challenge” of our dataset. The numbers correspond to the “percentage of correct parts” (PCP). (b) Accuracy of different methods for detection of right and left hands for a varying distance (in pixels) from the ground truth position.

We base our pose estimation approach on the pictorial structures (PS) approach (Fischler and Elschlager, 1973; Felzenszwalb and Huttenlocher, 2005). In PS the body is represented as a collection of rigid parts linked via a set of pairwise part relationships. Unlike the original model we define a flexible variant of the PS model (FPS) that consists of parts corresponding to head, torso, as well as left and right shoulders, elbows, wrists and hands. Denoting the configuration of parts as , and image observations as , the posterior over the part configuration is given by

(1)

where is a set of connected part pairs. We build on the publicly available PS implementation from Andriluka et al. (2011). In this model the pairwise connections between parts form a tree structure, which permits efficient and exact inference. The pairwise terms represent the spatial relationships between part positions and are modeled as Gaussians with respect to relative position and orientation of parts. The appearance of individual parts is represented with boosted part detectors and shape context image features. Conceptually the formulation of Andriluka et al. (2011) is similar to flexible mixture of parts model (FMP, Yang and Ramanan, 2011). The FMP model represents appearance of each body part with a set of HOG templates. Pairwise terms are adapted depending on the particular template. Parameters of appearance templates and pairwise terms of the FMP model are jointly trained using max-margin objective. The model of Andriluka et al. (2011) relies on a single appearance template for all parts. Parameters of pairwise terms are estimated using maximum likelihood independently from appearance terms. We extend this model by incorporating color features into the part likelihoods by stacking them with shape context features prior to part detector training. We encode the color as a multidimensional histogram in RGB space using bins for each color dimension which results in dimensional feature vectors. We then concatenate color and shape context features and train boosted part detectors for each part using the combined representation. We use standard AdaBoost for training and rely on the same weak learners as in Andriluka et al. (2011).

4.3 Combining hand detection and pose estimation

We extend the image observations in Eq. 1 with detection hypotheses for left and right hands, which we obtain using the corresponding components of our hand detector. We denote the set of hand hypotheses produced by our hand detector by , where is the image position and the detection score. Based on this sparse set of detections we obtain a dense likelihood map for the hand part

using a kernel density estimate:

(2)

where is a positive weight associated with each hand hypothesis computed by shifting the detection score by the minimal score value . There is no specific upper/lower bound for the scores , but since DMP relies on SVM formulation the scores tend to be centered around 0 with confident negative examples having score less than -1. In practice we set and ignore all detections with a smaller score than .

4.4 Evaluation: pose estimation and hand detection

We first evaluate the results on the upper-body pose estimation task. In order to identify the best 2D pose estimation approach we use our 2D body joint annotations (see Section 3.3). For evaluating these methods we adopt the PCP measure (percentage of correct parts) proposed by Ferrari et al. (2008). The results are shown in Figure 4. The first three lines compare three state-of-the-art methods: the cascaded pictorial structures (CPS, Sapp et al., 2010), the flexible mixture of parts model (FMP, Yang and Ramanan, 2011) and the implementation of pictorial structures model (PS, Andriluka et al., 2011), using their published pose models. Lines 4 and 5 show the models of Yang and Ramanan and Andriluka et al. retrained on our data. Overall the model of Andriluka et al. performs best, achieving 66.0 PCP for all body-parts. We attribute the improvement of PS over FMP to the following. The FMP model encodes different orientation of parts via different appearance templates, whereas the PS model uses a single template that is rotation invariant and is evaluated at all orientations. The FMP model has a larger number of parameters because appearance templates are not shared across different part orientations. A larger number of parameters means that it is easier to overfit the FMP model than the PS model. This could explain the performance differences after retraining on our data. It could also be that finer discretization of body part orientations in the PS model compared to the FMP model is important for good performance. As described above we base our model (FPS) on PS, adding to it flexible part configuration.

The bottom part of the Figure 4 shows that this as well as our other improvements (more training data comparing to Rohrbach et al. (2012a), color features, and hand detections) in the model each helps to improve performance. Overall, compared to PS, we achieve an improvement from 66.0 to 75.9 PCP and most notably an improvement from 48.9 to 74.4 and from 49.6 to 70.3 for lower arms, which are most important for recognizing hand-centric activities. We also would like to point to the benefit which hand detectors have to pose estimation (compare line 7 vs 8 and 9 vs 10).

Next we discuss the hand detection results. Our final hand detector handDPM is based on components with components allocated to each of the hands. The components are initialized by first grouping the training examples of each hand into discrete orientations, and then clustering their HOG descriptors. In the experiments on hand localization we use a metric that reflects the localization accuracy and measures the percentage of hand hypotheses within a given distance from the ground truth. We visualize the results by plotting the localization accuracy for a range of distances.

Figure 4 presents the evaluation of the localization accuracy of both hands. We observe that our hand detector (handDPM, red-dashed curve) alone already significantly improves over the proposed FPS approach (black-dotted-triangles). The performance further improves when hand detection hypotheses are integrated within the pose estimation model (blue-solid-stars). However, the improvement is moderate, likely because the pose estimation approach is not optimized specifically for hand detection and has to compromise between localization of hands and other body parts. Some qualitative examples are shown in Figure 5.

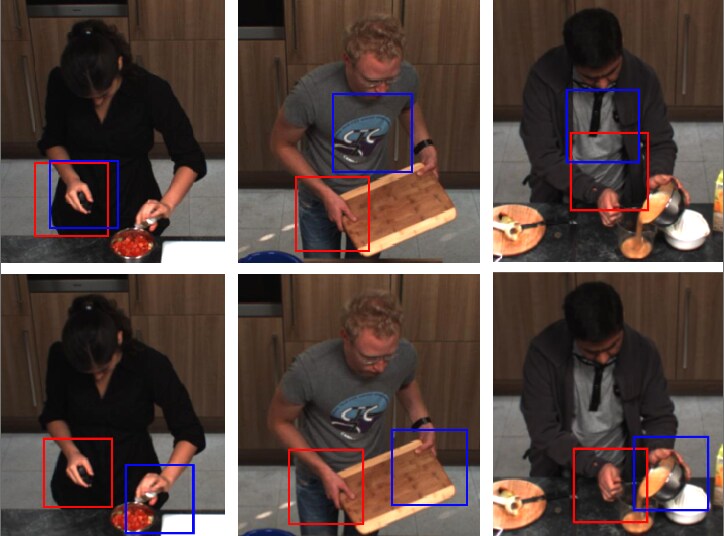

Figure 5: Pose helps to resolve failure cases of hand localization (upper row - handDPM, lower row is FPS+data+hand det+color).

We also compare our hand detector to a state-of-the-art hand detector of Mittal et al. (2011) using the code made publicly available by the authors. We perform the best-case evaluation and assign the hand hypothesis returned by the approach to the closest left and right hand in the ground-truth, as the hand detector does not differentiate between left and right hands. For a fair comparison we also filter the hand detections of Mittal et al. (2011) at irrelevant scales and image locations using body context as explained before. Our detector significantly improves over the hand detector of Mittal et al. (2011), which in addition to hand appearance also relies on color and context features, whereas our hand detector uses hand regions only. Note that there are significant differences between localization accuracy of left and right hands. We attribute this to the fact that the majority of people in our database are right handed. Since people perform many activities with their dominant hand, the pose of the right hand is more likely to be constrained by various activities due to the use of tools such as a knife or peeler. The left hand’s pose is far less deterministic and the hand is often occluded behind the counter or while holding various objects.

5 Approaches for fine-grained activity recognition and detection

In this section we focus on fine-grained activity recognition to approach the challenges typical e.g. for assisted daily living. Along with the activities we want to recognize their participating objects. To better understand the state-of-the-art for this challenging task we benchmark three types of approaches on our new dataset. The first type (Section 5.1) uses features derived from upper body model motivated by the intuition that human body configurations and human body motion should provide strong cues for activity recognition. For body pose estimation we rely on our approach described in Sections 4.2 and 4.3. The second type (Section 5.2) are the state-of-the-art Dense Trajectories (Wang et al., 2013a) which have shown promising results on various datasets. It is a holistic approach in a sense that it extracts visual features on the entire frame. As the third type (Section 5.3) we present our hand-centric visual features, targeted at recognizing our hand-centric activities and the participating objects which are typically in the hand neighbourhood. For this we propose a hand detector (Sections 4.1, 4.3). Finally, we discuss our approaches to activity classification and detection in Section 5.4.

5.1 Pose-based approach

Pose-based activity recognition approaches were shown to be effective using inertial sensors (Zinnen et al., 2009). Inspired by Zinnen et al. (2009) we build on a similar feature set, computing it from the temporal sequence of 2D body configurations.

We employ a person detector (Felzenszwalb et al., 2010) and estimate the pose of the person within the detected region with 50% border around. This allows us to reduce the complexity of the pose estimation and simplifies the search to a single scale. To extract the trajectories of body joints we rely on search space reduction (Ferrari et al., 2008)

and tracking. To that end we first estimate poses over a sparse set of frames (every 10-th frame in our evaluation) and then track over a fixed temporal neighborhood of 50 frames forward and backward. For tracking we match SIFT features for each joint separately across consecutive frames. To discard outliers we find the largest group of features with coherent motion and update the joint position based on the motion of this group. This approach combines the generic appearance model learned at training time with the specific appearance (SIFT) features computed at test time.

Given the body joint trajectories we compute two different feature representations. First is a manually defined statistics over the body model trajectories, which we refer to as body model features

(BM). Second is Fourier transform features (FFT) from

Zinnen et al. (2009), which have shown effective for recognizing activities from body worn wearable sensors.

Body model features (BM).

For the BM features we compute the velocity of all joints (similar to gradient calculation in the image domain). We bin it in an 8-bin histogram according to its direction, weighted by the speed (in pixels/frame). This is similar to the approach by Messing et al. (2009) which additionally bins the velocity’s magnitude. We repeat this by computing acceleration of each joint. Additionally we compute distances

between the right and corresponding left joints as well as between all 4 joints on each body half. Similar to the joint trajectories (i.e. trajectories of x,y values) we build corresponding “trajectories” of distance values by stacking the values over temporally adjacent frames. For each distance trajectory we compute statistics (mean, median, standard deviation, minimum, and maximum) as well as a rate of change histogram, similar to velocity. Last, we compute the angle trajectories at all inner joints (wrists, elbows, shoulders) and use the statistics (mean etc.) of the angle and angle speed trajectories. This totals to 556 dimensions.

Fourier transform features (FFT).

The FFT feature contains 4 exponential bands, 10 cepstral coefficients, and the spectral entropy and energy for each x and y coordinate trajectory of all joints, giving a total of 256 dimensions.

Feature representation.

For both features (BM and FFT) we compute a separate codebook for each distinct sub-feature (i.e. velocity, acceleration, exponential bands etc.) which we found to be more robust than a single codebook. We set the codebook size to twice the respective feature dimension, which is created by computing k-means from all features (over 80,000). We compute both features for trajectories of length 20, 50, and 100 (centered at the frame where pose was detected) to allow for different motion lengths. The resulting features for different trajectory lengths are combined by stacking and give a total feature dimension of 3,336 for BM and 1,536 for FFT.

5.2 Holistic approach

Most approaches for activity recognition are based on a bag-of-words representations. We pick the state-of-the-art Dense Trajectories approach (Wang et al., 2011, 2013a) which extracts histograms of oriented gradients (HOG), flow (HOF Laptev et al., 2008), and motion boundary histograms (MBH Dalal et al., 2006) around densely sampled points, which are tracked for 15 frames by median filtering in a dense optical flow field. The x and y trajectory speed is used as a fourth feature. Using their code and parameters which showed state-of-the-art performance on several datasets we extract these features on our data. Following Wang et al. (2013a) we generate a codebook for each of the four features of 4,000 words using k-means from over a million sampled features.

5.3 Hand-centric approach

In domains where people mainly perform hand-related activities it seems intuitive to expect that hand regions contain important and relevant information for recognizing those activities and the participating objects. Thus, in addition to using the holistic and pose-based features, we suggest to focus on the hand regions. To obtain the hand locations we rely on our hand detector described in Section 4.1 as well as on the pose estimation method with integrated hand candidates (Section 4.3). In order to increase the robustness of the method we use both location candidates (provided by the handDPM detector and the final pose model) and sum the obtained features.

Hand-Trajectories

We want to represent different type of information: hand motion, hand shape, and shape variations over time, as well as the appearance of objects manipulated by the hands. We propose to densely sample the neighborhood of each hand and to track those points over time. For tracking and also representing the point trajectories with powerful features we adapt the approach of Wang et al. (2013a). We focus only on densely sampled points around the estimated hand positions instead of sampling the entire video frame. We specify a bounding box around each hand detection and densely sample points inside of it. In our experiment we use 120140 pixels bounding box around hands to include the information about the hands’ context. We use 8 pixels grid spacing for points sampling and finally we get 136 interest point tracks for each frame. After extracting the features along computed tracks we create codebooks that contain 4000 words per feature.

Hand-cSift

Color information is another important cue for recognizing activities and even more prominent for recognizing the participating objects. Similar to the previous approach we densely sample the points in the hands’ neighborhood and extract color Sift features on 4 channels (RGB+grey). We quantize them in a codebook of size 4000.

5.4 Fine-grained activity classification and detection

Activity classification

Given a long video we assume that it consists of multiple time intervals. Each such interval depicts a single fine-grained activity and its participating objects (e.g. dry, hands, towel). In the following we refer to both, activities and participants, as activity attributes , i.e. can be any attribute including cut, knife, or cucumber. We train one-vs-all SVM classifiers on the features described in the previous sections given the ground truth intervals and labels. The classifiers provide us with real valued confidence score functions for attribute and feature vectors of dimension . Combining different features is achieved by concatenating, i.e. stacking, the corresponding feature vectors.

Activity detection

While we use ground truth intervals for training the activity classifiers, we use a sliding window approach to find the correct interval of detection. To efficiently compute features of a sliding window we build an integral histogram over the histogram of the codebook features. We use non maximum suppression over different window lengths and start with the maximum score and remove all overlapping windows. In the detection experiments we use a minimum window size of 30 with a step size of 6 frames; we increase window and step size by a factor of until we reach a window size of 1800 frames (about 1 minute). Although this will still not cover all possible frame configurations, we found it to be a good trade-off between performance and computational costs.

6 Modeling composite activities

(a) Activity attribute recognition using contextual and co-occurrence attributes vectors.
(b) Composite activity classification using max-pooled activity attributes.
Figure 6: Our approach to recognition of attributes (a) and composite activities (b).

In the previous section we discussed how we recognize fine-grained activities (such as peeling or washing) and their object participants (such as grater, knife, or cucumber). Now we focus on exploiting the temporal context and on recognizing different composite activities, e.g. preparing a cucumber or cooking pasta.

For this, we first show how we exploit temporal context and co-occurrence to improve the recognition of fine-grained activities and their object participants (Section 6.1). Then, we model composite activities as a flexible combination of attributes, where attributes refer jointly to the fine-grained activities and their object participants (Section 6.2). We then show how to use prior knowledge (Section 6.3) to improve the recognition of composite activities, overcoming the notorious lack of training data and handling the large variability of composite activities. In Section 6.4 we discuss how to mine the semantic relatedness from script data. Finally, in Section 6.5 we introduce an automatic approach to temporal video segmentation, which removes the necessity to manually annotate the ground truth intervals in a video.

6.1 Recognizing activity attributes using context and co-occurrence

For a time interval we want to classify if a particular fine-grained activity and its participants are present. We refer to activities and participants as activity attributes . We distinguish three types of attribute classifiers. The first type of is given by the classifiers introduced in the previous section providing us with confidence score functions for each attribute . Let us denote the score of a given feature vector at time interval as:

(3)

Together these score constitute a matrix of dimensions (# attributes #timestamps). Based on these scores, we define features for context (in the same video sequence) as well as features for co-occurrence of other attributes (in the same time interval ).

Contextual features formalize the intuition that adjacent time frames have strongly related attributes: e.g. if a cucumber is peeled in one time interval, then cutting the cucumber

is probably also present in the same video sequence. As visualized in Figure

6(a) we define a context feature at time by max pooling the scores of each attribute over all time intervals except :

(4)

where is an element-wise operator over all columns of matrix .

Similarly, activity attributes happening at the same time interval are related, e.g. if we peel something it is more likely to observe also carrot or cucumber rather than cauliflower. We thus define the co-occurrence as a feature by stacking all attribute scores at time excluding :

(5)

where is a column of matrix .

Based on these features we train activity attribute SVM classifiers using the features individually or by stacking them. Specifically we obtain corresponding confidence score functions for context: and co-occurrence: , where denotes that a separate function for each attribute is trained. We define corresponding scores as:

(6)

and

(7)

This formulation can be easily extended to other attribute representations depending on the task and available features.

6.2 Composite activity classification using activity attributes

We now want to classify composite activities that span an entire video sequence, given attribute classifier scores. We note that we can use any of the scores introduced in the previous section (, , or their stacked combination). In the following for simplicity we refer to these scores as and corresponding matrix as . In this approach we rely on the representation that captures likelihoods of the presence or absence of a particular attribute and leave modeling the temporal ordering of attributes for future work. We define a feature for the video sequence as by max pooling the scores of each attribute over all time intervals (see Figure 6(b)):

(8)

where is an element-wise operator over all columns of matrix .

To decide on the class of a sequence we use the feature and classify it using a nearest neighbor classifier (NN) or a one-versus-all SVM given a set of labeled training sequences. The SVM classifier provides us with the following confidence function for all composite classes : , where the final score is defined as:

(9)

where is the score matrix for sequence . The following sections describe alternatives to NN and SVM to incorporate prior knowledge mined from script data.

6.3 Script data for recognizing composite activities

Composite activities show a high diversity which is practically impossible to capture in a training corpus. Our system thus needs to be robust against many activity variants that are not present in the training data. The use of attributes allows to include external knowledge to determine relevant attributes for a given composite activity. For this we assume associations between attribute and composite activity class in a matrix of weights , with being the number of composite activity classes. The vectors are L1 normalized, i.e. . Our system extracts those associations from script data (see Section 6.4), but the approach generalizes to other arbitrary external knowledge sources. We explore three options to use such information which we detail in the following.

Script data:

We compute the confidence of a sequence being of the composite activity using the attribute-based feature representation introduced in Equation (8). Given the weights we compute a weighted sum:

(10)

For a specific sequence with corresponding score matrix we get the following score:

(11)

This formulation is similar to the sum formulation we used in (Rohrbach et al., 2011) for image recognition with attributes, which itself is an adaption of the direct attribute prediction model introduced by Lampert et al. (2013). Note that the weight matrix retrieved from script data is sparse (most ). When mining from other corpora one might need to threshold the weights , setting all others to zero, to achieve good performance as done e.g. in (Rohrbach et al., 2011).

NN+script data:

When training data is available we can use a nearest neighbor classifier. Often, only a handful of attributes are likely to be indicative for a composite activity class, while the majority of other attributes will provide irrelevant, potentially noisy information. When searching for nearest neighbors such irrelevant attributes might dominate the distance, resulting in suboptimal performance. To reduce this effect we rely on the script data to constrain the attribute feature vector to the relevant dimensions.

More specifically, we replace the L2 norm for computing the distance of nearest neighbor with the following training class dependent weighted L2 norm. It takes weights of class-attribute associations into account. It is defined between the test attribute vector of unseen class and the training attribute vector of class as:

(12)

To enhance robustness further, we binarize all association weights

by setting all non-zero weights to (and L1-normalize ). This reduces the distance computation to the relevant attributes, normalized by the total number of relevant attributes.

Propagated semantic transfer (PST):

As the third approach to integrate external knowledge from script data we use Propagated semantic transfer (PST) which we proposed in (Rohrbach et al., 2013a) and summarize shortly in the following. The approach builds on Equation (10) and uses label propagation to exploit the distances within the unlabeled data, i.e. it assumes a transductive setting where all test data is available when predicting a single test label.

We can incorporate (partially) labeled training data for class and sequence . denotes that we do not have a label for this sequence and class. We combine the labels with the predictions in the following way, using only the most reliable predictions (top- fraction) per class :

(13)

provides a weighting between the true labels and the predicted labels. In the zero-shot case we only use predictions and . The parameters are chosen, similar to the remaining parameters, on the validation set. For zero-shot we use the unlabeled training data as additional data for label propagation.

For computing the distance between the sequences we use the feature representation , as for the NN-classifier, which is much lower dimensional than the raw video feature representation and provides more reliable distances as we showed in (Rohrbach et al., 2013a). We build a k-NN graph by connecting the k closest neighbours. We set the weights of the graph edges between sequences and to , where is set to the mean of the distances to the nearest neighbours. We initialize this graph with the scores and propagate them using label propagation from Zhou et al. (2004).

6.4 Prior knowledge from script data

We want to quantify what activities and objects typically occur in a composite activity by leveraging the script data we collected (see Section 3.4). In order to use prior knowledge from textual script data, we have to match the (controlled) attribute labels from the video annotations to the (freely) written script instances (Section 6.4.1). Based on the matched attributes we compute two different word frequency statistics (Section 6.4.2).

6.4.1 Label matching

To transfer any kind of knowledge from the script corpus to the attributes in the video annotation, we need to match attribute labels to natural language descriptions. The annotated attribute labels are standard English verbs (for activities, wash) and nouns (for participating objects, carrot), sometimes with additional particles (take apart and take out). As the script instances contain freely written natural language sentences, they do not necessarily have any correspondence with the attribute label annotations. We compare two strategies for mapping annotations to script data sentences:

  • literal: we look for the exact matching of the attribute label within the data.

  • WordNet: we look for attribute labels and their synonyms. We take synonyms as members of the same synset according to the WordNet ontology (Fellbaum, 1998) and restrict them to words with the same part of speech, i.e. we match only verbal synonyms to activity predicates and only nouns to object terms.

6.4.2 Statistics computed on the script data

We compute two different association scores between attribute labels and composite activities . For this we concatenate all scripts for a given composite to a single document .

  • freq: word frequency for each attribute and composite activities .

  • tfidf (term frequency inverse document frequency, Salton and Buckley, 1988) is a measure used in Information Retrieval to determine the relevance of a word for a document. Given a document collection , tfidf for a term or attribute and a document is computed as follows:

    (14)

    where is the set of documents containing at least once. tfidf represents the distinctiveness of a term for a document: the value increases if the term occurs often in the document and rarely in other documents.

We set or and L1-normalize all vectors . These weights are then used in Equations (10) and (12) and subsequently also in our PST approach.

6.5 Automatic temporal segmentation

While we assume a segmented video during training time to learn attribute classifiers as described in Section 5.4, we want to segment the video automatically at test time. To avoid noisy and small segments we follow the idea we presented in (Rohrbach et al., 2014)

, namely we employ agglomerative clustering. We start with uniform intervals of 60 frames and describe each interval with an attribute-classifier score vector. We combine neighbouring intervals based on the cosine similarity of their score vectors and stop when we reach a threshold (found on the validation set). We aim for a segmentation with granularity similar to original manual annotation. After this a separately trained visual background classifier removes irrelevant or noisy segments. In our experiments we show that this leads to composite recognition results, similar to using the ground truth intervals for the attributes.

7 Evaluation

In this section we evaluate our approaches to fine-grained and composite activity recognition. We start with the fine-grained activity classification and detection and compare three types of approaches described in Section 5, namely pose-based, hand-centric and holistic approaches. Next we evaluate our approaches for composite activity recognition introduced in Section 6, evaluating our attributes enhanced with context and co-occurrence, the recognition of composite cooking activities using different levels of supervision, and the zero-shot approach using script data.

7.1 Experimental Setup

This section details our experimental setup. We will release evaluation code to reproduce and compare with our results. See Table 3 for the information on our training/validation/test split. We estimate all hyper parameters on the validation set and then retrain the models on the training and validation set with the best parameters.

7.1.1 Experimental setup fine-grained activity classification and detection

In the fine-grained recognition task we want to distinguish 67 fine-grained activities and 155 participating objects (see Table 7 for the lists of activities and objects). To learn the visual classifiers we use the annotated ground truth intervals provided with the dataset. We train one-vs-all SVMs using mean SGD (Rohrbach et al., 2011) with a kernel approximation (Vedaldi and Zisserman, 2010). For detection we use the midpoint hit criterion to decide on the correctness of a detection, i.e. the midpoint of the detection has to be within the ground-truth. If a second detection fires for one ground-truth label, it is counted as false positive. In the following we report the mean over the average precision (AP) of each class. Combining features is achieved by stacking the bag-of-word histograms.

7.1.2 Experimental setup composite activity recognition

For localizing attributes within composite activities we rely on our automatic segmentation (Section 6.5). We aim to recognize 31 composite activities (see bold names in Table 2).

We distinguish two cases for training the attributes with respect to composites.

Attribute training on all composites.

We use all available 218 training+validation videos for training the attribute classifiers. See left half of Tables 8, 9, and 10.

Attribute training on disjoint composites.

We use all available videos apart from those showing the test composite categories (in total 92 videos). This means that attributes and composites are trained on disjoint sets of composite categories and thus also on disjoint sets of videos. This tests how well novel composite categories can be recognized without additional attribute labels. See right half of Tables 8, 9, and 10.

Next, we have two cases for training the composites.

With training data for composites.

We train on the 126 training+validation videos whose category is in the set of the 31 test categories. Note that in case of Attribute training on all composites the training videos are also part of the attribute training. See top part of Table 9.

No training data for composites.

Here we do not rely on any training labels for the composite activities. See bottom part of Table 9 and all of Table 10. Combined with Attribute training on disjoint composites this is zero-shot recognition.

7.2 Fine-grained activity classification and detection

Approach Activities Objects All
Pose-based approaches
(1) BM 18.9 13.8 15.7
(2) FFT 19.0 16.2 17.2
(3) Combined 24.1 19.0 20.8
Hand-centric approaches
(4) Hand-cSift 23.0 23.8 23.5
(5) Hand-Trajectories 45.1 31.5 36.4
(6) Combined 43.5 34.2 37.5
Holistic approach
(7) Dense Trajectories 44.5 31.3 36.1
Combinations
(8) Dense Traj,BM,FFT 43.1 30.7 35.2
(9) Dense Traj,Hand-Traj 52.2 37.7 42.9
(10) Dense Traj,Hand-Traj,-cSift 51.2 39.3 43.7
Table 5: Fine-grained activity and object classification results, mean AP in % (see Section 7.2 for discussion).
Activity classification

We start with the classification results on fine-grained activities and their participants (Table 5).

The body model features on the joint tracks (BM) achieve a mean average precision (AP) of 18.9% for activities and 13.8% for objects. Comparing this to the FFT features, we observe that FFT performs slightly better, improving over BM the AP by 0.1% and 2.4% respectively. The combination of BM and FFT features (line 3 in Table 5) yields a significant improvement, reaching AP of 24.1% for activities and 19.0% for objects. We attribute this to the complementary information encoded in the features. While BM encodes among others velocity-histograms of the joint-tracks and statistics between tracks of different joints, FFT features encode FFT coefficients of individual joints. Still, this is a relatively low performance. It can be explained, on one hand, by failures of the pose estimation method and, on the other hand, the pose-based features might not contain enough information to successfully distinguish the challenging fine-grained activities and participating objects. Next we look at the performance of our proposed hand-centric features. Color Sift features, densely sampled in the hand neighborhood, allow us to improve the object recognition AP to 23.8% (Hand-cSift), indicating their better suitability in particular for recognizing objects. Dense Trajectories features computed around hands (denoted as Hand-Trajectories) reach 45.1% and 31.5% recognition AP for activities and objects, respectively. Combining both features leads to a small disimprovement for activities, however it helps to further improve the object recognition performance to 34.2%. Overall our hand-centric approach reaches the recognition AP of 37.5% for activities and objects together. The state-of-the-art holistic approach of Dense Trajectories (Wang et al., 2013a) obtains 44.5% and 31.3% recognition AP for activities and objects. If compared to our hand-centric features, this is slightly below the Hand-Trajectories, which are restricted to the areas around hands. This supports our hypothesis that the most relevant information for recognizing our fine-grained activities is contained in the hand regions. We also consider several feature combinations (lines 8, 9, 10 in Table 5). Combining Dense Trajectories with the pose-based features does not improve the recognition performance. However, combining them with Hand-Trajectories improves the activity recognition by 7.7% and object recognition by 6.4% (line 7 vs 9 in Table 5). Finally, adding the Hand-cSift features allows to reach the impressive 43.7% recognition AP for activities and objects together.

The detailed comparison of Dense Trajectories, Hand-Trajectories and the final feature-combination (line 10 in Table 5) can be found in Table 7. Hand-Trajectories loose to Dense Trajectories on activities that include “coarser” motion, e.g. push down, hang or plug, and corresponding objects such as hook or teapot. Note that Hand-Trajectories outperform the Dense Trajectories for 35 activity classes, while in the opposite direction this holds only 25 times (for objects, respectively 65 vs 43 times). This shows again that the hand-centric features consistently outperform the holistic features in both tasks. Some example cases where the hand-centric approach is significantly better, are such activities as rip open, take apart, and grate and such objects as cauliflower, oven, and cup. At the same time the final feature combination (line 10 in Table 5) consistently outperforms both aforementioned features in about 60% of cases. We demonstrate some qualitative results comparing Dense Trajectories to the final feature combination in Table 11. We also looked closer at the performance of other features. e.g. the combined pose features (line 3 in Table 5) perform well on “coarser”, full-body activities, such as throw in garbage, take out, move, while rather poorly on more fine-grained activities. On the other hand the Hand-cSift features are good in recognizing objects with distinct shapes/colors, e.g. pineapple, carrot, bowl, etc.

Approach Activities Objects All
Pose-based approaches
(1) BM 9.7 7.6 8.3
(2) FFT 10.5 8.7 9.3
(3) Combined 14.3 9.8 11.4
Hand-centric approaches
(4) Hand-cSift 10.5 10.9 10.7
(5) Hand-Trajectories 21.3 14.0 16.6
(6) Combined 26.0 20.6 22.5
Holistic approach
(7) Dense Trajectories 29.5 21.5 24.4
Combinations
(8) Dense Traj,BM,FFT 30.7 21.5 24.8
(9) Dense Traj,Hand-Traj 34.3 25.2 28.5
(10) Dense Traj,Hand-Traj,-cSift 34.5 25.3 28.6
Table 6: Fine-grained activity and object detection results, mean AP in % (see Section 7.2 for discussion)
Dense Hand Combi Dense Hand Combi Dense Hand Combi
Activity Traj Traj +cSift Object Traj Traj +cSift Object Traj Traj +cSift
add 19.8 16.3 24.0 apple - - - mango 3.8 7.0 2.5
arrange 61.9 32.1 33.8 arils 19.8 57.8 12.5 masher - - -
change temperature 69.1 78.1 75.4 asparagus - - - measuring-pitcher 0.7 5.0 5.3
chop 36.6 35.4 48.3 avocado 2.5 4.3 3.8 measuring-spoon 34.1 12.6 7.3
clean 32.0 33.0 33.3 bag - - - milk 0.4 0.4 0.4
close 76.3 68.8 77.0 baking-paper - - - mortar - - -
cut apart 33.8 36.2 33.5 baking-tray - - - mushroom - - -
cut dice 39.3 45.7 44.9 blender - - - net-bag 0.3 0.2 0.7
cut off ends 21.4 52.0 31.9 bottle 57.1 49.3 57.7 oil 52.3 47.6 55.6
cut out inside 2.2 0.8 2.0 bowl 34.7 33.1 49.0 onion 19.3 20.4 22.7
cut stripes 12.9 13.0 15.4 box-grater - - - orange 18.4 11.1 19.3
cut 28.3 44.9 27.2 bread 3.7 6.5 8.9 oregano - - -
dry 81.9 85.1 84.5 bread-knife 3.0 4.0 8.1 oven 30.7 73.4 89.3
enter 100.0 100.0 100.0 broccoli 2.0 2.3 5.7 paper - - -
fill 94.3 90.8 86.2 bun 1.2 2.3 8.5 paper-bag 20.5 10.3 33.0
gather 25.7 23.8 35.7 bundle 0.5 1.1 1.4 paper-box 1.0 1.2 3.6
grate 66.7 100.0 100.0 butter 6.2 1.9 9.6 parsley 23.4 25.5 49.6
hang 85.8 57.2 81.4 carafe 44.4 46.7 54.4 pasta 26.1 16.0 40.7
mix 10.3 5.4 52.9 carrot 26.5 41.3 64.9 peach - - -
move 75.7 75.7 78.3 cauliflower 29.3 68.9 73.8 pear - - -
open close 60.8 65.7 64.7 cheese - - - peel 40.3 28.6 35.2
open egg 50.0 28.1 39.2 chefs-knife 59.9 73.3 63.1 pepper 3.1 14.4 6.7
open tin - - - chili 0.6 0.9 1.3 peppercorn - - -
open 22.0 22.0 34.5 chive - - - pestle - - -
package 0.4 1.6 1.8 chocolate - - - philadelphia - - -
peel 55.0 67.2 58.6 coffee 3.3 25.0 100.0 pineapple 19.5 47.0 49.7
plug 41.6 32.6 81.0 coffee-container 34.6 24.8 73.4 plastic-bag 36.4 37.7 43.6
pour 44.8 44.9 45.1 coffee-machine 34.7 65.1 91.2 plastic-bottle 4.7 2.8 9.1
pull apart 38.7 53.8 45.2 coffee-powder 0.5 1.3 3.0 plastic-box 2.6 9.0 5.3
pull up 79.2 21.7 75.6 colander 63.4 62.2 77.9 plastic-paper-bag 0.9 14.7 19.6
pull 1.3 9.1 1.2 cooking-spoon - - - plate 65.7 69.2 73.9
puree - - - corn - - - plum 0.7 2.5 1.3
purge 0.1 0.1 0.6 counter 71.8 70.3 76.5 pomegranate 5.1 0.8 2.3
push down 30.7 7.6 28.0 cream 0.9 0.5 1.4 pot 84.3 88.0 91.1
put in 55.5 50.8 58.0 cucumber 4.3 5.2 4.1 potato 0.4 0.4 0.6
put lid 87.3 85.3 90.0 cup 27.0 26.7 43.6 puree - - -
put on 6.2 5.6 1.2 cupboard 97.5 98.0 98.4 raspberries - - -
read 5.1 5.4 5.6 cutting-board 84.4 85.4 88.9 salad - - -
remove from package 19.3 34.3 31.5 dough - - - salami - - -
rip open 2.8 45.0 100.0 drawer 98.2 98.4 98.5 salt 59.8 48.7 64.1
scratch off 30.7 33.1 31.9 egg 12.1 3.6 7.3 seed - - -
screw close 77.3 77.5 77.5 eggshell 3.5 3.6 11.2 side-peeler 50.0 11.7 37.8
screw open 78.7 69.4 79.2 electricity-column 89.3 82.3 98.1 sink 47.0 54.0 53.9
shake 73.0 75.7 77.3 electricity-plug 74.3 70.6 87.7 soup - - -
shape - - - fig 1.0 1.0 0.9 spatula 72.9 76.2 78.2
slice 47.2 71.3 57.4 filter-basket 1.3 3.4 13.1 spice 19.1 13.3 12.4
smell 49.7 15.7 33.0 finger 18.4 15.4 8.8 spice-holder 95.6 94.4 96.3
spice 88.6 89.0 89.2 flat-grater 31.7 27.7 40.9 spice-shaker 88.3 87.3 91.5
spread 87.1 77.1 96.7 flower-pot - - - spinach - - -
squeeze 90.1 92.9 91.9 food - - - sponge 17.2 45.4 38.2
stamp - - - fork 8.7 7.5 10.5 sponge-cloth 67.1 68.1 75.0
stir 91.2 81.9 91.7 fridge 100.0 99.8 100.0 spoon 2.8 5.9 8.9
strew 1.7 2.4 2.4 front-peeler 21.8 6.0 17.6 squeezer 52.5 67.0 59.3
take apart 1.6 32.1 53.3 frying-pan 88.7 91.9 93.6 stone 0.2 0.7 0.7
take lid 66.2 76.8 71.7 garbage 13.7 17.9 27.5 stove 84.4 87.2 90.4
take out 94.1 93.9 95.1 garlic-bulb 0.3 0.6 0.8 sugar 22.0 24.2 29.0
tap 3.3 4.2 6.2 garlic-clove 11.7 3.6 9.3 table-knife - - -
taste 9.4 21.0 22.0 ginger 1.9 3.3 3.6 tap 70.2 71.8 79.1
test temperature 11.3 11.8 35.1 glass 2.6 4.5 21.6 tea-egg 37.2 28.7 36.1
throw in garbage 96.7 96.0 97.1 green-beans 21.1 24.6 23.2 tea-herbs 60.5 55.6 91.1
turn off 7.4 21.1 33.0 ham - - - teapot 46.4 6.7 69.1
turn on 27.8 30.6 48.5 hand 95.9 95.2 96.4 teaspoon 29.2 32.4 36.5
turn over - - - handle 100.0 9.1 100.0 tin - - -
unplug 8.7 3.8 20.0 hook 95.6 71.2 98.3 tin-opener - - -
wash 93.4 93.9 93.7 hot-chocolate-powder-bag - - - tissue - - -
whip - - - hot-dog 2.1 2.7 8.8 toaster 1.3 8.1 6.7
wring out 3.3 4.5 5.3 jar 5.4 14.2 17.8 tomato - - -
ketchup 2.0 3.1 19.6 tongs - - -
kettle-power-base 14.4 9.8 41.4 top - - -
kiwi 1.1 2.9 1.5 towel 73.2 76.9 79.2
knife 69.6 83.5 76.8 tube 1.0 9.5 10.2
knife-sharpener - - - water 55.0 46.9 57.2
kohlrabi - - - water-kettle 40.7 25.9 53.7
ladle - - - wire-whisk - - -
leek 10.6 19.5 17.6 wrapping-paper 2.9 0.4 2.0
lemon - - - yolk 0.5 0.5 0.3
lid 67.1 70.8 71.8 zucchini - - -
lime 14.2 3.7 14.6
Table 7: Fine-grained activities and object classification performance of Dense Trajectories, Hand Trajectories, and their combination including Hand-cSift (line 10 in Table 5) for 67 fine-grained activities and 155 participating objects. AP in %. “-” denotes that the category is not part of the test set and not evaluated.
Activity detection

Next we look at the detection performance (Table 6), which is inherently more challenging than the classification task. Here the BM features reach 8.3% overall AP and FFT get 9.3%. Their combination (line 3 in Table 6) gets 11.4% overall AP, while Hand-cSift only reaches 10.7%. Hand-Trajectories alone get 16.6% AP and combined with Hand-cSift they reach 22.5%, while the Dense Trajectories get 24.4% AP. As we can see for this task our hand-centric features perform worse than holistic and even pose-based features (line 3 vs 4 in Table 6). We believe the reason for this is that for correct segmentation of the video into activity intervals we need more holistic information, which the hand-centric features cannot provide, while pose-based and holistic features can capture it better. Similarly, when combining Dense Trajectories with the pose-based features (line 8 in Table 6) we observe a small improvement, supporting our hypothesis that pose indeed helps to capture the detection boundaries. On the other hand, combining Dense Trajectories with our hand-centric features significantly improves the performance, in particular by 4.7% for activities and by 3.7% for objects (line 6 vs 9 in Table 6). Combining the obtained features with the Hand-cSift further improves the results and we reach the 28.6% overall AP. The improvement obtained after combining holistic and hand-centric features can be explained by the increased classification AP within the obtained intervals. We thus conclude that for activity detection we require holistic information, which can come e.g. from the human pose. Combining the holistic and hand-centric features is still beneficial and significantly improves the performance.

7.3 Context and co-occurrence for fine-grained activities

Attribute training on: All Disjoint
Composites Composites
Dense Combi Dense Combi
Traj +cSift Traj +cSift
(1) Base () 36.1 43.7 33.5 35.9
(2) Context only () 11.1 12.6  6.8  8.1
(3) Base+Context 37.8 41.2 28.3 32.3
(4) Co-occ. only () 38.1 41.7 32.6 35.3
(5) Base+Co-occ. 38.1 41.4 32.7 35.2
(6) Base+Cont.+Co-occ. 39.3 41.5 30.8 32.6
Table 8: Attribute recognition using context and co-occurrence, mean AP in %. Combi+cSift refers to Dense Traj,Hand-Traj,-cSift, see Section 7.3 for discussion.

While so far we looked at individual fine-grained activities, we now evaluate the benefit from co-occurrence and context as introduced in Section 6.1. Table 8 provides the results for recognizing activities and their participants, modeled as attributes. We evaluate in two settings. The left two columns of Table 8 show the results for training on all composites in training set, while the right two columns are trained only on composites absent in test set (Disjoint Composites), i.e. the second is a more challenging problem, as there is less training data and the attributes are tested in a different context. The performance in the first line is equivalent to the results in Table 5. The very left column shows results on Dense Trajectories. More specifically using only temporal context to recognize activity attributes performance drops from 36.1% AP for the base classifier to 11.1% AP. This is the expected result, because the context is similar for all activities of the same sequence and thus cannot discriminate attributes. In contrast, when using co-occurrence only (line 4 in Table 8), the performance increases by 2.0% compared to the base classifiers due to the high relatedness between the attributes, namely between activities and their participants. Combining context and co-occurrence information with the base classifier gives 37.8% and 38.1%, respectively. A combination of all training modes achieves a performance of 39.3% AP, improving the base classifier’s result by 3.2%. While results for Dense Trajectories are as expected i.e. adding context and co-occurrence improves performance, the performance drops slightly for the (in general) better performing combined features (second column). However, although the attribute prediction performance drops, we found that for recognizing the composites, context and co-occurrence are still useful.

In the second setting, we restrict the training dataset to composites absent in the test set (right two columns of Table 8), requiring the activity attributes to transfer to different composite activities. When comparing the right two the left columns, we notice a significant performance drop for all classifiers and both features. This decrease can mainly be attributed to the strong reduction of training data to about one third. The base classifier performs best and co-occurrence variants slightly below. Variants including context lead to tremendous performance drops in all combinations because the activity context changes from training to test (having different composite activities).

7.4 Composite cooking activity classification

After evaluating attribute recognition performance in Section 7.3, we now show the results for recognizing composites as introduced in Section 6.2. From the different attribute combination variants we only use the combination of base, context, and co-occurrence (last line in Table 8). Although this is not always the best choice for recognizing attributes we found it to work better or similar to alternatives for composite recognition. The results are shown in Table 9, which, similar to Table 8, shows results for training the attributes on all composites, on the left, and reduced attribute training on non-test composites on the right. In the top section of the table we use training data for the composite cooking activities. In the bottom section of the table we use no training data for the composite cooking activities. This is enabled by the use of script data as motivated before. Disregarding the first line which does not use attributes at all and the second line which uses ground truth intervals for attributes, all other lines are based on attributes computed on our automatic temporal segmentation, introduced in Section 6.5.

Examining the results in Table 9 we make several interesting observations. First, training composites on attributes of fine-grained activities and objects (line 3 in Table 9) outperforms low-level features (line 1 in Table 9), supporting our claim that for learning composite activities it is important to share information on an intermediate level of attributes.

Attribute training on: All Disjoint
Composites Composites
Dense Combi Dense Combi
Traj +cSift Traj +cSift
With training data for composites
Without attributes
   (1) SVM 39.8 41.1 - -
Attributes on gt intervals
   (2) SVM 43.6 52.3 32.3 34.9
Attributes on automatic segmentation
   (3) SVM 49.0 56.9 35.7 34.8
   (4) NN 42.1 43.3 24.7 32.7
   (5) NN+Script data 35.0 40.4 18.0 21.9
   (6) PST+Script data 54.5 57.4 32.2 32.5
No training data for composites
Attributes on automatic segmentation
   (7) Script data 36.7 29.9 19.6 21.9
   (8) PST + Script data 36.6 43.8 21.1 19.3
Table 9: Composite cooking activity classification, mean AP in %. Top left quarter: fully supervised, right column: reduced attribute training data, bottom section: no composite cooking activity training data, right bottom quarter: true zero shot. See Section 7.4 for discussion.

The second somewhat surprising observation is that recognizing composites based on our segmentation (line 3 in Table 9) outperforms using ground truth segments (line 2 in Table 9). We attribute this to the fact that our segmentation is coarser than the ground truth and that we additionally remove noisy and background segments with a background classifier. This leads to more robust attributes and consequently better composite recognition. This allows to have separate training sets for composites and attributes. This setting is explored in the top right quarter of Table 9. Here the training sequences for attributes are disjoint with the ones for composites, i.e. we do not require the attribute annotataions for the composite training set.

Third, the improvements we achieved for fine-grained activities and object recognition by combining hand-centric with holistic features are still evident for composites. The Combination of Dense Trajectoreis, Hand-Trajectories, and Hand-cSift (2nd, 4th column) outperforms in most cases Dense Trajectories only (1st, 3rd column), most notably in the setting “All Composites” for SVM (56.9% over 49.0% AP) and PST+Script data (43.8% over 36.6% AP).

Fourth, using our Propagated Semantic Transfer (PST) approach is in most cases superior to other variants of incorporating script data (NN+Script data/ Script data). Most notably it reaches 57.5% AP for our combined feature. This is the overall best performance and also outperforms the SVM with 56.6% AP. PST slightly drops for the last number in table (19.3%), which we found is due to rather suboptimal parameters selected on the validations set. We note that in the scenario of Disjoint Composites (top right quarter of Table 9) PST+Script data is outperformed by training an SVM. We attribute this to the fact that the attributes are less robust in this scenario (see Table 8) and the SVM can better adjust to that by learning which attributes are reliable and which not. NN and PST are based on distances between attribute score vectors, thus metric learning could be beneficial in these cases.

Fifth, script data does not only allow to achieve the maximum performance but also allows transfer (bottom part of Table 9) achieving in some cases results close to supervised approaches. The bottom right part of the table shows zero-shot recognition. Although here the performance cannot compete with the supervised setting, we like to point out that this is a very challenging scenario, where attributes are trained on different composites, without composite training data, and the video stream has to be segmented automatically.

Attribute training on: All Disjoint
Composites Composites
Dense Combi Dense Combi
Traj +cSift Traj +cSift
No training data for composites
Script data
(1) freq-literal 28.2 30.5 19.8 24.1
(2) freq-WN 25.3 28.6 17.4 20.3
(3) tfidf-literal 35.9 31.8 20.0 23.6
(4) tfidf-WN 36.7 29.9 19.6 21.9
Table 10: Variants of script knowledge, AP in %. Combi+cSift refers to Dense Traj,Hand-Traj,-cSift. See Section 7.4 for discussion.
Composites
Ground-truth cauliflower, cutting-board, hand, pull apart(A) cauliflower, cut(A), cutting-board, knife add(A), cauliflower, colander, cutting-board, hand cauliflower, colander, hand, wash(A) Preparing cauliflower
Dense Traj hand, cutting-board, pull apart(A), onion, peel, cut apart(A) knife, cutting-board, cut apart(A), counter, chefs-knife, cut(A) hand, cutting-board, move(A), counter, bowl, colander hand, wash(A), plate, colander, onion, peel Preparing orange
Dense Traj, Hand-Traj, -cSift hand, cutting-board, cut apart(A), cauliflower, onion, pull apart(A) cauliflower, cut apart(A), knife, chefs-knife, cutting-board, cut(A) hand, cutting-board, move(A), counter, cauliflower, colander hand, wash(A), bowl, colander, cauliflower, onion Preparing cauliflower
Composites
Ground-truth carrot, chefs-knife, cut off ends(A), cutting-board carrot, front-peeler, peel(A) carrot, chefs-knife, cut stripes(A), cutting-board carrot, chefs-knife, cut apart(A), cutting-board Preparing carrot
Dense Traj cutting-board, cut apart(A), chefs-knife, cut off ends(A), knife, put on(A) cutting-board, peel(A), front-peeler, chefs-knife, knife, cucumber cutting-board, chefs-knife, slice(A), knife, cut apart(A), cucumber cutting-board, cut apart(A), chefs-knife, knife, cauliflower, cut off ends(A) Preparing cucumber
Dense Traj, Hand-Traj, -cSift cutting-board, cut off ends(A), chefs-knife, cut apart(A), knife, carrot cutting-board, peel(A), carrot, chefs-knife, front-peeler, cucumber cutting-board, chefs-knife, slice(A), knife, carrot, cut apart(A) cutting-board, cut apart(A), chefs-knife, cut off ends(A), knife, carrot Preparing carrot
Composites
Ground-truth knife, onion, peel(A) chop(A), cutting-board, knife, onion add(A), cutting-board, frying-pan, knife, onion frying-pan, onion, spatula, stir(A) Preparing onion
Dense Traj peel(A), hand, onion, throw in garbage(A), bowl, front-peeler cutting-board, knife, cut dice(A), onion, chop(A), slice(A) hand, frying-pan, cutting-board, pot, spatula, add(A) spatula, frying-pan, stir(A), onion, add(A), egg Preparing onion
Dense Traj, Hand-Traj, -cSift peel(A), hand, throw in garbage(A), onion, knife, peel cutting-board, knife, cut dice(A), slice(A), chop(A), chive hand, frying-pan, add(A), pot, spatula, cauliflower frying-pan, spatula, stir(A), onion, add(A), broccoli Preparing onion
Table 11: Qualitative results for Dense Trajectories and its combination with hand-centric features (line 10 in Table 5) with respect to ground-truth. Top-6 highest scoring attributes (activities and objects) are shown, where (A) denotes activities. Composite activity predictions shown on the right. Correct results marked with bold. Note that many attributes are not correct according to the ground truth but very similar, e.g. we predict slice instead of cut stripes.

Sixth, while in Table 9 we always used the variant tfidf-WN for Script data, we show different variants of Script data for the case where they are not combined with NN or PST in Table 10. The main observation is that freq-WN performs in all cases worst, most likely the WordNet expansions make the results noisier. While in the first column the tfidf-WN works best, there is overall no clear winner. However, when incorporated in PST, it is more important to select appropriate parameters for PST on the validation set rather than selecting the right variant of Script data.

Last, we want to look at an interesting comparison of the first line (SVM without attributes) versus line 8 (PST + Script data), which effectively compares the settings “only composite labels” versus “only attribute labels” (+ Script data). Although the latter does not have any labels for the actual task of composite recognition it either performs close (in case of Dense Trajectories) or slightly better (for combined features). This indicates that our PST + Script data approach is very good in transferring information from the original task it was trained on to another which is very important for adaptation to novel situations, typical for assisted daily living scenarios.

Table 11 provides qualitative results for three composite videos including how they are decomposed into attributes of fine-grained activities and participating objects.

8 Conclusion

In this work we address two challenges that have not been widely explored so far, namely fine-grained activity recognition and composite activity recognition. In order to approach these tasks we propose the large activity database MPII Cooking 2. We recorded and annotated 273 videos of more than 27 hours with 30 human subjects performing a large number of realistic cooking activities. Our database is unique with respect to size, length, complexity of the videos, and available annotations (activities, objects, human pose, text descriptions).

To estimate the complexity of fine-grained activity recognition in our database we compare three types of approaches: pose-based, hand-centric, and holistic. We evaluate on a classification and the often neglected detection task. Our results show that for recognizing fine-grained activities and their participating objects it is beneficial to focus on hand regions as the activities are hand-centric and the relevant objects are in the hand neighbourhood.

Composite activities are difficult to recognize because of their inherent variability and the lack of training data for specific composites. We show that attribute-based activity recognition allows recognizing composite activities well. Most notably, we describe how textual script data, which is easy to collect, enables an improvement of the composite activity recognition when only little training data is available, and even allows for complete zero-shot transfer.

As part of future work we plan to validate our hand-centric approach in other domains and exploit the scripts for composite activity recognition by modeling the temporal structure of the video.

Acknowledgments

This work was supported by a fellowship within the FITweltweit-Program of the German Academic Exchange Service (DAAD), by the Cluster of Excellence “Multimodal Computing and Interaction” of the German Excellence Initiative and the Max Planck Center for Visual Computing and Communication.

References

  • Amin et al. [2013] Sikandar Amin, Mykhaylo Andriluka, Marcus Rohrbach, and Bernt Schiele. Multi-view Pictorial Structures for 3D Human Pose Estimation. In Proceedings of the British Machine Vision Conference (BMVC). BMVA Press, 2013.
  • Andriluka et al. [2009] Mykhaylo Andriluka, Stefan Roth, and Bernt Schiele. Pictorial structures revisited: People detection and articulated pose estimation. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , 2009.
  • Andriluka et al. [2011] Mykhaylo Andriluka, Stefan Roth, and Bernt Schiele. Discriminative appearance models for pictorial structures. International Journal of Computer Vision (IJCV), 2011.
  • Aubert and Prié [2007] Olivier Aubert and Yannick Prié. Advene: an open-source framework for integrating and visualising audiovisual metadata. In MM. ACM, 2007.
  • Baccouche et al. [2011] Moez Baccouche, Franck Mamalet, Christian Wolf, Christophe Garcia, and Atilla Baskurt. Sequential deep learning for human action recognition. In Human Behavior Understanding, pages 29–39. Springer, 2011.
  • Barr and Feigenbaum [1981] Avron Barr and Edward Feigenbaum.

    The Handbook of Artificial Intelligence, Volume 1

    .
    William Kaufman Inc., Los Altos, CA, 1981.
  • Bloem et al. [2012] Jelke Bloem, Michaela Regneri, and Stefan Thater. Robust processing of noisy web-collected data. In KONVENS, 2012.
  • Bojanowski et al. [2014] Piotr Bojanowski, Rémi Lajugie, Francis Bach, Ivan Laptev, Jean Ponce, Cordelia Schmid, and Josef Sivic. Weakly supervised action labeling in videos under ordering constraints. In Proceedings of the European Conference on Computer Vision (ECCV), 2014.
  • Brendel and Todorovic [2011] William Brendel and Sinisa Todorovic. Learning spatiotemporal graphs of human activities. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2011.
  • Campbell and Bobick [1995] Lee Campbell and Aaron Bobick. Recognition of human body motion using phase space constraints. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 1995.
  • Chakraborty et al. [2011] Bhaskar Chakraborty, Michael Holte, Thomas Moeslund, Jordi Gonzalez, and Xavier Roca. A selective spatio-temporal interest point detector for human action recognition in complex scenes. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2011.
  • Chaquet et al. [2013] Jose Chaquet, Enrique Carmona, and Antonio Fernández-Caballero. A survey of video datasets for human action and activity recognition. Computer Vision and Image Understanding, 117(6):633 – 659, 2013.
  • Chen and Dolan [2011] David Chen and William Dolan. Collecting highly parallel data for paraphrase evaluation. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), 2011.
  • Cherian et al. [2014] Anoop Cherian, Julien Mairal, Karteek Alahari, and Cordelia Schmid. Mixing Body-Part Sequences for Human Pose Estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2014.
  • Dalal et al. [2006] Navneet Dalal, Bill Triggs, and Cordelia Schmid. Human detection using oriented histograms of flow and appearance. In Proceedings of the European Conference on Computer Vision (ECCV), 2006.
  • Das et al. [2013] Pradipto Das, Chenliang Xu, Richard Doell, and Jason Corso. Thousand frames in just a few words: Lingual description of videos through latent topics and sparse object stitching. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2013.
  • Divvala et al. [2012] Santosh Divvala, Alexei Efros, and Martial Hebert. How important are ’deformable parts’ in the deformable parts model? In Proceedings of the European Conference on Computer Vision Workshops (ECCV Workshops), 2012.
  • Elhoseiny et al. [2013] Mohamed Elhoseiny, Babak Saleh, and Ahmed Elgammal. Write a classifier: Zero-shot learning using purely textual descriptions. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2013.
  • Everingham et al. [2011] Marc Everingham, Luc Van Gool, Christopher Williams, John Winn, and Andrew Zisserman. The PASCAL action classification taster competition, 2011.
  • Farhadi et al. [2010] Ali Farhadi, Ian Endres, and Derek Hoiem. Attribute-centric recognition for cross-category generalization. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2010.
  • Fathi et al. [2011] Alireza Fathi, Ali Farhadi, and James Rehg. Understanding egocentric activities. In Proceedings of the IEEE International Conference on Computer Vision (ICCV). IEEE, 2011.
  • Fellbaum [1998] Christiane Fellbaum. WordNet: An Electronical Lexical Database. The MIT Press, 1998.
  • Felzenszwalb and Huttenlocher [2005] Pedro Felzenszwalb and Daniel Huttenlocher. Pictorial structures for object recognition. International Journal of Computer Vision (IJCV), 2005.
  • Felzenszwalb et al. [2010] Pedro Felzenszwalb, Ross Girshick, David McAllester, and Deva Ramanan. Object detection with discriminatively trained part-based models. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), 32, 2010.
  • Ferrari et al. [2008] Vittorio Ferrari, Manuel Marin, and Andrew Zisserman. Progressive search space reduction for human pose estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2008.
  • Ferryman [2007] James Ferryman, editor. PETS, 2007.
  • Fischler and Elschlager [1973] Martin Fischler and Robert Elschlager. The representation and matching of pictorial structures. IEEE Trans. Comput’73, 1973.
  • Frome et al. [2013] Andrea Frome, Greg Corrado, Jon Shlens, Samy Bengio, Jeffrey Dean, Marc’Aurelio Ranzato, and Tomas Mikolov. Devise: A deep visual-semantic embedding model. In Advances in Neural Information Processing Systems (NIPS), 2013.
  • Fu et al. [2013] Yanwei Fu, Timothy Hospedales, Tao Xiang, and Shaogang Gong. Learning multi-modal latent attributes. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), PP(99), 2013.
  • Gkioxari et al. [2013] Georgia Gkioxari, Pablo Arbelaez, Lubomir Bourdev, and Jitendra Malik. Articulated pose estimation using discriminative armlet classifiers. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2013.
  • Guadarrama et al. [2013] Sergio Guadarrama, Niveda Krishnamoorthy, Girish Malkarnenkar, Subhashini Venugopalan, Raymond Mooney, Trevor Darrell, and Kate Saenko. Youtube2text: Recognizing and describing arbitrary activities using semantic hierarchies and zero-shoot recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2013.
  • Gupta et al. [2009] Abhinav Gupta, Praveen Srinivasan, Jianbo Shi, and Larry Davis. Understanding videos, constructing plots learning a visually grounded storyline model from annotated videos. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2009.
  • Jhuang et al. [2013] Hueihan Jhuang, Jurgen Gall, Silvia Zuffi, Cordelia Schmid, and Michael Black. Towards understanding action recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), Sydney, Australia, 2013. IEEE.
  • Ji et al. [2013] Shuiwang Ji, Wei Xu, Ming Yang, and Kai Yu. 3D convolutional neural networks for human action recognition. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), 35(1):221–231, 2013.
  • Kantorov and Laptev [2014] Vadim Kantorov and Ivan Laptev.

    Efficient feature extraction, encoding and classification for action recognition.

    In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2014.
  • Karlinsky et al. [2010] Leonid Karlinsky, Michael Dinerstein, and Shimon Ullman. Using body-anchored priors for identifying actions in single images. In Advances in Neural Information Processing Systems (NIPS), 2010.
  • Karpathy et al. [2014] Andrej Karpathy, George Toderici, Sanketh Shetty, Thomas Leung, Rahul Sukthankar, and Li Fei-Fei. Large-scale video classification with convolutional neural networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2014.
  • Kliper-Gross et al. [2012] Orit Kliper-Gross, Tal Hassner, and Lior Wolf. The action similarity labeling challenge. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), 34(3):615–621, 2012.
  • Kuehne et al. [2011] Hildegard Kuehne, Hueihan Jhuang, Est baliz Garrote, Tomaso Poggio, and Thomas Serre. Hmdb: A large video database for human motion recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2011.
  • la Torre et al. [2009] Fernando De la Torre, Jessica Hodgins, Javier Montano, Sergio Valcarcel, Ricard Forcada, and Justin Macey. Guide to the cmu multimodal activity database. Technical Report CMU-RI-TR-08-22, Robotics Institute, 2009.
  • Lampert et al. [2013] Christoph Lampert, Hannes Nickisch, and Stefan Harmeling. Attribute-based classification for zero-shot learning of object categories. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), PP(99), 2013.
  • Laptev [2005] Ivan Laptev. On space-time interest points. In International Journal of Computer Vision (IJCV), 2005.
  • Laptev and Pérez [2007] Ivan Laptev and Patrick Pérez. Retrieving actions in movies. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2007.
  • Laptev et al. [2008] Ivan Laptev, Marcin Marszalek, Cordelia Schmid, and Benjamin Rozenfeld. Learning realistic human actions from movies. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2008.
  • Le et al. [2011] Quoc Le, Will Zou, Serena Yeung, and Andrew Ng. Learning hierarchical invariant spatio-temporal features for action recognition with independent subspace analysis. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 3361–3368. IEEE, 2011.
  • Li and Li [2007] Li-Jia Li and Fei-Fei Li. What, where and who? classifying events by scene and object recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), pages 1–8. IEEE, 2007.
  • Liu et al. [2012] Jingchen Liu, S. McCloskey, and Yanxi Liu. Training data recycling for multi-level learning. In Pattern Recognition (ICPR), 2012 21st International Conference on, pages 2314–2318, Nov 2012.
  • Liu et al. [2009] Jingen Liu, Jiebo Luo, and Mubarak Shah. Recognizing realistic actions from videos ’in the wild’. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2009.
  • Liu et al. [2011] Jingen Liu, Benjamin Kuipers, and Silvio Savarese. Recognizing human actions by attributes. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2011.
  • Marszalek et al. [2009] Marcin Marszalek, Ivan Laptev, and Cordelia Schmid. Actions in context. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), june 2009.
  • Messing et al. [2009] Ross Messing, Chris Pal, and Henry Kautz. Activity recognition using the velocity histories of tracked keypoints. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2009.
  • Mittal et al. [2011] Arpit Mittal, Andrew Zisserman, and Philip Torr. Hand detection using multiple proposals. In Proceedings of the British Machine Vision Conference (BMVC), 2011.
  • Motwani and Mooney [2012] Tanvi S. Motwani and Raymond J. Mooney. Improving video activity recognition using object recognition and text mining. In ECAI, pages 600–605, August 2012.
  • Natarajan and Nevatia [2008] Pradeep Natarajan and Ramakant Nevatia. View and scale invariant action recognition using multiview shape-flow models. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2008.
  • Niebles et al. [2010] Juan Niebles, Chih-Wei Chen, and Li Fei-Fei. Modeling temporal structure of decomposable motion segments for activity classification. In Proceedings of the European Conference on Computer Vision (ECCV), 2010.
  • Nilsback and Zisserman [2008] Maria-Elena Nilsback and Andrew Zisserman. Automated flower classification over a large number of classes. In ICVGIP, pages 722–729. IEEE, 2008.
  • Oh et al. [2011] Sangmin Oh, Anthony Hoogs, Amitha Perera, Naresh Cuntoor, Chia-Chih Chen, Jong Taek Lee, Saurajit Mukherjee, Jake Aggarwal, Hyungtae Lee, Larry Davis, Eran Swears, Xiaoyang Wang, Qiang Ji, Kishore K. Reddy, Mubarak Shah, Carl Vondrick, Hamed Pirsiavash, Deva Ramanan, Jenny Yuen, Antonio Torralba, Bi Song, Anesco Fong, Amit Roy-Chowdhury, and Mita Desai. A large-scale benchmark dataset for event recognition in surveillance video. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 3153–3160. IEEE, 2011.
  • Over et al. [2012] Paul Over, George Awad, Martial Michel, Jonathan Fiscus, Greg Sanders, B Shaw, Alan F. Smeaton, and Georges Quéenot. Trecvid 2012 – an overview of the goals, tasks, data, evaluation mechanisms and metrics. In Proceedings of TRECVID 2012. NIST, USA, 2012.
  • Packer et al. [2012] Benjamin Packer, Kate Saenko, and Daphne Koller. A combined pose, object, and feature model for action understanding. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012.
  • Patron-Perez et al. [2010] Alonso Patron-Perez, Marcin Marszalek, Andrew Zisserman, and Ian D. Reid. High five: Recognising human interactions in TV shows. In Proceedings of the British Machine Vision Conference (BMVC), 2010.
  • Pirsiavash and Ramanan [2012] Hamed Pirsiavash and Deva Ramanan. Detecting activities of daily living in first-person camera views. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR). IEEE, 2012.
  • Pirsiavash and Ramanan [2014] Hamed Pirsiavash and Deva Ramanan. Parsing videos of actions with segmental grammars. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2014.
  • Ramanathan et al. [2013] Vignesh Ramanathan, Percy Liang, and Li Fei-Fei. Video event understanding using natural language descriptions. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2013.
  • Raptis and Sigal [2013] Michalis Raptis and Leonid Sigal. Poselet key-framing: A model for human activity recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2013.
  • Regneri et al. [2010] Michaela Regneri, Alexander Koller, and Manfred Pinkal. Learning script knowledge with web experiments. In Proceedings of the Annual Meeting of the Association for Computational Linguistics (ACL), 2010.
  • Regneri et al. [2013] Michaela Regneri, Marcus Rohrbach, Dominikus Wetzel, Stefan Thater, Bernt Schiele, and Manfred Pinkal. Grounding Action Descriptions in Videos. Transactions of the Association for Computational Linguistics (TACL), 1, 2013.
  • Rodriguez et al. [2008] Mikel Rodriguez, Javed Ahmed, and Mubarak Shah. Action MACH a spatio-temporal maximum average correlation height filter for action recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2008.
  • Roggen et al. [2010] Daniel Roggen, Alberto Calatroni, Mirco Rossi, Thomas Holleczek, Kilian Forster, Gerhard Troster, Paul Lukowicz, David Bannach, Gerald Pirkl, Alois Ferscha, Jakob Doppler, Clemens Holzmann, Marc Kurz, Gerald Holl, Ricardo Chavarriaga, Hesam Sagha, Hamidreza Bayati, Marco Creatura, and Jose del R. Millan. Collecting complex activity data sets in highly rich networked sensor environments. In INSS, 2010.
  • Rohrbach et al. [2014] Anna Rohrbach, Marcus Rohrbach, Wei Qiu, Annemarie Friedrich, Manfred Pinkal, and Bernt Schiele. Coherent multi-sentence video description with variable level of detail. In Proceedings of the German Confeence on Pattern Recognition (GCPR), September 2014.
  • Rohrbach et al. [2015] Anna Rohrbach, Marcus Rohrbach, Niket Tandon, and Bernt Schiele. A dataset for movie description. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2015.
  • Rohrbach et al. [2010] Marcus Rohrbach, Michael Stark, György Szarvas, Iryna Gurevych, and Bernt Schiele. What helps Where - and Why? Semantic Relatedness for Knowledge Transfer. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2010.
  • Rohrbach et al. [2011] Marcus Rohrbach, Michael Stark, and Bernt Schiele. Evaluating Knowledge Transfer and Zero-Shot Learning in a Large-Scale Setting. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2011.
  • Rohrbach et al. [2012a] Marcus Rohrbach, Sikandar Amin, Mykhaylo Andriluka, and Bernt Schiele. A database for fine grained activity detection of cooking activities. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012a.
  • Rohrbach et al. [2012b] Marcus Rohrbach, Michaela Regneri, Mykhaylo Andriluka, Sikandar Amin, Manfred Pinkal, and Bernt Schiele. Script data for attribute-based recognition of composite activities. In Proceedings of the European Conference on Computer Vision (ECCV), 2012b.
  • Rohrbach et al. [2013a] Marcus Rohrbach, Sandra Ebert, and Bernt Schiele. Transfer Learning in a Transductive Setting. In Advances in Neural Information Processing Systems (NIPS), 2013a.
  • Rohrbach et al. [2013b] Marcus Rohrbach, Wei Qiu, Ivan Titov, Stefan Thater, Manfred Pinkal, and Bernt Schiele. Translating video content to natural language descriptions. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2013b.
  • Ryoo and Aggarwal [2009] Michael Ryoo and Jake Aggarwal. Spatio-temporal relationship match: Video structure comparison for recognition of complex human activities. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2009.
  • Salton and Buckley [1988] Gerard Salton and Christopher Buckley. Term-weighting approaches in automatic text retrieval. In Information Processing And Management, 1988.
  • Sapp et al. [2010] Benjamin Sapp, Alexander Toshev, and Ben Taskar. Cascaded models for articulated pose estimation, 2010.
  • Schuldt et al. [2004] Christian Schuldt, Ivan Laptev, and Barbara Caputo. Recognizing human actions: a local SVM approach. In ICPR, 2004.
  • Senina et al. [2014] Anna Senina, Marcus Rohrbach, Wei Qiu, Annemarie Friedrich, Sikandar Amin, Mykhaylo Andriluka, Manfred Pinkal, and Bernt Schiele. Coherent multi-sentence video description with variable level of detail. arXiv:1403.6173, 03/2014 2014.
  • Shotton et al. [2011] Jamie Shotton, Andrew Fitzgibbon, Mat Cook, Toby Sharp, Mark Finocchio, Richard Moore, Alex Kipman, and Andrew Blake. Real-time human pose recognition in parts from single depth images. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 1297–1304. IEEE, 2011.
  • Sill et al. [2009] Joseph Sill, Gábor Takács, Lester Mackey, and David Lin. Feature-weighted linear stacking. arXiv:0911.0460, 2009.
  • Singh et al. [2002] Push Singh, Thomas Lin, Erik Mueller, Grace Lim, Travell Perkins, and Wan Zhu. Open mind common sense: Knowledge acquisition from the general public. In DOA, CoopIS and ODBASE 2002, 2002.
  • Singh and Nevatia [2011] Vivek Singh and Ram Nevatia. Action recognition in cluttered dynamic scenes using pose-specific part models. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2011.
  • Socher and Fei-Fei [2010] Richard Socher and Li Fei-Fei. Connecting modalities: Semi-supervised segmentation and annotation of images using unaligned text corpora. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), San Francisco, CA, June 2010.
  • Socher et al. [2013] Richard Socher, Milind Ganjoo, Christopher D. Manning, and Andrew Ng. Zero-shot learning through cross-modal transfer. In Advances in Neural Information Processing Systems (NIPS), pages 935–943, 2013.
  • Soomro et al. [2012] Khurram Soomro, Amir Roshan Zamir, and Mubarak Shah. Ucf101: A dataset of 101 human actions classes from videos in the wild. Technical report, arXiv:1212.0402, 2012.
  • Srikantha and Gall [2014] Abhilash Srikantha and Juergen Gall. Discovering object classes from activities. In Proceedings of the European Conference on Computer Vision (ECCV), pages 415–430. Springer, 2014.
  • Stein and McKenna [2013] Sebastian Stein and Stephen McKenna. Combining embedded accelerometers with computer vision for recognizing food preparation activities. In UbiComp. ACM, September 2013.
  • Sung et al. [2011] Jaeyong Sung, Colin Ponce, Bart Selman, and Ashutosh Saxena. Human activity detection from RGBD images. CoRR, abs/1107.0169, 2011. informal publication.
  • Tang et al. [2012] Kevin Tang, Li Fei-Fei, and Daphne Koller. Learning latent temporal structure for complex event detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Providence, RI, USA, June 2012.
  • Tang et al. [2013] Kevin Tang, Bangpeng Yao, Li Fei-Fei, and Daphne Koller. Combining the right features for complex event recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2013.
  • Taylor et al. [2010] Graham W Taylor, Rob Fergus, Yann LeCun, and Christoph Bregler. Convolutional learning of spatio-temporal features. In Proceedings of the European Conference on Computer Vision (ECCV), pages 140–153. Springer, 2010.
  • Tenorth et al. [2009] Moritz Tenorth, Jan Bandouch, and Michael Beetz. The TUM Kitchen Data Set of Everyday Manipulation Activities for Motion Tracking and Action Recognition. In THEMIS, 2009.
  • Teo et al. [2012] Ching Lik Teo, Yezhou Yang, H Daume, C Fermuller, and Yiannis Aloimonos. Towards a watson that sees: Language-guided action recognition for robots. In Proceedings of the IEEE International Conference on Robotics and Automation (ICRA), pages 374–381. IEEE, 2012.
  • Ting and Witten [1997] Kai Ming Ting and Ian H Witten. Stacked generalization: when does it work? In Proceedings of the International Joint Conference on Artificial Intelligence (IJCAI), 1997.
  • Vedaldi and Zisserman [2010] Andrea Vedaldi and Andrew Zisserman. Efficient additive kernels via explicit feature maps. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2010.
  • Wang and Schmid [2013] Heng Wang and Cordelia Schmid. Action recognition with improved trajectories. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), Sydney, Australia, 2013.
  • Wang et al. [2009a] Heng Wang, Muhammad Ullah, Alexander Klaser, Ivan Laptev, and Cordelia Schmid. Evaluation of local spatio-temporal features for action recognition. In Proceedings of the British Machine Vision Conference (BMVC), 2009a.
  • Wang et al. [2011] Heng Wang, Alexander Kläser, Cordelia Schmid, and Cheng-Lin Liu. Action Recognition by Dense Trajectories. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2011.
  • Wang et al. [2013a] Heng Wang, Alexander Kläser, Cordelia Schmid, and C.L. Liu. Dense trajectories and motion boundary descriptors for action recognition. International Journal of Computer Vision (IJCV), 2013a.
  • Wang et al. [2009b] Josiah Wang, Katja Markert, and Mark Everingham. Learning models for object recognition from natural language descriptions. In Andrea Cavallaro, Simon Prince, and Daniel C. Alexander, editors, Proceedings of the British Machine Vision Conference (BMVC), pages 1–11. British Machine Vision Association, 2009b.
  • Wang et al. [2013b] LiMin Wang, Yu Qiao, and Xiaoou Tang. Mining Motion Atoms and Phrases for Complex Action Recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2013b.
  • Welinder et al. [2010] Peter Welinder, Steve Branson, Takeshi Mita, Catherine Wah, Florian Schroff, Serge Belongie, and Pietro Perona. Caltech-ucsd birds 200. Technical report, California Institute of Technology, 2010.
  • Yang et al. [2011] Weilong Yang, Yang Wang, and Greg Mori. Recognizing human actions from still images with latent poses. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2011.
  • Yang and Ramanan [2011] Yi Yang and Deva Ramanan. Articulated pose estimation with flexible mixtures-of-parts. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR). IEEE, 2011.
  • Yang and Ramanan [2013] Yi Yang and Deva Ramanan. Articulated human detection with flexible mixtures of parts. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), 35, 2013.
  • Yao et al. [2011a] Angela Yao, Juergen Gall, Gabriele Fanelli, and Luc Van Gool. Does human action recognition benefit from pose estimation? In Proceedings of the British Machine Vision Conference (BMVC), 2011a.
  • Yao and Li [2012] Bangpeng Yao and Fei-Fei Li. Recognizing human-object interactions in still images by modeling the mutual context of objects and human poses. IEEE Transactions on Pattern Analysis and Machine Intelligence (TPAMI), 34(9):1691–1703, 2012.
  • Yao et al. [2011b] Bangpeng Yao, Xiaoye Jiang, Aditya Khosla, Andy Lai Lin, Leonidas J. Guibas, and Li Fei-Fei. Action recognition by learning bases of action attributes and parts. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), Barcelona, Spain, November 2011b.
  • Yeffet and Wolf [2009] Lahav Yeffet and Lior Wolf. Local trinary patterns for human action recognition. In Proceedings of the IEEE International Conference on Computer Vision (ICCV), 29 2009-oct. 2 2009.
  • Yuan et al. [2009] Junsong Yuan, Zicheng Liu, and Ying Wu. Discriminative subvolume search for efficient action detection. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2009.
  • Zhang et al. [2011] Lei Zhang, Muhammad Usman Ghani Khan, and Yoshihiko Gotoh.

    Video scene classification based on natural language description.

    In Proceedings of the IEEE International Conference on Computer Vision Workshops (ICCV Workshops), pages 942–949. IEEE, 2011.
  • Zhou et al. [2004] Dengyong Zhou, Olivier Bousquet, Thomas Navin Lal, Jason Weston, and Bernhard Schölkopf. Learning with Local and Global Consistency. In Advances in Neural Information Processing Systems (NIPS), 2004.
  • Zinnen et al. [2009] Andreas Zinnen, Ulf Blanke, and Bernt Schiele. An analysis of sensor-oriented vs. model-based activity recognition. In ISWC, 2009.
