1 Introduction

1.1 Motivation

Personal indoor localization is still a problem to be solved without using an additional infrastructure. A number of emerging applications of mobile devices require to localize the user with respect to predefined objects or places. Although much work has been done on practical localization in GPS-denied indoor environments, resulting in commercially available solutions111http://www.skyhookwireless.com/, there is a need for approaches that are independent of the artificial sources of signals, such as RFID/BLE beacons or WiFi networks. Whereas external infrastructure can be easily applied for localization in limited areas eaai01 , many applications benefit from infrastructure-free indoor localization. Examples range from guidance of visitors in large buildings or exhibition areas to location-aware advertising in shopping centres recom . Nowadays, smartphones and tablets have the considerable computing power and are equipped with high-quality cameras. The ever increasing performance of such mobile devices allows us to consider vision-based algorithms for personal indoor localization. Localization utilizing visual information can operate regardless of the availability of particular infrastructure or the presence of specific features in the environment. In particular, visual localization by place recognition is similar to the way people and animals localize themselves in a surrounding environment, associating the current visual perception to the past episodic memories redish .

1.2 State of the Art

The application of cameras for localization was already researched extensively in robotics, resulting in a number of Visual Odometry (VO) vo and Simultaneous Localization and Mapping (SLAM) vision algorithms. Unfortunately, the use of VO/SLAM on mobile devices is challenging due to the rapid, unconstrained motion of the embedded camera, limited availability of point features, and the high computing power demanded by VO/SLAM systems. Among the state-of-the-art visual localization algorithms, the Parallel Tracking and Mapping (PTAM) algorithm ptam was implemented on iPhone iptam , whereas the SVO system SVO was demonstrated working in real-time on the limited-power Odroid platform. However, the iPhone implementation of PTAM has limited functionality with only the camera pose tracking running in real-time in small workspaces, which made this system more suitable for augmented reality applications than for personal localization in buildings. Also the SVO, which was developed for small aerial vehicles, is rather unsuitable for personal localization, as it requires a very fast camera and makes strong assumptions as to the camera motion SVO .

More typical monocular SLAM algorithms, such as the recent ORB-SLAM orbslam

that demonstrated very accurate camera trajectory estimation on several benchmarks, cannot be used in real-time on mobile devices due to the high computing power requirements of their underlying graph optimization techniques. Although the SlamDunk system, also based on graph optimization has been re-implemented on a mobile device

dunk , it utilizes RGB-D data to simplify 3-D perception and requires a Kinect-type sensor connected to the device, which is infeasible for most applications. Whereas new sensors aimed at enhancing mobile devices with RGB-D perception, such as the Intel RealSense become available, this technology still offers relatively short-range perception. So far it is suitable rather for 3-D object recognition or augmented reality than for building-scale localization.

Our experience from implementing a typical monocular VO pipeline on Android-based devices iciar suggests that robust, real-time operation of purely visual odometry is possible only if the acquired images do not show significant motion blur, and the device held in hand makes no sudden orientation changes. This, together with the high computation burden of the motion estimation algorithms iciar makes VO impractical for personal indoor localization. Although the recently developed VO algorithms based on visual and inertial information RobustVO ; VOKalman can overcome to a great extent the problems related to sudden motions of a handheld camera, they still need relatively high computing power MScVO , and thus drain a lot of energy from the device’s battery. Vision-based tracking was already integrated with WiFi and inertial data for personal localization thrun , but using a setup that only resembled a mobile device, thus avoiding the computing power and energy efficiency issues.

Another possibility in visual localization is the appearance-based place recognition placsurv . Contrary to the VO/SLAM algorithms, the place recognition methods only determine if the observed place is similar to an already visited location. However, the place recognition methods scale better for large environments than typical SLAM algorithms loop

. In the appearance-based methods each image is processed and described by descriptors of salient features, or directly described by a vector of numerical values constituting a whole-image descriptor

gist . Direct matching of local image features is inefficient for place recognition placsurv , thus the Bag of Visual Words (BOVW) technique bag is commonly used, which organizes the features into a visual vocabulary. Images described by visual words can be efficiently matched using a comparison of binary string or histograms. One prominent example of a place recognition algorithm that employs the BOVW technique is FAB-MAP fabmap1 , which implements efficient comparison of images with a histogram-based method. This algorithm and its further developments have demonstrated impressive results over very long sequences of images in various environments fabmap2 .

Recent approaches to direct image description involve usage of image sequences seqslam . The use of sequences instead of individual images exploits the temporal coherence of vision data acquired by a moving camera sigindoor , thus decreasing the number of false positives in place recognition for environments with self-similarities, and increasing the tolerance to local scene changes. This idea is used by the ABLE-M able algorithm, which substantially scales down the processed images, and compares global binary descriptors using the quick to compute Hamming distance.

Image retrieval techniques similar to those applied in appearance-based localization were already used on smartphones in the context of object recognition wang . However, only a few papers tackle the problem of appearance-based localization on mobile devices. An algorithm that combined WiFi fingerprinting without a pre-surveyed database of fingerprints, and a simple visual appearance-based location verification technique was presented in jamris . This work demonstrated that although the appearance-based recognition on a smartphone returned a higher number of false positives than the WiFi-based method, the number of locations correctly identified using the visual data was still much bigger than the number of locations identified by matching WiFi fingerprints. If a database of images acquired at known positions is available, it is possible to compute user position and orientation using an image acquired with the smartphone camera, as demonstrated in feng . However, this approach seems to have a limited potential in practical applications, as collecting the database of images requires a special trolley with a multi-sensor set up for accurate localization. To the best knowledge of the authors, their recent paper IPIN was the first one systematically investigating vision-only appearance-based localization on an actual smartphone, and demonstrating the feasibility of an algorithm based on sequences of images for personal localization.

1.3 Contribution

In this article we significantly extend our preliminary research, presented in the recent conference paper IPIN . This research revealed that the ABLE-M algorithm based on image sequences is particularly beneficial for place recognition in corridor-like environments, where not enough salient features are available for reliable comparison based on a single query image. Moreover, the local binary descriptors used in ABLE-M make it very fast at computing individual matches between images. This makes ABLE-M an interesting choice for implementation on mobile devices for the use in large buildings. However, as we show using the experimental data, and confirm by the theoretical analysis, the processing time of the ABLE-M algorithm does not scale well for long database sequences. Therefore, we propose a much faster version of the ABLE-M algorithm, called FastABLE, that suits the needs of personal localization on mobile devices. In the improved version, the processing time is independent of the size of the comparison window. The FastABLE code is publicly available as open source, together with the test sequences, to make our results fully verifiable. Thus, the main contribution of this work is twofold: (i) thorough experimental and theoretical analysis of the properties of the two representative appearance-based place recognition algorithms in the context of implementation on a mobile device; (ii) new appearance-based localization algorithm tailored specifically to the requirements of the mobile devices with limited computing power and typical characteristics of indoor environments.

2 Fab-Map

The FAB-MAP is a system for visual place recognition proposed by Cummins and Newman fabmap1 . The FAB-MAP algorithm is available in the open-source implementation named OpenFABMAP222https://github.com/arrenglover/openfabmap. Proposed improvements for FAB-MAP fabmapconc ; fabmap2 in terms of scalability and evaluation on large datasets made the system a popular choice for loop closing in visual SLAM systems.

To determine whether the current image represents an already visited or an a priori known place, FAB-MAP detects and describes point features found in every image. The computed descriptors are then used to compare images resulting in a system more robust than direct pixel comparisons that are susceptible to local lighting changes or changes in the observation angle. For each image, the Bag of Visual Words approach is used to create a histogram that describes the occurrence of each descriptor in the image. Even though the descriptors could be directly compared, FAB-MAP uses a probabilistic model that describes the probability

of re-observing the place based on histograms of all images in the database and a histogram of a current (numbered as -th) frame . The set of those histograms will be further denoted by . Comparing histograms using probabilistic model allows distinguishing the features that are relevant in place recognition and features that are commonly found in the environment. In the FAB-MAP the probabilistic distribution of features occurrences is approximated by a Chow-Liu tree chowliu , allowing efficient computation of the values.

The FAB-MAP algorithm was extensively tested in the outdoor environment, especially with omnidirectional cameras, and proved to be a very useful component of robotic SLAM systems. Usually, outdoor datasets contain thousands of features allowing to learn large BOVW vocabulary. As wheeled mobile robots usually move in a stable and smooth manner, the FAB-MAB was usually run on non-blurred images. Because of the presented issues, it is unclear if the FAB-MAP algorithm will work well in the case of a shorter, indoor sequences with motion blur. Moreover, the OpenFABMAP implementation operates only on floating-point descriptors like SIFT or SURF and thus cannot benefit from the recently developed binary descriptors, which are much faster to compute and compare.

2.1 Training and recognition

Before the FAB-MAP is ready to recognize places, pre-training and training process must be performed. In the pre-training process, the system determines a types of descriptors that can be found in the environment by creating the BOVW vocabulary. Therefore, the pre-training images should represent the characteristic of the target operational environment. In this step, all descriptors found in the pre-training images are clustered using the k-means algorithm with the Euclidean distance measure. Each cluster constitutes a single word from the center of belonging members which is then inserted in the vocabulary. This vocabulary is used in a Chow-Liu training procedure that is performed with Meilǎ’s algorithm

chowliulearn . In turn, in the training process the taken images are processed to create a database of places for recognition. For each image, the BOVW is computed that is used in the recognition phase.

During recognition, the FAB-MAP describes features in the image and computes the BOVW based on the occurrences of those descriptors. The final step involves computing the set of probabilities that the observed image was taken in the place recorded in the database. The -th place is usually considered as recognized when the probability exceeds the chosen threshold . The overview of the FAB-MAP processing is presented in Fig. 1a.

2.2 Modifications to OpenFABMAP

The OpenFABMAP system has one major parameter to tune, which is the probability threshold . In the preliminary tests IPIN , we couldn’t find a single setting of that would allow achieving no false positives with the satisfactory number of correct recognitions. Therefore, we decided to modify the OpenFABMAP operation to include information about a sequence of images. Whereas in the original OpenFABMAP the -th place is recognized in the -th frame if the probability exceeds , in our improved version the -th place is considered to be recognized in the -th frame only if the probability exceeds for all frames in the window spanning from -th to -th frame:

(1)

where is the size of the comparison window. The introduced modification added the second parameter () to set up, but finally allowed us to find a parametrization of OpenFABMAP that suits the indoor environment. The value of influences a ratio between false positive and correct recognitions. The higher the value the longer the comparison window and therefore the sequence of frames matched to the same image from the database has to be longer. It implicates that higher values prevent the algorithm from making mistakes, but also lowers the number of places that are correctly recognized. Analogously, a shorter window results in more false positives, but also more places are recognized. Further discussion is provided in section 4.2.

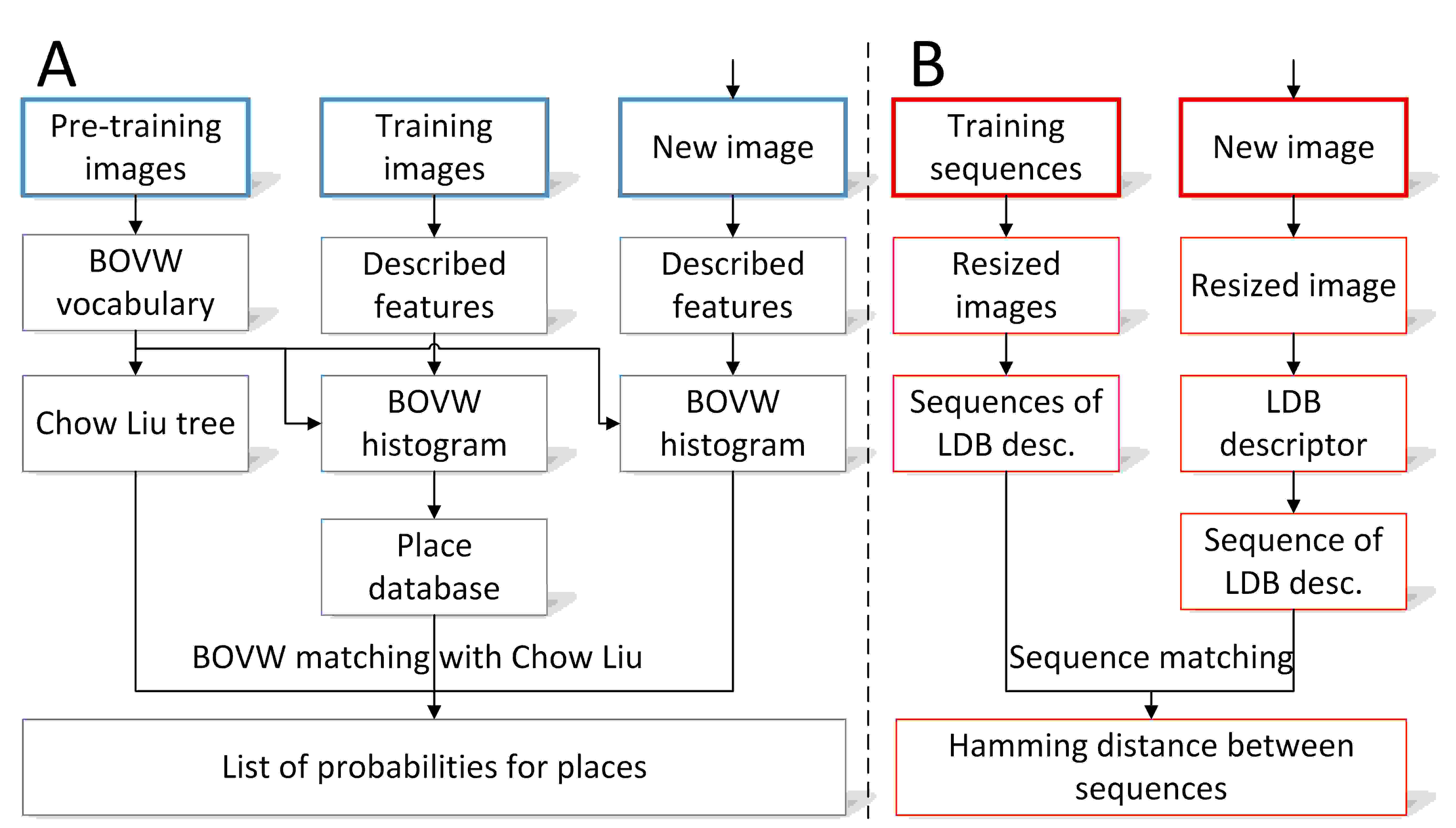

Figure 1: Block schemes of the FAB-MAP (A) and ABLE-M (B) algorithms

3 Able-M

ABLE-M is the algorithm proposed by Arroyo et. al able that detects if the camera observes a place that was already visited or determines if the currently observed scene is similar to a previously recorded image. The ABLE-M algorithm is available in the open-source implementation OpenABLE333https://github.com/roberto-arroyo/OpenABLE openable . This implementation allows to process a single video file and determines if the given frame (image) depicts a place that was already present in this sequence. This is typical loop closure mode of operation, which is, however, impractical for personal indoor localization. We want to determine the user location in real-time by comparing a short video sequence acquired on the go, to a pre-recorded video of the environment. Therefore, our implementation of the system operates on two sequences: the first one () is recorded prior to the localization experiment and can be annotated with respect to the known floor plan of the building, while the second one () is recorded on-line by the user and used as the query.

3.1 Training and recognition

The ABLE-M algorithm processes sequences of images, thus the processing of individual frames has to be very fast to allow real-time operation. To this end, ABLE-M resizes the processed images to the size of pixels. Next, a global variant of the LDB feature descriptor is computed with respect to the whole resized image. The binary LDB descriptor LDB is computed by comparing individual intensities of pairs of points along the predefined lines. LDB was designed to suit the needs of mobile devices, thus it can be computed with minimal effort. It should be noted that prior to image description ABLE-M can perform the reduction of illumination changes in the sequence using the method of McManus et al. illu . However, the illumination invariance is turned off by default in the OpenABLE implementation. As illumination changes in building interiors are limited, comparing it to outdoor scenes, we have decided to let this option be turned off, to make the processing faster.

The next step in the algorithm is the matching phase, in which the distance matrix between positions registered in the sequences and is computed. As the sequence contains global image descriptors, and the sequence contains descriptors, the matrix size is :

(2)

where is the length of the sub-sequence used for matching (in IPIN it was denoted and in able ). The function computes the Hamming distance between the descriptors of the sequences denoted as and . Finally, the resulting distance matrix is normalized. The notation represents the concatenation of descriptors from -th to -th frame of the sequence,

The computational complexity of the baseline algorithm (ABLE-M) is equal to , as for each image in the recognition sequence () we slide the window times and compare the sub-sequences in operations.

3.2 Modifications made to OpenABLE

The original ABLE-M algorithm compares two sequences of images to determine if loop closure has occurred. The value in the distance matrix in the -th row and -th column corresponds to the distance computed between the sub-sequence from -th to -th frame in the training sequence, and the sub-sequence from -th to -th frame in the testing sequence. The parameter has to be chosen depending on the environment characteristics. Originally, the distance matrix is normalized after the whole testing sequence was processed and the places are marked as recognized if the value at the -th position in the matrix is lower than the recognition threshold , set prior to operation. The value is the second parameter that requires tuning depending on the environment. Both of parameters, and , are set experimentally and no formal learning phase is performed.

The choice of greatly impacts the performance of the algorithm. Longer comparison windows make the system more robust, as larger parts of the training and testing trajectories have to match to achieve a recognition from the system. Unfortunately, longer windows also require the user to walk longer along the same trajectory as the one recorded in training sequences, making the localization system impractical, whenever multiple crossroads are located next to each other. Also, the OpenABLE system becomes more vulnerable to changes in the walking speed of the user, as longer trajectories have to match each other. Shorter comparison windows, on the other hand, reduce the recognition capabilities of the OpenABLE system, as less information is used for comparison, which makes the system susceptible to local self-similarities.

Another problem with the practical application of OpenABLE for personal localization is the large number of recognitions we usually obtain in our target environments. If the testing sequence contains a long trajectory recorded along the same path as the training sequence, the system yields a large number of positive recognitions, as the query sub-sequence of images can be successfully matched against multiple overlapping sub-sequences in the training sequence. The value at position in the distance matrix is usually similar to the value in position in the same matrix. This can be observed especially with larger values of the window size , as a large portion of the computed distance is the same in both of those cases. The large number of recognitions in the same place inflates the statistics of positive matches, but yet does not introduce a novel information about user location.

Therefore, we propose to cluster the positive recognitions obtained from OpenABLE to achieve a reasonable number of distinct recognitions. In our implementation, we use DBScan dbscan , which is an unsupervised clustering algorithm that does not require a priori information about the expected number of clusters. In our modification of OpenABLE, the DBScan algorithm clusters two-dimensional elements of the distance matrix . If both and exceeded the recognition threshold , then those elements are clustered according to the Euclidean norm:

(3)

which directly considers the indices of the distance matrix elements. The algorithm is tuned according to two parameters – the maximum distance that allows adding a new point to the cluster, and the minimal number of points to form a cluster (). The was set to 2, and was equal to 1. To ease the comparison with FAB-MAP, each cluster is represented by the average indices of the cluster members to verify the correctness of the recognitions belonging to the cluster.

4 Experimental evaluation

The experimental evaluation of the OpenFABMAP and OpenABLE systems adopted to the requirements of the personal localization task was conducted using images taken with the Samsung Galaxy Note 3 smartphone with the Android operating system. To increase the informational content of the images, they were taken while the smartphone was held by the user in the horizontal position. The resolution of images was set to . This resolution was chosen as a compromise between the need to capture as much of the details in the environment as possible, and the real-time processing and storage space constraints of the mobile device. The choice of the resolution was also motivated by our previous experience with the feature detectors and descriptors iwcmc , which are used in OpenFABMAP. The ABLE-M algorithm processes images resized to pixels, thus the source image resolution influences it to a smaller extent. During the experiments, the speed of capturing the images was limited to 8 frames per second due to the limitations of the SD card in the smartphone.

4.1 Experimental sites

The experiments were conducted at Poznań University of Technology (PUT) in two buildings of quite a different topology. The PUT Lecturing Centre (PUT LC) is a modern style building with many open spaces that are illuminated by sunlight coming trough multiple glass panels in the walls. The PUT Mechatronic Centre (PUT MC) is a building of the more classic structure, with many similar corridors. As the existing windows do not provide enough sunlight, artificial light is commonly used.

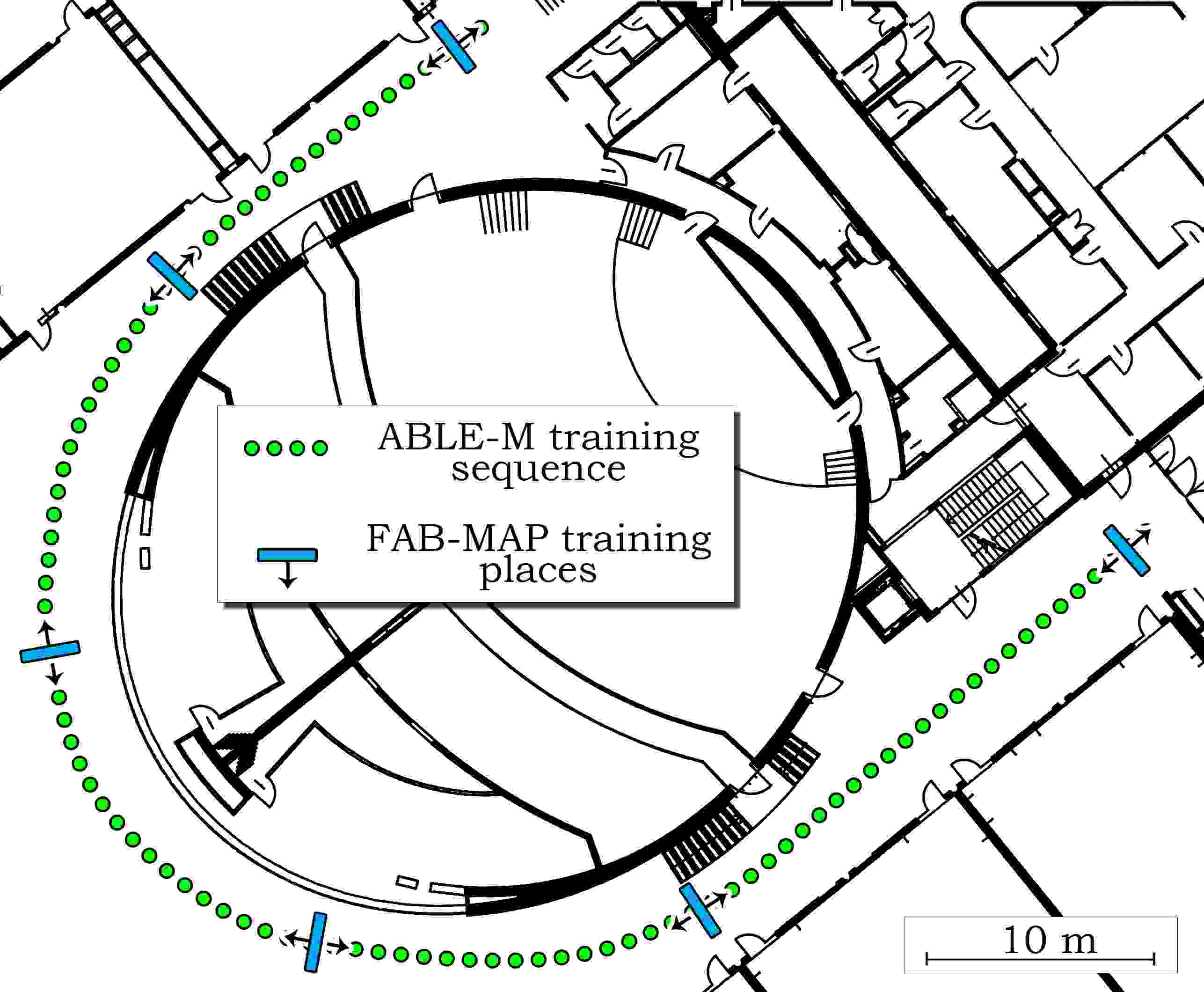

Figure 2: The PUT LC training sequence contains 6 recognition places with views in both directions for OpenFABMAP (blue rectangles with arrows) and 2 sequences recorded in both directions for OpenABLE (green dots)

The first test inside the PUT LC building consisted of a single trajectory around the main lecturing hall. During the training phase, 6 positions with images taken in both directions were taken for FAB-MAP, and two sequences in both directions containing 458 and 438 images respectively were registered for ABLE-M. In Fig. 2 the FAB-MAP training places are marked as blue rectangles, whereas the ABLE-M training sequences are marked by a line of green dots. Additionally, the training data were augmented with 5 images for FAB-MAP and a sequence of 410 images for ABLE-M taken in the new PUT Library, which is a different building of a very similar structure to the PUT LC building. The purpose of adding images from an outside of experimental sites was to make tests more challenging and check if systems are capable of discriminating different sites.

After the training phase, the performance evaluation of the OpenFABMAP and OpenABLE systems was accomplished on two test sequences acquired in the same environment: PUT LC test and PUT LC test 2. The user was asked to walk roughly along the trajectory marked by the green dots in Fig. 2. The PUT LC test sequence consists of 466 images, and the PUT LC test 2 sequence contains 448 images.

Figure 3: The PUT MC training sequence contains 17 recognition places for OpenFABMAP (blue rectangles with arrows) and 4 sequences for OpenABLE (green dots)

The structure of PUT MC results in multiple junctions, and therefore the ABLE-M learning trajectories can either map all available paths, or they can consist of disjointed trajectories not covering the junctions. We have chosen the latter option and divided PUT MC into 4 trajectories containing 1256 images altogether, as presented by the green dots in Fig. 3. For the training purposes of FAB-MAP 17 places were chosen, that are marked by blue rectangles in Fig. 3. The final training data set for FAB-MAP was augmented by images of 5 places from another floor of the same building, whereas the ABLE-M training data additionally included one sequence of 274 images from that floor.

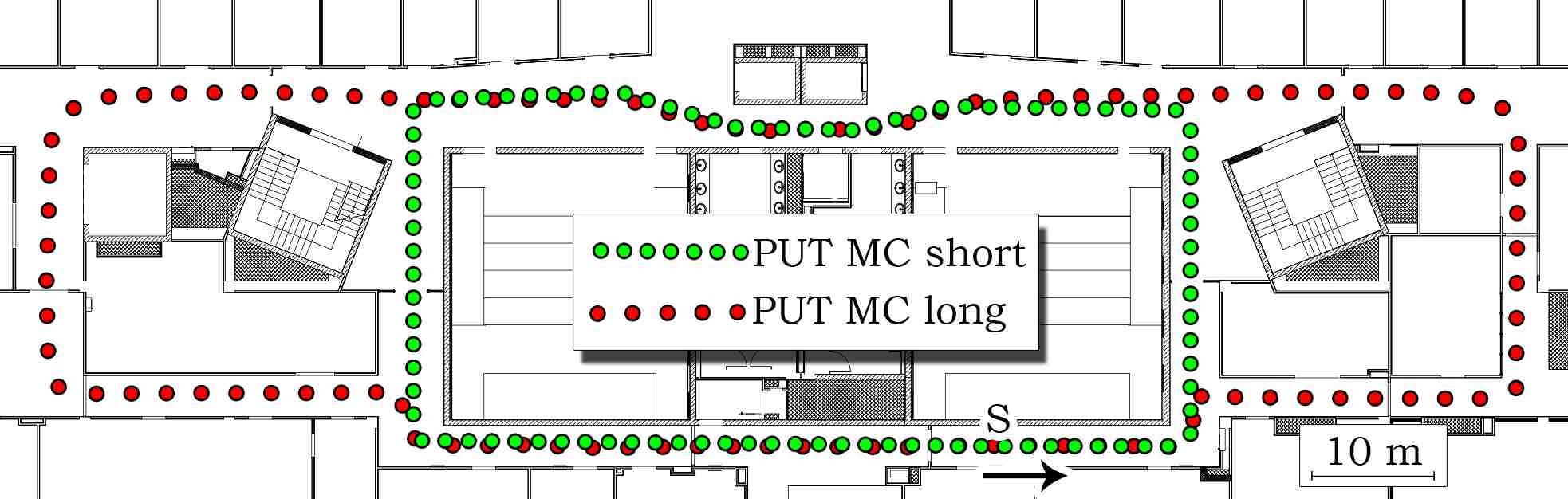

Figure 4: The trajectories of two PUT MC test sequences: PUT MC short, marked by orange dots, and PUT MC long, marked by blue dashes

Because PUT MC contains multiple corridors, we decided to have two different test trajectories, PUT MC short and PUT MC long, recorded on the third floor. The trajectories are presented in Fig. 4 by green dots (PUT MC short) and by red dots (PUT MC long). Both trajectories started and ended in a place marked by ’S’ in Fig. 4, while the direction of motion is marked by an arrow. The shorter trajectory was equal to approximately 60 metres and contains 620 images, while the longer trajectory is approximately 120 metres long with 996 images. Taking into account the choice of training places, 10 FAB-MAP test locations are put along the PUT MC short trajectory, and 15 test locations are put along the PUT MC long trajectory.

To verify the robustness of the evaluated place recognition systems in populated environments, we additionally recorded two sequences with people (individual or in groups) appearing at random in the same corridors. These sequences were registered during a break between classes when many students stay at the corridors or they wait at the doors of the classrooms. The PUT MC people short consists of 525 images, and in the PUT MC people long 864 images were recorded.

4.2 Evaluation procedure for OpenFABMAP

The FAB-MAP algorithm needs a pre-training and training process. For the pre-training we used a separate set of images that were collected in the same environment, was not overlapping with the database of known places used for training. As it comes to the parameters of the modified OpenFABMAP, they need to be adjusted before the system can be applied in real-life operation. The PUT LC test and PUT MC short were chosen for the initial validation and the results of system testing are presented in Tab. 1. As already mentioned, setting the sequence size to 1 results in incorrect recognitions even if the recognition threshold is set to 0.99. As any incorrect recognition may be critical for indoor localization mobicase , these results strongly suggest that OpenFABMAP in the original version was incapable of operation in the target environment. Increasing allows to suppress the number of incorrect recognitions to 0, but might also lower the number of correct recognitions as the system needs to properly match several images in a sequence. Therefore, the window size of 3 or 5 is the best choice in our case. As performing recognition on several images is more descriptive, it is possible to lower increasing the number of correct recognitions without any additional incorrect matches.

comparison window
sequence recognitions 1 3 5 8
PUT MC short 0.6 correct 241 136 92 67
incorrect 36 0 0 0
distinct 9 9 6 5
0.99 correct 174 85 59 38
incorrect 1 0 0 0
distinct 9 6 5 4
PUT LC test 0.6 correct 223 140 94 63
incorrect 207 23 2 0
distinct 6 6 5 4
0.99 correct 202 126 94 65
incorrect 122 11 1 0
distinct 6 6 5 4
Table 1: Testing various OpenFABMAP parameters on validation sequences PUT MC short and PUT LC test
sequence length
sequence recognitions 1 3 5 8
PUT LC test 2 correct 224 199 168 135
incorrect 52 6 1 0
distinct 6 6 6 6
PUT MC long correct 301 229 173 119
incorrect 22 2 0 0
distinct 13 12 10 7
PUT MC people long correct 150 84 42 15
incorrect 24 3 0 0
distinct 10 7 7 5
PUT MC people short correct 34 18 10 2
incorrect 4 0 0 0
distinct 9 4 3 2
Table 2: OpenFABMAP results in PUT MC and PUT LC with for and for

The parameters found in the previous analysis were used on datasets PUT LC test 2 and PUT MC long, and the datasets with people moving inside corridors PUT MC people long and PUT MC people short. The results confirm that the proper choice of windows size usually allows minimizing the number of incorrect matches. In some cases, the characteristic of the environment contains multiple, misleading features making recognition a challenging task. Such case is presented in Fig. 5A as multiple features are visible on windows, misleading the FAB-MAP. Similarly, the people present in the corridors make it difficult to correctly recognize the places. Such situation is presented in Fig. 5B.

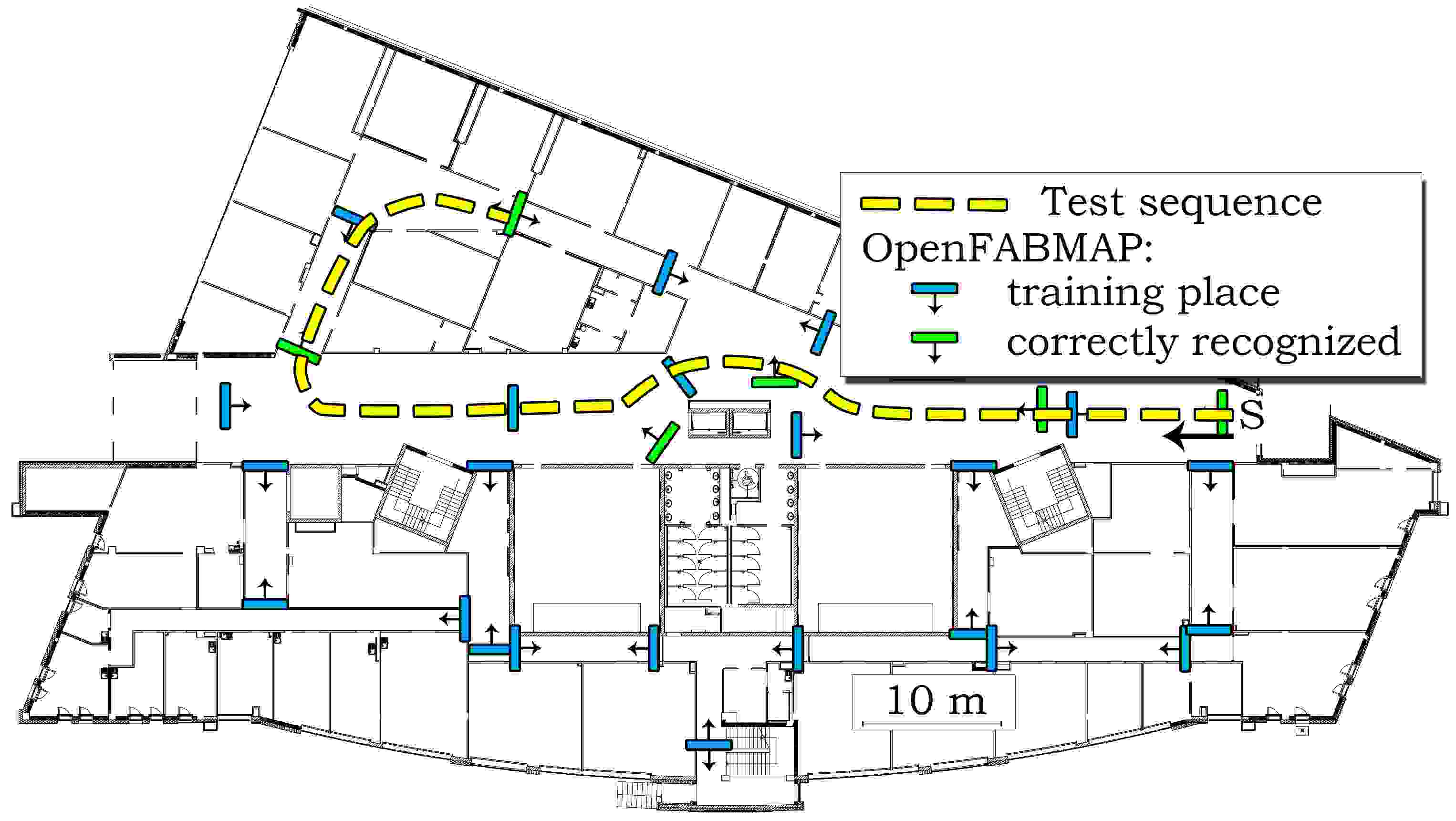

Figure 5: OpenFABMAP incorrectly recognized locations: A) due to many features placed on windows, B) due to people occluding the view

4.3 Evaluation procedure for OpenABLE

The OpenABLE results depend on the choice of two parameters. The first one, denotes the number of frames used when comparing sequences whereas the second is the recognition threshold in the normalized distance matrix. The authors of OpenABLE do not provide any procedure for setting those parameters, and therefore we perform an experimental evaluation for different settings on PUT LC test dataset. The most significant results are presented in Tab. 3 containing tests for ranging from 2 to 40 images and two setting of . For the convenience of the readers, we only provide the clustered recognized places, which is a more intuitive performance measure than the total number of positive results from OpenABLE.

recognized 2 5 10 20 40
places
0.4 correctly 61 36 19 21 6
incorrectly 387 105 42 4 0
0.3 correctly 121 49 16 15 8
incorrectly 57 4 0 0 0
Table 3: Influence of parameters and in OpenABLE on PUT LC test

The OpenABLE algorithm was at first tested with set to 0.4 and different sizes of . For small window sizes, likes 2 or 10, the algorithm recognizes more incorrect than correct places but even for equal to 2 the number of positive hits from OpenABLE (16936) exceeds the number of incorrect recognitions (10962). The poor performance can be attributed to the fact that OpenABLE extracts not enough information from individual images, as those images are reduced in size and described by a global descriptor. The strength of the algorithm lies in exploring the sequences of images. For greater the system recognizes places, but it also negatively affects the number of positive recognitions as longer sequences have to match in order to obtain a correct place recognition.

Similar results can be also obtained for set to 0.3. In this case, OpenABLE achieves fewer incorrect matches due to the fact that is a threshold that is more strict. Regardless of the choice of to 0.3 or 0.4, the OpenABLE results in 0 incorrect recognitions when comparison window is set to 40. The sequence of 40 images in our case corresponds to the operation for approximately 5 seconds. From our experience, the value of is influenced by the structure of images and usually is hard to tune for sequences containing different parts of the building and the value of should be chosen based on the similarity of places in the dataset. For example, if the database consists of several similar corridors, it is usually better to increase . From the first experiment, we assumed to be 40 and of 0.4 and wanted to verify the performance inside the building with a different structure. The choice of those parameters was also evaluated on PUT LC test 2. The system correctly recognized 6 places on the trajectory with 4529 positive recognitions from OpenABLE. Moreover, the system presented no false positives.

Recognized
Sequence places 40 60 80
PUT MC short correctly 10 6 5
() incorrectly 6 1 0
PUT MC long correctly 13 10 8
() incorrectly 8 0 0
PUT MC people short correctly 5 3 1
() incorrectly 1 0 0
PUT MC people long correctly 8 1 0
() incorrectly 0 0 0
PUT MC people short correctly 9 8 2
() incorrectly 33 5 1
PUT MC people long correctly 12 11 2
() incorrectly 24 0 0
Table 4: The results obtained with OpenABLE for different on datasets from PUT MC

The PUT MC has a different structure than PUT LC and therefore the parameters of OpenABLE have to take into account those differences. The results obtained on PUT MC short, PUT MC long and the sequences with people being present in the field of view are shown in Tab. 4.

Setting the results in almost every case in some incorrectly recognized places. Even if there are no incorrectly recognized places for equal to 40, small change in from 0.4 to 0.5 results in significant increase of incorrect recognitions, which can be observed for PUT MC short and PUT MC long. As corridors are hard to distinguish even for humans, the window size was extended as shorter sequences might not provide sufficient information for place recognitions. This is necessary as building structure contains similar corridors, like those presented in Fig. 6A. Increasing to 80 images corresponds to the 8 seconds of motion.

Figure 6: PUT MC is a challenging environment due to similarities that can cause incorrect recognitions for ABLE-M (A). But in some real-life cases ABLE-M correctly recognizes locations in corridors even with multiple people visible in images (B)

Another important aspect of real-life operation is the influence of people on recognition. Therefore, we recorded and can compare the same trajectories with and without people occluding the view from the camera. In both cases, PUT MC people short and PUT MC people long, there were no incorrect recognitions when was set to 60. Compared to sequences without people, the system recognizes fewer different places. This is normal as people can occlude a significant part of the images changing the properties of images for comparison. Therefore, large values of might provide more robust recognitions in the case of small disturbance, like 1 person, but not be efficient in case of a crowd as the system compared longer trajectories. Nevertheless, OpenABLE exhibits impressive performance correctly recognizing places even in such situations as the one presented in Fig. 6B.

4.4 Performance comparison between OpenFABMAP and OpenABLE

The initial experiments proved that OpenFABMAP and OpenABLE can be successfully used in indoor environments. Nevertheless, the obtained results cannot be simply compared with respect to the number of correct and incorrect recognitions, due to the conceptual differences between the FAB-MAP and ABLE-M algorithms. Therefore, we present the results on shared figures that allow to visually compare the achieved recognitions and to draw conclusions about the algorithms. In each case, we present the best results for parameter settings that yielded no incorrect place recognitions.

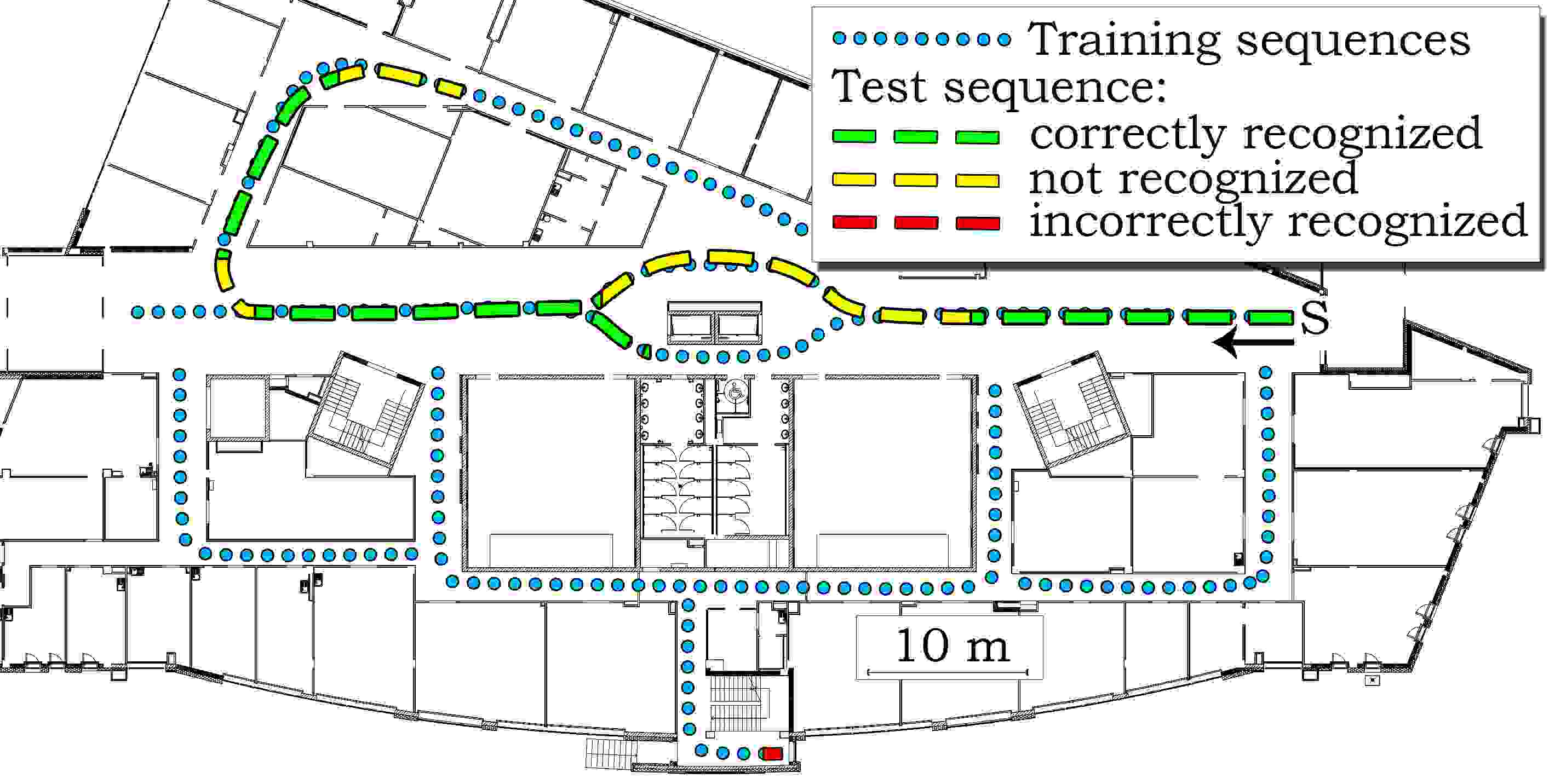

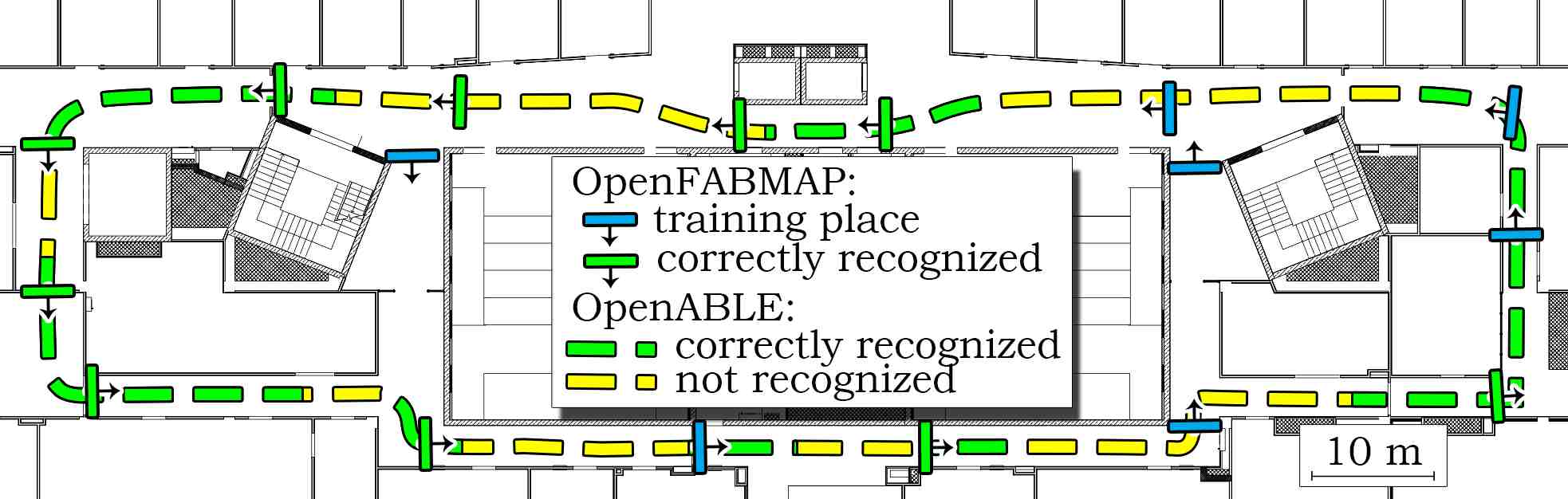

Figure 7: The results obtained with the OpenFABMAP and OpenABLE on PUT LC test 2

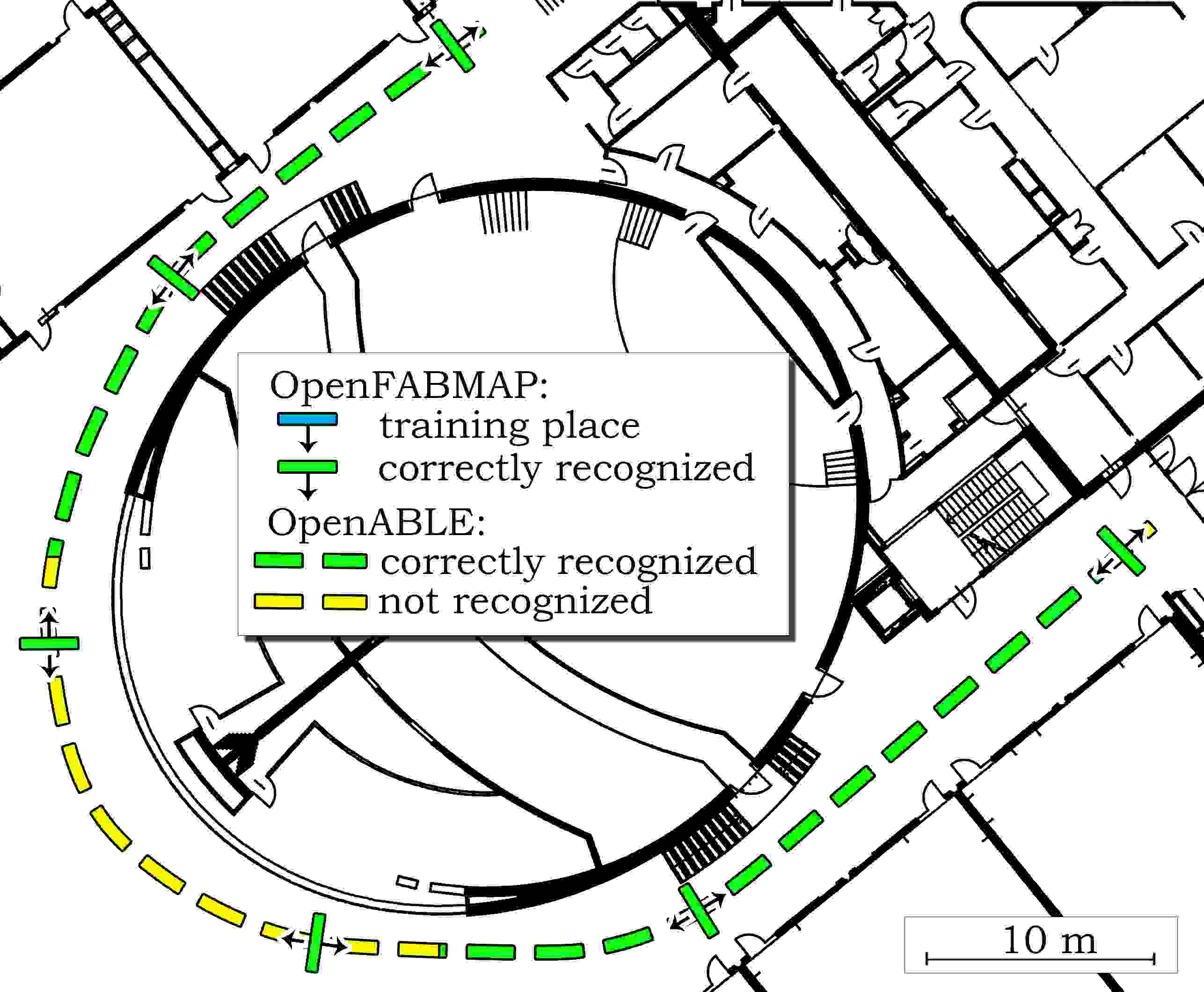

In Fig. 7 we present the results obtained on PUT LC test 2 sequence. It can be observed that the OpenFABMAP correctly recognized all of the places along the test trajectory. The OpenABLE failed to achieve recognitions in the middle part of the trajectory but provided continuous localization in the beginning and the end of the sequence. Depending on the application, both systems provided valuable information for the localization purposes.

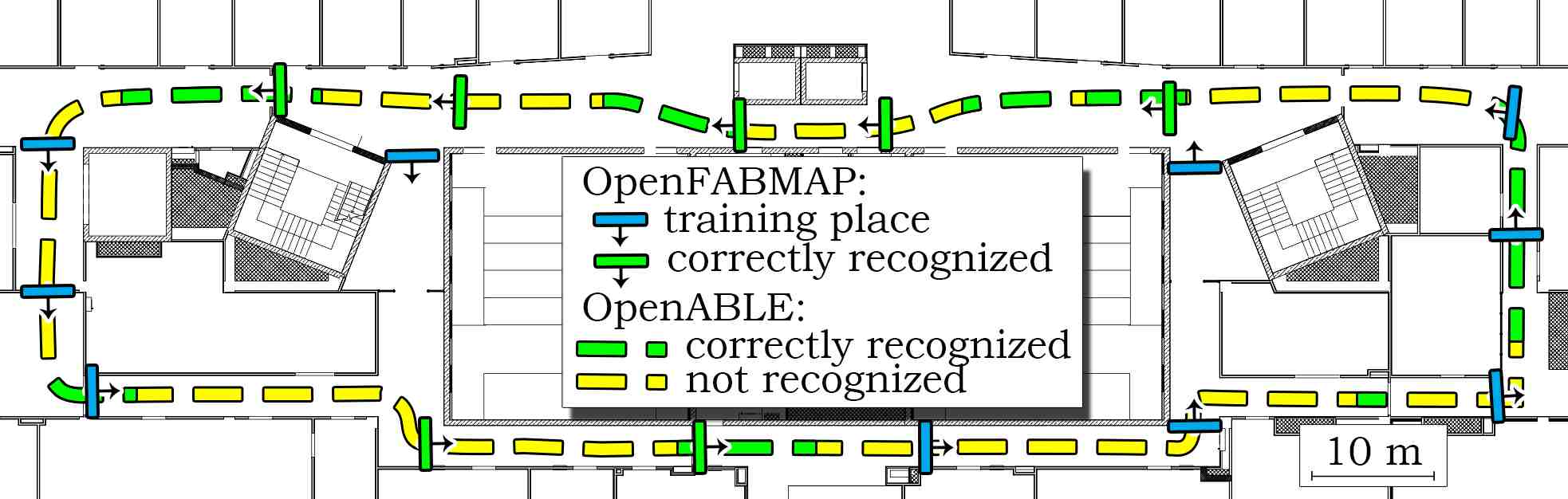

Figure 8: The results obtained with the OpenFABMAP and OpenABLE on PUT MC long

In Fig. 8 we present the results obtained for the PUT MC long sequence. The OpenFABMAP managed to correctly recognize user location on 10 out of 15 possible places along the trajectory. The OpenABLE recognized the user in 7 parts of the trajectory, but some of those parts are equal to several seconds providing the system with continuous user localization. The main difference between algorithms is visible close to junctions – OpenABLE cannot recognize user on those locations, while OpenFABMAP works correctly. This suggests that these solutions are suitable for buildings of different structure or might be combined in a robust visual place recognition system.

Figure 9: The results obtained with the OpenFABMAP and OpenABLE on PUT MC people long containing additional people compared to PUT MC long

One of the main challenges of visual place recognition is the presence of people in front of the camera. Therefore, in Fig. 9 we present the results obtained along the same trajectory as PUT MC long, but during the student break with many people walking along the corridors. In such conditions, the OpenFABMAP recognized the user in 7 out of 15 possible places along the trajectory. The OpenABLE recognized the user in 7 parts of the trajectory, but the recognized parts were shorter when compared to the recognition results obtained when the people were not present. Both systems correctly recognized the images of re-visited places if the presence od people only slightly disturbed the original view of the scene. Therefore, in many cases, the OpenFABMAP was able to correctly recognize a place based on images taken when people just passed by, which was not possible to OpenABLE. On the other hand, OpenABLE required a longer sequence of similar images for successful recognition but was more robust to small, but continuous disturbance introduced by the presence of people, which led to some surprisingly correct recognitions, as presented in Fig. 6B. Neither of the algorithms provided incorrect recognitions due to the people obscuring the field of view.

5 Processing time analysis

The processing time is an important factor often deciding if the algorithm can be applied on a mobile device in real-life scenarios. Moreover, it is related to the energy consumption, as we are not only interested in localization systems that run in real-time, but also in solutions that do not require the whole processing time of the mobile device’s CPU.

To verify the processing requirements, we implemented OpenFABMAP and OpenABLE systems on Samsung Galaxy Note 3 and Lenovo S8-50, hereinafter abbreviated to SGN3 and LS8-50. Both of those devices are equipped with Android 4.4. Systems are implemented in C++ and therefore we used C++ NDK to create shared libraries called from the Android application written in Java. For image processing, we used OpenCV library in version 3.2.0 with a contrib module for SURF and SIFT. Compared to our preliminary results IPIN , the applications were moved from the Eclipse IDE to the Android Studio due to the depreciation of Eclipse IDE and the lack of support from Google in new versions of Android. Therefore, the run times measured in the new versions of our applications are different than in IPIN , due to differences in the compiler optimization.

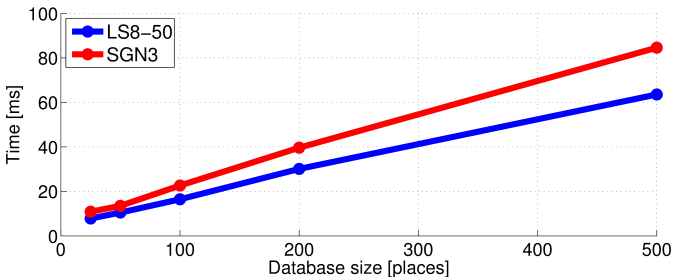

Figure 10: The image to database matching time for OpenFABMAP algorithm depending on the number of places in the database for Lenovo S8-50 (LS8-50) and Samsung Galaxy Note 3 (SGN3)

The OpenFABMAP processing time can be divided into a single image processing time and a place recognition time. The single image processing time is the most time-consuming part as extraction of SURF features takes 156 ms per frame on SGN3 and 92 ms on LS8-50. The description of features is also time demanding as it takes exactly 89 ms per frame on both devices. Therefore, single frame processing without matching to the database takes around 245 ms on SGN3 and 181 ms on LS8-50. The place recognition time depends on the size of the database and the obtained results are presented in Fig. 10. In those experiments, the time needed to match the processed image to the database was equal to several milliseconds, growing linearly with the number of places stored in the database.

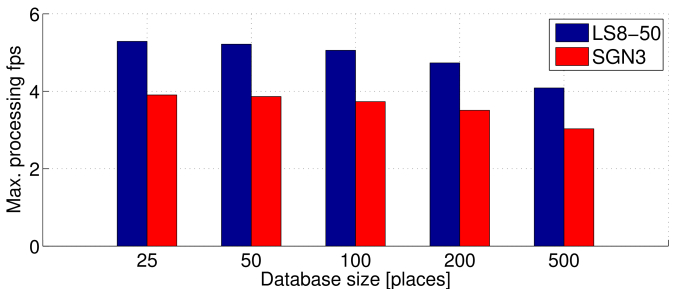

Figure 11: Maximum number of processed frames per second for OpenFABMAP depending on the database size for Samsung Galaxy Note 3 (SGN3) and Lenovo S8-50 (LS8-50)

The maximum numbers of processed frames per second for different databases are presented in Fig. 11. In our experiments, the databases contained no more than 50 frames but even for larger databases the maximal processing frames per second are almost the same. Unfortunately, the OpenFABMAP system can only process around 5 frames per second for SGN3 and LS8-50, which is insufficient in the case of experiments in PUT buildings. Even if the phone would record images with the desired framerate, the processing would take CPU time, which will have a negative impact on the battery life of a mobile device.

Figure 12: Time taken to match a new sequence of images to the pre-recorded database depending on the database size and the length of comparison window for OpenABLE on Samsung Galaxy Note 3 (SGN3) and Lenovo S8-50 (LS8-50)

Similarly to the OpenFABMAP, OpenABLE processing time can be divided into single image processing and sequence matching times. Single image processing time for OpenABLE is almost negligible as image resizing takes 0.48 ms per frame and computing LDB descriptor takes 0.44 ms per frame. Thus the total time needed to process single image is approximately equal to 1 ms. However, the sequence matching is the time-consuming part. The processing time of OpenABLE depends on the length of the sequence and the size of the database. We assume that the video data should be processed at 10 frames per second to achieve real-time localization. Therefore, the sizes of the database varying from 100 to 4000 images represent camera trajectories recorded during motion lasting from 10 to 400 seconds. The size of the comparison window was also chosen experimentally and was varying from 20 to 80 frames. Results of experiments with several different settings for those parameters are presented in Fig. 12. During those experiments, the testing sequence was equal to 1000 frames to average obtained times.

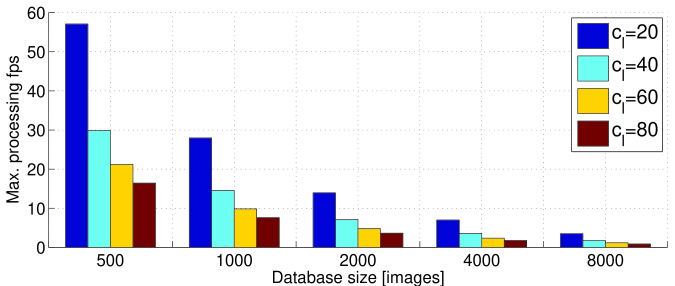

Figure 13: Maximum number of processed frames per second for OpenABLE depending on the database size and comparison window for Samsung Galaxy Note 3 (SGN3)

From the plots in Fig. 12 it is evident that OpenABLE can be only applied in environments of limited size, as the matching times increase linearly not only with the growing size of the database but also with the length of the comparison window. The total processing time reaches 832 ms for SGN3 when is equal to 80 and the database size contains 4000 images. The time obtained for LS8-50 for the same parameters is equal to 562 ms. Matching times over 125 ms prevent the system from operating in real-time. The exact number of frames per second that can be processed in real-time on Samsung Galaxy Note 3 is presented in Fig. 13 whereas the results for Lenovo S8-50 are presented in Fig. 14.

Figure 14: Maximum number of processed frames per second in OpenABLE depending on the database size and comparison window for Lenovo S8-50

In our experiments, the database inside PUT MC contained images and the was set to 40. For those settings, the sequence matching time takes 150 ms for SGN3 and 105 ms for LS8-50. This suggests that the system on SGN3 can process approx. 7 images per second which are slightly less than what we recorded (8 fps). On LS8-50 device, the processing in real-time can be performed for almost 10 frames per second, which leaves some processing time of CPU for other tasks in our case. But the PUT MC database is relatively short when considering real-life applications and the sequence matching time grows linearly with the number of images in the database. Therefore, the system can be applied either in small buildings or it requires additional information from an independent source in order to limit the search area to a single floor or a part of the building fabmapwifi . This might be an important factor when choosing between a typical place recognition algorithm (e.g. FAB-MAP) and OpenABLE, as such a limitation was not observed for the OpenFABMAP.

6 Nordland dataset

One of the most challenging datasets for visual place recognition is the Nordland dataset seqslam . It was conceived for evaluation of outdoor place recognition under appearance changes induced by seasons and consists of video sequences recorded during a train ride of approximately 3300 km. The four sequences in Nordland correspond to four seasons – spring, summer, fall and winter. This dataset was used to evaluate the ABLE-M algorithm by its authors able . The comparison window equal to 300 frames is assumed in able and the processing time is measured on a PC with i7 2.4 GHz CPU. We used the same settings to generate the results presented in Tab. 5. The length of the testing sequence was to 1000 frames as in our previous experiments.

Database size
OpenABLE
PC
OpenABLE
SGN3
OpenABLE
LS8-50
1000 0.169 s 0.627 s 0.366 s
10 000 2.273 s 8.593 s 5.069 s
100 000 24.476 s 85.480 s 52.103 s
Table 5: Comparison of sequence matching time per frame for equal to 300 on Nordland for a typical i5 in a laptop (PC), Samsung Galaxy Note 3 (SGN3) and Lenovo S8-50 (LS8-50)

The authors of ABLE-M present the matching times when the training sequences are equal to , and frames. For those sequences, the ABLE-M implementation in able takes 0.023 s, 0.25 s and 2.53 s per frame, respectively. Those times are much shorter comparing to the results that we obtained on a laptop with i5 CPU, as we got, respectively, 0.169 s, 2.273 s and 24.476 s. The difference in processing time might stem just from using a different computer, but we also do not know how exactly the time was measured in able . On mobile devices, Samsung Galaxy Note 3 and Lenovo S8-50, the obtained results are 2 to 4 times slower than those computed on the PC.

The results obtained on mobile devices demonstrate that OpenABLE cannot operate in real-time. The solution proposed in able is to use multi-probe LSH (Local Sensitive Hashing) lsh to reduce the matching time. The proposed version with LSH matching obtained 0.0093 s, 0.17 s and 0.42 s for databases of 1000, 10 000, 100 000 images, respectively, but it provided only an approximate solution that might return worse recognition results than the original algorithm, which was not verified in able .

7 Improved FastABLE for Mobile Devices

The ABLE-M algorithm presents an interesting idea exploiting sequences of images for visual place recognition. Nevertheless, the OpenABLE implementation scales poorly with the number of frames stored in the database and the length of the comparison window. An in-depth analysis of the ABLE-M algorithm enabled us to conclude that there is a possibility to speed up the processing without any loss of recognition accuracy. The improved algorithm has been implemented for PC/Linux and for Android mobile devices and is called FastABLE.

7.1 Increasing the matching speed of OpenABLE

The most important modification in the FastABLE implementation aims at significantly increasing the speed of the matching phase and therefore increasing the related energy efficiency iciar . Although ABLE-M can employ the FLANN library flann for fast nearest neighbor search able , this is an approximate technique, which improves processing time mainly for very long sequences and is not implemented in OpenABLE. Thus, we propose a purely algorithmic modification, that enables the use of our system for real-time indoor localization on mobile devices. To introduce the idea, we analyze the steps taken during processing in ABLE-M (Fig. 15).

Figure 15: After capturing the image, one iteration with steps is performed to compare the sliding window of descriptors to the pre-computed descriptors from the database. In ABLE-M, each iteration is independent of the others. In FastABLE we utilize the previously computed values to speed-up the computations

In ABLE-M and the OpenABLE implementation, after a new image is captured, the window of descriptors computed on the last images is moved along the pre-recorded sequence and the corresponding Hamming distances are computed. The distance computations between the same pairs of global descriptors in the database sequence and the sliding window are repeated. This can be observed in Fig. 15, as for example the distance between the descriptors and is computed in iteration 1 step 1, and in iteration 2 step 2.

In contrary, in FastABLE we maximally re-use the information already computed. In the first iteration, the corresponding distances are computed and saved in an auxiliary array . In the next iterations, we compute the distance for the first step the same way as in OpenABLE. However, in the following steps it is possible to use the previously stored distance values. The distance for the iteration and the -th step is computed as:

(4)

where the sequence frames are indexed from 1. The idea is to compute the current distance as the result of the previous iteration reduced by a distance for the first element in the previous comparison, but increased by a distance for last element in the current sliding window. As we manipulate integer Hamming distances, no residual errors accumulate due to the computations, and the results are numerically identical with those obtained from OpenABLE. In Fig. 15 the distance from the second step in second iteration, , is the distance between substring from pre-recorded sequence and substring from the query sequence. Distance according to FastABLE is computed by taking the distance (distance between substring and substring), subtracting the distance between and and increasing the result by the distance between and . Each new distance updates the array , so that in the next iteration it is possible to re-use the previous results.

The computational complexity of FastABLE is equal to , as we perform computations for each new image in the recognition sequence (), and we slide the window times, but the comparison is performed in constant time (. Therefore, it is evident that the complexity of the modified algorithm became independent of the length of the comparison window , comparing it to the complexity of OpenABLE. The computations are done at an increased memory cost to store the distances computed in the previous iteration.

7.2 Processing time analysis of FastABLE

The proposed algorithm was implemented and is available on GitHub in a version for PC444https://github.com/LRMPUT/FastABLE, and in a version for Android devices555https://github.com/LRMPUT/FastABLE_Android.

Figure 16: Dependence of the speed improvement of FastABLE over OpenABLE from the length of the database and the legth of the query sequence on Samsung Galaxy Note 3 with equal to 20

We started analysing the FastABLE performance from a test that verified how much the FastABLE algorithm execution time depends on the length of the used image sequences: the database size, and the query sequence length, which, assuming a constant frame rate of the camera, is proportional to the distance covered by the user. We performed an experiment for for an arbitrary chosen window length =20, and increasing lengths of the training database and the query sequence (Fig. 16). For real-life scenarios the window is usually much shorter than the length of the query sequence, and therefore we present results for query sequences of length from 500 to 2000 frames. From Fig. 16 it is evident that the speed improvement of FastABLE over OpenABLE is almost the same for different lengths of the query sequence. Small differences are attributed to the non-deterministic execution time of the multi-thread application. Considering these results, we assume the query sequence of 1000 frames for all further experiments.

Next, the FastABLE performance was evaluated by comparing the processing time for different lengths, and different lengths of the database sequence.

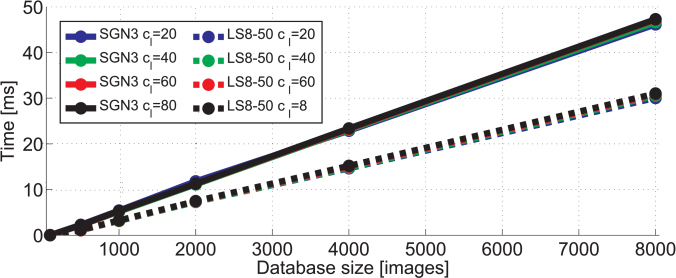

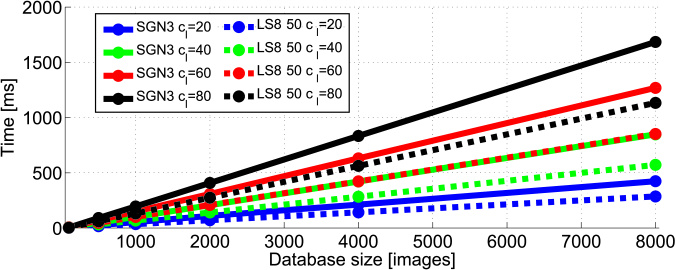

Figure 17: Time taken to match a new sequence of images to the pre-recorded database depending on the database size and the length of comparison window for FastABLE on Samsung Galaxy Note 3 (SGN3) and Lenovo S8-50L (LS8-50)

Results presented in Fig. 17 prove that the size of the sliding window does not have an influence on the processing time anymore. Moreover, the obtained total processing times are much smaller than the times required to process the same data by OpenABLE. The maximum processing time took by FastABLE for a database of 4000 frames with =80 is below 24 ms, whereas OpenABLE needed 832 ms to accomplish the same task. Table 6 shows how many times faster is FastABLE with respect to OpenABLE for several database sizes and values. Gains due to the improved algorithm are especially evident for longer comparison windows.

database size
500 1000 2000 4000 8000
SGN3 20 11.4 9.8 9.3 9.2 9.2
40 22.3 19.5 18.6 18.2 18.2
60 32.5 28.0 27.5 27.1 26.9
80 40.5 36.5 36.2 35.6 35.6
LS8-50 20 15.3 11.0 9.7 9.7 9.5
40 29.6 21.7 19.2 19.2 18.7
60 42.3 31.2 28.1 28.1 27.6
80 52.2 40.2 36.6 37.1 36.5
Table 6: Processing time improvement over OpenABLE obtained with FastABLE on Samsung Galaxy Note 3 (SGN3) and Lenovo S8-50 (LS8-50)

Similarly to the previous analysis, we can determine the maximal number of frames that can be processed in real-time. As FastABLE can work in real-time on a smartphone, we present those results with respect to the CPU usage, assuming that images from the smartphone’s camera are taken at 10 Hz, which simulates a realistic scenario for localization. The results obtained for SGN3 are presented in Fig. 18.

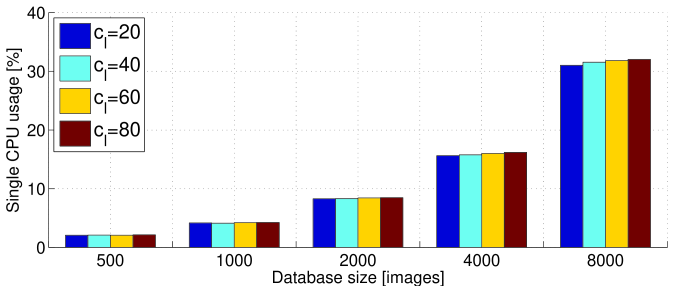

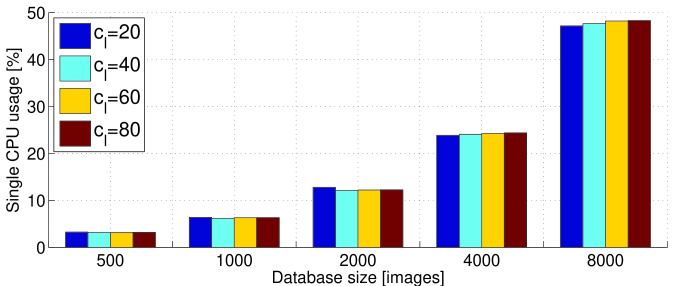

Figure 18: The usage of the single CPU depending on the database size and the length of comparison window for FastABLE on Samsung Galaxy Note 3 when images are processed at 10 Hz

The FastABLE on SGN3 can easily work in the background for small database sizes or can process huge databases at the cost of high CPU usage. Similar results are obtained for the LS8-50 device (Fig. 19). As we consider a mobile device application, we recommend recording short databases and keeping the CPU usage low, to avoid a negative influence on battery life.

Figure 19: The usage of the single CPU depending on the database size and the length of comparison window for FastABLE on Lenovo S8-50 when images are processed at 10 Hz

7.3 Verifying the gains of FastABLE on the Nordland dataset

The possible gains of FastABLE were also evaluated on the long Nordland dataset. We wanted to compare the FastABLE matching time with the OpenABLE implementation. The experiments were conducted for a query sequence containing 1000 frames, and are presented in Tab. 7. In this experiment, FastABLE proved to be at least 100 times faster than the OpenABLE implementation regardless of the length of the database sequence.

Database size 1000 10 000 100 000
OpenABLE PC 0.169 s 2.273 s 24.476 s
FastABLE PC 0.0016 s 0.019 s 0.205 s
OpenABLE SGN3 0.627 s 8.593 s 85.480 s
FastABLE SGN3 0.0056 s 0.075 s 0.751 s
OpenABLE Lenovo 0.366 s 5.069 s 52.103 s
FastABLE Lenovo 0.0036 s 0.043 s 0.442 s
Table 7: Single sequence matching times for equal to 300 on Nordland dataset

When considering the PC version, FastABLE is even faster than the reference implementation of ABLE-M with the multi-probe LSH presented in able , as for a database of 100000 images FastABLE performs a single matching in 205 ms, while ABLE-M with LSH requires 420 ms, as stated in able . Moreover, FastABLE provides exact results, whereas the LSH version returns only an approximation. It should be noted, that the FastABLE results were obtained on a slower PC than the results presented in able . When it comes to mobile devices, the FastABLE algorithm significantly speeds up the processing, but appearance-based localization still cannot be accomplished in real-time for huge databases, e.g. containing images from several multi-floor buildings. Therefore, we recommend to use FastABLE and additionally divide a huge database into smaller sequences utilizing prior information from other sources fabmapwifi .

7.4 Automatic tuning of FastABLE parameters

The FastABLE parameters and can be set manually to maximize the number of correct recognitions without false positives, but we propose to automatize this process. The parameter should be large enough to ensure robustness to self-similarity of the environment, but cannot exceed the length of the shortest sequence used as query. Due to crossings inside the building, the pre-recorded video inside building consists of non-overlapping sequences. Knowing the value of we match each of those sequences against the remaining pre-recorded sequences to find the minimal Hamming distance between the corresponding sub-sequences. As neither of the parts overlap, no recognitions should be found, and is computed individually for the -th sequence:

(5)

where is the distance threshold found for , which is part of the training sequence. This solution sets different thresholds for different parts of the database, as different areas in the environment can differ significantly in their appearance.

Figure 20: FastABLE experimental evaluation in the PUT MC building. The 14 pre-recorded sequences (blue dots) cover corridors in both directions. The query path (rectangles) consists of mostly correctly recognized locations (green) with some parts not recognized (yellow), and few incorrect (red)

To verify the feasibility of FastABLE for indoor localization on mobile devices, we performed experiments on the first floor of the Poznan University of Technology Mechatronics Centre (PUT MC) building. The pre-recorded data consisted of 14 sequences recorded on non-overlapping paths in both directions of motion. The database amounted to 2127 images, while the query trajectory consisted of 320 images (Fig. 20). FastABLE reported 5625 correct place recognitions localizing the user on over a half of the trajectory, only with the camera images. FastABLE returned 7 incorrect recognitions informing about localization in another part of the building that could be further removed by checking the consistency of localizations. The results were obtained with automatically set parameters (,), and could be further improved by manual tuning for the specific environment. The same query sequence was processed by the OpenFABMAP implementation of the FAB-MAP algorithm with minor modifications (as presented in section 2). OpenFABMAP correctly recognized user locations at 6 places along the path from 30 training places (Fig. 21), but provided only sparse location information that might not be suitable for some applications.

Figure 21: OpenFABMAP experimental evaluation in the PUT MC building. From 30 training recognition places (blue), OpenFABMAP correctly recognized 6 query locations (green) along the test path

8 Conclusions

The article investigates the suitability of the appearance-based visual place recognition methods for personal localization implemented on handheld mobile devices. We focus on indoor environments, especially large buildings with multiple corridors and many self-similar locations. We test two approaches: the “golden standard” place recognition algorithm FAB-MAP, and the more recent ABLE-M algorithm, which utilizes image sequences. In the challenging environment, the open-source OpenFABMAP or OpenABLE implementations do not provide reliable results. Therefore, we propose a simple modification that allows OpenFABMAP to use a short sequence of images, which results in a working solution. The OpenABLE implementation is also slightly modified, by clustering the results to ease their interpretation in the context of personal navigation. From the experimental evaluation, we conclude that both algorithms can be used for indoor visual place recognition with a handheld camera, such as the one in a smartphone. The ABLE-M algorithm directly using sequences of registered images proved to work reliably in the target environments, working correctly when people were moving in front of the camera or were occluding parts of the query images, and providing continuous localization over long trajectories. These features made ABLE-M our preferred candidate to the appearance-based personal localization solution.

However, another important aspect of a real-life application on mobile devices is real-time processing and the related battery power consumption. In our experiments, both algorithms were able to operate in real-time, but the processing time depended on different factors for each of them. In FAB-MAP, the single image processing is time-consuming, while the database matching is fast. In ABLE-M, the single image processing is fast, while the database matching becomes time-consuming for longer database sequences and longer comparison windows. This means, that ABLE-M is potentially faster than FAB-MAP, but the processing time scales poorly with the size of the environment and the length of user paths.

Therefore, in this paper, we propose the FastABLE solution, which is an implementation of the modified ABLE-M algorithm that allows to speed-up the computations over 20 times in typical indoor environments and to achieve low power consumption on the mobile device. An open source version of FastABLE is publicly available allowing other researchers to reproduce the presented results. The FastABLE algorithm allows to significantly increase the size of the environment that the localization system can handle in real-time or to increase the energy consumption efficiency for an environment of the same size. The place recognition efficiency of FastABLE is the same as the baseline algorithm, as the speed improvement is achieved by re-using efficiently the already computed information, rather than by making approximate computations.

Our future research will focus on integrating FastABLE in the graph-based multi-sensor personal localization scheme for mobile devices we have introduced in mobicase .

References

  • (1) Arroyo, R., Alcantarilla, P.F., Bergasa, L.M., Romera, E.: Towards life-long visual localization using an efficient matching of binary sequences from images. In: 2015 IEEE International Conference on Robotics and Automation (ICRA), pp. 6328–6335 (2015)
  • (2) Arroyo, R., Alcantarilla, P.F., Bergasa, L.M., Romera, E.: Openable: An open-source toolbox for application in life-long visual localization of autonomous vehicles. In: 2016 IEEE 19th International Conference on Intelligent Transportation Systems (ITSC), pp. 965–970 (2016)
  • (3) Bloesch, M., Omari, S., Hutter, M., Siegwart, R.: Robust visual inertial odometry using a direct EKF-based approach. In: 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 298–304 (2015)
  • (4) Brunetto, N., Fioraio, N., Di Stefano, L.: Interactive RGB-D SLAM on Mobile Devices, pp. 339–351. Springer International Publishing (2015)
  • (5)

    Chow, C.K., Liu, C.N.: Approximating discrete probability distributions with dependence trees.

    IEEE Transactions on Information Theory 14(3), 462–467 (1968)
  • (6) Cummins, M., Newman, P.: FAB-MAP: Probabilistic Localization and Mapping in the Space of Appearance. International Journal of Robotics Research 27(6), 647–665 (2008)
  • (7) Cummins, M., Newman, P.: Accelerating FAB-MAP With Concentration Inequalities. IEEE Transactions on Robotics 26(6), 1042–1050 (2010)
  • (8) Cummins, M., Newman, P.: Appearance-only SLAM at large scale with FAB-MAP 2.0. The International Journal of Robotics Research (2010)
  • (9) Ester, M., Kriegel, H.P., Sander, J., Xu, X.: A density-based algorithm for discovering clusters in large spatial databases with noise. In: 2nd International Conference on Knowledge Discovery and Data Mining (KDD’96), pp. 226–231. AAAI Press (1996)
  • (10) Feng, G., Tan, X., Ma, L.: Visual location recognition using smartphone sensors for indoor environment. In: 2015 10th International Conference for Internet Technology and Secured Transactions (ICITST), pp. 426–430 (2015)
  • (11) Forster, C., Pizzoli, M., Scaramuzza, D.: SVO: Fast semi-direct monocular visual odometry. In: 2014 IEEE International Conference on Robotics and Automation (ICRA), pp. 15–22 (2014)
  • (12) Fraundorfer, F., Scaramuzza, D.: Visual odometry: Matching, robustness, optimization, and applications. Robotics & Automation Magazine, IEEE 19(2), 78–90 (2012)
  • (13) Fularz, M., Nowicki, M., Skrzypczyński, P.: Adopting Feature-Based Visual Odometry for Resource-Constrained Mobile Devices, pp. 431–441. Springer International Publishing (2014)
  • (14) Ilarri, S., Hermoso, R., Trillo-Lado, R., Rodríguez-Hernández, M.d.C.: A review of the role of sensors in mobile context-aware recommendation systems. International Journal of Distributed Sensor Networks (art. no. 489264) (2015)
  • (15) Kasiński, A., Skrzypczyński, P.: Perception network for the team of indoor mobile robots. concept. architecture. implementation.

    Engineering Applications of Artificial Intelligence

    14(2), 125–137 (2001)
  • (16) Klein, G., Murray, D.: Parallel tracking and mapping for small AR workspaces. In: Sixth IEEE and ACM International Symposium on Mixed and Augmented Reality (ISMAR’07), pp. 225–234. Nara (2007)
  • (17) Klein, G., Murray, D.: Parallel Tracking and Mapping on a camera phone. In: Mixed and Augmented Reality, 2009. ISMAR 2009. 8th IEEE International Symposium on, pp. 83–86 (2009)
  • (18) Lemaire, T., Berger, C., Jung, I.K., Lacroix, S.: Vision-Based SLAM: Stereo and Monocular Approaches.

    International Journal of Computer Vision

    74(3), 343–364 (2007)
  • (19) Liu, Y., Zhang, H.: Visual loop closure detection with a compact image descriptor. In: 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 1051–1056 (2012)
  • (20) Lowry, S., Sünderhauf, N., Newman, P., Leonard, J.J., Cox, D., Corke, P., Milford, M.J.: Visual Place Recognition: A Survey. IEEE Transactions on Robotics 32(1), 1–19 (2016)
  • (21) Lv, Q., Josephson, W., Wang, Z., Charikar, M., Li, K.: Multi-probe LSH: Efficient Indexing for High-dimensional Similarity Search. In: 33rd International Conference on Very Large Data Bases, VLDB ’07, pp. 950–961 (2007)
  • (22) McManus, C., Churchill, W., Maddern, W., Stewart, A.D., Newman, P.: Shady dealings: Robust, long-term visual localisation using illumination invariance. In: 2014 IEEE International Conference on Robotics and Automation (ICRA), pp. 901–906 (2014)
  • (23) Meila, M.: An Accelerated Chow and Liu Algorithm: Fitting Tree Distributions to High Dimensional Sparse Data.

    In: Sixteenth International Conference on Machine Learning (ICML ’99), pp. 249–257 (1999)

  • (24)

    Muja, M., Lowe, D.G.: Scalable nearest neighbor algorithms for high dimensional data.

    IEEE Transactions on Pattern Analysis and Machine Intelligence 36(11), 2227–2240 (2014)
  • (25) Mur-Artal, R., Montiel, J.M.M., Tardós, J.D.: ORB-SLAM: a versatile and accurate monocular SLAM system. IEEE Transactions on Robotics 31(5), 1147–1163 (2015)
  • (26) Neubert, P., Sünderhauf, N., Protzel, P.: Appearance change prediction for long-term navigation across seasons. In: 2013 European Conference on Mobile Robots (ECMR), pp. 198–203. Barcelona (2013)
  • (27) Nowicki, M.: WiFi-guided visual loop closure for indoor localization using mobile devices. Journal of Automation, Mobile Robotics & Intelligent Systems (JAMRIS) 8(3), 10–18 (2014)
  • (28) Nowicki, M., Skrzypczyński, P.: Performance comparison of point feature detectors and descriptors for visual navigation on Android platform. In: 2014 International Wireless Communications and Mobile Computing Conference (IWCMC), pp. 116–121 (2014)
  • (29) Nowicki, M., Skrzypczyński, P.: Indoor navigation with a smartphone fusing inertial and WiFi data via factor graph optimization. In: Mobile Computing, Applications, and Services: 7th International Conference, MobiCASE 2015 (S. Sigg et al., eds.), LNICST 162, pp. 280–298. Springer International Publishing (2015)
  • (30) Nowicki, M., Wietrzykowski, J., Skrzypczyński, P.: Experimental evaluation of visual place recognition algorithms for personal indoor localization. In: 2016 International Conference on Indoor Positioning and Indoor Navigation (IPIN), pp. 1–8 (2016)
  • (31) Piciarelli, C.: Visual indoor localization in known environments. IEEE Signal Processing Letters 23(10), 1330–1334 (2016)
  • (32) Quigley, M., Stavens, D., Coates, A., Thrun, S.: Sub-meter indoor localization in unmodified environments with inexpensive sensors. In: 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 2039–2046 (2010)
  • (33) Redish, A.D.: Beyond the Cognitive Map: From Place Cells to Episodic Memory. MIT Press, Cambridge (1999)
  • (34) Shelley, M.A.: Monocular Visual Inertial Odometry on a Mobile Device. Master’s thesis, Institut für Informatik, TU München, Germany (2014)
  • (35) Sivic, J., Zisserman, A.: Video Google: a text retrieval approach to object matching in videos. In: Ninth IEEE International Conference on Computer Vision, pp. 1470–1477 vol.2 (2003)
  • (36) Tanskanen, P., Naegeli, T., Pollefeys, M., Hilliges, O.: Semi-direct EKF-based monocular visual-inertial odometry. In: 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 6073–6078 (2015)
  • (37) Wang, H., Zhao, D., Ma, H., Xu, H., Hou, X.: Crowdsourcing based mobile location recognition with richer fingerprints from smartphone sensors. In: 2015 IEEE 21st International Conference on Parallel and Distributed Systems (ICPADS), pp. 156–163 (2015)
  • (38) Wietrzykowski, J., Nowicki, M., Skrzypczyński, P.: Adopting the FAB-MAP algorithm for indoor localization with WiFi fingerprints. In: Automation 2017, Innovations in Automation, Robotics and Measurement Techniques (R. Szewczyk, et al., eds.), AISC 550. Springer (2017)
  • (39) Williams, B., Cummins, M., Neira, J., Newman, P., Reid, I., Tardós, J.: A comparison of loop closing techniques in monocular SLAM. Robotics and Autonomous Systems (2009)
  • (40) Yang, X., Cheng, K.T.: LDB: An ultra-fast feature for scalable Augmented Reality on mobile devices. In: Mixed and Augmented Reality (ISMAR), 2012 IEEE International Symposium on, pp. 49–57 (2012)
