1 Introduction

In unknown and chaotic environments, unmanned aerial vehicles (UAVs), especially quadcopters always face rapid unexpected changes, while moving obstacles pose a greater threat than static ones. To tackle this challenge, the trajectory planner for UAVs needs to constantly and quickly generate collision-free and feasible trajectories in different scenarios, and its response time is required to be as short as possible. In addition, the optimality of the motion strategies should also be considered to save the limited energy of quadrotors.

Most existing frameworks that enable drones to generate collision-free trajectories in completely unknown environments only take into consideration stationary obstacles. However, as quadrotors often fly at low altitudes, they are faced with various moving obstacles such as vehicles and pedestrians on the ground. One primary solution to avoid collision is to raise flight altitude to fly above all the obstacles. This method is not feasible for some indoor applications, because the flight altitude is limited in narrow indoor space, and the drones are often requested to interact with humans as well. Another solution is to assume all detected obstacles as static. But this method cannot guarantee the safety of the trajectory chen2016online , considering measurement errors from the sensors and unmissable displacement of the dynamic obstacles. As shown in Figure 1, the collision may happen if the motion information of obstacles is ignored (the red line). Therefore, a more efficient and safer way to avoid moving obstacles is to predict and consider the obstacles’ position in advance based on the velocity, which can avoid detours or deadlock on some occasions.

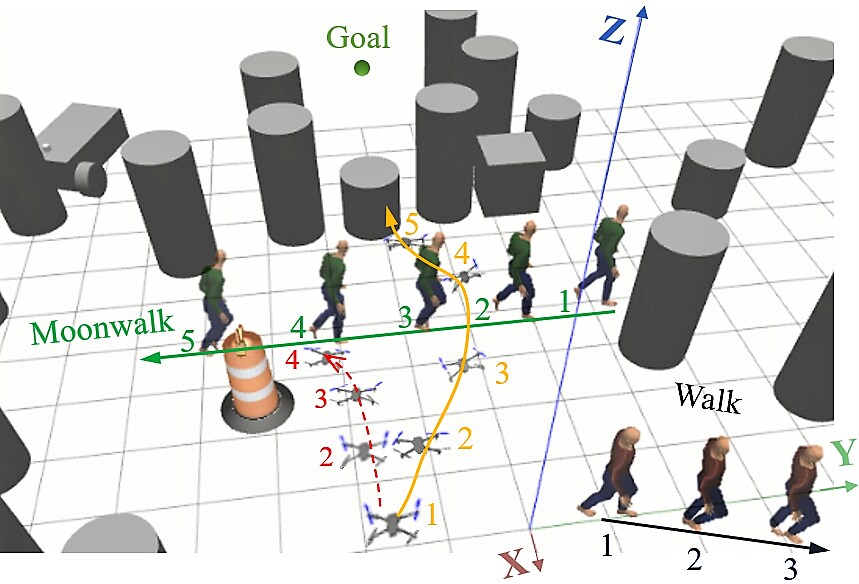

Figure 1: The composite picture of the simulation in Gazebo for the process that the drone avoids static and dynamic obstacles. 5 screenshots are used for composition and the cut time interval is fixed to 0.7 seconds. The line with an arrowhead shows the moving direction and the numbers mark the corresponding frame, the numbers increase by time. The yellow line is generated by the method in this paper, while the red line is by the static planning method.

To fly in dynamic scenes, we propose a complete system in this paper, composed of a position and velocity estimator for moving obstacles, an upper-level planner to obtain desired velocity, and a motion planner to generate final motion primitives. For the perception of dynamic obstacles, the dynamic ones are identified from static ones by clustering and comparing the displacement from two point cloud data frames. A RGB-D camera is the only sensor utilized to obtain the point cloud. First, we set up a Kalman filter for each dynamic obstacle for tracking and output more accurate and continuous estimating results. The feature vector for each obstacle is adopted to improve the obstacle matching accuracy and robustness, thus the dynamic obstacles tracking and position and velocity estimating performance are improved comparing to the related existing works. In addition, we introduce the track point to reduce the displacement estimation error involved by the self-occlusion of the obstacle.

Then, with the estimated position and velocity of obstacles and the current states and kinodynamic limitations of a real vehicle, the forbidden pyramids method is applied to plan the desired velocity to avoid obstacles. The desired velocity is obtained from a sampling-based method in the feasible space, and the sampled velocity with the minimal acceleration cost is chosen. Finally, the motion primitives are efficiently solved from a well-designed non-linear optimization problem, where the desired velocity is the constraint. For navigation tasks, the proposed velocity planning method is also flexible to combine with most path planning algorithms for static environments, giving them the ability to avoid dynamic obstacles. The waypoint in the path acts as the trajectory endpoint constraints at a further time horizon. In this paper, we test it with our former proposed waypoint planning method heuristic angular search (HAS)

chen2020computationally to complete the system and conduct the flight tests. The safety and the lower acceleration cost of this method can be verified by the data from flight tests. The computational efficiency of the whole system also shows great advantages over state-of-the-art (SOTA) works lin2020robust -wang2021autonomous .

In summary, the main contributions of the paper are as follows:

  • The feature vector is introduced to help match the corresponding obstacle in two point cloud frames. It is proved to be more robust than existing works that match the obstacles with only position information predicted by the Kalman filter. The neighbor frame overlapping and ego-motion compensation techniques are further introduced to reduce the estimating errors of the obstacle’s position.

  • To compensate for the resultant displacement estimation error from the self-occlusion of obstacles, the object track point is proposed.

  • Based on the relative velocity, the forbidden pyramids method is designed to efficiently plan the safe desired velocity to avoid both dynamic and static obstacles. The varies time gaps which may cause control lag error are also well compensated.

  • We integrate those proposed methods and a path planning method into a complete quadrotor system, demonstrating its reliable performance in flight tests.

2 Related work

At present, there are many methods for path planning and obstacle avoidance in static environments. Although some researchers have published their safe planning framework for UAVs in an unknown static scenario, it is a more complex problem for a UAV with a single depth camera flying in an unknown environment with dynamic obstacles.

For identifying and tracking moving obstacles from the environment, most researchers employ the raw image from the camera and mark the corresponding pixels before measuring the depth. The semantic segmentation network with a moving consistency check method based on images can distinguish the dynamic objects yu2018ds . Also, a block-based motion estimation method to identify the moving obstacle is used in kim2012moving , but the result is poor if the background is complex. Some work oleynikova2015reactive -skulimowski2019interactive

segment the depth image and regard the points with similar depth belong to one object. But such methods cannot present the dynamic environment accurately because static and dynamic obstacles are not classified. If only human is considered as moving obstacle, the human face recognition technology can be applied

nageli2017real . However, the above-mentioned works do not estimate the obstacle velocity and position. ess2009moving proposes such an approach, which jointly estimates the camera position, stereo depth, and object detections, and track the trajectories. Some works adopt feature-based vision systems to detect dynamic objects berker2017feature -barsan2018robust , which require dense feature points. Also, detector based or segmentation network based methods can work well in predefined classes such as pedestrians or cars zhang2017towards . However, they cannot handle generic environments. Considering the limited resource of the onboard microcomputer, the above image-based methods are computation-expensive and thus not able to run in real-time.

Based on the point cloud data, it is also possible to estimate the moving obstacles’ position and velocity in the self-driving cars kraemer2018lidar -miller2016dynamic . However, they all rely on high-quality point clouds from LiDAR sensors and powerful GPUs to detect obstacles from only predefined classes. To enhance the versatility, cherubini2014autonomous offers an idea to track point clusters with the global feature in simple environments. For the point cloud of a depth camera, the existing works are rare and they all match the obstacle by only the center position of obstacles, depending on the Kalman filter to predict the position of dynamic obstacles from past to present. However, this may fail when the predicted position of one obstacle is close to other obstacles at present. Varying from them, we propose the feature vector for each obstacle to tackle this challenge, and the matching robustness and accuracy are improved a lot. Our method also can be run at a higher frequency with low computational power. Event cameras can distinguish between static and dynamic objects and enable the drone to avoid the dynamic ones in a very short time falanga2020dynamic . However, the event camera is expensive for low-cost UAVs and not compatible to sense the static obstacles.

In terms of the avoidance of moving obstacles for navigation tasks, the majority of research works are based on the applications of ground vehicles. The forbidden velocity map damas2009avoiding is designed to solve out all the forbidden 2D velocity vectors and they are represented as two separate areas in the map. The artificial potential field (APF) method can avoid the moving obstacles by considering their moving directions malone2017hybrid -febbo2017moving . For UAVs, the model predictive control (MPC) method is tested, but the time cost is too large for real-time flight lin2020robust . luo2020multi proposes the probabilistic safety barrier certificates (PrSBC) to define the space of admissible control actions that are probabilistically safe, which is more compatible for multi-robot systems. Recently, some global planners for UAV navigation in crowded dynamic environment are proposed cao2019dynamic -zhu2020online . However, the states of all obstacles are known, they are not suitable for a fully autonomous aerial platform. wang2021autonomous utilizes the kinodynamic A* algorithm to find a feasible initial trajectory first and the parameterized B-spline is used to optimize the trajectory from the gradient. However, it requires dense samples along the trajectory in the optimization problem, and the object function composes the integration of the whole trajectory. Our motion optimization method is more efficient in computation.

3 Technical approach

Our proposed framework is composed of two submodules that run parallelly and asynchronously: the obstacle classifier and motion state estimator (section 3.1 & 3.2) and the waypoint and motion planner (section 4.1 & 4.2). The additional technical details for improving the accuracy of dynamic perception are introduced in section 3.3. Figure 2 illustrates the whole framework, including the important message flowing between the submodules.

Figure 2: The proposed system for the autonomous navigation in dynamic environments. The positioning can be done by the outer motion capture system or onboard VIO toolkit.

3.1 Obstacle tracking

The raw point cloud is first filtered to remove the noise and converted into earth coordinate . The details about the filter are in section 5. We use and to denote two point cloud frames from the sensor at the former timestamp and the latest timestamp respectively. and . The time interval is set to be able to make the displacement of the dynamic obstacles obvious enough to be observed, while maintaining an acceptable delay to output the estimation results. and are updated continuously while the sensor is operating. To deal with the movement of the camera between and , is filtered, only keeping the points in the overlapped area of the camera’s FOVs at and wang2021autonomous . The newly appeared obstacles in the latest frame are removed, so only the obstacles appear in both of the two point cloud frames are further analyzed. and are clustered into individual objects using density-based spatial clustering of applications with noise (DBSCAN) ester1996a , resulting in two sets of clusters and . Then, matching the two clusters and corresponding to the same obstacle is necessary before the dynamic obstacle identification.

Figure 3: The left figure shows a situation that two obstacles are mismatched. The predicted cluster of obstacle 1 is closer than the predicted cluster 2 to the current cluster of obstacle 2. By comparing the feature vector, the correct predicted cluster for obstacle 2 can be matched for the current cluster, as shown in the right figure.

At the time when we obtain the first frame of , a list of Kalman filters with the constant velocity model is initialized for each cluster (obstacle) in . The position and velocity are updated after the obstacle is matched and the observation values are obtained. To match the obstacle, we preliminarily sort out the two clusters that satisfies the condition . is the distance threshold. gives the obstacle position when the input cluster is from the latest frame , while it returns the predicted position at by the corresponding Kalman filter of the cluster from wang2021autonomous . It is to associate current clusters to the forward propagated Kalman filters rather than clusters in the previous frame. If we cannot find an for there, we skip it and turn to the next cluster (, is the cluster index). For each Kalman filter, it is also necessary to assign a reasonable maximal propagating time before being matched with a new observation. Because the camera FOV is narrow, we hope to predict the clusters which just move out of the FOV for safety consideration, and they are assumed to continue to move at their latest updated velocity in a short period. A Kalman filter is deleted together with its tracking history if it has not been matched for over .

However, matching obstacles with position only may fail when obstacles are getting close, as shown in Figure 3. To improve the matching robustness, we design the feature vector composed of several statistic characters of a point cluster with aligned color information from the obstacle, which is defined as

where denotes any point cluster. is the function that returns the size of the input cluster.

returns the position variance of the cluster, and

returns the volume of the axis-aligned bounding box (AABB) of the cluster. and return the mean and variance of the RGB value of points. The idea is: if there is not a significant difference in the shape and color of the two point clusters extracted from two timely close point cloud frames respectively, then they are commonly believed to be the same object. The global features for each obstacle are very cheap to calculate and proved to be effective in tests.

At last, the Euclidean distance between feature vectors is calculated with each cluster pair that satisfies the position threshold. For each cluster , the cluster results in the minimal is matched with it. The feature vector is normalized to 0-1 since the order of magnitude of each element varies. We use and to represent any two successfully matched clusters.

3.2 Obstacle Classification

After the obstacles in two sensor frames are matched in pairs, the velocity of the obstacle can be calculated by , where and

are the position of the corresponding obstacle. In the related works, the mean of the points in each cluster is adopted as the obstacle position, since most of the obstacles in the UAVs application scenarios can be regarded as mass-uniformly distributed. However, due to the self-occlusion, the backside of the obstacle is invisible, so the mean of points is closer to the camera than the obstacle centroid. In addition, the occluded part of a moving obstacle changes when the relative movement occurs between the camera and obstacle. Thus, the relative position between the position mean and the real mass center also changes. This will lead to a wrongly estimated velocity, as shown in Figure

4, the error is mainly distributed on the axis of the camera and it is not a fixed error can be estimated. For the position estimation of obstacles, the self-occlusion is not important, considering the visible part only is safe for obstacle avoidance. But the velocity is the key information of moving obstacles in the vehicle velocity planning. Therefore, we introduce a method to reduce this velocity estimation error by choosing the appropriate track point for the matched pair of clusters, as illustrated in the right figure of Figure 4. For a moving obstacle in translational motion, the closest part to the camera is believed not to be self-occluded in and . In addition, the middle part of the cluster is close to the centroid of the common obstacles, so the rotational movement is weak in this part. Thus, we only use the center point and of the closest points in the middle part of the cluster and to estimate the displacement. and are named as the track point. Here the distance to the camera is measured only along . The middle part of the cluster is divided in the projection plane corresponding to the depth image. The bounding box for the middle part is shrunk from the AABB of the obstacle to the center proportionally. The shrinking scale factor is . Considering the common obstacles usually performs slow rotation, and the time gap is small, we can neglect the influence to the closest part caused by rotation in the displacement estimation. To update the Kalman filter, (the mean of current cluster) is still the observed position, but the velocity observation is . The classification for static and dynamic obstacle is done by comparing the velocity magnitude with a pre-assigned threshold , i.e. indicates a moving obstacle. If an obstacle is classified as static in consecutive times, the corresponding Kalman filter is abandoned and the static point cluster is forwarded for map fusion.

The Kalman filter for one cluster is detailly described with

where are the observation noise covariance matrix, observation matrix, and error matrix respectively. The superscript indicates a matrix is before being updated by the Kalman gain matrix , applicable for the state matrix and the posterior error covariance matrix . The subscripts and distinguish the current and the former step of the Kalman filter. is the state transition matrix and is the control matrix. is composed of the observation of the obstacle position and velocity, and marks the filtered results for . equals to the predicted state if no dynamic obstacle is caught. is also utilized as the propagated cluster state in the obstacle matching introduced above. is the time interval between each run of the Kalman filter. In the current stage, we assume the moving obstacle performs uniform motion between and , .

We summarize our proposed dynamic environment perception method in Algorithm 1.

Figure 4: The left figure illustrates the velocity estimation error caused by the self-occlusion of obstacle. is the velocity ground truth. When the obstacle approaches the camera, the visible part shrink, resulting in the relative displacement between the point cloud center and obstacle centroid. The track point in the right figure can reduce the velocity estimation error. The middle part of the cluster is bounded by the green box.
1:  while true: do
2:     Obtain , from the point cloud filter, cluster them to ,
3:     if it is the first loop then
4:        Initialize the Kalman filters for each cluster in
5:     end if
6:     Predict the position of former clusters with the Kalman filters
7:     for  in ( is the iteration number): do
8:        Match with the predicted clusters
9:        if successfully match the clusters: then
10:           Estimate the velocity of with the paired
11:           Classify it as static or dynamic and record the class as the history together with the corresponding Kalman filter
12:           if the cluster marked as static for consecutive times: then
13:              Delete the corresponding Kalman filter, submit for map fusion
14:           else if  is dynamic: then
15:              Update the Kalman filter with and
16:           end if
17:        end if
18:     end for
19:     if no dynamic obstacle is found: then
20:        Update the Kalman filter with the predicted state
21:     end if
22:  end while
Algorithm 1 Dynamic environment perception

3.3 Ego-motion compensation and neighbor data overlapping

To improve the estimation accuracy, we notice the time gap between the latest point cloud message from the camera and the vehicle state message from the IMU in the flight controller. A constant acceleration motion model is adopted to describe the vehicle here, and the ego-motion compensation can be done with

to result in the compensated camera pose . , and are the pose, velocity and acceleration of the camera obtained from raw data (translational and rotational motion), translated from the installation matrix of the camera. is the time gap between the message, equals to the timestamp of point cloud minus the timestamp of vehicle state. As a result, the point cloud can be converted to more precisely.

For non-rigid moving obstacles, for example, walking animals (including humans), the body posture is continuously changing. The point cloud deformation may cause additional position and velocity estimation error of obstacle since the waving limbs of a walking human interfere with the current estimation measurements. We notice that when two neighbor frames of point cloud are overlaid, the point cloud of the human trunk is denser than the other parts which rotate over the trunk. Then, an appropriate point density threshold of DBSCAN can remove the points corresponding to the limbs. So the overlapped point cloud can replace the filtered raw point cloud. For instance, the point cloud frame is replaced with . is also replaced by the mean of the value from its neighbor data frame, to align with the point cloud.

4 Motion planning

The motion of the drone is more aggressive for avoiding moving obstacles than flying in a static environment. To address the displacement of the drone during the time costed by the trajectory planner and flight controller, position compensation is adopted before the velocity planning. The current position of drone is updated by the prediction

where is the time cost of the former step of the motion planner. is the fixed time cost for the flight controller. is the timestamp gap between UAV pose and current time. In addition, due to the time cost of obstacle identification and communication delay, the timestamp on the information of dynamic obstacles is always delayed than that of the pose and velocity message of the drone. Based on the uniform acceleration assumption, the obstacle position in the planner at the current time is predicted and updated as

where is the timestamp gap between UAV pose and the received dynamic clusters. The dynamic clusters published by the perception module share the same timestamp with the latest point cloud .

4.1 Velocity planning

The planner receives the moving clusters and the velocity from the dynamic perception module. The remaining clusters are also conveyed to the planner and treated as static obstacles. In addition, we adopt the mapping kit to offer the static environmental information out of the current FOV, because the FOV of a single camera is narrow. To tackle the autonomous navigation tasks, the drone is required to reach the goal position. The desired velocity of the drone is initialized as , and heads towards the goal. is the maximum speed constraints. Also, considering the path optimality, a path planner is usually adopted in the navigation. Thus, the waypoint generated from the planned path is used to replace the navigation goal if a path planner is required. Otherwise, denotes the navigation goal. can be generated from a guidance law or assigned directly as the first waypoint in the path to enable the drone follow the path. It is a choice to combine the velocity planning method with the path planning algorithms to adapt to navigation applications better. Figure 5 illustrates the collision check by calculating the relative velocity of towards the obstacles, and if the check fails the velocity re-planning will be conducted. For dynamic obstacles, the relative velocity equals minus the obstacle velocity. For static obstacles, the relative velocity is itself. If is checked to be safe, the finally desired velocity is given by .

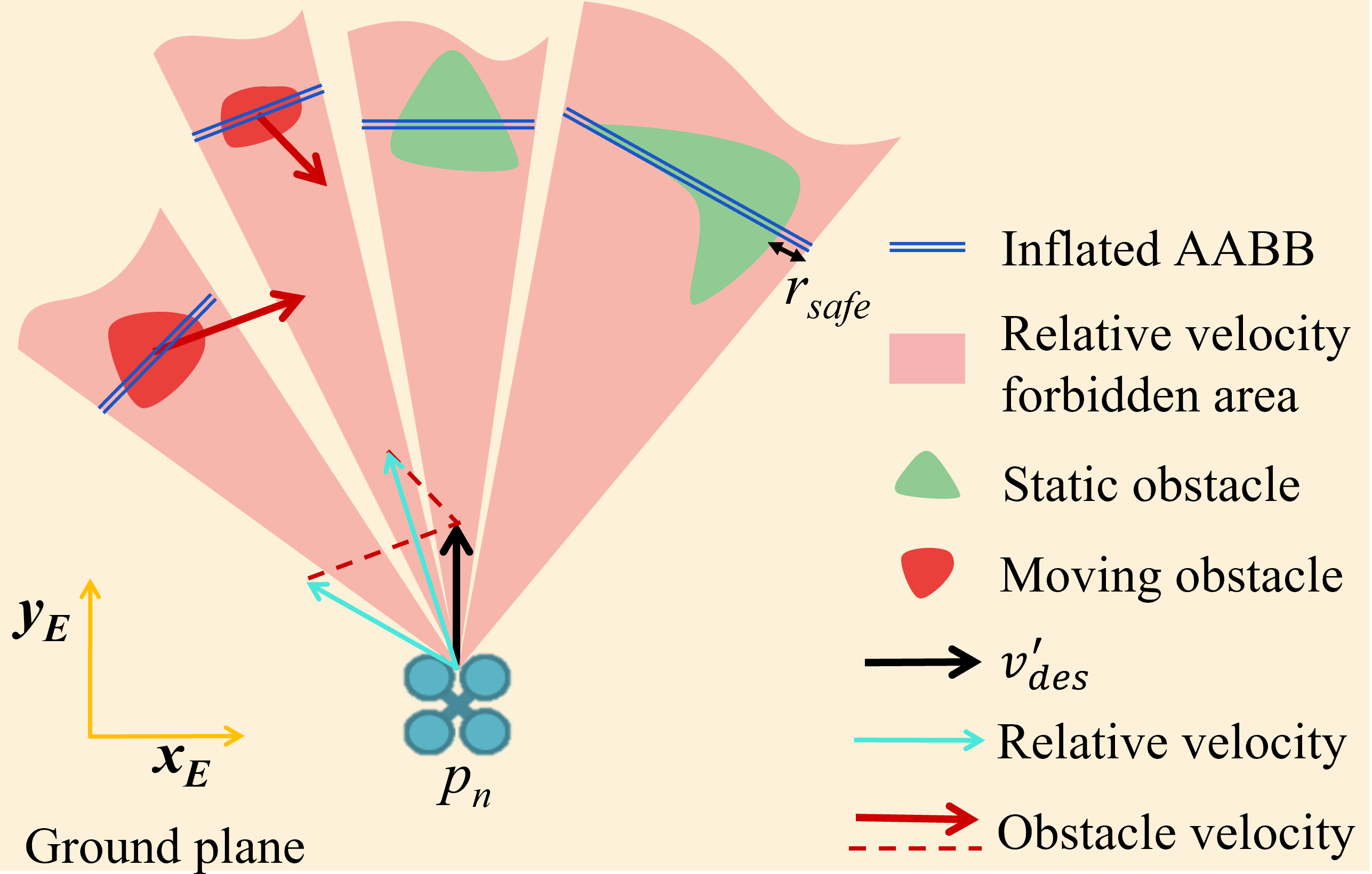

Figure 5: Check if the current relative velocities towards each obstacle lies in the forbidden area. In this figure, the relative velocity towards one dynamic obstacle and one static obstacle all fail the collision check. The forbidden area is the projection area (space) of the inflated obstacle AABB in the projection plane to the camera. is the inflating size.

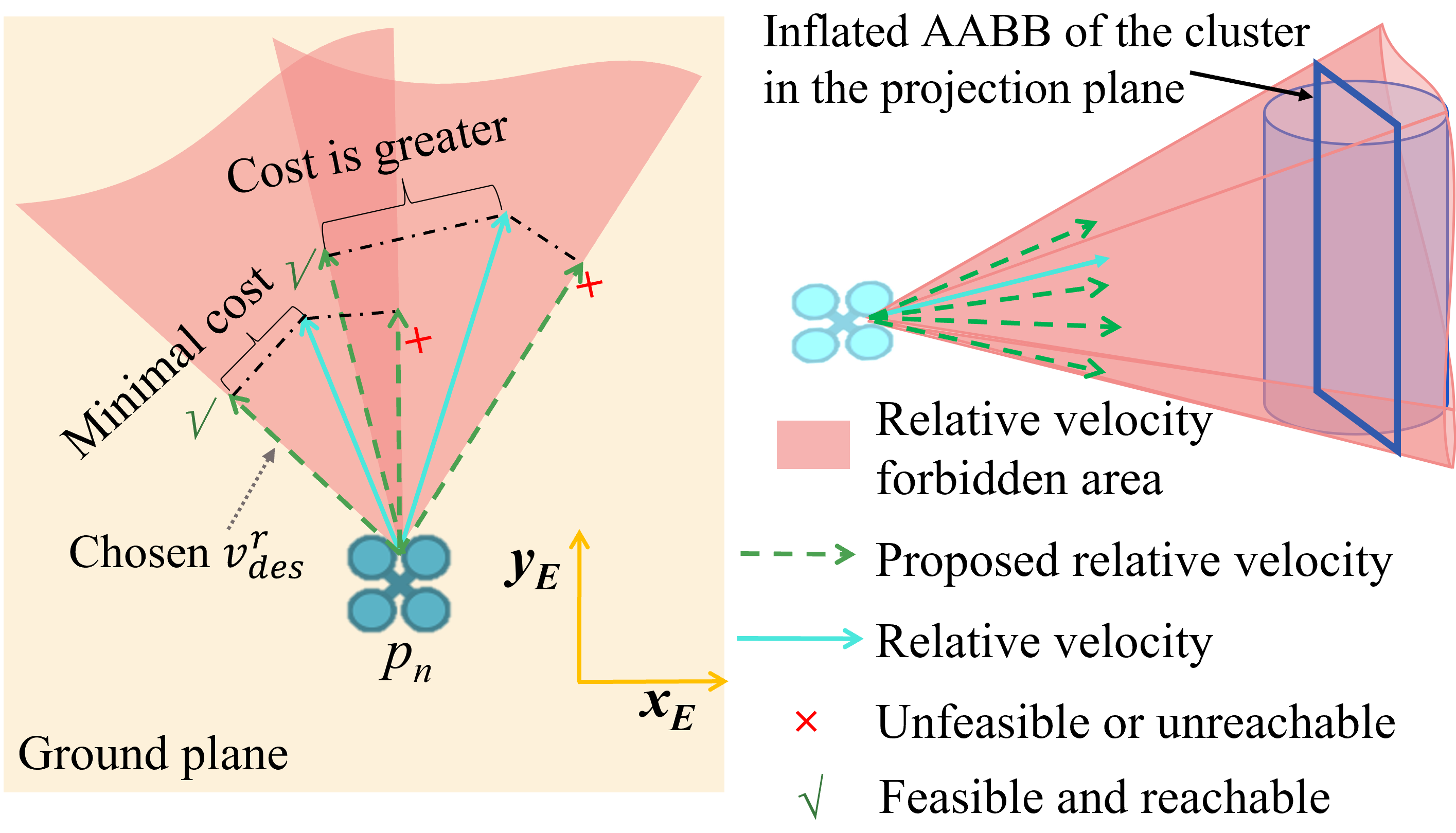

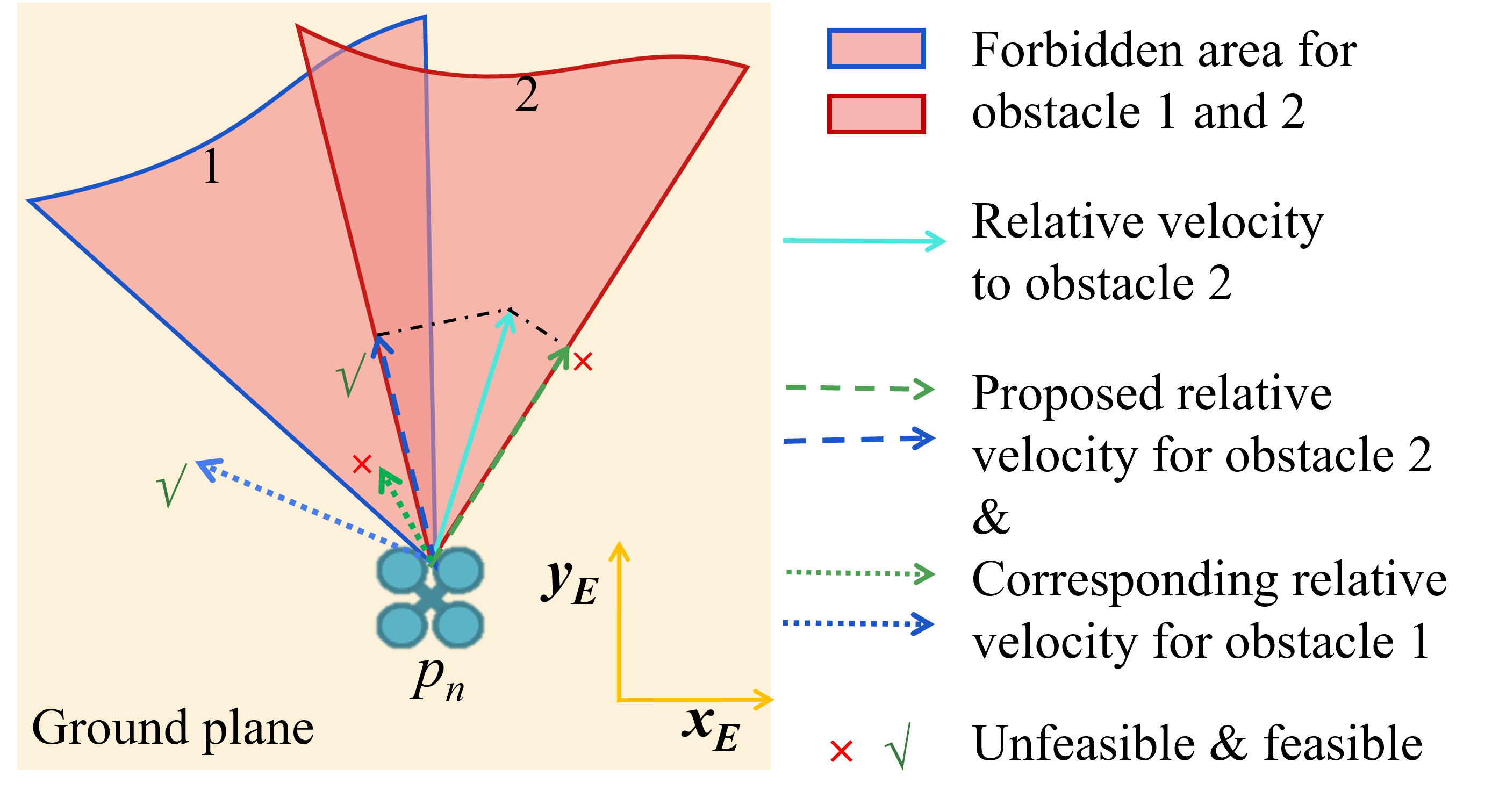

Figure 6: The left figure explains the velocity planning for multiple forbidden pyramids. We use a floor plan to better demonstrate the method. The right figure is a forbidden pyramid for one obstacle in 3D view, four sides of the pyramid result in four proposed relative velocity vectors.
Figure 7: The feasibility check of the relative velocity for one obstacle, as the supplementary for Figure 6. The proposed relative velocity is checked if feasible for other moving obstacles. In this figure, the left proposed relative velocity for obstacle 2 is also feasible for obstacle 1 (navy blue arrows), while the right one (green arrows) is not.

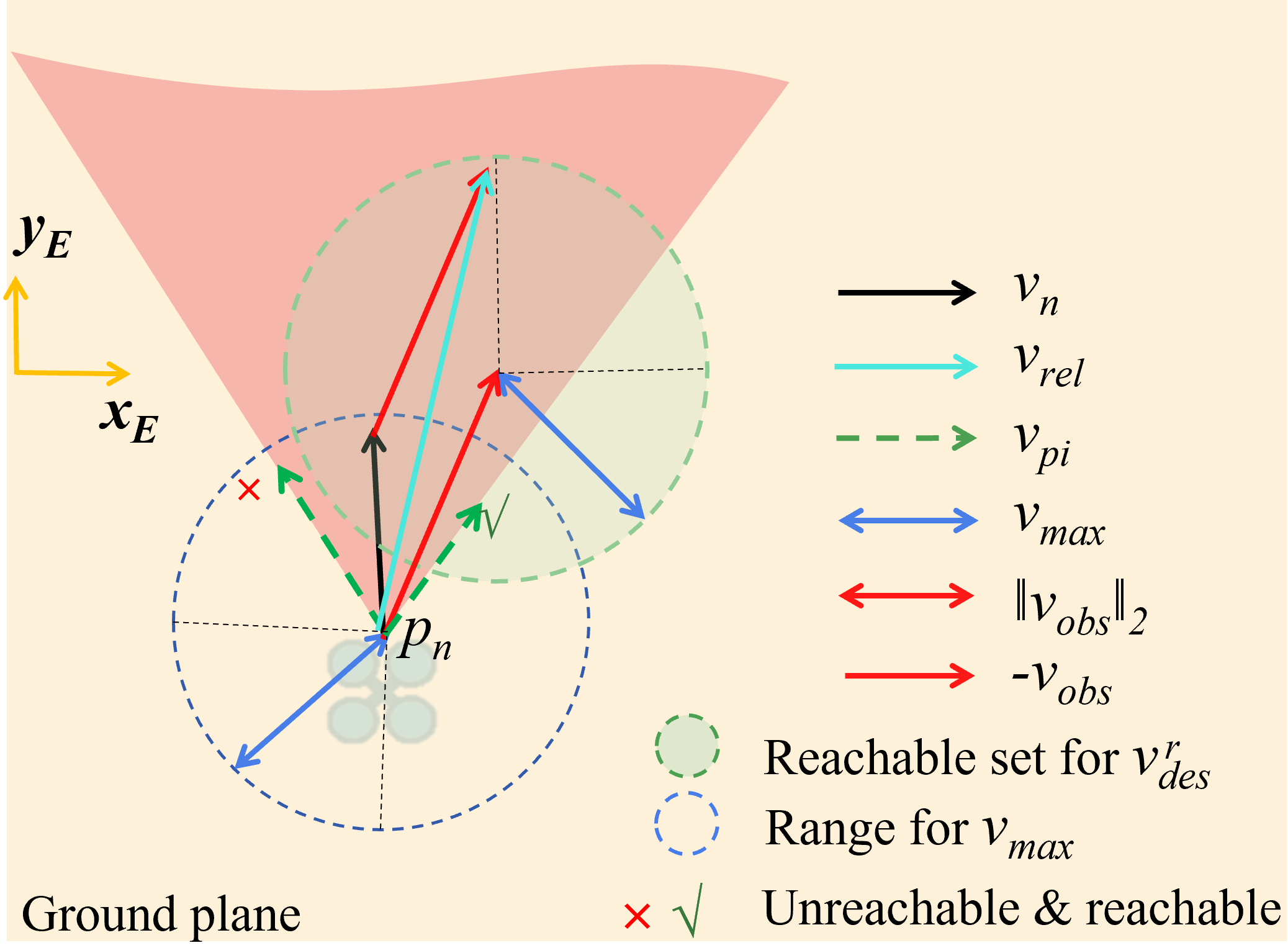

Figure 8: The reachable check for the proposed relative velocity. is moved to start from , and the endpoint is the center of the spherical reachable set. All the possible relative velocity constrained by towards this obstacle is included in this set. Only the relative velocity vectors in the reachable set are chosen.

The velocity re-planning method is explained in Figures 6-8, the forbidden area (space) is extended to a pyramid for 3D case, different from the triangle for 2D case. If the relative velocity lies in the corresponding forbidden pyramid, four proposed relative velocity vectors are found by drawing a vertical line to the four sides of the pyramid from the relative velocity vector. They are the samples to be checked later. The vertical line segments stand for the acceleration cost to control the vehicle to reach the proposed velocity. For any cluster, denotes the relative velocity, the five vertices of the forbidden pyramid are

The acceleration cost of the proposed relative velocity vectors can be calculated by solving the 3D geometric equations, as follows:

In (12)-(15), triangle is taken as the example, is the corresponding plane equation, is the common vertex of all the 4 triangles.

Obviously, for only one obstacle, the desired relative velocity with the minimal cost is from the four proposed ones. For multiple obstacles and forbidden pyramids, the desired relative velocity is chosen by comparing the feasibility, reachability and cost. Among all the proposed relative velocity vectors, the one checked to be feasible and reachable and with the minimal cost is selected (), and the desired vehicle velocity . is the velocity for the corresponding obstacle. Although the globally optimal solution for acceleration cost cannot be guaranteed within the samples, the computation complexity is greatly reduced comparing to solve the optimal solution. We use the inflated bounding box because the character radius of the vehicle can not be neglected.

The feasibility check is to guarantee is safe for all obstacles, not for only one of them, which is described in Figure 7. Besides the feasibility check, should satisfy the maximum speed constraints . We introduce the reachable set for the relative velocity vector to check if the proposed relative velocity is reachable, as Figure 8 indicates. For the relative velocity towards one obstacle, always hold. is the current relative velocity towards the obstacle, is the obstacle velocity.

In addition, the lag error of the velocity planning caused by the time cost to reach the desired velocity is also considerable. The relative displacement between the moving obstacle and vehicle during this time gap should be estimated, because the forbidden pyramid is also directly related with the relative position. We can assume the solved jerk is very close to its boundary , because the time cost is minimized in the optimization problem (20). Thus, the time cost is estimated as

and the displacement of the vehicle and obstacle is calculated by

At last, the estimated displacement and are added to the position after is obtained, and a new is planned in iteration until it is checked to be safe. The accurate time cost can only be determined after solving the motion optimization problem. However, involving the optimization problem in the iteration will be time-consuming, so we use a close-form solution as the approximate value. To speed up the convergence, the safety radius is inflated by a small value (equivalent to the tolerance in the safety check) to calculate :

For a situation where the obstacles are too dense, the forbidden area may cover all the space around the vehicle. We first sort all the clusters with the increasing order of distance to , the farther obstacles are considered less threatening for the drone. Then, the and the next clusters are excluded, is the iteration number increasing from 0. Algorithm 2 reveals the process of velocity planning. As a result, the vehicle can always quickly plan the velocity to avoid static and dynamic obstacles and following the path to meet the different task requirements.

1:
2:  if  is unsafe (Figure 5): then
3:
4:     Sort the clusters with the distance to
5:     while  is not found: do
6:        Remove the last clusters from original sequence
7:        Get all the feasible relative velocity vectors for the remained clusters
8:        if feasible and reachable relative velocity exist: then
9:           Choose with the minimal acceleration cost, and
10:        end if
11:
12:     end while
13:     repeat
14:        ,
15:        Repeat line 7-10 with updated forbidden pyramids
16:     until  is safe
17:  else
18:
19:  end if
Algorithm 2 Velocity planning

4.2 Motion planning

After the desired velocity is obtained, it appears as the constraint in the motion planning and will be reached in a short time. The waypoint constraints is also considered to follow the path, as shown in Figure 9.

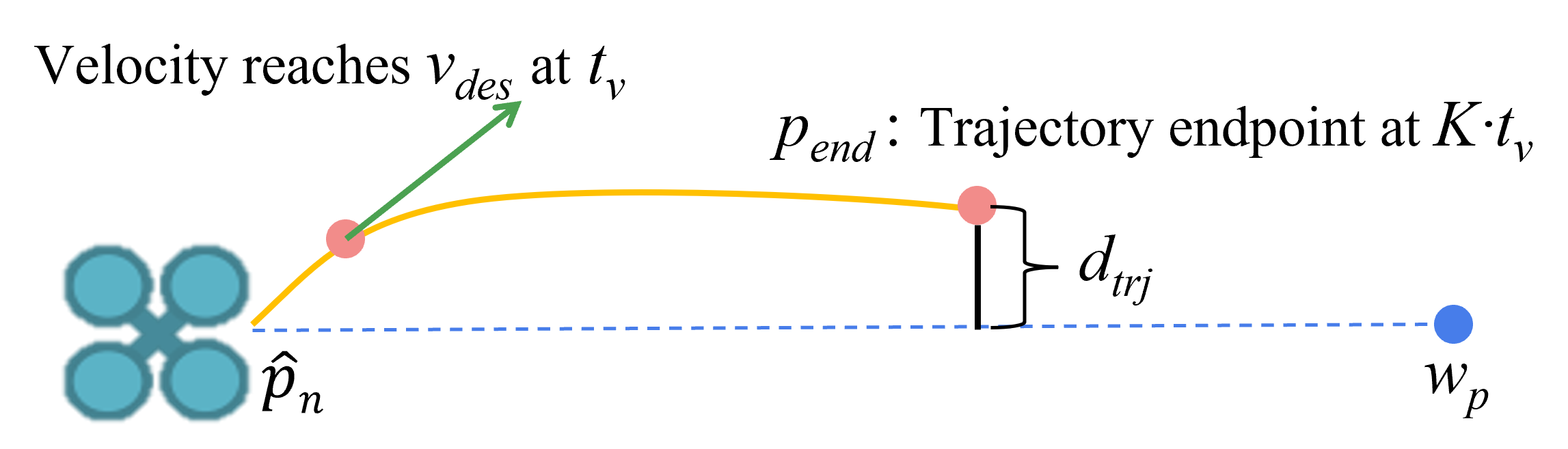

Figure 9: The proposed motion planning method. The objective function is designed to minimize the time cost to reach the desired velocity and the distance from trajectory endpoint to the path line. The solid yellow line represents the predicted trajectory.

The optimization problem to obtain motion primitives is constructed as

()

where the jerk of the vehicle is the variable to be optimized. is the time required to reach , which is the variable and the optimization object at the same time. and are calculated by the kinematic formula. and are the kinodynamic constraints of acceleration and jerk of the vehicle respectively. The velocity constraint is satisfied in the equality constraint with . are coefficients. The default values are shown in Table 1. After the desired trajectory piece is solved, a default cascade PID controller of PX4 is utilized to track this trajectory in position, velocity, and acceleration.

5 Experimental implementation and results

5.1 Point cloud filters

For the dynamic environment perception, filtering the raw point cloud is necessary, because the obstacle state estimation is sensitive to the noise. The noise should be eliminated strictly, even losing a few true object points is acceptable. The filter has the same structure as our former work chen2020computationally , as shown in Figure 10, but the parameters are different. Distance filter removes the points too far () from the camera, voxel filter keeps only one point in one fixed-size (

) voxel, outlier filter removes the point that does not have enough neighbors (

13) in a certain radius (). Based on such configuration, the density threshold for DBSCAN is at least 18 points in the radius of . These metrics are tuned manually during extensive tests on the hardware platform introduced in the next subsection, to balance the point cloud quality and the depth detect distance. They are proved satisfactory for obstacle position estimation. The point cloud filtering also reduces the message size by one to two orders of magnitude, so the computation efficiency is much improved, while the reliability of the collision check is not affected.

However, when the drone performs an aggressive maneuver, the pose estimation of the camera (including the ego-motion compensation) is not accurate enough for dynamic obstacle perception. To solve this problem, we propose a practical and effective measurement: The filtered point cloud is accepted only when the angular velocity of the three Euler angles of the drone is within the limit

.

Figure 10: The filtering process for the raw point cloud.

5.2 Experimental Configuration

The detection and avoidance of obstacles are tested and verified in the Robot Operation System (ROS)/Gazebo simulation environment first and then in the hardware experiment. The drone model used in the simulation is 3DR IRIS, and the underlying flight controller is the PX4 1.10.1 firmware version. The depth camera model is Intel Realsense D435i with resolution 424*240 (30 fps). For hardware experiments, we use a self-assembled quadrotor with a QAV 250 frame and an UP board with an Intel Atom x5 Z8350 1.44 GHz processor, other configuration keeps unchanged. Table 1 shows the parameter settings for the tests. The supplementary video for the tests has been uploaded online222https://youtu.be/1g9vHfoycs0.

Parameter Value Parameter Value
3 0.01 s
6 m/s 1.5 rad/s
0.3 m/s 0.2 s

0.7 s 0.9 m
12 0.5
10 6
3 0.05 m
Table 1: Parameters for the tests

5.3 Simulation Test

5.3.1 Dynamic perception module test

First, the accuracy and stability of the estimation method for the obstacle position and velocity are verified.

In the simulation world depicted in Figure 11(a), there is one moving ball, two moving human models, and some static objects. The moving obstacles are reciprocating on different straight trajectories. The camera is fixed on the head of the drone, facing forward straightly. The drone is hovering around the point . Figure 11(b) depicts the visualized estimation results in Rviz. The Euclidean distance of the feature vectors utilized for obstacle tracking is illustrated in Figure 12. The estimation numeral results are shown in Figure 13, and they are compared with the ground truth. The dynamic perception performance is also compared with SOTA works in Table 2, where the metrics Multiple Object Tracking Precision (MOTP) and Multiple Object Tracking Accuracy (MOTA) are adopted as defined in the work of Bernardin bernardin2006multiple . MOTP is the average position estimation error in this test. Only walking or running pedestrians are tested in Table 2. The second line marked with * is for our method without using the track point to correct the velocity estimation, and the third line marked with # is for our method without the neighbor frame overlapping.

The estimation test results demonstrate that our estimation algorithm is practical for dynamic obstacle avoidance. In addition, our method efficiently improves the estimation accuracy and robustness in the clustered environment. For our MOTA, it is composed of a false negatives rate (covering non-detected dynamic objects and dynamic objects erroneously classified as static or uncertain), a false positives rate (static objects misclassified as dynamic), and a mismatch rate .

Figure 11: (a): The simulation environment for the moving obstacles’ position and velocity estimation test. (b): The visualized estimation results in RVIZ, corresponding to (a). Only the forbidden pyramids for dynamic clusters are visualized. The pedestrians always face their moving direction. It can be seen that the obstacles are correctly tracked even they are very close.

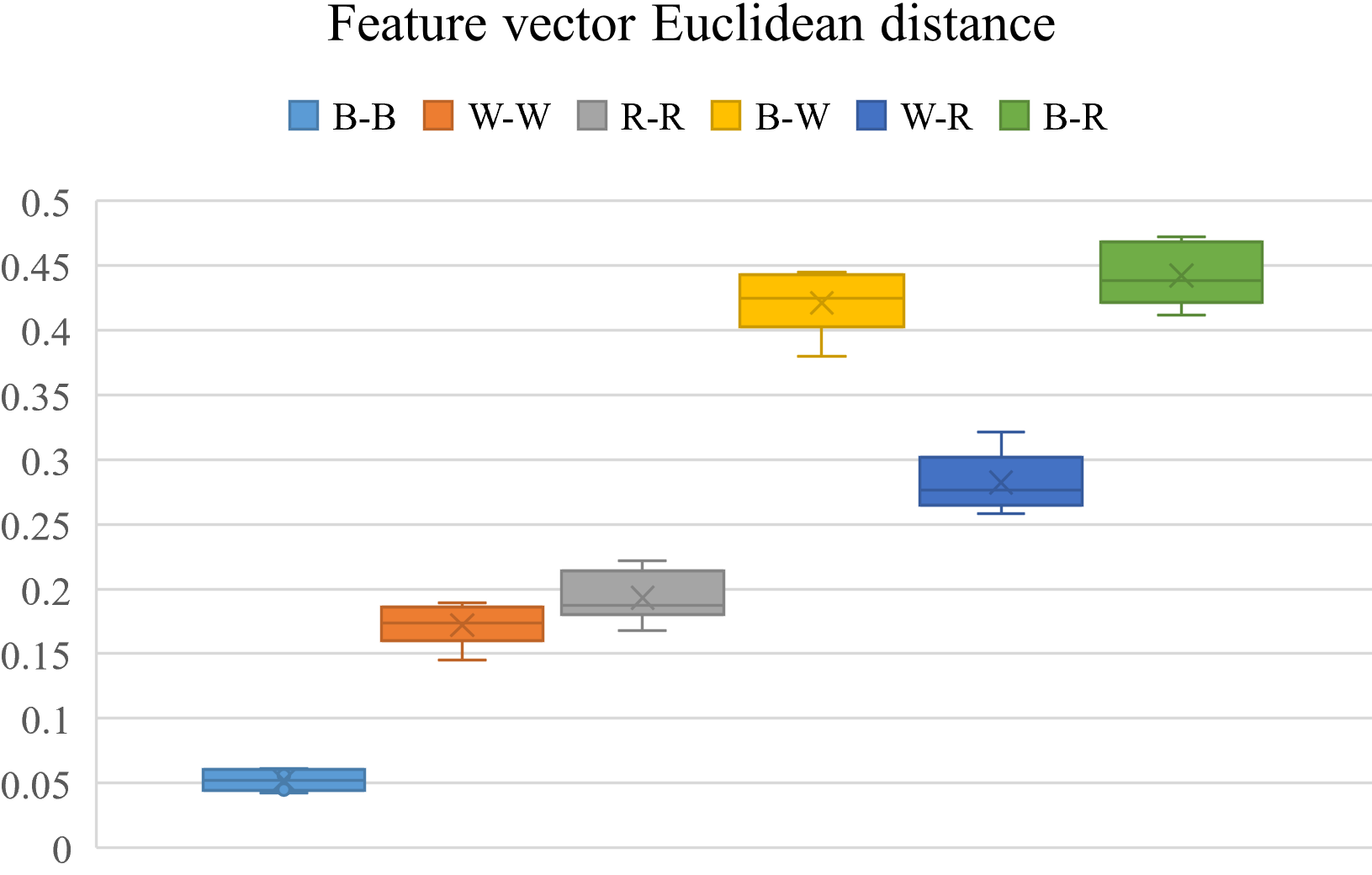

Figure 12: The box chart of the Euclidean distance of the feature vector between obstacles from and . B, W, and R represent the moving Ball, Walking and Running person in Figure 11 respectively. The distance of the same obstacle is obviously lower than that of different obstacles, so the obstacles are matched correctly.

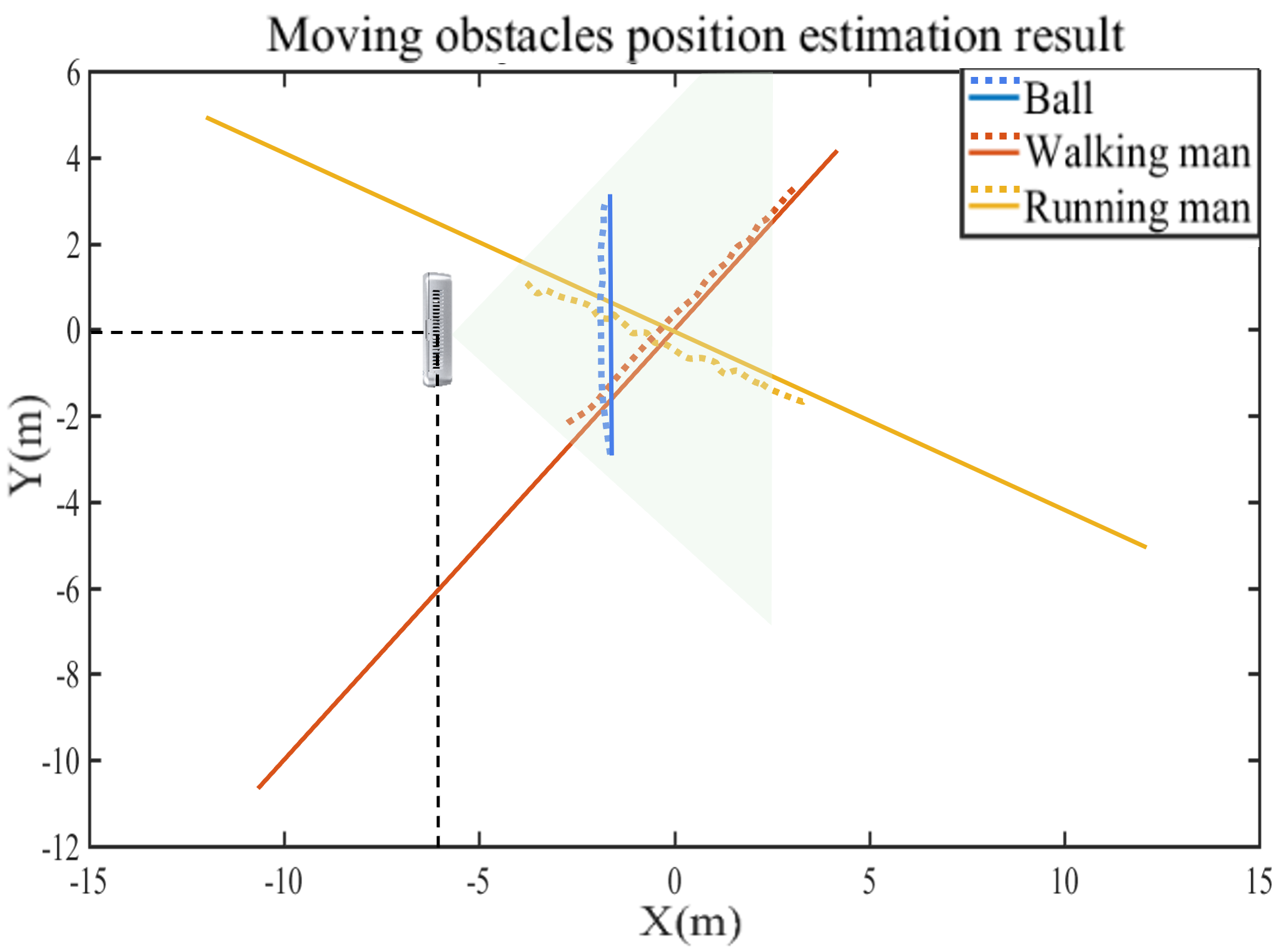

Figure 13: The estimation results of the moving obstacles position. The FOV of the camera is represented with light green area. The dotted line is the estimated result, while the solid line is the ground truth.

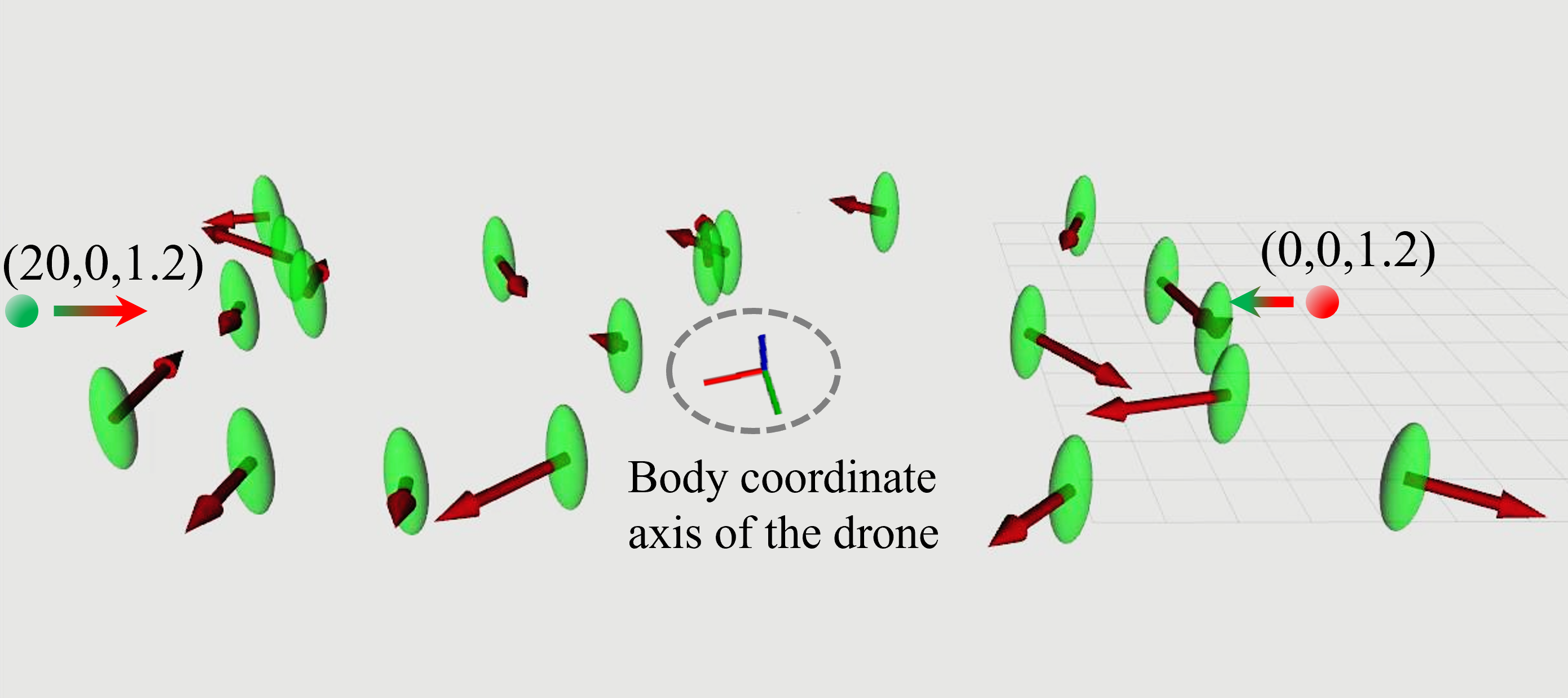

Figure 14: The simulated test environment for the motion planning module. The drone flies between the two points for the assigned times.
Method MOTA () MOTP
Ours 0.21 84.3 0.15

Ours*
0.29 83.9 0.16

Ours#
0.25 83.6 0.18

wang2021autonomous
0.37 76.4 0.28

lin2020robust
0.41 70.1 0.30

Table 2: Obstacle State Estimation Comparison
Method
Ours 2.96 2.24 25.21 3.15

wang2021autonomous
3.43 2.37 23.65 8.61

zhu2019chance
3.18 2.33 22.96 31.23
Table 3: Dynamic Planning Comparison
Figure 15: (a): The dynamic simulation test environment. (b): The dynamic hardware test environment. (c): The composed picture of the hardware flight test. Numbers in (c) mark the same frame for the drone and person.

5.3.2 Motion planning module test

In addition, we compare the motion planning method with wang2021autonomous and zhu2019chance in Table 3. Because locations and velocities of all obstacles are known and not classified as dynamic or static in zhu2019chance , the comparison for the planning module in an environment with only dynamic obstacles. The obstacles are ellipsoids with human-like size (0.5×0.5×1.8m) and move with constant velocities, as shown in Figure 14. For each planner, the drone flies between two points and back and forth for 10 times, 20 obstacles with velocities at 1-3 cross this straight path disorderly. The camera FOV is also considered, and simulated to be with the maximal sensing depth . From Table 3 we conclude that the average acceleration cost of our motion planning method is smaller because our velocity planning method considers the minimal acceleration cost in all the sample velocities for the current time. Also, the computing time is much shorter thanks to the simple but efficient object function and constraints, which shows the potential to avoid faster obstacles.

5.3.3 System test

To test the whole framework for navigation tasks, we utilize the HAS method chen2020computationally as the path planning algorithm at the front end to generate the waypoint for (20). Figure 15(a) is the overview of the flight simulation world. In Figure 1, the necessity for estimating the obstacle’s velocity is illustrated: To avoid the moving man which is at a similar speed with the drone, the aircraft choose to fly in the “opposite” direction with the man so the threat is removed easily. If only the static HAS method chen2020computationally is utilized in the same situation, the drone decelerates and fly alongside the man (red line), which is very inefficient and dangerous.

5.4 Hardware Flight Test

We set up a hardware test environment as Figure 15(b), the drone takes off behind the boxes and then a person enters the FOV of the camera and walks straight after the drone passes static boxes to test the effectiveness of our method. In Figure 15(c), the camera is fixed and takes photos every 0.7 s during the flight. Seven photos are composed together. In the 4th frame the walking person appeared, the solid line shows the trajectory of the drone while the blue dashed line is for the person. It can be concluded that the reaction of the drone is similar to the simulation above. The data for this hardware test is shown in Figure 16, the velocity curve indicates that the drone reacts very fast once the moving obstacle appears. In Figure 16(b), the blue line is only for the path planning algorithm (HAS), and the red line represents the whole planning with Algorithm 2. The blue line has a strong positive linear correlation with time because the number of the input points of the collision check procedure determines the distance calculation times. The red and yellow line show the irregularity, which is because the moving obstacle brings external computation burden to Algorithm 2, and the number of moving obstacles has no relation with the point cloud size. The single-step time cost of our proposed method (exclude the path planning) is even smaller than 0.01 s, indicating the fast-reacting ability towards moving obstacles.

At last, we compare our work with SOTA works on the system level in Table 4. Since most related works differ significantly from ours in terms of application background and test platform, for numeral indicators we only compare the total time cost for reference. The abbreviations stand for: obs (obstacle), cam (camera), UUV (underwater unmanned vehicle), N/A (not applicable). “N/A” in the sensor type column refers to the work that gets obstacle information from an external source and does not include environment perception. Most works have severe restrictions on the obstacle type or incompleteness in environment perception, and the computing time cost is not satisfactory for real-time applications. Our work has a great advantage in generality and system completeness, the time cost is also the shortest unless the event camera is considered.

Figure 16: (a): The velocity of the drone in earth coordinate . (b): The time cost for different modules under different filtered point cloud size. The average value is marked in the corresponding color.
Work Sensor type Vehicle Obs limits Time cost (s)
zhang2017dynamic Sonar UUV dynamic obs 1-2

malone2017hybrid
N/A Robots dynamic obs 0.045-0.13

cherubini2014autonomous
Cam & Lidar Car N/A 0.1

nageli2017real
N/A UAV human 0.2-0.3

falanga2020dynamic
Event cam UAV dynamic obs 0.0035

lin2020robust
N/A UAV N/A 0.07

Ours
RGB-D cam UAV N/A 0.015

Table 4: System comparison between different works

6 Conclusion and future work

In this paper, we present a computationally efficient algorithm framework for both static and dynamic obstacle avoidance for UAVs based only on point cloud. The test results indicate our work is feasible and shows great promise in practical applications.

However, when the speed or angular velocity of the drone is high, and also because of the narrow FOV of a single camera, the dynamic perception becomes significantly unreliable. In future research, we intend to improve the robustness of our method in aggressive flights and test it with different sensors such as lidar.

References

  • (1) J. Chen, T. Liu, S. Shen, Online generation of collision-free trajectories for quadrotor flight in unknown cluttered environments, in: 2016 IEEE International Conference on Robotics and Automation (ICRA), Vol. 2016, 2016, pp. 1476–1483.
  • (2) H. Chen, P. Lu, Computationally efficient obstacle avoidance trajectory planner for uavs based on heuristic angular search method, arXiv preprint arXiv:2003.06136 (2020).
  • (3) J. Lin, H. Zhu, J. Alonso-Mora, Robust vision-based obstacle avoidance for micro aerial vehicles in dynamic environments, in: 2020 IEEE International Conference on Robotics and Automation (ICRA), IEEE, 2020, pp. 2682–2688.
  • (4) Y. Wang, J. Ji, Q. Wang, C. Xu, F. Gao, Autonomous flights in dynamic environments with onboard vision, arXiv preprint arXiv:2103.05870 (2021).
  • (5) C. Yu, Z. Liu, X.-J. Liu, F. Xie, Y. Yang, Q. Wei, Q. Fei, Ds-slam: A semantic visual slam towards dynamic environments, in: 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2018, pp. 1168–1174.
  • (6) J. Kim, Y. Do, Moving obstacle avoidance of a mobile robot using a single camera, Procedia Engineering 41 (2012) 911–916.
  • (7) H. Oleynikova, D. Honegger, M. Pollefeys, Reactive avoidance using embedded stereo vision for mav flight, in: 2015 IEEE International Conference on Robotics and Automation (ICRA), IEEE, 2015, pp. 50–56.
  • (8) P. Skulimowski, M. Owczarek, A. Radecki, M. Bujacz, D. Rzeszotarski, P. Strumillo, Interactive sonification of u-depth images in a navigation aid for the visually impaired, Journal on Multimodal User Interfaces 13 (3) (2019) 219–230.
  • (9) T. Nageli, J. Alonso-Mora, A. Domahidi, D. Rus, O. Hilliges, Real-time motion planning for aerial videography with real-time with dynamic obstacle avoidance and viewpoint optimization, in: IEEE Robotics and Automation Letters, Vol. 2, 2017, pp. 1696–1703.
  • (10) A. Ess, B. Leibe, K. Schindler, L. van Gool, Moving obstacle detection in highly dynamic scenes, in: 2009 IEEE International Conference on Robotics and Automation, 2009, pp. 4451–4458.
  • (11)

    K. Berker Logoglu, H. Lezki, M. Kerim Yucel, A. Ozturk, A. Kucukkomurler, B. Karagoz, E. Erdem, A. Erdem, Feature-based efficient moving object detection for low-altitude aerial platforms, in: Proceedings of the IEEE International Conference on Computer Vision Workshops, 2017, pp. 2119–2128.

  • (12) I. A. Bârsan, P. Liu, M. Pollefeys, A. Geiger, Robust dense mapping for large-scale dynamic environments, in: 2018 IEEE International Conference on Robotics and Automation (ICRA), IEEE, 2018, pp. 7510–7517.
  • (13) S. Zhang, R. Benenson, M. Omran, J. Hosang, B. Schiele, Towards reaching human performance in pedestrian detection, IEEE transactions on pattern analysis and machine intelligence 40 (4) (2017) 973–986.
  • (14) S. Kraemer, C. Stiller, M. E. Bouzouraa, Lidar-based object tracking and shape estimation using polylines and free-space information, in: 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), IEEE, 2018, pp. 4515–4522.
  • (15) J. Miller, A. Hasfura, S.-Y. Liu, J. P. How, Dynamic arrival rate estimation for campus mobility on demand network graphs, in: 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), IEEE, 2016, pp. 2285–2292.
  • (16) A. Cherubini, F. Spindler, F. Chaumette, Autonomous visual navigation and laser-based moving obstacle avoidance, IEEE Transactions on Intelligent Transportation Systems 15 (5) (2014) 2101–2110.
  • (17) D. Falanga, K. Kleber, D. Scaramuzza, Dynamic obstacle avoidance for quadrotors with event cameras., Science Robotics 5 (40) (2020).
  • (18) B. Damas, J. Santos-Victor, Avoiding moving obstacles: the forbidden velocity map, in: 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, 2009, pp. 4393–4398.
  • (19) N. Malone, H.-T. Chiang, K. Lesser, M. Oishi, L. Tapia, Hybrid dynamic moving obstacle avoidance using a stochastic reachable set-based potential field, IEEE Transactions on Robotics 33 (5) (2017) 1124–1138.
  • (20) H. Febbo, J. Liu, P. Jayakumar, J. L. Stein, T. Ersal, Moving obstacle avoidance for large, high-speed autonomous ground vehicles, in: 2017 American Control Conference (ACC), 2017, pp. 5568–5573.
  • (21) W. Luo, W. Sun, A. Kapoor, Multi-robot collision avoidance under uncertainty with probabilistic safety barrier certificates, in: Advances in Neural Information Processing Systems, Vol. 33, 2020.
  • (22) C. Cao, P. Trautman, S. Iba, Dynamic channel: A planning framework for crowd navigation, in: 2019 International Conference on Robotics and Automation (ICRA), IEEE, 2019, pp. 5551–5557.
  • (23) D. Zhu, T. Zhou, J. Lin, Y. Fang, M. Q.-H. Meng, Online state-time trajectory planning using timed-esdf in highly dynamic environments, arXiv preprint arXiv:2010.15364 (2020).
  • (24) M. Ester, H.-P. Kriegel, J. Sander, X. Xu, A density-based algorithm for discovering clusters in large spatial databases with noise, in: Proc. 1996 Int. Conf. Knowledg Discovery and Data Mining (KDD ’96), 1996, pp. 226–231.
  • (25)

    K. Bernardin, A. Elbs, R. Stiefelhagen, Multiple object tracking performance metrics and evaluation in a smart room environment, in: Sixth IEEE International Workshop on Visual Surveillance, in conjunction with ECCV, Vol. 90, Citeseer, 2006.

  • (26) H. Zhu, J. Alonso-Mora, Chance-constrained collision avoidance for mavs in dynamic environments, IEEE Robotics and Automation Letters 4 (2) (2019) 776–783.
  • (27) W. Zhang, S. Wei, Y. Teng, J. Zhang, X. Wang, Z. Yan, Dynamic obstacle avoidance for unmanned underwater vehicles based on an improved velocity obstacle method., Sensors 17 (12) (2017) 2742.
