1 Introduction

Efficient traffic management is a key to handle congestions. An entire city can choke under traffic congestion if not handled carefully. Therefore, deadlock or starvation free traffic flow is the key to developing expert systems such as intelligent transportation system (ITS). As the traffic flow varies over time in a given junction, the signal management algorithms need to be adaptive. Without loss of generality, we may assume that past knowledge can help intelligent traffic management systems to adjust traffic signals accordingly.

With the advancement of sensor technology and emergence of intelligent video surveillance systems, traffic signal management can be automated or semi-automated. In this work, we attempt to use vehicle tracklets derived using Dirichlet Process Mixture Model (DPMM) (Rasmussen, 2000) based clustering method to study and understand the traffic states at junctions. Also, we model the traffic junctions using queuing theory to predict signal on/off durations for unidirectional flows. An overview of the system is presented in Fig. 1.

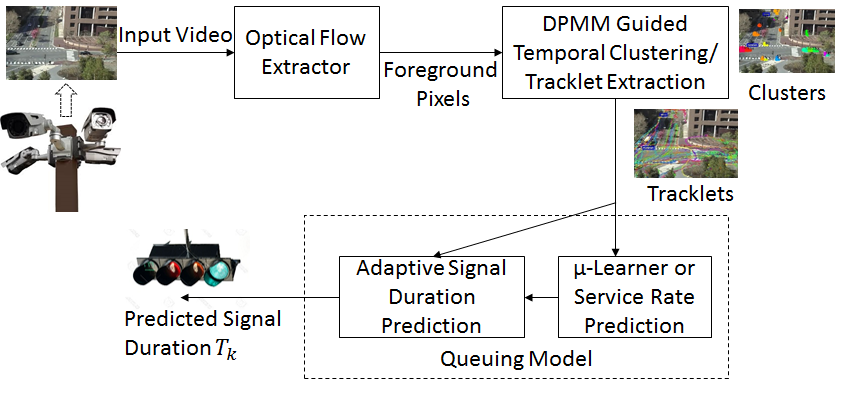

Figure 1:

Overview of the system queuing guided traffic signal duration predictor. Initially, optical flow features extracted are fed to a temporal clustering module implemented using DPMM. In the next phase, these clusters (or tracklets) are fed to a

learner algorithm to learn the service rate of the channel or lane. The learned is then used to estimate/predict the signal durations for the subsequent cycles.

It is well-known that vehicular traffic usually follow a typical queue discipline, where vehicles move one behind the other. Though vehicles may overtake, most of the time the movement follows a first-come-first-served (FCFS) pattern. Thus, intuitively traditional queuing theory may be applied to understand the traffic state. Queuing theory has successfully been applied in many other fields such as network traffic analysis (Li, 2017; Wang, Wang, and Feng, 2011a), web applications (Liu, Heo, Sha, and Zhu, 2008; Tolosana-Calasanz, Diaz-Montes, Rana, and Parashar, 2017), scheduling (Bensaou, Tsang, and Chan, 2001; Stamoulis, Sidiropoulos, and Giannakis, 2004), etc. A queuing system is characterized by distribution of inter-arrival time, service time and the number of servers. Consider a highway traffic in steady state condition. When we watch the traffic from the top, it can be observed that the incoming and outgoing traffic rates are same, i.e., there is no queuing in the system under normal circumstances. If we consider a junction with signal, though incoming rate may remain steady, outgoing traffic depends on the signal open/close duration. This can be logically explained as a queuing model with service rate depending on the signal duration. If this pattern is modeled, traffic states can be better interpreted and hence controlling the traffic can be done with less errors.

Queuing models are typically expressed in terms of arrival rate (), service/departure rate () and the number of servers. Fig. 2(a) shows a typical representation of queuing system. Some of the observations on a road with traffic movement are, (i) in steady-state condition, departure rate () can be assumed to be same as arrival rate (), (ii) any change in steady state is indicated by the change in , as traffic blockage or release is triggered at the front of the queue, (iii) in case of traffic blockage, the trigger is from the departure point and gradually reduces and eventually the traffic comes to a halt and needs to be controlled through alternate route planning, (iv) difference between no-traffic and traffic-blockage has to be identified from the source of the trigger, (v) in case of no traffic, trigger will be from the entry point, i.e., gradually reduces and eventually settles at zero, (vi) finally, the queue length can be used to decide the signal open duration when the blockage is due to regulation of the flow.

Based on the aforementioned observations, we model the traffic flow using queuing theory. One way of applying queuing theory can be using exact count of the vehicles in motion. If we have to count the vehicles, it is important to track the vehicles accurately. However, it is difficult to accurately track vehicles in complex scenarios (Bae and Yoon, 2017; Choi, Jin Chang, Jeong, Demiris, and Young Choi, 2016; Henriques, Caseiro, Martins, and Batista, 2015; Zhou, Yuan, and Shi, 2009; Milan, Leal-Taixé, Schindler, and Reid, 2015, 2016; Zhang, Varadarajan, Nagaratnam Suganthan, Ahuja, and Moulin, 2017; Yang, Shao, Zheng, Wang, and Song, 2011). Thus, we represent the foreground moving objects in terms of temporal clusters. We want smaller vehicles to be composed of lesser number of clusters as compared to the bigger vehicles. This ensures that if the clusters are used as the elements of the queue, time to cross a typical signal can accurately modeled using departure rate. Consider a bus and a car crossing a particular signal as shown in Fig. 3. The car takes lesser time to cross, whereas the bus usually takes more time to cross due to its larger size. By representing clusters as elements of the queuing system, and can be approximated accurately. As the clusters follow the characteristics of a typical queuing system, this also can be used for understanding and managing the traffic.

(a) Queuing System
(b) DPMM
Figure 2: Base models of our proposed method. (a) A typical Queuing system. (b) A Conventional DPMM typically used in clustering of time varying data.
(a) Car Scene
(b) Bus Scene
Figure 3: Snapshots of clusters corresponding to a car object and a bus object. (a) A typical scene of a road segment with a car on it and cluster corresponding to the car shown in green color with an associated label. (c) A typical scene of a road segment with a bus on it and two clusters corresponding to the bus shown in blue and magenta colors with associated labels.

1.1 Related work

Nowadays, real-time traffic information is collected from various sources like traffic cameras, road sensors and crowd sensing data through users (Fathy and Siyal, 1998; Zhang, Varadarajan, Nagaratnam Suganthan, Ahuja, and Moulin, 2017; Araghi, Khosravi, and Creighton, 2015). Authors of  (Janecek, Valerio, Hummel, Ricciato, and Hlavacs, 2015; Collotta, Bello, and Pau, 2015) discusses the traffic management using cellular technologies. Global Positioning Systems (GPS) based technologies are used in the work of  (Rohani, Gingras, Vigneron, and Gruyer, 2015; WLi, Nie, Wilkie, and Lin, 2017) for traffic management. Congestion is one of the key issues in most of the traffic management mechanisms. The research work discussed in (Cao, Jiang, Zhang, and Guo, 2017; Park, Chen, Kiliaris, Kuang, Masrur, Phillips, and Murphey, 2009; Terroso-Saenz, Valdes-Vela, Sotomayor-Martinez, Toledo-Moreo, and Gomez-Skarmeta, 2012; Wang, Djahel, Zhang, and McManis, 2016; Wen, 2010) focus on congestion analysis and control. Some of the recent work (Dresner and Stone, 2008; Hausknecht, Au, and Stone, 2011) discuss traffic management using communication between autonomous vehicles for signal free traffic. Some of the existing research work (Cao, Jiang, Zhang, and Guo, 2017; Hausknecht, Au, and Stone, 2011; Zhao, Li, Wang, and Ban, 2016) also discuss signal management at junctions. However, existing methods handle the traffic signal management using the information available from other sources using some communication mechanism. To the best of our knowledge, no such work exists that adopts queuing theory to predict signal duration using a computer vision based approach. Therefore, we have proposed a queuing theory guided expert system for scheduling of traffic signals based on unsupervised learning of temporal clusters.

1.2 Motivation and Contributions

We have drawn motivation about this research work by observing how a traffic guard/person handles the flow in a typical 4-way junction. It has been observed that, duration of green signal is usually decided based on the queue from traffic inflow, rather than exactly counting the number of vehicles. The vehicles usually move one behind the other in normal circumstances. This has helped us to model traffic flow by a typical queuing system where objects move in first-come-first-served (FCFS) fashion. With DPMM guided temporal clustering of moving pixels, we can develop tracklets corresponding to the moving objects. This information can be used for modeling the traffic flow in an M-way traffic junction. Based on the above mentioned facts, we list-down a few assumptions and motivations that have guided us to build the proposed traffic management framework, (i) tracking in complex environment can be difficult, thus temporal clustering can be used to represent the traffic movement at a coarse level, (ii) understanding the dynamic nature of traffic in one direction can provide valuable insight into the overall traffic signal management problem, (iii) the above understanding may help to build a model for complex junctions, and (iv) typical queuing model can be applied to understand the traffic behavior at junction. Motivated by the above facts, we have made the following contributions:

  1. We have developed a method to obtain short trajectories (tracklets) with the help of machine learning based DPMM guided temporal clustering and used them to learn traffic behavior at junction.

  2. A queuing theory based model has been proposed for understanding traffic state at junctions and to dynamically predict the signal duration in a unidirectional traffic flow, thus making the building block of traffic intersection management for expert systems such as ITS.

The rest of the paper is organized as follows. In Section 2, we describe the background on tracklet generation and formulation for the proposed method. In Section 3, we discuss the experiments and discussion of the results. In Section 4, we conclude the work with our insight into the future directions of the present work.

2 Method

2.1 Background

In order to develop unsupervised method for managing traffic flows, it is important to learn the vehicles in motion that fills the space on the road. It has been found that DPMM based models are highly popular for unsupervised learning of clusters (Blei, Ng, and Jordan, 2003; Emonet, Varadarajan, and Odobez, 2014; Hu, Li, Tian, Maybank, and Zhang, 2013; Kuettel, Breitenstein, Gool, and Ferrari, 2010; Sun, Yung, and Lam, 2016; Teh, Jordan, Beal, and Blei, 2006; Wang, Ma, Ng, and Grimson, 2011b)

. Firstly, we introduce some terminologies used in this paper. We use observation or data to represent pixels. Topic or cluster denotes a distribution of data and it will be associated with a label. Our proposed model is non-parametric in nature. A parametric model has a fixed number of parameters, while in non-parametric models, parameters grow in number with the amount of data. This characteristic is essential as it can learn more clusters when more objects arrive in the area of interest.

The model can be mathematically expressed as in  (1-4).

is a discrete random variable taking one of cluster labels

for the observation , where is the random variable representing observation such that with being the number of observations and with K being the number of clusters.

is a vector of length

representing the probability of

taking the value otherwise called mixing proportion. is the parameter of the cluster and denotes the distribution defined by . denotes the concentration parameter and its value decides the number of clusters formed. Firstly, we pick from a Discrete distribution given in (1) and then generate data from a distribution parameterized by as given in (2). Parameter is derived from a Dirichlet distribution as given in (3) and is derived from distribution of priors as represented in (4). The model is graphically (Koller and Friedman, 2009) presented in Fig. 2(b).

(1)
(2)
(3)
(4)

We extend the model temporally with the following additional assumptions that the features do not change significantly between and , where represents the time stamp of the frame, i.e., state information does not change significantly between consecutive frames.

If pixel belongs to an object in both and frames, the probability of an observation belongs to a cluster is expected to be higher than it belongs to another cluster. This implies, cluster parameters are approximately equal between successive frames, i.e., . However, they may not be exactly same. If Gibbs sampling (Neal, 2000) is performed using as a prior for the frame, not only the convergence becomes faster, but also the cluster labels can be maintained between consecutive frames. The rationale behind using only one iteration per frame is that, even if all the observations do not get clustered correctly in the current frame, they are essentially done in subsequent frames. Thus, the temporal clustering model can be expressed using  (5-8).

(5)
(6)
(7)
(8)

Here, corresponds to the data at time and corresponds to the latent variable representing cluster labels, taking one of the values from . is the number of data points and is the number of clusters, is a vector of length , represents the mixing proportion of data among clusters, is the parameter of the cluster , and denotes the distribution defined by . The difference from DPMM expressed using (1-4) is the conditional dependency of and on and , respectively.

2.2 Formulation for Tracklets

Optical flow is commonly used to track moving objects (Emonet, Varadarajan, and Odobez, 2014; Kuettel, Breitenstein, Gool, and Ferrari, 2010). We assume that optical flows belonging to foreground pixels follow DPMM (Rasmussen, 2000). Therefore, initially we extract optical flow features to identify the pixels that are in motion. After background subtraction using a Mixture of Gaussian (KaewTraKulPong and Bowden, 2002) model, clustering has been applied on these selected pixels using the inference scheme (Neal, 2000) as given in (9). The scheme finds out the cluster labels () for each of the pixels by representing an observation () using () in a typical DPMM model, where represents position of optical flow vector and represents the quantized direction. and represent the respective set of random variables excluding and , respectively. represents the parameters (mean and covariance) of the cluster and represents the set of parameters of clusters excluding the observation. Euclidean distance (ED) has been used to measure the distance of from the center of cluster .

(9)

In order to make sure that cluster labels are maintained temporally, each of the observations () is Gibbs sampled over the optical flow features obtained from the next frame to obtain for the next frame. Convergence has been applied temporally using the inference equation (10) to obtain the final tracklets of the moving clusters.

(10)

In this formulation, is different from the discussed earlier. It represents the set of all cluster assignments except for such that it includes only the latest elements between and for any . is the parameter representing the distribution corresponding to cluster in the time-stamp from the set of observations corresponding to , where is the number of observations in , and is normalization constant.

Since labels of the clusters are maintained across the frames, they create tracklets which can be represented by , , …, corresponding to each cluster label, where and corresponds to position and direction of the cluster center at time and is the length of the tracklet. Since the tracklets contain time-stamp information, the arrival () and departure () rates of the clusters on a predefined road segment can be measured and used to model the traffic state.

In the context of signal management, we build the model for traffic management in a step-by-step fashion. Initially, we model the traffic signal for unidirectional flow, ignoring flows in other direction. However, we emphasize that, our analysis can be easily extended for modeling signals in -way traffic junctions.

2.3 Modeling of Unidirectional Flow

Consider an -way junction. The traffic is managed by allocating time duration for the signal corresponding to the incoming traffic for the cycle, where and . One traffic cycle is said to be complete when allocation is completed for all incoming traffic flows. Cycle time for the cycle. Our goal is to find optimal time allocation for the incoming traffic to achieve optimum throughput. In order to solve this problem, we first solve the problem of optimizing the signal.

We can consider , where is the time duration where the signal remains off/red. We want to predict , i.e., signal duration for the next cycle, based on past information. It has been observed that the departure rate slowly increases when the signal goes green. It becomes steady when most of the vehicles including the vehicles accumulated during the early period start moving. Finally, the rate becomes stable when arrival and departure rates become similar. As per the above observations, we can divide primarily into two segments, namely existing queue clearance time () and traffic free-flow time (). Free-flow time can further be divided as steady state duration and stable duration (). Let be the service rate during and be the arrival rate. We can assume that, between consecutive cycles, the arrival rate does not change significantly. Thus, we need to estimate and for the next cycle. Let & represent the actual rates and & represent estimated rates. and can be assumed to be good estimate of the service and arrival rates for the next cycle as given in (11) and (12).

(11)
(12)

The estimated time for the signal can be computed using (13), where denotes the error in estimation of . The equation needs to satisfy the constraint that predicted throughput is not below the current throughput considering -way signals. For simplicity, we can assume and is a non-zero quantity, i.e. fixed cycle duration and nonzero red signal duration. If the above criteria is not met, older value of needs to be initialized in the current cycle, i.e., .

(13)

The size of the queue that builds up during can be the estimated queue length for the cycle. Hence queue clearance time can be estimated using (14).

(14)

The free-flow time is given in (15). It is not sufficient to assume only the queue clearance time. We need to accommodate time for the vehicles getting accumulated when the signal opens. This will help to obtain better throughput. This can be a factor () of queue clearance time as queue size is proportional to arrival rate. When the arrival rate is more, it is intuitive to allocate more time to the free-flow segment. We add additional constant time () to make sure that there is a stable free-flow time for each signal to get better estimate of the arrival rate.

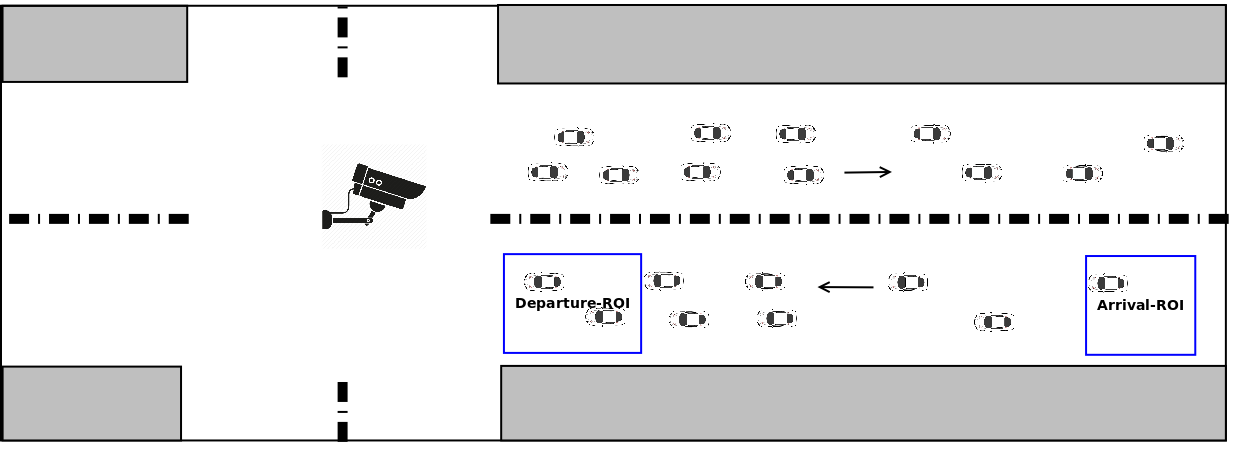

Figure 4: A typical traffic flow representation for a unidirectional flow.
(15)
(16)

The challenge is mainly measuring the actual value of and for the current iteration, and . If the curve versus queue clearance time is learned, free-flow time period and can be learned. can be learned using non-parametric regression technique based on the data available for a few cycles corresponding to the signal. We have used Gaussian Kernel regression for learning . If , represents a data point and P (where ) such points are known a priori, then, at time can be found using (17), where and represent queue clearance time and service rate. is the Gaussian kernel (Takeda, Farsiu, and Milanfar, 2007).

(17)

In a unidirectional traffic flow, can be measured by counting the number of cluster centers entering the bounding box per unit time and can be measured by the number of clusters exiting the bounding box per unit time as depicted in Fig. 4. We call these bounding boxes as Regions of Interest (ROI). We call the respective bounding boxes as Arrival-ROI and Departure-ROI, subsequently.

Algorithm 1 has been used to learn using the Gaussian kernel regression discussed earlier. It calculates for varying queue clearance time by collecting data points during a few cycles (). It can be noted that, we may get data points with lesser number of cycles, i.e., . The time required for the element to cross the Departure-ROI can be considered as the queue clearance time for a queue length of since the queue clearance time is only influenced by the number of elements in front of the element. This way, there is no need to run the algorithm for number of cycles to get as many data points. The queue clearance time can be calculated once the time-stamps of the tracklets crossing Arrival-ROI and Departure-ROIs are known. The signal open time-stamp () is known a priori. Once enough number of data points () are obtained for different queue lengths, -curve can be generated using the Gaussian regression. The result is returned in the form of a list.

Input: Input video, (Concentration parameter for DPMM), (The number of cycles to learn ), (The upper limit of queue clearance time), (Fixed signal duration for each of the traffic flows)
Output: The list , where gives values for different queue lengths .
Procedure:

1:Flag each tracklet (calculated as per (9)) with arrival and departure flag along timestamps and on entering Arrival-ROI and Departure-ROI, respectively;
2:Run the signal for duration () by number of cycles.
3:for  each  do
4:      = First tracklet with arrival and departure flags;
5:      = Tracklet before ;
6:end for
7:Create data points () after calculating corresponding to tracklets upto for each cycle, where represents the cluster crossing Departure-ROI at time from the signal start time () in any of the cycles;
8:for  do
9:     Calculate as per (17);
10:end for
11:Return the list ;
Algorithm 1 Learner

Algorithm 2 gives the overall signal prediction mechanism. In the initial part, it learns the -curve using Algorithm  1. Once is learned, in subsequent cycles, it predicts the signal open duration using (13). It runs the signal with predicted duration, if it meets the criteria for unidirectional flow, i.e. fixed cycle duration and nonzero red signal duration. If the criteria is not met, the algorithm runs with the previous cycle’s signal duration. We have represented it as a function for future extensibility as the criteria can be for achieving optimal throughput.

In the algorithms, four parameters, namely (, , , ) have been used. only affects the number of clusters/vehicle, not the signal duration estimation. Fixed signal duration s can be used for learning the values. represents the maximum queue clearance time possible. is number of cycles to learn departure rate ().

Input: Input video; (The concentration parameter for the DPMM), (The number of cycles to learn ), (The upper limit of queue clearance time), (Fixed signal duration for each of the traffic flows)
Output: Predicted Signal duration for signal.
Procedure:

1:Run the Learner as per (1);
2:Measure queue clearance time ( = of - );
3:Calculate departure rate ();
4:Calculate arrival rate ( = (# tracklets crossed Departure-ROI during ) / );
5:for  do
6:     Set and as per (11) and (12);
7:     Calculate as per (13);
8:     if (then
9:         Run the signal for ;
10:     else
11:         Run the signal for ;
12:     end if
13:     Measure queue clearance time ();
14:     Calculate for ;
15:     Calculate ;
16:end for
Algorithm 2 Adaptive Signal Duration Predictor

3 Experiments

Experiments have been conducted to validate our assumptions and to establish the claim that the traffic flow can be modeled using a queuing theory based approach. We have used two publicly available surveillance video datasets QMUL (Russell and Gong, 2008) and MIT (Wang, Ma, and Grimson, 2009). Signal duration prediction experiments have been conducted only using QMUL dataset since the other dataset does not provide visual clue about the actual signal on/off durations.

(a) QMUL inter-arrival time distribution
(b) QMUL inter-departure time distribution
(c) MIT inter-arrival time distribution
(d) MIT inter-departure time distribution
Figure 5: Inter-arrival time distributions for two datasets.

3.1 Traffic State Analysis

As discussed earlier, a queuing model is characterized by the distributions of inter-arrival time, service time and number of servers. Inter-arrival time plotted for a few traffic datasets clearly indicate that it follows exponential distribution as can be verified from Fig.

5. If the time between consecutive occurrences of an event follows exponential distribution with parameter

, we can express the probability density function

for , otherwise . Then, the number of occurrences () within the interval

has a Poisson distribution with parameter

. The mean of the distribution is . The expected number of events/unit time is and it is the mean rate at which the events occur. In the case of arrival event, . Arrivals are said to occur according to a Poisson input process with the parameter . Similarly, the service time also follows an exponential distribution as it can be seen from Fig. 5(b) and Fig. 5(d), where . We consider the number of servers to be one corresponding to the inflow traffic. Fig. 6 shows the arrival and departure rates obtained using the QMUL junction video for a few cycles and their detailed analysis.

(a) and plots for a few cycles
(b) and plots for one signal duration
(c) Clearance time vs. Cumulative departure rate
(d) Cumulative # Elements vs. Cumulative departure rate
(e) Cumulative # of Elements vs. Clearance time
Figure 6: Plot of queuing parameters obtained using the QMUL junction video. (a) Arrival and departure rates for a few cycles. (b) Arrival and departure rates for one of the typical cycles. The spikes in the departure rate correspond to the signal opening time. The arrival rate indicated by blue plots has been found to be steady for majority of the duration. Spikes in certain regions of the arrival curve happen due to the presence of a signal opening before Arrival-ROI which causes an increase in the traffic flow. The relation between cumulative departure rate, cumulative # of clusters () that crossed Departure-ROI, and their clearance time are represented in (c), (d), and (e). As discussed in Section 2.3, initial departure rate is slow which is expected. As marked in (c), second segment corresponds to the steady flow period when the vehicles are moving including the vehicles that are accumulated during queue clearance. The final segment corresponds to a stable duration when arrival and departure rates are similar (as if there is not traffic signal). Plot shown in (e) clearly indicates a linear relation between the number of elements in the queue and the queue clearance time.
(a) Scene snapshot
(b) Clusters snapshot
(c) Tracklet snapshot
(d) Freeflow tracklets
(e) Queuing tracklets
(f) Queue clearing tracklets
Figure 7: Representation of different features obtained using the MIT dataset videos. (a) Represents the snapshots of a scene. (b) Corresponding clusters of the scene. (c) Tracklets found till the current frame. (d-f) Depict different kinds of tracklets in a unidirectional flow.

It has been found during tracklet analysis that, there are three kinds of tracklets possible in a typical traffic flow. A free-flow tracklet, which is formed when the signal is clear and vehicles need not stop at the signal. Second type is queuing tracklets which are formed when the vehicles are stopped at the signal. Third kind is the queue clearing tracklets. These are formed when the signal turns on and the vehicles start moving. Fig. 7 demonstrates all such kinds tracklets with visual marking.

3.2 Traffic Signal Management

c (s) (s) (s) MAE (%)
1 55 38 - 05.98 -
2 56 38 14.17 10.14 15.50
3 55 43 08.91 08.31 38.50
4 55 39 09.47 10.74 02.36
5 55 39 13.32 15.18 01.20
Table 1: Mean Absolute Error (MAE) Table

Firstly we describe the parameter values (, , , ) used in our algorithms. For QMUL dataset shown in Fig. 8(a), (estimated empirically) produced near-optimal cluster (small object) or set of clusters (large objects) closely representing moving vehicles when the viewing perspective is not changed. We have used a fixed signal duration s by visually observing the QMUL video. The maximum of queue clearance () is found to be 12s for QMUL video for the selected cycles. We have used first four cycles () to learn the . We have used 4 cycles () to learn using Gaussian regression and the results are shown in Fig. 8(b). We have conducted tests to predict the queue clearance time for 5 cycles and the results are presented in Table 1, where denotes the cycle number, , , and denote green signal duration, red signal duration, estimated queue clearance time, and ground truth queue clearance time, respectively. It can be observed that the proposed method predicts the queue clearance time with high accuracy. Since the duration of the signal is highly dependent on the queue clearance time, the method can be used for managing traffic signals. In order to illustrate the point, we have considered one of the cycles and observed the predicted cycle duration. We consider , thus we want to predict the time duration for the cycle. As per the ground truth measurement, , , , and we assume . Thus,

It may be noted that, if the arrival rate increases, the signal duration needs to be proportionately increased depending on the value of . In the above example, the arrival rate has increased from ( to ). Hence the term is positive and that corrects the error from the last cycle. The predicted duration is s as compared to the ground truth value of s, i.e., our algorithm accommodates the increase in the arrival rate in predicting next signal duration. Similarly, when the arrival rate becomes less as compared to the previous cycle, becomes negative and the duration is proportionately reduced. This way in each cycle, estimation error is corrected with the term. The results show that the method can be used for signal duration prediction. Though, this experiment is applied only on a unidirectional traffic flow, the same formula can be applied for every other flows. An objective function can be developed for calculating the throughput. Once a cycle in an M-way junction is over, if the predicted throughput becomes less than the current throughput, then the signal duration for the current cycle is to be repeated for the next cycle. This way, the signal duration is constrained for each of the M-traffic flows as increasing the signal duration for a particular flow beyond a certain threshold may reduce the overall throughput. In a steady traffic condition, the signal duration will be stabilized proportionately to the arrival rate.

(a) QMUL scene snapshot
(b) QMUL -curve
Figure 8: QMUL experimental data. (a) The unidirectional flow marked with Arrival-ROI and Departure-ROI. (b)-curve learned using the Gaussian regression.

3.3 Comparative Analysis

We have compared the effectiveness of the proposed DPMM guided feature tracker in predicting signal duration with two existing trackers, namely Kernel Correlation Filters (KCF) (Henriques, Caseiro, Martins, and Batista, 2015) tracker and Kanade-Lucas-Tomasi (KLT) based feature tracker (Tomasi and Kanade, 1991). The comparison results are shown in Fig. 9. As we have found that KCF fails to track incoming traffic objects accurately while the objects approach the Arrival-ROI, we have reinitialized the tracks for experimental evaluation. This helps to examine whether object tracks from the best algorithm can be used as elements of the proposed queuing model. It has been observed that accurate trackers can provide better measurement accuracy. However, they often fail to predict the queue clearance time accurately as compared to DPMM tracklet features. This is because, spacial occupancy by the vehicles on the road is not taken into consideration when the objects are used as the elements during the learning of the queuing parameters.

Our initial assumption was that KLT features could be used since bigger vehicles generate more number of features. In case of KLT, the feature tracks are better as compared to KCF. However, KLT tracks have produced lesser measurement accuracy and prediction accuracy as compared to our proposed feature. The reason for low accuracy of prediction and measurement has been found to be the non-correlation between size of the vehicles and number of feature points. The number of feature points are varied even for similarly sized vehicles. As per our observation, the number of feature points depends on the appearance of vehicle than the size. Though DPMM-based tracks are also noisy, we have found that the number of clusters are similar for equal sized vehicles. Hence DPMM guided tracklets perform better in terms of measurement and prediction accuracies as compared to other trackers. Our feature considers the space occupied on the road as the clusters are of similar size. The clusters (elements) flow on the road (queue) one behind the other, thus giving better results during the prediction.

(a) Measurement vs. Ground Truth
(b) Prediction vs. Ground Truth
Figure 9: Comparison of the proposed method of DPMM tracklets with KCF tracks and KLT tracks. (a) Comparison plots of the measurement accuracies against the ground truths for five cycles. (b) Comparison plots of the prediction accuracies for five cycles.

3.4 Discussions and Limitations

In our experiments we have shown the signal prediction only for 4 cycles due to non availability of cycles of fixed length. We found five consecutive cycles with fixed length (approximately 94s) and hence it is shown in the results. However, the results give an insight into its applications for unmanned intersection management to achieve optimal throughput.

There are a few limitations of the present method. In order to use the proposed method, it is important to keep the camera at an elevated position to get a top view or near top view of the scene. This will make sure that the visibility of the queue is maximized. Currently, the datasets that have been used in our experiments do not fully support the above requirement. In addition to that, the proposed method depends on the optical flow features. Therefore, robust optical flow estimation is a prerequisite for the success of the proposed model.

4 Concluding Remarks and Future Directions

With temporal clustering, tracklets are created corresponding to moving objects and they become the elements of the queuing system. Tracklets are used for finding out the arrival and the departure events of vehicles in the queue. A queuing model is applied to learn arrival () and departure () rates of the vehicles. Learned information is used for predicting signal duration for the next cycle. This method provides an unsupervised way of predicting the signal duration to maximize the throughput. The method has been verified using standard video dataset and comparison reveals that it can be used for predicting the signal duration in traffic junctions. As a future work, we would like to make datasets for junctions that can be used for traffic analysis and signal management. Also, we aim to extend our work considering all possible flows in M-way traffic junctions.

Acknowledgment

Funding: This study is not funded from anywhere.
Conflict of interest: The authors declare that there is no conflict of interest regarding the publication of this paper.
Ethical approval: This article does not contain any studies with human participants or animals performed by any of the authors.
Informed consent: Informed consent was obtained from all individual participants included in the study.
