1 Introduction: Minding the gap

The difficulty of explaining the operation of deep neural networks begins with the difficulty of interpreting the internal representations learned by these networks. This problem fundamentally derives from the incommensurability between, on the one hand, the continuous, numerical representations and operations of these networks and, on the other, meaningful interpretations—which are communicable in natural language through relatively discrete, non-numerical conceptual categories structured by conceptual relations. This gap could in principle be reduced if deep neural networks were to incorporate internal representations that are directly interpretable as discrete structures; the categories and relations of these representations might then be understandable conceptually.

In the work reported here, we describe how approximately discrete, structured distributed representations can be embedded within deep networks, their categories and structuring relations being learned end-to-end through performance of a task. Applying this approach to a challenging natural-language question-answering task, we show how the learned representations can be understood as approximating syntactic and semantic categories and relations. In this sense, the model we present learns significant aspects of syntax/semantics, recognizable using the concepts of linguistic theory, after having been exposed solely to linguistically unannotated text, questions, and answers: no prior linguistic knowledge is given to the model. What

is built into the model is a general capacity for distributed representation of structures, and an inductive bias favoring discreteness in its deployment.

Specifically, the task we address is question answering for the SQuAD dataset [Rajpurkar et al.2016], in which a text passage and a question are presented as input, and the model’s output identifies a stretch within the passage that contains the answer to the question. In our view, SQuAD provides a sufficiently demanding QA task that showing interpretability of our proposed type of distributed structural representation in a QA system that successfully addresses SQuAD provides meaningful evidence of the potential of such representations to enhance interpretability of large-scale QA systems more generally.

The proposed capacity for distributed representation of structure is provided by Tensor Product Representations, TPRs, in which a discrete symbol structure is encoded as a vector systematically built—through vector addition and the tensor product—from vectors encoding symbols and vectors encoding the roles each symbol plays in the structure as a whole

[Smolensky1990, Smolensky and Legendre2006, Smolensky, Goldrick, and Mathis2014]. The new model proposed here is built from the BiDAF model proposed in [Seo et al.2016] for question answering. We replace a bidirectional RNN built from LSTM units [Hochreiter and Schmidhuber1997] with one built from TPR units; the architecture is called the Tensor Product Recurrent Network, TPRN. TPRN learns the vector embeddings of the symbols and roles, and learns which abstract symbols to deploy in which abstract roles to represent each of the words in the text-passage and query inputs.

We show how the structural roles that TPRN learns can be interpreted through linguistic concepts at multiple levels: morphosyntactic word features, parts of speech, phrase types, and grammatical roles of phrases such as subject and object. The match between standard linguistic concepts and TPRN ’s internal representations is approximate.

The work reported here illustrates how learning to perform a typical natural language task can lead a deep learning system to create representations that are interpretable as encoding abstract grammatical concepts without ever being exposed to data labelled with anything like grammatical structure. It is commonly accepted among language acquisition researchers that it is in this type of setting that children typically learn their first language, so the work lends plausibility to the hypothesis that abstract notions of linguistic theory do describe representations in speakers’ minds—representations that are learned in the service of performing tasks such as question-answering which (unlike, say, a parsing task) do not explicitly necessitate any such structure.

The remainder of the paper is structured as follows. Section 2 provides some background while Section 3 introduces TPR and details how it is used in the general TPRN architecture we propose here. Experimental results applying TPRN to SQuAD are presented in Section 4. The heart of the paper is Section 5 which addresses interpretation of the representations learned by TPRN. Section 6 discusses related work and Section 7 concludes.

2 The Model

The proposed TPRN architecture is built in TensorFlow

[Abadi et al.2015] on the BiDAF model proposed in [Seo et al.2016]. BiDAF is constructed from 6 layers: a character embedding layer using CNNs, a word embedding layer using GloVe vectors [Pennington, Socher, and Manning2014], a phrase embedding layer using bidirectional LSTMs for sentence embedding [Palangi et al.2016], an attention flow layer using a special attention mechanism, a modeling layer using LSTMs, and an output layer that generates pointers to the start and end of an answer in the paragraph. (See Fig. 1 of [Seo et al.2016].)

TPRN replaces the LSTM cells forming the bidirectional RNN in the phrase embedding layer with recurrent TPR cells, described next: see Fig. 1.

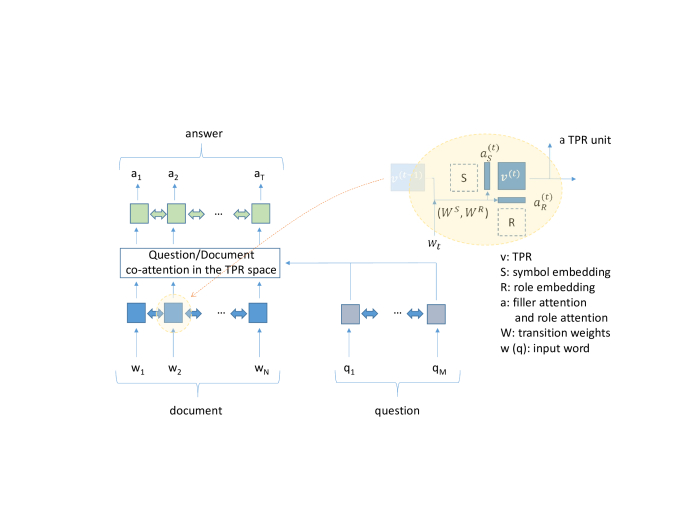

Figure 1: Block diagram of the proposed model.

3 TPRN: The Tensor Product Recurrent Network

This TPRN model enables the phrase-embedding layer of the model to decide, for each word, how to encode that word by selecting among symbols, each of which it can choose to deploy in any of slots in an abstract structure. The symbols and slots have no meaning prior to training. We hypothesized that the symbol selected by the trained model for encoding a given input word will be interpretable in terms of the lexical-semantic content of the word (e.g., Australia refers to a place) while the slots will be interpretable as grammatical roles such as subject/agent, object/patient, question-restrictor phrase. In Section 5, we will test this hypothesis; we will henceforth refer to “roles” rather than “slots”. In other words, our hypothesis was that the particular word tokens for which a given symbol was selected would form a lexical-semantically-related class, and the particular word tokens for which a given role was selected would form a grammatically-related class.

To function within the network, the symbols and roles must each be embedded as vectors; assume that we use vectors of dimension and for symbols and roles respectively. These embedding vectors are designed by the network, i.e., they are learned during training. The network’s parameters, including these embeddings, are driven by back-propagation to minimize an objective function relevant to the model’s question-answering task. The objective function includes a standard cross-entropy error measure, but also quantization, a kind of regularization function biasing the model towards parameters which yield decisions that select, for each word, a single symbol in a single role: the selection of symbols and roles is soft-selection, and we will say that the model’s encoding assigns, to the word , a symbol-attention vector and a role-attention vector .

The quantization term in the objective function pushes towards attention vectors that are 1-hot. We do not impose this as a hard constraint because our fundamental hypothesis is that by developing approximately discrete representations, the model can benefit from the advantages of discrete combinatorial representations for natural language, without suffering their disadvantage of rigidity. We note that while the attention vectors are approximately 1-hot, the actual representations deployed are attention-weighted sums of fully distributed vectors arising from distributed encodings of the symbols and distributed embeddings of the roles.

In the encoding for , the vector encoding the symbol is the attention-weighted sum of the possible symbols: where is the embedding of the symbol in , which is the column of the symbol matrix . Similarly, the vector encoding the role assigned to is , with the embedding of the symbol in and the column of the role matrix . Since the symbol and role vectors are unconstrained, they generally emerge from the learning process as highly distributed; that is even more true of the overall representations , as we now see.

The activation vector that encodes a single word combines the word’s symbol-embedding vector, , and its role-embedding vector, , via the outer or tensor product: . We say that is the tensor product representation (TPR) of the binding of symbol to the role . A convenient expression for is:


The matrix is the binding matrix for word , which encodes the (soft) selection of symbol and role for . This matrix has dimension ; the actual representation sent to deeper layers, , has embedding dimensions. (In the particular model discussed below, the dimensions of and are respectively and . )

and in (1) are defined as:


where is the vectorization operation,

is the logistic sigmoid function,

is the word and

is a bias vector. Equation (

1) is depicted graphically in the ‘TPR unit’ insert in Fig. 1. During computation, in the forward-directed RNN, the representation of the previous word is used to compute the attention vectors , which in turn are used to compute the representation of the current word. (The same equations, with the same transition weights and biases, apply to the words in both the passage and the query.)

Because each word is represented (approximately) as the TPR of a single symbol/role binding, we can interpret the internal representations of TPRN ’s phrase-embedding layer once we can interpret the symbols and roles it has invented. Such interpretation is carried out in the Section 5.

The interest in TPR lies not only in its interpretability, but also in its power. The present TPRN model incorporates TPR to only a modest degree, but it is a proof-of-concept system that paves the way for future models that can import the power of general symbol-structure processing, proven to be within the scope of full-blown TPR architectures [Smolensky and Legendre2006, Smolensky2012]. TPRN is designed to scale up to such architectures; design decisions such as factoring the encoding as are far from arbitrary: they derive directly from the general TPR architecture.

As the name TPRN suggests, the novel representational capacity built into TPRN is an RNN built of TPR units: a forward- and a backward-directed RNN in each of which the word generates an encoding which is a TPR: ; the binding matrix varies across words, but a single symbol matrix and single role matrix apply for all words . Both the and matrices are learned during training.

It remains only to specify the quantization function (4) which is added (with weight ) to the cross-entropy to form the training objective for TPRN : generates a bias favoring attention vectors and that are 1-hot.


The first term of is minimized when each component of satisfies ; the second term is minimized when . The sum of these terms is minimized when is 1-hot [Cho and Smolensky2016]. drives learning to produce weights in the final network that generate and vectors that are approximately 1-hot, but there is no mechanism within the network for enforcing (even approximately) 1-hot vectors at computation (inference) time.

4 Experiments

In this section, we describe details of the experiments applying the proposed TPRN model to the question-answering task of the Stanford’s SQuAD dataset [Rajpurkar et al.2016]. The results of primary interest are the interpretations of the learned representations, discussed at length in the next section.

The goal of this work is not to beat the state-of-the-art system on SQuAD (at the time of writing this paper, DCN+ from Salesforce Research), but to create a high-performing question-answering system that is interpretable, by exploiting TPRs.

SQuAD is a reading comprehension dataset for question answering. It consists of more than 500 Wikipedia articles and more than 100,000 question-answer pairs about them, which is significantly larger than previous reading comprehension datasets [Rajpurkar et al.2016]. The questions and answers are human-generated. The answer to each question is determined by two pointers into the passage, one pointing to the start of the answer and the other one pointing to its end. Two metrics that are used to evaluate models on this dataset are Exact Match (EM) and F1 score.

For the experiments, we used the same settings reported in [Seo et al.2016] for all layers of TPRN except the phrase embedding layer, which is replaced by our proposed recurrent TPRN cells. The full setting of the TPRN model for experiments is as follows:

  • Questions and paragraphs were tokenized by the PTB tokenizer.

  • The concatenation of word embedding using GloVe [Pennington, Socher, and Manning2014]

    and character embedding using Convolutional Neural Networks (CNNs) was used to represent each word. The embedding vector for each character was of length 8 (1-D input to the CNN) and the output of the CNN’s max-pooling layer over each word was a vector of length 100. The embedding size of word embedding using GloVe was also set to 100.

  • For the interpretability experiments reported in Section 5

    , the hyperparameter values used for the TPRN cell were

    symbols and roles. Embedding size was . We used as the output of our phrase embedding layer.

  • The weight of the quantization regularizer in (4) was . Results were not highly sensitive to this value.

  • The optimizer used was AdaDelta [Zeiler2012]

    with 12 epochs.

Performance results of our model compared to the strong BiDAF model proposed in [Seo et al.2016] are presented in Table 1. We compared the performance of single models. For the BiDAF baseline, we ran the code published in [Seo et al.2016] with the advised hyperparameters. Similar to the LSTM used in BiDAF, we added a gating mechanism, identical to that of the LSTM cell, to the output tensor in Equation (1). In the TPRN model tested here for performance comparison purposes, we set the number of symbols and roles to 600 and 100 respectively and the embedding size of symbols and roles to 15 and 10. Each experiment for the TPRN model took about 13 hours on a single Tesla P100 GPU. From this table we observe that our proposed TPR based model outperforms [Seo et al.2016] by 1 point on the validation set and slightly underperforms [Seo et al.2016] on the test set. Overall, the proposed TPRN gives results comparable to those of the state-of-the-art BiDAF model. Moreover, as we will elaborate in the following sections, our model offers considerable interpretability thanks to the structure built into TPRs.

Single Model EM(dev) F1(dev) EM(test) F1(test)
TPRN 63.8 74.4 66.6 76.3
BiDAF 62.8 73.5 67.1 76.8
Table 1: Performance of the proposed TPRN model compared to BiDAF proposed in [Seo et al.2016]

5 Interpretation of learned TPRs

We separately discuss interpretation of the symbols and the roles learned by TPRN .

5.1 Interpreting learned TPR Roles

Here we provide interpretation of the TPR roles assigned to the words of the query input in the forward-directed TPR-RNN of TPRN . (These are denoted in Fig. 1.) Just as good learned neural network models in vision typically acquire similar early types of representations of an input image (e.g., [Zeiler et al.2010]), it is reasonable to hypothesize that good learned neural network models in language will typically learn low-level input representations that are generally similar to one another. Thus we can hope for some generality of the types of interpretation discussed here. Convergence on common input representations is expected because these representations capture the regularities among the inputs, useful for many tasks that process such input. The kinds of regularities to be captured in linguistic input have been studied for years by linguists, so there is reason to expect convergence between good learned neural network language-input representations and general linguistic concepts. The following interpretations provide evidence that such an expectation is merited.

We consider which word tokens are ‘assigned to’ (or ‘select’) a particular role , meaning that, for an appropriate threshold , where is the -normalized role-attention vector.

Grammatical role concepts learned by the model

A grammatical category—Part of Speech: Determiner Role #9.

The network assigns to role #9 these words: a significant proportion of the tokens of: the (76%), an (52%), a (46%), its (36%) and a few tokens of of (8%) and Century (3%). The dominant words assigned to role #9 (the, an, a, its) are all determiners. Although not a determiner, of is also an important function word; the 3% of the tokens of Century that activate role #9 can be put aside. Quantitatively, . This interpretation does not assert that #9 is the only role for determiners; e.g., .

A semantic category: Predicate (verbs and adjectives) Role #17.

The words assigned to role #17 are overwhelmingly predicates, a semantic category corresponding to the syntactic categories of verbs and adjectives [e.g., under semantic interpretation, J runs runs(J); J is tall tall(J)] . While the English word orders of these two types of predication are often opposite (the girl runs vs. the tall girl), the model represents them as both filling the same role, which can be interpreted as semantic rather than syntactic. Quantitatively, . Unlike role #9, which concerns only a small (‘closed’) class of words, the class of predicates is large (‘open’), and role #17 is assigned to only a rather small fraction of predicate tokens: e.g., .

A grammatical feature: [plural] Role #10.

To observe the representational difference between the singular and plural roles we need to fix on particular words. A case study of area vs. areas revealed a total separation in their attention to role #10 (which has a midpoint level of 0.25): 100% of tokens of singular area have ; 100% of tokens of plural areas have . This conclusion is corroborated by pronouns, where he;him each have mean , while they;them have (there are very few tokens of she;her).

A grammatical phrase-type: wh-operator restrictor ‘phrase’ Role #1.

Role #1 is assigned to sequences of words including how many teams, what kind of buildings, what honorary title. We interpret these as approximations to a wh-restrictor phrase: a wh-word together with a property that must hold of a valid answer—crucial information for question-answering. In practice, these ‘phrases’ span from a wh-word to approximately the first following content word. Other examples are: what was the American, which logo was, what famous event in history.

Grammatical functions: Subject/agent vs. object/patient Role #6.

A fundamental abstract distinction in syntax/semantics separates subjects/agents from objects/themes. In English the distinction is explicitly marked by distinct word forms only on pronouns: he loves her vs. she loves him. In the model, attention to role #6 is greater for subjects than objects, for both he vs. him and they vs. them (again, too few tokens of she;her). All but 13 of 124 tokens of he and all 77 tokens of they allocate high attention to #6, whereas only 1 of the 27 tokens of him and none of the 34 tokens of them do (relative to baselines appropriate for the different pairs: 0.52, 0.18).

Correcting the Stanford Tagger’s POS labeling using learned roles

When Doctor Who is not a name: Role #7.

The TV character Doctor Who (DW) is named many times in the SQuAD query corpus. Now in DW travels , the phrase DW is a proper noun (‘NNP’), with unique referent, but in does the first DW see , the phrase DW must be a common noun (‘NN’), with open reference. In such cases the Stanford tagger misclassifies Doctor as an NNP in 9 of 18 occurrences: see Table 2a. In the first DW serial , first modifies serial and DW is a proper noun. The tagger misparses this as an NN in 37 of 167 cases. Turning to the model, we can interpret it as distinguishing the NN vs. NNP parses of DW via role #7, which it assigns for the NN, but not the NNP, case. Of the Stanford tagger’s 9 errors on NNs and 37 errors on NNPs, the model misassigns role #7 only once for each error type (shown in parentheses in Table 2a). The model makes 7 errors total (Table 2b) while the tagger makes 46. Focussing on the specific NN instances of the form the DW, there are 19 cases: the tagger was incorrect on 11, and in every such case the model was correct; the tagger was correct in 8 cases and of these the model was also correct on 6.

a.         True b.         True
tagger NN 9 (5)   37 (1) model NN 13 (5)     2 (1)
(& model) NNP 9 (1) 130 (129) (& tagger) NNP 5 (1) 165 (129)
Table 2: Doctor Who? Correcting the Stanford Tagger (errors in bold)
When Who is a name: Role #1.

In Doctor Who travelled, the word Who should not be parsed as a question word (‘WP’), but as part of a proper noun (NNP). The Stanford tagger makes this error in every one of the 167 occurrences of Who within the NNP Doctor Who. The TPRN model, however, usually avoids this error. Recalling that role #1 marks the wh-restrictor ‘phrase’, we note that in 81% of these NNP-Who cases, the model does not assign role #1 to Who (in the remaining cases, it does assign role #1 as it includes Who within its wh-restrictor ‘phrase’, generated by a distinct genuine wh-word preceding Who). In all 30 instances of Who as a genuine question word in a sentence containing DW, the model correctly assigns role #1 to the question word. For example, in Who is the producer of Doctor Who? [query 7628], the first Who correctly selects role #1 while the second, correctly, does not. (The model correctly selects role #1 for non-initial who in many cases.)

When to doctor is not a verb: Role #17.

The Stanford tagger parses Doctor as a verb in 4 of its 5 occurrences in to Doctor Who . The model does not make this mistake on any of these 5 cases: it assigns near-zero activity to role #17, identified above as the predicate role for verbs and adjectives.

5.2 Interpreting learned TPR symbols

Meaning of learned symbols: Lexical-semantic coherence of symbol assignments.

To interpret the lexical-semantic content of the TPR symbols learned by the TPRN network:

  1. is calculated for all (120,950) word tokens in the validation set.

  2. The cosine similarity is computed between

    and the embedding vector of each symbol.

  3. The symbol with maximum (cosine) similarity is assigned to the corresponding token.

  4. For each symbol, all tokens assigned to it are sorted based on their similarity to it; tokens of the same type are removed, and the top tokens from this list are examined to assess by inspection the semantic coherence of the symbol assignments (see Tables 55).

The results provide significant support for our hypothesis that each symbol corresponds to a particular meaning, assigned to a cloud of semantically-related word tokens. For example, symbol 27 and symbol 6 can be respectively interpreted as meaning ‘occupation’ and ‘geopolitical unit’. Symbol 11 is assigned to multiple forms of the verb to be, e.g., was ( of occurrences of tokens in the validation set), is, () being () and be (). Symbol 29 is selected by 10 of the 12 month names (along with other word types; more details in supplementary materials). Other symbols with semantically coherent token sets are reported in the supplementary materials. Some symbols, however, lack identifiable coherence; an example is presented in Table 5.

Token Similarity
printmaker 0.9587
composer 0.8992
who 0.8726
mathematician 0.8675
guitarist 0.8622
musician 0.8055
Whose 0.7774
engineer 0.7753
chemist 0.7485
how 0.7335
strict 0.7207
Table 4: Symbol 2
Token Similarity
phrase 0.817
wrong 0.8146
mean 0.7972
constitutes 0.7771
call 0.7621
happens 0.752
the 0.7477
God 0.7425
nickname 0.7368
spelled 0.7162
name 0.712
happened 0.6889
as 0.6699
defines 0.647
Table 5: Symbol 6
Token Similarity
abolished 0.8777
west 0.8734
nations 0.8613
Newcastle 0.8588
south 0.8573
Melbourne 0.8558
Australia 0.8544
World 0.8526
Belgium 0.849
donors 0.8476
Asian 0.8404
Greece 0.8402
Europe 0.8397
Thailand 0.8393
Constituency 0.8361
Token Similarity
annexed 0.836
Brisbane 0.8359
European 0.8341
Scotland 0.8321
Cyprus 0.8275
governments 0.8266
Commonwealth 0.8261
Britain 0.8243
flexibility 0.8227
territories 0.8219
Switzerland 0.821
countries 0.8206
freedom 0.819
Germans 0.8178
north 0.8173
Table 3: Symbol 27


Each token of the same word, e.g., who, generates its own symbol/role TPR in TPRN and if our hypothesis is correct, tokens with different meaning should select different symbols. Indeed we see three general patterns of symbol selection for who. Who is the producer of Dr. Who? illustrates the main-question-word meaning and the proper-name meaning, respectively, in its two uses of who. Third is the relative pronoun meaning, illustrated by the actor who . The three symbol-selection patterns associated with these three meanings are shown in Table 6.

Meaning   Symbol ID: 25 52 97 98
main question word 1062
relative pronoun 14 4 1 26
proper noun 27 16 126
Table 6: Symbols selected by meaning of who

We can interpret the symbols with IDs 25, 52 and 98 as corresponding, respectively, to the meanings of a relative pronoun, a main question word, and a proper noun. The tokens with boldface counts are then correct, while the other counts are errors. Of interest are the further facts that all 18 of the non-sentence-initial main-question-word tokens are correctly identified as such (assigned symbol 52) and that, of the 27 cases of proper-noun-whos mislabeled with the main-question symbol 52, half are assigned role #1, placing them in the wh-restrictor ‘phrase’ (whereas only one of the 126 correctly-identified proper-noun-whos is). The Symbol-97-meaning of who is at this point unclear.

Predicting output errors from internal mis-representation.

In processing the test query What type/genre of TV show is Doctor Who? [7632] the model assigns symbol 52 to Who, which we have interpreted as an error since symbol 52 is assigned to every one of the 1062 occurrences of Who as a query-initial main question-word. Although the model strongly tends to give responses of the correct category, here it replies Time Lord, an appropriate type of answer to a true who question but not to the actual question. The model makes 4 errors of this type, of the 9 errors total made when assigning symbol 25; this 44% rate contrasts with the 9% rate when it correctly assigns the ‘proper-noun symbol’ 98 to Who.

Although such error analysis with TPRN models is in its infancy, it is already beginning to reveal its potential to make it possible, we believe for the first time, to attribute overall output errors of a DNN modeling a language task to identifiable errors of internal representation. The analysis also shows how the proposed interpretations can be validated by supporting explanations for aspects of the model’s behavior.

6 Related work


In recent years, a number of DNNs have achieved notable success by reintroducing elements of symbolic computation as peripheral modules. This includes, e.g.: (i) the memory bank, a discrete set of addressed storage registers each holding a neural activation vector [Henaff et al.2017, Sukhbaatar et al.2015, Weston, Chopra, and Bordes2014]; and (ii) the sequential program, a discrete sequence of steps, each selected from a discrete set of simple, approximately-discrete primitive operations [Graves, Wayne, and Danihelka2014, Neelakantan, Le, and Sutskever2016]. The discreteness in these peripheral modules is softened by continuous parameters with which they interface with the central controlling DNN; these parameters modulate (i) the writing and reading operations with which information enters and exits a memory bank (‘attention’ [Chorowski et al.2015, Xu et al.2015]); and (ii) the extent to which inputs are passed to and outputs retrieved from the set of operations constituting a program [Graves et al.2016]. The continuity of these parameters is of course crucial to enabling the overall system to be learnable by gradient-based optimization.

The present work constitutes a different approach to reintroducing approximately symbolic representations and rule-based processing into neural network computation over continuous distributed representations. In computation with TPRs, the symbols and rules are internal to the DNN; there is no separation between a central network controller and peripheral quasi-discrete modules. Items in memories are distributed representations that are combined by addition/superposition rather than by being slotted into external discrete locations. Computation over TPRs is massively parallel [Smolensky and Legendre2006].


Most methods of interpreting the internal representations of DNNs do so through the input and output representations of DNNs which are by necessity interpretable: these are where the DNN must interface with our description of its problem domain. An internal neuron may be interpreted by looking at the (interpretable) input patterns that activate it, or the (interpretable) output patterns that it activates (e.g.,

[Zeiler and Fergus2014]).

The method pursued in this paper, by contrast, interprets internal DNN states not via behavior but via an abstract theory of the system’s problem domain. In the case of a language processing problem, such theories are provided by theoretical linguistics and traditional, symbolic computational linguistics. The elements we have interpreted are TPR roles, and TPR fillers, which are distributed activation vectors incorporated into network representations via the summation of their tensor products; we have designed an architecture in which individual neurons localize the presence of such roles and fillers ( and ). Our interpretation rests on the interrelations between activations of the roles and fillers selected to encode words-in-context with the lexical-semantic and grammatical properties attributed to those words-in-context by linguistic theories.

7 Conclusion

We introduce a modification of the BiDAF architecture for question-answering with the SQuAD dataset. This new model, TPRN , uses Tensor Product Representations in recurrent networks to encode input words. Through end-to-end learning the model learns how to deploy a set of symbols into a set of structural roles; the symbols and roles have no meaning prior to learning. We hypothesized that the symbols would acquire lexical meanings and the roles grammatical meanings. We interpret the learned symbols and roles by observing which of them the trained model selects for encoding individual words in context. We observe that the words assigned to a given symbol tend to be semantically related, and the words assigned to a given role correlate with abstract notions of grammatical roles from linguistic theory. Thus the TPRN model illustrates how learning to perform a natural language question-answering task can lead a deep learning system to create representations that are interpretable as encoding abstract grammatical concepts without ever being exposed to data labelled with anything like grammatical structure. It is widely assumed that it is in such a setting that children learn their first language, so the work lends plausibility to the hypothesis that abstract notions of linguistic theory do in fact describe representations in speakers’ minds—representations that are learned in the service of performing tasks that do not explicitly necessitate any such structure.


  • [Abadi et al.2015] Abadi, M.; Agarwal, A.; Barham, P.; Brevdo, E.; Chen, Z.; Citro, C.; Corrado, G. S.; Davis, A.; Dean, J.; Devin, M.; Ghemawat, S.; Goodfellow, I.; Harp, A.; Irving, G.; Isard, M.; Jia, Y.; Jozefowicz, R.; Kaiser, L.; Kudlur, M.; Levenberg, J.; Mané, D.; Monga, R.; Moore, S.; Murray, D.; Olah, C.; Schuster, M.; Shlens, J.; Steiner, B.; Sutskever, I.; Talwar, K.; Tucker, P.; Vanhoucke, V.; Vasudevan, V.; Viégas, F.; Vinyals, O.; Warden, P.; Wattenberg, M.; Wicke, M.; Yu, Y.; and Zheng, X. 2015.

    TensorFlow: Large-scale machine learning on heterogeneous systems.

    Software available from
  • [Cho and Smolensky2016] Cho, P. W., and Smolensky, P. 2016. Bifurcation analysis of a Gradient Symbolic Computation model of incremental processing. In Papafragou, A.; Grodner, D.; Mirman, D.; and Trueswell, J. C., eds., Proceedings of the 38th Annual Conference of the Cognitive Science Society. Austin, TX: Cognitive Science Society.
  • [Chorowski et al.2015] Chorowski, J. K.; Bahdanau, D.; Serdyuk, D.; Cho, K.; and Bengio, Y. 2015. Attention-based models for speech recognition. In Advances in Neural Information Processing Systems, 577–585.
  • [Graves et al.2016] Graves, A.; Wayne, G.; Reynolds, M.; Harley, T.; Danihelka, I.; Grabska-Barwińska, A.; Colmenarejo, S. G.; Grefenstette, E.; Ramalho, T.; Agapiou, J.; et al. 2016. Hybrid computing using a neural network with dynamic external memory. Nature 538(7626):471–476.
  • [Graves, Wayne, and Danihelka2014] Graves, A.; Wayne, G.; and Danihelka, I. 2014. Neural turing machines. arXiv preprint arXiv:1410.5401.
  • [Henaff et al.2017] Henaff, M.; Weston, J.; Szlam, A.; Bordes, A.; and LeCun, Y. 2017. Tracking the world state with recurrent entity networks. In 6th International Conference for Learning Representations.
  • [Hochreiter and Schmidhuber1997] Hochreiter, S., and Schmidhuber, J. 1997. Long short-term memory. Neural computation 9(8):1735–1780.
  • [Neelakantan, Le, and Sutskever2016] Neelakantan, A.; Le, Q. V.; and Sutskever, I. 2016. Neural programmer: Inducing latent programs with gradient descent. In 5th International Conference for Learning Representations.
  • [Palangi et al.2016] Palangi, H.; Deng, L.; Shen, Y.; Gao, J.; He, X.; Chen, J.; Song, X.; and Ward, R. 2016. Deep sentence embedding using long short-term memory networks: Analysis and application to information retrieval. IEEE/ACM Transactions on Audio, Speech, and Language Processing 24(4):694–707.
  • [Pennington, Socher, and Manning2014] Pennington, J.; Socher, R.; and Manning, C. 2014. Glove: Global vectors for word representation. In

    Proceedings of the 2014 Conference on Empirical Methods in Natural Language Processing (EMNLP)

    , 1532–1543.
  • [Rajpurkar et al.2016] Rajpurkar, P.; Zhang, J.; Lopyrev, K.; and Liang, P. 2016. SQuAD: 100,000+ questions for machine comprehension of text. In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, EMNLP. Available at
  • [Seo et al.2016] Seo, M. J.; Kembhavi, A.; Farhadi, A.; and Hajishirzi, H. 2016. Bidirectional attention flow for machine comprehension. In 5th International Conference for Learning Representations. Available at
  • [Smolensky and Legendre2006] Smolensky, P., and Legendre, G. 2006. The Harmonic Mind: From Neural Computation to Optimality-Theoretic Grammar. Cambridge, MA: The MIT Press.
  • [Smolensky, Goldrick, and Mathis2014] Smolensky, P.; Goldrick, M.; and Mathis, D. 2014. Optimization and quantization in gradient symbol systems: A framework for integrating the continuous and the discrete in cognition. Cognitive Science 38:1102–1138.
  • [Smolensky1990] Smolensky, P. 1990. Tensor product variable binding and the representation of symbolic structures in connectionist networks. Artificial Intelligence 46:159–216.
  • [Smolensky2012] Smolensky, P. 2012. Symbolic functions from neural computation. Philosophical Transactions of the Royal Society — A: Mathematical, Physical and Engineering Sciences 370:3543–3569.
  • [Sukhbaatar et al.2015] Sukhbaatar, S.; Weston, J.; Fergus, R.; et al. 2015. End-to-end memory networks. In Advances in neural information processing systems, 2440–2448.
  • [Toutanova et al.2003] Toutanova, K.; Klein, D.; Manning, C.; and Singer, Y. 2003. Feature-rich part-of-speech tagging with a cyclic dependency network. In Proceedings of HLT-NAACL 2003, 252–259. Available at
  • [Weston, Chopra, and Bordes2014] Weston, J.; Chopra, S.; and Bordes, A. 2014. Memory networks. arXiv preprint arXiv:1410.3916.
  • [Xu et al.2015] Xu, K.; Ba, J.; Kiros, R.; Cho, K.; Courville, A.; Salakhudinov, R.; Zemel, R.; and Bengio, Y. 2015. Show, attend and tell: Neural image caption generation with visual attention. In International Conference on Machine Learning, 2048–2057.
  • [Zeiler and Fergus2014] Zeiler, M. D., and Fergus, R. 2014. Visualizing and understanding convolutional networks. In

    European conference on computer vision

    , 818–833.
  • [Zeiler et al.2010] Zeiler, M. D.; Krishnan, D.; Taylor, G. W.; and Fergus, R. 2010. Deconvolutional networks. In

    Computer Vision and Pattern Recognition (CVPR), 2010 IEEE Conference on

    , 2528–2535.
  • [Zeiler2012] Zeiler, M. D. 2012. ADADELTA: an adaptive learning rate method. Available at

Supplementary Material

8 More examples for lexical-semantic coherence of symbol assignments

In this section we present more examples that supports the lexical-semantic coherence of the words assigned to symbols described in the section lexical-semantic coherence of symbol assignments of the paper.

8.1 Symbol 29: “month of the year” symbol

Symbol 29 is attracted to the months of the year. By counting the total number of times a month of the year token has appeared in the validation set, and then counting how many of them are attracted to symbol 29, we will get results in Table 8. Top 30 tokens attracted to this filler are presented in Table 8 (sorted based on cosine similarity, duplicate tokens removed). As observed many of them show a year token.

Token Attracted tokens
January 29%
Feb 100%
February 50%
March 100%
April 71%
May 0%
June 100%
July 44%
August 60%
September 0%
October 71%
November 60%
December 25%
Table 8: Symbol 29, top 30 tokens
Token Similarity
1862 0.8785
1846 0.8711
1850 0.8615
kilometre 0.8528
1857 0.8506
kilometer 0.8492
1785 0.8454
mile 0.8397
mainline 0.8346
slavery 0.8345
1942 0.8331
1944 0.8303
1898 0.8263
1914 0.8261
1808 0.815
Token Similarity
1915 0.8144
War 0.8113
1775 0.8067
1962 0.8003
March 0.7993
1755 0.7992
1953 0.7934
sin 0.7917
1965 0.7866
Feb 0.7848
Orleans 0.7847
1964 0.7842
18 0.7839
Rhine 0.7836
law 0.771
Table 7: Percentage of occurrences of each month of year token in the whole validation set attracted to symbol 29

8.2 Symbol 26: “what” symbol

100% of “what” and “What” tokens are attracted to symbol 26.

8.3 Symbol 20: “directional / causal” symbol

75.8% of “to” tokens and 81.7% of “from” tokens are attracted to symbol 20.

8.4 Symbol 55: “finance / property” symbol

Most of the tokens attracted to symbol 55 are finance or property related tokens. Table 9 shows the full list of tokens attracted to symbol 55.

Token Similarity
price 0.8956
city 0.8674
town 0.8525
value 0.8293
capital 0.8278
country 0.8231
district 0.7878
prices 0.7636
nation 0.7623
producer 0.7554
rate 0.7522
Token Similarity
village 0.7511
property 0.733
court 0.7196
’s 0.7167
artist 0.7164
product 0.7054
per 0.7036
detective 0.6887
borough 0.6869
store 0.6705
income 0.6632
Table 9: Symbol 55, all tokens

8.5 Symbol 43: “how” symbol

100% of “How” tokens and 62.6% of “how” tokens are attracted to symbol 43.

8.6 Symbol 22: “law” symbol

Most of the tokens attracted to symbol 22 are law related tokens. Table 10 shows the full list of tokens attracted to symbol 22.

Token Similarity
embargo 0.8496
constitution 0.8329
article 0.8313
amendment 0.8263
convicted 0.8045
Draft 0.7623
Nobel 0.7568
Pro 0.7566
Protestant 0.7552
Token Similarity
renounced 0.7459
senate 0.7454
opposes 0.7394
Law 0.734
campaign 0.7291
signed 0.7236
bridges 0.6841
supporting 0.6613
Table 10: Symbol 22, all tokens

8.7 Symbol 44: “territory” symbol

Most of the tokens attracted to symbol 44 are territory related tokens. Table 11 shows the full list of tokens attracted to symbol 44.

Token Similarity
continents 0.7916
regions 0.7744
channels 0.7539
Bank 0.7425
Regency 0.7337
areas 0.7264
countries 0.7258
Token Similarity
divisions 0.7173
territory 0.7114
kingdom 0.7099
Duchy 0.7013
other 0.6901
region 0.6588
Table 11: Symbol 44, all tokens

8.8 Symbol 61: “year” symbol

Most of the tokens attracted to symbol 61 are different year number tokens. Table 12 shows the full list of tokens attracted to symbol 61.

Token Similarity
1897 0.858
Maroons 0.839
1656 0.8277
1954 0.8228
1921 0.8195
1784 0.8145
1901 0.8134
1890 0.8104
1896 0.8077
1891 0.8002
1643 0.7892
1781 0.7859
1756 0.7814
Token Similarity
17th 0.7798
1953 0.7793
1961 0.7707
1884 0.7667
Irish 0.766
1945 0.763
1952 0.7604
1763 0.7542
ISIL 0.7509
1932 0.7439
1951 0.7329
1754 0.7316
British 0.6596
Table 12: Symbol 61, all tokens

8.9 Symbol 36: “a / an / about” symbol

70.8% of “a” tokens, 69.7% of “an” tokens and 87% of “about” tokens are attracted to symbol 36.

8.10 Symbol 30: “?” symbol

74% of “?” tokens are attracted to symbol 30.
