Question Answering over Knowledge Graphs via Structural Query Patterns

10/22/2019 ∙ by Weiguo Zheng, et al. ∙ 0

Natural language question answering over knowledge graphs is an important and interesting task as it enables common users to gain accurate answers in an easy and intuitive manner. However, it remains a challenge to bridge the gap between unstructured questions and structured knowledge graphs. To address the problem, a natural discipline is building a structured query to represent the input question. Searching the structured query over the knowledge graph can produce answers to the question. Distinct from the existing methods that are based on semantic parsing or templates, we propose an effective approach powered by a novel notion, structural query pattern, in this paper. Given an input question, we first generate its query sketch that is compatible with the underlying structure of the knowledge graph. Then, we complete the query graph by labeling the nodes and edges under the guidance of the structural query pattern. Finally, answers can be retrieved by executing the constructed query graph over the knowledge graph. Evaluations on three question answering benchmarks show that our proposed approach outperforms state-of-the-art methods significantly.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Querying knowledge graphs like DBpedia, Freebase, and Yago through natural language questions has received increasing attentions these years. In order to bridge the gap between unstructured questions and the structured knowledge graph , a widely used discipline is building a structured query graph to represent the input question such that can be executed on to retrieve answers to the question [4, 29, 10]. To the end, there are two streams of researches, i.e., semantic parsing based methods and template based methods, both of which suffer from several problems as discussed next.

Semantic parsing based methods. The aim of semantic parsing is translating the natural language utterances into machine-executable logical forms or programs [9]. For example, the phrase “director of Philadelphia” may be parsed as , where Director, DirectedBy, and are grounded predicates and entities in the specific knowledge graph. Traditional semantic parsers [27, 24, 13] require a lot of annotated training examples in the form of syntactic structures or logical forms, which is especially expensive to collect for large-scale knowledge graphs. Another problem is the mismatch between the generated logic forms and structures (including entities and predicates) that are specified in knowledge graphs [12, 5, 16]. In order to solve the problems above, several efforts have been devoted to lifting these limitations [26, 3]

. They leverage the knowledge graph in an early stage by applying deep convolutional neural network models to match questions and predicate sequences. It is required to identify the topic entity

and a core inferential chain that is a directed path from to the answer. Then the final executable query is iteratively constructed based on the detected chain. However, it is hard to pick out the correct inferential chains (35% of the errors are caused by the incorrect inferential chains in STAGG [26]). Moreover, it is unreasonable to restrain the chain as a directed path since it may be a general path regardless of the direction in many cases. For instance, Figure 1 presents the query graphs for two questions “: Who is starring in Spanish movies produced by Benicio del Toro?” and “: Which artists were born on the same date as Rachel Stevens?” targeting DBpedia, neither of which contains directed paths. In addition, the search space is uncertain and difficult to determine when to terminate.

(a) Query graph for
(b) Query graph for
Figure 1: Query graphs for questions and

Instead of training semantic parsers, several methods that are built upon the existing dependency parses have been proposed [30, 17]. They try to generate the query graphs according to the dependency parsing results and pre-defined rules. Clearly, it is extremely difficult to enumerate all the rules and eliminate conflicts among the rules.

Template-based methods. A bunch of researches focus on using templates to construct query graphs [20, 8, 1, 28], where a template consists of two parts: the natural language pattern and SPARQL query pattern. The two kinds of patterns are linked through the mappings between their slots. In the offline phase, the templates are manually or automatically constructed. In the online phase, it tries to retrieve the template that maps the input question. Then the template is instantiated by filling the slots with entities identified from the question. The generated query graph is likely to be correct if the truly matched template is picked out. Nevertheless, the coverage of the templates may be limited due to the variability of natural language and a large number of triples in a knowledge graph, which will lead to the problem that many questions cannot be answered correctly. Furthermore, automatically constructing and managing large-scale high-quality templates for complex questions remain open problems.

Our Approach and Contributions. As discussed above, the semantic parsing based algorithms show good scalability to answer more questions, while the template-based methods exhibit advantage in precision. Hence, it is desired to design an effective approach that can integrate both of the two strengths. To this end, there are at least two challenges to be addressed.

Challenge 1. Devising an appropriate representation that can capture the query intention and is easy to ground to the underlying knowledge graph. The representation is required to intuitively match or reconstruct the query intention of the input question. Meanwhile, it is natural to be grounded to the knowledge graph, which is beneficial to improve the precision of the system.

Challenge 2. Completeness of representations should be as high as possible. Although the template-based methods perform good in terms of precision, they suffer the problem of template deficiency in real scenarios. Guaranteeing the completeness of representations is crucial to enhance the processing capacity. Moreover, in order to reduce the cost of building such a question answering system, the representations should be easy to construct.

Rather than using the semantic parsing or templates, we propose a novel framework based on structural query patterns to build a query graph for the input question in this paper. It comprises of three stages, i.e., structural query pattern (shorted by SQP) generation, SQP-guided query construction, and constraint augmentation. In principle, instead of parsing the question into a logic form that is equipped with specific semantic arguments (including entities and predicates), we just need to identify the shape or sketch of ’s query graph in the first stage. It benefits from two folds: (1) The number of structural patterns for most questions is limited so that they can be enumerated in advance. For instance, there are 4 structural patterns for the questions in LC-QuAD [19] that is a benchmark for complex question answering over DBpedia. (2) It is easy to produce a structured pattern with high precision compared to generating complicated logic forms. In the second stage, we build the query graph by extending one entity that is identified according to the question . The construction proceeds under the guidance of the structural pattern. Hence, the search space can be reduced rather than examining all the predicates adjacent to an entity. Furthermore, it is straightforward to determine whether the extension procedure can terminate or not. Finally, the constraints specified in the question are detected to produce the complete structured query for . Note that the procedure involves multiple steps, i.e., SQP generation, entity linking, and relation selection. In summary, we make the following contributions in this paper:

  • We propose a novel framework based on structural query patterns to answer questions over knowledge graphs;

  • We present an approach that generates a query graph for the input question by applying structural query patterns;

  • Experimental results on two benchmarks show that our approach outperforms state-of-the-art algorihtms.

2 Preliminaries

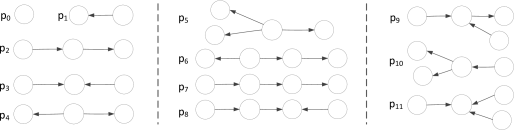

Figure 2: Structural query patterns.
