Query-Adaptive R-CNN for Open-Vocabulary Object Detection and Retrieval

11/27/2017 ∙ by Ryota Hinami, et al. ∙ 0

We address the problem of open-vocabulary object retrieval and localization, which is to retrieve and localize objects from a very large-scale image database immediately by a textual query (e.g., a word or phrase). We first propose Query-Adaptive R-CNN, a simple yet strong framework for open-vocabulary object detection. Query-Adaptive R-CNN is a simple extension of Faster R-CNN from closed-vocabulary to open-vocabulary object detection: instead of learning a class-specific classifier and regressor, we learn a detector generator that transforms a text into classifier and regressor weights. All of its components can be learned in an end-to-end manner. Even with its simple architecture, it outperforms all state-of-the-art methods in the Flickr30k Entities phrase localization task. In addition, we propose negative phrase augmentation, a generic approach for exploiting hard negatives in the training of open-vocabulary object detection that significantly improves the discriminative ability of the generated classifier. We show that our system can retrieve and localize objects specified by a textual query from one million images in only 0.5 seconds.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 7

page 8

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Our goal is to retrieve objects from large-scale image database and localize their spatial locations given a textual query. The task of object retrieval and localization has many applications such as spatial position-aware image searches Hinami et al. (2017) and it recently has gathered much attention from researchers. While much of the previous work mainly focused on object instance retrieval wherein the query is an image Shen et al. (2012); Tao et al. (2014); Tolias et al. (2016), recent approaches Aytar and Zisserman (2014); Hinami and Satoh (2016) enable retrieval of more generic concepts such as an object category. Although such approaches are built on the recent successes of object detection including that of R-CNN Girshick et al. (2014), object detection methods can generally handle only closed sets of categories (e.g., PASCAL 20 classes), which severely limits the variety of queries when they are used as retrieval systems. Open-vocabulary object localization is also a hot topic and many approaches are proposed to solve this problem Plummer et al. (2015); Chen et al. (2017). However, most of them are not scalable to make them useful for large-scale retrieval.

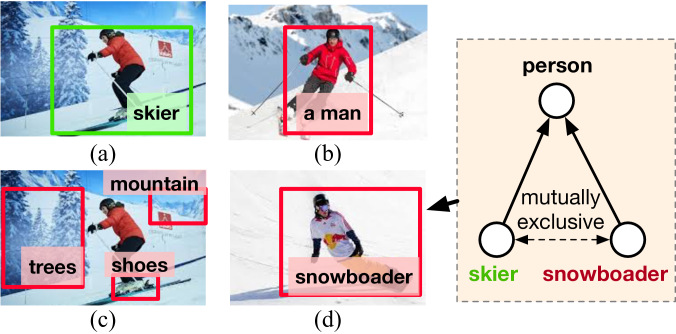

Figure 1: Training examples in open-vocabulary object detection. (a) positive example of skier classifier. (b) examples without positive annotation, which can be positive. (c) examples without positive annotation from an image that contains a positive example. (d) proposed approach to select hard and true negative examples by using linguistics knowledge.

We first describe Query-Adaptive R-CNN as an extension of the Faster R-CNN Ren et al. (2015) object detection framework to open-vocabulary object detection simply by adding a component called a detector generator

. While Faster R-CNN learns the class-specific linear classifier as learnable parameters of the neural network, we generate the weight of the classifier adaptively from text descriptions by learning the detector generator (Fig.

2b). All of its components can be trained in an end-to-end manner. In spite of its simple architecture, it outperforms all state-of-the-art methods in the Flickr30k Entities phrase localization task. It can also be used for large-scale retrievals in the manner presented in Hinami and Satoh (2016).

However, training a discriminative classifier is harder in the open-vocabulary setting. Closed-vocabulary object detection models such as Faster R-CNN are trained using many negative examples, where a sufficient amount of good-quality negative examples is shown to be important for learning a discriminative classifier Felzenszwalb et al. (2010); Shrivastava et al. (2016). While closed-vocabulary object detection can use all regions without positive labels as negative data, in open-vocabulary detection, it is not guaranteed that a region without a positive label is negative. For example, as shown in Fig. 1b, a region with the annotation a man is not always negative for skier. Since training data for open-vocabulary object detection is generally composed of images, each having region annotations with free descriptions, it is nearly impossible to do an exhaustive annotation throughout the dataset for all possible descriptions. Another possible approach is to use the regions without positive labels in the image that contains positive examples, as shown in Fig. 1c. Although they can be guaranteed to be positive by carefully annotating the datasets, negative examples are only limited to the objects that cooccur with the learned class.

To exploit negative data in open-vocabulary object detection, we use mutually exclusive relationships between categories. For example, an object with a label dog is guaranteed to be negative for the cat class because dog and cat are mutually exclusive. In addition, we propose an approach to select hard negative phrases that are difficult to discriminate (e.g., selecting zebra for horse). This approach, called negative phrase augmentation (NPA), significantly improves the discriminative ability of the classifier and improves the retrieval performance by a large margin.

Our contributions are as follows. 1) We propose Query-Adaptive R-CNN, an extension of Faster R-CNN to open vocabulary, that is a simple yet strong method of open-vocabulary object detection and that outperforms all state-of-the-art methods in the phrase localization task. 2) We propose negative phrase augmentation (NPA) to exploit hard negative examples when training for open-vocabulary object detection, which makes the classifier more discriminative and robust to distractors in retrieval. Our method can accurately find objects amidst one million images in 0.5 second.

2 Related work

Phrase localization. Object grounding with natural language descriptions has recently drawn much attention and several tasks and approaches have been proposed for it Guadarrama et al. (2014); Hu et al. (2016); Kazemzadeh et al. (2014); Mao et al. (2016); Plummer et al. (2015). The most related task to ours is the phrase localization introduced by Plummer et al. Plummer et al. (2015), whose goal is to localize objects that corresponds to noun phrases in textual descriptions from an image. Chen et al. Chen et al. (2017) is the closest to our work in terms of learning region proposals and performing regression conditioned upon a query. However, most phrase localization methods are not scalable and cannot be used for retrieval tasks. Some approaches Plummer et al. (2017b); Wang et al. (2016a) learn a common subspace between the text and image for phrase localization. Instead of learning the subspace between the image and sentence as in standard cross-modal searches, they learn the subspace between a region and a phrase. In particular, Wang et al. Wang et al. (2016a) use a deep neural network to learn the joint embedding of images and text; their training uses structure-preserving constraints based on structured matching. Although these approaches can be used for large-scale retrieval, their accuracy is not as good as recent state-of-the-art methods.

Object retrieval and localization. Object retrieval and localization have been researched in the context of particular object retrieval Shen et al. (2012); Tao et al. (2014); Tolias et al. (2016), where a query is given as an image. Aytar et al. Aytar and Zisserman (2014) proposed retrieval and localization of generic category objects by extending the object detection technique to large-scale retrieval. Hinami and Satoh Hinami and Satoh (2016) extended the R-CNN to large-scale retrieval by using approximate nearest neighbor search techniques. However, they assumed that the detector of the category is given as a query and require many sample images with bounding box annotations in order to learn the detector. Several other approaches have used the external search engines (e.g., Google image search) to get training images from textual queries Arandjelovi et al. (2012); Chatfield et al. (2015). Instead, we generate an object detector directly from the given textual query by using a neural network.

Parameter prediction by neural network.

Query-Adaptive R-CNN generates the weights of the detector from the query instead of learning them by backpropagation. The dynamic filter network

De Brabandere et al. (2016) is one of the first methods that generate neural network parameters dynamically conditioned on an input. Several subsequent approaches use this idea in zero-shot learning Ba et al. (2016) and visual question answering Noh et al. (2016). Zhang et al. Zhang et al. (2017) integrates this idea into the Fast R-CNN framework by dynamically generating the classifier from the text in a similar manner to Ba et al. (2016). We extend this work to the case of large-scale retrieval. The proposed Query-Adaptive R-CNN generates the regressor weights and learn the region proposal network following Faster R-CNN. It enables precise localization with fewer proposals, which makes the retrieval system more memory efficient. In addition, we propose a novel hard negative mining approach, called negative phrase augmentation, which makes the generated classifier more discriminative.

3 Query-Adaptive R-CNN

Query-adaptive R-CNN is a simple extension of Faster R-CNN to open-vocabulary object detection. While Faster R-CNN detects objects of fixed categories, Query-Adaptive R-CNN detects any objects specified by a textual phrase. Figure 2 illustrates the difference between Faster R-CNN and Query-Adaptive R-CNN. While Faster R-CNN learns a class-specific classifier and regressor as parameters of the neural networks, Query-Adaptive R-CNN generates them from the query text by using a detector generator. Query-Adaptive R-CNN is a simple but effective method that surpasses state-of-the-art phrase localization methods and can be easily extended to the case of large-scale retrieval. Furthermore, its retrieval accuracy is significantly improved by a novel training strategy called negative phrase augmentation (Sec. 3.2).

3.1 Architecture

The network is composed of two subnetworks: a region feature extractor and detector generator

, both of which are trained in an end-to-end manner. The region feature extractor takes an image as input and outputs features extracted from sub-regions that are candidate objects. Following Faster R-CNN

Ren et al. (2015), regions are detected using a region proposal network (RPN) and the features of the last layer (e.g., fc7 in VGG network) are used as region features. The detector generator takes a text description as an input and outputs a linear classifier and regressor for the description (e.g., if a dog is given, a dog classifier and regressor are output). Finally, a confidence and a regressed bounding box are predicted for each region by applying the classifier and regressor to the region features.

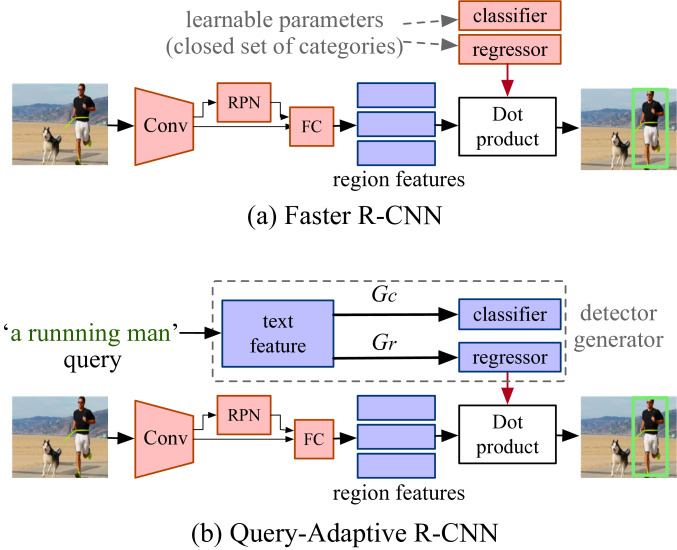

Figure 2: Difference in network architecture between (a) Faster R-CNN and (b) Query-Adaptive R-CNN. While Faster R-CNN learns the classifier of a closed set of categories as learnable parameters of neural networks, Query-Adaptive R-CNN generates a classifier and regressor adaptively from a query text by learning a detector generator that transforms the text into a classifier and regressor.

Detector generator. The detector generator transforms the given text into a classifier and regressor , where is the weight of a linear classifier and is the weight of a linear regressor in terms of , , width , and height , following Girshick et al. (2014). We first transform a text of variable length into a text embedding vector . Other phrase localization approaches uses the Fisher vector encoding of word2vec Klein et al. (2015); Plummer et al. (2015)

or long-short term memory (LSTM)

Chen et al. (2017) for the phrase embedding. However, we found that the simple mean pooling of word2vec Mikolov et al. (2013) performs better than these methods for our model (comparisons given in the supplemental material). The text embedding is then transformed into a detector, i.e., and

. Here, we use a linear transformation for

(i.e., , where

is a projection matrix). For the regressor, we use a multi-layer perceptron with one hidden layer to predict each of

. We tested various architectures for and found that sharing the hidden layer and reducing the dimension of the hidden layer (up to ) does not adversely affect the performance, while at the same time it significantly reduces the number of parameters (see Sec. 5.2 for details).

3.2 Training with Negative Phrase Augmentation

All components of Query-Adaptive R-CNN can be jointly trained in an end-to-end manner. The training strategy basically follows that of Faster R-CNN. The differences are shown in Figure 3. Faster R-CNN is trained with the fixed closed set of categories (Fig. 3a), where all regions without a positive label can be used as negative examples. On the other hand, Query-Adaptive R-CNN is trained using the open-vocabulary phrases annotated to the regions (Fig. 3b), where sufficient negative examples cannot be used for each phrase compared to Faster R-CNN because a region without a positive label is not guaranteed to be negative in open-vocabulary object detection. We solve this problem by proposing negative phrase augmentation (NPA), which enables us to use good quality negative examples by using the linguistic relationship (e.g., mutually exclusiveness) and the confusion between the categories (Fig. 3c). It significantly improves the discriminative ability of the generated classifiers.

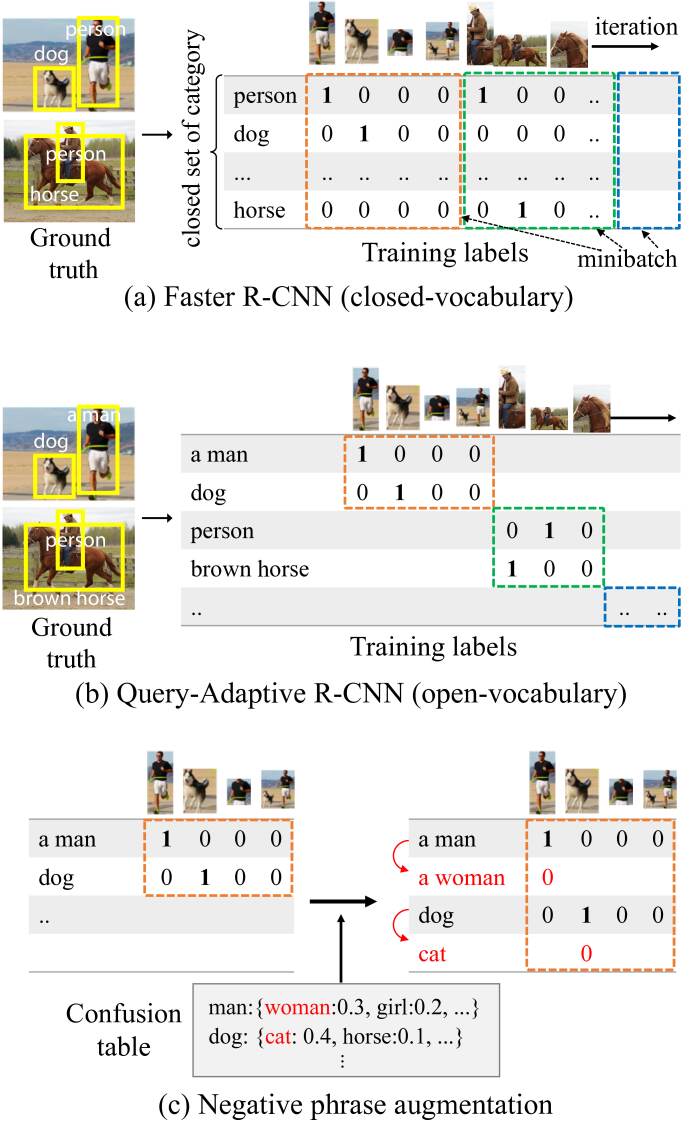

Figure 3: Difference in training between (a) closed-vocabulary and (b) open-vocabulary object detection. The approach of NPA is illustrated in (c).

3.2.1 Basic Training

First, we describe the basic training strategy without NPA (Fig. 3b). Training a Query-Adaptive R-CNN requires the phrases and their corresponding bounding boxes to be annotated. For the th image (we use one image as a minibatch), let us assume that phrases are associated with the image. The phrases can be considered as the classes to train in the minibatch. The labels are assigned to the region proposals generated by RPN (each of the dotted rectangles in Fig 3b); a positive label is assigned if the box overlaps the ground truth box by more than 0.5 in IoU and negative labels are assigned to other RoIs under the assumption that all positive objects of classes are annotated (i.e., regions without annotations are negative within the image).111Although this assumption is not always true for datasets such as Flickr30k Entities, it nonetheless works well for them because exceptions are rare. We then compute the classification loss by using the training labels and classification scores.222 Whereas Faster R-CNN uses the softmax cross entropy over the (background) classes, where is the number of closed sets of a category, we use the sigmoid cross entropy because the classes are not always mutually exclusive and a background class cannot be defined in the context of open-vocabulary object detection. The loss in terms of RPN and bounding box regression is computed in the same way as Faster R-CNN Ren et al. (2015).

3.2.2 Negative Phrase Augmentation

Here, we address the difficulty of using negative examples in the training of open-vocabulary object detection. As shown in Fig. 1b, our generated classifier is not discriminative enough. The reason is the scarcity of negative examples when using the training strategy described in Sec. 3.2.1; e.g., the horse classifier is not learned with the zebra as a negative example except for the rare case that both a zebra and a horse are in the same image. Using hard negative examples has proven to be effective in the object detection to train a discriminative detector Felzenszwalb et al. (2010); Girshick et al. (2014); Shrivastava et al. (2016). However, adding negative examples is usually not easy in the open-vocabulary setting, because it is not guaranteed that a region without a positive label is negative. For example, an object with the label man is not a negative of person even though person is not annotated. There are an infinite number of categories in open-vocabulary settings, which makes it difficult to exhaustively annotate all categories throughout the dataset.

How can we exploit hard examples that are guaranteed to be negative? We can make use of the mutually exclusive relationship between categories: e.g., an object with a dog label is negative for cat because dog and cat are mutually exclusive. There are two ways we can add to a minibatch: add negative images (regions) or negative phrases. Adding negative phrases (as in Fig. 3c) is generally better because it involves a much smaller additional training cost than adding images in terms of the both computational cost and GPU memory usage. In addition, to improve the discriminative ability of the classifier, we select only hard negative phrases by mining the confusing categories. This approach, called negative phrase augmentation (NPA), is a generic way of exploiting hard negative examples in open-vocabulary object detection and leads to large improvements in accuracy, as we show in Sec. 5.3.

Confusion table. We create a confusion table that associates a category with its hard negative categories, from which negative phrases are picked as illustrated in Fig. 3c. To create the entry for category , we first generate the candidate list of hard negative categories by retrieving the top 500 scored objects from all objects in the validation set of Visual Genome Krishna et al. (2016) (using as a query). After that, we remove the mutually non-exclusive category relative to from the list. Finally, we aggregate the list by category and assign a weight to each category. Each of the registered entries becomes like dog:{cat:0.5, horse:0.3, cow:0.2}

. The weight corresponds to the probability of selecting the category in NPA, which is computed based on the number of appearances and their ranks in the candidate list.

333We compute the weight of each category as the sum of 500 minus the rank for all ranked results in the candidate lists normalized over all categories in order to sum to one.

Removal of mutually non-exclusive phrases.

To remove non-mutually exclusive phrases from the confusion table, we use two approaches that estimate whether the two categories are mutually exclusive or not. 1) The first approach uses the

WordNet hierarchy: if two categories have parent-child relationships in WordNet Miller (1995), they are not mutually exclusive. However, the converse is not necessarily true; e.g., man and skier are not mutually exclusive but do not have the parent-child relationship in the WordNet hierarchy. 2) As an alternative approach, we propose to use Visual Genome annotation: if two categories co-occur more often in the Visual Genome dataset Krishna et al. (2016), these categories are considered to be not mutually exclusive.444 We set the ratio at 1% of objects in either category. For example, if there are 1000 objects with the skier label and 20 of those objects are also annotated with man (20/1000=2%), we consider that skier and man are not mutually exclusive. These two approaches are complementary, and they improve detection performance by removing the mutually non-exclusive words (see Sec. 5.3).

The training pipeline with NPA is as follows:

  1. Update the confusion table: The confusion table is updated periodically (after every 10k iterations in our study). Entries were created for categories that frequently appeared in 10k successive batches (or the whole training set if the size of the dataset is not large).

  2. Add hard negative phrases: Negative phrases are added to each of the phrases in a minibatch. We replace the name of the category in each phrase with its hard negative category (e.g., generate a running woman for a running man), where the category name is obtained by extracting nouns. A negative phrase is randomly selected from the confusion table on the basis of the assigned probability.

  3. Add losses: As illustrated in Fig. 3c, we only add negative labels to the regions where a positive label is assigned to the original phrase. The classification loss is computed only for the regions, which is added to the original loss.

4 Large-Scale Object Retrieval

Query-Adaptive R-CNN can be used for large-scale object retrieval and localization, because it can be decomposed into a query-independent part and a query-dependent part, i.e., a region feature extractor and detector generator. We follow the approach used in large-scale R-CNN Hinami and Satoh (2016), but we overcome its two critical drawbacks. First, a large-scale R-CNN can only predict boxes included in the region proposals; these are detected offline even though the query is unknown at the time; therefore, to get high recall, a large number of object proposals should be used, which is memory inefficient. Instead, we generate a regressor as well as a classifier, which enables more accurate localization with fewer proposals. Second, a large-scale R-CNN assumes that the classifier is given as a query, and learning a classifier requires many samples with bounding annotations. We generate the classifier from a text query directly by using the detector generator of Query-Adaptive R-CNN. The resulting system is able to retrieve and localize objects from a database with one million images in less than one second.

Database indexing. For each image in the database, the region feature extractor extracts region proposals and corresponding features. We create an index for the region features in order to speed up the search. For this, we use the IVFADC system Jégou et al. (2011) in the manner described in Hinami and Satoh (2016).

Searching. Given a text query, the detector generator generates a linear classifier and bounding box regressor. The regions with high classification scores are then retrieved from the database by making an IVFADC-based search. Finally, the regressor is applied to the retrieved regions to obtain the accurately localized bounding boxes.

Approach People Clothing Body Animals Vehicles Instruments Scene Other All
Non-scalable methods
GroundeR Rohrbach et al. (2016) 61.00 38.12 10.33 62.55 68.75 36.42 58.18 29.08 47.81
Multimodal compact bilinear Fukui et al. (2016) - - - - - - - - 48.69
PGN+QRN Chen et al. (2017) 75.08 55.90 20.27 73.36 68.95 45.68 65.27 38.80 60.21
Non-scalable and joint localization methods
Structured matching Wang et al. (2016b) 57.89 34.61 15.87 55.98 52.25 23.46 34.22 26.23 42.08
SPC+PPC Plummer et al. (2017a) 71.69 50.95 25.24 76.25 66.50 35.80 51.51 35.98 55.85
QRC net Chen et al. (2017) 76.32 59.58 25.24 80.50 78.25 50.62 67.12 43.60 65.14
Scalable methods
Structure-preserving embedding Wang et al. (2016a) - - - - - - - - 43.89
CCA+Detector+Size+Color Plummer et al. (2017b) 64.73 46.88 17.21 65.83 68.75 37.65 51.39 31.77 50.89
Query-Adaptive R-CNN (proposed) 78.17 61.99 35.25 74.41 76.16 56.69 68.07 47.42 65.21
Table 1: Phrase localization accuracy on Flickr30k Entities dataset.
IoU
Architecture Params 0.5 0.6 0.7 0.8 0.9
w/o regression - 65.21 53.19 35.70 14.32 1.88
300–16(–4096) 0.3M 64.14 57.66 48.22 33.04 9.29
300–64(–4096) 1.1M 63.87 57.43 49.05 33.84 10.55
300–256(–4096) 4.3M 63.84 57.70 48.71 33.87 10.05
300–1024(–4096) 17M 64.29 58.05 48.49 33.94 10.09
300(–256–4096) 4.5M 62.82 56.28 48.02 32.71 9.89
300–4096 1.2M 63.23 56.92 48.17 32.66 9.20
Table 2: Comparison of various bounding box regressors on Flickr30k Entities for different IoU thresholds. The number of parameters in is also shown.

5 Experiments

5.1 Experimental Setup

Model: Query-Adaptive R-CNN is based on VGG16 Simonyan and Zisserman (2015), as in other work on phrase localization. We first initialized the weights of the VGG and RPN by using Faster R-CNN trained on Microsoft COCO Lin et al. (2014); the weights were then fine-tuned for each dataset of the evaluation. In the training using Flickr30k Entities, we first pretrained the model on the Visual Genome dataset using the object name annotations. We used Adam Kingma and Ba (2015) with a learning rate starting from 1e-5 and ran it for 200k iterations.

Tasks and datasets: We evaluated our approaches on two tasks: phrase localization and open-vocabulary object detection and retrieval. The phrase localization task was performed on the Flickr30k Entities dataset Plummer et al. (2015). Given an image and a sentence that describes the image, the task was to localize region that corresponds to the phrase in a sentence. Flickr30k datasets contain 44,518 unique phrases, where the number of words of each phrase is 1–8 (2.1 words on average). We followed the evaluation protocol of Plummer et al. (2015). We did not use Flickr30k Entities for the retrieval task because the dataset is not exhaustively annotated (e.g., not all men appearing in the dataset are annotated with man), which makes it difficult to evaluate with a retrieval metric such as AP, as discussed in Plummer et al. Plummer et al. (2017b). Although we cannot evaluate the retrieval performance directly on the phrase localization task, we can make comparisons with other approaches and show that our method can handle a wide variety of phrases.

The open-vocabulary object detection and retrieval task was evaluated in the same way as the standard object detection task. The difference was the assumption that we do not know the target category at training time in open-vocabulary settings; i.e., the method does not tune in to a specific category, unlike the standard object detection task. We used the Visual Genome dataset Krishna et al. (2016) and selected the 100 most frequently object categories as queries among its 100k or so categories.555Since the WordNet synset ID is assigned to each object, we add objects with labels of hyponyms as positives (e.g., man is positive for the person category). 666We exclude the background (e.g., grass, sky, field), multiple objects (e.g., people, leaves), and ambiguous categories (e.g, top, line). We split the dataset into training, validation, and test sets following Johnson et al. (2016). We also evaluated our approaches on the PASCAL VOC 2007 dataset, which is a widely used dataset for object detection.777 We used the model trained on Visual Genome even for the evaluation on the PASCAL dataset because of the assumption that the target category is unknown. As metrics, we used top-k precision and average precision (AP), computed from the region-level ranked list as in the standard object detection task.888 We did not separately evaluate the detection and retrieval tasks because both can be evaluated with the same metric.

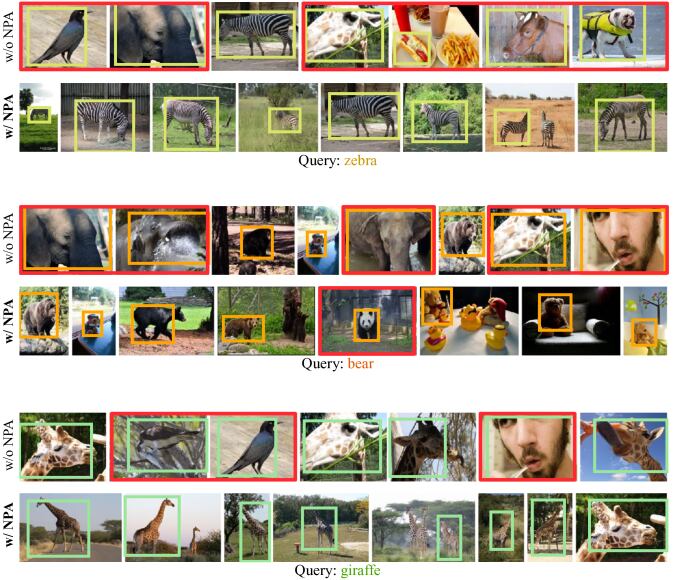

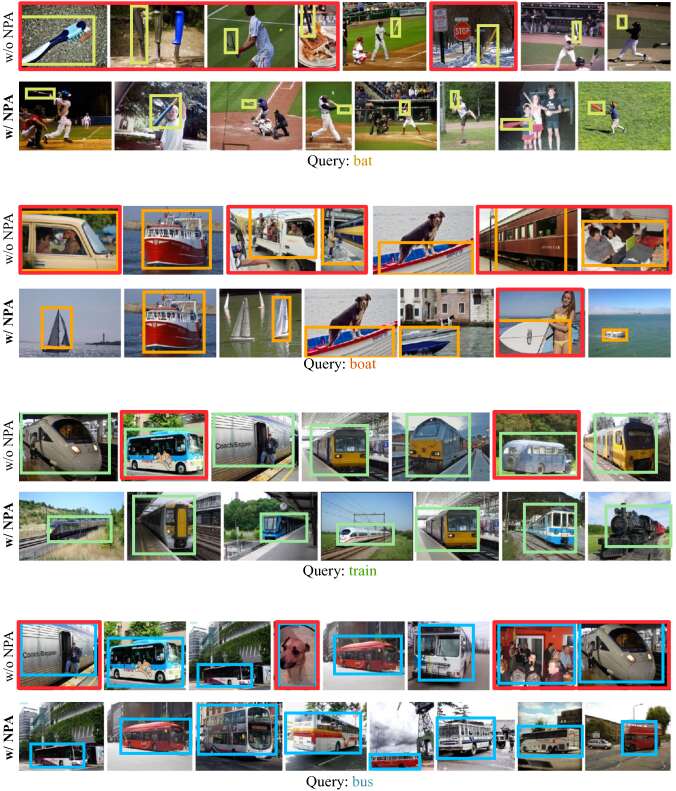

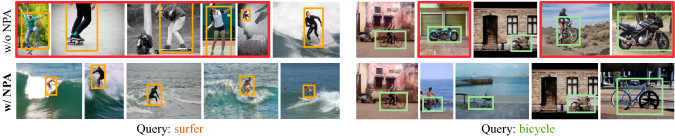

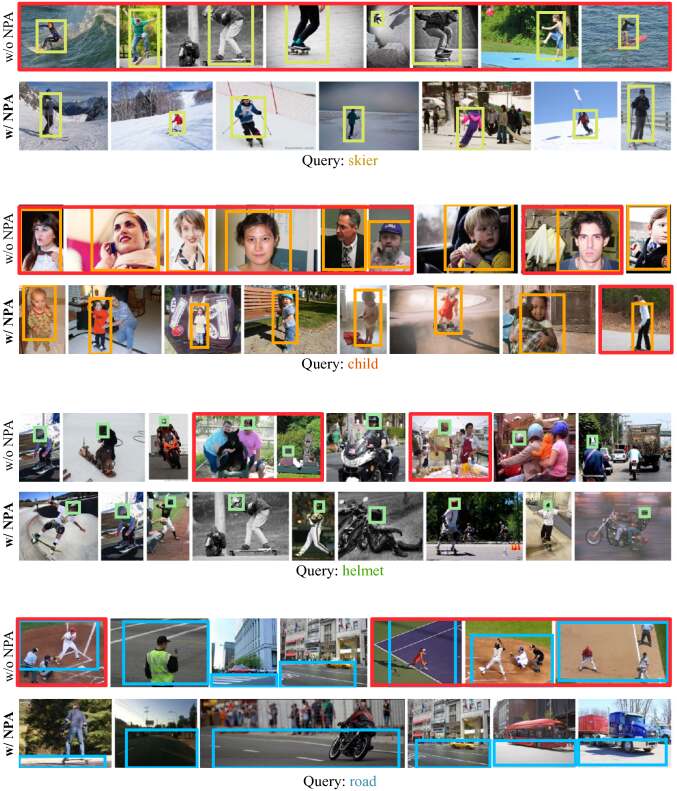

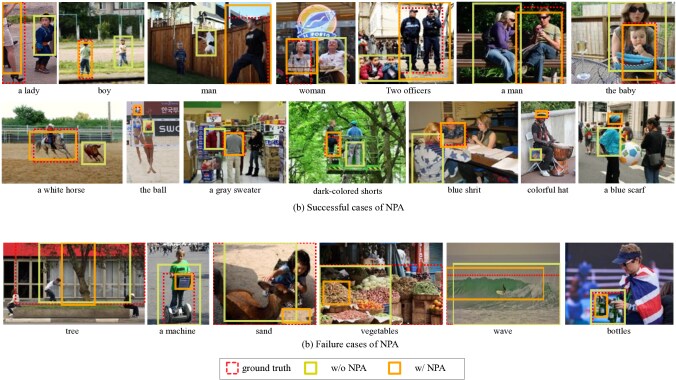

Figure 4: Qualitative results with and without NPA. Top-k retrieved results for two queries are shown (sorted by rank) and false alarms are depicted with a red border.

5.2 Phrase localization

Comparison with state-of-the-art. We compared our method with state-of-the-art methods on the Flickr30k Entities phrase localization task. We categorized the methods into two types, i.e., non-scalable and scalable methods (Tab. 1). 1) Non-scalable methods cannot be used for large-scale retrieval because their query-dependent components are too complex to process a large amount of images online, and 2) Scalable methods can be used for large-scale retrieval because their query-dependent components are easy to scale up (e.g., the distance computation); these include common subspace-based approaches such as CCA. Our method also belongs to the scalable category. We used a simple model without a regressor and NPA in the experiments.

Table 1 compares Query-Adaptive R-CNN with the state-of-the-art methods. Our model achieved 65.21% in accuracy and outperformed all of the previous state-of-the-art models including the non-scalable or joint localization methods. Moreover, it significantly outperformed the scalable methods, which suggests the approach of predicting the classifier is better than learning a common subspace for the open-vocabulary detection problem.

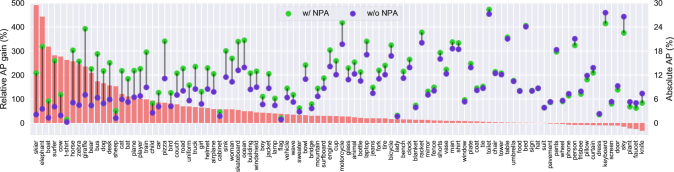

Figure 5: AP gain by negative phrase augmentation (NPA) for individual queries. The bars show the relative AP gain and points shows the absolute AP with and without NPA.

Bounding box regressor. To demonstrate the effectiveness of the bounding box regressor for precise localization, we conducted evaluations with the regressor at different IoU thresholds. As explained in Sec. 3.1, the regressor was generated using , which transformed 300-d text embeddings into 4096-d regressor weights , , , and . We compared three network architectures for : 1) 300-n(-4096) MLP having a hidden layer with units that is shared across the four outputs, 2) 300(-n-4096) MLP having a hidden layer that is not shared, and 3) 300(-4096) linear transformation (without a hidden layer).

Table 2 shows the results with and without regressor. The regressor significantly improved the accuracy with high IoU thresholds, which demonstrates that the regressor improved the localization accuracy. In addition, the accuracy did not decrease as a result of sharing the hidden layer or reducing the number of units in the hidden layer. This suggests that the regressor lies in a very low-dimensional manifold because the regressor for one concept can be shared by many concepts (e.g., the person regressor can be used for man, woman, girl, boy, etc.). The number of parameters was significantly reduced by these tricks, to even fewer than in the linear transformation. The accuracy slightly decreased with a threshold of 0.5, because the regressor was not learned properly for the categories that did not frequently appear in the training data.

Visual Genome VOC
NPA WN VG mAP PR@10 PR@100 mAP
CCA 3.18 20.40 15.64 28.23
Query- Adaptive R-CNN 9.15 52.60 36.85 29.14
10.90 60.10 43.21 36.74
11.53 61.80 45.91 37.07
11.65 65.40 46.85 41.32
12.19 65.70 48.45 42.81
Table 3: Open-vocabulary object detection performance on Visual Genome and PASCAL VOC 2007 datasets. WN and VG are the strategies to remove mutually non-exclusive phrases.
Query Most confusing class 2nd most confusing class
girl man 19 3 boy 4 2
skateboard surfboard 12 0 snowboard 11 0
train bus 17 1 oven 3 0
helmet hat 18 1 cap 6 4
elephant bear 14 0 horse 6 0
Table 4: Number of false alarms in top 100 results for five queries (w/o NPA w/ NPA). The top 2 confusing categories are shown for each query.

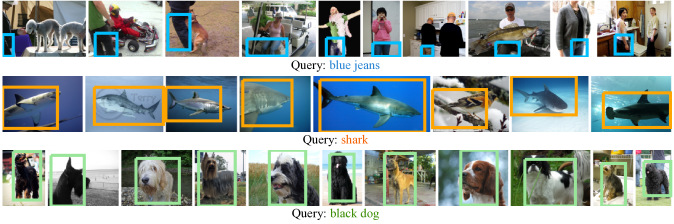

Figure 6: Retrievals from one million images. Top-k results for three queries are shown.

5.3 Open-Vocabulary Object Retrieval

Main comparison. Open-vocabulary object detection and retrieval is a much more difficult task than phrase localization, because we do not know how many objects are present in an image. We used NPA to train our model. As explained in Sec. 3.2.2, we used two strategies, Visual Genome annotation (VG) and WordNet hierarchy (WN), to remove mutually non-exclusive phrases from the confusion table. As a baseline, we compared with region-based CCA Plummer et al. (2017b), which is scalable and shown to be effective for phrase localization; for a fair comparison, the subspace was learned using the same dataset as ours. An approximate search was not used to evaluate the actual performance at open-vocabulary object detection.

Table 3 compares different training strategies. NPA significantly improved the performance: more than 25% relative improvement for all metrics. Removing mutually non-exclusive words also contributed the performance: WN and VG both improved performance (5.8% and 6.9% relative AP gain, respectively). Performance improved even further by combining them (11.8% relative AP gain), which shows they are complementary. AP was much improved by NPA for the PASCAL dataset as well (47% relative gain). However, the performance was still much poorer than those of the state-of-the-art object detection methods Redmon and Farhadi (2017); Ren et al. (2015), which suggests that there is a large gap between open-vocabulary and closed-vocabulary object detection.

Detailed results of NPA. To investigate the effect of NPA, we show the AP with and without NPA for individual categories in Figure 5, which are sorted by relative AP improvement. It shows that AP improved especially for animals (elephant, cow, horse, etc.) and person (skier, surfer, girl), which are visually similar within the same upper category. Table 4 shows the most confused category and its total count in the top 100 search results for each query, which shows what concept is confusing for each query and how much the confusion is reduced by NPA.999For each query, we scored all the objects in the Visual Genome testing set and counted the false alarms in the top 100 scored objects. This shows that visually similar categories resulted in false positive without NPA, while their number was suppressed by training with NPA. The reason is that these confusing categories were added for negative phrases in NPA, and the network learned to reject them. Figure 4 shows the qualitative search results for each query with and without NPA (and CCA as a baseline), which also showed that NPA can discriminate confusing categories (e.g., horse and zebra). These results clearly demonstrate that NPA significantly improves the discriminative ability of classifiers by adding hard negative categories.

Database size 10K 50K 100K 500K 1M
Time (ms) 18316 19621 24228 31490 484165
Memory (GB) 0.46 1.23 2.19 9.87 19.47
Table 5: Speed/memory in large-scale experiments.

Large-scale experiments. Finally, we evaluated the scalability of our method on a large image database. We used one million images from the ILSVRC 2012 training set for this evaluation. Table 5

show the speed and memory. The mean and standard deviation of speed are computed over 20 queries in PASCAL VOC dataset. Our system could retrieve objects from one million images in around 0.5 seconds. We did not evaluate accuracy because there is no such large dataset with bounding box annotations.

101010 adding distractors would also be difficult, because we cannot guarantee that relevant objects are not in the images. Figure 12 shows the retrieval results from one million images, which demonstrates that our system can accurately retrieve and localize objects from a very large-scale database.

6 Conclusion

Query-Adaptive R-CNN is a simple yet strong framework for open-vocabulary object detection and retrieval. It achieves state-of-the-art performance on the Flickr30k phrase localization benchmark and it can be used for large-scale object retrieval by textual query. In addition, its retrieval accuracy can be further increased by using a novel training strategy called negative phrase augmentation (NPA) that appropriately selects hard negative examples by using their linguistic relationship and confusion between categories. This simple and generic approach significantly improves the discriminative ability of the generated classifier.

Acknowledgements: This work was supported by JST CREST JPMJCR1686 and JSPS KAKENHI 17J08378.

References

  • Arandjelovi et al. (2012) Relja Arandjelovi, Andrew Zisserman, Relja Arandjelovic, Andrew Zisserman, Relja Arandjelovi, Andrew Zisserman, Relja Arandjelovic, and Andrew Zisserman. 2012. Multiple queries for large scale specific object retrieval. In BMVC.
  • Aytar and Zisserman (2014) Yusuf Aytar and Andrew Zisserman. 2014. Immediate, scalable object category detection. In CVPR.
  • Ba et al. (2016) Jimmy Lei Ba, Kevin Swersky, Sanja Fidler, and Ruslan Salakhutdinov. 2016.

    Predicting deep zero-shot convolutional neural networks using textual descriptions.

    In ICCV.
  • Chatfield et al. (2015) Ken Chatfield, Relja Arandjelovi, Andrew Zisserman, Relja Arandjelović, Omkar Parkhi, and Andrew Zisserman. 2015. On-the-fly learning for visual search of large-scale image and video datasets. International Journal of Multimedia Information Retrieval, 4(2):75–93.
  • Chen et al. (2017) Kan Chen, Rama Kovvuri, and Ram Nevatia. 2017. Query-guided Regression Network with Context Policy for Phrase Grounding. In ICCV.
  • De Brabandere et al. (2016) Bert De Brabandere, Xu Jia, Tinne Tuytelaars, and Luc Van Gool. 2016. Dynamic filter networks. In NIPS.
  • Felzenszwalb et al. (2010) Pedro F Felzenszwalb, Ross B Girshick, David McAllester, Deva Ramanan, and David Forsyth. 2010. Object detection with discriminatively trained part-based models. PAMI, 32(9):1627–45.
  • Fukui et al. (2016) Akira Fukui, Dong Huk Park, Daylen Yang, Anna Rohrbach, Trevor Darrell, and Marcus Rohrbach. 2016. Multimodal compact bilinear pooling for visual question answering and visual grounding. In EMNLP.
  • Girshick et al. (2014) Ross Girshick, Jeff Donahue, Trevor Darrell, U C Berkeley, and Jitendra Malik. 2014. Rich feature hierarchies for accurate object detection and semantic segmentation. In CVPR.
  • Guadarrama et al. (2014) Sergio Guadarrama, Erik Rodner, Kate Saenko, Ning Zhang, Ryan Farrell, Jeff Donahue, and Trevor Darrell. 2014. Open-vocabulary object retrieval. Robotics: Science and Systems, 2(5):1–9.
  • Hinami et al. (2017) Ryota Hinami, Yusuke Matsui, and Shin’ichi Satoh. 2017.

    Region-based image retrieval revisited.

    In ACMMM.
  • Hinami and Satoh (2016) Ryota Hinami and Shin’ichi Satoh. 2016. Large-scale r-cnn with classifier adaptive quantization. In ECCV.
  • Hu et al. (2016) Ronghang Hu, Huazhe Xu, Marcus Rohrbach, Jiashi Feng, Kate Saenko, and Trevor Darrell. 2016. Natural language object retrieval. In CVPR.
  • Jégou et al. (2011) Hervé Jégou, Matthijs Douze, and Cordelia Schmid. 2011. Product quantization for nearest neighbor search. PAMI, 33(1):117–128.
  • Johnson et al. (2016) Justin Johnson, Andrej Karpathy, and Li Fei-Fei. 2016.

    Densecap: fully convolutional localization networks for dense captioning.

    In CVPR.
  • Kazemzadeh et al. (2014) Sahar Kazemzadeh, Vicente Ordonez, Mark Matten, and Tamara L Berg. 2014. Referitgame: referring to objects in photographs of natural scenes. In EMNLP.
  • Kingma and Ba (2015) Diederik P. Kingma and Jimmy Ba. 2015. Adam: a method for stochastic optimization. In ICLR.
  • Klein et al. (2015) Benjamin Klein, Guy Lev, Gil Sadeh, and Lior Wolf. 2015. Fisher vectors derived from hybrid gaussian-laplacian mixture models for image annotation. In CVPR.
  • Krishna et al. (2016) Ranjay Krishna, Yuke Zhu, Oliver Groth, Justin Johnson, Kenji Hata, Joshua Kravitz, Stephanie Chen, Yannis Kalanditis, Li-Jia Li, David A. Shamma, Michael S. Bernstein, Li Fei-Fei, Yannis Kalantidis, Li-Jia Li, David A. Shamma, Michael S. Bernstein, and Fei-Fei Li. 2016. Visual genome: connecting language and vision using crowdsourced dense image annotations. IJCV, page 44.
  • Lin et al. (2014) Tsung-Yi Lin, Michael Maire, Serge Belongie, Lubomir Bourdev, Ross Girshick, James Hays, Pietro Perona, Deva Ramanan, C. Lawrence Zitnick, and Piotr Dollár. 2014. Microsoft coco: common objects in context. In ECCV.
  • Mao et al. (2016) Junhua Mao, Jonathan Huang, Alexander Toshev, Oana Camburu, Alan Yuille, and Kevin Murphy. 2016. Generation and comprehension of unambiguous object descriptions. In CVPR.
  • Mikolov et al. (2013) Tomas Mikolov, Kai Chen, Greg Corrado, and Jeffrey Dean. 2013. Distributed representations of words and phrases and their compositionality. In NIPS.
  • Miller (1995) George A. Miller. 1995. Wordnet: a lexical database for English. Communications of the ACM, 38(11):39–41.
  • Noh et al. (2016) Hyeonwoo Noh, Paul Hongsuck Seo, and Bohyung Han. 2016. Image question answering using convolutional neural network with dynamic parameter prediction. In CVPR.
  • Plummer et al. (2017a) Bryan A Plummer, Christopher M Cervantes, and C V Aug. 2017a. Phrase localization and visual relationship Detection with Comprehensive Image-Language Cues. In ICCV.
  • Plummer et al. (2015) Bryan A. Plummer, Liwei Wang, Chris M. Cervantes, Juan C. Caicedo, Julia Hockenmaier, and Svetlana Lazebnik. 2015. Flickr30k entities: collecting region-to-phrase correspondences for richer image-to-sentence models. In ICCV.
  • Plummer et al. (2017b) Bryan A. Plummer, Liwei Wang, Chris M. Cervantes, Juan C. Caicedo, Julia Hockenmaier, and Svetlana Lazebnik. 2017b. Flickr30k Entities: Collecting Region-to-Phrase Correspondences for Richer Image-to-Sentence Models.

    International Journal of Computer Vision

    , 123(1):74–93.
  • Redmon and Farhadi (2017) Joseph Redmon and Ali Farhadi. 2017. YOLO9000: better, faster, stronger. In CVPR.
  • Ren et al. (2015) Shaoqing Ren, Kaiming He, Ross Girshick, and Jian Sun. 2015. Faster r-cnn: towards real-time object detection with region proposal networks. In NIPS.
  • Rohrbach et al. (2016) Anna Rohrbach, Marcus Rohrbach, Ronghang Hu, Trevor Darrell, and Bernt Schiele. 2016. Grounding of textual phrases in images by reconstruction. In ECCV.
  • Shen et al. (2012) Xiaohui Shen, Zhe Lin, Jonathan Brandt, Shai Avidan, and Ying Wu. 2012. Object retrieval and localization with spatially-constrained similarity measure and k-nn re-ranking. In CVPR.
  • Shrivastava et al. (2016) Abhinav Shrivastava, Abhinav Gupta, and Ross Girshick. 2016. Training region-based object detectors with online hard example mining. In CVPR.
  • Simonyan and Zisserman (2015) Karen Simonyan and Andrew Zisserman. 2015. Very deep convolutional networks for large-scale image recognition. In ICLR.
  • Tao et al. (2014) Ran Tao, Efstratios Gavves, Cees G M Snoek, and Arnold W M Smeulders. 2014. Locality in generic instance search from one example. In CVPR.
  • Tolias et al. (2016) Giorgos Tolias, Ronan Sicre, and Hervé Jégou. 2016.

    Particular object retrieval with integral max-pooling of cnn activations.

    In ICLR.
  • Wang et al. (2016a) Liwei Wang, Yin Li, and Svetlana Lazebnik. 2016a. Learning deep structure-preserving image-text embeddings. In CVPR.
  • Wang et al. (2016b) Mingzhe Wang, Mahmoud Azab, Noriyuki Kojima, Rada Mihalcea, and Jia Deng. 2016b. Structured matching for phrase localization. In ECCV.
  • Zhang et al. (2017) Yuting Zhang, Luyao Yuan, Yijie Guo, Zhiyuan He, I-An Huang, and Honglak Lee. 2017. Discriminative Bimodal Networks for Visual Localization and Detection with Natural Language Queries. CVPR.

Supplementary Material

1 Detailed Analysis on Phrase Localization

1.1 With or Without Regression

Figure 7 compares the results with and without bounding box regression. We use the model of 300-16(-4096) to generate the regressor (explained in our paper in Sec.5.2). Figure 7a shows the successful cases. The regression is effective especially for the frequently appeared categories in training data such as person and dog because the accurate regressor can be learned by using many examples. The regression was succeeded for several uncommon categories such as potter and gondola; the reason is that regressor can be shared with other common categories, e.g., person and boat regressor can be used for potter and gondola, respectively. Figure 7b shows the failure cases, which include the categories with ambiguous boundary (e.g., sidewalk and mud). The regressor does not work for such categories. In addition, if the category is not frequently appeared in training data, the regressor moves the bounding box into the wrong direction. Future work includes automatically determining whether to perform bounding box regression or not.

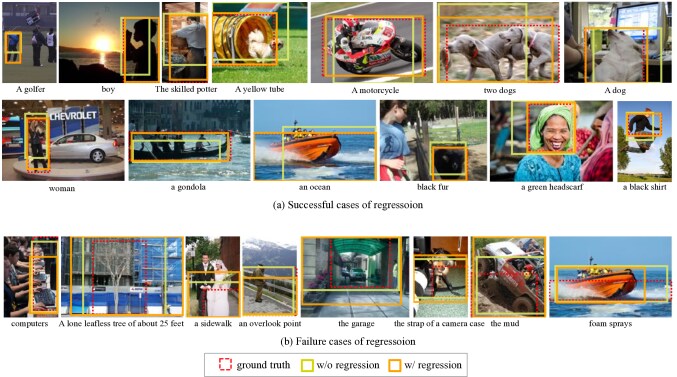

Figure 7: Phrase localization results with and without the bounding box regression. We visualize the ground truth bounding box, the result without the regression, and the result with NPA in red, yellow, and orange, respectively.

1.2 With or Without Negative Phrase Augmentation

Table 6 shows the phrase localization performance with and without negative phrase augmentation (NPA). It shows that the phrase localization performance is not improved by training with NPA. As explained in our paper, it is due to the difference between the phrase localization and object detection tasks; phrase localization assumes there is only one relevant object in the image while object detection places no assumption on the number of objects. Because of this, in the phrase localization task, we can benefit from NPA only when confusing objects appear in the single image. Figure 8a shows such cases: e.g., when two persons appear in the same image, the method with NPA can select the appropriate person that is relevant to the query. However, since such cases are rare in the Flickr30k Entities dataset, NPA does not contribute to performance. Figure 8b shows the failure cases of NPA. The method with NPA tends to predict the small bounding box in which other objects do not appear. The reason is that NPA cannot handle highly overlapped objects appropriately. For example, in the third example in Fig. 8, the sand region may have high scores for the deer. If there are many such cases in the validation set, the sand is added to hard negative phrase for the deer. The sand classifier thus predicts low score to the regions that are overlapped with the deer. Therefore, the method with NPA tends to predict the small box that contains only the (part of) relevant object. This is the limitation of NPA and causes the accuracy decrease in phrase localization task.

Method People Clothing Body Animals Vehicles Inst. Scene Other All
w/o NPA 78.17 61.99 35.25 74.41 76.16 56.69 68.07 47.42 65.21
w/ NPA 77.13 60.06 33.86 76.76 73.55 58.60 68.94 45.28 64.09
Table 6: Comparison of Flickr30k Entities phrase localization performance with and without NPA.
Figure 8: Phrase localization results with and without bounding box regression. We visualize ground truth bounding box, the result without NPA, and the result with NPA in red, yellow, and orange, respectively.

1.3 Ablation Studies

We here present the detailed analysis of our approach on the Flickr30k Entities phrase localization task and quantify our architectural design decisions. For the simplicity, in the comparison of the region proposal and text embedding, we used the pretrained Faster R-CNN model trained on the COCO object detection and finetuned it for phrase localization task. The bounding box regression and NPA are not used in this experiments.

Pretraining. Table 7

compares three pretrained models trained on 1) ImageNet classification, 2) PASCAL, and 3) COCO object detection. In addition, we pretrain the whole model including detector generator using Visual Genome dataset after initial pretraining of 1)–3). The results show that there is more than 4% difference in accuracy between simply using ImageNet pretrained model and pretraining on COCO and Visual Genome. Since Flickr30k Entities dataset does not contain many training examples for each object category, pretraining Faster R-CNN with large object detection datasets is important. Training on the Visual Genome dataset further improves the performance because it contains a much larger number of categories than COCO dataset and detector generator is also pretrained on such rich data.

Pretrained model VG pretrain? People Clothing Body Animals Vehicles Inst. Scene Other All
ImageNet 74.98 57.34 28.12 71.88 70.93 50.32 67.45 40.34 60.97
ImageNet 76.30 58.30 27.72 74.61 69.19 56.06 69.07 43.93 62.76
PASCAL 75.87 58.00 30.69 74.80 73.26 59.87 66.52 42.58 62.19
PASCAL 77.06 61.51 34.06 77.15 69.48 57.96 67.95 46.72 64.44
COCO 77.26 60.19 33.86 75.78 75.29 56.69 66.83 46.01 64.08
COCO 78.17 61.99 35.25 74.41 76.16 56.69 68.07 47.42 65.21
Table 7: Comparison of different pre-training strategies on Flickr30k Entities phrase localization.

Region proposal. Table 8 compares three region proposal approaches: 1) selective search Uijlings2013, 2) region proposal network (RPN) trained on COCO dataset, which is frozen during the training of phrase localization, and 3) RPN finetuned on phrase localization task. The number of regions is 2000 for the selective search following Girshick et al. (2014) and 300 for the RPN following Ren et al. (2015). In addition, we compared two region sampling strategies: random sampling used in Girshick2015; Ren et al. (2015) and online hard example mining (OHEM) Shrivastava et al. (2016). The results show that the RPN finetuned for phrase localization task generates much higher quality region proposals than others (12.41% increase in accuracy compared to the selective search), which demonstrates that learning region proposals play an important role in the phrase localization. OHEM further improved the accuracy by 1.56%.

Region proposal OHEM? People Clothing Body Animals Vehicles Inst. Scene Other All
Selective search 60.65 44.55 23.96 65.04 68.90 36.94 55.71 34.43 50.11
RPN (COCO pretrained) 71.29 44.82 17.23 70.90 67.44 42.04 63.23 38.26 55.94
RPN (COCO pretrained) 72.12 42.62 16.24 71.88 67.15 44.59 65.09 36.45 55.71
RPN (Flickr30k finetuned) 75.90 58.74 28.32 72.66 73.55 55.41 65.34 44.88 62.52
RPN (Flickr30k finetuned) 77.26 60.19 33.86 75.78 75.29 56.69 66.83 46.01 64.08
Table 8: Comparison of different region proposals and region sampling strategies on Flickr30k Entities phrase localization.

Text embedding. Table 9 compares five text embedding vectors: 1) Word2Vec Mikolov et al. (2013) trained on Google News dataset111111https://code.google.com/archive/p/word2vec/, which is used in our paper, 2) Word2Vec trained on Flickr tags121212the model is provided by the author of Dong2016 Li2015a, 3) Hybrid Gaussian-Laplacian mixture model (HGLMM) Klein et al. (2015), which is used in Plummer et al. (2015, 2017b); Wang et al. (2016a), 4) Skip-thought vector (combine-skip model)131313We use the implementation and pre-trained model provided in https://github.com/ryankiros/skip-thoughts Kiros2015, and 5) Long-short term memory (LSTM) that encodes a phrase into a vector in the manner described in Chen et al. (2017); Rohrbach et al. (2016), which is learned jointly with other components of Query-Adaptive R-CNN. The second column of Table 9 shows the dimension of the text embedding vector. This result shows that the performance is not much affected by the choice of the text embedding. The mean pooling of Word2Vec performs the best despite its simplicity.

Text embedding dim People Clothing Body Animals Vehicles Inst. Scene Other All
Word2Vec avg. 300 77.26 60.19 33.86 75.78 75.29 56.69 66.83 46.01 64.08
Word2Vec avg. (Flickr tags) 300 75.36 60.19 31.88 75.00 78.78 55.41 68.39 44.64 63.19
HGLMM 15000 77.26 61.34 32.28 75.00 68.31 63.06 67.33 45.25 63.96
Skip-thought 4800 77.06 59.89 34.65 79.88 73.55 57.32 68.01 45.28 64.06
LSTM 1000 75.45 58.96 28.71 74.61 75.58 56.05 66.71 29.23 62.36
Table 9: Comparison of different text embedding on Flickr30k Entities phrase localization.

2 Additional Examples of Negative Phrase Augmentation

Figure 9, 10, and 11 show additional examples of the negative phrase augmentation (corresponds to Fig. 4 in our paper). There are many false alarms between the confusing categories such as the animal (zebra, bear, and giraffe), person (skier and child), and vehicle (boat, train, and bus) without NPA, which are successfully discarded by training with NPA.

Figure 9: Qualitative results with and without NPA. Top-ranked retrieved results are shown and false alarms are depicted with red border.
Figure 10: Qualitative results with and without NPA. Top-ranked retrieved results are shown and false alarms are depicted with red border.
Figure 11: Qualitative results with and without NPA. Top-ranked retrieved results are shown and false alarms are depicted with red border.

3 Additional Examples of Open-Vocabulary Object Retrieval and Localization

Figure 12 shows the additional examples of object retrieval and localization (corresponds to Fig. 6 in our paper). Instead of the ILSVRC dataset used in our paper, we here used the Microsoft COCO dataset Lin et al. (2014) (40504 images from the validation set) that contains a wider variety of concepts. These results demonstrate that our system can accurately search the wide variety of objects specified by the natural language query.

Figure 12: Retrievals from COCO validation set. Top-ranked retrieval results for each query are shown.
