1 Introduction

1.1 Solar power integration in electrical grids using peer-to-peer markets

In most countries the electric power system relies heavily on fossil and nuclear fuels: About 61.4% of the globally produced electricity was generated from gas and coal fired power plants in 2016. Nuclear power stations accounted for 10.4% and hydro power, as main renewable source, accounted for 16.7% of the annual electricity generation ieawebsite . Many countries have put forward ambitious targets to reduce the dependency on fossil fuels, not just for electricity generation but for the entire energy system (including mobility and heating sectors). With current technology, the mobility and heating sector can be best decarbonized by electrification, which will further increase the electricity demand and requires the integration of more renewable generators.

Photovoltaic (PV) systems are seen as a cornerstone of these ambitious decarbonization plans. Spurred by a rapid price decline with prices for residential PV systems falling by over 80% from 2008 to 2016 in most competitive markets ECpvStatusReport2017 , PV systems have recently experienced a considerable increase in market diffusion in many countries, representing almost half of newly installed renewable power capacity in 2016 ECpvStatusReport2017 .

Replacing large capacities with solar power will necessarily disrupt the power sector because solar power systems must be deployed in a fairly decentralized way, ranging from installation of larger utility-scale systems to small-scale, residential roof-top systems. Therefore, households installing roof-top solar systems turn from pure consumers into prosumers and cover parts of their electricity demand with solar energy. Decentralizing parts of the previously centralized generation capacity also implies a shift from large (in many cases public) investors to smaller private investors. For an extensive diffusion of decentral generation capacity it is therefore imperative that the profitability of decentralized solar systems can be guaranteed so that small private investors can contribute to replacing large, centralized power systems SchopferThesis .

Already today, the generation costs of solar energy are in many countries below the costs of grid supplied electricity. However, prosumers generally cannot self-consume their entire solar generation. Today, they have no option but to feed their excess electricity into the public grid Luthander2015 . Therefore, the profitability of a PV system depends also on the remuneration (or feed-in tariff) for solar energy fed into the grid.

Today, remuneration rates for solar energy are subsidized or regulated by the local grid operator in most countriesschopfer2018economic . Prosumers are therefore price takers and have no say in determining the level of the remuneration rate. In many regions, remuneration rates declined in the past years or are likely to decline in the future karneyeva2017solar . This creates uncertainty regarding the profitability of solar systems and makes investments into PV systems less attractive due to unclear amortization rates in the future. Peer-to-peer (P2P) energy markets have been proposed as an alternative approach that allows consumers and prosumers to directly trade surplus generated electricity within a microgrid and to individually set the price at which they are willing to trade the locally generated electricity. This shifts their role from passive price takers to an empowered role as active market participants who can influence the purchase and sales price of the electricity they trade with the other members of the microgrid.

1.2 Network tariffs for the prosumer era

Grid operators split up their operating and capital costs by voltage levels Johnston2017 ; Haro2017 . The highest network level connects large central power plants, which transport energy down to the low-voltage level networks, where households are located and connected to the power grid, as Figure 1 illustrates. Traditionally, electricity is being produced at large power plants connected to higher voltage levels and eventually distributed to customers at lower voltage levels. Consequently, the grid tariff comprises the costs arising at several voltage levels, following a top-down pricing scheme. Therefore, households are billed for both the consumed energy and the usage of the entire grid infrastructure.

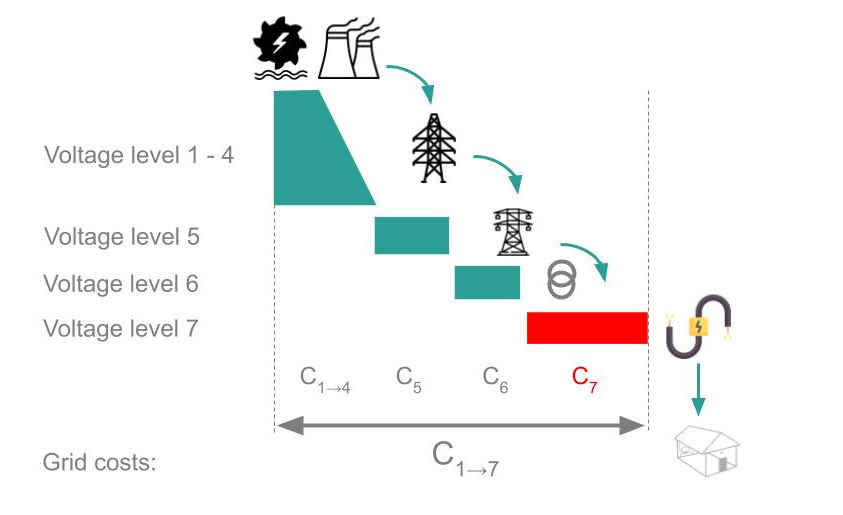

Figure 1: Grid cost allocation implemented in Switzerland. The costs accumulate from the voltage levels 1 to 7 with costs .

With the ongoing decentralization, electrical energy is increasingly generated on a neighborhood or district scale (voltage level 7 in Figure 1). The traditional top-down cost allocation does not incentivize local consumption of solar energy beyond self-consumption within a household. This implies that a consumer is billed the same network fee regardless of whether the energy has been generated from a solar system in the neighbourhood or from a distant power station.

To create an incentive for the consumption of locally generated electricity, locational grid pricing could be implemented that takes the shorter trading distances and the non-use of higher voltage levels into account. Consequently, if a unit of generated solar energy is consumed by a household within the same microgrid (i.e. below the same substation), only the grid costs of voltage level 7 apply. If no trades occur within the community, the full network costs apply. Such tariff schemes allocate costs on bottom-up fashion rather than a top-down fashion. They automatically incentivize local balancing by expanding the optimization of self-consumption from the household level to the community/microgrid level.

1.3 Towards prosumer-centric ecosystems

For prosumers, the active market participation within a microgrid with bottom-up grid tariff provides an ecosystem that potentially allows profitable operation of solar systems in the absence of subsidized remuneration rates. However, the concept of a peer-to-peer system with bottom-up grid tariff is quite novel and not possible under the current legislation in many regions. Hence, there is limited experience with real-life pilot tests that analyze to what extent a decentralized market fulfills prosumer and consumer needs over traditional and regulated approaches with fixed remuneration rates or feed-in tariffs.

2 The Quartierstrom project: scope and test site

The “Quartierstrom” (German for district electricity) is supported by the Swiss Federal Office of Energy (SFOE) within the framework of its pilot, demonstration and flagships programme. It is one of the first projects that implements and evaluates the feasibility of a decentral local P2P energy market in a real-world pilot test with 37 households located in the town of Walenstadt, Switzerland. Together with partners from industry and academia qsWebsite , the project assesses:

  1. The technical feasibility of a blockchain-managed community energy system and its impact in terms of local utilization of solar energy, grid quality and energy efficiency

  2. Suitable market mechanisms and resulting market prices for local electricity

  3. The design of an appropriate user interface, user engagement over time and the overall acceptance of the system by the users.

The local community for the pilot test consists of 37 participating households that are located downstream of a substation (grid level 7). The community consists of 27 prosumers with a total solar PV capacity of 280 kWp with a total storage capacity of 80 kWh in form of lithium ion batteries. As part of the project implementation, each of the households has been equipped with prototypical smart-meters that can measure currents, voltages and frequencies on each of the phases and that come with an integrated single board computer (SBC). The SBCs act as distributed nodes for the blockchain system that is introduced in chapter 4. Each household is equipped with a maximum of three smart meters to separately measure net consumption, production and battery power.

The remainder of this whitepaper describes pilot set up and the three main components of the field test:

  1. Market design and mechanism

  2. Blockchain design and technical implementation

  3. User interface design and implementation

3 Market design and mechanism

In order to create a successful peer-to-peer exchange for electricity in line with the overall objective of promoting sustainability, there should be incentives for local consumption of locally generated electricity. Consequently, prices should reflect the availability of local electricity. The market design describes the way in which prices are determined and local electricity is distributed within the community and should be defined with the aim to meet these overall project goals.

The importance of an appropriate market design for electricity distribution is illustrated by the infamous example of the breakdown of the California electricity market in 2001, which caused unforeseen price jumps and even led to outages borenstein1995market . In general, there are two alternatives for determining prices and the allocation of electricity: a) running an algorithm which calculates prices relative to the availability of local resources and distributes the available energy randomly to the community members; b) running an auction mechanism that allows the participants to state price limits for which they are willing to buy or sell electricity with-in the local grid. Most existing electricity markets are governed by auction mechanisms rosen2013auction . That means that participants express their preferences in bids which contain a price and a commodity or quantity of commodities they wish to buy. All bids are collected in an order book and at distinct times, these orders are matched to form trades between the participants according to specific auction rules. These auction rules have a strategic impact on the incentives market participants face when formulating their bids in order to maximize the expected benefits. There are numerous research studies on auction mechanisms and their implications for economic efficiency and price development.

However, those existing markets are wholesale markets, in which professional firms interact instead of private households as is the case in the Quartierstrom peer-to-peer market. It is a novel situation that the households, which are currently merely price-takers in a retail market, change their roles to active prosumers and consumers which influence electricity sourcing themselves. Based on economic theory it is possible to estimate the evolution of prices and consumption within the community. What is unique about this project is that the implementation of a market on a distributed system in the field with real participants gives us the opportunity to test the individual’s participation and true willingness to pay in the field. This allows us to get an understanding of the participants’ behavior and to find out whether a decentralized market can really govern itself efficiently in this domain.

A review of existing studies and companies engaged in building in peer-to-peer electricity markets that we conducted leads us to the conclusion that except for few known exceptions, most projects are far away from implementing a system in the field. The blockchain platform as well as the market design or pricing mechanism are described in very fuzzy terms and actual user engagement/a real-world user interface is hardly ever mentioned. This is due to the fact that most projects are at a stage in which they only present concepts or develop first proofs of concept in the lab, but are not yet rolling out their solutions in the field with real participants.

3.1 Mechanism Design

A key decision in the market design was to create an auction in which all participants have the possibility to influence the prices for which they buy or sell electricity. While we do not necessarily expect all participants to adapt their prices frequently in the long run, we do believe this is a unique chance to elicit price preferences for local, renewable energy from individuals in a real setting. There exist some studies which have asked individuals about their willingness to pay for green or local electricity or about their intentions to invest in renewable energies, e.g. (Ecker2018, ). But to the best of our knowledge, this is the first study which allows individuals to actually influence the true prices they will pay.
Based on the experiments and studies resulting from the literature research, we have identified a double auction with discriminative pricing as the most suitable market mechanism for the Quartierstrom market. For both, consumers and prosumers, the smart meters send bids containing the price limit determined by the individual household and the electricity demand or supply measured by the smart meters. An order book collects all bids during an interval of 15 minutes and orders them by price: Sell bids with a lower sell price are prioritized (see yellow curve in figure below), buy bids with a higher price (see purple curve). Discriminative pricing means that for each trade, the price is derived as the mean between the respective buyer’s and seller’s price bid (see turquoise dotted line). This auction is run iteratively every 15 minutes, which means that the market is cleared and trades are allocated in this frequency.

3.2 Implementation at the pilot site

We have deployed this double auction which will run throughout the rest of the field test. The double auction has been implemented in TypeScript and has been integrated into the blockchain platform. The implementation integrates the local utility company, the WEW Walenstadt, in the market by assigning all excess bids which cannot be filled with local supply or demand to the utility provider at existing tariffs. All of the blockchain nodes run the auction algorithm every 15 minutes to clear the market. To enable users to set their desired limit prices for the auction, we have implemented a price slider in the user interface in the WebApp described in section 5.

4 Blockchain design and technical implementation

4.1 Blockchain infrastructure

With the goal of a local peer-to-peer energy market in mind, we have built a system that is distributed and secured by the participants and beneficiaries of it. We have chosen a blockchain-based approach to allow for mutual validation of the correctness of transactions, computation, and settlement of the system without requiring a central authority. The system must be able to scale to larger numbers of participants. The core of the platform is built by its validator nodes, which are represented by the prosumers and the utility company and directly hosted on the smart-meter with integrated single-board computer. The user base is represented by the consumer nodes, which are clients of the prosumers and do not propose new blocks on their own. Consensus over the current state of the system is negotiated between the validating nodes using the Tendermint consensus protocol tendermint . Tendermint allows for replicated state machines to be kept between an arbitrary number of validators. Based on the tendermint protocol, self-sovereign and interoperable proof-of-stake systems can be constructed that do not require extensive electricity demand for block validation.

Every participant runs either a full or a light node to connect to the underlying blockchain, as well as the smart meter and agent modules. Both full and light node are hosted directly on a smart-meter with integrated single board computer. In order to offer services to the end-users, such as comprehensible information about consumption and production via external applications, a block explorer is available to query the system for addresses and transactions.

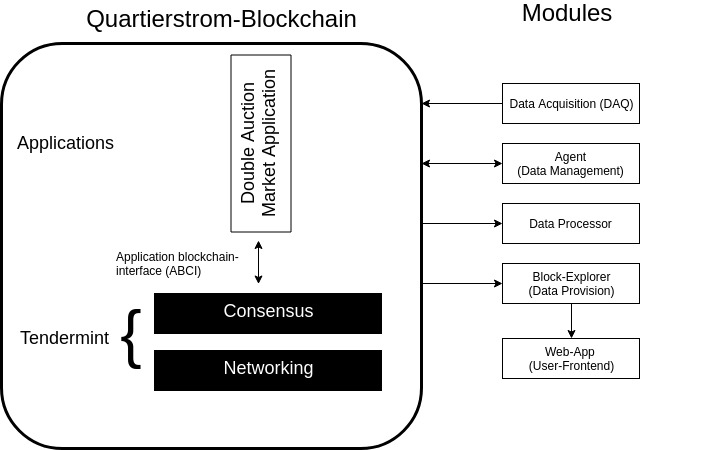

Figure 2: Platform and blockchain application structure

Figure 2 gives an overview of the platform and the fundamental modules and building blocks. We use Tendermint for consensus and networking. Any application can be hosted on top of Tendermint. The first application being implemented is the peer-to-peer (P2P) market application along with the modules that interact with the blockchain. The market application needs to be able to receive bid data from the participating nodes and execute functions, like clearing and settling, in a fixed interval. The functionality can be split up into four distinct parts of the system which are part of every participant of the system:

  • Data Acquisition: Smart meter and read-out application

  • Data Management: Agent and client application to process acquired data, issue transactions and manage signatures

  • Data Processing: Full / light node for execution and validation of platform applications and subscription to updates

  • Data Provision: Making data available for applications and user interfaces

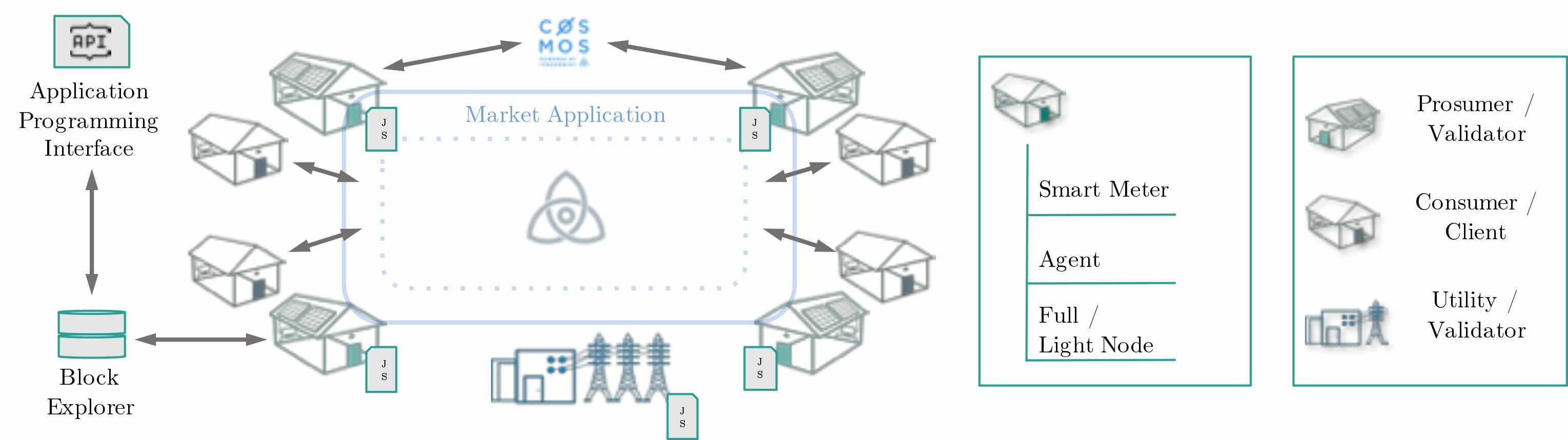

Figure 3: System overview. This figure shows the three categories of network participants: prosumers, consumers, and the utility company. The three modules for data acquisition (smart meter), data management (agent), and data processing (full/light) node are implemented on every smart meter of every participant.

Even though data acquisition is separate from a blockchain-based functionality, it is part of the chain of trust, as measurement data is the basis for settlements in the market application. The smart meters (Smartpis) are not only responsible for the data acquisition but host the P2P market application (i.e. the market application runs on the smart meter) as well as the Data Management and Processing functionalities of the platform.

In general, the availability of the platform and of its applications is vital to its operation: A centralized platform architecture requires that a server is always available (i.e. in operation), while the decentralized platform being built requires that at least 2/3 of non-malicious nodes are available (Byzantine fault tolerance property of Tendermint tendermint ) to perform validation for the platform to operate. The Byzantine fault tolerance property of the platform increases the resiliency of the system and allows nodes to continue safe operation even if no more than 2/3 of the nodes are offline or malicious. Such fault tolerant behavior is especially useful for nodes that control flexible assets, which in turn may be used in the future curtail solar energy or demand peaks to reduce loads and over voltages in the distribution grid.

With the goal of a local peer-to-peer energy market in mind, we have built a system that is distributed and secured by the participants and beneficiaries of it. We have chosen a blockchain-based approach to allow for mutual validation of the correctness of transactions, computation, and settlement of the system. The system must be able to scale to larger numbers of participants. As Figure 3 shows, the system consists of three different types of participants. The core of the platform is built by its validator nodes, which are represented by the prosumers and the utility company. The user base is represented by the consumer nodes, which are clients of the prosumers and do not propose new blocks on their own. Consensus over the current state of the system is negotiated between the validating nodes using the Tendermint consensus protocol. Tendermint allows for replicated state machines to be kept between an arbitrary number of validators. Every participant runs either a full or a light node to connect to the underlying blockchain, as well as the smart meter and agent modules. In order to offer services to the end-users, such as comprehensible information about consumption and production via external applications, a block explorer is available to query the system for addresses and transactions.

Data Management

The management of actions, such as sending out buy or sell orders or updating price preferences based on the acquired data, is handled on each of the end-users's devices. This functionality is separate from being a validator or just a subscriber to the system. The agent module performs the coordination of actions on the end-user's side of the system. While synchronizing with the blockchain and its regularly published blocks, this module contains information about the user's preferences, such as sell and buy prices, and follows a strategy according to its collected information. The strategy contains descriptions of the agent's objectives and issues buy or sell orders based on the current consumption and production. The modules in Figure 2 contain the schemes for data types as well as methods for composing and signing a transaction. The transaction scheme includes the sender’s public key as well the sender's address, similar to values typically found in most blockchain transactions. The module provides methods for generating new private keys, deriving public keys from existing private keys, as well as generating addresses from them, and uses the same Elliptic Curve Cryptography (ECC) curve as in Bitcoin (secp256k1). By using the SHA256 hash of a user’s public key as an address, we enable our transactions to have a unique identifier while preserving the privacy of a user by not being able to be traced.

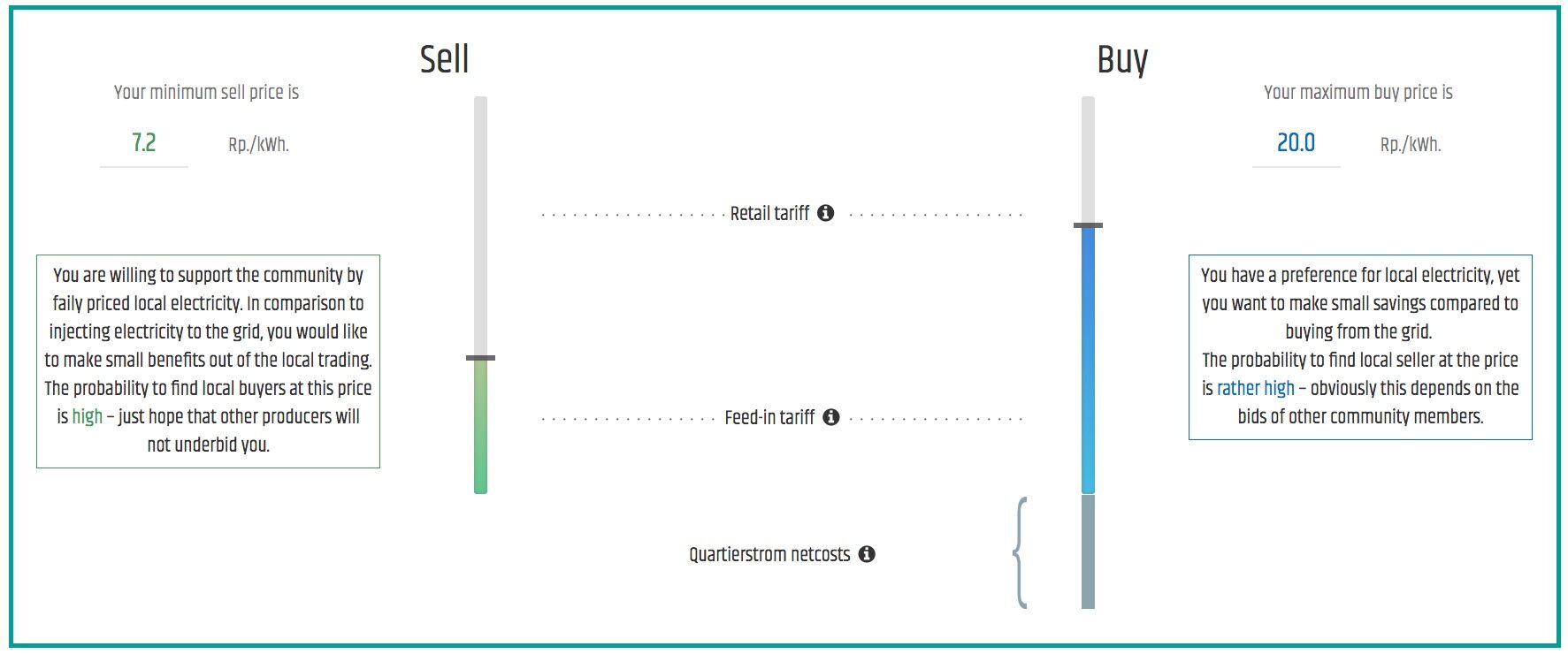

Figure 4: Price slider functionality in the web-app

Data Processing

The issuance and signature authority within the platform’s BFT based a proof-of-stake consensus mechanism is distributed to the utility company and prosumer participants. The Tendermint consensus protocol allows for high adaptability due to its Application Blockchain Interface (ABCI) universally available to any programming language. In addition, Tendermint offers a high amount of flexibility and customizability in order to adjust to particular application requirements such as: the reduction of communication, creation of empty blocks, and time delay between blocks. The initial decision to trust prosumers in the systems is based on the rationale that that these participants have already made an investment in the system (in the form of a PV system). While the current distribution of voting power is equal for every active validating node, future enhancements of the platform include an active staking mechanism to incorporate solar investment size while maintaining a valid equilibrium between the nodes. Blocks are issued either immediately after receiving incoming transactions or are created periodically. By checking all blocks via the BlockHandler, this self-triggering mechanism within the platform allows for automated actions as required by the market application. Incoming transactions are handled by the TransactionHandler according to their receiver and payload. When verifying the validity of a transaction, the node deserializes its contents, derives the address from its contained public key, and compares it with the given address. If the addresses match, the client hashes the contents of the transaction and verifies the transaction signature against the sender’s given public key. According to the receiver address and the data contained in the payload field of the transaction, the transaction handler forwards the information to the respective handlers of the application modules. In the case of the market application, the arrival of a transaction containing a sell- or buy-order triggers the addition of a new bid. This on demand-handling of incoming transactions provides an almost instant response to the clients in case of time critical transactions.

5 User interface

5.1 Users as key players in P2P energy markets

The end users of a P2P energy market are the key players in the kind of auction model described above. By signing up for participation in a local energy market, all participants can contribute to the sustainable energy production and its local consumption within the community (by buying and selling locally). With an active market participation by setting limits for buy prices or sell prices, users make use of their right of self-determination and participate in the pricing of local electricity. The latter requires a user interface (UI) that makes trading with the neighbors easy and attractive. While P2P electricity trading is currently widely discussed in research and practice, actual prototypes with user interfaces (UIs) of P2P energy are still very scarce. The start-up LO3 recently released their interface for the Brooklyn Microgrid lo3 . It primarily focuses on identifying roofs in the neighborhood to further expand the community, providing insights into energy data, and on defining the maximum amount users are willing to spend for electricity. Some other start-up projects in the field claim to also develop UIs for P2P electricity trading, but so far have not released them to the public. A recent project in Human-Computer-Interaction research (HCI) explores the potential of energy transaction data; in addition to providing feedback to consumers on their electricity consumption, the projects visualizes the origin of the electricity in a spatial representation meeuw2018lokalpower . However, the UI was not actually used in the field and potential users emphasized the importance of privacy in a location-based approach.

5.2 Development and presentation of the UI

In the development of the Quartierstrom UI, we started from the user perspective, collecting specific user needs from which we derived design implications. The user needs were collected in so-called focus groups, a form of group interview to which we invited prosumers and consumers separately. Focus groups offer in-depth qualitative insights into the user perspective and benefit from interactions between participants. Especially the latter is important in the energy context: in contrast to surveys which are usually answered in isolation, the surrounding atmosphere of focus groups might in particular encourage participants who are less knowledgeable or who are not particularly interested in energy topics to start forming an opinion and expressing perceived benefits and barriers. After all, energy is a challenging topic for user engagement: it is invisible, intangible, and a commodity taken for granted; consequently, the topic is not so relevant to most consumers.

From the workshop results, we derived the four key functionalities and design principles for user interfaces of P2P energy markets as listed in Table 1

Nr. Domain-specific functionalities (DSF) General design principles
DSF1 Empower users to set a P2P price Highlight value proposition of P2P electricity
DSF2 Provide transparency in electricity consumption and production Design for ease-of-use
DSF3 Provide financial transparency Tailor content to information needs
DSF4 Enable community relatedness Have a strategy for continuous usage
Table 1: Listing of domain specific functionalities (DSF) and general design principles

Based on these core functionalities and design principles, we developed wireframes, reviewed them in our team and discussed them with industry experts. As interface type, we chose a webapp which is easily accessible through all standard web browsers. The webapp itself is based on 's Flask library, a bootstrap dashboard template that we adapted heavily for our purposes and customized HTML and Javascript code. In the following we present a sneak preview of the user interface:

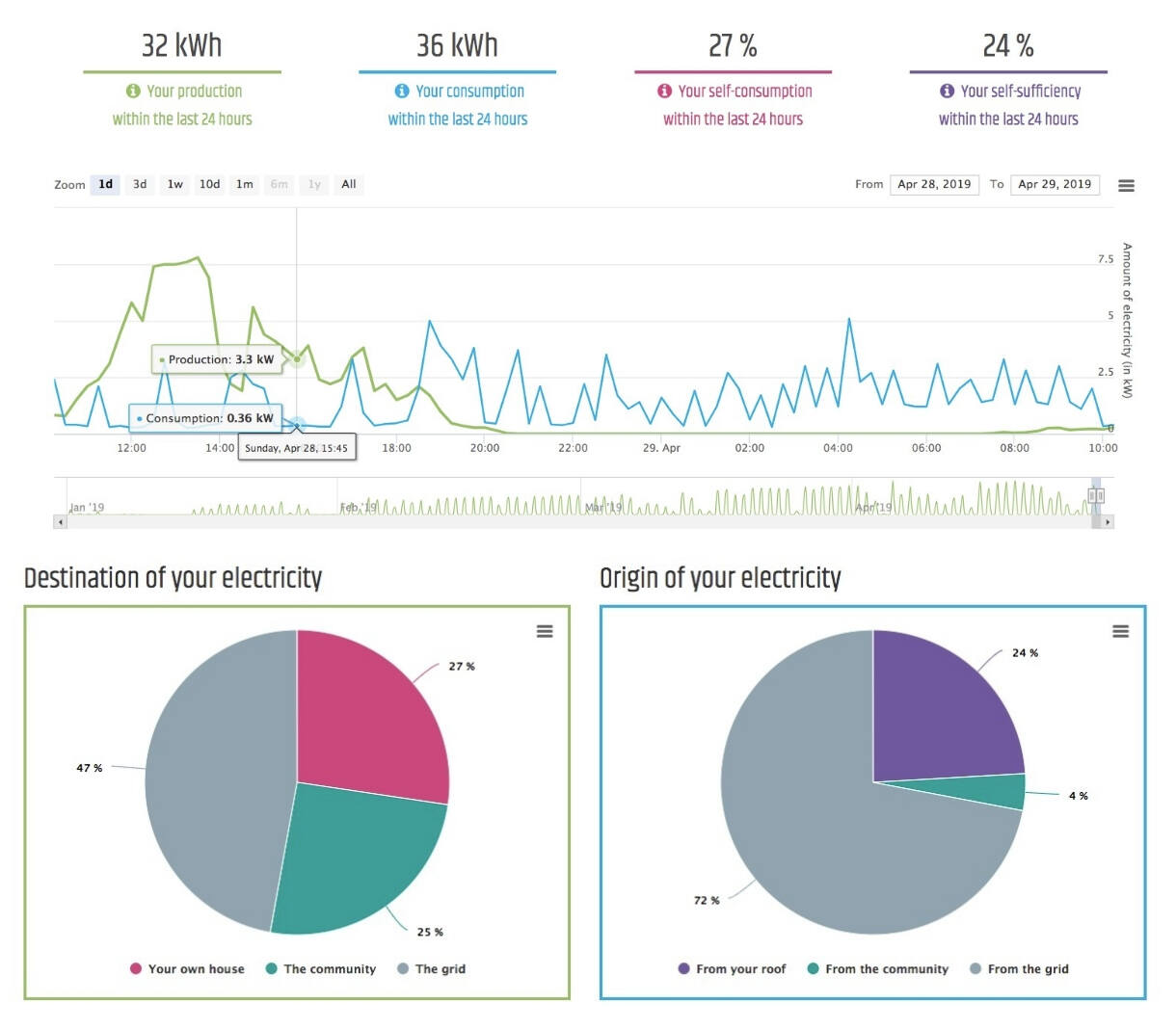

Figure 5: Personal energy data

The price sliders

(DSF1) Quartierstrom grants its users a right of self-determination and enables them to participate in the pricing of local electricity. Prosumers set a minimum limit for selling electricity to their neighbors (green slider) and indicate Pythontheir willingness to buy local electricity from their neighbors (blue slider). Consumers set only their maximum purchase price. Information boxes next to the sliders inform users about the probability of selling, resp. buying electricity locally based on their price limits. The limits are active until the users changes them. Every 15 minutes, the agent transforms the user’s limits in combination with the electricity consumption measured by the smart meters into a bid on the local energy market. Buyer and seller are matched, payment is settled and the transaction is broadcast to the network.

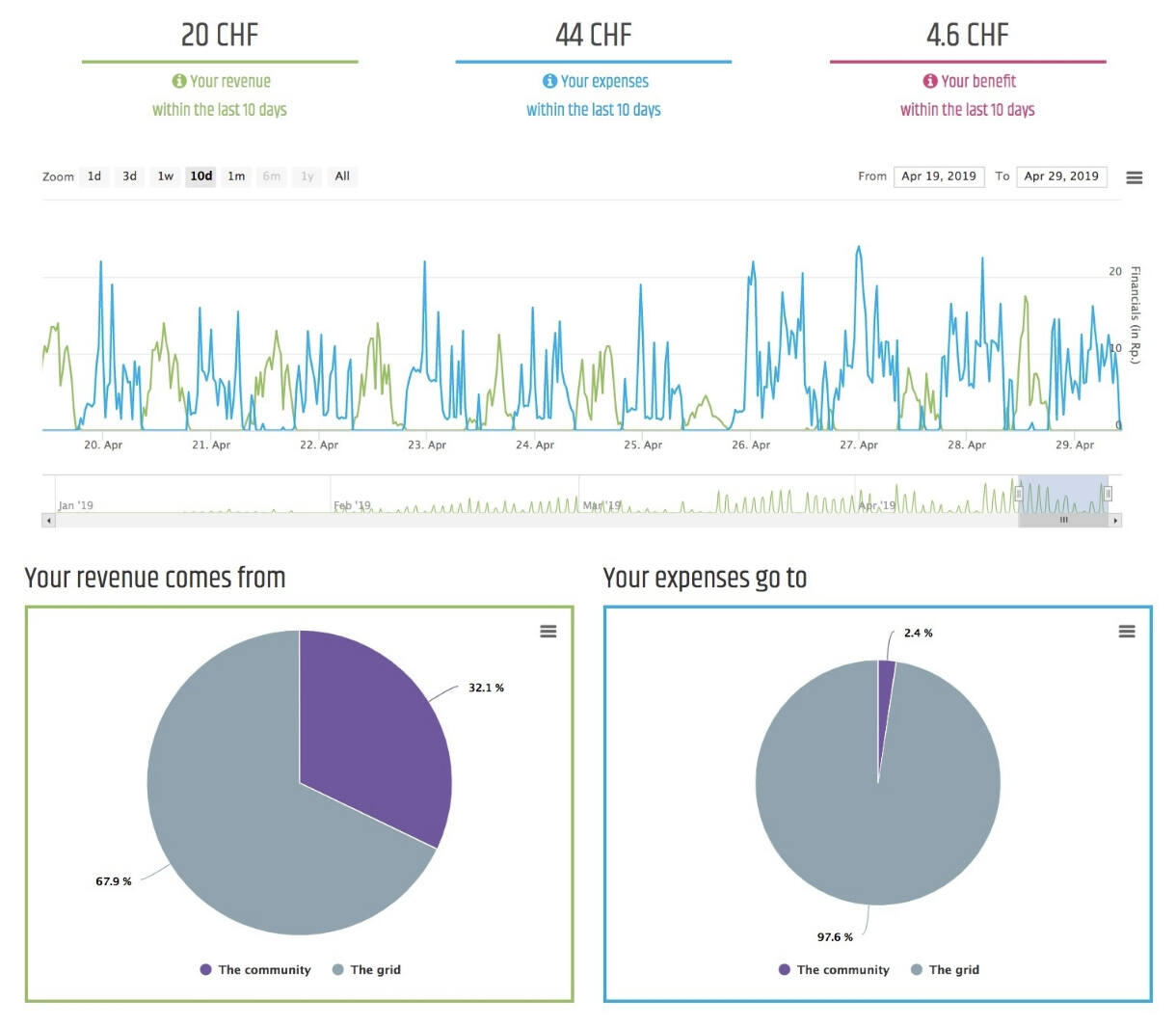

Figure 6: Financial data

Insights into personal energy data (DSF2) Users are provided with real-time and historic information on their electricity production (green) and demand (blue). A time series graph is accompanied by summary key performance indices (KPIs) on production, demand, ratio, self-consumption and self-sufficiency ratio. Both, the graph and the KPIs are interactive on mouse-overs and update with the adjustment of the timeframe. Users can choose timeframes at given intervals (buttons on the left side), with a calendar feature (right) or a zoom band (below).


Insights into financial data (DSF3) Quartierstrom furthermore provides users with insights into their finance situation related to selling own electricity and covering demand by buying from the neighborhood or the grid. Revenue is in green, costs in blue and the financial benefit of Quartierstrom in pink. Again, users can adjust the timeframe considered according to their preferences.


Insights into community-level energy data (DSF4) The webapp further provides users with insights on energy data at the community level. This allows users to estimate their own contribution and to derive whether the community is self-sufficient or needs to buy electricity from the grid to cover its demand.

The webapp is currently being tested in the field with 37 households. First tracking data indicates that almost all participating households actually opened an account and most of them log in quite frequently to either retrieve insights into their data or to adjust price limits. In addition to the webapp, participants receive monthly reports by email to inform them and to remind them of the ongoing project. More insights will be available in the course of the project.

6 Conclusion and outlook

The present article introduces the conceptual idea behind the Quartierstrom project as well as some details on the implementation. Most of the conceptualization, development and implementation in the field has been tackled throughout 2018. The developed blockchain platform with integrated double auction application and its user interface has been launched in January 2019 and is now operational for one calendar year. Within this period consumption, production and trading data will be collected and analysed. The quantitative data collection is accompanied with surveys and interviews of participants to gain insights about user preference and general acceptance of the system.

As of the second half of the calendar year 2019, battery systems will be integrated to optimize the energy flows at the community level rather than on the household level. Controlling batteries at the community level shall demonstrate an increase in self-consumption and self-sufficiency of the entire community and provide a more effective way to integrate costly batteries.
