I Introduction
Nowadays, the development of quantum computers is experiencing a major boost, since tech giants entered the quantum race. In November 2017 IBM built and tested a 50qubits processor, in March 2018 Google announced a 72qubits processor, and other big players, like Intel and Alibaba, are actively working on doubledigitqubits proofofconcepts. Meanwhile, in April 2017 the European Commission launched a tenyears 1 €billion flagship project to boost European quantum technologies research. And in June 2017 China successfully tested a 1200 km quantum link between satellite Micius and ground stations.
Such a race in building quantum computers is not surprising, given their potential to completely change markets and industries  such as commerce, intelligence, military affairs [1, 2, 3]
. In fact, a quantum computer can tackle classes of problems that choke conventional machines, such as molecular and chemical reaction simulations, optimization in manufacturing and supply chains, financial modelling, machine learning and enhanced security.
The building block of a quantum computer is the quantum bit (qubit), describing a discrete twolevel quantum state as detailed in the next section. By oversimplifying, the computing power of a quantum computer scales exponentially with the number of qubits that can be embedded and interconnected within [4, 1, 3]. The greater is the number of qubits, the harder is the problem that can be solved by a quantum computer. For instance, solving some fundamental chemistry problems is expected to require^{1}^{1}1Qubit redundancy is mandatory due to the unavoidable presence of an external noisy environment. “hundreds of thousands or millions of interconnected qubits, in order to correct errors that arise from noise” [4].
Quantum technologies are still far away from this ambitious goal. In fact, so far, although the quantum chips storing the qubits are quite small, with dimensions comparable to classical chips, they usually require to be confined into specialized laboratories hosting the bulked equipment – such as large near absolutezero cooling systems – necessary to preserve the coherence of the quantum states. And the challenges for controlling, interconnecting, and preserving the qubits get harder and harder as the number of qubits increases. Currently, the stateoftheart of the quantum technologies limits this number to double digits (IBM 50qubits and Google 72qubits).
Hence, very recently, the Quantum Internet has been proposed as the key strategy to significantly scale up the number of qubits [1, 3]. Specifically, by interconnecting multiple quantum devices via a quantum network, i.e., through a network able to share quantum information among remote nodes, and by adopting a distributed paradigm, the Quantum Internet builds up a virtual quantum machine constituted by a number of qubits that scales with the number of interconnected remote devices. This, in turn, implies an exponential speedup of the quantum computing power [1].
From an engineering communication perspective, the design of the Quantum Internet constitutes a breakthrough. In fact, a quantum network is governed by the laws of quantum mechanics. Hence, phenomena with no counterpart in classical networks – such as nocloning, quantum measurement, entanglement and teleporting – imposes terrific constraints for the network design. As instance, classical network functionalities, such as errorcontrol mechanisms (e.g., ARQ) or overheadcontrol strategies (e.g., caching), are based on the assumption that classical information can be safely read and copied. But this assumption does not hold in a quantum network. As a consequence, the design of a quantum network requires a major paradigm shift to harness the key peculiarities of quantum information transmission, i.e., entanglement and teleportation.
The goal of this paper is to shed light on the challenges in designing a quantum network. Specifically, we first introduce some basic knowledges of quantum mechanics – superposition principle, nocloning theorem, quantum measurement postulate and entanglement – needed to understand the differences between a classical and a quantum network. Then, we focus on quantum teleportation as the key strategy for transmitting quantum information without either the physical transfer of the particle storing the quantum information or the violation of the quantum mechanics principles. Finally, we draw the key research challenges related to the design of a quantum network.
Ii Quantum Mechanics Background
In this section, we briefly review some quantum mechanics postulates and principles needed to understand the challenges behind the design of a quantum network.
A quantum bit, or qubit, describes a discrete^{2}^{2}2At nanoscale, physical phenomena is described by discrete quantities, such as the energy levels of electrons in atoms or the horizontal/vertical polarization of a photon. This discrete nature contrasts with classical phenomena, which is commonly described by continuous quantities. twolevel quantum state, which can assume two (orthogonal) basis states: the zero (or ground state) and the one (or excited state), usually denoted^{3}^{3}3The braket notation , introduced by Dirac, is a standard notion for describing quantum states. In a nutshell, a ket
represents a column vector, hence the standard basis
is equivalent to a couple of 2dimensional orthonormal vectors.
as and . As instance, if we represent the state of a photon with a qubit, the two basis states represent the horizontal and the vertical polarization of the photon, respectively.Iia Superposition Principle
As widely known, a classical bit encodes one of two mutually exclusive states, being in only one state at any time. Conversely, a qubit can be in a superposition of the two basis states, being so simultaneously zero and one at a certain time. As instance, a photon with degrees of polarization is described by a superposed qubit, with an even amount of zero and one, being simultaneously horizontally and vertically polarized.
Hence according to the superposition principle, qubits can simultaneously encode all the possible states at once. Differently, classical bits can encode only one of possible states at a certain time.
IiB Quantum Measurement
According to one of the quantum mechanics postulates, whenever a measurement can have more than one outcome, as is the case for the two possible states of a qubit, after the measurement the original quantum state collapses in the measured state. Hence, the measurement alters irreversibly the original qubit state [5]
. And, the result of such a measurement is probabilistic, since one obtains either the state zero or the state one, with a probability depending on the
amount of zero and one in the original superposed quantum state. For instance, if the outcome of measuring a superposed qubit is the state zero, the qubit collapses into such a state and any further measurement will give zero as outcome, independently of the original amount of one in the superposed state.As a consequence, although a qubit can store more than one classical bit of information thanks to the superposition principle, by measuring a qubit, only one bit of information can be obtained.
The measurement postulate has deep implications on the quantum network design as described in Sec. IV. In fact, we can not share quantum states among remote quantum devices by simply measuring the qubits and transmitting the measurement outcomes. Instead, we must share qubits among remote devices without measuring them by exploiting a fundamental quantum mechanics property: the entanglement.
IiC Nocloning theorem
The nocloning theorem states that an unknown qubit cannot be cloned.
The nocloning theorem is a direct consequence of the properties of the transformations allowed in quantum mechanics. Specifically, nature does not allow arbitrary transformations of a quantum system. Nature forces these transformations to be unitary. The linearity of unitary transformations alone implies the nocloning theorem [5].
The nocloning theorem has critical consequences from a communication engineering perspective, since classical communication functionalities are based on the assumption to be able to safely copy the information. This in turn deeply affects the quantum network design, as pointed out in Sec. IV.
IiD Entanglement
The deepest difference between classical and quantum mechanics lays in the concept of quantum entanglement
, a sort of correlation with no counterpart in the classical word. In a nutshell, the entanglement is a special case of superposition of multiple qubits where the overall quantum state can not be described in terms (or as a tensor product) of the quantum states of the single qubits.
To better understand the entanglement concept, let us consider Figure 1, showing a couple of maximally entangled qubits, referred to as EPR pair^{4}^{4}4A couple of maximally entangled qubits is called EPR pair in honor of an article written by Einstein, Podolsky, and Rosen in 1935.. The couple of qubits forming the EPR pair are in a superposed state, with an even amount of zero and one. By measuring each of the two qubits independently, one obtains a random distribution of zero and one outcomes with equal probability. However, if the results of the two independent measurements are compared, one observes that every time that the measurement of qubit A yielded zero so did the measurement of qubit B, and the same happened with the outcome 1. Indeed, according to quantum mechanics as soon as one of the two qubits is measured the state of the other is instantaneously fixed.
This quantum entanglement behavior induced Einstein and his colleagues to the socalled EPR paradox: the measurement of one qubit instantaneously changes the state of the second qubit, regardless of the distance dividing the two qubits. This seems involving information being transmitted faster than light, violating so the Relativity Theory. But the paradox is apparent, since entanglement does not allow to transmit information faster than light, as shown in Sec. IIIA.
Iii Quantum Communications
So far, quantum communications have been widely restricted to a synonymous of a specific application, e.g. Quantum Key Distribution (QKD) [5]. QKD is a cryptographic protocol enabling two parties to produce a shared random secret key by relying on the principles of quantum mechanics, either quantum measurement or entanglement. However, in a QKD system, quantum mechanics plays a role only during the creation of the encryption key: the encrypted information subsequently transmitted is entirely classical. Similarly, superdense coding [5] is a communication protocol enabling two parties to enhance the transmission of classical information through a quantum channel, i.e., to exchange two bits of classical information by exchanging a single qubit. Both QKD and superdense coding exploit quantum mechanics to convey classical information.
Differently, as shown in Table I, the Quantum Internet relies on the ability to share quantum states among remote nodes. However, quantum mechanics restricts a qubit from being copied or safely measured. Hence, although a photon can encode a qubit and it can be directly transmitted to a remote node, e.g., via a fiber link, if the traveling photon is lost due to attenuation or corrupted by noise, the quantum information is definitely destroyed. This quantum information can not be recovered via a measuring process and/or a copy of the original information, due to the measuring postulate and the nocloning theorem. As a consequence, the direct transmissions of qubits via photons is not feasible and quantum teleportation, described in the following, must be employed.
Iiia Quantum Teleportation
Quantum Teleportation [6] provides an invaluable strategy for transmitting qubits without either the physical transfer of the particle storing the qubit or the violation of the quantum mechanics principles. Indeed, with just local operations, referred to as Bell^{5}^{5}5So called from John S. Bell who, in 1964, proposed a physical test of the EPR paradox.State Measurement (BSM)^{6}^{6}6We emphasize that a solid strategy for a complete BSM with arbitrary photon states is not yet available., and an EPR pair shared between source and destination, quantum teleportation allows one to “transmit” an unknown quantum state between two remotes quantum devices.
Differently from what the name seems to suggest, quantum teleportation implies the destruction of both the original qubit (encoding the quantum information to be transmitted) and the entanglementpair member at the source, as a consequence of a measurement operation. Then, the original qubit is reconstructed at the destination once the output of the BSM at the source – 2 classical bits – is received through a classical channel.

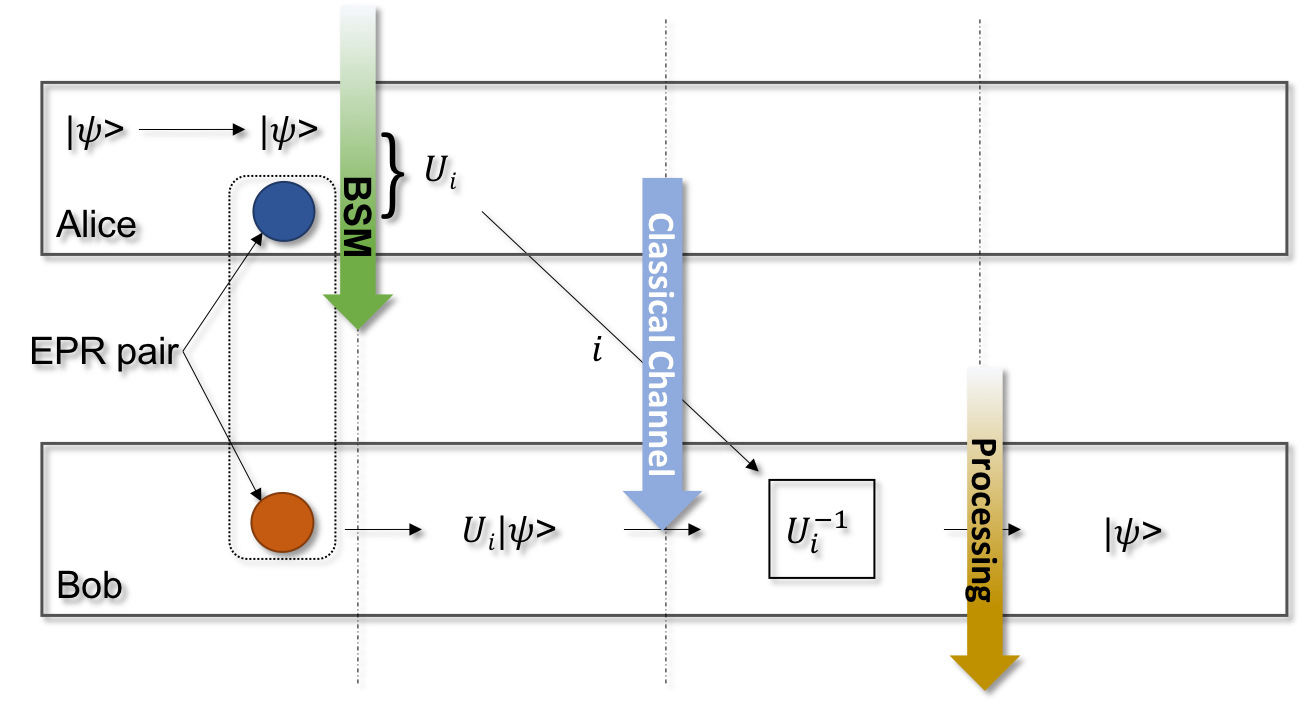

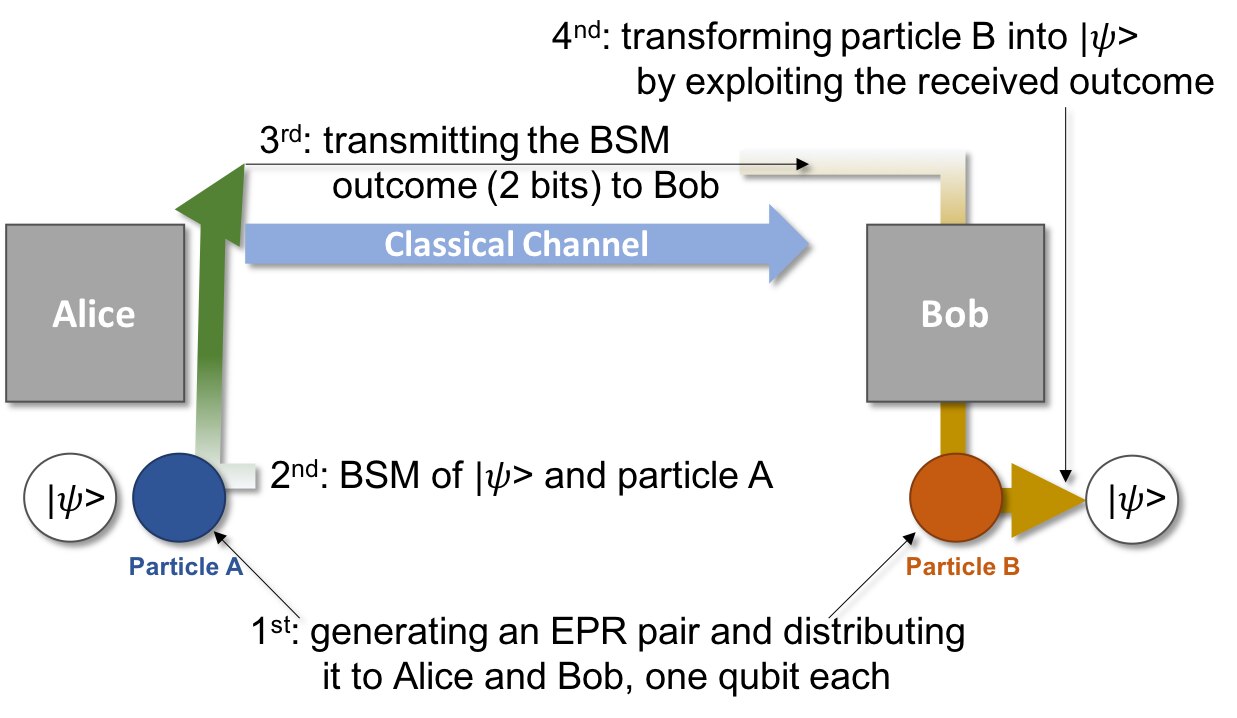

The teleportation process of a single qubit is summarized in Figure 2. In a nutshell, it requires: i) the generation and the distribution of an EPR pair between the source and destination, ii) a classical communication channel for sending the two classical bits resulting from the BSM measurement. Hence, it is worth noting that the integration of classical and quantum resources is a crucial issue for quantum networks.
Regarding the EPR pair, the measurement at the source side destroys the entanglement. Hence, if another qubit needs to be teleported, a new EPR pair must be created and distributed between the source and the destination.
Iv Quantum Network Design: Challenges and Open Problems
In this Section, we discuss the key research challenges and open problems related to the design of a quantum network, which harnesses quantum phenomena with nocounterpart in the classical reality, such as entanglement and teleportation, to share quantum states among remote quantum devices.
Iva Decoherence and Fidelity
Qubits are very fragile: any interaction of a qubit with the environment causes decoherence, i.e., a loss of information from the qubit to the environment as time passes.
Clearly, a perfectlyisolated qubit preserves its quantum state indefinitely. However, isolation is hard to achieve in practice given the current maturity of quantum technologies. Furthermore, perfect isolation is not desirable, since computation and communication require to interact with the qubits, e.g., for reading/writing operations.
Decoherence is generally quantified through decoherence times, whose values largely depend on the adopted technology for implementing qubits. For qubits realized with superconducting circuits^{7}^{7}7Superconducting qubits are based on Josephson tunneling junctions, which allow for a flow of electrons with a practically zero resistance between two superconductor layers. Under certain conditions, current can flow in both the directions, i.e., in a superposition of two states. As the two states are very close energetically, low temperatures (20 mK) are needed to avoid thermal fluctuations [7]., the decoherence times exhibit order of magnitude within s [7, 8]. Although a gradual decrease of the decoherence times is expected with the progress of the quantum technologies, the design of a quantum network must carefully account for the time constraints imposed by the quantum decoherence.
Decoherence is not the only source of errors. Errors practically arise with any operation on a quantum state due to imperfections and random fluctuations. Here, a fundamental figure of merit is the quantum fidelity. The fidelity is a measure of the distinguishability of two quantum states, taking values between 0 and 1. The larger is the imperfection of the physical implementation of an arbitrary quantum operation, the lower is the fidelity. Since teleportation consists of a sequence of operations on quantum states, the imperfection of such operations affects the fidelity of the “transmitted” qubit.
From a communication engineering perspective, the joint modeling of the errors induced by the quantum operations together with those induced by entanglement generation/distribution (as described in the next subsection) is still an open problem.
Furthermore, the nocloning theorem prevents the adoption in quantum networks of classical error correction techniques, which depend on information cloning, to preserve quantum information against decoherence and imperfect operations. Recently, many quantum error correction techniques have been proposed as in [9]. However, further research is needed. In fact, quantum error correction techniques must handle not only bitflip errors, but also phaseflip errors, as well as simultaneous bit and phaseflip errors. Differently, in the classical domain, a single type of error, i.e., the bitflip error, has to be considered.
From the above, the counteraction of the errors induced by decoherence and imperfect quantum operations in a quantum network is a functionality embracing aspects that traditionally belong to the physical layer of the classical network stack.
IvB Entanglement Distribution
According to the quantum teleportation protocol, as in classical communication networks, the “transmission” of quantum information is limited by the classical bit throughput, necessary to transmit the output of the BSM outcome. But, differently from classical networks, the “transmission” of quantum information is achievable only if an EPR pair can be distributed between remote nodes.
Longdistance entanglement distribution – although deeply investigated by the physics community in the last twenty years – still constitutes a key issue due to the decay of the entanglement distribution rate as a function of the distance.
There is a global consensus toward the use of photons as entanglement carriers, i.e., as candidates to generate entangled pairs among remote devices. Figure 3 reports a possible strategy for entanglement distribution and we refer the reader to [10] for a survey. Entanglement distribution is achieved through Quantum Repeaters [11], i.e. devices that implement a physical process known as entanglement swapping [11]. In practice, two EPR pairs are generated with source (Alice in Figure 3) and destination (Bob in Figure 3) receiving one element of each pair while the other two are sent to an intermediate node (the Quantum Repeater in Figure 3). By performing a BSM on the two entangled particles at the intermediate node, entanglement is created between the elements at the remote nodes. The process does not require the elements of the two pairs to have the same nature, therefore it can be used to distribute entanglement between two remotely located atoms or ions or to enhance the useful distance for the distribution of entangled photons. Hence, instead of distributing the entanglement over a long link, the entanglement is distributed iteratively through smaller links.
Despite these efforts, further research is needed. Specifically, from a communication engineering perspective, the entanglement distribution is a key functionality of a quantum network embracing aspects belonging to different layers of the classical network stack. More in detail:

Physical Layer. The entanglement is a perishable resource. Indeed, due to the inevitable interactions with the external environment, the entanglement among entangled parties is progressively lost over time. Entanglement losses deeply affect the quality of the teleportation process. For the reasons highlighted in the previous subsection, classical error correction techniques cannot be used to counteract these losses. Hence, robust entanglement distribution techniques based on quantum error correction are mandatory for the deployment of a quantum network. This still represents a very hard challenge in this field.

Link Layer: The nobroadcasting theorem, a corollary of the nocloning theorem, prevents quantum information from being transmitted to more than a single destination. This is a fundamental difference with respect to classical networks, where broadcasting is widely exploited for implementing several layer2 and 3 functionalities, such as medium access control and route discovery. As a consequence, the link layer must be carefully rethought and redesigned to distribute the entanglement among multiple quantum devices. Furthermore, effective multiplexing techniques for quantum networks should be designed to allow multiple quantum devices to be connected to a single quantum channel (e.g. a fiber), and the access to the medium could be based on photonfrequencydivision for the entanglement distribution.

Network Layer: The entanglement distribution determines the connectivity of a quantum network in term of capability to perform the teleporting among the involved quantum devices. Hence, novel quantum routing metrics are needed for effective entanglementaware path selection. Furthermore, the teleportation process destroys the entanglement as a consequence of the BSM at the source side. Hence, if another qubit needs to be teleported, a new entangled pair needs to be created and distributed between the source and the destination. This constraint has nocounterpart in classical networks and it must be carefully accounted for an effective design of the network layer.
IvC MatterFlying Interface

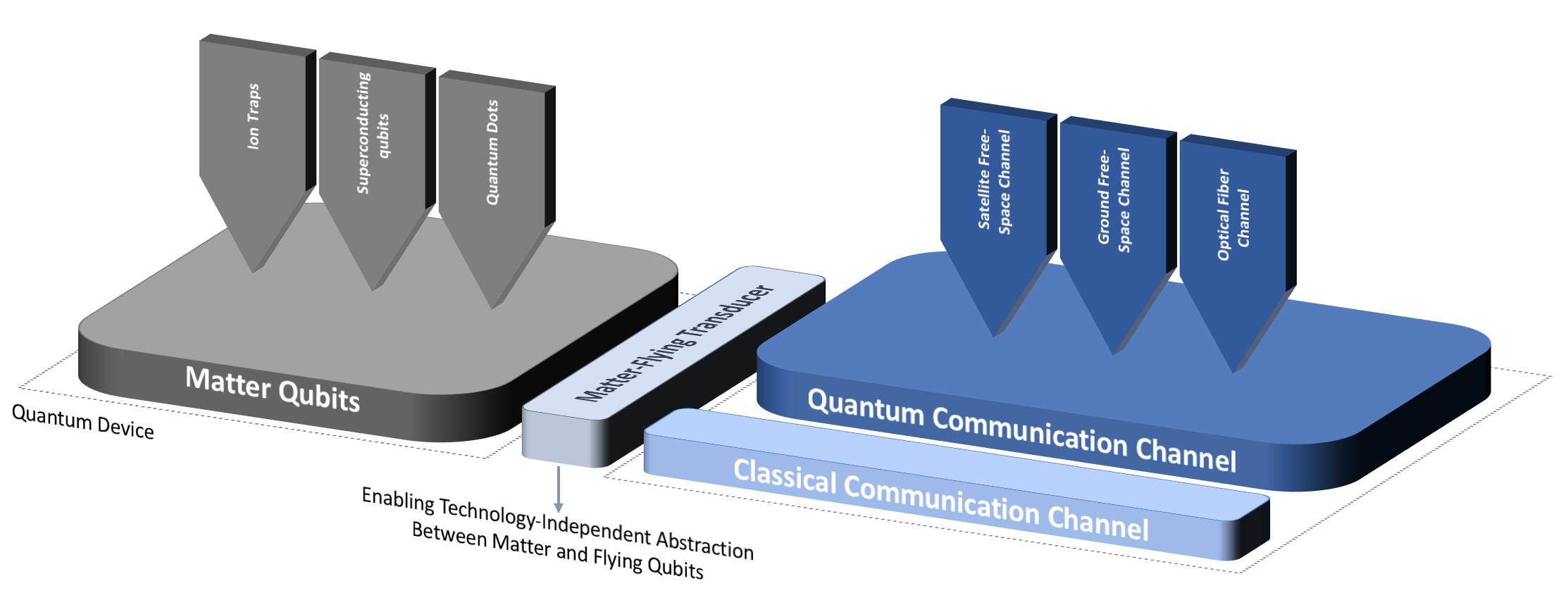

As mentioned before, there exists a general consensus about the adoption of photons as substrate for the socalled flying qubits, i.e., as entanglement carriers. The rationale for this choice lays in the advantages provided by photons for entanglement distribution: weak interaction with the environment (thus, reduced decoherence), easy control with standard optical components as well as highspeed lowloss transmissions.
The aim of the flying qubits is to “transport” qubits out of the physical quantum devices through the network for conveying quantum information from the sender to the receiver. Hence, as shown in Figure 4, a transducer [12] is needed to convert a matter qubit, i.e., a qubit for information processing/storing within a computing device, in a flying qubit, which creates entanglement among remote nodes of the network.
Nowadays, there exist multiple technologies for realizing a matter qubit (quantum dots, trasmon, ion traps, etc) and each technology is characterized by different pros and cons, as surveyed in [13]. As a consequence, a matterflying interface is required to face with this technology diversity.
Moreover, from a communication engineering perspective, the interface should be compatible also with the peculiarities of the physical channels the flying qubits propagate through. In fact, there exist different physical channels for transmitting flying qubits, ranging from freespace optical channels (either ground or satellite freespace) to optical fiber channels.
In the last ten years, the physics community has been quite active on investigating schemes and technologies enabling such an interface, with an heterogeneity of solutions [12, 14] ranging from cavities for atomic qubits to optomechanical transducers for superconducting qubits.
As a consequence, the communication engineering community should join these efforts by designing communication models that account both the technology diversity in fabricating qubits and the propagation diversity in characterizing the different physical channels.
IvD Deployment Challenges
Quantum Internet is probably still a concept far from a real world implementation, but it is possible to outline a few deployment challenges for the near future.

The current technological limits to qubits and quantum processors physical realizations:
At first, quantum computers will be available in few, highly specialized, data centers capable of providing the challenging equipment needed for quantum computers (ultrahigh vacuum systems or ultra low temperature cryostats). Companies and users will be able to access quantum computing power as a service via cloud. Indeed, the quantum cloud market is estimated nearly half of the whole 10 billion quantum computing market by 2024
[15]. IBM is already allowing researchers around the world to practice quantum algorithm design through a classical cloud access to isolated 5, 16 and 20qubits quantum devices.
Existing technological limits to quantum communication and quantum interfaces:
The first realizations of a Quantum Internet will be small clusters of quantum processors within a data center. Architectures will have to take into account the high cost of data buses (economically and in term of quantum fidelity) limiting both the size of the clusters and the use of connections for processing.
Hybrid architectures will probably be used for connections faring both the use of cryocables (expensive and necessarily limited in length) and of optical fibers or free space photonic links.

Given the fragile nature of quantum entanglement and the challenges posed by the sharing of quantum resources, a substantial amount of conceptual work will be needed in the development both of novel networking protocols and of quantum and classical algorithms.
In conclusion, the Quantum Internet, though still in its infancy, is a very interesting new concept where a whole new set of novel ideas and tools at the border between quantum physics, computer and telecommunications engineering will be needed for the successful development of the field.
