1 Introduction

Digital ecosystems built around artefact repositories are important cornerstones for global-scale service delivery in which software developers, platform operators and service end users are often assuming overlapping roles. Cloud computing has emerged as one of the principal computing paradigms to build such ecosystems and therefore bring advances to society through collaborative work Jeffery (2018).

On a technological level, innovations in cloud computing are driven by two main forces. Singular commercial cloud service providers which regularly create unique selling points for their offerings Arnold et al. (2016), and open source stacks which through multiplicity in various deployments and commercial enhancements achieve a broad impact and a high de-facto standardisation and research enablement potential Cherrueau et al. (2017). In recent years, such stacks have included OpenStack, OpenNebula, Docker and Kubernetes with correspondingly high numbers of related publications, often with direct practical impact Elia et al. (2017); Gracia et al. (2017); Anwar et al. (2018). In these frameworks, services are increasingly composed of smaller executable software entities which are choreographed and orchestrated into larger units.

The trend towards the construction of composite applications based on microservices has led to the need to represent the composition itself as tangible entity. In analogy to popular mobile phone apps, the compositions would appear as user-facing cloud apps. Previous approaches have included executable business processes, container composition files and sets of deployment descriptor files. All three approaches have proven to be limited concerning the tangible representation.

Business process execution in the XML format of BPEL (Business Process Execution Language) merely defines interaction protocols of available services without defining how to make the services available Rouis et al. (2017), a severe gap given the requirements of service placement, service replication and adaptive decisions about dependency services. Container composition files in the Docker Compose format cover the instantiation of containers but do not directly support service semantics. Containers may offer zero, one or more services. Furthermore, resource allocation constraints are not considered in this format. Descriptor files in the Kubernetes format mitigate this limitation but due to a multitude of deployment and service descriptors lead to redundant values and more difficult handling. Thus, Kubernetes apps would require a higher-level treatment.

To overcome the limitation in Kubernetes stacks, Helm has been proposed in mid-2016 by practitioners as solution to package sets of descriptor files, including templates and rich metadata, into single archive files which can be deployed and undeployed easily. Helm therefore defines a packaging file format, called Helm Charts, as well as client and server components to handle such files. On the server side, the Tiller implementation is deployed on top of Kubernetes, and on the client side, the Helm binary allows for creation, testing and deployment of charts as well as searching across repositories. The format of Helm charts is specified informally through an evolving technology documentation111Helm charts format: https://docs.helm.sh/developing_charts/.

Considering that Helm charts increasingly form the building blocks of complex cloud software, insisting strictly on their quality is essential to avoid a propagation of the quality issues into the software development process. Helm already defines a lint command to check for quality issues in charts. However, the linting is limited to well-formedness. According to quality standards, well-formedness is a necessary although insufficient prerequisite for validity and furthermore does not imply that format expressions are optimal. Moreover, the linting is confined to single charts and does not perform cross-package checks which are essential as soon as dependencies are involved Caneill et al. (2017). Hence, a deeper analytical inspection of Helm charts and potential issues is required.

In this paper, we contribute the first such analysis along with enabling quality assessment software. Specifically, we formalise aspects of Helm charts, provide insights into the current Helm ecosystem as well as the quality of individual charts, quantify and visualise associated artefact and community metrics, and identify insufficiencies. Moreover, we report on our empirical approach to improve the charts quality over a longer period of time. We claim that the integration of our quality checks into the lint command and into the chart submission process would lead to overall improvements of present and future Helm charts. To enable this evolution, we provide reference checks as open source software called HelmQA which integrates into the development workflow for cloud apps.

2 Analysis

We first study the KubeApps Hub repository which is the official site to retrieve Helm charts, both as a user-facing website and as a programmable endpoint used by the Helm implementation. Helm itself can be considered a fairly mature implementation with two years of development time and around 4400 code commits, which is however relative to Kubernetes’ 70000 commits over an only slightly longer period of time. On the other hand, the hub has emerged later and has received around 670 commits since October 2017 which implies an active albeit ongoing implementation222Based on GitHub projects: kubernetes/helm, kubernetes/kubernetes, kubeapps/kubeapps.

The hub repository is divided into a stable and an incubator section which are subdivided into apps with technical representation as charts. Fig. 1 formally defines the entities and relationships for digital objects of interest on KubeApps Hub. This entity-relationship model serves as basis for all following analysis steps.

Figure 1: Entity-relationship diagram for KubeApps Hub

A snapshot of May 15 2018, the starting point of our study, reveals the presence of 188 apps overall. Among them are 153 stable apps which are of interest to our study as well as 35 incubator apps which, due to frequent changes and trials, will be discarded from our preliminary analysis. Due to occasional multi-versioning, 177 stable charts are present, resulting in a versioning overhead of 15.7%.

Evidently, not all charts are registered at KubeApps Hub. Owing to the popularity of GitHub, we include it as second data point to complement the view on charts with decentralised and less quality-controlled charts. A custom search for charts in May 2018 yields 24560 hits. Due to search API restrictions, only the first 1000 of those are sampled. They are distributed across 572 repositories, giving an average of 1.75 charts and a maximum of 31 charts per repository. A further sampling takes place for a detailed analysis in which all repositories containing at least 10 charts as threshold value are included, giving a subset of 7 repositories and 134 hits. Due to test files and other sources of imprecision, eventually a set of 115 distinct charts is contained in the subset. Any overlap with KubeApps Hub has not been checked but can be considered insignificant; rather, many charts found in GitHub can be considered forks of others which implies a much smaller number of stem charts.

We make use of visual directed graph representations as well as scripted quality checks to achieve quantified analytical results which will be outlined in the next paragraphs based on the mid-May 2018 data acquisition. Many of the graphs included in this paper are directly produced by the scripts. Along with reference results they are available as re-usable open source software package named HelmQA333HelmQA code repository: https://github.com/serviceprototypinglab/helmqa.

2.1 Maintenance insights

Helm charts consist of a meta information file (Chart.yaml), a directory of Kubernetes deployment descriptors supporting a template syntax for value substitution (templates/), a single file with substitution values (values.yaml) as well as dependency information (requirements.txt, charts/) Templates are descriptive YAML files mixed with imperative Go conditional branching and formatting directives which can be rendered into valid YAML descriptors by substituting the placeholders for values from values.yaml.

The meta file lists among other information the maintainers of a chart which are typically developers or adressable teams. Charts can be co-maintained by multiple developers. Maintainers are listed with a combination of name, by convention in the sense of short username, and e-mail address. Fig. 2 shows typical constallations resulting from this rule. As representatives of the n:m relationship between charts and maintainers, the chart gocd has three maintainers whereas the team account bitnamibot maintains 14 charts of which four are shown.

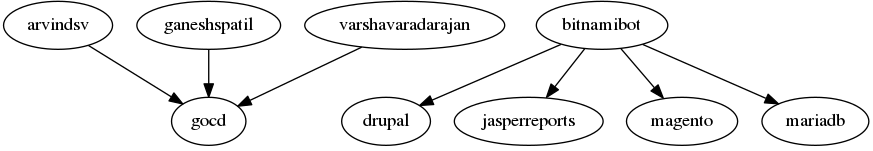

Figure 2: Diverse (n:1, 1:n) maintainer-chart relationships

More complex relationships are possible as evidenced by Fig. 3. Developers kfox1111 and sstarcher jointly co-maintain one chart, dex, while individually or with other co-maintainers caring about other charts. This constellation suggests a high degree of collaborative and community-driven work.

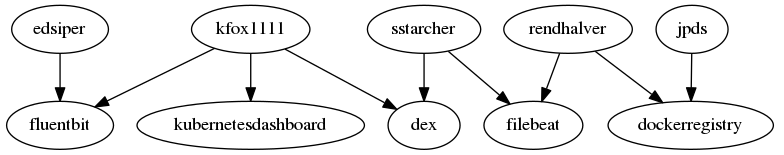

Figure 3: Complex (transitive) maintainer-chart relationships

Irregularities occur in various forms. For instance, double arrows occur when more than one version of a chart is found within the same index, in this case the stable category of KubeApps Hub, and self-references occur for collisions when a chart name matches the maintainer name (Fig. 4 for artifactory and chartmuseum respectively). While not prohibited by the Helm specification, such irregularities may cause confusion among developers and may combine with more harmful issues.

Figure 4: Irregularity due to multiple stable versions of the same chart (left) and due to the equality between chart and maintainer name (right)

More irregularities occur when no maintainer is defined or when, across packages, maintainers have multiple identities, referring to multiple names linked to the same e-mail address (Fig. 5). The latter irregularity includes the absence of an e-mail address.

Figure 5: Irregularity due to maintainer alias names (left) and due to absence of maintainers (right)

Apart from the irregularities, differences occur in the use of the templating mechanism. Some charts make excessive use of templates to reduce redundant values in the deployment descriptors while others use them lightly. A semantic assessment of the right level of templating is not trivial, but the level of remaining redundancy can be quantified, fed into a decision-making process and subsequently consciously minimised.

Potential benefits of a systematic quality assurance of charts before their provisioning on repositories are evident, yet adequate tools are sparse. The Helm lint command, the primary quality assurance instrument for chart developers, is described as follows: This command takes a path to a chart and runs a series of tests to verify that the chart is well-formed. According to the KubeApps Hub rules, a chart must pass this command in order to be included in the stable category, and yet as shown several irregularities remain without being pointed out by the tool.

2.2 Chart and maintenance metrics

Several metrics quantify the initial state of all stable Helm charts at KubeApps Hub as well as the control set on GitHub. All of the following metrics and plots have been produced by the HelmQA scripts and can thus be reproduced.

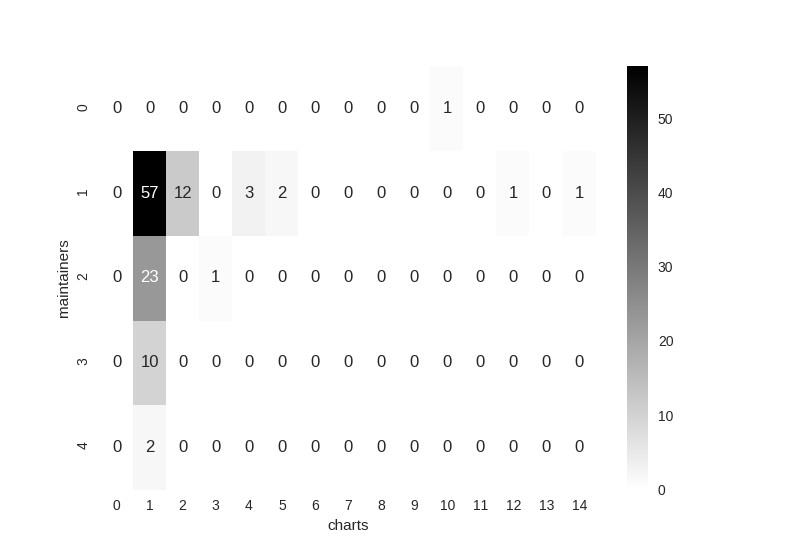

Figure 6: Maintainers and charts per maintainer set on KubeApps Hub

Fig. 6 presents a heatmap view on the KubeApps Hub relation between maintainers and maintained charts per maintainer set for a total of 113 sets. In 57 cases, a set consists of a single maintainer for a single chart (50.44%). Other noteworthy cases are single chart maintenance by two or three maintainers (combined 33 or 29.20%), two charts maintained by a single person (12 or 10.62%), and charts apparently maintained by nobody (10 in total represented as single set or 0.89%). Overall, not considering the charts without maintainer information, 129 charts (72.88%) are maintained alone and 38 charts (21.47%) are maintained collaboratively. For comparison, 82.61% of charts in the GitHub sample do not contain maintainer metadata which demonstrates a lack of quality assurance in the fully decentralised development model.

Table 1 lists maintainer-specific metrics such as the composition and workload of teams of maintainers further described as maintainer sets on KubeApps Hub. It includes one irregularity observed in maintainer information. The corresponding metrics from the GitHub sample are listed in Table 2. The higher number of charts is explained by the choice of sampling and the high number of charts without maintainer information whereas the maintainer set sizes are comparable. However, the irregularity in alias names is less severe which indicates that despite some required quality checks, KubeApps Hub metrics are not consistently better.

Maintainer metrics Affected Percentage Base metric
Maintainers 142 100.00
Sets of maintainers 113 100.00
Avg charts per maintainer 1.25 0.71 Charts
Avg charts per maintainer set 1.57 8.87 -””-
Max charts per maintainer set 14 7.91 -””-
Avg maintainers per set 1.26 0.89 Maintainers
Max maintainers per set 4 2.82 -””-
Irregularity: alias names 8 6.72 Unique e-mails
Table 1: Maintainer-related KubeApps Hub metrics
Maintainer metrics Affected Percentage Base metric
Maintainers 19 100.00
Sets of maintainers 14 100.00
Avg charts per maintainer 6.05 5.26 Charts
Avg charts per maintainer set 8.21 7.14 -””-
Max charts per maintainer set 4 3.48 -””-
Avg maintainers per set 1.35 7.11 Maintainers
Max maintainers per set 3 15.8 -””-
Irregularity: alias names 1 5.56 Unique e-mails
Table 2: Maintainer-related GitHub metrics

Tables 3 and 4 complement these with chart-specific views including quantified irregularities in the chart descriptions. Again, only some metrics indicate higher quality in KubeApps Hub.

Chart metrics Affected Percentage Base metric
Charts 177 100.00
Irregularity: no maintainer 10 5.65 Charts
Irregularity: name collision 1 0.56 Charts
Irregularity: multiple versions 5 2.82 Charts
Table 3: Chart-related KubeApps Hub metrics
Chart metrics Affected Percentage Base metric
Charts 115 100.00
Irregularity: no maintainer 95 82.61 Charts
Irregularity: name collision 2 1.74 Charts
Irregularity: multiple versions 0 0.00 Charts
Table 4: Chart-related GitHub metrics

The Helm lint command, whose task is to catch chart-specific issues, differentiates between the issue levels info, warning and error with increasing severity. The command reports zero errors, zero warnings and 20 infos, one per chart, affecting 11.30% of all charts on KubeApps Hub. The infos strictly relate to conventions, pointing out the recommendation to include a graphical icon. No irregularity is detected. For comparison, the command reports 37 severe errors, 3 warnings and 109 infos in the GitHub charts, affecting 89.34% of the respective charts, confirming the general but not absolute benefit of a quality gate as provided by KubeApps Hub.

Additional metrics are available from the templates contained within the charts on KubeApps Hub. 55 charts (31.07%) are variable, which means that there is at least one variable template value such as an auto-generated password. In total, there are 428 such variables with non-uniform distribution across all charts. Furthermore, 865 keys in total appear with duplicated values within the scope of each chart, an average of 4.89 per chart, but again with non-uniform distribution. The resulting total number of duplicate values is 3784, an average of 4.37 per key and 21.38 per chart. The global maximum number of duplicate values is 39 whereas the average maximum per chart is 5.95. Among the most-occurring values are

httpd-data, TPC, spinnaker-config, pachyderm and httpd-data-nonpersistent.

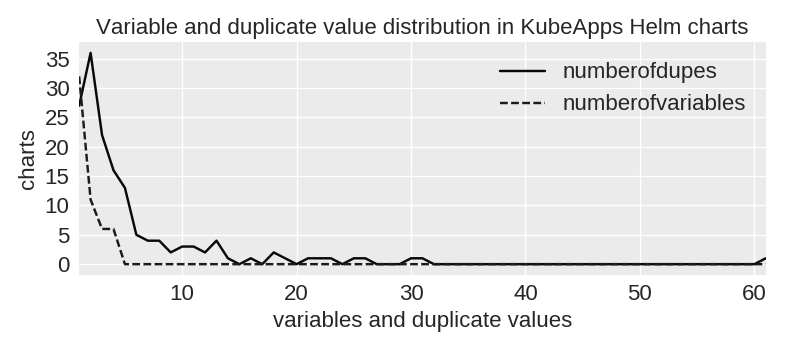

Figure 7: Number of charts per number of variable and duplicate values on KubeApps Hub

Fig 7 overlays the long-tail distributions of variable and duplicate values. For comparison, the GitHub sample contains 4 variable charts (3.48%) with 46 variables, 91 keys (average 0.79) with 419 total duplicates (4.60 per key, 3.64 per chart), which is again not consistently worse than KubeApps Hub.

2.3 Implications

Apparently, the irregularities in Helm charts do not appear to impede the popularity of this technology, and one may question the need to perform more thorough quality assurance. Yet according to the empirical research literature, software artefact quality matters and if explicitly asked, developers agree or even strongly agree that quality assurance tools are useful Lucia et al. (2011). The value of stricter quality checks will increase in compositions due to the prevention of excessive error propagation.

The absence of maintainer information is particularly severe for our study considering that we aim to contact maintainers with suggestions for improvements, but may also lead to long-term technical debt in practice in case bugs are found in dependency charts without the possibility to request bugfixing from a responsible person.

3 Methodology

In order to directly improve the quality of Helm charts published at KubeApps and indirectly those published at other locations, a methodic approach assisted by the HelmQA tool is chosen. The methodology includes regularly monitoring the change rates in the repository, automatically generating change suggestions, e-mailing suggested changes to maintainers, and continuous monitoring of the quality levels to assess the acceptance of the change requests.

3.1 Hypotheses

Our software tool-supported empirical research is led by two research questions and two associated hypotheses which are to be confirmed or rejected. The questions and hypotheses have been pre-registered with the Open Science Framework to ensure the exclusion of bias by the collected data444OSF registration site: https://osf.io/u2wn8/register/565fb3678c5e4a66b5582f67

. For reasons of practicality, minor deviations from the preregistration are as follows: The data sampling is changed to once per 24 hours instead of once per 12 hours, and the number of Helm charts is increased from 80 to 177 by the beginning of the study period in line with the preregistered estimation in the sample size rationale.

The research questions are formulated according to the following excerpt from the preregistration: Helm charts are a recent technique to package and configure complex hosted software applications. Due to manual authoring, the template mechanism to deduplicate congiguration values is often not properly used. This study investigates two research questions: Can the deduplication be automated with an acceptable amount of false positives? Will such automation be accepted by software developers and lead to a rapid reduction in duplicate values over months?

The hypotheses are thus:

  1. If an automation is possible, the ratio of false positives (configuration values marked as duplicated while they are semantically distinct) will be less than 5%.

  2. If automation is accepted by developers by way of e-mailing them the suggested changes, then at least 50% of all Helm charts will be updated within a single month, and the average number of duplicates per chart within this will be reduced by at least 50%.

3.2 Algorithms

Several custom algorithms had to be designed and implemented in HelmQA to measure charts and track changes over time. They are briefly explained here specifically to rigorously define how the chart quality, consistency and development metrics are determined.

Version updates.

Charts are considered related, and different only in version numbers, if the mangled chart name stem is equal. The stem encompasses all dash-separated name components not starting with a digit and not following one starting with a digit, and the mangling removes all intermediate dashes for increased compatibility with graph representations. For example, magic-namespace-0.1.0.tgz and magic-namespace-0.1.1-2.tgz both result in the common stem magicnamespace.

A version update (vupdate) is recognised if a chart is removed while within the same observation period a chart with the same stem but different version number is added. This action is distinct from just additions and removals, while also being different from just updates to the same chart. Version number semantics are not considered as no semantics are defined for Helm charts.

Variable values.

While Helm charts contain YAML templates, the analysis needs to take the resulting rendering into YAML files into account. The rendering is not guaranteed to be stable due to the ability to generate values randomly. This mechanism is typically used for auto-generated passwords but also directory names. These variable values represent a challenge when tracking the evolution of the charts due to the resulting diff noise. Hence, a light-weight feedback-driven machine learning approach is employed as follows: During each invocation of the rendering, two different outputs are produced and compared. All values which differ are appended to a knowledge base. For subsequent renderings, these override values are injected into the renderings in a post-processing step.

Duplicate values.

Similar to variable values, duplicate values may occur in Helm templates whereas they should ideally only occur in the rendered output through deduplicated variable substitution. The duplicate check determines the canonical values for all keys in the template and counts the occurrences while skipping over a blacklisted set of commonly used values including the mandatory markers v1 and extensions/v1beta1 for Kubernetes objects. Moreover, occurrences below a threshold, commonly three, are eventually ignored, and the remainder is determined as significant list of duplicates.

3.3 Experiment setup

We re-use the HelmQA scripts developed for the preliminary analysis and run them in an automated way on a nightly basis over approximately four months. The first month serves as testing and calibration period in which the wellfunctioning of the scripts as well as the baseline indicators for regular changes to chart files are established. After the first month, another script is run which produces and sends e-mails to all listed maintainers to inform them about suggested changes. The second month then serves as observation period for quality improvements likely triggered by the employment of HelmQA. It is expected that the rate of improvements be significantly above the baseline rate. The third and fourth month serve as long-term continuation and countercheck if the improvement rate converges back to the baseline rate. The timeframe for the experiment has been set to mid-May to mid-September 2018.

In order to facilitate the long-term automation of the quality framework and to attract chart maintainers during the observation period, a HelmQA web frontend has been created which dynamically generates web pages from JSON-structured reports555HelmQA reports web frontend: http://helmqa-zhaw-hendu.appuioapp.ch/. The web frontend implementation along with the core package of HelmQA takes around 1200 significant code lines in Python. Furthermore, a developer-focused website is available which introduces the tool with documentation and explanation videos666HelmQA software website: http://serviceprototypinglab.github.io/helmqa/.

4 Results

4.1 Experiment execution

Calibration period (May to June 2018).

The regular activity encompasses a mean average of 2.73 daily changes to charts, led by new versions of existing charts (6.33) and updates to existing versions (3.27). Mentionable is the difference between weekdays with an average of 3.48 daily changes versus weekends with 0.00 updates. The weekdays further include selected holidays including Pentecost and Memorial Day whose reach correlates strongly with the assumed workplaces of the maintainers under observation.

Fig. 8 shows the change rates for the first-month calibration period. The number of charts increased by 7.3% to 190 while the versioning overhead only saw a slight increase of 0.2% to 15.9%.

According to the gathered metrics, charts can be clearly clustered into three activity levels: regular changes, infrequent changes and unchanged charts. Table

5

summarises the corresponding metrics for the set of charts present at the beginning of the calibration period. The causes for the different activities are not further analysed here. A probable explanation for the most frequent level would be integration with automated continuous build systems. The two charts in this level are

anchorage-engine and janusgraph, both with different sets of maintainers, followed by the infrequently changed spinnaker, redis, redmine and prometheus, each of which is still changed on at least every third day on average.

Figure 8: Baseline change rates of Helm charts at KubeApps Hub
Activity level Condition DCR Actual DCR Charts Percentage
Reglarly changed 82 2 1.13
Infrequently changed and 9 108 61.02
Unchanged 0 67 37.85
Table 5: Clustered change rates across all Helm charts at KubeApps Hub; DCR = percentage of days with changes

At the end of the calibration period, notifications were sent in batches to 118 distinct e-mail addresses with a total number of 209 unique chart and maintainer issues, on average 1.77 per recipient. Fig. 9 shows the long-tail distribution of e-mail addresses links to the number of issues. Notable is one maintainer with 27 issues, Bitnami/bitnamibot, which coincides with the highest number of maintained package per maintainer set.

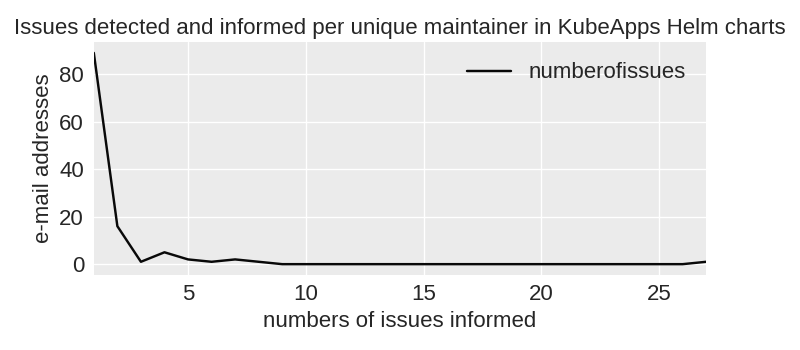

Figure 9: Number of e-mail addresses per number of issues

Observation period (June to July 2018).

The number of recipients reading the notification and actually acting on it is not known. However, two maintainers reacted on the microblog announcement of HelmQA and three more maintainers by e-mail pointing out their interest for the idea as well as one technical flaw with the HelmQA web frontend hosting which was quickly corrected. To gain more insight, the web server logs were analysed. Due to occasional rotation, not all logs were saved, but at least 25 auto-generated diffs were downloaded by maintainers, including six for multiple times, suggesting that maintainers checked again after applying changes. While web crawlers and other bots accessing the diffs cannot be ruled out, this factor can be considered unlikely due to the timing and the communication of the website links only in private e-mails.

Fig. 10 shows the resulting change rates for the second-month observation period. The number of charts increased by another 9.5% to 208 while the versioning overhead decreased by 1.6% to 14.3%. Whether the removal of duplicate versions were triggered by HelmQA reports is not clear but given the previous increase a quality-improving influence is likely.

Figure 10: Effected change rates of Helm charts at KubeApps Hub

Continuation period (July to September 2018).

The last period was characterised by a refactoring of the HelmQA software so that, while the key functionality would remain, it would become more attractive to developers compared to only for research tasks. Among the major changes are a modularisation, proper packaging as Python library, livecheck functionality which can be integrated into continuous development and integration pipelines (e.g. using Travis or Jenkins) to assess the quality of Helm charts stored in arbitrary repositories, and a developer-oriented website. In parallel, monitoring of KubeApps Hub continued.

Fig. 11 shows the continued change rates for the third- and fourth-month observation period. In the third month, there was again a growth in the number of charts, albeit slightly reduced, of 7.2% to 222 in total whereas the versioning overhead remained almost stable at 14.4%. In the fourth month, growth slowed even more to 0.9%, leading to 224 charts with however an increased versioning overhead of 17.3%.

Figure 11: Continued change rates of Helm charts at KubeApps Hub

4.2 Improvements and Trends

Table 6 summarises the key metrics over the three experiment periods calibration (one month), observation (one month) and continuation (two months), normalised to per-month numbers. The changed charts encompass all forms of regular and infrequent updates including vupdates compared to the overall number of non-unique charts. Interestingly, in the decisive observation period, the smallest percentage of charts received updates.

Metric Calibration Observation Continuation Average
Charts +7.3% +9.5% +4.1% +6.8%
Unique charts +0.2% -1.6% +1.5% +0.4%
Changed charts 53.4% 50.5% 50.7% 51.3%
Table 6: Metric evolution over all experiment periods, monthly average

Going into greater level of detail, Tables 7 and 8 continue the quality analysis of Helm charts at KubeApps Hub initially shown in Tables 1 and 3. All metrics are calculated by the ’authorsets’ functionality of HelmQA and are absolute irrespective of being proportional to the number of maintainers or charts. Omitted values signal that metrics remained unchanged.

Maintainer metrics Calibr. Observ. Continuation Average
Maintainers +4.2% +8.8% +4.0% +5.6%
Sets of maintainers +6.2% +10.8% +3.8% +6.6%
Avg charts per maintainer +2.4% +0.8% +0.8%
Avg charts per maintainer set +0.6% -1.3% +0.3%
Max charts per maintainer set
Avg maintainers per set -2.4% -1.6% +0.4% -0.8%
Max maintainers per set
Irregularity: alias names +6.3% +3.1%
Table 7: Maintainer-related KubeApps Hub metrics evolution, monthly average

The decisive observation period indicates that presumably due to reports by HelmQA, the usual growth in alias names and in missing maintainer metadata was suppressed, whereas in contrast, the irregularity of multiple versions of a chart being present even aggravated.

Chart metrics Calibr. Observ. Continuation Average
Charts +7.3% +9.5% +4.1% +6.8%
Irregularity: no maintainer +20.0% +5.0%
Irregularity: name collision
Irregularity: multiple versions -20.0% +20.0%
Table 8: Chart-related KubeApps Hub metrics evolution, monthly average

Complementary to the maintainer and chart analysis, Table 9 informs about the evolution of template metrics in proportion to the overall number of charts. These include the ratio of charts with at least one variable or duplicate value in a template to all charts and the intensity in terms of variables or duplicates per variable or duplicate chart. One can observe that in the decisive observation period, the irregularity reduction and thus the quality gain related to duplicates was strongest among all periods. In some cases, severe template rendering failures mostly due to missing password entries occur; at the end of the continuation period, this affected templates in 3 charts or 1.3% of all charts.

Template metrics Calibr. Observ. Continuation Average
Variable charts ratio +2.6% -2.2% -0.2%
Variable charts intensity +3.8% -1.2% +0.6%
Duplicate charts ratio -0.7% -2.1% +0.7% -0.4%
Duplicate charts intensity +1.9% -3.2% +3.3% +1.3%
Unrenderable template +1.0% +0.3% +0.3%
Table 9: Template-related KubeApps Hub metrics evolution, monthly average

4.3 Findings

The study results lead to answers to the research questions which are valuable in practice. Yes, the deduplication can be automated with no evident false positives, but no, the automatically rewritten templates are not directly accepted by chart maintainers or other developers. More concretely, in the most recent set of KubeApps Hub stable charts, no occurrence of HelmQA-produced variables of the form .suggestions.varN could be found in any template file. In cases when maintainers were inspired by HelmQA’s generated diffs, they chose a syntactically differently formulated deduplication. However, while the total ratio of updated (including version-updated) Helm charts within the one-month observation period was slightly above the anticipated half with 50.5%, this change activity was rather low and the average number of duplicates was only reduced by 3.2% which is far from the anticipated half. With these results, hypothesis 1 is accepted but hypothesis 2 is rejected.

In statistical terms, according to the preregistered interference criteria, the Wilcoxon signed-rank test over the chosen study periods is expected to give a p-value of 10% to determine whether the suggestions to developers are significant for quality improvements. To determine the value, the entire set of unversioned charts is divided into two groups: the ones which entered the observation period with maintainer notifications () and the ones which have been added afterwards at the end of the observation period (). Then, both sets are compared after the continuation period, excluding charts which are removed in either set in between. The resulting set sizes are (171 versioned chart files, 149 (87%) with duplicates) and (without additional versioned chart files, 11 (69%) with duplicates), with containing more recent charts such as tomcat and heartbeat. The median number of duplicate keys in considering all versions at the end of the continuation period is 5.15, and in it is 2.75. The smallest p-value over equal-sized samples of size after 1’000’000 independently sampled tests is 0.04%. The influence of the chosen suggestion and notification procedure on the quality is therefore statistically insignificant although a larger sample size of would be required to ensure the validity of the test.

5 Discussion

Wider technical and social implications are revealed by our study, both chronologically for future Helm charts and spatially for other ecosystems. Quality checks need to become stricter in tools and marketplaces, but there will always be external tools to provide additional checks. Hence, digital artefact repositories need an extensible tagging and filtering mechanism so that their contents can be tagged after successful external quality assessment and developers can filter out all artefacts without the required tags. For Helm charts in particular, regular reminders to maintainers and a prior assurance that the reminders can be properly addressed are expected to lead to long-term quality improvements. Interpolating from the current growth trend, we can assume that by the end of 2019, there will be around 400-450 charts in KubeApps Hub which, due to the network effect, will imply an at least three-fold popularity among composite cloud application developers compared to the begin of our study, fueling further charts who build upon the additionally available dependencies. With the increased use of Helm charts for business-critical deployments, the need for quality assessment and assurance will increase.

Although auto-generated code is common in software development, auto-tuned or modified code appears to be accepted only at runtime, not at implementation time with the exception of syntax formatters (pretty printers). Yet deduplication of values is important at the implementation stage precisely because quality errors may result from missing selected updates. Our suggestion is that integrated development environments convey quality assessment of cloud application artefacts to remove the barrier between suggestions and actual fixes, following recent studies which indicate that the context and priorisation of such information is important Vassallo et al. (2018).

6 Related Work

Researchers have contributed various statistics about digital artefact ecosystems although in some cases no software tools are provided to re-run the experiments. In most cases, the available tools only address researchers and are not targeting developers. Among the cloud artefacts, most studies focus on Docker Hub and its vast repository of Docker container images. Ayed et al. provide a SPARQL query interface called DockerWebStats based on Docker2RDF to enable research on container image metadata Ayed et al. (2017). As early research, it was produced when only 120 official images were available on Docker Hub in December 2016, and as of September 2018 the web application is no longer available on the specified IP address. Shu et al. have performed a security vulnerability analysis of more than 350’000 community images and, indicating a rapid growth, more than 3’800 official images Shu et al. (2017). Shu used the externally developed Clair tool which in 2018 is still actively maintained by CoreOS, now Red Hat, and only focuses on security. Cito et al. studied the quality level of more than 70’000 Dockerfiles on GitHub Cito et al. (2017). In contrast to Helm charts which statically include dependencies in the form of other (small) charts, Docker images are large and use a referencing mechanism. Hence, Cito found that among the most frequent quality issues were missing version pinning, affecting more than 28% of all files, along with frequent build failures estimated at more than 30%. This corresponds to Helm charts whose templates do not render which according to our study affects 1.3%.

7 Conclusion

7.1 Summary

We have contributed the HelmQA software tool which enables cloud application developers, especially maintainers of Helm charts for the Kubernetes application ecosystem, to assess the quality of declarative chart artefacts. The tool is typically integrated into CI/CD pipelines through its livecheck functionality or occasionally run to get information about a single chart of set of charts. In our study, we have continuously applied the tool over the growing set of charts maintained at KubeApps Hub and actively informed maintainers about quality deficiencies. Surprisingly, while a few metrics indicate that the automatically generated improvement suggestions have been picked up by the maintainers, the overall level of improvement is small with 3.2% less duplicate values in templates as well as 0% less irregularities concerning lack of maintainer information, name collision and alias names. We foresee the enforced use of the tool or equivalent functionality as part of the Helm linting process and the KubeApps Hub submission process as only way to ensure consistently higher quality compared to the current state and to the decentrally hosted charts.

7.2 Reproducibility

The observed evolution of Helm charts at KubeApps Hub is a unique historic dataset which we provide for reference at the associated Open Science Framework website777HelmQA datasets: https://osf.io/5gkxq/. However, similar observations can be expected by reproducing our experiments, including a regular retrieval of KubeApps Hub charts, automated invocation of HelmQA checks, and interaction with chart maintainers.
