PyTorch-BigGraph: A Large-scale Graph Embedding System

by   Adam Lerer, et al.

Graph embedding methods produce unsupervised node features from graphs that can then be used for a variety of machine learning tasks. Modern graphs, particularly in industrial applications, contain billions of nodes and trillions of edges, which exceeds the capability of existing embedding systems. We present PyTorch-BigGraph (PBG), an embedding system that incorporates several modifications to traditional multi-relation embedding systems that allow it to scale to graphs with billions of nodes and trillions of edges. PBG uses graph partitioning to train arbitrarily large embeddings on either a single machine or in a distributed environment. We demonstrate comparable performance with existing embedding systems on common benchmarks, while allowing for scaling to arbitrarily large graphs and parallelization on multiple machines. We train and evaluate embeddings on several large social network graphs as well as the full Freebase dataset, which contains over 100 million nodes and 2 billion edges.


page 1

page 2

page 3

page 4


MILE: A Multi-Level Framework for Scalable Graph Embedding

Recently there has been a surge of interest in designing graph embedding...

Distributed-Memory Vertex-Centric Network Embedding for Large-Scale Graphs

Network embedding is an important step in many different computations ba...

Graph Embeddings at Scale

Graph embedding is a popular algorithmic approach for creating vector re...

Large-Scale Network Embedding in Apache Spark

Network embedding has been widely used in social recommendation and netw...

(geo)graphs - Complex Networks as a shapefile of nodes and a shapefile of edges for different applications

Spatial dependency and spatial embedding are basic physical properties o...

GOSH: Embedding Big Graphs on Small Hardware

In graph embedding, the connectivity information of a graph is used to r...

OpenGraphGym-MG: Using Reinforcement Learning to Solve Large Graph Optimization Problems on MultiGPU Systems

Large scale graph optimization problems arise in many fields. This paper...

1 Introduction

Graph structured data is a common input to a variety of machine learning tasks Wu et al. (2018); Cook & Holder (2006); Nickel et al. (2016a); Hamilton et al. (2017b)

. Working with graph data directly is difficult, so a common technique is to use graph embedding methods to create vector representations for each node so that distances between these vectors predict the occurrence of edges in the graph. Graph embeddings have been have been shown to serve as useful features for downstream tasks such as recommender systems in e-commerce

Wang et al. (2018), link prediction in social media Perozzi et al. (2014), predicting drug interactions and characterizing protein-protein networks Zitnik & Leskovec (2017).

Graph data is common at modern web companies and poses an extra challenge to standard embedding methods: scale. For example, the Facebook graph includes over two billion user nodes and over a trillion edges representing friendships, likes, posts and other connections Ching et al. (2015). The graph of users and products at Alibaba also consists of more than one billion users and two billion items Wang et al. (2018). At Pinterest, the user to item graph includes over 2 billion entities and over 17 billion edges Ying et al. (2018).

There are two main challenges for embedding graphs of this size. First, an embedding system must be fast enough to embed graphs with edges in a reasonable time. Second, a model with two billion nodes and 100 embedding parameters per node (expressed as floats) would require 800GB of memory just to store its parameters, thus many standard methods exceed the memory capacity of typical commodity servers.

We present PyTorch-BigGraph (PBG), an embedding system that incorporates several modifications to standard models. The contribution of PBG is to scale to graphs with billions of nodes and trillions of edges. Important components of PBG are:

  • A block decomposition of the adjacency matrix into buckets, training on the edges from one bucket at a time. PBG then either swaps embeddings from each partition to disk to reduce memory usage, or performs distributed execution across multiple machines.

  • A distributed execution model that leverages the block decomposition for the large parameter matrices, as well as a parameter server architecture for global parameters and feature embeddings for featurized nodes.

  • Efficient negative sampling for nodes that samples negative nodes both uniformly and from the data, and reuses negatives within a batch to reduce memory bandwidth.

  • Support for multi-entity, multi-relation graphs with per-relation configuration options such as edge weight and choice of relation operator.

We evaluate PBG on the Freebase, LiveJournal and YouTube graphs and show that it matches the performance of existing embedding systems.

We also report results on larger graphs. We construct an embedding of the full Freebase knowledge graph (121 million entities, 2.4 billion edges), which we release publicly with this paper. Partitioning of the Freebase graph reduces memory consumption by 88% with only a small degradation in the embedding quality, and distributed execution on 8 machines decreases training time by a factor of 4. We also perform experiments on a large Twitter graph showing similar results with near-linear scaling.

PBG has been released as an open source project at It is written entirely in Pytorch Paszke et al. (2017) with no external dependencies or custom operators.

2 Related Work

Many types of models have been developed for multi-relation graphs Bordes et al. (2011, 2013); Nickel et al. (2011); Trouillon et al. (2016). Typically these models have been used in the context of entity representations in knowledge bases (e.g. Freebase or WordNet). Entities are given a base vector, these vectors are transformed by a learned function for each transformation, and existence of edges is predicted by some distance measure in the new space. More recent work by Wu et al.

proposes modeling some entities as bags of other entities (rather than giving them explicit embeddings). PBG borrows many insights on loss functions and transformations from this literature.

There are significant engineering challenges to scaling graph embedding models. Proposed approaches in the literature include multi-level methods Liang et al. (2018), distributed embedding systems Ordentlich et al. (2016); Shazeer et al. (2016)

, as well as specialized methods for standard algorithms such as SVD and k-means on large graphs

Ching et al. (2015). Gains from large embedding systems have been documented in e-commerce Wang et al. (2018) and other applications.

There is an extensive literature on distributional semantics in natural language processing. A key breakthrough in this literature are algorithms such as word2vec which allowed word embedding methods to scale to larger corpora

Mikolov et al. (2013). Recent work has shown that there is economic value from ingesting even larger data sets using distributed word2vec systems Ordentlich et al. (2016).

There is substantial prior work on scalable parallel algorithms for training machine learning models Dean et al. (2012). Highly related to PBG is work on scaling various forms of matrix factorization Gupta et al. (1997); Gemulla et al. (2011). Matrix factorization is closely related to embeddings, and has had widespread success in recommender systems Koren et al. (2009).

Recent work proposes to construct embeddings by using graph convolutional neural networks (GCNs,

Kipf & Welling 2016). These methods have shown success when applied to problems at large-scale web companies Hamilton et al. (2017a); Ying et al. (2018). The problem studied by the GCN is different than the one solved by PBG (mostly in that GCNs are typically applied to graphs where the nodes are already featurized). Combining ideas from graph embedding and GCN models is an interesting future direction both for theory and applications.

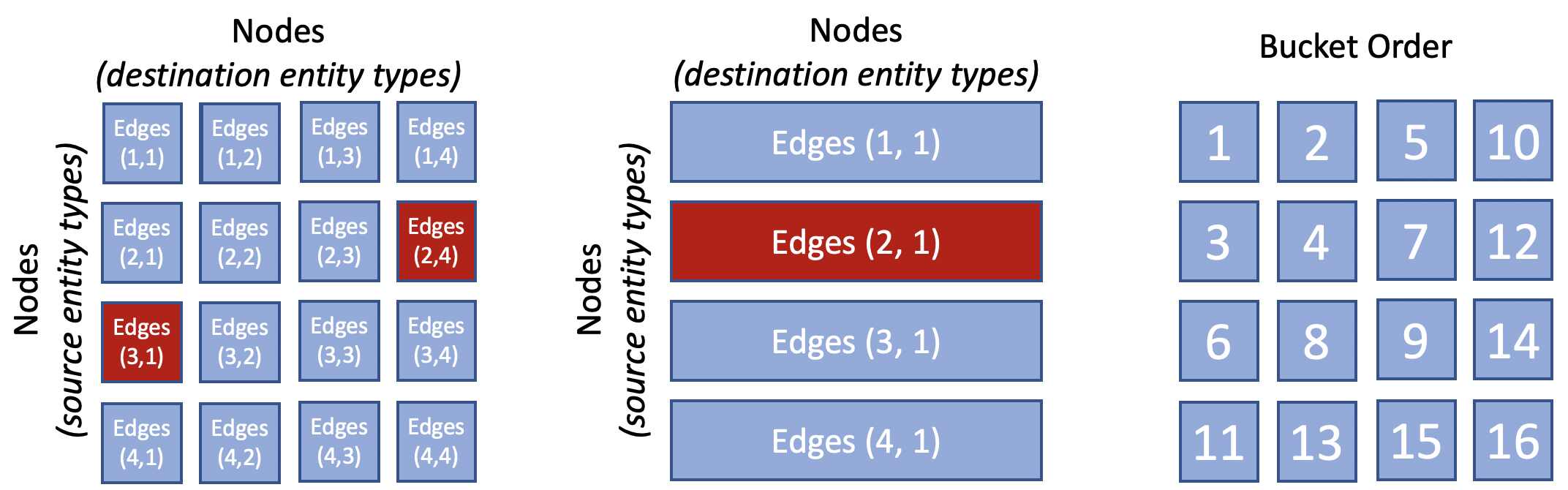

Figure 1: The PBG partitioning scheme for large graphs. Left: nodes are divided into partitions that are sized to fit in memory. Edges are divided into buckets based on the partition of their source and destination nodes. In distributed mode, multiple buckets with non-overlapping partitions can be executed in parallel (red squares). Center: Entity types with small cardinality do not have to be partitioned; if all entity types used for tail nodes are unpartitioned, then edges can be divided into buckets based only on source node partitions. Right: the ‘inside-out’ bucket order guarantees that buckets have at least one previously-trained embedding partition. Empirically, this ordering produces better embeddings than other alternatives (or random)

3 Multi-Relation Embeddings

3.1 Model

A multi-relation graph is a directed graph where are the nodes (aka entities), is a set of relations, and is a set of edges where a generic element (source, relation, destination) where and We also discuss graphs that have multiple entity types. Such graphs have a set of entity types and a mapping from nodes to entity types, and each relation specifies a single entity type for source and destination nodes for all edges of that relation.

We will represent each entity and relation type with a vector of parameters. We will denote this vector as . A multi-relation graph embedding uses a score function that produces a score for each edge that attempts to maximize the score of for any and minimizes it for

PBG considers scoring functions between a transformed version of an edge’s source and destination entities’ vectors ():

where corresponds to parameters of the relation-specific transformation operator. Using a factorized scoring function produces a embeddings where the (transformed) similarity between node embeddings has semantic meaning.

PBG uses dot product or cosine similarity scoring functions, and a choice of relation operator

which include linear transformation, translation, and complex multiplication. This combination of scoring functions and relation operators allows PBG to train RESCAL, DistMult, TransE, and ComplEx models

Nickel et al. (2011); Yang et al. (2014); Bordes et al. (2013); Trouillon et al. (2016). 111For knowledge base datasets, state-of-the-art performance is achieved with ComplEx embeddings, but this may not generalize to all graphs. On small knowledge graphs, a general linear transform (RESCAL) does not perform as well as transformations with fewer parameters such as translation (as well as transformations that can be represented in the RESCAL model) because the relation operators overfit Nickel et al. (2016b). However, we are interested in web interaction graphs which have a very small number of relations relative to entities, so the relation parameters do not contribute substantially to model size, nor are they prone to overfitting. A subset of relation types may use the identity relation, so that the untransformed entity embeddings predict edges of this relation.


We consider sparse graphs, so the input to PBG is a list of positive-labeled (existing) edges. Negative edges are constructed by sampling. In PBG negative samples are generated by corrupting positive edges by sampling either a new source or a destination for each existing edge Bordes et al. (2013).

Because edge distributions in real world graphs are heavy tailed, the choice of how to sample nodes to construct negative examples can affect model quality Mikolov et al. (2013). On one hand, if we sample negatives strictly according to the data distribution, there is no penalty for the model predicting high scores for edges with rare nodes. On the other hand, if we sample negatives uniformly, the model can perform very well (especially in large graphs) by simply scoring edges proportional to their source and destination node frequency in the dataset. Both of these results are undesirable, so in PBG we sample a fraction of negatives according to their prevalence in the training data and of them uniformly at random. By default PBG uses

In multi-entity graphs, negatives are only sampled from the correct entity type for an edge’s relation. Thus, in our model, the score for an ‘invalid’ edge (wrong entity types) is undefined. The approach of using entity types has been studied before in the context of knowledge graphs Krompaß et al. (2015), but we found it to be particularly important in graphs that have entity types with highly unbalanced numbers of nodes, e.g. 1 billion users vs. 1 million products. With uniform negative sampling over all nodes, the loss would be dominated by user negative nodes and would not optimize for ranking between user-product edges.

PBG optimizes a margin-based ranking objective between each edge in the training data and a set of edges constructed by corrupting with either a sampled source or destination node (but not both).


is a margin hyperparameter and

Logistic and softmax loss functions may also be used instead of a ranking objective in order to reproduce certain graph embedding models (e.g. Trouillon et al. 2016).

Model updates to the embeddings and relation parameters are performed via minibatch stochastic gradient descent (SGD). We use the Adagrad optimizer, and sum the accumulated gradient

over each embedding vector to reduce memory usage on large graphs Duchi et al. (2011).

4 Training at Scale

PBG is designed to operate on arbitrarily large graphs running on either a single machine or can be distributed across multiple machines. In either case, training occurs on a number of CPU threads equal to the number of machine cores, with no explicit synchronization between cores as described in Recht et al. (2011).

4.1 Partitioning of Entities and Edges

PBG uses a partitioning scheme to support models that are too large to fit in memory on a single machine. This partitioning also allows for distributed training of the model.

Each entity type in can be either partitioned or remain unpartitioned. Partitioned entities are split into parts. is chosen such that each part fits into memory or to support the desired level of parallelism for execution.

After entities are partitioned, edges are divided into buckets based on their source and destination entities’ partitions. For example, if an edge has a source in partition and destination in partition then it is placed into bucket This creates buckets when both source and destination entity types are partitioned and buckets if only source (or destination) entities are partitioned.

Each epoch of training iterates through each of the edge buckets. For edge bucket

, source and destination partitions and respectively are swapped from disk, and then the edges (or a subset of edges) are loaded and subdivided among the threads for training.

This graph partitioning introduces two functional changes to the base algorithm described in the last section. First, each candidate edge is only compared to negatives in the ranking loss where is drawn from the same partition (same for source nodes)222This would not matter if we were using an independent loss for positives and negatives, e.g. a binary cross-entropy loss.

Second, edges are no longer sampled i.i.d. but are grouped by partition. Convergence under SGD to a stationary or chain-recurrent point, is still guaranteed under this modification (see Gemulla et al. (2011), Sec. 4.2), but may suffer from slower convergence333The slower convergence may be ameliorated by switching between the buckets (‘stratum losses’ Gemulla et al. (2011)) more frequently, i.e. in each epoch divide the edges from each bucket into parts and iterate over the buckets times, operating on one edge part each time.444In practice, we use Adagrad rather than SGD..

We observe that the order of iterating through edge buckets may affect the final model. Specifically, for each edge bucket except the first, it is important that an edge bucket or was trained in a previous iteration. This constraint ensures that embeddings in all partitions are aligned in the same space. For single-machine embeddings, we found that an ‘inside-out‘ ordering, illustrated in Figure 1, achieved the best performance while minimizing the number of swaps to disk.

4.2 Distributed Execution

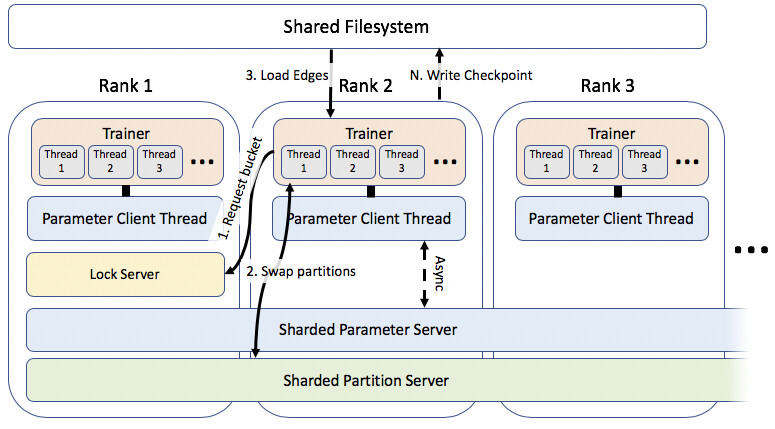

Figure 2: A block diagram of the modules used for PBG’s distributed mode. Arrows illustrate the communications that the Rank 2 Trainer performs for the training of one bucket. First, the trainer requests a bucket from the lock server on Rank 1, which locks that bucket’s partitions. The trainer then saves any partitions that it is no longer using and loads new partitions that it needs to and from the sharded partition servers, at which point it can release its old partitions on the lock server. Edges are then loaded from a shared filesystem, and training occurs on multiple threads without inter-thread synchronizationRecht et al. (2011). In a separate thread, a small number of shared parameters are continuously synchronized with a sharded parameter server. Model checkpoints are occasionally written to the shared filesystem from the trainers.

Existing distributed embedding systems typically use a parameter server architecture. In this architecture, a (possibly sharded) parameter server contains a key-value store of embeddings. At each SGD iteration, the embedding parameters required by a minibatch of data are requested from the parameter server, and gradients are (asynchronously) sent to the server to update the parameters.

The parameter server paradigm has been effective for training large sparse models Li et al. (2014), but it has a number of drawbacks. One issue is that parameter-server based embedding frameworks require too much network bandwidth to run efficiently, since all embeddings for each minibatch of edges and their associated negative samples must be transferred at each SGD step Ordentlich et al. (2016) 555In fact, our approach to batched negative sampling, described in Section 4.3 reduces the number of negatives that must be retrieved so would require less bandwidth than Ordentlich et al. (2016) if a parameter server was used.. Furthermore, we found it necessary for effective research use that the same models could be run in a single-machine or distributed context, but the parameter server architecture limits the size of models that can be run on a single machine. Finally, we would like to avoid the potential convergence problems from asynchronous model updates since our embeddings are already partitioned into independent sets.

Given partitioned entities and edges PBG employs a parallelization scheme that combines a locking scheme over the model partitions described in Section 4.1, with an asynchronous parameter server architecture for shared parameters i.e. the relation operators as well as unpartitioned or featurized entity types.

In this parallelization scheme, illustrated in Figure 2, partitioned embeddings are locked by machines for training. Multiple edge buckets can be trained in parallel as long as they operate on disjoint sets of partitions, as shown in Figure 1 (left). Training can proceed in parallel on up to machines. The locking of partitions is handled by a centralized lock server on one machine, which parcels out buckets to the workers in order to minimize communication (i.e. favors re-using a partition) The lock server also maintains the invariant described in Section 4.1, that only the first bucket should operate on two uninitialized partitions.

The partitioned embeddings themselves are stored in a partition server sharded across the training machines. A machine fetches the source and destination partitions, which are often multiple GB in size, from the partition server, and trains on a bucket of edges loaded from shared disk. Checkpoints of the partitioned entities are intermittently saved to shared disk.

Some model parameters are global and thus cannot be partitioned. This most importantly includes relation parameters, as well as entity types that have very small cardinality or use featurized embeddings. There are a relatively small number of such parameters (), and they are handled via asynchronous updates with a sharded parameter server. Specifically, each trainer maintains a background thread that has access to all unpartitioned model parameters. This thread asynchronously fetches the parameters from the server and updates the local model, and pushes accumulated gradients from the local model to the parameter server. This thread performs continuous synchronization with some throttling to avoid saturating network bandwidth.

4.3 Batched Negative Sampling

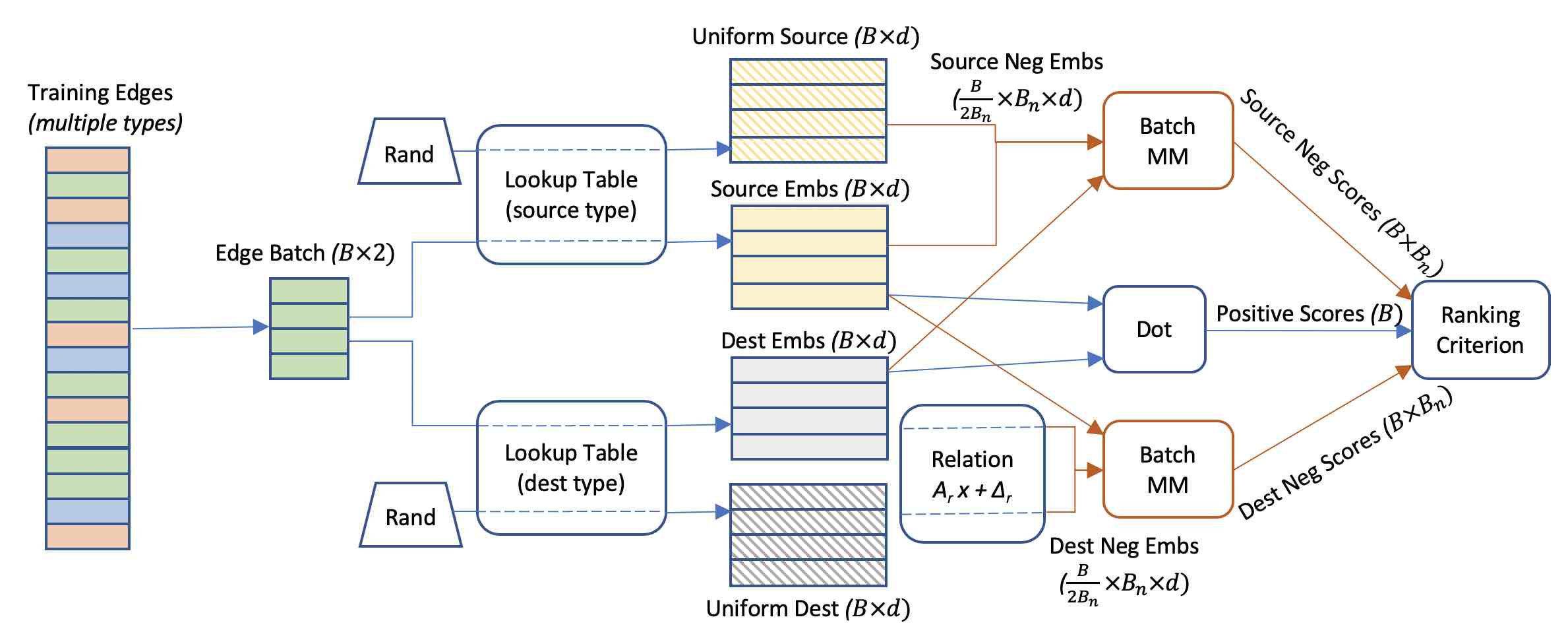

Figure 3: Memory-efficient batched negative sampling. Embeddings are fetched for the source and destination entities in a batch of edges, as well as uniformly-sampled source and destination entities. Each chunk of edges is corrupted with all source or destination entities in its chunk, as well as the corresponding chunk of the uniform embeddings, resulting in negative examples per positive edge. The negative scores are computed via a batch matrix multiply.

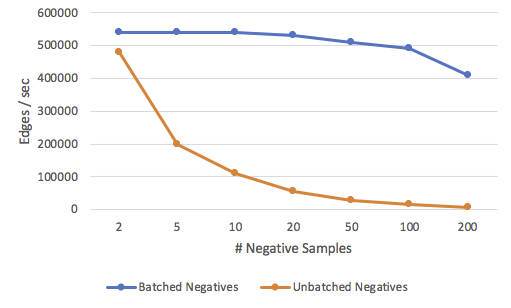

Figure 4: Effect of number of negative samples per edge on training speed (). With unbatched negatives, training speed is inversely proportional to number of negatives, but with batched negatives, speed is nearly constant for .

The negative sampling approach used by most graph embedding methods is highly memory (or network) bound because it requires floats of memory access to perform ) floating-point operations ( dot products). Indeed, Wu et al.. report that training speed “is close to an inverse linear function of [number of negatives]”.

To increase memory efficiency on large graphs, we observe that a single batch of sampled source or destination nodes can be reused to construct multiple negative examples. In a typical setup, PBG takes a batch of positive edges from the training set, and breaks it into chunks of edges. The destination (equivalently, source) embeddings from each chunk is concatenated with embeddings sampled uniformly from the tail entity type. The outer product of the positives with the sampled nodes equates to negative examples (excluding the induced positives). The training computation is summarized in Figure 3.

This approach is much cheaper than sampling negatives for each batch. For each batch of positive edges, only embeddings are fetched from memory and edge scores (dot products) are computed. The edge scores for a batch can be computed as a batched matrix multiply, which can be executed with high efficiency. Figure 4 shows the performance of PBG with different numbers of negative samples, with and without batched negatives.

In multi-relation graphs with a small number of relations, we construct batches of edges that all share the same relation type . This improves training speed specifically for the linear relation operator , because it can be formulated as a matrix-multiply

5 Experiments

We evaluate PBG on two types of graphs common in both the academic literature and practical applications.

In one set of experiments we focus on embedding real online social networks. We evaluate PBG constructed embeddings of the user-user interaction graph from LiveJournal Backstrom et al. (2006) Leskovec et al. (2009), a user-user follow graph from Twitter Kwak et al. (2010) Boldi & Vigna (2004) Boldi et al. (2011), and a user-user interaction graph from YouTube Tang & Liu (2009). The LiveJournal and Twitter data set we used are from SNAP Leskovec & Krevl (2014).

We consider two types of tasks: link prediction in the graph and the use of the graph embedding vectors to predict other attributes of the nodes. We find that PBG is much faster and more scalable than existing methods while achieving comparable performance. Second, the distributed partitioning does not impact the quality of the learned embeddings on large graphs. Third, PBG allows for parallel execution and thus can decrease wallclock training time proportional the number of partitions.

We also consider using PBG to embed the Freebase knowledge graph. Knowledge graphs have a very different structure from social networks and the presence of many relation types allows us to study the effect of using various relation operators from the literature.

Here we find that PBG can again match (or exceed) state of the art performance but that some types of relation operators (e.g. ComplEx) require care when using distributed training.

5.1 Experimental Setup

Metric MRR MR Hits@10 Memory
DeepWalk* 0.691 234.6 0.842 61.23 GB
MILE (1 level)* 0.629 174.4 0.785 60.88 GB
MILE (5 levels)* 0.505 462.8 0.632 22.78 GB
PBG (1 partition) 0.749 245.9 0.857 20.88 GB
Metric Micro-F1 Macro-F1
DeepWalk 45.2% 34.7%
MILE (6 level) 46.1% 38.5%
MILE (8 levels) 44.3% 35.3%
PBG (1 partition) 48.0% 40.9%
Table 1: Performance of PBG, DeepWalk, and MILE on the LiveJournal dataset and the YouTube dataset. Left: Link prediction evaluation and peak memory usage for the trained embeddings of the LiveJournal dataset and YouTube dataset. The ranking metrics on the test set are obtained by ranking positive edges among randomly sampled corrupted edges. Right: Micro-f1 and Macro-f1 on the user categories prediction task of the YouTube dataset when using learned embeddings as features. * Results obtained running software provided by the original authors. Results reported in Liang et al. (2018).

For each dataset, we report the best results from a grid search of learning rates from , margins from and negative batch sizes of , and choose the parameter settings based on the validation split. Results for FB15k are reported on the separate test split.

All experiments are performed on machines with 24 Intel® Xeon® cores (two sockets) and two hyperthreads per core, for a total of 48 virtual cores, and 256 GB of RAM. We use 40 HOGWILD threads for training. For distributed execution, we use a cluster of machines connected via 50Gb/s ethernet. We use the TCP backend for torch.distributed which in practice achieves approximately 1 GB/s send/receive bandwidth. For memory usage measurements we report peak resident set size sampled at 0.1 second intervals.

5.2 LiveJournal

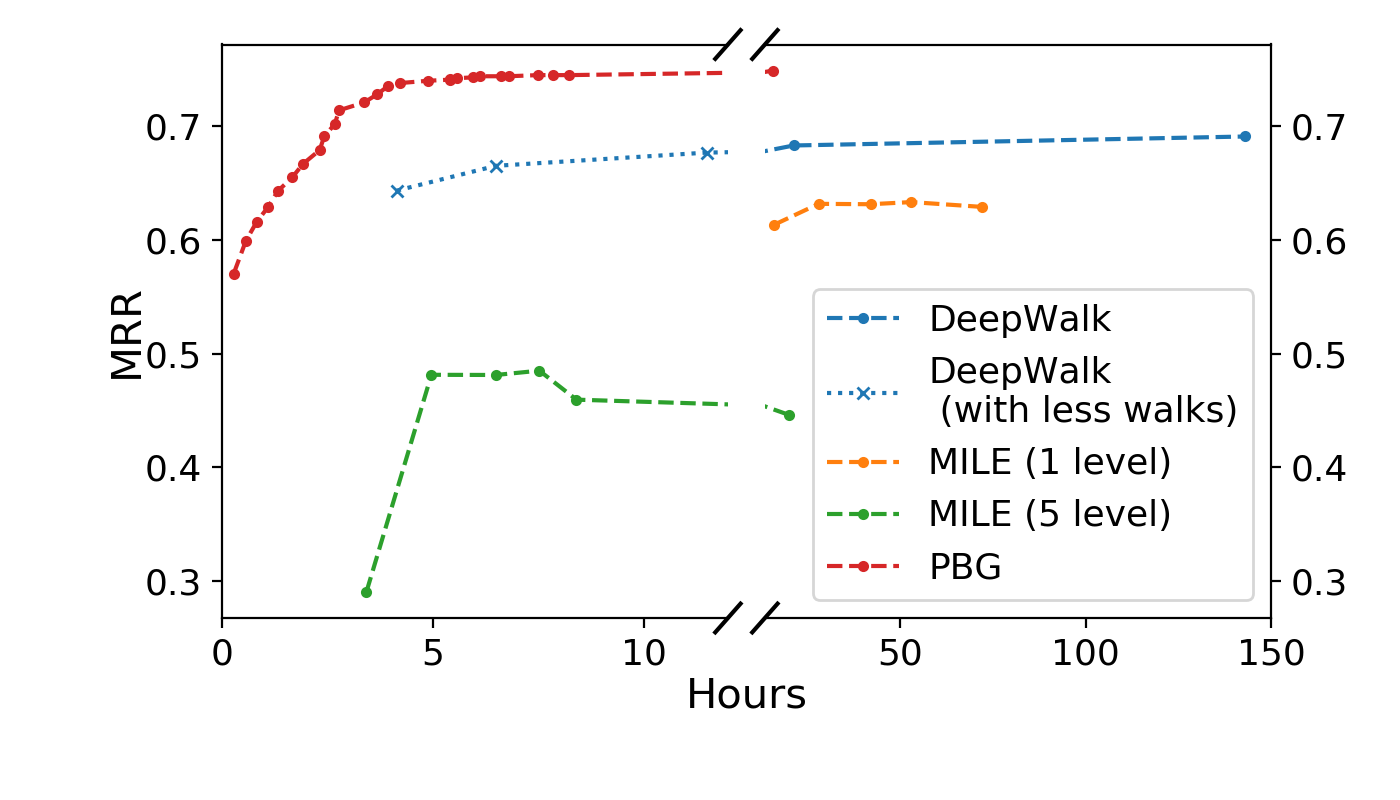

Figure 5: Learning curve for PBG and competing embedding methods on the LiveJournal dataset. For each approach, we evaluate the MRR after each epoch. DeepWalk takes more than 20 hours to train for a single epoch so we limit the number of walks during training for some runs to further reduce the computation time.

We evaluate PBG performance on the LiveJournal dataset Backstrom et al. (2006); Leskovec et al. (2009) collected from the blogging site LiveJournal666, where users can follow others to form a social network. The dataset contains 4,847,571 nodes and 68,993,773 edges. We construct train and test splits of the dataset that contains 75% and 25% of the total edges.

We compare the PBG embedding performance with MILE, which can also scale to large graphs. MILE repeatedly coarsens the graphs into smaller ones and applies traditional embedding methods on coarsened graph at each level as well as a final refinement step to get the embeddings of the original graph. We also show the performance of DeepWalk, which is used as the base embedding method for MILE.

We evaluate the embeddings using the same methodology described in Section 5.4.2. To compare the computation time across different approaches, we report the learning curve of test MRR obtained by different approaches during training with respect to time (see Figure 5).

5.3 YouTube

To show that PBG embeddings are useful for downstream supervised tasks, we apply PBG to the Youtube dataset Tang & Liu (2009). The dataset contains a social network between users on, as well as the labels of these users that represent categories of groups they subscribed. This social network dataset contains 1,138,499 nodes and 2,990,443 edges.

We compare the performance of PBG embeddings with MILE embeddings and DeepWalk embeddings by applying those embeddings as features to perform a multi-label classification of users. We follow the typical methods Perozzi et al. (2014); Liang et al. (2018)

to evaluate the embedding performance, where we run a 10-fold cross validation by randomly selecting 90% of the labeled data as training data and the rest as testing data. We use the learned embedding as features and train a one-vs-rest logistic regression model to solve the multi-label node classfication problem.

We find that PBG embeddings perform comparably (slightly better) than competing methods (see Table 1).

5.4 Freebase Knowledge Graph

Method Raw Filtered Hit@10
RESCAL Nickel et al. (2011) 0.189 0.354 0.587
TransE Bordes et al. (2013) 0.222 0.463 0.749
HolE Nickel et al. (2016b) 0.232 0.524 0.739
ComplEx Trouillon et al. (2016) 0.242 0.692 0.840
R-GCN+ Schlichtkrull et al. (2018) 0.262 0.696 0.842
StarSpace Wu et al. (2018) - - 0.838
Reciprocal ComplEx-N3 Lacroix et al. (2018) - 0.860 0.910
PBG (TransE) 0.265 0.594 0.785
PBG (ComplEx) 0.242 0.790 0.872
Table 2: Comparison of PBG with other embedding methods on the FB15k dataset. PBG embeddings are trained with both a TransE and ComplEx model, and in both cases perform similarly to the reported results for that model. The best reported results on FB15k Lacroix et al. (2018) use extremely large embedding dimension, which we do not reproduce here.

Freebase (FB) is a large knowledge graph that contains general facts extracted from Wikipedia, etc. The FB15k dataset consists of a subset of Freebase consisting of 14,951 entities, 1345 relations and 592,213 edges.

5.4.1 Fb15k

We compare the performance of PBG embeddings on a link prediction task with existing embedding methods for knowledge graphs. We compare mean reciprocal rank and Hits@10 with existing methods for knowledge graph embeddings reported in Trouillon et al. (2016).888We report both raw and filtered ranking metrics for FB15k as described in Bordes et al. (2013). For the filtered metrics, all edges that exist in the training, validation or test sets are removed from the set of candidate corrupted edges for ranking. This avoids artificially poor results due to true edges from the data being ranked above a test edge. Results are shown in Table 2.

We embed FB15k with a complex multiplication relation operator as in Trouillon et al. (2016). We evaluate PBG using two different configurations: one that is similar to the TransE model, and one similar to the ComplEx model. As in that work, we also find it beneficial to use separate relation embeddings for source negatives and destination negatives (described as ‘reciprocal predicates’ in Lacroix et al. 2018). For ComplEx, we train a 400-dimensional embedding for 50 epochs with a softmax loss over negatives using dot product similarity.

PBG performs comparably to the reported results for TransE and ComplEx models. In addition, recent papers have reported even stronger results for FB15k (and other small knowledge graphs like WordNet) using ComplEx with very large embeddings of thousands of dimensions Lacroix et al. (2018). We managed to reproduce these architectures and results in the PBG framework but do not report the details here due to space constraints.

5.4.2 Full Freebase

# Parts MRR Hits@10 Time (h) Mem (GB)
1 0.170 0.285 30 59.6
4 0.174 0.286 31 30.4
8 0.172 0.288 33 15.5
16 0.174 0.290 40 6.8
# Machines # Parts MRR Hits@10 Time (h) Mem (GB)
1 1 0.170 0.285 30 59.6
2 4 0.170 0.280 23 64.4
4 8 0.171 0.285 13 30.5
8 16 0.163 0.276 7.7 15.0
Table 3: Model evaluation, training time (10 epochs) and peak memory usage for embeddings of the full Freebase knowledge graph. MRR and Hits@10 are evaluated in the raw setting. Left: Training with different numbers of partitions on a single machine. Right: Distributed training on different numbers of machines.
Figure 6: Learning curve for PBG models on the Freebase dataset with different number of machines used in training. MRR of learned embeddings is plotted as a function of epoch (top) and wallclock time (bottom).

Next, we compare different numbers of partitions and distributed training using the full Freebase dataset 999Google, Freebase Data Dumps,, Sept. 10, 2018.
Google (2018). We use all entities and relations that appeared at least 5 times in the full dataset, resulting in a total of 121,216,723 nodes, 25,291 relations and 2,725,070,599 edges. We construct train, validation and test splits of the dataset, which contain 90%, 5%, 5% of the total edges, respectively. The data format we use for the full freebase dataset is the same as in the freebase 15k dataset described in Section 5.4.1.

To investigate the effect of number of partitions, we partition Freebase nodes uniformly into different numbers of partitions and measure model performance, training time, and peak memory usage. We then consider parallel training on different numbers of machines. For each number of machines , we use partitions (which is the minimum number of partitions that allows this level of parallelism. Note that the full model size () is 48.5 GB.

We train each model for 10 epochs, using the same grid search over hyperparameters for each number of partitions chosen from the same set grid search as FB15k. For the multi-machine evaluation, we use a consistent hyperparameters that had the best performance on single-machine training.

We evaluate the models with a link prediction task similar to that described in Section 5.4.1. However due to the large number of candidate nodes, for each edge in the eval set we select candidate negative nodes sampled from the set of entities according to their prevalence in the training data to produce negative edges which we use to compute mean reciprocal rank and hits@10101010We sample candidate negative nodes according to their prevalence in the data because the full Freebase dataset has such a long-tailed degree distribution that we find that models can achieve hit@1 against uniformly-sampled negatives, which suggests that it is just performing ranking based on the degree distribution.. We report these results raw (unfiltered), following prior work on large graphs Bordes et al. (2013).

Results are reported in Table 3, along with training time and memory usage.

We observe that on a single machine, peak memory usage decreases almost linearly with number of partitions, but training time increases somewhat due to extra time spent on I/O111111This I/O overhead is higher on sparser graphs and lower on denser graphs.. On multiple machines, the full model is sharded across the machines rather than on disk, so memory usage is higher with 2 machines, but decreases linearly as the number of machines increases. Training time also decreases with increasing number of machines, although there is again some overhead for training on multiple machines. This consists of a combination of I/O overhead and incomplete occupancy. The occupancy issue arises because there may not always be an available bucket with non-locked partitions for a machine to work on. Increasing the number of partitions relative to the number of machines will thus increase occupancy, but we don’t examine this tradeoff in detail.

Freebase embeddings have nearly identical link prediction accuracy after 10 epochs of training with and without node partitioning and parallelization up to four machines. For the highest parallelization condition (8 machines), a small degradation in MRR from to is observed.

PBG embeddings trained with the ComplEx model perform better than TransE on the link prediction task, achieving MRR of and Hits@10 of with and a single partition. However, our experiments show that training ComplEx models with multiple partitions and machines is unstable, and MRR varies from to across replicates. Further investigation of the performance of ComplEx models via PBG partitioning is left for future work.

5.5 Twitter

# Parts MRR Hits@10 Time (h) Mem (GB)
1 0.136 0.233 18.0 95.1
4 0.137 0.235 16.8 43.4
8 0.137 0.237 19.1 20.7
16 0.136 0.235 23.8 10.2
# Machines # Parts MRR Hits@10 Time (h) Mem (GB)
1 1 0.136 0.233 18.0 95.1
2 4 0.137 0.235 9.8 79.4
4 8 0.137 0.235 6.5 40.5
8 16 0.137 0.235 3.4 20.4
Table 4: Model evaluation, training time (10 epochs) and peak memory usage for embeddings of the Twitter graph. Left: Training with different numbers of partitions on a single machine. Right: Distributed training on different numbers of machines.
Figure 7: Learning curve for PBG models on the Twitter dataset with different number of machines used in training. MRR of learned embeddings is plotted as a function of epoch (top) and wallclock time (bottom).

Finally, we consider the scaling of PBG on a social network graph in comparison to the Freebase knowledge graph studied in Section 5.4.2. We embed a publicly available Twitter subgraph Kwak et al. (2010) Boldi & Vigna (2004) Boldi et al. (2011) containing a social network between 41,652,230 nodes and 1,468,365,182 edges with a single relation called “follow”. We construct train, validation and test splits of the dataset, which contain 90%, 5%, 5% of the total edges, respectively.

In Table 4 we report MRR and Hits@10 after 10 training epochs as well as training time and peak memory usage for different partitioning and parallelization schemes. The results are consistent with Table 3: we observe a decrease in training time with multiple machines, without a loss in link prediction accuracy up to 8 machines.

In Figure 7 we report the learning curve of test MRR obtained by different number of machines used during training with respect to epoch and time. Compared to the Freebase knowledge base learning curves in Figure 6, the Twitter graph shows more linear scaling of training time as the graph is partitioned and trained in parallel.

6 Conclusion

In this paper, we present PyTorch-BigGraph, an embedding system that scales to graphs with billions of nodes and trillions of edges. PBG supports multi-entity, multi-relation graphs with per-relation configuration such as edge weight and choice of relation operator. To save on memory usage and to allow parallelization PBG performs a block decomposition of the adjacency matrix into buckets, training on the edges from one bucket at a time.

We show that the quality of embeddings trained with PBG are comparable with existing embedding systems, and require less time to train. We show that partitioning of the Freebase graph reduces memory consumption by 88% without degrading embedding quality, and distributed execution on 8 machines speeds up training by a factor of 4. Our experiments have shown that embedding quality is quite robust to partitioning and parallelization in social network datasets, but may be more sensitive to parallelization when the number of relations is large, the degree distribution is highly skewed, or relation operators such as ComplEx are used. Thus improving the scaling for these more complicated models is an important area for future research.

We have presented PBG’s performance on the largest publicly available graph datasets that we are aware of. However, the largest benefits of the PBG architecture come from graphs that are orders of magnitude larger than these, where more fine-grained partitioning is necessary and exposes more parallelism. We hope that this work and the open source release of PBG helps to motivate the release of larger graph datasets and an increase in research and reported results on larger graphs.

7 Acknowledgements

We would like to acknowledge Adam Fisch, Keith Adams, Jason Weston, Antoine Bordes and Serkan Piantino for helping to formulate the initial ideas that led to this work, as well as Maximilian Nickel who provided helpful feedback on the manuscript.

8 Reference


  • Backstrom et al. (2006) Backstrom, L., Huttenlocher, D., Kleinberg, J., and Lan, X. Group formation in large social networks: membership, growth, and evolution. In Proceedings of the 12th ACM SIGKDD international conference on Knowledge discovery and data mining, pp. 44–54. ACM, 2006.
  • Boldi & Vigna (2004) Boldi, P. and Vigna, S. The webgraph framework i: compression techniques. In Proceedings of the 13th international conference on World Wide Web, pp. 595–602. ACM, 2004.
  • Boldi et al. (2011) Boldi, P., Rosa, M., Santini, M., and Vigna, S. Layered label propagation: A multiresolution coordinate-free ordering for compressing social networks. In Proceedings of the 20th international conference on World wide web, pp. 587–596. ACM, 2011.
  • Bordes et al. (2011) Bordes, A., Weston, J., Collobert, R., Bengio, Y., et al. Learning structured embeddings of knowledge bases. In AAAI, volume 6, pp.  6, 2011.
  • Bordes et al. (2013) Bordes, A., Usunier, N., Garcia-Duran, A., Weston, J., and Yakhnenko, O. Translating embeddings for modeling multi-relational data. In Advances in neural information processing systems, pp. 2787–2795, 2013.
  • Ching et al. (2015) Ching, A., Edunov, S., Kabiljo, M., Logothetis, D., and Muthukrishnan, S. One trillion edges: Graph processing at facebook-scale. Proceedings of the VLDB Endowment, 8(12):1804–1815, 2015.
  • Cook & Holder (2006) Cook, D. J. and Holder, L. B. Mining graph data. John Wiley & Sons, 2006.
  • Dean et al. (2012) Dean, J., Corrado, G. S., Monga, R., Chen, K., Devin, M., Le, Q. V., Mao, M. Z., Ranzato, M., Senior, A., Tucker, P., Yang, K., and Ng, A. Y. Large scale distributed deep networks. In Proceedings of the 25th International Conference on Neural Information Processing Systems - Volume 1, NIPS’12, pp. 1223–1231, USA, 2012. Curran Associates Inc. URL
  • Duchi et al. (2011) Duchi, J., Hazan, E., and Singer, Y. Adaptive subgradient methods for online learning and stochastic optimization. Journal of Machine Learning Research, 12(Jul):2121–2159, 2011.
  • Gemulla et al. (2011) Gemulla, R., Nijkamp, E., Haas, P. J., and Sismanis, Y. Large-scale matrix factorization with distributed stochastic gradient descent. In Proceedings of the 17th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD ’11, pp. 69–77, New York, NY, USA, 2011. ACM. ISBN 978-1-4503-0813-7. doi: 10.1145/2020408.2020426. URL
  • Google (2018) Google. Freebase data dumps., 2018.
  • Gupta et al. (1997) Gupta, A., Karypis, G., and Kumar, V. Highly scalable parallel algorithms for sparse matrix factorization. IEEE Transactions on Parallel and Distributed Systems, 8(5):502–520, 1997.
  • Hamilton et al. (2017a) Hamilton, W., Ying, Z., and Leskovec, J. Inductive representation learning on large graphs. In Advances in Neural Information Processing Systems, pp. 1024–1034, 2017a.
  • Hamilton et al. (2017b) Hamilton, W. L., Ying, R., and Leskovec, J. Representation learning on graphs: Methods and applications. arXiv preprint arXiv:1709.05584, 2017b.
  • Kipf & Welling (2016) Kipf, T. N. and Welling, M. Semi-supervised classification with graph convolutional networks. arXiv preprint arXiv:1609.02907, 2016.
  • Koren et al. (2009) Koren, Y., Bell, R., and Volinsky, C. Matrix factorization techniques for recommender systems. Computer, (8):30–37, 2009.
  • Krompaß et al. (2015) Krompaß, D., Baier, S., and Tresp, V. Type-constrained representation learning in knowledge graphs. In International Semantic Web Conference, pp. 640–655. Springer, 2015.
  • Kwak et al. (2010) Kwak, H., Lee, C., Park, H., and Moon, S. What is twitter, a social network or a news media? In Proceedings of the 19th international conference on World wide web, pp. 591–600. AcM, 2010.
  • Lacroix et al. (2018) Lacroix, T., Usunier, N., and Obozinski, G.

    Canonical tensor decomposition for knowledge base completion.

    Proceedings of the 35th International Conference on Machine Learning, 2018.
  • Leskovec & Krevl (2014) Leskovec, J. and Krevl, A. SNAP Datasets: Stanford large network dataset collection., June 2014.
  • Leskovec et al. (2009) Leskovec, J., Lang, K. J., Dasgupta, A., and Mahoney, M. W. Community structure in large networks: Natural cluster sizes and the absence of large well-defined clusters. Internet Mathematics, 6(1):29–123, 2009.
  • Li et al. (2014) Li, M., Andersen, D. G., Park, J. W., Smola, A. J., Ahmed, A., Josifovski, V., Long, J., Shekita, E. J., and Su, B.-Y. Scaling distributed machine learning with the parameter server. In Proceedings of the 11th USENIX Conference on Operating Systems Design and Implementation, OSDI’14, pp. 583–598, Berkeley, CA, USA, 2014. USENIX Association. ISBN 978-1-931971-16-4. URL
  • Liang et al. (2018) Liang, J., Gurukar, S., and Parthasarathy, S. Mile: A multi-level framework for scalable graph embedding. arXiv preprint arXiv:1802.09612, 2018.
  • Mikolov et al. (2013) Mikolov, T., Chen, K., Corrado, G., and Dean, J.

    Efficient estimation of word representations in vector space.

    ICLR Workshop, 2013.
  • Nickel et al. (2011) Nickel, M., Tresp, V., and Kriegel, H.-P. A three-way model for collective learning on multi-relational data. In ICML, volume 11, pp. 809–816, 2011.
  • Nickel et al. (2016a) Nickel, M., Murphy, K., Tresp, V., and Gabrilovich, E. A review of relational machine learning for knowledge graphs. Proceedings of the IEEE, 104(1):11–33, Jan 2016a. ISSN 0018-9219. doi: 10.1109/JPROC.2015.2483592.
  • Nickel et al. (2016b) Nickel, M., Rosasco, L., Poggio, T. A., et al. Holographic embeddings of knowledge graphs. 2016b.
  • Ordentlich et al. (2016) Ordentlich, E., Yang, L., Feng, A., Cnudde, P., Grbovic, M., Djuric, N., Radosavljevic, V., and Owens, G. Network-efficient distributed word2vec training system for large vocabularies. In Proceedings of the 25th ACM International Conference on Information and Knowledge Management (CIKM), pp. 1139–1148, 2016.
  • Paszke et al. (2017) Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E., DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and Lerer, A. Automatic differentiation in pytorch. In NIPS-W, 2017.
  • Perozzi et al. (2014) Perozzi, B., Al-Rfou, R., and Skiena, S. Deepwalk: Online learning of social representations. In Proceedings of the 20th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD ’14, pp. 701–710, New York, NY, USA, 2014. ACM. ISBN 978-1-4503-2956-9. doi: 10.1145/2623330.2623732. URL
  • Recht et al. (2011) Recht, B., Re, C., Wright, S., and Niu, F. Hogwild: A lock-free approach to parallelizing stochastic gradient descent. In Advances in neural information processing systems, pp. 693–701, 2011.
  • Schlichtkrull et al. (2018) Schlichtkrull, M., Kipf, T. N., Bloem, P., van den Berg, R., Titov, I., and Welling, M. Modeling relational data with graph convolutional networks. In European Semantic Web Conference, pp. 593–607. Springer, 2018.
  • Shazeer et al. (2016) Shazeer, N., Doherty, R., Evans, C., and Waterson, C. Swivel: Improving embeddings by noticing what’s missing. CoRR, abs/1602.02215, 2016. URL
  • Tang & Liu (2009) Tang, L. and Liu, H. Scalable learning of collective behavior based on sparse social dimensions. In Proceedings of the 18th ACM conference on Information and knowledge management, pp. 1107–1116. ACM, 2009.
  • Trouillon et al. (2016) Trouillon, T., Welbl, J., Riedel, S., Gaussier, É., and Bouchard, G. Complex embeddings for simple link prediction. In International Conference on Machine Learning, pp. 2071–2080, 2016.
  • Wang et al. (2018) Wang, J., Huang, P., Zhao, H., Zhang, Z., Zhao, B., and Lee, D. L. Billion-scale commodity embedding for e-commerce recommendation in alibaba. arXiv preprint arXiv:1803.02349, 2018.
  • Wu et al. (2018) Wu, L. Y., Fisch, A., Chopra, S., Adams, K., Bordes, A., and Weston, J. Starspace: Embed all the things! In

    Thirty-Second AAAI Conference on Artificial Intelligence

    , 2018.
  • Yang et al. (2014) Yang, B., Yih, W.-t., He, X., Gao, J., and Deng, L. Embedding entities and relations for learning and inference in knowledge bases. CoRR, abs/1412.6575, 2014.
  • Ying et al. (2018) Ying, R., He, R., Chen, K., Eksombatchai, P., Hamilton, W. L., and Leskovec, J. Graph convolutional neural networks for web-scale recommender systems. In Proceedings of the 24th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, pp. 974–983. ACM, 2018.
  • Zitnik & Leskovec (2017) Zitnik, M. and Leskovec, J. Predicting multicellular function through multi-layer tissue networks. CoRR, abs/1707.04638, 2017. URL
