1 Introduction

In this paper, we study the problem of 6DoF pose estimation, i.e. recognize the 3D location and orientation of an object in a canonical frame. It is an important component in many real-world applications, such as robotic grasping and manipulation [6, 47, 54], autonomous driving [11, 5, 52], augmented reality [30] and so on.

Figure 1: Pipeline of PVN3D: With an input RGBD image (a), we use a deep Hough voting network to predict the per-point translation offset to the selected keypoint (b). Each point on the same object votes for the selected keypoint and the center of the cluster is selected as a predicted keypoint (c). A least-squares fitting method is then applied to estimate 6D pose parameters (d)-(e). The model transformed by estimated pose parameters is shown in Figure (f).

6DoF estimation has been proven a quite challenging problem due to variations of lighting, sensor noise, occlusion of scenes and truncation of objects. Traditional methods like [18, 29]

used hand-crafted features to extract the correspondence between images and object mesh models. Such empirical human-designed features would suffer from limited performance with changing illumination conditions and scenes with heavy occlusion. More recently, with the explosive growth of machine learning and deep learning techniques, Deep Neural Network (DNN) based methods have been introduced into this task and reveal promising improvements.

[49, 51] proposed to regress rotation and translation of objects directly with DNNs. However, these methods usually had poor generalization due to the non-linearity of the rotation space as proven in [36]. Instead, recent works utilized DNNs to detect 2D keypoints of an object, and computed 6D pose parameters with Perspective-n-Point (PnP) algorithms [36, 35, 40, 46]. Although these two-stage approaches performed more stable, most of them were built on top of the 2D projection. Errors that are small in projection can be large in real 3D space. Also, different keypoints in 3D space may be overlapped after 2D projection, making them hard to be distinguished. Moreover, geometric constraint information of rigid objects would be partially lost due to projection.

On the other hand, with the development of inexpensive RGBD sensors, more and more RGBD datasets are available. The extra depth information allows 2D algorithms to be extend into 3D space with better performance, like PointFusion [52], Frustum pointnets[38] and VoteNet[37]. Towards this end, we extend 2D-keypoint-based approaches to 3D keypoint to fully utilize geometric constraint information of rigid objects and significantly improved the accuracy of 6DoF estimation. More specifically, we develop a deep 3D keypoints Hough voting neural network to learn the point-wise 3D offset and vote for 3D keypoints, as shown in Figure 1. Our key observation is a simple geometric property that positional relationship between two points of a rigid object in 3D space is fixed. Hence, given a visible point on the object surface, its coordinate and orientation can be obtained from depth images and its translation offset to selected keypoint is also fixed and learnable. Meanwhile, learning point-wise Euclidean offset is straightforward for network and easier to optimize.

To handle scenes with multiple objects, we also introduce an instance semantic segmentation module into the network and jointly optimized with keypoint voting. We find that jointly training these tasks boosts the performance of each other. Specifically, semantic information improves translation offset learning by identifying which part a point belongs to and the size information contained in translation offsets helps the model to distinguish objects with similar appearance but different size.

We further conduct experiments on YCB-Video and LineMOD datasets to evaluate our method. Experimental results show that our approach outperforms current state-of-the-art methods by a significant margin.

To summarize, the main contributions of this work are as follows:

  • A novel deep 3D keypoints Hough voting network with instance semantic segmentation for 6DoF Pose Estimation of single RGBD image.

  • State-of-the-art 6DoF pose estimation performance on YCB and LINEMODE datasets.

  • An in-depth analysis of our 3D-keypoint-based method and comparison with previous approaches, demonstrating that 3D-keypoint is a key factor to boost performance for 6DoF pose estimation. We also show that jointly training 3D-keypoint and semantic segmentation can further improve the performance.

2 Related Work

2.1 Holistic Methods

Holistic methods directly estimate the 3D position and orientation of objects in a given image. Classical template-based methods construct rigid templates and scan through the image to compute the best matched pose [20, 13, 16]. Such hand-crafted templates are not robust to clustered scenes. Recently, some Deep Neural Network (DNN) based methods are proposed to directly regress the 6D pose of cameras or objects [51, 49]. However, non-linearity of the rotation space making the data-driven DNN hard to learn and generalize. To address this problem, some approaches use post-refinement procedure [25, 49] to refine the pose iteratively, others discrete the rotation space and simplify it to be a classification problem [48, 42, 44]. For the latter approach, post-refinement processes are still required to compensate for the accuracy sacrificed by the discretization.

2.2 Keypoint-based Methods

Current keypoint-based methods first detect the 2D keypoints of an object in the images, then utilize a PnP algorithm to estimate the 6D pose. Classical methods [29, 41, 2] are able to detect 2D keypoint of objects with rich texture efficiently. However, they can not handle texture-less objects. With the development of deep learning techniques, some neural-network-based 2D keypoints detection methods are proposed. [40, 46, 19] directly regress the 2D coordinate of the keypoints, while [32, 23, 33] use heatmaps to locate the 2D keypoints. To better deal with truncated and occluded scenes, [36] proposes a pixel-wise voting network to vote for the 2D keypoints location. These 2D keypoint based methods aim to minimize the 2D projection errors of objects. However, errors that are small in projection may be large in the real 3D world. [45] extracts 3D keypoints from two views of synthetic RGB images to recover 3D poses. Nevertheless, they only utilize the RGB images, on which geometric constraint information of rigid objects partly lost due to projection, and different keypoints in 3D space may be overlapped and hard to be distinguished after projected to 2D. The advent of cheap RGBD sensors enables us to do everything in 3D with captured depth images.

2.3 Dense Correspondence Methods

These approach utilize Hough voting scheme [27, 43, 12]

to vote for final results with per-pixel prediction. They either use random forest

[3, 31] or CNNs [22, 9, 26, 34, 50] to extract feature and predict the corresponding 3D object coordinates for each pixel and then vote for the final pose results. Such dense 2D-3D correspondence making these methods robust to occluded scenes, while the output space is quite large. PVNet [36] uses per-pixel voting for 2D Keypoints to combine the advantages of Dense methods and keypoint-based methods. We further extend this method to 3D keypoints with extra depth information and fully utilize geometric constraints of rigid objects.

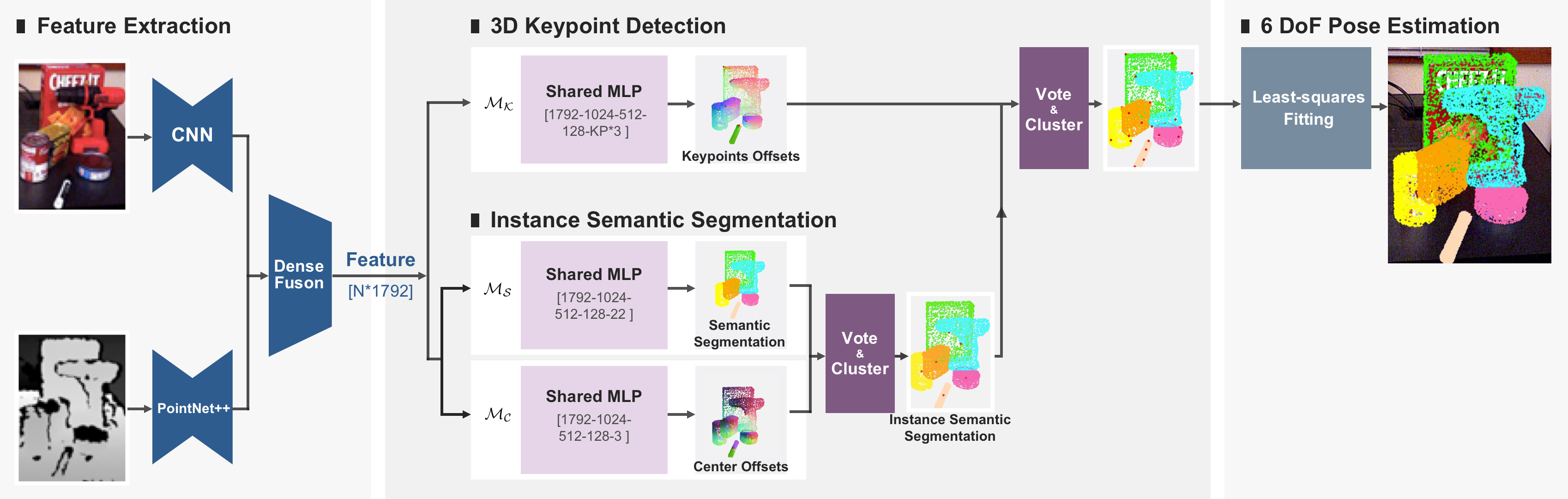

Figure 2: Overview of PVN3D.

The Feature Extraction module extracts the per-point feature from an RGBD image. They are fed into module

, and to predict the translation offsets to keypoints, center point and semantic labels of each point respectively. A clustering algorithm is then applied to distinguish different instances with the same semantic label and points on the same instance vote for their target keypoints. Finally, a least-square fitting algorithm is applied to the predicted keypoints to estimate 6DoF pose parameters.

3 Proposed Method

Given an RGBD image, the task of 6DoF pose estimation is to estimate the rigid transformation that transforms an object from its object world coordinate system to the camera world coordinate system. Such transformation consists of a 3D rotation and a translation .

3.1 Overview

To tackle this task, we develop a novel approach based on a deep 3D Hough voting network, as shown in Figure 2. The proposed method is a two-stage pipeline with 3D keypoint detection followed by a pose parameters fitting module. More specifically, taking an RGBD image as input, a feature extraction module would be used to fuse the appearance feature and geometry information. The learned feature would be fed into a 3D keypoint detection module which was trained to predict the per-point offsets w.r.t keypoints. Additionally, we include an instance segmentation module for multiple objects handling where a semantic segmentation module predicts the per-point semantic label, and a center voting module predicts the per-point offsets to object center. With the learned per-point offset, the clustering algorithm [7] is applied to distinguish different instances with the same semantic label and points on the same instance vote for their target keypoints. Finally, a least-square fitting algorithm is applied to the predicted keypoints to estimate 6DoF pose parameters.

3.2 Learning Algorithm

The goal of our learning algorithm is to train a 3D keypoint detection module for offset prediction as well as a semantic segmentation module and center voting module for instance-level segmentation. This naturally makes training our network multi-task learning, which is achieved by a supervised loss we designed and several training details we adopt.

3D Keypoints Detection Module. As shown in Figure 2, with the per-point feature extracted by the feature extraction module, a 3D keypoint detection module is used to detect the 3D keypoints of each object. To be specific, predicts the per-point Euclidean translation offset from visible points to target keypoints. These visible points, together with the predicted offsets then vote for the target keypoints. The voted points are then gathered by clustering algorithms and centers of clusters are selected as the voted keypoints.

We give a deeper view of as follows. Given a set of visible seed points and a set of selected keypoints belonging to the same object instance , we denote with the 3D coordinate and the extracted feature. We denote with the 3D coordinate of the keypoint. absorbs feature of each seed point and generates translation offset for them, where denotes the translation offset from the seed point to the keypoint. Then the voted keypoint can be denoted as . To supervise the learning of , we apply an L1 loss:

(1)

where is the ground truth translation offset; is the total number of selected target keypoints; is the total number of seeds and is an indicating function equates to only when point belongs to instance , and otherwise.

Instance Semantic Segmentation Module. To handle scenes with multi objects, previous methods [49, 52, 38] utilize existing detection or semantic segmentation architecture to pre-process the image and obtain RoIs (regions of interest) containing only single objects. Then build the pose estimation models with the extracted ROIs as input to simplify the problem. However, as we have formulated the pose estimation problem to first detect keypoints of objects with a translation offsets to keypoints learning module, we believe that the two tasks can enhance the performance of each other. On the one hand, the semantic segmentation module forces the model to extract global and local features on instance to distinguish different objects, which helps to locate a point on the object and does good to the keypoint offset reasoning procedure. On the other hand, size information learned for the prediction of offsets to the keypoints helps distinguish objects with similar appearance but different in size. Under such observation, we introduce a point-wise instance semantic segmentation module into the network and jointly optimized it with module .

To be specific, given the per-point extracted feature, the semantic segmentation module predicts the per-point semantic labels. We supervise this module with Focal Loss [28]:

(2)

with the -balance parameter, the focusing parameter, the predicted confidence for the point belongs to each class and the one-hot representation of ground true class label.

Meanwhile, the center voting module is applied to vote for centers of different object so as to distinguish different instance. We propose such module under the inspiration of CenterNet [10] but further extend the 2D center point to 3D. Compared to 2D center points, different center points in 3D won’t suffer from occlusion due to camera projection in some viewpoints. Since we can regard the center point as a special keypoint of an object, module is similar to the 3D keypoint detection module . It takes in the per-point feature but predicts the Euclidean translation offset to the center of objects it belongs to. The learning of is also supervised by an L1 loss:

(3)

where denotes the total number of seed points on the object surface and is the ground truth translation offset from seed to the instance center. is an indication function indicating whether point belongs to that instance.

Multi-task loss. We supervise the learning of module , and jointly with a multi-tasks loss:

(4)

where , and are the weights for each task. Experimental results shows that jointly training these tasks boosts the performance of each other.

3.3 Training and Implementation

Without Iterative Refinement
With Iterative Refinement
PoseCNN[51] DF(per-pixel)[49] PVN3D PoseCNN+ICP[51] DF(iterative)[49] PVN3D+ICP
ADDS ADD(S) ADDS ADD(S) ADDS ADD(S) ADDS ADD(S) ADDS ADD(S) ADDS ADD(S)
002_master_chef_can 83.9 50.2 95.3 70.7 96.0 80.5 95.8 68.1 96.4 73.2 95.2 79.3
003_cracker_box 76.9 53.1 92.5 86.9 96.1 94.8 92.7 83.4 95.8 94.1 94.4 91.5
004_sugar_box 84.2 68.4 95.1 90.8 97.4 96.3 98.2 97.1 97.6 96.5 97.9 96.9
005_tomato_soup_can 81.0 66.2 93.8 84.7 96.2 88.5 94.5 81.8 94.5 85.5 95.9 89.0
006_mustard_bottle 90.4 81.0 95.8 90.9 97.5 96.2 98.6 98.0 97.3 94.7 98.3 97.9
007_tuna_fish_can 88.0 70.7 95.7 79.6 96.0 89.3 97.1 83.9 97.1 81.9 96.7 90.7
008_pudding_box 79.1 62.7 94.3 89.3 97.1 95.7 97.9 96.6 96.0 93.3 98.2 97.1
009_gelatin_box 87.2 75.2 97.2 95.8 97.7 96.1 98.8 98.1 98.0 96.7 98.8 98.3
010_potted_meat_can 78.5 59.5 89.3 79.6 93.3 88.6 92.7 83.5 90.7 83.6 93.8 87.9
011_banana 86.0 72.3 90.0 76.7 96.6 93.7 97.1 91.9 96.2 83.3 98.2 96.0
019_pitcher_base 77.0 53.3 93.6 87.1 97.4 96.5 97.8 96.9 97.5 96.9 97.6 96.9
021_bleach_cleanser 71.6 50.3 94.4 87.5 96.0 93.2 96.9 92.5 95.9 89.9 97.2 95.9
024_bowl 69.6 69.6 86.0 86.0 90.2 90.2 81.0 81.0 89.5 89.5 92.8 92.8
025_mug 78.2 58.5 95.3 83.8 97.6 95.4 94.9 81.1 96.7 88.9 97.7 96.0
035_power_drill 72.7 55.3 92.1 83.7 96.7 95.1 98.2 97.7 96.0 92.7 97.1 95.7
036_wood_block 64.3 64.3 89.5 89.5 90.4 90.4 87.6 87.6 92.8 92.8 91.1 91.1
037_scissors 56.9 35.8 90.1 77.4 96.7 92.7 91.7 78.4 92.0 77.9 95.0 87.2
040_large_marker 71.7 58.3 95.1 89.1 96.7 91.8 97.2 85.3 97.6 93.0 98.1 91.6
051_large_clamp 50.2 50.2 71.5 71.5 93.6 93.6 75.2 75.2 72.5 72.5 95.6 95.6
052_extra_large_clamp 44.1 44.1 70.2 70.2 88.4 88.4 64.4 64.4 69.9 69.9 90.5 90.5
061_foam_brick 88.0 88.0 92.2 92.2 96.8 96.8 97.2 97.2 92.0 92.0 98.2 98.2
ALL 75.8 59.9 91.2 82.9 95.5 91.8 93.0 85.4 93.2 86.1 96.1 92.3
Table 1: Quantitative evaluation of 6D Pose (ADD-S [51], ADD(S) [18]) on YCB-Video Dataset. Objects with bold name are symmetric.
w/o iter. ref.
w/ iter. ref.
DF(p.p.) PVN3D DF(iter.) PVN3D+ICP
large _clamp ADD-S 87.7 93.9 90.3 96.2
extra _large_clamp ADD-S 75.0 90.1 74.9 93.6
ALL ADD-S 93.3 95.7 94.8 96.4
ADD(S) 84.9 91.9 89.4 92.7
Table 2: Quantitative evaluation results on YCB-Video dataset with ground truth instance semantic segmentation result.

Network Architecture. The first part in Figure 2 is a feature extraction module. In this module, a PSPNet [53]

with an ImageNet

[8] pretrained ResNet34 [15] is applied to extract the appearance information in RGB images. A PointNet++ [39] extracts the geometry information in point clouds and their normal maps. They are further fused by a DenseFusion block [49] to obtain the combined feature for each point. After the process of this module, each point has a feature of dimension. The following module , and

are composed of shared Multi-Layer Perceptrons (MLPs) shown in Figure

2. We sample points (pixels) for each frame of RGBD image and set in Formula 4. Codes are available at https://github.com/ethnhe/PVN3D.git.

Keypoint Selection. The 3D keypoints are selected from 3D object models. In 3D object detection algorithms [38, 52, 37], eight corners of the 3D bounding box are selected. However, These bounding box corners are virtual points that are far away from points on the object, making point-based networks difficult to aggregate scene context in the vicinity of them. The longer distance to the object points results in larger localization errors, which may do harm to the compute of 6D pose parameters. Instead, points selected from the object surface will be quite better. Therefore, we follow [36] and use the farthest point sampling (FPS) algorithm to select keypoints on the mesh. Specifically, we initial the selection procedure by adding the center point of the object model in an empty keypoint set. Then update it by adding a new point on the mesh that is farthest to all the selected keypoints repeatedly, until keypoints are obtained.

Least-Squares Fitting. Given two point sets of an object, one from the detected keypoints in the camera coordinate system, and another from their corresponding points in the object coordinate system, the 6D pose estimation module computes the pose parameters (, ) with a least-squares fitting algorithm [1], which finds and by minimizing the following square loss:

(5)

where is the number of selected keypoints of a object.

4 Experiments

4.1 Datasets

We evaluate our method on two benchmark datasets.

YCB-Video Dataset contains 21 YCB [4] objects of varying shape and texture. 92 RGBD videos of the subset of objects were captured and annotated with 6D pose and instance semantic mask. The varying lighting conditions, significant image noise, and occlusions make this dataset challenging. We follow [51] and split the dataset into 80 videos for training and another 2,949 keyframes chosen from the rest 12 videos for testing. Following [51], we add the synthetic images into our training set. A hole completion algorithm [24] is also applied to improve the quality of depth images.

LineMOD Dataset [17] consists of 13 low-textured objects in 13 videos, annotated 6D pose and instance mask. The main challenge of this dataset is the cluttered scenes, texture-less objects, and lighting variations. We follow prior works [51] to split the training and testing set. Also, we follow [36] to add synthesis images into our training set.

RGB RGBD
PoseCNN DeepIM [25, 51] PVNet [36] CDPN [26] Implicit ICP[44] SSD-6D ICP[21] Point-Fusion[49] DF(per-pixel)[49] DF(ite-rative)[49] PVN3D
ape 77.0 43.6 64.4 20.6 65.0 70.4 79.5 92.3 95.5
benchvise 97.5 99.9 97.8 64.3 80.0 80.7 84.2 93.2 94.5
camera 93.5 86.9 91.7 63.2 78.0 60.8 76.5 94.4 94.2
can 96.5 95.5 95.9 76.1 86.0 61.1 86.6 93.1 94.3
cat 82.1 79.3 83.8 72.0 70.0 79.1 88.8 96.5 95.5
driller 95.0 96.4 96.2 41.6 73.0 47.3 77.7 87.0 93.3
duck 77.7 52.6 66.8 32.4 66.0 63.0 76.3 92.3 94.6
eggbox 97.1 99.2 99.7 98.6 100.0 99.9 99.9 99.8 100.0
glue 99.4 95.7 99.6 96.4 100.0 99.3 99.4 100.0 100.0
holepuncher 52.8 82.0 85.8 49.9 49.0 71.8 79.0 92.1 95.1
iron 98.3 98.9 97.9 63.1 78.0 83.2 92.1 97.0 92.1
lamp 97.5 99.3 97.9 91.7 73.0 62.3 92.3 95.3 93.7
phone 87.7 92.4 90.8 71.0 79.0 78.8 88.0 92.8 93.6
ALL 88.6 86.3 89.9 64.7 79.0 73.7 86.2 94.3 95.1
Table 3: Quantitative evaluation of 6D Pose on ADD(S) [18] metric on LineMOD Dataset. Objects with bold name are symmetric.
DF(RT)[49] DF(3D KP)[49] Ours(RT) Ours(2D KPC) Ours(2D KP) PVNet[36] Ours(Corr) Ours(3D KP)
ADD-S 92.2 93.1 92.8 78.2 81.8 - 92.8 95.5
ADD(S) 86.9 87.9 87.3 73.8 77.2 73.4 88.1 91.8
Table 4: Quantitative evaluation of 6D Poses on YCB-Video Dataset with different formulations. All with our predicted segmentation.
VoteNet[37] BBox8 FPS4+1 FPS8+1 FPS12+1
ADD-S 89.9 94.0 94.3 95.5 94.5
ADD(S) 85.1 90.2 90.5 91.8 90.7
Table 5: Effect of different keypoint selection methods on PVN3D. +1 denotes regarding the center point as a special keypoint. Results of VoteNet[37] are added as a baseline to compare with our BBox8.

4.2 Evaluation Metrics

We follow [51] and evaluate our method with the average distance ADD and ADD-S metric [51]. The average distance ADD metric [18] evaluates the mean pair-wise distance between object vertexes transformed by the predicted 6D pose [, ] and the ground true pose [, ]:

(6)

where is a vertex of totally vertexes on the object mesh . The ADD-S metric is designed for symmetric objects and the mean distance is computed based on the closest point distance:

(7)

For evaluation, we follow [51, 49] and compute the ADD-S AUC, the area under the accuracy-threshold curve, which is obtained by varying the distance threshold in evaluation. The ADD(S)[18] AUC is computed in a similar way but calculate ADD distance for non-symmetric objects and ADD-S distance for symmetric objects.

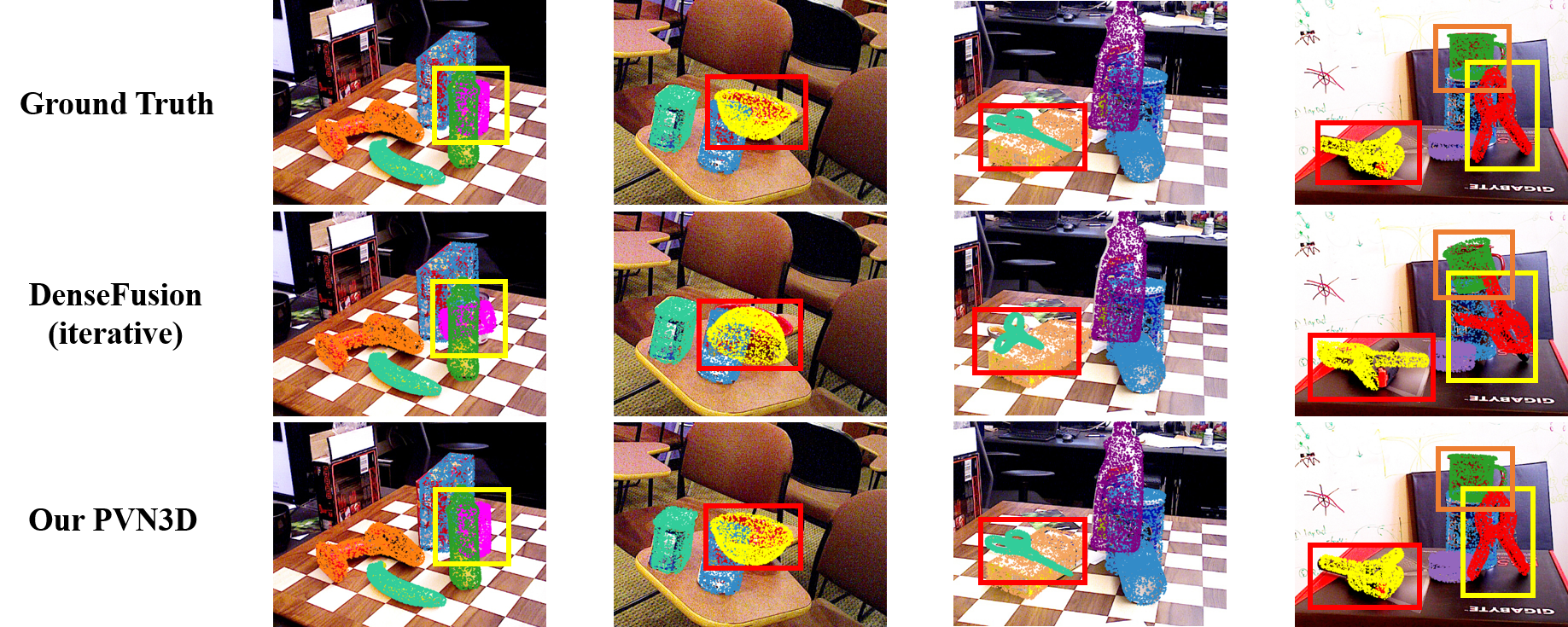

Figure 3: Qualitative results on the YCB-Video Dataset. Points on different meshes in the same scene are in different colors. They are projected back to the image after being transformed by the predicted pose. We compare our PVN3D without any iterative refinement procedure to DenseFusion with iterative refinement (2 iterations). Our model distinguishes the challenging large clamp and extra-large clamp and estimates their poses well. Our model is also robust in heavily occluded scenes.

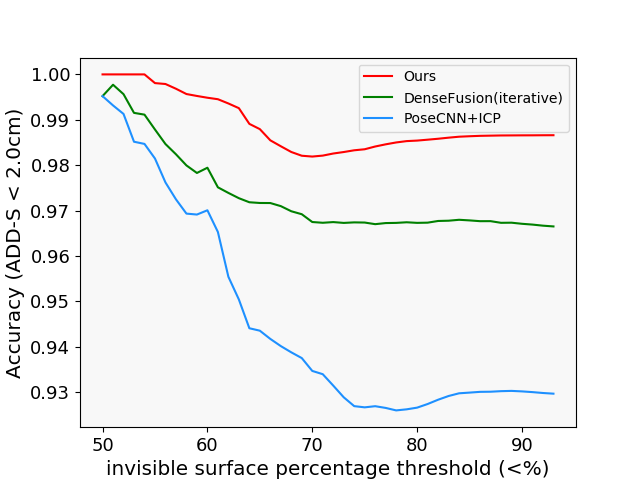

Figure 4: Performance of different approaches under increasing levels of occlusion.

4.3 Evaluation on YCB-Video & LineMOD Dataset

Table 1 shows the evaluation results for all the 21 objects in the YCB-Video dataset. We compare our model with other single view methods. As shown in the Table, our model without any iterative refinement procedure (PVN3D) surpasses all other approaches by a large margin, even when they are iterative refined. On the ADD(S) metric, our model outperforms PoseCNN+ICP [51] by 6.4% and exceeds DF(iterative) [49] by 5.7%. With iterative refinement, our model (PVN3D+ICP) achieves even better performance. Note that one challenge of this dataset is to distinguish the large clamp and extra-large clamp, on which previous methods [49, 51] suffer from poor detection results. We also report evaluation results with ground truth segmentation in Table 2, which shows that our PVN3D still achieves the best performance. Some Qualitative results are shown in Figure 3. Table 3 demonstrates the evaluation results on LineMOD dataset. Our model also achieves the best performance.

Robust to Occlusion Scenes. One of the biggest advantages of our 3D-keypoint-based method is that it’s robust to occlusion naturally. To explored how different methods are influenced by different degrees of occlusion, we follow [49] and calculate the percentage of invisible points on the object surface. Accuracy of ADD-S 2cm under different invisible surface percentage is shown in Figure 4. The performance of different approaches is very close when 50% of points are invisible. However, with the percentage of invisible part increase, DenseFusion and PoseCNN+ICP fall faster comparing with ours. Figure 3 shows that our model performs well even when objects are heavily occluded.

4.4 Ablation Study

In this part, we explore the influence of different formulation for 6DoF pose estimation and the effect of keypoint selection methods. We also probe the effect of multi-task learning.

Comparisons to Directly Regressing Pose. To compare our 3D keypoint based formulation with formulations that directly regressing the 6D pose parameters [, ] of an object, we simply modify our 3D keypoint voting module to directly regress the quaternion rotation and the translation parameters for each point. We also add a confidence header following DenseFusion [49] and select the pose with the highest confidence as the final proposed pose. We supervise the training process using ShapeMatch-Loss [51] with confidence regularization term [49] following DenseFusion. Experimental results in Table 4 shows that our 3D keypoint formulation performs quite better.

To eliminate the influence of different network architecture, we also modify the header of DenseFusion(per-pixel) to predict the per-point translation offset and compute the 6D pose following our keypoint voting and least-squares fitting procedure. Table 4 reveals that the 3D keypoint formulation, DF(3D KP) in the Table, performs better than the RT regression formulation, DF(RT). That’s because the 3D keypoint offset search space is smaller than the non-linearity of rotation space, which is easier for neural networks to learn, enabling them to be more generalizable.

Comparisons to 2D Keypoints. In order to contrast the influence of 2D and 3D keypoints, we project the voted 3D keypoints back to 2D with the camera intrinsic parameters. A PnP algorithm with Random Sample Consensus (RANSAC) is then applied to compute the 6D pose parameters. Table 4 shows that algorithms with 3D keypoint formulation, denoted as Ours(3D KP) in the table, outperforms 2D keypoint, denoted Ours(2D KP) in the table, by 13.7% under ADD-S metric. That’s because PnP algorithms aim to minimize the projection error. However, pose estimation errors that are small in projection may be quite large in the 3D real world.

To compare the influence between 2D and 3D center point in our instance semantic segmentation module, we also project our voted 3D center point to 2D in the Instance Semantic Segmentation module(Ours(2D KPC)). We apply a similar Mean Shift algorithm to cluster the voted 2D center points to distinguish different instance, finding that in occlusion scenes, different instances are hard to be differentiated when their centers are close to each other after projected on 2D, while they are far away from each other and can be easily differentiated in 3D real world. Note that other existing 2D keypoints detection approaches, such as heat-map [32, 23, 33]

and vector voting

[36] models may also suffer from overlapped keypoints. By definition, centers of most objects in our daily life won’t be overlapped as they usually lie within the object while they may be overlapped after projected to 2D. In a word, the object world is in 3D, we believe that building models on 3D is quite important.

Comparisons to Dense Correspondence Exploring. We modify our 3D keypoint offset module to output the corresponding 3D coordinate of each point in the object coordinate system and apply the least-squares fitting algorithm to computes the 6DoF pose. An L1 loss similar to Formula 3 is applied to supervise the training of the corresponding 3D coordinate. Evaluation results are shown as Ours(cor) in Tabel 4, which shows that our 3D keypoints formulation still performs quite better. We believe that regressing object coordinates is more difficult than keypoint detection. Because the model has to recognize each point of a mesh in the image and memorize its coordinate in the object coordinate system. However, detecting keypoints on objects in the camera system is easier since many keypoints are visible and the model can aggregate scene context in the vicinity of them.

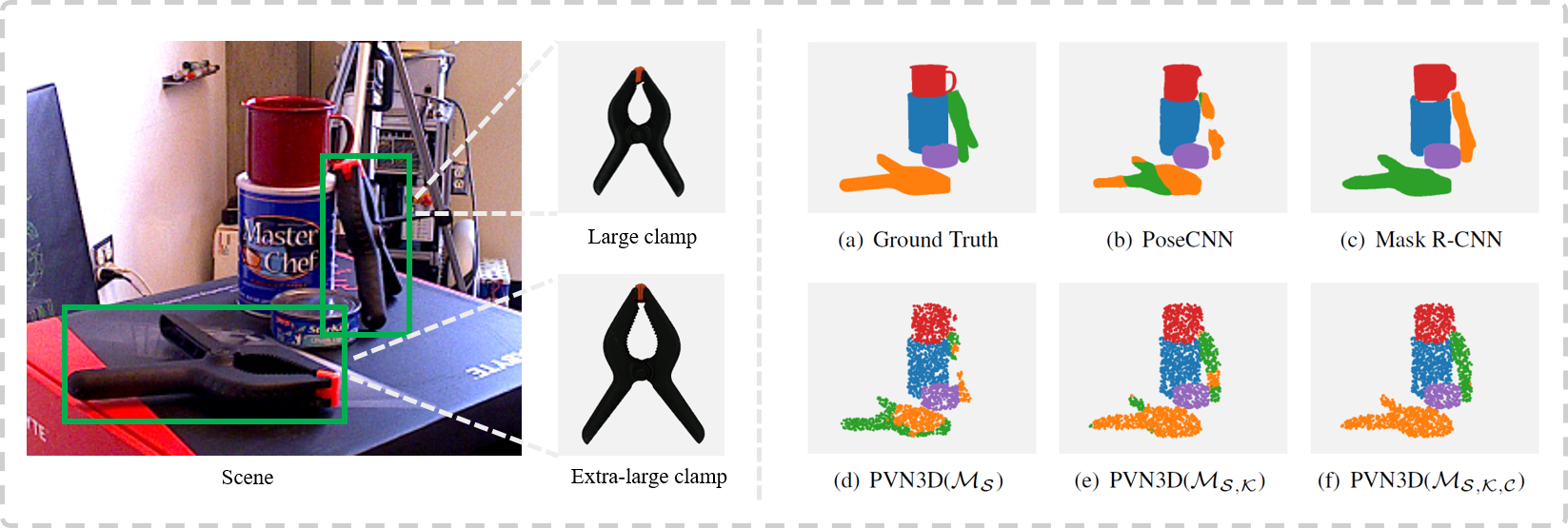

Figure 5: Qualitative results of semantic segmentation on the challenging YCB-Video dataset. (a) shows the ground truth label. Different objects are labeled in different colors, with large clamp colored green and extra-large clamp colored orange. In (b)-(c), the simple baselines PoseCNN[51] and Mask R-CNN [14] are confused by the two objects. In (d), our semantic segmentation module , trained separately, can not distinguish them well either. In (e), jointly training with the keypoints offset voting module performs better. In (f), with the voted center and Mean-Shift clustering algorithm, our model can distinguish them well.

Effect of 3D Keypoints Selection. In this part, we select 8 corners of the 3D bounding box and compares them with points selected from the FPS algorithm. Different number of keypoints generated by FPS are also taken into consideration. Table 5 shows that keypoints selected by the FPS algorithm on the object enable our model to perform better. That’s because the bounding box corners are virtual points that are far away from points on the object. Therefore, point-based networks are difficult to aggregate scene context in the vicinity of these virtual corner points. Also, 8 keypoints selected from FPS algorithm is a good choice for our network to learn. More keypoints may better eliminate errors when recovering pose in the least-squares fitting module, but harder for the network to learn as the output space is bigger. We think selecting 8 keypoints is a good trade-off.

+MRC +GT +GT +GT
ADD-S 93.5 94.8 95.2 95.5 95.7
ADD(S) 89.7 90.6 91.3 91.8 91.9
Table 6: Performance of PVN3D with different instance semantic segmentation on all objects in the YCB-Video Dataset. and denote keypoint offset module, semantic segmentation and center point offset module of PVN3D respectively. +MRC and +GT denotes inference with segmentation result of Mask R-CNN and ground truth segmentation respectively.
PoseCNN [51] Mask R-CNN[14] PVN3D () PVN3D () PVN3D ()
large clamp 43.1 48.4 58.6 62.5 70.2
extra-large clamp 30.4 36.1 41.5 50.7 69.0
Table 7: Instance semantic segmentation results (mIoU(%)) of different methods on the YCB-Video Dataset. Jointly training semantic segmentation module with keypoint offset module () obtains size information from the offset module and performs better, especially on large clamp and extra-large clamp. With the center voting module and the Mean-Shift clustering algorithm, further improvement of performance is obtained.

Effect of Multi-task learning. In this part, we discuss how the joint learning of semantic segmentation and keypoint (center) translation offset boosts the performance. In Table 6, we explore how semantic segmentation enhances keypoint offset learning. We remove semantic segmentation and center voting modules , and train our keypoint voting module individually. During inference time, the instance semantic segmentation predicted by Mask R-CNN [14] (+MRC) and the ground truth (+GT) are applied. Experimental results show that jointly trained with semantic segmentation (+GT) boosts the performance of keypoint offset voting and improves the accuracy of 6D pose estimation by 0.7% on ADD(S) metric. We believe that the semantic module extracts global and local features to distinguish different objects. Such features also help the model to recognize which part of an object a point belongs to and improve offset prediction.

In Table 7

, we explore how keypoint and center point offset learning improve the instance semantic segmentation result. Point mean intersection over union (mIoU) is used as evaluation metric. We report the results of the challenging large clamp and extra-large clamp in YCB-Video dataset. They look same in appearance but are different in size, as shown in Figure

5. We trained Mask R-CNN (ResNeXt-50-FPN) [14] with the recommended setting as a simple baseline and found it was completely confused by the two objects. With extra depth information, our semantic segmentation module (PVN3D()), trained individually, didn’t perform well either. However, jointly trained with our keypoint offset voting module (PVN3D()), the mIoU was improved by 9.2% on the extra-large clamp. With voted centers obtained from the center voting module , we can split up objects with the Mean-Shift clustering algorithm and assign points to its closest object cluster. The mIoU of the extra-large clamp is further improved by 18.3% in this way. Some qualitative results are shown in Figure 5.

5 Conclusion

We propose a novel deep 3D keypoints voting network with instance semantic segmentation for 6DoF pose estimation, which outperforms all previous approaches in several datasets by large margins. We also show that jointly training 3D keypoint with semantic segmentation can boost the performance of each other. We believe the 3D keypoint based approach is a promising direction to explore for the 6DoF pose estimation problem.

References

  • [1] K. S. Arun, T. S. Huang, and S. D. Blostein (1987) Least-squares fitting of two 3-d point sets. IEEE Transactions on pattern analysis and machine intelligence (5), pp. 698–700. Cited by: §3.3.
  • [2] H. Bay, T. Tuytelaars, and L. Van Gool (2006) Surf: speeded up robust features. In

    European conference on computer vision

    ,
    pp. 404–417. Cited by: §2.2.
  • [3] E. Brachmann, A. Krull, F. Michel, S. Gumhold, J. Shotton, and C. Rother (2014) Learning 6d object pose estimation using 3d object coordinates. In European conference on computer vision, pp. 536–551. Cited by: §2.3.
  • [4] B. Calli, A. Singh, A. Walsman, S. Srinivasa, P. Abbeel, and A. M. Dollar (2015) The ycb object and model set: towards common benchmarks for manipulation research. In 2015 international conference on advanced robotics (ICAR), pp. 510–517. Cited by: §4.1.
  • [5] X. Chen, H. Ma, J. Wan, B. Li, and T. Xia (2017) Multi-view 3d object detection network for autonomous driving. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    ,
    pp. 1907–1915. Cited by: §1.
  • [6] A. Collet, M. Martinez, and S. S. Srinivasa (2011) The moped framework: object recognition and pose estimation for manipulation. The International Journal of Robotics Research 30 (10), pp. 1284–1306. Cited by: §1.
  • [7] D. Comaniciu and P. Meer (2002) Mean shift: a robust approach toward feature space analysis. IEEE Transactions on Pattern Analysis & Machine Intelligence (5), pp. 603–619. Cited by: §3.1.
  • [8] J. Deng, W. Dong, R. Socher, L. Li, K. Li, and L. Fei-Fei (2009) Imagenet: a large-scale hierarchical image database. In 2009 IEEE conference on computer vision and pattern recognition, pp. 248–255. Cited by: §3.3.
  • [9] A. Doumanoglou, R. Kouskouridas, S. Malassiotis, and T. Kim (2016) Recovering 6d object pose and predicting next-best-view in the crowd. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3583–3592. Cited by: §2.3.
  • [10] K. Duan, S. Bai, L. Xie, H. Qi, Q. Huang, and Q. Tian (2019) CenterNet: keypoint triplets for object detection. arXiv preprint arXiv:1904.08189. Cited by: §3.2.
  • [11] A. Geiger, P. Lenz, and R. Urtasun (2012) Are we ready for autonomous driving? the kitti vision benchmark suite. In 2012 IEEE Conference on Computer Vision and Pattern Recognition, pp. 3354–3361. Cited by: §1.
  • [12] D. Glasner, M. Galun, S. Alpert, R. Basri, and G. Shakhnarovich (2011) Aware object detection and pose estimation. In 2011 International Conference on Computer Vision, pp. 1275–1282. Cited by: §2.3.
  • [13] C. Gu and X. Ren (2010) Discriminative mixture-of-templates for viewpoint classification. In European Conference on Computer Vision, pp. 408–421. Cited by: §2.1.
  • [14] K. He, G. Gkioxari, P. Dollár, and R. Girshick (2017) Mask r-cnn. In Proceedings of the IEEE international conference on computer vision, pp. 2961–2969. Cited by: Figure 5, §4.4, §4.4, Table 7.
  • [15] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: §3.3.
  • [16] S. Hinterstoisser, C. Cagniart, S. Ilic, P. Sturm, N. Navab, P. Fua, and V. Lepetit (2011) Gradient response maps for real-time detection of textureless objects. IEEE Transactions on Pattern Analysis and Machine Intelligence 34 (5), pp. 876–888. Cited by: §2.1.
  • [17] S. Hinterstoisser, S. Holzer, C. Cagniart, S. Ilic, K. Konolige, N. Navab, and V. Lepetit (2011) Multimodal templates for real-time detection of texture-less objects in heavily cluttered scenes. In 2011 international conference on computer vision, pp. 858–865. Cited by: §4.1.
  • [18] S. Hinterstoisser, V. Lepetit, S. Ilic, S. Holzer, G. Bradski, K. Konolige, and N. Navab (2012) Model based training, detection and pose estimation of texture-less 3d objects in heavily cluttered scenes. In Asian conference on computer vision, pp. 548–562. Cited by: §1, Table 1, §4.2, Table 3.
  • [19] Y. Hu, J. Hugonot, P. Fua, and M. Salzmann (2019) Segmentation-driven 6d object pose estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3385–3394. Cited by: §2.2.
  • [20] D. P. Huttenlocher, G. A. Klanderman, and W. J. Rucklidge (1993) Comparing images using the hausdorff distance. IEEE Transactions on pattern analysis and machine intelligence 15 (9), pp. 850–863. Cited by: §2.1.
  • [21] W. Kehl, F. Manhardt, F. Tombari, S. Ilic, and N. Navab (2017) SSD-6d: making rgb-based 3d detection and 6d pose estimation great again. In Proceedings of the IEEE International Conference on Computer Vision, pp. 1521–1529. Cited by: Table 3.
  • [22] W. Kehl, F. Milletari, F. Tombari, S. Ilic, and N. Navab (2016) Deep learning of local rgb-d patches for 3d object detection and 6d pose estimation. In European Conference on Computer Vision, pp. 205–220. Cited by: §2.3.
  • [23] A. Kendall, M. Grimes, and R. Cipolla (2015) Posenet: a convolutional network for real-time 6-dof camera relocalization. In Proceedings of the IEEE international conference on computer vision, pp. 2938–2946. Cited by: §2.2, §4.4.
  • [24] J. Ku, A. Harakeh, and S. L. Waslander (2018) In defense of classical image processing: fast depth completion on the cpu. In 2018 15th Conference on Computer and Robot Vision (CRV), pp. 16–22. Cited by: §4.1.
  • [25] Y. Li, G. Wang, X. Ji, Y. Xiang, and D. Fox (2018) Deepim: deep iterative matching for 6d pose estimation. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 683–698. Cited by: §2.1, Table 3.
  • [26] Z. Li, G. Wang, and X. Ji (2019-10) CDPN: coordinates-based disentangled pose network for real-time rgb-based 6-dof object pose estimation. In The IEEE International Conference on Computer Vision (ICCV), Cited by: §2.3, Table 3.
  • [27] J. Liebelt, C. Schmid, and K. Schertler (2008) Independent object class detection using 3d feature maps. In 2008 IEEE Conference on Computer Vision and Pattern Recognition, pp. 1–8. Cited by: §2.3.
  • [28] T. Lin, P. Goyal, R. Girshick, K. He, and P. Dollár (2017) Focal loss for dense object detection. In Proceedings of the IEEE international conference on computer vision, pp. 2980–2988. Cited by: §3.2.
  • [29] D. G. Lowe et al. (1999) Object recognition from local scale-invariant features.. In iccv, Vol. 99, pp. 1150–1157. Cited by: §1, §2.2.
  • [30] E. Marchand, H. Uchiyama, and F. Spindler (2015) Pose estimation for augmented reality: a hands-on survey. IEEE transactions on visualization and computer graphics 22 (12), pp. 2633–2651. Cited by: §1.
  • [31] F. Michel, A. Kirillov, E. Brachmann, A. Krull, S. Gumhold, B. Savchynskyy, and C. Rother (2017) Global hypothesis generation for 6d object pose estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 462–471. Cited by: §2.3.
  • [32] A. Newell, K. Yang, and J. Deng (2016) Stacked hourglass networks for human pose estimation. In European conference on computer vision, pp. 483–499. Cited by: §2.2, §4.4.
  • [33] M. Oberweger, M. Rad, and V. Lepetit (2018) Making deep heatmaps robust to partial occlusions for 3d object pose estimation. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 119–134. Cited by: §2.2, §4.4.
  • [34] K. Park, T. Patten, and M. Vincze (2019) Pix2Pose: pixel-wise coordinate regression of objects for 6d pose estimation. arXiv preprint arXiv:1908.07433. Cited by: §2.3.
  • [35] G. Pavlakos, X. Zhou, A. Chan, K. G. Derpanis, and K. Daniilidis (2017) 6-dof object pose from semantic keypoints. In 2017 IEEE International Conference on Robotics and Automation (ICRA), pp. 2011–2018. Cited by: §1.
  • [36] S. Peng, Y. Liu, Q. Huang, X. Zhou, and H. Bao (2019) PVNet: pixel-wise voting network for 6dof pose estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4561–4570. Cited by: §1, §2.2, §2.3, §3.3, §4.1, §4.4, Table 3, Table 4.
  • [37] C. R. Qi, O. Litany, K. He, and L. J. Guibas (2019) Deep hough voting for 3d object detection in point clouds. arXiv preprint arXiv:1904.09664. Cited by: §1, §3.3, Table 5.
  • [38] C. R. Qi, W. Liu, C. Wu, H. Su, and L. J. Guibas (2018) Frustum pointnets for 3d object detection from rgb-d data. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 918–927. Cited by: §1, §3.2, §3.3.
  • [39] C. R. Qi, L. Yi, H. Su, and L. J. Guibas (2017) Pointnet++: deep hierarchical feature learning on point sets in a metric space. In Advances in neural information processing systems, pp. 5099–5108. Cited by: §3.3.
  • [40] M. Rad and V. Lepetit (2017) BB8: a scalable, accurate, robust to partial occlusion method for predicting the 3d poses of challenging objects without using depth. In Proceedings of the IEEE International Conference on Computer Vision, pp. 3828–3836. Cited by: §1, §2.2.
  • [41] F. Rothganger, S. Lazebnik, C. Schmid, and J. Ponce (2006) 3d object modeling and recognition using local affine-invariant image descriptors and multi-view spatial constraints. International Journal of Computer Vision 66 (3), pp. 231–259. Cited by: §2.2.
  • [42] H. Su, C. R. Qi, Y. Li, and L. J. Guibas (2015) Render for cnn: viewpoint estimation in images using cnns trained with rendered 3d model views. In Proceedings of the IEEE International Conference on Computer Vision, pp. 2686–2694. Cited by: §2.1.
  • [43] M. Sun, G. Bradski, B. Xu, and S. Savarese (2010) Depth-encoded hough voting for joint object detection and shape recovery. In European Conference on Computer Vision, pp. 658–671. Cited by: §2.3.
  • [44] M. Sundermeyer, Z. Marton, M. Durner, M. Brucker, and R. Triebel (2018) Implicit 3d orientation learning for 6d object detection from rgb images. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 699–715. Cited by: §2.1, Table 3.
  • [45] S. Suwajanakorn, N. Snavely, J. J. Tompson, and M. Norouzi (2018) Discovery of latent 3d keypoints via end-to-end geometric reasoning. In Advances in Neural Information Processing Systems, pp. 2059–2070. Cited by: §2.2.
  • [46] B. Tekin, S. N. Sinha, and P. Fua (2018) Real-time seamless single shot 6d object pose prediction. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 292–301. Cited by: §1, §2.2.
  • [47] J. Tremblay, T. To, B. Sundaralingam, Y. Xiang, D. Fox, and S. Birchfield (2018) Deep object pose estimation for semantic robotic grasping of household objects. arXiv preprint arXiv:1809.10790. Cited by: §1.
  • [48] S. Tulsiani and J. Malik (2015) Viewpoints and keypoints. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 1510–1519. Cited by: §2.1.
  • [49] C. Wang, D. Xu, Y. Zhu, R. Martín-Martín, C. Lu, L. Fei-Fei, and S. Savarese (2019) Densefusion: 6d object pose estimation by iterative dense fusion. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 3343–3352. Cited by: §1, §2.1, §3.2, §3.3, Table 1, §4.2, §4.3, §4.3, §4.4, Table 3, Table 4.
  • [50] H. Wang, S. Sridhar, J. Huang, J. Valentin, S. Song, and L. J. Guibas (2019) Normalized object coordinate space for category-level 6d object pose and size estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2642–2651. Cited by: §2.3.
  • [51] Y. Xiang, T. Schmidt, V. Narayanan, and D. Fox (2017)

    Posecnn: a convolutional neural network for 6d object pose estimation in cluttered scenes

    .
    arXiv preprint arXiv:1711.00199. Cited by: §1, §2.1, Table 1, Figure 5, §4.1, §4.1, §4.2, §4.3, §4.4, Table 3, Table 7.
  • [52] D. Xu, D. Anguelov, and A. Jain (2018) Pointfusion: deep sensor fusion for 3d bounding box estimation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 244–253. Cited by: §1, §1, §3.2, §3.3.
  • [53] H. Zhao, J. Shi, X. Qi, X. Wang, and J. Jia (2017) Pyramid scene parsing network. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2881–2890. Cited by: §3.3.
  • [54] M. Zhu, K. G. Derpanis, Y. Yang, S. Brahmbhatt, M. Zhang, C. Phillips, M. Lecce, and K. Daniilidis (2014) Single image 3d object detection and pose estimation for grasping. In 2014 IEEE International Conference on Robotics and Automation (ICRA), pp. 3936–3943. Cited by: §1.
