Puzzle Imaging: Using Large-scale Dimensionality Reduction Algorithms for Localization

02/27/2015 ∙ by Joshua I. Glaser, et al. ∙ 0

Current high-resolution imaging techniques require an intact sample that preserves spatial relationships. We here present a novel approach, "puzzle imaging," that allows imaging a spatially scrambled sample. This technique takes many spatially disordered samples, and then pieces them back together using local properties embedded within the sample. We show that puzzle imaging can efficiently produce high-resolution images using dimensionality reduction algorithms. We demonstrate the theoretical capabilities of puzzle imaging in three biological scenarios, showing that (1) relatively precise 3-dimensional brain imaging is possible; (2) the physical structure of a neural network can often be recovered based only on the neural connectivity matrix; and (3) a chemical map could be reproduced using bacteria with chemosensitive DNA and conjugative transfer. The ability to reconstruct scrambled images promises to enable imaging based on DNA sequencing of homogenized tissue samples.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 16

page 24

page 26

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Many biological assays require the loss/destruction of spatial information of samples, making it difficult to create a high-resolution image of cellular properties. As a prime example, determining genetic properties of a biological sample usually requires breaking apart that sample for DNA sequencing (but see [1]). This limits the resolution of an image of genetic content to the precision of tissue sectioning prior to sequencing. Along with determining gene expression, researchers are attempting to use genetic information to determine neural connectivity [2], neural activity [3], other cellular properties [4], and chemical concentrations [5]. Being able to image these types of properties at high resolution and large scale could therefore lead to expanded measurement and recording applications. This would be possible if we could recover spatial information post hoc.

In order to recover a sample’s spatial information, information about its relative spatial location could be embedded and utilized. For example, imagine that each piece of genetic information was attached to a puzzle piece (the embedded relative spatial information; Figure 1A). While the puzzle pieces by themselves don’t provide spatial information, fitting the pieces together would lead to a spatially correct image of the genetic information. Thus, the use of relative spatial information (how the puzzle pieces’ locations relate to one another) could allow for higher-resolution imaging.

Using relative spatial information to reconstruct an image can be thought of as a dimensionality reduction problem. If there are puzzle pieces, one can construct an similarity matrix , where determines how close puzzle piece and are (higher similarity means shorter distance; Figure 1B). The goal is to map this high dimensional similarity matrix to accurate 2- or 3-dimensional locations of each piece (Figure 1C). Importantly, there is a whole class of dimensionality reduction methods that aims to preserve high dimensional distances in the reduced dimension (e.g. [6, 7, 8]). These types of techniques would allow a “piecing of the puzzle back together.”

Here, we propose “puzzle imaging,” and develop two dimensionality reduction algorithms that would allow large-scale puzzle imaging. We describe three concrete examples in which puzzle imaging would be beneficial: (1) “Neural Voxel Puzzling,” in which a relatively high-resolution 3-dimensional brain map is reproduced by giving DNA barcodes to neurons; (2) “Neural Connectomics Puzzling,” in which neural connections are used to recover neural locations; and (3) “Chemical Puzzling,” in which a chemical map could be reproduced using bacteria with chemosensitive DNA and conjugative transfer. Each of these examples leverage the faster-than-Moore’s law advances in both the cost and speed of genetic sequencing

[9], and therefore are likely to become more relevant as this “genetic revolution” proceeds. In each example, we use our algorithms on simulated data, and provide a preliminary demonstration of the capabilities of puzzle imaging.

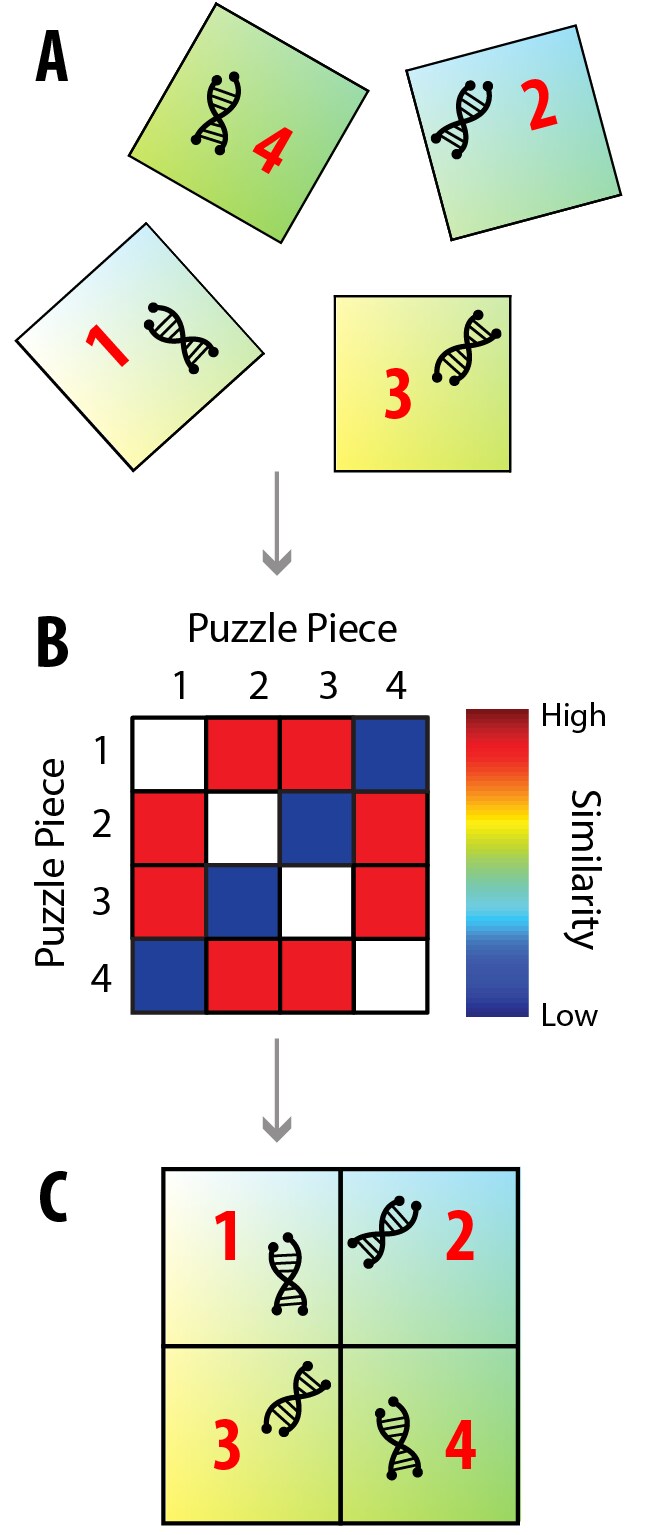

Figure 1: Puzzle Imaging. There are many properties, such as genetic information, that are easier to determine when the original spatial information about the sample is lost. However, it may be possible to still image these properties using relative spatial information. (A) As an example, let us say that each piece of genetic information is attached to a puzzle piece. While the puzzle pieces don’t provide absolute spatial information, they provide relative spatial information: we know that nearby pieces should have similar colors, so we can use color similarity to determine how close puzzle pieces should be to one another. (B) We can make a similarity matrix of the puzzle pieces, which states how similar the puzzle pieces’ colors are to each other, and thus how close the pieces should be to one another. (C) Through dimensionality reduction techniques, this similarity matrix can be used to map each puzzle piece to its correct relative location.

2 Results

2.1 Neural Voxel Puzzling

2.1.1 Overview

The purpose of neural voxel puzzling is to create a 3-dimensional image of the brain at high resolution. This image could provide useful neuroanatomical information by itself, or could be used in conjunction with other technologies to determine the locations of genetically encoded neural properties in the brain [10].

The first step in voxel puzzling is to label each neuron in the brain with a unique DNA or RNA barcode throughout its entire length (Figure 2A). Ongoing research aims to tackle this challenge [2, 11, 12]. Recently, researchers have succeeded in having bacteria generate a large diversity of barcodes in vivo [11]. Next, the brain is shattered into many voxels (Figure 2B; note that voxels are only squares for simplification), and the DNA in each voxel is sequenced, yielding a record of which neurons were in which voxels. This provides us with relative spatial information about voxel placement: voxels that share more neurons will likely be closer to each other. We can use this relative spatial information to puzzle the voxels into their correct locations.

2.1.2 Dimensionality Reduction

More formally, puzzling together the brain is a dimensionality reduction problem, with each voxel represented by an -dimensional object, where is the number of neurons. Dimension corresponds to neuron being in that voxel (Figure 2C). These -dimensional voxels must be mapped to their correct 3-dimensional coordinates (or 2 dimensions in Figure 2’s simplified example). This can be done because voxels that are closer in 3-dimensional space will have more neurons in common, and thus will be more similar in -dimensional space. With the knowledge of the similarity between all pairs of voxels, we can create a similarity matrix (Figure 2D) and then puzzle the voxels back together (Figure 2E). Without any additional information, it is impossible to know exact locations; only the relative locations of voxels can be known. Thus, the output could be a flipped or rotated version of the input (Figure 2E). That being said, additional information could be used to correctly orient the reconstruction. For example, the overall shape could be matched for a sample that is asymmetric (like the brain), or a few samples with known locations could act as landmarks.

In order to convert the knowledge of which neurons are in which voxels (Figure 2C) to a reconstructed puzzle (Figure 2E), a dimensionality reduction algorithm is needed. We demonstrate the performance of two algorithms that are promising for large-scale problems. The first is a variant of Diffusion Maps [8]

, which uses a sparse similarity (affinity) matrix instead of the standard calculation. We will refer to this method as Sparse Diffusion Maps, or SDM. The second is a variant of Landmark Isomap

[13, 14], which is faster for unweighted graphs (binary similarity matrices). We will refer to this method as Unweighted Landmark Isomap, or ULI. In the below simulations, we use 10 landmark points. For the full algorithms, see 4 Methods.

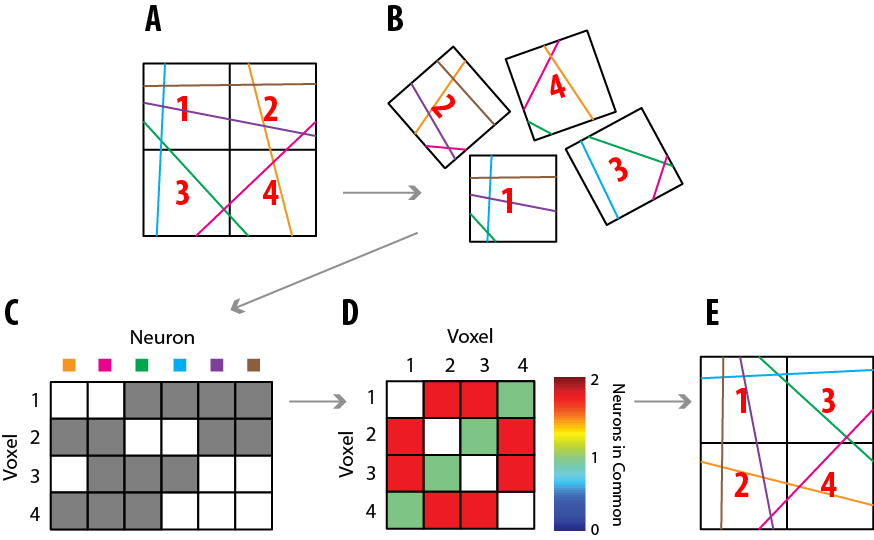

Figure 2: Neural Voxel Puzzling Overview. (A) An example of 6 “neurons” (lines) going through 4 voxels. Each neuron has a unique DNA barcode (here color). (B) These voxels are broken apart. (C) A coincidence matrix, , is constructed describing which neurons are in which voxels. Gray signifies that a neuron is in a particular voxel. (D) A similarity matrix is constructed describing how many neurons a pair of voxels has in common. This matrix can be calculated as . (E) The voxels are puzzled back together. The reconstruction may be rotated or flipped, as shown here.

2.1.3 Performance

We tested the ability of both dimensionality reduction algorithms to determine the locations of 8000 simulated voxels of varying dimensions. Voxels were not confined to be cubes; they could be any shape. In our simplistic simulations, our “neurons” were long rods with cross-sectional areas of (about the size of an axon [15]) and were assumed to fully go through each voxel they entered. We set the total number of neurons in our simulations so that they would fill voxels of the chosen size. Neurons were oriented within the volume at randomly determined angles. See 4 Methods for simulation details.

In our simulations, we used two metrics to determine the quality of the reconstruction. The first metric was the mean error in distance across all voxels. Because the final reconstruction will be a scaled, rotated, and reflected (flipped) version of the initial voxel locations, we first transformed (scaled, rotated, and reflected) the final reconstruction to match the original voxel locations. We used the transformation that minimized the mean error.

Another metric we used is the correlation coefficient (R value) of the plot of reconstructed distances between all points against their true distances. This metric determines how well relative distances between points are preserved, and does not depend on any transformations following the reconstruction. A perfect reconstruction (ignoring differences in scaling, rotation, and reflection) would have a linear relationship between the true and reconstructed distances, and thus an R value of 1.

We first tested both methods on simulations with voxels with average sides of (Figure 3A). The SDM method led to a faithful reconstruction, with the exception that the reconstructed voxels tended to be overrepresented around the outside of the cube and underrepresented in the middle. The ULI method also leads to a faithful reconstruction (Figure 3B).

We next tested both methods of reconstruction while varying the voxel size (Figure 3C,D,E). While voxels could be any shape, for ease of understanding, we report voxel sizes as the edge length of the cube corresponding to the average voxel size. For most voxel sizes, ULI leads to a slightly more accurate reconstruction than SDM. In general, when looking at the error in terms of absolute distance, using smaller voxels increases possible resolution. As an example of the excellent resolution that can be achieved, both methods achieve mean errors below using an average voxel size of (Figure 3E).

Finally, we tested the performance of puzzle imaging when removing a fraction of the voxels. We did this because in real neurons, there are cell bodies that would fill multiple voxels. These voxels would not add any information to puzzle reconstruction, so we exclude them to simulate the existence of cell bodies. Moreover, this generally simulates the robustness of neural voxel puzzling to missing data. In these simulations, we used a voxel size of (Figure 3F,G). For both methods, when no voxels were removed, the average mean error rate was below 2 voxels. The average mean error rate was still below 2.5 voxels when 60% of the voxels were removed. This demonstrates that these methods are robust to missing voxels (cell bodies).

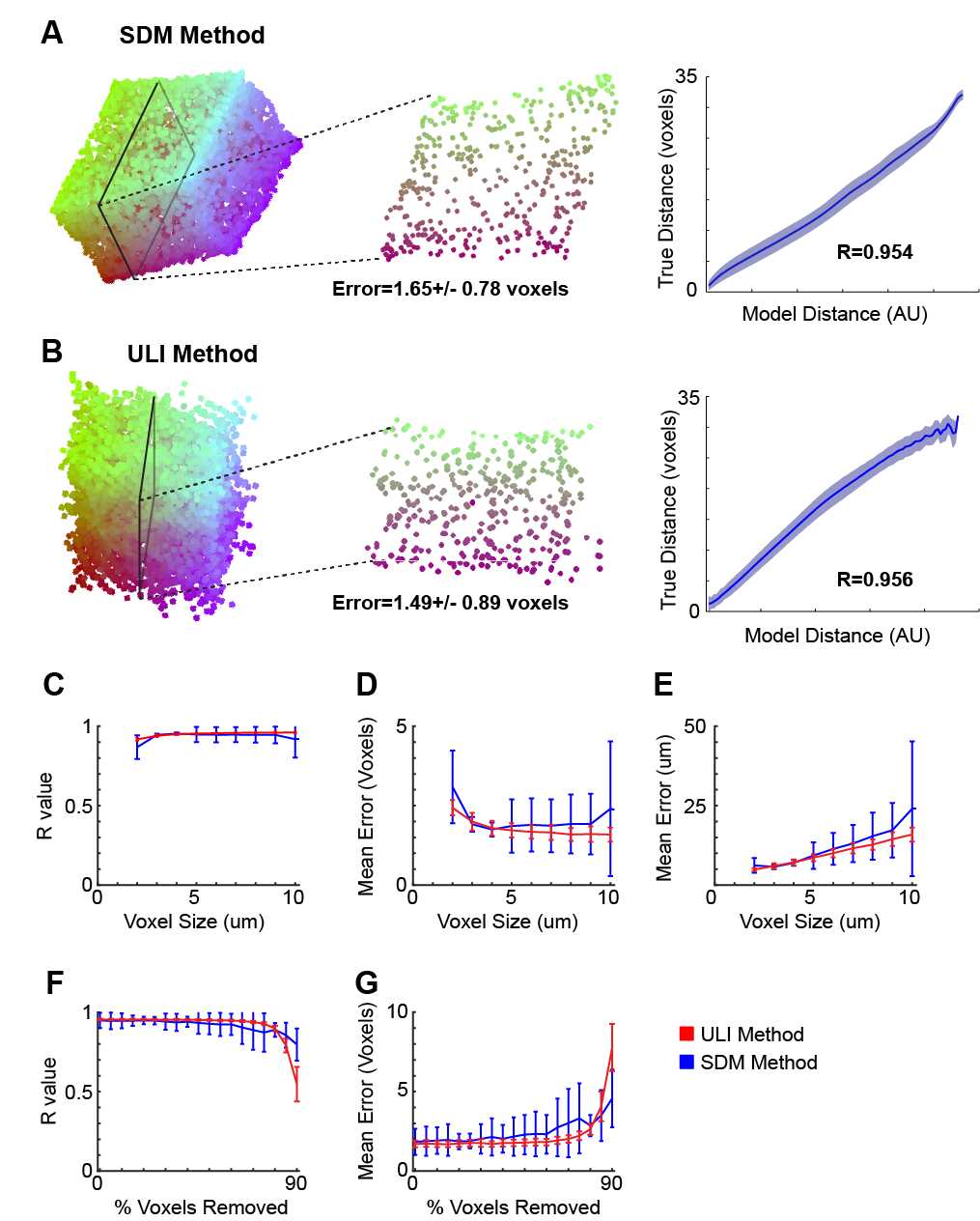

Figure 3: Neural Voxel Puzzling Performance. (A) On the left, an example reconstruction of voxel locations using the SDM method. Colors are based on initial locations: those with a larger initial location are redder, while those with a larger initial location are bluer. In the middle, a 2-dimensional slice through reconstructed volume. The distance errors are calculated following scaling and rotating the reconstructed volume to match the original volume. On the right

, one metric for the accuracy of reconstruction is shown by plotting the reconstructed distances between all points against their true distances for the reconstruction in this panel. The mean plus/minus the standard deviation (shaded) is shown. A perfect reconstruction would be a straight line, corresponding to an R value of 1.

(B) Same as panel A, except an example reconstruction using the ULI method. (C) R values for simulations using the SDM method (blue) and ULI method (red), as a function of the voxel size. While voxels were not confined to be cubes, for ease of understanding, we report voxel sizes as the edge length of the cube corresponding to the average voxel size. Error bars represent the standard deviation across simulations in each panel. (D) Mean distance errors in voxels for both methods as a function of the voxel size. (E) Mean distance errors in microns for both methods as a function of the voxel size. (F) Voxels are removed to represent voxels that do not contain location information (such as voxels that contain a single cell body). R values for simulations using both methods are plotted as a function of the percentage of voxels removed. (G) Mean distance errors are plotted as a function of the percentage of voxels removed.

2.2 Neural Connectomics Puzzling

2.2.1 Overview

The purpose of neural connectomics puzzling is to estimate the locations of neurons based on their neural connections. There is ongoing work to provide a unique DNA barcode to every neuron and link those barcodes when neurons are synaptically connected

[2]. This DNA could later be sequenced to determine all neural connections. For this proposed technology, it would be useful to know the locations of connected neurons, rather than simply knowing that two neurons are connected.

The first steps in connectomics puzzling are to label each neuron in the brain with a unique DNA barcode and label neural connections via the pairing of barcodes (Figure 4

A). One proposed method would be to have viruses shuttle the barcodes across synapses, where they can be integrated

[2]. Other techniques for creating, pairing, and transporting barcodes have been proposed [10, 16]. Next, the brain is homogenized, and the DNA barcode pairs are sequenced, yielding a record of which neurons are connected (Figure 4B).

2.2.2 Dimensionality Reduction

Each neuron can be treated as an -dimensional object, where is the number of neurons. Each dimension corresponds to a connection with a given neuron (Figure 4C). These -dimensional neurons must be mapped to their correct 3-dimensional coordinates (or 2 dimensions in Figure 4’s simplified example). This can be done because neurons are more likely to be connected to nearby neurons (e.g. [17, 18]), and thus we can treat the connectivity matrix as a similarity matrix. Using this similarity matrix, we can then puzzle the neurons back into place (Figure 4D). As with voxel puzzling, it is impossible to know exact locations without any additional information; only the relative locations of neurons can be known (Figure 4D).

In order to convert the knowledge of which neurons are connected (Figure 4C) to a reconstructed puzzle (Figure 4D), we used SDM, which we previously used for Neural Voxel Puzzling. See 4.7 Algorithm Comparison: ULI vs SDM for an explanation on why ULI will not work for Neural Connectomics Puzzling.

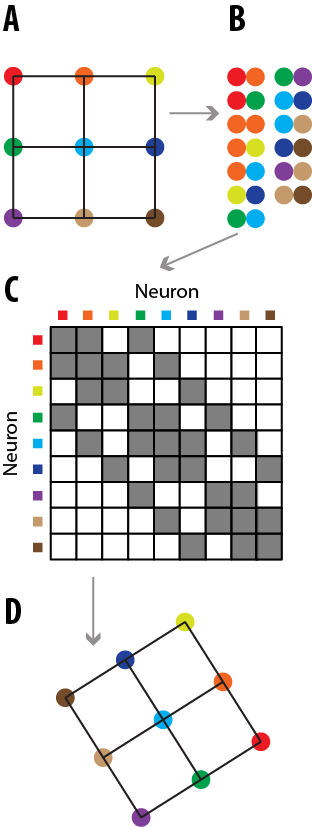

Figure 4: Neural Connectomics Puzzling Overview. (A) An example of 9 connected neurons (circles). Lines signify connections. (B) After the brain is homogenized, the only remaining information is a record of the connections. Connections are shown here as adjacent circles. (C) A connectivity matrix is constructed describing the connections between neurons. Gray signifies a connection. Since connections are correlated with how close neurons are to one another, this connectivity matrix can be treated as the similarity matrix. (D) The neurons are puzzled back together. The formation may be rotated or flipped, as shown here.

2.2.3 Performance

We tested the ability of connectomics puzzling to determine the locations of a simulated network of neurons. Hellwig [17]

described the probability of connections as a function of distance between pyramidal cells in layers 2 and 3 of the rat visual cortex. We simulated 8000 neurons in a

edge-length cube (so they were on average spaced apart from each other in a given direction). Connections between neurons were randomly determined based on their distance using the previously mentioned probability function (Figure 5E).

We first simulated only connections within layer 3. As our example simulation shows (Figure 5A), the locations of neurons were able to be estimated very accurately. As with voxel puzzling, we use mean error and R values to describe the quality of reconstruction, although now the distance is between neurons rather than between voxels. Next we simulated connections between layers 2 and 3; in our simulation, half of the neurons were in layer 2 and half were in layer 3. In an example simulation (Figure 5B), it’s clear that the locations of neurons could still be estimated accurately. In fact, the reconstruction clearly separated the neurons from the two layers.

Looking quantitatively at the differences between layer 3 reconstructions and layer 2/3 reconstructions, R values are slightly higher, and mean errors are slightly lower for layer 3 reconstructions. Median R values across simulations are 0.97 vs. 0.91 (layer 3 vs. 2/3), and median mean errors across simulations are vs. (Figure 5C,D). This disparity is largely due to the gap between layers in the reconstructions (Figure 5B); reconstructions within each layer are as accurate (in terms of R values) as the layer 3 reconstruction.

Next, in order to test when connectomics puzzling would be useful, we tested how reconstruction is dependent on the parameters of the connection probability distribution. For these simulations, we assumed the layer 3 connection probability distribution, and then changed either the baseline connection probability (the connection probability at a distance of 0) or the standard deviation of the connection probability distribution. There was a great improvement in reconstruction accuracy when the baseline probability increased from 0.10 to 0.15, and accuracy continued to increase until a baseline probability of 0.35, where it plateaued (

Figure 5F). In general, there are high accuracy reconstructions for a wide range of baseline probabilities, with the exception of low probabilities.

When looking at the effect of the standard deviation of the probability distribution, there was a general trend that reconstruction accuracy decreased as the standard deviation increased (Figure 5G). This is because connections become less closely related to distances when the standard deviation increases. For example, if the standard deviation was infinite so that the probability of connection was the same for all distances, then knowing the connections would no longer allow us to infer the distances between neurons.

One notable exception from the above trend is that there is a low reconstruction accuracy for the smallest standard deviations considered (50-). We have found that the algorithm does not work well in connectomics puzzling when the connection matrix is far too sparse. When we use a cube with edges and 1000 neurons instead of edges and 8000 neurons (the same neuronal density), simulations with a standard deviation perform very well. Thus, it’s important to note that the quality of reconstruction will depend on the size of the cube being used.

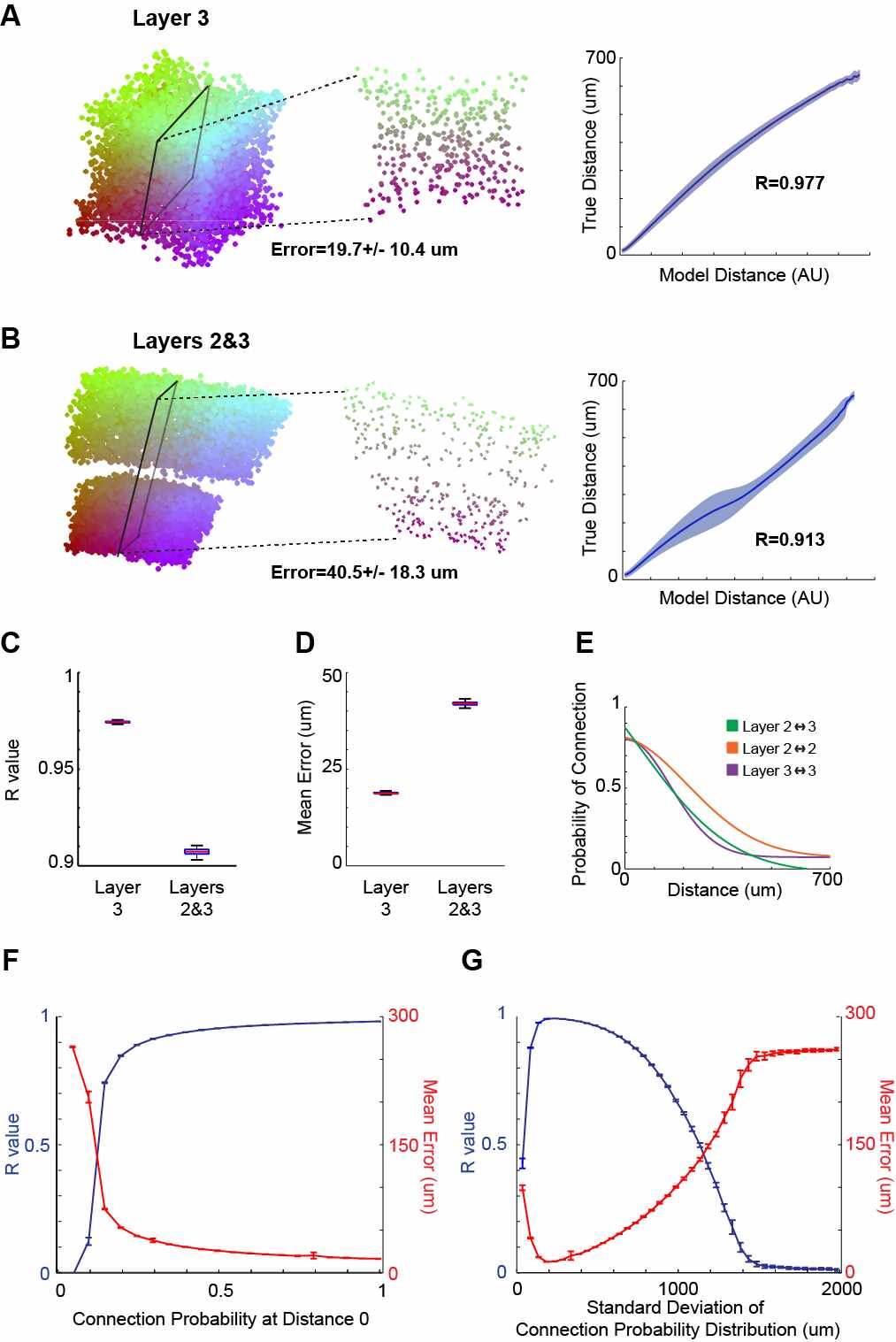

Figure 5: Neural Connectomics Puzzling Performance.
Figure 5: (A) On the left, an example reconstruction of neural locations based on a simulation of connections of pyramidal cells in layer 3 of cortex. Colors are based on initial locations: those with a larger initial x location are more red, while those with a larger initial y location are more blue. The distance errors are calculated following scaling and rotating the reconstructed volume to match the original volume. In the middle, a 2-dimensional slice through reconstructed volume. On the right, one metric for the accuracy of reconstruction is shown by plotting the reconstructed distances between all points against their true distances for the reconstruction in this panel. The mean plus/minus the standard deviation (shaded) is shown. A perfect reconstruction would be a straight line, corresponding to an R value of 1. (B) Same as panel A, except based on an example simulation of pyramidal cells in both layers 2 and 3 of cortex. (C)

Boxplots of R values for layer 3 simulations, and layer 2/3 simulations. The 5 lines (from bottom to top) correspond to 5%, 25%, 50%, 75%, and 95% quantiles of R values across simulations.

(D) Boxplots (as in panel C) of mean errors across simulations. (E) The probability of connection as a function of distance between pyramidal cells, which is used in the simulations of the other panels [17]. (F) Using the parameters of the connectivity probability distribution of layer 3, the baseline connection probability (the probability of connection at a distance of 0) of the connectivity distribution is changed. R values and mean errors are shown as a function of this baseline probability. Error bars represent the standard deviation across simulations in this and the next panel. (G) Using the parameters of the connectivity probability distribution of layer 3, the standard deviation of the connectivity distribution is changed. R values and mean errors are shown as a function of the standard deviation.

2.3 Chemical Puzzling

2.3.1 Overview

Puzzle imaging has a number of potential applications besides neuroscience, including some that are potentially more tractable and therefore may have a higher probability of being implemented in the near future. One example we develop here is that of reconstructing spatial chemical environments from populations of recording cells that have been mixed, a process we call “chemical puzzling.”

One example of a chemical puzzling assay would consist of the initial spreading of many “pioneer” cells across an environment containing a heterogeneous distribution of a particular chemical (Figure 6A,B). These pioneer cells would be endowed with the ability to detect the presence of that chemical and to record its concentration into a nucleotide sequence. This could be done through molecular ticker-tape methods using DNA polymerases [3, 19, 20], similar strategies using RNA polymerases, or other mechanisms [21, 22, 4, 5], for example involving chemically-induced methylation or recombination.

Some pioneer cells would also be given the ability to share genetic information with other cells — in the case of prokaryotes, this could be by the introduction of barcoded F-like plasmids encoding the components essential to conjugative transfer of the plasmid [23]. The pioneer cells would be placed at random places within the chemical environment (Figure 6B), and would then begin to grow outwards (Figure 6C). When the colonies become large enough to contact neighboring colonies, those that contain the F-plasmid (or equivalent), denoted F+, will copy it and transfer it to those without it (F-) (Figure 6D). We can think about the F-plasmid transfer between the colonies descended from two pioneer cells as these two pioneer cells becoming “connected” (just like a neural connection in the previous section). This sharing of genetic information provides information about which pioneer cells are close to each other, which can then be used to reconstruct where each cell was spatially.

Again, note that a benefit resulting from this strategy is that the spatial information can be destroyed and reconstructed post hoc. In terms of this example, this would be equivalent to wiping the surface that the bacteria are growing on and reconstructing its chemical spatial information after sequencing, in “one pot.” Preparation of the DNA for sequencing could also be done in one pot, i.e. all of the cells could be lysed and the DNA extracted at one time, if the genetic material carrying the connection information and the chemical information were physically linked (e.g. if a barcode on the F-plasmid were inserted into the chemical record region of the recipient cell’s genetic information). Otherwise, amplification of the connection information and the chemical record could be done on each cell using emulsion-based methods [24].

2.3.2 Dimensionality Reduction

Each pioneer cell can be thought of as an -dimensional object, where is the number of pioneer cells. Each dimension corresponds to a connection with another pioneer cell (whether the pioneer cell’s descendants are involved in a conjugative transfer with another pioneer cell’s descendants) (Figure 6E). These -dimensional cells must be mapped to their correct 2-dimensional coordinates. This can be done because pioneer cells will be more likely to be connected to nearby pioneer cells. We construct a similarity matrix by determining all cells two connections away. This is because the matrix of connections doesn’t directly provide accurate information about how close the pioneer cells are to each other, as F-’s can’t be connected to F-’s (and same for F+’s). The matrix of mutual connections allows F-’s to be connected to F-’s. With the knowledge of the similarity between all pairs of pioneer cells, we can puzzle the pioneers back into place (Figure 6G). The chemical recording functionality of the cells then allows the chemical environment to be determined at the locations of the pioneer cells (Figure 6H), and extrapolated beyond (Figure 6I).

In order to convert the knowledge of the similarity between cells (Figure 6F) to a reconstructed puzzle (Figure 6G), a dimensionality reduction algorithm is needed. Here we use Unweighted Landmark Isomap, as we used in Neural Voxel Puzzling, with only 5 landmark points. See 4.7 Algorithm Comparison: ULI vs SDM for an explanation on why SDM will not work well for Chemical Puzzling.

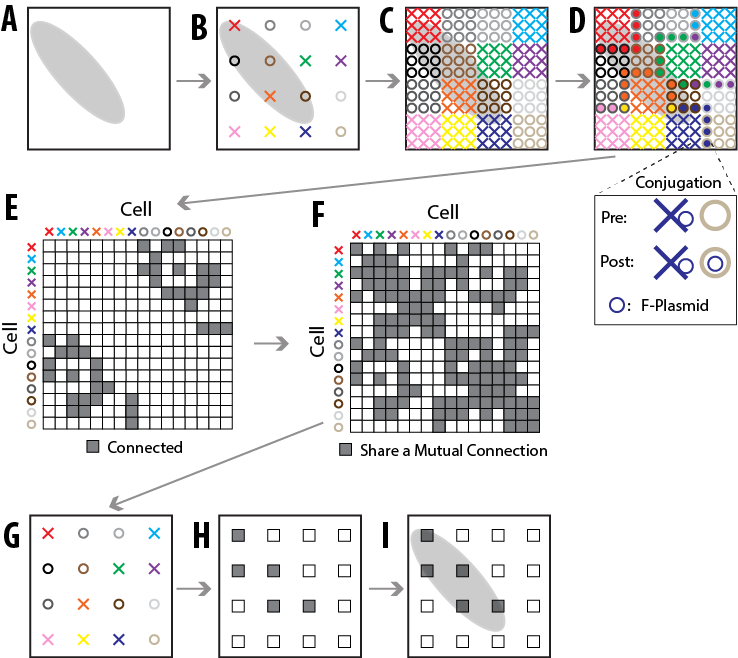

Figure 6: Chemical Puzzling Overview. (A) An example area contains a chemical whose concentration is represented by a grayscale value. (B) Pioneer cells (X’s and O’s, each with a different color) are put on the plate. X’s represent F+ cells that can transfer an F-plasmid into an F- cell (O’s). (C) The pioneer cells replicate and spread. Descendants of a pioneer are shown in the same color. (D) When the cell colonies become large enough to contact neighboring colonies, the F+ cells (X’s) will copy the F-plasmid and transfer it to the F- cells (O’s). This is shown as the X’s color filling in the center of the O’s. In the inset (below), the F-plasmid transfer (conjugation) is shown. (E) The DNA is sequenced to determine which pioneer cells are “connected” (which had a conjugative transfer occur between their colonies). A connectivity matrix is made from this data. (F) The matrix of connections doesn’t directly provide accurate information about how close the original cells are to each other because O’s can’t be connected to O’s (and same for X’s). As our similarity matrix, we thus use the matrix of mutual connections, which allows O’s to be connected to O’s. (G) The location of the original cells is estimated from the matrix in panel F. (H) The chemical concentrations at each of the original cells locations is known as the cells’ DNA acts as a chemical sensor. (I) The chemical concentration everywhere is extrapolated based on the chemical concentrations at the known pioneer cells.

2.3.3 Performance

To further demonstrate the potential for chemical puzzling, we performed a simulation of the chemical puzzling problem. We used a complex chemical concentration described by the letter “P” (for Puzzle Imaging), with the concentration also decreasing when moving outwards from the center, and a constant background concentration (Figure 7A). The image size is 1000 x 1000 pixels, and each pixel is (about the size of a cell [25]). The corresponding size of the letter, then, is about x . Each pioneer cell is randomly placed on a single pixel.

We simulated the placement and growth of thousands of pioneer cells in that environment (Figure 7B,C). Each cell synthesized a DNA element in which the percentage GC composition of the synthesized DNA was proportional to the chemical concentration at that spot. We were able to successfully reconstruct the letter “P” in the image (Figure 7B,C), though this was dependent on the number of pioneer cells used and the length of the incorporated DNA element. Fewer pioneer cells resulted in a decrease in the spatial resolution, whereas the dynamic range greatly increased with longer DNA incorporations (Figure 7B,C). When only two base pairs are used, the background concentration and the concentration decrease away from the center were unable to be accurately detected. With 50 base pairs, the chemical concentrations were reconstructed very accurately.

Lastly, the above simulations assumed that when a F+ and F- cell are in contact, transfer of genetic information occurs 100% of the time, which would likely not occur [26]. Still, relatively faithful chemical reconstruction was accomplished with conjugation efficiencies as low as 30% (see Figure S1 and 6 Supplementary Information). Overall, this technique holds the potential to determine chemical concentrations at very high resolution.

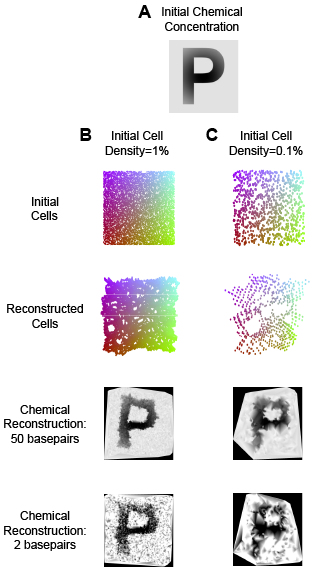

Figure 7: Chemical Puzzling Performance. (A) The chemical concentration across the plate. It is described by the letter “P,” with the concentration decreasing moving outwards from the center, and a constant background concentration. (B) A simulation is done with an initial cell density of 1%. (C) A simulation is done with an initial cell density of 0.1%. For panels B and C, the top row shows the initial locations of the pioneer cells. They are color-coded by location. The second row shows example reconstructed locations of the pioneer cells. The third row shows the reconstructed chemical concentrations when 50 base pairs are used to detect the concentration. The bottom row shows the reconstructed chemical concentrations when 2 base pairs are used to detect the concentration. Note that the black border represents regions of unknown concentration.

3 Discussion

Here we proposed the concept of puzzle imaging. We developed two possible large-scale nonlinear dimensionality reduction algorithms for use in puzzle imaging, and demonstrated some of puzzle imaging’s abilities and weaknesses in three possible applications. Using simplistic simulations, we showed that voxel puzzling may allow locating neural structures within about . In regards to connectomics puzzling, knowing only the connections between neurons within a layer of cortex could be sufficient to localize neurons within about . We also showed that chemical puzzling could be used to accurately determine chemical concentrations at a resolution well below 1 mm. Lastly, we describe how Sparse Diffusion Maps is faster than Diffusion Maps, and Unweighted Landmark Isomap is faster than Isomap (see 4 Methods).

3.1 Potential Uses of Puzzle Imaging

For neuroscience, puzzle imaging could be a scalable way to localize important molecular information within the brain. Neuronal RNA/DNA barcodes could be annotated with additional molecular information [10, 16]. For example, molecular ticker tapes have been proposed that would record the activity of a neuron into DNA [3, 19, 20]. It would be very valuable to know the location of the neurons that are being recorded from. Additionally, RNA that is being expressed could be annotated to the barcodes. This could provide information about what genes are being expressed in different locations of the brain, or about the distribution of cell types throughout the brain. If engineered cells capable of recording and/or stimulating adjacent neurons can circulate in and out of the brain, the concepts outlined here might help achieve input/output to many/all neurons without surgery.

The applications of chemical puzzling go beyond that of determining the chemical composition of bacterial cells growing on a surface. Indeed, biology often has the ability to survive and thrive in the harshest of environments, including spaces too small or desolate for even robotic access. Biological sensing and recording can open these areas to characterization and perhaps utilization. Applications could include those in the fields of geology (in which the composition of fractured geologic strata, which contain millions of microscopic cracks and pores, can be assayed) and medicine (in which the composition of the complex biological environments of, for example, the gastrointestinal tract, can be assayed).

3.2 Simulation Limitations

In all our simulations, we made simplifications in order to provide a preliminary demonstration of the feasibility of puzzle imaging. In neural voxel puzzling, our simulations assumed that there were equal neuronal densities across the volume and that neurons were oriented at random angles. In neural connectomics puzzling, our simulations used a maximum of two neuronal layers, and assumed that connection probability distributions did not differ within a layer (although in reality there are different cell types [27]). For both of these neuroscience examples, reconstruction errors due to these simplifying assumptions could likely be remedied by using previously known neuroanatomical information (e.g. the orientation of axons in a brain region) or molecular annotations (e.g. about whether a barcode is in an axon or dendrite, or about cell type [28]). In chemical puzzling, our simulations assumed that cells were stationary, and we used a simple model of outward cellular growth. For locations with viscous flow or rapidly moving cells, complex cell growth and movement models would be necessary to achieve accurate reconstructions.

For a more in-depth discussion of limitations for all simulations, see 6 Supplementary Information.

3.3 Algorithms

In this paper, we demonstrated two algorithms that could be used for puzzle imaging. Refinements of the presented algorithms would be beneficial for puzzle imaging (to overcome the limitations in 2 Results). For instance, a different metric could be used to create the similarity matrix in both methods. In addition, the number of landmark points in Unweighted Landmark Isomap can be optimally tuned for the specific use. Moreover, novel algorithms for large-scale nonlinear dimensionality reduction would be beneficial for more accurate puzzle imaging reconstruction.

While the algorithms presented here were designed for puzzle imaging, they could be generally used as faster versions of Diffusion Maps and Landmark Isomap for large problems. Both methods can preserve relative locations when reconstructing a swiss roll or helix, classical tests of nonlinear dimensionality reduction techniques. Further research needs to be done to see how these methods compare to traditional methods for other applications.

3.4 Conclusion

Here we have provided a preliminary demonstration that puzzle imaging may be possible. In order to make puzzle imaging a reality, significant biological work still needs to be done. For example, having location or neuron specific barcodes would be needed to make the neuroscience puzzle imaging approaches possible. We hope that this paper will inspire experimentalists and theoreticians to collaborate to help make puzzle imaging a reality.

4 Methods

4.1 Sparse Diffusion Maps Algorithm

Sparse Diffusion Maps is the same as the standard Diffusion maps algorithm [8] when using 1 timestep, except we here use a sparse similarity matrix. Thus, in the below algorithm, only step 1 differs from standard Diffusion maps. The algorithms take high-dimensional points, and reduce each point to dimensions (where is 2 or 3 in our applications). The algorithm follows in Table 1.

Sparse Diffusion Maps Algorithm
Step 1 Efficiently create a sparse, symmetric, nonnegative, similarity matrix, that is a connected graph.
Methods used to create in our applications follow.
Step 2 Create matrix by normalizing so that each row sums to 1. That is, , where is a diagonal matrix with
Step 3 Find the

largest eigenvalues

of

and their corresponding eigenvectors

. Each eigenvector is -dimensional.
Step 4 The final -dimensional positions of the points are the rows in .
Table 1: Sparse Diffusion Maps Algorithm

4.2 Unweighted Landmark Isomap Algorithm

Unweighted Landmark Isomap is based on Landmark Isomap [13, 14]. The most important change is that we compute geodesic distances more efficiently due to our graph being unweighted (Step 3). Additionally, we create the similarity matrices uniquely for each application (Step 1). All other steps are identical to Landmark Isomap. The algorithm follows in Table 2.

Unweighted Landmark Isomap Algorithm
Step 1 Efficiently create a sparse, binary, symmetric, similarity matrix, that is a connected graph.
Methods used to create in our applications follow.
Steps 2&3 These steps select a landmark point (Step 2) and then calculate the distance from all points to that landmark point (Step 3). In total, we will select landmark points, so these steps will be repeated in alternation times.
Step 2 Select a landmark point. We do this in the following way (MaxMin algorithm from [13]):
The first landmark point is selected randomly. Each additional landmark point is chosen in succession in order to maximize the minimum distance to the previously selected landmark points. In other words, for every point , we calculate the minimum distance to all the previously selected landmark points (indexed by ): , where is the calculated geodesic distance between the points in Step 3. We then choose the point that has the largest minimum distance: .
Step 3 Calculate the geodesic distance from all points to the previously selected landmark point. The geodesic distance from point to landmark point is the number of steps it would to get from point to landmark point in the graph of . This can be calculated efficiently using a breadth first search (as opposed to using Dijkstra’s algorithm) because is an unweighted graph.
Step 4 Use classical multidimensional scaling (MDS) [6] to place the landmark points. This means that the points are placed in order to minimize the sum squared error between the Euclidean distances of the placed landmark points and their known geodesic distances. This is done in the following way [13, 14]: Let be the matrix of squared geodesic distances between all the landmark points. Let be the mean of row of and be the mean of all entries of . Create the matrix with entries . Find the first (largest) eigenvalues and eigenvectors of . Let be the component of the eigenvector. Let be the eigenvalue. The matrix has the coordinates of the landmark points in its columns. has the entries .
Step 5 For each point, triangulate its location using the known geodesic distances to each of the landmark points. This is done in the following way [13, 14]: Let , and let be the matrix of squared geodesic distances between the landmark points and all points. The position of point , , is calculated by , where is row of the matrix (the squared geodesic distances from point to all the landmark points), and is the column mean of the matrix .
Table 2: Unweighted Landmark Isomap Algorithm

Note that the method of constructing the similarity matrix (Step 1) and the number of landmark points (Step 2) are user options within this algorithm. We discuss our choices for these steps for our applications below.

4.3 Neural Voxel Puzzling

4.3.1 Similarity Matrix

Let be an (voxels neurons) coincidence matrix that states which neurons are in which voxel. To construct the similarity matrix, we first compute , an matrix that gives the similarity between voxels. We then threshold this matrix (an approximate nearest neighbors calculation). Thresholding makes the matrix more sparse (beneficial for SDM), and makes points not connected to far-away points (important for increasing resolution in ULI). We use different thresholding methods prior to ULI and SDM. The specific thresholding methods below are what we used for our simulations; the method of thresholding is a tunable parameter.

For ULI, we threshold each row independently. The threshold for a row is the maximum of that row divided by 2. That is, for row , , where is the element of in row and column . After thresholding, the entries of the non-symmetric similarity matrix are . We create a symmetric unweighted similarity matrix: .

For SDM, the entire matrix is thresholded by the same value. We first create a vector

that contains the maximum of each row of . Its entries are . The threshold is the minimum of . That is, . Thresholding all entries, we get .

4.3.2 Simulations

For our simulations, we initially chose the average voxel size. If the average voxel had a volume of , we reported the voxel size as (the length of an edge of a cube of comparable size). We next created a cube with edges of length (so it had a volume of ). We then randomly placed 8000 voxel centers in the cube. We next added in long rectangular prisms (neurons) so that the entire volume would be filled. We assumed the neurons fully went through each voxel they entered. As the cross-sectional area of a voxel was on average , and we assumed neurons with cross-sectional areas of (about the size of an axon), we added enough neurons so that each voxel would contain neurons. Neurons were oriented within the volume at randomly determined angles.

When doing simulations with removed voxels, we placed voxels and neurons in the regular way. Then, we discarded voxels and aimed to reconstruct the locations of the other voxels. The R values and mean errors listed are for the voxels that were reconstructed (removed voxels were not included in the analysis).

Additionally, in our simulations, voxels that did not contain any neurons, or that did not share any neurons with another voxel, were excluded from analysis. When voxels were , , , and , 2.8%, 0.14%, 0.0046%, and 0.0003% of voxels were respectively excluded. Also, when removing voxels (Figure 2F,G), we excluded the remaining voxels that did not make up the main connected component of the similarity graph. When using ULI, when 80%, 85%, and 90% of voxels were removed, 0.36%, 1.7%, and 34.7% of remaining voxels were excluded from analysis. When using SDM, when 80%, 85%, and 90% of voxels were removed, 0.05%, 0.09%, and 0.37% of remaining voxels were excluded from analysis.

In our simulations, when using ULI, we used 10 landmark points (see 4.2 Unweighted Landmark Isomap Algorithm above).

4.4 Neural Connectomics Puzzling

4.4.1 Similarity Matrix

Let be an (neurons neurons) connectivity matrix that states which neurons are connected to each other. As mentioned in 2 Results, this connectivity matrix can be directly used as the similarity matrix.

4.4.2 Simulations

We randomly placed 8000 points (neurons) in a edge-length cube. Thus, the neurons were on average apart from each other in a single direction. We initially assumed all neurons were pyramidal cells in layer 3 of rat visual cortex and simulated connections according to the known connection probability distribution as a function of distance (Figure 5E) [17]. Every pair of neurons was randomly assigned a connection (or not) based on this probability distribution. Next, we simulated neurons in layers 2 and 3. The top half of the cube was assumed to be layer 2, and the bottom half was assumed to be layer 3. Again, every pair of neurons was randomly assigned a connection (or not) based on the relevant probability distribution (either between layer 2 and 2, layer 2 and 3, or layer 3 and 3; Figure 5E) [17].

4.5 Chemical Puzzling

4.5.1 Similarity Matrix

Let be an (pioneer cells pioneer cells) connectivity matrix that states which pioneer cells are “connected” to each other. The similarity matrix is calculated as .

4.5.2 Simulations

We randomly placed pioneer cells on a pixel in the pixel image. The number of pioneer cells was 1 million (the number of pixels) times the initial density, so 10000 in Figure 3B, and 1000 in Figure 3C. Each cell was randomly assigned to be F+ or F-. We assumed the cells grew out circularly over time with approximately the same rate of growth. For every pixel, we determined which colony (progeny from which pioneer cell) would reach the pixel first. This produced a final map of all pixels assigned to different pioneer cells. On the borders of colonies, cells could conjugate with one another if one colony was F+ and the other was F-. For each pixel on the border, a conjugation occurred according to the probability of conjugation (100% probability for Figure 7; varying for Figure S1). More specifically, any time different colonies occupied pixels horizontal or vertical of each other, a conjugation could occur for the cells in the bordering pixels.

We reconstructed the pioneer cells’ locations using ULI with 5 landmark points (see 4.2 Unweighted Landmark Isomap Algorithm above). We assumed that 3 cells were placed on the plate so that their locations were known. We scaled, rotated, and reflected the reconstructed locations of the pioneer cells so that the locations of the 3 known cells were matched (the average distance error was minimized).

The chemical concentration on the plate was between 0 and 1. If a pioneer cell was at a location with a chemical concentration of , each base pair has a probability of being a G or C with probability

. The reconstructed chemical concentration was the total number of G’s and C’s divided by the number of base pairs. Thus, if there were 2 base pairs, the reconstructed chemical concentration could be 0, 0.5, or 1. We used linear interpolation to determine the chemical concentration of areas on the plate that did not have a reconstructed concentration.

We also note that along with our approximate simulation method of outward circular growth, we also ran a smaller, more realistic, simulation. In this stochastic growth simulation, during each round, cells randomly divided into any single adjacent unoccupied pixel. When an F+ colony grew next to an F- colony, or vice versa, cells could conjugate (according to the conjugation probability). F- cells turned F+ upon receipt of the F-plasmid from an F+ cell. This growth simulation continued until the plate was full. On smaller plates (when it was less time consuming to run the realistic simulation), both simulation types produced nearly equivalent results.

4.6 Computational Complexity

4.6.1 Sparse Diffusion Maps

We list the complexity of Step 1 for the individual methods below. The run-time of this algorithm is dominated by Step 3. For the below complexity explanation, is an sparse matrix with non-zero elements. The complexity of this algorithm is listed in Table 3.

Sparse Diffusion Maps Computational Complexity
Step Worst-case complexity Further Explanation
Step 3
(and Total)
This is the complexity for the power iteration algorithm [29], which is very efficient for solving for a small number of eigenvalues/eigenvectors. In the power iteration method, the matrix is continually multiplied by a vector, which has complexity , until convergence. The number of steps to calculate eigenvalue depends on : a larger ratio means quicker convergence.

If this was not a sparse matrix, as is the case for standard Diffusion Maps, then this step would be .
Table 3: Sparse Diffusion Maps Computational Complexity

4.6.2 Unweighted Landmark Isomap

We list the complexity of Step 1 for the individual methods below. The complexity of this algorithm is listed in Table 4.

Unweighted Landmark Isomap Computational Complexity
Step Worst-case
complexity
Further Explanation
Step 2  [13]
Step 3 A breadth first search has a complexity of . This is done for each of landmark points.

If the graph had been weighted (as assumed in standard Landmark Isomap), then we would need to use Dijkstra’s algorithm. The fastest general implementation is  [30] for each landmark point, yielding .
Step 4  [13]
Step 5  [13]
Total
Table 4: Unweighted Landmark Isomap Computational Complexity

4.6.3 Neural Voxel Puzzling

To compute the similarity matrix, we can take a shortcut instead of performing the sparse matrix multiplication (which will be in the best case scenario [31]). The entries of tell us how many neurons are shared between particular voxels. This can also be calculated by drawing the bipartite graph that describes, with voxels on one side and neurons on the other (and edges when a neuron goes through a voxel). For a given voxel, to determine which voxels it shares a neuron with, we only need to trace all the paths to its connected neurons, and then the paths from those neurons back to voxels. This has a complexity of , where is the largest number of neurons in a voxel, and is the largest number of voxels a neuron goes through. Thus, for all voxels, the complexity is . Determining the similarity matrix can take a comparable amount of time to the steps in ULI or SDM.

Note that this step is faster than the standard method of computing a similarity matrix in Diffusion Maps: , where and are columns within . For our sparse matrices, this would take , where is the number of nonzero entries in , due to the pairwise vector subtraction. The Landmark Isomap algorithm does not give a method for computing the similarity matrix.

4.6.4 Neural Connectomics Puzzling

As no computation is required to construct the similarity matrix, the overall complexity of Neural Connectomics Puzzling is the complexity of the SDM algorithm.

4.6.5 Chemical Puzzling

As in neural voxel puzzling, we can take a shortcut to calculate the similarity matrix instead of performing the sparse matrix multiplication (which would take at best for very sparse matrices [32]). Again, we can construct a bipartite graph representing , where the pioneer cells are now on both sides of the graph (and there’s an edge between connected cells). We can determine if a pioneer cell is connected within 2 steps of another pioneer cell by counting all the ways to get to the other side of the graph (via connections) and back to cells on the same side. For a given cell, this has the complexity , where is the largest number of connections a pioneer cell has (how many different cell colonies that pioneer cell’s colony has conjugated with). Thus, the total complexity of determining the similarity matrix is . Determining the similarity matrix can take a comparable amount of time to the steps in ULI.

Additionally, chemical puzzling has the extra step of reconstructing the image of chemical concentrations. The chemical concentrations are known at the reconstructed locations of the pioneer cells, but interpolation needs to be used to estimate the concentrations at other locations. This interpolation step can dominate the total time, depending on the desired resolution and interpolation method.

4.7 Algorithm Comparison: ULI vs SDM

There are pros and cons of both Sparse Diffusion Maps (SDM) and Unweighted Landmark Isomap (ULI), which make them suitable for different applications.

4.7.1 Domain

To run ULI, the graph entered into the algorithm must contain only short-range connections. Practically, ULI will not work when there is high similarity (a large value in the similarity matrix) between points that are far away from one another. This is because having high similarity between far away points would make those far away points near each other in the reconstruction, a problem known as “short circuiting” [33]. This limitation means that neural connectomics puzzling, which contains long-range connections that are indistinguishable for short-range connections, is not compatible with ULI. SDM, on the other hand, is robust to high similarity values between far-away points, as long as similarity values are generally higher between nearby points. Thus, SDM does work for neural connectomics puzzling.

4.7.2 Reconstruction Accuracy

Reconstructions using SDM are generally biased towards having points around the perimeter, and therefore don’t faithfully reconstruct the center of the volume. This perimeter bias makes the SDM method unsuitable for use in Chemical puzzling. When used with Chemical puzzling, SDM leads to faulty chemical reconstructions near the center of the image. For neural voxel puzzling, as seen in our simulations (Figure 3), ULI was slightly more accurate than SDM, except for when at least 85% of the voxels had been removed.

Another important note is that the SDM method will only accurately reconstruct the volume when the volume is a cube (Figure S2). Thus, for the SDM method to be used in practice with neural voxel or connectomics puzzling, the brain would need to first be sectioned into cubes, and then the cubes would need to be pieced together. The ULI method, on the other hand has the benefit of accurately reconstructing volumes that are not cubes (Figure S2).

4.7.3 Speed

Both SDM and ULI are designed to be fast dimensionality reduction methods for use with large datasets. In practice, when directly comparing their speed in the neural voxel puzzling simulations using 8000 voxels, SDM took about 1.5 seconds, while ULI (with 10 landmark points) took about 0.9 seconds on a 2.3 GHz processor running Matlab. The previous times did not include constructing the similarity matrix. See 4.6 Computational Complexity above, and 4.8 Algorithm Time Improvements below, for the computational complexity of larger problems.

Pros/Cons Summary
Sparse Diffusion Maps Unweighted Landmark Isomap
Only accurately reconstructs cubes Can accurately reconstruct non-cubes
Biased towards exterior points Not biased towards exterior points
Is robust to problems that have high similarity between some far-away points. Is generally not robust to problems that have high similarity between some far-away points.
Table 5: Algorithm Comparison Summary: ULI vs. SDM

4.8 Algorithm Time Improvements

Our algorithms took previous algorithms and adapted them to be faster for large-scale puzzle imaging.

4.8.1 Sparse Diffusion Maps vs. Diffusion Maps

The difference between Sparse Diffusion Maps and Diffusion Maps is that we construct a sparse similarity matrix. The most time consuming step in these algorithms (besides constructing the similarity matrix) is finding the largest eigenvalues and eigenvectors, where is the dimension size you’re projecting into (2 or 3 for puzzle imaging). This computation will be significantly faster when the similarity matrix is sparse. For instance, one fast algorithm, “power iteration,” [29] has a complexity of , where is the number of non-zero elements in the similarity matrix (see 4.6 Computational Complexity).

Computing the similarity matrix is the other time consuming step in Diffusion Maps. Let’s say is an matrix, and we want to compute the similarity matrix that gives the similarity between the columns of . This is generally calculated as , where and are columns within . Computing would have a complexity of , where is the number of nonzero entries in (see 4.6 Computational Complexity).

In our scenarios where we use SDM, we compute a sparse similarity matrix more efficiently. For neural connectomics puzzling, computing the similarity matrix takes no time, as it simply describes the connections. For neural voxel puzzling, (the main step of computing the similarity matrix) can be calculated with a complexity of , where is the largest number of neurons in a voxel, and is the largest number of voxels a neuron goes through (see 4.6 Computational Complexity). This approach is thus significantly faster than Diffusion Maps for our problem.

4.8.2 Unweighted Landmark Isomap vs. Landmark Isomap

The main difference between ULI and Landmark Isomap is that ULI uses an unweighted similarity matrix. One of the time-consuming steps in Landmark Isomap is computing the geodesic distance between all points and each of the landmark points. For weighted graphs, this can be solved fastest with Dijkstra’s algorithm in  [30]. For unweighted graphs, we can simply use a breadth first search for each landmark point, which has a complexity of . When we include the other steps of the algorithm (other than constructing the similarity matrix), Landmark Isomap has a complexity of , while ULI is faster, with a complexity of (see 4.6 Computational Complexity).

It is important to note that computing the similarity matrices in neural voxel puzzling and chemical puzzling may take a comparable amount of time as ULI or Landmark Isomap. As mentioned above, computing the similarity matrix for neural voxel puzzling has a complexity of . For chemical puzzling, computing the similarity matrix has a complexity of , where is the largest number of connections a pioneer cell has (how many different cell colonies that pioneer cell’s colony has conjugated with). Additionally, for chemical puzzling, using interpolation to estimate the chemical concentration can be a very time-intensive step depending on the resolution desired.

5 Acknowledgements

We would like to thank Ted Cybulski and Mohammad Gheshlaghi Azar for very helpful comments on previous versions of the manuscript. We would like to thank Josh Vogelstein for helpful initial discussions.

Joshua Glaser was supported by NIH grant 5R01MH103910 and NIH grant T32 HD057845. Bradley Zamft was supported by NIH grant 5R01MH103910. George Church acknowledges support from the Office of Naval Research and the NIH Centers of Excellence in Genomic Science. Konrad Kording is funded in part by the Chicago Biomedical Consortium with support from the Searle Funds at The Chicago Community Trust, and is also supported by NIH grants 5R01NS063399, P01NS044393, and 1R01NS074044.

6 Supplementary Information

6.1 Chemical Puzzling Conjugation Efficiency

The simulations in the main text (Figure 7) assumed that when an F+ and F- cell are in contact, transfer of genetic information occurs 100% of the time. Evidence to the contrary exists, especially in the absence of selection, where the fitness penalty associated with F+ strains carrying a plasmid, and the competition between cell growth and conjugation, limit plasmid transfer [26]. Furthermore, recombination of the F-plasmid with the host genome can result in Hfr (high frequency of recombination) strains, which have the ability to transfer genetic information (e.g. barcodes), but generally do not confer conjugative ability to the recipient [34]. Our analysis, however, does not rely on every neighboring F+/F- pair to mate. Rather, it only requires that the descendants of nearby pioneer cells mate at least one once (if they’re an F+/F- pair). In simulations, relatively faithful chemical reconstruction was accomplished with a conjugation probability of only 30% (Figure S1). This probability is likely very feasible, as neighboring pairs will have many chances to mate.

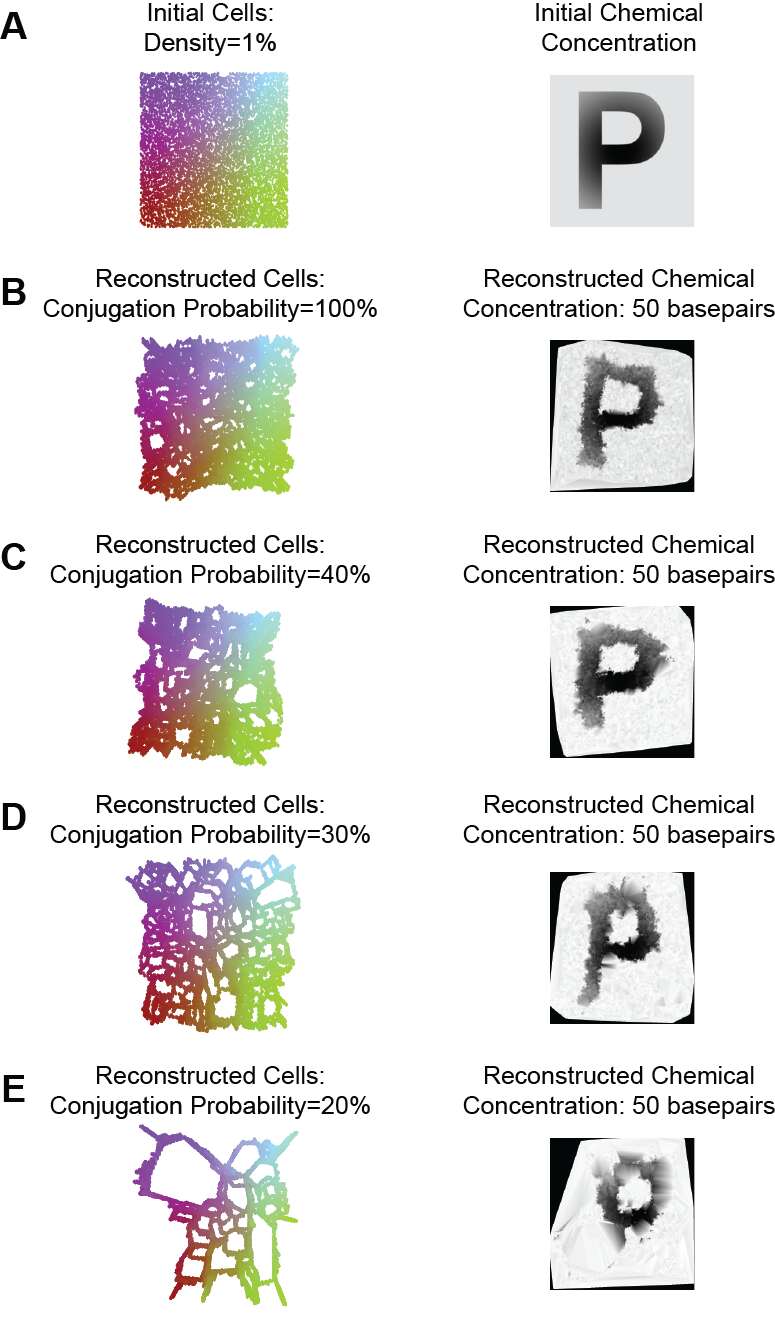

Figure S1: Chemical Puzzling with Low Conjugation Efficiency. We do a simulation of chemical puzzling, as in Figure 7B, except now with varying conjugation efficiencies. (A) The original cell locations (left), and initial chemical concentration (right). (B-E) On the left, the reconstructed cells, and on the right, the reconstructed chemical concentration, using (B) 100% conjugation probability, (C) 40% conjugation probability, (D), 30% conjugation probability, and (E) 20% conjugation probability. The reconstructed chemical concentrations assumed the pioneer cells had 50 base pairs to encode the concentration. The black area on the outside is a border, not a chemical concentration.

6.2 Reconstruction of Non-cubes

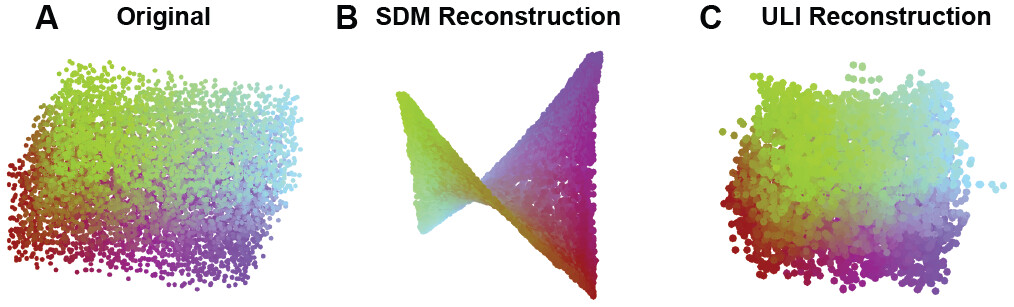

Figure S2: Reconstruction of Non-cubes. We do voxel puzzling as in Figure 3A,B, with 8000 voxels. However, now the overall shape is a rectangular prism (height is half of the length and width) rather than a cube. (A) The original voxel locations. (B) Reconstruction using SDM. (C) Reconstruction using ULI.

6.3 Simulation Limitations

6.3.1 Neural Voxel Puzzling

In our simulations, we aimed to demonstrate some of the problems that could arise when using real data. For instance, for voxel puzzling, we removed a large portion of the voxels to represent cell bodies taking up multiple voxels. It would likely be possible to place these voxels when using real data, by looking at the surrounding voxels that share a neuron tag.

In our voxel puzzling simulations, there were equal densities of neurons in all portions of the volume, which is not the case in the brain. This should not be a large concern, however, due to our method of constructing the similarity matrix. When we do thresholding, we are essentially taking the approximate nearest neighbors. This step removes the effects of having more total connections between voxels in one region (due to a high density of neurons) compared to another.

Our neurons were also all oriented at random angles, so that voxels that were horizontal of each other had the same probability of sharing a neuron as voxels that were vertical of each other (or on top of each other). If this is not the case (e.g. axons are oriented in a similar manner in many brain regions), the reconstruction will be skewed. For instance, if most neurons were oriented vertically, in the reconstruction, the vertical component will be compressed. Following reconstruction, if it’s seen that many neurons in a region are all oriented in the same manner, the dimensions of this region could be scaled proportionally. Moreover, having molecular annotations about whether axons or dendrites of a neuron are in a voxel could help with this process.

6.3.2 Neural Connectomics Puzzling

In our simulations of neural connectomics puzzling, we demonstrated that accurate reconstructions were still possible when there were multiple connection probability distributions (as a function of distance). However, this simulation only had 2 layers, and the connection probability distributions were consistent in each layer. It is possible that reconstructions could be less accurate when using more layers. This could be dealt with by using a priori knowledge about neuroanatomy in order to ensure cubes were cut to contain a homogenous population. It also could be problematic if connection probability distributions differed within a layer across multiple cell types [27]. This could be dealt with by using annotated molecular information about cell types [28]. In this scenario, separate reconstructions could be done using neuronal populations with homogenous connectivity probability functions, and then these reconstructions could be combined. Additionally, it may be possible to estimate cell types given connectivity information (by using clustering methods on the connectivity data) [35], and then use these cell type estimates (as mentioned above) to help localize the neurons.

It is also important to note that connectomics puzzling is based on the idea that there is a higher probability of connection between neurons that are closer to each other. If this is not the case, then the connectomics puzzling reconstruction may be inaccurate. For certain cell types or portions of the brain (e.g. layer 5 pyramidal cells), there may be a higher probability of long-range connections than short connections. Using a priori knowledge about neuroanatomy or information about cell types based on molecular annotations, these neurons could be excluded (or specific connections these neurons have could be excluded). Alternatively, this information about long-range connections could be utilized in connectomics puzzling to help provide an accurate reconstruction.

6.3.3 Chemical Puzzling

In our simulations of chemical puzzling, we used simplified models of bacterial growth and movement. In terms of cell growth, we assumed that cell colonies keep growing outward and stop once they contact another colony. In reality, cells will push on one another, causing the colonies to move. Additionally, in our two dimensional simulations, we ignored the possibility of cells growing in the vertical dimension, which could lead to additional conjugations. While we could incorporate a more sophisticated (and much more expensive in terms of CPU time) simulation of bacterial growth, it is important to note that these simplifications will have little effect on whether two colonies have a conjugation, which is the metric that influences our results.

Our simulations also assumed that cells are stationary; that is, once a cell occupies a particular spot in two (or three) dimensional space, it stays there forever. In this case, the trajectory of a lineage is determined by a two (or three) dimensional random walk with uniform and unity step size, where two trajectories do not cross. This would certainly not be true in the case of motile cells or when there is sufficient mixing, as cells arising from different lineages could cross before dividing. Further, if the particular chemical being sensed induces a bias in cell motility (i.e. is a chemoattractant or chemorepellant), a bias will be further introduced into the colony growth model. These movement affects could potentially be problematic for two reasons: 1) it could allow far-away colonies to conjugate with one another; 2) pioneer cells could determine the chemical concentration of a location different from the location where they start to divide. Detailed analysis of these movement affects is beyond the scope of this paper, and we simply note that in the case that cell motility is also an unbiased random walk (a good assumption in the absence of chemotaxis and viscous flow [36]) and there is no mixing, our analysis stands in the limit that the average distance covered by the cells during one division time is much smaller than their size. Outside of this limit, our reconstructed images would be blurred.

References

  • [1] Je Hyuk Lee, Evan R Daugharthy, Jonathan Scheiman, Reza Kalhor, Joyce L Yang, Thomas C Ferrante, Richard Terry, Sauveur SF Jeanty, Chao Li, Ryoji Amamoto, et al. Highly multiplexed subcellular rna sequencing in situ. Science, 343(6177):1360–1363, 2014.
  • [2] Anthony M Zador, Joshua Dubnau, Hassana K Oyibo, Huiqing Zhan, Gang Cao, and Ian D Peikon. Sequencing the connectome. PLoS Biol, 10(10):e1001411, 2012.
  • [3] K. P. Kording. Of toasters and molecular ticker tapes. PLoS Comput Biol, 7(12):e1002291, 2011.
  • [4] Fahim Farzadfard and Timothy K Lu. Genomically encoded analog memory with precise in vivo dna writing in living cell populations. Science, 346(6211):1256272, 2014.
  • [5] Felix Moser, Andrew Horwitz, Jacinto Chen, Wendell A Lim, and Christopher A Voigt. Genetic sensor for strong methylating compounds. ACS synthetic biology, 2(10):614–624, 2013.
  • [6] Joseph B Kruskal. Multidimensional scaling by optimizing goodness of fit to a nonmetric hypothesis. Psychometrika, 29(1):1–27, 1964.
  • [7] Joshua B Tenenbaum, Vin De Silva, and John C Langford. A global geometric framework for nonlinear dimensionality reduction. Science, 290(5500):2319–2323, 2000.
  • [8] Ronald R Coifman and Stéphane Lafon. Diffusion maps. Applied and computational harmonic analysis, 21(1):5–30, 2006.
  • [9] P.A. Carr and G.M. Church. Genome engineering. Nat Biotechnol, 27(12):1151–62, 2009.
  • [10] Adam H Marblestone, Evan R Daugharthy, Reza Kalhor, Ian D Peikon, Justus M Kebschull, Seth L Shipman, Yuriy Mishchenko, Je Hyuk Lee, Konrad P Kording, Edward S Boyden, et al. Rosetta brains: A strategy for molecularly-annotated connectomics. arXiv preprint arXiv:1404.5103, 2014.
  • [11] Ian D Peikon, Diana I Gizatullina, and Anthony M Zador. In vivo generation of dna sequence diversity for cellular barcoding. Nucleic acids research, 42(16):e127–e127, 2014.
  • [12] Carmen Gerlach, Jan C Rohr, Leïla Perié, Nienke van Rooij, Jeroen WJ van Heijst, Arno Velds, Jos Urbanus, Shalin H Naik, Heinz Jacobs, Joost B Beltman, et al. Heterogeneous differentiation patterns of individual cd8+ t cells. Science, 340(6132):635–639, 2013.
  • [13] Vin De Silva and Joshua B Tenenbaum. Sparse multidimensional scaling using landmark points. Report, Technical report, Stanford University, 2004.
  • [14] Vin D Silva and Joshua B Tenenbaum. Global versus local methods in nonlinear dimensionality reduction. In Advances in neural information processing systems, pages 705–712, 2002.
  • [15] János A Perge, Jeremy E Niven, Enrico Mugnaini, Vijay Balasubramanian, and Peter Sterling. Why do axons differ in caliber? The Journal of Neuroscience, 32(2):626–638, 2012.
  • [16] Adam H Marblestone, Evan R Daugharthy, Reza Kalhor, Ian Peikon, Justus Kebschull, Seth L Shipman, Yuriy Mishchenko, David A Dalrymple, Bradley M Zamft, Konrad P Kording, et al. Conneconomics: The economics of large-scale neural connectomics. bioRxiv, 2013.
  • [17] Bernhard Hellwig. A quantitative analysis of the local connectivity between pyramidal neurons in layers 2/3 of the rat visual cortex. Biological cybernetics, 82(2):111–121, 2000.
  • [18] Beth L Chen, David H Hall, and Dmitri B Chklovskii. Wiring optimization can relate neuronal structure and function. Proceedings of the National Academy of Sciences of the United States of America, 103(12):4723–4728, 2006.
  • [19] Bradley M. Zamft, Adam H. Marblestone, Konrad Kording, Daniel Schmidt, Daniel Martin-Alarcon, Keith Tyo, Edward S. Boyden, and George Church. Measuring cation dependent dna polymerase fidelity landscapes by deep sequencing. PLoS One, 7(8):e43876, 2012.
  • [20] Joshua I Glaser, Bradley M Zamft, Adam H Marblestone, Jeffrey R Moffitt, Keith Tyo, Edward S Boyden, George Church, and Konrad P Kording. Statistical analysis of molecular signal recording. PLoS Comput Biol, 9(7):e1003145, 2013.
  • [21] Ari E Friedland, Timothy K Lu, Xiao Wang, David Shi, George Church, and James J Collins. Synthetic gene networks that count. Science, 324(5931):1199–1202, 2009.
  • [22] George M Church and Jay Shendure. Nucleic acid memory device, 2003.
  • [23] Neil Willetts and Ron Skurray. The conjugation system of f-like plasmids. Annual review of genetics, 14(1):41–76, 1980.
  • [24] Michihiko Nakano, Jun Komatsu, Shun-ichi Matsuura, Kazunori Takashima, Shinji Katsura, and Akira Mizuno. Single-molecule pcr using water-in-oil emulsion. Journal of biotechnology, 102(2):117–124, 2003.
  • [25] NEZCE Grossman, EZ Ron, and CL Woldringh. Changes in cell dimensions during amino acid starvation of escherichia coli. Journal of bacteriology, 152(1):35–41, 1982.
  • [26] José M Ponciano, Leen De Gelder, Eva M Top, and Paul Joyce.

    The population biology of bacterial plasmids: a hidden markov model approach.

    Genetics, 176(2):957–968, 2007.
  • [27] DTJ Liley and JJ Wright. Intracortical connectivity of pyramidal and stellate cells: estimates of synaptic densities and coupling symmetry. Network: Computation in Neural Systems, 5(2):175–189, 1994.
  • [28] Dmitry Usoskin, Alessandro Furlan, Saiful Islam, Hind Abdo, Peter Lönnerberg, Daohua Lou, Jens Hjerling-Leffler, Jesper Haeggström, Olga Kharchenko, Peter V Kharchenko, et al. Unbiased classification of sensory neuron types by large-scale single-cell rna sequencing. Nature neuroscience, 2014.
  • [29] Gene H Golub and Charles F Van Loan. Matrix computations, volume 3. JHU Press, 2012.
  • [30] Michael L Fredman and Robert Endre Tarjan. Fibonacci heaps and their uses in improved network optimization algorithms. Journal of the ACM (JACM), 34(3):596–615, 1987.
  • [31] Haim Kaplan, Micha Sharir, and Elad Verbin. Colored intersection searching via sparse rectangular matrix multiplication. In Proceedings of the twenty-second annual symposium on Computational geometry, pages 52–60. ACM, 2006.
  • [32] Raphael Yuster and Uri Zwick. Fast sparse matrix multiplication. ACM Transactions on Algorithms (TALG), 1(1):2–13, 2005.
  • [33] Laurens JP van der Maaten, Eric O Postma, and H Jaap van den Herik. Dimensionality reduction: A comparative review.

    Journal of Machine Learning Research

    , 10(1-41):66–71, 2009.
  • [34] PK Gupta. Cell and Molecular biology. Rastogi Publications, 2009.
  • [35] Eric Jonas and Konrad Kording. Automatic discovery of cell types and microcircuitry from neural connectomics. arXiv preprint arXiv:1407.4137, 2014.
  • [36] Jonathan Saragosti, Pascal Silberzan, and Axel Buguin. Modeling e. coli tumbles by rotational diffusion. implications for chemotaxis. PloS one, 7(4):e35412, 2012.
