I Introduction

In 2014, Kim et al. [26] performed the first comprehensive study of an infamous software-induced hardware fault, the so-called rowhammer vulnerability. Specifically, frequent accesses to the same addresses in two DRAM (Dynamic Random Access Memory) rows (known as hammer rows) can cause bit flips in an adjacent row (the victim row). If the victim row contains sensitive data, such as page tables, these bit flips can corrupt the data and compromise the security of the system. Because the adversary does not access the victim row, rowhammer attacks can be carried out even when the attacker has no access to the sensitive data. Thus, rowhammer attacks can bypass MMU-based domain isolation both between processes and between user and kernel spaces, even in the absence of software vulnerabilities. Rowhammer attacks have been shown to allow privilege escalation [45, 17, 5, 12, 49, 16, 51, 57] and to steal private data [44, 3, 30].

One limitation of existing rowhammer attacks is that the adversary requires access to an exploitable hammer row. (A hammer row is exploitable if the adversary can use it for the attack, i.e., it is adjacent to a victim row that contains sensitive data.111 In the RAMBleed attack [30], the exploitable rows are the rows that contain the sensitive data. ) That is, as Figure 1 shows, some memory in the hammer row should be mapped to the address space of the attacker, who should have the permission to read that memory. As the access to the hammer row is legitimate and conforms to the privilege boundary enforced by MMU, we refer to such attacks as explicit hammer.

Fig. 1: Implicit and explicit hammer. All existing rowhammer attacks are explicit hammer, i.e. the attacker E requires access to memory in the exploitable hammer rows. In implicit hammer, in contrast, the attacker I exploits a benign entity X (e.g., the processor) to implicitly hammer the exploitable hammer rows.

This limitation of explicit hammer attacks underlies the design of some proposed software-only defenses against rowhammer [4, 6, 56]. These defenses enforce DRAM-aware memory isolation at different granularities to deprive attackers of access to exploitable hammer rows. As an example, CTA [56] allocates memory for page tables in a separate region of the DRAM, such that no row adjacent to page tables is accessible to unprivileged users. Unlike hardware-based defenses (e.g.,  [38, 23, 48, 31]), such software-only defenses have the appeal of compatibility with existing hardware, which allows better deployability.

In this paper, we question the assumption underlying proposed software-only defenses. Specifically, we ask:

Are rowhammer attacks feasible without access permission to exploitable hammer rows?

Our contributions: In this paper, we provide a positive answer to this question. We introduce a new class of rowhammer attacks, called implicit hammer. As Figure 1 shows, an attacker I in implicit hammer uses a confused deputy attack [19], to bypass the access restrictions. Instead of explicitly accessing the exploitable hammer rows, the attacker tricks a benign entity to implicitly hammer the exploitable rows, eliminating the key requirement of explicit hammer. Essentially, implicit hammer exploits built-in features of modern hardware and/or software, such as address translation, a system call handler, etc., where the entity is either hardware, e.g., the processor, or software, such as system call handler. For instance, an unprivileged attacker can invoke a system call to cross user-kernel privilege boundary and access kernel memory [33] implicitly. If such access frequently occurs within DRAM, then the accessed kernel memory might be vulnerable to rowhammer.

Carrying out a implicit hammer attack raises the following challenges as illustrated in Figure 1. First, the attacker I should find a hardware or software feature that implicitly accesses the hammer rows (solid arrows). Second, the attacker I should effectively and efficiently trigger the selected feature to hammer the hammer rows. Third, the hammer rows (blue) should be exploitable for a meaningful attack [30, 6].

PThammer: To demonstrate the viability of implicit hammer, we instantiate a concrete example that is called PThammer. Specifically, like van Schaik et al. [52], we use the page translation mechanism of the processor as a confused deputy. In modern mainstream operating systems, a memory access triggers address translation. Specifically, when a program accesses memory, the processor needs to translate the virtual address that the program uses to a physical address. On the Intel x86 architecture, the processor first searches the Translation-Lookaside Buffer (TLB) for the corresponding physical address. In a TLB miss, when the search fails, the processor proceeds to search the paging-structure caches that store partial address mappings of different page-table levels [2]. Finally, if no partial translation is found, the processor translates the address by “walking” the page tables. In the page-table walk, page-table entries (PTEs) are retrieved from the cache, if they are cached, or from the DRAM memory, if not.

In PThammer we exploit this page-table walk to perform an implicit hammer. Theoretically, all of the levels of PTEs can be used for implicitly hammering memory. However, for that to happen, the attacker needs to ensure that the corresponding entries are evicted from the TLB, the paging-structure cache, and the data caches. At the same time, both evicting entries from caching structures and page-table walks take time, hence a naive implementation of the attack may not be fast enough to induce bit flips. Thus the major challenge of PThammer is how to exploit the page-table walk mechanism to produce frequent enough memory accesses to exploitable hammer rows.

To address this challenge, exploit an interaction between the paging-structure cache and page-table walks. Specifically, if a partial translation for a page-table walk exists in the cache, the processor uses the partial translation to skip parts of the page-table walk. Thus, if we ensure that the page-table walk only misses on the Level-1 PTE (L1PTE), we can perform an implicit memory access to a single L1PTE only.

For PThammer, we prepare a pool of eviction sets for the TLB and for the cache. Each of these eviction sets allows us to evict one set of the TLB or the cache. We then repeatedly select a pair of memory addresses. For each of these pairs, we repeatedly hammer the memory row that contains the L1PTEs of the addresses. To that aim, we use these eviction sets to evict the TLB sets that store the entries of the selected pair of addresses, as well as the last-level cache sets that store the L1PTEs for these addresses. We then access the memory addresses. Because we evicted the TLB entry, the processor needs to perform a page-table walk. Most of the address translation is cached in the paging-structure cache. However, the entry of the L1PTE is not cached and retrieving it requires a DRAM access. If these L1PTEs happen to be in exploitable hammer rows, we can expect hammering to induce a bit flip in the victim row.

We evaluate PThammer in two system settings, when using regular (4 KiB) pages, and with huge (2 MiB) superpages. (As we show in Section IV, the latter facilitates the faster generation of eviction sets.) The experimental results indicate that PThammer is able to cross the user-kernel boundary, allowing an unprivileged user to induce exploitable bit flips in L1PTEs and to gain kernel privilege in either setting. We further show that PThammer can overcome all of the aforementioned practical defenses (Section IV). To the best of our knowledge, we are the first to demonstrate an attack capable of compromising the CTA defense [56]. We discuss other possible instances of implicit hammer in Section V.

Summary of Contributions: The main contributions of this paper are as follows:

  • We demonstrate PThammer, the first implicit hammer attack, which exploits page-table walks to void the core assumption that underlies all of the published software-only defenses for rowhammer. (Section III.)

  • We identify and exploit an efficient page-table walk path that only induces loads of L1PTEs from memory, builds eviction sets to flush relevant hardware caches fast enough to cross the user-kernel boundary in hammering L1PTEs and gain kernel privilege. (Section III.)

  • We evaluate PThammer on three different machines, in two system settings, with and without superpages, demonstrating privilege escalation with implicit hammer. (Section IV.)

  • We evaluate multiple proposed software-only defenses [6, 4, 56], and show that PThammer bypasses all of them. (Section IV-G.)

Ii Background and Related Work

In this section, we introduce the rowhammer bug and its attacks.

Ii-a Rowhammer Bug

Kim et al. [26] discovered that current DRAMs are vulnerable to disturbance errors induced by charge leakage. In particular, their experiments have shown that frequently opening the same row (i.e., hammering the row) can cause sufficient disturbance to a neighboring row and flip its bits without even accessing the neighboring row. Because the row buffer acts as a cache, another row in the same bank is accessed to flush the row buffer after each hammering so that the next hammering will re-open the hammered row, leading to bit flips of its neighboring row.

Hammering techniques: Generally, there are three techniques for hammering a vulnerable DRAM.

Double-sided hammering: is the most efficient technique to induce bit flips. Two adjacent rows of a victim row are hammered simultaneously and the adjacent rows are called hammer rows or aggressor rows [26].

Single-sided hammering: Seaborn et al. [45] proposed a single-sided hammering by randomly picking multiple addresses and hammering them with the hope that such addresses are in different rows within the same bank.

One-location hammering: one-location hammering  [16] randomly selects a single address for hammering. It exploits the fact that advanced DRAM controllers apply a sophisticated policy to optimize performance, preemptively closing accessed rows earlier than necessary.

Key requirements: The following requirements are needed by explicit hammer-based attacks to gain either privilege escalation or private information.

First, the CPU cache must be either flushed or bypassed. It can be invalidated by instructions such as clflush on x86. In addition, conflicts in the cache can evict data from the cache since the cache is much smaller than the main memory. Therefore, to evict hammer rows from the cache, we can use a crafted access pattern [18] to cause cache conflicts for hammer rows. Also, we can bypass the cache by accessing uncached memory.

Second, the row buffer must be cleared between consecutive hammering DRAM rows. Both double-sided and single-sided hammering explicitly perform alternate access to two or more rows within the same bank to clear the row buffer. One-location hammering relies on the memory controller to clear the row buffer.

Third, existing rowhammer attacks require that at least part of a hammer row be accessible to an attacker in order to gain the privilege escalation or steal the private data, such that a victim row can be compromised by hammering the hammer row.

Fourth, either the hammer row or the victim row must contain sensitive data objects (e.g., page tables) we target. If the victim row hosts the data objects, an attacker can either gain the privilege escalation or steal the private data [45, 3]. If the hammer row hosts the data objects, an attacker can steal the private data [30].

Ii-B Rowhammer Attacks

In order to trigger rowhammer bug, frequent and direct memory access is a prerequisite. Thus, we classify rowhammer attacks into three categories based on how they flush or bypass cache.

Instruction-based: Either clflush or clflushopt instruction is commonly used for explicit cache flush [26, 45, 16, 44, 9, 8, 13] ever since Kim et al. [26] revealed the rowhammer bug. Also, Qiao et al. [42] reported that non-temporal store instructions such as movnti and movntdqa can be used to bypass cache and access memory directly.

Eviction-based: Alternatively, an attacker can evict a target address by accessing congruent memory addresses which are mapped to the same cache set and same cache slice as the target address [1, 18, 5, 35, 37, 52]. A large enough set of congruent memory addresses is called an eviction set. Our PThammer also chooses the eviction-based approach to evict Level-1 PTEs from cache.

Uncached Memory-based: As direct memory access (DMA) memory is uncached, past rowhammer attacks such as Throwhammer [49] and Nethammer [32] on x86 microarchitecture and Drammer [51] on ARM platform have leveraged DMA memory for hammering. Note that such attacks hammer target rows that are within an attacker’s access permission.

Iii Overview

In this section, we first present the threat model and assumptions, and then discuss PThammer in detail.

Iii-a Threat Model and Assumptions

Similar to previous rowhammer attacks [57, 44, 42, 5, 17, 45], we assume an unprivileged attacker that tries to cause a bit flip in sensitive data that the attacker is not allowed to access, let alone modify. We further assume that the attacker does not know the location of the sensitive data, i.e., its physical address, and does not have access to interfaces, such as pagemap, that convert between virtual and physical addresses. Additionally, we assume that the software and the operating system are working correctly and have no software vulnerabilities. Last, like prior attacks, we assume that the memory is vulnerable to the rowhammer attack. Pessl et al. [41] report that many DRAM modules, including both DDR3 and DDR4 modules, sold by mainstream DRAM manufacturers are vulnerable.

Unlike past works, we assume that the system is protected by software-only defenses, such as RIP-RH [4], CATT [6], or CTA [56]. These defenses segregate the sensitive data in memory to prevent attacker’s access to exploitable hammer rows.

Iii-B PThammer

PThammer is page-table-based implicit hammer attack that leverages the address translation feature of the processor to hammer Level-1 page tables (L1PTs) implicitly and to flip exploitable bits in other L1PTs, thereby achieving privilege escalation. Specifically, we observe that the address translation feature enables implicit access to the page tables, which are served from the DRAM memory. Based on this observation, we build an attack primitive that hammers Level-1 page-table entries (L1PTEs). Using this hammer primitive, we induce bit flips in sensitive data in the kernel. In particular, in our implementation we induce bit flips in L1PTEs, to compromise them and gain kernel privilege.

At a high level, PThammer follows in the footsteps of the “Malicious Management Unit” attack of van Schaik et al. [52]. Like their attack, PThammer is a confused-deputy attack that exploits the memory management unit to bypass memory-segregation defenses. However, unlike van Schaik et al., we do not care about cache noise, but have tight timing constraints required for achieving bit flips. Thus, our focus is on performing the attack efficiently and effectively.

Address Translation in Intel x86: Modern operating systems isolate user processes by running each user process in a virtual address space. The operating system and the MMU collaborate on translating the virtual addresses that processes use to physical addresses, which determine the location of the data in the memory. The main data structure used for this translation is the page tables, This is a four-level tree where each level is indexed by 9 address bits, covering a virtual address space of 48 bits. To translate an address, the MMU performs a page-table walk querying the page tables from the root of the tree down to the lower Level 1, which contains the translation of the address.

To reduce the cost of page-table walks, the MMU also caches prior translation results, which are then used to bypass parts or all of the page-table walk. As Figure 2 shows, the MMU maintains a separate caching structure for each of the levels of the page tables. The Translation-Lookaside Buffer (TLB) caches complete translations. The other paging-structure caches cache partial translations [2]. Thus, when translating a virtual address, the MMU first checks for the corresponding physical address in the TLB. If the address is not in the TLB, it proceeds to search the PD, which caches location of level 1 page tables. The search proceeds up the hierarchy, until a page is found or the MMU exhausts the paging-structure caches. The MMU then performs a page-table walk from either the cached result or from the root of the page-tables tree.

The page tables themselves are stored in the DRAM. When accessing them during the page-table walk, the MMU first searches for the required page-table entry in the data caches, and accesses the DRAM only if no cached copy is found in the data cache hierarchy.

Fig. 2: Address translation in Intel x86. Red solid arrows mark the path that PThammer uses to implicitly access a Level-1 page-table entry (PTE) from memory. To that aim, PThammer flushes the TLB entry and the cached PTE for the target address, while retaining all of the higher-level partial translations in the respective paging-structure caches.

An Implicit Memory Access Primitive: For PThammer we want to exploit the address translation, and specifically the page-table walk, to achieve implicit hammer. This raises two requirements. First, we need to perform actual DRAM accesses, and second we need to performs these accesses fast enough. However, these requirements conflict, because DRAM accesses take time and to perform these we need to evict information from various caching structures which require further time. Hence the challenge is to ensure that DRAM accesses happen without spending too much time.

To address this challenge, we identify the shortest path through address translation that results in a memory access. This path is highlighted with solid red arrows in Figure 2. As we can see in the diagram, to traverse this path we need address translation to miss on the TLB, hit on the PD, and miss on the PTE access in the cache. Thus, given a target address whose L1PTE entry resides in an exploitable hammer row, to induce an implicit access to the exploitable hammer row, we need to evict the entry of the target address from the TLB and evict L1PTE entry for the target address from the data cache.

Finding Exploitable Target Addresses: To complete the attack, we need to find a victim row that has a flippable bit and contains sensitive data. We further need to implicitly hammer the two adjacent rows. That is, we need to find two target memory addresses whose L1PTEs are in the rows adjacent to the victim row. We achieve this using memory spraying [7, 45]

. We allure the kernel to create a large number of L1PT pages, filling a significant part of the memory with such pages. In such an arrangement, a random bit flip in memory has a non-negligible probability of changing the address of one of the L1PTEs. Because a significant part of the memory contains L1PT pages, there is a non-negligible probability that modified L1PTE points to an L1PT page. This, effectively, gives the attacker write access to an L1PT page. Modifying this page, the attacker can get access to any desired physical page.

Evicting the TLB entry and the L1PTE: While the Intel architecture supports instructions for evicting entries from the TLB and the cache, the former is restricted to privileged code and the latter only works on data the user can access. As such, we have to resort to causing contention on these components to evict the entries. We now discuss how we create eviction sets that allow effective and efficient eviction of these entries.

Iii-C Evicting the TLB Entry

As Gras et al. [15] have revealed there exists an explicit mapping between a virtual page number and a multi-level TLB set, we simply create an initial eviction set that contains multiple (physical) pages to flush a cached virtual address from TLB. One subset of the pages is congruent and mapped to a same L1 dTLB set while the other is congruent and mapped to a same L2 sTLB set if TLB applies a non-inclusive policy.

Take one of our test machines, Lenovo T420, as an example, both L1 dTLB and L2 sTLB have a -way set-associative for every TLB set and thus (physical) pages are enough as an minimum eviction set to evict a target virtual address from TLB. However, when we create such an eviction set and profile the access latency of a target virtual address, its latency remains unstable. To collect the number of TLB misses induced by the target address, we develop a kernel module that applies Intel Performance Monitoring Counters (PMCs) to count TLB-miss events (i.e., dtlb_load_misses.miss_causes_a_walk). The experimental results show that TLB misses in both levels do not always occur when profiling the target address, meaning that the target address has not been effectively evicted by the eviction set, and thereby rendering our TLB flushes ineffective. A possible reason is that the eviction policy on TLB is not true Least Recently Used (LRU).

Decide a Minimal Eviction-Set Size for TLB: To this end, we propose a working Algorithm 1 that decides a minimal size without knowing its eviction policy. Note that the minimal size is used to prepare a minimal TLB eviction set in PThammer. Specifically, Lines 2–13 define a function that reports the TLB miss probability induced by accessing . Specifically, the function accesses all the elements in the eviction set (Lines 6–8) aiming to evict the cached address mapping for from the TLB. It counts the number of misses (Lines 9–11) and returns the ratio of misses to tries (Line 13). The main code starts from a large buffer . In Lines 15–19, We select all those pages that are indexed to the same TLB set as the by leveraging the reverse-engineered mapping function of Gras et al. [15]. Note that the size of is determined based on the number of entries for 4 KiB pages in the TLB. If is allocated from a huge page, the number of TLB entries that for the page size should be considered. The selected pages are then populated and inserted to (Lines 15–19). Populate the selected pages is essential in order to trigger the address-translation feature so tha the TLB will cache address mappings accordingly. In Line 21, we find a threshold for effective TLB flushes. We then start to trim the set while retaining its effectiveness in Lines 22–28.

1 Initially: is a page-aligned virtual address that needs its cached TLB entry flushed. A buffer () is pre-allocated, size of which is decided by TLB entries. is an empty set. Two unique unsigned integers are assigned to and , respectively.
2 Function
3
4        repeat  times
5               access
6               foreach  do
7                      access
8
9               end foreach
10              if TLB miss when accessing  then
11
12               end if
13
14        end
15       return
16
17
18
19 foreach  do
20        if  and are in the same set then
21
22               add into .
23
24        end if
25
26 end foreach
27
28 for  do
29        take one out of .
30
31        if  then
32               put back into and break.
33
34        end if
35
36 end for
37return the size of
Algorithm 1 Find the minimal eviction-set size for TLB

Iii-D Evicting the L1PTE from the Cache

Now we are going to flush a cached Level-1 PTE (L1PTE) that corresponds to a target virtual address. Considering that last-level cache (LLC) is inclusive [21], we target flushing the L1PTE from LLC such that the L1PTE will also be flushed out from both L1 and L2 caches (we thus use cache and LLC interchangeably in the following section). In contrast to the TLB that is addressed by a virtual page-frame number, the LLC is indexed by physical-address bits, the mapping between them has also been reverse engineered [20, 36, 22]. Based on the mapping, we decide the size of a minimal LLC eviction set in an offline phase where physical addresses are available. When launching PThammer, we build a one-off pool of minimal eviction sets for every LLC set and select one from the pool for a target L1PTE. In the following, we talk about the above three steps in detail.

Decide a Minimal Eviction-Set Size for LLC: We extend the aforementioned kernel module to count the event of LLC misses (i.e., longest_lat_cache.miss) and have a similar algorithm to Algorithm 1 to decide the minimal size for an LLC eviction set, namely, prepare a large enough eviction set congruent as a target virtual address and gain a threshold of LLC-miss number induced by accessing the target address, remove memory lines randomly from the set one by one and verify whether currently induced LLC-miss number is less than the threshold. If yes, a minimal size is determined. Also, this algorithm is performed in an offline phase long before PThammer is launched.

Although the size of eviction-set is determined ahead of time, PThammer in our threat model cannot know the mapping between a virtual and a physical address, making it challenging to prepare an eviction set for any target virtual address during its execution. Also, PThammer cannot obtain the L1PTE’s physical address, and thus it is difficult to learn the L1PTE’s exact location (e.g., cache set and cache slice) in LLC. To address the above two problems, PThammer at the beginning prepares a complete pool of eviction sets, which is used to flush any target data object including the L1PTE. It then selects an eviction set from the pool to evict a target L1PTE without knowing the L1PTE’s cache location. Note that preparing the eviction pool is a one-off cost and PThammer only need to repeatedly select eviction sets from the pool when hammering L1PTEs.

Prepare a Complete Pool of LLC Eviction Sets: The pool has a large enough number of eviction sets and each is used to flush a memory line from a specific cache set within a cache slice in LLC. The size of each eviction set is the pre-determined minimum size. We implement the preparation based on previous works [35, 14]. Both works rely on the observation that a program can determine whether a target line is cached or not by profiling its access latency. If a candidate set of memory lines is its eviction set, then the target line’s access latency is above a time threshold after iterating all the memory lines within the candidate set.

Specifically, if a target system enables superpags, a virtual address and its corresponding physical address have the same least significant 21 bits, indicating that if we know a virtual address from a pre-allocated super page, then its physical address bits 0–20 are leaked and thus we know the cache set index that the virtual address maps to [35]. The only unsolved is the cache slice index. Based on a past algorithm [35], we allocate a large enough memory buffer (e.g., twice the size of LLC), select memory lines from the buffer that have the same cache-set index and group them into different eviction sets, each for one cache slice.

If superpages are disabled, then only the least significant 12 bits (i.e., 4 KiB-page offset) is shared between virtual and physical addresses and consequently we know bits 6–11 of the cache-set index. As such, we utilize another previous work [14] to group potentially congruent memory lines into a complete pool of individual eviction sets. Compared to the above grouping operation, this grouping process is relatively slower, since there are many more memory lines sharing the same partial cache-set bits rather than complete bits.

1 Initially: a virtual page-aligned address () is allocated and needs its L1PTE cache-line flushed. A complete pool of individual eviction sets (). is decided by . A unique unsigned number is assigned to and a set ( is initialized to empty). is initialized to and indicates the maximum latency induced by accessing . represents the eviction set used for the L1PTE cache flush.
2 Function
3        repeat  times
4               foreach  do
5                      access .
6               end foreach
7              flush a target TLB entry.
8               is decided by accessing .
9               add to
10
11        end
12       return the median of
13
14
15foreach  do
16        obtain from first memory line in .
17        if  then
18               .
19               if  then
20                      .
21                      .
22
23               end if
24
25        end if
26
27 end foreach
28return
Algorithm 2 Select a minimal LLC eviction set
Machine Architecture CPU DRAM
Model TLB Assoc. LLC Assoc. & Size
Lenovo T420 SandyBridge i5-2540M 4-way L1d, 4-way L2s 12-way, 3 MiB 8 GiB Samsung DDR3
Lenovo X230 IvyBridge i5-3230M 4-way L1d, 4-way L2s 12-way, 3 MiB 8 GiB Samsung DDR3
Dell E6420 SandyBridge i7-2640M 4-way L1d, 4-way L2s 16-way, 4 MiB 8 GiB Samsung DDR3
TABLE I: System Configurations.

Select a Target LLC Eviction Set: Based on the pool preparation, we develop an Algorithm 2 to select an eviction set from the pool and evict a L1PTE corresponding to a target address.

In Line 12, we enumerate all the eviction sets in the pool and collect those sets that have the same page offset as the L1PTE in Line 14. This collection policy is based on an interesting property of the cache. Oren et al. [40] report that if there are two different physical memory pages that their first memory lines are mapped to the same cache set of LLC, then the rest memory lines of the two pages also share (different) cache sets. This means if we request many (physical) memory lines that have the same page offset as the L1PTE and access each memory line, then we flush the L1PTE from LLC.

Lines 15–19 select the target eviction set from the collected ones. In Line 15, we profile every collected eviction set through a predefined function in Lines 2–11. Within this function, we perform access to each memory line of one eviction set, which will implicitly flush the L1PTE from LLC if the eviction set is congruent with the L1PTE, and then flush the target TLB entry related to to make sure the subsequent address translation will access the L1PTE. At last, we measure the latency induced by accessing . Based on this function, we find the targeted eviction set that causes the maximum latency in Lines 17–18, as fetching the L1PTE from DRAM is time-consuming when accessing triggers the address translation. Give that LLC is shared between page-table entries and user data, we must carefully set to page-aligned (normally 4 KiB-aligned) but not superpage-aligned (normally 2 MiB-aligned), that is, its page offset is and different from , which is the page offset of L1PTE. As such, they are placed into different cache sets and the selected eviction set is ensured to flush the target L1PTE rather than .

Iv Evaluation

We now turn evaluate PThammer on three different hardware, summarized in Table I, all running Ubuntu 16.04. We test PThammer both in the default memory configuration and with huge memory pages (superpages) enabled.

Fig. 3: TLB miss rate for eviction set size. The TLB miss rate drops when using an eviction set of size below 12.
Fig. 4: LLC miss rate for eviction set size. When the size of the eviction set is larger than the LLC associativity, the miss rate is consistently above 95%.
Machine Page Size Preparation Set Selection Hammer Check Time to
TLB LLC TLB LLC Time Time Bit Flip
Lenovo T420 superpage 11 ms 0.3 m 1 s 285 ms 285 ms 4.4 s 10 m
regular 11 ms 18.0 m 1 s 283 ms 287 ms 4.4 s 10 m
Lenovo X230 superpage 7 ms 0.3 m 1 s 282 ms 280 ms 4.4 s 15 m
regular 7 ms 19.0 m 1 s 288 ms 283 ms 4.2 s 15 m
Dell E6420 superpage 7 ms 0.3 m 1 s 258 ms 389 ms 4.1 s 14 m
regular 7 ms 38.0 m 1 s 270 ms 392 ms 4.0 s 12 m
TABLE II: Average time for PThammer (five runs). First bit flip observed within 15 minutes of double-sided hammering. Pool preparation is a one-off cost, accrued only once at the beginning of the attack. Hammer and check times are the time it takes to perform a hammering attempt and to check for bit flips, respectively.

We first decide the minimal eviction-set size to effectively and efficiently flush the TLB and the last-level cache (LLC) at an offline stage. Based on the minimal size, we prepare a minimal TLB or LLC eviction sets from a complete pool of TLB or LLC eviction sets. We then evaluate the performance of the complete attack, describe how it achieves privilege escalation, and explore its effectiveness against proposed defenses.

Iv-a Eviction-Set Size

TLB: We use Algorithm 1 (Section III-C) to determine the minimal eviction set size that consistently evicts an entry from the TLB. We first use the mapping of Gras et al. [15] obtain an initial eviction set twice bigger than the total associativity of the TLBs, i.e., with 4-way L1dTLB and L2sTLB the initial eviction set has 16 elements. We then measure the eviction success while reducing the eviction set size. The results, presented in Figure 4, show that in all of our test machines, eviction sets of 12 or more entries achieve consistently high eviction rates, while for smaller eviction sets the success drops significantly.

LLC: The associativity of the LLC varies between our test machines, with the Lenovo machines having 12-way LLCs and the Dell machine using a 16-way LLC. We use the algorithm of Liu et al. [35] to find conflicting memory addresses and select initial eviction sets twice larger than a cache set, i.e., 24 entries for the Lenovos and 32 entries for the Dell. Figure 4 shows the measured eviction rate while removing elements from the eviction set. We see that when the eviction set is bigger than the LLC set, the eviction rate is consistently above 94%. However, the eviction rate starts dropping when the eviction set size matches the cache associativity. Further reducing the eviction set size results in a significant drop in the eviction rate. Thus, we choose an eviction set one larger than the cache associativity, with 13 entries on the Lenovo machines and 17 on the Dell machine. We note that Gruss et al. [18] explore the effects of the order of access to the eviction set on the eviction rate. We do not use their results, as we find that sequential access produces sufficiently high eviction rates.

Iv-B Eviction Pool Preparation

For TLB, we allocate a complete pool of 4 KiB pages eight times as many as required to cover both the L1dTLB and the L2sTLB entries for 4 KiB-page. We partition these pages based on the TLB sets they map to. As Table II shows, this TLB pool preparation completes within a few milliseconds on each of our test machines.

For the LLC, we allocate a buffer twice the LLC size and use the algorithm of Liu et al. [35] to partition it to eviction sets. Because the mapping of virtual to physical addresses preserves more bits when using superpages, the pool preparation is significantly faster when we use superpages. The complexity of the algorithm we use is cubic with the size of the LLC. Hence the algorithm is significantly slower on the Dell machine, which features a larger cache. As this is a one-off cost, we have not experimented with potentially more efficient algorithms for finding cache sets, such as the Vila et al. [53].

Iv-C LLC Eviction-Set Selection

TLB eviction-set selection relies on a complete reverse-engineered mapping between virtual addresses and TLB sets [15], and thus it introduces no false positives, meaning that PThammer always selects a matching eviction set for TLB.

However, selecting an LLC eviction set is based on profiling the access latency to a target address, described in Algorithm 2. As such, the profiled latency is not completely precise due to noise, e.g., due to interrupts, and may introduce false positives to the selection. To test the success of the algorithm, we develop a kernel module that obtains the physical address of each L1PTE, which we use to verify that the L1PTE is congruent with the eviction-set selected by Algorithm 2 The experimental results show that the eviction-set selection for the LLC has no more than 6% false positives in each system setting on each test machine. The kernel module of SGX-Step [50] can also be used to find the physical address of the L1PTE. We note that this kernel module is not required for the attack and is only used for evaluating the success of the eviction set selection.

Note that selecting a TLB-based eviction-set takes about 1 microsecond while the LLC eviction-set selection takes about 290 milliseconds. Both are quite efficient, indicating that we can quickly start double-sided hammering, as mentioned below.

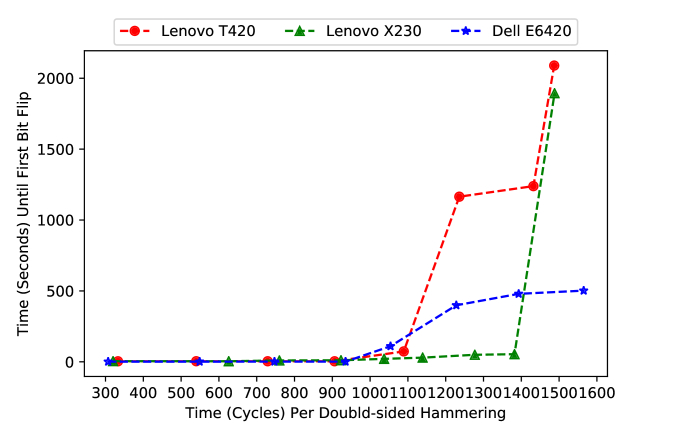

Fig. 5: As the time to perform an iteration of double-sided hammering increases, the time to find the first bit flip also grows. When hammering iterations are longer than around 1 600 cycles, no bit flip is observed within two hours.
(a) Double-sided hammering in the default memory setting.
(b) Double-sided hammering with superpages.
Fig. 6: In both system settings, the time-cost range on each machine is well below the maximum time cost (see Figure 5) that allows bit flips.

Iv-D Double-sided Hammering

To efficiently induce bit flips, we should hammer two L1PTEs that are one row apart within the same bank, similar to the way how double-sided hammering works. As such, we expect to select appropriate user virtual addresses such that their relevant L1PTEs meet the above requirement. However, the physical address of each L1PTE is required to know its location (i.e., DIMM, rank, bank, and row) in DRAM given that a physical address to a DRAM location has been reverse-engineering [57, 41]. As we have no permission to access the kernel space, we cannot know the physical address of an L1PTE, making it challenging to conduct double-sided hammering.

To address this problem, we are inspired by previous works [45, 7, 30, 51] and follow a two-steps approach. In the first step, we select a pair of addresses whose respective L1PTEs are highly likely to be one row apart. As the DRAM row size per row index, denoted by , is known (being 256 KiB on our test machines), we manipulate the buddy allocator to allocate a large enough number of Level-1 page tables. (We use the mmap system call to allocate 2 GiB of Level-1 page-tables out of the total 8 GiB DRAM, 8 K times as large as .) Because the Linux buddy allocator tends to allocate consecutive physical memory pages, many of the allocated L1PTs are in consecutive pages. We now choose two virtual addresses that differ by bytes, or 256 MiB on our test machines. Each level-1 page table (L1PT) page contains 512 entries, each mapping 4 KiB of virtual addresses. Hence, assuming mostly consecutive page-table allocation, the L1PTEs of the addresses we select are highly likely to be one DRAM rows apart.

In the second step we verify that the L1PTE pairs we found in the first step are in the same bank. For this, we rely on the timing difference between accessing memory locations that are in the same bank vs. memory locations in different banks. Specifically, accessing memory locations in different rows of the same memory bank triggers a row-buffer conflict [39], which slows accesses down. Thus, for each address pair, we repeatedly perform TLB and LLC flushes to evict their L1PTEs from the TLB and the cache. We then measure the access latency to the addresses in the pair. If the L1PTEs are in the same DRAM bank, resolving the physical addresses will be slower than if the L1PTEs are in different banks.

Experimentally evaluating the performance of this method, we find that over 95% of the address pairs that show slow access are in the same bank. Furthermore, we find that of these address pairs whose L1PTEs are in the same bank, 90% are indeed one row apart.

Iv-E PThammer Performance

As in Section III-B, the time cost per double-sided hammering must be no greater than the maximum latency allowed to induce bit flips. We firstly identify the maximum time cost that permits a bit flip on each machine through a published double-sided hammering tool222 https://github.com/google/rowhammer-test.

The tool embeds two clflush instructions inside each round of double-sided hammering. To increase the time cost for each round of hammering, we add a certain number of NOP instructions preceding the clflush instructions in each run of the tool. We incrementally add the NOP number so that the time cost per hammering will grow. The time cost for the first bit flip to occur on each machine is shown in Figure 5. As shown in the Figure, the time cost until the first bit-flip increases with an increasing cost per hammering. When the time cost per hammering is more than 1500 cycles on both Lenovo machines while 1600 on the Dell machine, not a single bit flip is observed within 2 hours. As such, 1500 and 1600 are the maximum cost permitted to flip bits for the Lenovo and Dell machines, respectively.

We then check whether the time taken by each round of double-sided hammering is no higher than the permitted cost. For each double-sided hammering, it requires accesses to two user virtual addresses as well as their respective TLB eviction set (i.e., 24 virtual addresses in total on each machine) and LLC eviction set (i.e., 26 virtual addresses on each Lenovo machine and 34 virtual addresses on the Dell machine). In each system setting, we conduct double-sided hammering for 50 rounds on each machine and measure the time that each hammering takes. As Figure 5(a) shows, the vast majority of double-sided hammering attempts in both Lenovo machines are in the range of 600–900 cycles. (100% are below 1000 cycles.) For the Dell machine, the range is 900–1400 cycles. When using superpages (Figure  5(b)), 94% of the double-sided hammering attempts take 400–900 cycles in both Lenovo machines with an upper bound of 1100 cycles. On the Dell machine, the range is 900–1400 cycles. Clearly, the time taken per double-sided hammering is well below the maximum cost in Figure 5, making PThammer fast enough to induce bit flips. Also, the low time cost implies that most address accesses within each hammering are served by CPU caches rather than DRAM.

Iv-F Kernel Privilege Escalation

UserPage

Victim L1PT

L1PT (target)

Fig. 7: Kernel privilege escalation. Implicitly hammering L1PTEs flips a bit in a victim L1PTE, resulting in a user page map to a target L1PT page. The attacker can now modify the target L1PT page and achieve access to any desired physical memory page.

Experimenting in both system settings, we find that PThammer can cause a bit flip within 15 minutes or less. (Average of five tests.) We can identify bit flips in L1PTE by comparing the contents of the memory [7].

Specifically, we use the mmap system call to create a large number of virtual addresses that all map to the same physical frame at user space. (See Figure 7.) In practice, due to the limitation of the number of mmaped regions, we have several user pages, each mapped multiple times. Such allocations create a large number of Level-1 Page Table (L1PT) pages.

We then use PThammer to implicitly hammer such L1PT pages. After hammering two L1PTEs each time, we check the contents of the pages in the attacker’s address space. In the case of a successful hammering, one or more of the L1PTEs in the victim L1PT page will experience a bit flip that will change the physical frame it points to. We identify such success by comparing the contents of the pages in the address space against the known contents of the user pages.

As depicted in Figure 7, because there are many L1PT pages in our address space, there is some non-negligent probability that the frame the modified L1PTE points to contains another L1PT. We identify this case by checking for known patterns in L1PT pages, and we verify this case by modifying the contents of the page and checking for further changes in our address space mappings.

After we gain access to an L1PT page, we modify the part of the address space that this L1PT maps to point to any desired physical memory frame, achieving complete control of the system. We note that CTA [56] protects against getting access to L1PTs. See Section IV-G3 below for kernel privilege escalation with CTA.

Iv-G Software-only Rowhammer Defenses

We now evaluate three existing software-only defenses CATT [6], RIP-RH [4], and CTA [56] against PThammer.

Iv-G1 Catt

CATT (CAn’t-Touch-This) [6] aims to protect the kernel from rowhammer attacks. It partitions each DRAM bank into kernel and user parts, reserving a small number of rows as a buffer between the parts. Because the user only has access to user pages, CATT deprives the attacker’s access to exploitable hammer rows. The rows that the attacker is allowed to access are never adjacent to rows that contain kernel data.

Because the page tables are kernel data, they are stored in the kernel part of the memory. Thus, PThammer can exploit the page-table walk to implicitly hammer rows in the kernel part of the memory. Furthermore, because the page tables, which we hammer, can only be in a restricted part of the memory, selecting L1PTEs at random has a higher probability of picking a pair at the two sides of a victim row than if L1PTEs spread all over the memory, increasing the chance of a successful double-hammer. Furthermore, because the victim row is in the same limited space, it has a higher probability of containing an L1 page table, increasing the likelihood of a successful attack.

We could not obtain CATT for evaluation. Instead, we use a technique due to Cheng et al. [7] for increasing the concentration of L1PTEs in memory. Specifically, we exploit the buddy allocator in the Linux kernel by first exhausting all small blocks of memory and then starting to allocate L1PTEs. We then run PThammer, achieving privilege escalation within three bit flips.

Iv-G2 Rip-Rh

RIP-RH [4] aims to isolate users by segregating their memory into dedicated areas in the DRAM, preventing cross-user rowhammer attacks. As RIP-RH does not protect the kernel, our attack trivially applies to it. The code for RIP-RH is not available, but we suspect that isolating user processes means that the kernel is concentrated in a small part of the memory. Thus, we suspect that, like CATT, RIP-RH increases the efficiency of PThammer.

Iv-G3 Cta

CTA (Cell-Type-Aware) [56] employs a multi-layer approach for protecting L1PTEs from rowhammer attacks. In the first layer, similar to CATT, CTA segregates the L1PTs into a dedicated region of memory. A further layer of defense ensures that even in the case of a bit flip in an L1PTE the user will not get unfettered access to an L1PT page. To achieve that, CTA places the L1PTEs in the higher addresses of the physical memory, and verifies that the rows it uses for the L1PTEs only contain true cells [26], i.e., memory cells that might change from 1 to 0 but not vice versa. This property ensures that even if a bit flips the new address will be lower than the original address. Because the physical addresses of the L1PTs are all higher than all of the addresses of user pages, a bit flip cannot change an L1PTE from pointing to a user page to pointing to an L1PT.

Clearly, PThammer can overcome the first layer of defense in CTA. However, the second layer presents a challenge. To overcome this, we note that CTA only protects the L1PTEs, but does not protect any of the other kernel pages. We therefore suggest adopting a prior attack on user credentials [7]. Specifically, we create a large number of processes, “sprinkling” the kernel memory with struct cred entries. We then deploy PThammer to flip a bit in an L1PTE. As discussed, such a flip will not allow access to a page-table page. However, with some non-negligible probability, it will give us access to a page that contains the struct cred of one of the processes we created. We can then change the credentials and achieve privilege escalation.

We could not obtain the CTA source code for evaluating our attack. Instead, we simulate the attack on an undefended kernel. We created 32 000 processes and performed a PThammer attack. When a bit flip occurs in a PTE, we search for struct cred in the page we gained access to. We recognize these pages by looking for the known user ids and group ids stored in the struct cred. In our experiments, we gain root privileges after seven bit flips.

V Discussion

Limitation: PThammer does not overcome the ZebRAM [29] defense. ZebRAM targets virtualized environments, but has a high performance overhead [56], limiting its practicality. Moreover, ZebRAM relies on the unproven assumption that hammering only affects neighboring rows. Thus, it ignores the possibility of DRAM row remapping [56] or of flips happening further away from the hammered rows [25].

Other Possible Instances of Implicit Hammer: Besides PThammer, there might also exist other instances of implicit hammer that leverage other built-in features of modern hardware/software. Particularly, the features that focus on functionality and performance may become potential candidates. For the hardware, we discuss two popular CPU features. Specifically, out-of-order and speculative execution are two optimization features that allow parallel execution of multiple instructions to make use of instruction cycles efficient. As such, an unprivileged attacker can leverage such hardware features to bypass the user-kernel privilege boundary and access kernel memory  [28, 33]. Kiriansky et al. [27] hypothesize that speculative execution might be used to mount a rowhammer attack, but they didn’t have a further exploration.

As for software, we identify some OS kernel features that may be exploitable for implicit hammer. By invoking a system call handler, a user indirectly accesses the kernel memory. Konoth et al. [29] attempted performing a syscall-based rowhammer attack but didn’t succeed even in an experimental attack scenario (i.e., with kernel privilege to flush target addresses) because that their hammering was inefficient. A network I/O mechanism is also a programmatic OS feature that serves requests from the network. Particularly, the network interface card (NIC) throws an exception to notify the kernel of each network packet NIC receives. Within the exception handler, the kernel will access kernel memory. Thus, a remote user invokes this feature to access kernel memory.

As a result, an attacker needs not only implicit but also frequent DRAM accesses to target addresses.

Compare PThammer with CATTmew [7]: CATTmew can compromise last-level PTEs using kernel memory buffers.

Hardware Variations: Modern Intel processors support non-inclusive caches. Such caches are known to limit cache-based side channel attacks, such as Flush+Reload [59] and Prime+Probe [35]. Because in our attack we only evict data that belongs to us, we do not expect this data to be in other cores. Hence, evicting it from the LLC will force future memory accesses even when the LLC is non-inclusive. Moreover, these non-inclusive caches are vulnerable to directory attacks [58], which we could use for PThammer.

As Section IV-E discusses, PThammer can be slowed down substantially, while still allowing hammering. Consequently, we believe that PThammer will be effective in machines that require somewhat longer time for eviction, e.g., due to associative TLB or larger associativity in the LLC. Cache designs that aim to prevent the creation of eviction sets, such as CEASER [43] or ScatterCache [55], or that randomize the TLB [11] can prevent PThammer. To the best of our knowledge, no mainstream processor implements such an approach.

We have only experimented with DDR3. Recent works [25, 13] show that DDR4 is more vulnerable than DDR3, significantly reducing the required number of accesses to the aggressor rows. Frigo et al. [13] further show how to bypass the Target Row Refresh (TRR) rowhammer defense. Consequently, we believe that PThammer is applicable to DDR4 memory as well.

Mitigations: Existing hardware schemes against the rowhammer attacks have two categories, counter-based Row Activation [24, 46, 47, 38, 23, 31] and probabilistic protection solutions [26, 48]. The first records the number of ACT commands that are sent to the same rows and starts refreshing adjacent rows when the ACT number exceeds a threshold. The other category probabilistically refreshes adjacent rows of activated rows. However, they require new hardware designs and thus cannot be backported to legacy systems. Also note that Target Row Refresh (TRR), a common counter-based rowhammer countermeasure has been shown to be insufficient [13]. Thus it is not clear whether counter-based solutions can prevent rowhammer attacks.

Also, there are detection-based software approaches. One is performance-counter based such as Anvil [1] and in-kernel Rowhammer defense [10]. They monitor the cache miss rate to detect an ongoing rowhammer attack. We note that Anvil compares the load addresses to detect same-row accesses, and will have to be extended to also check the L1PTE addresses to detect PThammer. The other approach is RADAR [60] that leverages specific electromagnetic signals. RADAR observes that rowhammer attacks exhibit recognizable hammering-correlated sideband patterns in the spectrum of the DRAM clock signal. Both detection approaches require actions for preventing hammering whenever suspicious DRAM accesses occur, resulting in substantial performance overhead [31].

Besides, PThammer is a kind of eviction-based cache and TLB attacks. It exploits the fact that cache and TLB are shared between sensitive data and crafted user data, clearly existing cache and TLB defenses such as Catalyst [34], ScatterCache [54] and Secure TLBs [11] can also mitigate PThammer by partitioning or randomizing either cache or TLB.

Finally, as PThammer relies on memory spraying, monitoring the virtual address space can detect PThammer. It may be possible to use PThammer with a smaller memory signature, at an increased complexity for finding an exploitable bit flip. This increases the risk of detection through monitoring for sporadic system errors.

Vi Conclusion

In this paper, we first observed a critical condition required by existing rowhammer exploits to gain the privilege escalation or steal the private data. We then proposed a new class of rowhammer attacks, called implicit hammer, that crosses privilege boundary and thus eschews the condition.

On top of that, we created a practical instance of implicit hammer, called PThammer that could cross the user-kernel boundary and induce an exploitable bit flip in one Level-1 page table entry to gain kernel privilege. The experimental results on three test machines showed that the first cross-boundary bit flip occurred within 15 minutes of double-sided hammering. We also evaluated three DRAM-aware software-only defenses against PThammer and showed that it can bypass them.

Acknowledgment

This project was supported by an Australian Research Council Discovery Early Career Researcher Award (project number: DE200101577) and by a gift from Intel.

References

  • [1] Z. B. Aweke, S. F. Yitbarek, R. Qiao, R. Das, M. Hicks, Y. Oren, and T. Austin (2016) ANVIL: software-based protection against next-generation rowhammer attacks. In asplos, pp. 743–755. Cited by: §II-B, §V.
  • [2] T. W. Barr, A. L. Cox, and S. Rixner (2010) Translation caching: skip, don’t walk (the page table). ACM SIGARCH Computer Architecture News, pp. 48–59. Cited by: §I, §III-B.
  • [3] S. Bhattacharya and D. Mukhopadhyay (2016) Curious case of rowhammer: flipping secret exponent bits using timing analysis. In ches, pp. 602–624. Cited by: §I, §II-A.
  • [4] C. Bock, F. Brasser, D. Gens, C. Liebchen, and A. Sadeghi (2019) RIP-RH: preventing rowhammer-based inter-process attacks. In asiaccs, pp. 561–572. Cited by: 4th item, §I, §III-A, §IV-G2, §IV-G.
  • [5] E. Bosman, K. Razavi, H. Bos, and C. Giuffrida (2016)

    Dedup est machina: memory deduplication as an advanced exploitation vector

    .
    In oakland, pp. 987–1004. Cited by: §I, §II-B, §III-A.
  • [6] F. Brasser, L. Davi, D. Gens, C. Liebchen, and A. Sadeghi (2017) CAn’t Touch This: software-only mitigation against rowhammer attacks targeting kernel memory. In sec, Cited by: 4th item, §I, §I, §III-A, §IV-G1, §IV-G.
  • [7] Y. Cheng, Z. Zhang, S. Nepal, and Z. Wang (2019) CATTmew: defeating software-only physical kernel isolation. tdsc. Cited by: §III-B, §IV-D, §IV-F, §IV-G1, §IV-G3, §V.
  • [8] L. Cojocar, J. Kim, M. Patel, L. Tsai, S. Saroiu, A. Wolman, and O. Mutlu (2020-05) Are we susceptible to rowhammer? an end-to-end methodology for cloud providers. In oakland, Cited by: §II-B.
  • [9] L. Cojocar, K. Razavi, C. Giuffrida, and H. Bos (2019) Exploiting correcting codes: on the effectiveness of ECC memory against rowhammer attacks. In oakland, pp. 55–71. Cited by: §II-B.
  • [10] J. Corbet (2016-10) Defending against rowhammer in the kernel. Note: https://lwn.net/Articles/704920/ Cited by: §V.
  • [11] S. Deng, W. Xiong, and J. Szefer (2019) Secure TLBs. In isca, pp. 346–259. Cited by: §V, §V.
  • [12] P. Frigo, C. Giuffrida, H. Bos, and K. Razavi (2018) Grand pwning unit: accelerating microarchitectural attacks with the GPU. In oakland, Cited by: §I.
  • [13] P. Frigo, E. Vannacci, H. Hassan, V. van der Veen, O. Mutlu, C. Giuffrida, H. Bos, and K. Razavi (2020-05) TRRespass: exploiting the many sides of target row refresh. In oakland, Cited by: §II-B, §V, §V.
  • [14] D. Genkin, L. Pachmanov, E. Tromer, and Y. Yarom (2018) Drive-by key-extraction cache attacks from portable code. In acns, pp. 83–102. Cited by: §III-D, §III-D.
  • [15] B. Gras, K. Razavi, H. Bos, and C. Giuffrida (2018) Translation leak-aside buffer: defeating cache side-channel protections with TLB attacks. In sec, pp. 955–972. Cited by: §III-C, §III-C, §IV-A, §IV-C.
  • [16] D. Gruss, M. Lipp, M. Schwarz, D. Genkin, J. Juffinger, S. O’Connell, W. Schoechl, and Y. Yarom (2018) Another flip in the wall of rowhammer defenses. In oakland, pp. 245–261. Cited by: §I, §II-A, §II-B.
  • [17] D. Gruss, C. Maurice, and S. Mangard (2016) Rowhammer.js: a remote software-induced fault attack in JavaScript. In dimva, pp. 300–321. Cited by: §I, §III-A.
  • [18] D. Gruss, C. Maurice, and S. Mangard (2017-05) Program for testing for the DRAM rowhammer problem using eviction. Note: https://github.com/IAIK/rowhammerjs Cited by: §II-A, §II-B, §IV-A.
  • [19] N. Hardy (1988) The confused deputy (or why capabilities might have been invented). Operating Systems Review 22 (4), pp. 36–38. Cited by: §I.
  • [20] R. Hund, C. Willems, and T. Holz (2013) Practical timing side channel attacks against kernel space ASLR. In oakland, pp. 191–205. Cited by: §III-D.
  • [21] Intel, Inc. (2014-09) Intel 64 and IA-32 architectures optimization reference manual. Cited by: §III-D.
  • [22] G. Irazoqui, T. Eisenbarth, and B. Sunar (2015) Systematic reverse engineering of cache slice selection in Intel processors. In dsd, pp. 629–636. Cited by: §III-D.
  • [23] JEDEC Solid State Technology Association. (2015) LOW power double data rate 4 (LPDDR4). Note: https://www.jedec.org/standards-documents/docs/jesd209-4b Cited by: §I, §V.
  • [24] D. Kim, P. J. Nair, and M. K. Qureshi (2014) Architectural support for mitigating row hammering in dram memories. IEEE Computer Architecture Letters 14 (1), pp. 9–12. Cited by: §V.
  • [25] J. S. Kim, M. Patel, A. G. Yağlıkçı, H. Hassan, R. Azizi, L. Orosa, and O. Mutlu (2020) Revisiting rowhammer: an experimental analysis of modern dram devices and mitigation techniques. In isca, Cited by: §V, §V.
  • [26] Y. Kim, R. Daly, J. Kim, C. Fallin, J. H. Lee, D. Lee, C. Wilkerson, K. Lai, and O. Mutlu (2014) Flipping bits in memory without accessing them: an experimental study of DRAM disturbance errors. ACM SIGARCH Computer Architecture News 42, pp. 361–372. Cited by: §I, §II-A, §II-A, §II-B, §IV-G3, §V.
  • [27] V. Kiriansky and C. Waldspurger (2018) Speculative buffer overflows: attacks and defenses. arXiv preprint arXiv:1807.03757. Cited by: §V.
  • [28] P. Kocher, J. Horn, A. Fogh, D. Genkin, D. Gruss, W. Haas, M. Hamburg, M. Lipp, S. Mangard, T. Prescher, M. Schwarz, and Y. Yarom (2019) Spectre attacks: exploiting speculative execution. In oakland, Cited by: §V.
  • [29] R. K. Konoth, M. Oliverio, A. Tatar, D. Andriesse, H. Bos, C. Giuffrida, and K. Razavi (2018) ZebRAM: comprehensive and compatible software protection against rowhammer attacks. In osdi, pp. 697–710. Cited by: §V, §V.
  • [30] A. Kwong, D. Genkin, D. Gruss, and Y. Yarom (2020) RAMBleed: reading bits in memory without accessing them. In oakland, Cited by: §I, §I, §II-A, §IV-D, footnote 1.
  • [31] E. Lee, I. Kang, S. Lee, G. E. Suh, and J. H. Ahn (2019) TWiCe: preventing row-hammering by exploiting time window counters. In isca, pp. 385–396. Cited by: §I, §V, §V.
  • [32] M. Lipp, M. T. Aga, M. Schwarz, D. Gruss, C. Maurice, L. Raab, and L. Lamster (2018) Nethammer: inducing rowhammer faults through network requests. arXiv preprint arXiv:1805.04956. Cited by: §II-B.
  • [33] M. Lipp, M. Schwarz, D. Gruss, T. Prescher, W. Haas, A. Fogh, J. Horn, S. Mangard, P. Kocher, D. Genkin, Y. Yarom, and M. Hamburg (2018) Meltdown: reading kernel memory from user space. In sec, Cited by: §I, §V.
  • [34] F. Liu, Q. Ge, Y. Yarom, F. Mckeen, C. Rozas, G. Heiser, and R. B. Lee (2016) CATalyst: defeating last-level cache side channel attacks in cloud computing. In hpca, pp. 406–418. Cited by: §V.
  • [35] F. Liu, Y. Yarom, Q. Ge, G. Heiser, and R. B. Lee (2015) Last-level cache side-channel attacks are practical. In oakland, pp. 605–622. Cited by: §II-B, §III-D, §III-D, §IV-A, §IV-B, §V.
  • [36] C. Maurice, N. Scouarnec, C. Neumann, O. Heen, and A. Francillon (2015) Reverse engineering Intel last-level cache complex addressing using performance counters. In raid, pp. 48–65. Cited by: §III-D.
  • [37] C. Maurice, M. Weber, M. Schwarz, L. Giner, D. Gruss, C. A. Boano, S. Mangard, and K. Römer (2017) Hello from the other side: SSH over robust cache covert channels in the cloud. In ndss, pp. 8–11. Cited by: §II-B.
  • [38] Micron, Inc. (2015) DDR4 SDRAM MT40A2G4, MT40A1G8, MT40A512M16 data sheet. Note: https://www.micron.com/products/dram/ddr4-sdram/ Cited by: §I, §V.
  • [39] T. Moscibroda and O. Mutlu (2007) Memory performance attacks: denial of memory service in multi-core systems. In sec, Cited by: §IV-D.
  • [40] Y. Oren, V. P. Kemerlis, S. Sethumadhavan, and A. D. Keromytis (2015) The spy in the sandbox: practical cache attacks in JavaScript and their implications. In ccs, pp. 1406–1418. Cited by: §III-D.
  • [41] P. Pessl, D. Gruss, C. Maurice, M. Schwarz, and S. Mangard (2016) DRAMA: exploiting DRAM addressing for cross-CPU attacks. In sec, pp. 565–581. Cited by: §III-A, §IV-D.
  • [42] R. Qiao and M. Seaborn (2016) A new approach for rowhammer attacks. In host, pp. 161–166. Cited by: §II-B, §III-A.
  • [43] M. K. Qureshi (2018) CEASER: mitigating conflict-based cache attacks via encrypted-address and remapping. In MICRO, pp. 775–787. Cited by: §V.
  • [44] K. Razavi, B. Gras, E. Bosman, B. Preneel, C. Giuffrida, and H. Bos (2016) Flip Feng Shui: hammering a needle in the software stack. In sec, pp. 1–18. Cited by: §I, §II-B, §III-A.
  • [45] M. Seaborn and T. Dullien (2015) Exploiting the DRAM rowhammer bug to gain kernel privileges. In Black Hat’15, Cited by: §I, §II-A, §II-A, §II-B, §III-A, §III-B, §IV-D.
  • [46] S. M. Seyedzadeh, A. K. Jones, and R. Melhem (2016) Counter-based tree structure for row hammering mitigation in DRAM. IEEE Computer Architecture Letters 16 (1), pp. 18–21. Cited by: §V.
  • [47] S. M. Seyedzadeh, A. K. Jones, and R. Melhem (2018) Mitigating wordline crosstalk using adaptive trees of counters. In isca, pp. 612–623. Cited by: §V.
  • [48] M. Son, H. Park, J. Ahn, and S. Yoo (2017) Making DRAM stronger against row hammering. In dac, pp. 1–6. Cited by: §I, §V.
  • [49] A. Tatar, R. K. Konoth, E. Athanasopoulos, C. Giuffrida, H. Bos, and K. Razavi (2018) Throwhammer: rowhammer attacks over the network and defenses. In atc, Cited by: §I, §II-B.
  • [50] J. Van Bulck, F. Piessens, and R. Strackx (2017) SGX-Step: a practical attack framework for precise enclave execution control. In SysTEX@SOSP, pp. 4:1–4:6. Cited by: §IV-C.
  • [51] V. van der Veen, Y. Fratantonio, M. Lindorfer, D. Gruss, C. Maurice, G. Vigna, H. Bos, K. Razavi, and C. Giuffrida (2016) Drammer: deterministic rowhammer attacks on mobile platforms. In ccs, pp. 1675–1689. Cited by: §I, §II-B, §IV-D.
  • [52] S. van Schaik, C. Giuffrida, H. Bos, and K. Razavi (2018) Malicious management unit: why stopping cache attacks in software is harder than you think. In sec, pp. 937–954. Cited by: §I, §II-B, §III-B.
  • [53] P. Vila, B. Köpf, and J. F. Morales (2019) Theory and practice of finding eviction sets. In oakland, pp. 39–54. Cited by: §IV-B.
  • [54] M. Werner, T. Unterluggauer, L. Giner, M. Schwarz, D. Gruss, and S. Mangard (2019) ScatterCache: thwarting cache attacks via cache set randomization. In sec, pp. 675–692. Cited by: §V.
  • [55] M. Werner, T. Unterluggauer, L. Giner, M. Schwarz, D. Gruss, and S. Mangard (2019) ScatterCache: thwarting cache attacks via cache set randomization. In sec, pp. 675–692. Cited by: §V.
  • [56] X. Wu, T. Sherwood, F. T. Chong, and Y. Li (2019) Protecting page tables from rowhammer attacks using monotonic pointers in DRAM true-cells. In asplos, pp. 645–657. Cited by: 4th item, §I, §I, §III-A, §IV-F, §IV-G3, §IV-G, §V.
  • [57] Y. Xiao, X. Zhang, Y. Zhang, and R. Teodorescu (2016) One bit flips, one cloud flops: cross-VM row hammer attacks and privilege escalation. In sec, pp. 19–35. Cited by: §I, §III-A, §IV-D.
  • [58] M. Yan, R. Sprabery, B. Gopireddy, C. W. Fletcher, R. H. Campbell, and J. Torrellas (2019) Attack directories, not caches: side channel attacks in a non-inclusive world. In oakland, pp. 888–904. Cited by: §V.
  • [59] Y. Yarom and K. Falkner (2014) Flush+Reload: a high resolution, low noise, L3 cache side-channel attack. In sec, pp. 719–732. Cited by: §V.
  • [60] Z. Zhang, Z. Zhan, D. Balasubramanian, B. Li, P. Volgyesi, and X. Koutsoukos (2020-05) Leveraging EM side-channel information to detect rowhammer attacks. In oakland, Cited by: §V.
