I Introduction

Everyday household tasks require both commonsense understanding of the world and situated knowledge about the current environment. To create a task plan for “Make dinner,” an agent needs common sense: object affordances, such as that the stove and microwave can be used for heating; logical sequences of actions, such as an oven must be preheated before food is added; and task relevance of objects and actions, such as heating and food are actions related to “dinner” in the first place. However, this reasoning is infeasible without state feedback. The agent needs to know what food is available in the current environment, such as whether the freezer contains fish or the fridge contains chicken.

Autoregressive large language models (LLMs) trained on large corpora to generate text sequences conditioned on input prompts have remarkable multi-task generalization. This ability has recently been leveraged to generate plausible action plans in context of robotic task planning [1, 2, 3, 4] by either scoring next steps or generating new steps directly. In scoring mode, the LLM evaluates an enumeration of actions and their arguments from the space of what’s possible. For instance, given a goal to “Make dinner” with first action being “open the fridge”, the LLM could score a list of possible actions: “pick up the chicken”, “pick up the soda”, “close the fridge”, , “turn on the lightswitch.” In text-generation mode, the LLM can produce the next few words, which then need to be mapped to actions and world objects available to the agent. For example, if the LLM produced “reach in and pick up the jar of pickles,” that string would have to neatly map to an executable action like “pick up jar.” A key component missing in LLM-based task planning is state feedback from the environment. The fridge in the house might not contain chicken, soda, or pickles, but a high-level instruction “Make dinner” doesn’t give us that world state information. Our work introduces situated-awareness in LLM-based robot task planning.

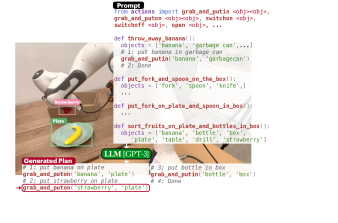

Fig. 1: ProgPrompt leverages LLMs’ strengths in both world knowledge and programming language understanding to generate situated task plans that can be directly executed.

We introduce ProgPrompt, a prompting scheme that goes beyond conditioning LLMs in natural language. ProgPrompt utilizes programming language structures, leveraging the fact that LLMs are trained on vast web corpora that includes many programming tutorials and code documentation (Fig. 1). ProgPrompt provides an LLM a Pythonic program header that imports available actions and their expected parameters, shows a list of environment objects, and then defines functions like make_dinner whose bodies are sequences of actions operating on objects. We incorporate situated state feedback from the environment by asserting preconditions of our plan, such as being close to the fridge before attempting to open it, and responding to failed assertions with recovery actions. What’s more, we show that including natural language comments in ProgPrompt programs to explain the goal of the upcoming action improves task success of generated plan programs.

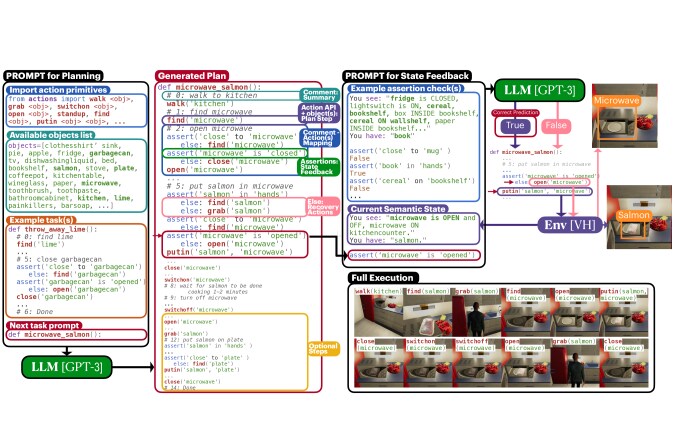

Fig. 2: Our ProgPrompts include import statement, object list, and example tasks (PROMPT for Planning). The Generated Plan is for microwave salmon. We highlight prompt comments, actions as imported function calls with objects as arguments, and assertions with recovery steps. PROMPT for State Feedback represents example assertion checks. We further show execution of the program. We illustrate a scenario where an assertion succeeds or fails, and how the generated plan corrects the error before executing the next step. Full Execution of the program is shown in bottom-right.

Ii Background and Related Work

Task Planning. For high-level planning, most works in robotics use search in a pre-defined domain [5, 6, 7]. Unconditional search can be hard to scale in environments with many feasible actions and objects [8, 9]

due to large branching factors. Heuristics are often used to guide the search

[10, 11, 12, 13]. Recent works have explored learning-based task & motion planning, using methods such as representation learning, hierarchical learning, language as planning space, learning compositional skills and more [14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26]. Our method sidesteps search to directly generate a plan that includes conditional reasoning and error-correction.

We formulate task planning as the tuple . is a set of all the objects available in the environment, is a set of properties of the objects which also informs object affordances, is a set of executable actions that changes depending on the current environment state defined as . A state is a specific assignment of all object properties, and is a set of all possible assignments. represents the transition model , and are the initial and goal states. The agent does not have access to the goal state , but only a high-level task description .

Consider the task microwave salmon”. Task relevant objects microwave, salmon will have properties modified during action execution. For example, action open(microwave) will change the state from to if is admissible, i.e., . In this example a goal state could contain the conditions , and .

Planning with LLMs.

A Large Language Model (LLM) is a neural network with many parameters—currently hundreds of billions

[27, 28]

—trained on unsupervised learning objectives such as next-token prediction or masked-language modelling. An autoregressive LLM is trained with a maximum likelihood loss to model the probability of a sequence of tokens

conditioned on an input sequence , i.e. , where are model parameters. The trained LLM is then used for prediction , where is the set of all text sequences. Since search space is huge, approximate decoding strategies are used for tractability [29, 30, 31].

LLMs are trained on large text corpora, and exhibit multi-task generalization when provided with a relevant prompt input . Prompting LLMs to generate text useful for robot task planning is a nascent topic [32, 33, 34, 2, 4, 1]. Prompt design is challenging given the lack of paired natural language instruction text with executable plans or robot action sequences [35]. Devising a prompt for task plan prediction can be broken down into a prompting function and an answer search strategy [35]. A prompting function, transforms the input state observation into a textual prompt. Answer search is the generation step, in which the LLM outputs from the entire LLM vocabulary or scores a predefined set of options.

Closest to our work, [2] generates open-domain plans using LLMs. In that work, planning proceeds by: 1) selecting a similar task in the prompt example (); 2) open-ended task plan generation (answer search); and 3) 1:1 prediction to action matching. The entire plan is generated open-loop without any environment interaction, and later tested for executability of matched actions. However, action matching based on generated text doesn’t ensure the action is admissible in the current situation. InnerMonologue [1] introduces environment feedback and state monitoring, but still found that LLM planners proposed actions involving objects not present in the scene. Our work shows that a programming language-inspired prompt generator can inform the LLM of both situated environment state and available robot actions, ensuring output compatibility to robot actions.

The related SayCan [4] uses natural language prompting with LLMs to generate a set of feasible planning steps, re-scoring matched admissible actions using a learned value function. SayCan constructs a set of all admissible actions expressed in natural language and scores them using an LLM. This is challenging to do in environments with combinatorial action spaces. Concurrent with our work are Socratic models [3], which also use code-completion to generate robot plans. We go beyond [3] by leveraging additional, familiar features of programming languages in our prompts. We define an that includes import statements to model robot capabilities, natural language comments to elicit common sense reasoning, and assertions to track execution state. Our answer search is performed by allowing the LLM to generate an entire, executable plan program directly.

Iii Our Method: ProgPrompt

We represent robot plans as pythonic programs. Following the paradigm of LLM prompting, we create a prompt structured as pythonic code and use an LLM to complete the code (Fig. 2). We use features available in Python to construct prompts that elicit an LLM to generate situated robot task plans, conditioned on a natural language instruction.

Iii-a Representing Robot Plans as Pythonic Functions

Plan functions consist of API calls to action primitives, comments to summarize actions, and assertions for tracking execution (Fig. LABEL:fig:plan_example). Primitive actions use objects as arguments. For example, the “put salmon in the microwave” task includes API calls like find(salmon).

We utilize comments in the code to provide natural language summaries for subsequent sequences of actions. Comments help break down the high-level task into logical sub-tasks. For example, in Fig. LABEL:fig:plan_example, the “put salmon in microwave” task is broken down into sub-tasks using comments “# grab salmon” and “# put salmon in microwave”. This partitioning could help the LLM to express its knowledge about tasks and sub-tasks in natural language and aid planning. Comments also inform the LLM about immediate goals, reducing the possibility of incoherent, divergent, or repetitive outputs. Prior work [36] has also shown the efficacy of similar intermediate summaries called ‘chain of thought’ for improving performance of LLMs on a range of arithmetic, commonsense, and symbolic reasoning tasks. We empirically verify the utility of comments (Tab. I; column Comments).

Assertions provide an environment feedback mechanism to make sure that the preconditions hold, and enable error recovery when they do not. For example, in Fig. LABEL:fig:plan_example, before the grab(salmon) action, the plan asserts the agent is close to salmon. If not, the agent first executes find(salmon). In Tab. I, we show that such assert statements (column Feedback) benefit plan generation.

[HTML]CBCEFB # — Prompt Format and Parameters —
[HTML]CBCEFB Format Comments Feedback LLM Backbone SR Exec GCR
1 ProgPrompt Codex 0.11 0.05 0.09
[HTML]EFEFEF 2 ProgPrompt Davinci 0.220.04 0.600.04 0.460.04
3 ProgPrompt GPT3 0.340.08 0.840.01 0.650.05
[HTML]EFEFEF 4 ProgPrompt GPT3 0.280.04 0.820.01 0.560.02
5 ProgPrompt GPT3 0.300.00 0.650.01 0.580.02
[HTML]EFEFEF 6 ProgPrompt GPT3 0.180.04 0.680.01 0.420.02
7 LangPrompt - - GPT3 0.000.00 0.360.00 0.420.02
[HTML]EFEFEF 8 Baseline from Huang et al. [2] GPT3 0.000.00 0.450.03 0.210.03
TABLE I: Evaluation of generated programs on Virtual Home. ProgPrompt uses 3 fixed example programs, except the Davinci backbone which can fit only 2 in the available API. [2] use 1 dynamically selected example, as described in their paper. LangPrompt uses 3 natural language text examples. Best performing model with a GPT3 backbone is shown in blue (used for our ablation studies); best performing model overall shown in bold. ProgPrompt significantly outperforms the baseline [2] and LangPrompt. We also showcase how each ProgPrompt feature adds to the performance of the method.

Iii-B Constructing Programming Language Prompts

We provide information about the environment and primitive actions to the LLM through prompt construction. As done in few-shot LLM prompting, we also provide the LLM with examples of sample tasks and plans. Fig. 2 illustrates our prompt function which takes in all the information (observations, action primitives, examples) and produces a Pythonic prompt for the LLM to complete. The LLM then predicts the nexttask(.) as an executable function (microwave_salmon in Fig. 2).

In the task microwavesalmon, a reasonable first step that an LLM could generate is take_out(salmon, grocery bag). However, the agent responsible for the executing the plan might not have a primitive action to take_out. To inform the LLM about the agent’s action primitives, we provide them as Pythonic import statements. These encourage the LLM to restrict its output to only functions that are available in the current context. To change agents, ProgPrompt just needs a new list of imported functions representing agent actions. A grocery bag object might also not exist in the environment. We provide the available objects in the environment as a list of strings. Since our prompting scheme explicitly lists out the set of functions and objects available to the model, the generated plans typically contain actions an agent can take and objects available in the environment.

ProgPrompt also includes a few example tasks—fully executable program plans. Each example task demonstrates how to complete a given task using available actions and objects in the given environment. These examples demonstrate the relationship between task name, given as the function handle, and actions to take, as well as the restrictions on actions and objects to involve.

Iii-C Task Plan Generation and Execution

The given task is fully inferred by the LLM based on the ProgPrompt prompt. Generated plans are executed on a virtual agent or a physical robot system using an interpreter that executes each action command against the environment. Assertion checking is done in a closed-loop manner during execution, providing current environment state feedback.

Iv Experiments

We evaluate our method with experiments in a virtual household environment and on a physical robot manipulator.

Iv-a Simulation Experiments

We evaluate our method in the Virtual Home (VH) Environment [8], a deterministic simulation platform for typical household activities. A VH state is a set of objects and properties . encodes information like in(salmon, microwave) and agent_close_to(salmon). The action space is {grab, putin, putback, walk, find, open, close, switchon, switchoff, sit, standup}.

We experiment with 3 VH environments. Each environment contains 115 unique object instances (Fig. 2), including class-level duplicates. Each object has properties corresponding to its action affordances. Some objects also have a semantic state like heated, washed, or used. For example, an object in the Food category can become heated whenever .

We create a dataset of 70 household tasks. Tasks are posed with high-level instructions like “microwave salmon”. We collect a ground-truth sequence of actions that completes the task from an initial state, and record the final state that defines a set of symbolic goal conditions, .

When executing generated programs, we incorporate environment state feedback in response to asserts. VH provides observations in the form of state graph with object properties and relations. To check assertions in this environment, we extract information about the relevant object from the state graph and prompt the LLM to return whether the assertion holds or not given the state graph and assertion as a text prompt (Fig. 2 Prompt for State Feedback).

Iv-B Real-Robot Experiments

We use a Franka-Emika Panda robot with a parallel-jaw gripper. We assume access to a pick-and-place policy. The policy takes as input two pointclouds of a target object and a target container, and performs a pick-and-place operation to place the object on or inside the container. We use the system of [37] to implement the policy, and use MPPI for motion generation, SceneCollisionNet [37] to avoid collisions, and generate grasp poses with Contact-GraspNet [38].

We specify a single import statement for the action grab_and_putin(obj1, obj2) for ProgPrompt. We use ViLD [39], an open-vocabulary object detection model, to identify and segment objects in the scene and construct the available object list for the prompt. Unlike in the virtual environment, where object list was a global variable in common for all tasks, here the object list is a local variable for each plan function, which allows greater flexibility to adapt to new objects. The LLM outputs a plan containing function calls of form grab_and_putin(obj1, obj2). Here, objects obj1 and obj2 are text strings that we map to pointclouds using ViLD segmentation masks and the depth image. Due to real world uncertainty, we do not implement assert-based closed loop options on the tabletop plans.

Iv-C Evaluation Metrics

We use three metrics to evaluate system performance: success rate (SR), goal conditions recall (GCR), and executability (Exec). The task-relevant goal-conditions are the set of goal-conditions that changed between the initial and final state in the demonstration. SR is the fraction of executions that achieved all task-relevant goal-conditions. Exec is the fraction of actions in the plan that are executable in the environment, even if they are not relevant for the task. GCR is measured using the set difference between ground truth final state conditions and the final state achieved with the generated plan, divided by the number of task-specific goal-conditions; SR only if GCR.

V Results

ProgPrompt successfully prompts LLM-based task planners to both virtual and physical agent tasks.

V-a Virtual Experiment Results

Tab. I summarizes the performance of our task plan generation and execution system in the seen environment of VirtualHome. We utilize a GPT3 as a language model backbone to receive ProgPrompt prompts and generate plans. Each result is averaged over 5 runs in a single VH environment across 10 tasks. The variability in performance across runs arises from sampling LLM output. We include 3 Pythonic task plan examples per prompt after evaluating performance on VH for between 1 prompt and 7 prompts and finding that 2 or more prompts result in roughly equal performance for GPT3. The plan examples are fixed to be: “put the wine glass in the kitchen cabinet”, “throw away the lime”, and “wash mug”.

We can draw several conclusions from Tab. I. First, ProgPrompt (rows 3-6) outperforms prior work [2] (row 8) by a substantial margin on all metrics using the same large language model backbone. Second, we observe that the Codex [28] and Davinci models [27]—themselves GPT3 variants—show mixed success at the task. In particular, Davinci does not match base GPT3 performance (row 2 versus row 3), possibly because its prompt length constraints limit it to 2 task examples versus the 3 available to other rows. Additionally, Codex exceeds GPT3 performance on every metric (row 1 versus row 3), likely because Codex is explicitly trained on programming language data. However, Codex has limited access in terms of number of queries per minute, so we continue to use GPT3 as our main LLM backbone in the following ablation experiments. Our recommendation to the community is to utilize a program-like prompt for LLM-based task planning and execution, for which base GPT3 works well, and we note that an LLM fine-tuned further on programming language data, such as Codex, can do even better.

We explore several ablations of ProgPrompt. First, we find that Feedback mechanisms in the example programs, namely the assertions and recovery actions, improve performance (rows 3 versus 4 and 5 versus 6) across metrics, the sole exception being that Exec improves a bit without Feedback when there are no Comments in the prompt example code. Second, we observe that removing Comments from the prompt code substantially reduces performance on all metrics (rows 3 versus 5 and 4 versus 6), highlighting the usefulness of the natural language guidance within the programming language structure.

We also evaluate LangPrompt, an alternative to ProgPrompt that builds prompts from natural language text description of objects available and example task plans (row 7). LangPrompt is similar to the prompts built by [2]. The outputs of LangPrompt are generated action sequences, rather than our proposed, program-like structures. Thus, we finetune GPT2 to learn a policy to map those generated sequences to executable actions in the simulation environment. We use the 35 tasks in the training set, and annotate the text steps and the corresponding action sequence to get 400 data points for training and validation of this policy. We find that while this method achieves reasonable partial success through GCR, it does not match [2] for program executability Exec and does not generate any fully successful task executions.

[HTML]CBCEFB Task Desc SR Exec GCR
watch tv 3 0.200.40 0.420.13 0.630.28
[HTML]EFEFEF turn off light 3 0.400.49 1.000.00 0.650.30
brush teeth 8 0.800.40 0.740.09 0.870.26
[HTML]EFEFEF throw away apple 8 1.000.00 1.000.00 1.000.00
make toast 8 0.000.00 1.000.00 0.540.33
[HTML]EFEFEF eat chips on the sofa 5 0.000.00 0.400.00 0.530.09
put salmon in the fridge 8 1.000.00 1.000.00 1.000.00
[HTML]EFEFEF wash the plate 18 0.000.00 0.970.04 0.480.11
bring coffeepot and cupcake to the coffee table 8 0.000.00 1.000.00 0.520.14
[HTML]EFEFEF microwave salmon 11 0.000.00 0.760.13 0.240.09
Avg: 0.200.40 0.610.29 0.600.25
[HTML]EFEFEFAvg: 0.600.50 0.950.11 0.790.29
Avg: 0.000.00 0.870.14 0.360.16
TABLE II: ProgPrompt performance on the VH test-time tasks and their ground truth actions sequence lengths .

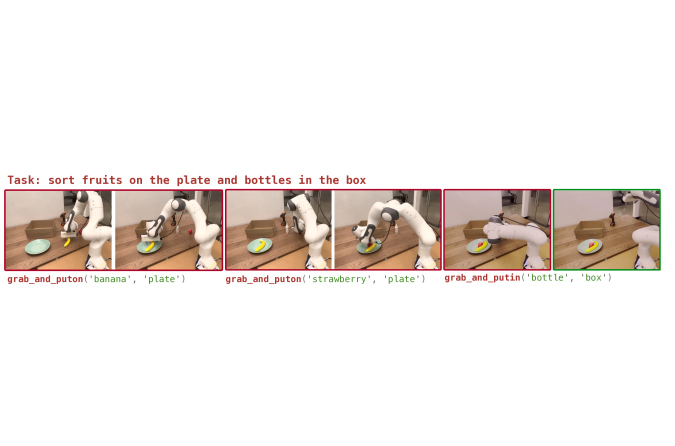

Fig. 4: Robot plan execution rollout example on the sorting task showing relevant objects banana, strawberry, bottle, plate and box, and a distractor object drill. The LLM recognizes that banana and strawberry are fruits, and generates plan steps to place them on the plate, while placing the bottle in the box. The LLM ignores the distractor object drill. See Figure 1 for the prompt structure used.

Task-by-Task Performance ProgPrompt performance for each task in the test set is shown in Table II. We observe that tasks that are similar to prompt examples, such as throw away apple versus wash the plate have higher GCR since the ground truth prompt examples hint about good stopping points. Even with high Exec, some task GCR are low, because some tasks have multiple appropriate goal states, but we only evaluate against a single “true” goal. For example, after microwaving and plating salmon, the agent may put the salmon on a table or a countertop.

[HTML]CBCEFB VH Scene SR Exec GCR
[HTML]EFEFEF Env-0 0.340.08 0.840.01 0.650.05
Env-1 0.560.08 0.850.02 0.810.07
[HTML]EFEFEF Env-2 0.560.05 0.850.03 0.720.09
Average 0.480.13 0.850.02 0.730.10
TABLE III: ProgPrompt results on Virtual Home in additional scenes. We evaluate on 10 tasks each in two additional VH scenes beyond scene Env-0 where other reported results take place.

Other Environments We evaluate ProgPrompt in two additional VH environments (Tab. III). For each, we append a new object list representing the new environment after the example tasks in the prompt, followed by the task to be completed in the new scene. The action primitives and other ProgPrompt settings remain unchanged. We evaluate on 10 tasks with 5 runs each. For new tasks like wash the cutlery in dishwasher, ProgPrompt is able to infer that cutlery refers to spoons and forks in the new scenes, despite that cutlery always refers to knives in example prompts.

V-B Qualitative Analysis and Limitations

We manually inspect generated programs and their execution traces from ProgPrompt and characterize common failure modes. Many failures stem from the decision to make ProgPrompt agnostic to the deployed environment and its peculiarities, which may be resolved through explicitly communicating, for example, object affordances of the target environment as part of the ProgPrompt prompt.

  • [leftmargin=2em]

  • Environment artifacts: the VH agent cannot find or interact with objects nearby when sitting, and some common sense actions for objects, such as opening a tvstand’s cabinets, are not available in VH.

  • Environment complexities: when an object is not accessible, the generated assertions might not be enough. For example, if the agent finds an object in a cabinet, it may not plan to open the cabinet to grab the object.

  • Action success feedback is not provided to the agent, which may lead to failure of the subsequent actions. Assertion recovery modules in the plan can help, but aren’t generated to cover all possibilities.

  • Incomplete generation: Some plans are cut short by LLM API caps. One possibility is to query the LLM again with the prompt and partially generated plan.

In addition to these failure modes, our strict final state checking means if the agent completes the task and some, we may infer failure, because the environment goal state will not match our precomputed ground truth final goal state. For example, after making coffee, the agent may take the coffeepot to another table. Similarly, some task descriptions are ambiguous and have multiple plausible correct programs. For example, “make dinner” can have multiple possible solutions. ProgPrompt generates plans that cooks salmon using the fryingpan and stove, and sometimes the agent adds bellpepper or lime, or sometimes with a side of fruit, or served in a plate with cutlery. When run in a different VH environment, the agent cooks chicken instead. ProgPrompt is able to generate plans for such complex tasks as well while using the objects available in the scene and not explicitly mentioned in the task. However, automated evaluation of such tasks requires enumerating all valid and invalid possibilities or introducing human verification.

V-C Physical Robot Results

The physical robot results are shown in Tab. IV. We evaluate on 4 tasks of increasing difficulty listed in Tab. IV. For each task we perform two experiments: one in a scene that only contains the necessary objects, and with one to three distractor objects added.

All results shown use ProgPrompt with comments, but not feedback. Our physical robot setup did not allow reliably tracking system state and checking assertions, and is prone to random failures due to things like grasps slipping. The real world introduces randomness that complicates a quantitative comparison between systems. Therefore, we intend the physical results to serve as a qualitative demonstration of the ease with which our prompting approach allows constraining and grounding LLM-generated plans to a physical robot system. We report an additional metric Plan SR, which refers to whether the plan would have likely succeeded, provided successful pick-and-place execution without gripper failures.

Across tasks, with and without distractor objects, the system almost always succeeds, failing only on the sort task. The run without distractors failed due to a random gripper failure. The run with 2 distractors failed because the model mistakenly considered a soup can to be a bottle. The executability for the generated plans was always Exec=1.

[HTML]CBCEFB Task Description Distractors SR Plan SR GCR
put the banana in the bowl 0 1 1 1/1
4 1 1 1/1
put the pear on the plate 0 1 1 1/1
4 1 1 1/1
put the banana on the plate 0 1 1 2/2
and the pear in the bowl 3 1 1 2/2
sort the fruits on the plate 0 0 1 2/3
and the bottles in the box 1 1 1 3/3
2 0 0 2/3
TABLE IV: Results on the physical robot by task type.

Vi Conclusions and Future Work

We present an LLM prompting scheme for robot task planning that brings together the two strengths of LLMs: commonsense reasoning and code understanding. We construct prompts that include situated understanding of the world and robot capabilities, enabling LLMs to directly generate executable plans as programs. Our experiments show that ProgPrompt programming language features improve task performance across a range of metrics. Our method is intuitive and flexible, and generalizes widely to new scenes, agents and tasks, including a real-robot deployment.

As a community, we are only scratching the surface of task planning as robot plan generation and completion. We hope to study broader use of programming language features, including real-valued numbers to represent measurements, nested dictionaries to represent scene graphs, and more complex control flow. Several works from the NLP community show that LLMs can do arithmetic and understand numbers, yet their capabilities for complex robot behavior generation are still relatively under-explored.

References

  • [1] W. Huang, F. Xia, T. Xiao, H. Chan, J. Liang, P. Florence, A. Zeng, J. Tompson, I. Mordatch, Y. Chebotar, P. Sermanet, N. Brown, T. Jackson, L. Luu, S. Levine, K. Hausman, and B. Ichter, “Inner monologue: Embodied reasoning through planning with language models,” in arXiv preprint arXiv:2207.05608, 2022.
  • [2] W. Huang, P. Abbeel, D. Pathak, and I. Mordatch, “Language models as zero-shot planners: Extracting actionable knowledge for embodied agents,” arXiv preprint arXiv:2201.07207, 2022.
  • [3] A. Zeng, M. Attarian, B. Ichter, K. Choromanski, A. Wong, S. Welker, F. Tombari, A. Purohit, M. Ryoo, V. Sindhwani, J. Lee, V. Vanhoucke, and P. Florence, “Socratic models: Composing zero-shot multimodal reasoning with language,” arXiv, 2022.
  • [4] M. Ahn, A. Brohan, N. Brown, Y. Chebotar, O. Cortes, B. David, C. Finn, K. Gopalakrishnan, K. Hausman, A. Herzog, D. Ho, J. Hsu, J. Ibarz, B. Ichter, A. Irpan, E. Jang, R. J. Ruano, K. Jeffrey, S. Jesmonth, N. J. Joshi, R. Julian, D. Kalashnikov, Y. Kuang, K.-H. Lee, S. Levine, Y. Lu, L. Luu, C. Parada, P. Pastor, J. Quiambao, K. Rao, J. Rettinghouse, D. Reyes, P. Sermanet, N. Sievers, C. Tan, A. Toshev, V. Vanhoucke, F. Xia, T. Xiao, P. Xu, S. Xu, and M. Yan, “Do as i can, not as i say: Grounding language in robotic affordances,” 2022.
  • [5] R. E. Fikes and N. J. Nilsson, “Strips: A new approach to the application of theorem proving to problem solving,” in

    Proceedings of the 2nd International Joint Conference on Artificial Intelligence

    , ser. IJCAI’71.   San Francisco, CA, USA: Morgan Kaufmann Publishers Inc., 1971, p. 608–620.
  • [6] C. R. Garrett, T. Lozano-Pérez, and L. P. Kaelbling, “Pddlstream: Integrating symbolic planners and blackbox samplers via optimistic adaptive planning,” Proceedings of the International Conference on Automated Planning and Scheduling, vol. 30, no. 1, pp. 440–448, Jun. 2020.
  • [7] Y. Jiang, S. Zhang, P. Khandelwal, and P. Stone, “Task planning in robotics: an empirical comparison of pddl-based and asp-based systems,” 2018.
  • [8] X. Puig, K. Ra, M. Boben, J. Li, T. Wang, S. Fidler, and A. Torralba, “Virtualhome: Simulating household activities via programs,” in

    2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition

    , 2018, pp. 8494–8502.
  • [9] M. Shridhar, J. Thomason, D. Gordon, Y. Bisk, W. Han, R. Mottaghi, L. Zettlemoyer, and D. Fox, “ALFRED: A Benchmark for Interpreting Grounded Instructions for Everyday Tasks,” in The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2020.
  • [10] J. A. Baier, F. Bacchus, and S. A. McIlraith, “A heuristic search approach to planning with temporally extended preferences,” in Proceedings of the 20th International Joint Conference on Artifical Intelligence, ser. IJCAI’07.   San Francisco, CA, USA: Morgan Kaufmann Publishers Inc., 2007, p. 1808–1815.
  • [11] J. Hoffmann, “Ff: The fast-forward planning system,” AI Magazine, vol. 22, no. 3, p. 57, Sep. 2001.
  • [12] M. Helmert, “The fast downward planning system,” J. Artif. Int. Res., vol. 26, no. 1, p. 191–246, jul 2006.
  • [13] D. Bryce and S. Kambhampati, “A tutorial on planning graph based reachability heuristics,” AI Magazine, vol. 28, no. 1, p. 47, Mar. 2007.
  • [14]

    B. Eysenbach, R. R. Salakhutdinov, and S. Levine, “Search on the replay buffer: Bridging planning and reinforcement learning,” in

    Advances in Neural Information Processing Systems, H. Wallach, H. Larochelle, A. Beygelzimer, F. dAlché-Buc, E. Fox, and R. Garnett, Eds., vol. 32.   Curran Associates, Inc., 2019.
  • [15] D. Xu, S. Nair, Y. Zhu, J. Gao, A. Garg, L. Fei-Fei, and S. Savarese, “Neural task programming: Learning to generalize across hierarchical tasks,” in 2018 IEEE International Conference on Robotics and Automation (ICRA), 2018, pp. 3795–3802.
  • [16] D. Xu, R. Martín-Martín, D.-A. Huang, Y. Zhu, S. Savarese, and L. F. Fei-Fei, “Regression planning networks,” in Advances in Neural Information Processing Systems, H. Wallach, H. Larochelle, A. Beygelzimer, F. dAlché-Buc, E. Fox, and R. Garnett, Eds., vol. 32.   Curran Associates, Inc., 2019.
  • [17] T. Silver, R. Chitnis, N. Kumar, W. McClinton, T. Lozano-Perez, L. P. Kaelbling, and J. Tenenbaum, “Inventing relational state and action abstractions for effective and efficient bilevel planning,” in The Multi-disciplinary Conference on Reinforcement Learning and Decision Making (RLDM), 2022.
  • [18] D. Shah, A. T. Toshev, S. Levine, and brian ichter, “Value function spaces: Skill-centric state abstractions for long-horizon reasoning,” in International Conference on Learning Representations, 2022.
  • [19] A. Srinivas, A. Jabri, P. Abbeel, S. Levine, and C. Finn, “Universal planning networks: Learning generalizable representations for visuomotor control,” in Proceedings of the 35th International Conference on Machine Learning

    , ser. Proceedings of Machine Learning Research, J. Dy and A. Krause, Eds., vol. 80.   PMLR, 10–15 Jul 2018, pp. 4732–4741.

  • [20] T. Kurutach, A. Tamar, G. Yang, S. J. Russell, and P. Abbeel, “Learning plannable representations with causal infogan,” in Advances in Neural Information Processing Systems, S. Bengio, H. Wallach, H. Larochelle, K. Grauman, N. Cesa-Bianchi, and R. Garnett, Eds., vol. 31.   Curran Associates, Inc., 2018.
  • [21] A. Akakzia, C. Colas, P.-Y. Oudeyer, M. CHETOUANI, and O. Sigaud, “Grounding language to autonomously-acquired skills via goal generation,” in International Conference on Learning Representations, 2021.
  • [22]

    S. Nair and C. Finn, “Hierarchical foresight: Self-supervised learning of long-horizon tasks via visual subgoal generation,” in

    International Conference on Learning Representations, 2020.
  • [23] Y. Jiang, S. S. Gu, K. P. Murphy, and C. Finn, “Language as an abstraction for hierarchical deep reinforcement learning,” in Advances in Neural Information Processing Systems, H. Wallach, H. Larochelle, A. Beygelzimer, F. dAlché-Buc, E. Fox, and R. Garnett, Eds., vol. 32.   Curran Associates, Inc., 2019.
  • [24] S. Mirchandani, S. Karamcheti, and D. Sadigh, “Ella: Exploration through learned language abstraction,” in Advances in Neural Information Processing Systems, M. Ranzato, A. Beygelzimer, Y. Dauphin, P. Liang, and J. W. Vaughan, Eds., vol. 34.   Curran Associates, Inc., 2021, pp. 29 529–29 540.
  • [25] P. Sharma, A. Torralba, and J. Andreas, “Skill induction and planning with latent language,” in Proceedings of the 60th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers).   Dublin, Ireland: Association for Computational Linguistics, May 2022, pp. 1713–1726.
  • [26] Y. Zhu, J. Tremblay, S. Birchfield, and Y. Zhu, “Hierarchical planning for long-horizon manipulation with geometric and symbolic scene graphs,” 2020.
  • [27] T. B. Brown, B. Mann, N. Ryder, M. Subbiah, J. Kaplan, P. Dhariwal, A. Neelakantan, P. Shyam, G. Sastry, A. Askell, S. Agarwal, A. Herbert-Voss, G. Krueger, T. Henighan, R. Child, A. Ramesh, D. M. Ziegler, J. Wu, C. Winter, C. Hesse, M. Chen, E. Sigler, M. Litwin, S. Gray, B. Chess, J. Clark, C. Berner, S. McCandlish, A. Radford, I. Sutskever, and D. Amodei, “Language models are few-shot learners,” 2020.
  • [28] M. Chen, J. Tworek, H. Jun, Q. Yuan, H. P. d. O. Pinto, J. Kaplan, H. Edwards, Y. Burda, N. Joseph, G. Brockman, A. Ray, R. Puri, G. Krueger, M. Petrov, H. Khlaaf, G. Sastry, P. Mishkin, B. Chan, S. Gray, N. Ryder, M. Pavlov, A. Power, L. Kaiser, M. Bavarian, C. Winter, P. Tillet, F. P. Such, D. Cummings, M. Plappert, F. Chantzis, E. Barnes, A. Herbert-Voss, W. H. Guss, A. Nichol, A. Paino, N. Tezak, J. Tang, I. Babuschkin, S. Balaji, S. Jain, W. Saunders, C. Hesse, A. N. Carr, J. Leike, J. Achiam, V. Misra, E. Morikawa, A. Radford, M. Knight, M. Brundage, M. Murati, K. Mayer, P. Welinder, B. McGrew, D. Amodei, S. McCandlish, I. Sutskever, and W. Zaremba, “Evaluating large language models trained on code,” 2021.
  • [29]

    T. Luong, H. Pham, and C. D. Manning, “Effective approaches to attention-based neural machine translation,” in

    Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing

    .   Lisbon, Portugal: Association for Computational Linguistics, Sept. 2015, pp. 1412–1421.
  • [30] S. Wiseman, S. Shieber, and A. Rush, “Challenges in data-to-document generation,” in Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing.   Copenhagen, Denmark: Association for Computational Linguistics, Sept. 2017, pp. 2253–2263.
  • [31] A. Holtzman, J. Buys, L. Du, M. Forbes, and Y. Choi, “The curious case of neural text degeneration,” in International Conference on Learning Representations, 2020.
  • [32] P. Jansen, “Visually-grounded planning without vision: Language models infer detailed plans from high-level instructions,” in Findings of the Association for Computational Linguistics: EMNLP 2020.   Online: Association for Computational Linguistics, Nov. 2020, pp. 4412–4417.
  • [33] S. Li, X. Puig, C. Paxton, Y. Du, C. Wang, L. Fan, T. Chen, D.-A. Huang, E. Akyürek, A. Anandkumar, J. Andreas, I. Mordatch, A. Torralba, and Y. Zhu, “Pre-trained language models for interactive decision-making,” 2022.
  • [34] R. Patel and E. Pavlick, “Mapping language models to grounded conceptual spaces,” in International Conference on Learning Representations, 2022.
  • [35] P. Liu, W. Yuan, J. Fu, Z. Jiang, H. Hayashi, and G. Neubig, “Pre-train, prompt, and predict: A systematic survey of prompting methods in natural language processing,” 2021.
  • [36] J. Wei, X. Wang, D. Schuurmans, M. Bosma, B. Ichter, F. Xia, E. Chi, Q. Le, and D. Zhou, “Chain of thought prompting elicits reasoning in large language models,” 2022.
  • [37] M. Danielczuk, A. Mousavian, C. Eppner, and D. Fox, “Object rearrangement using learned implicit collision functions,” IEEE International Conference on Robotics and Automation (ICRA), 2021.
  • [38] M. Sundermeyer, A. Mousavian, R. Triebel, and D. Fox, “Contact-graspnet: Efficient 6-dof grasp generation in cluttered scenes,” in 2021 IEEE International Conference on Robotics and Automation (ICRA), 2021, pp. 13 438–13 444.
  • [39] X. Gu, T.-Y. Lin, W. Kuo, and Y. Cui, “Open-vocabulary object detection via vision and language knowledge distillation,” in International Conference on Learning Representations, 2022.
