Processing Megapixel Images with Deep Attention-Sampling Models

05/03/2019 ∙ by Angelos Katharopoulos, et al. ∙ 26

Existing deep architectures cannot operate on very large signals such as megapixel images due to computational and memory constraints. To tackle this limitation, we propose a fully differentiable end-to-end trainable model that samples and processes only a fraction of the full resolution input image. The locations to process are sampled from an attention distribution computed from a low resolution view of the input. We refer to our method as attention sampling and it can process images of several megapixels with a standard single GPU setup. We show that sampling from the attention distribution results in an unbiased estimator of the full model with minimal variance, and we derive an unbiased estimator of the gradient that we use to train our model end-to-end with a normal SGD procedure. This new method is evaluated on three classification tasks, where we show that it allows to reduce computation and memory footprint by an order of magnitude for the same accuracy as classical architectures. We also show the consistency of the sampling that indeed focuses on informative parts of the input images.



There are no comments yet.


page 1

page 5

page 7

page 12

page 13

page 14

page 15

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

(b) (c)
Figure 1: Common practice to process megapixel images with CNNs is to downsample them, however this results in significant loss of information (b, c).

For a variety of computer vision tasks, such as cancer detection, self driving vehicles, and satellite image processing, it is necessary to develop models that are able to handle high resolution images. The existing CNN architectures, that provide state-of-the-art performance in various computer vision fields such as image classification

(He et al., 2016), object detection (Liu et al., 2016), semantic segmentation (Wu et al., 2019) etc., cannot operate directly on such images due to computational and memory requirements. To address this issue, a common practice is to downsample the original image before passing it to the network. However, this leads to loss of significant information possibly critical for certain tasks.

Another research direction seeks to mitigate this problem by splitting the original high resolution image into patches and processing them separately (Hou et al., 2016; Golatkar et al., 2018; Nazeri et al., 2018). Naturally, these methods either waste computational resources on uninformative patches or require ground truth annotations for each patch. However, per patch labels are typically expensive to acquire and are not available for the majority of the available datasets.

The aforementioned limitations are addressed by two disjoint lines of work: the recurrent visual attention models

(Mnih et al., 2014; Ba et al., 2014) and the attention based multiple instance learning (Ilse et al., 2018). The first seeks to limit the wasteful computations by only processing some parts of the full image. However, these models result in hard optimization problems that limit their applicability to high resolution images. The second line of work shows that regions of interest can be identified without explicit patch annotations by aggregating per patch features with an attention mechanism. Nevertheless, such methods do not address the computational and memory issues inherent in all patch based models.

This work aims at combining the benefits of both. Towards this goal, we propose an end-to-end trainable model able to handle multi-megapixel images using a single GPU or CPU. In particular, we sample locations of “informative patches” from an “attention distribution” computed on a lower resolution version of the original image. This allows us to only process a fraction of the original image. Compared to previous works, due to our attention based weighted average feature aggregation, we are able to derive an unbiased estimator of the gradient of the virtual and intractable “full model” that would process the full-scale image in a standard feed-forward manner, and do not need to resort to reinforcement learning or variational methods to train. Furthermore, we prove that sampling patches from the attention distribution results in the minimum variance estimator of the “full model”.

We evaluate our model on three classification tasks and we show that our proposed attention sampling achieves comparable test errors with Ilse et al. (2018), that considers all patches from the high resolution images, while being up to 25 faster and requiring up to 30 less memory.

2 Related Work

In this section, we discuss the most relevant body of work on attention-based models and techniques to process high resolution images using deep neural networks, which can be trained from a scene-level categorical label. Region proposal methods that require per-patch annotations, such as instance-level bounding boxes

(Girshick et al., 2014; Redmon et al., 2016; Liu et al., 2016), do not fall in that category.

2.1 Recurrent visual attention models

This line of work includes models that learn to extract a sequence of regions from the original high resolution image and only process these at high resolution. The regions are processed in a sequential manner, namely the distribution to sample the -th region depends on the previous regions. Mnih et al. (2014)

were the first to employ a recurrent neural network to predict regions of interest on the high resolution image and process them sequentially. In order to train their model, which is not differentiable, they use reinforcement learning. In parallel,

Ranzato (2014); Ba et al. (2014) proposed to additionally downsample the input image and use it to provide spatial context to the recurrent network. Ramapuram et al. (2018)

improved upon the previous works by using variational inference and Spatial Transformer Networks

(Jaderberg et al., 2015) to solve the same optimization problem.

All the aforementioned works seek to solve a complicated optimization problem that is non differentiable and is approximated with either reinforcement learning or variational methods. Instead of employing such a complicated model to aggregate the features of the patches and generate dependent attention distributions that result in a hard optimization problem, we propose to use an attention distribution to perform a weighted average of the features, which allows us to directly train our model with SGD.

2.2 Patch based models

Such models (Hou et al., 2016; Liu et al., 2017; Nazeri et al., 2018) divide the high resolution image into patches and process them separately. Due to the lack of per patch annotations, the above models need to introduce a separate method to provide labels for training the patch level network. Instead attention sampling does not require any patch annotations and through the attention mechanism learns to identify regions of interest in arbitrarily large images.

2.3 Attention models

Xu et al. (2015) were the first to use soft attention methods to generate image captions. More related to our work is the model of Ilse et al. (2018), where they use the attention distribution to aggregate a bag of features. To apply their method to images, they extract patches, compute features and aggregate them with an attention distribution that is computed from these features. This allows them to infer regions of interest without having access to per-patch labels. However, their model wastes computational resources by handling all patches, both informative and non-informative. Our method, instead, learns to focus only on informative regions of the image, thus resulting in orders of magnitude faster computation while retaining equally good performance.

2.4 Other methods

Jaderberg et al. (2015) propose Spatial Transformer Networks (STN) that learn to predict affine transformations of a feature map than includes cropping and rescaling. STNs employ several localization networks, that operate on the full image, to generate these transformations. As a result, they do not scale easily to megapixel images or larger. Recasens et al. (2018) use a low resolution view of the image to predict a saliency map that is used in conjunction with the differentiable STN sampler to focus on useful regions of the high resolution image by making them larger. In comparison, attention sampling focuses on regions by weighing the corresponding features with the attention weights.

3 Methodology

In this section, we formalize our proposed attention-sampling method. Initially, we introduce a generic formulation for attention and we show that sampling from the attention distribution generates an optimal approximation in terms of variance that significantly reduces the required computation. In § 3.2.2, we derive the gradient with respect to the parameters of the attention and the feature network through the sampling procedure. In § 3.3 and § 3.4, we provide the methodology that allows us to speed up the processing of high resolution images using attention sampling and is used throughout our experiments.

3.1 Attention in neural networks

Let , denote an input-target pair from our dataset. We consider to be a neural network parameterized by . is an intermediate representation of the neural network that can be thought of as features of dimension , e.g. the last convolutional layer of a ResNet architecture or the previous hidden states and outputs of a recurrent neural network.

Employing an attention mechanism in the neural network at the intermediate representation is equivalent to defining a function s.t. and changing the definition of the network to


given that the subscript extracts the -th row from a matrix or the

-th element from a vector.

3.2 Attention sampling

By definition, is a multinomial distribution over discrete elements (e.g. locations in the images). Let

be a random variable sampled from

. We can rewrite the attention in the neural network as the expectation of the intermediate features over the attention distribution


Consequently, we can avoid computing all features by approximating the expectation with a Monte Carlo estimate. We sample a set Q of N i.i.d. indices from the attention distribution, and approximate the neural network with


3.2.1 Relation with importance-sampling

We are interested in deriving an approximation with minimum variance so that the output of the network does not change because of the sampling. In the following paragraphs, we show that sampling from is optimal in that respect.


denote a discrete probability distribution on the

features with probabilities . We want to sample from such that the variance is minimized. Concretely, we seek such that


We divide by to ensure that the expectation remains the same regardless of . One can easily verify that . We continue our derivation as follows:


The minimum of equation 8 is


which means that sampling according to the attention distribution is optimal when we do not have information about the norm of the features. This can be easily enforced by constraining the features to have the same norm.

3.2.2 Gradient derivation

In order to use a neural network as our attention distribution we need to derive the gradient of the loss with respect to the parameters of the attention function through the sampling of the set of indices . Namely, we need to compute


for all including the ones that affect .

By exploiting the Monte Carlo approximation and the multiply by one trick, we show that


In equation 11, the gradient of each feature is weighed inversely proportionally to the probability of sampling that feature. This result is expected, because the “effect” of rare samples should be increased to account for the low observation frequency (Kahn & Harris, 1951). This allows us to derive the gradients of our attention sampling method as follows:


which requires computing only the rows of for the sampled indices in . Due to lack of space, a detailed derivation of equation 11, can be found in our supplementary material.

3.2.3 Sampling without replacement

In our initial analysis, we assume that Q is sampled i.i.d. from . However, this means that it is probable to sample the same element multiple times, especially as the entropy of the distribution decreases during the training of the attention network. To avoid computing a feature multiple times and to make the best use of the available computational budget we propose sampling without replacement.

We model sampling without replacement as follows: Initially, we sample a position with probability . Subsequently, we sample the second position , given the first, with probability . Following this reasoning, we can define sampling the -th position with probability


Simply averaging the features, as in equation 4, would result in a biased estimator. Instead, we use


We assume that to are sampled from to accordingly. Following the reasoning of § 3.2.2, we compute the gradient through the sampling in an efficient and numerically stable way. The complete analysis is given in the supplementary material.

3.3 Multi-resolution data

For most implementations of attention in neural networks, is a function of the features (Ilse et al., 2018). This means that in order to compute the attention distribution we need to compute all the features. However, in order to take advantage of our Monte Carlo Estimation of equation 4 and avoid computing all features, we use a lower resolution view of the data. This allows us to gain significant speedup from attention sampling.

Given an image where , , denote the height, width and channels respectively, and its corresponding view at scale we compute the attention as


where and . We also define a function that extracts a patch from the full resolution image centered around the corresponding -th pixel in .

Based on the above, we derive a model capable of only considering few patches from the full size image , as follows:


Note that both the attention and feature functions have trainable parameters which we omit for clarity. In the formulation of equation 20, we do not consider the location of the sampled patches . This is not an inherent limitation of the model since we can simply pass the location as a parameter in our feature function .

3.4 Implementation details

In this section, we discuss the specifics of our proposed attention sampling. Equation is implemented by a neural network which we refer to as feature network. Similarly is another neural network, typically, significantly smaller, referred to as attention network. Finally, function is a linear classification layer.

In order to control the exploration-exploitation dilemma we introduce an entropy regularizer for the attention distribution. Namely given a loss function

we use


where denotes the entropy of the distribution . This regularizer prevents the attention network from quickly deciding which patches are informative. This results in an exploration of the available patch space during the initial stage of training. Due to lack of space we evaluate the impact of this regularizer qualitatively in our supplementary.

As already mentioned in § 3.2.1, normalizing the features in terms of the norm guarantees that the attention distribution produces the minimum variance estimator of the “full model”; thus in all the feature networks we add normalization as the final layer.

(a) Performance on training set
(b) Performance on test set
Figure 2: Comparison of attention sampling (ATS) with a CNN on Megapixel MNIST. We observe that we can trade optimization accuracy for time by sampling fewer patches.

4 Experimental evaluation

In this section, we analyse experimentally the performance of our attention sampling approach on three classification tasks. We showcase the ability of our model to focus on informative parts of the input image which results in significantly reduced computational requirements. We refer to our approach as ATS or ATS-XX where XX denotes the number of sampled patches. Note that we do not consider per-patch annotations for any of the used datasets. The code used for the experiments can be found in

4.1 Introduction

4.1.1 Baselines

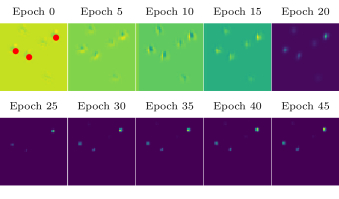

Figure 3:

The evolution of the attention distribution on Megapixel MNIST. Yellow means higher attention. At the first image (epoch 0) we mark the position of the digits with the red dots. The attention finds the three digits and focuses on them instead of the noise which can be clearly seen in epochs 10 and 15.

Most related to our method is the patch based approach of Ilse et al. (2018) that implements the attention as a function of the features of each patch. For the rest of the experiments, we refer to this method as Deep MIL. For Deep MIL, we specify the patches to be extracted from each high resolution image by a regular grid of varying size depending on the dimensions of the input image and the patch size. Note that the architecture of the feature network and the patch size used for Deep MIL is always the same as the ones used for our attention sampling method.

To showcase that existing CNN architectures are unable to operate on megapixel images, we also compare our method to traditional CNN models. Typically, the approach for handling high resolution images with deep neural networks is to downsample the input images. Thus; for a fair comparison, we train the CNN baselines using images at various scales. The specifics of each network architecture are described in the corresponding experiment. For more details, we refer the reader to our supplementary material.

Finally, to show that the learned attention distribution is non-trivial, we replace the attention network of our model with a fixed network that predicts the uniform distribution and compare the results. We refer to this baseline as

U-XX where XX denotes the number of sampled patches.

4.1.2 Metrics

Our proposed model allows us to trade off computation with increased performance. Therefore, besides reporting just the achieved test error, we also measure the computational and memory requirements. To this end, we report the per sample wall-clock time for a forward/backward pass and the peak GPU memory allocated for training with a batch size of 1, as reported by the TensorFlow

(Abadi et al., 2016) profiler. Note that for attention sampling, extracting a patch, reading it from main memory and moving it to the GPU memory is always included in the reported time. Regarding the memory requirements of our baselines, it is important to mention that the maximum used memory depends on the size of the high resolution image, whereas for attention sampling it only depends on the number sampled patches and the patch size. For a fair comparison in terms of both memory and computational requirements, with Deep MIL

, we make sure that the patches are extracted from a grid with a stride at least half the size of the patch. Finally, due to lack of space, we provide extensive qualitative results of the learned attention distribution in the supplementary material.

4.2 Megapixel MNIST

We evaluate attention sampling on an artificial dataset based on the MNIST digit classification task (LeCun et al., 2010). We generate empty images of size and we place patches of random noise at random locations. The size of each patch is equal to an MNIST digit. In addition, we randomly position 5 digits sampled from the MNIST dataset, 3 belonging to the same class and 2 to a random class. The task is to identify the digit with the most occurrences. We use images for training and for testing.

For ATS, the attention network is a three layer convolutional network and the feature network is inspired from LeNet-1 (LeCun et al., 1995). To compute the attention, we downsample the image to which results in patches to sample from. The sampled patches from the high resolution image have size pixels. For the CNN baseline, we train it on the full size images. Regarding uniform sampling, we note that it does not perform better than random guessing, due to the very large sampling space ( possible patches); thus we omit it from this experiment. Furthermore, we also omit Deep MIL because the required memory for a batch size of 1 exceeds the available GPU memory.

4.2.1 Performance

Initially, we examine the effect of the number of sampled patches on the performance of our method. We sample patches for each image which corresponds to to of the available sampling space. We train our models independent runs for epochs and the averaged results are depicted in figures 1(a) and 1(b). The figures show the training loss and test error, respectively, with respect to wall clock time both for ATS and the CNN baseline. Even though the CNN has comparably increased capacity, we observe that ATS is order of magnitudes faster and performs better.

As expected, we observe that attention sampling directly trades performance for speed, namely sampling fewer patches results in both higher training loss and test error. Although the CNN baseline performs better than random guessing, achieving roughly 40% error, it is still more than an order of magnitude higher than ATS.

4.2.2 Evolution of the attention distribution

The quantitative results of the previous section demonstrate that attention sampling processes high resolution images both faster and more accurately than the CNN baseline. However, another important benefit of using attention is the increased interpretability of the decisions of the network. This can be noticed from Figure 3, where we visualize the evolution of the attention distribution as the training progresses. In particular, we select a patch from a random image from the dataset that contains 6 distinct items, 3 pieces of noise and 3 digits, and draw the attention distribution for that patch. We observe that the attention distribution starts as uniform. However, during training, we note that the attention network first learns to distinguish empty space from noise and digits and subsequently even noise from digits. This explains why by only sampling 5 patches we achieve approximately

error, even though it is the minimum required to be able to confidently classify an image.

4.3 Histopathology images

Method Scale Train Loss Test Error Time/sample Memory/sample
U-10 0.2/1 0.210 0.031 0.156 0.006 1.8 ms 19 MB
U-50 0.2/1 0.075 0.000 0.124 0.010 4.6 ms 24 MB
CNN 0.5 0.002 0.000 0.104 0.009 4.8 ms 65 MB
CNN 1 0.002 0.000 0.092 0.012 18.7 ms 250 MB
Deep MIL (Ilse et al., 2018) 1 0.007 0.000 0.093 0.004 48.5 ms 644 MB
ATS-10 0.2/1 0.083 0.019 0.093 0.014 1.8 ms 21 MB
ATS-50 0.2/1 0.028 0.002 0.093 0.019 4.5 ms 26 MB
Table 1: Performance comparison of attention sampling (ATS) with a CNN and Deep MIL on the colon cancer dataset comprised of H&E stained images. The experiments were run 5 times and the average (

a standard error of the mean) is reported. ATS performs equally well to

Deep MIL and CNN in terms of test error, while being at least 10x faster.

In this experiment, we evaluate attention sampling on the colon cancer dataset introduced by Sirinukunwattana et al. (2016) to detect whether epithelial cells exist in a hematoxylin and eosin (H&E) stained image.

This dataset contains 100 images of dimensions . The images originate both from malignant and normal tissue and contain approximately 22,000 annotated cells. Following the experimental setup of Ilse et al. (2018), we treat the problem as binary classification where the positive images are the ones that contain at least one cell belonging in the epithelial class. While the size of the images in this dataset is less than one megapixel, our method can easily scale to datasets with much larger images, as the computational and memory requirements depend only on the size and the number of the patches. However, this does not apply to our baselines, where both the memory and the computational requirements scale linearly with the size of the input image. As a result, this experiment is a best case scenario for our baselines.

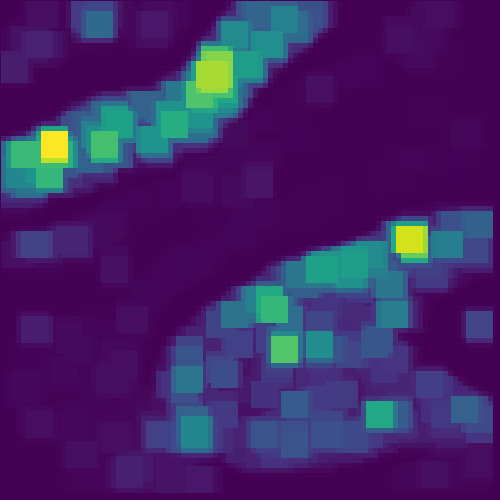

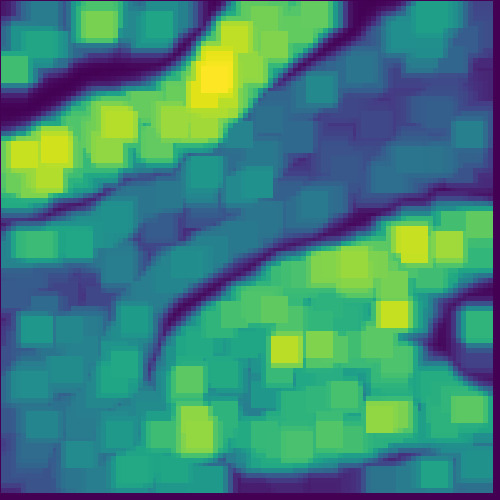

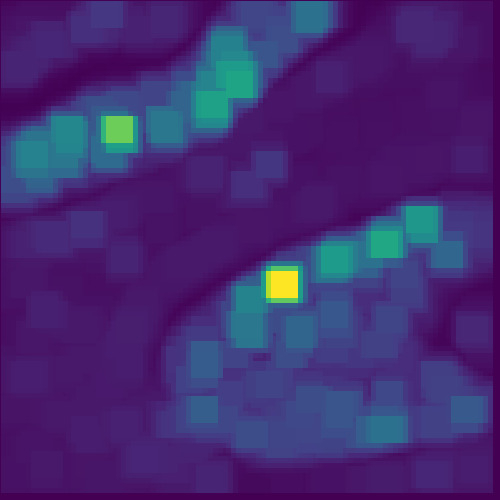

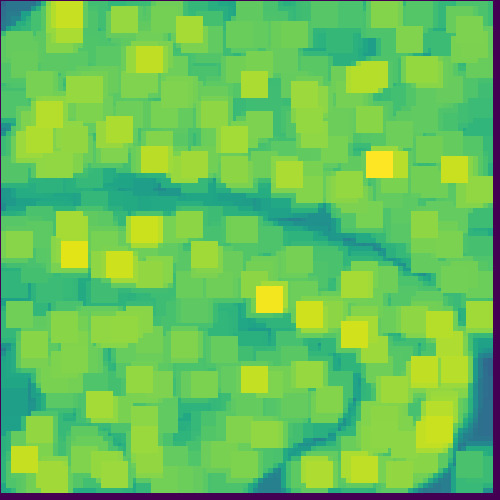

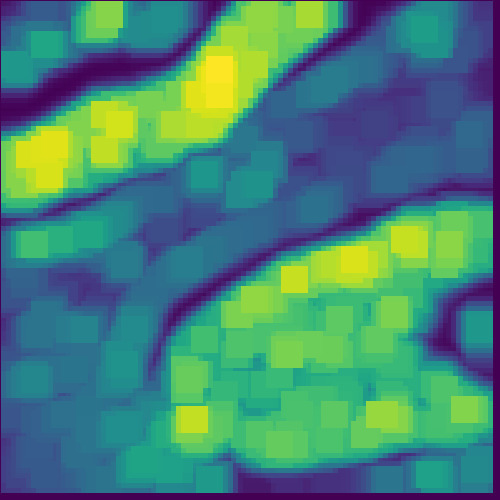

Figure 4: Visualization of the learned attention distributions for Deep MIL (c) and our attention sampling (d) on an H&E stained image from the colon cancer dataset. (a) depicts the raw image and (b) depicts the cells that belong to the epithelial class. Images (c) and (d) are created by multiplying every patch in (a) by the corresponding normalized attention weight. Both methods localize the attention distribution effectively on the informative parts of the image.

For our model, we downsample the images by a factor of 5 and we use the attention network described in § H.1. The feature network of our model is the same as the one proposed by Ilse et al. (2018) with input patches of size . For Deep MIL, we extract 2,500 patches per image at a regular grid. Regarding the CNN baseline, we use a ResNet (He et al., 2016) architecture. Furthermore, we perform data augmentation by small random adjustments to the brightness and contrast of each image. Following Ilse et al. (2018), we perform 5 independent runs and report the mean and the standard error of the mean.

4.3.1 Performance

The results of this experiment are summarized in Table 1. We observe that sampling from the uniform distribution 10 and 50 patches is clearly better than random guessing by achieving 15.6% and 12.4% error respectively. This stems from the fact that each positive sample contains hundreds of regions of interest, namely epithelial cells, and we only need one to classify the image. As expected, attention sampling learns to focus only on informative parts of the image thus resulting in approximately 35% lower test error and 3 times lower training loss. Furthermore, compared to Deep MIL and CNN, ATS-10 performs equally well while being 25x and 10x faster respectively. Moreover, the most memory efficient baseline (CNN) needs at least 3x more memory compared to attention sampling, while Deep MIL needs 30x more.

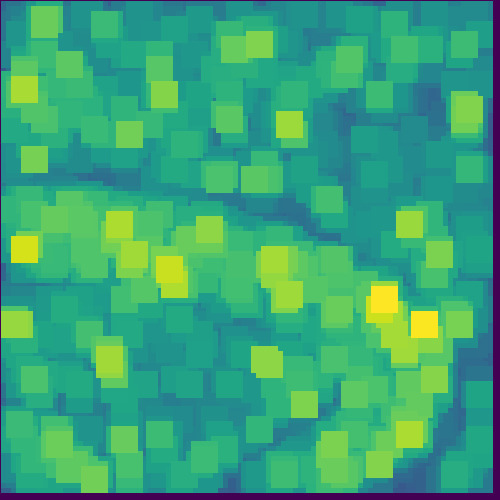

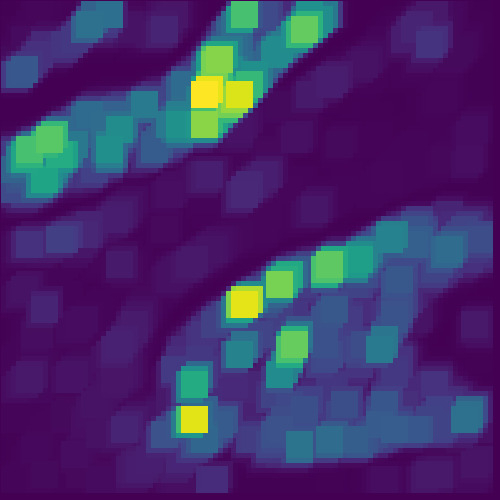

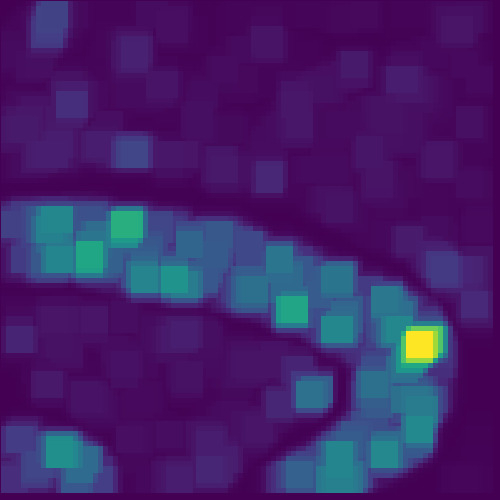

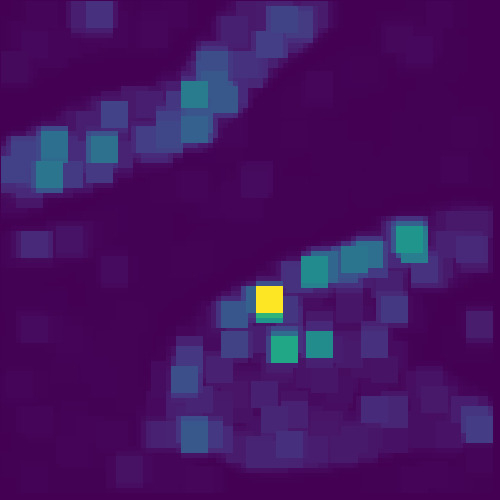

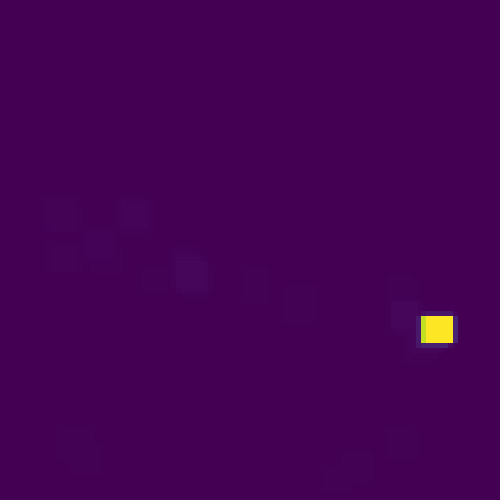

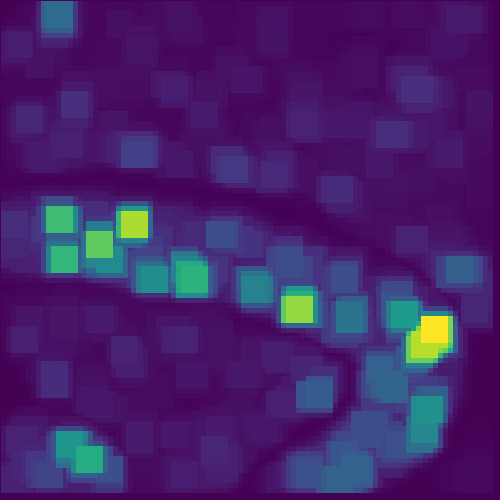

4.3.2 Attention Distribution

To show that our proposed model indeed learns to focus on informative parts of the image, we visualize the learned attention distribution at the end of training. In particular, we select an image from the test set and we compute the attention distribution both for Deep MIL and attention sampling. Subsequently, we weigh each corresponding patch with a normalized attention value that is computed as . For reference, in Figure 8, apart from the two attention distributions, we also visualize the patches that contain an epithelial cell. Both models identify epithelial cells without having access to per-patch annotations. In order to properly classify an image as positive or not, we just need to find a single patch that contains an epithelial cell. Therefore, despite the fact that the learned attention using attention sampling matches less well the distribution of the epithelial cells (Figure 3(b)), compared to Deep MIL, it is not necessarily worse for the classification task that we are interested in. However, it is less helpful for detecting regions of interest. In addition, we also observe that both attentions have significant overlap even on mistakenly selected patches such as the bottom center of the images.

4.4 Speed limit sign detection

Method Scale Train Loss Test Error Time/sample Memory/sample
U-5 0.3/1 1.468 0.317 0.531 0.004 7.8 ms 39 MB
U-10 0.3/1 0.851 0.408 0.472 0.008 10.8 ms 78 MB
CNN 0.3 0.003 0.001 0.311 0.049 6.6 ms 86 MB
CNN 0.5 0.002 0.001 0.295 0.039 15.6 ms 239 MB
CNN 1 0.002 0.000 0.247 0.001 64.2 ms 958 MB
Deep MIL (Ilse et al., 2018) 1 0.077 0.089 0.083 0.006 97.2 ms 1,497 MB
ATS-5 0.3/1 0.162 0.124 0.089 0.002 8.5 ms 86 MB
ATS-10 0.3/1 0.082 0.032 0.095 0.008 10.3 ms 118 MB
Table 2: Performance comparison of attention sampling (ATS) with a CNN and Deep MIL on the speed limits dataset. The experiments were run 3 times and the average ( a standard error of the mean) is reported. ATS performs equally well as Deep MIL while being at least 10x faster. Regarding CNN, we note that both Deep MIL and attention sampling perform significantly better.
Figure 5: Visualization of the learned attention distributions for Deep MIL (b) and our attention sampling (c) on an image from the speed limits dataset (a). (d) and (e) depict the marked regions from (a) which are also selected by attention sampling. We observe that both of them contain speed limit signs unrecognizable in the low resolution image.

In this experiment, we seek to classify images based on whether they contain no speed limit or a limit sign of , or kilometers per hour. We use a subset of the Swedish traffic signs dataset (Larsson & Felsberg, 2011), for which we do not use explicit annotations of the signs, just one label for each image. The dataset contains images annotated with 20 different traffic sign classes. Each image is 1.3 megapixels, namely pixels. As some classes contain less than samples, we limit the classification task to the one described above. The resulting dataset consists of 747 training images and 684 test images, distributed approximately as 100 images for each speed limit sign and 400 for the background class, namely no limit sign.

An interesting fact about this dataset is that in order to properly classify all images it is mandatory to process them in high resolution. This is illustrated in Figure 1, where from the downsampled image one can deduce the existence of a speed limit sign, without being able to identify the number of kilometers written on it. Objects that are physically far from the moving camera become unrecognizable when downsampling the input image. This property might be critical, for early detection of pedestrians or collision avoidance in a self-driving car scenario.

For attention sampling, we downsample the original image by approximately a factor of to . The attention network is a four layer convolutional network and the feature network of both our model and Deep MIL is a simple ResNet. For Deep MIL, we extract patches on a grid of patch size . For a fair comparison, we evaluate the CNN baseline using images at various resolutions, namely scales , and .

Again also for this dataset, we perform data augmentation, namely random translations and contrast brightness adjustments. In addition, due to class imbalance, for all evaluated methods, we use a crossentropy loss weighted with the inverse of the prior of each class. We perform 3 independent runs and report the mean and the standard error of the mean.

4.4.1 Performance

Table 2 compares the proposed model to our baselines on the speed limits dataset. We observe that although the CNN learns the training set perfectly, it fails to generalise. For the downsampled images, this is expected as the limits on the traffic signs are indistinguishable. Similarly, due to the small number of informative patches, uniform sampling fails to correctly classify both the training set and the test set. We observe that attention sampling achieves comparable test error to Deep MIL by using just patches, instead of . This results in significant speedups of more than an order of magnitude. Regarding the required memory, attention sampling needs 17x less memory compared to Deep MIL.

4.4.2 Attention Distribution

In this section, we compare qualitatively the learned attention distribution of Deep MIL and attention sampling on an image from the test set of the speed limits dataset. In Figure 4(a), we mark the positions of speed limit signs with red circles and visualize the corresponding patches in figures 4(d) and 4(e). We observe that the attention distribution from our proposed model has high probability for both patches whereas Deep MIL locates both but selects only one. Also in this dataset, both models identify regions of interest in the images without being given any explicit per-patch label.

5 Conclusions

We have presented a novel algorithm to efficiently process megapixel images in a single CPU or GPU. Our algorithm only processes fractions of the input image, relying on an attention distribution to discover informative regions of the input. We show that we can derive the gradients through the sampling and train our model end-to-end with SGD. Furthermore, we show that sampling with the attention distribution is the optimal approximation, in terms of variance, of the model that processes the whole image.

Our experiments show that our algorithm effectively identifies the important regions in two real world tasks and an artificial dataset without any patch specific annotation. In addition, our model executes an order of magnitude faster and requires an order of magnitude less memory than state of the art patch based methods and traditional CNNs.

The presented line of research opens several directions for future work. We believe that a nested model of attention sampling can be used to efficiently learn to discover informative regions and classify up to gigapixel images using a single GPU. In addition, attention sampling can be used in resource constrained scenarios to finely control the trade-off between accuracy and spent computation.


This work is supported by the Swiss National Science Foundation under grant number FNS-30209 “ISUL”.


  • Abadi et al. (2016) Abadi, M., Barham, P., Chen, J., Chen, Z., Davis, A., Dean, J., Devin, M., Ghemawat, S., Irving, G., Isard, M., et al.

    Tensorflow: a system for large-scale machine learning.

    In OSDI, volume 16, pp. 265–283, 2016.
  • Ba et al. (2014) Ba, J., Mnih, V., and Kavukcuoglu, K. Multiple object recognition with visual attention. arXiv preprint arXiv:1412.7755, 2014.
  • Combalia & Vilaplana (2018) Combalia, M. and Vilaplana, V. Monte-carlo sampling applied to multiple instance learning for whole slide image classification. 2018.
  • Girshick et al. (2014) Girshick, R., Donahue, J., Darrell, T., and Malik, J. Rich feature hierarchies for accurate object detection and semantic segmentation. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    , pp. 580–587, 2014.
  • Golatkar et al. (2018) Golatkar, A., Anand, D., and Sethi, A.

    Classification of breast cancer histology using deep learning.

    In International Conference Image Analysis and Recognition, pp. 837–844. Springer, 2018.
  • He et al. (2016) He, K., Zhang, X., Ren, S., and Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778, 2016.
  • Hou et al. (2016) Hou, L., Samaras, D., Kurc, T. M., Gao, Y., Davis, J. E., and Saltz, J. H.

    Patch-based convolutional neural network for whole slide tissue image classification.

    In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2424–2433, 2016.
  • Ilse et al. (2018) Ilse, M., Tomczak, J., and Welling, M. Attention-based deep multiple instance learning. In Dy, J. and Krause, A. (eds.), Proceedings of the 35th International Conference on Machine Learning, volume 80 of Proceedings of Machine Learning Research, pp. 2127–2136, Stockholmsmässan, Stockholm Sweden, 10–15 Jul 2018. PMLR. URL
  • Jaderberg et al. (2015) Jaderberg, M., Simonyan, K., Zisserman, A., et al. Spatial transformer networks. In Advances in neural information processing systems, pp. 2017–2025, 2015.
  • Kahn & Harris (1951) Kahn, H. and Harris, T. E. Estimation of particle transmission by random sampling. National Bureau of Standards applied mathematics series, 12:27–30, 1951.
  • Kingma & Ba (2014) Kingma, D. P. and Ba, J. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
  • Larsson & Felsberg (2011) Larsson, F. and Felsberg, M. Using fourier descriptors and spatial models for traffic sign recognition. In Scandinavian Conference on Image Analysis, pp. 238–249. Springer, 2011.
  • LeCun et al. (1995) LeCun, Y., Jackel, L., Bottou, L., Brunot, A., Cortes, C., Denker, J., Drucker, H., Guyon, I., Muller, U., Sackinger, E., et al. Comparison of learning algorithms for handwritten digit recognition. In International conference on artificial neural networks, volume 60, pp. 53–60. Perth, Australia, 1995.
  • LeCun et al. (2010) LeCun, Y., Cortes, C., and Burges, C. Mnist handwritten digit database. AT&T Labs [Online]. Available: http://yann. lecun. com/exdb/mnist, 2, 2010.
  • Liu et al. (2016) Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu, C.-Y., and Berg, A. C. Ssd: Single shot multibox detector. In European conference on computer vision, pp. 21–37. Springer, 2016.
  • Liu et al. (2017) Liu, Y., Gadepalli, K., Norouzi, M., Dahl, G. E., Kohlberger, T., Boyko, A., Venugopalan, S., Timofeev, A., Nelson, P. Q., Corrado, G. S., et al. Detecting cancer metastases on gigapixel pathology images. arXiv preprint arXiv:1703.02442, 2017.
  • Maggiori et al. (2017) Maggiori, E., Tarabalka, Y., Charpiat, G., and Alliez, P. High-resolution image classification with convolutional networks. In 2017 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), pp. 5157–5160. IEEE, 2017.
  • Mnih et al. (2014) Mnih, V., Heess, N., Graves, A., et al. Recurrent models of visual attention. In Advances in neural information processing systems, pp. 2204–2212, 2014.
  • Nazeri et al. (2018) Nazeri, K., Aminpour, A., and Ebrahimi, M. Two-stage convolutional neural network for breast cancer histology image classification. In International Conference Image Analysis and Recognition, pp. 717–726. Springer, 2018.
  • Ramapuram et al. (2018) Ramapuram, J., Diephuis, M., Webb, R., and Kalousis, A. Variational saccading: Efficient inference for large resolution images. arXiv preprint arXiv:1812.03170, 2018.
  • Ranzato (2014) Ranzato, M. On learning where to look. arXiv preprint arXiv:1405.5488, 2014.
  • Recasens et al. (2018) Recasens, A., Kellnhofer, P., Stent, S., Matusik, W., and Torralba, A. Learning to zoom: a saliency-based sampling layer for neural networks. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 51–66, 2018.
  • Redmon et al. (2016) Redmon, J., Divvala, S., Girshick, R., and Farhadi, A. You only look once: Unified, real-time object detection. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 779–788, 2016.
  • Sirinukunwattana et al. (2016) Sirinukunwattana, K., Raza, S. E. A., Tsang, Y.-W., Snead, D. R., Cree, I. A., and Rajpoot, N. M. Locality sensitive deep learning for detection and classification of nuclei in routine colon cancer histology images. IEEE transactions on medical imaging, 35(5):1196–1206, 2016.
  • Wu et al. (2019) Wu, Z., Shen, C., and Van Den Hengel, A. Wider or deeper: Revisiting the resnet model for visual recognition. Pattern Recognition, 2019.
  • Xu et al. (2015) Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudinov, R., Zemel, R., and Bengio, Y. Show, attend and tell: Neural image caption generation with visual attention. In International conference on machine learning, pp. 2048–2057, 2015.

Appendix A Introduction

This supplementary material is organised as follows: In § B and § C we provide the detailed derivation of the gradients for our attention sampling. Subsequently, in § D we mention additional related work that might be of interest to the readers. In § E and § F we present experiments that analyse the effect of our entropy regularizer and the number of patches sampled on the learned attention distribution. In § G, we visualize the attention distribution of our method to show it focuses computation on the informative parts of the high resolution images. Finally, in § H we provide details with respect to the architectures trained for our experiments.

Appendix B Sampling with replacement

In this section, we detail the derivation of equation in our main submission. In order to be able to use a neural network as our attention distribution we need to derive the gradient of the loss with respect to the parameters of the attention function through the sampling of the set of indices . Namely, we need to compute


for all including the ones that affect .

By exploiting the Monte Carlo approximation and the multiply by one trick, we get


Appendix C Sampling without replacement

In this section, we derive the gradients of the attention distribution with respect to the feature network and attention network parameters. We define

  • for to be the features

  • for to be the probability of the -th feature from the attention distribution

We consider sampling without replacement to be sampling an index from and then sampling from the distribution defined for as follows,


Given samples sampled from and , we can make an unbiased estimator for as follows,


Using the same sampled from and accordingly, we can estimate the gradient as follows,


When we extend the above computations for sampling more than two samples, the logarithm in equation 44 allows us to avoid the numerical errors that arise from the cumulative product at equation 41.

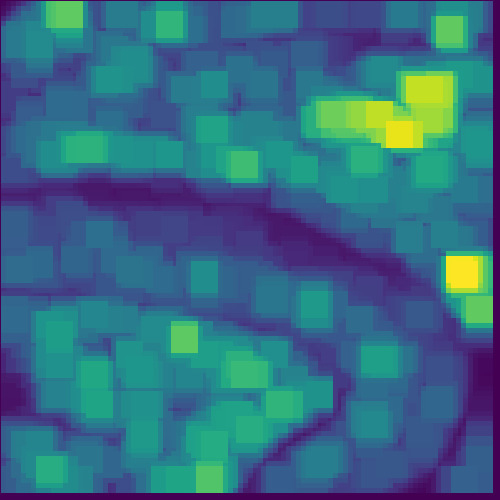

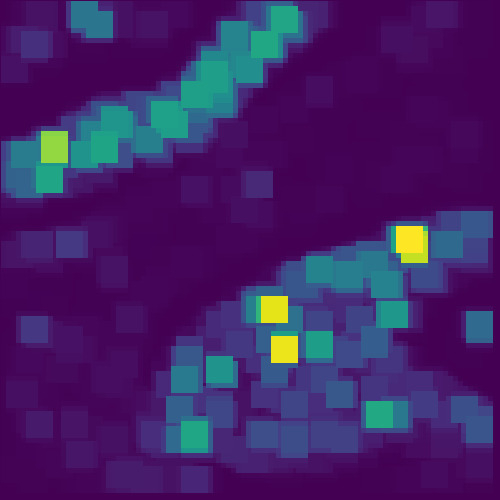

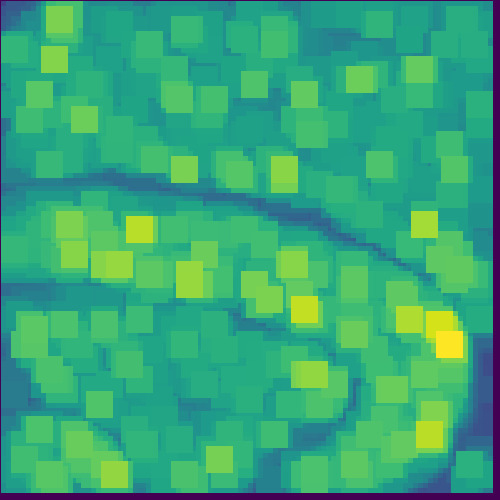

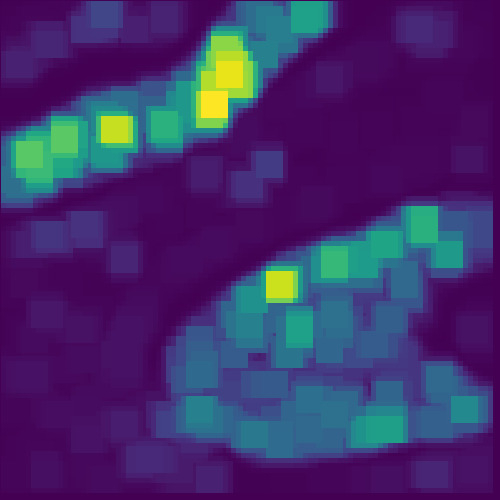

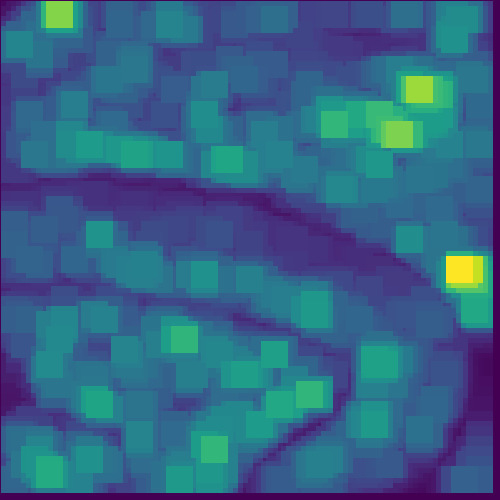

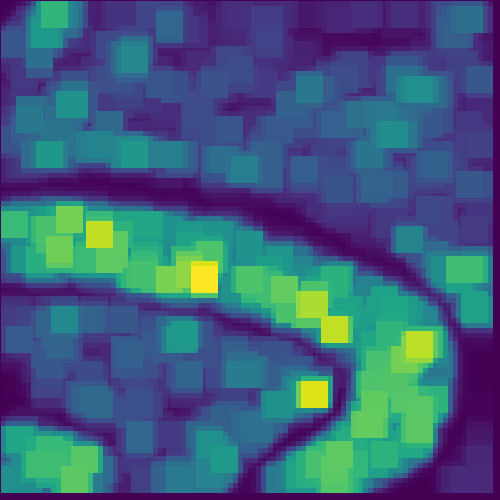

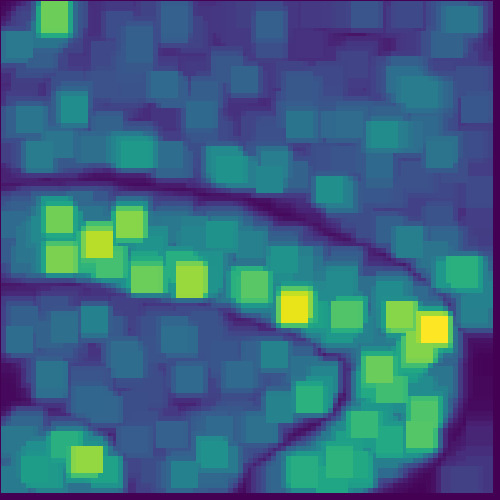

Appendix D Extra related work

For completeness, in this section we discuss parts of the literature that are tangentially related to our work.

Combalia & Vilaplana (2018) consider the problem of high-resolution image classification from the Multiple Instance Learning perspective. The authors propose a two-step procedure; initially random patches are sampled and classified. Subsequently, more patches are sampled around the patches that resulted in confident predictions. The most confident prediction is returned. Due to the lack of the attention mechanism, this model relies in identifying the region of interest via the initial random patches. However, in the second pass the prediction is finetuned if informative patches are likely to be spatially close with each other.

Maggiori et al. (2017) propose a neural network architecture for the pixelwise classification of high resolution images. The authors consider features at several resolutions and train a pixel-by-pixel fully connected network to combine the features into the final classification. The aforementioned approach could be used with our attention sampling to approach pixelwise classification tasks such as semantic segmentation.

Appendix E Ablation study on the entropy regularizer

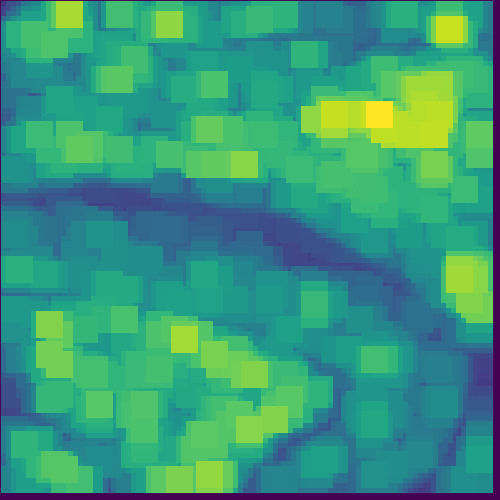

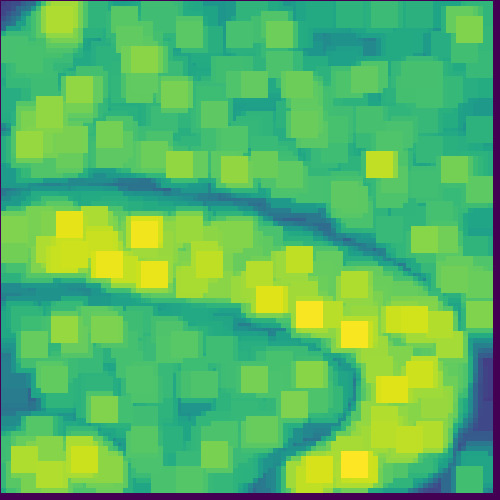

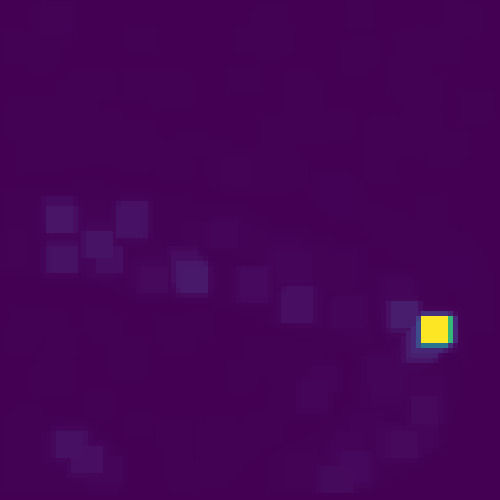

To characterize the effect of the entropy regularizer on our attention sampling, we train with the same experimental setup as for the histopathology images of § 4.3 but varying the entropy regularizer . The results are depicted in Figure 6. Using no entropy regularizer results in a very selective attention distribution in the first 60 epochs of training. On the other hand, a high value for , the entropy regularizer weight, drives the sampling distribution towards uniform.

In our experiments we observed that values close to 0.01 (e.g. 0.005 or 0.05) had no observable difference in terms of the final attention distribution.

1 Sample image
2 Epoch 0 3 Epoch 20 4 Epoch 40 5 Epoch 60
Figure 6: We visualize the effects of the entropy regularizer on the sampling distribution computeed from a test image of the colon cancer dataset in the first 60 epochs of training. We observe that no entropy regularizer results in our attention becoming very selective early during training which might hinder the exploration of the sampling space.

Appendix F Ablation study on the number of patches

According to our theory, the number of patches should not affect the learned attention distribution. Namely, the expectation of the gradients and the predictions should be the same and the only difference is in the variance.

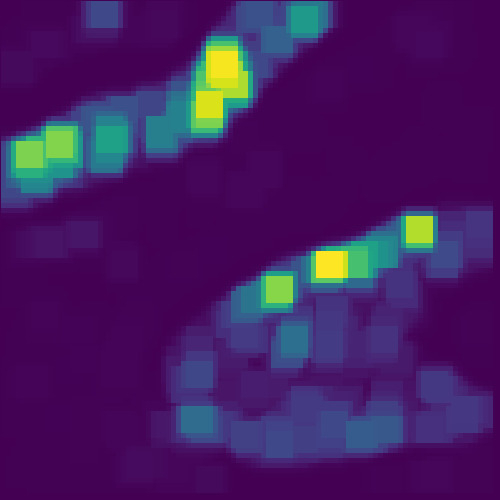

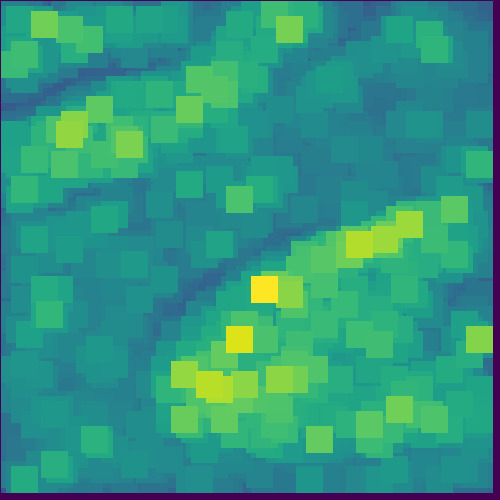

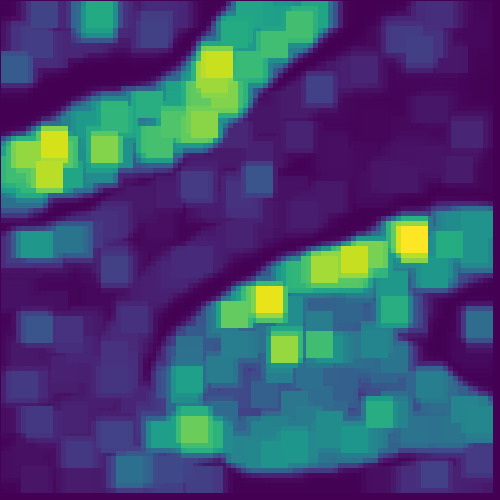

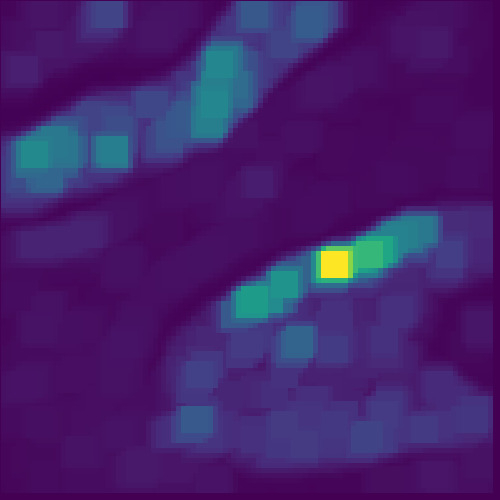

In Figure 7, we visualize, in a similar fashion to E, the attention distributions learned when sampling various numbers of patches per image for training. Although the distributions are different in the beginning of training after approximately 100 epochs they converge to a very similar attention distribution.

1 Sample image
1 patch 3 patches 6 patches 12 patches 2 Epoch 0 3 Epoch 40 4 Epoch 80 5 Epoch 120
Figure 7: Visualization of the attention distribution when training with varying number of patches. All the distributions converge to approximately the same after 100 epochs.

Appendix G Qualitative results of the learned attention distribution

In this section, we provide additional visualizations of the learned attention distribution using both attention sampling and Deep MIL on our two real world datasets, namely the Histopathology images § G.1 and the Speed limits § G.2.

g.1 Histopathology images

In Figure 8 we visualize the learned attention distribution of attention sampling and we compare it to Deep MIL and the ground truth positions of epithelial cells in an subset of the test set.

We observe that the learned attention distribution is very similar to the one learned by Deep MIL even though our model processes a fraction of the image at any iteration. In addition, it is interesting to note that the two methods produce distributions that agree even on mistakenly tagged patches, one such case is depicted in figures fig:crch_attention:mis1 and fig:crch_attention:mis2 where both methods the top right part of the image to contain useful patches.

Figure 8: We visualize in groups of 4, the H&E stained image, the ground truth positions of epithelial cells, the attention distribution of Deep MIL and the attention distribution of attention sampling. We observe that indeed our method learns to identify regions of interest without per patch annotations in a similar fashion to Deep MIL.

g.2 Speed limits

Figure 9 compares the attention distributions of Deep MIL and attention sampling on the Speed Limits dataset (§ 4.4 in the main paper). This dataset is hard because it presents large variations in scale and orientation of the regions of interest, namely the speed limit signs. However, we observe that both methods locate effectively the signs even when there exist more than one in the image. Note that for some of the images, such as fig:speed_limits1 and fig:speed_limits2, the sign is not readable from the low resolution image.

Figure 9: Visualization of the positions of the speed limit signs in test images of the dataset as well as the two attention distributions of Deep MIL (left) and attention sampling (right) and the patches extracted from the high resolution image at the positions of the signs. Both methods identify effectively the speed limit in the high resolution image.

Appendix H Network Architecture Details

In this section, we detail the network architectures used throughout our experimental evaluation. The ultimate detail is always code, thus we encourage the reader to refer to the github repository

h.1 Megapixel MNIST

We summarize the details of the architectures used for the current experiment. For ATS, we use a three layer convolutional network with 8 channels followed by a ReLU activation as the attention network and a convolutional network inspired from LeNet-1

(LeCun et al., 1995)

with 32 channels and a global max-pooling as a last layer as the feature network. We also use an entropy regularizer with weight

. The CNN baseline is a ResNet-16 that starts with channels for convolutions and doubles them after every two residual blocks.

We train all the networks with the Adam (Kingma & Ba, 2014) optimizer with a fixed learning rate of for 500 epochs.

h.2 Histopathology images

We summarize the details of the architecture used for the experiment on the H&E stained images. For ATS, we use a three layer convolutional network with 8 channels followed by ReLU non linearities as the attention network with an entropy regularizer weight . The feature network of is the same as the one proposed by (Ilse et al., 2018). Regarding, the CNN baseline, we use a ResNet (He et al., 2016) with 8 convolutional layers and 32 channels instead.

We train all the networks for 30,000 gradient updates with the Adam optimizer with learning rate .

h.3 Speed Limits

We detail the network architectures used for the current experiment. For attention sampling, we use an attention network that consists of four convolutions followed by ReLU non-linearities starting with channels and doubling them after each layer. Furthermore, we add a max pooling layer with pool size at the end to reduce the sampling space and use an entropy regularizer weight of . The feature network of both our model and Deep MIL is a ResNet with layers and channels. The CNN baseline is a ResNet-16 that starts with channels for convolutions and doubles them after every two residual blocks.

Again, we we use the Adam (Kingma & Ba, 2014) optimizer with a fixed learning rate of for 300,000 iterations.
