1 Introduction
Deep reinforcement learning is a general method that have been successful in solving complex control problems. Mnih et al. in [Mnih et al.2015]
combined Q learning with deep neural networks and proved to be successful in image based Atari games.
Policy gradient methods have been proved significantly efficient in both continuous control problems ([Sutton et al.1999], [Silver et al.2014], [Heess et al.2015]) and discrete control problems ([Silver et al.2016], [Wang et al.2016]). Among policy gradient methods, actorcritic algorithms are at the heart of many significant advances in reinforcement learning ([Bhatnagar et al.2009], [Degris et al.2012], [Lillicrap et al.2015], [Mnih et al.2016]). These algorithms estimate stateaction value functions independently, and proved to be efficient in policy optimization.
However, an enormous number of online simulation data is required for deep reinforcement learning. Hence we attempt to learn from expert demonstrations and decrease the amount of online data required in deep reinforcement learning algorithms.
One of the representative method of learning from expert demonstrations is inverse reinforcement learning. Ng et al. proposed the first inverse reinforcement learning algorithm [Ng and Russell2000], which recovers reward function based on the assumption that the expert policy is the global optimal policy. From recovered reward function, Abbeel et al. are able to propose apprenticeship learning ([Abbeel and Ng2004]) to train a policy with expert demonstrations and a simulation environment that does not output reward. Apprenticeship learning inspired many similar algorithms ([Syed and Schapire2008], [Syed et al.2008], [Piot et al.2014], [Ho et al.2016]), Ho et al. [Ho and Ermon2016a]
proposed a imitation learning method that merges inverse reinforcement learning and reinforcement learning, hence imitate the expert demonstrations with generative adversarial networks (GANs).
These algorithms proved successful in solving MDPR ([Abbeel and Ng2004]). However, MDPR is different from original MDP since MDPR environments do not output task based reward data. And for this reason, inverse reinforcement based algorithms attempt to assume the expert demonstrations to be global optimal and imitate the expert demonstrations. In order to learn from expert demonstrations for MDP, alongside with stateoftheart reinforcement learning algorithms, different frameworks are required.
There are some prior work that attempt to make use of expert demonstrations for reinforcement learning algorithms. Lakshminarayanan et al. [Lakshminarayanan et al.2016] proposed a training method for DQN based on the assumption that expert demonstrations are global optimal, thus pretrain the stateaction value function estimators.
Cruz Jr et al. [de la Cruz et al.2017]
focused on feature extracting for high dimensional, especially image based simulation environments, and proposed a framework for discrete control problems that pretrains the neural networks with classification tasks using supervised learning. The purpose of this pretraining process is to speed up the training process by trying to extract features of high dimensional states. However, this work is only suitable for image based, discrete action environments, and ignored the fact that expert demonstrations perform better than current learned policies.
The first published version of AlphaGo [Silver et al.2016] is one of the most important work that pretrains the neural networks with human expert demonstrations. In this work, a policy network and a value network is used. The value network is trained with onpolicy reinforcement learning, and the policy network is pretrained with expert demonstrations using supervised learning, then trained with policy gradient. This work and [de la Cruz et al.2017] are quite similar, the role of expert demonstrations is to speed up the feature extraction, and to give policy a warm start. The fact that expert demonstrations perform better is not fully used, and the framework is not extensive enough for other problems and other reinforcement learning algorithms.
In this paper, we propose an extensive framework that pretrains actorcritic reinforcement learning algorithms with expert demonstrations, and use expert demonstrations for both policy functions and value estimators. We theoretically derive a method for computing policy gradient and value estimators with only expert demonstrations. Experiments show that our method improves the performance of baseline algorithms on both continuous control environments and highdimensionalstate discrete control environments.
2 Background and Preliminaries
In this paper, we deal with an infinitehorizon discounted Markov Decision Process (MDP), which is defined by the tuple
. In the tuple, is a finite set of states, is a finite set of actions,is the transition probability distribution,
is the reward function, is the probability distribution of initial state , and is the discount factor.A stochastic policy returns the probability distribution of actions based on states, and a deterministic policy returns the action based on states. In this paper, we deal with both stochastic policies and deterministic policies, and means or respectively. Thus the stateaction value function is:
The definitions of the value function and the advantage function are:
And let denote the discounted reward of :
For future convenience, let denote the limiting distribution of states:
where in all of the definitions above:
The goal of actorcritic reinforcement learning algorithms is to maximize the discounted reward, , to obtain the optimal policy, where we use a parameterized policy . While estimating or based on simulated samples, many algorithms use a stateaction value estimator , to estimate the statevalue function for policy function .
One typical deterministic actorcritic algorithm DDPG (Deep Deterministic Policy Gradient) [Lillicrap et al.2015] uses estimator to estimate the gradient of an offpolicy deterministic discounted reward [Degris et al.2012], where is the rollout policy:
Where is updated with sampled data from using Bellman equation, .
Another offpolicy algorithm that has as an estimator of policy is ACER (ActorCritic with Experience Replay) [Wang et al.2016] that optimizes stochastic policy. The algorithm maximizes offpolicy deterministic discounted reward as well, and modifies the offpolicy policy gradient to:
Where , ; if and is zero otherwise; ; ; and ; is the Retrace estimator of [Munos et al.2016], which can be expressed recursively as follows:
where
In ACER, stateaction value function is updated using as target, with gradient :
In this paper, we will apply our methods with expert demonstrations to DDPG and ACER.
3 Expert Based Pretraining Methods
Suppose there exists an expert policy that performs better than . We define perform better with the following straightforward constraint:
(1)
The definition of perform better above is based on the fact that the goal of actorcritic RL algorithms is to maximize . Here the expert policy is different from that of IRL [Ng and Russell2000], imitation learning [Ho and Ermon2016b] or LfD [Hester et al.2017], since here is not the optimum policy of the MDPs.
Here we define a demonstration of a policy as a sequence of pairs, , sampled from .
Actorcritic RL algorithms tend to optimize as the target. Thus pretraining procedures for these algorithms need to estimate as the optimization target using expert demonstrations. Also, from definition (1), we need to estimate as well.
However, With only demonstrations of expert policy and a blackbox simulation environment, and cannot be directly estimated. Hence we introduce Theorem 1 (see [Schulman et al.2015] and [Kakade and Langford2002]).
Theorem 1.
For two policies and :
(2)
For many actorcritic RL algorithms like DDPG and ACER, policy optimization is based on accurate estimations of stateaction value functions or value functions of the learned policy . Typically, those algorithms use data sampled from , , to estimate and . The estimating processes usually need a large amount of simulations to be accurate enough.
(3)
This result links stateaction value functions with expert demonstrations, allowing us to apply constraint (1) while training stateaction value functions. This constraint is for value estimators, like and . When value estimators are not accurate enough, constraint (3) would not be satisfied. Hence if an algorithm update value estimators under constraint (3), the estimators would be more accurate, and in result improve the policy optimizing process.
Another pretraining process is policy optimization using expert demonstrations. Like most actorcritic algorithms, we suppose advantage function is already known while conducting policy optimization. Then we can estimate the update step with expert demonstrations and estimations of value functions.
Considering Theorem 1, we estimate he policy gradient as the following:
(4)
Equation (4) provides an offpolicy policy optimization procedure with data only from expert demonstrations. It turns out that perform better is not a must in this procedure for expert policy .
Recently, people like to propose sample efficient RL algorithms, like ACER and QProp [Gu et al.2017], since RL algorithms need a large amount of simulation time while training. With expert demonstrations, since there is no reward data, we cannot conduct sample efficient policy optimization processes. However, when we update policies with (4), no simulation time is needed. We call the situation simulation efficient, which means the algorithms may need a large amount of data, but need few simulation data while training.
Note that sample efficient algorithms are all simulation efficient algorithms, all of these methods intend to decrease the simulation time. In this paper, we evaluate our method by how simulation efficient it is.
In this section, we found two pretraining methods for actorcritic RL algorithms, namely (3) and (4). Both of them are based on Theorem 1. The theorem connects policy discounted reward and expert demonstration data, requiring no reward data from expert trajectories. Equation (3) gives a constraint of value function estimators based on the definition of perform better, and equation (4) provides an offpolicy method to optimize policy function regardless of how expert demonstrations perform.
4 Algorithms with Expert Demonstrations
Theorem 1 provides a way to satisfy constraint (1) and update policies with demonstrations of expert policy , and does not need reward data sampled from . In this section, we organize the results in Section 3 in a more piratical way, then we apply the pretraining methods to two of the typical actorcritic RL algorithms, DDPG and ACER.
These actorcritic RL algorithms use neural networks to estimate the stateaction value functions of policy, , where is the is the current learned policy while training, which is a parameterized function, , always in the form of artificial neural networks.
For pretraining processes based on Theorem 1, we need an estimator of advantage function for policy , . Based on parameterized policy and stateaction value function estimator , we obtain the advantage function estimator :
(5)
(6)
Considering the training processes of DDPG and ACER, at the beginning of the processes the policies are nearly random and estimators are not accurate, since there is little data from simulation. Therefore if there exist some expert demonstrations that perform better than initial policies, we can introduce the data using constraint (3), in order to obtain a more accurate estimator .
If constraint (3) is satisfied, then is accurate enough for the fact that performs better. Hence we update the estimator with expert demonstrations with the following gradient, in which if , otherwise is zero:
(7)
From equation (4), we optimize policy with expert demonstrations. Since expert demonstrations do not contain reward data, we can update policy parameters with a simple policy gradient:
(8)
For the reason that is not the optimal policy of the MDPs, we only train with expert demonstrations for a limited period of time at the beginning of the training process, to guarantee performs better than , hence we call the process pretraining.
To pretrain actorcritic RL algorithms like DDPG and ACER, we add gradients and to the original gradients of the algorithms:
(9)
(10)
Where and are original gradients of baseline actorcritic RL algorithms, and and are pretraining gradients for estimator and parameterized policy function respectively while pretraining. We introduce expert demonstrations to the base algorithms instead of replacing them, since the stateaction value functions are estimated with the baseline algorithms and gradient only makes satisfy constraint (1).
4.1 Pretraining DDPG
DDPG is a representative offpolicy actorcritic deterministic RL algorithm. The algorithm is for continuous action space MDPs, and optimizes the policy using offpolicy policy gradient.
Two neural networks are used in DDPG at the same time. One is named critic network, which is the stateaction value function estimator , and the other is named actor network, which is the parameterized policy . Since it is an algorithm for deterministic control, the input of the actor network is a state of MDPs, and the output is the corresponding action.
Two neural networks are trained simultaneously, with gradients and respectively. is based on Bellman equation, and is the offpolicy policy gradient.
In order to introduce expert demonstrations for pretraining critic network and actor network, we apply (9) and (10) to pretrain the two neural networks.
Note that for a deterministic policy , equation (6) becomes .
4.2 Pretraining ACER
ACER is an offpolicy actorcritic stochastic RL algorithm, which modifies the policy gradient to make the process sample efficient. ACER solves both discrete control problems and continuous control problems.
For discrete control problems, a doubleoutput convolutional neural work (CNN) is used in ACER. One output is a softmax policy , and the other is values. Although and share most of the parameters, they are updated separately with different gradients.
For stochastic control problems, a new structure named Stochastic Dueling Networks (SDNs) is used for value function estimation. The network outputs a deterministic value estimation , and a stochastic stateaction value estimation . Hence equation (5) becomes .
In ACER, gradient is the modified policy gradient, and is based on Retrace. Both of the gradients are explained in Section 2.
Policy gradient is estimated using trust region in ACER, but in this paper, we compute pretraining gradients and directly with expert demonstrations.
5 Experiments
We test our algorithms based on DDPG and ACER on various environments, in order to investigate how simulation efficient the pretraining methods are. The baselines are DDPG and ACER without pretraining.
Because of the existence of , defined in (7) could be infinity sometimes. Hence we clip the gradient during pretraining. We set and in equations (9) and (10).
The expert policies that generate expert demonstrations are policies trained with baseline algorithms, i.e. DDPG and ACER.

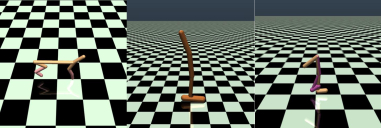

With DDPG as baseline, we apply our algorithm to low dimensional simulation environments using the MuJoCo physics engine [Todorov et al.2012], and test on tasks with action dimensionality are: HalfCheetah (6D), Hopper (3D), and Walker2d (6D). These tasks are illustrated in Figure 1.
All the setups with DDPG as baseline share the same network architecture that compute policies and estimate value functions referring to [Lillicrap et al.2015]. Adam [Kingma and Ba2014] is used for learning parameters and the learning rate of actor network and critic network are respectively and . For critic network, weight decay of is used with . Both actor network and critic network have 2 hidden layers with 400 and 300 units respectively.

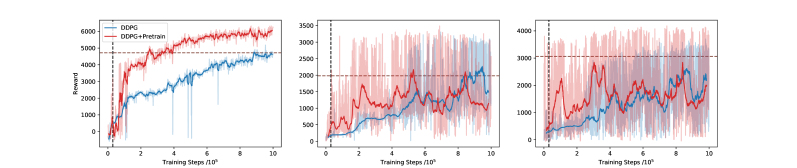

The results of our pretraining method based on DDPG are illustrated in Figure 2. In the figures, the horizontal dashed brown lines represent the average episode reward of expert demonstrations. It is obvious that the expert demonstrations are not global optimal demonstrations, and in order to guarantee the expert policies perform better than learned policies, the pretraining process stops early with 30000 training steps and 60000 simulation steps.
As shown in Figure 2, it is obvious that DDPG with our pretraining method outperforms initial DDPG. Results on HalfCheetah (Figure 2 left) is representative and clear, pretraining process gives training a warm start, and after pretraining stops, the performance drops because of the new learning gradient. However, after pretraining, DDPG learns faster than the baseline, hence it outperforms initial DDPG. Although the results of DDPG are unstable on Hopper (Figure 2 middle) and Walker2d (Figure 2 right), smoothed results indicate that DDPG with pretraining processes learns faster than DDPG.

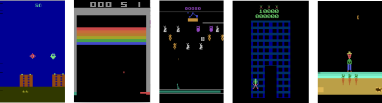

With ACER as baseline, we apply our algorithm to image based Atari games. We only tested on discrete control problems with ACER, and the environments we tested on are: AirRaid, Breakout, Carnival, CrazyClimber and Gopher. The environments are illustrated in Figure 3.
The experiment settings are similar to [Wang et al.2016], The doubleoutput network consists of a convolutional layer with 32
kernels with stride 4, a convolutional layer with 64
kernels with stride 2, a convolutional layer with 64 kernels with stride 1, followed by a fully connected layer with 512 units. The network outputs a softmax policy and stateaction value Q for every action.Because of the limitation of memory, each thread of ACER only have a replay memory of 5000 frames, which is the only different setting from [Wang et al.2016]. Entropy regularization with weight 0.001 is also adopted, and the discount factor , importance weight truncation . Trust region updating is used as described in [Wang et al.2016], and all the settings of trust region update remain the same. ACER without trust region update is not tested in this paper.

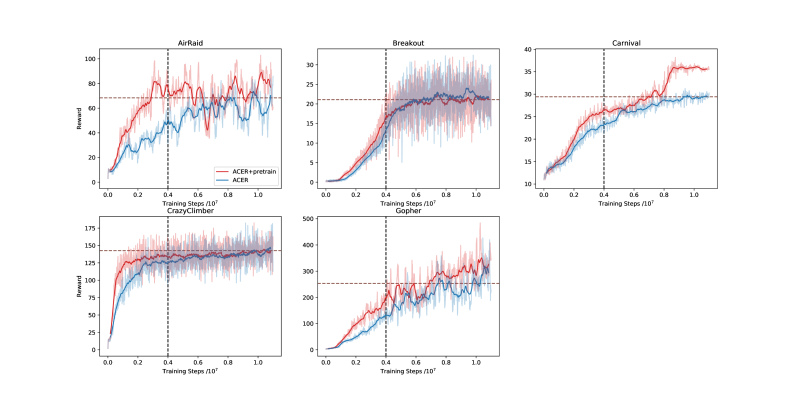

The results of our pretraining method based on ACER with trust region update is illustrated in Figure 4. All of the environments are image based Atari games. All the lines have the same meaning as Figure 2, and it is obvious that ACER with pretraining process outperforms initial ACER.
Unlike DDPG, the performance of learned policies does not fall after pretraining process ends. This is because for stochastic discrete control, a random policy and a random stateaction value estimator always satisfies constraint (1), hence defined in (7) is always zero, and defined in (8) is policy gradient based on expert demonstrations, similar to original from baseline ACER, therefore the performance of learned policies does not fall after pretraining.
Note that learning with expert demonstrations use the same amount of simulation steps as baseline algorithms, our pretraining method is more simulation efficient than baselines.
6 Conclusion
In this work, we propose an extensive method that pretrains actorcritic reinforcement learning methods. Based on Theorem 1, we design a method that takes advantage of expert demonstrations. Our method does not rely on the global optimal assumption of expert demonstrations, which is one of the key differences between our method and IRL algorithms. Our method pretrains policy function and stateaction value estimators simultaneously with gradients (9) and (10). With experiments based on DDPG and ACER, we demonstrate that our method outperforms the raw RL algorithms.
One limitation of our framework is that it has to estimate the advantage function for expert demonstrations, and the framework is not suitable for algorithms like A3C [Mnih et al.2016] and TRPO [Schulman et al.2015] that only maintain a value estimator . On the other hand, the fact that expert demonstrations perform better is not considered during pretraining of policies (Equation (8)). We left these extensions in our future work.
Acknowledgments
This work was supported by National Key R&D Program of China (No. 2016YFB0100901), and National Natural Science Foundation of China (No. 61773231).
References

[Abbeel and
Ng2004]
Pieter Abbeel and Andrew Y Ng.
Apprenticeship learning via inverse reinforcement learning.
In
Proceedings of the twentyfirst international conference on Machine learning
. ACM, 2004.  [Bhatnagar et al.2009] Shalabh Bhatnagar, Richard Sutton, Mohammad Ghavamzadeh, and Mark Lee. Natural actorcritic algorithms. Automatica, 45(11), 2009.
 [de la Cruz et al.2017] Gabriel V. de la Cruz, Jr., Yunshu Du, and Matthew E. Taylor. Pretraining neural networks with human demonstrations for deep reinforcement learning. Technical report, September 2017.
 [Degris et al.2012] Thomas Degris, Martha White, and Richard S Sutton. OffPolicy ActorCritic.pdf. Icml, 2012.
 [Gu et al.2017] Shixiang Gu, Timothy Lillicrap, Zoubin Ghahramani, Richard E Turner, and Sergey Levine. QProp : SampleEfficient Policy Gradient with An Off Policy Critic. ICLR, 2017.
 [Heess et al.2015] Nicolas Heess, Gregory Wayne, David Silver, Tim Lillicrap, Tom Erez, and Yuval Tassa. Learning continuous control policies by stochastic value gradients. In Advances in Neural Information Processing Systems, pages 2944–2952, 2015.
 [Hester et al.2017] Todd Hester, Matej Vecerik, Olivier Pietquin, Marc Lanctot, Tom Schaul, Bilal Piot, Andrew Sendonaris, Gabriel DulacArnold, Ian Osband, John Agapiou, et al. Learning from demonstrations for real world reinforcement learning. arXiv preprint arXiv:1704.03732, 2017.
 [Ho and Ermon2016a] Jonathan Ho and Stefano Ermon. Generative adversarial imitation learning. In Advances in Neural Information Processing Systems, pages 4565–4573, 2016.
 [Ho and Ermon2016b] Jonathan Ho and Stefano Ermon. Generative Adversarial Imitation Learning. In Nips, pages 4565–4573, 2016.
 [Ho et al.2016] Jonathan Ho, Jayesh Gupta, and Stefano Ermon. Modelfree imitation learning with policy optimization. In International Conference on Machine Learning, pages 2760–2769, 2016.
 [Kakade and Langford2002] Sham Kakade and John Langford. Approximately Optimal Approximate Reinforcement Learning. Proceedings of the 19th International Conference on Machine Learning, pages 267–274, 2002.
 [Kingma and Ba2014] Diederik Kingma and Jimmy Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.

[Lakshminarayanan et al.2016]
Aravind S Lakshminarayanan, Sherjil Ozair, and Yoshua Bengio.
Reinforcement Learning with Few Expert Demonstrations.
Neural Information Processing Systems  Workshop on Deep Learning for Action and Interaction
, 2016.  [Lillicrap et al.2015] Timothy P Lillicrap, Jonathan J Hunt, Alexander Pritzel, Nicolas Heess, Tom Erez, Yuval Tassa, David Silver, and Daan Wierstra. Continuous control with deep reinforcement learning. arXiv preprint arXiv:1509.02971, 2015.
 [Mnih et al.2015] Volodymyr Mnih, Koray Kavukcuoglu, David Silver, Andrei A Rusu, Joel Veness, Marc G Bellemare, Alex Graves, Martin Riedmiller, Andreas K Fidjeland, Georg Ostrovski, et al. Humanlevel control through deep reinforcement learning. Nature, 518(7540):529–533, 2015.
 [Mnih et al.2016] Volodymyr Mnih, Adria Puigdomenech Badia, Mehdi Mirza, Alex Graves, Timothy Lillicrap, Tim Harley, David Silver, and Koray Kavukcuoglu. Asynchronous methods for deep reinforcement learning. In International Conference on Machine Learning, pages 1928–1937, 2016.
 [Munos et al.2016] Rémi Munos, Tom Stepleton, Anna Harutyunyan, and Marc G. Bellemare. Safe and Efficient OffPolicy Reinforcement Learning. arXiv, (Nips), 2016.
 [Ng and Russell2000] Andrew Ng and Stuart Russell. Algorithms for inverse reinforcement learning. Proceedings of the Seventeenth International Conference on Machine Learning, 0:663–670, 2000.
 [Piot et al.2014] Bilal Piot, Matthieu Geist, and Olivier Pietquin. Boosted bellman residual minimization handling expert demonstrations. In Joint European Conference on Machine Learning and Knowledge Discovery in Databases, pages 549–564. Springer, 2014.
 [Schulman et al.2015] John Schulman, Sergey Levine, Michael Jordan, and Pieter Abbeel. Trust Region Policy Optimization. Icml2015, page 16, 2015.
 [Silver et al.2014] David Silver, Guy Lever, Nicolas Heess, Thomas Degris, Daan Wierstra, and Martin Riedmiller. Deterministic policy gradient algorithms. In Proceedings of the 31st International Conference on Machine Learning (ICML14), pages 387–395, 2014.
 [Silver et al.2016] David Silver, Aja Huang, Chris J Maddison, Arthur Guez, Laurent Sifre, George Van Den Driessche, Julian Schrittwieser, Ioannis Antonoglou, Veda Panneershelvam, Marc Lanctot, et al. Mastering the game of go with deep neural networks and tree search. Nature, 529(7587):484–489, 2016.
 [Sutton et al.1999] Richard S. Sutton, David Mcallester, Satinder Singh, and Yishay Mansour. Policy Gradient Methods for Reinforcement Learning with Function Approximation. Advances in Neural Information Processing Systems 12, pages 1057–1063, 1999.
 [Syed and Schapire2008] Umar Syed and Robert E Schapire. A gametheoretic approach to apprenticeship learning. In Advances in neural information processing systems, pages 1449–1456, 2008.

[Syed et al.2008]
Umar Syed, Michael Bowling, and Robert E Schapire.
Apprenticeship learning using linear programming.
In Proceedings of the 25th international conference on Machine learning, pages 1032–1039. ACM, 2008.  [Todorov et al.2012] Emanuel Todorov, Tom Erez, and Yuval Tassa. Mujoco: A physics engine for modelbased control. In Intelligent Robots and Systems (IROS), 2012 IEEE/RSJ International Conference on, pages 5026–5033. IEEE, 2012.
 [Wang et al.2016] Ziyu Wang, Victor Bapst, Nicolas Heess, Volodymyr Mnih, Remi Munos, Koray Kavukcuoglu, and Nando de Freitas. Sample efficient actorcritic with experience replay. arXiv preprint arXiv:1611.01224, 2016.
