Deep reinforcement learning (deep RL) has been shown to succeed at a wide variety of complex tasks given a correctly specified reward function. Unfortunately, for many real-world tasks it can be challenging to specify a reward function that captures human preferences, particularly the preference for avoiding unnecessary side effects while still accomplishing the goal (Amodei et al., 2016). As a result, there has been much recent work (Christiano et al., 2017; Fu et al., 2017; Sadigh et al., 2017) that aims to learn specifications for tasks a robot should perform.
Typically when learning about what people want and don’t want, we look to human action as evidence: what reward they specify (Hadfield-Menell et al., 2017), how they perform a task (Ziebart, 2010; Fu et al., 2017), what choices they make (Christiano et al., 2017; Sadigh et al., 2017), or how they rate certain options (Daniel et al., 2014). Here, we argue that there is an additional source of information that is potentially rather helpful, but that we have been ignoring thus far:
The key insight of this paper is that when a robot is deployed in an environment that humans have been acting in, the state of the environment is already optimized for what humans want.

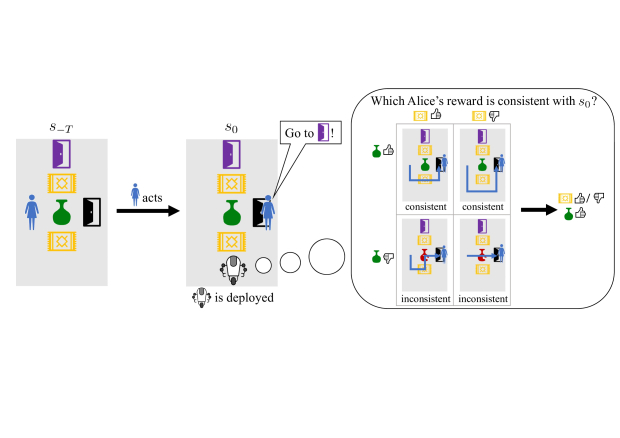

For example, consider an environment in which a household robot must navigate to a goal location without breaking any vases in its path, illustrated in Figure 1. The human operator, Alice, asks the robot to go to the purple door, forgetting to specify that it should also avoid breaking vases along the way. However, since the robot has been deployed in a state that only contains unbroken vases, it can infer that while acting in the environment (prior to robot’s deployment), Alice was using one of the relatively few policies that do not break vases, and so must have cared about keeping vases intact.
The initial state can contain information about arbitrary preferences, including tasks that the robot should actively perform. For example, if the robot observes a basket full of apples near an apple tree, it can reasonably infer that Alice wants to harvest apples. However, is particularly useful for inferring which side effects humans care about. Recent approaches avoid unnecessary side effects by penalizing changes from an inaction baseline (Krakovna et al., 2018; Turner, 2018). However, this penalizes all side effects. The inaction baseline is appealing precisely because the initial state has already been optimized for human preferences, and action is more likely to ruin than inaction. If our robot infers preferences from , it can avoid negative side effects while allowing positive ones.
This work is about highlighting the potential of this observation, and as such makes unrealistic assumptions, such as known dynamics and hand-coded features. Given just , these assumptions are necessary: without dynamics, it is hard to tell whether some feature of was created by humans or not. Nonetheless, we are optimistic that these assumptions can be relaxed, so that this insight can be used to improve deep RL systems. We suggest some approaches in our discussion.
Our contributions are threefold. First, we identify the state of the world at initialization as a source of information about human preferences. Second, we leverage this insight to derive an algorithm, Reward Learning by Simulating the Past (RLSP), which infers reward from initial state based on a Maximum Causal Entropy (Ziebart, 2010) model of human behavior. Third, we demonstrate the properties and limitations of this idea on a suite of proof-of-concept environments: we use it to avoid side effects, as well as to learn implicit preferences that require active action. In Figure 1 the robot moves to the purple door without breaking the vase, despite the lack of an explicit penalty for breaking vases.
2 Related work
Preference learning. Much recent work has learned preferences from different sources of data, such as demonstrations (Ziebart, 2010; Ramachandran and Amir, 2007; Ho and Ermon, 2016; Fu et al., 2017; Finn et al., 2016), comparisons (Christiano et al., 2017; Sadigh et al., 2017; Wirth et al., 2017), ratings (Daniel et al., 2014), human reinforcement signals (Knox and Stone, 2009; Warnell et al., 2017; MacGlashan et al., 2017), proxy rewards (Hadfield-Menell et al., 2017), etc. We suggest preference learning with a new source of data: the state of the environment when the robot is first deployed. It can also be seen as a variant of Maximum Causal Entropy Inverse Reinforcement Learning (Ziebart, 2010): while inverse reinforcement learning (IRL) requires demonstrations, or at least state sequences without actions (Edwards et al., 2018; Yu et al., 2018), we learn a reward function from a single state, albeit with the simplifying assumption of known dynamics.
Frame properties. The frame problem in AI (McCarthy and Hayes, 1981) refers to the issue that we must specify what stays the same in addition to what changes. In formal verification, this manifests as a requirement to explicitly specify the many quantities that the program does not change (Andreescu, 2017). Analogously, rewards are likely to specify what to do (the task), but may forget to say what not to do (the frame properties). One of our goals is to infer frame properties automatically.
Side effects. An impact penalty can mitigate reward specification problems, since it penalizes unnecessary “large” changes (Armstrong and Levinstein, 2017). Compared to an inaction baseline of doing nothing, we could penalize a reduction in the number of reachable states (Krakovna et al., 2018) or attainable utility (Turner, 2018). However, such approaches will penalize all irreversible effects, including ones that humans want to happen. In contrast, by taking a preference inference approach, we can infer which effects humans care about.
Goal states as specifications. Desired behavior in RL can be specified with an explicitly chosen goal state (Kaelbling, 1993; Schaul et al., 2015; Nair et al., 2018; Bahdanau et al., 2018; Andrychowicz et al., 2017). In our setting, the robot observes the initial state where it starts acting, which is not explicitly chosen by the designer, but nonetheless contains preference information.
A finite-horizon Markov decision process (MDP) is a tuple, where is the set of states, is the set of actions,
is the transition probability function,is the reward function, and is the finite planning horizon. We consider MDPs where the reward is linear in features, and does not depend on action: , where are the parameters defining the reward function and computes features of a given state.
Inverse Reinforcement Learning (IRL). In IRL, the aim is to infer the reward function given an MDP without reward and expert demonstrations , where each is a trajectory sampled from the expert policy acting in the MDP. It is assumed that each is feasible, so that for every .
Maximum Causal Entropy IRL (MCEIRL). As human demonstrations are rarely optimal, Ziebart (2010) models the expert as a Boltzmann-rational agent that maximizes total reward and causal entropy of the policy. This leads to the policy , where plays the role of a normalizing constant. Intuitively, the expert is assumed to act close to randomly when the difference in expected total reward across the actions is small, but nearly always chooses the best action when it leads to a substantially higher expected return. The soft Bellman backup for the state-action value function is the same as usual, and is given by .
The likelihood of a trajectory given the reward parameters is:
MCEIRL finds the reward parameters that maximize the log-likelihood of the demonstrations:
gives rise to a policy whose feature expectations match those of the expert demonstrations.
4 Reward Learning by Simulating the Past
We solve the problem of learning the reward function of an expert Alice given a single final state of her trajectory; we refer to this problem as IRL from a single state. Formally, we aim to infer Alice’s reward given an environment and the last state of the expert’s trajectory .
Formulation. To adapt MCEIRL to the one state setting we modify the observation model from Equation 1. Since we only have a single end state of the trajectory , we marginalize over all of the other variables in the trajectory:
Solution. Similarly to MCEIRL, we use a gradient ascent algorithm to solve the IRL from one state problem. We explain the key steps here and give the full derivation in Appendix B. First, we express the gradient in terms of the gradients of trajectories:
This has a nice interpretation – compute the Maximum Causal Entropy gradients for each trajectory, and then take their weighted sum, where each weight is the probability of the trajectory given the evidence and current reward . We derive the exact gradient for a trajectory instead of the approximate one in Ziebart (2010) in Appendix A and substitute it in to get:
where we have suppressed the dependence on for readability. denotes the expected features when starting at at time and acting until time under the policy implied by .
Since we combine gradients from simulated past trajectories, we name our algorithm Reward Learning by Simulating the Past (RLSP). The algorithm computes the gradient using dynamic programming, detailed in Appendix B. We can easily incorporate a prior on by adding the gradient of the log prior to the gradient in Equation 5.
Evaluation of RLSP is non-trivial. The inferred reward is very likely to assign state maximal reward, since it was inferred under the assumption that when Alice optimized the reward she ended up at . If the robot then starts in state , if a no-op action is available (as it often is), the RLSP reward is likely to incentivize no-ops, which is not very interesting.
Ultimately, we hope to use RLSP to correct badly specified instructions or reward functions. So, we created a suite of environments with a true reward , a specified reward , Alice’s first state , and the robot’s initial state , where ignores some aspect(s) of . RLSP is used to infer a reward from , which is then combined with the specified reward to get a final reward . (We considered another method for combining rewards; see Appendix D for details.) We inspect the inferred reward qualitatively and measure the expected amount of true reward obtained when planning with
, as a fraction of the expected true reward from the optimal policy. We tune the hyperparametercontrolling the tradeoff between and the human reward for all algorithms, including baselines. We use a Gaussian prior over the reward parameters.
Specified reward policy . We act as if the true reward is exactly the specified reward.
Policy that penalizes deviations . This baseline minimizes change by penalizing deviations from the observed features , giving .
Relative reachability policy . Relative reachability (Krakovna et al., 2018) considers a change to be negative when it decreases coverage, relative to what would have happened had the agent done nothing. Here, coverage is a measure of how easily states can be reached from the current state. We compare against the variant of relative reachability that uses undiscounted coverage and a baseline policy where the agent takes no-op actions, as in the original paper. Relative reachability requires known dynamics but not a handcoded featurization. A version of relative reachability that operates in feature space instead of state space would behave similarly.
5.2 Comparison to baselines
We compare RLSP to our baselines with the assumption of known , because it makes it easier to analyze RLSP’s properties. We consider the case of unknown in Section 5.3. We summarize the results in Table 1, and show the environments and trajectories in Figure 2.
|Side effects||Env effect||Implicit reward||Desirable effect||Unseen effect|
|Room||Toy train||Apple collection||Batteries||Far away vase|
Side effects: Room with vase (Figure 1(a)). The room tests whether the robot can avoid breaking a vase as a side effect of going to the purple door. There are features for the number of broken vases, standing on a carpet, and each door location. Since Alice didn’t walk over the vase, RLSP infers a negative reward on broken vases, and a small positive reward on carpets (since paths to the top door usually involve carpets). So, successfully avoids breaking the vase. The penalties also achieve the desired behavior: avoids breaking the vase since it would change the “number of broken vases” feature, while relative reachability avoids breaking the vase since doing so would result in all states with intact vases becoming unreachable.
Distinguishing environment effects: Toy train (Figure 1(b)). To test whether algorithms can distinguish between effects caused by the agent and effects caused by the environment, as suggested in Krakovna et al. (2018), we add a toy train that moves along a predefined track. The train breaks if the agent steps on it. We add a new feature indicating whether the train is broken and new features for each possible train location. As before, the specified reward only has a positive weight on the purple door, while the true reward also penalizes broken trains and vases.
RLSP infers a negative reward on broken vases and broken trains, for the same reason as before. It also infers not to put any weight on any particular train location, even though it changes frequently, because it doesn’t help explain . As a result, walks over a carpet, but not a vase or a train. immediately breaks the train to keep the train location the same. deduces that breaking the train is irreversible, and so follows the same trajectory as .
Implicit reward: Apple collection (Figure 1(d)). This environment tests whether the algorithms can learn tasks implicit in . There are three trees that grow apples, as well as a basket for collecting apples, and the goal is for the robot to harvest apples. However, the specified reward is zero: the robot must infer the task from the observed state. We have features for the number of apples in baskets, the number of apples on trees, whether the robot is carrying an apple, and each location that the agent could be in. has two apples in the basket, while has none.
is arbitrary since every policy is optimal for the zero reward. does nothing, achieving zero reward, since its reward can never be positive. also does not harvest apples. RLSP infers a positive reward on apples in baskets, a negative reward for apples on trees, and a small positive reward for carrying apples. Despite the spurious weights, harvests apples as desired.
Desirable side effect: Batteries (Figure 1(c)). This environment tests whether the algorithms can tell when a side effect is allowed. We take the toy train environment, remove vases and carpets, and add batteries. The robot can pick up batteries and put them into the (now unbreakable) toy train, but the batteries are never replenished. If the train runs for 10 timesteps without a new battery, it stops operating. There are features for the number of batteries, whether the train is operational, each train location, and each door location. There are two batteries at but only one at . The true reward incentivizes an operational train and being at the purple door. We consider two variants for the task reward – an “easy” case, where the task reward equals the true reward, and a “hard” case, where the task reward only rewards being at the purple door.
Unsurprisingly, succeeds at the easy case, and fails on the hard case by allowing the train to run out of power. Both and see the action of putting a battery in the train as a side effect to be penalized, and so neither can solve the hard case. They penalize picking up the batteries, and so only solve the easy case if the penalty weight is small. RLSP sees that one battery is gone and that the train is operational, and infers that Alice wants the train to be operational and doesn’t want batteries (since a preference against batteries and a preference for an operational train are nearly indistinguishable). So, it solves both the easy and the hard case, with picking up the battery, then staying at the purple door except to deliver the battery to the train.
“Unseen” side effect: Room with far away vase (Figure 1(e)). This environment demonstrates a limitation of our algorithm: it cannot identify side effects that Alice would never have triggered. In this room, the vase is nowhere close to the shortest path from the Alice’s original position to her goal, but is on the path to the robot’s goal. Since our baselines don’t care about the trajectory the human takes, they all perform as before: walks over the vase, while and both avoid it. Our method infers a near zero weight on the broken vase feature, since it is not present on any reasonable trajectory to the goal, and so breaks it when moving to the goal. Note that this only applies when Alice is known to be at the bottom left corner at : if we have a uniform prior over (considered in Section 5.3) then we do consider trajectories where vases are broken.
5.3 Comparison between knowing vs. a distribution over
So far, we have considered the setting where the robot knows , since it is easier to analyze what happens. However, typically we will not know , and will instead have some prior over . Here, we compare RLSP in two settings: perfect knowledge of (as in Section 5.2
), and a uniform distribution over all states.
Side effects: Room with vase (Figure 1(a)) and toy train (Figure 1(b)). In both room with vase and toy train, RLSP learns a smaller negative reward on broken vases when using a uniform prior. This is because RLSP considers many more feasible trajectories when using a uniform prior, many of which do not give Alice a chance to break the vase, as in Room with far away vase in Section 5.2. In room with vase, the small positive reward on carpets changes to a near-zero negative reward on carpets. With known , RLSP overfits to the few consistent trajectories, which usually go over carpets, whereas with a uniform prior it considers many more trajectories that often don’t go over carpets, and so it correctly infers a near-zero weight. In toy train, the negative reward on broken trains becomes slightly more negative, while other features remain approximately the same. This may be because when Alice starts out closer to the toy train, she has more of an opportunity to break it, compared to the known case.
Implicit preference: Apple collection (Figure 1(d)). Here, a uniform prior leads to a smaller positive weight on the number of apples in baskets compared to the case with known . Intuitively, this is because RLSP is considering cases where already has one or two apples in the basket, which implies that Alice has collected fewer apples and so must have been less interested in them. States where the basket starts with three or more apples are inconsistent with the observed and so are not considered. Following the inferred reward still leads to good apple harvesting behavior.
Desirable side effects: Batteries (Figure 1(c)). With the uniform prior, we see the same behavior as in Apple collection, where RLSP with a uniform prior learns a slightly smaller negative reward on the batteries, since it considers states where the battery was already gone. In addition, due to the particular setup the battery must have been given to the train two timesteps prior, which means that in any state where the train started with very little charge, it was allowed to die even though a battery could have been provided before, leading to a near-zero positive weight on the train losing charge. Despite this, RLSP successfully delivers the battery to the train in both easy and hard cases.
“Unseen” side effect: Room with far away vase (Figure 1(e)). With a uniform prior, we “see” the side effect: if Alice started at the purple door, then the shortest trajectory to the black door would break a vase. As a result, successfully avoids the vase (whereas it previously did not). Here, uncertainty over the initial state can counterintuitively improve the results, because it increases the diversity of trajectories considered, which prevents RLSP from “overfitting” to the few trajectories consistent with a known and .
Overall, RLSP is quite robust to the use of a uniform prior over , suggesting that we do not need to be particularly careful in the design of that prior.
5.4 Robustness to the choice of Alice’s planning horizon
We investigate how RLSP performs when assuming the wrong value of Alice’s planning horizon . We vary the value of assumed by RLSP, and report the true return achieved by obtained using the inferred reward and a fixed horizon for the robot to act. For this experiment, we used a uniform prior over , since with known , RLSP often detects that the given and are incompatible (when is misspecified). The results are presented in Figure 3.
The performance worsens when RLSP assumes that Alice had a smaller planning horizon than she actually had. Intuitively, if we assume that Alice has only taken one or two actions ever, then even if we knew the actions they could have been in service of many goals, and so we end up quite uncertain about Alice’s reward.
When the assumed is larger than the true horizon, RLSP correctly infers things the robot should not do. Knowing that the vase was not broken for longer than timesteps is more evidence to suspect that Alice cared about not breaking the vase. However, overestimated leads to worse performance at inferring implicit preferences, as in the Apples environment. If we assume Alice has only collected two apples in 100 timesteps, she must not have cared about them much, since she could have collected many more. The batteries environment is unusual – assuming that Alice has been acting for 100 timesteps, the only explanation for the observed is that Alice waited until the 98th timestep to put the battery into the train. This is not particularly consistent with any reward function, and performance degrades.
Overall, is an important parameter and needs to be set appropriately. However, even when is misspecified, performance degrades gracefully to what would have happened if we optimized by itself, so RLSP does not hurt. In addition, if is larger than it should be, then RLSP still tends to accurately infer parts of the reward that specify what not to do.
6 Limitations and future work
Our key insight is that when a robot is deployed, the state that it observes has already been optimized to satisfy human preferences. This explains our preference for a policy that generally avoids side effects. We formalized this by assuming that Alice has been acting in the environment prior to the robot’s deployment. We developed an algorithm, RLSP, that computes a MAP estimate of Alice’s reward function. The robot then acts according to a tradeoff between Alice’s reward function and the specified reward function. Our evaluation showed that information from the initial state can be used to successfully infer side effects to avoid as well as tasks to complete, though there are cases in which we cannot infer the relevant preferences. While we believe this is an important step forward, there is still much work to be done to make this accurate and practical.
Realistic environments. The primary avenue for future work is to scale to realistic environments, where we cannot enumerate states, we don’t know dynamics, and the reward function may be nonlinear. This could be done by adapting existing IRL algorithms (Fu et al., 2017; Ho and Ermon, 2016; Finn et al., 2016). Unknown dynamics is particularly challenging, since we cannot learn dynamics from a single state observation. While acting in the environment, we would have to learn a dynamics model or an inverse dynamics model that can be used to simulate the past, and update the learned preferences as our model improves over time. Alternatively, if we use unsupervised skill learning (Achiam et al., 2018; Eysenbach et al., 2018; Nair et al., 2018) or exploration (Burda et al., 2018), or learn a goal-conditioned policy (Schaul et al., 2015; Andrychowicz et al., 2017), we could compare the explored states with the observed .
Hyperparameter choice. While our evaluation showed that RLSP is reasonably robust to the choice of planning horizon and prior over , this may be specific to our gridworlds. In the real world, we often make long term hierarchical plans, and if we don’t observe the entire plan (corresponding to a choice of T that is too small) it seems possible that we infer bad rewards, especially if we have an uninformative prior over . We do not know whether this will be a problem, and if so how bad it will be, and hope to investigate it in future work with more realistic environments.
Conflicts between and . RLSP allows us to infer from , which we must somehow combine with to produce a reward for the robot to optimize. will usually prefer the status quo of keeping the state similar to , while will probably incentivize some change to the state, leading to conflict. We traded off between the two by optimizing their sum, but this is not very principled and future work could improve upon this. For example, could be decomposed into , which says which task Alice is performing (“go to the black door”), and , which consists of the frame conditions (“don’t break vases”). The robot then optimizes . This requires some way of performing the decomposition. We could model the human as pursuing multiple different subgoals, or the environment as being created by multiple humans with different goals. would be shared, while would vary, allowing us to distinguish between them. However, combination may not be the answer – instead, perhaps the robot ought to use the inferred reward to inform Alice of any conflicts and actively query her for more information.
Learning tasks to perform. The apples and batteries environments demonstrate that RLSP can learn preferences that require the robot to actively perform a task. It is not clear that this is desirable, since the robot may perform an inferred task instead of the task Alice explicitly sets for it.
Preferences that are not a result of human optimization. While the initial state is optimized for human preferences, this may not be a result of human optimization, as assumed in this paper. For example, we prefer that the atmosphere contain oxygen for us to breathe. The atmosphere meets this preference in spite of human action, and so RLSP would not infer this preference. While this is of limited relevance for household robots, it may become important for more capable AI systems.
We thank the researchers at the Center for Human Compatible AI for valuable feedback. This work was supported by the Open Philanthropy Project and National Science Foundation Graduate Research Fellowship Grant No. DGE 1752814.
- Achiam et al. (2018) Joshua Achiam, Harrison Edwards, Dario Amodei, and Pieter Abbeel. Variational option discovery algorithms. arXiv preprint arXiv:1807.10299, 2018.
- Amodei et al. (2016) Dario Amodei, Chris Olah, Jacob Steinhardt, Paul Christiano, John Schulman, and Dan Mané. Concrete problems in ai safety. arXiv preprint arXiv:1606.06565, 2016.
- Andreescu (2017) Oana Fabiana Andreescu. Static analysis of functional programs with an application to the frame problem in deductive verification. PhD thesis, Rennes 1, 2017.
- Andrychowicz et al. (2017) Marcin Andrychowicz, Filip Wolski, Alex Ray, Jonas Schneider, Rachel Fong, Peter Welinder, Bob McGrew, Josh Tobin, Pieter Abbeel, and Wojciech Zaremba. Hindsight experience replay. In Advances in Neural Information Processing Systems, pages 5048–5058, 2017.
- Armstrong and Levinstein (2017) Stuart Armstrong and Benjamin Levinstein. Low impact artificial intelligences. arXiv preprint arXiv:1705.10720, 2017.
- Bahdanau et al. (2018) Dzmitry Bahdanau, Felix Hill, Jan Leike, Edward Hughes, Pushmeet Kohli, and Edward Grefenstette. Learning to understand goal specifications by modelling reward. arXiv preprint arXiv:1806.01946, 2018.
- Burda et al. (2018) Yuri Burda, Harri Edwards, Deepak Pathak, Amos Storkey, Trevor Darrell, and Alexei A Efros. Large-scale study of curiosity-driven learning. arXiv preprint arXiv:1808.04355, 2018.
- Christiano et al. (2017) Paul F Christiano, Jan Leike, Tom Brown, Miljan Martic, Shane Legg, and Dario Amodei. Deep reinforcement learning from human preferences. In Advances in Neural Information Processing Systems, pages 4299–4307, 2017.
- Daniel et al. (2014) Christian Daniel, Malte Viering, Jan Metz, Oliver Kroemer, and Jan Peters. Active reward learning. In Robotics: Science and Systems, 2014.
- Edwards et al. (2018) Ashley D Edwards, Himanshu Sahni, Yannick Schroeker, and Charles L Isbell. Imitating latent policies from observation. arXiv preprint arXiv:1805.07914, 2018.
- Eysenbach et al. (2018) Benjamin Eysenbach, Abhishek Gupta, Julian Ibarz, and Sergey Levine. Diversity is all you need: Learning skills without a reward function. arXiv preprint arXiv:1802.06070, 2018.
Finn et al. (2016)
Chelsea Finn, Sergey Levine, and Pieter Abbeel.
Guided cost learning: Deep inverse optimal control via policy
International Conference on Machine Learning, pages 49–58, 2016.
- Fu et al. (2017) Justin Fu, Katie Luo, and Sergey Levine. Learning robust rewards with adversarial inverse reinforcement learning. arXiv preprint arXiv:1710.11248, 2017.
- Hadfield-Menell et al. (2017) Dylan Hadfield-Menell, Smitha Milli, Pieter Abbeel, Stuart J Russell, and Anca Dragan. Inverse reward design. In Advances in Neural Information Processing Systems, pages 6765–6774, 2017.
Ho and Ermon (2016)
Jonathan Ho and Stefano Ermon.
Generative adversarial imitation learning.In Advances in Neural Information Processing Systems, pages 4565–4573, 2016.
- Kaelbling (1993) Leslie Pack Kaelbling. Learning to achieve goals. In IJCAI, pages 1094–1099. Citeseer, 1993.
- Knox and Stone (2009) W Bradley Knox and Peter Stone. Interactively shaping agents via human reinforcement: The tamer framework. In Proceedings of the fifth international conference on Knowledge capture, pages 9–16. ACM, 2009.
- Krakovna et al. (2018) Victoria Krakovna, Laurent Orseau, Miljan Martic, and Shane Legg. Measuring and avoiding side effects using relative reachability. arXiv preprint arXiv:1806.01186, 2018.
- MacGlashan et al. (2017) James MacGlashan, Mark K Ho, Robert Loftin, Bei Peng, David Roberts, Matthew E Taylor, and Michael L Littman. Interactive learning from policy-dependent human feedback. arXiv preprint arXiv:1701.06049, 2017.
McCarthy and Hayes (1981)
John McCarthy and Patrick J Hayes.
Some philosophical problems from the standpoint of artificial intelligence.In Readings in artificial intelligence, pages 431–450. Elsevier, 1981.
- Nair et al. (2018) Ashvin Nair, Vitchyr Pong, Murtaza Dalal, Shikhar Bahl, Steven Lin, and Sergey Levine. Visual reinforcement learning with imagined goals. arXiv preprint arXiv:1807.04742, 2018.
- Ramachandran and Amir (2007) Deepak Ramachandran and Eyal Amir. Bayesian inverse reinforcement learning. Urbana, 51(61801):1–4, 2007.
- Sadigh et al. (2017) Dorsa Sadigh, Anca Dragan, Shankar Sastry, and Sanjit A Seshia. Active preference-based learning of reward functions. In Robotics: Science and Systems (RSS), 2017.
- Schaul et al. (2015) Tom Schaul, Daniel Horgan, Karol Gregor, and David Silver. Universal value function approximators. In International Conference on Machine Learning, pages 1312–1320, 2015.
- Turner (2018) Alex Turner. Towards a new impact measure, 2018. https://www.alignmentforum.org/posts/yEa7kwoMpsBgaBCgb/towards-a-new-impact-measure, Last accessed on 2018-09-26.
- Warnell et al. (2017) Garrett Warnell, Nicholas Waytowich, Vernon Lawhern, and Peter Stone. Deep tamer: Interactive agent shaping in high-dimensional state spaces. arXiv preprint arXiv:1709.10163, 2017.
- Wirth et al. (2017) Christian Wirth, Riad Akrour, Gerhard Neumann, and Johannes Fürnkranz. A Survey of Preference-Based Reinforcement Learning Methods. Journal of Machine Learning Research, 18(136):1–46, 2017. ISSN 15337928. doi: 10.1109/CIS.2008.204. URL http://jmlr.org/papers/v18/16-634.html.
- Yu et al. (2018) Tianhe Yu, Chelsea Finn, Annie Xie, Sudeep Dasari, Tianhao Zhang, Pieter Abbeel, and Sergey Levine. One-shot imitation from observing humans via domain-adaptive meta-learning. arXiv preprint arXiv:1802.01557, 2018.
- Ziebart (2010) Brian D Ziebart. Modeling purposeful adaptive behavior with the principle of maximum causal entropy. 2010.
Here, we derive an exact gradient for the maximum causal entropy distribution introduced in Ziebart , as the existing approximation is insufficient for our purposes. Given a trajectory , we seek the gradient . We assume that the expert has been acting according to the maximum causal entropy IRL model given in Section 3 (where we have dropped from the notation for clarity):
In the following, unless otherwise specified, all expectations over states and actions use the probability distribution over trajectories from the above model, starting from the state and action just prior. For example,. In addition, for all probability distributions over states and actions, we drop the dependence on for readability, so the probability of reaching state is written as instead of .
First, we compute the gradient of . We have , and for :
Unrolling the recursion, we get that the gradient is the expected feature counts under the policy implied by from onwards, which we could prove using induction. Define:
Then we have:
We can now calculate the gradient we actually care about:
The last term of the summation is , which simplifies to , so we can drop it. Thus, our gradient is:
Ziebart  states that the gradient is given by the expert policy feature expectations minus the learned policy feature expectations, and in practice uses the feature expectations from demonstrations to approximate the expert policy feature expectations. Assuming we have trajectories , the gradient would be . The first term matches our first term exactly. Our second term matches the second term in the limit of sufficiently many trajectories, so that the starting states follow the distribution . Our third term converges to zero with sufficiently many trajectories, since any pair in a demonstration will be present sufficiently often that the empirical counts of will match the expected proportions prescribed by .
In a deterministic environment, we have since only one transition is possible. Thus, the third term is zero and even for one trajectory the gradient reduces to . This differs from the gradient in Ziebart  only in that it computes feature expectations from the observed starting state instead of the MDP distribution over initial states .
In a stochastic environment, the third term need not be zero, and corrects for the “bias” in the observed states . Intuitively, when the expert chose action , she did not know which next state would arise, but the first term of our gradient upweights the particular next state
that we observed. The third term downweights the future value of the observed state and upweights the future value of all other states, all in proportion to their prior probability.
This section provides a derivation of the gradient , which is needed to solve with gradient ascent. We provide the results first as a quick reference:
Base cases: first, is given, second, , and third, .
For the derivation, we start by expressing the gradient in terms of gradients of trajectories, so that we can use the result from Appendix A. Note that, by inspecting the final form of the gradient in Appendix A, we can see that is independent of . Then, we have:
This has a nice interpretation – compute the gradient for each trajectory and take the weighted sum, where each weight is the probability of the trajectory given the evidence and current reward .
We can rewrite the gradient in Equation 6 as , where
We can now substitute this to get:
Note that we can compute since we are given the distribution and we can use the recursive rule .
In order to compute we need to compute , which has base case and recursive rule:
For the remaining part of the gradient, define such that :
We now derive a recursive relation for :
For the base case, note that
Comparing this to the recursive rule, for the base case we can set .
Instead of estimating the MLE (or MAP if we have a prior) using RLSP, we could approximate the entire posterior distribution. One standard way to address the computational challenges involved with the continuous and high-dimensional nature of is to use MCMC sampling to sample from . The resulting algorithm resembles Bayesian IRL [Ramachandran and Amir, 2007] and is presented in Algorithm 1.
While this algorithm is less efficient and noisier than RLSP, it gives us an estimate of the full posterior distribution. In our experiments, we collapsed the full distribution into a point estimate by taking the mean. Initial experiments showed that the algorithm was slower and noisier than the gradient-based RLSP, so we did not test it further. However, in future work we could better leverage the full distribution, for example to create risk-averse policies, to identify features that are uncertain, or to identify features that are certain but conflict with the specified reward, after which we could actively query Alice for more information.
Appendix D Combining the specified reward with the inferred reward
In Section 5, we evaluated RLSP by combining the reward it infers with a specified reward to get a final reward . As discussed in Section 6, the problem of combining and is difficult, since the two rewards incentivize different behaviors and will conflict. The Additive method above is a simple way of trading off between the two.
Both RLSP and the sampling algorithm of Appendix C can incorporate a prior over . Another way to combine the two rewards is to condition the prior on before running the algorithms. In particular, we could replace our prior with a new prior
, such as a Gaussian distribution centered at. When we use this prior, the reward returned by RLSP can be used as the final reward .
It might seem like this is a principled Bayesian method that allows us to combine the two rewards. However, the conflict between the two reward functions still exists. In this formulation, it arises in the new prior . Modeling this as a Gaussian centered at suggests that before knowing , it seems likely that is very similar to . However, this is not true – Alice is probably providing the reward
