Predictive Directions for Individualized Treatment Selection in Clinical Trials

by   Debashis Ghosh, et al.
University of Colorado Denver
University of Wisconsin-Milwaukee

In many clinical trials, individuals in different subgroups have experience differential treatment effects. This leads to individualized differences in treatment benefit. In this article, we introduce the general concept of predictive directions, which are risk scores motivated by potential outcomes considerations. These techniques borrow heavily from sufficient dimension reduction (SDR) and causal inference methodology. Under some conditions, one can use existing methods from the SDR literature to estimate the directions assuming an idealized complete data structure, which subsequently yields an obvious extension to clinical trial datasets. In addition, we generalize the direction idea to a nonlinear setting that exploits support vector machines. The methodology is illustrated with application to a series of colorectal cancer clinical trials.


page 1

page 2

page 3

page 4


Multi-Task Adversarial Learning for Treatment Effect Estimation in Basket Trials

Estimating treatment effects from observational data provides insights a...

Using Recursive Partitioning to Find and Estimate Heterogenous Treatment Effects In Randomized Clinical Trials

Heterogeneous treatment effects can be very important in the analysis of...

A Clinical Trial Derived Reference Set for Evaluating Observational Study Methods

Informing clinical practice in a learning health system requires good ca...

Active Learning for Developing Personalized Treatment

The personalization of treatment via bio-markers and other risk categori...

TrialGraph: Machine Intelligence Enabled Insight from Graph Modelling of Clinical Trials

A major impediment to successful drug development is the complexity, cos...

1 Introduction

In many clinical trial settings, the overall treatment effect is the estimand of primary scientific interest, but it may not be appropriate for all the populations considered in the study. A practical example that is routinely used in clinical practice is testing for DNA variation in the CYP2C19 gene. For certain variants (e.g., CYP2C19*2, *3, and *17), it has been shown that variation in these single-nucleotide polymorphisms can be informative about patients’ ability to metabolize CYP2C19 substrate drugs [1].

With this pharmacogenetic example in mind, developing methods for identification of appropriate patient subgroups for which the treatment might be of major benefit has become a topic of intense interest in the statistical literature. Gail and Simon [2] introduced methods for identification of qualitative treatment covariate interactions. The Subpopulation Treatment Effect Pattern Plot (STEPP) was developed by Bonetti and Gelber [3] as a graphical summary for subgroup identification with attendant permutation testing procedures. Using a working model and training/test set paradigm, Cai [4] developed a modelling strategy to identify subgroups of patients who would benefit from the treatment; we comment on their approach in §3.2. Tree-based and related machine learning approaches (e.g., [5, 6, 7, 8, 9, 10]) for finding treatment subgroups have also been proposed.

Much of these methodologies have been focused on the issue of identification of subgroups at a subpopulation level, where the subgroups are defined based on covariates that have interactions with treatment. Vanderweele and coauthors [11] took this notion to a person-specific level and described four problems in personalized medicine. They showed that for each question, the optimal rule has a form that takes the difference in individual-specific responses conditional on covariates. They use the potential outcomes framework [12, 13] to derive these results. An important takeaway from their work is the necessity of moving away from testing individual treatment-covariate interactions towards wholistic testing of multiple interactions simultaneously.

In this work, inspired by ideas from causal inference and its links with sufficient dimension reduction (SDR) methods [14, 15]

, we develop a concept termed the predictive direction. The idea is to posit potential outcomes for the subject under each of the possible treatments and to then model their difference. In the hypothetical case where the complete potential outcomes are available, we can then exploit sufficient dimension reduction methods in order to estimate the predictive direction. One of the appealing features of such procedures is that in the linear case the estimated predictive direction has an intuitive interpretation as a risk score, i.e., a linear combination of the predictor variables. Risk scores are commonly used and applied throughout medicine


While we describe the predictive directions concept within the potential outcomes framework in Section 2, for most situations, the counterfactuals are never simultaneously observed. To deal with this, we impute the outcomes using random forests

[17], a step that was also applied in the ‘virtual twins’ method of Foster et al. [8]. In the linear case, a sufficient condition that is needed amounts to effectively a continuous multivariate normality-type assumption on the covariates, which is unlikely to hold in practice. Thus, we also propose a nonlinear version of the predictive direction whose estimation relies on the use of support vector machines. The structure of the paper is as follows. In Section 2, we outline the background material on the potential outcomes framework as well as computation of the predictive direction using SDR methodology. Section 3 describes a new nonlinear extension of the approach to relax the linearity assumption and yields approximation using kernel machine methods [18]. Section 5 features an illustration of the techniques to data from 12 colorectal cancer studies we have previously analyzed [19]. Some discussion concludes Section 6.

2 Proposed Framework

2.1 Potential outcomes framework and applications to risk modelling

We work within the potential outcomes framework of Rubin [12] and Holland [13]. Assume that , , a random sample from the triple , where represents the counterfactuals, denotes the treatment group, and is a -dimensional vector of covariates, is observed for all subjects. Let take the values so that the treatment is binary. Note that we are merely using the setup to be able to define the predictive directions. Also, we will be working within the context of a clinical trial where will be randomized so that it can be assumed to be independent of .

As described in Rosenbaum and Rubin [20], the standard assumption needed for causal inference is that


i.e. treatment assignment is conditionally independent of the set of potential outcomes given covariates. Rosenbaum and Rubin [20] refer to (1) as the strongly ignorable treatment assumption; it allows for the estimation of causal effects.

In Rosenbaum and Rubin [20]

, the propensity score was introduced as a central quantity needed for the estimation of causal effects in observational studies. The propensity score, defined as the probability of receiving treatment as a function of covariates, is given by


Rosenbaum and Rubin [20] showed that use of the propensity score leads to theoretical balance in covariates between the and groups. Statistically, this corresponds to the conditional independence of and conditional on and is summarized in Theorem 1 of Rosenbaum and Rubin [20]. Given the treatment ignorability assumption in (1), it also follows by Theorem 3 of Rosenbaum and Rubin [20] that treatment is strongly ignorable given the propensity score, i.e.

We now exploit the work of Ghosh [14] and use further conditional independence assumptions from the sufficient dimension reduction literature. Assume that there exists a matrix A, , such that treatment is conditionally independent of Z, given . This can be expressed notationally as


Assumption (3) is a crucial one for defining the estimand targeted by most dimension reduction methods. In particular, if represents the subspace generated by the columns of , then the smallest subspace containing all possible spaces is known as the central subspace [21] and typically exists in most problems.

Combining assumptions (3) and (1), we have


so that the columns of A capture the essential information about the potential outcomes. These columns are what we term the directions in the outcome data. Note that (4) implies that


for any function whose domain is and whose range is . We now define the function:

Of course, many other functions are possible, but in the current article, we focus on this choice of . We then define the columns of corresponding to as the predictive directions.

2.2 Computation of Predictive Directions

As noted by Ghosh [14], with the sequence of conditional assumptions being invoked in §2.1., one can then employ sufficient dimension reduction procedures in order to compute the predictive directions. The following high-level algorithm uses sliced inverse regression [22], although other methods could also be used, such as SAVE [23] and MAVE [24]:

  • Compute for subject , .

  • Perform sliced inverse regression of on in order to estimate the directions (i.e., the columns of A).

We recall that SIR requires the linearity condition for its validity. This assumption can be mathematically expressed as The linearity condition is viewed as restrictive, as it is effectively satisfied by elliptically symmetric distributions.

As pointed out before, in practice, we cannot implement the high-level algorithm in the previous paragraph due to the inability to observe both potential outcomes. Instead of , we observe . We thus modify the algorithm by including an imputation step:

  1. Fit a random forests model [17] for as a function of , . Such an algorithm will allow for computation of based on the observed covariates , .

  2. Compute the variable for subject , .

  3. Sort into increasing order and group them into slices, termed .

  4. Standardize the predictor observations as

    where and are the sample mean and covariance matrices of .

  5. Calculate within-slice estimates of sample mean where , .

  6. Estimate the population covariance matrix of as

  7. Calculate the eigenvalues of

    . The estimated directions are the corresponding eigenvectors.

We make several remarks about this algorithm. First, since the data come from a randomized clinical trial, separate prediction within treatment arms is a valid approach for imputing potential outcomes. Second, the approach is agnostic to the choice of imputation algorithm in the first step; one could use other alternatives (e.g., [25, 26]). Third, step 1 corresponds to the imputation step that is needed in algorithms such as the ‘virtual twins’ algorithm of [8]; however, their subsequent steps are different from ours. Fourth, one appealing feature of the algorithm is that at the end, we are able to construct risk scores whose coefficients are the eigenvectors, so they enjoy an appealing interpretation from a clinical point of view. Fifth, an implicit parameter in the algorithm is the number of slices we need to use in step 2. As Li [22] argues, SIR is relatively insensitive to the number of slices used in the algorithm. Finally, in the current manuscript, we simply use the first eigenvector as our summary predictive direction measure. Equivalently, we are treating the dimension of the central subspace as being one. While there is a literature on methods for estimating dimension of the central subspace (e.g., [27, 28]), how to use multiple risk scores as well as estimating subspace dimension for the purposes of treatment selection remains an open topic and one that we leave to future investigation.

3 Computation of nonlinear predictive directions

3.1 A link between SDR with kernel machines

A crucial assumption in the previous section for the validity of the SDR methodology is the linearity assumption. In practice, this typically means that the unconditional distribution of has to have a multivariate normality or related distribution. There has been much work on developing alternative estimation procedures that seek to relax the linearity assumption. For example, Xia et al. [24]

propose the minimum average variance estimation procedure, which relies on a combination of nonparametric smoothing with weighted least squares. Since it involves nonparametric regression, its convergence depends on an appropriate rate of convergence for the bandwidth in conjunction with the sample size converging to infinity. Cook and Ni

[29] proposed a minimum discrepancy method in which sufficient dimension reduction is characterized using an objective function approach. This leads to an alternating least squares algorithm for estimation of the central subspace.

A seemingly different regression model that could be fit to these data is


where is an intercept term, is an unknown centered smooth function, and the error term is assumed to be a random sample from a distribution.

The kernel machine methodology assumes that lies in a reproducing Kernel Hilbert space [30, 31, 32]. This is a Hilbertian function space that satisfies the property that for any function in , its pointwise evaluation is a continuous linear functional. As shown in [30], there exists a one-to-one correspondence between with a so-called kernel function is a bounded, symmetric, positive function satisfying


for any arbitrary square integrable function and all . The kernel function can be viewed as a measure of similarity between two values of the covariate vector and .

Any function in the function space defined by a kernel can have a primal representation directly using the basis functions (features) of , and it can equivalently have a dual representation using the kernel function directly. Specifically, for an arbitrary function , its primal representation takes the form


where is a vector of the standardized orthogonal basis functions (features), i.e., standardized Mercer features of the function space , and the is a vector of some constants. The square norm of can be written as


Alternatively, the same can be equivalently written in a dual representation using the kernel function directly as


for some integer , some constants and some . Justifications of these results and more details about the RKHS can be found in Chapter 3 of [33].

Exploiting a primal/dual equivalence from Karush-Kuhn-Tucker theory, one can show that the estimator of the nonparametric function evaluated at the design points is estimated as


where . In [18], it was shown that the estimates of in (11) can be derived as arising from a random effects model of the following form:


where is an vector of random effects following , is a scale parameter, and . Because of this equivalence, all regression parameters in the model can be estimated by maximum likelihood, while the variance component parameters can be estimated by restricted maximum likelihood.

Our approach is to link sufficient dimension reduction approaches with the kernel machine methodology that was developed in [18]. This is done using results from Schoenberg [34]. As in Schoenberg [34], we will study spaces of positive definite functions that are defined on proper metric spaces. The space with the Euclidean distance can also be viewed as a metric space. Let denote the space of positive definite functions for a metric space . One result of Schoenberg [34] was that if and are metric spaces with , then . If we take to be the restriction of to random vectors that satisfy the linearity condition and to be random vectors which are elliptically symmetric, then we have . For , we have the following characterization from Schoenberg [34]:

Lemma 1. A dimensional random vector

is elliptically symmetric if and only if its characteristic function can be written as

, where and has the form


where is the characteristic function for a dimensional random vector that is distributed uniformly on the unit sphere in , and is a distribution function on . We note that the form of is given by

where denotes the Gamma function and

represents the Bessel function.

Given the definitions of and , we define a sequence of metric spaces in the following way: define is a metric space consisting of elliptically symmetric random vectors in for . We have that elliptical symmetry in higher dimensions imply elliptical symmetry in lower dimensions. This implies the following chain of inequalities:


In addition, Schoenberg [34] provides a characterization of in (14), which is given in the following result:

Lemma 2. A random element exists in if and only if its characteristic function can be written as , where has the form


and is a distribution function on .

Remark 1. Note that by the nested structure of the space of positive definite functions in (14), it is also the case that

Thus, is the smallest space containing for all . In this sense, the object can be interpreted as an infinite-dimensional analog to the central subspace that was described in §2.1. A different type of limiting object corresponding to the central subspace in a nonlinear setting has been developed by Lee et al. [35].

For our proposed methodology, we will require the definitions of positive definite and completely monotone functions.
Definition 1. A real-valued function is said to be positive definite if for any set of real numbers , the matrix A with th entry is positive definite.
Definition 2. A real-valued function is said to be completely monotone if for all ,

where denotes the the derivative of .

A function is positive definite if and only if , where is completely monotone. The other key fact is that any positive definite function can define a kernel . Thus, for any positive definite function , we have that is a proper kernel. Combining these results, we have the following.

Proposition. A random element exists in if and only if its associated kernel is of the form


where is generated via (15).

The proposition shows that the kernels in only depend on the interpoint distances between points.

Remark 2. Each element of will have a unique kernel associated with it and vice versa. One example of a kernel that would exist in is the Gaussian Kernel, whose kernel is given by


. The Gaussian kernel generates the function space spanned by radial basis functions, a complete overview for which can be found in

[36]. Other examples of kernels that reside in can be found in Table 1.

[Table 1. about here.]

3.2 Proposed Algorithm and tuning parameter selection

The results in the previous section lead to a modification of the algorithm in §2.2. It now proceeds as follows:

  1. Fit random forests for as a function of and , . Such an algorithm will allow for computation of based on the observed covariates , .

  2. Compute the variable for subject , .

  3. Fit a Gaussian kernel machine model to as a function of , .

One then gets fitted values from the kernel machine applied to the input covariate vectors, and these can be treated as functionals of nonlinear extensions of the predictive directions defined in §2.1. Note that the third step amounts to fitting a support vector regression models, details of which can be found in Chapter 6 of Cristianini and Shawe-Taylor [33]. We use the svm function in the e1071 package in the R library to fit this.

A natural question that arises is how to set tuning parameters in the Gaussian kernel machine in Step 3. We follow the advice of Athey and Imbens [37] and divide the training dataset in Step 3 into two independent parts. For the first part, we optimize the kernel machine to find optimal tuning parameters; this is done using cross-validation. Given the optimal tuning parameters, we then fit the kernel machine in step 3 with the optimized parameters.

For many situations, we might wish to perform evaluations on a test set, as discussed in the next section. For that case, we argue that the tuning parameter selection is less of an issue. In the parlance of Cai et al. [4], this is a working model that is used in the direction estimation algorithm. If our final evaluations are performed on an independent test set, we can argue as in [4] that the ultimate estimands of interest do not rely on proper specification of the working model and therefore enjoy a certain robustness property.

We note that a related approach to using kernel machines was taken in Shen and Cai [38]. While their approach shares similarities with the algorithm developed here, we note that the motivation and starting points are completely different. Furthermore, they were focused more on the issue of testing, while our goal here is that of computing and estimating directions.

4 Optimality of treatment selection rules and evaluation of predictive directions

Based on our approaches to predictive direction estimations, we can now use the directions to guide optimal treatment strategies using the framework developed in [11]. For these four questions, that the optimal rule is to treat those subjects for whom , where get chosen in a context-dependent way. Since does not get observed, our proxy rule is to instead use


where is the predictive direction-derived score.

To evaluate the predictive direction as a scoring rule, we need a training and testing set in which both studies are randomized and consist of the same treatments. In addition, outcome variables need to be measured in both studies. The proposal is related to one discussed in Vickers et al. [39]. To simplify the discussion, we will deal with the case of two treatment groups. The procedure works as follows:

  • Estimate the predictive direction using the training dataset.

  • Using the estimated direction, compute scores for all subjects in the test set.

  • Based on the scores, determine which treatment each subject should receive in the test set using treatment rules of the form (17).

  • For the subjects whose predicted treatment match their randomized treatment in the test set, compare the outcomes between the two treatment groups.

We mention some points at this stage. First, we note that for step (b), the outcome information in the test set is not used at all. Only the covariate information is used to compute the scores. The outcome information is needed in step (d). in order to compute the measure of treatment effect between the two groups. Note also that the fact that the test set also comes from a clinical trial is a necessary feature here. In step (d)., we will be excluding two types of subjects in the test set: those who were predicted to have greatest benefit from one treatment group but were observed to receive the other one. Thus, we are performing a subgroup analysis in step (d). based on subjects in the test set whose predicted and actual treatment assignments are concordant. The randomization of treatment is necessary in order to ensure that the subgroup analysis will also be the same as the overall treatment effect.

5 Meta-analysis of colorectal cancer datasets

In this section, we will apply the proposed methods to data from a series of 12 adjuvant colon cancer studies that were evaluated for surrogacy in Ghosh et al. [19]. Here, we will use data on treatment, age at baseline, stage and gender to explore predictive directions with respect to survival time. The original 12 studies sought to evaluate the difference in survival times between treatments. Note that in our previous discussion, we assumed that the variable of interest is continuous. In the colorectal cancer dataset, the endpoint of interest is time to death. With respect to the Vanderweele et al. [11] framework, we are dealing with their second question: given no resource constraints, who should we treat?

We perform a simple modification of the algorithms presented by following a suggestion from Keles and Segal [40]. We compute a first-stage martingale residual from a null model (i.e., one with no covariates). We then treat the residual as a continuous variable to be input into the algorithms in §2.2. and §3. In addition, because we have data on 12 studies, we can furthermore explore the issue of whether or not the estimated directions show concordance across studies.

Using SIR, we compute the predictive directions and assess their concordance across the 12 studies. The results are shown in Figure 1.

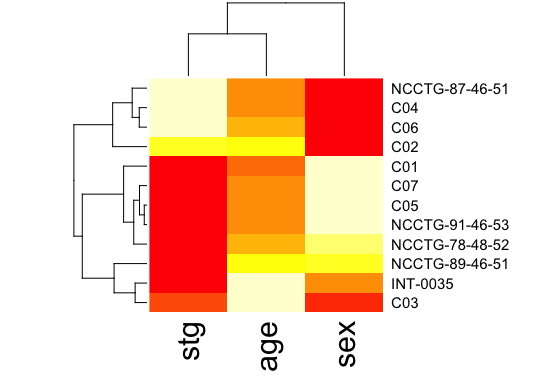

[Figure 1. about here.]

Based on the plot, we find that there is a relative lack of concordance in terms of the effects of the covariates across the different studies. This suggests the difficulty in finding such interactions as well as in the lack of replicability of interactions across studies.

Next, we evaluated the fitted values using the procedure from §4. Each study was used as a training dataset, with the remaining 11 studies used as test dataset. The results from using the sliced inverse regression-based procedure is shown in Table 2.

[Table 2. about here.]

While the studies suggest that the linear predictive directions lead to some benefit of selecting patients in a consistent, we mention two things at this point. First, for half of the studies, we were unable to compute a hazard ratio. This was due to the fact that the estimated predictive directions did not lead to predicted treatment assignments that were concordant with the observed treatment assignments in the test datasets. These analyses suggest that the predictive direction is not generalizable from the series of 12 colorectal cancer trials.

We now redo the analyses using the nonlinear methodology from §3. Based on the support vector machine, the estimated directions are given in Figure 2.

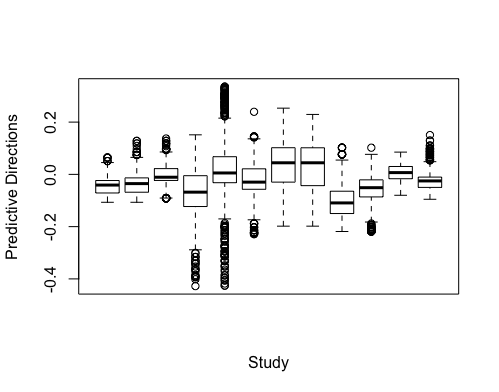

[Figure 2. about here.]

Much like Table 2, this figure shows the high degree of variation across study. This again speaks to the capacity of being able to find a generalizable person-specific interaction effect for this setting.

Finally, we ran the prediction analysis similar to what was described in Table 2. We performed both with and without split-sample optimization. The results are given in Table 3.

[Table 3. about here.]

One thing to note is that we are now able to estimate hazard ratios and confidence intervals for all studies and no longer suffer from the numerical issues in the linear case. However, we again see heterogeneity in the treatment effect across studies. In addition, there appears to be little difference between the estimated effects and inference based on whether perform the split-sample optimization or not. Two exceptions appear to be studies C04 and C07, where the direction of the effect reverses based on whether or not split-sample optimization is performed. However, both studies are also consistent with no difference between the treatment groups.

6 Discussion

In this article, we have developed the concept of predictive directions for identification of person-specific effects in clinical trials. In the linear case, we are able to obtain linear combinations of the covariates that enjoy a risk score interpretation. However, the validity of predictive directions requires strong distributional assumptions, so we have also proposed a novel nonlinear extension that applies support vector regression techniques. Based on the numerical issues seen in the example in §5, we would argue for use of the nonlinear approach, which has also been advocated by other proponents in the SDR literature (e.g., [35, 41]).

There are several potential extensions of this work that are currently under investigation. First, the issue of dimension estimation and subsequent post-model selection inference has not been addressed. In the current paper, we have bypassed the issue by fixing the dimension to be one. In the situation where there are multiple directions (i.e., multiple columns of A in (5)), a natural question arises as to how to use them to inform selection of optimal treatment as discussed in §4. Finally, a more direct extension to the survival data example in §5 would have used the random forests methodology for survival data [42]. However, that use of that framework would then require rephrasing the potential outcomes model and attendant assumptions in §2.1.


This research is supported by National Institutes of Health grant CA129102.


  • [1] Lee S–J. Clinical Application of CYP2C19 Pharmacogenetics Toward More Personalized Medicine. Frontiers in Genetics. 2012;3:318. doi:10.3389/fgene.2012.00318.
  • [2] Gail M, Simon R. Testing for qualitative interactions between treatment effects and patient subsets. Biometrics. 1985 Jun;41(2):361-72.
  • [3] Bonetti M, Gelber RD. Patterns of treatment effects in subsets of patients in clinical trials. Biostatistics. 2004 Jul;5(3):465-81. PubMed PMID: 15208206.
  • [4] Cai T, Tian L, Wong PH, Wei LJ. Analysis of randomized comparative clinical trial data for personalized treatment selections. Biostatistics. 2011 Apr;12(2):270-82.
  • [5] Kehl V, Ulm K. Responder identification in clinical trials with censored data. Comput Stat Data Anal 2006; 50: 1338 – 1355.
  • [6] Su X, Zhou T, Yan X, Fan J, Yang S. Interaction trees with censored survival data. Intl J Biostatistics 2008; 4: article 2.
  • [7] Su X, Tsai CL, Wang H, Nickerson DM, Bogong L. Subgroup analysis via recursive partitioning. J Mach Learn Res 2009; 10: 141 – 158.
  • [8] Foster JC, Taylor JM, Ruberg SJ. Subgroup identification from randomized clinical trial data. Stat Med 2011; 30: 2867 – 80.
  • [9] Imai K, Ratkovic M. Estimating treatment effect heterogeneity in randomized program evaluation. Ann Appl Stat 2013; 7: 443 – 470.
  • [10] Wager S, Athey S. Estimation and inference of heterogeneous treatment effects using random forests. J Am Statist Assoc 2018; Forthcoming.
  • [11] VanderWeele TJ, Luedtke AR, van der Laan MJ, Kessler RC. Selecting optimal subgroups for treatment selection using many covariates. Available at
  • [12] Rubin DB. Estimating causal effects of treatments in randomized and nonrandomized studies. J Educ Psych 1974; 66: 688 – 701.
  • [13] Holland P. Statistics and causal inference (with discussion). J Am Statist Assoc 1986; 81: 945 – 970.
  • [14] Ghosh D. Propensity score modelling in observational studies using dimension reduction methods. Stat Prob Lett 2011; 81: 813 – 820.
  • [15] Luo W, Zhu Y, Ghosh D. On estimating regression-based causal effects using sufficient dimension reduction. Biometrika 2017; 104: 51 – 65.
  • [16] Collins GS, Reitsma JB, Altman DG, Moons KG. Transparent reporting of a multivariable prediction model for individual prognosis or diagnosis (TRIPOD): the TRIPOD statement. BJOG. 2015;122: 434-43.
  • [17] Breiman L. Random forests. Mach Learn 2001; 45: 5 – 32.
  • [18]

    Liu D, Lin X, Ghosh D. Semiparametric regression of multi-dimensional genetic pathway data: least squares kernel machines and linear mixed models. Biometrics 2007; 63, 1079 – 1088.

  • [19] Ghosh D, Taylor JMG, Sargent DJ. Meta-analysis for surrogacy: accelerated failure time modelling and semi-competing risks (with discussion). Biometrics 2012; 68: 226 – 247.
  • [20] Rosenbaum PR, Rubin DB. The central role of the propensity score in observational studies for causal effects. Biometrika 1983; 70: 41 – 55.
  • [21] Cook RD. Regression Graphics. New York: Wiley, 1998.
  • [22] Li KC. Sliced inverse regression for dimension reduction (with discussion). J Am Statist Assoc 1991; 86: 316 – 342.
  • [23] Cook RD, Weisberg S. Discussion of ‘Sliced inverse regression’ by Li. J Am Statist Assoc 1991; 86: 328 – 332.
  • [24] Xia Y, Tong H, Li WK, Zhu LX. An adaptive estimation of dimension reduction space (with discussion). J R Statist Soc Ser B 2002; 64: 363 – 410.
  • [25] Raghunathan TE, Lepkowski JM, Van Hoewyk JV, Solenberger P. A Multivariate Technique for Multiply Imputing Missing Values Using a Sequence of Regression Models. Surv Methodol 2001; 27: 85 – 95.
  • [26] Van Buuren S. Flexible Imputation of Missing Data. Boca Raton, FL: Chapman & Hall/CRC Press, 2012.
  • [27] Ye Z, Weiss RE. Using the bootstrap to select one of a new class of dimension reduction methods. J Amer Statist Assoc 2003; 98: 968 – 979.
  • [28] Huang MY, Chiang CT. An effective semiparametric estimation approach for the sufficient dimension reduction model. J Amer Statist Assoc 2017; 112, 1296 – 1310.
  • [29] Cook RD, Ni L. Sufficient dimension reduction via inverse regression: A minimum discrepancy approach. J Amer Statist Assoc 2005; 100, 411 – 428.
  • [30] Aronszajn N. Theory of reproducing kernels. Trans Am Math Soc 1950; 68: 337 – 404.
  • [31] Wahba G. Spline Models for Observational Data. Philadelphia: SIAM, 1990.
  • [32] Berlinet A, Thomas-Agnan C. Reproducing Kernel Hilbert Spaces in Probability and Statistics. Kluwer Academic Publishers, 2004.
  • [33] Cristianini N, Shawe-Taylor J. An Introduction to Support Vector Machines and Other Kernel-based Learning Methods. Cambridge: Cambridge University Press, 2000.
  • [34] Schoenberg IJ. Metric spaces and completely monotone functions. Ann Math 39, 811 – 841.
  • [35] Lee KY, Li B, Chiaromonte F. A general theory for nonlinear sufficient dimension reduction: Formulation and estimation. Ann Stat 2013; 41: 221–249.
  • [36] Bühmann MD. Radial Basis Functions: Theory and Implemetations. Cambridge: Cambridge University Press, 2003.
  • [37] Athey S, Imbens G. Recursive partitioning for heterogeneous causal effects. Proc Nat Acad Sci 2016; 113: 7353 – 7360.
  • [38] Shen Y, Cai T. Identifying predictive markers for personalized treatment selection. Biometrics 2016; 72: 1017 – 1025.
  • [39] Vickers AJ, Kattan MW, Sargent D. Method for evaluating prediction models that apply the results of randomized trials to individual patients. Trials 2007; 8, 14.
  • [40] Keles S, Segal MR. Residual-based tree-structured survival analysis. Stat Med 2002; 21: 313 – 326.
  • [41] Li B, Artemiou A, Li L. Principal support vector machines for linear and nonlinear sufficient dimension reduction. Ann Stat 2011; 39: 3182–3210.
  • [42] Ishwaran H, Kogalur UB, Blackstone EH, Lauer MS. Random survival forests. Ann App Stat 2008; 2: 841 – 860.

Figures and Tables

Kernel K Parameter ranges
Generalized Cauchy
Powered Exponential
Table 1: Examples of kernels that are members of . Here denotes the modified Bessel function of the second kind of order .
Training Data HR 95% CI
C04 1.21 (0.79,1.86)
NCCTG-78-48-52 0.75 (0.69,0.82)
NCCTG-89-46-51 1.15 (0.85,1.56)
NCCTG-91-46-53 0.92 (0.85,1.00)
C06 0.90 (0.65,1.23)
C07 0.66 (0.60,0.73)
Table 2: Results from computing hazard ratios for estimated predictive directions. The column titled ‘Training Data’ denotes the colorectal cancer study that was used to estimate the predictive directions. The second column denotes the hazard ratio computed using the remaining 11 studies as a test dataset based on the procedure outlined in §2.2. The third column denotes a 95% confidence interval for the hazard ratio computed using the normal approximation.
Figure 1: Heatmap showing the coefficients of the estimated predictive directions across the 12 colorectal cancer studies. Each row represents a different study, while the columns represent the three variables (sex, age and stage (shown as stg)). Colors is red represent negative coefficients, while less red denotes more positive coefficients.
Figure 2: Boxplot of predictive directions (i.e., the fitted values from the support vector regression approach in §3) by study.
Without optimization With optimization
Training Data HR 95% CI HR 95% CI
C01 1.01 (0.93,1.10) 0.98 (0.91,1.06)
C02 1.38 (1.28,1.49) 1.26 (1.16,1.36)
C03 1.22 (1.10,1.34) 1.04 (0.94,1.15)
C04 1.15 (1.03,1.28) 0.93 (0.81,1.07)
C05 1.07 (0.99,1.16) 1.00 (0.92,1.08)
INT-0035 0.47 (0.39,0.58) 0.48 (0.41,0.56)
NCCTG-78-48-52 0.72 (0.66,0.79) 0.73 (0.67,0.79)
NCCTG-87-46-51 1.25 (1.09,1.45) 1.38 (1.20, 1.60)
NCCTG-89-46-51 0.89 (0.82,0.96) 0.84 (0.78, 0.91)
NCCTG-91-46-53 0.95 (0.87,1.03) 1.00 (0.91,1.08)
C06 1.09 (1.00,1.18) 1.01 (0.93,1.09)
C07 0.90 (0.80,1.01) 1.03 (0.94,1.13)
Table 3: Results from computing hazard ratios for estimated predictive directions using the methdology of §3. The column titles are the same as in Table 2.
Study age stage sex
C01 0.029 -0.251 0.968
C02 0.033 0.146 -0.989
C03 -0.013 -0.658 -0.753
C04 -0.077 0.802 -0.593
C05 -0.004 -0.627 0.779
INT-0035 -0.020 -0.858 -0.513
NCCTG-78-48-52 0.021 -0.780 0.625
NCCTG-87-46-51 0.155 0.887 -0.435
NCCTG-89-46-51 0.015 -0.997 0.072
NCCTG-91-46-53 0.020 -0.670 0.742
C06 -0.002 0.681 -0.733
C07 0.007 -0.516 0.857
Table 4: Estimated predictive directions for each of the 12 colorectal cancer studies. The numbers in each column represent the coefficient for the estimated predictive direction. For example, the estimated predictive direction for study C01 is given by
