1 Results

Figure 1:

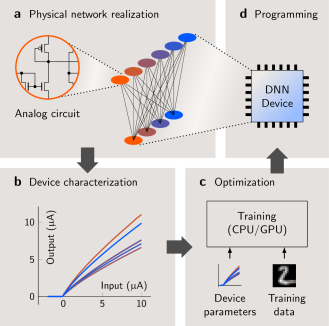

Implementing and training analog electronic neural networks. a) The configurable network is realized on a physical substrate by means of analog circuits, together with local memory elements that store the weight configuration. b) The transfer characteristics of individual neurons are measured by applying specific stimuli to the input layer and simultaneously recording the output of the network. Repeating these measurements for different weight configurations and input patterns allows to reconstruct the individual transfer curves and fit them by a model to be used for training. c) Including the measured transfer characteristics in the training process allows optimization of the network for the particular device that has been measured. d) Mapping the parameters found by the training algorithm back to the device implements a neural network, whose computation is comparable to the theoretically ideal network. Arrows indicate the sequence of steps taken as well as the flow of measurement/programming data.

A deep neural network processes input signals in a number of successive layers of neurons, where each neuron computes a weighted sum of its inputs followed by a non-linearity, such as a sigmoid or rectification. Specifically, the output of a neuron is given by , where is the non-linearity, and is the weight of the connection from neuron to neuron

. Thus, the basic operations comprising a neural network are summation, multiplication by scalars, and simple non-linear transformations. All of these operations can be implemented in analog electronic circuitry very efficiently, that is with very few transistors, whereby numeric values are represented by actual voltage or current values, rather than a digital code. Analog circuits are affected by fabrication mismatch, i.e. small fluctuations in the fabrication process that lead to fixed distortions of functional properties of elements on the same device, as well as multiple sources of noise. As a consequence, the response of an analog hardware neuron is slightly different for every instance of the circuit, such that

, where approximately corresponds to , but is slightly different for every neuron .

1.1 Training with heterogeneous transfer functions

The weights of multi-layered networks are typically learned from labeled training data using the backpropagation algorithm

[44], which minimizes the training error by computing error gradients and passing them backwards through the layers. In order for this to work in practice, the transfer function

needs to be at least piece-wise differentiable, as is the case for the commonly used rectified linear unit (ReLU)

[16]

. Although it is common practice in neural network training, it is not necessary for all neurons to have identical activation functions

. In fact, having different activation functions makes no difference to backpropagation as long as their derivatives can be computed. Here this principle is exploited by inserting the heterogeneous but measured transfer curves from a physical analog neural network implementation into the training algorithm, with the goal of finding weight parameters that are tailored for a particular heterogeneous system given by .

The process of implementing a target functionality in such a heterogeneous system is illustrated in Fig. 1. Once a neural network architecture with modifiable weights is implemented in silicon, the transfer characteristics of the different neuron instances can be measured by controlling the inputs specific cells receive and recording their output at the same time (see Methods). If the transfer curves are sufficiently simple (depending on the actual implemented analog neuron circuit), a small number of discrete measurements yield sufficient information to fit a continuous, (piece-wise) differentiable model to the hardware response. For instance, the rectified linear neuron is fully described by a single parameter , which is simply the ratio of output to input, and therefore can easily be measured. The continuous, parameterized description is then used by the training algorithm, which is run on traditional computing hardware, such as CPUs or GPUs, to generate a network configuration that is tailored to the particular task and the physical device that has been characterized.

1.2 Analog circuit implementation

To achieve a compact and low-power solution, we construct a multilayer network using the circuits shown in Fig. 2 and operate them in the subthreshold region. The subthreshold current of a transistor is exponential in the gate voltage, rather than polynomial as is the case for above threshold operation, and can span many orders of magnitude. Thus, a system based on this technology can be operated at orders of magnitude lower currents than a digital one. In turn, this means that the device mismatch arising due to imperfections in the fabrication process can have an exponentially larger impact. Fortunately, as our method neither depends on the specific form nor the magnitude of the mismatch, it can handle a wide variety of mismatch conditions.

Figure 2:

A multi-layer neural network implemented with current-mode analog circuits. a) A network is constructed by connecting layers of soma circuits through matrices of synapse circuits. The output of a soma circuit is communicated as a voltage (blue) and passed to a row of synapse circuits, implementing multiplications by scalars. The output of a synapse is a current (orange), such that the outputs of a column of synapses can be summed up by simply connecting them through wires. The summed current is then passed as input to a soma of the next layer, which implements the non-linearity. b) Proposed soma circuit, taking a current as input and providing two output voltages

and , which in the subthreshold region are proportional to the log-transformed, rectified input current. c) Proposed programmable synapse circuit with 3 bit precision, taking voltages and as inputs and providing an output current corresponding to an amplified version of the rectified soma input current, where the gain is set by the digital signals , .

As a demonstration of our framework, a feed-forward network is implemented in which every neuron consists of one soma and multiple synapse circuits, then train it for different classification tasks. As illustrated in Fig. 2a, multiple layers of soma circuits are connected through matrices of synapse circuits. A soma circuit (Fig. 2b) takes a current as input and communicates its output in terms of voltages, which are passed as input signals to a row of synapse circuits. A synapse circuit (Fig. 2c), in turn, provides a current as output, such that the outputs of a column of synapses can be summed up simply by connecting them together. The resulting current is then fed as an input current to the somata of the next layer. The first transistor of the soma circuit rectifies the input current. The remaining elements of the soma circuit, together with a connected synapse circuit, form a set of scaling current mirrors, i.e. rudimentary amplifiers, a subset of which can be switched on or off to achieve a particular weight value by setting the respective synapse configuration bits. Thus, the output of a synapse corresponds to a scaled version of the rectified input current of the soma, similar to the ReLU transfer function. In our proposed example implementation we use signed 3-bit synapses, which are based on current mirrors of different dimensions (3 for positive and 3 for negative values). One of possible weight values is then selected by switching the respective current mirrors on or off. The scaling factor of a particular current mirror, and thus its contribution to the total weight value, is proportional to the ratio of the widths of the two transistors forming it. The weight configuration of an individual synapse can be stored digitally in memory elements that are part of the actual synapse circuit. Thus, in contrast to digital processing systems, our circuit computes in memory and thereby avoids the bottleneck of expensive data transfer between memory and processing elements.

Although this is just one out of many possible analog circuits implementations, the simple circuits chosen offer several advantages besides the fact that they can be implemented in small areas: First, numeric values are conveyed only through current mirrors, and therefore are temperature-independent. Second, most of the fabrication-induced variability is due to the devices in the soma with five consecutive transistors, whereas only one layer of transistors affects the signal in the synapse. This means that the synapse-induced mismatch can be neglected in a first order approximation.

Once an analog electronic neural network has been implemented physically as a VLSI device, the transfer characteristics of the individual soma circuits are obtained through measurements. The transfer function implemented by our circuits can be well described by a rectified linear curve, where the only free parameter is the slope, and thus can be determined from a single measurement per neuron. Specifically, the transfer curves of all neurons in a layer can be measured through a simple procedure: A single neuron in layer is connected, potentially through some intermediate neurons, to the input layer and is defined to be the ‘source’. Similarly, a neuron in layer is connected, potentially through intermediate neurons, to the output layer and is called the ‘monitor’. All neurons of layer can now be probed individually using the source and monitor neurons, whereby the signal to the input layer is held fixed and the signal recorded at the output layer is proportional to the slope of the measured neuron. Note that the absolute scale of the responses is not relevant, i.e. only the relative scale within one layer matters, as the output of individual layers can be scaled arbitrarily without altering the network function. The same procedure can be applied to all layers to obtain a complete characterization of the network. The measurements can be parallelized by defining multiple source and monitor neurons per measurement to probe several neurons in one layer simultaneously, or by introducing additional readout circuitry between layers to measure multiple layers simultaneously.

1.3 Handwritten and spoken digit classification

Large-scale spice simulations of systems consisting of hundreds of thousands of transistors are employed to assess power consumption, processing speed, and the accuracy of such an analog implementation.

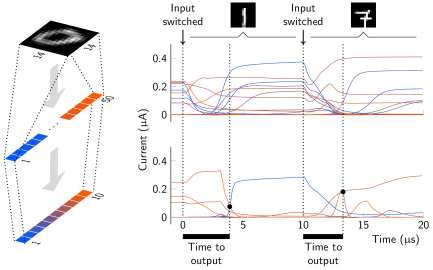

Figure 3: Analog circuit dynamics allow classification within microseconds. The curves represent the activities (currents) of all hidden (top) and output (bottom) units of the network shown on the left. When a new input symbol is presented (top), the circuit converges to its new state within microseconds. Only a few units remain active, while many tend to zero, such that their soma circuits and connected synapses dissipate very little power.

After simulating measurements and parameterizing the transfer characteristics of the circuits as described previously, software networks were trained on the mnist dataset of handwritten digits [30] and the tidigits dataset of spoken digits [31] by means of the adam training method [27]. In order to optimize the network for the use of discrete weights in the synaptic circuits dual-copy rounding [48, 10] was used (see Methods). By evaluating the responses of the simulated circuit on subsets of the respective test sets, its classification accuracy was found to be comparable to the abstract software neural network (see Tab. 1 for comparison). Fig. 3 shows how inputs are processed by a small example circuit implementing a network, containing around 10k synapses and over 100k transistors. Starting with the presentation of an input pattern in the top layer, where currents are proportional to input stimulus intensity, the higher layers react almost instantaneously and provide the correct classification, i.e. the index of the maximally active output unit, within a few microseconds. After a switch of input patterns, the signals quickly propagate through the network and the outputs of different nodes converge to their asymptotic values. The time it takes the circuit to converge to its final output defines the ‘time to output’, constraining the maximum frequency at which input patterns can be presented and evaluated correctly. Measured convergence times are summarized in Fig. 4 for different patterns from the mnist test set, and are found to be in the range of microseconds for a trained network, containing over 25k synapses and around 280k transistors. Note that observed timescale is not fixed as the network can be run faster or slower by changing the input current, while the average energy dissipated per operation remains roughly constant.

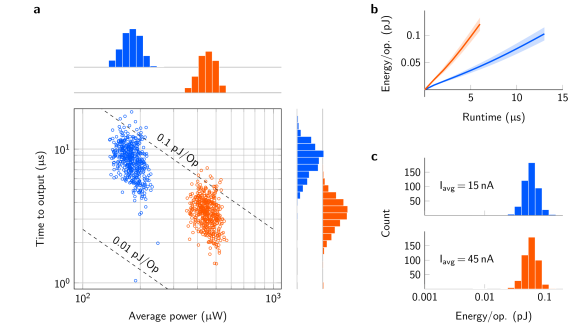

Figure 4: Processing performance of a network for handwritten digit classification. All data shown was generated by presenting 500 different input patterns from the mnist test set to a trained

network with the average input current per input neuron set to 15 nA (blue) or 45 nA (orange), respectively. a) The time to output is plotted against the average power dissipated over the duration of the transient (from start of the input pattern until time to output). The distributions of the data points are indicated by histograms on the sides. Changing the input current causes a shift along the equi-efficiency lines, that is, the network can be run slower or faster at the same efficiency (energy per operation). b) Energy dissipated per operation for different run times, corresponding to different fixed rates at which inputs are presented (mean over 500 samples; standard deviation indicated by shaded areas). c) The average energy consumed per operation was computed from the data shown in a). The data corresponds to the hypothetical case were the network would be stopped as soon as the correct output is reached.

The processing efficiency of the system (energy per operation) was computed for different input patterns by integrating the power dissipated between the time at which the input pattern was switched and the time to output. Fig. 4 shows the processing efficiency for the same network with different input examples and under different operating currents. With the average input currents scaled to either 15 or 45 nA per neuron respectively, the network takes several microseconds to converge and consumes tens or hundreds of microwatts in total, which amounts to a few nanowatts per multiply-accumulate operation. With the supply voltage set to 1.8 V, this corresponds to less than 0.1 pJ per operation in most cases. With the average input current set to 15 nA per neuron, the network produces the correct output within 15 s in over 99 % of all cases (mean 8.5 s; std. 2.3 s). Running the circuit for 15 s requires  pJ per operation, such that about 1.7 trillion multiply-accumulate operations can be computed per second at a power budget of around 200 W if input patterns are presented at a rate of 66 kHz. Without major optimizations to either process or implementation, this leads to an efficiency of around 8 TOp/J, to our knowledge a performance at least four times greater than that achieved by digital single-purpose neural network accelerators in similar scenarios [6, 38]. General purpose digital systems are far behind such specialized systems in terms of efficiency, with the latest GPU generation achieving around 0.05 TOp/J [36].

Tab. 1 summarizes the classification accuracy for different architectures and datasets for a software simulation of an ideal network without mismatch, a behavioral simulation of the inhomogeneous system with the parameterized transfer curves implemented in an abstract software model, and the full circuit simulation of the inhomogeneous hardware network. Additionally, the computed power efficiency is shown for the different architectures.


mnist tidigits
Homogeneous model mean / best accuracy (%) / 98.0 / 93.4
Inhomogeneous model mean / best accuracy (%) / 98.0 / 94.3
spice simulation accuracy (%) 98.0 94.6
Energy-efficiency (TOp/J) 7.97 6.39
Table 1: Classification accuracy and power-efficiency of a network trained on the mnist and tidigits datasets. The classification accuracies of the behavioral models of the ideal as well as the inhomogeneous systems are averaged over 10 networks trained with different initializations. The parameters of the best performing one out of the 10 networks were used in the spice circuit simulations. As detailed circuit simulations are computationally expensive, subsets of the actual test sets were used to compute the classification accuracy of the simulated circuits (the first 500 samples from the mnist test set; 500 random samples from the tidigits test set).

1.4 VLSI implementation

As a closed-loop demonstration of our framework, we designed a prototype VLSI chip and trained it for a classification task. A design based on the circuits shown in Fig. 2, containing three layers of seven neurons each, was fabricated in 180 nm CMOS technology. After characterizing the individual neuron circuits through measurements as described in Sect. 1.2 we trained a network on 80 % of the Iris flower dataset [15]

, programmed the device with the found parameters, and used the remaining 20 % of the data to test the classification performance. The hardware implementation was able to classify 100% of the test data correctly (see Fig.

5e for the output of the network).

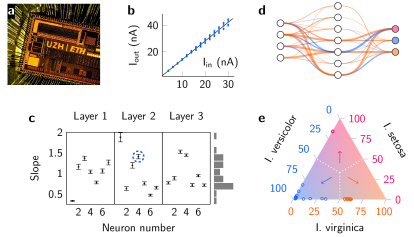

Figure 5: Running a classification task on the prototype VLSI implementation. a) Photograph of the fabricated device. The neural network is a small block at the center of the chip. b) Measurements of a single neuron (blue; corresponding to the marked point in c)) and the line fitted to the measurements (black). c) Measured slopes of all neurons of the prototype device (means and standard deviations; slopes normalized per layer). d) Visualization of the network which was implemented and trained on the Iris flower dataset (positive weights are displayed in orange, negative ones in blue; line thickness corresponds to weight value). e) Correct classification of the test set performed by the programmed chip (responses of the three output neurons normalized to 100 %, displayed in barycentric coordinates; dot color represents the target class).

2 Discussion

The theory of analog neural networks and electronic realizations thereof have a substantial history that goes back to the1950s [43, 1]. However, the demonstrated accuracy of the electronic networks is typically below the theoretical performance and therefore, their full low-power potential was never fully leveraged.

Instead, digital designs have flourished in the interim and almost all current deep network designs are implemented in digital form [6, 7, 38]. Although small transistors are possible in digital implementations, the typical size of a multiplier-accumulator (MAC) block usually means that these implementations use a smaller subset of functional blocks and therefore the use of MACs is time-multiplexed by shifting data around accordingly. As a consequence, the processing speed of digital implementations is limited by their clock frequency.

The simplicity of the analog VLSI circuits needed for addition - namely connecting together wires - allows an explicit implementation of each processing unit or neuron where no element is shared or time-multiplexed within the network implementation. The resulting VLSI network is maximally parallel and eliminates the bottleneck of transferring data between memory and processing elements. Using digital technology, such fully parallel implementations would quickly become prohibitively large due to the much greater circuit complexity of digital processing elements. While the focus in this work has been on an efficient analog VLSI implementation, hardware implementations using new forms of nano devices can also benefit from this training method. For example, the memristive computing technology which is currently being pursued for implementing large-scale cognitive neuromorphic and other technologies still suffers from the mismatch of fabricated devices [2, 26, 41]. The proposed training method in this work can be used to account for device non-idealities in this technology [35].

In fact, any system that can be properly characterized and has configurable elements stands to benefit from this approach. For example, spike-based neuromorphic systems [24] often have configurable weights between neurons. These systems communicate via biologically inspired digital-like pulses called spikes. Similar to the method outlined in this work, the relationship between an input spike rate and an output spike rate of a neuron can be measured in such a system, and the transfer functions then used as a constraint during the training process so as to achieve accurate results from the whole network even if the neuron circuits themselves are varied and non-ideal. In addition to the alternate hardware implementations, other network topologies such as convolutional networks can be trained using this proposed method. However, as all weights are implemented explicitly in silicon, the system design here would not benefit from the small memory footprint achieved via weight sharing in traditional convolutional network implementations. In principle, even recurrent architectures such as LSTM networks [22] can be trained using the same methods, where not only the static properties of the circuit are taken into account but also their dynamics.

With every device requiring an individual training procedure, an open question is how the per-device training time can be reduced. Initializing the network to a pre-trained ideal network, which is then fine-tuned for the particular devices is likely to reduce training time.

In the current setting, the efficiency of our system is limited by the worst-case per-example runtime, i.e. there may be a few samples where outputs require significantly longer to converge to the correct classification result than the majority. This can lead to unnecessarily long presentation times for many samples, thereby causing unnecessary power consumption. Smart methods of estimating presentation times from the input data could e.g. accelerate convergence for slowly converging samples by using higher input currents, and conversely, faster samples could be slowed down to lower the variability of convergence times and overall reduce energy consumption. Future research will focus on such estimators, and alternatively explore ways of reducing convergence time variability during network training.

This proof-of-principle study is an important step towards the construction of large scale, possibly ultra-low-power analog VLSI deep neural network processors, paving the way for specialized applications which had not been feasible before due to speed or power constraints. Small, efficient implementations could allow autonomous systems to achieve almost immediate reaction times under strict power limitations. Scaled-up versions can allow for substantially more efficient processing in data centers, allowing for a greatly reduced energy footprint or permitting substantially more data to be effectively processed. Conversely, digital approaches and GPU technology are aiming for general purpose deep network acceleration, and thus naturally have an advantage in terms of flexibility compared to the fixed physical implementation of the proposed analog devices. However, there is increasing evidence that neural networks pre-trained on large datasets such as ImageNet provide excellent generic feature detectors

[13, 42], which means that fast and efficient analog input pre-processors could be used as an important building blocks for a large variety of applications.
