Pre-training Graph Neural Networks

05/29/2019 ∙ by Weihua Hu, et al. ∙ Stanford University 23

Many applications of machine learning in science and medicine, including molecular property and protein function prediction, can be cast as problems of predicting some properties of graphs, where having good graph representations is critical. However, two key challenges in these domains are (1) extreme scarcity of labeled data due to expensive lab experiments, and (2) needing to extrapolate to test graphs that are structurally different from those seen during training. In this paper, we explore pre-training to address both of these challenges. In particular, working with Graph Neural Networks (GNNs) for representation learning of graphs, we wish to obtain node representations that (1) capture similarity of nodes' network neighborhood structure, (2) can be composed to give accurate graph-level representations, and (3) capture domain-knowledge. To achieve these goals, we propose a series of methods to pre-train GNNs at both the node-level and the graph-level, using both unlabeled data and labeled data from related auxiliary supervised tasks. We perform extensive evaluation on two applications, molecular property and protein function prediction. We observe that performing only graph-level supervised pre-training often leads to marginal performance gain or even can worsen the performance compared to non-pre-trained models. On the other hand, effectively combining both node- and graph-level pre-training techniques significantly improves generalization to out-of-distribution graphs, consistently outperforming non-pre-trained GNNs across 8 datasets in molecular property prediction (resp. 40 tasks in protein function prediction), with the average ROC-AUC improvement of 7.2



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Many problems in scientific domains, such as chemistry and biology, can be cast as the prediction of some property of a graph. For example, in chemistry, predicting chemical properties such as toxicity of molecules is important to accelerate drug discovery, where molecules are naturally represented by molecular graphs (duvenaud2015convolutional, ; kearnes2016molecular, ; gilmer2017neural, ; jin2017predicting, ; wu2018moleculenet, ; yang2019learned, ). In biology, identifying the functionality of proteins is important to find proteins that associate with a certain disease, where proteins are represented by local protein-protein interaction (PPI) graphs (Yang2014egonet, ; Yan2017detecting, )

. Supervised learning of graphs, especially with Graph Neural Networks (GNNs)

(kipf2016semi, ; hamilton2017inductive, ; ying2018hierarchical, ; xu2018how, ), has shown promising results in these domains (zitnik2018modeling, ; yang2019learned, ; gilmer2017neural, ; you2018graph, ).

Despite the promise, there remain two key challenges in applying GNNs to these scientific domains: (1) the extreme scarcity of labeled data, and (2) out-of-distribution prediction, where the graphs in the training set can have very different structural properties from those in the test set. First, task-specific data labeling is a costly and time consuming procedure typically performed in wet lab environments. Consequently, conventional GNNs can easily overfit to the small training datasets. Second, many scientific applications naturally involve out-of-distribution prediction. For example, one may want to predict chemical properties of newly-synthesized molecules which are often structurally different from the training molecules, or one may want to predict functionality of proteins from a new species that has different PPI network structure than previously studied species. Unfortunately, deep learning models are known to be extremely poor at out-of-distribution prediction

(jia2017adversarial, ; hendrycks2019using, ).

One promising approach to address the above two challenges is to pre-train GNNs using large amounts of easily-accessible unlabeled data as well as relatively easily-accessible labeled data that comes from related auxiliary tasks. For example, to perform a variety of downstream molecular property prediction tasks (e.g., predicting toxicity or enzyme binding), one could use large amounts of easily-accessible molecule data to pre-train a model to capture chemistry domain knowledge, such as valency and chemical properties of different functional groups. Afterwards, very little hard-to-obtain labeled data would be needed to specialize the pre-trained model to the given downstream prediction task. Beyond its benefit of increasing data efficiency, pre-training could also improve predictive performance in out-of-distribution samples (hendrycks2019using, ). Therefore, pre-training could provide an attractive solution to the above two challenges. However, currently there exists no systematic investigation of potential strategies for pre-training GNNs and their effectiveness. In fact, as we see in our experiments, naïve pre-training of GNNs can often only give marginal increase in generalization performance on downstream tasks, and sometimes even worsen the performance compared to non-pre-trained models.

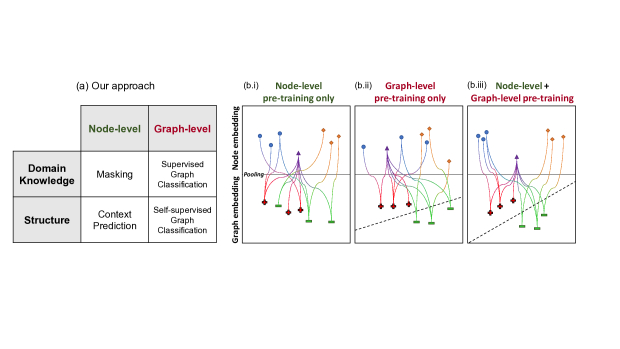

Figure 1: (a) Categorization of the pre-training methods for GNNs. Crucially, our methods, i.e., Context Prediction, Masking, and graph-level supervised pre-training, cover both node-level and graph-level pre-training. (b) Node and graph embeddings obtained by different pre-training strategies. (b.i) When only node-level pre-training is used, nodes of different shapes (semantically different nodes) can be well separated, however, the node embeddings are not composable, and thus resulting graph embeddings (denoted by their classes, and ) that are created by pooling embeddings of individual nodes are not separable. (b.ii) With graph-level pre-training only, graph embeddings are well separated, however the embeddings of individual nodes do not necessarily capture their domain-specific semantics. (b.iii) High-quality node embeddings are such that nodes of different types are well separated, while at the same time, the embedding space is also composable. This allows for accurate and robust representations of entire graphs, which allows robust transfer of pre-trained models to a variety of downstream tasks.

In this paper, we examine effective pre-training approaches to graph representation learning using GNNs. Our key observation is that GNNs obtain a representation of an entire graph by combining the following two steps (gilmer2017neural, ): (1) recursively aggregating neighboring information to obtain low-dimensional node embeddings that capture neighborhood structure, and (2) pooling/composing node embeddings to obtain a representation of the entire graph. Based on this observation, our goals for pre-training GNNs are to produce node embeddings that:

  1. capture structural similarity of nodes’ network neighborhoods.

  2. are composable so that node embeddings can be pooled into an accurate graph-level representation.

  3. capture domain-knowledge at the level of individual nodes and entire graphs.

Our approach to achieve these goals, which we briefly summarize below, is categorized in Figure 1 (a). Importantly, we aim to pre-train GNNs both at the level of individual nodes as well as entire graphs, which provides composability of embeddings as it builds a bridge between local node embeddings and the global graph embeddings, as illustrated in Figure 1 (b.iii). This is in contrast to naïve approaches to pre-train GNNs, i.e., either only apply an (off-the-shelf) unsupervised node representation learning technique, as illustrated in Figure 1 (b.i), or only perform supervised pre-training to predict auxillary properties of entire graphs, as illustrated in Figure 1 (b.ii).

Context Prediction. Most of the existing off-the-shelf unsupervised node representation learning methods are designed for node classification (grover2016node2vec, ; perozzi2014deepwalk, ; tang2015line, ; hamilton2017inductive, ; kipf2016variational, ; velivckovic2018deep, ) and enforce nearby nodes to have similar embeddings. This is not suited for representation learning of an entire graph, where capturing the structural similarity of local neighborhoods is more important (you2019position, ; ecfp2010, ; Yang2014egonet, ). To learn node embeddings that capture local graph structure, we introduce Context Prediction, which is a novel self-supervised node-level pre-training method that applies the distributional hypothesis (rubenstein1965contextual, ; mikolov2013distributed, ) to the graph domain. In particular, we use node embeddings to predict surrounding graph structure, so nodes that have similar surrounding graph structure will be mapped into similar representations.

Masking. To learn node embeddings that capture domain knowledge, we propose a novel self-supervised node-level pre-training method called Masking. In Masking, we randomly mask input node/edge attributes and let GNNs predict the masked attributes from the surrounding structure. For example, in the chemistry application, we can use node embeddings to predict atom types of masked atoms, as illustrated in Figure 2 (b). This forces the model to capture chemistry domain knowledge, such as valency and the electronic or steric properties of functional groups (mcmurry2010fundamentals, ).

Graph-level Prediction. To learn composable node embeddings that are useful for downstream tasks, we can either perform (1) supervised graph-level pre-training on domain-specific auxiliary tasks, or (2) self-supervised pre-training to predict structural properties of the graphs. Here, to directly encode domain knowledge into graph embeddings, we take the first approach and combine our novel Context Prediction and Masking methods with graph-level supervised pre-training. This ensures that individual node embeddings are easily composed to obtain domain-specific representations of an entire graph, as illustrated in Figure 1 (b.iii).

We extensively evaluate the above pre-training methods and their combinations (one from node-level and another from graph-level) on two scientific applications of graph classification: molecular property prediction in chemistry, and protein function prediction in biology. First, on many downstream tasks, performing only graph-level supervised pre-training gives marginal performance gain or sometimes even worsen the generalization performance compared to a non-pre-trained model. This phenomenon is referred to as negative transfer (pan2009survey, ; rosenstein2005transfer, ), which poses a significant problem when deploying pre-trained models to real world applications, and has been previously observed for multi-task learning of molecular property prediction tasks (ramsundar2015massively, ; ramsundar2017multitask, ; xu2017demystifying, ; kearnes2016modeling, ). When our node-level self-supervised pre-training is combined with the graph-level supervised pre-training, negative transfer is completely avoided across all the 8 downstream datasets of molecular prediction and all the 40 downstream tasks of protein function prediction; thus, robustly transferable pre-trained models are achieved. Furthermore, on these downstream tasks, GNNs pre-trained with such combined strategies achieve significantly better out-of-distribution generalization performance than GNNs pretrained with a single type of (or no) pre-training method. Specifically, on molecular property (resp. protein function) prediction tasks, our combined pre-training methods give 7.2% (resp. 11.7%) higher average ROC-AUC scores compared to the non-pre-trained GNNs, 4.1% (resp. 6.1%) higher average ROC-AUC scores compared to GNNs pre-trained only with graph-level supervised auxillary tasks, and 3.1% (resp. 9.8%) higher average ROC-AUC scores compared to GNNs pre-trained only with node-level self-supervised tasks.

2 Preliminaries on Graph Neural Networks

We begin by formalizing the task of supervised learning of graphs, and review the basic components of GNNs (gilmer2017neural, ). Then, we review existing methods for unsupervised representation learning on graphs.

Supervised learning of graphs. Let

denote a graph with node feature vectors

for and edge feature vectors for . Given a set of graphs { , …, } and their labels {, …, }, the task of graph supervised learning is to learn a representation vector that helps predict the label of an entire graph, .

Graph Neural Networks (GNNs). GNNs use the graph structure as well as node features and edge features to learn a representation vector of a node, , and of the entire graph . Modern GNNs follow a neighborhood aggregation strategy, where we iteratively update the representation of a node by aggregating representations of its neighboring nodes and edges (gilmer2017neural, ). After iterations of aggregation, a node’s representation captures the structural information within its -hop network neighborhood. Formally, the -th layer of a GNN is


where is the feature vector of node at the -th iteration/layer, is the feature vector of the edge between and , and is a set of nodes adjacent to . We initialize .

To obtain the entire graph’s representation , the READOUT function pools node features from the final iteration ,


READOUT can be a simple permutation invariant function such as averaging or a more sophisticated graph-level pooling function (ying2018hierarchical, ; zhang2018end, ).

Unsupervised node representation learning. There is abundant literature in unsupervised representation learning of nodes

within graphs, which can be broadly classified into two frameworks. The first framework is based on random walk-based objectives

(grover2016node2vec, ; perozzi2014deepwalk, ; tang2015line, ) or is further simplified to reconstruct adjacency information (hamilton2017inductive, ; kipf2016variational, ), i.e., predicting existence of edges. The second framework is Deep Graph Infomax (velivckovic2018deep, ), which aims to train a node encoder that maximizes mutual information between node representations and the pooled global graph representation. These frameworks are originally proposed and evaluated for node classification and link prediction tasks, and encourage nearby nodes to have similar embeddings. This, however, can be sub-optimal for graph-level prediction tasks, where capturing structural similarity of local neighborhood is often more important (you2019position, ; ecfp2010, ; Yang2014egonet, ).

3 Strategies for pre-training Graph Neural Networks

Our aim of pre-training GNNs is to generate node embeddings that (1) capture structural similarities of neighborhood structure, (2) are composable to give accurate representations of the entire graph, and (3) capture domain knowledge. We achieve these goals by our methods categorized in Figure 1 (a), which we detail in the following.

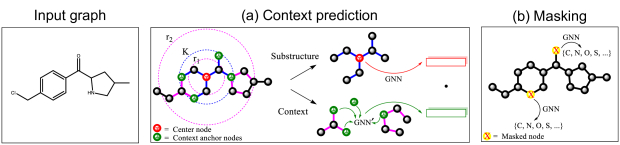

Figure 2: Illustration of Context Prediction and Masking for pre-training GNNs. (a) In Context Prediction, the substructure is defined as a -hop subgraph around a selected center node, where is the number of GNN layers and is set to 2 in the figure. The context is defined as the surrounding subgraph that is between - and -hop from the center node, where we use and in the figure. (b) In Masking, the input node/edge attributes are randomly masked, and the GNN is asked to predict them.

3.1 Context Prediction: Learning node embeddings to capture local graph structure

One successful hypothesis in NLP is the distributional hypothesis (rubenstein1965contextual, ), which states that words with similar meaning occur in similar contexts. Word2vec is a successful application of this hypothesis (mikolov2013distributed, ), which obtains word embeddings by using them to predict context words. Here the context words are simply defined as surrounding words in the same sentence. To pre-train GNNs, we apply this hypothesis to the complex graph domain. Here two challenges arise: (1) how to define “words” and “contexts” in the graph domain, and (2) how to represent the contexts in the prediction problem. In the following, we address these challenges.

Words and contexts in graph domain. To define the analogy of words in the graph domain, we note that the final node embedding obtained by GNNs encode the -hop subgraph structure centered at node . Therefore, if we use the node embeddings to predict context, the analogy of words in the graph domain would be the -hop subgraph centered at each node, which is depicted as “substructure” in Figure 2 (a). Analogously, the context can be defined as the graph structure surrounding the -hop subgraph, i.e., the subgraph that is between - and -hop from the center node, depicted as “context” in Figure 2 (a). We require so that some nodes are shared between substructure and context, and we call these shared nodes context anchor nodes.

Encoding context into a fixed vector using another GNN. Unlike NLP, context in the graph domain is a structured object, which is non-trivial as a prediction target. Here to enable such prediction, we encode the structured object as a fixed-length vector using another GNN with learnable parameters. This allows us to apply the framework of negative sampling in word2vec (mikolov2013distributed, ) to predict context represented as a vector. To obtain the vector for context, as depicted in Fig. 2 (a), we first apply the context GNN (denoted as GNN in Fig. 2 (a)) to obtain node embeddings in the context graph. We then average the embeddings across the context anchor nodes to obtain the fixed-length context embedding. For node in graph , we denote the corresponding context embedding as .

Learning via negative sampling. We apply negative sampling (mikolov2013distributed, ; ying2018graph, ) to learn the two GNNs jointly: one for encoding the substructure to obtain node embedding , and another for encoding the context to obtain context embedding for node from graph . Specifically, our learning objective is binary classification of whether a given substructure context pair is true (positive) or false (negative):



is the sigmoid function, and

is the indicator function. We either let and (for the positive substructure context pair), or randomly sample from a randomly chosen graph

(for the negative substructure context pair). We use the negative sampling ratio of 1 (one negative pair per positive pair), and use the negative log likelihood as the loss function. After training, we expect the first GNN to map substructures with similar surrounding contexts to similar vectors in the embedding space.

It should be noted that similar intuition has been explored in the literature (narayanan2016subgraph2vec, ; jaeger2018mol2vec, ; zhou2018learning, ). However, crucially, all of these methods use distinct embeddings for different substructures/contexts without any parameter sharing; thus, they are inherently not inductive, cannot be fine-tuned in an end-to-end manner, and cannot capture large and diverse substructures/contexts due to data sparsity. All of these issues can be elegantly handled by our framework using GNNs. It should be also noted that our way of applying distributional hypothesis to the graph domain is fundamentally different from existing unsupervised node representation learning methods based on random walks (grover2016node2vec, ; perozzi2014deepwalk, ), which define context as surrounding nodes, not surrounding structure. Consequently, the existing methods capture positional information of nodes within a graph, rather than their neighboring structure information.

3.2 Masking: Learning node embeddings to capture domain knowledge

A different approach to pre-train GNNs would be to design a node-level self-supervised task so that by performing the task, the pre-trained GNNs can uncover domain-specific principles hidden in data.

In NLP, BERT pre-trained models have achieved impressive performance on a wide range of downstream tasks (devlin2018bert, ). At the core of BERT is the masked language model, which is a self-supervised prediction task to encourage the model to capture useful domain knowledge about language.

Here, for graph structured data, we propose to mask domain-specific attributes associated with nodes or edges, and let GNNs predict those attributes based on neighboring structure. Figure 2 (b) illustrates our proposed method for the node masking case applied to a molecular graph. We mask input node/edge attributes, for example atom type, by replacing them with special masked indicators. We then apply GNNs to obtain the corresponding node/edge embeddings (we get edge embeddings by simply summing the embeddings of its two end-nodes). Finally, we use a linear model on top of the embeddings to predict the masked node/edge attributes.

We use Masking to learn meaningful neighboring structure that reflects domain-specific knowledge. For example, we can apply Masking on molecular graphs, as shown in Figure 2 (b), so that GNNs can learn simple chemistry rules such as valency, as well as potentially more complex chemistry phenomenon such as the electronic or steric properties of functional groups. Another interesting application of our Masking is PPI networks with multiple edge types, each of which indicates a different kind of interaction between a pair of proteins. Here, predicting masked edge types based on neighboring structure enables GNNs to learn how different edge types relate and interact with each other.

3.3 Graph-level Prediction: Learning composable node embeddings

Having obtained node embeddings that capture the graph structure and/or domain knowledge, we then pre-train GNNs to generate node embeddings that can be effectively composed to obtain meaningful representations of an entire graph. As illustrated in Figure 1 (b.iii), this ensures both node and graph embeddings are of high-quality; thus, the graph embeddings are more robust and transferable to diverse downstream tasks.

As shown in Figure 1 (a), there are two options possible for graph-level pre-training: learn composable embeddings either (1) by making predictions on domain-specific auxiliary supervised tasks, or, (2) by performing self-supervised prediction on graph-level structure, e.g., graph edit distance (bai2019unsupervised, ) or graph structure similarity (navarin2018pre, ). As the graph-level representations will be directly used for fine-tuning on downstream graph-level prediction tasks, it is desirable to directly encode domain-specific information into the graph embeddings. Therefore, we focus on the first approach and introduce domain-specific tasks for graph-level supervised pre-training of GNNs, which we detail in Section 4.

4 Experiments

In this section, we evaluate GNN pre-training methods in Section 3 on two important scientific applications of graph classification, namely, molecular property prediction in chemistry, and protein function prediction in biology. We find that (1) naïvely performing only node-level self-supervised pre-training or only graph-level supervised pre-training is not enough to achieve robust performance gain over non-pre-trained models across diverse downstream tasks, but that (2) the combination of both node-level and graph-level pre-training methods can significantly and consistently improve out-of-distribution generalization performance on diverse downstream tasks.

Chemical/Biological graphs. In chemistry, molecules can be represented by chemical graphs composed of atoms (nodes) and chemical bonds (edges). We use 8 binary classification datasets from MoleculeNet (wu2018moleculenet, ) as our downstream tasks (some datasets contain multiple prediction tasks), whose statistics are summarized in Table 1 and details are provided in Appendix B. Most of our chemical graphs contain around 10 to 30 nodes corresponding to heavy (non-hydrogen) atoms. In biology, PPI networks can be represented by biological graphs composed of proteins (unlabeled nodes) and PPI relationships (edges with 7 categorical attributes indicating different types of interactions between proteins). PPI network subgraphs centered at a protein of interest (i.e., ego-networks) are used to predict their biological functions. We define fine-grained protein functions as Gene Ontology (GO) annotations that are leaves in the GO hierarchy, and define coarse-grained protein functions as GO annotations that are the immediate parents of leaves (ashburner2000gene, ; gene2018gene, ). For example, a fine-grained protein function is “Factor XII activation”, while a coarse-grained function is “positive regulation of protein”. The former is a specific type of the latter, and is much harder to derive experimentally. As downstream tasks, we perform binary classification on 40 fine-grained protein functions; therefore, we have 40 prediction tasks. The number of graphs is 88K derived from PPI networks of 8 labelled species, and the average graph size is 49 nodes with 365 edges. Additional details about the datasets, and the features of the molecule and protein graphs can be found in Appendix B and C.

Pre-training datasets. For pre-training with molecular graphs, we use 2 million unlabeled molecules sampled from the ZINC15 database (sterling2015, ) for the self-supervised pre-training, and use a preprocessed ChEMBL dataset (mayr2018large, ; gaulton2011chembl, ), containing 456K molecules with 1310 kinds of binary biochemical assays, for the graph-level supervised pre-training. For pre-training with protein graphs, we use 395K unlabeled protein ego-networks derived from PPI networks of 50 species for the self-supervised pre-training, and use the 88K protein ego-networks to jointly predict their 5000 coarse-grained protein function labels for the graph-level supervised pre-training.

Dataset splitting. In many scientific applications of machine learning, conventional random split is overly optimistic and does not simulate the real-world use case, where test graphs can be structurally different from training graphs (wu2018moleculenet, ; Zitnik2019, ). To relect the actual use case, we split the downstream data in the following ways to evaluate the models’ out-of-distribution generalization performance.

For molecular prediction tasks, following (Ramsundar-et-al-2019, ), we cluster molecules by graph substructure (bemis1996, ), and recombine the clusters by placing the most common scaffolds (molecular substructures) in the training set, producing validation and test sets that contain structurally different molecules. Prior work has shown that this scaffold split

provides a more realistic estimate of model performance in prospective evaluation compared to random split

(chen2012, ; sheridan2013, ). The split for train/validation/test sets is 80%:10%:10%.

In the PPI network, species split simulates a scenario where we have only high-level coarse-grained knowledge on a subset of proteins (prior set) in a species of interest (human in our experiments), and want to predict fine-grained biological functions for the rest of the proteins in that species (test set). For species split, we use 50% of the protein subgraphs from human as test set, and 50% as a prior set containing only coarse-grained protein annotations. The protein subgraphs from 7 other labelled species (arabidopsis, celegans, ecoli, fly, mouse, yeast, zebrafish) are used as train and validation sets, which are split 85% : 15%. The effective split ratio for the train/validation/prior/test sets is 69% : 12% : 9.5% : 9.5%.

All the chemical/biological test graphs that are used for downstream test evaluation are removed from the graph-level supervised pre-training datasets; thus, during the supervised pre-training in our PPI experiments, we only use train/validation/prior graphs to predict their coarse-grained protein labels.

GNN architectures. Throughout the experiments, we use the Graph Isomorphism Network (GIN) (xu2018how, ). We select the following hyper-parameters that performed well across all downstream tasks in the validation sets: 300 dimensional hidden units, 5 GNN layers (

), Batch Normalization

(ioffe2015batch, ) and dropout (srivastava2014dropout, ) at each layer, and average pooling for the READOUT function. All models are trained with Adam optimizer (kingma2014adam, )

with a learning rate of 0.001. We use Pytorch

(paszke2017automatic, ) and Pytorch Geometric (fey2019fast, ) for all of our implementation. Additional details can be found in Appendix A.

Pre-training procedure. For Context Prediction illustrated in Figure 2 (a), on molecular graphs, we define context graphs by setting inner radius , and on PPI networks, we use . For both molecular and PPI graphs, we let outer radius , and use a 3-layer GNN to encode the context structure. For Masking shown in Figure 2

(b), we randomly mask 15% of node (for molecular graphs) or edge attributes (for PPI networks) for prediction. We run all pre-training methods for 100 epochs. As baselines for node-level self-supervised pre-training, we adopt the original Edge Prediction (denoted by EdgePred)

(hamilton2017inductive, ) and Deep Graph Infomax (denoted by Infomax) (velivckovic2018deep, ) implementations. For self-supervised pre-training, we use a batch size of 256, while for supervised pre-training, we use batch size of 32 with dropout rate of 20%. We combine node-level self-supervised pre-training and graph-level supervised pre-training by first performing the node-level pre-training, and subsequently performing the graph-level pre-training.

Fine-tuning procedure. After pre-training, models are fine-tuned using the training sets of the downstream task datasets. We apply randomly-initialized linear classifiers on top of the graph-level representations to predict labels in the downstream tasks. We fine-tune the entire models with a batch size of 32 and dropout rate of 50%. Datasets with multiple prediction tasks are fit jointly. On the molecular property prediction datasets, we train models for 100 epochs, while on the protein function prediction dataset (with the 40 binary prediction tasks), we train models for 50 epochs.

Evaluation. We evaluate test performance on downstream tasks using ROC-AUC (bradley1997use, ) with the validation early stopping protocol, i.e.

, test ROC-AUC at the best validation epoch is reported. For datasets with multiple prediction tasks, we take the average ROC-AUC across all their tasks. The downstream experiments are run with 10 random seeds, and we report mean ROC-AUC and standard deviation.

Results and discussion. We report the test results for molecular property prediction and protein function prediction in Table 1 and Figure 3, respectively. We observe the following trends across datasets/tasks and domains:

  1. When only graph-level supervised pre-training is performed, we observe negative transfer in many downstream datasets/tasks (2 out of 8 datasets in molecular prediction, and 12 out of 40 tasks in protein function prediction. See the shaded cells of Table 1, and the highlighted region in the middle panel of Figure 3). Such negative transfer is completely avoided when node-level self-supervised pre-training is combined with graph-level supervised pre-training. This indicates that appropriate node-level pre-training can regularize GNNs to learn robust and transferable graph-level representations during graph-level supervised pre-training, as illustrated in Figure 1 (b.iii).

  2. Combining the node- and graph-level pre-training methods gives significantly better generalization performance than only performing a single type of (or no) pre-training method.

  3. Our proposed node-level self-supervised pre-training methods (Masking and Context Prediction) give particularly promising results compared with existing methods (Edge Prediction and Infomax), especially when combined with graph-level supervised pre-training.

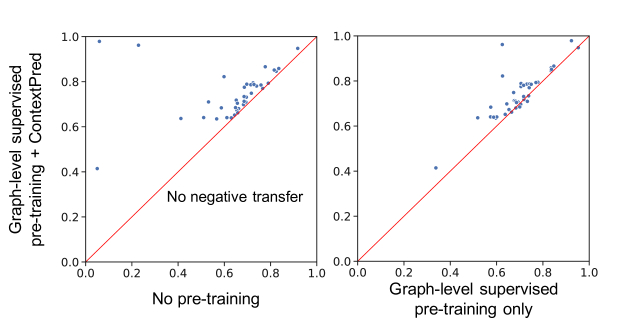

  4. In the molecular property prediction, as shown in Table 1, our Context Prediction + graph-level supervised pre-training strategy gives the most promising performance, leading to an increase in average ROC-AUC of 7.2% over the non-pre-trained baseline and 4.2% over the graph-level supervised pre-trained baseline.

  5. In the protein function prediction, as seen in Figure 3, our Masking + graph-level supervised pre-training strategy gives superior generalization performance compared to the other baselines across almost all the 40 individual prediction tasks, improving average ROC-AUC by 11.7% over the non-pre-trained baseline and 6.1% over the graph-level supervised pre-trained baseline.

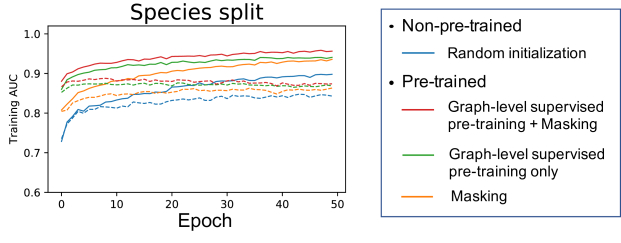

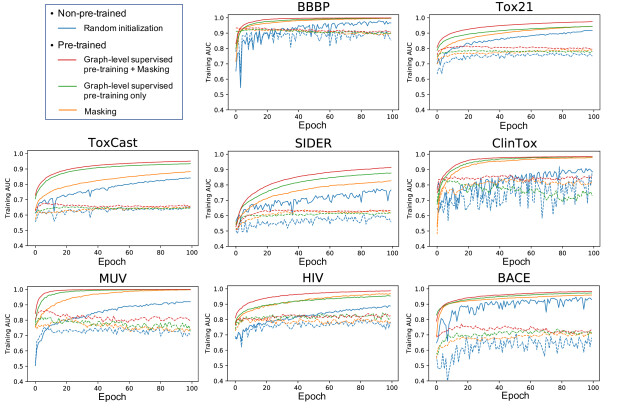

  6. Finally, at the fine-tuning stage, our pre-trained models achieve significantly faster training convergence than the non-pre-trained model across all downstream datasets (see Figures 4 and 5 in Appendix D). One possible explanation is that the pre-trained GNNs learn discriminative graph features in the process of performing pre-training tasks, which makes training on downstream tasks easier than starting from scratch.

Dataset BBBP Tox21 ToxCast SIDER ClinTox MUV HIV BACE Average
# Molecules 2039 7831 8575 1427 1478 93087 41127 1513 /
# Prediction tasks 1 12 617 27 2 17 1 1 /
Pre-training strategy Out-of-distribution prediction (scaffold split)
Graph-level Node-level
None None 65.8 4.5 74.0 0.8 63.4 0.6 57.3 1.6 58.0 4.4 71.8 2.5 75.3 1.9 70.1 5.4 67.0
None Infomax 68.8 0.8 75.3 0.5 62.7 0.4 58.4 0.8 69.9 3.0 75.3 2.5 76.0 0.7 75.9 1.6 70.3
None EdgePred 67.3 2.4 76.0 0.6 64.1 0.6 60.4 0.7 64.1 3.7 74.1 2.1 76.3 1.0 79.9 0.9 70.3
None Masking 64.3 2.8 76.7 0.4 64.2 0.5 61.0 0.7 71.8 4.1 74.7 1.4 77.2 1.1 79.3 1.6 71.1
None ContextPred 68.0 2.0 75.7 0.7 63.9 0.6 60.9 0.6 65.9 3.8 75.8 1.7 77.3 1.0 79.6 1.2 70.9
Supervised None 68.3 0.7 77.0 0.3 64.4 0.4 62.1 0.5 57.2 2.5 79.4 1.3 74.4 1.2 76.9 1.0 70.0
Supervised Infomax 68.0 1.8 77.8 0.3 64.9 0.7 60.9 0.6 71.2 2.8 81.3 1.4 77.8 0.9 80.1 0.9 72.8
Supervised EdgePred 66.6 2.2 78.3 0.3 66.5 0.3 63.3 0.9 70.9 4.6 78.5 2.4 77.5 0.8 79.1 3.7 72.6
Supervised Masking 66.5 2.5 77.9 0.4 65.1 0.3 63.9 0.9 73.7 2.8 81.2 1.9 77.1 1.2 80.3 0.9 73.2
Supervised ContextPred 68.7 1.3 78.1 0.6 65.7 0.6 62.7 0.8 72.6 1.5 81.3 2.1 79.9 0.7 84.5 0.7 74.2
Table 1: Test ROC-AUC (%) performance on molecular prediction benchmarks with different pre-training strategies. The rightmost column averages the mean of test performance across the 8 datasets. The best result for each dataset and the comparable results that are within one standard deviation from the best ones are bolded. The shaded cells indicate negative transfer, i.e., ROC-AUC of pre-trained models is worse than that of the non-pre-trained models.

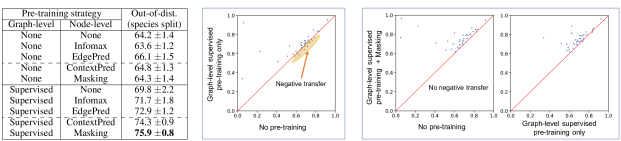

Figure 3: Test ROC-AUC of protein function prediction. (Left) Test ROC-AUC scores (%) obtained by different pre-training strategies, where the scores are averaged over the 40 fine-grained prediction tasks. (Middle and right): Each figure represents a scatter plot comparison of ROC-AUC scores for a pair of pre-training strategies on the 40 individual downstream tasks. Each point in a figure represents a particular individual downstream task. (Middle): We see that there are many individual downstream tasks where the graph-level supervised pre-trained model performs worse than the non-pre-trained model, which indicates negative transfer. (Right): When the graph-level supervised pre-training and our Masking are combined, the negative transfer is completely avoided across all the 40 individual downstream tasks.

5 Conclusion

In this paper, on a variety of downstream tasks in the scientific domains, we demonstrate that pre-training can significantly and consistently increase the out-of-distribution generalization capabilities of GNNs. Crucially, to achieve this, the node-level and graph-level pre-training methods need to be effectively combined, which ensures that the node embeddings capture neighborhood semantics and can be pooled to obtain a representation of an entire graph useful for a variety of downstream tasks. Otherwise, we observe negative transfer in many downstream tasks, which significantly limits the applicability and reliability of pre-trained GNNs. Overall, we believe pre-training is a promising approach to close the gap of applying GNNs to real-world scientific problems.


We thank Camilo Ruiz, Rex Ying, Zhenqin Wu, Shantao Li, Srijan Kumar, Hongwei Wang, and Robin Jia for their helpful discussion. W.H is supported by Funai Overseas Scholarship. J.L is a Chan Zuckerberg Biohub investigator. This research has been supported in part by NSF OAC-1835598, DARPA MCS, DARPA ASED, ARO MURI, Boeing, Docomo, Hitachi, Huawei, JD, Siemens, and Stanford Data Science Initiative. The Pande Group acknowledges the generous support of Dr. Anders G. Frøseth and Mr. Christian Sundt for our work on machine learning. The Pande Group is broadly supported by grants from the NIH (R01 GM062868 and U19 AI109662) as well as gift funds and contributions from Folding@home donors.

V.S.P is a consultant & SAB member of Schrodinger, LLC and Globavir, sits on the Board of Directors of Apeel Inc, Asimov Inc, BioAge Labs, Ciitizen, Devoted Health, Freenome Inc, Omada Health, Patient Ping, Rigetti Computing, and is a General Partner at Andreessen Horowitz.
