1 Introduction

Stereo matching consists in matching every point from an image taken from one viewpoint to its physically corresponding one in the image taken from another viewpoint. The problem has applications in robotics Menze and Geiger (2015), medical imaging Nam et al. (2012), remote sensing Shean et al. (2016), virtual reality and 3D graphics and computational photography Wang et al. (2016); Barron et al. (2015).

Recent developments in the field have been focused on stereo for hard / uncontrolled environments (wide-baseline, low-lighting, complex lighting, blurry, foggy, non-lambertian) Verleysen and De Vleeschouwer (2016); Jeon et al. (2016); Chen et al. (2015); Galun et al. (2015); QUeau et al. (2017), usage of high-order priors and cues Hadfield and Bowden (2015); Güney and Geiger (2015); Kim and Kim (2016); Li et al. (2016); Ulusoy et al. (2017)

, and data-driven, and in particular, deep neural network based, methods

Park and Yoon (2015); Chen et al. (2015); Žbontar and LeCun (2015); Zbontar and LeCun (2016); Luo et al. (2016); Tulyakov et al. (2017); Seki and Pollefeys (2017); Knöbelreiter et al. (2017); Shaked and Wolf (2017); Gidaris and Komodakis (2017); Kendall et al. (2017); Mayer et al. (2016); Pang et al. (2017); Chang and Chen (2018); Liang et al. (2018); Zhong et al. (2017). This work improves on this latter line of research.

Method Params Memory 3EP MAE Modify.
[M] [GB] [%] [px] Disp.
PDS (proposed) 2.2 0.4 3.38 1.12
PSM Chang and Chen (2018) 5.2 0.6 n/a 1.09
CRL Pang et al. (2017) 78 0.2 6.20 1.32
iResNet-i2 Liang et al. (2018) 43 0.2 4.57 1.40
DispNetCorr1D Mayer et al. (2016) 42 0.1 n/a 1.68
LRCR Jie et al. (2018) 30 9.0 8.67 2.02
GC Kendall et al. (2017) 3.5 4.5 9.34 2.02
Table 1: Number of parameters, inference memory footprint, 3-pixels-error (3PE) and mean-absolute-error on FlyingThings3D ( with disparities). DispNetCorr1D Mayer et al. (2016), CRL Pang et al. (2017), iResNet-i2 Liang et al. (2018) and LRCR Jie et al. (2018) predict disparities as classes and are consequently over-parameterized. GC Kendall et al. (2017) omits an explicit correlation step, which results in a large memory usage during inference. Our PDS has a small number of parameters and memory footprint, the smallest 3PE and second smallest MAE, and it is the only method able to handle different disparity ranges without re-training. Note that we follow the protocol of PSM Chang and Chen (2018), and calculate the errors only for ground truth pixel with disparity . Inference memory footprints are our theoretical estimates based on network structures and do not include memory required for storing networks’ parameters (real memory footprint will depend on implementation). Error rates and numbers of parameters are taken from the respective publications.

The first successes of neural networks for stereo matching were achieved by substitution of hand-crafted similarity measures with deep metrics Chen et al. (2015); Žbontar and LeCun (2015); Zbontar and LeCun (2016); Luo et al. (2016); Tulyakov et al. (2017) inside a legacy stereo pipeline for the post-processing (often Mei et al. (2011)). Besides deep metrics, neural networks were also used in other subtasks such as predicting a smoothness penalty in a CRF model from a local intensity pattern Seki and Pollefeys (2017); Knöbelreiter et al. (2017). In Shaked and Wolf (2017) a “global disparity” network smooth the matching cost volume and predicts matching confidences, and in Gidaris and Komodakis (2017) a network detects and fixes incorrect disparities.

End-to-end deep stereo. Recent works attempt at solving stereo matching using neural network trained end-to-end without post-processing Dosovitskiy et al. (2015); Mayer et al. (2016); Kendall et al. (2017); Zhong et al. (2017); Pang et al. (2017); Jie et al. (2018); Liang et al. (2018); Chang and Chen (2018). Such a network is typically a pipeline composed of embedding, matching, regularization and refinement modules:

The embedding module produces image descriptors for left and right images, and the (non-parametric) matching module performs an explicit correlation between shifted descriptors to compute a cost volume for every disparity Dosovitskiy et al. (2015); Mayer et al. (2016); Pang et al. (2017); Jie et al. (2018); Liang et al. (2018). This matching module may be absent, and concatenated left-right descriptors directly fed to the regularization module Kendall et al. (2017); Chang and Chen (2018); Zhong et al. (2017). This strategy uses more context, but the deep network implementing such a module has a larger memory footprint as shown in Table 1. In this work we reduce memory use without sacrificing accuracy by introducing a matching module that compresses concatenated left-right image descriptors into compact matching signatures.

The regularization module takes the cost volume, or the concatenation of descriptors, regularizes it, and outputs either disparities Mayer et al. (2016); Dosovitskiy et al. (2015); Pang et al. (2017); Liang et al. (2018) or a distribution over disparities Kendall et al. (2017); Zhong et al. (2017); Jie et al. (2018); Chang and Chen (2018). In the latter case, sub-pixel disparities can be computed as a weighted average with SoftArgmin, which is sensitive to erroneous minor modes in the inferred distribution.

This regularization module is usually implemented as a hourglass deep network with shortcut connections between the contracting and the expanding parts Mayer et al. (2016); Dosovitskiy et al. (2015); Pang et al. (2017); Kendall et al. (2017); Zhong et al. (2017); Chang and Chen (2018); Liang et al. (2018). It composed of 2D convolutions and not treat all disparities symmetrically in some models Mayer et al. (2016); Dosovitskiy et al. (2015); Pang et al. (2017); Liang et al. (2018), which makes the network over-parametrized and prohibits the change of the disparity range without modification of its structure and re-training. Or it can use 3D convolutions that treat all disparities symmetrically Kendall et al. (2017); Zhong et al. (2017); Jie et al. (2018); Chang and Chen (2018). As a consequence these networks have less parameters, but their disparity range is still is non-adjustable without re-training due to SoftArgmin as we show in § 3.3

. In this work, we propose to use a novel sup-pixel MAP approximation for inference which computes a weighted mean around the disparity with maximum posterior probability. It is more robust to erroneous modes in the distribution and allows to modify the disparity range without re-training.

Finally, some methods Pang et al. (2017); Liang et al. (2018); Jie et al. (2018) also have a refinement module, that refines the initial low-resolution disparity relying on attention map, computed as left-right warping error. The training of end-to-end networks is usually performed in fully supervised manner (except of Zhong et al. (2017)).

All described methods Dosovitskiy et al. (2015); Mayer et al. (2016); Kendall et al. (2017); Zhong et al. (2017); Pang et al. (2017); Jie et al. (2018); Liang et al. (2018); Chang and Chen (2018) use modest-size image patches during training. In this work, we show that training on a full-size images boosts networks ability to utilize large context and improves its accuracy. Also, the methods, even the ones producing disparity distribution, rely on loss, since it allows to train network to produce sub-pixel disparities. We, instead propose to use more “natural” sub-pixel cross-entropy loss that ensures faster converges and better accuracy.

Our contributions can be summarize as follows:

  1. We decrease the memory footprint by introducing a novel bottleneck matching module. It compresses the concatenated left-right image descriptors into compact matching signatures, which are then concatenated and fed to the hourglass network we use as regularization module, instead of the concatenated descriptors themselves as in Kendall et al. (2017); Chang and Chen (2018). Reduced memory footprint allows to process larger images and to train on a full-size images, that boosts networks ability to utilize large context.

  2. Instead of computing the posterior mean of the disparity and training with a vanilla penalty Chang and Chen (2018); Jie et al. (2018); Zhong et al. (2017); Kendall et al. (2017)

    we propose for inference a sub-pixel MAP approximation that computes a weighted mean around the disparity with maximum posterior probability, which is robust to erroneous modes in the disparity distribution and allows to modify the disparity range without re-training. For training we similarly introduce a sub-pixel criterion by combining the standard cross-entropy with a kernel interpolation, which provides faster convergence rates and higher accuracy.

In the experimental section, we validate our contributions. In § 3.2 we show how the reduced memory footprint allows to train on full-size images and to leverage large image contexts to improve performance. In § 3.3 we demonstrate that, thanks to the proposed sub-pixel MAP and cross-entropy, we are able to modify the disparity range without re-training, and to improve the matching accuracy. Than, in § 3.4 we compare our method to state-of-the-art baselines and show that it has smallest 3-pixels error (3PE) and second smallest mean absolute error (MAE) on the FlyingThings3D set and ranked third and fourth on KITTI’15 and KITTI’12 sets respectively.

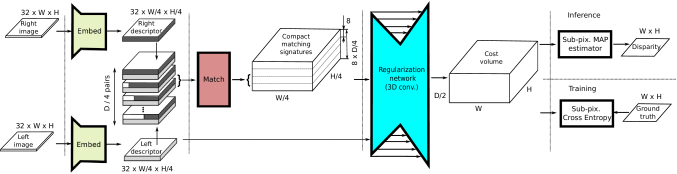

Figure 1: Network structure and processing flow during training and inference. Input / output quantities are outlined with thin lines, while processing modules are drawn with thick ones. Following the vocabulary introduced in § 1, the yellow shapes are embedding modules, the red rectangle the matching module and the blue shape the the regularization module. The matching module is a contribution of our work, as in previous methods Kendall et al. (2017); Chang and Chen (2018) left and shifted right descriptors are directly fed to the regularization

module (hourglass network). Note that the concatenated compact matching signature tensor is a 4D tensor represented here as 3D by combining the feature indexes and disparities along the vertical axis.

2 Method

2.1 Network structure

Our network takes as input the left and right color images of size and produces a “cost tensor” of size , where are the model’s parameters, an is the maximum disparity.

The computed cost tensor is such that is the cost of matching the pixel in the left image to the pixel in the right image, which is equivalent to assigning the disparity to the left image pixel.

This cost tensor can then be converted into an a posterior probability tensor as

The overall structure of the network and processing flow during training and inference are shown in Figure 1, and we can summarize for clarity the input/output to and from each of the modules:

  • The embedding module takes as input a color image , and computes an image descriptor .

  • The matching module takes as input, for each disparity , a left and a (shifted) right image descriptor both , and computes a compact matching signature . This module is unique to our network and described in details in § 2.2.

  • The regularization

    module is a hourglass 3D convolution neural network with shortcut connections between the contracting and the expanding parts. It takes a tensor composed of concatenated compact matching signatures for all disparities of size

    , and computes a matching cost tensor of size .

Additional information such as convolution filter size or channel numbers is provided in the Supplementary materials.

According to the taxonomy in Scharstein and Szeliski (2001) all traditional stereo matching methods consist of (1) matching cost computation, (2) cost aggregation, (3) optimization, and (4) disparity refinement steps. In the proposed network, the embedding and the matching modules are roughly responsible for the step (1) and the regularization module for the steps (2-4).

Besides the matching module, there are several other design choices that reduce test and training memory footprint of our network. In contrast to Kendall et al. (2017) we use aggressive four-times sub-sampling in the embedding module, and the hourglass DNN we use for regularization module produces probabilities only for even disparities. Also, after each convolution and transposed convolution in our network we place Instance Normalization (IN) Ulyanov et al. (2016)

instead of Batch Normalization (BN) as show in the Supplementary materials, since we use individual full-size images during training.

2.2 Matching module

The core of state-of-the-art methods Kendall et al. (2017); Zhong et al. (2017); Jie et al. (2018); Chang and Chen (2018) is the 3D convolutions Hourglass network used as regularization module, that takes as input a tensor composed of concatenated left-right image descriptor for all possible disparity values. The size of this tensor makes such networks have a huge memory footprint during inference.

We decrease the memory usage by implementing a novel matching with a DNN with a “bottleneck” architecture. This module compresses the concatenated left-right image descriptors into a compact matching signature for each disparity, and the results is then concatenated and fed to the Hourglass module. This contrasts with existing methods, which directly feed the concatenated descriptors Kendall et al. (2017); Zhong et al. (2017); Jie et al. (2018); Chang and Chen (2018).

This module is inspired by CRL Pang et al. (2017) and DispNetCorr1D Pang et al. (2017); Mayer et al. (2016) which control the memory footprint (as shown in Table 1 by feeding correlation results instead of concatenated embeddings to the Hourglass network and by Zagoruyko and Komodakis (2015) that show superior performance of joint left-right image embedding. We also borrowed some ideas from the bottleneck module in ResNet He et al. (2016), since it also encourages compressed intermediate representations.

2.3 Sub-pixel MAP

In state-of-the-art methods, a network produces an posterior disparity distribution and then use a SoftArgmin module Kendall et al. (2017); Zhong et al. (2017); Jie et al. (2018); Chang and Chen (2018), introduced in Kendall et al. (2017), to compute the predicted sub-pixel disparity as an expectation of this distribution:

This SoftArgmin approximates a sub-pixel maximum a posteriori (MAP) solution when the distribution is unimodal and symmetric. However, as illustrated in Figure 3, this strategy suffers from two key weaknesses: First, when these assumptions are not fulfilled, for instance if the posterior is multi-modal, this averaging blends the modes and produces a disparity estimate far from all of them. Second, if we want to apply the model to a greater disparity range without re-training, the estimate may degrade even more due to additional modes.

(a) (b)
Figure 2: Comparison the proposed Sub-pixel MAP with the standard SoftArgmin: (a) in presence of a multi-modal distribution SoftArgmin blends all the modes and produces an incorrect disparity estimate. (b) when the disparity range is extended (blue area), SoftArgmin estimate may degrade due to additional modes.
Figure 3: Target distribution of sub-pixel cross-entropy is a discretized Laplace distribution centered at sub-pixel ground-truth disparity.

The authors of Kendall et al. (2017) argue that when the network is trained with the SoftArgmin, it adapts to it during learning by rescaling its output values to make the distribution unimodal. However, the network learns rescaling only for disparity range used during training. If we decide to change the disparity range during the test, we will have to re-train the network.

To address both of these drawbacks, we propose to use for inference a sub-pixel MAP approximation that computes a weighted mean around the disparity with maximum posterior probability as


with a meta-parameter (in our experiments we choose based on small scale grid search experiment on the validation set). The approximation works under assumption that the distribution is symmetric in a vicinity of a major mode.

In contrast to the SoftArgmin, the proposed sup-pixel MAP is used only for inference. During training we use the posterior disparity distribution and the sub-pixel cross-entropy loss discussed in the next section.

2.4 Sub-pixel cross-entropy

Many methods use the loss Chang and Chen (2018); Jie et al. (2018); Zhong et al. (2017); Kendall et al. (2017), even though the “natural” choice for the network that produces the posterior distribution is a cross-entropy. The loss is often selected because it empirically Kendall et al. (2017) performs better than cross-entropy, and because when it is combined with SoftArgmin, it allows to train a network with sub-pixel ground truth.

In this work, we propose a novel sub-pixel cross-entropy that provides faster convergence and better accuracy. The target distribution of our cross-entropy loss is a discretized Laplace distribution centered at the ground-truth disparity , shown in Figure 3 and computed as

where is a diversity of the Laplace distribution (in our experiments we set , reasoning that the distribution should reasonably cover at least several discrete disparities). With this target distribution we compute cross-entropy as usual


The proposed sub-pixel cross-entropy is different from soft cross entropy Luo et al. (2016), since in our case probability in each discrete location of the target distribution is a smooth function of a distance to the sub-pixel ground-truth. This allows to train the network to produce a distribution from which we can compute sub-pixel disparities using our sub-pixel MAP.

3 Experiments

Our experiments are done with the PyTorch framework

PyTorch . We initialize weights and biases of the network using default PyTorch initialization and train the network as shown in Table 2

. During the training we normalize training patches to zero mean and unit variance. The optimization is performed with the RMSprop method with standard settings.

FlyingThings3D KITTI
Mode from scratch fine-tune
Lr. schedule for 120k, half every 20k for 50k, half every 20k
Iter. # 160k 100k
Tr. image size full-size
Max disparity 255 255
Augmentation not used mixUp Zhang et al. (2018), anisotropic zoom, random crop
Table 2: Summary of training settings for every dataset.

We guarantee reproducibility of all experiments in this section by using only available data-sets, and making our code available online under open-source license after publication.

3.1 Datasets and performance measures

We used three data-sets for our experiments: KITTI’12 Geiger et al. (2012) and KITTI’15 Menze and Geiger (2015), that we combined into a KITTI set, and FlyingThings3D Mayer et al. (2016) summarized in Table 3. KITTI’12, KITTI’15 sets have online scoreboards KITTY .

The FlyingThings3D set suffers from two problems: (1) as noticed in Pang et al. (2017); Zhang et al. (2018), some images have very large (up to ) or negative disparities; (2) some images are rendered with black dots artifacts. For the training we use only images without artifacts and with disparities .

We noticed that this is dealt with in some previous publications by processing the test set using the ground truth for benchmarking, without mentioning it. Such pre-processing may consist of ignoring pixels with disparity  Chang and Chen (2018), or discarding images with more than of pixels with disparity  Pang et al. (2017); Liang et al. (2018). Although this is not commendable, for the sake of comparison we followed the same protocol as Chang and Chen (2018) which is the method the closest to ours in term of performance. In all other experiments we use the unaltered test set.

We make validation sets by withholding 500 images from the FlyingThings3D training set, and 58 from the KITTI training set, respectively.

Dataset Test # Train # Size Max disp. Ground truth Web score
KITTI 395 395 192 (230) sparse, px.
FlyingThings3D 4370 25756 192 (6773) dense , unknown
Table 3: Datasets used for experiments. During benchmarking, we follow previous works and use maximum disparity, that is different from absolute maximum for the datasets, provided between parentheses.

We measure the performance of the network using two standard measures: (1) 3-pixel-error (3PE), which is the percentage of pixels for which the predicted disparity is off by more than pixels, and (2) mean-absolute-error (MAE)

, the average difference of the predicted disparity and the ground truth. Note, that 3PE and MAE are complimentary, since 3PE characterize error robust to outliers, while MAE accounts for sub-pixel error.

3.2 Training on full-size images

Train size Test size 3PE, [] MAE, [px]
8.63 4.18
5.28 3.55
4.50 3.40
Table 4: Error of the proposed PDS network on FlyingThings3d set as a function of training patch size. The network trained on full-size images (highlighted), outperforms the network trained on small image patches. Note, that in this experiment we used SoftArgmin with loss during training.

In this section we show the effectiveness of training on full-size images. For that we train our network till convergence on FlyingThings3D dataset with the loss and SoftArgmin twice, the first time we use training patches randomly cropped from the training images as in Kendall et al. (2017); Chang and Chen (2018), and the second time we used full-size training images. Note, that the latter is possible thanks to the small memory footprint of our network.

As seen in Table 4, the network trained on small patches, performs better on larger than on smaller test images. This suggests, that even the network that has not seen full-size images during training can utilize a larger context. As expected, the network trained on full-size images makes better use of the said context, and performs significantly better.

3.3 Sub-pixel MAP and cross-entropy

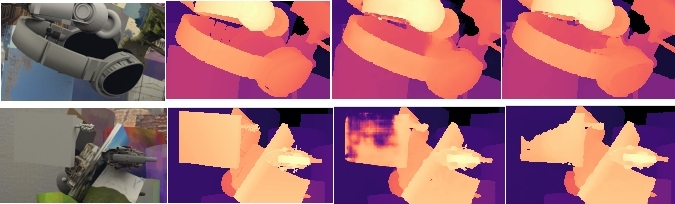

Figure 4: Example of disparity estimation errors with the SoftArgmin and sup-pixel MAP on FlyingThings3d set. The first column shows image, the second – ground truth disparity, the third – SoftArgmin estimate and the fourth sub-pixel MAP estimate. Note that SoftArgmin estimate, though completely wrong, is closer to the ground truth than sub-pixel MAP estimate. This can explain larger MAE of the sub-pixel MAP estimate.

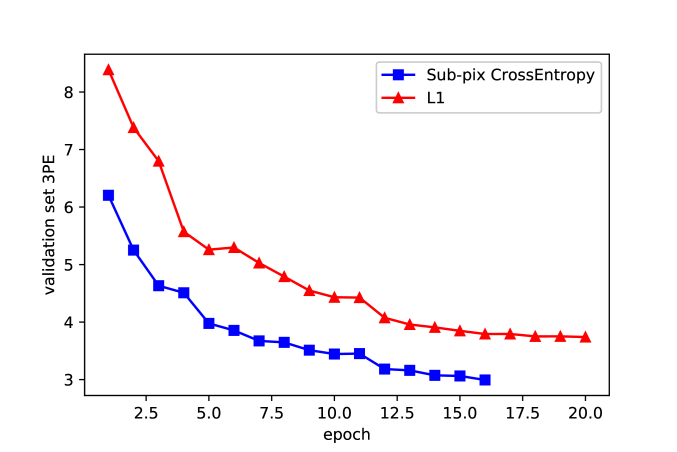

Figure 5: Comparison of the convergence speed on FlyingThings3d set with sub-pixel cross entropy and loss. Note that with the proposed sub-pixel cross-entropy loss (blue) network converges faster.

In this section, we firstly show the advantages of the sub-pixel MAP over the SoftArgmin. We train the our PDS network till convergence on FlyingThings3D with SoftArgmin, loss and full-size training images and then test it twice: the first time with SoftArgmin for inference, and the second time with our sub-pixel MAP for inference instead.

As shown in Table 5, the substitution leads to the reduction of the 3PE and slight increase of the MAE. The latter probably happens because in the erroneous area SoftArgmin estimate are completely wrong, but nevertheless closer to the ground truth since it blends all distribution modes, as shown in Figure 5.

Loss Estimator 3PE, [] MAE, [px]
Standard disparity range
 + SoftArgmin SoftArgmin 4.50 3.40
 + SoftArgmin Sub-pixel MAP 4.22 3.42
Sub-pixel cross-entropy. Sub-pixel MAP 3.80 3.63
Increased disparity range
 + SoftArgmin SoftArgmin 5.20 3.81
 + SoftArgmin Sub-pixel MAP 4.27 3.53
Table 5: Performance of the sub-pixel MAP estimator and cross-entropy loss on FlyingThings3d set. Note, that: (1) if we substitute SoftArgmin with sub-pixel MAP during the test we get lower 3PE and similar MAE; (2) if we increase disparity range twice MAE and 3PE of the network with sub-pixel MAP almost does not change, while errors of the network with SoftArgmin increase; (3) if we train network with with sub-pixel cross entropy it has much lower 3PE and only slightly worse MAE.

When we test the same network with the disparity range increased from 255 to 511 pixels the performance of the network with the SoftArgmin plummets, while performance of the network with sub-pixel MAP remains almost the same as shown in Table 5. This shows that with Sub-pixel MAP we can modify the disparity range of the network on-the-fly, without re-training.

Next, we train the network with the sub-pixel cross-entropy loss and compare it to the network trained with SoftArgmin and the loss. As show in Table 5, the former network has much smaller 3PE and only slightly larger MAE. The convergence speed with sub-pixel cross-entropy is also much faster than with loss as shown in Figure 5. Interestingly, in Kendall et al. (2017) also reports faster convergence with one-hot cross-entropy than with loss, but contrary to our results, they found that provided smaller 3PE.

3.4 Benchmarking

In this section we show the effectiveness of our method, compared to the state-of-the-art methods. For KITTI, we computed disparity maps for the test sets with withheld ground truth, and uploaded the results to the evaluation web site. For the FlyingThings3D set we evaluated performance on the test set ourselves, following the protocol of Chang and Chen (2018) as explained in § 3.1.

FlyingThings3D set benchmarking results are shown in Table 1. Notably, the method we propose has lowest 3PE error and second lowest MAE. Moreover, in contrast to other methods, our method has small memory footprint, number of parameters, and it allows to change the disparity range without re-training.

KITTI’12, KITTI’15 benchmarking results are shown in Table 6. The method we propose ranks third on KITTI’15 set and fourth on KITTI’12 set, taking into account state-of-the-art results published a few months ago or not officially published yet iResNet-i2 Liang et al. (2018), PSMNet Chang and Chen (2018) and LRCR Jie et al. (2018) methods.

# dd/mm/yy Method 3PE (all pixels), [%] Time, [s]
1 30/12/17 PSMNet Chang and Chen (2018) 2.16 0.4
2 18/03/18 iResNet-i2 Liang et al. (2018) 2.44 0.12
3 15/05/18 PSN (proposed) 2.58 0.5
4 24/03/17 CRL Pang et al. (2017) 2.67 0.47
5 27/01/17 GC-NET Kendall et al. (2017) 2.87 0.9
6 15/11/17 LRCR Jie et al. (2018) 3.03 49
7 15/11/16 DRR Gidaris and Komodakis (2017) 3.16 0.4
8 08/11/17 SsSMnet Zhong et al. (2017) 3.40 0.8
9 15/12/16 L-ResMatch Shaked and Wolf (2017) 3.42 48
10 26/10/15 Displets v2 Güney and Geiger (2015) 3.43 265
# dd/mm/yy Method 3PE (non-occluded), [%] Time, [s]
1 31/12/17 PSMNet Chang and Chen (2018) 1.49 0.4
2 23/11/17 iResNet-i2 Liang et al. (2018) 1.71 0.12
3 27/01/17 GC-NET Kendall et al. (2017) 1.77 0.9
4 15/05/18 PSN (proposed) 1.92 0.5
5 15/12/16 L-ResMatch Shaked and Wolf (2017) 2.27 48
6 11/09/16 CNNF+SGM Zhang and Wah (2018) 2.28 71
7 15/12/16 SGM-NET Seki and Pollefeys (2017) 2.29 67
8 08/11/17 SsSMnet Zhong et al. (2017) 2.30 0.8
9 27/04/16 PBCP Seki and Pollefeys (2016) 2.36 68
10 26/10/15 Displets v2 Güney and Geiger (2015) 2.37 265
Table 6: KITTI’15 (top) and KITTI’12 (bottom) snapshots from 15/05/2018 with top-10 methods, including published in a recent months on not officially published yet: iResNet-i2 Liang et al. (2018), PSMNet Chang and Chen (2018) and LRCR Jie et al. (2018). Our method (highlighted) is 3rd in KITTI’15 and 4th in KITTI’12 leader boards.

4 Conclusion

In this work we addressed two issues precluding the use of deep networks for stereo matching in many practical situations in spite of their excellent accuracy: their large memory footprint, and the inability to adjust to a different disparity range without complete re-training.

We showed that by carefully revising conventionally used networks architecture to control the memory footprint and adapt analytically the network to the disparity range, and by using a new loss and estimator to cope with multi-modal posterior and sub-pixel accuracy, it is possible to resolve these practical issues and reach state-of-the-art performance.


  • Barron et al. [2015] Jonathan T Barron, Andrew Adams, YiChang Shih, and Carlos Hernández. Fast bilateral-space stereo for synthetic defocus. In CVPR, 2015.
  • Chang and Chen [2018] Jia-Ren Chang and Yong-Sheng Chen. Pyramid stereo matching network. CoRR, 2018.
  • Chen et al. [2015] Zhuoyuan Chen, Xun Sun, and Liang Wang. A Deep Visual Correspondence Embedding Model for Stereo Matching Costs. ICCV, 2015.
  • Dosovitskiy et al. [2015] Alexey Dosovitskiy, Philipp Fischer, Eddy Ilg, Philip Hausser, Caner Hazirbas, Vladimir Golkov, Patrick van der Smagt, Daniel Cremers, and Thomas Brox. Flownet: Learning optical flow with convolutional networks. In CVPR, 2015.
  • Galun et al. [2015] Meirav Galun, Tal Amir, Tal Hassner, Ronen Basri, and Yaron Lipman. Wide baseline stereo matching with convex bounded distortion constraints. In ICCV, 2015.
  • Geiger et al. [2012] Andreas Geiger, Philip Lenz, and Raquel Urtasun. Are we ready for autonomous driving? the kitti vision benchmark suite. In CVPR, 2012.
  • Gidaris and Komodakis [2017] Spyros Gidaris and Nikos Komodakis. Detect, replace, refine: Deep structured prediction for pixel wise labeling. CVPR, 2017.
  • Güney and Geiger [2015] Fatma Güney and Andreas Geiger. Displets: Resolving Stereo Ambiguities using Object Knowledge. CVPR, 2015.
  • Hadfield and Bowden [2015] Simon Hadfield and Richard Bowden. Exploiting high level scene cues in stereo reconstruction. In ICCV, 2015.
  • He et al. [2016] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, 2016.
  • Jeon et al. [2016] Hae-Gon Jeon, Joon-Young Lee, Sunghoon Im, Hyowon Ha, and In So Kweon. Stereo matching with color and monochrome cameras in low-light conditions. In CVPR, 2016.
  • Jie et al. [2018] Zequn Jie, Pengfei Wang, Yonggen Ling, Bo Zhao, Yunchao Wei, Jiashi Feng, and Wei Liu. Left-right comparative recurrent model for stereo matching. In CVPR, 2018.
  • Kendall et al. [2017] Alex Kendall, Hayk Martirosyan, Saumitro Dasgupta, Peter Henry, Ryan Kennedy, Abraham Bachrach, and Adam Bry. End-to-end learning of geometry and context for deep stereo regression. ICCV, 2017.
  • Kim and Kim [2016] K. R. Kim and C. S. Kim. Adaptive smoothness constraints for efficient stereo matching using texture and edge information. In ICIP, 2016.
  • [15] KITTY. Kitti stereo scoreboards. Accessed: 05 May 2018.
  • Knöbelreiter et al. [2017] Patrick Knöbelreiter, Christian Reinbacher, Alexander Shekhovtsov, and Thomas Pock. End-to-end training of hybrid cnn-crf models for stereo. CVPR, 2017.
  • Li et al. [2016] Ang Li, Dapeng Chen, Yuanliu Liu, and Zejian Yuan. Coordinating multiple disparity proposals for stereo computation. In CVPR, 2016.
  • Liang et al. [2018] Zhengfa Liang, Yiliu Feng, Yulan Guo Hengzhu Liu Wei Chen, and Linbo Qiao Li Zhou Jianfeng Zhang. Learning for disparity estimation through feature constancy. CoRR, 2018.
  • Luo et al. [2016] Wenjie Luo, Alexander G Schwing, and Raquel Urtasun. Efficient deep learning for stereo matching. In CVPR, 2016.
  • Mayer et al. [2016] Nikolaus Mayer, Eddy Ilg, Philip Hausser, Philipp Fischer, Daniel Cremers, Alexey Dosovitskiy, and Thomas Brox. A large dataset to train convolutional networks for disparity, optical flow, and scene flow estimation. In CVPR, 2016.
  • Mei et al. [2011] Xing Mei, Xun Sun, Mingcai Zhou, Shaohui Jiao, Haitao Wang, and Xiaopeng Zhang. On building an accurate stereo matching system on graphics hardware. In ICCV Workshops, 2011.
  • Menze and Geiger [2015] Moritz Menze and Andreas Geiger. Object scene flow for autonomous vehicles. In CVPR, 2015.
  • Nam et al. [2012] Kyoung Won Nam, Jeongyun Park, In Young Kim, and Kwang Gi Kim. Application of stereo-imaging technology to medical field. Healthcare informatics research, 2012.
  • Pang et al. [2017] Jiahao Pang, Wenxiu Sun, JS Ren, Chengxi Yang, and Qiong Yan. Cascade residual learning: A two-stage convolutional neural network for stereo matching. In ICCVW, 2017.
  • Park and Yoon [2015] Min-Gyu Park and Kuk-Jin Yoon. Leveraging stereo matching with learning-based confidence measures. In CVPR, 2015.
  • [26] PyTorch. Pytorch web site. http:// Accessed: 05 May 2018.
  • QUeau et al. [2017] Yvain QUeau, Tao Wu, François Lauze, Jean-Denis Durou, and Daniel Cremers. A non-convex variational approach to photometric stereo under inaccurate lighting. In CVPR, 2017.
  • Scharstein and Szeliski [2001] Daniel Scharstein and Richard Szeliski. A Taxonomy and Evaluation of Dense Two-Frame Stereo Correspondence Algorithms. IJCV, 2001.
  • Seki and Pollefeys [2016] Akihito Seki and Marc Pollefeys. Patch based confidence prediction for dense disparity map. In BMVC, 2016.
  • Seki and Pollefeys [2017] Akihito Seki and Marc Pollefeys. Sgm-nets: Semi-global matching with neural networks. 2017.
  • Shaked and Wolf [2017] Amit Shaked and Lior Wolf. Improved stereo matching with constant highway networks and reflective confidence learning. CVPR, 2017.
  • Shean et al. [2016] David E Shean, Oleg Alexandrov, Zachary M Moratto, Benjamin E Smith, Ian R Joughin, Claire Porter, and Paul Morin. An automated, open-source pipeline for mass production of digital elevation models (DEMs) from very-high-resolution commercial stereo satellite imagery. {ISPRS}, 2016.
  • Tulyakov et al. [2017] S. Tulyakov, A. Ivanov, and F. Fleuret.

    Weakly supervised learning of deep metrics for stereo reconstruction.

    In ICCV, 2017.
  • Ulusoy et al. [2017] Ali Osman Ulusoy, Michael J Black, and Andreas Geiger. Semantic multi-view stereo: Jointly estimating objects and voxels. In CVPR, 2017.
  • Ulyanov et al. [2016] Dmitry Ulyanov, Andrea Vedaldi, and Victor S. Lempitsky. Instance normalization: The missing ingredient for fast stylization. CoRR, 2016.
  • Verleysen and De Vleeschouwer [2016] Cedric Verleysen and Christophe De Vleeschouwer. Piecewise-planar 3d approximation from wide-baseline stereo. In CVPR, 2016.
  • Wang et al. [2016] Ting-Chun Wang, Manohar Srikanth, and Ravi Ramamoorthi. Depth from semi-calibrated stereo and defocus. In CVPR, 2016.
  • Zagoruyko and Komodakis [2015] Sergey Zagoruyko and Nikos Komodakis. Learning to compare image patches via convolutional neural networks. 2015.
  • Žbontar and LeCun [2015] Jure Žbontar and Yann LeCun. Computing the Stereo Matching Cost With a Convolutional Neural Network. CVPR, 2015.
  • Zbontar and LeCun [2016] Jure Zbontar and Yann LeCun. Stereo matching by training a convolutional neural network to compare image patches. JMLR, 2016.
  • Zhang and Wah [2018] F. Zhang and B. W. Wah. Fundamental principles on learning new features for effective dense matching. IEEE Transactions on Image Processing, 27(2):822–836, Feb 2018. ISSN 1057-7149. doi: 10.1109/TIP.2017.2752370.
  • Zhang et al. [2018] Hongyi Zhang, Moustapha Cisse, Yann N. Dauphin, and David Lopez-Paz. mixup: Beyond empirical risk minimization. In International Conference on Learning Representations, 2018.
  • Zhong et al. [2017] Yiran Zhong, Yuchao Dai, and Hongdong Li. Self-supervised learning for stereo matching with self-improving ability. CoRR, 2017.
