Power packet transferability via symbol propagation matrix

08/08/2017 ∙ by Shinya Nawata, et al. ∙ 0

Power packet is a unit of electric power transferred by a power pulse with an information tag. In Shannon's information theory, messages are represented by symbol sequences in a digitized manner. Referring to this formulation, we define symbols in power packetization as a minimum unit of power transferred by a tagged pulse. Here, power is digitized and quantized. In this paper, we consider packetized power in networks for a finite duration, giving symbols and their energies to the networks. A network structure is defined using a graph whose nodes represent routers, sources, and destinations. First, we introduce symbol propagation matrix (SPM) in which symbols are transferred at links during unit times. Packetized power is described as a network flow in a spatio-temporal structure. Then, we study the problem of selecting an SPM in terms of transferability, that is, the possibility to represent given energies at sources and destinations during the finite duration. To select an SPM, we consider a network flow problem of packetized power. The problem is formulated as an M-convex submodular flow problem which is known as generalization of the minimum cost flow problem and solvable. Finally, through examples, we verify that this formulation provides reasonable packetized power.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Electric power has been considered as a continuous flow based on circuit theory, in which power flow is governed by Kirchhoff laws and Tellegen’s theorem [1]. The circuit theory can be generalized to represent various nonlinear complex systems in the system topology with energy dissipation and energy storage as network thermodynamics [2]. Here, energy flow is handled in a continuous manner under the conservation of energy. On the other hand, it is shown in Shannon’s information theory [3] that “all technical communications are essentially digital; more precisely, that all technical communications are equivalent to the generation, transmission, and reception, of random binary digits” [4]. Communication networks have been developed in a digitized manner by utilizing packet switching, which breaks messages into smaller pieces named “packets”, for dynamic assignment of network resources [5]. If we handle electric power in a digitized manner, power distribution will be changed completely different from the conventional. In this paper, we consider electrical energy networks in which power is digitized and quantized through power packetization [6, 7, 8, 9, 10, 11, 12, 13, 14].

The concept of power packet was proposed in 1990s to manage complicated power flows in power systems caused by various power transactions after deregulation [15]. In the proposal, electric energy routers, which include energy storage devices, were installed into the electrical energy networks. The router manipulates its own storage device according to the flow control data transferred with the power packet so as to compensate for the difference between the generation schedule and the demand schedule. Referring to this work, power packet transactions were proposed for an electric power distribution system [16]. He et al. proposed an electric power architecture, rooted in lessons learned from the Internet and microgrids, to produce a grid network designed for distributed renewable energy, prevalent energy storage, and stable autonomous systems [17]. “Energy packet networks” were also proposed to provide energy on demand to Cloud Computing servers [18]. There is a proposal for controllable-delivery power grid in which electrical power is delivered through discrete power levels directly to customers [19]. In the physical layer, a universal power router is designed and evaluated for residential applications [20]. On the other hand, in most of these proposals, electric energy and information are separately transferred or the physical design is not mentioned. It has been difficult to realize the practical hardware to deal with electric power in the same way as information, because energy has been transferred with high-power and low-frequency electricity while information has been transferred with low-power and high-frequency electricity. For ensuring consistency between the physical layer and the logical layer, the synchrony between energy and information is crucial for managing power.

Recently, wide-bandgap power semiconductors, such as Silicon Carbide (SiC) and Gallium Nitride (GaN), have shown material properties enabling power device operation at potentially higher temperatures, voltages, and switching speeds than the current Si technology [21, 22]. High-speed gate drive circuits have been developed to achieve high frequency switching over 1 MHz [23, 24]. This work enables us to handle high-power and high-frequency electricity, and moreover, to digitize power with power packetization [6, 8, 9]. In the developed system, an information tag is directly and physically attached to each packet with its voltage waveform. In this way, energy and information are integrated at an individual packet level. A schematic of the power packet dispatching network is shown in Fig. 1. The system consists of network lines and routers which stores and forwards power packets according to the tag’s information. In the network, the information tag identifies different kinds of power due to different sources, destinations, voltages, control commands, and so on. When we send the power packets using time-division multiplexing, it becomes possible to distinguish the power at each line by using the information tag as an index. The router has multiple storage units to identify the different kinds of power flow. Here, power is given by the density of power packets between routers [13, 10, 14].

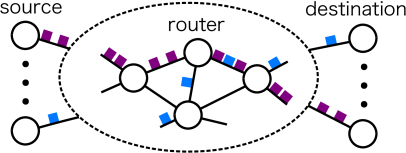

Figure 1: A schematic of power packet dispatching network.
