1 Introduction

Imagine a robot that needs to interact with a new type of object not belonging to any pre-defined category, such as a newly manufactured object in a workshop. Using existing single-view pose estimation approaches for this new object would require stopping the robot and training a specific network for this object before taking any action. Here we propose an approach that can directly take as input a 3D model of the new object and estimate the pose of the object in images relatively to this model, without any additional training. We argue that such a capability is necessary for applications such as robotics “in the wild”, where new objects of unfamiliar categories can occur routinely at any time and have to be manipulated or taken into account for action. It also applies to virtual reality with similar circumstances.

To overcome the fact that deep pose estimation methods were category-specific, i.e., predicted different orientations according to object category, recent works [Grabner et al.(2018)Grabner, Roth, and Lepetit, Zhou et al.(2018)Zhou, Karpur, Luo, and Huang] have proposed to perform category-agnostic pose estimation on rigid objects, producing a single prediction. However, [Grabner et al.(2018)Grabner, Roth, and Lepetit] only evaluated on object categories that were included in the training data, while [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang] required the testing categories to be similar to the training data. On the contrary, we want to stress that our method works on novel objects that can be widely different from those seen at training time. For example, we can train only on man-made objects, but still be able to estimate the pose of animals such as horses, whereas not a single animal has been seen in the training data (cf. Fig. 1 and 3). Our method is similar to category-agnostic approaches in that it only produces one pose prediction and does not require additional training to produce predictions on novel categories. However, it is also instance-specific, because it takes as input a 3D model of the object of interest.

Indeed, our key idea is that viewpoint is better defined for a single object instance given its 3D shape than for whole object categories. Our work can be viewed as leveraging the recent advances in deep 3D model representations [Su et al.(2015a)Su, Maji, Kalogerakis, and Learned-Miller, Qi et al.(2017a)Qi, Su, Mo, and Guibas, Qi et al.(2017b)Qi, Yi, Su, and Guibas] for the problem of pose estimation. We show that using 3D model information also boosts performances on known categories, even when the information is only approximate, as in the Pascal3D+ [Xiang et al.(2014)Xiang, Mottaghi, and Savarese] dataset.

When an exact 3D model of the object is known, as in the LINEMOD [Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab] dataset, state-of-the-art results are typically obtained by first performing a coarse viewpoint estimation and then applying a pose-refinement approach, typically matching rendered images of the 3D model to the target image. Our method is designed to perform the coarse alignment. Pose-refinement can be performed after applying our method using a classical approach based on ICP or the recent DeepIM [Li et al.(2018b)Li, Wang, Ji, Xiang, and Fox] method. Note that while DeepIM only performs refinement, it is similar to our work in the sense that it is category agnostic and leverages some knowledge of the 3D model, using a view rendered in the estimated pose, to predict its pose update.

(a) Training with shape and pose (b) Testing on unseen objects
Figure 1: Illustration of our approach. (a) Training data: 3D model, input image and pose annotation for everyday man-made object; (b) At testing time, pose estimation of any arbitrary object, even an unknown category, given a RGB image and the corresponding 3D shape.

Our core contributions are as follows:

2 Related Work

In this section, we discuss pose estimation of a rigid object from a single RGB image first in the case where the 3D model of the object is known, then when the 3D model is unknown.

Pose estimation explicitly using object shape.

Traditional methods to estimate the pose of a given 3D shape in an image can be roughly divided into feature-matching methods and template-matching methods. Feature-matching methods try to extract local features from the image, match them to the given object 3D model and then use a variant of PnP algorithm to recover the 6D pose based on estimated 2D-to-3D correspondences. Increasingly robust local feature descriptors [Lowe(2004), Tola et al.(2010)Tola, Lepetit, and Fua, Tulsiani and Malik(2015), Pavlakos et al.(2017)Pavlakos, Zhou, Chan, Derpanis, and Daniilidis] and more effective variants of PnP algorithms [Lepetit et al.(2009)Lepetit, Moreno-Noguer, and Fua, Zheng et al.(2013)Zheng, Kuang, Sugimoto, Astrom, and Okutomi, Li et al.(2012)Li, Xu, and Xie, Ferraz et al.(2014)Ferraz, Binefa, and Moreno-Noguer] have been used in this type of pipeline. Pixel-level prediction, rather than detected features, has also been proposed [Brachmann et al.(2016)Brachmann, Michel, Krull, Yang, Gumhold, and Rother]. Although performing well on textured objects, these methods usually struggle with poorly-textured objects. To deal with this type of objects, template-matching methods try to match the observed object to a stored template [Li et al.(2011)Li, Wang, Yin, and Wang, Lowe(1991), Hinterstoisser et al.(2012a)Hinterstoisser, Cagniart, Ilic, Sturm, Navab, Fua, and Lepetit, Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab]. However, they perform badly in the case of partial occlusion or truncation.

More recently, deep models have been trained for pose estimation from an image of a known or estimated 3D model. Most methods estimate the 2D position in the test image of the projections of the object 3D bounding box [Rad and Lepetit(2017), Tekin et al.(2018)Tekin, Sinha, and Fua, Oberweger et al.(2018)Oberweger, Rad, and Lepetit, Grabner et al.(2018)Grabner, Roth, and Lepetit] or object semantic keypoints [Pavlakos et al.(2017)Pavlakos, Zhou, Chan, Derpanis, and Daniilidis, Georgakis et al.(2018)Georgakis, Karanam, Wu, and Kosecka] to find 2D-to-3D correspondences and then apply a variant of the PnP algorithm, as feature-matching methods. Once a coarse pose has been estimated, deep refinement approaches in the spirit of template-based methods have also been proposed [Manhardt et al.(2018)Manhardt, Kehl, Navab, and Tombari, Li et al.(2018b)Li, Wang, Ji, Xiang, and Fox].

Pose estimation not explicitly using object shape.

In recent years, with the release of large-scale datasets [Geiger et al.(2012)Geiger, Lenz, and Urtasun, Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab, Xiang et al.(2014)Xiang, Mottaghi, and Savarese, Xiang et al.(2016)Xiang, Kim, Chen, Ji, Choy, Su, Mottaghi, Guibas, and Savarese, Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman], data-driven learning methods (on real and/or synthetic data) have been introduced which do not rely on an explicit knowledge of the 3D models. These can roughly be separated into methods that estimate the pose of any object of a training category and methods that focus on a single object or scene. For category-wise pose estimation, a canonical view is required for each category with respect to which the viewpoint is estimated. The prediction can be cast as a regression problem [Osadchy et al.(2007)Osadchy, Cun, and Miller, Penedones et al.(2012)Penedones, Collobert, Fleuret, and Grangier, Massa et al.(2016)Massa, Marlet, and Aubry], a classification problem [Tulsiani and Malik(2015), Su et al.(2015b)Su, Qi, Li, and Guibas, Elhoseiny et al.(2016)Elhoseiny, El-Gaaly, Bakry, and Elgammal] or a combination of both [Mousavian et al.(2017)Mousavian, Anguelov, Flynn, and Kosecka, Güler et al.(2017)Güler, Trigeorgis, Antonakos, Snape, Zafeiriou, and Kokkinos, Li et al.(2018a)Li, Bai, and Hager, Mahendran et al.(2018)Mahendran, Ali, and Vidal]. Besides, Zhou et aldirectly regress category-agnostic 3D keypoints and estimate a similarity between image and world coordinate systems [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang]. Following the same strategy, it is also possible to estimate the pose of a camera with respect to a single 3D model but without actually using the 3D model information. Many recent works have applied this strategy to recover the full 6-DoF pose for object [Tjaden et al.(2017)Tjaden, Schwanecke, and Schömer, Mousavian et al.(2017)Mousavian, Anguelov, Flynn, and Kosecka, Kehl et al.(2017)Kehl, Manhardt, Tombari, Ilic, and Navab, Xiang et al.(2018)Xiang, Schmidt, Narayanan, and Fox, Li et al.(2018a)Li, Bai, and Hager] and camera re-localization in the scene [Kendall et al.(2015)Kendall, Grimes, and Cipolla, Kendall and Cipolla(2017)].

In this work, we propose to merge the two lines of work described above. We cast pose estimation as a prediction problem, similar to deep learning methods that do not explicitly leverage viewpoint information. However, we condition our network on the 3D model of a single instance, represented either by a set of views or a point cloud, allowing our network to rely on the exact 3D model, similarly to the feature and template matching methods.

3 Network Architecture and Training

Our approach consists in extracting deep features from both the image and the shape, and using them jointly to estimate a relative orientation. An overview is shown in Fig.

2

. In this section, we present in more details our architecture, our loss function and our training strategy, as well as a data augmentation scheme specifically designed for our approach.

(a) Our pose estimation approach (b) Two possible shape encoders
Figure 2:

Overview of our method. (a) Given an RGB image of an object and its 3D shape, we use two encoders to extract features from each input, then estimate the orientation of the pictured object w.r.t. the shape using a classification-and-regression approach, predicting probabilities of angle bins

and bin offsets , for azimuth, elevation and in-plane rotation. (b) For shape encoding, we encode a point cloud sampled on the object with PointNet (top), or we rendered images around the object and use a CNN to extract the features (bottom).

Feature extraction.

The first part of the network consists of two independent modules: (i) image feature extraction and (ii) 3D shape feature extraction. For image features, we use a standard CNN, namely ResNet-18

[He et al.(2016)He, Zhang, Ren, and Sun]. For 3D shape features, we experimented with two approaches depicted in Fig. 2(b) which are state-of-the-art 3D shape description networks.

Second, we tried to represent the shape using rendered views, similar to [Su et al.(2015a)Su, Maji, Kalogerakis, and Learned-Miller]

. Virtual cameras are placed around the 3D shape, pointing towards the centroid of the model; the associated rendered images are taken as input by CNNs, sharing weights for all viewpoints, which extract image descriptors; a global feature vector is obtained by concatenation. We considered variants of this architecture using extra input channels for depth and/or surface normal orientation but this did not improve our results significantly. Ideally, we would consider viewpoints on the whole sphere around the object with any orientation. In practice however, many objects have a strong bias regarding verticality and are generally seen only from the side/top. In our experiments, we thus only considered viewpoints on the top hemisphere and sampled evenly a fixed number of azimuths and elevations.

Orientation estimation.

The object orientation is estimated from both the image and 3D shape features by a multi-layer perceptron (MLP) with three hidden layers of size 800-400-200. Each fully connected layer is followed by a batch normalization, and a ReLU activation.

As output, we estimate the three Euler angles of the camera, azimuth (), elevation () and in-plane rotation (), with respect to the shape reference frame. Each of these angles is estimated using a mixed classification-and-regression approach, which computes both angular bin classification scores and offset information within each bin. Concretely, we split each angle uniformly in bins. For each -bin , the network outputs a probability using a softmax non-linearity on the -bin classification scores, and an offset relatively to the center of -bin , obtained by a hyperbolic tangent non-linearity. The network thus has outputs.

Loss function.

As we combine classification and regression, our network has two types of outputs (probabilities and offsets), that are combined into a single loss that is the sum of a cross-entropy loss for classification and Huber loss [Huber(1992)] for regression .

More formally, we assume we are given training data consisting of input images , associated object shapes and corresponding orientations . We convert the value of the Euler angles into a bin label encoded as a one-hot vector and relative offsets within the bins. The network parameters are learned by minimizing:

(1)

where are the probabilities predicted by the network for angle , input image and input shape , and the predicted offset within the ground truth bin.

Data augmentation.

We perform standard data augmentation on the input images: horizontal flip, 2D bounding box jittering, color jittering.

In addition, we introduce a new data augmentation, specific to our approach, designed to avoid the network to overfit the 3D model orientation, which is usually consistent in training data since most models are aligned. On the contrary, we want our network to be category-agnostic and to always predict the pose of the object with respect to the reference 3D model. We thus add random rotations to the input shapes, and modify the orientation labels accordingly. In our experiments, we restrict our rotations to azimuth changes, again because of the strong verticality bias in the benchmarks, but could theoretically apply it to all angles. Because of objects with symmetries, typically at or , we also restrict azimuthal randomization to a uniform sampling in , which allows to keep the bias of the annotations. See supplementary material for details and parameter study.

Implementation details.

For all our experiments, we set the batch size as 16 and trained our network using the Adam optimizer [Kingma and Ba(2014)] with a learning rate of

for 100 epochs then

for an additional 100 epochs. Compared to a shape-less baseline method, the training of our method with the shape encoded from 12 rendered views is about 8 times slower, on a TITAN X GPU.

4 Experiments

Given an RGB image of an object and a 3D model of that object, our method estimates its 3D orientation in the image. In this section, we first give an overview of the datasets we used, and explain our baseline methods. We then evaluate our method in two test scenarios: object belonging to a category known at training time, or unknown.

Datasets.

We experimented with four main datasets. Pascal3D+ [Xiang et al.(2014)Xiang, Mottaghi, and Savarese], ObjectNet3D [Xiang et al.(2016)Xiang, Kim, Chen, Ji, Choy, Su, Mottaghi, Guibas, and Savarese] and Pix3D [Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman] feature various objects in various environments, allowing benchmarks for object pose estimation in the wild. On the contrary, LINEMOD [Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab] focuses on few objects with little environment variations, targeting robotic manipulation. Pascal3D+ and ObjectNet3D only provide approximate models and rough alignments while Pix3D and LINEMOD offer exact models and pixelwise alignments. We also used ShapeNetCore [Chang et al.(2015)Chang, Funkhouser, Guibas, Hanrahan, Huang, Li, Savarese, Savva, Song, Su, Xiao, Yi, and Yu] for training on synthetic data, with SUN397 backgrounds [Xiao et al.(2010)Xiao, Hays, Ehinger, Oliva, and Torralba], and tested on Pix3D and LINEMOD.

Unless otherwise stated, ground-truth bounding boxes are used in all experiments. We compute the most common metrics used with each dataset: is the percentage of estimations with rotation error less than ; MedErr is the median angular error (°); ADD-0.1d is the percentage of estimations for which the mean distance of the estimated 3D model points to the ground truth is smaller than 10% of the object diameter; ADD-S-0.1d is a variant of ADD-0.1d used for symmetric objects where the average is computed on the closest point distance. More details on the datasets and metrics are given in the supplementary material.

Baselines.

A natural baseline is to use the same architecture, data and training strategy as for our approach, but without using the 3D shape of the object. This is reported as ‘Baseline’ in our tables, and corresponds to the network of Fig. 2 without the shape encoder shown in light blue. We also report a second baseline, aiming at evaluating the importance of the precision of the 3D model for our approach to work. We used exactly our approach, but at testing time we replaced the 3D shape of the object in the test image by a random 3D shape of the same category. This is reported as ‘Ours (RS)’ in the tables.

4.1 Pose estimation on supervised categories

We first evaluate our method in case the categories of tested objects are covered by training data. We show that leveraging the 3D model of the object clearly improves pose estimation.

ObjectNet3D bed bcase calc cphone comp door cabi guit iron knife micro pen pot rifle shoe slipper stove toilet tub wchair mean
category-specific networks/branches — test on supervised categories
Xiang [Xiang et al.(2016)Xiang, Kim, Chen, Ji, Choy, Su, Mottaghi, Guibas, and Savarese]* 61 85 93 60 78 90 76 75 17 23 87 33 77 33 57 22 88 81 63 50 62
category-agnostic network — test on supervised categories
Zhou [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang] 73 78 91 57 82 84 73 3 18 94 13 56 4 12 87 71 51 60 56
Baseline 70 89 90 55 87 91 88 62 29 20 93 43 76 26 58 30 91 68 51 55 64
Ours(PC) 83 92 95 58 82 87 91 67 43 36 94 53 81 39 45 35 91 80 65 56 69
Ours(MV,RS) 74 92 91 65 81 90 88 71 41 28 94 50 70 37 57 38 89 81 69 54 68
Ours(MV) 80 93 96 68 93 93 91 73 40 31 97 51 83 38 63 40 94 84 75 60 72
category-agnostic network — test on novel categories
Zhou [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang] 37 69 19 52 73 78 61 2 9 88 12 51 0 11 82 41 49 14 42
Baseline 56 79 26 53 77 86 85 51 4 16 90 42 65 2 34 22 86 43 50 35 50
Ours(PC) 63 85 84 51 85 83 83 61 9 35 92 44 80 8 39 20 87 56 71 39 59
Ours(MV,RS) 60 88 84 60 76 91 82 61 2 26 90 46 73 18 40 28 79 55 61 40 58
Ours(MV) 61 93 89 61 88 93 85 67 4 27 93 48 81 20 49 29 90 57 66 42 62
[images: 90,127, in the wild | objects: 201,888 | categories: 100 | 3D models: 791, approx. | align.: rough]
Table 1: Pose estimation on ObjectNet3D [Xiang et al.(2016)Xiang, Kim, Chen, Ji, Choy, Su, Mottaghi, Guibas, and Savarese]. Train and test are on the same data as [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang]; for experiments on novel categories, training is on 80 categories and test is on the other 20. * Trained jointly for detection and pose estimation, tested using estimated bounding boxes.
Pascal3D+ [Xiang et al.(2014)Xiang, Mottaghi, and Savarese]

aero

bike

boat

bottle

bus

car

chair

dtable

mbike

sofa

train

tv

mean

aero

bike

boat

bottle

bus

car

chair

dtable

mbike

sofa

train

tv

mean

Categ.-specific branches, supervised categ.      (%)  MedErr (degrees)
Tulsiani [Tulsiani and Malik(2015)]* 81 77 59 93 98 89 80 62 88 82 80 80 80.75 13.8 17.7 21.3 12.9 5.8 9.1 14.8 15.2 14.7 13.7 8.7 15.4 13.6
Su [Su et al.(2015b)Su, Qi, Li, and Guibas] 74 83 52 91 91 88 86 73 78 90 86 92 82.00 15.4 14.8 25.6 9.3 3.6 6.0 9.7 10.8 16.7 9.5 6.1 12.6 11.7
Mousavian [Mousavian et al.(2017)Mousavian, Anguelov, Flynn, and Kosecka] 78 83 57 93 94 90 80 68 86 82 82 85 81.03 13.6 12.5 22.8 8.3 3.1 5.8 11.9 12.5 12.3 12.8 6.3 11.9 11.1
Pavlakos [Pavlakos et al.(2017)Pavlakos, Zhou, Chan, Derpanis, and Daniilidis]* 81 78 44 79 96 90 80 74 79 66 8.0 13.4 40.7 11.7 2.0 5.5 10.4 9.6 8.3 32.9
Grabner [Grabner et al.(2018)Grabner, Roth, and Lepetit] 83 82 64 95 97 94 80 71 88 87 80 86 83.92 10.0 15.6 19.1 8.6 3.3 5.1 13.7 11.8 12.2 13.5 6.7 11.0 10.9
Categ.-agnostic network, supervised categ.      (%)  MedErr (degrees)
Grabner [Grabner et al.(2018)Grabner, Roth, and Lepetit] 80 82 57 90 97 94 72 67 90 80 82 85 81.33 10.9 12.2 23.4 9.3 3.4 5.2 15.9 16.2 12.2 11.6 6.3 11.2 11.5
Zhou [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang]* 82 86 50 92 97 92 79 62 88 92 77 83 81.67 10.1 14.5 30.0 9.1 3.1 6.5 11.0 23.7 14.1 11.1 7.4 13.0 12.8
Baseline 77 74 54 91 97 89 74 52 85 80 79 77 77.42 13.0 18.2 27.3 11.5 6.8 8.1 15.4 20.1 14.7 13.2 10.2 14.7 14.4
Ours(MV,RS) 81 84 49 93 95 90 78 53 85 83 81 80 79.33 11.6 15.5 30.9 8.2 3.6 6.0 13.8 22.8 13.1 11.1 6.0 15.0 13.1
Ours(MV) 83 86 60 95 96 91 79 67 85 85 82 82 82.58 11.1 14.4 22.3 7.8 3.2 5.1 12.4 13.8 11.8 8.9 5.4 8.8 10.4
[images: 30,889, in the wild | objects: 36,292 | categories: 12 | 3D models: 79, approx. | align.: rough]
Table 2: Pose estimation on Pascal3D+ [Xiang et al.(2014)Xiang, Mottaghi, and Savarese]. * Trained using keypoints.  Not trained on ImageNet data but trained on ShapeNet renderings.
Pix3D [Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman] tool misc bookcase wardrobe desk bed table sofa chair mean
category-specific networks — tested on supervised categories
Georgakis [Georgakis et al.(2018)Georgakis, Karanam, Wu, and Kosecka] - - - - 25.0 31.3 - - 31.1 -
category-agnostic network — tested on supervised categories
Baseline 2.2 9.8 10.8 0.6 30.0 36.8 17.3 63.8 43.6 23.9
Ours(MV,RS) 4.1 3.6 22.8 20.7 52.8 30.1 24.8 66.3 44.5 30.0
Ours(MV) 8.7 9.8 31.5 27.1 53.3 36.9 34.0 70.5 51.8 36.0
category-agnostic network — tested on novel categories
Baseline 2.2 13.1 5.4 0.6 30.3 19.6 14.9 11.9 28.0 14.0
Ours(MV,RS) 3.0 5.9 4.5 5.2 24.7 21.5 14.1 48.5 33.9 17.9
Ours(MV) 8.7 13.1 7.7 10.2 31.6 43.0 26.2 64.9 39.1 27.2
[images: 10,069, in the wild | objects: 10,069 | categ.: 9 | 3D models: 395, exact | align.: pixel]
Pix3D [Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman] chair
categ.-specific, supervised
# bins 24 12
  (% correct) azim. elev.
Su [Su et al.(2015b)Su, Qi, Li, and Guibas] 40 37
Sun [Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman] 49 61
Baseline 51 64
Ours(MV) 54 65
Table 3: Pose estimation on Pix3D [Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman]. Right table compares to [Su et al.(2015b)Su, Qi, Li, and Guibas, Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman], that only test bin success on 2 angles (24 azimuth bins and 12 elevation bins).

We evaluate our method on ObjectNet3D, which has the largest variety of object categories, 3D models and images. We report the results in Table 3 (top). First, an important result is that using the 3D model information, whether via a point cloud or rendered views, provides a very clear boost of the performance, which validates our approach. Second, results using rendered multiple views (MV) to represent the 3D model outperform the point-cloud-based (PC) representation [Qi et al.(2017a)Qi, Su, Mo, and Guibas]. We thus only evaluated Ours(MV) in the rest of this section. Third, testing the network with a random shape (RS) in the category instead of the ground truth shape, implicitly providing class information without providing fine-grained 3D information, leads to results better than the baseline but worst than using the ground truth model, demonstrating our method ability to exploit fine-grained 3D information. Finally, we found that even our baseline model already outperformed StarMap [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang], mainly because of five categories (iron, knife, pen, rifle, slipper) on which StarMap completely fails, likely because a keypoint-based method is not adapted for small and narrow objects.

We then evaluate our approach on the standard Pascal3D+ dataset [Xiang et al.(2014)Xiang, Mottaghi, and Savarese]. Results are shown in Table 3 (top). Interestingly, while our baseline is far below state-of-the-art results, adding our shape analysis network provides again a very clear improvement, with results on par with the best category-specific approaches, and outperforming category agnostic methods. This is especially impressive considering the fact that the 3D models provided in Pascal3D+ are only extremely coarse approximations of the real 3D models. Again, as can be expected, using a random model from the same category provides intermediary results between the model-less baseline and using the actual 3D model.

Finally, we report results on Pix3D in Table 3 (top). Similar to the other methods, our model was purely trained on synthetic data and tested on real data, without any fine-tuning. Again, we can observe that adding 3D shape information brings a large performance boost, from to . Note that our method clearly improves even over category-specific baselines. We believe it is due to the much higher quality of the 3D models provided on Pix3D compared to ObjectNet3D and Pascal3D+. This hypothesis is supported by the fact that our results are much worse when a random model of the same category is provided.

The results on these three standard datasets are thus consistent and validate (i) that using the 3D models provides a clear improvement (comparison to ‘Baseline’) and (ii) that our approach is able to leverage the fine-grained 3D information from the 3D model (comparison to estimating with a random shape ‘RS’ in the category). Besides, we obtain a very clear improvement over the state of the art both on the ObjectNet3D and Pix3D datasets.

4.2 Pose estimation on novel categories

We now focus on the generalization to unseen categories, which is the main focus of our method. We first discuss results on ObjectNet3D and Pix3D. We then show qualitative results on ImageNet horses images and quantitative results on the very different LINEMOD dataset.

Our results when testing on new categories from ObjectNet3D are shown in Table 3 (bottom). We use the same split between 80 training and 20 testing categories as [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang]. As expected, the accuracy decreases for all methods when supervision is not provided on these latter categories. The fact that the Baseline performances are still much better than chance is accounted by the presence of similar categories is the training set. The advantage of our method is however even more pronounced than in the supervised case, and our multi-view approach (MV) still outperforms the point cloud (PC) approach by a small margin. Similarly, we removed from our ShapeNet [Chang et al.(2015)Chang, Funkhouser, Guibas, Hanrahan, Huang, Li, Savarese, Savva, Song, Su, Xiao, Yi, and Yu] synthetic training set the categories present in Pix3D, and reported in Table 3 (bottom) the results on Pix3D. Again, the accuracy drops for all methods, but the benefit from using the ground-truth 3D model increases.

In both ObjectNet and Pix3D experiments, the test categories were novel but still similar to the training ones. We now focus on evaluating our network, trained using synthetic images generated from man-made shapes from ShapeNetCore [Chang et al.(2015)Chang, Funkhouser, Guibas, Hanrahan, Huang, Li, Savarese, Savva, Song, Su, Xiao, Yi, and Yu], on completely different objects.

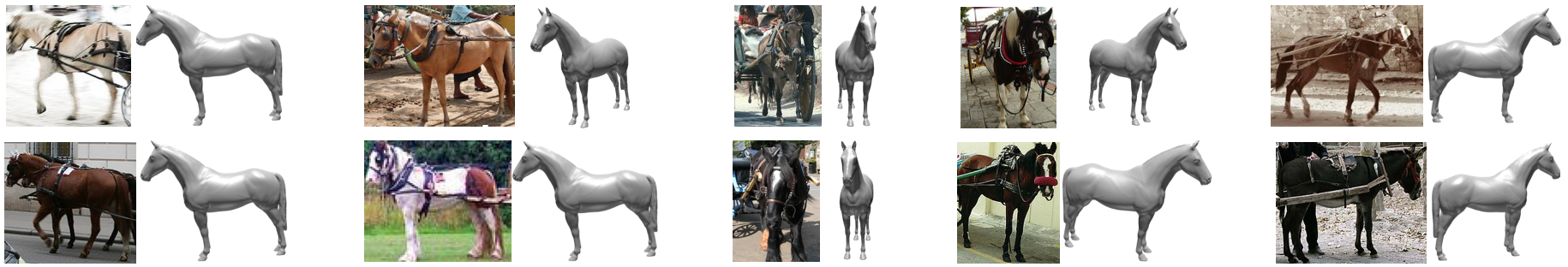

Figure 3: Visual results of pose estimation on horse images from ImageNet [Deng et al.(2009)Deng, Dong, Socher, Li, Li, and Fei-Fei] using models from Free3D [Free3D()]. We rank the prediction for each orientation bin by the network prediction and show the first (best) results for various poses.

We first obtain qualitative results by using a fixed 3D model of horse from an online model repository [Free3D()] to estimate the pose of horses in ImageNet images. Indeed, compared to other animals, horses have more limited deformations. While this of course does not work for all images, the images for which the network provides the highest confidence are impressively good. On Figure 3, we show the most confident images for different poses, and we provide more results in the supplementary material. Note the very strong appearance gap between the rendered 3D models and the test images.

Finally, to further validate our network generalization ability, we evaluate it on the texture-less objects of LINEMOD [Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab], as reported in Table 4. This dataset focuses on very accurate alignment, and most approaches propose to first estimate a coarse alignment and then to refine it with a specific method. Our method provides a coarse alignment, and we complement it using the recent DeepIM [Li et al.(2018b)Li, Wang, Ji, Xiang, and Fox] refinement approach. Our method yields results below the state of the art, but they are nevertheless very impressive. Indeed, our network has never seen objects any similar the LINEMOD 3D models during training, while all the other baselines have been trained specifically for each object instance on real training images, except SSD-6D [Kehl et al.(2017)Kehl, Manhardt, Tombari, Ilic, and Navab] which uses the exact 3D model but no real image and for which coarse alignment performances are very low. Our method is thus very different from all the baselines in that it does not assume the test object to be available at training time, which we think is a much more realistic scenario for robotics applications. We actually believe that the fact our method provides a reasonable accuracy on this benchmark is a very strong result.

LINEMOD [Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab] ape bvise cam can cat drill duck ebox* glue* holep iron lamp phone mean
instance-specific networks/branches — tested on supervised instances  (ADD-0.1d)*
w/o Ref. Brachmann [Brachmann et al.(2016)Brachmann, Michel, Krull, Yang, Gumhold, and Rother] - - - - - - - - - - - - - 32.3
SSD-6D [Kehl et al.(2017)Kehl, Manhardt, Tombari, Ilic, and Navab] 0 0.2 0.4 1.4 0.5 2.6 0 8.9 0 0.3 8.9 8.2 0.2 2.4
BB8 [Rad and Lepetit(2017)] 27.9 62.0 40.1 48.1 45.2 58.6 32.8 40.0 27.0 42.4 67.0 39.9 35.2 43.6
Tekin [Tekin et al.(2018)Tekin, Sinha, and Fua] 21.6 81.8 36.6 68.8 41.8 63.5 27.2 69.6 80.0 42.6 75.0 71.1 47.7 56.0
PoseCNN [Xiang et al.(2018)Xiang, Schmidt, Narayanan, and Fox] 27.8 68.9 47.5 71.4 56.7 65.4 42.8 98.3 95.2 50.9 65.6 70.3 54.6 62.7
w/ Ref. Brachmann [Brachmann et al.(2016)Brachmann, Michel, Krull, Yang, Gumhold, and Rother] 33.2 64.8 38.4 62.9 42.7 61.9 30.2 49.9 31.2 52.8 80.0 67.0 38.1 50.2
BB8 [Rad and Lepetit(2017)] 40.4 91.8 55.7 64.1 62.6 74.4 44.3 57.8 41.2 67.2 84.7 76.5 54.0 62.7
SSD-6D [Kehl et al.(2017)Kehl, Manhardt, Tombari, Ilic, and Navab] 65 80 78 86 70 73 66 100 100 49 78 73 79 79.0
PoseCNN [Xiang et al.(2018)Xiang, Schmidt, Narayanan, and Fox] + [Li et al.(2018b)Li, Wang, Ji, Xiang, and Fox] 76.9 97.4 93.5 96.6 82.1 95.0 77.7 97.0 99.4 52.7 98.3 97.5 87.8 88.6
instance/category-agnostic network — tested on novel categories  (ADD-0.1d)*
w/o Ref. Ours 7.5 25.1 12.1 11.3 15.4 18.6 8.2 100 81.2 18.5 13.8 6.5 13.4 25.5
w/ Ref. Ours + DeepIM [Li et al.(2018b)Li, Wang, Ji, Xiang, and Fox] 59.1 63.8 40.0 50.8 54.1 75.3 48.6 100 98.7 49.8 49.5 55.3 50.4 61.2
[scenes: 13, artificially arranged | images: 13407 | objects: 13 | categ.: 13 | 3D models: 13, exact | align.: pixel]
Table 4: Pose estimation on LINEMOD [Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab].  Training also on synthetic data.  Training only on synthetic data. * ADD-S-0.1d used for symmetric objects eggbox and glue.

5 Conclusion

We have presented a new paradigm for deep pose estimation, taking the 3D object model as an input to the network. We demonstrated the benefits of this approach in terms of accuracy, and improved the state of the art on several standard pose estimation datasets. More importantly, we have shown that our approach holds the promise of a completely generic deep learning method for pose estimation, independent of the object category and training data, by showing encouraging results on the LINEMOD dataset without any specific training, and despite the domain gap between synthetic training data and real images for testing.

References

  • [Brachmann et al.(2016)Brachmann, Michel, Krull, Yang, Gumhold, and Rother] Eric Brachmann, Frank Michel, Alexander Krull, Michael Ying Yang, Stefan Gumhold, and Carsten Rother. Uncertainty-driven 6D pose estimation of objects and scenes from a single RGB image. In

    Conference on Computer Vision and Pattern Recognition (CVPR)

    , 2016.
  • [Chang et al.(2015)Chang, Funkhouser, Guibas, Hanrahan, Huang, Li, Savarese, Savva, Song, Su, Xiao, Yi, and Yu] Angel X. Chang, Thomas Funkhouser, Leonidas Guibas, Pat Hanrahan, Qixing Huang, Zimo Li, Silvio Savarese, Manolis Savva, Shuran Song, Hao Su, Jianxiong Xiao, Li Yi, and Fisher Yu. ShapeNet: An Information-Rich 3D Model Repository. Technical Report arXiv:1512.03012 [cs.GR], Stanford University – Princeton University – Toyota Technological Institute at Chicago, 2015.
  • [Deng et al.(2009)Deng, Dong, Socher, Li, Li, and Fei-Fei] Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. ImageNet: A Large-Scale Hierarchical Image Database. In Conference on Computer Vision and Pattern Recognition (CVPR), 2009.
  • [Elhoseiny et al.(2016)Elhoseiny, El-Gaaly, Bakry, and Elgammal] Mohamed Elhoseiny, Tarek El-Gaaly, Amr Bakry, and Ahmed M. Elgammal. A comparative analysis and study of multiview CNN models for joint object categorization and pose estimation. In

    International Conference on Machine Learning (ICML)

    , 2016.
  • [Engelmann et al.(2017)Engelmann, Kontogianni, Hermans, and Leibe] Francis Engelmann, Theodora Kontogianni, Alexander Hermans, and Bastian Leibe. Exploring spatial context for 3D semantic segmentation of point clouds. In International Conference on Computer Vision (ICCV), 2017.
  • [Ferraz et al.(2014)Ferraz, Binefa, and Moreno-Noguer] Luis Ferraz, Xavier Binefa, and Francesc Moreno-Noguer.

    Very fast solution to the PnP problem with algebraic outlier rejection.

    In Conference on Computer Vision and Pattern Recognition (CVPR), 2014.
  • [Free3D()] Free3D. Free3d. https://free3d.com.
  • [Geiger et al.(2012)Geiger, Lenz, and Urtasun] Andreas Geiger, Philip Lenz, and Raquel Urtasun. Are we ready for autonomous driving? the KITTI vision benchmark suite. In Conference on Computer Vision and Pattern Recognition (CVPR), 2012.
  • [Georgakis et al.(2018)Georgakis, Karanam, Wu, and Kosecka] Georgios Georgakis, Srikrishna Karanam, Ziyan Wu, and Jana Kosecka. Matching RGB images to CAD models for object pose estimation. CoRR, abs/1811.07249, 2018.
  • [Grabner et al.(2018)Grabner, Roth, and Lepetit] Alexander Grabner, Peter M. Roth, and Vincent Lepetit. 3D pose estimation and 3D model retrieval for objects in the wild. In Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [Groueix et al.(2018)Groueix, Fisher, Kim, Russell, and Aubry] Thibault Groueix, Matthew Fisher, Vladimir G. Kim, Bryan Russell, and Mathieu Aubry. AtlasNet: A papier-mâché approach to learning 3D surface generation. In Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [Güler et al.(2017)Güler, Trigeorgis, Antonakos, Snape, Zafeiriou, and Kokkinos] Rıza Alp Güler, George Trigeorgis, Epameinondas Antonakos, Patrick Snape, Stefanos Zafeiriou, and Iasonas Kokkinos. Densereg: Fully convolutional dense shape regression in-the-wild. In Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • [He et al.(2016)He, Zhang, Ren, and Sun] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Conference on Computer Vision and Pattern Recognition (CVPR), 2016.
  • [Hinterstoisser et al.(2012a)Hinterstoisser, Cagniart, Ilic, Sturm, Navab, Fua, and Lepetit] Stefan Hinterstoisser, Cedric Cagniart, Slobodan Ilic, Peter Sturm, Nassir Navab, Pascal Fua, and Vincent Lepetit. Gradient response maps for real-time detection of textureless objects. IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), 2012a.
  • [Hinterstoisser et al.(2012b)Hinterstoisser, Lepetit, Ilic, Holzer, Bradski, Konolige, and Navab] Stefan Hinterstoisser, Vincent Lepetit, Slobodan Ilic, Stefan Holzer, Gary Bradski, Kurt Konolige, and Nassir Navab. Model based training, detection and pose estimation of texture-less 3d objects in heavily cluttered scenes. In Asian Conference on Computer Vision (ACCV), 2012b.
  • [Huber(1992)] Peter J Huber. Robust estimation of a location parameter. In Breakthroughs in statistics. Springer New York, 1992.
  • [Kehl et al.(2017)Kehl, Manhardt, Tombari, Ilic, and Navab] Wadim Kehl, Fabian Manhardt, Federico Tombari, Slobodan Ilic, and Nassir Navab. SSD-6D: Making RGB-based 3D detection and 6D pose estimation great again. In International Conference on Computer Vision (ICCV), 2017.
  • [Kendall and Cipolla(2017)] Alex Kendall and Roberto Cipolla. Geometric loss functions for camera pose regression with deep learning. In Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • [Kendall et al.(2015)Kendall, Grimes, and Cipolla] Alex Kendall, Matthew Koichi Grimes, and Roberto Cipolla. PoseNet: A convolutional network for real-time 6-DOF camera relocalization. In International Conference on Computer Vision (ICCV), 2015.
  • [Kingma and Ba(2014)] Diederik Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In International Conference on Learning Representations (ICLR), 2014.
  • [Lepetit et al.(2009)Lepetit, Moreno-Noguer, and Fua] Vincent Lepetit, Francesc Moreno-Noguer, and Pascal Fua. EPnP: An accurate O(n) solution to the PnP problem. International Journal of Computer Vision (IJCV), 2009.
  • [Li et al.(2018a)Li, Bai, and Hager] Chi Li, Jin Bai, and Gregory D. Hager. A unified framework for multi-view multi-class object pose estimation. In European Conference on Computer Vision (ECCV), 2018a.
  • [Li et al.(2011)Li, Wang, Yin, and Wang] Dengwang Li, Hongjun Wang, Yong Yin, and Xiuying Wang. Deformable registration using edge-preserving scale space for adaptive image-guided radiation therapy. Journal of Applied Clinical Medical Physics (JACMP), 2011.
  • [Li et al.(2012)Li, Xu, and Xie] Shiqi Li, Chi Xu, and Ming Xie. A robust O(n) solution to the perspective-n-point problem. IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), 2012.
  • [Li et al.(2018b)Li, Wang, Ji, Xiang, and Fox] Yi Li, Gu Wang, Xiangyang Ji, Yu Xiang, and Dieter Fox. DeepIM: Deep iterative matching for 6D pose estimation. In European Conference on Computer Vision (ECCV), 2018b.
  • [Lowe(1991)] David G. Lowe. Fitting parameterized three-dimensional models to images. IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), 1991.
  • [Lowe(2004)] David G Lowe. Distinctive image features from scale-invariant keypoints. International Journal of Computer Vision (IJCV), 2004.
  • [Mahendran et al.(2018)Mahendran, Ali, and Vidal] Siddharth Mahendran, Haider Ali, and René Vidal. A mixed classification-regression framework for 3D pose estimation from 2D images. In British Machine Vision Conference (BMVC), 2018.
  • [Manhardt et al.(2018)Manhardt, Kehl, Navab, and Tombari] Fabian Manhardt, Wadim Kehl, Nassir Navab, and Federico Tombari. Deep model-based 6D pose refinement in RGB. In European Conference on Computer Vision (ECCV), 2018.
  • [Massa et al.(2016)Massa, Marlet, and Aubry] Francisco Massa, Renaud Marlet, and Mathieu Aubry. Crafting a multi-task cnn for viewpoint estimation. In British Machine Vision Conference (BMVC), 2016.
  • [Mousavian et al.(2017)Mousavian, Anguelov, Flynn, and Kosecka] Arsalan Mousavian, Dragomir Anguelov, John Flynn, and Jana Kosecka. 3D bounding box estimation using deep learning and geometry. In Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • [Oberweger et al.(2018)Oberweger, Rad, and Lepetit] Markus Oberweger, Mahdi Rad, and Vincent Lepetit. Making deep heatmaps robust to partial occlusions for 3D object pose estimation. In European Conference on Computer Vision (ECCV), 2018.
  • [Osadchy et al.(2007)Osadchy, Cun, and Miller] Margarita Osadchy, Yann Le Cun, and Matthew L. Miller.

    Synergistic face detection and pose estimation with energy-based models.

    Journal of Machine Learning Research (JMLR), 2007.
  • [Pavlakos et al.(2017)Pavlakos, Zhou, Chan, Derpanis, and Daniilidis] Georgios Pavlakos, Xiaowei Zhou, Aaron Chan, Konstantinos G Derpanis, and Kostas Daniilidis. 6-dof object pose from semantic keypoints. In International Conference on Robotics and Automation (ICRA), 2017.
  • [Penedones et al.(2012)Penedones, Collobert, Fleuret, and Grangier] Hugo Penedones, Ronan Collobert, François Fleuret, and David Grangier. Improving object classification using pose information. Technical report, Idiap Research Institute, 2012.
  • [Qi et al.(2018)Qi, Liu, Wu, Su, and Guibas] Charles R Qi, Wei Liu, Chenxia Wu, Hao Su, and Leonidas J Guibas. Frustum pointnets for 3D object detection from RGB-D data. In Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [Qi et al.(2017a)Qi, Su, Mo, and Guibas] Charles Ruizhongtai Qi, Hao Su, Kaichun Mo, and Leonidas J. Guibas. PointNet: Deep learning on point sets for 3D classification and segmentation. In Conference on Computer Vision and Pattern Recognition (CVPR), 2017a.
  • [Qi et al.(2017b)Qi, Yi, Su, and Guibas] Charles Ruizhongtai Qi, Li Yi, Hao Su, and Leonidas J. Guibas. PointNet++: Deep hierarchical feature learning on point sets in a metric space. In Conference on Neural Information Processing Systems (NIPS), 2017b.
  • [Rad and Lepetit(2017)] Mahdi Rad and Vincent Lepetit. BB8: a scalable, accurate, robust to partial occlusion method for predicting the 3D poses of challenging objects without using depth. In International Conference on Computer Vision (ICCV), 2017.
  • [Su et al.(2015a)Su, Maji, Kalogerakis, and Learned-Miller] Hang Su, Subhransu Maji, Evangelos Kalogerakis, and Erik G. Learned-Miller. Multi-view convolutional neural networks for 3d shape recognition. In International Conference on Computer Vision (ICCV), 2015a.
  • [Su et al.(2015b)Su, Qi, Li, and Guibas] Hao Su, Charles R. Qi, Yangyan Li, and Leonidas J. Guibas. Render for CNN: Viewpoint estimation in images using CNNs trained with rendered 3D model views. In International Conference on Computer Vision (ICCV), 2015b.
  • [Sun et al.(2018)Sun, Wu, Zhang, Zhang, Zhang, Xue, Tenenbaum, and Freeman] Xingyuan Sun, Jiajun Wu, Xiuming Zhang, Zhoutong Zhang, Chengkai Zhang, Tianfan Xue, Joshua B Tenenbaum, and William T Freeman. Pix3D: Dataset and methods for single-image 3d shape modeling. In Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [Tekin et al.(2018)Tekin, Sinha, and Fua] Bugra Tekin, Sudipta N Sinha, and Pascal Fua. Real-time seamless single shot 6D object pose prediction. In Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [Tjaden et al.(2017)Tjaden, Schwanecke, and Schömer] Henning Tjaden, Ulrich Schwanecke, and Elmar Schömer. Real-time monocular pose estimation of 3D objects using temporally consistent local color histograms. In International Conference on Computer Vision (ICCV), 2017.
  • [Tola et al.(2010)Tola, Lepetit, and Fua] Engin Tola, Vincent Lepetit, and Pascal Fua. Daisy: An efficient dense descriptor applied to wide-baseline stereo. IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), 2010.
  • [Tulsiani and Malik(2015)] Shubham Tulsiani and Jitendra Malik. Viewpoints and keypoints. In Conference on Computer Vision and Pattern Recognition (CVPR), 2015.
  • [Wang et al.(2018)Wang, Sun, Liu, Sarma, Bronstein, and Solomon] Yue Wang, Yongbin Sun, Ziwei Liu, Sanjay E Sarma, Michael M Bronstein, and Justin M Solomon. Dynamic graph CNN for learning on point clouds. arXiv preprint arXiv:1801.07829, 2018.
  • [Xiang et al.(2014)Xiang, Mottaghi, and Savarese] Yu Xiang, Roozbeh Mottaghi, and Silvio Savarese. Beyond PASCAL: A benchmark for 3D object detection in the wild. In Winter Conference on Applications of Computer Vision (WACV), 2014.
  • [Xiang et al.(2016)Xiang, Kim, Chen, Ji, Choy, Su, Mottaghi, Guibas, and Savarese] Yu Xiang, Wonhui Kim, Wei Chen, Jingwei Ji, Christopher Choy, Hao Su, Roozbeh Mottaghi, Leonidas Guibas, and Silvio Savarese. ObjectNet3D: A large scale database for 3D object recognition. In European Conference Computer Vision (ECCV), 2016.
  • [Xiang et al.(2018)Xiang, Schmidt, Narayanan, and Fox] Yu Xiang, Tanner Schmidt, Venkatraman Narayanan, and Dieter Fox. PoseCNN: A convolutional neural network for 6D object pose estimation in cluttered scenes. In Robotics: Science and Systems (RSS), 2018.
  • [Xiao et al.(2010)Xiao, Hays, Ehinger, Oliva, and Torralba] J. Xiao, J. Hays, K. A. Ehinger, A. Oliva, and A. Torralba.

    SUN database: Large-scale scene recognition from abbey to zoo.

    In Conference on Computer Vision and Pattern Recognition (CVPR), 2010.
  • [Xu et al.(2018)Xu, Anguelov, and Jain] Danfei Xu, Dragomir Anguelov, and Ashesh Jain. Pointfusion: Deep sensor fusion for 3D bounding box estimation. In Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [Zheng et al.(2013)Zheng, Kuang, Sugimoto, Astrom, and Okutomi] Yinqiang Zheng, Yubin Kuang, Shigeki Sugimoto, Kalle Astrom, and Masatoshi Okutomi. Revisiting the PnP problem: A fast, general and optimal solution. In International Conference on Computer Vision (ICCV), 2013.
  • [Zhou et al.(2018)Zhou, Karpur, Luo, and Huang] Xingyi Zhou, Arjun Karpur, Linjie Luo, and Qixing Huang. Starmap for category-agnostic keypoint and viewpoint estimation. In European Conference on Computer Vision (ECCV), 2018.
