I Introduction

Blockchain systems, which maintain a distributed trusted ledger and can do finite-state computations, can execute a wide range of programs in a trust-free setting. This has promised a host of new and exciting applications in various areas including digital cryptocurrency [1], industrial IoT [2], and healthcare management [3]. However, to enable these applications, we need blockchain systems that scale well with the number of participating nodes [4]. The scalability is with respect to three important performance metrics: the throughput - measured as the number of transactions verified in a distinct period of time, the storage efficiency - measured as the maximum size of the blockchain that can be handled by nodes with fixed storage sizes, and the security - measured as the number of malicious nodes the system can tolerate. By scalable, we mean that all these three metrics should improve as the number of nodes increases; this is a remarkably high expectation – state of the art scaling solutions [5, 6, 7, 8, 9] expect performance metrics to not get worse (at best) as the number of nodes increases.

Scalability has been one of the greatest challenges faced by current blockchain systems like Bitcoin [1] and Ethereum [10]. For example, Bitcoin presently restricts its block size to 1 MB, and processing rate to 7 transactions/sec [11], inherently restricting the throughput. The main reason that hinders these conventional technologies from scaling is that their key underpinning storage and computation methods involve full replication: Each network node stores the entire blockchain and replicates all the computations (verifications).

This feature gives a full replication system high security (of tolerating 49% adversarial nodes). But the storage efficiency and throughput of the system is compromised: They stay constant regardless of the network size. In practice, the computational burden even increases with the number of nodes (e.g., mining puzzles get harder as time progresses and more users participate), causing the throughput to drop.

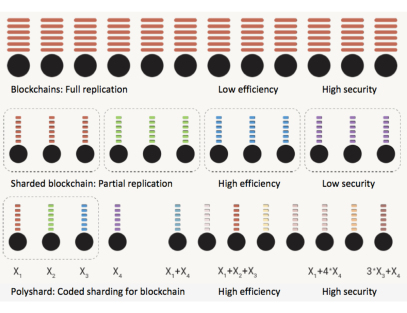

Fig. 1: Blockchain, conventional sharding and Polyshard.

However, such a trade-off is far from optimal from information theoretical point of view. Given the computation and storage resources across all the network nodes, the following information-theoretic upper bounds hold:

It is intuitive that these bounds can be simultaneously achieved by a centralized system, allowing all the 3 metrics to scale. If a carefully designed decentralized system can provide the same scalability, this would represent a significant progress over full replication and signal true scalability of blockchains – as more nodes participate in the system, all-round performance improves. Such are the goals of this paper.

To close this gap, the leading solution being discussed in the blockchain literature is via sharding [7, 8, 9]. The key idea is to break up (or “shard”) the blockchain into fragments which are then replicated. This way, both storage and computation requirements are reduced by a factor equal to the number of shards . However, in order to allow storage and throughput to scale linearly with , the number of nodes participating in a shard has to be held constant. Consequently, an attacker only needs to control as less as nodes to compromise a shard, yielding a security level of , which approaches zero with increasing . Although various efforts have been made to alleviate this security issue (e.g., by periodically shuffling the nodes [8]), they are susceptible to powerful adversaries (e.g., who can corrupt the nodes after the shuffling), yet none achieves security scalability.

In summary, both full replication and sharding based blockchain systems make trade-offs between the scalability of throughput, storage efficiency, and security. A widely open fundamental question is thus:

Is there a blockchain design that simultaneously scales storage efficiency, security, and throughput?

In this paper, we answer this question affirmatively by introducing the concept of coded sharding. In particular, we propose PolyShard (polynomially coded sharding), a scheme that simultaneously scales throughput, storage efficiency, and security by . We show mathematically that Polyshard achieves all three information-theoretic upper bounds and enables a truly scalable blockchain system. (Table I)

Storage efficiency Security Throughput
Full replication
Information-theoretic limit
PolyShard (this paper)
TABLE I: Performance comparison of the proposed PolyShard verification scheme with other benchmarks and the information-theoretic limits.

PolyShard is inspired by recent developments in coded computing [12, 13, 14, 15, 16, 17, 18, 19, 20], in particular Lagrange Coded Computing [20], which provides a transformative framework for injecting computation redundancy in unorthodox coded forms in order to deal with failures and errors in distributed computing. The key idea behind PolyShard

is that instead of storing and processing a single uncoded shard as in convention, each node stores and computes on a coded shard of the same size that is generated by linearly mixing uncoded shards, using the well-known Lagrange polynomial. This coding provides computation redundancy to simultaneously provide security against erroneous results from malicious nodes, which is enabled by noisy polynomial interpolation techniques (e.g., Reed-Solomon decoding). The illustration in Fig.

1 compares and contrasts Polyshard, sharding and regular storage approaches in blockchains. The dark circles correspond to nodes, above which the stored blockchain is shown. The different colors in the second row correspond to distinct shards, and Polyshard mixes the shards (colors) .

While coding is generally applicable in many distributed computing scenarios, the following two salient features make PolyShard particularly suitable for blockchain systems.

  • Oblivious: The coding strategy applied to generate coded shards is oblivious of the verification function. That means, the same coded data can be simultaneously used for multiple verification items (examples: digital signature verification and balance verification in a payment system);

  • Incremental: PolyShard allows each node to grow its local coded shard by coding over the newest verified blocks, without needing to access the previous ones. This helps to maintain a constant coding overhead as the chain grows.

As a proof of concept, we simulate a payment blockchain system, which keeps records of all the balance transfers between clients, and verifies new blocks by comparing them with the sum of the previously verified blocks. We run experiments on this system for various combinations of network size and chain length, and measure/evaluate the throughput, storage, and security achieved by the full replication, uncoded sharding, and the PolyShard schemes. As we can see from the measurements plotted in Fig. 2, PolyShard indeed achieves the throughput scaling with network size as the uncoded sharding scheme, improving significantly over the full replication scheme. These experiments provide an empirical verification of the theoretical guarantees of PolyShard in simultaneously scaling storage efficiency, security, and throughput.

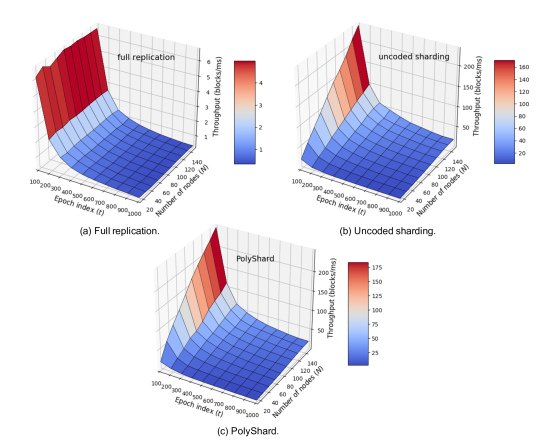

Fig. 2:

Measured throughput of verification schemes; here number of epochs


In the following, we list the main contributions of this paper.

  • Drawing upon principles from information and coding theory, we propose a radically different scalable design methodology called coded sharding.

  • We propose an instantiation of the general coded sharding principle called PolyShard, which stands for Lagrange polynomial based coded sharding.

  • We prove that PolyShard provides scalability to both efficiency (throughput and storage) and security;

  • We corroborate our theoretic findings with simulation and evaluation of a payment blockchain system. We implemented PolyShard in this system, and numerically demonstrate its efficiency and security scalibility.

Related works. Sharding is the state of the art technique to scale the computation, communication, and storage of blockchain systems [7, 8, 9, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32]. The key idea is to partition the entire blockchain into shards, each of which is managed by a disjoint subset of nodes (miners). This reduces the required amount of computation by a factor of . As an example, a sharding protocol ELASTICO was proposed in [7], in which the the incoming transactions are partitioned into shards, and each shard is verified by a disjoint committee of nodes in parallel. A decentralized sharding protocol OmniLedger [8] improved upon ELASTICO in multiple avenues, including new methods to assign nodes into shards with a higher security guarantee, proposed an atomic protocol for cross-shard transactions, and further optimized the communication and storage designs. For all current sharding systems, in order to scale out with the number of nodes , the number of shards needs to grow with , i.e., . This results in a constant number of nodes in each shards, which makes the system more susceptible to adversaries as the network expands. Current systems achieve security through system solutions such as shard rotation [7, 8, 33]. For example, OmniLedger leverages RandHound [34], a bias-resistant distributed randomness generation protocol, to randomly sampling the subset of users assigned to a shard, and randomly updating the these subsets regularly over time. Such methods can provide near-optimal security when the adversarial nodes are fixed prior to the random assignment, but are susceptible when the adversary is dynamic and can corrupt nodes after they have been assigned to the shards.

Ii Problem Formulation: Block Verification

We consider a blockchain system that consists of independent shards, with each client associated to only one shard. For clarity of presentation we focus on transactions that are verifiable intra-shard; cross-shard verifications are an added complexity complementary to the contributions of this paper; for instance, the atomic payment and locking mechanisms of [8] can be naturally incorporated with the ideas in this paper. We define the computation and networking models, and then performance metric below.

Ii-a Computation model

Each shard , maintains its own sub-chain. We use to denote discrete time in rounds and denotes the verified block in round at shard , where

is a vector space over a field

. Then the sub-chain at shard till time is denoted as . We wish to validate a new block proposed in shard in round with respect to the past of the sub-chain to ensure that it does not contain any double-spends or other irregularities. We abstract out the mechanism which generates the proposal and instead focus on validating the proposed transaction. We note that the proposal can be generated by a small number of nodes, while security depends on the number of nodes that validates the transactions. Note that since transactions are intra-shard, the sub-chain is sufficient to verify whether is valid. To verify , shard  computes a verification function , over and the sub-chain , for some vector space over .

Having obtained , shard  computes an indicator variable , such that , where denotes the subset of the values of the verification function for which the block is valid. A simple example is when , the output is binary and denotes the validity, i.e., . Finally, the verified block is computed as , i.e., if the block is not valid, it is treated as a null block which is represented as in the field.

Without loss of generality, we model the verification function as a multivariate polynomial of degree , motivated by the following result [35]: Any Boolean function can be represented by a polynomial of degree with at most terms. Due to this result, common verification functions, such as balance check and digital signature verification, can all be transformed into polynomials; details are available in Appendix A.

Example 1 (Balance verification).

We consider a simple payment blockchain system that keeps records of the balance transfers between clients. We assume that there are clients in each shard, for some constant that does not scale with . In this scenario, a block submitted to shard at time , , consists of multiple transactions, and is represented by a pair of real vectors , for some . A transaction that reads “Client sends dollars to client .” will deduct from and add to . Clients that do no send/receive money will have their entries in the send/receive vectors set to zeros. To verify , we need to check that all the senders in have accumulated enough unspent funds from previous transactions. This naturally leads to the following verification function.


Here the verification polynomial has constant degree , with , , and . We claim the block valid if none of the entries of the above verification function is negative, and we set and append it the sub-chain of shard . Otherwise, we append a dummy all-zero block.

Ii-B Networking model

The above blockchain system is implemented distributedly over network nodes. A subset of these nodes may be malicious/adversarial, and the malicious nodes compute and communicate arbitrarily erroneous results during the process of block verification. Only the honest nodes will follow the designed networking protocol described below.

At time , each node , , locally stores some data, denoted by , where for some vector space over . The locally stored data is generated from all shards of the blockchain using some function , i.e., .

Next, given the incoming blocks , each node computes an intermediate result using some function on the incoming blocks and its local storage, such that , and then broadcasts the result to all other nodes.

Having received all the broadcast messages, each node decodes the verification results for all shards , using some function , i.e., . Using these decoded results, node computes the indicator variables , and then the verified blocks , for all .

Finally, each node  utilizes the verified blocks to update its local storage using some function , i.e., .

We say that a block verification scheme , defined as a sequence of collections of the above functions, i.e., , is -secure, if for any subset of malicious nodes with , and each node , we have , for all . That is, a blockchain system using -secure verification scheme can guarantee the correct verification results at the honest nodes in the presence of malicious nodes. We define the computational complexity of a function , denoted by , as the number of additions and multiplications performed in the domain of to evaluate . In this paper, we are interested in the following three performance metrics.

Storage efficiency. Denoted by , it is the ratio between the size of the entire block chain and the size of the data stored at each node, i.e.,


The above definition also applies to a probabilistic formulation where the blockchain elements s and the storage elements

s are modelled as i.i.d. random variables with uniform distribution in their respective fields, where the storage efficiency is defined using the entropy of the random variables.

Security. Denoted by , it is the maximum value of such that a verification scheme is -secure. That is,


Throughput. Denoted by , it is the average number of blocks that are correctly verified per unit discrete round, which includes all the computations performed at all nodes to verify the incoming blocks. That is,


We aim at studying the information-theoretic bounds on these metrics and designing a scheme that can simultaneously achieve all of them.

Iii Baseline Performance

In this section, we first present the information-theoretic upper bounds on the three performance metrics for any blockchain. We then study the performance of two state-of-the-art blockchain schemes and comment on the gap with the upper bounds.

Information-theoretic upper bounds. In terms of security, the maximum number of adversaries any verification scheme can tolerate cannot exceed half of the number of network nodes : thus, the security . In terms of storage, for the verification to be successful, the size of the chain should not exceed the aggregated storage resources of the nodes. Otherwise, the chain cannot be fully stored. We thus have . Finally, to verify the incoming blocks, the verification function must be executed at least times in total. Hence, the system throughput . Therefore, the information-theoretic upper bounds of security, storage efficiency, and throughput all scale linearly with the network size .

Full replication. In terms of storage efficiency, since each node stores all the shards of the entire blockchain, full replication scheme yields . Since every node verifies all the blocks, the throughput of the full replication scheme is . Thus the full replication scheme does not scale with the network size, as both the storage and the throughput remain constant as increases. The advantage is that the simple majority-rule will allow the correct verification and update of every block as long as there are less than malicious nodes. Thus, .

Uncoded sharding scheme. In sharding, the block chain consists of equal-size (of size ) disjoint sub-chains known as shards. Each group of nodes is responsible for managing a single shard; this is a full replication system with shard and nodes. Since each node stores and verifies a single shard, the storage efficiency and throughput become and , respectively. For these two metrics to scale linearly with , it must be true that . Consequently, the group size becomes a constant. Hence, compromising as few as nodes will corrupt one shard and the chain. Thus, this scheme only has a constant security of . Although system solutions such as shard rotations can help achieve linearly scaling security guarantees, they are only secure when the adversary is non-adaptive (or very slowly adaptive). When the adversary is dynamic, it can corrupt all nodes belonging to a particular shard instantaneously after the shard assignment has been made. Under this model, the security reduces to a constant.

In summary, neither full replication nor the above sharding schemes can simultaneously scale the storage efficiency, security, and throughput towards the information-theoretic bounds. We note that codes for storage or distributed storage [36, 37] cannot be directly used here since we need to be able to calculate validation functions directly over coded blocks. This motivates us to propose PolyShard (polynomially coded sharding) in the next section to achieve all of the three bounds simultaneously. For clarity, from now on, we will refer to the sharding scheme as “uncoded sharding”.

Iv Main Results

Theorem 1.

For a blockchain system consisting of multiple shards, each of length , a polynomial verification function with constant degree , operated on network nodes, up to (for some constant ) fraction of which may be malicious, the following performance metrics are simultaneously achievable,


for computational complexity of the verification function . Therefore, the information-theoretically optimal storage efficiency, security, and throughput can be simultaneously achieved within constant multiplicative gaps.

The above performance metrics are achieved by a coded verification scheme proposed in this paper, named PolyShard. To prove Theorem 1, we describe and analyze PolyShard in the next section.

Remark 1.

Using PolyShard, each node stores locally a coded shard generated as a linear combination of the original uncoded shards. Upon reception of the new blocks, each node linearly combines them to create a coded block, using the same set of coefficients. Then, the node computes the verification function over the coded block and its local storage. The computation results are collected and used to decode the intended verification results using Reed-Solomon decoding. This coded computation technique was originally proposed in [20] for distributed computing multivariate polynomials subject to computation errors, where Lagrange polynomial interpolation was used to generate the coded data.

Remark 2.

Compared with the scenario of one-shot computation on static data in [20], the local storage at each network node is growing in a blockchain system as more verified blocks are appended to the chain. The requirement of dynamically updating the local storage that is compatible with the upcoming coded verification poses new challenges on the design of the PolyShard scheme. Utilizing the data structure of the blockchain, and the algebraic properties of the encoding strategy, we propose a simple incremental storage update policy for PolyShard that requires accessing the minimum amount of data.

Remark 3.

The additional coding overhead, including the number of operations required to encode the input data, decode verification results, and update the local storage, does not scale with the length of the sub-chains . As a result, the performance of PolyShard depends on the model of the verification polynomial . When the cost of computing , i.e., , increases with (e.g., when ), the coding overhead becomes negligible as the chain grows.

V Polynomially Coded Sharding (PolyShard) Scheme

V-a Storage encoding

We pick distinct elements , one each corresponding to each shard , and create the following Lagrange polynomial


This polynomial is designed such that for all .

Next, as shown in Fig. 3, we pick distinct elements , one for each node. This creates coded sub-chains, denoted by , by evaluating the above at the points . That is, for all ,


We note that is encoded as a linear combination of the uncoded sub-chains , and the coefficients s do not depend on the time index . Therefore one can think of each node as having a fixed linear vector by which it mixes the different shards to store the on the node. The size of each coded sub-chain is times smaller than the size of the entire blockchain, and the storage efficiency of PolyShard is .

For this encoding to be viable, we need large enough field such that . For small field (e.g., binary field), we can overcome this issue by using field extension and applying PolyShard on the extended field (see details in Appendix A).

Remark 4.

The above data encoding is oblivious of the verification function, i.e., the coefficients are independent of . Therefore, the data encoding of PolyShard can be carried out independently of the verification, and the same coded storage can be simultaneously used for all different types of verification items, which could include verifying account balances, digital signatures or checking smart contracts.

Fig. 3: Illustration of PolyShard scheme.

V-B Coded verification

In time , blocks are submitted to the shards for verification. The PolyShard scheme verifies these blocks in three steps.

Step 1: block encoding. From the received the blocks, each node  computes a coded block as a linear combination using the same set of coefficients as in (9). That is, . We note that this encoding operation can be also viewed as evaluating the polynomial at the point . This step incurs operations across the network, since each of the nodes computes the linear combination of blocks.

Step 2: local computation. Each node applies the function to the coded block , and its locally stored coded sub-chain to compute . This step requires a total of operations across the network since each validation operation takes steps. Having finished the local computations, each node  broadcasts its computation result to all other nodes.

Step 3: decoding. Using the computation results , a maximum fraction of which may be erroneous from malicious nodes, each node decodes the intended results . Since is a univariate polynomial of degree , can be viewed as the evaluation of at , and it can be recovered following the process of decoding a Reed-Solomon code with dimension and length (see, e.g., [38]). In order for this decoding to be robust to malicious nodes (i.e., achieving the security ), we must have . In other words, a node can successfully decode only if the number of shards is upper bounded as . Based on this constraint, we set the number of shards of the PolyShard scheme, , which scales linearly with network size .

The complexity of decoding a length- Reed-Solomon code at each node is , and the total complexity of the decoding step is .

Having decoded , each node evaluates it at to recover , to obtain the verification results .

V-C Incremental sub-chain update

The blocks that fail the validation process (i.e, ) should be replaced by the null block in the finalized chain, so we have, . Each node now calculates


and append into its local coded sub-chain to update it to .

Updating the sub-chains has the same computational complexity with the block encoding step, which is .

Remark 5.

Since the set of coefficients s in (10) are identical to those in (9), appending a coded block to a coded sub-chain is equivalent to appending uncoded blocks to the uncoded sub-chains, and then encoding from the updated sub-chains. This commutativity between sub-chain growth and storage encoding allows each node to update its local sub-chain incrementally by accessing only the newly verified blocks instead of the entire block history.

The total number of operations during the verification and the storage update processes is , where the term is the additional coding overhead compared with the uncoded sharding scheme. Since , the coding overhead reduces to . The throughput of the PolyShard scheme is


V-D Performance analysis of PolyShard

Having demonstrated the robustness of PolyShard against adversaries, we analyze the storage efficiency and the throughput of PolyShard, for the scenario where the verification function has constant degree , and its computation complexity scales with the chain length . This is for the verification process that scans through the entire history of the blockchain. For each past block, an operation with fixed complexity is performed (e.g., adding two real vectors for balance checking in Example 1).

For constant degree , we have , and the storage efficiency .

When , i.e., the complexity of computing increases with , the throughput in (11) becomes


This completes the proof of Theorem 1.

We can see that since the complexities of the encoding and decoding operations of PolyShard do not scale with , the coding overhead becomes irrelevant as the chain grows. The PolyShard scheme simultaneously achieves optimal scaling on security, storage efficiency, and throughput.

Vi Simulation Results

We perform detailed simulations to assess the performance of Polyshard in the payment blockchain system described in Example 1. This system keeps records of all the balance transfers between clients, and verifies new blocks by comparing them with the sum of the previously verified blocks (i.e., computing the verification function in (1)). More specifically, the system contains shards, each managing clients. At each time epoch , one block of transactions is submitted to every shard . We simulate this system over nodes using the full replication, uncoded sharding, and PolyShard schemes respectively.

We measure the throughput of each scheme under different values of and to understand its scalability. Throughput is defined as the number of blocks verified per time unit, and is measured by dividing (the number of blocks generated per epoch) by the average verification time (to be measured) of the nodes. For PolyShard, the verification time also includes the time each node spent on encoding the blocks. However, since the encoding time is a constant, whilst the balance summation time increases with as the chain becomes longer, it is expected that the encoding time is becoming negligible.

We note that the storage efficiency and security level of each scheme are decided by system parameters and, thus, do not need measurements.

We simulate this system for epochs, using different number of shards . Each shard manages clients. We fix the ratio . Thus, the number of nodes is . We plot the complete relation between , , and throughput of the three schemes in Fig. 4. For a closer look, we plot the relation between and throughput when in Fig. 5, and the relation between and throughput when in Fig. 2 in Section I.

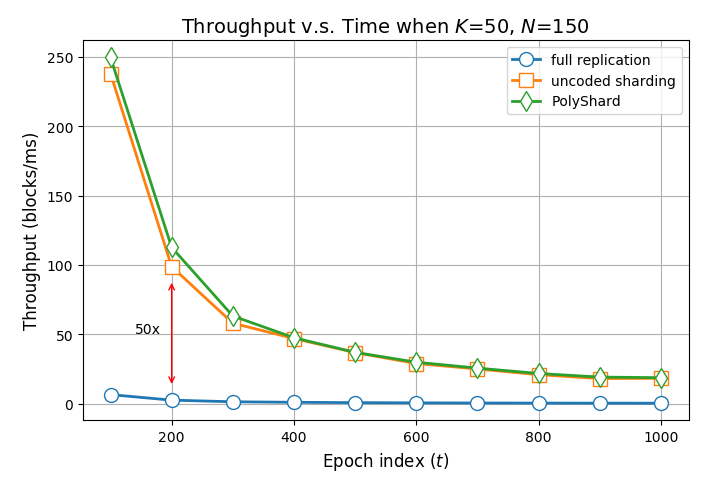

Fig. 4: Throughput of the three schemes with respect to time and number of nodes.
Fig. 5: Throughput of the three schemes when number of nodes 150.

Results and discussions

  1. Throughput: As expected, PolyShard provides the same throughput as uncoded sharding, which is about times of the throughput of full replication. From Fig. 5, we observe that the throughput of all three schemes drops as the time progresses. This is because that the computational complexity of verifying a block increases as more blocks are appended to each shard. In terms of scalability, Fig. 2 indicates that the throughput of PolyShard and uncoded sharding both increases linearly with the network size (and ), whilst the throughput of full replication almost stays the same.

  2. Storage: It is straightforward to see that PolyShard provides the same storage gain over full replication as uncoded sharding, with a factor of . Thus, PolyShard and uncoded sharding are scalable in storage, but full replication is not (Table (a)a).

  3. Security: As we have analyzed, full replication can tolerate up to 50% of malicious nodes, achieving the maximum security level . The error-correcting process of PolyShard provides robustness to malicious nodes. In contrast, under uncoded sharding, each shard is only managed by nodes. Thus, its security level is only regardless , which is not scalable (Table (b)b).

15 30 60 90 120 150
1 1 1 1 1 1
5 10 20 30 40 50
5 10 20 30 40 50
(a) Subtable 1 list of tables text
15 30 60 90 120 150
7 15 30 45 60 75
1 1 1 1 1 1
5 10 20 30 40 50
(b) Subtable 2 list of tables text
TABLE II: Storage and security of the three schemes under different network size .

In summary, PolyShard outperforms both full replication and uncoded sharding because it is the only scheme that can simultaneously 1) alleviate the storage load at each node; and 2) boost the verification throughput by scaling out the system, and 3) without sacrificing the safety requirement even when the number of adversaries also grows with network size.

Vii Discussions

In this section, we discuss how PolyShard fits into the overall architecture of a contemporary blockchain system.

Integration into blockchain systems. We note that Polyshard has so far been described in a simple setting where each shard produces one block in lock-step. We highlight one instantiation of how Polyshard could fit into the architecture of an existing blockchain system, which combines a standard sharding method for proposal followed by Polyshard for finalization. The shards are obtained by assigning users to shards via a user-assignment algorithm. The nodes are partitioned into shards using a standard sharding system (see [8]). Inside of the shard, the nodes run a standard blockchain along with a finalization algorithm to get a locally finalized version of the block.

Each node is also assigned a coded shard via a coded-shard-assignment algorithm, which assigns a random field element to a node so that the node can compute which linear combination it will use for coding. We point out here that it is easy to handle churn (users joining and leaving) by this method if the size of the finite field is much larger than

- since at this point, the probability of collision (two users getting assigned the same field element) becomes negligible. Thus each node plays a role in both an uncoded shard as well as a coded shard, thus its storage requirement will be doubled; however, our system still has storage efficiency scaling with

. The Polyshard algorithm now gets the locally finalized blocks from the different shards at regular intervals and it acts as a global finalization step performing coded validation at the level of the locally finalized blocks. We point out that users requiring high trust should wait for this global finalization stamp before confirming a payment, whereas users requiring short latency can immediately utilize the local-finalization for confirmation.

Beyond the aforementioned issues, there may be cross-shard transactions present in the system, which are payments or smart contracts with inputs and outputs distributed across multiple shards. In such a case, we will use a locking-based method, which locks the payment at the source shard and produces a certificate to the destination shard so that the amount can be spent; this idea has been proposed as well as implemented in Elastico [7] and Omniledger [8].

Relationship to verifiable computing. An alternative paradigm for accelerating computing in blockchain is verifiable computing [39, 40, 41, 42, 43], where a single node executes a set of computations (for example, payment validation) and integrity of these computations are then cryptographically certified. A major difference between our framework and verifiable computing is that our scheme is information-theoretically secure against a computationally unbounded adversary as against the computational security offered by verifiable-computing schemes. However, verifiable computing schemes can provide zero-knowledge proofs, whereas our scheme does not offer zero-knowledge capability. Finally, verifiable computing is relevant in an asymmetric setting, where one computer is much more powerful than the others, unlike Polyshard which is designed for a symmetric setup comprising of equally powerful and decentralized nodes.

Future research directions. Polyshard currently works with polynomials whose degree scales sub-linearly with the number of nodes. An interesting direction of future work is to remove this limitation. In particular, computations that can be represented as low-depth arithmetic circuits can be implemented iteratively using low-degree polynomials. Another important direction of future research is the design of validation schemes that can be represented as low-degree polynomials or low-depth arithmetic circuits.
