1 Introduction

Graphs are universal mathematical structures –usually accompanied by a plethora of features– that are extensively used to describe real-world data in various domains such as citation and social networks Kipf and Welling (2016a); Liu et al. (2019), recommender systems Zhang and Chen (2019), or adversarial attacks Zhang and Zitnik (2020)

. Due to the complex structure of graphs, traditional machine learning models are insufficient for addressing graph-based tasks such as node and graph classification, link prediction and node clustering. This necessity has given rise to

Graph Representation Learning (GRL) methods, which aim to capture the structure of input graph data and produce meaningful low-dimensional representations.

A main track of GRL methods is based on Graph Neural Networks (GNNs). GNNs and specifically Graph Convolutional Networks (GCN) Kipf and Welling (2016a) have advanced the research on GRL leading to outstanding performance as they capture a node’s neighborhood influence. Nevertheless, each GNN layer considers only the local one-hop node relations leading to unavoidably deep layer stacking to efficiently account for the global graph information. Notwithstanding, vanilla GNNs cannot be arbitrarily deep as they lead to over smoothing and information loss  Xu et al. (2018); Zhao and Akoglu (2019); Chen et al. (2020). To address over smoothing, spectral methods exploiting graph filters have been introduced Wang et al. (2019); Zhang et al. (2019). However, so far, these methods have been used in conjunction with traditional neural networks (e.g., MLPs or CNNs) that cannot efficiently exploit the set equivariance property of graph data (i.e., equivariance to permutations in the input data). In the graph domain there is no implicit data ordering, and thus the existing spectral methods waste an important portion of their computational capacity.

Contribution. In this work, we propose PointSpectrum, a GRL architecture that bridges the gap between GNN-based and spectral GRL methods (Section 2). PointSpectrum is based on Laplacian smoothing (used in spectral methods to alleviate the problem of over-smoothing), while it maintains the set equivariance property of GNN-based approaches.

Specifically, PointSpectrum is an unsupervised end-to-end trainable architecture, consisting of the following components:

  • Input: a low-pass graph filter (Laplacian smoothing) is applied on the input graph data that enables the computation of k-order graph convolution for arbitrarily large k without over smoothing node features

  • Encoder: the input data are fed to a set equivariant network that generates low-dimensional node embeddings

  • Decoder: a joint loss is employed to account for the reconstruction of the input data and their better separation in the embedding space through a clustering metric.

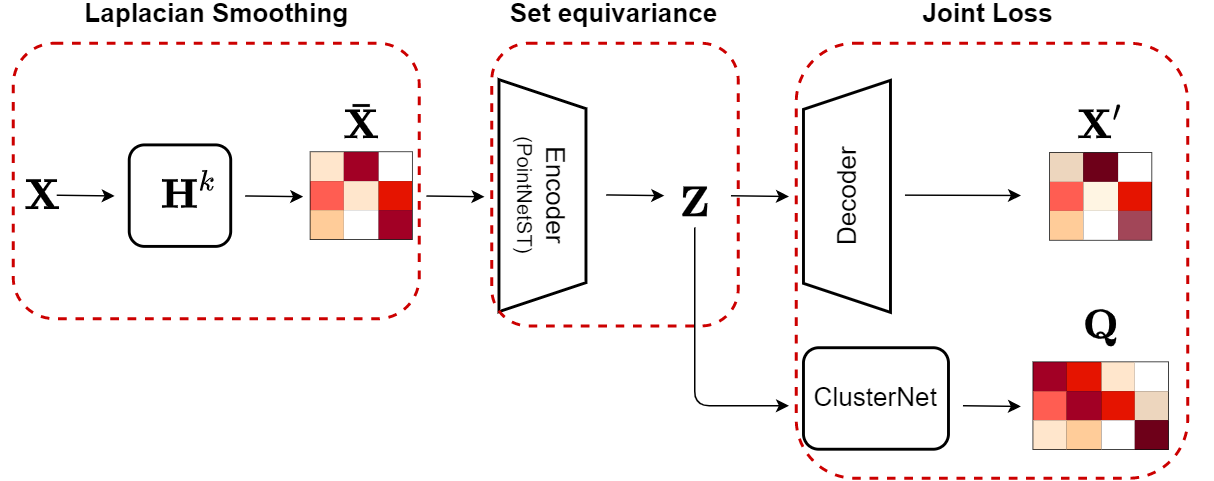

Figure 1: PointSpectrum architecture. Encoder is a pointNetST network producing node embeddings in an equivariant manner, the pair-wise decoder reconstructs input and last ClusterNet is employed to better separate points in the embedding space.

To the best of our knowledge this is the first work that introduces set equivariance in spectral GRL methods. Our experimental results (Section 3) show that: (i) Using set equivariant networks can increase the robustness (wrt. the model parameters) and efficiency (e.g., faster convergence, expressiveness) of spectral methods. (ii) PointSpectrum presents high performance in all benchmark tasks and datasets, outperforming or competing with the state-of-the-art (detailed in Section 4). Overall, our findings showcase a new direction for GRL: the combination of spectral methods with set equivariance. Incorporating set equivariant networks in existing spectral methods can be straightforward (e.g., replacing MLPs or CNNs), and our results are promising for the efficiency of this approach.

2 Methodology

Definitions. We consider a non-directed attributed graph , where is the node set with , is the edge set, and

is the feature matrix consisting of feature vectors

. The structural information of graph is represented by the adjacency matrix .

Goals. The goal of GRL is to map nodes to low-dimensional embeddings, which should preserve both the structural () and contextual () information of . We denote as , with , the matrix with the node embeddings.

Approach overview. We propose a methodology to compute an embedding matrix , which combines structural and contextual information in a twofold way: on one hand, it uses Laplacian smoothing (based on ) of the feature matrix (Section 2.1) and, on the other hand, by considering the node features as a set of points it exploits global information using a permutation equivariant network architecture (Section 2.2). Last, we leverage node clustering as a boosting component that further enhances performance by better separating nodes in the embedding space. The entire architecture that brings these components together is presented in Section 2.3.

2.1 Graph Convolution and Laplacian Smoothing

The most important notion in the prevalent GNN-based embedding methods, such as GCN Kipf and Welling (2016a), is that neighboring nodes should be similar and hence their features should be smoother than non-neighboring nodes in the graph manifold. However, these methods capture deeper connections by stacking multiple layers, leading to deep architectures, which are known to overly smooth the node features Chen et al. (2020). Over smoothing occurs as each layer repeatedly smooths the original features so as to account for the deeper interactions. To address this problem, the domain of graph signal processing has been used and in particular graph convolution by using Laplacian Smoothing filters Zhang et al. (2019); Cui et al. (2020).

Specifically, “spectral methods” in GRL use a smoothed feature matrix , instead of the original , which corresponds to a k-th order graph convolution of :

(1)

where matrix is the Laplacian Smoothing filter (discussed below). The multiplication of feature matrix with filter corresponds to a 1-order graph convolution (or 1-order graph smoothing). Stacking filters together, i.e., multiplications with , leads to a -order convolution as in Eq. 1. Thus, deep network interactions are captured by the power of filter instead of repeated convolutions of the input features and therefore over smoothing is avoided.

The Laplacian Smoothing Filter, : The intuition behind k-order convolution of spectral methods is the following: Each column of feature matrix (i.e., the vector with the values of all nodes for a single feature) can be considered as a graph signal. The smoothness of a signal depicts the similarity between the graph nodes. Since neighboring nodes should be similar, to capture this similarity, we would need to construct a smooth signal based on that captures node adjacency and takes into account the features of the most important neighboring nodes. It can be shown (details in Appendix A.7) that the Laplacian Smoothing filter as defined in Eq. 2 Taubin (1995) can cancel high frequencies between neighboring nodes and preserve the low ones:

(2)

where ,

is the identity matrix and

is the graph Laplacian. The graph Laplacian is defined as , where is the degree matrix of , with being the degree of node . In order for to be low-pass, should be a non-negative degressive function. Cui et al. (2020) showed that the optimal value of is , with

denoting the largest eigenvalue of

; in the remainder, we use this value for .

(a)

Accuracy (Cora)

(b) ARI (Cora)
(c) NMI (Cora)
Figure 2:

Accuracy, ARI and NMI metrics of the PointSpectrum with PointNetST, MLP and CNN-based networks in the encoder solving the clustering task on the Cora dataset. For all metrics, the mean value and standard deviation of 10 experiment runs are depicted.

The set equivariant PointNetST achieves higher performance and is more robust than the MLP and CNN variants, irrespective of the convolution order.

Renormalization trick: In practice the renormalization trick Kipf and Welling (2016a), i.e., adding self-loops in the graph, has been shown to improve accuracy and shrink the graph spectral domain Wu et al. (2019). Qualitatively, this means that for every node the smoothing filter also considers its own features alongside the ones from its neighbors. Thus, we perform the following transformation: self-loops are added to the adjacency: ; we then use the symmetric normalized graph Laplacian , where and are the degree and Laplacian matrices of . Finally, the resulting Laplacian smoothing filter becomes .

2.2 Equivariance and PointNetST

Neural network architectures can approximate any continuous function given sufficient capacity and expressive power Sonoda and Murata (2017); Sannai et al. (2019); Yarotsky (2021); here, we denote a neural network as a function operating on the feature matrix (and by extension on ).

Sets and permutation equivariance.

Conventional neural networks such as Multilayer Perceptrons (MLPs) or Convolutional Neural Networks (CNNs) act on data where there is an implicit order (e.g., adjacent pixels in images). However, graphs do not have any implicit order: nodes can be presented in different order but the graph still maintains the same structure (isomorphism). To this end,

can be seen as a set of points , and as a function operating on a set.

Definition 1

A function acting on a set is permutation equivariant when for any permutation of the set .

In other words, a permutation equivariant function produces the same output (e.g., embedding, label) for each set item (e.g., node) irrespective of the order of the given data. This means that if a transformation (e.g., a permutation of the input matrix’s rows) is applied to the input data, then the same transformation should be applied to the model’s output as well.

Equivariance in GRL methods. Set equivariance is not captured by traditional neural networks such as MLPs (or CNNs), which are mainly used in the “spectral methods” in GRL Zhang et al. (2019); Cui et al. (2020). More specifically, Zaheer et al. (2017) proved that a function is permutation equivariant iff it can be decomposed in the form , where and are suitable transformations. Also, each MLP or CNN layer can be seen as a transformation , and a deep network with such layers can be expressed as . Hence, the necessary decomposition for permutation equivariance does not hold. On the contrary, GNNs can capture not only permutation equivariance but also graph connectivity, which makes them even more expressive. Nevertheless, as mentioned earlier, this high expressiveness comes with oversmoothing problems. In this work, we aim to bring the benefits of both approaches used in GRL: we employ a set equivariant network that accounts for the graph structure (through the matrix ) and avoids oversmoothing at the same time (as discussed in Section 2.1). This property is crucial for this work’s model prevalence over the traditional neural networks, as it will be shown in Section 3.

(a) Loss (Cora)
(b) Reconstruction loss (Cora)
(c) Clustering loss (Cora)
Figure 3: Total loss, reconstruction loss and clustering loss of PointSpectrum with PointNetST, MLP and CNN-based networks in the encoder solving the clustering task on the Cora dataset (mean values over 10 runs). The set equivariant PointNetST helps the model converge faster than the MLP and CNN variants.

PointNetST. In this work, PointNetST Segol and Lipman (2019) is employed as the permutation equivariant neural network architecture. While different choices can be made, such as a deep self-attention network Wang et al. (2018) or the constructions of Keriven and Peyré (2019) and Sannai et al. (2019), PointNetST is preferred as it is provably a universal approximator over the space of equivariant functions Segol and Lipman (2019) and can be implemented as an arbitrarily deep neural network with the following form:

(3)

where

is a non-linearity such as ReLU and

, , is the DeepSet layer Zaheer et al. (2017):

(4)

with and being the layer’s parameters. Remark: while Eq. 4 is a generic form of an equivariant transformation, it is noted that PointNetST contains only a single layer with non-zero .

2.3 PointSpectrum

This work proposes PointSpectrum, an encoder-decoder architecture for GRL that consists of the following main components: (i) Laplacian smoothing of the feature matrix, (ii) PointNetST as the permutation equivariant neural network of the encoder, and (iii) a clustering module alongside the decoder. A schematic representation of PointSpectrum is depicted in Figure 1.

Input. The input of the encoder-decoder network is the -order graph convolution of node feature matrix , which is computed using a Laplacian filter as described in Section 2.1. The larger the convolution order , the deeper node-wise interactions the model can capture; is a hyper-parameter of the model.

Encoder. The encoder is the permutation equivariant PointNetST, which generates the node embeddings , as described in Section 2.2. The embeddings are fed to two individual modules: the decoder and the ClusterNet.

Decoder: The aim of the decoder is to reconstruct a pairwise similarity value between the computed node embeddings based on

. Different choices for the reconstruction loss function can be made (e.g. minimum squared error

Wang et al. (2019) or noise-contrastive binary cross entropy Veličković et al. (2018)). However, as connectivity is incorporated in the smoothed signal, we use a pairwise decoder and cross entropy with negative sampling as the loss function:

(5)

where are the negative samples (i.e., non-existing edges) for node .

ClusterNet is a differentiable clustering module, which learns to assign nodes to clusters to better separate them in the embedding space Wilder et al. (2019). ClusterNet learns a distribution of soft assignments , where

expresses the probability of node

belonging to cluster , by optimizing KL-divergence loss function:

(6)

where

is a target distribution (updated in every epoch or using different intervals) that emphasizes the more “confident” assignments

Wang et al. (2019):

(7)

Having computed , cluster centers can be extracted directly by averaging the soft assignments for each cluster. Overall, PointSpectrum optimizes the following joint loss of the Decoder and ClusterNet

(8)

with being hyper parameters that control the importance of each component.

3 Experimental Results

In this section, we demonstrate the efficiency of PointSpectrum in benchmark GRL datasets and tasks. We first present the datasets, the experimental setup, and the baseline methods we compare against to (Section 3.1

). Then, we provide experimental evidence for the gains that are introduced by the equivariance component of PointSpectrum over the traditional deep learning architectures in terms of efficiency (Sections

3.2), complexity (Section 3.3) and robustness (Section 3.4). Finally, we compare the performance of PointSpectrum against baseline and state-of-the art methods in GRL (Section 3.5) and provide a qualitative visual analysis (Section 3.6).

3.1 Datasets & experimental setup

Datasets. We evaluated the performance of PointSpectrum on three widely used benchmark citation network datasets, namely Cora McCallum et al. (2000)

, Citeseer

Giles et al. (1998) and Pubmed Namata et al. (2012). The statistics of these data sources are presented and further discussed in Appendix A.1.

width= Method MLP CNN PointNetST   Cora ACC NMI ARI F1 0.275 0.247 0.170 0.145 (0.583) (0.379) (0.363) (0.484) 0.301 0.090 0.514 0.208 (0.571) (0.417) (0.346) (0.489) 0.625 0.431 0.385 0.538 (0.715) (0.528) (0.493) (0.693)   Citeseer ACC NMI ARI F1 0.308 0.053 0.043 0.272 (0.445) (0.199) (0.172) (0.400) 0.362 0.098 0.091 0.314 (0.423) (0.197) (0.175) (0.395) 0.537 0.316 0.271 0.463 (0.703) (0.430) (0.451) (0.613)   Pubmed ACC NMI ARI F1 0.433 0.022 0.002 0.269 (0.638) (0.210) (0.212) (0.639) 0.457 0.063 0.018 0.323 (0.684) (0.263) (0.298) (0.673) 0.691 0.298 0.307 0.687 (0.710) (0.295) (0.329) (0.703)

Table 1: Clustering results based on the true labels. The input is randomly permuted in every epoch during training. The reported metrics result from the best clustering assignments of the original (not permuted) input. The results in the parenthesis refer to the models’ performance when trained on the original input. PointSpectrum can capture data permutations on which it has not been explicitly trained, whereas the MLP/CNN variants perform poorly.

PointSpectrum setup. For all evaluation tasks, a PointSpectrum model is used for the encoder with a single PointNetST layer of dimension (which is also the embedding dimension). For the clusterNet module, centers are randomly initialized and correspond to the number of distinct labels in each dataset. Last, weights are initialized according to He et al. (2015)

(He initialization). Details for the hyperparameter tuning are given in Appendix

A.2.

Baseline methods. We compare PointSpectrum to several baseline methods (see details in Section 4), which we distinguish in four categories: (i) feature-only

(K-Means), (ii)

traditional GRL (DeepWalk, DNGR, TADW), (iii) GNN-based (VGAE, ARVGA - and their simpler derivatives - and DGI, GIC), and (iv) Spectral (DAEGC, AGC, AGE). In Section 3.5, we compare against all these methods on clustering, and only the most prevalent ones on link prediction. Results are obtained directly from Mavromatis and Karypis (2020)

; in particular, for AGE, K-means is used as the clustering method (instead of spectral clustering as in

Cui et al. (2020)) to enable a fair comparison. In Sections 3.23.4, the reported results correspond to the node clustering task, since it is the most natural task for PointSpectrum, considering its architecture.

3.2 Efficiency of set equivariance

We investigate the efficiency of using a set equivariant network (PointNetST) along with Laplacian smoothing (), by comparing the PointSpectrum architecture (Figure 1) against two variants with MLP and CNN neural networks in the encoder. Figure 2 shows the results for the different encoder types and different convolution orders () for the clustering task on the Cora dataset. 111 The corresponding results on the Citeseer and Pubmed datasets can be found in Appendix A.5; on Citeseer PointNetST performs even better than on Cora, while on Pubmed it performs similarly to MLP/CNN variants (due to the small number of features and simpler graph structure).

PointNetST achieves higher performance, is more robust (lower variance), and has less fluctuations with respect to the convolution order than the MLP and CNN variants.

This prevalence of PointNetST suggests that set equivariant networks are able to capture richer information when combined with Laplacian smoothing, and could be good candidates for replacing the conventional encoders of other Spectral methods as well (e.g., DAEGC, AGC, AGE).

3.3 Set equivariance vs. training convergence

Set equivariant networks can offer multi-faceted benefits. As shown in Zaheer et al. (2017); Segol and Lipman (2019) and in the results of Section 3.2, they can capture richer structural information compared to the traditional MLP/CNN variants. In addition to these benefits, here we show that they also aid in training efficiency and computation complexity. Figure 3 depicts the value of the loss function during the model’s training for the original PointNetST and the MLP/CNN variants. 222Similar findings hold for the Citeseer and Pubmed datasets; see Appendix A.6

In both components of the loss function (reconstruction, clustering) and the joint loss, PointNetST helps PointSpectrum to converge faster than the MLP/CNN variants.

Remark: PointNetST achieves a lower loss value in overall (Figure 2(a)). While the clustering loss is slightly lower for the MLP/CNN variants (Figure 2(c)) this difference is infinitesimal (second decimal point) compared to the reconstruction loss term (Figure 2(b)).

width= Method K-Means DeepWalk DNGR TADW GAE/VGAE ARGA/ARVGA DGI GIC DAEGC AGC AGE PointSpectrum (ours)   Cora ACC NMI ARI F1 0.492 0.321 0.230 0.368 0.484 0.327 0.243 0.392 0.419 0.318 0.142 0.340 0.560 0.441 0.332 0.481 0.609 0.436 0.347 0.609 0.711 0.526 0.495 0.693 0.713 0.564 0.511 0.682 0.725 0.537 0.508 0.694 0.704 0.528 0.496 0.682 0.689 0.537 0.487 0.656 0.712 0.559 - 0.682 0.736 0.529 0.516 0.711   Citeseer ACC NMI ARI F1 0.540 0.305 0.279 0.409 0.337 0.088 0.092 0.270 0.326 0.180 0.044 0.300 0.455 0.291 0.228 0.414 0.408 0.176 0.124 0.372 0.581 0.338 0.301 0.525 0.688 0.444 0.450 0.657 0.696 0.453 0.465 0.654 0.672 0.397 0.410 0.636 0.670 0.411 0.419 0.625 0.569 0.348 - 0.544 0.703 0.430 0.451 0.613   Pubmed ACC NMI ARI F1 0.398 0.001 0.002 0.195 0.684 0.279 0.299 0.670 0.458 0.155 0.054 0.467 0.511 0.001 0.001 0.335 0.672 0.277 0.279 0.660 0.690 0.305 0.306 0.678 0.533 0.181 0.166 0.186 0.673 0.319 0.291 0.704 0.671 0.266 0.278 0.659 0.698 0.316 0.319 0.404 - - - - 0.776 0.375 0.444 0.768

Table 2: Clustering results based on the true labels. Horizontal lines discriminate feature-only, traditional GRL, GNN-based and Spectral methods. Underlined values indicate the best results among the spectral methods, and bold values the best results among all methods.

3.4 Performance on permuted data

As already shown, set equivariance offers performance and computational efficiency. In this section we focus on the main characteristic of set equivariance: its robustness on permuted inputs (which can be considered as a specific type of noisy/corrupted input data). To demonstrate this, we train PointSpectrum by randomly permuting the rows of (input data) in every epoch. Then, the trained model is evaluated on the original .

Table 1 presents the results of this experiment, as well as the initial results without permuted data during training (in parentheses). PointNetST achieves the highest performance, but more importantly, the drop in performance due to the corrupted input is significantly smaller compared to the drop in the MLP/CNN variants. This highlights that PointSpectrum can capture data permutations on which it has not been explicitly trained (e.g., in case of graph isomorphism). On the contrary, the MLP/CNN variants perform poorly on permuted data (see, e.g., the NMI/ARI metrics in the Citeseer and Pubmed datasets).

3.5 Comparison against baselines

In this section, we compare PointSpectrum’s efficiency in clustering and link prediction tasks against baseline and state-of-the-art methods.

We would like to stress that the main goal of this work is to introduce set equivariance in Laplacian smoothing (Spectral) GRL methods, and demonstrate the benefits it can bring. Hence, we do not extensively emphasize on the hyperparameter optimization of PointSpectrum. Here, we compare its performance against baselines for completeness and for demonstrating its efficiency compared to the state-of-the-art in GRL. Nevertheless, the tested PointSpectrum implementation still outperforms Spectral methods, and achieves top or near top performance in the evaluation tasks.

Clustering: The goal in clustering is to group similar nodes into classes based on the computed embeddings. Similar to related literature, the number of classes is given, and in the evaluation the labels provided by the datasets are used. In Table 2 we report the best PointSpectrum results out of 10 experiment runs for 4 metrics: Accuracy (ACC), Normalized Mutual Information (NMI), Adjusted Randomized Index (ARI) and Macro-F1 score (F1).

Focusing first on the Spectral methods (bottom rows of Table 2), we see that the overall PointSpectrum performance (i.e., for the majority of metrics and datasets) is superior to Spectral methods. When compared to all GRL methods, PointSpectrum achieves state-of-the-art performance on most metrics in the Cora and Pubmed datasets, as well as on the accuracy metric in the Citeseer dataset (in which the GNN-based models GIC and DGI perform best for the other metrics).

Link prediction: In link prediction, some graphs edges are hidden to the model during training and its goal is to predict these hidden interactions based on the computed node embeddings. For this task of positive and negative edges are used as test and as the validation set. Table 3 presents the model performance on link prediction (mean value and standard deviation over 10 runs) as measured by the Area Under the Curve (AUC) and Average Precision (AP) metrics.

PointSpectrum outperforms all baselines by a significant margin in Cora ( ) and Pubmed () datasets, while in Citeseer it is the second best method after GIC (with less than margin; also note that PointSpectrum has much lower variance than GIC).

width= Method DeepWalk GAE/VGAE ARGA/ARVGA DGI GIC AGE PointSpectrum (ours)   Cora AUC AP   Citeseer AUC AP   Pubmed AUC AP

Table 3: Link prediction performance. Area Under the Curve (AUC) and Average Precision (AP) are reported. Best results on each dataset are shown in bold, and second best in underlined.

3.6 Qualitative Analysis

We evaluate qualitatively PointSpectrum by visualizing the computed embeddings using t-SNE Van der Maaten and Hinton (2008) for the Cora dataset in Figure 4 (see Appendix A.4 for visualizations on the Citeseer and Pubmed datasets).

(a) Initial
(b) Intermediate
(c) Final
Figure 4: PointSpectrum’s training behavior on Cora dataset using t-SNE for visualization. ClusterNet’s trainable centers are denoted as black ‘x’ marks.

On one hand, we observe that PointSpectrum separates well the nodes in the embedding space as the training proceeds. On the other hand, the ClusterNet component enables the PointSpectrum to learn the cluster centers as well (denotes as ‘x’ marks), as it pushes them from a random initial point towards each group’s center. Last, since training is an iterative process, node embeddings and cluster centers attract each other in turns, explaining the formulation of these distinct clusters.

4 Related Work

GRL has gained a lot of attention due to the need for automated processes that can analyze large volumes of structured data, with graphs being the hallmark of such structures.

Conventional graph embeddings: The first efforts exploited well-known graph mechanisms to calculate node representations. DeepWalk Perozzi et al. (2014) and Node2Vec Grover and Leskovec (2016) utilize random walks to sample the graph and train a Word2Vec model on these samples to extract the embeddings. Also, TADW Yang et al. (2015) applies non-negative matrix factorization on both the graph and node features to get a consistent partition. Last, DNGR Cao et al. (2016) employs denoising auto encoders to find low dimensional representations and then reconstruct the graph adjacency.

GNN-based methods: Graph Neural Networks are designed to capture graph structures, and thus have been used for learning node representations. VGAE Kipf and Welling (2016b)

uses GCNs to form a variational autoencoder which learns to generate node embeddings, while ARVGA

Pan et al. (2018) uses adversarial learning to train the graph auto encoder. DGI Veličković et al. (2018) leverages both local and global graph information for representation learning using contrastive learning, while GIC Mavromatis and Karypis (2020) extends DGI by forming node clusters to better separate nodes in the embedding space. In particular ClusterNet Wilder et al. (2019) –the clustering process of GIC which is crucial for its superior performance– is also incorporated in PointSpectrum aiding in performance and validating GIC’s design. Although efficient, to capture deep graph interactions GNN methods are inevitably led to over smoothing, where node representations converge to indistinguishable vectors Chen et al. (2020); Zhou et al. (2020).

Spectral methods: On the other hand, spectral methods exploit graph filters to perform high-order graph convolution at once, thus bypassing GNNs’ over smoothing. AGC Zhang et al. (2019) uses Laplacian filtering with spectral clustering to cluster nodes into groups, while AGE Cui et al. (2020) employs an auto encoder to produce node embeddings through Laplacian smoothing. Also, DAEGC Wang et al. (2019) leverages an attentional network alongside soft-labeling for self supervision to construct the embeddings. While spectral methods address over smoothing, they have only used conventional neural networks (MLPs, CNNs) that cannot capture graph properties (e.g., equivariance) by design; they can only learn the structural information contained in the smoothed input signal.

PointSpectrum –although a spectral method– lies on the intersection of GNN-based and spectral methods, alleviating over smoothing through graph filtering and capturing structural information through set equivariant networks.

5 Conclusion

PointSpectrum is the first work to introduce the set equivariance property (typically, a property of GNN-based methods) into spectral methods. Set equivariance is important when learning on graph data, since it is inherently designed to exploit the nature of unordered data. Our work was motivated by this, and our experimental results clearly demonstrated the performance benefits of using a set equivariant network (PointNetST) over the MLP or CNN layers that are used in spectral methods.

We deem PointSpectrum as an initial effort (or as a proof of concept) in the direction of integrating set equivariance with Laplacian smoothing. This is why we adopted a simple design for the model architecture, without exhaustively over-engineering its modules or tuning its hyperparameters. Nevertheless, and despite this simplicity, we have shown that PointSpectrum can achieve state-of-the-art results in benchmark datasets. This brings a positive message for the efficiency, applicability and generalizability of our approach to other spectral or more generic GRL methods.

In particular, we identify the following as promising directions for future research:

Extensions: Set equivariant networks (e.g., DeepSet or PointNetST) can easily be introduced to existing spectral methods (e.g., AGC, AGE or DAEGC) by replacing the MLP or CNN layers that they use. A more challenging direction is the extension of the proposed approach to generative models, such as VAE or GAN architectures.

Generalization: As shown, PointSpectrum performs well even under data permutations. A deeper understanding (experimental/theoretical) of its capacity to generalize on noisy, corrupted or unseen data, could provide further insights on the mechanics of using set equivariant methods on graphs, as well as lead to the design of more efficient GRL methods.

Unification: PointSpectrum has a modular design, where a set equivariant network receives as input the smoothed matrix . Unifying these two operations in a single component (e.g., a new GNN layer), if possible, could simultaneously aim at a higher performance and bypass over smoothing.
