1 Introduction

Every second, one person in the world has her or his life irremediably affected by natural disasters. As climate and environmental changes become more and more pronounced, they will likely lead to more frequent, severe, natural hazards, with heavy impact on peoples’ welfare and nations’ economies. Thus, raising awareness on the provision of public safety services by leveraging the latest communication technologies is a most urgent challenge.

Relevant scenarios include the natural disasters such as earthquakes, fires or floods that disrupt traditional communication infrastructures, or that displace large crowds, overloading what is left of the communication infrastructure. In these scenarios, people are in need of directions, advice, updates on the current situation and they often need to send out requests for help or to make their location known to rescue teams. Ideally, users should be able to communicate directly between themselves, even in the absence of a cellular infrastructure - a common occurrence in disaster scenarios. Thus, it is crucial that solutions and platforms are developed to integrate, or thoroughly replace, the traditional communication infrastructure, for the benefit of the affected population as well as of first responders.

The rapid deployment of a communication network for data exchange between a Rescue Command & Control Center and ground units, or casualties, spread over the territory, can be difficult. This is especially true in presence of natural obstacles (mountains or valleys) that can limit the functionality of terrestrial communication devices such as VHF radio equipment or line-of-sight (LOS) data links. In these cases, UAVs (Unmanned Aerial Vehicles) represent a more than valid solution for the rapid deployment of a secondary communication infrastructure. Indeed, the UAV Data Link system can be equipped with an additional broadcasting function, in order to directly disseminate sensors and tactical data over a wide area, or connect locally a small number of Ground Units. This can represent a valid alternative to satellite communication equipment, which often suffers from the lack of available channels and usually offers less channel bandwidth. Additionally, satellite links are generally characterized by lower electronic countermeasures resistance, higher interceptability, and higher latency with respect to wide band Data Links for UAVs.

In this paper, we address the provision of an alternative wireless coverage using UAVs, considering the specific use case of a population fleeing a disaster area riding their own vehicles. We first review some literature work in Section 2, while highlighting the novelty of our contribution. Our system model is described in Section 3. Performance evaluation for the scenario illustrated in Section 4, is shown against a baseline solution, in Section 5. Finally, conclusions are drawn in Section 6.

2 Related Work

We classify the related work in the following categories: i) UAV placement to provide wireless coverage, ii) UAV trajectory optimization, iii) exploitation of UAVs to sense information during disasters, and iv) UAVs for disaster management. In the following, we provide more details about each of these categories.

2.1 UAV placement for wireless coverage

Here we analyze the works focusing on the placement of UAVs over a territory, in order to provide wireless coverage to users. In this context, Mozaffari et al. mozaffari2015drone focus on the design, deployment, and performance analysis of UAV-based small Base Stations (BSs). They first develop an analytical framework to compute the optimal height for a single UAV-based BS in order to minimize the transmitted power. In the second part of their work, they study the optimal height and distance of two UAV-based BSs in order to maximize the coverage performance over the given areas. Bor et al. bor2016efficient formulate the UAV placement problem in the 3D space with the goal of maximizing the revenue. Mozaffari et al. mozaffari2016efficient

study the efficient deployment of multiple UAV-based BSs to provide wireless coverage for a set of users placed at ground level. They first analyze the coverage probability in the downlink direction (i.e., from the UAV-based BS to the user) as a function of the altitude and the antenna gain. Then they compute the placement of the UAVs in the 3D space with the aim to maximize the total coverage.

Reina et al. reina2018multi design a genetic-based algorithm to solve the coverage problem of UAV-based networks. In particular, they model the deployment of a set of UAVs as a wireless network design problem, which optimizes the UAV positions. A similar problem to reina2018multi is tackled by Zhao et al. zhao2018deployment , which propose a set of algorithms for on-demand coverage while maintaining at the same time the connectivity between the UAVs. Trotta et al. trotta2018joint propose a set of UAV deployment strategies in order to maximize geographical coverage, while considering UAV energy recharging operations at ground sites. In particular, they address a 3D placement problem, which is coupled with the scheduling of the UAVs recharging actions.

Although the studies in mozaffari2015drone ; bor2016efficient ; mozaffari2016efficient ; reina2018multi ; zhao2018deployment ; trotta2018joint demonstrate that the UAVs placement is an interesting and challenging problem and present sound solutions to it, our work substantially differs from previous work in several aspects, namely: i) the dynamic selection of the areas to be covered, which depends on the evolution of the disaster over time; ii) the scheduling of the UAV moving, covering, and recharging actions; iii) the trajectory of the UAVs as a combination of zones that are visited over time; iv) the consideration of a realistic scenario based on the predicted mobility patterns of users.

2.2 UAV trajectory optimization

A second taxonomy of works deals with the problem of trajectory optimization of UAV-based wireless networks. Zhang et al. zeng2016wireless propose a basic UAV-based architecture and discuss the key design aspects. Among them, one important issue is the UAV trajectory planning. Finding an optimal (or near optimal) solution to such problem is, in fact, beneficial to the distance between the user and the UAV and, consequently, to the users performance. However, the authors state that retrieving the optimal path is very challenging, due to the presence of time-varying constraints, in term, e.g., of connectivity, energy limitation, collision aspects, and terrain obstacles. Moreover, they also suggest to approximate the problem by dividing the time horizon into a set of discrete time slots. As a result, the trajectory of each UAV is given as a set of states that are visited over time. In line with them, this work considers: i) a discretized UAV path planning problem and ii) the time-varying constraints of UAV energy, UAV actions, and UAV-to-users connectivity.

Wu et al. wu2018joint consider a scenario where multi UAV-based BSs cooperatively serve a group of users placed at ground level. The considered problem takes into account the association of the users to the UAVs, their scheduling over time, the UAVs trajectories, and the UAVs transmit power. Unlike wu2018joint , our work faces a different problem, where the dynamism of users, based on their movements over the disaster area, is introduced. Moreover, while the framework of wu2018joint is tailored to a limited number of users, in our work we focus on a large number of users, modeled following real-world data traces and a realistic scenario, and we account for the need of UAV recharging over time.

2.3 UAVs for disaster sensing

A third taxonomy of works targets the exploitation of UAVs for sensing operations during disasters. More in detail, Changchun et al. changchun2010research advocate the need of adopting UAVs for remote sensing and applications. Luo et al. luo2015uav design an application framework and a prototype of an UAV cloud-based architecture for disaster sensing. However, their work is tailored to a video capture service, and not a wireless network service like in our case.

Recently, Yanmaz et al. yanmaz2018drone introduce an UAV-based architecture for sensing operations, where each UAV is equipped with on-board sensors, as well as processing, coordination, and networking capabilities. The proposed architecture is implemented in a real testbed, which demonstrates its potentiality in terms of disaster assistance and aerial monitoring. With respect to them, our work has a different objective, namely, the provisioning of the wireless service. Furthermore, we address some of the open issues left by yanmaz2018drone , i.e., i) the coordinated path planning for a set of UAVs subject to dynamic goals (i.e., the data traffic coming from the users which are fleeing from the disaster area), and ii) the integration of the UAVs with a wireless service.

2.4 UAVs for disaster management

At last we consider the works analyzing the impact of UAV-based BSs that are deployed for disaster management. In this context, Erdelj et al. in their survey erdelj2016uav ; erdelj2017help analyze the studies dealing with this specific aspect. According to their taxonomy, our work falls inside the standalone communication systems category, where the UAVs are used to re-establish the communication infrastructure. More in depth, Table 1 of erdelj2017help reports the pros and cons of the fixed wing, rotary-wing (helicopter), and rotary-wing (quadcopter) UAV-based solutions. While fixed-wing UAVs are very effective in covering vast portions of territory, their total weight is limited. On the other hand, helicopter-based UAVs are able to carry even heavy loads. Finally, quadcopter UAVs are able to carry lower payload compared to the previous two solutions. However, the price of both fixed-wing and helicopters is much higher compared to the one of quadcopter UAVs. In line with them, in this work we consider UAV solutions based on quadcopters. Clearly, this choice has an impact on our model. For example, the authors of erdelj2017help point out the importance of automatically scheduling the UAV recharging actions. In our case, this aspect is carefully introduced in the formulation, as the flight time of quadcopter UAVs is pretty limited. Finally, the need of detailed problem formulations, able to provide an adequate service-level to users, is advocated by erdelj2017help .

Merwaday et al. merwaday2015uav explore the adoption of UAV-based BSs for management of public safety communications during disasters. In particular, the gain in terms of throughput when placing the UAVs over the disaster area is analyzed. However, the movement of the UAVs over the disaster area is not considered.

Bupe et al. bupe2015relief

target the deployment of a set of UAVs in order to guarantee a first level of communication in a disaster area. The UAVs deployment and positioning is governed by a custom-based algorithm, which involves the creation of super-nodes that are in charge of running the heuristic. Guevara

et al. guevara2015uav assume that the UAVs are used to carry GSM Base Stations, and propose a solution based on the OpenBTS software. Although both the above studies bupe2015relief ; guevara2015uav are interesting steps towards a practical implementation of an UAV-based network, no results are shown.

Erdelj et al. erdelj2017wireless explore the use of Wireless Sensor Networks (WSNs) and UAVs for the management of disasters, by surveying the main works in the field. In particular, the main applications requiring WSNs and/or UAVs are classified according to the phase of the disaster. Moreover, Figure 5 in erdelj2017wireless provides an example of a fixed UAV station. In line with them, in this work we assume that the UAVs are initially placed at fixed stations. Then, as soon as the disaster is detected, the UAVs are freely moved across the zones over time.

Finally, Zhang et al. zhang2018analysis explore the use of two UAVs providing coverage capabilities to a set of rescue vehicles. In particular, the coverage probability and the achievable data rate are analyzed. Differently from zhang2018analysis , we consider a larger number of UAVs (i.e., more than two). Additionally, while in zhang2018analysis the communication from the UAV and the rest of the network is provided through satellite links, in our work we assume that this functionality is provided by a backhaul radio link between the UAV-based BS and the ground site.

3 System model

This section describes our system model. We first deal with the mobility of UAVs (Section 3.1) and then with its effect on the service quality (Section 3.2).

As a convention, in the following

  • calligraphic capital letters indicate sets, e.g., ;

  • Greek letters indicate variables, e.g., ;

  • upper-case Latin letters indicate parameters, e.g., ;

  • lower-case Latin letters are used for indices.

Symbol Type Meaning
Set Area where vehicles can be
Set UAVs
Set Time steps
Set Pairs of nearby zones
Set Zones hosting recharge sites
Parameter Battery capacity of UAV
Parameter Time horizon to consider when computing average throughput values
Parameter Number of vehicles in area at step
Parameter Best-case throughput available to users in area from a UAV covering zone
Binary decision variable Whether UAV covers zone at step or not
Binary decision variable Whether UAV travels from zone to zone at step or not
Binary decision variable Whether UAV recharges in zone at step or not
Real decision variable Fraction of available spectrum resources assigned by UAV to area while covering zone at step
Real auxiliary variable Per-vehicle, instantaneous throughput experienced by vehicles in area at step
Real auxiliary variable Per-vehicle, average throughput experienced by vehicles in area between the steps and
Table 1: Notation

3.1 UAVs mobility

Our topology is described as a set  of areas where vehicles in need of coverage can be located. We further identify a set  of zones where a UAV can be stationed; a UAV located in one zone can cover vehicles in zero of more areas, with a service quality that depends upon the distance between the UAV itself and the vehicles.

Pairs of zones that are close enough so that a UAV can travel from one to another in a time step are collected in set . Furthermore, some zones  host recharge sites where UAVs can recharge. Time is divided into steps .

At every time step , each UAV  can perform one of the following three actions:

  • cover a zone

    , which is denoted through the binary variable

    ;

  • travel from zone  to zone , such that , corresponding to the binary variable ;

  • recharge at zone , corresponding to the binary variable .

Setting the , and  variables is how we describe the movement of a UAV.

A first constraint we need to impose is that UAVs perform exactly one of the actions above in any given time step, i.e.,

(1)

Also notice that (1) implies that UAVs that are recharging (-variable set to one) do not cover any area (-variable set to zero), regardless of the location of recharge site.

UAVs move at most over one link in one time frame. It follows that UAVs cannot cover a zone  at a step  unless (i) they were covering the same zone at the previous time frame, or (ii) they were recharging there, or (iii) they just traveled there from another nearby zone :

(2)

The same conditions must be met for a UAV to recharge at zone  at step :

(3)

Furthermore, UAVs can travel over a link  at step  only if, at step , they were (i) covering or charging in  or (ii) traveling there from another zone :

(4)

Last, we need to account for battery duration. Assuming that the same amount of battery is needed when traveling or covering, the battery capacity of UAV  can be expressed through a parameter  corresponding to the maximum number of time steps between recharges. Ensuring that UAVs regularly charge is equivalent to saying that each UAV  must, in the last  time steps, have recharged at least once:

(5)

3.2 Coverage and service quality

We are given the best-case throughput with which a UAV staying in zone  can cover the vehicles in area . In order to account for the fact that a UAV in a certain zone can cover multiple areas, we introduce a real decision variable, , expressing the fraction of spectrum resources that a UAV  covering zone  during step  devotes to covering area . We then impose:

(6)

(6) ensures, at the same time, that (i) coverage of the vehicles staying in an area  can only be offered by UAVs located in nearby zones , i.e., such that , and (ii) UAVs do not provide more capacity than they can. It is also interesting to notice how the capacity assignment across different areas can change over time.

If we know the number  of vehicles staying in area  at step , then we can compute the average per-user throughput , defined as:

(7)

It is worth pointing out how (7) also accounts for the fact that multiple UAVs, possibly covering different zones, can provide connectivity to the same area.

Finally, we define our optimization objective. We need to (i) ensure fairness across different parts of the topology, i.e., different areas, but also (ii) exploit the fact that UAVs can move, hence the throughput can change over time. To this end, we define an auxiliary variable, , expressing the average throughput experienced by area  in the last frames, i.e.,

(8)

Using the variables, we define our objective as:

(9)

Importantly, (9) combines the fairness coming from a max-min objective with the need to account for a longer time horizon, during which UAVs can roam across the topology and serve multiple areas.

4 Reference scenario

We simulate a flooding in San Francisco and the traffic resulting from escaping cars using a combination of open data and state-of-the-art tools, as set forth next.

4.1 Disaster

In order to estimate which areas would be affected by a large-scale flooding, we use a software called Hazus

hazus , developed by the American Federal Emergency Management Agency (FEMA) and able to simulate several types of disasters, including fires, earthquakes, and floodings. Given the scale of the disaster, e.g., the magnitude of an earthquake, Hazus is able to estimate to which extent each zone of the topology will be affected by the disaster itself, e.g., whether buildings therein will be partially or totally destroyed.

For floodings, Hazus leverages an ArcGIS extension called Flood Information Tool fit , whose basic architecture is summarized in Figure 1(a). The FIT tool combines information about:

  • the expected flood elevation, in one of several supported formats (left-hand side of Figure 1(a));

  • the extent of the floodplain in the area (top-center of Figure 1(a));

  • the ground elevation of the areas that may potentially be affected by the disaster, in one of several supported formats (right-hand side of Figure 1(a)).

Using the above information, the FIT tool can perform one of three levels of analysis, summarized in Figure 1(b). If only basic information is supplied, it will return the extent of the areas affected by the disaster. If, on the other hand, the user provides more information about the type of area (urban, rural…), or the infrastructures therein, then the FIT tool will provide a detailed assessment of the damage caused by the flood and even its economical impact.

(a)
(b)
Figure 1: Basic architecture (a) and supported analysis levels (b) of the Flood Information Tool (FIT) used by Hazus. Source: fit .

For our purposes, i.e., assessing the number of users that will be escaping from the disaster and the resulting vehicular traffic, a basic analysis (level 1 in Figure 1(b)) is sufficient. The result is an ESRI shapefile representing the area affected by the disaster, as exemplified in Figure 3. We couple such information with population information from the US Census, as detailed next, to estimate the mobility of escaping users.

4.2 Vehicular mobility

Given the area hit by the disaster, we have to estimate (i) how many people will escape, (ii) when, and (iii) through which routes. We obtain the first information from official US census information tiger , which indicates how many people live in each census tract. As for the second, we estimate that all such people start evacuating as soon as the alarm is raised, i.e., they will all hit the road at the same time.

To simulate the trips of the escaping cars, we use an open-source traffic simulator called MATSim matsim . Started in 2006, the MATSim project has the goal of studying the traffic and congestion patterns resulting from the individual behaviors of vehicular users. It has been since extended to include such advanced features as schedule-based public transit, electric and autonomous cars, paratransit (special transportation for people with disabilities), and route re-planning as a consequence of current traffic conditions.

Since the inception of the project, efficiency has been a paramount goal of MATSim. To achieve this goal, its developers have used concepts and methodologies from such domains as network science and particle physics: the models describing the behavior of individuals and vehicles are simplified to the essential, dropping computationally-expensive features that often have a minor impact on the final result.

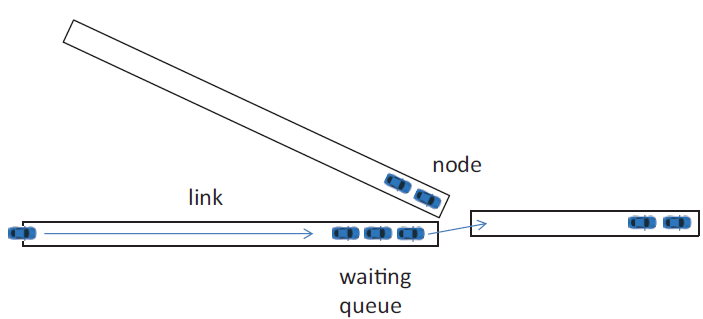

Figure 2: The queue-based mobility model used in MATSim. Source: matsim .

Following this philosophy, MATSim represents vehicular mobility through a queue-based model, exemplified in Figure 2. Each road segment corresponds to a queue; incoming vehicles are added to the end of the queue and stay in the segment until:

  • the free-flow travel time (i.e., the time it would take to travel that link at the maximum allowed speed) is elapsed, and

  • there is no other vehicle in queue, and

  • the next road segment is not congested, i.e., there is an available slot in the queue representing it.

Through this model, MATSim is able to account for road congestion and its effect on travel times; however, car-following dynamics and the position of individual vehicles within road segments are not captured.

Such a mesoscopic approach yields much faster running times than SUMO and thus the ability to cope with larger-scale scenarios. Furthermore, it perfectly fits our needs, as road segments correspond to areas in set , and the number of vehicles therein correspond to the  parameters.

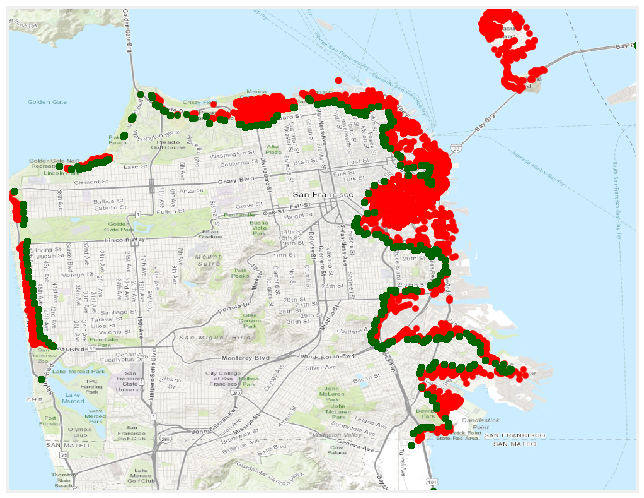

Figure 3: Areas affected by the flooding from where vehicles escape (red dots), and safe areas vehicles flee to (green dots).
(a)
(b)
Figure 4: Areas (a) and zones (b) in the reference scenario.
(a)
(b)
Figure 5: Actions performed by UAVs under the baseline (“Base”) and relaxation-based (“Relax”) strategies (a); duration of missions (b). In (a), the numbers over the bars for the “recharge” action indicate the average number of battery units replenished by UAVs at each charge.

4.3 Network capacity and topology

Lastly, we have to estimate the throughput between vehicles in a certain areas and UAVs covering them from a certain zone, i.e., the  parameters. To this end, we perform the following three steps (noi-tmc, , Sec. 6):

  1. compute the average attenuation between any zone and area, using the ITU-recommended model itu ;

  2. compute the signal-to-noise (SNR) ratio for each zone-area pair, assuming for UAVs the same transmission power and frequency of LTE micro-cell, i.e., 30 dBm and 1.8 GHz respectively;

  3. mapping SNR values into the amount of data each resource block can transport, leveraging the measurement study sinr2rb .

Notice that we compute the SNR instead of the signal-to-noise-and-interference ratio (SINR), which corresponds to neglecting interference from the regular cellular networks – a fair assumption since the very purpose of sending UAVs to an area is to make up for a disabled or damaged cellular network.

We derive our numerical results with reference to the topology in Figure 3

. Using k-means clustering, we divide the topology into 500 areas, depicted in Figure

4(a), which compose the set . We then identify 100 zones, 7 of which also host recharge sites, corresponding to sets  and  in the system model and represented by blue and red dots, respectively, in Figure 4(b). Furthermore, Figure 4(b) reports links in , drawn between any two zones closer than 1 km. Time steps in  correspond to 10-minute time intervals.

4.4 UAVs strategies

Solving the problem presented in Section 3 to optimality would yield the best possible actions that every UAV should perform at any given time. However, directly solving such a problem is impractical in medium- to large-scale scenarios, owing to its complexity. We therefore solve a relaxed version of the problem, where the binary variables  are replaced by their continuous counterparts .

The values of the  variables cannot be directly used to steer a UAV; rather, for every time step, we perform the action associated with the highest relaxed variable. If, as an example, at time step  the variables associated with UAV  are  and , UAV  will travel to , as if it were .

We compare against a baseline solution whereby UAVs choose as their waypoint the least-recently visited zone of the topology and travel there through the shortest path, covering each zone they traverse for one time step before proceeding. When the waypoint is reached, a new one is selected. If a UAV’s course would bring it so far from the closest charging site that its battery level would be insufficient to reach it, the UAV changes its course and heads to the charging site.

5 Numerical results

In this section, we characterize the mobility of UAVs under the baseline and relaxation-based strategy (Section 5.1), as well as the coverage they are able to provide to the evacuating vehicles (Section 5.2).

5.1 UAV mobility

A first aspect we are interested in is how UAVs spend their time, i.e., how often they cover one zone (“cover”), travel between zones (“travel”), or recharge at a site (“recharge”). As summarized in Figure 5(a), the “cover” and “travel” actions account for the majority of UAV time. It is also interesting to notice that those two actions have roughly equal frequency, i.e., UAVs tend to cover a zone for one time step before moving to a different one. The relaxation-based strategy is associated with more covering and less traveling, i.e., drones stay longer in the same zone if needed, e.g., if they can cover multiple areas from it. It is also interesting to notice the frequency of the “recharge” actions: under the relaxation-based strategy, drones recharge more frequently and for smaller amounts. Again, this is a consequence of the greater flexibility of the scheme, which allows UAVs passing near a recharge site to replenish their battery even if it is not (yet) completely drained.

Figure 5(b) depicts the number and duration of the missions performed by UAVs under the two strategies. We can observe that, under the relaxation-based strategy, UAVs perform a higher number of missions, thus reaching more areas of the topology. Clearly, such missions are, on average, shorter than under the baseline strategy. However, looking at the CDF, it is interesting to see that the baseline strategy is associated with a fairly large number of very short missions: those missions are cut short because of the need to recharge – a condition that, as discussed earlier, is avoided under the relaxation-based strategy.

5.2 UAV coverage

We are interested in two complementary aspects of the coverage provided by UAVs to evacuating vehicles: the overall throughput and the fairness across different areas.

Figure 6: Total throughput for the baseline (“Base”) and relaxation-based (“Relax”) strategies.
(a)
(b)
Figure 7: Per-area throughput under the baseline strategy, with lighter colors corresponding to higher throughput (a); effect of moving to the relaxation-based strategy, with red and green shades corresponding to, respectively, worse and better throughput values.

Figure 6 shows the overall throughput for the baseline and relaxation-based strategies, with the latter providing substantially and consistently better performance. This is due to the fact that the optimization problem accounts for additional information with respect to the baseline strategy, including the number of vehicles present in each area and the throughput with which they can be served.

In Figure 7(a), we summarize the throughput experienced by vehicles in individual areas under the baseline situation; lighter colors correspond to better throughput. We can observe that some areas experience a better throughput than others, e.g., the Marina district in the North. Moving to Figure 7(b), depicting the effects of switching to the relaxation-based strategy, we can observe that (i) most areas benefit from such a change and (ii) more importantly, the throughput of disadvantaged areas such as those along Market street is substantially increased.

In other words, thanks to the objective (9), the relaxation-based strategy results in a better fairness. This is confirmed by the values of the Jain’s fairness index jains , computed considering the total throughput in different areas: 0.34 for the baseline strategy, and 0.40 for the relaxation-based one.

6 Conclusions

We have addressed the deployment of UAVs in disaster scenarios, with the aim to replace disrupted cellular infrastructure and bear the surge of user traffic typical of emergency situations. To this end, we defined an optimization problem in the context of UAV deployment in areas affected by natural disasters. Our goal was to determine the best UAV coverage that maximize user throughput, in a fair manner across different parts of the topology. Our numerical simulations on a real map of the San Francisco area, considering realistic UAV mission parameters confirmed that our solution provides a higher throughput and a better fairness when compared to a baseline solution whereby a UAV flies in a beeline to the least-recently visited zone of the topology, until a low battery forces it to return to base.

Acknowledgments

This work was supported by the European Commission through the I-REACT project (grant agreement no. 700256), and by the University of Rome Tor Vergata project BRIGHT (Call Mission Sustainability).
