1 Introduction

Interdiction seems by its very nature an adversarial act, one perpetrated, if you will, by “bad guys.” For example, an attacker may interdict the power flow on an electric power grid, resulting in widespread blackouts Salmeron09 , or interdict a transportation or a supply network McMasters70 ; Ghare71 . Consequently, it may be somewhat jarring at first to consider the defender —the “good guy”— as the interdictor. We would like to argue that in cybersecurity this is precisely the ultimate goal of the defender: to interdict an attack, whether actual or potential. In particular, in this chapter we will illustrate that cyber attacks are naturally viewed as plans, or dynamic decision processes by malicious agents.

At the most basic level, a plan is a sequence of actions which, if successfully executed beginning from an appropriate initial state, accomplishes a planner’s goal. Of course, this notion of a plan is quite restricted; for example, if uncertainty is at all salient, an intelligent plan would involve contingencies, or a mapping from observed state to action. The perspective we will take in this chapter is that the attacker is such a planner. The initial state for the attacker includes the initial vulnerabilities of the target network, as well as any relevant capabilities and information that the attacker possesses. An attack is then a series of actions —perhaps, as a part of a contingent plan of actions— aimed at accomplishing a malicious goal, or perhaps a contingent series of goals, each with a different value to the attacker. The defender, as we had remarked, is the interdictor: insofar as the attacker’s plan would accomplish goals which are contrary to the defender’s desires, the defender would wish to prevent this from happening. A myopic defender would simply attempt to interdict past attacks; arguably, that is what most cyber-defense is like in practice: preventing attacks which have been identified from succeeding. We argue for a longer, proactive view: the defender can, and should, reason about alternative attack plans that the attacker could make, for particular defensive interdiction strategies, and choose an optimal interdiction —one that proactively accounts not merely for previously known attacks, but possible future variations which circumvent the defense as well.

Below, we begin with a simple example to illustrate the nature of attack plans and interdictions. Subsequently, we describe several formal modeling approaches for plan interdiction, first when the planning environment is deterministic, and subsequently when it is stochastic. We follow with an in-depth illustration of the approach by using it as a modeling framework for network cyber risk assessment. We then suggest future research directions that consider longer term attack plans, when the defender is able to observe, and react to, some of the attack actions. These directions present interesting questions about optimal adaptive defense, as well as important considerations of adversarial deception.

2 A Simple Example

As a simple illustration, consider the following example of an attack planning problem. The initial state includes the initial attacker capabilities, such as possession of a boot disk and port scanning utilities. Actions include both physical actions (breaking and entering and booting a machine from disk) as well as cyber actions, such as performing a port scan to find vulnerabilities.111The actions in our example are taken from the CAPEC database ( Figure 1 shows an attack graph (with attack actions as nodes) for this scenario, with the actual attack plan highlighted in red.

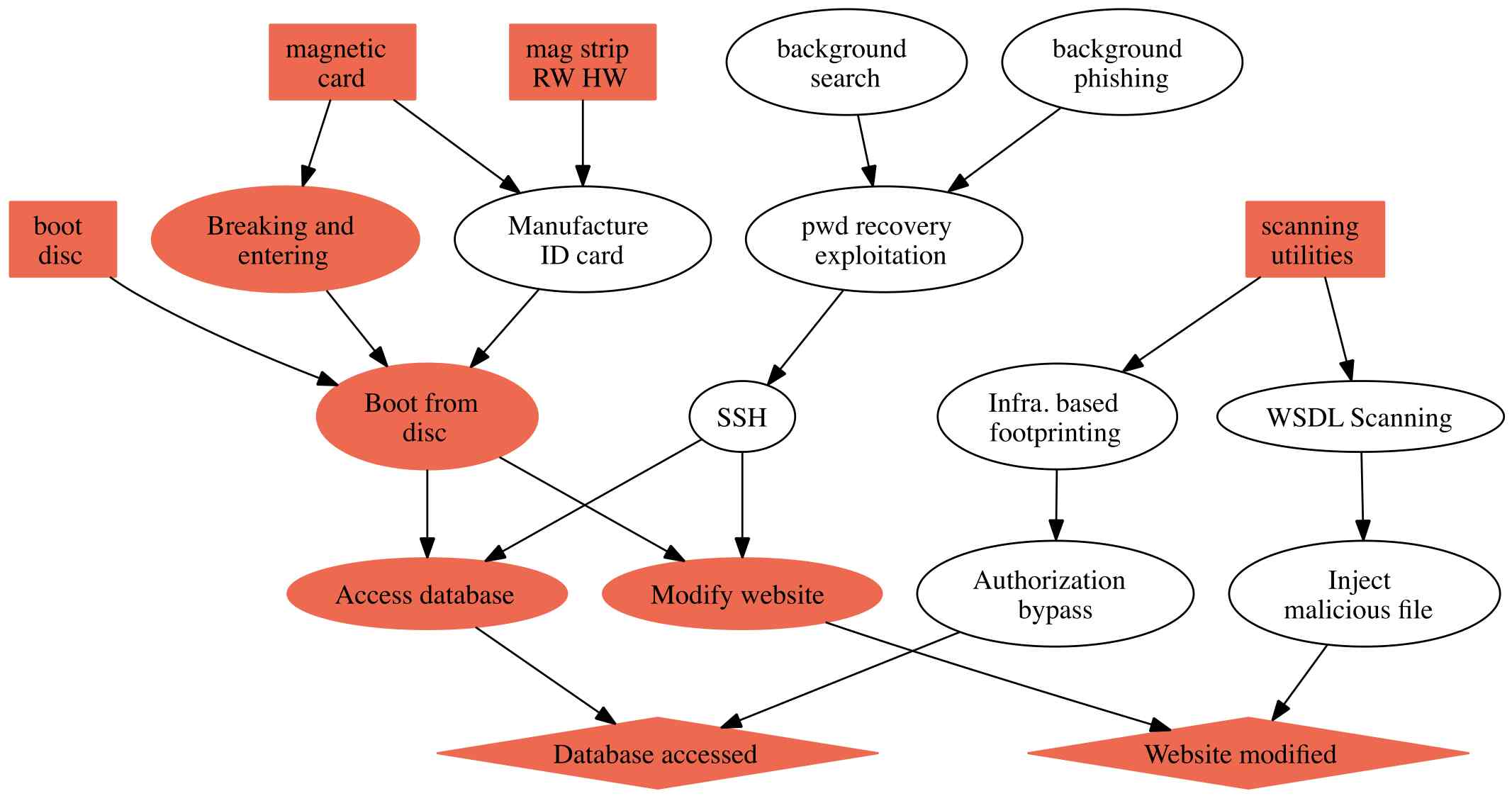

Figure 1: Example attack graph. Boxes correspond to initial attacker capabilities, ovals are attack actions, and diamonds are attacker goals. An optimal attack plan is highlighted in red.

Figure 2, on the other hand, shows an example interdiction plan. In this example, we interdict a subset of actions (for example, by patching specific vulnerabilities, or changing the network architecture).

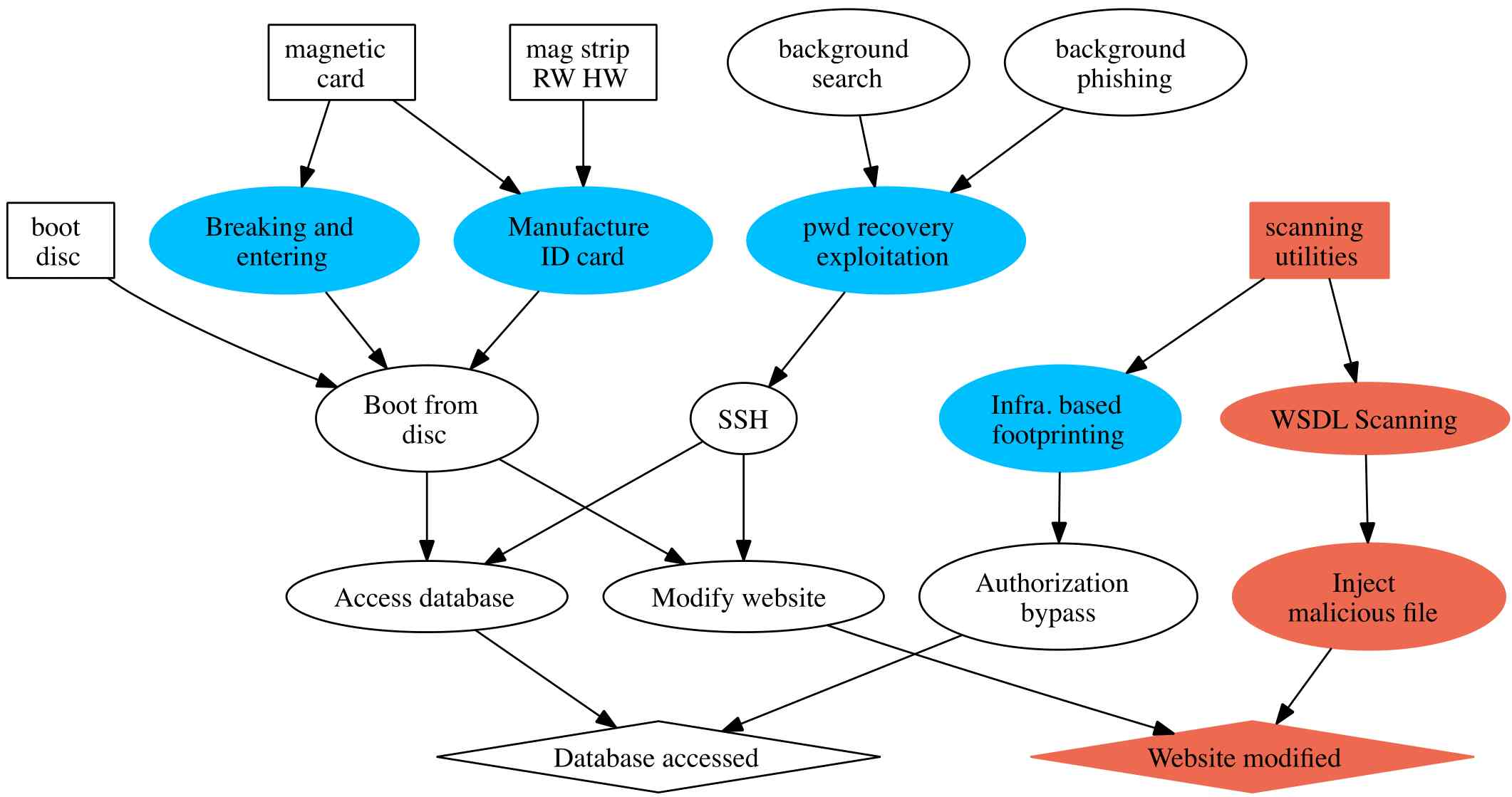

Figure 2: Example interdiction plan: actions that are blocked are colored in blue, and the final attack plan (circumvention) is highlighted in red.

A noteworthy observation about the particular interdiction strategy in Figure 2 is that it still allows the attacker to attack a low-stakes target. This is because, in this specific example, interdicting all possibilities is not cost-effective, relative to the consequence of successful attack.

3 Planning in AI

We begin by formalizing the notion of planning, starting with classical planning in deterministic domains, and then considering generalizations that allow us to capture uncertainty.

3.1 Classical Planning

Formally, a classical (deterministic) planning problem is a tuple , where

is the set of literals (binary variables) which represent the state of the world relevant for the planning problem,

is the set of actions, is the set of literals which are initially true (i.e., the initial state of the world), and is the set of goals. A plan action is characterized by a set of preconditions, that is, the set of literals that must be true in the current state for the action to be applicable, and a set of effects, which either add literals from current state, or delete these, thereby determining transition from one state to another. A reward function assigns a value (utility) to each goal literal (we assume that the total utility is additive in these). Finally, is the cost of taking an action . A solution to this planning problem is a plan , which is a sequence of actions. A number of effective approaches exist for solving such planning problems at scale Chen06:Temporal .

3.2 Planning under Uncertainty

A common formalization of planning under uncertainty makes use of Markov decision processes (MDPs), defined by a tuple , where is the set of states (of the world), the set of actions, a transition function which represents system dynamics as a function of state and action taken by the planner, the reward function, and

the probability distribution over initial states; below, we assume that there is a fixed starting state

 puterman1994markov . A solution to the MDP is a policy, , which determines actions to take as a function of relevant information. If we further assume that the MDP is discrete-time, infinite-horizon, and discounted (future is discounted exponentially, with a discount factor ), we can restrict attention to policies which map states to actions taken in these states puterman1994markov ; Filar97 .

A major problem with moving from classical planning to MDPs is representational: in MDPs the full state space is explicitly represented, whereas it is only implicit in classical planning, a result of joint values of state literals. Factored MDPs (FMDPs) aim to address this gap. Specifically, instead of specifying the state space , FMDPs are represented by a collection

of state variables (which we take to be binary henceforth); these are random variables, with

denoting a particular instantiation of these to values . Dynamics are now represented by a Dynamic Bayes Network for each action ; further, we assume that the reward function is additive in state variables, i.e., , where are the variable-specific rewards. Well-known approaches exist for approximately solving FMDPs guestrin2003efficient .

4 Plan Interdiction Problem

Our ultimate goal is not merely to compute an optimal plan for the attacker, but rather to compute an optimal defender interdiction strategy. To this end, we model the interaction between the defender and attacker as a Stackelberg game in which the defender moves first, choosing to deploy a set of mitigations, and the attacker responds to these by constructing an optimal attack plan given the resulting environment. We can formalize this game as a plan interdiction problem (PIP), defined by , where is the set of defender mitigation actions, is the cost of a mitigation , the defender’s reward function , which is additive over state variables, and the underlying planning problem for the attacker. The consequence of a mitigation can be two-fold: it can modify current (initial) state , and remove a subset of attacker actions. Thus, if is a subset of mitigations used by the defender, these modify the attacker’s planning problem ; we denote the resulting modified problem by , and the associated optimal plan for the attacker by . In the PIP, the defender’s goal is to choose the optimal set of mitigations , balancing the defender’s utility (total expected discounted reward) and cost of mitigations :


where is the attacker’s best response plan, that is, its optimal plan over the restricted planning domain .

We first discuss the special case of this problem in the context of deterministic planning, and follow with a more general treatment when uncertainty is involved.

4.1 Interdiction of Deterministic Plans

In the deterministic setting, plan interdiction is focused on goals that can be achieved by the attacker. Recall that is the set of goal literals, and is the reward to the attacker for achieving a goal literal . We now augment this with a defender’s corresponding reward (presumably, negative). The plan interdiction problem then becomes

where is a binary indicator of whether the goal literal is achieved by the attacker. Letchford and Vorobeychik Letchford13

show that this bi-level optimization problem can be solved using a combination of mixed-integer linear programming and constraint generation, where constraints represent possible attack plans, and are iteratively added by computing approximately optimal plans using state-of-the-art heuristic planning software, such as SGPlan

Chen06:Temporal .

4.2 Interdicting MDPs

The power of deterministic planning and associated interdiction is that it involves solving highly structured problems, and we can therefore develop a scalable approach for these. The limitation is generality: often, uncertainty in the planning problem faced by the attacker must be appropriately captured.

We model the attacker’s planning problem when it faces uncertainty by an MDP, described above. Specifically, we can address the MDP interdiction problem, which can be defined just as its deterministic counterpart above, but using the more general utility function . The interdiction problem can then be described very generally by the Equation (1).

While it is possible to solve MDP interdiction problems using a similar approach for bi-linear optimization as developed by Letchford and Vorobeychik Letchford13 , these require that the state space be explicitly represented. Panda and Vorobeychik Panda17 addressed this technical challenge by integrating state-of-the-art approaches for approximately solving FMDPs by Guestrin et al. guestrin2003efficient with a bi-level framework, and appealing to Fourier representation of a value function over a Boolean space o2008some .

While the approach by Panda and Vorobeychik Panda17 enables a considerable advance in solving MDP interdiction problems over factored MDP representations, it is still somewhat limited in scalability. Moreover, a major challenge in plan interdiction approaches to date is that the defender is typically uncertain about the attacker’s planning problem, such as the initial vulnerabilities and attacker’s access and capabilities, and the resulting Bayesian Stackelberg game is infeasible for current methods for even small problem instances Letchford13 .

In recent research, we have taken an alternative approach which integrates reinforcement learning with function approximation. Combined with a restriction that the defender’s mitigations only modify initial state (which is without loss of generality, since we can capture action removal by adding associated preconditions to initial state), we can now learn a general value function for the attacker over the state space, and then solve the interdiction problem once, without having to iteratively re-solve the planning problem. Additionally, we can introduce uncertainty about the attacker by capturing it as uncertainty over a subset of initial state variables. In the special case when the value function is linear (or approximated by a linear function), we can transform the Bayesian interdiction problem into a form which can be solved using integer linear programming, a significant advance in scalability compared to prior art.

4.3 Interdicting Partially Observable MDPs

MDPs model an attacker’s uncertainty about dynamics. However, they ignore another crucial consideration: attacker’s uncertainty about the true state of the system. Insofar as this introduces information asymmetry between the defender and attacker, it introduces a potentially very rich space of interdiction options for the defender. One issue that arises is signaling: if the defender knows aspects of the initial state which are unknown to the attacker, the defender’s mitigations can signal to the attacker information about the true initial state. This, in turn, provides an opportunity for deception: the defender may, through particular (costly) mitigations they deploy signal to an attacker that they have vulnerabilities they do not actually have, thereby deceiving the attacker into expending resources into an attack which cannot succeed. In addition, the defender may also control the observations of the attacker about system state, a capability which can provide further leverage.

As we can see, this partially observable Markov decision process (POMDP) interdiction problem is exceptionally rich. It is also an open problem from a computational perspective—we would argue, the next important open problem in plan interdiction.

5 Illustration: Threat Risk Assessment Using Plan Interdiction

Having motivated the plan interdiction problem rather abstractly, we now illustrate its value more concretely by using the planning framework for network cyber-risk analysis and mitigation. Specifically, we first define a model for cyber threat assessment using classical planning primitives, augmenting these with stochastic information which represents uncertainty about attacker’s access, such as which user accounts the attacker has already compromised. We then describe an implementation of this model, and demonstrate its value through experiments. Finally, we show that by selectively patching a small set of vulnerabilities we can dramatically reduce cyber risk.

5.1 Model

In creating our network threat assessment model, we define six components: a set of hosts , the system environment , a dictionary of vulnerabilities , the target file , and the attacker with action set . Next, we formally describe these components. For illustration, we assume that the attacker aims to exfiltrate a particular file, which may represent sensitive information such as trade secrets.

Each host in our model represents a device within the target environment, with no inherent distinction made among personal computers, servers, mobile devices, etc. Formally, we define a host as possessing three attributes: a set of exploitable vulnerabilities , the set of neighboring hosts , and a flag , which indicates if the target file is present on the host. Vulnerabilities are assigned to a host stochastically, reflecting differences in particular host configurations, non-deterministic exploitation outcomes, and the relative complexity of executing the exploit. The set of neighbors of a host is the set of all hosts which can potentially be accessed from .

The system environment variable contains the state of each host

. The state is represented by a binary vector, and contains information pertaining to the status of the host relative to the attacker. For example, whether the attacker has read or write access to files on the host could be a pair of binary values in the state vector.

Vulnerabilities in the dictionary are defined by two vectors . The first of these, , is the exploitation requirement vector: the minimum required state of the host (relative to the system environment vector for the host) for successful exploitation. One example of a state requirement would be a vulnerability which requires authentication with user credentials. After successful exploitation of a vulnerability, the state of the host is updated according to the exploitation effects vector, .

The target file is simply a binary valued variable that is initially set to 0. If the file is accessed by an attacker, it is updated to 1.

The attacker possesses three attributes. The first of these is a set of hosts for which the attacker possesses user credentials (obtained, for example, through a phishing attack). The other two attributes are also sets of hosts, and , which are those hosts which are accessible to the attacker and have been compromised by the attacker, respectively. In addition to the aforementioned attributes, the attacker has an abstract set of knowledge and tools to assess information about the system environment (e.g. connectivity between hosts). Further, the attacker is assumed to be able to exploit any vulnerability present on an accessible host.

The action set of the attacker, , contains five categories of deterministic actions encapsulating reconnaissance, exploitation, and data access/exfiltration. These action categories are summarized formally in Table 1. The first two categories of actions, Exploration and Probing, deal with efforts by the attacker to learn information about hosts and the network. Exploration targets a single host (which must in the set of compromised hosts) and results in the union of , the host’s neighborhood, with , the set of accessible hosts. Probing examines an accessible host and checks for the presence of particular vulnerabilities.

Preconditions Action Effects
Table 1: Categories of attacker actions

The next two categories of actions pertain to malicious behavior executed by the attacker. Masquerading, the first of these actions, is the act of accessing a host through normal means (e.g. SSH) with the use of externally acquired user credentials. Naturally, this requires both that the attacker possesses suitable credentials and access to the host. The result of Masquerading is attainment of read and write privileges (denoted and for host ) to the target host. Exploitation, the second malicious action available to the attacker, targets a particular accessible host with a vulnerability . Satisfaction of vulnerability requirements are necessary for execution of this action, and the effects of exploitation are according to . The final action available to the attacker is Access. This action targets a particular compromised host and checks for the presence of the target file. If the file is present and the state of the host permits, the attacker accesses the file. Successful execution of this action is the goal for the attacker, and indicates that the system has been compromised successfully.

5.2 Implementing the Model

In this section we describe our implementation of the model given in Section 5.1.

Vulnerability Dictionary

To populate our dictionary of vulnerabilities, we turn to the National Vulnerability Database (NVD). Originally created in 2000 by the NIST Computer Security Division, the NVD is an extension of MITRE’s Common Vulnerability and Exposures (CVE) dictionary that includes additional vulnerability assessment metrics. One of these metrics, the Common Vulnerability Scoring System (CVSS), is of particular interest to us.

Designed to communicate the characteristics and impact of vulnerabilities, the CVSS provides both quantitative scores and vectors of characteristics. The former indicates the holistic “severity” of the vulnerability, while the latter gives us some indication of the conditions necessary for and the results of successful exploitation. Three sets of metrics comprise the CVSS: base, temporal, and environmental metrics. Of these we only use the base metrics, which cover intrinsic qualities of a vulnerability. Base metrics are divided into exploitability metrics and impact metrics. The former captures information concerning vulnerability accessibility and has three parameters: attack vector (AV), access complexity (AC), and authentication (Au). Impact metrics gauge the potential effects of successful exploitation, divided into confidentiality, integrity, and availability impacts. As detailed in the next section, each of these parameters contributes to our vulnerability model.

Vulnerability Profiles

Having parsed the NVD to generate a vulnerability dictionary, we next construct profiles containing a subset of these vulnerabilities. To this end, we utilize the penetration testing suite Nessus. Specifically, we construct profiles by filtering Nessus vulnerability reports to recover CVE entry IDs, then populate the entries from our dictionary.

Based on CVSS information from the dictionary, we generate the set of exploitation requirements for each vulnerability and derive a value denoting the exploitation probability. Two base metric parameters are retained for later use: attack vector and authentication. The attack vector can take on one of three values, each of which introduces different preconditions for successful exploitation in our model. The most restrictive value, Local, requires an attacker to have either direct physical access to the machine or access to a shell account. A corresponding parameter for each host determines whether this level of access is present. Adjacent Network access, the second AV value, necessitates some kind of access to either the broadcast or collision domain of the host. In our model, this access is represented by directed edges between an already compromised system and the target system. Finally, Network access indicates that the vulnerability is remotely exploitable. Satisfying Adjacent Access or the corresponding network access parameter are required for exploitation in this case.

Authentication requirements can also take on one of three values: None, Single, and Multiple. As the latter two values indicate user credentials must be obtained, they introduce an additional precondition for exploitation of the vulnerability.

Exploitation probability is derived from a combination of base metrics and their corresponding weights in the CVSS severity calculation. The initial value of is first multiplied by the scoring value associated with access complexity. This attribute captures the relative level of exploitation difficulty due to the presence of specialized access conditions (e.g. non-default software configurations). Low complexity, indicative of no specialized access conditions, has an associated value of . A value of is used for medium complexity – so denoted when ”somewhat” specialized access conditions are present. High complexity carries an associated value of . In the case that multiple authentications are required for exploitation of the vulnerability, the probability is multiplied by an additional factor of . Finally, we account for the non-deterministic quality of access granted by partial confidentiality impact with a multiplied factor of . Note that this value is not derived directly from the CVSS formula.

Phishing Attack Probability

Recognizing that attackers are not limited to exploiting software vulnerabilities, we include a phishing attack probability parameter in our framework. Despite the name, the parameter is meant to encapsulate all social engineering vectors which result in the recovery of a user’s credentials. In selecting a default value of , we examined the spear-phishing rate for small businesses (250 employees) and the overall phishing rate from the 2016 Symantec Internet Security Threat Report.

In precisely defining the utilization of in our model, we say that it is the probability a given host has one or more privileged user accounts whose credentials have been compromised. In so defining the parameter, we avoid the need to generate a set of user credentials and associate them in some manner with the hosts.

Zero-Day Attack Probability

In addition to published vulnerabilities and social engineering vectors, we consider that the attacker may have knowledge of one or more zero-day vulnerabilities which affect hosts. Since the NVD serves as our repository of vulnerabilities, we utilize it to determine our default probability of zero-day attacks. Specifically, we examined all of the CVE entries between 2002 and 2016 and compared the labeled year of the vulnerability (i.e. the year included in the CVE name) with the published date. If the two differed, the vulnerability was considered to have been present and unknown sufficiently long to qualify as a viable zero-day attack. On average across the span of years mentioned, approximately of vulnerabilities meet this criterion.

Host Generation

In general, a host in our model can be any device connected to the network; however, for the initial implementation of the framework we limit ourselves to consideration of servers and personal computers. Hosts are defined fundamentally by a set of three attributes: the vulnerability profile, a list of neighboring hosts, and a set of access levels. A unique host name as well as a boolean value which indicates whether the host serves as a gateway are also included. The gateway indicator is used in our generative network model discussed in Section 5.3.

Upon initialization of a host object, the set of vulnerabilities in the profile are iterated through, with each vulnerability being retained or discarded stochastically according to the associated probability of exploitation. This results in each host containing a subset of the full profile and reflects differences in host vulnerability due to varying software configurations.

Neighboring hosts in our model are any hosts which satisfy the properties of adjacent access (as defined in the CVSS). Viewing a particular instance of the model as a graph, each neighbor possesses an incoming directed edge.

The access levels list contains information on host properties related to exploit preconditions. In our initial implementation this consists of three values: network, root, and user access. The first indicates that the attacker can execute remote exploits on the host. Root access implies privilege escalation for the attacker on the host has been successfully carried out. Finally, user access indicates that the attacker possesses either user credentials for an account on the host or the means of equivalently authenticating.

Generation of PDDL

The planning domain and problem description for a particular instance are generated sequentially based on instances of the model described in Section 5.1. First the domain types and constants are produced. The former consists of three entries: hosts, vulnerabilities, and files. The numbered list of hosts and a single generic file are produced as constants.

Finally, the three actions are constructed. The first of these, the exploit action, generalizes the impact of exploiting present vulnerabilities with the intent of gaining read access to the host (to check for the desired file) and, upon failure to locate the file, compromise a neighbor. The base precondition for the action is the presence of a particular vulnerability on the host. Recall that this presence is probabilistic based on the characteristics of the vulnerability and, in the case of heterogeneous host profiles, the vulnerability profile itself. Further, we introduce two additional sets of preconditions that can be added in association with specific vulnerabilities. The first is a requirement of user access, and appears in the event that authentication (single or multiple) is required for exploitation of the vulnerability. The second pertains to the required access vector between the attacker and the host: local, adjacent, or network access. Execution of this action grants read access to the attacker and marks the host as compromised. For each vulnerability that appears on at least one host, an instance of this action is added to the domain.

Figure 3: An attack planning example on a small network.

Figure 3 depicts a sample plan and the effects of each action for a small example network. In the figure, the red arrow indicates that H1 is remotely accessible, and the underlined text for H3 indicates that the target file is present on the host. Initially, the attacker can only probe for vulnerabilities on H1. Finding a suitable vulnerability, the attacker next compromises H1 by exploiting the flaw. Having penetrated the network, the attacker can explore to discover the connections between H1 and the other hosts. As before, the attacker then probes for and then exploits a vulnerability, this time on H3. Finally, having gained sufficient privileges on the target host, the attacker accesses the target file, indicating the goal condition has been met.

Once a host has been compromised, the number of types of access vectors available to the attacker must be updated accordingly. To this end, we introduced an artificial action, update access, which has two preconditions: a connection between two hosts, and that one of the hosts has been previously compromised. Note that connections between hosts are directed. Once these conditions have been met, the neighboring host is updated to reflect that the attacker now has both network and adjacent access vectors.

The third action fulfills the goal condition of the plan, namely, reading the target file. Execution of the Access action requires that the attacker have read access to the host which contains the target file. Taking this action indicates that the file has been read successfully, which satisfies the goal conditions of the plan.

Initial generation of the problem instance follows a straightforward process. First, the target file is randomly assigned to one of the hosts. Next, each host is examined and corresponding predicates are added to the problem definition. An instance of the connected predicate is generated for each neighbor (i.e. a host that is accessible from this host) based on the state of neighboring hosts. Instances of has_vuln are taken from the specific vulnerability profile of the host. Finally, the presence of initial network, user, or root access are added accordingly. As the final step of problem instance generation, the goal condition of accessing the target file is added.

5.3 Experimental Methods

We illustrate our model of cybersecurity risk assessment using a novel experimental framework which combines a generative model of a network with stochastic generation of hosts based on host images.

Generating Vulnerability Profiles

For our experiments we carefully crafted four vulnerability profiles. Two of these profiles represent generic desktop system configurations, with the remaining two representing server configurations. The operating systems for these profiles were chosen based on compiled OS market share data netmarket ; stackoverflow , and software configurations were informed by application use data from WhatPulse whatpulse , a computing habit information aggregator with more than 285,000 active users.

The first desktop configuration was based on a generic Windows desktop setup. As Windows 7 holds the largest share amongst Windows distributions, it was chosen for use with this profile. In addition to the standard software packages installed with Windows 7, the following pieces of third party software were installed:

  • Chrome

  • Firefox

  • Skype

  • Java Runtime Environment (JRE)

  • Adobe Reader

  • Adobe Flash Player

Though Mac OS X holds the second highest market share after Windows for desktops, test images were not readily available for use. This being the case, the second desktop profile was constructed based on Ubuntu Linux version 14.04 (Trusty Tahr).

For server profiles, we again provided both a Windows and Linux variants. The Windows server is a stock image of Windows Server 2012, while the Linux server is again Ubuntu 14.04, but with the addition of software necessary to run an Apache web server.

Generating Network Architecture

We implemented two generative models for constructing random network topologies in the experiments we report on below. The first is the well-known random graph (Erdos-Renyi) model, while the second is a novel generative model aimed at capturing aspects of networks salient in threat modeling.


The first model implemented was the Erdos-Renyi random graph model erdos1960 . Specifically, we utilize the formulation of the model in which a random graph is constructed by randomly connecting vertices. For every pair of vertices , an edge is added between them with probability , independently of any other edge.

In addition to specifying arbitrary values of , we can utilize relationships and established thresholds between and to construct graphs with known, potentially interesting characteristics. An example of a known threshold in Erdos-Renyi graphs is . This value represents a sharp connectedness threshold – larger values of will almost certainly be connected, while smaller values indicate the almost sure certain presence of isolated vertices in the graph. Several of these thresholds are employed in the experimental evaluations detailed in 5.4.

Organizational Network Generative Model

The Erdos-Renyi model offers clean insights, but is known to be overly simplistic to realistic topological characteristics of real networks. Moreover, in modeling security threats on networks one must also make a distinction between types of hosts (such as servers and desktops), as that pertains to the particular OS that is likely to run on such systems (for example, servers will typically not run Microsoft Word, and would not be susceptible to vulnerabilities in this application). To this end, we use a more realistic Block Two-Level Erdos-Renyi (BTER) model proposed in sesh2012 , and extend it with host-level characteristics.

Unlike the original Erdos-Renyi model, which treats all vertices identically with regard to edge construction, BTER treats the overall graph structure as a set of interconnected communities, each of which is an Erdos-Renyi random graph. The first phase of BTER graph construction consists of generating a collection of Erdos-Renyi (ER) blocks according to a user-specified degree distribution. These blocks are interconnected in the second phase via nodes in each block that have access degree. The Chung-Lu graph model chunglu2001 (which can be framed as a weighted Erdos-Renyi graph) is employed over the excess degrees to form the connections among the blocks.

Our model takes as input a desired node count , a power law exponent , a remote access probability , and an optional set of connectivity policies . Construction of a network with our model then follows four primary steps, the explanation of which will be aided by Figure 4. We first sample discrete values from a power law sequence with exponent . In the BTER construction process, these values represent the desired degree of the nodes, and define the size of the communities present within the graph. The sampled values are sorted in ascending order and grouped by value, as seen in panel (a) of Figure 4. Each entry in the sample list with value 1 represents a device which does not belong to a restricted subnet. As such, we don’t consider them when building communities. Starting with the first value greater than 1, groups are formed by selecting and removing the first entries from the list, where is the value of the first entry. This procedure continues until the list is empty, at which point all of the groups have been formed. The end result is displayed in panel (b) of Figure 4: a set of individual nodes and one or more communities of nodes.

Figure 4: Generative Model Network Construction

Device classification occurs next, with two sets of distinctions made among the devices. First, one node in each community is chosen arbitrarily to serve as the gateway node. Next, each individual node (i.e. those not in communities) is flagged as remotely accessible with probability ; those flagged are distinguished as server nodes. In panel (c) of Figure 4, node 6 is a gateway and node 3 is a server.

Finally, edges are drawn between the nodes as shown in panel (d). By default, all individual nodes are bi-directionally adjacent to each other and the set of gateway nodes. Additionally, each community forms a complete subgraph. As shown later in Section 5.4, the policies defined in modify the manner in which edges are added.

5.4 Experimental Study of Network Cyber Risk

We now present an experimental study of network cyber risk using the experimental setup in Section 5.3 which instantiates our planning-based threat analysis framework.

Erdos-Renyi Network Model

As an initial set of experiments, we employ the Erdos-Renyi random graph model with directed edges to generate our network topology. As mentioned in Section 5.3, graphs generated using the Erdos-Renyi model possess well-known characteristics based on the relationship between the number of hosts and the edge probability . We examine thresholds corresponding to two of these relationships:

The first of these, which we will henceforth refer to as , produces graphs which almost always contain a maximum component of size . The second relationship, referred to hereafter as , is the threshold for connectedness in the model erdos1960 . Since the Erdos-Renyi model does not lend itself to differentiation of vertices based on topological characteristics, we generate hosts homogeneously using the Windows desktop vulnerability profile detailed in Section 5.3.

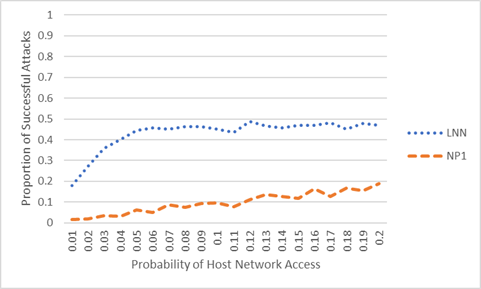

Figure 5: Cyber risk for Erdos-Renyi Topologies, .

Figure 5 shows the effect of varying the host network access probability for a range of values between and . As we might expect, the behavior for the two different values of differ significantly. For the case, the proportion of successful attacks is much smaller, but increases roughly linearly with (indeed, across the range of values we considered, in this case). We can explain this behavior by examining the structure of the generated networks. Since the attacker does not have the option of physically accessing devices, attack vectors must originate with devices that are remotely accessible. Sparsity of edges, their directed nature, and the inherently disconnected structure of the generated networks limits the ability of the attacker to penetrate further into the network following the compromise of an externally accessible device. Further, since zero-day attacks and utilization of phished user credentials require network access to vulnerable devices, they are of relatively little use for this topology.

With the case, the effect of varying is completely different. Following a sharp increase in across values between and , the proportion of successful attacks reaches a steady state. Given the guarantee of connectedness inherent to the case, any remotely-accessible device will have a path to the target device; however, no guarantees are made that any two remotely-accessible devices will have independent paths to the target. The leveling-off of suggests that independent paths to the target device are saturated beyond .

Organizational Network Generative Model

As a follow-up to the initial experiments run with the Erdos-Renyi model, similar evaluations with the generative model proposed in Section 5.3 are executed. Except where otherwise noted, default values for and the zero-day attack probability are used (0.03 and 0.13, respectively). For the generative model, we use directed edges and also differentiate vulnerability profiles across the hosts. Gateway and server nodes (remotely accessible nodes not in a community) are assigned either the Linux or Windows server profiles with probabilities and , respectively. All other nodes are assigned either the Windows or Linux desktop profiles with probability and . These values represent the proportional ratio of Windows to Linux according to netmarket . In addition to varying the network access probability, value, and host count, we also examine the impact of several network policies and the effect of increased phishing attack probabilities. For the baseline version of the generative model, phishing attacks have an additional effect: if at least one host has compromised credentials, then the attacker is able to utilize a VPN connection, resulting in servers, gateways, and non-community desktop nodes being remotely accessible.

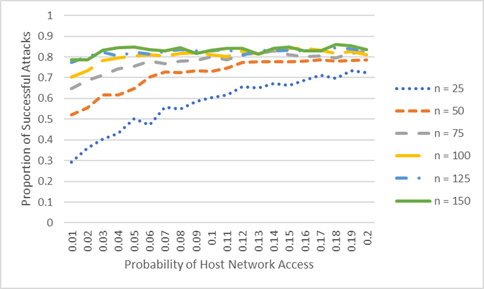

Figure 6: Cyber risk for the organizational network generative model with varying host counts, no connection restrictions.

Figure 6 demonstrates the impact of varying network size for the baseline organizational network generative model. For small values of , there are significant differences between across smaller network sizes. These differences become smaller as the largest network sizes are reached. Moreover, risk increases with the number of hosts. The intuition behind these observations is that for smaller networks we expect that phishing attacks are less likely (a lower probability that some user account is phished), which limits attack vectors to remotely accessible nodes. Larger networks have more remotely accessible hosts, and a higher likelihood that some credentials are compromised through a phishing attack. Moreover, once even a single credential is phished, the attacker can remotely access a much larger portion of the network, significantly increasing the threat of a successful cyber attack. Consequently, increasing network size increases overall risk in this model.

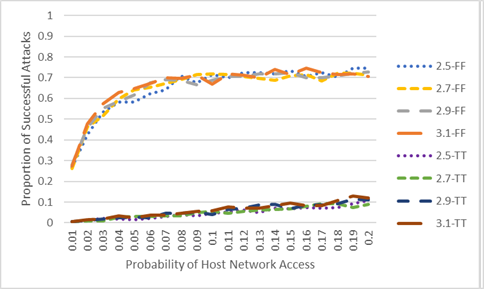

Figure 7: Cyber risk for the organizational network generative model with varying connection restrictions, . On the legend, the first letter denotes gateway restrictions (True/False), and the second denotes server restrictions

We next examine the effect of introducing two network connection policies. The first of these is a restriction on outgoing connections from gateway nodes. If enabled, gateways retain outgoing connections only to nodes within their subnet, and all other outgoing connections are removed; incoming connections are not modified. The second policy restricts all outgoing connections from server nodes. In other words, if the second policy is in place, one cannot connect (e.g., SSH) from a server to any other device on the local network. Figure 7 displays each of the combinations of these two policies. On the legend, the first letter denotes gateway restrictions (True/False), and the second denotes server restrictions. We can see that either of these policies by itself does not appreciably improve the security of the network compared to the baseline. Surprisingly, however, combining them results in an average reduction of in risk, . Note that because of the attacker’s ability to employ VPN connections, there is little sensitivity to changes in .

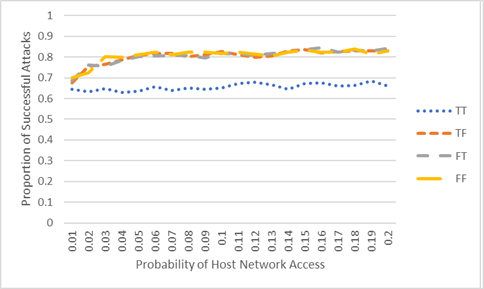

Figure 8: Cyber risk for the organizational network generative model with no VPN. On the legend, the number denotes the value of , ’FF’ denotes no access restrictions, and ’TT’ denotes restricted gateways and servers.

Next, we study the risk associated with allowing VPN connectivity. As seen in Figure 8, disabling VPN connections to the network has a significant impact on overall cyber risk. For the unrestricted model across different values of , we see high initial sensitivity to changes in . As the attacker can no longer bypass attacking remotely accessible servers, the expected number of such servers in the network becomes quite relevant. For a network of 100 nodes, marks the beginning of the steady state for . Restricting both gateways and servers results in extremely small values of , and retains only minimal sensitivity to increases in .

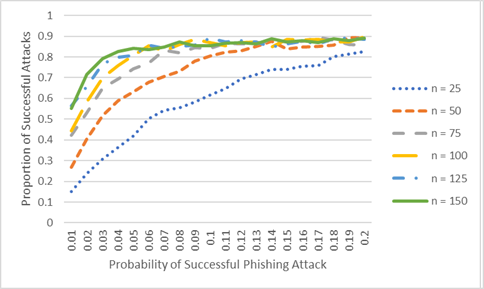

Figure 9: Cyber risk for the organizational network generative model with varying phishing attack probabilities.

In assessing the impact of increased phishing attacks on the system, we varied from to in increments of while keeping at . The results of this experiment are shown in Figure 9. As we might expect, both the initial values of and the sensitivity to increases in are markedly higher in larger networks. We’ve seen that the ability to bypass attack bottlenecks on remotely accessible hosts by utilizing VPN connections has a profound impact on security, and these results reinforce this observation. Even the network of 25 hosts approaches the same level of vulnerability as the 150 host network when becomes large.

5.5 Cyber Risk Mitigation through Plan Interdiction

Our discussion of the risk assessment approach, which leverages AI planning, thus far focused on the attacker modeling. Although experiments demonstrated the value of specific policy changes in mitigating some cyber risk, we only considered a small set of such policies. We now explore systematically a common challenge faced by organizations: of the many vulnerabilities present on the network, which should be prioritized. While in an ideal world, all vulnerabilities are patched, in reality doing so can be both time consuming, and costly in terms of lost productivity. Consequently, in practice a natural question is whether an organization can focus on a small subset of vulnerabilities which are truly critical for this organization, and make these a high priority. Given that our risk analysis framework is based on attack planning, the problem of choosing an optimal subset of vulnerabilities to prioritize is precisely the plan interdiction problem.

To formalize, let be the set of all vulnerabilities present on a network, and let be a subset of these which the defender (network administrator) will prioritize. Rather than imposing a cost on patching a given vulnerabilty and minimizing risk, as in our model above, we minimized the number of vulnerabilities that are prioritized, subject to a constraint that risk is below a target threshold .

Let be the risk (probability of a successful attack) faced by the defender when the set of vulnerabilities is chosen to be prioritized for patching. Implicitly, depends on the attacker’s policy in response to . However, note that in our framework, the attacker’s policy is also a function of additional exogenously specified factors, such as the assignment of (exploitable) vulnerabilities to hosts, and phishing attack success, among others. Let be a random variable which captures these stochastic factors, and let be the associated optimal plan for the attacker. If we define as a binary variable indicating whether the attack succeeds under exogenous parameters , risk becomes . The defender’s optimization problem is then


We propose a heuristic solution approach for this problem: greedily add a vulnerability to in the order of maximum marginal impact on reducing risk , until we satisfy the condition .

Next, we evaluate the impact that selective patching of vulnerabilities has on cyber risk. For these evaluations, we set , and used default values for (probability of a successful phishing attack) and (zero-day probability). Additionally, was fixed at . We used the organizational network generative model to generate the network topologies, along with the heterogeneous vulnerability profiles and varied host count to assess the impact of vulnerability patching for different network sizes, as in the earlier experiments. We set the threshold in the optimization problem (2) to .

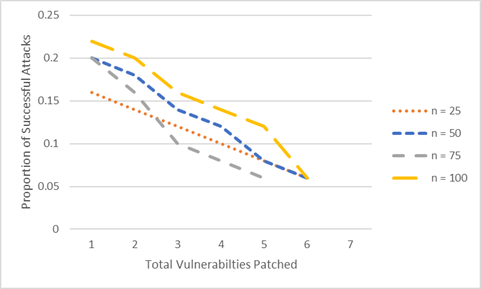

Figure 10: Threat minimization through vulnerability prioritization. On the legend, the value of denotes the number of hosts in the network.

Figure 10 shows the results of our heuristic prioritization approach as a function of the number of vulnerabilities being prioritized (until the threshold of is reached). As we might expect, the larger networks display higher initial vulnerability; however, the response of each network to the removal of vulnerabilities was very similar in magnitude. Most of the vulnerabilities patched came from the Windows Desktop vulnerability profile, which contributed 81 of the 104 vulnerabilities (after filtering them by year) among all profiles. These initially patched vulnerabilities were consistent in that they possessed a higher than average probability of being exploitable on any given host with the profile. Remarkably, however, we can dramatically reduce cyber attack risk in this model by patching relatively few vulnerabilities (), as long as we effectively prioritize these.

6 Dynamic Plan Interdiction Games

Thus far, our discussion (and most prior research) had focused on interdiction games in which the defender first makes a fixed decision, and then the attacker devises a dynamic plan, with the possibility of circumventing defender’s mitigations. This is most relevant when the defender cannot easily observe adversarial actions as they unfold, and only detects attacks after they have either succeeded or failed. In the remainder of this chapter we briefly discuss ideas for modeling the more general situation in which the defender may detect portions of the attack plan, and can subsequently react to it, for example, deploying additional mitigations in response (including modifications to the observed state).

Let’s start with the following scenario: the defender has deployed mitigations, and a detection system. Let’s view the detection system as predicting whether or not a particular observed state

involves malicious activity, captured by a binary classifier

. Suppose that the detectors are binary, and we can immediately deploy response mitigations that prevent a detected attack from succeeding. The problem of designing such detectors can be viewed as a “basic” plan interdiction problem: we aim to design detectors which minimize loss from undetected attacks, where mitigation (detector design) costs can capture the costs of false positives.

An interesting challenge arises when detectors may detect an attack, but optimal mitigations may be unclear. This arises when the defender is uncertain about the attacker—for example, about the attacker’s goals. In this case, the defender may have discovered a subplan (a partial sequence of attack actions), but is uncertain about the full plan. This gives rise to an interesting problem which couples plan interdiction with plan recognition: using partial information about the observed plan to infer information about the attacker’s planning problem, so that mitigations can be optimally deployed. If the attacker is myopic, this can in principle be addressed through Bayesian updating: the defender may have a prior over the attacker’s planning problem aspects (such as the attacker’s capabilities and access), and then observations of an actual attack allows them to infer a posterior distribution over these (potentially resolving much of the uncertainty). However, an intelligent attacker may devise plans so as to make such inference difficult, and faces an interesting tradeoff between deceiving the defender, and achieving their goals as efficiently as possible. We view the challenge of addressing such dynamic problems at a sufficiently high resolution to obtain practically meaningful results as a major open problem in plan interdiction games.

7 Conclusion

We introduced the general notion of plan interdiction games. In their most basic variation, the defender commits to a collection of mitigations, and the attacker subsequently chooses an optimal attack plan. We illustrate the value of this modeling framework by using it to develop a network cyber threat assessment approach in which network features, as well as vulnerability profiles from standard vulnerability datasets, are used to compute a risk of successful attacks. Our experiments offered several interesting insights into the nature of risk associated with different design choices, such as specific choices about network connectivity and the use of VPN, as well as different exogenous factors, such as susceptibility to phishing attacks. Moreover, we demonstrated an important use case of plan interdiction as a means to prioritize which vulnerabilities are immediately patched, and showed that prioritizing only a few vulnerabilities can have a significant impact on reducing exposure to cyber risk.

While we have made considerable progress modeling the basic plan interdiction problem, as well as advancing technical state of the art to significantly improve scalability and generality of solution approaches, a number of interesting conceptual and technical issues arise when uncertainty is involved either on the part of the attacker about system state, or on the part of the defender about the attacker’s planning problem primitives. Dynamics of the problem, in addition to the different aspects of information asymmetry, allow us to consider a very rich space of issues of great relevance in cybersecurity, including adaptive defense and deception both on the part of the defender, and on the part of the attacker. A great deal more research is needed to fully understand the space of plan interdiction problems, develop scalable solutions, and apply these in practical cybersecurity settings.
