I Introduction

Robust and accurate perception of the surrounding environment is critical for downstream modules of an autonomous driving system, such as prediction and planning. In practice, perceptual errors result in braking and swerving maneuvers that are unsafe and uncomfortable. Most autonomous driving systems utilize a detect-then-track approach to perceive the state of objects in the environment [1]. This approach has strongly benefited from recent advancements in 3-D object detection [2, 3, 4, 5, 6] and state estimation [7, 8, 9]. However, making this architecture robust is an open challenge, as it relies on the geometric consistency of object detections over time. In particular, detect-then-track must handle (at least) the following errors:

  • false negatives, i.e. missed detections;

  • false positives, i.e. hallucinated objects [10];

  • out of ontology objects, i.e. object categories not labeled at training time and hence not detected or recognized by the detector, e.g., road debris, wild animals;

  • incorrect motion estimation due to large viewpoint changes, occlusions, and temporally inconsistent detections in dynamic scenes;

  • incorrect associations due to compounding errors in tracking or poor state initialization.

To tackle these challenges, we present a LIDAR-based scene motion estimator that is decoupled

from object detection and thus complementary. Our method takes two consecutive full LIDAR point cloud sweeps as input. Each LIDAR sweep is encoded into a discretized 2-D BeV representation of learned feature vectors, a.k.a. “pillars”

[6]. Then, we learn an optical flow network, adapted from Sun et al. [11], to locally match pillars between the two consecutive BeV feature grids. The whole architecture is learned end-to-end and the final output is a 2-D flow vector for each grid cell.

Our approach relies on a 2-D BeV representation over a 3-D or projective representation (depth image) for multiple reasons. First, for autonomous driving, we primarily care about motion occurring on the road and adjacent surfaces, especially for motion planning. Second, this Euclidean representation allows us to design the network architecture to leverage spatial priors on relative scene motion. Finally, a 2-D representation is more computational efficient compared to volumetric approaches and facilitates the sharing of representations with an object detector running in parallel to our object-agnostic flow network.

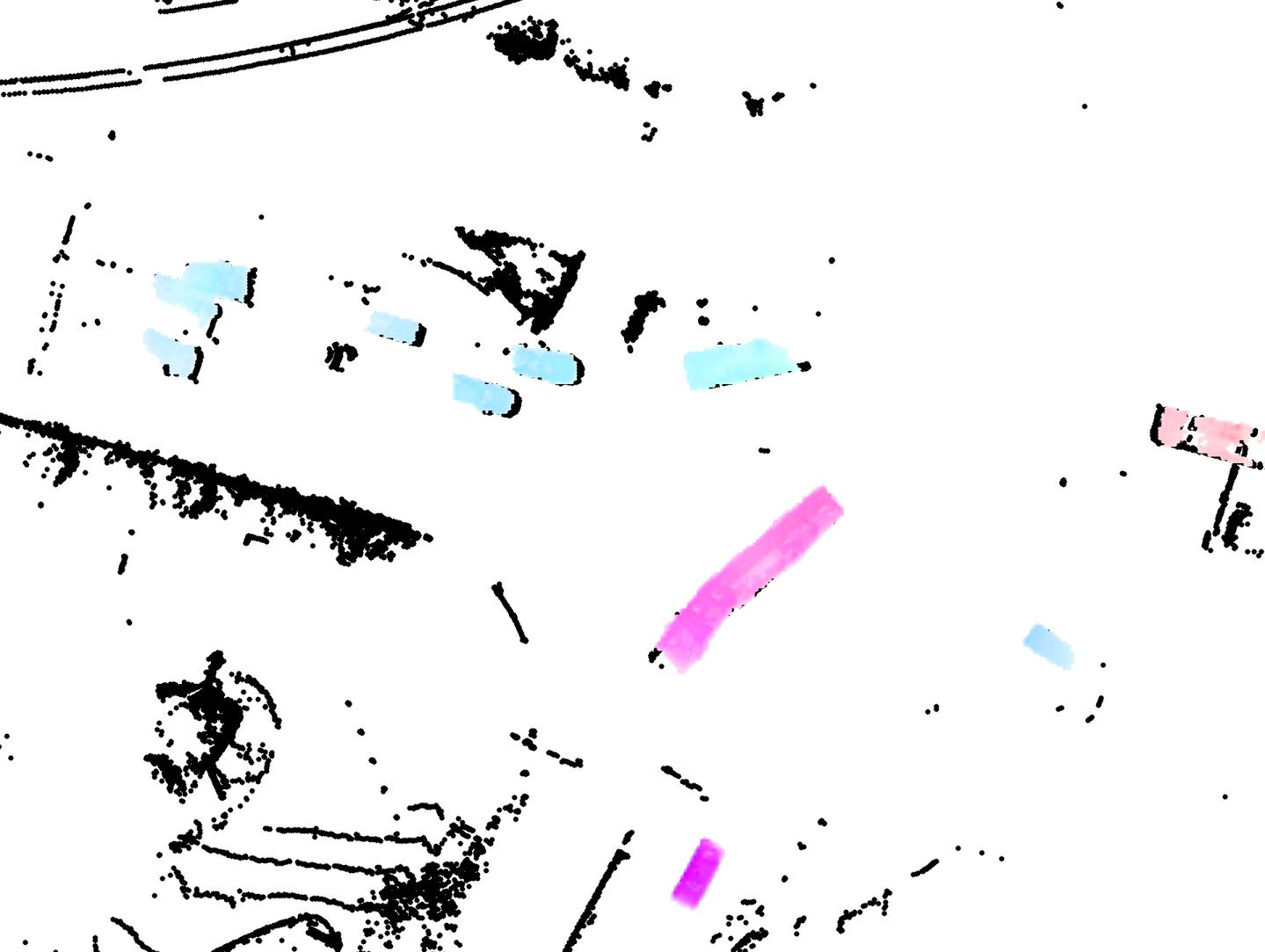

Fig. 1: An example of PillarFlow results shows that flows of vehicles are visualized with the colors indexing their directions [12], where the long pink region in the figure is a truck towing a trailer. Notice that PillarFlow does not rely on object detection and classification results as inputs.

Figure 1 shows an example of our flow estimation results in bird’s eye view, where the moving vehicles are accurately inferred by the estimated flow (colorful regions). Our main contributions can be summarized as follows.

  • We propose an end-to-end method, PillarFlow, to effectively estimate dense local 2-D motion in a LIDAR BeV representation. Our deep net can leverage contextual knowledge of the scene and generalize to properly estimate the motion of unseen object types.

  • We integrate and leverage our proposed 2-D BeV flow estimation to improve object tracking performance on both a public and an internal dataset.

  • We demonstrate the computational efficiency, robustness, and practical use of our approach by integrating it in a real-world autonomous driving platform operating in challenging urban conditions.

The rest of the paper is organized as follows. Section II gives a brief overview of related work. Section III depicts the proposed system and network architectures. We present our experimental results on public and in-house datasets in Section IV, followed by a real-world integration and in-depth analysis in an autonomous car in Section V. We report our conclusions in Section VI.

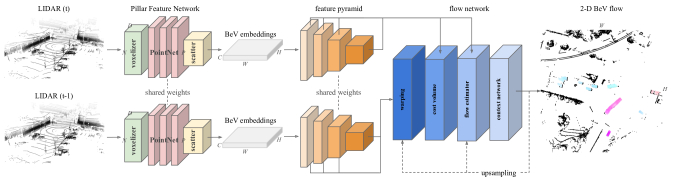

Fig. 2: Proposed PillarFlow network architecture. Two LIDAR sweeps are encoded by a Pillar Feature Network [6] to obtain 2-D BeV embeddings, which are then fed into a feature pyramid network. The pyramid features are fed into a warping function, a cost volume layer, and a flow estimator to fuse the extracted features in the current scale level with the estimated flows from lower scales. Finally, a context network is used for flow refinement.

Ii Related Work

Ii-a Scene Flow Estimation

To estimate motion in the surrounding world, many approaches have been developed to estimate scene flow directly from LIDAR sweeps. For instance, Dewan et al. [13] formulate rigid scene flow estimation as an energy minimization problem using SHOT feature descriptors. Ushani et al. [14] propose a learning-based flow estimation that trains an encoding network to extract binary vector features from 3-D points. Instead, we use pillar feature for better representation. Other works [15, 16] rely on range images projected from LIDARs for flow estimation in projective view.

A common alternative for scene flow estimation is to use unstructured point-based representations. Gu et al. [17] propose an end-to-end deep network to fuse features from unstructured point clouds from two consecutive LIDAR sweeps. Wang et al. [18] propose a parametric continuous convolution layer for non-grid-structured data, and demonstrate the application in point cloud segmentation and LiDAR motion estimation. Liu et al. [19] introduce FlowNet3D, which builds on PointNet++ [20], leveraging a flow embedding layer to fuse two consecutive LIDAR sweeps. Wang et al. [21]

improve on FlowNet3D by using additional geometric loss functions beyond the L2 distance (Point to Plane and Cosine Distance). Behl

et al. [22]

propose PointFlowNet to jointly train the tasks of 3-D scene flow, rigid motion prediction, and 3D object detection from unstructured LIDAR data. Recently, self-supervised learning has also shown promise for 3-D scene flow estimation

[23, 24].

The aforementioned 3-D scene flow methods focus on accurately predicting point-to-point correspondences. They often suffer from high computational costs, which is a key challenge for real-time deployment on a robotic platform.

Ii-B Occupancy Grid Maps

Occupancy grid maps (OGMs) are widely used to represent scene obstacle occupancy for robotics applications. Ondruska et al. [25] propose a deep tracking framework which incorporates a simple RNN to learn OGM-to-OGM mappings. Ushani et al. [26]

formulate 2-D BeV flow estimation as a similarity learning problem by transferring 3-D OGMs into 2-D embedding grids. A separate classifier learns the matched foreground cells between frames by using an expectation maximization algorithm. Later, Dequaire

et al. [27] extend the work of Ondruska et al. [25]

by using a spatial transformer module and dilated gated recurrent units to account for observations from a moving platform. Wirges

et al. [28] propose a learned approach to determine a motion mask on an OGM but uses hand crafted input features such as mean intensity and height range of points falling within each cell, rather than raw point clouds.

Estimation of the per cell motion state within an occupancy grid is a recent topic referred to as dynamic occupancy grid maps (DOGMa) estimation. Online versions typically model this state using particle filtering. Nuss et al. [29] propose an efficient implementation of DOGMa using a particle filtering scheme, which we adopt later on in the paper for comparison with our proposed method. Multiple methods have also been proposed to cluster and extract object level representations from a DOGMa for multi-object tracking [30, 31, 32, 33, 34]. Finally, some deep learning works build on the DOGMa representation for various tasks. For instance, Hoermann et al. [35] augment the DOGMa with a recurrent network trained by self-supervised labeling to predict future states. Piewak et al. [36] build upon the Dynamic Occupancy Grid to do semantic segmentation of the DOGMa internal per cell state as static or dynamic.

While our method bears some similarities to the aforementioned works leveraging grid-based representation, we explore a new architecture bringing together both end-to-end flow techniques and grid-based representations.

Iii Proposed System

We propose a method, PillarFlow, to learn to estimate 2-D BeV flow by combining a Pillar Feature Network (PFN) [6] with a flow estimation network. The overview of the system is shown in Figure 2. First, two consecutive point cloud sweeps are aligned into the same coordinate frame: the original coordinates of the LIDAR sweep at are transformed to the coordinate frame of the LIDAR sweep at using the odometry information of the robot. Next, the two point clouds are encoded by PFN to build two BeV pseudo-images where each cell has a learned embedding based on points that fall inside it. Then the two pseudo images are fed to a flow network to estimate the dense 2-D in the BeV space.

Iii-a 3-D Point Cloud to 2-D BeV Embedding

In our system, we use a PFN to extract 2-D BeV embeddings from 3-D point clouds. First, a voxelization step is applied to the point cloud by discretizing the - plane, thus creating a set of “pillars” (grid cells) in birds-eye-view. The voxelized pointcloud is structured as a

-shaped tensor where

is the number of point descriptors, is the number of pillars, and is the number of points per pillar. We use , where the first four values denote coordinates and reflectance . The next five values are the distances to the arithmetic mean of all points in a pillar and the offset from the pillar center. Next, this input tensor is processed by a simplified version of PointNet [37] to get a feature map of shape . We further compress the feature map by a max operation over the last dimension, resulting in a encoded feature map with a -dimensional feature embedding for each pillar. Finally, the encoded features are scattered back to original pillar locations to create a pseudo-image tensor of shape , where and indicate the height and width of the pseudo-image.

Iii-B 2-D BeV Flow Network

To accurately associate the embeddings, i.e., pillar features between 2-D BeV grids, we conduct a 2-D BeV flow estimation. Based on the PWC-Net model [11], we adjust architecture parameters such as receptive field and correlation layer parameters to account for the maximum relative motion that would be expected to be encountered between consecutive LIDAR sweeps (given the time delta between frames, grid resolution, and typical vehicle speeds).

As depicted in Figure 2

, the pillar features are further encoded via a feature pyramid network. A cost volume layer is then used to estimate the flow, where the matching cost is defined as the correlation between the two feature maps. Finally, a context network is applied to exploit contextual information for additional refinement. The context network is a feed-forward CNN based on dilated convolutions, along with batch normalization and ReLU .

Iii-C Training

We use annotated object tracks to generate 2-D BeV flow ground truth. For each object, we estimate the instantaneous velocity from the difference in object positions divided by the elapsed time between consecutive frames. Our assumption is that only labeled dynamic objects can have a valid velocity, and all non-labeled obstacles and background should have zero velocity. Note that this assumption might be violated in practice and does not provide direct supervision for potential out-of-ontology moving objects (static objects have zero flow). Nonetheless, our experiments show that this provides enough supervision to learn an object-agnostic, dense (pillar-level) optical flow network on BeV grids that generalizes well. Another exciting possibility we leave for future work would be to extend self-supervised approaches like [24].

Let denote the flow field at the pyramid level predicted by the network with learnable parameters , and the corresponding ground truth. We use the common multi-scale training loss from [38] and [11]:


where is the L2 norm and the weights in the training loss are set by following the setting from Dequaire et al. [27].

Iv Experimental Results

We conduct a thorough evaluation and analysis at the 2-D BeV flow estimation, and at the system-level by integrating our approach into different tracking systems.

Iv-a Datasets

To evaluate the performance of the proposed method, we conduct experiments on two datasets. First, we use nuScenes [39], a public large-scale dataset for autonomous driving development, containing multiple sensors data such as LIDAR, radar, and cameras. The dataset includes 850 scenes for training and 150 scenes for validation, with fully annotated detection and tracking labels. Second, we use an in-house dataset, TRI-cuboid, collected by our fleet of autonomous cars equipped with LIDAR, radar, and several cameras. The dataset includes 194 scenes for training and 40 scenes for validation with fully annotated 3D bounding boxes for a variety of object categories.

Iv-B Implementation details

We limit the range of the point cloud to meters in both and directions with a grid resolution of meter per cell. During training, we use the Adam optimizer with exponentially decayed learning rate starting from and then reduce it by a factor of at each of total iterations. We train for 2M iterations on nuScenes, and 4M iterations on TRI-cuboid dataset. For data augmentation, we apply (ego-centric) random rotation and random bounding box scaling to the LIDAR sweeps. We perform simple ground plane removal to filter out points lying on a ground plane obtained with the RANSAC algorithm.

Iv-C 2-D BeV Flow Estimation

To evaluate the performance of our PillarFlow model, we compare it to two baselines for BeV flow estimation.

Iterative Closest Point (ICP): ICP [40] outputs a transformation associating two point clouds by using an SVD-based point-to-point algorithm. Here we select the 3-D points within the clusters, and then apply ICP to obtain the transform between the two point clouds. The flow is inferred by the difference between the corresponding coordinates after the transformation.

Binary OGM

: Binary OGM binarizes the occupancy grid map from LIDAR sweeps. Instead of pillar features, we use the binary OGMs as the inputs of the adapted one-channel PWCNet, which learns to estimate the 2-D flow in BeV grids.

Dataset nuScenes
[font=]Method Metric RMSE (dynamic) RMSE (static) RMSE (average) AAE
ICP + Det. 2.818 NA 2.818 0.216
Binary OGM 1.316 0.113 0.247 0.091
Ours 1.127 1.110 0.207 0.108
Dataset TRI-cuboid
Method Metric RMSE (dynamic) RMSE (static) RMSE (average) AAE
ICP + Det. 0.757 NA 0.757 0.681
Binary OGM 0.409 0.036 0.081 0.098
Ours 0.288 0.027 0.029 0.087
TABLE I: Quantitative results in comparison to baselines on the nuScenes and TRI-cuboid datasets.
Dataset nuScenes TRI-cuboid
Flow Network Used RMSE AAE RMSE AAE
SpyNet 0.327 0.122 1.181 0.146
FlowNet2 0.320 0.072 0.093 0.100
PWCNet* (Ours) 0.207 0.087 0.029 0.087
Ground Plane Config RMSE AAE RMSE AAE
Ours w/ ground 0.246 0.079 0.069 0.092
Ours w/o ground 0.207 0.087 0.029 0.087
TABLE II: Ablation study of different flow network architectures.

Metrics: We use root mean square error (RMSE) in m/s and average angular error (AAE) in radians as our metrics to measure flow error in 2-D BeV grids.

Results: Table I shows the quantitative results comparing PillarFlow to the baselines, where the dynamic objects indicate movable objects such as vehicle, pedestrian, bicycle, truck, etc, and the static ones are immovable like building, pole, vegetation, etc. Our proposed method achieves an average error of in nuScenes and in TRI-cuboid. Compared to the baselines, our method can better handle the flow produced by dynamic objects. Figure 3 shows qualitative results on the TRI-cuboid dataset, confirming that the 2-D BeV flows are accurately estimated. We observe that our method can deal better with empty cells and dynamic objects observed as stationary for which we predict zero flow while the baselines display significant noise on those objects.

To better analyze different components of our proposed approach, we compare against alternative flow network architectures, i.e., SpyNet [41] and FlowNet2 [38]. The comparison results are reported in Table II. The result indicates that PWCNet (the adaptation is mentioned in Section III) is the most compatible with the proposed system, showing a better capability of handling not only dynamic objects but also static ones. We also conduct another analysis of the impact of ground point removal, which yields an improvement of only RMSE on both nuScenes and TRI-cuboid datasets. This also implies that the proposed method can perform properly even without filtering the ground plane.

Fig. 3: Qualitative results of 2-D BeV grid flow. Two rows present two examples in TRI-cuboid, where the figures from left to right are: groundtruth, IPC + Det., binary OGM, PillarFlow. The estimated 2-D BeV flows is visualized by an optical flow representation in [12].
Dataset nuScenes
[innerwidth=4cm]MethodMetric AMOTA AMOTP (m) MOTA MOTP (m)
StanfordIPRL-TRI [9] 56.1 80.0 48.3 37.9
StanfordIPRL-TRI + Binary OGM 56.5 79.6 48.6 38.2
StanfordIPRL-TRI + Ours 56.6 79.7 49.2 38.2
TABLE III: Performance on nuScene Tracking Validation Scenes.

Iv-D Tracking Evaluation on nuScenes

In this section, we provide an evaluation of our proposed 2-D BeV flow estimation approach integrated in a state-of-the-art tracking framework on nuScenes tracking dataset. We adopt the tracking pipeline of the winner entry to nuScenes Tracking Challenge at NeurIPS 2019 [42], StanfordIPRL-TRI [9] as our baseline. The baseline takes 3-D object detection results as measurement source and parameterizes them into a 7 dimension observation state: . To integrate our proposed 2-D BeV flow estimation, we extend the observation state with 2-D object velocity, . The object level velocity is approximated by the mean flow vector of all the BeV grids within the detected bounding box boundary. Under independent assumption between object detections and velocity estimations, our new observation model and covariance matrix are given as follows:


where R is the original noise covariance and is the noise covariance matrix for velocity. Following the suggestion by Chiu et al. [9], we estimate from the training set.

We report the tracking performance on the nuScenes tracking validation scenes in Table III

. We use the same evaluation metrics suggested by the nuScenes Tracking Challenge

[42], including average multi-object tracking accuracy (AMOTA), average multi-object tracking precision (AMOTP), multi-object tracking accuracy (MOTA), and multi-object tracking precision (MOTP). We compare our proposed approach to the baseline that did not use velocity in observation. We also compare to different velocity estimations provided by other BeV flow baselines (discussed in the Section IV-B) in the same tracking algorithm. The results indicate that our estimated velocity is able to further improve the state-of-the-art tracking performance working in parallel with 3D object detections. Compared with the velocity generated by binary OGM, our approach achieves better tracking stability (AMOTA) with less degradation in positional precision (AMOTP), which is a commonly seen trade-off in multi-object tracking [42]. The better trade-off also reflects the accuracy and robustness of our proposed 2-D BeV flow estimation method.

V Systematic Analysis on Autonomous Vehicle

In this section, we provide a full-system integration of a class-agnostic tracking system and further discuss the advantage of our proposed method that is not fully captured in the previous metrics. We integrate the proposed method into an in-house autonomous platform, and quantitatively evaluate it on 43 different 10 second snippet scenes collected from the Odaiba area of Tokyo, Japan, and Ann Arbor, Michigan, US. These logs have been fully annotated with bounding cuboids for ontology based objects. In this section, we briefly describe our tracking pipeline, and analyze how the proposed method improves the tracking performance of the generic objects.

V-a Object Tracker Pipeline

To detect generic object clusters, we use a 2.5-D terrain height map to filter out non-object LIDAR points, by eliminating those falling outside the range of [m, m] above the corresponding ground cell height. Then, we collapse the remaining points to a 2D occupancy grid and utilize a connected-components clustering algorithm to cluster the remaining points into class-agnostic objects. We use a dilated object mask derived from a LIDAR object detector to enforce constraints on the labeling to ensure that the clusters are correctly segmented. Such a cluster representation can achieve a high object recall and ensure that all measurements are accounted for, which is important for safety, especially if a detection is not triggered.

The observation state of an object track is represented as . We apply a nearest-neighbor association of existing tracks to object measurements by computing the Mahalanobis distance between the track’s predicted position and LIDAR object cluster’s position. A gating threshold on the nearest result is used to either construct an association, if close enough, or create a new track otherwise. To estimate the state of each object track, we use a fixed-lag smoothing approach built upon a factor graph representation [43]. Binary factors between consecutive object state nodes encode a constant acceleration motion model. These factors attempt to minimize the difference in acceleration between consecutive states, with the error residuals weighed according to a predetermined square root information matrix. If a measurement (LIDAR object cluster) is associated to a track, a new state node is created and linked with the existing graph using this motion model prior. A unary prior factor is added to the new state node to represent the measurement, minimizing the difference between the measurement’s position and the corresponding state node’s position.

Metrics Mean Track Velocity Error in m/s 95% Largest Track Velocity Error in m/s
[innerwidth=4cm]CategoryMethods Baseline Baseline + DOGMa Baseline + PF Baseline Baseline + DOGMa Baseline + PF
Static Objects 0.839 0.848 0.480 3.993 3.803 2.322
Pedestrian & Cyclist 0.772 0.523 0.641 3.411 1.621 1.446
Objects observed stationary 0.861 0.512 0.059 3.826 1.796 0.151
Slow Moving Objects m/s 0.566 0.570 0.666 2.117 1.709 1.560
Fast Moving Objects m/s 2.396 2.371 2.036 15.188 11.490 7.468
TABLE IV: Comparison of Mean Track Velocity Error in m/s.
Fig. 4: Tracker Integration Result. The green lines represent the flow vectors for each grid cell. The red lines represent the aggregated velocity for each object. This image demonstrates how static environmental objects do not get spurious velocities despite being observed from a moving platform, once our method is applied.
Fig. 5: We conduct a qualitative evaluation on an out-of-ontology generic moving object. We throw a medicine ball and note that the proposed architecture has sufficiently generalized to estimate motion from this unseen object types.

V-B Experimental Settings

We augment the tracker described above by adding an additional measurement prior, object velocity measurement, estimated from our proposed method (PillarFlow). We compare our estimated velocity with another non-learning based velocity estimation methods widely adapted in real-world system, DOGMa [29]. Integration details adapting the two methods are given below:


(PF): We aggregate the 2-D BeV flows as estimated by our method to compute a single mean velocity and co-variance per object cluster. This is simply obtained by random sampling the set of 2-D BeV flows from the cells occupied by the object cluster.

DOGMa: DOGMa models the dynamic state estimation of grid cells as a random finite set (RFS) problem. We implement the DOGMa approach [29]

for comparison. Similarly, we aggregate the motion vectors to a mean per cluster by sampling, and weighing each sample based on the occupancy probability of the cell. Moreover, a weighted aggregation of the DOGMa’s preexisting velocity co-variance matrix per occupied cell is applied to propagate the uncertainty of all cells. Note that this filtered approach can contain more information than just a two frame instantaneous estimate.

To compare the approaches, we evaluate the track versus ground truth object velocity error, instead of the typical tracking metrics such as MOTA and MOTP, false positive alarm rate, or track ID switch count. The reason is that generic objects are unlabeled and thus wouldn’t be reflected in the typical metrics. To associate a track with a ground truth annotated object for evaluation purposes, we require a significant overlap between the track’s most recent associated object cluster’s convex hull and a ground truth bounding box at the object cluster’s timestamp. Due to lack of bounding boxes for generic objects such as guardrails or trees, we assume that tracks that fail the association represent a generic LIDAR object with zero velocity.

V-C Analysis and Discussion

The quantitative results in Table  IV show strong enhancements to tracking performance using our proposed 2-D BeV flow estimation as a prior. Overall, mean and worst case performance are improved across most object class types. In particular, the proposed method improves significantly in stationary objects (e.g., parked cars, standing pedestrians, and objects excluding static background).

We observe that the prior velocity information provides faster initialization and convergence of the track’s state estimate and allow for better data association, thereby creating more consistent tracks.

We provide qualitative results of the tracker integration in out autonomous platform, and an out-of-ontology tracker observation in Figures 4 and 5 respectively.

Methods ICP + Det. DOGMa PillarFlow
mean (ms) 20 45 23
variance (ms) 5 1 0.1
TABLE V: Runtime Performance on the in-house Autonomous Platform

V-D Runtime Performance

Table V summarizes the runtime performance onboard our autonomous test platform. Our proposed model can achieve approximately 40Hz when run via TensorRT with half-precision floating point mode on a single Nvidia Quadro RTX 6000 GPU. This demonstrates that the proposed method is feasible for real-time accurate velocity estimation in real-world applications.

Vi Conclusion

We propose PillarFlow, a deep network for end-to-end dense motion estimation on 2-D BeV grids. Experimental results show that PillarFlow improves the performance of dynamic object tracking on two datasets. Additionally, we demonstrate that PillarFlow delivers substantial improvements for real-time generic obstacle tracking onboard a real-world autonomous car. Nonetheless, we notice occasional incorrect flow predictions due to (dis)occlusions or for objects with few points. Interesting future work includes accumulating more temporal context or separately estimating occlusions and then augmenting the network input [44].
