Pillar Networks++: Distributed non-parametric deep and wide networks

by   Biswa Sengupta, et al.
Imperial College London

In recent work, it was shown that combining multi-kernel based support vector machines (SVMs) can lead to near state-of-the-art performance on an action recognition dataset (HMDB-51 dataset). This was 0.4% lower than frameworks that used hand-crafted features in addition to the deep convolutional feature extractors. In the present work, we show that combining distributed Gaussian Processes with multi-stream deep convolutional neural networks (CNN) alleviate the need to augment a neural network with hand-crafted features. In contrast to prior work, we treat each deep neural convolutional network as an expert wherein the individual predictions (and their respective uncertainties) are combined into a Product of Experts (PoE) framework.



page 1

page 2

page 3

page 4


Multi-kernel learning of deep convolutional features for action recognition

Image understanding using deep convolutional network has reached human-l...

Pushing the Limits of Deep CNNs for Pedestrian Detection

Compared to other applications in computer vision, convolutional neural ...

A Hybrid Framework for Matching Printing Design Files to Product Photos

We propose a real-time image matching framework, which is hybrid in the ...

UC Merced Submission to the ActivityNet Challenge 2016

This notebook paper describes our system for the untrimmed classificatio...

Cartographic Relief Shading with Neural Networks

Shaded relief is an effective method for visualising terrain on topograp...

Weakly supervised training of deep convolutional neural networks for overhead pedestrian localization in depth fields

Overhead depth map measurements capture sufficient amount of information...

Copy-move Forgery Detection based on Convolutional Kernel Network

In this paper, a copy-move forgery detection method based on Convolution...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.


Recognizing actions in a video stream requires the aggregation of temporal as well as spatial features (as in object classification). These video streams, unlike still images, have short and long temporal correlations, attributes that single frame convolutional neural networks fail to discover. Therefore, the first hurdle to reach human-level performance is designing feature extractors that can learn this latent temporal structure. Nonetheless, there has been much progress in devising novel neural network architecture since the work of [Karpathy et al.2014]. Another problem is the large compute, storage and memory requirement for analysing moderately sized video snippets. One requires a relatively larger computing resource to train ultra deep neural networks that can learn the subtleties in temporal correlations, given varying lighting, camera angles, pose, etc. It is also difficult to utilise standard image augmentation (like random rotations, shears, flips, etc.) techniques on a video stream. Additionally, features for a video stream (unlike static images) evolve with a dynamics across several orders of time-scales.

Nonetheless, the action recognition problem has reached sufficient maturity using the two-stream deep convolutional neural networks (CNN) framework [Simonyan and Zisserman2014]. Such a framework utilises a deep convolutional neural network (CNN) to extract static RGB (Red-Green-Blue) features as well as motion cues by deconstructing the optic-flow of a given video clip. Notably, there has been plenty of work in utilising a variety of network architectures for factorising the RGB and optical-flow based features. For example, an inception network [Szegedy et al.2016] uses

convolutions in its inception block to estimate cross-channel corrections, which is then followed by the estimation of cross-spatial and cross-channel correlations. A residual network (ResNet), on the other hand, learns residuals on the inputs instead of learning unreferenced functions

[He et al.2016]. While such frameworks have proven useful for many action recognition datasets (UCF101, UCF50, etc.), they are yet to show promise where videos have varying signal-to-noise ratio, viewing angles, etc.

We improve upon existing technology by combining Inception networks and ResNets using a Gaussian Process classifier that is further combined in a product-of-expert (PoE) framework to yield, to the best of our knowledge, a state-of-the-art performance on the HMDB51 data-set

[Kuehne et al.2013]. Under a Bayesian setting, our pillar networks provide not only mean predictions, but also the uncertainty associated with each prediction. Notably, our work forwards the following contributions:

  • We introduce pillar networks++ that allow for independent multi-stream deep neural networks, enabling horizontal scalability

  • Ability to classify video snippets that have heterogeneity regarding camera angle, video quality, pose, etc.

  • Combine deep convolutional neural networks with non-parametric Bayesian models, wherein there is a possibility to train them using less amount of data

  • Demonstrate the utility of model averaging that takes uncertainty around mean predictions into account


In this section, we describe the dataset, the network architectures and the nonparametric Bayesian setup that we utilise in our four-stream CNN pillar network for activity recognition. We refer the readers to the original network architectures in [Wang et al.2016] and [Ma et al.2017]

for further technical details. Utilising classification methodologies like AdaBoost, gradient boosting, random forests, etc. provide us with accuracies in the range of 5-55% for this dataset, for either the RGB or the optic-flow based features.


The HMDB51 dataset [Kuehne et al.2013] is an action classification dataset that comprises of 6,766 video clips which have been divided into 51 action classes. Although a much larger UCF-sports dataset exists with 101 action classes [Soomro, Zamir, and Shah2012], the HMDB51 has proven to be more challenging. This is because each video has been filmed using a variety of viewpoints, occlusions, camera motions, video quality, etc. anointing the challenges of video-based prediction problems. The second motivation behind using such a dataset lies in the fact that HMDB51 has storage and compute requirement that is fulfilled by a modern workstation with GPUs – alleviating deployment on expensive cloud-based compute resources.

All experiments were done on Intel Xeon E5-2687W 3 GHz 128 GB workstation with two 12GB nVIDIA TITAN Xp GPUs. As in the original evaluation scheme, we report accuracy as an average over the three training/testing splits.

Inception layers for RGB and flow extraction

We use the inception layer architecture described in [Wang et al.2016]. Each video is divided into segments, and a short sub-segment is randomly selected from each segment so that a preliminary prediction can be produced from each snippet. This is later combined to form a video-level prediction. An Inception with Batch Normalisation network [Ioffe and Szegedy2015] is utilised for both the spatial and the optic-flow stream. The feature size of each inception network is fixed at 1024. For further details on network pre-training, construction, etc. please refer to [Wang et al.2016].

Residual layers for RGB and flow extraction

We utilise the network architecture proposed in [Ma et al.2017] where the authors leverage recurrent networks and convolutions over temporally constructed feature matrices as shown in Fig. 1. In our instantiation, we truncate the network to yield 2048 features, which is different from [Ma et al.2017]

where these features feed into an LSTM (Long Short Term Memory) network. The spatial stream network takes in RGB images as input with a ResNet-101

[He et al.2016]

as a feature extractor; this ResNet-101 spatial-stream ConvNet has been pre-trained on the ImageNet dataset. The temporal stream stacks ten optical flow images using the pre-training protocol suggested in

[Wang et al.2016]. The feature size of each ResNet network is fixed at 2048. For further details on network pre-training, construction, etc. please refer to [Ma et al.2017].

Non-parametric Bayesian Classification

Gaussian Processes (GP) emerged out of filtering theory [Wiener1949]

in non-parametric Bayesian statistics via work done in geostatistics


. Put simply, GPs are collection of random variables that have a joint Gaussian distribution,

GP Prior:
Hyperprior: (1)

where, is the kernel function parameterized by ; is the parameter of the observation model; is the latent function evaluated at i.e., the features. denotes the class of the input features and denote the set of hyper-parameters.

For multi-class problem with a non-Gaussian likelihood (softmax; ), the conditional posterior is approximated via the Laplace approximation [Williams and Barber1998] i.e., a second order Taylor expansion of around the mode as,


is the (input,output) tuple. After the Laplace approximations, the approximate posterior distribution becomes,

Finally, we can evaulate the approximate conditional predictive density of ,


Product of Experts

For each of the neural network, we subdivide the training set into sub-sets so that different GPs could be trained, giving us 28 GPs for the 4 deep networks (2 Inception networks and 2 ResNets) that we have trained in the first part of our training. We assume that each of the 7 GPs are independent, such that the marginal likelihood in our product of expert (PoE) becomes,


What we have done is to reduce the computational expenditure from to . Notice that unlike GPs with inducing inputs or variational parameters such a distributed GP does not require optimisation of additional parameters. Finally, a product-of-GP-experts is instantiated that predicts the function at the test point as,

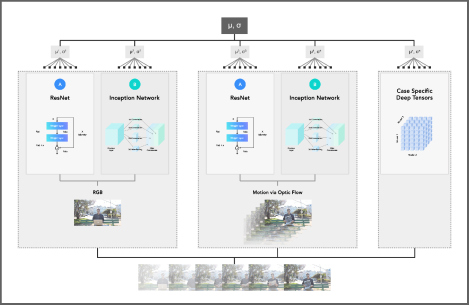

Figure 1: The Pillar Network++ framework:

Each pillar represents either a single ultra-deep neural network or other feature tensors that can be learnt automatically from the input data. For action recognition, we factorize the static (RGB), and dynamic (optic flow) features using a ResNet and an Inception Network. Using the features of the last layer, we train seven Gaussian Processes for each of the network, which is combined under a Product-of-Experts (PoE) formalism. This hierarchy is then fused again to give us a prediction of action types.


We used 3570 videos from HMDB51 as the training data-set; this was further split into seven sub-sets, each with 510 videos. We select ten videos randomly chosen from each category, and each sub-set is non-overlapping. Based on seven sub-sets, seven GPs are trained on different features (RGB and Flow) from different Networks (TSN-Inception [Wang et al.2016] and ResNet-LSTM [Ma et al.2017]). In total, twenty-eight GPs are generated. The features for both the RGB and the optical flow were extracted from the last connected layer with 1024 dimension for the Inception network and 2028 for the ResNet network. The fusion is then performed both vertically (seven sub-sets) and horizontally (four networks). The accuracies of individual GPs and different fusion combinations (PoE) on split-1 are shown in Table 1. Fusion-1 represents the results from the fusion of seven GPs for each feature; Fusion-2 show the fusion result of RGB and Flow using different networks; Fusion-all shows the result by fusion of all the 28 GPs. Additionally, the results with a support-vector-machine (SVM) for each of the network and their fusion using multi-kernel-learning (MKL) are listed in the last three rows [Sengupta and Qian2017]. The average result for three splits is displayed in Table 2.

Accuracy [%] Inception-RGB Inception-Flow ResNet-RGB ResNet-Flow
GP-1 51.4 59.5 52.7 58.9
GP-2 52.0 59.7 51.9 59.1
GP-3 50.1 60.3 49.7 59.9
GP-4 48.7 58.5 49.5 59.1
GP-5 48.2 59.3 49.0 59.5
GP-6 52.0 59.5 52.2 57.9
GP-7 51.1 58.8 51.8 58.1
Average 50.5 59.4 51.0 58.9
Fusion-1 54.6 62.6 54.8 61.6
Fusion-2 69.7 68.2
Fusion-all 75.7
SVM-SingleKernel 54.0 61.0 53.1 58.5
SVM-MutliKernels-1 68.1 63.3
SVM-MutliKernels-2 71.7
Table 1: GP-PoE and SVM results for the HMDB51 data-set on split-1
Methods Accuracy [%] Reference
Two-stream 59.4 [Simonyan and Zisserman2014]
Rank Pooling (ALL)+ HRP (CNN) 65 [Fernando and Gould2017]
Convolutional Two-stream 65.4 [Feichtenhofer, Pinz, and Zisserman2016]
Temporal-Inception 67.5 [Ma et al.2017]
Temporal Segment Network (2/3 modalities) 68.5/69.4 [Wang et al.2016]
TS-LSTM 69 [Ma et al.2017]
Pillar Networks++ (ResNet) 66.8 this paper
Pillar Networks++ (Inceptionv2) 69.4 this paper
Pillar Networks SVM-MKL 71.8 [Sengupta and Qian2017]
ST-multiplier network + hand-crafted iDT 72.2 [Feichtenhofer, Pinz, and Wildes2017]
Pillar Networks++ (4 Networks) 73.6 this paper
Table 2: Accuracy scores for the HMDB51 data-set


Here, we make two contributions – (a) we build on recently proposed pillar networks [Sengupta and Qian2017] and combine deep convolutional neural networks with non-parametric Bayesian models, wherein they have the possibility of being trained with less amount of data and (b) demonstrate the utility of model averaging that takes uncertainty around mean predictions into account. Combining different methodologies allow us to supersede the current state-of-the-art in video classification especially, action recognition.

We utilised the HMDB-51 dataset instead of UCF101 as the former has proven to be difficult for deep networks due to the heterogeneity of image quality, camera angles, etc. As is well-known, videos contain extensive long-range temporal structure; using different networks (2 ResNets and 2 Inception networks) to capture the subtleties of this temporal structure is an absolute requirement. Since each network implements a different non-linear transformation, one can utilise them to learn very deep yet different features. Utilising the distributed-GP architecture then enables us to parcellate the feature tensors into computable chunks (by being distributed) of input for a Gaussian Process classifier. Such an architectural choice, therefore, enables us to scale horizontally by plugging in a variety of networks

as per requirement

. While we have used this architecture for video based classification, there is a wide range of problems where we can apply this methodology – from speech processing (with different pillars/networks) to natural-language-processing (NLP).

Ultra deep convolutional networks have been influential for a variety of problems, from image classification to natural language processing (NLP). Recently, there has been work on combining the Inception network with that of a Residual network such that the resulting network builds on the advantages offered by either network in isolation [Szegedy et al.2017]

. In future, it would be useful to see how different are the features when they are extracted from Inception module, ResNet module or a combination of both. Not only this, a wide variety of hand-crafted features can also be augmented as inputs to the distributed GPs; our initial experiments using the iDT features show that this is indeed the case. Input data can also be augmented using RGB difference or optic flow warps, as had been done in

[Wang et al.2016].

Also, the second stage of training, i.e., the GP classifiers work with far fewer examples than what a deep learning network requires. It would be useful to see how pillar networks perform on immensely large datasets such as the Youtube-8m data-set

[Abu-El-Haija et al.2016]. Additionally, recently published Kinetics human action video dataset from DeepMind [Kay et al.2017] is equally attractive, as pre-training, the pillar networks on this dataset before fine-grained training on HMDB-51 will invariably increase the accuracy of the current network architecture.

The Bayesian product-of-GPs would suffer from a problem were we to increase the number of experts. This is because the precision of the experts adds up which leads to overconfident predictions, especially in the absence of data. In unpublished work, we have utilised generalised Product of Experts (gPoE) [Cao and Fleet2014] and Bayesian Committee Machine (BCM) [Tresp2000] to increase the fidelity of our predictions. These would be reported in a subsequent publication along with results from a robust Bayesian Committee Machine (rBCM) which includes the product-of-GPs and the BCM as special cases [Deisenroth and Ng2015].

For inference, we have limited our experiments to the Laplace approximation inference under a distributed GP framework. An alternative inference methodology for multi-class classification include (stochastic) expectation propagation [Riihimäki, Jylänki, and Vehtari, Villacampa-Calvo and Hernández-Lobato2017] or variational approximations [Hensman, Matthews, and Ghahramani2015]. From our experience in variational optimisation for dynamical probabilistic graphical models [Cooray et al.2017], there is merit in using free-energy minimization, simply due to lower computational overhead. Indeed, it comes with its problems such as underestimation of the variability of the posterior density, inability to describe multi-modal densities and the inaccuracy due to the presence of multiple equilibrium points. All being said, some of these problems are also shared by state-of-the-art MCMC samplers for dynamical systems [Sengupta, Friston, and Penny2015a, Sengupta, Friston, and Penny2015b]. Due to the flexibility of utilising GPUs, both methods (variational inference and EP) can prove to be computationally efficient, especially for streaming data. Thus, there is a scope of future work where one can apply these inference methodologies and compare it with vanilla Laplace approximations, as utilised here.


  • [Abu-El-Haija et al.2016] Abu-El-Haija, S.; Kothari, N.; Lee, J.; Natsev, P.; Toderici, G.; Varadarajan, B.; and Vijayanarasimhan, S. 2016. YouTube-8M: a large-scale video classification benchmark.
  • [Cao and Fleet2014] Cao, Y., and Fleet, D. J. 2014. Generalized product of experts for automatic and principled fusion of Gaussian process predictions. arXiv preprint arXiv:1410.7827.
  • [Cooray et al.2017] Cooray, G.; Rosch, R.; Baldeweg, T.; Lemieux, L.; Friston, K.; and Sengupta, B. 2017. Bayesian Belief Updating of Spatiotemporal Seizure Dynamics. ICML Workshop on Time-Series methods.
  • [Deisenroth and Ng2015] Deisenroth, M. P., and Ng, J. W. 2015. Distributed Gaussian processes. arXiv preprint arXiv:1502.02843.
  • [Feichtenhofer, Pinz, and Wildes2017] Feichtenhofer, C.; Pinz, A.; and Wildes, R. P. 2017. Spatiotemporal multiplier networks for video action recognition.

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

  • [Feichtenhofer, Pinz, and Zisserman2016] Feichtenhofer, C.; Pinz, A.; and Zisserman, A. 2016. Convolutional two-stream network fusion for video action recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 1933–1941.
  • [Fernando and Gould2017] Fernando, B., and Gould, S. 2017. Discriminatively learned hierarchical rank pooling networks. arXiv preprint arXiv:1705.10420.
  • [He et al.2016] He, K.; Zhang, X.; Ren, S.; and Sun, J. 2016. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, 770–778.
  • [Hensman, Matthews, and Ghahramani2015] Hensman, J.; Matthews, A. G. d. G.; and Ghahramani, Z. 2015. Scalable variational Gaussian process classification. In

    Proceedings of the Eighteenth International Conference on Artificial Intelligence and Statistics

  • [Ioffe and Szegedy2015] Ioffe, S., and Szegedy, C. 2015. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In

    International Conference on Machine Learning

    , 448–456.
  • [Karpathy et al.2014] Karpathy, A.; Toderici, G.; Shetty, S.; Leung, T.; Sukthankar, R.; and Fei-Fei, L. 2014. Large-scale video classification with convolutional neural networks. In Proceedings of the IEEE conference on Computer Vision and Pattern Recognition, 1725–1732.
  • [Kay et al.2017] Kay, W.; Carreira, J.; Simonyan, K.; Zhang, B.; Hillier, C.; Vijayanarasimhan, S.; Viola, F.; Green, T.; Back, T.; Natsev, P.; et al. 2017. The Kinetics human action video dataset. arXiv preprint arXiv:1705.06950.
  • [Kuehne et al.2013] Kuehne, H.; Jhuang, H.; Stiefelhagen, R.; and Serre, T. 2013. HMDB51: a large video database for human motion recognition. In High Performance Computing in Science and Engineering ‘12. Springer. 571–582.
  • [Ma et al.2017] Ma, C.-Y.; Chen, M.-H.; Kira, Z.; and AlRegib, G. 2017. TS-LSTM and Temporal-Inception: Exploiting spatiotemporal dynamics for activity recognition. arXiv preprint arXiv:1703.10667.
  • [Matheron1973] Matheron, G. 1973. The intrinsic random functions and their applications.

    Advances in applied probability

  • [Riihimäki, Jylänki, and Vehtari] Riihimäki, J.; Jylänki, P.; and Vehtari, A. Nested expectation propagation for Gaussian Process classification with a multinomial probit likelihood.
  • [Sengupta and Qian2017] Sengupta, B., and Qian, Y. 2017. Pillar Networks for action recognition. IROS Workshop on Semantic Policy and Action Representations for Autonomous Robots.
  • [Sengupta, Friston, and Penny2015a] Sengupta, B.; Friston, K. J.; and Penny, W. D. 2015a. Gradient-based MCMC samplers for dynamic causal modelling. Neuroimage.
  • [Sengupta, Friston, and Penny2015b] Sengupta, B.; Friston, K. J.; and Penny, W. D. 2015b. Gradient-free MCMC methods for dynamic causal modelling. Neuroimage 112:375–81.
  • [Simonyan and Zisserman2014] Simonyan, K., and Zisserman, A. 2014. Two-stream convolutional networks for action recognition in videos. In Advances in neural information processing systems, 568–576.
  • [Soomro, Zamir, and Shah2012] Soomro, K.; Zamir, A. R.; and Shah, M. 2012. UCF101: a dataset of 101 human actions classes from videos in the wild. arXiv preprint arXiv:1212.0402.
  • [Szegedy et al.2016] Szegedy, C.; Vanhoucke, V.; Ioffe, S.; Shlens, J.; and Wojna, Z. 2016. Rethinking the inception architecture for computer vision. In 2016 IEEE Conference on Computer Vision and Pattern Recognition, CVPR, 2818–2826.
  • [Szegedy et al.2017] Szegedy, C.; Ioffe, S.; Vanhoucke, V.; and Alemi, A. A. 2017.

    Inception-v4, inception-resnet and the impact of residual connections on learning.

    In AAAI, 4278–4284.
  • [Tresp2000] Tresp, V. 2000. A Bayesian committee machine. Neural computation 12(11):2719–2741.
  • [Villacampa-Calvo and Hernández-Lobato2017] Villacampa-Calvo, C., and Hernández-Lobato, D. 2017. Scalable Multi-Class Gaussian Process Classification using Expectation Propagation. ArXiv e-prints.
  • [Wang et al.2016] Wang, L.; Xiong, Y.; Wang, Z.; Qiao, Y.; Lin, D.; Tang, X.; and Van Gool, L. 2016. Temporal segment networks: Towards good practices for deep action recognition. In European Conference on Computer Vision, 20–36. Springer.
  • [Wiener1949] Wiener, N. 1949.

    Extrapolation, interpolation, and smoothing of stationary time series

    , volume 7.
    MIT press Cambridge, MA.
  • [Williams and Barber1998] Williams, C. K., and Barber, D. 1998. Bayesian classification with Gaussian processes. IEEE Transactions on Pattern Analysis and Machine Intelligence 20(12):1342–1351.
