1. Introduction

This document reports the acquisition, structure and properties of a digital photographic dataset collected at the Industrial Mathematics Laboratory of the Department of Mathematics and Statistics of University of Helsinki, Finland.

This dataset is designed to test and benchmark several image processing tasks, including: image denoising, image inpainting, etc., under the presence of real noise. This dataset is built with the goal of helping researchers in image processing and related areas to avoid the use of synthetic generated noise and blur to provide benchmarks and objective results.


2. Materials and Methods

2.1. Camera equipment

We use a PhaseOne XF medium-format camera equipped with an achromatic IQ260 digital back. The lens is Phase One Digital AF 120mm F4. The pixel size in the resulting 16bit TIFF image file is .

2.2. Lighting

The targets were lit with five Olight X6 Marauder LED flashlights with luminous flux of 5000 lm (nominal value, 4825 lm was measured in the laboratory of the vendor www.valostore.fi). The lights were positioned at roughly equiangular arrangement. The distance of each light from the target was roughly 850 mm. The lights were heating up quickly as they were used at maximum power. Cooling was enhanced with three regular household fans.

A diffuser was placed between the lights and the target to make the lighting more uniform and to reduce sharp shadows.

See Figure 1 for the imaging setup.

2.3. Details of the target

We placed playing cards on a horizontal surface. The camera was aimed directly down, so the optical axis was roughly vertical.

In every picture there is a five-step grayscale target for calibration.

2.4. Varying the noise level in the data

For each arrangement of cards, four different images were taken:

  1. Best-quality photo (im_clean.tif). Minimum ISO setting 200 and histogram approximately spanning the full dynamic range. The noise level is very small.

  2. Medium-quality photo, first type (im_noise1.tif). Minimum ISO setting 200 and histogram approximately spanning a quarter the full dynamic range. This will introduce round-off errors from the AD converter.

  3. Medium-quality photo, second type (im_noise2.tif). Maximum ISO setting 3200 and histogram approximately spanning the full dynamic range. This will introduce photon-counting noise as well as some electronic noise.

  4. Low-quality photo (im_noise3.tif). Maximum ISO setting 3200 and histogram approximately spanning a quarter of the full dynamic range. The noise will be increased by added round-off errors.

Figure 1. Setup for collecting photographic data

3. Calibration

Due to the fact that the camera used in the acquisition process was using different parameters for different images, these images will have a different contrast and intensity values. In this section we will explain the techniques used to make the images have a common dynamic range and a similar histogram to the best-quality photo.

3.1. Intensity Adjustment

In this process we are interested in transforming the original image in such a way it maintains its structure while spreading the dynamic range of the image across a defined domain.
In order to define the grayscale levels we will make use of a grayscale calibration patch (phantom) that will be included in every image. The first step taken by the code is to extract the five graylevel areas as shown in Figure 2

and average the intensity values of the pixels inside it. This information is later used to build a non linear map by using a cubic spline interpolation of these graylevel calibration points, we can see an example of this mapping in Figure

3.

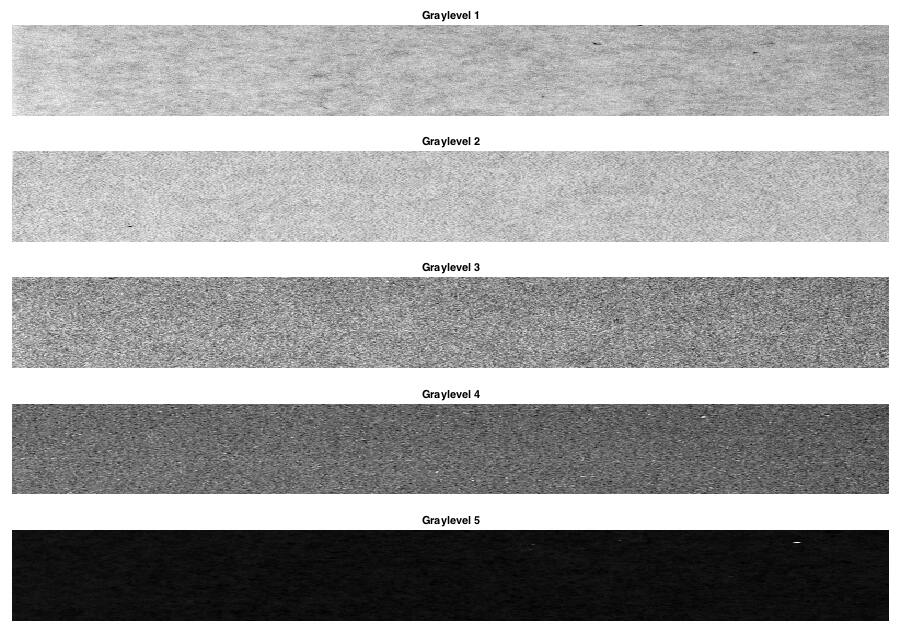

Figure 2. Calibration Grayscale Patch

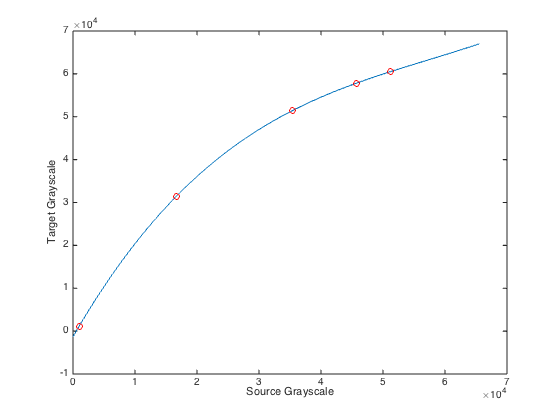

Figure 3. Intensity Adjustment Map

3.2. Histogram Matching

This procedure transforms the histogram of a givem image and a reference image and produces a modified image such that the histograms of the images and are similar. If we consider the graylevels in an interval , and let and

denote the intensity levels for the input and output image respectively. The input levels have a probability density function

and the output levels have the specified probability density function . A summary of the changes in the histogram of the dataset images cane be found in Figure 4

(a) Clean Image
(b) Original Noise 1
(c) Corrected Noise 1
(d) Clean Image
(e) Original Noise 2
(f) Corrected Noise 2
(g) Clean Image
(h) Original Noise 3
(i) Corrected Noise 3
Figure 4. Histograms Comparison at each stage

4. Results

The lens-target distance was approximately 120 cm. The image sensor was roughly parallel with the surface of the object layer. The aperture f-stop was f/11 in all of the shots.
Using this non linear map described in Section 3, we can adjust the intensity values and histogram of the images acquired using different setup configurations, and they all will present a similar dynamic range and histogram, as an example we can see a set of raw images and it corresponding adjustment in Figure 5 and a set of corrected images in Figure 6.

(a) Clean Image
(b) Noise Type 1
(c) Noise Type 2
(d) Noise Type 3
Figure 5. Raw Images Comparison
(a) Clean Image
(b) Noise Type 1
(c) Noise Type 2
(d) Noise Type 3
Figure 6. Corrected Images Comparison

5. Discussion

This dataset enables us to analyze the denoising task given a real world kind of noise. We can test this work with the most popular denoising models like ROF [4] and TV-l1 [3]

, and see its performance under real world noise conditions. Let’s remember that these models make assumptions of the noise distribution, gaussian and poisson distribution for ROF and TV-l1 respectively.


In Figure 7, Figure 8 and Figure 9 we can see the output from applying a ROF denoising model to type 1, 2 and 3 noise type respectively. In this experiment we used FISTA [1] algorithm to find its numerical solution. Let’s recall that the ROF problem is given by:

(5.1)

where is the given noisy image and is a finite difference operator used to obtain the Total Variation norm.

(a) Clean Image
(b) Noise Type 1
(c) Denoised Image
Figure 7. ROF Denoising with Type 1 Noise
(a) Clean Image
(b) Noise Type 2
(c) Denoised Image
Figure 8. ROF Denoising with Type 2 Noise
(a) Clean Image
(b) Noise Type 3
(c) Denoised Image
Figure 9. ROF Denoising with Type 3 Noise

In Figure 10, Figure 11 and Figure 12 we can see the output from applying a TV-l1 denoising model to type 1, 2 and 3 noise type respectively. In this experiment we used a Primal-Dual algorithm described in [2] algorithm to find its numerical solution. Let’s recall that the TV-l1 model is given by:

(5.2)

where is the given noisy image and is a finite difference operator used to obtain the Total Variation norm.

(a) Clean Image
(b) Noise Type 1
(c) Denoised Image
Figure 10. TV-l1 Denoising with Type 1 Noise
(a) Clean Image
(b) Noise Type 2
(c) Denoised Image
Figure 11. TV-l1 Denoising with Type 2 Noise
(a) Clean Image
(b) Noise Type 3
(c) Denoised Image
Figure 12. TV-l1 Denoising with Type 3 Noise
