# Performance Analysis of NOMA-based Cooperative Relaying in α - μ Fading Channels

Non-orthogonal multiple access (NOMA) is widely recognized as a potential multiple access technology for efficient radio spectrum utilization in the fifth-generation (5G) wireless communications standard. In this paper, we study the average achievable rate and outage probability of a cooperative relaying system (CRS) based on NOMA (CRS-NOMA) over wireless links governed by the α-μ generalized fading model; here α and μ designate the nonlinearity and clustering parameters, respectively, of each link. The average achievable rate is represented in closed-form using Meijer's G-function and the extended generalized bivariate Fox's H-function (EGBFHF), and the outage probability is represented using the lower incomplete Gamma function. Our results confirm that the CRS-NOMA outperforms the CRS with conventional orthogonal multiple access (CRS-OMA) in terms of spectral efficiency at high transmit signal-to-noise ratio (SNR). It is also evident from our results that with an increase in the value of the nonlinearity/clustering parameter, the SNR at which the CRS-NOMA outperforms its OMA based counterpart becomes higher. Furthermore, the asymptotic analysis of the outage probability reveals the dependency of the diversity order of each symbol in the CRS-NOMA system on the α and μ parameters of the fading links.

## Authors

• 13 publications
• 6 publications
• 11 publications
• ### On the Performance of NOMA-based Cooperative Relaying with Receive Diversity

Non-orthogonal multiple access (NOMA) is widely recognized as a potentia...
02/14/2019 ∙ by Vaibhav Kumar, et al. ∙ 0

• ### Fundamental Limits of Spectrum Sharing for NOMA-based Cooperative Relaying

Non-orthogonal multiple access (NOMA) and spectrum sharing (SS) are two ...
09/24/2018 ∙ by Vaibhav Kumar, et al. ∙ 0

• ### Performance Analysis of Distributed Intelligent Reflective Surfaces for Wireless Communications

In this paper, a comprehensive performance analysis of a distributed int...
10/23/2020 ∙ by Diluka Loku Galappaththige, et al. ∙ 0

• ### Fundamental Limits of Spectrum Sharing for NOMA-Based Cooperative Relaying Under a Peak Interference Constraint

Non-orthogonal multiple access (NOMA) and spectrum sharing (SS) are two ...
09/23/2019 ∙ by Vaibhav Kumar, et al. ∙ 0

Unmanned aerial vehicles (UAVs) are set to feature heavily in upcoming f...
02/19/2019 ∙ by Tan Zheng Hui Ernest, et al. ∙ 0

• ### An Outage Probability Analysis of Full-Duplex NOMA in UAV Communications

As unmanned aerial vehicles (UAVs) are expected to play a significant ro...
09/05/2019 ∙ by Tan Zheng Hui Ernest, et al. ∙ 0

Non-orthogonal multiple access (NOMA) has a great potential to offer a h...
07/24/2020 ∙ by Kuang-Hao Liu, et al. ∙ 0

##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

NOMA has gained widespread popularity as a potential candidate for multiple access technology in the 5G wireless standard and beyond, which is capable of satisfying the need for low-latency and high-reliability communications for heterogeneous data traffic [1]. Many variants of NOMA have been suggested in the literature, e.g., power-domain NOMA, sparse code multiple access (SCMA), interleave division multiple access (IDMA), low-density spreading (LDS) and pattern division multiple access (PDMA) [2]. Among all of these variants, power-domain NOMA (which we will refer to simply as ‘NOMA’ throughout this paper) has gained widespread popularity because of its implementation-friendly transceiver architecture. It can accommodate several users within the same orthogonal resource block (time, frequency and/or spreading code) via multiplexing them in the power domain at the transmitter and using successive interference cancellation (SIC) at the receiver to remove the messages intended for other users. In the case of NOMA, users with poor channel conditions have a larger share of the transmission power, unlike the conventional OMA where more power is allocated to users with stronger channels (also known as the water-filling strategy) [3].

A very promising application of NOMA for power-domain multiplexed transmission using a cooperative relaying system (CRS-NOMA) was proposed in [4], where the source was able to deliver two different symbols to the destination in two time slots with the help of a relay. It was shown in [4] that CRS-NOMA outperforms the conventional OMA based decode-and-forward cooperative relaying system in terms of average achievable rate in the case of Rayleigh fading channels. The performance superiority of CRS-NOMA in Rician fading was shown in [5]. However, while Rayleigh and Rician fading models are analytically convenient wireless channel models, situations are easily encountered in practice for which these distributions do not adequately fit experimental data [6].

In this paper, we present the performance analysis of CRS-NOMA in the presence of - fading, which is a generalized, flexible and mathematically tractable distribution to model the effect of small-scale channel fading and includes Gamma, Erlang, Chi-squared, Rayleigh, Nakagami-

, exponential, Weibull and one-sided Gaussian distributions as special cases

[6]. It can also (approximately) represent some large-scale fading (such as log-normal fading), as described in [7]. Moreover, the very high degree of flexibility afforded by the - distribution renders it better suited to adjust to fit field data.

The main contributions of this paper include the derivation of closed-form expressions for the average achievable rate and outage probability of the CRS-NOMA in the presence of - fading on each link. In order to have a better insight into the asymptotic system performance, we also present a diversity analysis of the CRS-NOMA, and in particular we show how the diversity order depends on the and parameters of each of the fading links.

## Ii System Model

Consider the cooperative relaying system shown in Fig. 1, which consists of a source , a relay and a destination . All nodes are equipped with a single antenna and are assumed to be operating in half-duplex mode. All wireless links are assumed to be - distributed with the non-linearity parameters between -, - and - links denoted by , and , respectively, the corresponding clustering parameters denoted by , and , respectively, and the -root-mean values of the channel fading coefficients denoted by and , respectively. Furthermore, it is assumed that the - link is on average weaker that the - link, i.e., .

In the CRS-NOMA, the source broadcasts to both relay and destination in the first time slot, where and are data-bearing constellation symbols, multiplexed in the power domain ( for , where denotes the expectation operator), is the power transmitted from the source, and and are power allocation coefficients (with and ). After reception, the destination decodes symbol by treating the interference from symbol as additional noise, while the relay first decodes symbol (treating the interference from symbol as additional noise) and then applies SIC to decode symbol

. In the second time slot, the relay transmits its estimate of symbol

, denoted by , to the destination with power . In this manner, two different symbols are delivered to the destination in two time slots.

In contrast to this, in the CRS-OMA, the source broadcasts symbol with power to both relay and destination in the first time slot and the relay (after decoding) forwards its estimate of symbol , denoted by , to the destination in the second time slot. In this fashion, only a single symbol is delivered to the destination in two time slots.

Denoting the channel fading coefficient between the -, - and - links by , and

, respectively, the probability density function (PDF) of

can be expressed as [6, Eqn. (1)]

 f|hτ|(x)=ατμμττxατμτ−1ΩατμττΓ(μτ)exp(−μτxατΩαττ),

where

is the Gamma function. The cumulative distribution function (CDF) of the channel gain

can therefore be given by

 Fλτ(x)=∫√x0f|hτ|(t)dt=1Γ(μτ)γ(μτ,μτx0.5ατΩαττ), (1)

where is the lower incomplete Gamma function and the integration above is solved using [8, Eqn. (-), p. 346]. The PDF of can be obtained by differentiating the equation above w.r.t. , yielding

 fλτ(x)=ατμμττx0.5ατμτ−12ΩατμττΓ(μτ)exp(−μτx0.5ατΩαττ). (2)

## Iii Performance Analysis

In this section we present a comprehensive analysis of the average achievable rate, outage probability and diversity order for the CRS-NOMA in - fading channels.

### Iii-a Average achievable rate

The signals received at the relay and the destination in the first time slot are given by

 ysr= hsr(√a1Ps1+√a2Ps2)+nsr, ysd= hsd(√a1Ps1+√a2Ps2)+nsd,

where and

denote complex additive white Gaussian noise (AWGN) with zero mean and variance

at the relay and the destination, respectively. The received instantaneous signal-to-interference-plus-noise ratio (SINR) at the relay for decoding symbol and the received instantaneous SNR for decoding symbol (assuming symbol is decoded correctly) is given by

 γ(1)sr=a1ρλsra2ρλsr+1,γ(2)sr=a2ρλsr,

where is the transmit SNR. Similarly, the received instantaneous SINR for decoding symbol at the destination is given by

 γsd=a1ρλsda2ρλsd+1.

In the second time slot, the relay forwards it estimate of , denoted by , to the destination with power . The signal received at the destination is given by

 yrd=√P^s2+nrd,

where denotes the complex AWGN at the destination with zero mean and variance . The received instantaneous SNR at the destination for decoding symbol is given by

 γrd=ρλrd.

The instantaneous achievable rate for symbol is therefore given by

 Cs1= min{0.5log2(1+γ(1)sr),0.5log2(1+γsd)} = 0.5log2(1+a1ρXa2ρX+1)=0.5log2(1+ρX)−0.5log2(1+a2ρX),

where . Similarly, the instantaneous achievable rate for symbol is given by

 Cs2= min{0.5log2(1+γ(2)sr),0.5log2(1+γrd)}=0.5log2(1+ρY),

where .

The average achievable rate for symbol is therefore given by

 ¯Cs1=EX[Cs1]=0.5ln(2)[∫∞0ln(1+ρx)fX(x)dx−∫∞0ln(1+a2ρx)fX(x)dx]=0.5ln(2)[I1−I2], (3)

where

denotes expectation w.r.t. the random variable

and denotes the PDF of the random variable .

###### Theorem 1.

A closed-form expression for the average achievable rate of symbol in CRS-NOMA is given by

 (4)

where,

 (5)
 (6)
 (7)
 (8)

is Meijer’s G-function, where , and is the extended generalized bivariate Fox’s H-function (EGBFHF)111A Matlab implementation of the EGBFHF is given in [9] and a Mathematica implementation is given in [10]. as defined in [11, Eqn. (2.57)]. Expressions for and can be obtained by replacing by in (5)-(8), respectively.

###### Proof.

See Appendix A. ∎

Similarly, the average achievable rate for symbol is given by

 ¯Cs2=EY[Cs2]=0.5ln(2)∫∞0ln(1+ρy)fY(y)dy. (9)
###### Theorem 2.

A closed-form expression for the average achievable rate of symbol in CRS-NOMA is given by

 ¯Cs2=0.5ln(2)[I9−I10+I11−I12], (10)

where

 I9=μμsrsrG2+2αsr,αsr2αsr,2+2αsr(μ2sr4aαsr2Ω2αsrsrραsr∣∣χsr,Δ(αsr,1−0.5αsrμsr)Δ(2,0),χsr,χsr)√2(2π)αsr−0.5a0.5αsrμsr2ΩαsrμsrsrΓ(μsr)ρ0.5αsrμsr, (11)
 (12)
 I11=μμrdrdG2+2αrd,αrd2αrd,2+2αrd(μ2rd4Ω2αrdrdραrd∣∣χrd,Δ(αrd,1−0.5αrdμrd)Δ(2,0),χrd,χrd)√2(2π)αrd−0.5ΩαrdμrdrdΓ(μrd)ρ0.5αrdμrd, (13)
 I12=H1,0:1,2:1,11,0:2,2:1,2⎡⎣(1−μrd:2αrd,αsrαrd)--∣∣∣(1,1),(1,1)(1,1),(0,1)∣∣(1,1)(μsr,1),(0,1)∣∣ρ(Ωrdμ1/αrdrd)2,μsrΩαsrrda−0.5αsr2μαsr/αrdrdΩαsrsr⎤⎦Γ(μrd)Γ(μsr). (14)
###### Proof.

See Appendix B. ∎

Using (4) and (10), a closed-form expression for the average achievable rate for CRS-NOMA in the presence of - fading is given by

 ¯C=¯Cs1+¯Cs2. (15)

In contrast to this, for CRS-OMA, the signals received at the relay and the destination in the first time slot are given by

 ysr,OMA= hsr√Ps1+nsr, ysd,OMA= hsd√Ps1+nsd.

The relay forwards its estimate of symbol , denoted by , in the next time slot. The signal received at the destination in the second time slot is given by

 yrd,OMA= hrd√P^s1+nrd.

Therefore, the average achievable rate for the CRS-OMA is given by

 ¯COMA=0.5EZ[log2(1+ρZ)], (16)

where . Since the focus of this paper is on the NOMA-based system, we do not provide a closed-form analysis for the average achievable rate of CRS-OMA.

### Iii-B Outage probability for CRS-NOMA

In this section, we derive closed-form expressions for the outage probabilities of and . We define as the outage event for symbol , i.e., the event where either the relay or the destination fails to decode successfully. Therefore, for a given target data rate , the outage probability for symbol is given by

 Pr(O1)= Pr(Cs1

where and . The system design must ensure that , otherwise the outage probability for symbol will always be as noted in [12]. Using (1), the closed-form expression for the outage probability of in CRS-NOMA is given by

 Pr(O1)=γ(μsr,μsrΩαsrsrΦ0.5αsr1)Γ(μsr)+γ(μsd,μsdΩαsdsdΦ0.5αsd1)Γ(μsd)−γ(μsr,μsrΩαsrsrΦ0.5αsr1)γ(μsd,μsdΩαsdsdΦ0.5αsd1)Γ(μsr)Γ(μsd). (17)

Next we define the outage event for symbol , denoted by , as

 O2=E1∪E2∪E3,

where is the event when symbol cannot be successfully decoded at the relay, is the event when symbol is successfully decoded at the relay, but symbol cannot be successfully decoded at the relay, and is the event when both and are successfully decoded at the relay, but symbol cannot be successfully decoded at the destination. It is important to note that the events and are disjoint. Therefore, for a given target data rate , the outage probability for symbol can be given by

 Pr(O2) ={Pr(λsr<Φ1)+Pr(λsr≥Φ1,λsr<Φ2)+Pr(λsr>Φ2,λrd<η2/ρ);ifΦ1<Φ2Pr(λsr<Φ1)+Pr(λsr>Φ1,λrd<η2/ρ);otherwise =Fλsr(Φmax)+Fλrd(η2ρ)−Fλsr(Φmax)Fλrd(η2ρ),

where , and . Substituting the expressions for and using (1), the closed-form expression for the outage probability of symbol is given by

 Pr(O2)=γ(μsr,μsrΩαsrsrΦ0.5αsrmax)Γ(μsr)+γ(μrd,μrdη0.5αrd2ρ0.5αrdΩαrdrd)Γ(μrd)−γ(μsr,μsrΩαsrsrΦ0.5αsrmax)γ(μrd,μrdη0.5αrd2ρ0.5αrdΩαrdrd)Γ(μsr)Γ(μrd). (18)

### Iii-C Diversity analysis for CRS-NOMA

Using (1) and the series expansion of the lower incomplete Gamma function as given in [13, Eqn. (8.11.4), p. 180], we have

 Fλsr(Φ1)= μμsrsrΦ0.5αsrμsr1Γ(μsr)Ωαsrμsrsrexp(−μsrΦ0.5αsr1Ωαsrsr)∞∑k=0μksrΦ0.5kαsr1Ωkαsrsr(μsr)k+1,

where is the Pochhammer symbol. Using the series expansion of the exponential function, we have

 Fλsr(Φ1)=μμsrsrΩαsrμsrsr∞∑l=0∞∑k=0(−1)lΦ0.5αsr(μsr+l+k)1μl+ksrl!Ωαsr(l+k)srΓ(μsr+k+1).

Replacing by , the asymptotic behavior () of is given by

 Fλsr(Φ1)= μμsrsrη0.5αsrμsr1ρ−0.5αsrμsrΩαsrμsrsr(a1−η1a2)0.5αsrμsrΓ(μsr+1)+O(ρ−(0.5αsrμsr+1)), (19)

where is the Landau symbol. It is clear from (19) that for high transmit SNR , decays as . Analogously, it can be shown that at high transmit SNR, decays as and decays as . Therefore, using (17), it is straightforward to conclude that the diversity order of symbol is . Using similar arguments, it can be deduced from (18) that the diversity order of symbol is .

## Iv Results and Discussion

In this section, we present analytical and numerical222We do not realize the actual scenario for numerical computation, but rather generate the random variables and then evaluate (3), (9) and (16). results for the average achievable rate, outage probability and diversity order of the NOMA-based cooperative relaying system. Table I shows the optimal value of the power allocation coefficient , which maximizes the average achievable rate for CRS-NOMA, for different values of , , and . The necessary constraint (as noted in Section III-B) implies a possible range . Therefore, the optimization of was performed using an exhaustive search over the -element discrete set , where is a positive integer and . In Table I, we consider , bps/Hz, and . Note that the average achievable rate for CRS-NOMA depends on the target data rate for symbol . The expressions derived in this paper are valid also for the case when and .

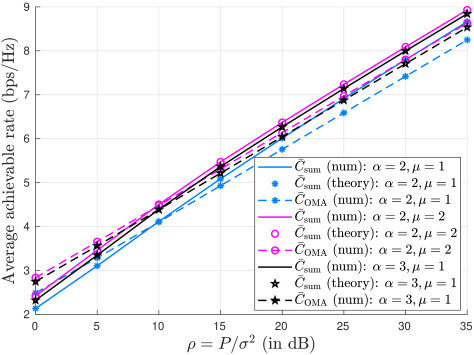

Fig. 2 shows the average achievable rate for the CRS-NOMA (with optimal for each ) and CRS-OMA for (i.e., Rayleigh fading); (i.e., Nakagami- fading with ) and (i.e., Weibull fading with shape parameter ). The figure shows a perfect agreement between the numerical and analytical plots for the NOMA system. It is also clear from the figure that for high transmit SNR , the NOMA-based CRS outperforms its OMA-based counterpart in terms of spectral efficiency.

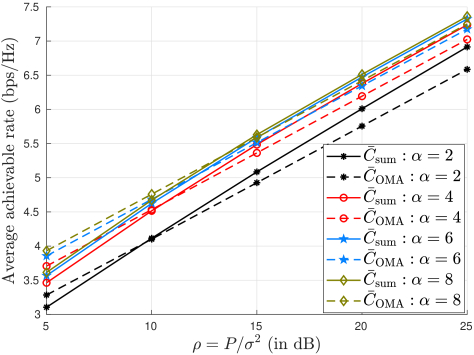

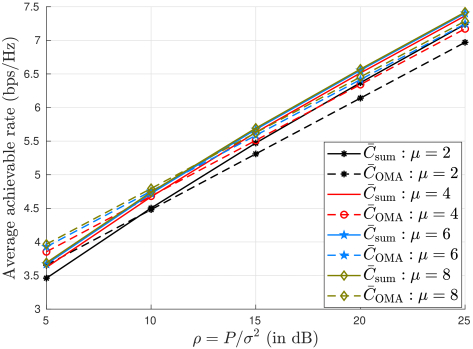

For the same set of channel parameters, Fig. 3 shows the average achievable rate for CRS-NOMA (with optimal for each ) and CRS-OMA at a fixed transmit SNR dB and against . It is clear from the figure that the CRS-NOMA outperforms CRS-OMA by achieving significant gain in spectral efficiency.

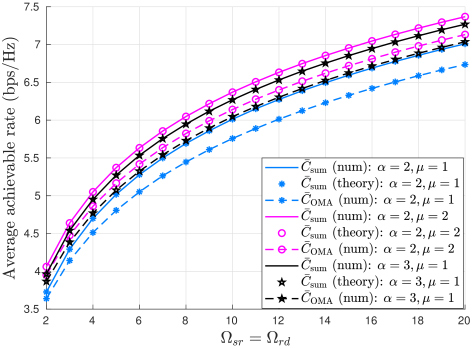

Fig. 4 shows the average achievable rate of CRS-NOMA (with optimal for each ) and CRS-OMA for a fixed value of the clustering parameter and different values of the nonlinearity parameter . It is clear from the figure that as increases, the spectral efficiency of the CRS also increases. Fig. 5 shows the average achievable rate of CRS-NOMA (with optimal for each ) and CRS-OMA for a fixed value of the nonlinearity parameter and different values of the clustering parameter . It is evident from the figure that with an increase in the value of the clustering parameter, the spectral efficiency of the CRS increases. It can also be noted from Figs. 4 and 5 that with increase in the value of nonlinearity/clustering parameter, the SNR at which the CRS-NOMA outperforms its OMA counterpart becomes higher.

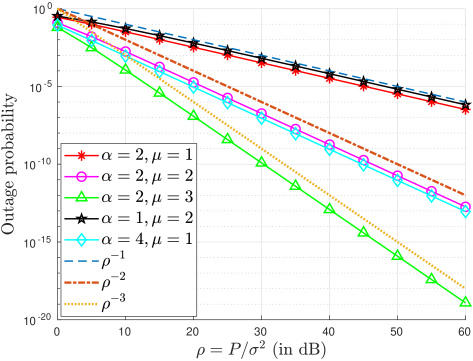

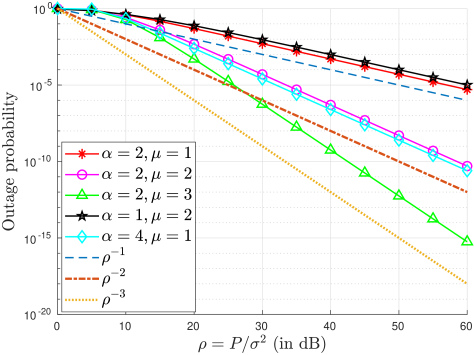

Figs. 6 and 7 show the outage probabilities of symbols and , respectively, in CRS-NOMA, evaluated using the methodology of  Section III-B for , and . It is evident that both outage probabilities depend on the fading parameters and , and there is a consistent agreement between the observed diversity order for each symbol and the analytical diversity order results derived in Section III-C.

## V Conclusion

In this work, an exact closed-form expression for the average achievable rate of a CRS-NOMA in generalized - fading was derived and validated through numerical experiments. The derived expressions can be used to analyze the performance of the CRS-NOMA over diverse small-scale fading channels including Rayleigh, Nakagami-, exponential, Gamma and Weibull, as well as some large-scale fading channels. Our results show that the optimal power allocation for maximizing the achievable rate of CRS-NOMA depends on the target data rate requirement. Our results also demonstrate the effect of the nonlinearity and the clustering parameters on the average achievable rate of the CRS. Outage probability and diversity order were also analyzed, and it was shown that a simple relationship exists between the diversity order for each symbol, and the nonlinearity and clustering parameters of the fading links.

## Acknowledgment

This publication has emanated from research conducted with the financial support of Science Foundation Ireland (SFI) and is co-funded under the European Regional Development Fund under Grant Number 13/RC/2077.

## Appendix A Proof of Theorem 1

The PDF of can be given by

 fX(x)=fλsr(x)−fλsr(x)Fλsd(x)+fλsd(x)−fλsd(x)Fλsr(x). (20)

The expressions for , , and can be obtained using (1) and (2). Substituting the expression of from (20) into (3), we have

 I1=∫∞0ln(1+ρx)fλsr(x)dxI1−∫∞0ln(1+ρx)fλsr(x)Fλsd(x)dxI2+∫∞0ln(1+ρx)fλsd(x)dxI3−∫∞0ln(1+ρx)fλsd(x)Fλsr(x)dxI4

Solving for , we have

 I1= ∫∞0ln(1+ρx)fλsr(x)dx=0.5αsrμμsrsrΩαsrμsrsrΓ(μsr)∫∞0ln(1+ρx)exp⎛⎜⎝−μsrxαsr2Ωαsrsr⎞⎟⎠xαsrμsr2−1dx.

Representing the logarithmic and the exponential functions in terms of Meijer’s G-function using [14, Eqn. (11)] yields

 I1= 0.5αsrμμsrsrΩαsrμsrsrΓ(μsr)∫∞0x0.5αsrμsr−1G1,22,2(ρx∣∣1,11,0)G1,00,1(μsrx0.5αsrΩαsrsr∣∣--0)dx.

Solving the integration above using [14, Eqns. (7), (21)], reduces to (5). Analogously, the closed-form expression for is given by (7). Similarly,

 I2= ∫∞0ln(1+ρx)fλsr(x)Fλsd(x)dx = 0.5αsrμμsrsrΩαsrμsrsrΓ(μsr)Γ(μsd)∫∞0ln(1+ρx)exp(−μsrx0.5αsrΩαsrsr)γ(μsd,μsdx0.5αsdΩαsdsd)x0.5αsrμsr−1dx.

Representing the logarithmic and the exponential function in terms of Meijer’s G-function using [14, Eqn. (11)] and the lower-incomplete Gamma function in terms of Meijer’s G-function using [10, Eqn. (2)] yields

 I2=

Using the relation between Meijer’s G-function and Fox H-function (c.f. [15, Eqn. (6.2.8)])

 Gm,np,q[x∣∣υ1,…,υpν1,…,νq]=Hm,np,q[x∣∣(υ1,1),…,(υp,1)(ν1,1),…,(νq,1)],

and substituting yields

 I2=

Solving the integration above using [16, Eqn. (2.3)], the closed-form expression for reduces to (6). Solving in a similar fashion, the closed-form expression for can be given by (8).

Also, using (20) and (3), we have

 I2=∫∞0ln(1+a2ρx)fλsr(x)dxI5−∫∞0ln(1+a2ρx)fλsr(x)Fλsd(x)dxI6+∫∞0ln(1+a2ρx)fλsd(x)dxI7−∫∞0ln(1+a2ρx)fλsd(x)Fλsr(x)dxI8

The closed-form expressions for and can be obtained by replacing by in (5)-(8), respectively. Substituting the expressions for into (4) yields the closed-form expression for the average achievable rate for symbol of CRS-NOMA in - fading.

## Appendix B Proof of Theorem 2

Using (1) and a transformation of random variables, the CDF of can be expressed as

 Fa2λsr(y)=Fλsr(ya2)=1Γ(μsr)γ(μsr,μsry0.5αsra0.5αsr2Ωαsrsr).

Similarly, using (2) and a transformation of random variables, the PDF of can be expressed as

 fa2λsr(y)=
