PerforatedCNNs: Acceleration through Elimination of Redundant Convolutions

04/30/2015 ∙ by Michael Figurnov, et al. ∙ 0

We propose a novel approach to reduce the computational cost of evaluation of convolutional neural networks, a factor that has hindered their deployment in low-power devices such as mobile phones. Inspired by the loop perforation technique from source code optimization, we speed up the bottleneck convolutional layers by skipping their evaluation in some of the spatial positions. We propose and analyze several strategies of choosing these positions. We demonstrate that perforation can accelerate modern convolutional networks such as AlexNet and VGG-16 by a factor of 2x - 4x. Additionally, we show that perforation is complementary to the recently proposed acceleration method of Zhang et al.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The last few years have seen convolutional neural networks (CNNs) emerge as an indispensable tool for computer vision. This has been driven by their ability to achieve state-of-the-art performance for many challenging vision problems

(Mnih et al., 2015; Schroff et al., 2015; Zheng et al., 2015). Modern CNNs have high computational cost of evaluation, with convolutional layers usually taking up over 80% of the time. For instance, VGG-16 network (Simonyan & Zisserman, 2015) for the problem of object recognition requires floating point multiplications per image. These computational requirements hinder the deployment of such networks on systems without GPUs and in scenarios where power consumption is a major concern, such as mobile devices.

The problem of trading accuracy of computations for speed is well-known within the software engineering community. One of the most prominent methods for this problem is loop perforation (Misailovic et al., 2010, 2011; Sidiroglou-Douskos et al., 2011). In a nutshell, this technique isolates loops in the code that are not critical for the execution, and then reduces their computational cost by skipping some iterations. More recently, researchers have considered problem-dependent perforation strategies which involve identifying data-parallel patterns, such as ‘‘stencil’’, and applying pattern-specific approximations that exploit the structure of the problem (Samadi et al., 2014).

Inspired by the general principle of perforation, we propose to reduce the computational cost of CNN evaluation by exploiting the spatial redundancy of the network. Modern CNNs, such as AlexNet, exploit this redundancy through the use of strides in the convolutional layers. However, increasing convolutional strides changes the architecture of the network (intermediate representations size and number of weights in the first fully-connected layer), which might be undesirable. Instead of using strides, we argue for the use of interpolation (perforation) of responses in the convolutional layer. A key element of this approach is the choice of the perforation mask, which defines the output positions to evaluate exactly. We propose several approaches to select the perforation masks, and a method of choosing a combination of perforation masks for different layers. In order to restore the network accuracy, we perform fine-tuning of the perforated network. Our experiments show that this method can reduce the evaluation time of modern CNN architectures proposed in the literature by a factor of 2

- 4 with small decrease in accuracy.

2 Related Work

Reducing the computational cost of CNN evaluation is an active area of research, with both highly optimized implementations and approximate methods being investigated.

Implementations that exploit the parallelism available in computational architectures like GPUs (cuda-convnet2 (Krizhevsky, 2014), CuDNN (Chetlur et al., 2014)) have allowed to significantly reduce the evaluation time of CNNs. Since CuDNN internally reduces the computation of convolutional layers to the matrix-by-matrix multiplication (without explicitly materializing the data matrix), our approach can potentially be incorporated into this library. In a similar vein, the use of FPFGAs (Ovtcharov et al., 2015) leads to better trade-offs between speed and power consumption. Several papers (Courbariaux et al., 2015; Gupta et al., 2015)

showed that CNNs may be efficiently evaluated using low precision arithmetic, which is important for FPFGA implementations. Most approximate methods of decreasing the CNN computational cost exploit the redundancies of the convolutional kernel using low-rank tensor decompositions

(Denton et al., 2014; Jaderberg et al., 2014; Lebedev et al., 2015; Zhang et al., 2015a, b). In most cases, a convolutional layer is replaced by several convolutional layers applied sequentially, which have a much lower total computational cost. Another direction of research is modifications of CNN architecture for speed gains (He & Sun, 2015; Jin et al., 2015; Romero et al., 2014). The resulting networks are usually CNNs, meaning that our approach could be combined with most of these methods.

For spatially sparse inputs, it is possible to exploit this sparsity to speed up evaluation and training (Graham, 2014b). While this approach is similar to ours in the spirit, we do not rely on spatially sparse inputs. Instead, we sparsely sample the outputs of convolutional layer, and interpolate the remaining values.

In a recent work, Lebedev & Lempitsky (2015) also decrease the CNN computational cost by reducing the size of the data matrix. The difference is that their approach reduces the kernel filter support, while our approach decreases the number of spatial positions in which the convolutions are evaluated. The two methods are complementary.

Several papers have demonstrated that it is possible to significantly compress the parameters of the fully-connected layers (where most CNN parameters reside) with a marginal error increase (Collins & Kohli, 2014; Yang et al., 2015; Novikov et al., 2015). Since our method does not directly modify the fully-connected layers, it is possible to combine these methods with our approach to obtain a fast and small CNN.

3 PerforatedCNNs

The section provides a detailed description of our approach. Before proceeding further we introduce the notation that will be used in the rest of the paper.

Notation. A convolutional layer takes as input a tensor of size and outputs a tensor of size , , . The first two dimensions are spatial (height and width), and the third dimension is the number of channels (for example, for an RGB input image ). The set of convolution kernels is given by a tensor of size

. For simplicity of notation, we assume unit stride, no zero-padding and skip the biases. The convolutional layer output may be defined as follows:

(1)

Additionally, we define the set of all spatial indices (positions) of the output . Perforation mask is the set of indices in which the outputs are to be calculated exactly. Denote the number of positions to be calculated exactly, and the perforation rate.

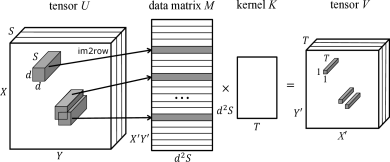

Figure 1: Reduction of convolutional layer evaluation to matrix multiplication. Our idea is to leave only a subset of rows (defined by a perforation mask) in the data matrix and to interpolate the missing output values.
