I Introduction

Image stitching is a well studied topic in computer vision

[1], which mainly consists of alignment [2, 3, 4, 5], composition [6, 7, 8, 9, 10] and blending [11, 12, 13]. In consumer-level photography, it is difficult to achieve perfect alignment due to unconstrained shooting environment, so image composition becomes the most crucial step to produce artifacts-free results.

Seam-cutting [14, 15, 16, 17, 18] is a powerful composition method, which intends to find an invisible seam in the overlapping region of aligned images. Mainstream algorithms usually express the problem in terms of energy minimization and minimize it via graph-cut optimization [19, 20, 21]. Normally, for a given overlapping region of aligned images, different energy functions correspond to different seams, and certainly correspond to different composed results (see Fig. 1). Conversely, in order to obtain a plausible stitching result, we desire to define a perception-consistent energy function, such that the most invisible seam possesses the minimum energy.


Fig. 1: A composed result comparison between different energy functions. (a) Overlapping region. (b) Composed result corresponding to the normal energy function. (c) Composed result corresponding to our perception-based energy function.

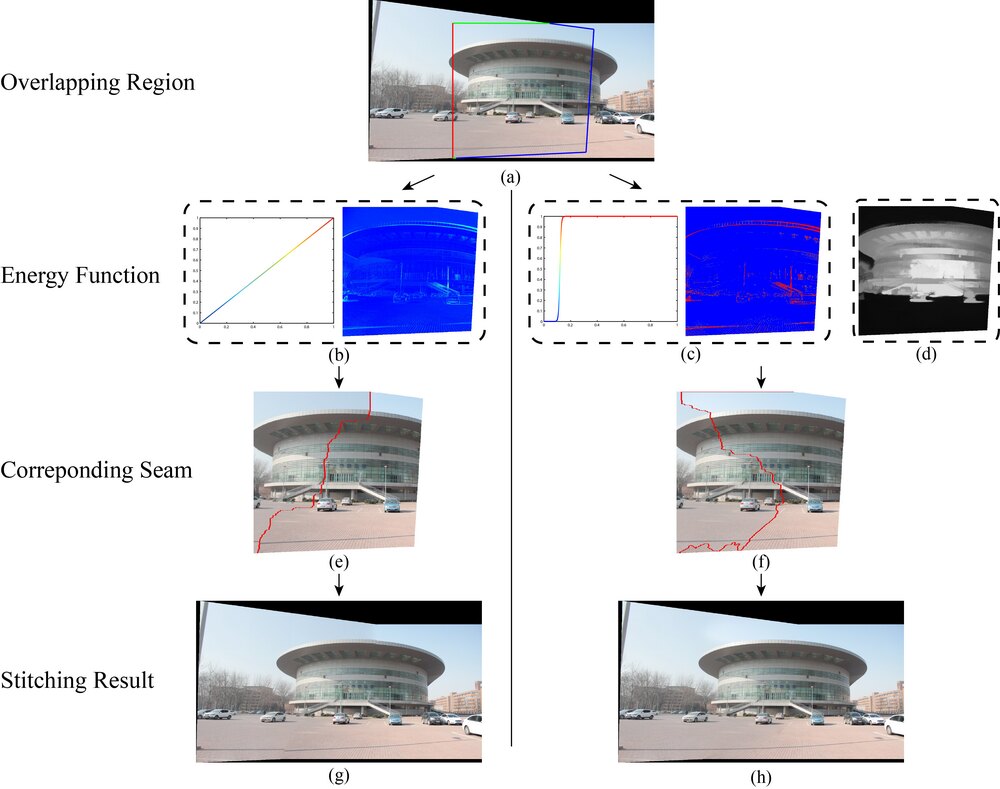

Fig. 2: A process comparison between the normal seam-cutting framework and our proposed seam-cutting framework. (a) Overlapping region. (b) Euclidean-metric color difference. (c) Sigmoid-metric color difference. (d) Average pixel saliency. (e)(f) Corresponding seams. (g)(h) Corresponding stitching results.

Recently, many efforts have been devoted to seam-cutting by penalizing the photometric difference using various energy functions. A Euclidean-metric color difference is used in [14] to define the smoothness term in their energy function, and a gradient difference is taken into account in [15]. Eden et al. [16] proposed an energy function that allows for large motions and exposure differences, but the camera setting is required. Jia and Tang [17] associated the smoothness term with gradient smoothness and gradient similarity, to reduce structure complexity along the seam. Zhang et al. [18] combined alignment errors and a Gaussian-metric color difference in their energy function, to handle misaligned areas with similar colors. However, few of existing methods consider human perception in their energy functions, which sometimes causes that a seam with minimum energy is not most invisible in the overlapping region.

Seam-cutting has also been applied in image alignment. Gao et al. [22] proposed a seam-driven image stitching framework, which finds a best homography warp from some candidates with minimal seam costs instead of minimal alignment errors. Zhang and Liu [23] combined homography and content-preserving warps to locally align images, where seam costs are used as a quality metric to predict how well a homography enables plausible stitching. Lin et al. [24] proposed a seam-guided local alignment, which iteratively improves warping by adaptive feature weighting according to their distances to current seams.

In this paper, we propose a novel seam-cutting method via a perception-based energy function, which takes the nonlinearity and the nonuniformity of human perception into account. Our proposed method consists of three stages (see Fig. 2). In the first stage, we calculate a sigmoid-metric color difference of the given overlapping region as the smoothness term, to characterize the perception of color discrimination. Then, we calculate an average pixel saliency of the given overlapping region as the saliency weight, to simulate that human eyes incline to pay more attention to salient objects. Finally, we minimize the perception-based energy function by the graph-cut optimization, to obtain the seam and the corresponding composed result. Experiments show that our method outperforms the seam-cutting method of the normal energy function, and a user study demonstrates that our composed results are more consistent with human perception.

Major contributions of the paper are summarized as follows.

  1. We proposed a novel perception-based energy function in the seam-cutting framework.

  2. Our composition method can be easily implemented into other stitching pipelines.

Ii Approach

In this section, we first show more details of the normal seam-cutting framework, then a novel perception-based energy function is described, and finally we propose our seam-cutting framework.

Ii-a Normal Seam-cutting Framework

Given a pair of aligned images denoted by and , let be their overlapping region and be a label set, where “” corresponds to and “” corresponds to , then a seam means assigning a label to each pixel . The goal of seam-cutting is to find a labeling (i.e., a map from to ) that minimizes the energy function

(1)

where is a neighborhood system of pixels. The data term represents the cost of assigning a label to a pixel , and the smoothness term represents the cost of assigning a pair of labels to a pair of pixels .

The data term is defined as

(2)

where is a very large penalty to avoid mislabeling, is the common border of () and (marked in red and blue respectively in Fig. 1(a)). In fact, the data term fixes the endpoints of the seam as the intersections of the two colored polylines.

The smoothness term is defined as

(3)
(4)

where denotes the Euclidean-metric color difference (see Fig. 2(b)).

Finally, the normal energy function (1) is minimized by graph-cut optimization [19] to obtain the seam (see Fig. 2(e)) and the composed result (see Fig. 2(g)). Obviously, the definition of the energy function plays the most important role in the seam-cutting framework.

Ii-B Perception-based Energy Function

In experiments, the seam denoted by , that minimizes the normal energy function (1) is sometimes not most invisible in . In other words, there exists a seam denoted by , that is more invisible but has a greater energy than (see Fig. 2 (e) and (f)). Therefore, we desire to define a perception-consistent energy function, such that the most invisible seam possesses the minimum energy.

Ii-B1 Sigmoid metric

(a)
(b)
(c)
(d)
Fig. 3: Toy example. (a)(c) Visualizations of Euclidean-metric color difference and sigmoid-metric color difference. (b)(d) Corresponding seams.

Fig. 3 shows a toy example where is not most invisible. In fact, the seam shown in (b) crosses the local misalignment area (marked in light blue in (a)), because the Euclidean-metric color difference does not give it a large enough penalty. In contrast, the seam shown in (d) avoid the local misalignment area (marked in red in (c)), because the sigmoid-metric color difference successfully distinguish it from the alignment area.

In particular, the perception of colors is nonlinear as it has a color discrimination threshold, which means human eyes cannot differentiate some colors from others even if they are different. Let denote the threshold, the perception of color discrimination can be characterized as

  • if , color difference is invisible,

  • if , sensitivity of discrimination rises rapidly,

  • if , color difference is visible.

We want to define a quality metric to measure the visibility of color difference, such that the cost of invisible terms approximates zero while the cost of visible terms approximates one. Fortunately, the sigmoid function

(5)

is a suitable quality metric for our purpose.

Next, we will show how to determine the parameters and . Briefly, given an overlapping region of aligned images, the threshold plays the role of roughly dividing into an alignment area and a misalignment area by its color difference, which is similar to determine a threshold to divide a binary image into a background region and a foreground region. Thus, we employ the well-known Ostu’s algorithm [25] to determine a suitable

with the maximum between-class variance. On the other hand,

represents how rapidly the sensitivity of color discrimination rises around . Normally, will have a good practical performance, where is the width of bins of the histogram used in Ostu’s algorithm.

Now, the smoothness term is modified as

(6)
(7)

where denotes the sigmoid-metric color difference. Fig. 2(c) shows that forces the misalignment area more distinguishable from the alignment area than , which effectively helps the seam avoid crossing the misalignment area.

(a)
(b)
(c)
(d)
Fig. 4: Toy example. (a) Visualization of sigmoid-metric color difference. (c) Visualization of average pixel saliency. (b)(d) Corresponding seams.

Fig. 5: An experimental comparison between the normal seam-cutting framework and our perception-based seam-cutting framework. All stitching results are cropped into rectangles.

Ii-B2 Saliency weights

Fig. 4 shows another toy example where is not most invisible. In fact, seams and shown in (b) and (d) respectively, both cross the local misalignment area. Though the energy of is greater, it is more invisible than in aspect of human perception, because the location where its artifact arises is less remarkable than .

In particular, the perception of images is nonuniform, which means that human eyes incline to pay more attention to salient objects. Thus artifacts in salient regions are more remarkable than artifacts in non-salient regions. In order to benefit from these observations, we define a saliency weight

(8)

where denotes the average pixel saliency of (see Fig. 2(d)). We normalize in the range of to avoid over-penalizing saliency weights. As stitching results are usually cropped into rectangles in consumer-level photography, we assign if either or is located in the common border of the canvas and (marked in green in Fig. 2(a)).

Finally, the perception-based energy function is defined as

(9)

where rises the penalty of according to . Fig. 2(f) shows that the endpoints of the seam have more freedom on than the seam shown in Fig. 2(e).

Ii-C Proposed Seam-cutting Framework

Our seam-cutting framework is summarized in Algorithm 1.

Input: An overlapping region of aligned images and .
Output: A stitching result.

  1. Calculate in Eq. (4);

  2. Calculate in Eq. (5) via Ostu’s algorithm [25];

  3. Calculate in Eq. (7) and in Eq. (6);

  4. Calculate via salient object detection [26] and in Eq. (8);

  5. Calculate in Eq. (2);

  6. Minimize in Eq. (9) via graph-cut optimization [19], and blend and via gradient domain fusion [12].

Algorithm 1 Perception-based seam-cutting framework.

Iii Experiments

In our experiments, first, we use SIFT [27] to extract/match features, use RANSAC [28] to determine a global homography and align input images. Then, for the overlapping region, we use Ostu’s algorithm [25]

to estimate a threshold

(), and use salient object detection [26] to calculate pixel saliency weights. Finally, we use graph-cut optimization [19] to obtain a seam, and blend aligned images via gradient domain fusion [12] to create a mosaic.

Fig. 5 shows some experimental comparisons between two seam-cutting frameworks. Input images in the second group come from the dataset in [23]. Due to unconstrained shooting environment, there exist large parallax in these examples, such that a global homography can hardly align them. In such cases, the normal seam-cutting framework fails to produce artifact-free results, while our perception-based seam-cutting framework successfully creates plausible mosaics. More results and original input images are available in the supplementary material.

In order to investigate whether our proposed method is more consistent with human perception, we conduct a user study for comparing two seam-cutting frameworks. We invite 15 participants to rank 15 unannotated groups of stitching results (make a choice from 3 options: 1. A is better than B, 2. B is better than A, 3. A and B are even). Fig. 6 shows the user study result, which demonstrates that our stitching results win most users’ favor.

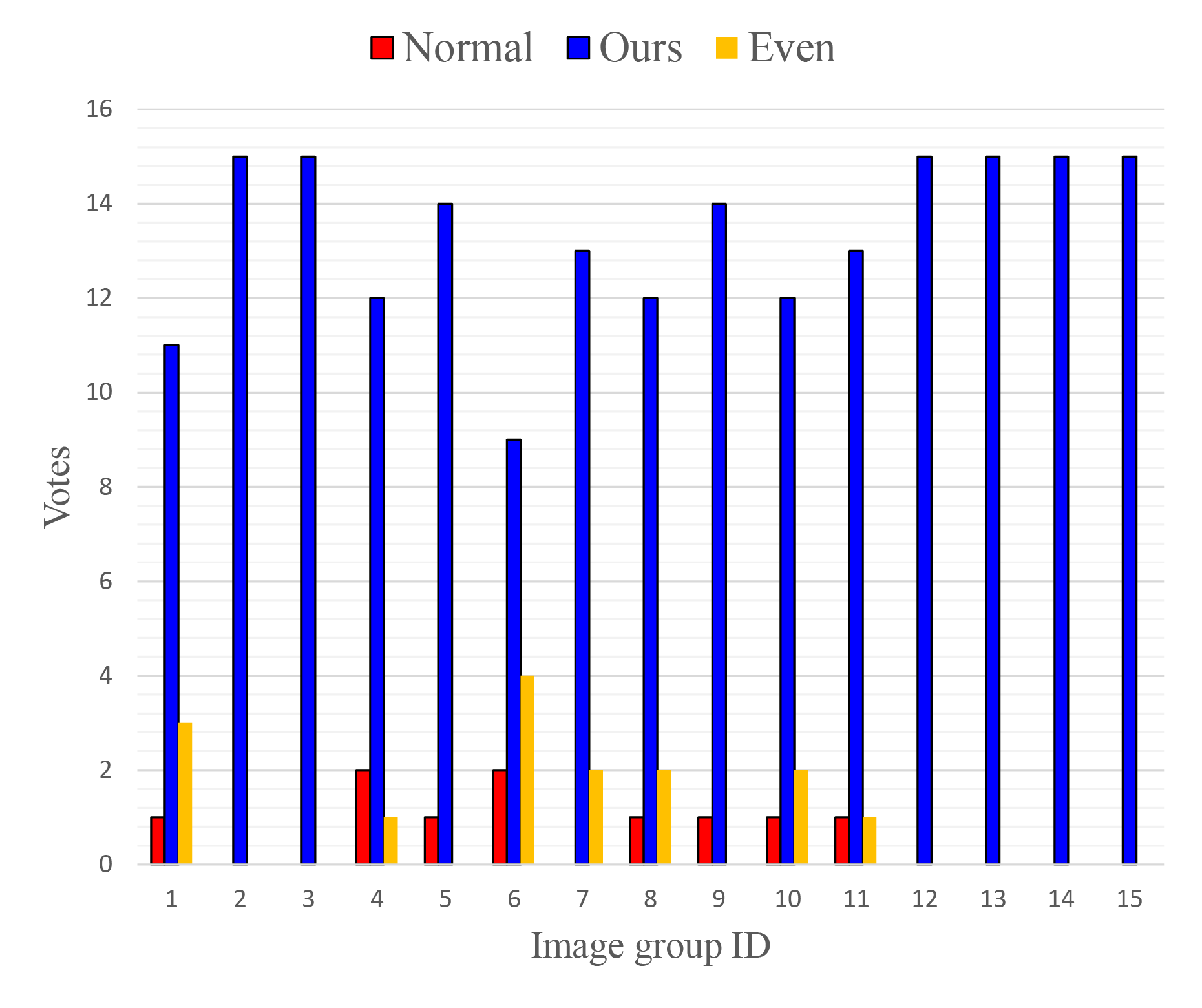

Fig. 6: User study. Red represents the normal seam-cutting framework wins. Blue represents our perception-based seam-cutting framework wins. Yellow represents an even.

Iv Conclusion

In this paper, we propose a novel perception-based energy function in the seam-cutting framework, to handle image stitching challenges in consumer-level photography. Experiments show that our method outperforms the seam-cutting method of the normal energy function, and a user study demonstrates that our results are more consistent with human perception. In the future, we plan to generalize our method in the seam-driven framework to deal with image alignment.
