One of the primary problems in computer vision is Image understanding
[12]. Image understanding has various applications such as navigation in robotics [23], caption generation for images [48],automatic driving [8], crowd counting [2] and many more. An important part of image understanding is fullscene labeling, which is also known as semantic segmentation.Semantic segmentation is the task of assigning a label to each pixel in the image.It has been cited as one of the most important and challenging problem in computer vision [32], as it involves detection, multilabel recognition and segmentation at the same time.Semantic segmentation can help in getting finer details of detected objects in an image, such as location, shape and size.
The task of assigning a label to a pixel in the image relies on not only the information that is local, such as color and position but also global context such as presence of more discriminative evidence for presence of object.The task grows increasingly challenging with increase in the number of labels. Another difficult arises by properties of objects in images such as occlusion, deformation, background clutter, intraclass variation, viewpoint variation etc. A successful model must be robust to such properties. For properly segmenting the given image it is crucial to ensure the self consistency of the interpretation by the contextual information that the model/algorithm utilizes. [12]
In recent years, the rapid development of deep convolutional neural networks [26, 41, 17, 28] have been driving advances in multiple tasks related to recognition.Availability of large scale datasets [38] with millions of labeled examples, powerful and flexible implementation capabilities [22, 5, 36, 9]
, and affordable GPU computation have enabled the current advances in visual recognition related tasks. Various models based on Deep convolutional neural networks, also know as ‘Convnets’ or DCNNs, provide stateoftheart performance in a plethora of tasks such as Image classification, action classification, pose estimation, and many more. Similarly in the task of semantic segmentation, DCNNs based models have given the stateoftheart performance for the past 3 years
[3, 31, 50].Although, DCNNs have resulted in unprecedented visual recognition performances, they offer little transparency. DCNNs shed a little light on why and how they achieve the higher performance. Due to this, they are treated as blackbox model by various researchers. Another obstacle faced in the understanding of DCNNs based models is that they couple featureextraction and classification based on extracted features into the same process, a pattern that is very different from learning models of predeep learning era.
To understand how DCNN based models work at the task of semantic segmentation, we locate the discriminative image regions responsible for prediction of objects in an image. We try to additionally show the importance of global discriminative features of objects of labeling of pixels which might even be far away from the location of the discriminative feature.
We propose a set of new training loss functions for finetuning DCNN based models. The proposed training regime has shown improvement in performance of DeepLab Large FOV(VGG16) [3]. However, further test remains to conclusively evaluate the benefits due to the proposed loss functions across models, and datasets.
Future work will be focused on evaluating the performance of DCNN based models finetuned using these losses across multiple datasets.
1.1 Preliminaries
1.1.1 Deep Convolutional Neural Networks
History
In the human ambition to build computer systems which could stimulate the brain lies the origin of deep learning and artificial intelligence. A recent paper
[46]links the modern day deep learning to the concept of “Associationism” by Aristotle around 300 BC. One of the earliest implementation of models close to the modern Deep learning models was The Perceptron by Frank Rosenblatt
[37]. The perceptron is a singlelayer neural network, the operation of which is based on errorcorrelation learning.In 1980s, Kunihiko Fukushima introduced the Neocognitron, which was a neural network model for visual pattern recognition. The Neocognitron planted seeds for deep learning models in visual pattern recognition which are now known as Convolutional Neural Networks.Various seminal works such as Hopfield Networks
[19], Deep Boltzmann Machines
[1], LeNet [30] and many others have contributed to the current success that deep learning models enjoy.Why DCNNs work?
A significant reason for the success of deep learning models was its ability to process raw natural data, where conventional machine learning algorithms failed. A computational model which is composed of multiple processing layers which learn representations of data at multiple levels of abstraction is crucial for processing raw natural data. Using the backpropagation algorithm to indicate how a machine should change its internal parameters that are used to compute the representation in each layer from the representation in the previous layer, deep learning models discovers intricate structure in large data sets
[29].Deep Feedforward Networks

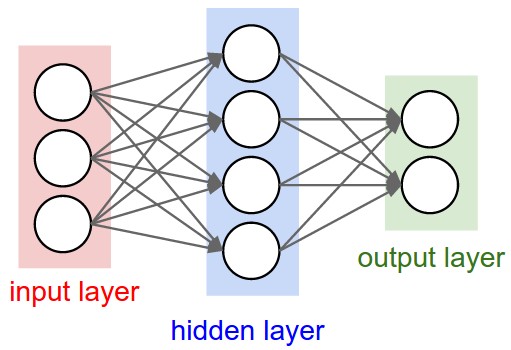

One of the fundamental deep learning models are Deep feedforward networks, also often called feedforward neural networks,or multilayer perceptrons(MLPs).A feedforward network tries to approximate some function
. The models are called feed forward as there are no feedback connections in the model, that is, the output of the model is not feed into itself.Neural networks are modeled as nonlinear composition of linear functions. First lets look at the class of linear functions that the model uses. With an input , where is a
dimensional vector, and we want as an output
, which is an dimensional vector, then a linear function is represented as :(1.1)
, where is a weight matrix, and is a
dimensional bias vector. Thus the
th component of the output is a weighted linear combination of all components of the input , plus a bias term , which is the th term of bias vectorNow, The Feedforward neural network is typically represented as a composition of many such functions.Each function is represented by a layer in the model. The output of each layer acts as the input to the layer/function above. A layer network, having input and output can be represented as :
(1.2)
where, is a nonlinearity function such as a or a ,while and are the weight matrix and bias vector corresponding to each layer.
One of the ways to measure the performance of our model is to consider a loss function. Consider the function we are trying to approximate to be . We are given input . Using our model we predict an output . The true output can be represented as . We define a loss function or cost function which acts as a measure of the error between the predicted outcome and the actual outcome .
The total loss over a sample of data can be evaluated as,
(1.3)
, where and are the prediction and actual outcome for input .
In deep learning, our strategy is to learn the values of all the weight matrices and bias vectors so as to minimize the total loss.Now, to learn the parameters s and s, we use various variations of optimization routines such as Adam [24] , limited memory BGFS, and conjugate gradients which are based on the gradient of total loss with respect to the weights s and Biases
s. A simple implementation of Stochastic Gradient Descent, which is a commonly used optimization routine, as given in
[13] is given below:Universal approximation property
One of the important property of neural networks is the universal approximation property [6, 20]. It roughly states that an multilayer neural network can represent any function:

Boolean Approximation: an MLP of one hidden layer1 can represent any boolean function exactly.

Continuous Approximation: an MLP of one hidden layer can approximate any bounded continuous function with arbitrary accuracy.

Arbitrary Approximation: an MLP of two hidden layers can approximate any function with arbitrary accuracy.
Convolutional neural networks
Convolutional neural networks [30, 27] are Variants of Feedforward neural networks for processing data that has know, gridlike topology. It has been extensively used in fields like image processing and timeseries analysis. Convolutional neural networks employ a mathematical operation called ‘convolution’ in at least one of its layers.
Convolution is a mathematical operation, on two functions which produces a third function.It is represented by the symbol , and is a particular kind of Integral transform :
(1.4)
In discrete settings,it can be written as
(1.5)
For an image, which can be represented as a 2D function we use a two dimensional convolution.With the assumption that the function that we convolve the input with is everywhere except the some finite points, we can write this operation as :
(1.6)
In a convolution layer in a neural network, we perform multiple convolution operations on all possible spatial locations of the input with a fixed but learnable convolution function. The convolution function is defined such that it is zero at all points This function can be represented by a kernel which contain values such that :
(1.7)
The kernel so formed is also known as a filter.Using the filter and performing convolution at all possible spatial location of the input, we get a output map which now acts as input to the layer above it.
The key benefits of using convolution are parameter sharing, sparse interaction and equivariant representation.Due to these properties, Convolutional neural networks have been able to outperform various Feedforward neural networks at recognition task.
Convolutional neural networks are built using various kinds of layers. The most essential layers which are frequently used are :

Convoutional Layer : A layer containing multiple filters, which convolve with all the spatial locations of the input. Each filter gives as an output a spatial map of values, which act as a channel in the input to the next layer.

Pool Layer : A pool layer performs a downsampling operation along spatial axis to reduce size of input to next layer. Additionally, downsampling by using layers such as MaxPool Layers, help to make the system invariant to small translational changes in the input [13].
These layers are stacked over oneanother to create ‘deep’ architectures of learning models which remain endtoend differentiable. Due to this, we are able to use optimization routines just as in the case Feedforward networks.The optimization routines depend on the loss function used for training the network. We will briefly review one of the most popular loss function used in Deep learning.
Softmaxclassifier Loss
A popular choice for loss functions is the Softmax classifier.The Softmax classifier is a generalization of the binary Logistic Regression classifier to multiple classes.In the Softmax classifier,we interpret the output of the network as unnormalized log probabilities for each class.We define the crossentropy loss as :
(1.8)
where stands for the th element of the output . The total loss , know as the data loss, is evaluated as :
(1.9)
This loss also has a probabilistic interpretation. The value , given by
(1.10)
can be interpreted as the (normalized) probability assigned to the correct label given the image and parameterized by . This leads us to understand why it is also called crossentropy loss. The crossentropy between a “true” distribution and an estimated distribution is defined as:
(1.11)
The Softmax classifier is hence minimizing the crossentropy between the estimated class probabilities ( as seen above) and the “true” distribution, which in this interpretation is the distribution where all probability mass is on the correct class (i.e. contains a single 1 at the th position.).
The Softmax loss is not only used in DCNNs, but also for training Feedforward neural networks. In the task of image classification, many models use a softmax classifier for evaluation of loss, where as in the task of segmentation, multiple softmax classifiers are used which are centered at each spatial location on the output of the DCNN.
Treating Convolution and pooling as Infinitely strong prior
Prior acts as our assumed probability distribution over the parameter space for our model, based on our belief of what is reasonable, sans information about the datasample at hand.A prior can be considered infinitely strong if it strictly forbids change of some parameter values, regardless of the support that the data provides.
Now, a convolutional layer can be considered to be a Fully connected layer with some infinitely strong prior on its weights. The prior strictly forbids the network from having nonzero weights at locations other than a small contiguous area centered spatially at the unit called the receptive field of the unit.It also provides a strong prior in the form of ensuring that the weights for each unit in a layer must be identical to its neighbors. Due to these priors, we are able to ensure that the function at each layer learns only local interactions and is equivariant to translation. Similarly pooling is equivalent to a strong prior that each unit should be invariant to small input translations [13].
As these are very strong priors, models using convolution and pooling may cause under fitting where such prior assumptions are not reasonably accurate. As we will see in the next section, these priors lead to models which slightly under perform in the task of semantic segmentation. For this task, additional modifications are included in DCNNs to include global context which is otherwise not valued due to these priors.
Popular DCNN Architectures
We will review some the most popular DCNN architectures which have been seminal in nature. This will provide an overview of the growth of DCNNs.

Lenet [30] : LeNet is the first successful applications of Convolutional Networks.One LeNet architecture was used to read zip codes, digits, etc. This architecture is one of the best known LeNet architectures.

AlexNet [27]
. One of the most seminal work of Alex Krizhevsky, Ilya Sutskever and Geoff Hinton, the AlexNet, competed in the ImageNet ILSVRC challenge in 2012 significantly outperforming the second runnerup. A deeper and bigger version of LeNet in essence, AlexNet featured Convolutional Layers stacked on top of each other.

ZF Net [49]
. A Convolutional Network from Matthew Zeiler and Rob Fergus, which became known as the ZFNet, was the winner of ILSVRC 2013.They performed better than their competitors by improving AlexNet by tweaking the architecture hyperparameters, like the size of the middle convolutional layers and the stride and filter size on the first layer.

GoogLeNet [44]
A Convolutional Network from Szegedy et al, from Google, was the winner of ILSVRC 2014. One key component they developed was the Inception Module that dramatically reduced the number of parameters in the network . Another major modification for the norm was the use of Average Pooling instead of Fully Connected layers at the top. This eliminated a large amount of parameters. Many followup versions to the GoogLeNet have been released, most recently Inceptionv4
[43].
VGGNet [41] .Karen Simonyan and Andrew Zisserman developed a model now known as the VGGNet, which was the runnerup in ILSVRC 2014.The authors showed that for good performance, depth of the network was a critical component. Their final best network contains 16 CONV/FC layers and features an homogeneous architecture that only performs 3x3 convolutions and 2x2 pooling from the beginning to the end. Although a very popular network, two major problems with this network is that it uses a lot more memory and parameters and is additionally very expensive to compute.

ResNet [17]
. Residual Network developed by Kaiming He et al., was the winner of ILSVRC 2015. It uses a lot of batch normalization
[21] and a special skip connections between layers. The architecture did not include any fully connected layers at the end of the network.ResNets are currently the stateoftheart models and are one of the primary choices for using ConvNets in real life applications.
Model  Top5 Test Error Rate

AlexNet  15.3 %
ZF Net  14.8 %
VGG Net  7.32 %
Google LeNet  6.67 %
ResNet  3.57 %
1.1.2 Evaluation of Semantic Segmentation
Evaluation Metric
Semantic segmentation is generally treated as a machine learning problem, where our model learns to predict the label at each pixel by being trained on training samples. Each of these training samples is provided along with a ‘ground truth image’, which is the true segmentation of the sample, which we want the model to learn. The model is trained to minimize the difference between the prediction it gives and the ground truth. Once the model is trained we would like to evaluate its performance. However due to the common plague of overfitting in machine learning, which leads to models that cannot perform well on images not used in training, we do not evaluate its performance not on the training set.
The performance is evaluated on a different fixed set of samples, known as test set, which has not been used in the training process. The performance on the test set shows the generalizability of the model. Aligning the training samples and test samples to have the same underlying distribution is crucial for gaining statistically significant results.
For comparing the performance of various models and algorithms designed to tackle this problem, we can use many statistics such as mean perpixel accuracy, clubbed perpixel accuracy, Mean IOU.Primarily, the standard metric used to evaluate the algorithms is Mean IOU, which is the mean intersection over union.Mean IOU is evaluated by measuring the intersection and union between predicted region and actual ground truth region marked with the label for each label detected in the image.Mean IOU gives equal weightage to background objects, such as ‘roads’, ‘grass’ and foreground objects such as ‘cow’, ‘person’. A simple algorithm for calculating the mean IOU over a test set is given in Algorithm 2
Datasets
Before the advent of deep learning models, datasets for evaluating semantic segmentation models used be be comparably smaller with less diversity. ‘Standford background dataset’ was introduced in [18]. It contains 715 images of 320by240 pixel resolution, with 8 classes.‘SIFT Flow dataset’, introduced in [33] contained 2,688 images and 33 labels. It is split into 2488 images for training and 200 for testing.An even wider dataset is the ‘Barcelona dataset’, introduced in [45] contains 14,871 training images and 279 testing images. It contain 170 unique labels.Other datasets such as Berkeley segmentation dataset [34], known as BSDS500/BSDS300, and MSRC21 [40] have also been used for comparing models.
One of the most popular datasets for evaluating semantic segmentation models is the PASCAL VOC 2012 dataset [11].The PASCAL VOC 2012 dataset includes 20 foreground classes and one background class. The original dataset contains 1464 training images, 1,449 validation images and 1456 test images.This dataset is augmented by [14] resulting in 10,582 training images. Other datasets such as ‘Coco’ [10], ‘Cityscapes’ [7] and ‘ADE20K’ [47] are also used for evaluation of model performance.
1.2 Review of DCNN models for Semantic Segmentation
This section contains review of DCNN models made for the task of semantic segmentation.Encapsulating every significant work in this field is not possible. Hence, this review has been made of cherrypicked DCNN models based on their performance as well as novelty.
One of the earliest usage of DCNNs in the task of segmentation that became popular was in [12], published in 2013. The proposed model uses multiscale DCNN for extracting feature for each pixel and at varied scales to capture local and global information.In parallel, a Segmentation tree or superpixel based segmentation is computed. Now these two are combined in various fashion using techniques such as Conditional random Field. This model was able to outperform contemporary models in ‘Stanford Background’, ‘SIFT Flow’ and ‘Barcelona’ datasets.
Hiriharan et. al. introduced the concept of pixel hypercolumns for segmentation and finegrained localization in [15], published in 2015.Arguing that only the top layer output of the DCNN is not the optimal representation of each pixel for finegrained applications such as segmentation, they introduce the concept that the information of interest is spread over all layers of DCNN.A pixel’s ‘Hypercolumn’ is defined as outputs of all units above that pixel at all layers of the DCNN, stacked into one vector.These Hypercolumns are sparsely computed, as adjacent pixels would have strongly correlated Hypercolumns.The model gave stateoftheart performance in the tasks of Simultaneous detection and segmentation(SDS) and locating keypoints.
The next seminal work in line was Fully convolutional networks[39]
by Johnathan Long et. al. With this, the concept of fully convolutional networks for segmentation was introduced.A skip architecture to combine deep, coarse semantic information with shallow, fine appearance information was also used.By converting the Fully connected layers to convolutional layers, the model ensures that spatial information is not thrown away.As the network subsamples to keep filters small and computational requirements reasonable, the network uses upsampling by bilinear interpolation, but also popularized the concept of ‘Deconvolution’ to find segmentation at the same resolution as the input image.The network gave stateoftheart performance on PASCAL VOC(mean IOU 67.5% ), SIFT Flow, NYUDv2, and PASCALcontext.
Many segmentation models face the task by modeling this problem as maximum a posteriori inference in a conditional random field defined over image patches or pixels.Before [25], fully connected CRFs were computationally very expensive to be utilized and hence, models used only partially connected CRFs. In this extraordinary work,Philipp Krahenbuhl and Vladlen Koltun introduced an highly efficient inference algorithm for fully connected CRF models, which reduced the time taken for fully connected CRF based inference exponentially. The paper was also rewarded the ‘Best student paper’ award in ‘Nips, 2011’, for its impact fullness.

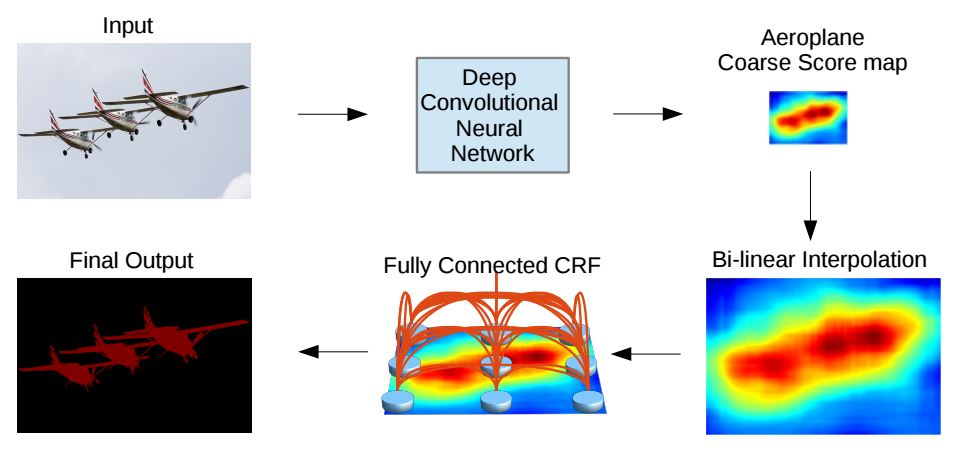

‘DeepLab’ was introduced in 2014 by LiangChien Chen et. al. in [3]. ‘Deeplab’ uses ‘atrous’ convolution, which increases the receptive field of each unit in layer above without increasing the number of parameters. Due to the downsampling used in DCNNs, the output of a purely DCNN segmentation model lacks finer details. In ‘DeepLab’, this is combated by uses fully connected CRFs with inference algorithm as in [25]. The model uses an energy function :
(1.12)
where is the label assignment for pixels.The unary potential is given by , with denoting the label assignment probability at pixel .The pairwise potential is given by :
(1.13)
where if and zero otherwise.The gaussian kernels depends on features extracted for pixel and . The kernels are :
(1.14)
where the hyperparameters control the scale of the gaussian kernels.The model was able to give stateottheart performance in PASCAL VOC 2012 dataset(mean IOU 71.5% ).
In ‘DeepLab v2’ [4], The model was further improved by using pretrained ‘Residual Networks’ for initialization. Additionally, inspired by [16], the ‘atrous spatial pyramid pooling’ was proposed, which extracted features at multiple parallel ‘atrous’ convolution layers with different sampling rates, and combined them. The best variant of their model beat other stateoftheart models in Cityscapes dataset, PASCALcontext dataset, and PASCAL VOC 2012 (mean IOU of 79.7 %).
In Chronological order, ‘Mixed Context networks’, introduced in [42],was the first model beat the performance of ‘DeepLab’ on PASCAL VOC 2012 Dataset and MIT SceneParsing 150 dataset.The model mixes features at different ‘atrous’ convolution rate, and learns to identify the most relevant scales. By combining ‘Deconvolution’, as used in [39] along with dilation with densely connected layers, which are finally processed by a ‘message passing module’, the model was able to reach mean IOU of 81.4% on PASCAL VOC 2012 dataset.
Current stateoftheart model is the ‘Pyramid Scene Parsing Network’ [50]. The model introduced pyramidal pooling module which exploits global context information by using differentregion based context aggregation.Effecting the work introduced an effective optimization strategy for training Deep segmentation models.The pyramid pooling module is applied to the feature from the last layer of a DCNN, using which we extract subregion representations, which are upsampled and concatenated for forming the input to another DCNN which gets the final perpixel prediction.The Stateoftheart performance defined by this network stood at mean IOU of 85.4 % on PASCAL VOC 2012 dataset, and 80.2 % on Cityscapes dataset.
Model  Mean IOU on ’test’ Image Set

Fully Convolutional Networks  67.5 %
DeepLab  71.5 %
DeepLab v2  79.7 %
Mixed Context Network  81.4 %
Pyramidal Scene Parsing Network  85.4 %
2.1 Introduction : CNN Fixations
CNN Fixations is a work by Konda Reddy Mopuri, Utsav Garg and R. Venkatesh Babu from VAL, IISc which is currently under peer review. Due to the strong dependence of ’Segmentation Fixations’ on this work, we explicitly explain the process of backtracking.
Although DCNNs have demonstrated outstanding performance for recognition tasks such as hand written character recognition and object classification, they offer limited transparency.One way to understand CNNs is to look at the important image regions that influence it’s prediction.Such regions might also offer visual explanations in terms of the responsible image regions that misguide the CNN, when the predictions are not accurate.
In order to make the CNN based models more transparent and visualization friendly, they propose an approach to determine the important image regions that guide the model to its inference.As they are modeled analogous to human eye fixations, they are called CNNfixations. The class specific discriminative regions are highlighted by tracing back the corresponding label activation via strong neuron activation paths to the image plane.
2.1.1 CNN Fixation Approach
Let be the feature map at th layer, denotes the index of the layer in a CNN with a total of layers, denotes the weights connected to th layer from it’s previous layer , denotes the bias parameters at th layer. denotes the number of neurons in th layer, is nonlinearity applied at each layer. They assume that the CNN is trained over object categories. In the proposed approach, they backtrack the most active neuron from the deepest layer onto the image through all the intermediate layers.
The output at the th layer, , which denotes the predicted presoftmax confidences towards the labels, is give by :
(2.1)
The predicted label is given by, , where denotes the th component of . Now, can be written as
(2.2)
where is the th row of and denotes the inner product. In order to find the set of features in layer that are responsible for to fire, they observe the inner product term . The indices of the top responsible features in layer , denoted as , can be obtained using :
(2.3)
where the function outputs the indices of the top components in the vector . They call this transition fctofc transition. These act as seed of the layer , from where they again find the contributors for these points by finding top contributors in the inner product . Once they have fixation points at Lowest fully connected layer, they need to find corresponding fixation points in the layer below it which might be a Convolutional layer or Pool layer. For convolution,activations at each unit , where corresponds to the spatial position and corresponds to the channel, is given by :
(2.4)
where, are the weights of the th filter connection the layer below to layer above, is the corresponding bias for the th filter, and
corresponds the a tensor which consist of all the units in the receptive field of the unit
, belonging to the layer below. As the output of the activation is still a function of the inner product of a weight vector and an input vector, they follow the same procedure as in fctofc transition. They call this convtoconv transition. The fixation points in the layer below are given by (2.3).Across a Pool layer, the transition is much simpler. The output at location from a pool layer is given as : , where is downsampling function like Average, or max, and corresponds the a tensor which consist of all the units in the receptive field of the unit , belonging to the layer below in the channel .Hence, Fixation point corresponding to each unit above is given by :
(2.5)
They apply these transition operations at each of the layers to reach to fixation points in the image corresponding to the predicted label.
2.1.2 Conclusions
The approach traces the evidence for a given neuron activation, in the preceding layers.CNNfixations is a visualization technique, based on this approach.It highlights the image locations that are responsible for the predicted label. High resolution and discriminative localization maps are computed from these locations. In presence of multiple objects, they can sequentially discover individual objects and obtain their localization maps.
2.2 Extending CNNfixations to Segmentation
As seen in the previous section,CNNfixations is a visualization technique for highlighting image locations responsible for the predicted label. In work for this thesis, this concept was extended to segmentation networks. The task now at hand is to highlight image regions which were responsible for the segmentation predicted by the network. It entails to finding, for each label detected,image regions which highly encouraged its labeling.
Just as in CNNfixations, we rely on the unraveling of strong neural activation pathways from the output to the input to find such regions. At each spatial location in the output, we have a predicted label. In models such as in [3, 50], the output is a tensor of shape , where is the number of channels and , corresponds to height and width respectively.The output blob contains, at each pixel, the activation value for each unique label for that pixel. This can be represented as a vector of dimensions, which related to the probability distribution of each pixel by the equation :
(2.6)
where is the label of pixel at position .Each class is assigned the label which it has most probability of being. We take fixations for each label detected in the image at the output layer as the set of spatial points which were labeled as the object.
Each channel in the output corresponds to a unique labels. In the channel output tensor, these points are initialized at the corresponding classlayers. Once we receive the fixation points in the top layer, we use the similar transition algorithms between layers as in CNNfixations to arrive at imagelevel fixations.These include convtoconv transition and pool transitions only as there are no fully connected layer in segmentation models. The prime differences between convtoconv transition in CNNfixations and SegmentationFixations are :

Allowing spatial shift of fixation points in convtoconv transition. When corresponding fixation point at two layers have do not have the same location in spatial dimensions(height and width), we say the fixation has went through a spatial shift.

an additional hyperparameter ‘k’, which is discussed in detail in the following subsection.

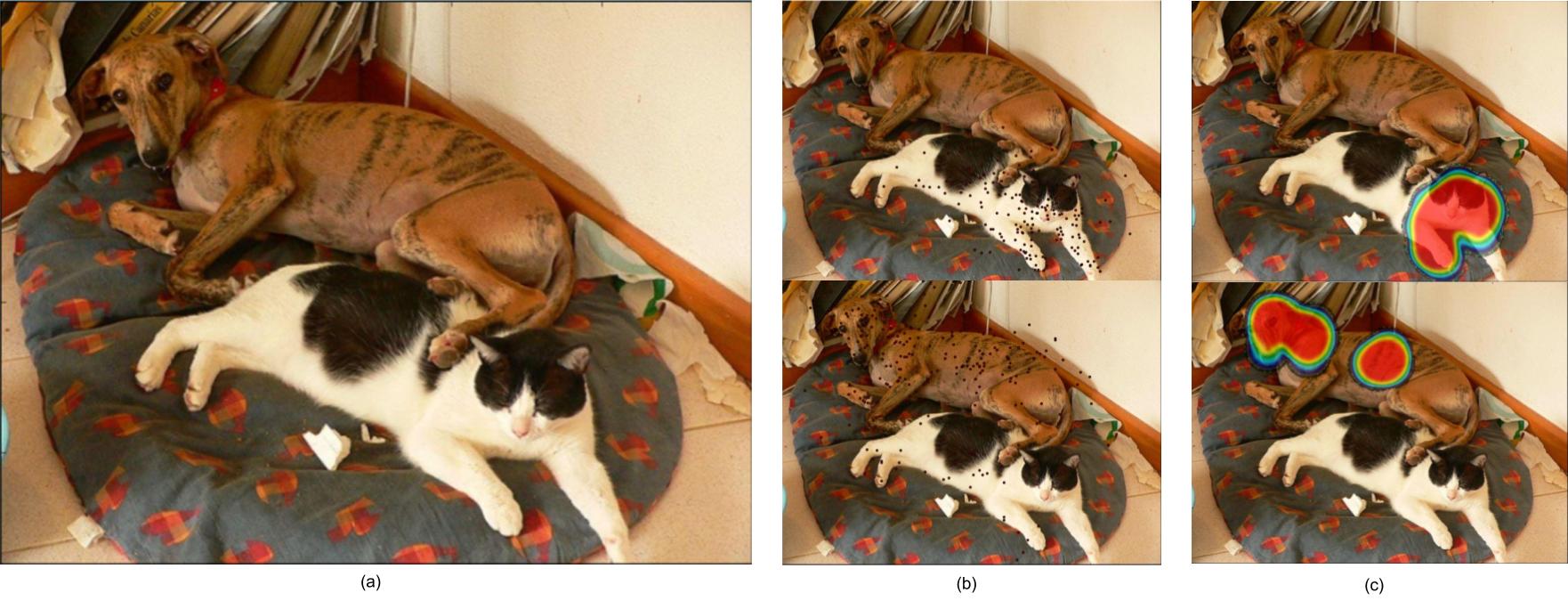

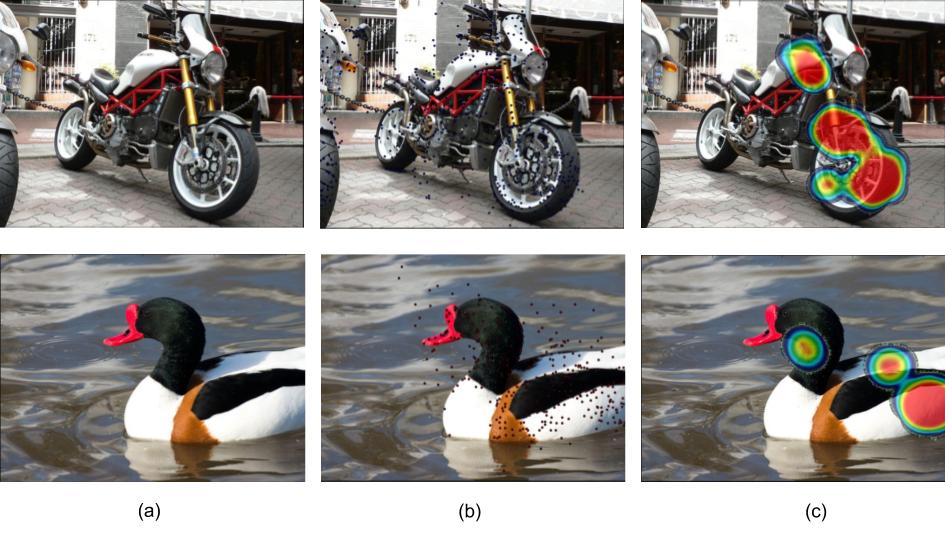

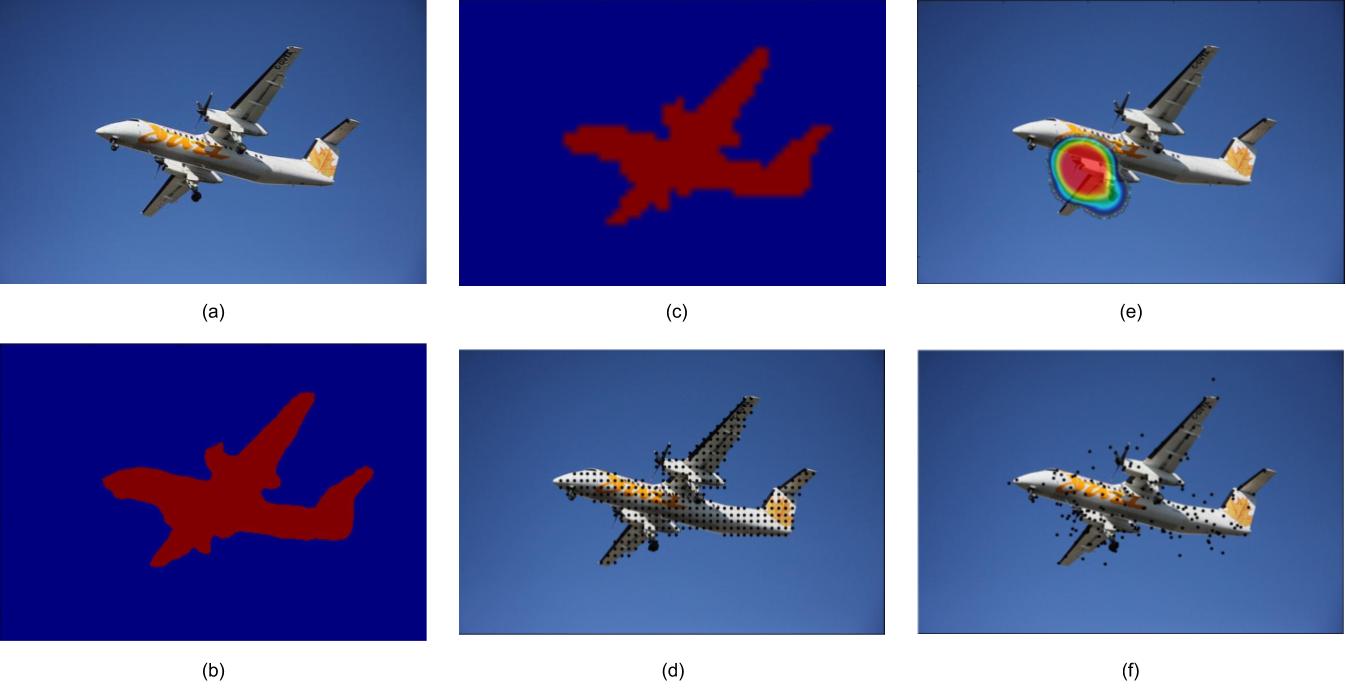

Some qualitative results of the fixations are given in figures.
SegmentationFixation finding models were made for Fully convolutional network [39], DeepLab Large FOV(VGG16) [3] and Deeplab MultiScale ‘atrous’ spatial pyramidal pooling Large FOV Residual Network model [4]
. These models were made on Caff
[22]and Pytorch. Some of the implementation use CPU parallel processing, as well as GPU Computation.
2.2.1 K : An important Hyperparameter
While transitioning between layers, for each fixation point, we select the top ‘k’ units which were connected to it as fixations on the layer below. Hence from each fixation point, while transitioning to the layer below, we have the potential to branch into multiple fixation points. The amount of branching out is regulated by the hyperparamter ‘k’.
2.2.2 Transition through ‘atrous’ Convolution
In networks with ‘atrous’ convolution, the receptive field of each unit in top layers is enlarged significantly. To evaluate the effect of ‘atrous’ convolution, we consider different variants of convtoconv transition in convolutional layers with ’atrous’ convolution. We consider three types of convtoconv transition:

No Shift : Spatial shift is not allowed in any convolutional layer transition

Partial Shift : We allow spatial shift at convolutional layers transition when the layer does not have ’atrous’ convolution.

Full Shift : We allow spatial shift at every convolutional layer transition.
2.3 Experiments
For understanding Segementationfixations we performed some experiments.These experiments were performed using DeepLab Large FOV model, based on VGG16 with 16, containing 16 convolutional layers. The experiments were conducted on the ’val’ set of PASCAL VOC 2012 [11], which contains 1449 images.
2.3.1 Experiment 1: Fixation Location
For each image we find fixations for each object detected and evaluate how many lie inside the true segmentation of the object, using the ground truth. We calculate the average % of fixation points of each object that lie inside the object across the dataset.
The objects which have a poor segmentation performance also show a drop in the number of fixation points inside object.
2.3.2 Experiment 2: Effect of spatial shift variants
To evaluate the effect atrous convolution on the strong neural activation pathways across layers, we evaluate the average % of fixation points of each object that lie inside the object across the dataset using all the three different variants of spatial shift accross convolutional layers.
For the chart above we see that on an average by using ‘Full Shift’ we land more fixation points outside the object than by using ‘Partial Shift’ or ‘No Shift’. The variation in result shows that ‘atrous’ convolution strongly influences the strong neural activation pathways across layers.The drop in % also implies that the strongest activations were received from image regions beyond the object.
In our objective of deriving inference of important image regions for object segmentation, we found fixation points found with ‘Partial Shift’ appear more qualitative. When using ‘Partial Shift’, fixation point seemed to latch to inner edges of the object rather than random edges outside the object.

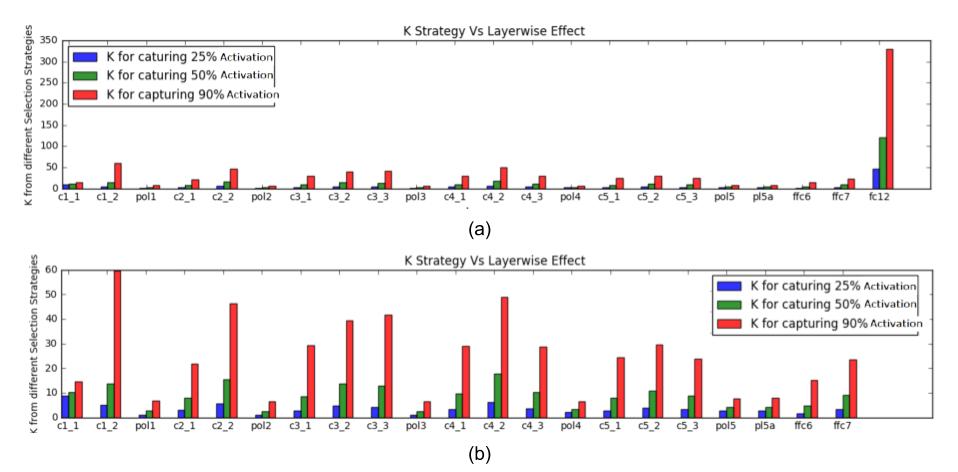

2.3.3 Experiment 3: Selecting ‘K’/ The distribution of activations in layers
As discussed earlier, selecting the correct value for the hyperparameter ‘K’ at each layer is very crucial.

Fixations are more indicative of important locations if they capture good amount of the activation for the prediction. This implies our process should not have too small ‘K’.

We will end up with a lot of fixations points which were very weakly influencing the outcome if our process has a bigger value of ‘K’ than required. Hence we should not have too big values of ‘K’

Too big K will lead to heavy Computational Cost. The effect is exponential as the number of fixation points in image are where is the number of layers.
Using more than 2,00,000 fixations points(5 images  across all layers) we find properties of activation distribution in layers to evaluate a strategy for finding ‘K’ at each layer.At each fixation point at any layer of the network, we evaluate what the value of ‘K’ must be to capture, % of the total activation of the fixation point.This detail is averaged across all objects in all images. The result are shown in the plots below :
The spread of ‘K’ showed that strategies such as ‘K’ for capturing even 50 % of the unit’s activation were computationally too expensive. Such a strategy could lead to (m is number of layers) fixation points in the image plane from each fixation point initialized in the top layer. This led us to use smaller strategies for ‘K’, such as

‘K’

’K’ such that it captures atleas 10% of activation.

’K’ which increases according to the spatial resolution increase between layers.
Selecting the correct strategy for ‘K’ leads us to more reliable segmentation Fixations. Results from using the third strategy captured sufficient information at decent computational cost.
2.4 Salient parts for segmentation
As discussed earlier, Convolution and pooling can be considered as a strong prior on Feedforward networks. This prior might make the model under performs when the prior is not reasonable. In the task of semantic segmentation, Global context plays a crucial role in providing accurate segmentation predictions. As scene in Section 1.2.3, various models cope with this problem by adding various other modules and variations in convolutions to provide global context to the classifier at each pixel.
To better understand this need of global context in the task at hand, we perform the following experiment.
2.4.1 Experiment 4: Existence of Salient Parts

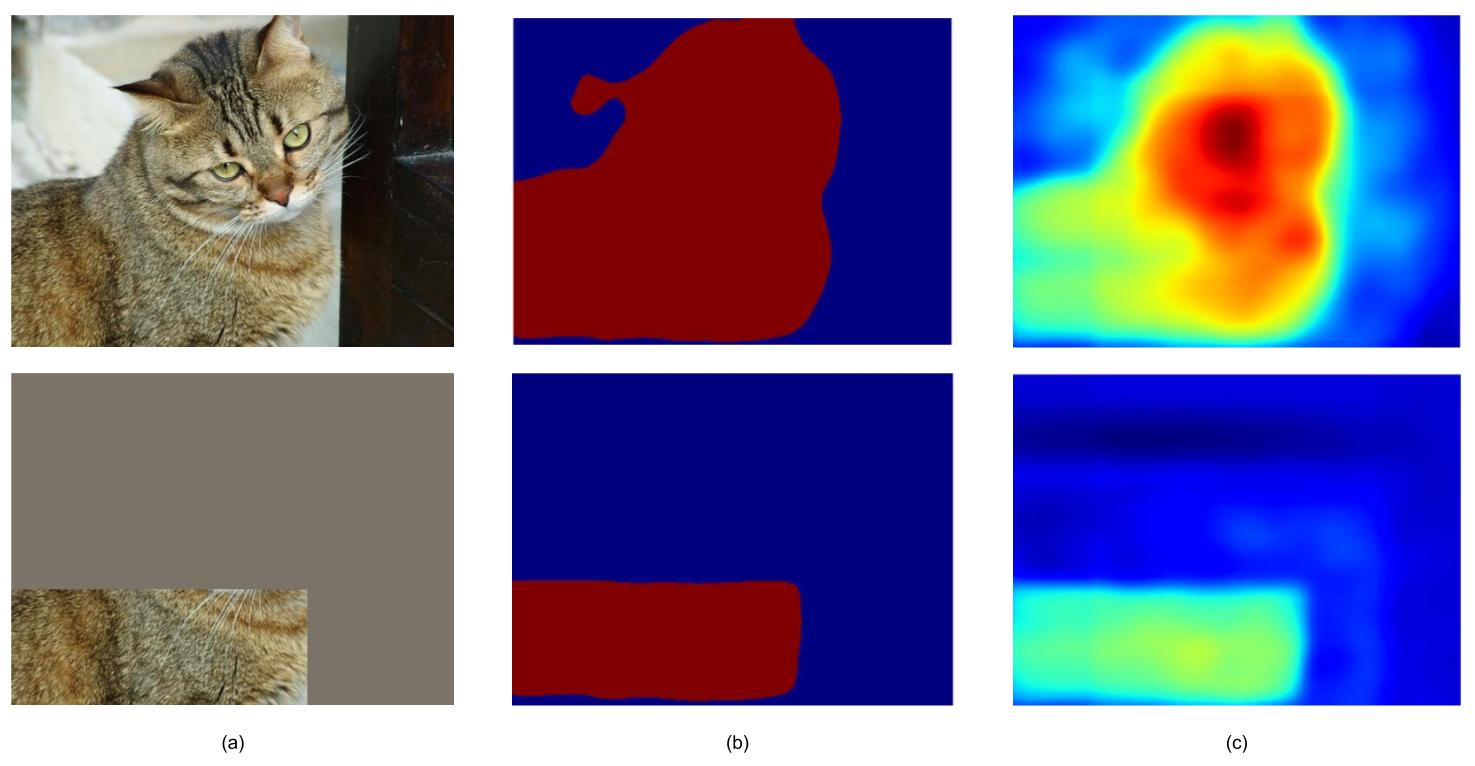

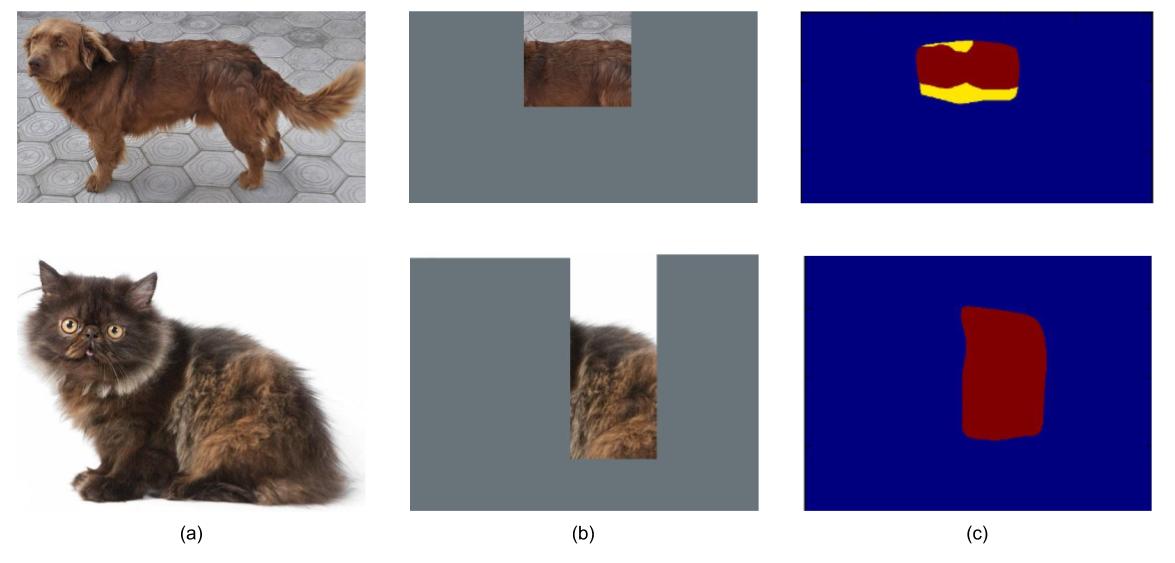

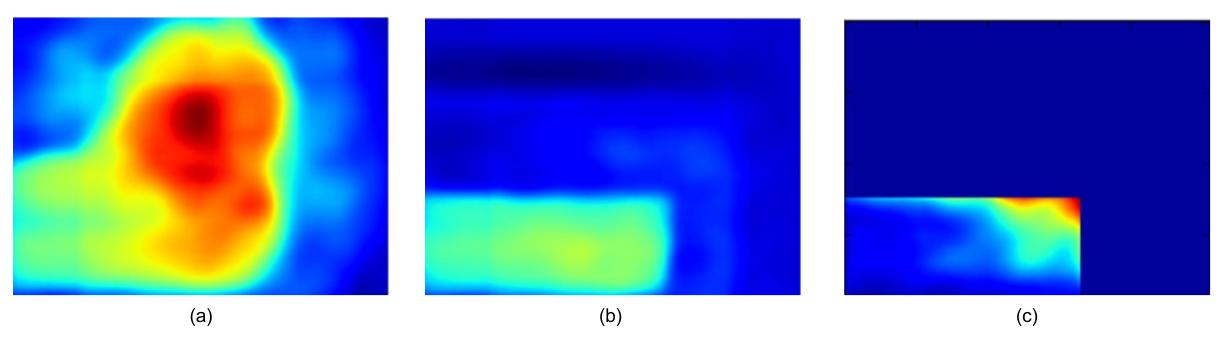

On various images from the dataset as well as unseen data, we find the segmentation twice, once of the whole image, and once by masking discriminative regions of the object.The segmentation is found using DeepLab Large FOV(VGG16) model.
From the above results we see that the model was able to capture the true segmentation in most of the cases even after hiding discriminative regions. Does it mean that global context is not important?
For finding the answer to this question we extended the experiment. The activation for the object on the masked image is compared with the activation for the object on the original image.
In the above example it is seen that the presence of discriminative region enhances the activation for the object across the image. This result shows that high activation ‘flows’ from the discriminative regions of the object to the other parts. Based on this experiment we create a class of Auxiliary loss functions which help in improving segmentation by encouraging the ‘flow’ of activation across the object from the discriminative region.
3.1 Introduction
As discussed in Section 2.4, presence of discriminative regions of object, boost the activation for the object across the object segmentation in the image. This shows that a successful segmentation model will capture the presence of discriminative region, and propagate additional activation for the object to all regions of the object. We introduce a family of loss function with this goal in mind.
Additionally, there are many unique labels which end up with highly correlated internal abstract representations in the model. Often objects of one of the correlated label is partially segmented as the object it is correlated to. This family of loss function additionally tries to decrease this similarity.
This family of loss functions is modeled to :

Enhance segmentation using global context

Improve the networks capability to distinguish between highly correlated classes such as ‘cat’ and ‘dog’, ‘sofa’ and ‘chair’.
3.2 Perpixel Templatesimilarity loss
In many architecture, the output is a channeled output, where each channel contains a spatial map of the activations for a unique label. This output is generally generated by a convolution layer which gives outputs, and uses a kernel, where represents number of channels in the output of the layer just before the final layer.
Lets consider a (VGG16) based segmentation model trained to give a 21class prediction as in PASCAL VOC 2012. The model has on the top a layer ‘fc8’ which gives as an output a , which is a tensor, which corresponsds to downsampled activations for objects at various spatial positions. The layer before it, ‘fc7’ gives as an output , a tensor, which is taken as input by ‘fc8’ layer.
As the model finally uses only a kernel at each spatial position, it makes inference about the label of the unit by only relying on the dimensional representation of the spatial position in output of the ‘fc7’ layer.
Now, this dimensional representation of each spatial position, given by contains all the information required for the network to classify it. All the additional information gained through various means such as pooling across scales or ‘atrous’ convolution has now been encoded in this representation of the spatial position.
Now, for each object detected in the image, we select the best dimensional template of it. After selecting the best template for each class we define a loss based on the similarity of each pixel to these representation. If the object belongs to the same class, the similarity is treated as a profit. If the object of a different class, the similarity is treated as a loss. A detailed algorithm is provided below :
3.3 Some Variations of Perpixel Templatesimilarity loss
Perpixel Templatesimilarity loss can have many variations. There are two important factors :

How we select the best representation of each template.

How we measure the similarity between different representations.
Based on different strategies for these two factors, we can get a family of Perpixel Templatesimilarity losses. We list two that we used for our experiments.
3.3.1 Correlation Loss

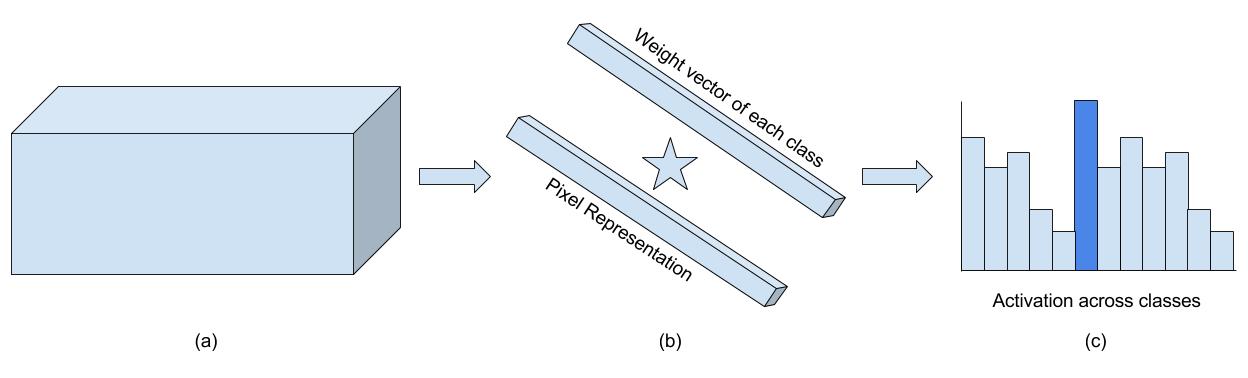

For each label detected in batch, we find the best representation by finding the representation of the the spatial position with the highest activation of the label in . As correlation is a good measure of how two set of vectors are related, we measure similarity by using the correlation between and at each pixel. This is given by :
(3.1)
We call a minor variant of this loss ‘selective correlation loss’, where loss is computed only at the misclassified labels.
3.3.2 Cosine Loss
Similar to the ‘Correlation Loss’, for each label detected in batch, we find the best representation by finding the representation of the the spatial position with the highest activation of the label in . The Cosine Distance between two vectors measure the angle them. Hence we measure similarity by using the Cosine Distance between and at each pixel. This is given by :
(3.2)
A minor variant of this loss is ‘selective cosine loss’, where loss is computed only at the misclassified labels.
3.4 Experiments
We use a pretrained ‘Deeplab Large FOV (VGG16)’ model. The model is trained for finetuning with correlation, cosine, selective correlation and selective cosine loss. The training is performed in augmentation of PASCAL VOC 2012 ’train’ dataset, which contains 1456 images. We set learning rate of Learning rate for all layers except the last three to 0. The learning rate is reduced to 0.0001, and the Learning rate reduced by polynomial learning policy.
We train the model along with Softmax loss. These losses are used as auxiliary loss functions to finetune the model. Various values of the hyperparameter Correlation weighting factor are used to evaluate which performs the best.
Auxiliary loss  Earlier Performance = 0.6225
Hyper Parameter Values
0.01  0.05  0.1  0.5  1  5
Correlation Loss  0.6314  0.6285  0.6252  00.5977  0.5560  0.3253
Cosine Loss  0.6331  0.6306  0.6321  0.6198  0.6086  0.5996
Selective Correlation Loss  0.62645  0.32536  0.32535  0.32535  0.32535  0.32535
Selective Cosine Loss  0.63324  0.63767  0.63104  0.61689  0.60718  0.59921
3.4.1 Conclusion
As scene from table 3.1, Perpixel template similarity loss are able to improve performance of Deeplab Large FOV(VGG16) model at small values of hyperparameters. However, an extensive statistical evidence for the usefulness of such loss functions must be collected across a plethora of segmentation models.
The followup work will try to find stronger statistical evidence for Perpixel template similarity losses. Major issues such as quality of enhancement on models with high performance, effect of training routines and better similarity measurement will be explored.
Bibliography
 [1] David H. Ackley, Geoffrey E. Hinton, and Terrence J. Sejnowski. A learning algorithm for boltzmann machines. Cognitive Science, 9(1):147 – 169, 1985.
 [2] Lokesh Boominathan, Srinivas S. S. Kruthiventi, and R. Venkatesh Babu. Crowdnet: A deep convolutional network for dense crowd counting. CoRR, abs/1608.06197, 2016.
 [3] LiangChieh Chen, George Papandreou, Iasonas Kokkinos, Kevin Murphy, and Alan L. Yuille. Semantic image segmentation with deep convolutional nets and fully connected crfs. CoRR, abs/1412.7062, 2014.
 [4] LiangChieh Chen, George Papandreou, Iasonas Kokkinos, Kevin Murphy, and Alan L. Yuille. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. CoRR, abs/1606.00915, 2016.
 [5] Ronan Collobert, Koray Kavukcuoglu, and Clément Farabet. Torch7: A matlablike environment for machine learning. In BigLearn, NIPS Workshop, 2011.

[6]
G. Cybenko.
Approximation by superpositions of a sigmoidal function.
Mathematics of Control, Signals and Systems, 2(4):303–314, 1989.
[7]
Cordts et. al.
The cityscapes dataset for semantic urban scene understanding.
In Proc. of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.  [8] Mariusz Bojarski et. al. End to end learning for selfdriving cars. CoRR, abs/1604.07316, 2016.
 [9] Sander Dieleman et. al. Lasagne: First release., August 2015.
 [10] TsungYi Lin et. al. Microsoft COCO: common objects in context. CoRR, abs/1405.0312, 2014.
 [11] M. Everingham, L. Van Gool, C. K. I. Williams, J. Winn, and A. Zisserman. The PASCAL Visual Object Classes Challenge 2012 (VOC2012) Results. http://www.pascalnetwork.org/challenges/VOC/voc2012/workshop/index.html.
 [12] C. Farabet, C. Couprie, L. Najman, and Y. LeCun. Learning hierarchical features for scene labeling. IEEE Transactions on Pattern Analysis and Machine Intelligence, 35(8):1915–1929, Aug 2013.
 [13] Ian Goodfellow, Yoshua Bengio, and Aaron Courville. Deep Learning. MIT Press, 2016.
 [14] B. Hariharan, P. Arbeláez, L. Bourdev, S. Maji, and J. Malik. Semantic contours from inverse detectors. In 2011 International Conference on Computer Vision, pages 991–998, Nov 2011.
 [15] Bharath Hariharan, Pablo Andrés Arbeláez, Ross B. Girshick, and Jitendra Malik. Hypercolumns for object segmentation and finegrained localization. CoRR, abs/1411.5752, 2014.
 [16] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Spatial pyramid pooling in deep convolutional networks for visual recognition. CoRR, abs/1406.4729, 2014.
 [17] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. CoRR, abs/1512.03385, 2015.
 [18] Geremy Heitz, Stephen Gould, Ashutosh Saxena, and Daphne Koller. Cascaded classification models: Combining models for holistic scene understanding. In D. Koller, D. Schuurmans, Y. Bengio, and L. Bottou, editors, Advances in Neural Information Processing Systems 21, pages 641–648. Curran Associates, Inc., 2009.
 [19] John J Hopfield. Neural networks and physical systems with emergent collective computational abilities. Proceedings of the national academy of sciences, 79(8):2554–2558, 1982.
 [20] Kurt Hornik. Approximation capabilities of multilayer feedforward networks. Neural Networks, 4(2):251 – 257, 1991.
 [21] Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. CoRR, abs/1502.03167, 2015.
 [22] Yangqing Jia, Evan Shelhamer, Jeff Donahue, Sergey Karayev, Jonathan Long, Ross B. Girshick, Sergio Guadarrama, and Trevor Darrell. Caffe: Convolutional architecture for fast feature embedding. CoRR, abs/1408.5093, 2014.
 [23] D. K. Kim and T. Chen. Deep Neural Network for RealTime Autonomous Indoor Navigation. ArXiv eprints, November 2015.
 [24] Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. CoRR, abs/1412.6980, 2014.
 [25] Philipp Krähenbühl and Vladlen Koltun. Efficient inference in fully connected crfs with gaussian edge potentials. CoRR, abs/1210.5644, 2012.
 [26] Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. Imagenet classification with deep convolutional neural networks. In F. Pereira, C. J. C. Burges, L. Bottou, and K. Q. Weinberger, editors, Advances in Neural Information Processing Systems 25, pages 1097–1105. Curran Associates, Inc., 2012.
 [27] Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. Imagenet classification with deep convolutional neural networks. In F. Pereira, C. J. C. Burges, L. Bottou, and K. Q. Weinberger, editors, Advances in Neural Information Processing Systems 25, pages 1097–1105. Curran Associates, Inc., 2012.
 [28] Y. Lecun, L. Bottou, Y. Bengio, and P. Haffner. Gradientbased learning applied to document recognition. Proceedings of the IEEE, 86(11):2278–2324, Nov 1998.
 [29] Yann Lecun, Yoshua Bengio, and Geoffrey Hinton. Deep learning. Nature, 521(7553):436–444, 5 2015.
 [30] Yann LeCun, Bernhard E. Boser, John S. Denker, Donnie Henderson, R. E. Howard, Wayne E. Hubbard, and Lawrence D. Jackel. Handwritten digit recognition with a backpropagation network. In D. S. Touretzky, editor, Advances in Neural Information Processing Systems 2, pages 396–404. MorganKaufmann, 1990.
 [31] Guosheng Lin, Chunhua Shen, Ian D. Reid, and Anton van den Hengel. Efficient piecewise training of deep structured models for semantic segmentation. CoRR, abs/1504.01013, 2015.
 [32] Bingyuan Liu, Jing Liu, Jingqiao Wang, and Hanqing Lu. Learning a Representative and Discriminative Part Model with Deep Convolutional Features for Scene Recognition, pages 643–658. Springer International Publishing, Cham, 2015.
 [33] C. Liu, J. Yuen, and A. Torralba. Nonparametric scene parsing: Label transfer via dense scene alignment. In 2009 IEEE Conference on Computer Vision and Pattern Recognition, pages 1972–1979, June 2009.
 [34] D. Martin, C. Fowlkes, D. Tal, and J. Malik. A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In Proc. 8th Int’l Conf. Computer Vision, volume 2, pages 416–423, July 2001.
 [35] Vinod Nair and Geoffrey E. Hinton. Rectified linear units improve restricted boltzmann machines. In Johannes Fürnkranz and Thorsten Joachims, editors, Proceedings of the 27th International Conference on Machine Learning (ICML10), pages 807–814. Omnipress, 2010.
 [36] Ying Zhang et. al. Rami AlRfou. Theano: A python framework for fast computation of mathematical expressions. CoRR, abs/1605.02688, 2016.
 [37] F. Rosenblatt. The perceptron: A probabilistic model for information storage and organization in the brain. Psychological Review, pages 65–386, 1958.
 [38] Olga Russakovsky, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, Andrej Karpathy, Aditya Khosla, Michael S. Bernstein, Alexander C. Berg, and FeiFei Li. Imagenet large scale visual recognition challenge. CoRR, abs/1409.0575, 2014.
 [39] Evan Shelhamer, Jonathan Long, and Trevor Darrell. Fully convolutional networks for semantic segmentation. CoRR, abs/1605.06211, 2016.
 [40] Jamie Shotton, John Winn, Carsten Rother, and Antonio Criminisi. Textonboost for image understanding: Multiclass object recognition and segmentation by jointly modeling texture, layout, and context. Int. J. Comput. Vision, 81(1):2–23, January 2009.
 [41] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for largescale image recognition. CoRR, abs/1409.1556, 2014.
 [42] Haiming Sun, Di Xie, and Shiliang Pu. Mixed context networks for semantic segmentation. CoRR, abs/1610.05854, 2016.
 [43] Christian Szegedy, Sergey Ioffe, and Vincent Vanhoucke. Inceptionv4, inceptionresnet and the impact of residual connections on learning. CoRR, abs/1602.07261, 2016.
 [44] Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott E. Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke, and Andrew Rabinovich. Going deeper with convolutions. CoRR, abs/1409.4842, 2014.
 [45] Joseph Tighe and Svetlana Lazebnik. SuperParsing: Scalable Nonparametric Image Parsing with Superpixels, pages 352–365. Springer Berlin Heidelberg, Berlin, Heidelberg, 2010.
 [46] Haohan Wang, Bhiksha Raj, and Eric P. Xing. On the origin of deep learning. CoRR, abs/1702.07800, 2017.
 [47] Bolei Zhou wt. al. Semantic understanding of scenes through the ADE20K dataset. CoRR, abs/1608.05442, 2016.
 [48] K. Xu, J. Ba, R. Kiros, K. Cho, A. Courville, R. Salakhutdinov, R. Zemel, and Y. Bengio. Show, Attend and Tell: Neural Image Caption Generation with Visual Attention. ArXiv eprints, February 2015.
 [49] Matthew D. Zeiler and Rob Fergus. Visualizing and understanding convolutional networks. CoRR, abs/1311.2901, 2013.
 [50] Hengshuang Zhao, Jianping Shi, Xiaojuan Qi, Xiaogang Wang, and Jiaya Jia. Pyramid scene parsing network. CoRR, abs/1612.01105, 2016.
Comments
There are no comments yet.
