PCN: Part and Context Information for Pedestrian Detection with CNNs

04/12/2018 ∙ by Shiguang Wang, et al. ∙ 0

Pedestrian detection has achieved great improvements in recent years, while complex occlusion handling is still one of the most important problems. To take advantage of the body parts and context information for pedestrian detection, we propose the part and context network (PCN) in this work. PCN specially utilizes two branches which detect the pedestrians through body parts semantic and context information, respectively. In the Part Branch, the semantic information of body parts can communicate with each other via recurrent neural networks. In the Context Branch, we adopt a local competition mechanism for adaptive context scale selection. By combining the outputs of all branches, we develop a strong complementary pedestrian detector with a lower miss rate and better localization accuracy, especially for occlusion pedestrian. Comprehensive evaluations on two challenging pedestrian detection datasets (i.e. Caltech and INRIA) well demonstrated the effectiveness of the proposed PCN.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Pedestrian detection, a canonical sub-problem in computer vision, has been extensively studied in recent years

[Zhang et al.(2016a)Zhang, Lin, Liang, and He, Luo et al.(2014)Luo, Tian, Wang, and Tang, Tian et al.(2015b)Tian, Luo, Wang, and Tang, Hosang et al.(2015)Hosang, Omran, Benenson, and Schiele, Tian et al.(2015a)Tian, Luo, Wang, and Tang, Cai et al.(2015)Cai, Saberian, and Vasconcelos, Zhang et al.(2016b)Zhang, Benenson, Omran, Hosang, and Schiele]. It has many applications such as video surveillance [Bilal et al.(2016)Bilal, Khan, Khan, and Kyung] and intelligent vehicles [Broggi et al.(2016)Broggi, Zelinsky, Özgüner, and Laugier]. Although pedestrian detection has achieved steady improvements over the last decade, complex occlusion is still one of the obstacles. According to the statistic analysis in [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona], over 70 of the pedestrians are occluded at least in one video frame. For example, the current best-performing detector RPN+BF [Zhang et al.(2016a)Zhang, Lin, Liang, and He] attained 7.7 of the average miss rate on Caltech [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona] under the none occlusion setting. However, when heavy occlusions are present, its performance is much worse than several state-of-the-art algorithms. The detailed results are shown in Table 2.

Recently, DeepParts [Tian et al.(2015a)Tian, Luo, Wang, and Tang] was specially designed to cope with the occlusion cases in pedestrian detection, by constructing an extensive part pool for automatic parts selection. The well-designed parts are selected driven by data, requiring less prior knowledge of the occlusion types than [Mathias et al.(2013)Mathias, Benenson, Timofte, and Van Gool, Wojek et al.(2011)Wojek, Walk, Roth, and Schiele]. However, the semantic parts cannot communicate with each other, which is very important for occluded pedestrian handling. As illustrated in Fig. 1, when left hand is occluded, the corresponding part score may be very low. Consequently, the summed score will also be low. The final result is failed to recognize the occluded pedestrian. However, with semantic communication, the visible parts such as head and middle body can pass messages to support the existence of left hand. Thus, the body part scores could be refined by this semantic information communication and we are more likely to recognize the occluded pedestrian successfully.

Inspired by ION [Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick], we introduce LSTM [Surhone et al.(2010)Surhone, Tennoe, and Henssonow] for semantic parts communication due to its extraordinary ability for learning long-term dependences. As shown in Fig. 1, the pedestrian box is divided into several part grids. Each part grid corresponds to a detection score. With LSTM, those body parts could memorize the semantic information and communicate with other parts to refine the score map. Moreover, different body parts need different information from other semantic parts, therefore, we use the gates function in LSTM to control the message passing.

Figure 1:

Motivation of our part branch. It’s hard to classify the pedestrian box because of heavy occlusion. With communication among parts, the visible parts and invisible parts could pass message bi-directionally and complement each other to support the existence of pedestrian. Thus, the refined body parts score map is prone to classify the pedestrian box.

On the other hand, a lot of researches [Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick, Gidaris and Komodakis(2015), Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos] stressed that context information plays an important role in object detection. However, they usually only extracted the context information in a single scale, where the scale is set by handcraft [Gidaris and Komodakis(2015), Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos]. Considering that different pedestrian instance may need different context information, we propose to use context regions with different scales to extract the context information. To adaptively select the context information in different scales, a local competition operation (maxout [Goodfellow et al.(2013)Goodfellow, Warde-Farley, Mirza, Courville, and Bengio]) is introduced into our model. For example, the small size pedestrian may need more context information due to low resolution, whilst the heavy-occluded pedestrian may need more context information than the no-occluded pedestrian.

Contributions. To sum up, this work makes the following contributions. (1) we propose a novel part and context network (PCN) for pedestrian detection, which incorporates an original branch, a part branch and a context branch into an unified architecture. (2) To the best of our knowledge, we are the first to introduce the LSTM module into pedestrian detection framework for body parts semantic information communication. (3) The context branch can adaptively handle multi-scale context information in a data driven manner via a local competition mechanism. (4) The results on Caltech and INRIA datasets demonstrated the effectiveness of our proposed model PCN for pedestrian detection with a lower miss rate and a better localization accuracy, especially for those occluded pedestrians.

2 Related Work

In this section, we mainly review related works in three aspects.

Part-Based Pedestrian Detectors. Part-based approaches for pedestrian detection can be classified into two categories: supervised manner and unsupervised manner. Mohan et al. [Mohan et al.(2001)Mohan, Papageorgiou, and Poggio] and Krystian et al. [Mikolajczyk et al.(2004)Mikolajczyk, Schmid, and Zisserman] firstly trained part detectors in a fully supervised manner and then combined their outputs to fit a geometric model. Another category of part-based models focus on unsupervised part mining, which does not require part labels. Wang et al. [Wang and Ouyang(2012)] introduced Deformable Part Model (DPM) to handle the pose variations by learning a mixture of local templates for each body part. Lin et al. [Lin et al.(2015)Lin, Wang, Yang, and Lai] proposed a promising framework by incorporating DPM into And-Or graph. However, DPM [Wang and Ouyang(2012)] needs to handle complex configurations. Recent work DeepParts  [Tian et al.(2015a)Tian, Luo, Wang, and Tang] constructed an extensive part pool for automatic parts selection, but its performance was restricted by the handcrafted part pool.

Multi-Context Features. Multi-context or multi-region features are useful in object detection [Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick, Gidaris and Komodakis(2015), Ouyang et al.(2017)Ouyang, Wang, Zhu, and Wang, Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos]. Gidaris et al. [Gidaris and Komodakis(2015)]

firstly introduced multi-region into deep convolutional neural network and explored their role in detection. Bell et al

[Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick] used spatial recurrent neural networks to integrate muti-context information of RoI. Ouyang et al. [Ouyang et al.(2017)Ouyang, Wang, Zhu, and Wang] applied RoI-Pooling from image features using different context regions and resolutions.

Deep Models

. Deep learning methods are widely used in pedestrian detection. For instance, Hosang

[Hosang et al.(2015)Hosang, Omran, Benenson, and Schiele] demonstrated the effectiveness of the R-CNN pipeline [Girshick et al.(2014)Girshick, Donahue, Darrell, and Malik] in pedestrian detection. Cai et al. learned complexity-aware cascades for deep pedestrian detection [Cai et al.(2015)Cai, Saberian, and Vasconcelos] and also proposed a unified multi-scale deep CNN for fast object detection [Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos]. Zhang et al. [Zhang et al.(2016a)Zhang, Lin, Liang, and He] used a Region Proposal Network (RPN) [Ren et al.(2016)Ren, He, Girshick, and Sun] to compute pedestrian candidates and a cascaded Boosted Forest [Appel et al.(2013)Appel, Fuchs, Dollár, and Perona] to perform sample re-weighting for candidates classification. Du et al. [Du et al.(2016)Du, El-Khamy, Lee, and Davis] introduced a soft-rejection based network fusion method to fuse the soft metrics from all networks together to generate the final confidence scores, achieving state-of-the-art results on Caltech pedestrian dataset [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona].

3 Our Approach

To take advantage of the body parts and context information for pedestrian detection, we propose the part and context network (PCN). PCN specially utilizes two sub-networks which detect the pedestrians through body parts semantic information and context information, respectively.

3.1 Architecture

The detailed architecture of our pedestrian detector is shown in Fig. 2. Based on the framework of Faster RCNN [Ren et al.(2016)Ren, He, Girshick, and Sun], our network detects objects through 3 detection branches: the original branch, the part branch and the context branch. Each branch has different focus. The original branch uses original box from RPN [Ren et al.(2016)Ren, He, Girshick, and Sun] so that it can focus on the full body of pedestrian. The part branch is designed to make full use of semantic parts information for precise classification, specially for pedestrians with heavy occlusion. Considering that pedestrian instances may have different occlusion states, part score maps related to pedestrian box are modelled as sequence problem to communicate with each other. In the part branch, pedestrian box is divided into several part grids (e.g., 33) after RoI-Pooling and several convolution layers, where each part grid is associated with a detection score. Those semantic scores are applied for pedestrian parts communication using LSTM. Since multi-region, multi-context features were found to be effective for object detection [Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick, Gidaris and Komodakis(2015), Ouyang et al.(2017)Ouyang, Wang, Zhu, and Wang], a context branch is introduced to obtain context features with diversity among multiple scales. Under the motivation that different pedestrian instances may need different context information, we adopt a local competition mechanism (maxout) among multiple scales to increase the adaptive ability of context selection. The results produced by all detection branches are weighted sum as the final detection scores. In our implementation, “ trous”  [Chen et al.(2014)Chen, Papandreou, Kokkinos, Murphy, and Yuille] trick is used to increase the feature map resolution.

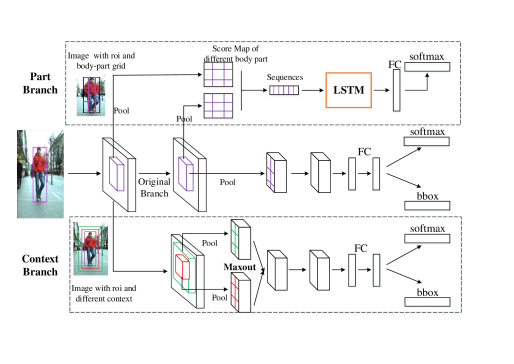

Figure 2: Architecture of our model. The unified network consists of 3 subnetworks: a part branch using LSTM for semantic information communication, an original branch using original box from RPN, a context branch introducing maxout operation for region scale selection.

3.2 LSTM for part semantic information communication

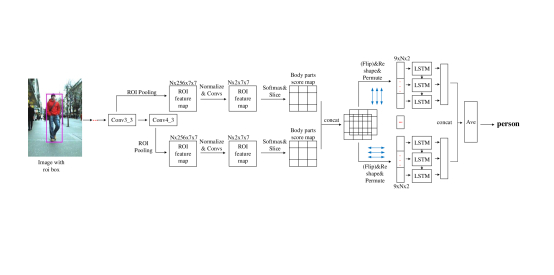

Figure 3: LSTM for part semantic communication. In a single pass, we extract RoI feature from and . Each descriptor is -normalized. We get parts score maps with size of 3 3 through several conv layers. The body parts score maps after softmax are concatenated, (flipped or not), reshaped, permuted and then sent to LSTM networks. LSTM moves along four directions: left, right, top and bottom. Refined scores outputted from LSTM are averaged to get the final scores of Part Branch.

Our architecture for part semantic features communication in PCN is shown in detail in Fig. 3. To get RoI features with different resolution, we place RoI-Pooling layer on top of different conv layers. Features of and achieved best performance in our experiments. -normalization is used following [Liu et al.(2015)Liu, Rabinovich, and Berg] to make training more stable. To get a parts score map of the pedestrian instance, the RoI feature maps are passed through several convolution layers to reduce channel dimension and resolution. Each branch gets a parts score map with resolution of KK (K=3 in Fig. 3

) after the softmax layer. The score maps have strong semantic information of pedestrian, for example the top-left grid indicates the left-head-shoulder part. These parts score maps are concatenated for communication in the next step.

To model coherence between semantic parts, we introduce LSTM for encoding their relationships due to its long short term memory ability to model sequential data. We first permute, flip, and reshape the parts score map to generate 4 sequences with different orders. Then, the LSTM moves on parts score map along four directions: left, right, top and bottom to encode parts and make semantic communication among them. As demonstrated in Fig.

1 in Section 1 , when left hand is occluded, the corresponding part score may be very low. However, the visible part such as head and middle body can pass message to support the existence of the left hand. Consequently, the body part scores could be refined by this semantic information communication. The gate functions in LSTM are used to control the message passing.

3.3 Maxout for adaptive context selection

Figure 4: Maxout for adaptive context selection. As shown above, the purple box indicates the original box of pedestrian, the red, green and blue box indicate the original context box with a scale factor of 1.5, 1.8 and 2.0, respectively. After a convolution layer, each context box is sent to maxout for competition and adaptive context selection. Class confidence and bounding box are outputted as the result.

Our architecture for adaptive context selection in PCN is detailedly shown in Fig. 4. Multi-region, multi-context features were found to be effective in [Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick, Gidaris and Komodakis(2015), Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos] . However, they only extracted the context information in a single scale, where the scale is set by handcraft [Gidaris and Komodakis(2015), Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos]. Considering that different pedestrian instance may need different context information, we propose to use context regions with different scales to extract the context information. For example, small size pedestrian may need more context information due to low resolution, and heavy-occluded pedestrian may need more context information than no-occluded pedestrian. Similar philosophy was also figured out in generic object detection [Ouyang et al.(2017)Ouyang, Wang, Zhu, and Wang], which used a chaining structure for multi-context mining. Our context convolutional feature maps are extracted from multiple discrete scales, known as multi-context. In Fig. 4, 3 kinds of region scale are enumerated for generating context box. Suppose the RoI has width , height , and is the context scale factor of the RoI. Thus, the context region has width and height with the same center as the original RoI, where respectively for each context branch in our implementation.

We incorporate a local competition operation (maxout) into PCN to improve the adaptive context selection capability for various context features sources. Each sub-branch with different context scale passes through RoI-Pooling layer to get a fixed-resolution () object feature map. These feature maps of different data source are selected by maxout with a data driven manner. Maxout [Goodfellow et al.(2013)Goodfellow, Warde-Farley, Mirza, Courville, and Bengio] (element-wise max) is a widely considered operation for merging two or multiple competing sources. Here, we follow the well-known structure of NoCs [Ren et al.(2015)Ren, He, Girshick, Zhang, and Sun]. When the maxout operation is used, the three feature maps (for the three context scales) are merged into a single feature map with the same dimensionality. The convolution layers before each RoI-Pooling layer share their weights. Thereby, the total number of weights is almost unchanged when using maxout.

3.4 Training Procedure

Since these branches differ a lot from feature extraction and expression, which could lead to some instability during learning, we train our model by multiple stages.

Stage1: Jointly optimizing original branch and context branch. Original branch and context branch could be jointly optimized mainly because they have the similar feature expression (different from part branch). Therefore, the gradients from the 2 branches could be merged to the trunk in a stable way. The parameters of original branch and context branch are learned from a set of training samples. Suppose is a training image patch, and the combination of its class label and bounding box coordinates , we optimize with a multi-task loss:

(1)

where is the number of detection branches, and is the weight of loss . is a multi-task loss combining the cross-entropy loss and the smoothed bounding box regression [Ren et al.(2016)Ren, He, Girshick, and Sun, Girshick(2015)]. The optimal parameters

are learned by stochastic gradient descent.

Stage2: Pre-training the part branch to get parts score maps by the cross-entropy loss , where

is the probability distribution over classes. Part branch is pre-trained so that parts can focus on information communication in Stage3. The model trained in Stage1 is fixed in Stage2 to save compute cost.

Stage3: Training the part branch for parts semantic information communication using LSTM. Parameters trained in stage1 are fixed to save compute cost, while parameters trained in Stage2 are finetuned in Stage3.

4 Experiments

We evaluated the effectiveness of the proposed PCN on 2 popular pedestrian detection datasets including Caltech [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona], INRIA [Dalal and Triggs(2005)]. More experimental analyses on the effectiveness of each component in our network are further given on the challenging Caltech dataset [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona].

4.1 Datasets

Settings Description Settings Description
Reasonable 50+ pixels, Occ. none or partial Occ.partial 1-35 occluded
All 20+ pixels, Occ. none, partial or heavy Occ.heavy 35-80 occluded
Occ.none 0 occluded Over.75 Reasonable, using IOU=0.75
Table 1: Evaluation settings for Caltech pedestrian dataset [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona].

Caltech. The Caltech dataset and its associated benchmark [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona] are among the most popular pedestrian detection datasets. It consists of about 10 hours videos (640480) collected from a vehicle driving through regular urban traffic. The annotation includes temporal correspondence between bounding boxes and detailed occlusion labels. We use dense sampling of the training data by 10 folds as adopted in [Hosang et al.(2015)Hosang, Omran, Benenson, and Schiele]

. 4024 images in the standard test set are used for evaluation. The miss rate (MR) is used as the performance evaluation metric

[Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona]. The detailed evaluation settings following [Dollš¢r et al.(2012)Dollš¢r, Wojek, Schiele, and Perona] are shown in Table 1.

INRIA. The INRIA pedestrian dataset [Dalal and Triggs(2005)], which is often used for verifying the generalization capability of models, is split into a training and a testing set. The training set consists of 614 positive images and 1,218 negative images. The testing set consists of 288 testing images. Our model is evaluated on the testing set by MR.

4.2 Implementation Details

For RPN, we used anchors of 9 different scales, starting from 40 pixels height with a scaling stride of 1.4

. Other hyper-parameters of RPN followed [Zhang et al.(2016a)Zhang, Lin, Liang, and He, Ren et al.(2016)Ren, He, Girshick, and Sun, Girshick(2015)]. When training, 70k iterations were run with an initial learning rate of 0.001, which decays 10 times after 50k iterations. Model was finetuned from 16-layers VGG-Net. When testing, the scale of the input image was set as 720 and 560 pixels on the shortest side on Caltech and INRIA datasets respectively, we just selected top 50 boxes for proposals.

For PCN, we used the hyper-parameters following [Li et al.(2015)Li, Liang, Shen, Xu, Feng, and Yan]

to finetune our model from 16-layers VGG-Net. The fourth max pooling layer was removed to produce larger feature maps in all branches. “

trous” [Chen et al.(2014)Chen, Papandreou, Kokkinos, Murphy, and Yuille] trick was used to increase the feature map resolution and reduce stride. Based on these settings, the parameter optimized model was used as our basic model (RPN+FCNN). When training, top 1000 boxes were selected as proposals, and 50k iterations were run with an initial learning rate of 0.001 for 3 stages, which decays 10 times after 40k iterations. When testing, with the top 50 boxes from RPN, we used nms with 0.5 after weight combined from different branches. Conv5’s channels are reduced to 256, while fc6 and fc7 are reduced to 2048, 512 respectively to reduce computation and memory burden.

4.3 Comparisions with State-of-the-art Methods

Methods Reasonable All Occ.none Occ.partial Occ.heavy Over.75
SCF+AlexNet [Hosang et al.(2015)Hosang, Omran, Benenson, and Schiele] 23.3 70.3 20.0 48.5 74.7 58.9
DeepParts [Tian et al.(2015a)Tian, Luo, Wang, and Tang] 11.9 64.8 10.6 19.9 60.4 56.8
CompACT-Deep [Cai et al.(2015)Cai, Saberian, and Vasconcelos] 11.8 64.4 9.6 25.1 65.8 53.3
SAF R-CNN [Li et al.(2015)Li, Liang, Shen, Xu, Feng, and Yan] 9.7 62.6 7.7 24.8 64.4 41.0
MS-CNN [Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos] 10.0 61.0 8.2 19.2 59.9 56.9
RPN+BF [Zhang et al.(2016a)Zhang, Lin, Liang, and He] 9.6 64.7 7.7 24.2 69.9 35.5
RPN+FRCNN [Ren et al.(2016)Ren, He, Girshick, and Sun] 12.1 65.4 10.5 24.0 64.9 48.5
PCN(Ours) 8.4 61.8 7.0 16.4 56.7 34.8
Table 2: Detailed breakdown performance comparisons of our models and other state-of-the-art models on the 6 evaluation settings.

Caltech. Fig. 5. (a) and Table 2 show the results on Caltech (lower is better). We compare our framework with several other state-of-the-art approaches [Hosang et al.(2015)Hosang, Omran, Benenson, and Schiele, Tian et al.(2015a)Tian, Luo, Wang, and Tang, Cai et al.(2015)Cai, Saberian, and Vasconcelos, Li et al.(2015)Li, Liang, Shen, Xu, Feng, and Yan, Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos, Zhang et al.(2016a)Zhang, Lin, Liang, and He, Ren et al.(2016)Ren, He, Girshick, and Sun]. Compared with these approaches, our PCN obtained a miss rate of 8.4 on reasonable setting, which is over 1.2 points better than the closest competitor (9.6 of RPN+BF [Zhang et al.(2016a)Zhang, Lin, Liang, and He]). In the partial and heavy occlusion settings, our PCN achieved at least 3 points improvements than DeepParts [Tian et al.(2015a)Tian, Luo, Wang, and Tang] which is specially designed for occlusion, demonstrating the effectiveness of our PCN model for occlusion handling. Visualization of detection results by state-of-the-art methods and our PCN model are shown in Fig. 6.

INRIA. Fig. 5. (b) shows the detection results on the INRIA datasets. Our PCN model achieved a miss rate of 6.9, comparable with the best available competitor RPN+BF [Zhang et al.(2016a)Zhang, Lin, Liang, and He].

(a) (b)
Figure 5: The results on two Datasets under Reasonable evaluation (legends indicate MR) (a) Comparisons on the Caltech set; (b) Comparisons on the INRIA set.

4.4 Ablation Experiments

In order to figure out which component is working, we carried out the following ablation experiments further.

A. Part Branch In this subsection, we explore the effect of part branch. In PCN, part branch divides the pedestrian box into several parts. Each part corresponds to multiple part detector (RoI-Pooling from different layers). LSTM is introduced to encode the coherence between parts and make semantic communication among them, which is crucial for occluded pedestrian detection. To verify this, we first added part detectors on the parameter optimized basic model RPN+RFCNN, the detector scores of all parts were averaged for the final score of part branch. As we can see, Base+Part has better performance than the Base method, especially the performance of Occ.partial (24.0 vs 21.0). However, the performance of Occ.heavy increased a little, which indicates that simply splitting pedestrian box to body parts to design part detector is not enough to recognize heavy occluded pedestrian. When introducing LSTM for encoding the coherence between parts (Base+Part+LSTM), the performance of Occ.partial and Occ.heavy improved from 21.0/64.6 to 17.0/58.9, respectively, showing that the communication of semantic parts is very important for pedestrian detection, especially for these heavy occluded instances.

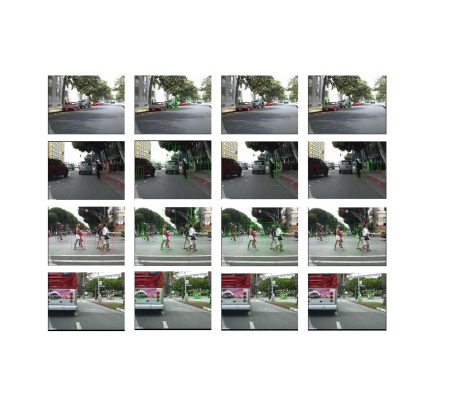

Figure 6: Comparison of pedestrian detection results with other state-of-the-art methods. The first column shows the input images with ground-truths annotated with red rectangles. The rest columns show the detection results (green rectangles) of DeepParts [Tian et al.(2015a)Tian, Luo, Wang, and Tang], RPN+BF [Zhang et al.(2016a)Zhang, Lin, Liang, and He] and PCN respectively. Our PCN can successfully detect more partial or heavy occluded instances with better localization accuracy compared to the other two state-of-the-art methods.

B. Context Branch In this subsection, we explore the effect of context branch. To reveal the importance of context information in pedestrian detection, we added a context branch based on the basic model. One scale context only uses the context information generated by window size of WSHS, Table 3 shows the performance comparison when choosing different context scales (Base+Context(S=x)), obtaining a MR of 9.8/9.9/9.6 for x=1.5/1.8/2.1, respectively. This demonstrated that context plays a key role in pedestrian detection. Interesting, the performance using an IoU threshold of 0.75 (Over.75) increased a lot, the improvement of localization accuracy may be caused by the context information and extra bounding box regulator. For adaptive context selection, we introduced Maxout to integrate context scale. Base+Context (Maxout) achieved a MR of 9.0, better than those models with single context scale. Because of length limited, we just listed 3 scales (x=1.5, 1.8, 2.1) for illustration.

Methods Reasonable All Occ.none Occ.partial Occ.heavy Over.75
RPN+FRCNN(Base) 12.1 65.4 10.5 24.0 64.9 48.5
Base+Part 10.1 62.8 8.1 21.0 64.6 39.0
Base+Part+LSTM 9.4 62.6 8.1 17.0 58.9 38.5
Base+Context(S=1.5) 9.8 63.5 8.1 19.4 60.1 38.0
Base+Context(S=1.8) 9.9 63.4 8.3 20.6 59.8 36.5
Base+Context(S=2.1) 9.6 63.5 8.2 17.8 59.9 36.1
Base+Context(Maxout) 9.0 62.6 7.5 17.5 57.5 34.6
PCN(full) 8.4 61.8 7.0 16.4 56.7 34.8
Table 3: Detailed breakdown performance comparisons of ablation experiments: the effect of part branch and context branch. RPN+FRCNN: the parameter optimized RPN+FRCNN; Base+Part: basic model add part detectors; Base+Part+LSTM: basic model add part detectors and semantic parts communication; Base+Context(S=x): basic model add context with single scale x (x=1.5,1.8,2.1); Base+Context(Maxout): basic model add context using Maxout for adaptively scale selection.

5 Conclusion

In this paper, we proposed the part and context network (PCN). PCN specially utilizes two sub-networks which detect the pedestrians through body parts semantic information and context information, respectively. Extensive experiments demonstrated that the proposed PCN is superior in detecting occluded pedestrian instances and achieving better localization accuracy.

Acknowledgement

This work was supported by the National Natural Science Foundation of China (61671125, 61201271, 61301269), and the State Key Laboratory of Synthetical Automation for Process Industries (NO. PAL-N201401).
