PCE-PINNs: Physics-Informed Neural Networks for Uncertainty Propagation in Ocean Modeling

05/05/2021 ∙ by Björn Lütjens, et al. ∙ MIT 0

Climate models project an uncertainty range of possible warming scenarios from 1.5 to 5 degree Celsius global temperature increase until 2100, according to the CMIP6 model ensemble. Climate risk management and infrastructure adaptation requires the accurate quantification of the uncertainties at the local level. Ensembles of high-resolution climate models could accurately quantify the uncertainties, but most physics-based climate models are computationally too expensive to run as ensemble. Recent works in physics-informed neural networks (PINNs) have combined deep learning and the physical sciences to learn up to 15k faster copies of climate submodels. However, the application of PINNs in climate modeling has so far been mostly limited to deterministic models. We leverage a novel method that combines polynomial chaos expansion (PCE), a classic technique for uncertainty propagation, with PINNs. The PCE-PINNs learn a fast surrogate model that is demonstrated for uncertainty propagation of known parameter uncertainties. We showcase the effectiveness in ocean modeling by using the local advection-diffusion equation.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Informing decision-makers about uncertainties in local climate impacts requires ensemble models. Ensemble models solve the climate model for a distribution of parameters and initial conditions to generate a distribution of local climate impacts (Gneiting_2005). The physics of most oceanic processes can be well modeled at high-resolutions, but generating large ensembles is computationally too expensive: High-resolution ocean models resolve the ocean at horizontal resolution and require multiple hours or days per run on a supercomputer (Fuhrer_2018)

. Recent works are leveraging physics-informed deep learning to build “surrogate models“, i.e., computationally-lightweight models that interpolate expensive simulations of ocean, climate, or weather models

(Rasp_2018; Brenowitz_2020; Yuval_2020b; Kurth_2018; Runge_2019). The lightweight models achieve a accelerate the simulations on the order of -times (Yuval_2020b; Rackauckas_2020). Building lightweight surrogate models could enable the computation of large ensembles.

The incorporation of domain knowledge from the physical sciences into deep learning has recently achieved significant success (Raissi_2019; Brunton_2019; Rasp_2018).Within physics-informed deep learning one could adapt the neural network architecture to incorporate physics as: inputs (Reichstein_2019), training loss (Raissi_2019), the learned representation (Lusch_2018; Greydanus_2019; Bau_2020), hard output constraints (Mohan_2020), or evaluation function (Lutjens_2021; Lesort_2019). Alternatively, one could embed the neural network in differential equations (Rackauckas_2020), for example, as: parameters (Garcia_2006; Raissi_2019), dynamics (Chen_2018), residual (Karpatne_2017; Yuval_2021), differential operator (Raissi_2018; Long_2019), or solution (Raissi_2019). We embed a neural network architecture in the solution which will enable fast propagation of parameter uncertainties and sensitivity analysis.

While most work in physics-informed deep learning has focused on deterministic methods, recent methods explore the expansion to stochastic differential equations (Zhang_2019; Dandekar_2021; Yang_2020a; Zhu_2019; Yang_2020b). In particular, Zhang_2019

achieves lightweight surrogate models for parameter estimation and uncertainty propagation by combining physics-informed neural networks

(Raissi_2019) with arbitrary polynomial chaos (Wan_2006). We use the simpler polynomial chaos expansion (Smith_2013) instead of arbitrary polynomial chaos expansion, and focus on the task of uncertainty propagation in (Zhang_2019). Further, we are the first in applying the combination of polynomial chaos and neural networks to the stochastic local advection-diffusion equation (ADE). Methods of uncertainty quantification have extensively been demonstrated on the local ADE (Smith_2013); the advantage of neural networks is the ability to estimate PCE coefficients in high-dimensional spaces. The local ADE, also called horizontally averaged Boussinesq equation, is more challenging than the 1D stochastic diffusion equation from (Zhang_2019) and illustrates the application to ocean modeling.

In summary our work contributes, PCE-PINNs, the first method for fast uncertainty propagation of parameter uncertainties with physics-informed neural networks in ocean modeling.

2 Approach

We are defining the initial value problem of solving the stochastic partial differential equation,

with spatial domain, , temporal domain, , random space, , domain boundary, , nonlinear operator, , and Dirichlet boundary conditions, .

2.1 Defining the local advection-diffusion equation

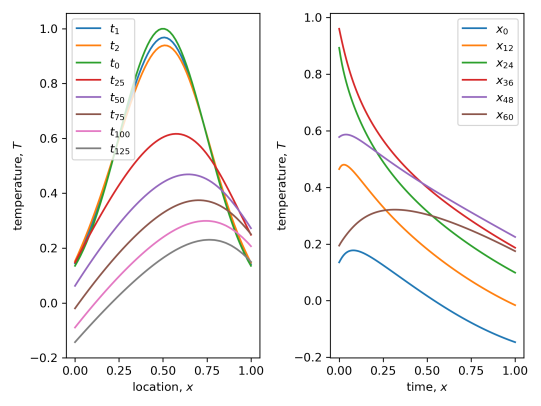

Figure 1: Local advection diffusion equation. The local advection diffusion equation simulates how the initial temperature profile, (green), is distributed over time. We can observe that the positive diffusivity, , flattens the temperature curve (left) and the vertical velocity, , shifts the curve to the right over time.
