Parsing images of biological substances has become one of the important applications of computer vision. In many biologically-important scenarios it is necessary to deal with images of overlapping objects or organisms. In recent years, several approaches have been proposed that can parse images when objects have simple blob-type shapes (e.g. cell cultures) [1, 2, 4, 7, 23]. Less attention, however, has been paid to images containing more complex organisms exhibiting significant shape and pose variations, such as worms, larvae, and bacilli. The sheer importance of such model organisms for biomedical studies calls for further improvement of parsing approaches for this class of images.
Two factors make parsing of such images a complicated task. First, organisms can exhibit significant rigid and non-rigid pose variations. Secondly, these organisms often form clusters that cannot be segmented into individual organisms using simple image processing methods. The two factors complicate each other, as the variation of the appearance of clusters can be combinatorially larger than the variation of the appearance of a single organism, thus defying brute-force parsing approaches.
Our approach uses a combination of deep learning and generative modeling to tackle the challenge of organism cluster parsing. The approach starts by training a deep feed-forward network that maps each local image patchto a descriptor that is sensitive to the configuration of the central object in , while being insensitive to other objects in . Informally speaking, such a singling-out network (SON), distinguishes the central element from its surrounding, and then describes the appearance/configuration of this element by a SON-descriptor. At test-time, the SON-network allows to obtain a large set of hypotheses about individual objects in the cluster. This is done by comparing SON-descriptors of various image patches covering the cluster against a pre-computed large set of SON-descriptors of patches with known central elements (Figure 2). As a last step, we use a facility-location type discrete optimization [14, 3, 6] to pick a small subset of hypotheses that “explains” the appearance of the whole cluster.
Below, in Section 4 we show that this approach can be successfully applied to three diverse datasets corresponding to three popular model organisms: C.Elegans roundworm, Drosophila larva, and E.Coli bacterium (Figure 1). Before that, we discuss prior related work in Section 2, and then explain our method in Section 3. We conclude by a short discussion in Section 5.
2 Related work
Despite large practical importance, there is little published work dedicated to the image analysis task we focus on. Wählby et al.  describe a method for resolving C.Elegans worms clusters based on probabilistic analysis, which achieves impressive results. It however makes several assumptions specific to particular organism/assay types that can be potentially brittle, such as the ability to isolate tips of organisms or the ability to mine worm centerlines as paths in the cluster skeleton. More recently, Fiaschi et al. [10, 9] addressed the problem of Drosophila larvae tracking through network and integer programming. Our approach is quite different to theirs, as we focus on handling single frames. Below, we present results for both Wählby et al. and Fiaschi et al. data obtained with our method.
Algorithmically, our approach builds upon two streams of ideas. The first stream are methods based on deep discriminatively-trained deep convolutional networks , which currently enjoy overwhelming success in image analysis. Here, the components of our methods resembles the combination of deep descriptors and nearest-neighbor search in .
nicely combines the two streams by using deep features to compare the synthesized and the input images. “Analysis-by-synthesis” approaches are appealing due to their conceptual simplicity, and overall hold great potential. However the complexity of scenes that they can parse is limited by the need to perform stochastic search over the scene configuration space and the need to re-render the scene at each step of such search. These computational hurdles are avoided in our method.
Analyzing crowded scenes by suggesting an excessive number of hypotheses and then picking a subset of them through optimization is an idea that has been used in several computer vision works. For example, Wu and Nevatia  used edge-based human part detectors to hypothesize about individual locations in crowded surveillance videos. Likewise,  used discriminatively-trained Hough transform to obtain hypotheses. In both cases, greedy optimization was used to pick optimal subsets, but other optimization methods could have been used. Compared to this group of methods, our contribution is the specific way the hypotheses are obtained (SON-networks).
In a nutshell, our approach focuses on (partial) understanding of image patches, and then integrating the information from individual patches into a holistic image interpretation via a joint optimization process.
Let us first introduce the notation at the level of a certain patch . In most microscopy image parsing scenarios (including ours) the binary object/background segmentation is relatively easy, and therefore it is easy to discard patches where the central pixels are not covered by the foreground elements. We therefore restrict our attention to the remaining patches. We thus assume that the patch has a set of objects (elements) overlapping with it, and that denotes the central element that covers the center of the patch. Generally, we assume that each element
is characterized by several degrees of freedom (e.g. center position, orientation, shape parameters, texture parameters).
We denote with the appearance of the patch (a multichannel image of a certain size), and assume that , where is the rendering function, and is a nuisance variable that incorporates such factors as image noise or some clutter that we are not aiming to recover, etc. We further assume that we have a reasonable approximation of the rendering function , and that we can draw samples from the distribution of elements.
3.1 Inverse rendering using Singling-Out Networks
The key idea of our approach is to learn the partial inverse mapping that recovers the central element from the appearance while ignoring the impact of on the appearance . Overall, we achieve this using the combination of a deep feedforward network learning and nearest-neighbor search.
The vital component of such partial reverse mapping is a deep feedforward singling-out network that maps the appearance
of an image patch to a high-dimensional descriptor vector(where are the parameters of the deep network). The learning process tries to adjust to ensure that the appearance of patches with similar central elements are mapped to close singling-out network (SON) descriptor vectors and vice versa.
Training SON-networks. There are several potential approaches to the training process of the SON-networks. One can use Siamese pairwise loss  or triplet loss , which would require sampling pairs or triplets of patches with some patches having “similar” central elements, and other patches having “dissimilar” central elements. Pair-based and triplet-based learning of deep feedforward networks is however known to be hard in terms of finding suitable initialization, setting the meta-parameters of the network architecture and the learning process (learning rate), as well as setting pairs/triplets generation properly. Therefore we used a proxy classification problem (Figure 3) to learn a classification network (as in e.g. ) using a standard classification softmax loss.
In the training classification dataset, each class is generated as follows. At first, a random central element is drawn. Then each training image of the class is created by sampling additional elements and a random nuisance parameter and rendering the correspondence appearance:
The training class then consists of images for all possible .
Gallery matching. We augment the deep descriptor learning with nearest-neighbor search to conclude the partial inverse mapping. We thus synthesize random central elements , render them, and then pass the resulting image patches through the trained SON-network, obtaining their SON-descriptors :
The elements together with their descriptors are then stored in a gallery . Alternatively to artificial rendering process, the gallery patches can be sampled from the annotated training images, whereas geometric and photometric data augmentation can be used to increase the diversity of gallery patches.
Given an image patch we can then generate a hypothesis about the central element in that patch by first obtaining its SON-descriptor , then finding the nearest neighbor in the gallery of SON-descriptors. The associated central element then provides a hypothesis. Let us denote the compound mapping from the appearance to the hypothesis as : . Figure 2 provides the examples of such mapping.
3.2 Image-level Parsing
While the learned partial inverse mapping can provide a hypothesis for a single central patch, an additional optimization step is needed to obtain a set of elements that “explain” the entire image.
To obtain the full image parsing, we first collect a set of hypotheses. For that, assuming that an approximate foreground/background segmentation is given, we consider a large number of patches with centers belonging to foreground. For each such patch centered at with the appearance , we obtain a hypothesis using the partial inverse mapping, i.e. (each hypothesis is thus just an element in a certain configuration). Since an element can be central for a number of patches (to be precise, for all patches centered at the pixels covered by the element), the set of hypotheses obtained in this way is excessive, and the goal of the further processing is to pick a subset of those.
). We thus introduce binary variables, where means that the -th hypothesis is selected ( are thus “facility” variables). We demand that each of the patches we consider, is “explained” by one of the picked hypotheses (i.e. the patches are the “clients”). To measure the quality of the explanation, we compute the value that measures if the hypothesis can explain the patch (small values of correspond to the case when such explanation is good).
The distance between the SON-descriptor of the patch and the SON-descriptor of the hypothesis is a natural choice for as it is computed at the stage of the nearest-neighbor search:
where the nuisance parameter is taken arbitrarily.
One way to compute , when is to evaluate the distance between the SON-descriptor of and the SON-descriptor of the hypothesis shifted according to the displacement between the th and the th pixel (in other words, in the coordinate frame associated with the patch ):
where is an operator that translates the element by into the coordinate frame associated with the th patch before rendering.
Evaluating (4) however requires rendering each hypothesis multiple times for different translations, and is therefore rather slow. Alternatively, for each gallery element one can precompute the change of the descriptor under different translations, and store it in the dataset. An easier approach is however to reuse the distance computed in (3) for all patches with central pixels that are covered by the hypothesis placed on the image. Hence one can define:
where if the hypothesis covers the center of patch and otherwise (expressing the fact that the hypothesis cannot explain a patch, for which it does not cover the central pixel). Below, we present results for this fast approach using the distance estimates (5), and also selected results for the slow approach based on a more principled estimates (4).
Yet another fast heuristic that can be used to computeis to look at the difference between the hypotheses suggested for the th and the th patches. In case, the two are covered by the same organism and the descriptor matching has worked well, the two hypotheses should be similar. Therefore, we can use some distance between hypotheses (e.g. the Hausdorf distance between hypotheses centerlines) to compute the distance estimates (again the two hypotheses are compared in the “global” coordinate frames).
Once the distance estimates are computed, the binary variables are introduced, where means that the patch is actually explained by the hypothesis according to our image interpretation. The following optimization formulation (facility location) then implements the image parsing problem:
Here, the first term in the objective implements the MDL (“minimum description length”) prior penalizing the number of selected hypotheses, whereas the coefficient controls the strength of the prior, while the second term encourages the explanation of the patches by the hypotheses with matching SON-descriptors.
The optimization of (6) is well studied in the context of computer vision application with a variety of problem-specific algorithms suggested . We, however, utilize a general-purpose ILP solver , which allows solving (6) to global optimality in most cases in our experiments.
If it is known (e.g. from the training data) that two organisms cannot overlap beyond some threshold, we can find the set of all pairs of hypotheses such that and overlap by more than this threshold. We can then add the following constraint set into the optimization formulation (6):
Such set of equations ensures that too tightly overlapping hypotheses will not be picked simultaneously. While the set of such “conflicting” pairs can be very large, the constraints (7) can be enforced in a cutting-plane fashion, starting the optimization without them and iteratively activating only the violated once while resolving for the optimal set. Due to the tendency of the facility location to avoid picking hypotheses that are too similar, few cutting plane iterations suffice in practice.
The C.Elegans dataset from the Broad Biomedical Benchmark Collection  consists of 100 images obtained using bright-field microscopy. The roundworms are subjected to various compounds, and the ultimate goal of the image processing in this case it to tell alive worms from the dead ones as dead worms possess characteristic (straight) shape. Similarly to , we consider the binary segmentation rather than the raw data. We use 50 images for training, which leaves 50 images for testing. All images were scaled down by a factor of 2.5.
The Larvae dataset was used in  and corresponds to a high-resolution (1400x1400) video with 9000 frames containing a large number of Drosophila larvae. As there is a limited movement between the upper and the lower halves, we used the upper half of the video for training and validation, and test on the lower half.
The Coli dataset contains 9 large (1024x1024) phase-contrast microscopy images of colonies of E.Coli bacteria (grown in mono-layer). Each image contains on average 514 worms. We use 7 images for training, 1 images to validate the method parameters, and report results on the remaining 2 images containing 531 worms. Unlike the first two datasets, the background segmentation task is not trivial, and we learn a linear pixel classifier using the convolutional features at the first layer of the SON-network for foreground/background segmentation.
Our approach requires rendering a large number of crowded patches to train SON-networks and another collection of patches to form the gallery. Since the three datasets were of different kind and had different types of annotation, we used three different approaches to tackle these rendering tasks. For the C.Elegans case, we followed  and took the skeletons of singleton worms to build the PCA-based shape model that was further used to generate both crowded patches for SON-training as well as gallery patches. For the Larvae dataset, we simply isolated the singleton worms from the top of the dataset and used various similarity transforms and superimpositions to do the rendering (examples of renderings can be seen in Figure 2). Finally, for E.Coli we do not have sufficient number of singleton bacteria that would be easy to isolate. However, the bacteria have simpler shapes mostly defined by the two endpoints (and were annotated this way). We therefore align worms of the same length rotated to a certain fixed orientation to define a certain class for SON-network training. We also created the gallery directly from training patches (for which the pose of the central worm is known).
The sizes of the training datasets were 1000 classes with 500 images in each for C.Elegans and Larvae, and 198 classes of average size 550 for E.Coli. The gallery size was 4 millions for C.Elegans, 6 millions for Larvae and 240 thousands for E.Coli. Generally the patch sizes were 100x100, 40x40 and 50x50 for C.Elegans, Larvae and E.Coli respectively.
4.3 Network design and training
In the experiments the SON-networks had the architecture specified in Figure 4. The SON-descriptors are thus 64 dimensional. For the Coli dataset the number of convolutional maps in each layer was halved.
To learn the classifiers the network was augmented at training time by an additional ReLU layer followed by a linear dense layers with 1000 (C.Elegans, Larvae) or 198 (E.Coli) output units corresponding to different classes. The classification was trained with the softmax loss. We used stochastic gradient descent algorithm (with momentum) and trained networks for 53, 40 and 100 epochs for Larvae, C.Elegans and E.Coli respectively. After each epoch the learning rate was scaled by factor 0.85.
4.4 Matching with SON-descriptors
As our main contribution is the idea of hypothesis mining on the basis of SON-descriptors, we quantitatively compare the performance of the learned descriptors against SIFT descriptors  and a simple baseline based on L2 pixelwise distance. In more detail, on the test set we use patches crowded with organisms as queries, and then find their nearest neighbors in the gallery set. The query patches were sampled from the test set. Patches from C.Elegans and Larvae datasets were centered on a random pixel of random object from test set while E.Coli patches were chosen in a such a way that the center of each patch matched to the center of some segment which defines a E.Coli sample from test set. SIFT descriptors were calculated for the central pixel of each patch and with fixed keypoint orientation. We gave SIFTs an advantage by optimizing the diameters of keypoints neighborhoods on the test sets (separately for each dataset).
When searching for the closest neighbors we either use L2-pixelwise distance or distances based on SIFT or SON-descriptors. In all cases, we evaluate the distances between the poses of the central organism in the query patch and the closest nearest neighbor. To measure the disparity between the poses we used the symmetric Hausdorf distance () between centerlines.
Figure 5 provides numerical comparisons, while Figure 6, Figure 7, Figure 8 provides side-by-side qualitative comparisons. For all three datasets, the SON-descriptors provide more accurate pose matches compared to SIFT and L2-distance between patches. When comparing our method with L2-distance-based method, it is important to note that matching using SON-descriptors is much faster as its dimensionality (set to 64 in all our experiments) is much smaller than the dimensionality of image patches. For SIFT descriptors the best results were achieved on keypoints neighborhood of size 5 pixels for E.Coli and C.Elegans and 4 pixels for Larvae. Because of low variability of Larvae and E.Coli such a small neighborhood can provide a good estimation for the whole organism.
4.5 Image parsing
Finally, we provide results for full image parsing on our dataset. Numerically, we compare the results on C.Elegans and Larvae with the results of  (using their WormToolbox software). Their method is specialized for C.Elegans and obtains near-perfect results on their dataset.

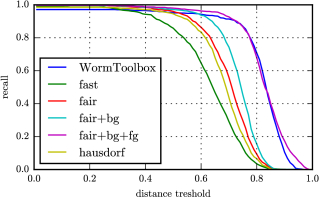

In Figure 9, we compare the performance of the Worm toolbox of  with several variants of our method on C.Elegans. The variants differ in the way of definition of optimization problem (6). We refer as fast to the variant with equation (5) and fair to the variant with (4). The hausdorf variant is the variant where we estimate via the Hausdorf distance between centerlines of the worm hypotheses suggested for the th and the th pixel. Generally, all three variants performs worse than WormToolbox, especially for large thresholds. However these results can be significantly improved by local fitting of the pose. In order to show it we performed two simple postprocessing steps on fair results. On the first step we excluded from instances masks all pixels which belong to background of initial image (we refer to this results as fair+bg). On the second step we assigned all uncovered foreground pixels of the image to the nearest instances masks (fair+bg+fg line in Figure 9). With this postprocessing our approach slightly outperforms WormToolbox on the most of thresholds of intersection-over-union (IoU) score.
The main limitation of method proposed in  is the ability to work only with binary masks of worms. Therefore we trained WormToolbox model for Larvae using the binary masks of the singleton worms (which were also used in our method for training SON-network) and tested their model on binary masks of worm clusters. Since our method is able to work with any type of input images, we trained and tested it on actual grayscale images. We also considered exploiting our prior knowledge about data: Larvae organisms usually tend to overlap significantly. That fact makes choosing the good set of hypotheses ambiguous. To facilitate picking smaller hypotheses, we change in (6) to , where is the size of hypothesis . Table 1 provides precision, recall and F1-score values for two methods on Larvae. The big advantage of our method over the Worm toolbox is likely due to the use of textural information that is important for parsing organisms clusters whose overlapping area size is comparable with the size of the whole organism.
We also present qualitative results in Figure 10. Both qualitative and quantitative results demonstrate the ability of our method to parse complex clusters. The method gets limited accuracy in terms of finding the exact worm boundaries, which can be addressed through local shape/pose optimization using our result as the initial starting point.
|SON fast + size||0.8291||0.8787||0.8532|
|SON fair + size||0.8340||0.8317||0.8329|
|SON hausdorf + size||0.8816||0.8816||0.8816|
(a) Parsing (bottom row) of segmented wells (top row) with C.Elegans
(b) Parsing of clusters of Drosophila larvae (left – input cutout, right – results)
We have presented a new approach to parsing images with crowded objects and have demonstrated its viability for biomedical images of model organisms with medium complexity. Our approach is not specific to these kinds of objects and can be applied to other data. The method assumes that it is possible to render training data (although in the case of E.Coli we showed that one can obtain training data directly from user-annotated images). Another assumption is that the gallery can sample the pose space of a single object densely enough. In the current version, we also assume that foreground/background segmentation can be performed as a pre-processing.
Our main contribution is in the mechanism for proposing hypotheses about individual objects that is based on singling-out networks. This mechanism is compatible with different hypotheses selection approaches. E.g. it can be used within full-fledged “analysis-by-synthesis” approach that would choose a subset of hypotheses that minimizes the mismatch in appearance between the synthetic and the real image directly. In this work, we presented a faster discrete optimization-based alternative that produced good results in our experiments.
