1 introduction

[Motivation] An increasing number of applications across many diverse domains continuously produce very large amounts of data series111A data series, or data sequence, is an ordered sequence of data points. If the ordering dimension is time then we talk about time series, though, series can be ordered over other measures (e.g., angle in astronomical radial profiles, mass in mass spectroscopy, position in genome sequences, etc.). (such as in finance, environmental sciences, astrophysics, neuroscience, engineering, multimedia, etc. Palpanas (2015); Zoumpatianos and Palpanas (2018); Palpanas and Beckmann (2019); Bagnall et al. (2019)), which makes them one of the most common types of data. When these sequence collections are generated (often times composed of a large number of short series Palpanas and Beckmann (2019)

), users may need to query and analyze them as soon as they become available. This process is heavily dependent on data series similarity search (which apart from being a useful query in itself, also lies at the core of several machine learning methods, such as, clustering, classification, motif and outlier detection, etc.)

Tan et al. (2017); Echihabi et al. (2019b); Boniol et al. (2020); Boniol and Palpanas (2020). The brute-force approach for evaluating similarity search queries is by performing a sequential pass over the complete dataset. However, as data series collections grow larger, scanning the complete dataset becomes a performance bottleneck, taking hours or more to complete Zoumpatianos et al. (2016). This is especially problematic in exploratory search scenarios, where every next query depends on the results of previous queries. Consequently, we have witnessed an increased interest in developing indexing techniques and algorithms for similarity search Shieh and Keogh (2008); Rakthanmanon et al. (2012); Wang et al. (2013); Camerra et al. (2014); Zoumpatianos et al. (2016); Yagoubi et al. (2017); Kondylakis et al. (2018); Linardi and Palpanas (2018, 2019); Kondylakis et al. (2019); Yagoubi et al. (2019); Echihabi et al. (2019b, a); Palpanas (2020).

[Scalability problem] Nevertheless, the continued increase in the rate and volume of data series production with collections that grow to several terabytes Palpanas (2015) renders existing data series indexing technologies inadequate. For example, the current state-of-the-art index, ADS+ Zoumpatianos et al. (2016); Gogolou et al. (2019), requires more than 4min to answer any single exact query on a moderately sized 250GB sequence collection. Moreover, index construction time also becomes a significant bottleneck in the analysis process Zoumpatianos et al. (2016), especially in cases where new data arrive frequently and need to be indexed Palpanas and Beckmann (2019). Thus, traditional solutions and systems are inefficient at, or incapable of managing and processing the voluminous sequence collections that already exist in several domains. Finally, we note that, given the evolution of CPU performance, where the processor clock speed is not increasing due to the power wall constraint, efforts for algorithmic speedups now exploit the parallelism opportunities offered by modern hardware Xiao et al. (2013); Ailamaki (2015); Palpanas (2017); Peng et al. (2020); Botao Peng (supervised by Panagiota Fatourou and Themis Palpanas) (2020).

[Parallel Indexing] In this work, we propose the Parallel Index for Sequences (ParIS), the first data series index that inherently takes advantage of modern hardware parallelization, and incorporate the state-of-the-art techniques in sequence indexing, in order to accelerate processing times. ParIS, which is a disk-based index based on the principles of ADS+, takes advantage of multi-core and multi-socket architectures, in order to distribute and execute in parallel the computations needed for both index construction and query answering. Moreover, ParIS uses the Single Instruction Multiple Data (SIMD) CPU instructions, in order to further parallelize the execution of individual instructions inside each core. Overall, ParIS achieves very good overlap of the CPU computation with the required disk I/O. To completely remove the CPU cost during index creation, we present ParIS+, an alternative of ParIS that results in index creation that is purely I/O bounded. ParIS+ is 2.6x faster than the current state-of-the-art approach Zoumpatianos et al. (2016). ParIS and ParIS+ employ the same algorithmic techniques for query answering. The experiments also demonstrate their effectiveness in exact query answering: they are up to 1 order of magnitude faster than the state-of-the-art index scan method Zoumpatianos et al. (2016), and up to 3 orders of magnitude faster than the state-of-the-art optimized serial scan Rakthanmanon et al. (2012). We also note that ParIS and ParIS+ have the potential to deliver more benefit as we move to faster storage media.

In developing ParIS+ (and ParIS), we made careful design choices in the coordination of the compute and I/O tasks, and consequently, developed new algorithms for the construction of the index and for answering similarity search queries on this index.

We note that even though scaling out to multiple machines is also a valid research direction Palpanas (2017); Yagoubi et al. (2017, 2019), in this work, we focus on addressing the problem in the context of a single machine, so as to maximize the benefit we can get out of the hardware. Our results can be combined with a scale-out solution. Examining other hardware solutions, like GPUs and FPGAs are also very promising directions, but ouf of the scope of this work.

[Contributions] Our contributions222A preliminary version of this work appeared in Peng et al. (2018). are summarized as follows:
We propose ParIS, the first data series index designed for multi-core architectures. We describe parallel algorithms for index creation and exact query answering, which employ parallelism in reading the data from disk and processing them in the CPU. Moreover, we propose ParIS+, a ParIS alternative that completely masks out the CPU cost when creating the index. ParIS+ results in improved performance during index creation in systems that support a reasonable level of parallelism (more than four cores).

In order to further speedup query answering, we exploit SIMD for complex vectorial computations: we develop novel vectorized implementations for computing lower bounding distances between the Piecewise Aggregate Approximation (PAA)

Keogh et al. (2001) and indexable Symbolic Aggregate Approximation (iSAX) Shieh and Keogh (2008) representations.
Finally, we experimentally evaluate ParIS and ParIS+ using a variety of synthetic and real datasets. The results demonstrate the efficiency of the proposed approach, which is orders of magnitude faster for exact query answering than the state-of-the-art methods. Moroever, the results show that, in settings of more than cores, ParIS+ completely hides the CPU time during index creation.

2 Preliminaries

We now provide some necessary definitions, and introduce the related work on state-of-the-art data series indexing.

2.1 Data Series and Similarity Search

[Data Series] A data series, , is a sequence of points, where each point , , is associated to a real value and a position . The position corresponds to the order of this value in the sequence. We call the size, or length of the data series. We note that all the discussions in this paper are applicable to high-dimensional vectors, in general. (In the case of streaming series, we first create subsequences of length using a sliding window, and then index those.)

[Similarity Search] Analysts perform a wide range of data mining tasks on data series including clustering Rakthanmanon et al. (2011), classification and deviation detection Shieh and Keogh (2009); Chandola et al. (2009), and frequent pattern mining Mueen et al. (2011). Existing algorithms for executing these tasks rely on performing fast similarity search across the different series. Thus, efficiently processing nearest neighbor (NN) queries is crucial for speeding up the above tasks. NN queries are formally defined as follows: given a query series of length , and a data series collection of sequences of the same length, , we want to identify the series that has the smallest distance to among all the series in the collection . Figure 1 depicts an example of a query series and a candidate answer (the 1-NN, in this case).

Common distance measures for comparing data series are Euclidean Distance (ED) Agrawal et al. (1993) and dynamic time warping (DTW) Rakthanmanon et al. (2012). While DTW is better for most data mining tasks, the error rate using ED converges to that of DTW as the dataset size grows Shieh and Keogh (2008). Therefore, data series indices for massive datasets use ED as a distance metric Shieh and Keogh (2008); Rakthanmanon et al. (2012); Wang et al. (2013); Camerra et al. (2014); Zoumpatianos et al. (2016), though simple modifications can be applied to make them compatible with DTW Shieh and Keogh (2008)

. Euclidean distance is computed as the sum of distances between the pairs of corresponding points in the two sequences. Note that minimizing ED on z-normalized data (i.e., a series whose values have mean 0 and standard deviation 1) is equivalent to maximizing their Pearson’s correlation coefficient

Mueen et al. (2010).

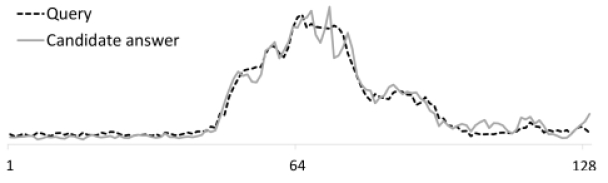

Figure 1: Query series and candidate answer (length 128; SALD dataset)

[Distance calculation in SIMD] Single-Instruction-Multiple-Data (SIMD) refers to a parallel architecture that allows the execution of the same operation on multiple data simultaneously Lomont (2011). Using SIMD, we can reduce the latency of an operation, because the corresponding instructions are fetched once, and then applied in parallel to multiple data. Modern CPUs support 256-bit wide SIMD vectors, which means that some floating point (or other 32-bit data) computations can be up to 8 times faster when executed using SIMD Lomont (2011). Even though no SIMD solutions have been proposed so far for data series indices, this idea has been exploited for the computation of distance functions Tang et al. (2016). In our study, we take an extra step, and we also use SIMD for operations related to the proposed data series index structure (i.e., for conditional branch calculations during the computation of the lower bound distances; see Section 3.3).

(a) a raw data series
(b) its PAA representation
(c) its iSAX representation
(d) ADS+ index
Figure 2: The iSAX representation, and the ADS+ index structure

2.2 iSAX Representation and ADS+ Index

[iSAX Representation] The iSAX representation is based on the Piecewise Aggregate Approximation (PAA) representation Keogh et al. (2001), which divides the data series in segments of equal length, and uses the mean value of the points in each segment in order to summarize a data series. Figure 2(b) depicts an example of PAA representation with three segments (depicted with the black horizontal lines), for the data series depicted in Figure 2(a). Based on PAA, the indexable Symbolic Aggregate approXimation (iSAX) representation was proposed in Shieh and Keogh (2008).

This method first divides the (y-axis) space in different regions, and assigns a bit-wise symbol to each region. In practice, the number of symbols is small: iSAX achieves very good approximations with as few as 256 symbols, the maximum alphabet cardinality, which can be represented by bits Camerra et al. (2014). It then represents each segment of the series with the symbol of the region the PAA falls into, forming the word shown in Figure 2(c) (subscripts denote the number of bits used to represent the symbol of each segment).

For an overview of iSAX-based indices, see Palpanas (2020).

[ADS+ Index] Based on this representation, the state-of-the-art ADS+ index was developed Zoumpatianos et al. (2016). It makes use of variable cardinalities (i.e., variable degrees of precision for the symbol of each segment; see Figure 2(c)) in order to build a hierarchical tree index (see Figure 2(d)), consisting of three types of nodes: (i) the root node points to several children nodes, in the worst case (when the series in the collection cover all possible iSAX representations), where is the number of segments; (ii) each inner node contains the iSAX representation of all the series below it, and has two children; and (iii) each leaf node contains both the iSAX representation and the raw data of all the series inside it (in order to be able to prune false positives and produce exact, correct answers). When the number of series in a leaf node becomes greater than the maximum leaf capacity, the leaf splits: it becomes an inner node and creates two new leaves, by increasing the cardinality of the iSAX representation of one of the segments (the one that will result in the most balanced split of the contents of the node to its two new children Camerra et al. (2014); Zoumpatianos et al. (2016)). The two refined iSAX representations (new bit set to 0 and 1) are assigned to the two new leaves. In our example, the series of Figure 2(c) will be placed in the outlined node of the index (Figure 2(d)).

The ParIS and ParIS+ indices use the iSAX representation and basic ADS+ index structure, but implement techniques and algorithms specifically designed for multi-core architectures.

3 Proposed Solution: ParIS and ParIS+

In this section, we describe our approach, called Parallel Indexing of Sequences (ParIS), for parallel index construction and query answering. We then present, ParIS+, an improved version of ParIS (in settings with reasonable levels of parallelism).

Figure 3 provides a high level overview of the entire pipeline of how the ParIS index is created and then used for query answering. This pipeline is comprised of four stages. In Stage , a thread, called the Coordinator worker, reads raw data series from the disk and transfers them into the raw data buffer in main memory. In Stage , a number of IndexBulkLoading workers, process the data series in the raw data buffer to create their iSAX summarizations. Each iSAX summarization determines to which root subtree of the tree index the series belongs. Specifically, this is determined by the first bit of each of the segments of the iSAX summarization. The summarizations are then stored in one of the index Receiving Buffers (RecBufs) in main memory. There are as many RecBufs as the root subtrees of the index tree, each one storing the iSAX summarizations that belong to a single subtree. This number is usually a few tens of thousands and at most , where is the number of segments in the iSAX representation of each time series ( is fixed to in this paper, as in previous studies Zoumpatianos et al. (2016)). The iSAX summarizations are also stored in the array SAX (used during query answering).

When all available main memory is full, Stage  starts. In this stage, a pool of IndexConstruction workers processes the contents of RecBufs; every such worker is assigned a distinct RecBuf at each time: it reads the data stored in it and builds the corresponding index subtree. So, root subtrees are built in parallel. The leaves of each subtree is flushed to the disk at the end of the tree construction process. This results in free space in main memory. These 3 stages are repeated until all raw data series are read from the disk, the entire index tree is constructed, and the SAX array is completed. The index tree together with SAX form the ParIS index, which is then used in Stage  for answering similarity search queries.

In the following, we elaborate on the stages of this pipeline.

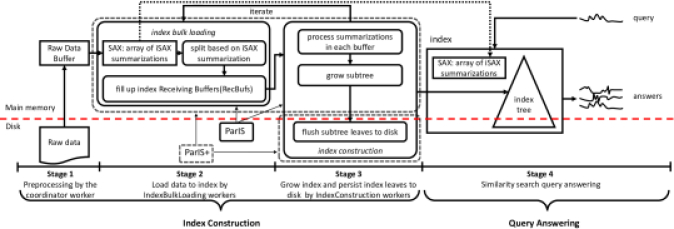

Figure 3: Overview of the pipeline for creating the ParIS/ParIS+ index, and using the index for query answering.

3.1 Index Construction: ParIS

The main challenge in devising an algorithm for the creation of our index in parallel is that a significant part of time is required for disk I/O (i.e., for reading the raw data and writing the index leaves). In order to address this challenge, we concentrate our efforts in two directions: execute the CPU computations so as to achieve the largest possible overlap with the required disk I/O, and reduce the number of random accesses to disk as much as possible. We achieve these by maintaining the synchronization cost among different threads as low as possible.

3.1.1 Index Initialization

(a) Create index Coordinator & IndexBulkLoading workers
(b) IndexConstruction workers
Figure 4: Workflow and algorithms relevant to index creation.

In this section, we describe Stages 1 and 2. Figure 4(a) summarizes how the coordinator and IndexBulkLoading workers work.

The raw data buffer is implemented using double buffering. So, it is comprised of two parts, one on which the Coordinator works, and another on which the IndexBulkLoading workers work. In this way, the data the Coordinator is accessing and the data the IndexBulkLoading workers are handling form two independent sets. So, all these threads work in parallel (as much as possible). Our tuning experiments (refer to Figure 14) showed that setting the size of the double buffer to 2MB results in the best performance (the time cost reduces as the buffer size increases until we reach 2MB and then it stabilizes).

The pseudocode for the Coordinator worker is shown in Algorithm 1. We assume that the variable is a data structure containing all buffers, a pointer to the root of the tree index, some arrays of locks that are needed for synchronizing access to RecBufs, and SAX. In this algorithm, and are pointers to the two parts, and , of the raw data buffer. Moreover, we denote by the number of IndexBulkLoading workers that are created by the coordinator (see discussion below about the value of ). The algorithm works as follows. The Coordinator worker first fills in the part of the raw data buffer pointed to by (line 1). Then, the Coordinator worker creates the IndexBulkLoading worker threads (lines 4). These threads create the iSAX summarizations of the data in the raw data buffer part pointed to by and place them in the appropriate RecBufs and in SAX (see Figure 4(a)); for each data series, we also store in RecBuf its offset in the raw data file. While the IndexBulkLoading workers are performing this task, the Coordinator concurrently fills in the other part of the raw data buffer (line 1). This process is repeated until the main memory is exhausted.

The Coordinator worker is aware of the current memory usage by monitoring the number of data series that it has processed. When the available memory is (nearly) exhausted333Note that we only need a small amount of additional memory for creating new index nodes in the subtree of the root currently being processed, which can have a maximum depth of  Zoumpatianos et al. (2016), where is the cardinality of the alphabet. Moving data inside the index (e.g., from RecBuf to OutBuf, as we will discuss later) does not require extra memory: we reallocate the same memory addresses between the buffers. (line 1), then the Coordinator creates the IndexConstruction worker threads (lines 1), which build the part of the index that corresponds to the iSAX summarizations stored in the RecBuf, and flush the leaf nodes of the tree to disk.

The pool of IndexBulkLoading workers could be as big as the number of cores in our machine (minus one which is reserved for the Coordinator). The IndexBulkLoading workers are assigned each RecBuf one-at-a-time in round-robin fashion, by using either an atomic fetch and increment primitive, or a lock. As we will discuss later (in Section 4), for ParIS we see the best performance when we use five IndexBulkLoading workers and six IndexConstruction workers; note that these numbers are orders of magnitude less than the number of the index root subtrees (usually tens of thousands). Note that because of the small number of BulkIndexLoading (and IndexConstruction workers), the use of locks for synchronizing access to RecBufs (or the assignment of subtrees) does not result in any synchronization bottlenecks. Moreover, because the computation is heavily I/O bounded at this stage, the performance does not degrade even if the Coordinator creates the IndexBulkLoading workers from scratch each time it fills up a part of the raw data buffer. For the same reason, techniques like thread pinning does not improve performance.

Input: File* , Index , Integer
1 Pointer ;
2 Integer p = 0;
3 read data from ;
4 while not reached end of  do
5        for  to  do
6               create a thread to execute an instance of (,, );
7        end for
8        ;
9        read data from ;
10        Wait for IndexBulkLoading workers to finish;
11        if  main memory is full then
12               for  to  do
13                      create a thread to execute an instance of ();
14
15               end for
16              Wait for IndexConstruction workers to finish;
17
18        end if
19       ;
20
21 end while
Algorithm 1

The pseudocode that the IndexBulkLoading workers execute is shown in Algorithm 2. Each such worker has been assigned a chunk, of size , in each part of the raw data buffer (therefore, the size of the raw data buffer is ). Each worker operates only on its chunk. In this way, no synchronization is needed between the IndexBulkLoading workers for accessing the raw data buffer. Each IndexBulkLoading worker reads the data series in its chunk one after the other (line 2), and calculates the iSAX summarization for each of them by calling the ConvertToSAX() function (line 2). These summaries are stored in SAX, the Array of iSAX Summarizations (line 2), and in the appropriate RecBuf (line 2; refer also to Figure 4(a)). Recall that each RecBuf gathers together all data that must be stored into the same root subtree. These data may exist in chunks of the raw data buffer that are associated to different IndexBulkLoading workers. So, more than one such workers may require to concurrently access the same RecBuf. Therefore, synchronization is needed. This synchronization is achieved by using a lock for each such buffer, stored in array of .

To eliminate the need for synchronization between the IndexBulkLoading workers in accessing SAX, the iSAX summarization of the data series stored in the position of the raw data file, is stored in the position of SAX.

Input: Index , Raw data buffer [], Integer
1 for  to  do
2        = ();
3        acquire appropriate lock from ;
4        ();
5        release the acquired lock;
6
7 end for
Algorithm 2

3.1.2 Subtree Construction and Leaf Materialization

We now describe Stage 3, where the index is gradually constructed and its leaves materialized. On top of the raw data buffer and the RecBufs, ParIS makes use of an additional set of main memory buffers, the Output Buffers (OutBufs). Each OutBuf is associated to one leaf of the index tree and stores the iSAX representations of the data series and pointers to them in the raw data file.

The Coordinator worker creates a number of IndexConstruction workers when it discovers that the main memory is exhausted. (Based on our experiments, the best number of IndexConstruction workers is 6.) These workers process the data in the RecBufs in order to grow the corresponding subtree, until the data end up in the OutBufs of that subtree. Finally, the OutBufs are flushed to disk. This process is illustrated in Figure 4(b), (where we have assumed that the contents of the OutBuf for the leftmost leaf have been flushed to disk, whereas the rest OutBufs have not).

All IndexConstruction workers process different root subtrees, so they work independently and no synchronization is needed. A worker that finishes its work on one subtree gets assigned to a new RecBuf, until all RecBufs are processed. In order to maintain the scheme simple and efficient, we have chosen not to parallelize processing inside each one of the index root subtrees since that would require a lot of synchronization (due to node splitting). Our experiments have shown that this decision does not have any negative impact in the performance of our scheme.

The pseudocode that the IndexConstruction workers execute is shown in Algorithm 3. An IndexConstruction worker first selects one of the RecBufs to process in an atomic way (line 3). This can be done by using either an atomic fetch and increment primitive ( in Algorithm 3), or a lock. Then, it moves the data to the appropriate OutBuf in the index (line 3), and if necessary (i.e., if the leaf node is full), it (repeatedly) performs node splitting (line 3). When node splitting is performed, the iSAX summarizations (i.e., the contents of the leaf node to be split) are read from disk and they are placed in the appropriate OutBuf (if they have already been flushed). Then, the leaf node is split to two new leaf nodes, the data of the original leaf are moved to the new leaves, and finally the OutBufs corresponding to the leaves of the subtree currently processed are flushed to disk (line 3).

We note that 80% of the leaves (and therefore also the corresponding OutBufs) have size less than the block size. So, flushing them to disk results in disk random accesses. For this reason, the use of a lock to synchronize disk accesses of threads during leaf materialization would cause performance degradation.

Input: Index
1 Shared integer ;
2 while (TRUE)  do
3        Atomically fetch and increment ;
4        if () then break;
5        for every pair  do
6               Leaf of tree to insert ;
7               while  is full do
8                      SplitNode();
9                      New leaf to insert ;
10
11               end while
12              Insert in ’s OutBuf buffer;
13
14        end for
15       Flush ’s OutBuf buffer to disk;
16        Clear this node OutBuf;
17
18 end while
Algorithm 3

3.2 Index Construction: ParIS+

(a) IndexBulkLoading worker after synchronization barrier
(b) index construction
Figure 5: Workflow and algorithms relevant to ParIS+ index building.

In this section, we present Paris+, which improves ParIS by completely masking out the CPU cost when creating the index. This is not true for ParIS, whose index creation (stages 1-3) is not purely I/O bounded (as we will see in Figure 9). The reason for this is that, in ParIS, the IndexConstruction workers do not work concurrently with the Coordinator worker. Moreover, the IndexBulkLoading workers do not have enough CPU work to do to fully overlap the time needed by the Coordinator worker to read the raw data file.

ParIS+ (Algorithms 4-6) is an optimized version of ParIS, which achieves a complete overlap of the CPU computation with the I/O cost. In ParIS+, the IndexBulkLoading workers have undertaken the task of building the index tree, in addition to performing the tasks of stage 2. The IndexConstruction workers now simply materialize the leaves by flushing them on disk.

In ParIS+, the Coordinator worker (Algorithm 4) creates the IndexBulkLoading workers right after it has finished filling in one part of the raw data buffer for the first time (line 4). Note that before starting to fill in this part again, the Coordinator reaches a barrier (line 4 of Algorithm 4), which ensures that the IndexBulkLoading workers have finished processing it (line 5 of Algorithm 5). An additional barrier (line 4 of Algorithm 4) between the Coordinator and each of the IndexBulkLoading workers is necessary to ensure that no IndexBulkLoading worker accesses the OutBuf buffers as long as the IndexConstruction workers operate on them.

Algorithm 5 provides pseudocode for the IndexBulkLoading workers. Note that the IndexBulkLoading workers have to reach a barrier (line 5) after they finish processing the part of the raw data buffer they have been assigned. This barrier is necessary since more than one IndexBulkLoading worker adds items in each of the RecBufs, and the tree index construction should start only after all of them have finished their current phase of adding items in the RecBufs. Additional barriers (lines 5 and 5) ensure the necessary synchronization of the IndexBulkLoading workers with the Coordinator thread (as discussed above).

The IndexConstruction workers (Algorithm 6) simply flush the Outbufs of the leaves of each subtree of the index tree on disk.

Finally, we note that we also considered an alternative, where the IndexBulkLoading workers were performing their work concurrently with the tree index construction phase performed by the IndexConstruction workers. However, this design did not have any positive impact in performance, and thus, do not discuss it further.

Input: File* , Index , Integer , Integer chunksize
1 Pointer ;
2 read data from ;
3 for  to  do
4        create a thread to execute an instance of (,, , );
5 end for
6while not reached end of  do
7        ;
8        read data from ;
9        Barrier to synchronize with the IndexBulkLoading workers;
10        if  main memory is full then
11               for  to  do
12                      create a thread to execute an instance of ();
13
14               end for
15              Wait for IndexConstruction workers to finish;
16
17        end if
18       for  to  do
19               Barrier to synchronize with IndexBulkLoading worker ;
20
21        end for
22
23 end while
24Kill IndexBulkLoading workers;
Algorithm 4
Input: Index , Integer , Integer , Integer
1 Shared integer ;
2 Integer , ;
3 Boolean ;
4 while (TRUE) do
5        for  to  do
6               = ();
7               acquire appropriate lock from ;
8               ();
9               release the acquired lock;
10
11        end for
12       Barrier to synchronize the IndexBulkLoading workers with one another;
13        while (TRUE)  do
14               Atomically fetch and increment ;
15               if () then break ;
16               for every pair  do
17                      Leaf of tree to insert ;
18                      while  is full do
19                             SplitNode();
20                             New leaf to insert ;
21
22                      end while
23                     Insert in ’s OutBuf buffer;
24
25               end for
26
27        end while
28       ;
29        ;
30        Barrier to synchronize the IndexBulkLoading workers with one another and with the Coordinator worker;
31        Barrier to synchronize this IndexBulkLoading worker with the Coordinator worker;
32
33 end while
Algorithm 5
Input: Index
1 Shared integer ;
2 while (TRUE)  do
3        Atomically fetch and increment ;
4        if () then break;
5        For each leaf in the subtree rooted at the -th root child;
6                    Flush leaf’s OutBuf buffer to disk;
7                    Clear the OutBuf buffer;
8
9 end while
Algorithm 6

3.3 Query-Answering

In this section, we describe methods for parallel query-answering.

The algorithm first performs an approximate search to obtain the first Best-So-Far (BSF) answer, and then proceeds with a sequential scan of the raw data that could not be pruned using the BSF, in order to produce the exact, final answer to the query. The approximate search is really fast, requiring only a negligible percentage (a few msec) of the (mostly) on-disk sequential scan cost. It is a simple, in-memory path traversal from the index root to the leaf with the iSAX representation that is the most similar to that of the query. Once a leaf is reached, the distance between the query and each of the leaf’s data series is calculated. The minimum distance found is the first BSF answer (see left part of Figure 7). This BSF is used to prune the candidate series by computing lower bound distances to their summarizations. The series that are not pruned will be visited in the raw file, and the true distance will be computed (the BSF may be updated during this phase).

In the following, we concentrate on our algorithm for parallelizing the scan phase. We first describe how we exploit SIMD for performing the lower bound distance calculations. Then, we present, in Section 3.3.2, a simple technique for further parallelizing this phase (nb-ParIS+, which stands for non-balanced ParIS+), which however does not result in optimal performance, because of the lack of load balancing. Finally, we present in Section 3.3.3 our proposed method for exact search in ParIS+ (the exact search algorithm for ParIS is the same).

3.3.1 Lower-Bound Distance Calculation

The algorithm starts by calculating the lower bound distance between the query series and the iSAX summarizations of all series in the index. This is a main memory operation, since the iSAX summarizations are small enough to fit in the memory of modern servers444The highest granularity iSAX summarizations for 1 billion data series (occupying 1TB on disk) only need about 10GB of space in main memory.. This is a procedure that we execute using SIMD, since both the queries and the index series are vectors, on which we perform the same operation (i.e., a distance calculation).

Using SIMD, we can perform eight calculations in parallel, using a single instruction (we assume 256-bit SIMD vectors, containing 32-bit float elements). We need to implement a conditional branch in SIMD, but contrary to previous solutions Tang et al. (2016), this is a complex branch: not only do we have to use different conditional branches for different positions in the SIMD vector, but also need to make different assignments for different branches.

In our case, the calculation of the lower bound distance between the PAA of the query series and an iSAX summarization has 3 branches (conditions): checking whether the PAA lies (i) ABOVE, (ii) BELOW, or (iii) IN the iSAX interval. Thus, we need to choose different values from different dictionaries in order to perform the distance computations in SIMD (see Figure 7). We first calculate the distance results of the above 3 branches for every point in the SIMD vector. We then use a conditional mask to extract the results in the correct branch.

In particular, we generate 3 branch masks, i.e., ABOVE, BELOW, and IN. These masks contain a value of true (i.e., ) only in the SIMD vector positions for which the corresponding branch is true. In Figure 7 for example, the first query PAA segment is above the corresponding candidate series iSAX representation, which means that only the ABOVE mask will be true for this position; consequently we will consider the Dist_ABOVE distance value for this position of the SIMD vector. Using the appropriate SIMD instruction (AVX, AVX2 and SSE3) Coorporation (2016), we can efficiently calculate the value of the 3 branch masks. Next we apply a logical ”AND” between the 3 branch results and their masks. After that, all bits of the branch result in the wrong branch will be zero. Now there is only one value at the same position in those 3 branch results. Finally, we merge all possible branches in one vector, which is the correct final result.

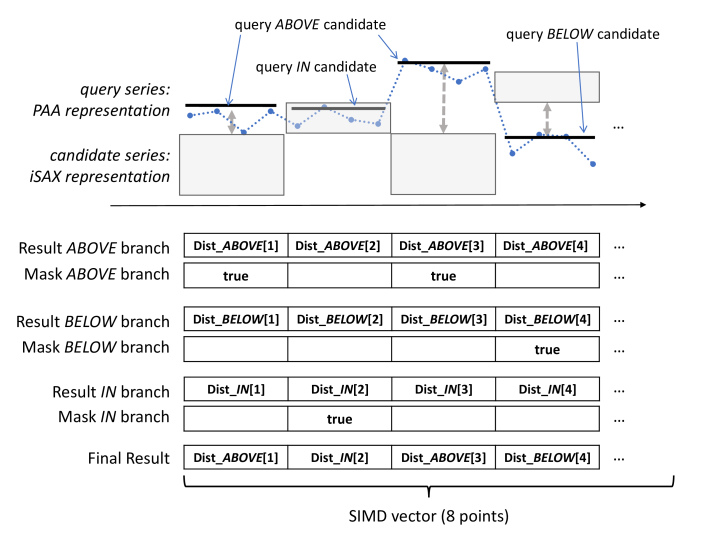

Figure 6: SIMD conditional branch calculation.
Figure 7: Workflow and algorithms for query answering with ParIS+ (balanced).

In this way, we have a SIMD version of the distance computation function, which is a frequent and (CPU) time-consuming operation. Our solution renders all computations vectorial, which can not only accelerate the calculations, but also reduce the time spent for changing register types (the registers used for vector and normal values are different).

3.3.2 Exact Search in nb-ParIS+

We now present nb-ParIS+ that served as an intermediate step for developing ParIS+, using a simple design with no communication among the distance computation worker threads (see also § 3.3.4).

Exact Search in nb-ParIS+ is illustrated in Figure 8, and shown in Algorithm 7. It employs a standard parallelization technique, which splits SAX in blocks and has different workers, called Distcomp workers, work on different blocks independently. When a thread executes an ExactSearch (Algorithm 7), it first performs an approximate search to get the initial BSF value (line 7). BSF is used for pruning. Each Distcomp worker updates its own copy of BSF to store the minimum distance it has calculated so far. This copy is stored in an appropriate element of vector

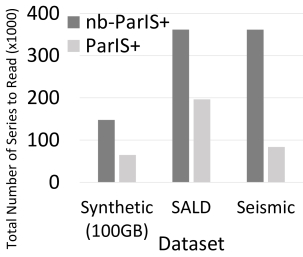

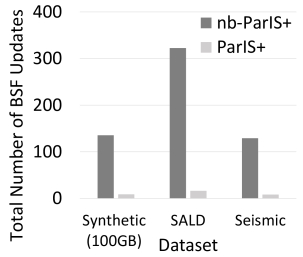

. Note that since each worker calculates its own estimate of BSF, no synchronization is needed among them.

When creates the Distcomp workers (line 7), it informs them about the initial BSF value through vector . Each such worker computes the lower bound distance between the query PAA and each iSAX summarization in its SAX part (Algorithm 8, line 8). It does so using the SIMD approach we described in Section 3.3.1. If this distance is higher than the current value of the worker’s copy of BSF, then the data series is pruned. Otherwise, the Distcomp worker reads the required data from disk, calculates the real distance (line 8), and if necessary, updates the appropriate element of (line 8). Finally, waits for all DistComp workers to finish, calculates the minimum value stored by these workers in , and returns this value. We use one DistComp Worker thread per core (thus resulting in 24 DistComp workers in total). Note that nb-ParIS+ does not necessarily balance the work among the DistComp workers, since the pruning degree may turn out to be different for each worker. Moreover, different threads produce disk requests concurrently, which results in random accesses to disk. ParIS+ improves upon nb-ParIS+ to address these problems.

Input: querySeries , query iSAX , Index , File*
Output:
1 float ,;
2 // Perform an approximate search
3 = (, , );
4 // distribute BSF into
5 ;
6 // calculate minDist and realDist in parallel
7 create a number of threads, each executing an instance of DistCompWorker(, , , appropriate part of , );
8 Wait for all threads to finish;
9 return ( ());
Algorithm 7 nb-ParIS+:

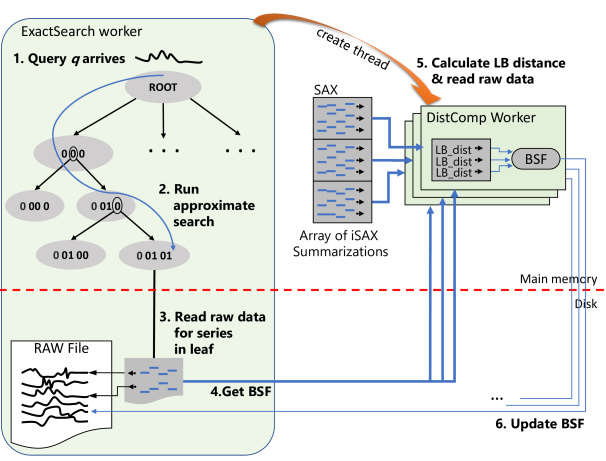

Figure 8: Workflow and algorithms for query answering with nb-ParIS+ (non-balanced).
Input: querySeries , query iSAX , float [], iSAX summarizations [], Index , File*
Output:
1 float = read initial BSF value from ;
2 for  to size of  do
3        = (, );
4        if  then
5               Move file pointer to appropriate position in ;
6               = read raw data series from ;
7               = (, );
8               if  then
9                      ;
10
11               end if
12
13        end if
14
15 end for
Algorithm 8 nb-ParIS+:

3.3.3 Exact Search in ParIS+

As in nb-ParIS+, the exact search algorithm in ParIS+555Note that the exact search algorithm of ParIS is the same as in ParIS+. employs approximate search as a first step and uses the approximate answer as the initial BSF (see Algorithm 9). Unlike to nb-ParIS+ though, BSF is now stored in a variable shared by all workers.

We note that the state-of-the-art sequential index similarity search algorithm spends more than 95% of its time on I/O (on our server, described below) and in particular, on reading data from disk. In order to achieve better parallelism, the ExactSearch algorithm separates the phase of the lower bound calculation from that of the real distance calculation and has two types of worker threads, namely the Lower Bound Computation (LBC) and the Real Distance Computation (RDC) workers, respectively, executing each type of calculation (see right part of Figure 7).

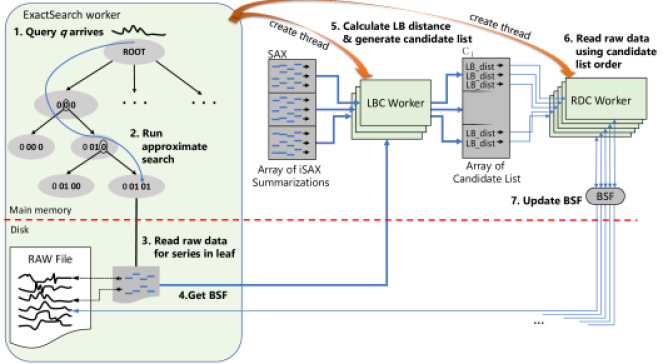

When a thread executes an ExactSearch (Algorithm 9), it first performs an approximate search to get the initial BSF answer (line 9), and then it initiates a number of LBC workers (line 10). Different LBC workers work on different parts of SAX. Each such worker computes the lower bound distance between the query PAA and each iSAX summarization in its SAX part and records the data series for which this distance is less than the current BSF in a local candidate list, which it eventually returns to (see Algorithm 10). This list contains the position and the lower-bound distance, needed to read the raw data and to calculate the real distance for the data series. Once all LBC workers have finished, merges the candidate lists they have created (Algorithm 9, line 9) and initiates the RDC Workers (line 9).

Each RDC Worker (Algorithm 11) repeatedly retrieves a (minDistance, position) pair from the merged candidate list () in an atomic way (line 11). Atomicity is achieved with the use of a lock which all RDC workers share. The worker then reads the required data from disk, calculates the real distance (line 11), and if necessary, updates the shared BSF variable (line 11). A thread lock ensures that the BSF modification is done atomically. Storing BSF in shared memory and updating it during the course of the execution contributes towards reducing the number of calculations that RDC workers perform.

In this study, we use 1 LBC Worker thread per core, and 5 RDC Worker threads per core. Oversubscribing the RDC Workers (that are involved in expensive I/O operations) ensures that we saturate the disk I/O bandwidth and the CPU remains busy. Our experiments showed that time performance remains relatively stable as we vary the number of RDC Worker threads per core (especially between 3-5 threads for the HDD server, and 4-10 threads for the SSD server), while 1 LBC Worker thread was enough to achieve the best performance (results omitted for brevity).

Input: querySeries , query iSAX , Index , File*
1 candidate list , ;
2 float ;
3 BSF = approxSearch(, , );
4 create a number of threads, each executing (, proper part of , BSF);
5 Wait for all threads to finish;
6 merge all sublists () returned by the LBCWorker threads;
7 create a number of threads, each executing an instance of (, , BSF, );
8 Wait for all threads to finish;
9 return (BSF);
Algorithm 9 ParIS+:
Input: querySeries , iSAX summarizations , float BSF
1 local candidate list ;
2 for  to size of  do
3        (, );
4        if  BSF then
5               add (, Raw Data file position of ) pair in ;
6
7        end if
8
9 end for
return ()
Algorithm 10 ParIS+:
Input: querySeries , candidate list , float BSF, File*
1 while not reached end of  do
2        Atomically read the next (,) pair from ;
3        if BSF then
4               Move file pointer to the proper position in ;
5               read raw data series from file;
6               (, );
7               if  BSF then
8                      Atomically update BSF to the value of ;
9
10               end if
11
12        end if
13
14 end while
Algorithm 11 ParIS+:

3.3.4 Discussion of nb-ParIS+ and ParIS+

Using nb-ParIS+, we were able to identify some design choices that resulted in bad performance during query answering. Specifically, nb-ParIS+ needs synchronization between the different threads only for computing the minimum BSF value, but may result in load imbalance in terms of real distance calculations performed in each chunk. Since each real distance calculation performs I/O (to read the raw data series), some threads may finish much later than others. Moreover, as the requests of different threads are interleaved, nb-ParIS+ may perform random I/Os. ParIS+ addresses these problems in common cases (when the pruning ratio is large), by separating the phase of lower bound distance calculations from that of real distance calculations through the use of the candidate list. The candidate list is sorted to ensure that random accesses to disk are minimized. Moreover, a fetch&add is used to assign entries of the candidate list to threads for processing, in order to achieve load balancing. In this way, it is ensured that all threads finish at about the same time.

4 Experimental Evaluation

[Setup] We ran the experiments on two servers, whose physical memory was limited to 75GB666We used GRUB to limit the amount of RAM, so that all methods are forced to use the disk. Note that GRUB prevents the operating system from using the rest of the RAM as a file cache.. The first server (default) comprises two Intel Xeon E5-2650 v4 2.2Ghz processors with 12 cores each, and has 10.8TB (6 x 1.8TB) 10K RPM SAS HDD drives in RAID0, with sequential access throughput of the RAID0 array being 1200MB/sec and random access throughput 12MB/sec. The second server, with the same setup for CPUs and memory, has 3.2TB (2 x 1.6TB) SATA SSD drives in RAID0, with 500MB/sec sequential throughput and 450MB/sec random access throughput.

All algorithms were implemented in C, and compiled using the GCC6.2.0 with the O3 optimization flag on Ubuntu Linux 16.04. Unless otherwise mentioned, in our experiments we use one socket for index creation and two sockets for query answering.

[Datasets] In order to evaluate the performance of the proposed approach, we use several synthetic datasets for a fine grained analysis, and two real datasets from diverse domains. Unless otherwise noted, the series have a size of 256 points, which is a standard length used in the literature, and allows us to compare our results to previous work.

We used synthetic datasets of sizes 50GB-250GB (default size: 100GB), and a random walk data series generator that works as follows: a random number is first drawn from a Gaussian distribution N(0,1), and then at each point in time a new number is drawn from this distribution and added to the value of the last number. This generator has been extensively used in the past (and has been shown to model real-world financial data)

Yi and Faloutsos (2000); Shieh and Keogh (2008); Wang et al. (2013); Camerra et al. (2014); Zoumpatianos et al. (2016). We used this process to generate 100 query series.

For the Seismic real dataset, we used the IRIS Seismic Data Access repository 19 to gather 100M series representing seismic waves from various locations, for a total size of 110GB. The SALD real dataset includes neuroscience MRI data series 43, for a total of 200M series of length 128 points each, and total size 100 GB. In both cases, we used as queries 100 series that were not part of the datasets (produced using our synthetic series generator, since these datasets do not come with query workloads).

In all cases, we ran the experiments 5 times and report the mean values. We omit reporting error bars, since all runs gave results that were very similar (3% difference). Queries were always run in a sequential fashion, one after the other, in order to simulate an exploratory analysis scenario, where users formulate new queries after having seen the results of the previous one.

[Algorithms] We experiment with our ParIS and ParIS+ algorithms, and compare those to the sequential state-of-the-art data series index, ADS+ Zoumpatianos et al. (2016). We also compare to (i) the UCR Suite Rakthanmanon et al. (2012), the state-of-the-art, optimized serial scan technique for exact similarity search, and (ii) DS-Tree Wang et al. (2013), a modern data series index that stores the raw data in the leaves. All algorithms are available online 42. For the disk-resident experiments, we never load the datasets in main memory. In order to mitigate the effects of caching, we clear the caches before each experiment (i.e., before running index creation and before executing each query).

4.1 Results

We present the performance results for ParIS/ParIS+, and compare them to two modern data series indices, ADS+ and DS-Tree.

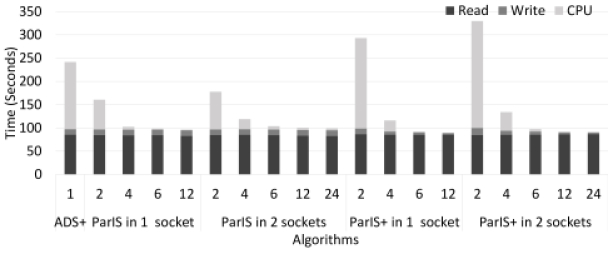

Figure 9: Index creation time (HDD) as the number of cores increases.
(a) ParIS on 1 Socket
(b) ParIS on 2 Sockets
(c) ParIS+ on 1 Socket
(d) ParIS+ on 2 Sockets
Figure 10: Overlap of I/O time and CPU time during index creation (HDD).

4.1.1 Index Creation Performance Evaluation

In our first experiment (Figure 9), we evaluate the time it takes to create the tree index for a synthetic dataset of 100M series. The figure illustrates that the performance of ParIS and ParIS+ improves as the number of cores grows from 4 to 6 (note that a single thread runs on each core); after 6 cores the improvement is rather small. The reason for this behavior is illustrated in Figure 10. Note that there are 4 types of time costs: (i) read raw data from disk; (ii) write raw data to disk; (iii) CPU time by IndexBulkLoading workers; and (iv) CPU time by IndexConstruction workers. When we use more than one core, the time to read the data from disk and the management of data series are performed concurrently. Moreover, the time cost for the management of data series decreases with the number of cores, since the data that each core needs to process gets reduced. The cost of the index construction also reduces. However, the time cost to read data is always the same, since we access the same disk.

Figure 9 shows that ParIS results in performance which is up to x faster than ADS+. Still, ParIS does not completely hide the CPU latency. This is achieved by ParIS+, when or more threads are used, as can be seen in Figures 9 and 10. Note that in ParIS+, more work is performed than in ParIS, because the IndexBulkLoading workers traverse the tree more than once. This cost is more evident in the sockets case, where the threads do not benefit from the use of the L3 cache. However, ParIS+ achieves better overlap of CPU time with I/O cost (Figure 10). Therefore, the time to execute the additional work completely overlaps with the I/O cost when the number of threads is at least , and ParIS+ achieves better performance than ParIS.

Overall, these results demonstrate that not only does the proposed solution completely hide the CPU latency (using cores), but it will continue to do the same when the storage medium of the dataset becomes much faster, e.g., with NVRAMs. In the following, we use 6 cores by default. The results with SSD follow the same trends (in this case ParIS+ completely hides the CPU latency when using cores), and we omit them for brevity.

Figure 11: Index creation time vs double buffer size.
Figure 12: Index creation time (HDD) vs dataset size.
Figure 13: Index creation time (SSD) vs dataset size.
Figure 14: Exact query answering time vs number of cores (HDD).
(a) Lower Bound Calculation (LBC) worker
(b) Real Dist. Calculation (RDC) worker - HDD
(c) Real Dist. Calculation (RDC) worker - SSD

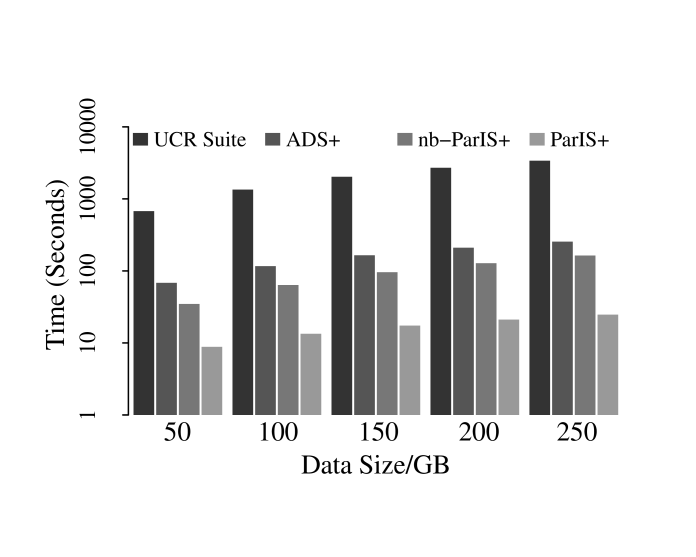

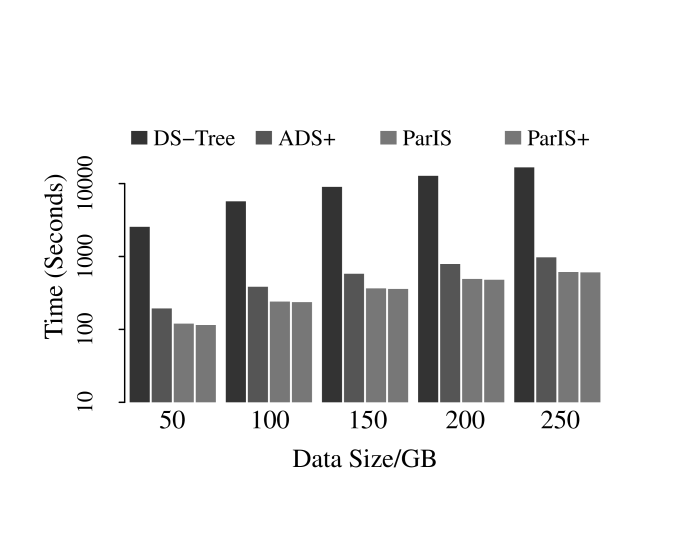

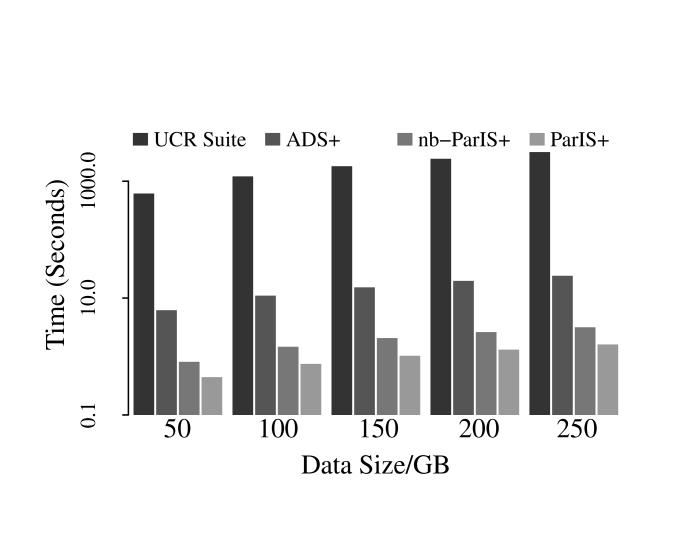

Figure 15: Time cost of ParIS+’s query answering workers, varying the number of cores and the number of workers.

Figure 14 shows the impact of the double buffer size on performance (for the same experiment as in Figure 9). The results show that a good choice for the size of the raw data buffer is 1MB for ParIS, whereas it is 5MB for ParIS+. The reason for this difference is that as the buffer size increases, the IndexBulkLoading workers in ParIS+ traverse the index tree fewer times, and achieve better overlap with the work performed by the coordinator.

Figure 16: Exact query answering time (HDD), varying dataset size.
Figure 17: Exact query answering time (SSD), varying dataset size.
(a) HDD (b) SSD
Figure 18:

Time for a k-NN Classifier that uses ADS+/ParIS to classify one object (100GB dataset).

(a) Index creation time (b) Exact query answering time (HDD) (c) Exact query answering time (SSD)

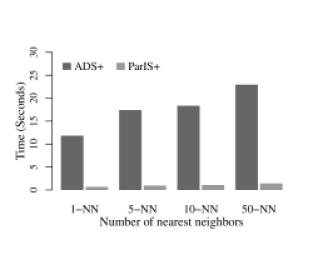

Figure 19: Time cost for index creation and similarity search for real data.
(a) BSF Updates (b) Raw Series to Read
Figure 20: Effort of ParIS and nb-ParIS+ (number of non-pruned raw data series).

We now turn our attention to datasets of increasing size, and additionally compare ParIS to another competitive data series index, DS-Tree. Figures 14 and 14 depict the results for HDD and SSD, respectively. The results show that the performance of ParIS and ParIS+ is always better than that of ADS+ and DS-Tree. Moreover, ParIS+ is always faster than ParIS. This improvement is up to 7% on HDD. However, it is smaller on SSD because the SSD I/O bandwidth in our server is smaller than that of the HDD, resulting in higher read cost. However, the time to build the tree index does not change, and therefore, it now accounts for a smaller percentage of the I/O time. Note that the DS-Tree is always one order of magnitude slower than the other approaches, so we do not consider the DS-Tree in the rest of our experiments.

4.1.2 Query Answering Performance Evaluation

We now present results on ParIS+’s efficiency in query answering.

Figure 14 shows the exact query answering time for ParIS+, nb-ParIS+, and ADS+, as we vary the number of cores. We observe that the performance improves as we increase the number of cores (though the improvement is rather small when we go beyond 6 cores). For example, for 24 cores, nb-ParIS+ is no more than 2 times faster than ADS+, whereas ParIS+ is almost 6 times faster than ADS+.

Figure 15 shows how the time for executing the two stages of query answering in ParIS+ is influenced as we increase the number of cores and the number of threads running on each core. The results show that the LBC workers execution time decreases as the number of cores increases, with the degree of oversubscribing not playing an important role in performance (Figure 15(a)). On the contrary, for the RDC execution time the degree of oversubscribing is crucial, both for HDD (Figures 15(b)) and SSD (Figure 15(c)). The reason is that the LBC workers perform in memory computations, for which it is important to use more cores to execute them faster. On the other hand, the RDC workers perform I/O to read the required data from disk, and thus, oversubscribing is useful to keep the CPU busy at all times. These diagrams justify the use of LBC worker per core and RDC workers per core, which are the default values we have used here.

Figure 20 (log-scale y-axis) shows the performance of query answering for UCR Suite, ADS+, nb-ParIS+, and ParIS+ as the dataset size increases. We observe that nb-ParIS+ is about 2 times faster than ADS+ and about 20 times faster than UCR Suite in general. ParIS+ is much better than this: it is one order of magnitude faster than ADS+, and more than two orders of magnitude faster than UCR Suite. We also note that the performance improvement of ParIS+ gets larger with increasing dataset sizes, so ParIS+ is able to scale better than UCR Suite. This is because ParIS+ can effectively prune the search space, while UCR Suite always has to read all the data from disk.

Figure 20 (log-scale y-axis) shows the performance of exact query answering for the SSD server. All three algorithms, ADS+, nb-ParIS+, and ParIS+ benefit from the SSD’s low random access latency. The performance improvement of ParIS+ is increasing with the size of the dataset (since the number of random disk accesses increases, too), achieving in our experiments performance up to 15x faster than ADS+, and 2000x faster than UCR Suite. (Note that nb-ParIS+ results in lower numbers: it is about 7.5x faster than ADS+ and up to 1000x faster than UCR Suite.)

[Vectorial (SIMD) Lower Bound Distance Calculation] In order to evaluate the effect on performance of our new lower bound distance calculation function that uses SIMD, we conducted an experiment that factors out the disk I/O cost: we measured the execution time of exact similarity search when all data are loaded in main memory. We compared our solution to the case where all computations are performed using Single Instruction Single Data (SISD). The results (refer to Table 1 show that the average time cost per lower-bounding calculation when using SIMD is 3.5x faster than the SISD solution. This is a non-negligible speedup, attributed to the large number of vectorial computations executed in data series similarity search (refer to Algorithm 10).

Implementation technology Time (nanoseconds)
SISD 107.5
SIMD 31.142
Table 1: Time cost of lower bound distance calculations.

4.1.3 Real Datasets

Figure 19(a) shows the result of index creation time cost on the SALD and Seismic real datasets. Similar to our previous results, ParIS+ is faster than ADS+ during index creation: ParIS+ is up to 2.4x faster for SALD, and 2x faster for Seismic. Moreover, ParIS+ is slightly faster than ParIS, as expected. Figure 19(b) (log scale y-axis) reports the exact similarity search time cost on HDD for UCR Suite, ADS+, nb-ParIS+, and ParIS+. The results differ for the two real datasets. For SALD, ParIS+ is 140x faster than UCR Suite and 4x faster than ADS+, while for Seismic, ParIS+ is 130x faster than UCR Suite and 5x faster than ADS+. The SSD experiments show similar, yet more pronounced trends (Figure 19(c), log scale y-axis): ParIS+ is almost 1 order of magnitude faster than ADS+, and 3 orders of magnitude faster than UCR Suite.

We also observe that nb-ParIS+ is much slower than ParIS+ on HDD. Apart from the fact that nb-ParIS+ does not manage in an optimal way the disk read operations and the corresponding load in the individual worker threads, the major reason for its low performance is the lack of communication among the nb-Paris+ worker threads during the execution of the similarity search algorithm. (Recall that during query answering in nb-ParIS+, the workers have a local copy of the BSF, while in ParIS+, all workers share a common copy of BSF.) Consequently, when one worker finds a better BSF value that can help prune more data series, this value (contrary to ParIS+) is not shared with the rest of the workers, who perform unnecessary expensive disk read operations. Figures 20(a) and 20(b), illustrate the above observation. The results show that the extra work for sharing a common BSF pays off for ParIS+, since it leads to both a smaller number of BSF updates (i.e., we arrive to a better BSF earlier), and a reduced number of raw data to read (i.e., we prune more). This gives ParIS+ an edge that is more pronounced on the HDD server, rather than on the SSD one: having to read fewer raw data translates to a smaller number of the expensive HDD seek/rotation operations.

We note that it is possible for nb-ParIS+ to perform better than ParIS+: this happens when the queries are very hard Zoumpatianos et al. (2018) and the resulting pruning ratio is small. In such cases, the creation and manipulation of the (long) candidate list results in high overheads, while the benefit of having all RDC worker threads of ParIS+ communicating in order to update the BSF, which leads to saving some real distance computations, is not significant (results omitted for brevity). Usually though, the query workload is not very hard overall, which justifies the use of ParIS+ as the method of choice.

5 Related Work

[Data series summarization and indexing] Various dimensionality reduction techniques exist for data series, which can then be scanned and filtered Kashyap and Karras (2011); Li et al. (1996) or indexed and pruned Guttman (1984); Assent et al. (2008); Wang et al. (2013); Shieh and Keogh (2008, 2009); Zoumpatianos et al. (2016); Kondylakis et al. (2018); Linardi and Palpanas (2019); Palpanas (2020) during query answering. We follow the same approach of indexing the series based on their summaries, though our work is the first to exploit the parallelization opportunities offered by multi-core architectures, in order to accelerate data series index construction and similarity search. FastQuery is an approach used to accelerate search operations in scientific data Chou et al. (2011), based on the construction of bitmap indices. In essence, the iSAX summarization used in our approach is an equivalent solution, though, specifically designed for sequences.

[Data structures for SIMD] While the interest in using SIMD for improving performance is not new Zhou and Ross (2002), there are still many algorithms that do not take advantage of this hardware characteristic. The problem of developing a SIMD-friendly B+-Tree index was recently studied Zeuch et al. (2014), with a focus on a basic B+-Tree method, the k-ary search algorithm. For data series in particular, previous work has used SIMD for Euclidean distance computations Tang et al. (2016). In our work, we go beyond this straightforward use of SIMD, and we propose an algorithm that uses SIMD for the computation of lower bounds, which involve branching operations.

[Modern Hardware] Multi-core CPUs offer thread parallelism through multiple cores and simultaneous multi-threading (SMT). Thread-Level Parallelism (TLP) methods, like multiple independent cores and hyper-threads are commonly used to increase algorithm efficiency Gepner and Kowalik (2006). A recent study proposed a high performance temporal index similar to time-split B-tree (TSB-tree), called TSBw-tree, which focuses on transaction time databases Lomet and Nawab (2015). However, this is designed for temporal data, which are 2-dimensional, while in our case, data series can have thousands of dimensions (i.e., the length of the sequence). Graphics Processing Units (GPUs) are another modern hardware option, which allows for massively parallel computations. A recent study described the use of GPUs for accelerating similarity search in a Trajectory Indexing system Gowanlock and Casanova (2016). In this work, we do not use GPUs.

[Scans vs indexing] Even though recent works have shown that sequential scans can be performed efficiently Rakthanmanon et al. (2012); Mueen et al. (2014), such techniques are applicable when the dataset consists of a single, very long data series, and queries are looking for potential matches in small subsequences of this long series. Such approaches, in general, do not provide any benefit when the dataset is composed of a large number of small data series, like in our case. Therefore, indexing is required in order to efficiently support data exploration tasks, where the query workload is not known in advance.

6 Conclusions

We presented ParIS and ParIS+, the first data series indices that exploit multi-core architectures, leading to performance 2-3 orders of magnitude faster than previous approaches. In our future work we will study in more depth parallel I/O techniques Ghodsnia et al. (2014), combine our approach with solutions developed for distributed systems Yagoubi et al. (2019), extend it to support the DTW distance, and study other hardware parallelization opportunities, e.g., GPUs and FPGAs.

Acknowledgments Work partially supported by the Chinese Scholarship Council, FMJH Program PGMO, EDF, Thales and HIPEAC 4. Part of work performed while P. Fatourou was visiting LIPADE, and while B. Peng was visiting CARV, FORTH ICS.

References

  • R. Agrawal, C. Faloutsos, and A. N. Swami (1993) Efficient similarity search in sequence databases. In FODO, Cited by: §2.1.
  • A. Ailamaki (2015) Databases and hardware: the beginning and sequel of a beautiful friendship. VLDB. Cited by: §1.
  • I. Assent, R. Krieger, F. Afschari, and T. Seidl (2008) The ts-tree: efficient time series search and retrieval. In EDBT, Cited by: §5.
  • A. J. Bagnall, R. L. Cole, T. Palpanas, and K. Zoumpatianos (2019) Data series management (dagstuhl seminar 19282). Dagstuhl Reports 9 (7). Cited by: §1.
  • P. Boniol, M. Linardi, F. Roncallo, and T. Palpanas (2020)

    Automated Anomaly Detection in Large Sequences

    .
    In ICDE, Cited by: §1.
  • P. Boniol and T. Palpanas (2020) Series2Graph: Graph-based Subsequence Anomaly Detection for Time Series. PVLDB (). Cited by: §1.
  • Botao Peng (supervised by Panagiota Fatourou and Themis Palpanas) (2020) Data Series Indexing Gone Parallel. In ICDE PhD Workshop, Cited by: §1.
  • A. Camerra, J. Shieh, T. Palpanas, T. Rakthanmanon, and E. Keogh (2014) Beyond One Billion Time Series: Indexing and Mining Very Large Time Series Collections with iSAX2+. KAIS 39 (1), pp. 123–151. Cited by: §1, §2.1, §2.2, §2.2, §4.
  • V. Chandola, A. Banerjee, and V. Kumar (2009) Anomaly detection: a survey. CSUR. Cited by: §2.1.
  • J. Chou, K. Wu, et al. (2011) Fastquery: a parallel indexing system for scientific data. In CLUSTER, pp. 455–464. Cited by: §5.
  • I. Coorporation (2016) Intel 64 and ia-32 architectures optimization reference manual. Cited by: §3.3.1.
  • K. Echihabi, K. Zoumpatianos, T. Palpanas, and H. Benbrahim (2019a) Return of the Lernaean Hydra: Experimental Evaluation of Data Series Approximate Similarity Search. PVLDB. Cited by: §1.
  • K. Echihabi, K. Zoumpatianos, T. Palpanas, and H. Benbrahim (2019b) The lernaean hydra of data series similarity search: an experimental evaluation of the state of the art. PVLDB. Cited by: §1.
  • P. Gepner and M. F. Kowalik (2006) Multi-core processors: new way to achieve high system performance. In PAR ELEC, Cited by: §5.
  • P. Ghodsnia, I. T. Bowman, and A. Nica (2014) Parallel i/o aware query optimization. In SIGMOD, Cited by: §6.
  • A. Gogolou, T. Tsandilas, T. Palpanas, and A. Bezerianos (2019) Progressive similarity search on time series data. In Proceedings of the Workshops of the EDBT/ICDT Joint Conference, Cited by: §1.
  • M. G. Gowanlock and H. Casanova (2016) Distance threshold similarity searches: efficient trajectory indexing on the GPU. IEEE Trans. Parallel Distrib. Syst. 27 (9). Cited by: §5.
  • A. Guttman (1984) R-trees: A dynamic index structure for spatial searching. In SIGMOD, pp. 47–57. Cited by: §5.
  • [19] (2016) Incorporated Research Institutions for Seismology – Seismic Data Access. Note: http://ds.iris.edu/data/access/ Cited by: §4.
  • S. Kashyap and P. Karras (2011)

    Scalable knn search on vertically stored time series

    .
    In SIGKDD, pp. 1334–1342. Cited by: §5.
  • E. Keogh, K. Chakrabarti, M. Pazzani, and S. Mehrotra (2001) Dimensionality reduction for fast similarity search in large time series databases. KIS. Cited by: §1, §2.2.
  • H. Kondylakis, N. Dayan, K. Zoumpatianos, and T. Palpanas (2018) Coconut: A scalable bottom-up approach for building data series indexes. PVLDB 11 (6), pp. 677–690. Cited by: §1, §5.
  • H. Kondylakis, N. Dayan, K. Zoumpatianos, and T. Palpanas (2019) Coconut palm: static and streaming data series exploration now in your palm. In SIGMOD, Cited by: §1.
  • C. Li, P. S. Yu, and V. Castelli (1996) HierarchyScan: A hierarchical similarity search algorithm for databases of long sequences. In ICDE, pp. 546–553. Cited by: §5.
  • M. Linardi and T. Palpanas (2018) ULISSE: ultra compact index for variable-length similarity search in data series. In ICDE, Cited by: §1.
  • M. Linardi and T. Palpanas (2019) Scalable, variable-length similarity search in data series: the ulisse approach. PVLDB. Cited by: §1, §5.
  • D. B. Lomet and F. Nawab (2015) High performance temporal indexing on modern hardware. In ICDE, Cited by: §5.
  • C. Lomont (2011) Introduction to intel advanced vector extensions. Intel White Paper, pp. 1–21. Cited by: §2.1.
  • A. Mueen, H. Hamooni, and T. Estrada (2014) Time series join on subsequence correlation. In ICDM, pp. 450–459. Cited by: §5.
  • A. Mueen, E. J. Keogh, Q. Zhu, S. Cash, M. B. Westover, and N. B. Shamlo (2011) A disk-aware algorithm for time series motif discovery. DAMI 22 (1-2), pp. 73–105. Cited by: §2.1.
  • A. Mueen, S. Nath, and J. Liu (2010) Fast approximate correlation for massive time-series data. In SIGMOD, Cited by: §2.1.
  • T. Palpanas and V. Beckmann (2019) Report on the First and Second Interdisciplinary Time Series Analysis Workshop (ITISA). SIGMOD Rec. 48 (3), pp. . Cited by: §1, §1.
  • T. Palpanas (2015) Data series management: the road to big sequence analytics. SIGMOD Record. Cited by: §1, §1.
  • T. Palpanas (2017) The parallel and distributed future of data series mining. In HPCS, Cited by: §1, §1.
  • T. Palpanas (2020) Evolution of a Data Series Index. Communications in Computer and Information Science (CCIS) (). Cited by: §1, §2.2, §5.
  • B. Peng, P. Fatourou, and T. Palpanas (2018) ParIS: the next destination for fast data series indexing and query answering. In IEEE BigData, Cited by: footnote 2.
  • B. Peng, P. Fatourou, and T. Palpanas (2020) MESSI: In-Memory Data Series Indexing. In ICDE, Cited by: §1.
  • T. Rakthanmanon, B. J. L. Campana, A. Mueen, G. E. A. P. A. Batista, M. B. Westover, Q. Zhu, J. Zakaria, and E. J. Keogh (2012) Searching and mining trillions of time series subsequences under dynamic time warping. In SIGKDD, Cited by: §1, §1, §2.1, §4, §5.
  • T. Rakthanmanon, E. J. Keogh, S. Lonardi, and S. Evans (2011) Time series epenthesis: clustering time series streams requires ignoring some data. In ICDM, pp. 547–556. Cited by: §2.1.
  • J. Shieh and E. Keogh (2008) I sax: indexing and mining terabyte sized time series. In SIGKDD, Cited by: §1, §1, §2.1, §2.2, §4, §5.
  • J. Shieh and E. Keogh (2009) iSAX: disk-aware mining and indexing of massive time series datasets. DMKD (1). Cited by: §2.1, §5.
  • [42] (2018) Source code and datasets used in this paper. Note: http://www.mi.parisdescartes.fr/~themisp/paris/ Cited by: §4.
  • [43] (2018) Southwest university adult lifespan dataset (sald). Note: http://fcon_1000.projects.nitrc.org/indi/retro/sald.html Cited by: §4.
  • C. W. Tan, G. I. Webb, and F. Petitjean (2017) Indexing and classifying gigabytes of time series under time warping. In ICDM, Cited by: §1.
  • B. Tang, M. L. Yiu, Y. Li, et al. (2016) Exploit every cycle: vectorized time series algorithms on modern commodity cpus. In IMDM, Cited by: §2.1, §3.3.1, §5.
  • Y. Wang, P. Wang, J. Pei, W. Wang, and S. Huang (2013) A data-adaptive and dynamic segmentation index for whole matching on time series. VLDB 6 (10). Cited by: §1, §2.1, §4, §4, §5.
  • L. Xiao, Y. Zheng, W. Tang, G. Yao, and L. Ruan (2013) Parallelizing dynamic time warping algorithm using prefix computations on gpu. In (HPCC_EUC), pp. 294–299. Cited by: §1.
  • D. Yagoubi, R. Akbarinia, F. Masseglia, and T. Palpanas (2017) DPiSAX: massively distributed partitioned isax. In ICDM, Cited by: §1, §1.
  • D. Yagoubi, R. Akbarinia, F. Masseglia, and T. Palpanas (2019) Massively distributed time series indexing and querying. TKDE 32 (1). Cited by: §1, §1, §6.
  • B. Yi and C. Faloutsos (2000) Fast time sequence indexing for arbitrary lp norms. In VLDB, Cited by: §4.
  • S. Zeuch, J. Freytag, and F. Huber (2014) Adapting tree structures for processing with SIMD instructions. In EDBT, Cited by: §5.
  • J. Zhou and K. A. Ross (2002) Implementing database operations using simd instructions. In SIGMOD, Cited by: §5.
  • K. Zoumpatianos, S. Idreos, and T. Palpanas (2016) ADS: the adaptive data series index. VLDB J. 25 (6). Cited by: §1, §1, §1, §2.1, §2.2, §3, §4, §4, §5, footnote 3.
  • K. Zoumpatianos, Y. Lou, I. Ileana, T. Palpanas, and J. Gehrke (2018) Generating data series query workloads. VLDBJ 27(6) (). Cited by: §4.1.3.
  • K. Zoumpatianos and T. Palpanas (2018) Data series management: fulfilling the need for big sequence analytics. In ICDE, Cited by: §1.
