Pareto Optimization for Active Learning under Out-of-Distribution Data Scenarios

07/04/2022
by   Xueying Zhan, et al.
City University of Hong Kong
Hong Kong Polytechnic University
Baidu, Inc.
The Hong Kong Polytechnic University
0

Pool-based Active Learning (AL) has achieved great success in minimizing labeling cost by sequentially selecting informative unlabeled samples from a large unlabeled data pool and querying their labels from oracle/annotators. However, existing AL sampling strategies might not work well in out-of-distribution (OOD) data scenarios, where the unlabeled data pool contains some data samples that do not belong to the classes of the target task. Achieving good AL performance under OOD data scenarios is a challenging task due to the natural conflict between AL sampling strategies and OOD sample detection. AL selects data that are hard to be classified by the current basic classifier (e.g., samples whose predicted class probabilities have high entropy), while OOD samples tend to have more uniform predicted class probabilities (i.e., high entropy) than in-distribution (ID) data. In this paper, we propose a sampling scheme, Monte-Carlo Pareto Optimization for Active Learning (POAL), which selects optimal subsets of unlabeled samples with fixed batch size from the unlabeled data pool. We cast the AL sampling task as a multi-objective optimization problem, and thus we utilize Pareto optimization based on two conflicting objectives: (1) the normal AL data sampling scheme (e.g., maximum entropy), and (2) the confidence of not being an OOD sample. Experimental results show its effectiveness on both classical Machine Learning (ML) and Deep Learning (DL) tasks.

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

10/16/2020

ALdataset: a benchmark for pool-based active learning

Active learning (AL) is a subfield of machine learning (ML) in which a l...
10/10/2019

Active Learning with Importance Sampling

We consider an active learning setting where the algorithm has access to...
10/23/2021

Confidence-Aware Active Feedback for Efficient Instance Search

Relevance feedback is widely used in instance search (INS) tasks to furt...
03/25/2022

A Comparative Survey of Deep Active Learning

Active Learning (AL) is a set of techniques for reducing labeling cost b...
06/27/2012

Batch Active Learning via Coordinated Matching

Most prior work on active learning of classifiers has focused on sequent...
06/05/2021

Low Budget Active Learning via Wasserstein Distance: An Integer Programming Approach

Given restrictions on the availability of data, active learning is the p...
01/31/2023

Deep Active Learning for Scientific Computing in the Wild

Deep learning (DL) is revolutionizing the scientific computing community...

1 Introduction

In real-life applications, large amounts of unlabeled data are easy to be obtained, but labeling them is expensive and time-consuming (Shen et al., 2004). AL is an effective way to solve this problem – it achieves greater accuracy with less training data by selecting the most informative or representative instances from which it learns, and then querying their labels from oracles/annotators (Zhan et al., 2021b). Current AL sampling strategies have been tested in relatively simple and clean well-studied datasets (Kothawade et al., 2021) like MNIST (Deng, 2012) and CIFAR10 (Krizhevsky et al., 2009) datasets. However, in realistic scenarios, when collecting unlabeled data samples, unrelated data samples (i.e., out-of-domain data) might be mixed in with the task-related data, e.g., images of letters when the task is to classify images of digits (Du et al., 2021). Most AL methods are not robust to OOD data scenarios. For instance, Karamcheti et al. (2021) has demonstrated empirically

that collective outliers hurt AL performances under Visual Question Answering (VQA) tasks.

Meanwhile, selecting and querying OOD samples that are invalid for the target model will waste the labeling cost (Du et al., 2021), and make the AL sampling process less effective.

There is a natural conflict between uncertainty-based AL sampling strategy and OOD data detection – most AL sampling schemes, especially uncertainty-based measures, prefer selecting data that are hardest to be classified by the current basic learner/classifier, but these data might also

Figure 1: Scatter plot of the AL score (entropy) and ID confidence score (negative Mahalanobis distance) of unlabeled data from EX8 dataset. AL will select high entropy data first, which includes most of the OOD data. Larger ID score indicates the data is more likely to be ID.

be OOD samples. For example, a typical uncertainty-based AL method is Maximum Entropy (ENT) (Lewis and Catlett, 1994; Shannon, 2001), which selects data whose predicted class probabilities have largest entropy. However, ENT is also a typical OOD detection method – high entropy of the predicted class distribution (high predictive uncertainty) suggests that the input may be OOD (Ren et al., 2019). Therefore, when naively applying uncertainty-based AL in OOD data scenarios, OOD samples are more likely to be selected for labeling than ID data. Fig. 1 shows an example on the EX8 dataset (Ng, 2008), which illustrates this conflict. Moreover, almost all of the OOD data has high ENT, and thus the AL algorithm is more likely to select OOD data for labeling, thus wasting the labeling budget.

Although the OOD problem has been demonstrated to affect AL in real-life applications (Karamcheti et al., 2021), there are only a few studies on it (Kothawade et al., 2021; Du et al., 2021). In (Kothawade et al., 2021), OOD is only considered as a sub-task and its sub-modular mutual information based sampling scheme is both time and memory consuming. (Du et al., 2021) needs to pre-train extra self-supervised models like SimCLR (Chen et al., 2020), and also introduces hyper-parameters to trade-off between semantic and distinctive scores, whose values affect the final performance (see Section 4.3 in (Du et al., 2021)). These two factors limit the range of its application. We compared our work with (Du et al., 2021), (Chen et al., 2020) in detail in Appendix A.4.1.

In this paper, to address the above issues, we advocate simultaneously considering both the AL criterion and ID confidence when designing AL sampling strategies. Since these two objectives are conflict, we define the AL sampling process under OOD data scenarios as a multi-objective optimization problem (Seferlis and Georgiadis, 2004). Unlike traditional methods for handling multiple-criteria based AL, such as weighed-sum optimization (Zhan et al., 2022) or two-stage optimization (first select a subset based on one objective then make final decisions based on the other objective) (Shen et al., 2004), we propose a novel and flexible batch-mode Pareto Optimization Active Learning (POAL) framework with fixed batch size. The contributions of this paper are as follows:

  1. We propose AL under OOD data scenarios within the framework of a multi-objective optimization problem.

  2. Our framework is flexible and can accommodate different combinations of AL methods and OOD detection methods according to various target tasks. In this paper, we use ENT as the AL objective and Mahalanobis distance based ID confidence scores.

  3. Naively applying Pareto optimization to AL will result in a Pareto Front with non-fixed size, which can introduce large computational cost. To enable efficient Pareto optimization, we propose a Monte-Carlo (MC) Pareto optimization algorithm for fixed-size batch-mode AL.

  4. Our framework works well on both classical ML and DL tasks, and we propose pre-selecting and early-stopping techniques to reduce the computational cost on large-scale datasets.

  5. Our framework has no trade-off hyper-parameters for balancing the AL and OOD objectives. This is crucial since i) AL is data-insufficient, and there might be no extra validation set for tuning hyper-parameters; or ii) hyper-parameter tuning in AL can be label expensive, since every change of the hyper-parameters causes AL to label new examples, thus provoking substantial labeling inefficiency (Ash et al., 2020).

2 Related Work

Pool-based Active Learning.

Pool-based AL has been well-studied in previous years (Settles, 2009; Zhan et al., 2021b; Ren et al., 2021; Zhan et al., 2022)

and widely adopted in various tasks like natural language processing

(Dor et al., 2020), semantic parsing (Duong et al., 2018), object detection (Haussmann et al., 2020), image classification/segmentation (Gal et al., 2017; Yoo and Kweon, 2019)

, etc. Most pool-based AL sampling schemes rely on fixed heuristic sampling strategies, which follow two main branches: uncertainty-based measures and representative/diversity-based measures

(Ren et al., 2021; Zhan et al., 2022). Uncertainty-based approaches aim to select data that maximally reduce the uncertainty of target basic learner (Ash et al., 2020). Typical uncertainty-based measures that perform well on classical ML tasks (e.g., Query-by-Committee (Seung et al., 1992), ENT (Lewis and Catlett, 1994), Bayesian Active Learning by Disagreement BALD (Houlsby et al., 2011)) have also been generalized to DL tasks (Wang and Shang, 2014; Gal et al., 2017; Beluch et al., 2018; Zhan et al., 2022). Representative/diversity-based methods select batches of unlabeled data that are most representative of the unlabeled set. Typical methods include Hierarchical sampling (Dasgupta and Hsu, 2008), -Means, and Core-Set approach (Sener and Savarese, 2018). However, these methods measure representativeness/diversity using pair-wise distances/similarities calculated across the whole data pool, which is computationally expensive. Both of these two branches of AL methods might not work well under OOD data scenarios. As discussed in Section 1, uncertainty-based measure like ENT are not robust to OOD samples, since OOD samples are naturally difficult to be classified. Representative/diversity-based methods are also not robust to OOD scenarios, since outliers/OOD samples that are far from other data are more likely to be selected first as representative data. To address these issues, we proposed our POAL framework, which can be adopted to various AL sampling scheme and OOD data scenarios.

Out-of-Distribution.

Detecting OOD data is of vital importance in ensuring the reliability and safety of ML systems in real-life applications (Yang et al., 2021), since the OOD problem severely influences real-world predictions/decisions. For example, in medical diagnosis, the trained classifier could wrongly classify a healthy OOD sample as pathogenic (Ren et al., 2019). Existing methods compute ID confidence scores based on the predictions of (ensembles of) classifiers trained on ID data, e.g., the ID confidence can be the entropy of the predictive class distribution (Ren et al., 2019). Hendrycks and Gimpel (2017)

observed that a well-trained neural network assigns higher softmax scores to ID data than OOD data. Follow-up work

ODIN (Liang et al., 2017) amplifies the effectiveness of OOD detection with softmax score by considering temperature scaling and input pre-processing. Others (Lee et al., 2018; Cui et al., 2020) proposed a simple and effective method for detecting both OOD and adversarial data samples based on Mahalanobis distance. Due to its superior performance compared with other OOD strategies (see Table 1 in (Ren et al., 2019)), our POAL framework uses Mahalanobis distance as the basic criterion for calculating the ID confidence score. Nonetheless, our framework is general and any ID confidence score could be adopted.

Multi-objective optimization.

Many real-life applications require optimizing multiple objectives that are conflicting with each other. For example, in the sensor placement problem, the goal is to maximize sensor coverage while minimizing deployment costs (Watson et al., 2004). Since there is no single solution that simultaneously optimizes each objective, Pareto optimization can be used to find a set of “Pareto optimal” solutions with optimal trade-offs of the objectives (Miettinen, 2012). A decision maker can then select a final solution based on their requirements. Compared with traditional optimization methods for multiple objectives (e.g., weighted-sum (Marler and Arora, 2010)), Pareto optimization algorithms are designed via different meta-heuristics without any trade-off parameters (Zhou et al., 2011; Liu et al., 2021).

Besides optimization of the two conflicting objectives (AL score and ID confidence), we also need to perform batch-mode subset selection. In previous work on subset selection, Pareto Optimization Subset Selection (POSS) (Qian et al., 2015) solves the subset selection problem by optimizing two objectives simultaneously: maximizing the criterion function, and minimizing the subset size. However, POSS does not support more than one criterion and cannot work with fixed subset size, and thus is not suitable for our task. Therefore, we propose Monte-Carlo POAL, which achieves: i) optimization of multiple objectives; 2) no extra trade-off parameters for tuning; iii) subset selection with fixed-size.

3 Methodology

In this section, we introduce our definition of pool-based AL under OOD data scenarios, the overview of POAL, and its detailed implementations.

3.1 Problem Definition

We consider a general pool-based AL process for a -class classification task with feature space , label space under OOD data scenarios. We assume that the oracle can provide a fixed number of labels, and when queried with an OOD sample the oracle will return an “OOD” label111In our implementation, the OOD label is -1. to represent data outside of the specified classification task. Let be the number of labels that the oracle can provide, i.e., the budget. Our goal is to select the most informative instances with fewer OOD samples so as to obtain the highest classification accuracy. To reduce the computational cost, we consider batch-mode AL where batches of samples with fixed size are selected and queried. We denote the AL acquisition function as , where refers to AL sampling strategy, and the basic learner/classifier as . We denote the current labeled set as and the large unlabeled data pool as . The labeled data are sampled i.i.d. over data space , i.e., , and . Under OOD data scenarios, active learners may query OOD samples whose labels are not in . To simplify the problem settings, only ID samples are added to .

3.2 Pareto Optimization for Active Learning

In this section we introduce our proposed POAL framework as outlined in Figure 2. In each AL iteration, we firstly utilize the clean labeled set that only contains ID data for training a basic classifier

and constructing class-conditional Gaussian Mixture Models (

GMMs) for detecting OOD samples in . Based on classifier , AL acquisition function and GMMs, we calculate the informativeness/uncertainty score and ID confidence score for each unlabeled sample in . We then apply our proposed Pareto optimization algorithm for fixed-size subset selection, which outputs a batch of unlabeled samples with both higher informativeness/uncertainty score and higher ID confidence score. We next introduce each component of our POAL framework.

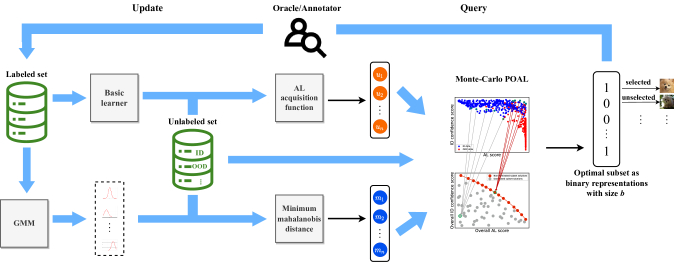

Figure 2: Our proposed Monte-Carlo POAL framework.

In each AL iteration, we train a basic learner and estimate

GMM

s (in DL tasks, we estimate multivariate Gaussian distributions with low- and high- feature levels) to calculate the AL score and the Mahalanobis distance-based ID confidence score for each unlabeled sample. We then construct Monte Carlo

POAL by randomly generating candidate solutions with fixed batch size and updating the Pareto set iteratively to get an optimal subset solution.

3.3 AL sampling strategy

Typical pool-based AL sampling methods select data by maximizing the acquisition function , i.e., . Different from the typical approach, in our work we use the AL scores for the whole unlabeled pool for the subsequent Pareto optimization. Thus, we convert the acquisition function to a querying density function via . In this paper we use entropy (ENT) as our basic AL sampling strategy. ENT selects data samples whose predicted class probabilities have largest entropy, and its acquisition function is , where is the posterior class probability using classifier .

Our framework is flexible due to its capability to easily incorporate other AL sampling strategies. A basic requirement is that its acquisition function can be easily converted to a querying density function. In general, AL methods that explicitly provide per-sample scores (e.g., class prediction uncertainty) or inherently provide pair-wise rankings among the unlabeled pool (e.g., -Means) can be easily converted to a querying density. Thus, many uncertainty-based measure like Query-by-Committee (Seung et al., 1992), Bayesian Active Learning by Disagreements (BALD) (Houlsby et al., 2011; Gal et al., 2017), and Loss Prediction Loss (LPL) (Yoo and Kweon, 2019) are applicable since they explicitly provide uncertainty information per sample. Also, -Means and Core-Set (Sener and Savarese, 2018) approaches are applicable since they provide pair-wise similarity information for ranking. On the other hand, AL approaches that only provide overall scores for the candidate subsets, such as Determinantal Point Processes (Bıyık et al., 2019; Zhan et al., 2021a), are unable to be used in our framework.

3.4 ID confidence score via Mahalanobis distance

The motivation of employing Mahalanobis distance for the ID confidence score in AL is from (Lee et al., 2018). Intuitively, ID unlabeled data can be distinguished from OOD unlabeled data since the ID unlabeled data should be closer to the ID labeled data () in feature space. One possible solution is to calculate the minimum distance between an unlabeled sample and the labeled data of its predicted label (pseudo label provided by classifier ) as in (Du et al., 2021), and if this minimum distance is large then the unlabeled sample is likely to be OOD, and vice versa. However, calculating pair-wise distances between all labeled and unlabeled data is computationally expensive.

A more efficient method is to summarize the ID labeled data via a data distribution (probability density function) and then compute distances of the unlabeled data to the ID distribution. Since we adopt GMMs to represent the data distribution, then our ID confidence score is based on Mahalanobis distance.

AL for classical ML models focuses on training basic learner with a fixed feature representations, while AL for DL jointly optimizes the feature representation and classifier (Zhan et al., 2021b; Ren et al., 2021). Considering that the differences between AL for ML and DL can influence the estimation of the data distributions, and thus the Mahalanobis distance calculation, we adopt different settings as follows.

Classical ML tasks.

We represent the labeled data distribution as a GMM, which is estimated from . Specifically, since we have labels in , we represent each class with its own class-conditional GMM,

(1)

where

are the mixing coefficient, mean vector and covariance matrix of the

-th Gaussian component of the -th class, and is a multivariate Gaussian distribution with mean and covariance . The parameters of the class-conditional GMM for class are estimated from all the labeled data for class , using a maximum likelihood estimation (MLE) (Reynolds, 2009)

and the Expectation-Maximization (EM) algorithm

(Dempster et al., 1977). Finally, inspired by (Lee et al., 2018), we define the ID confidence score via the Mahalanobis distance between the unlabeled sample and its closest Gaussian component in any class,

(2)

where the Mahalanobis distance is .

DL tasks.

For DL, we follow (Lee et al., 2018) to calculate , since it makes good use of both low- and high-level features generated by the deep neural network (DNN) and also applies calibration techniques, e.g., input-preprocessing (Liang et al., 2018) and feature ensemble Lee et al. (2018) to improve the OOD detection capability. Specifically, denote as the output of the -th layer of a DNN for input . For feature ensemble, class-conditional Gaussian distributions with shared covariance are estimated for each layer and for each class by calculating the empirical mean and shared covariance :

(3)

Next we find the closest class to an for each layer via An input pre-processing step is applied to make the ID/OOD data more separable by adding a small perturbation to : , where controls the perturbation magnitude222In our experiments we follow (Lee et al., 2018) and set .. Finally, the ID confidence score is obtained by averaging the Mahalanobis distances for over the layers,

(4)

3.5 Monte-Carlo Pareto Optimization Active Learning

Our framework for AL for OOD data contains two criteria, the AL informativeness score and the ID confidence score. In normal AL, there are two typical strategies to perform sampling with multiple AL criteria: i) weighted-sum optimization and ii) two-stage optimization (Zhan et al., 2022). However, both these optimization strategies have drawbacks in our AL for OOD scenario. In weighted-sum optimization, the objective functions are summed up with weight : . However, this introduces an extra hyper-parameter for tuning, but the true proportion of OOD data samples in is unknown, and thus, we cannot tell which criterion is more important. Furthermore, due to the lack of data, there is not enough validation data for properly tuning . For two-stage optimization, a subset of possible ID samples is first selected with threshold , and then the most informative samples in the subset are selected by maximizing . This yields a similar problem as weighted-sum optimization: if has not been properly selected, we might i) select OOD samples in the first stage (when is too large), and these OOD samples will be more likely to be selected first due to their higher informativeness score in the second stage; ii) select ID samples that are close to existing samples (when is too small), and due to the natural conflict between the two criteria, the resulting subset will be non-informative, thus influencing the AL performance.

Considering this peculiar contradiction between AL and OOD criteria, developing a combined optimization method that does not require manual tuning of this tradeoff is of vital importance. Therefore, we propose POAL for balancing and automatically without requiring hyper-parameters. Consider one iteration of the AL process, where we need to select samples from . The size of the search space is the number of combinations choose , , and the search is an NP-hard problem in general.

Inspired by (Qian et al., 2015), we use a binary vector to represent a candidate subset: , where represents -th sample is selected, and otherwise. For the unlabeled set , we denote the vector of AL scores as and the vector of ID confidence scores as . The two criteria scores for the subset are then computed as and .333To keep the two criteria consistent, we normalize the ID confidence scores: . We next define the following rank relationships between two candidate subsets and (Qian et al., 2015):

  • denotes that is dominated by , such that both scores for are no better than those of , i.e., and .

  • denotes that is strictly dominated by , such that has one strictly smaller score (e.g., ) and one score that is not better (e.g., ).

  • and are incomparable if both is not dominated by and is not dominated by .

Our goal is to find optimal subset solution(s) , with , that dominates the remaining subset solutions also satisfy . Due to the large searching space, it is impossible to traverse all possible subset solutions. Thus we propose Monte-Carlo POAL for fixed-size subset selection. Monte-Carlo POAL iteratively generates a candidate solution at random, and checks it against the current Pareto set . If there is no candidate solution in that strictly dominates , then is added to and all candidate solutions in that are dominated by are removed.

Our proposed Monte-Carlo POAL method is inspired by POSS (Qian et al., 2015), but there are essential differences. POSS only supports one criterion (e.g., just ), while the other criterion is that the subset size does not exceed (i.e., ). This results in different subset sizes for the candidate solutions in when using POSS, and POSS can finally pick one solution from by maximizing/minimizing the only criterion. Moreover, in POSS, in each iteration, the generated solution is not completely random, as it is related to candidate solutions in . POSS first randomly selects one solution in , then generates a new solution by randomly flipping each bit of selected solution with equal probability, which may results in the candidate subset size that is not . However, in our task, we need fixed-size subset solutions and we have two conflict criteria, and thus POSS cannot satisfy our requirements. Due to these differences in how candidate solutions are generated and the number of criteria , the theoretical bound on the number of iterations needed for convergence of POSS () (Qian et al., 2015) cannot be applied to our Monte-Carlo POAL method. Thus, when should the iterations of our Monte-Carlo POAL terminate? We noticed in previous research (Qian et al., 2017) that the Pareto set empirically converges much faster than (see Fig. 2 in (Qian et al., 2017)). Therefore, we propose an early-stopping technique. Detailed comparisons between POAL and POSS are in Appendix A.4.2.

Early-stopping.

The Monte-Carlo POAL should terminate when there is no significant change in the Pareto set after many successive iterations, which indicates that a randomly generated has little probability to change since most non-dominated solutions are already included in

. We propose an early-stopping strategy with reference to automatic termination techniques in Multi-objective Evolutionary Algorithms

(Saxena et al., 2016). Firstly, we need to define the difference between two Pareto sets, and . We represent each candidate solution as a 2-dimensional feature vector, . The two Pareto sets can then be compared via their feature vector distributions, and . In our paper, we employed maximum mean discrepancy (MMD) (Gretton et al., 2006) to measure the difference:

(5)

The distance is based on the notion of embedding probabilities in a reproducing kernel Hilbert space . In our work, we utilize the RBF kernel with various bandwidths. Second, at iteration

, we compute the mean and standard deviation (SD) of the MMD scores in a sliding window of the previous

iterations,

(6)

If there is no significant difference in the mean and SD after several iterations, (e.g., and do not change within 2 decimal points), then we assume that has converged and we can stop iterating.

Finally, after obtaining the converged , we need to pick one non-dominated solution in as the final subset selection. We denote the final selection as , where is the final selection criteria. In our work, we set . That is, we select the subset with maximum intersection with other non-dominated solutions. The maximum intersection operation implies a weighting process, where the final selected subset contains samples that were commonly used in other non-dominated solutions. The whole process of our Monte-Carlo POAL with early stopping is detailed in Appendix Algorithm A1.

Pre-selection for large-scale data.

We next consider using POAL on large datasets. The searching space of size is extremely large for a large unlabeled data pool. We propose an optional pre-selecting technique to decrease the searching space. Our goal is to select an optimistic subset from . We conduct naive Pareto optimization on the original unlabeled data pool. Firstly, an optimal Pareto front , a set of non-dominated data points, is selected by normal Pareto optimization with objectives and . Since the size of is not fixed and might not meet our requirement of the minimum pre-selected subset size , we iteratively update by firstly adding the data points in to , and then excluding from for the next round of naive Pareto optimization. This iteration terminates when . The pseudo code of pre-selecting process is presented in Appendix Algorithm A2. The pre-selected subset size is set according to personal requirements (i.e., the computing resources and time budget). In our paper, we set .

4 Experiment

In this section, we evaluate the effectiveness of our proposed Monte-Carlo POAL on both classical ML and DL tasks.

4.1 Experimental Design

Datasets.

For classical ML, we use pre-processed data from LIBSVM(Chang and Lin, 2011):

  • Synthetic dataset EX8 uses EX8a as ID data and EX8b as OOD data (Ng, 2008).

  • Vowel (Asuncion and Newman, 2007; Aggarwal and Sathe, 2015) has classes, and we use classes as ID data and the remaining for OOD data.

  • Letter (Frey and Slate, 1991; Asuncion and Newman, 2007) has classes. We use 10 classes (a-j) as ID and the remaining 16 classes (k-z) as OOD. We construct datasets with increasing OOD classes gradually: letter(a-k), letter(a-l),…, letter(a-z).

For DL, we adopt the following image datasets:

  • CIFAR10 (Krizhevsky et al., 2009) has classes, and we construct two datasets: CIFAR10-04 splits the classes according to ID:OOD ratio of 6:4, and CIFAR10-06 splits data with ratio as 4:6.

  • CIFAR100 (Krizhevsky et al., 2009) has classes, and we construct CIFAR100-04 and CIFAR100-06 using the same ratios as CIFAR10.

Baselines.

Our work helps existing AL methods select more informative ID data samples while preventing OOD data selection. Thus, in our experiments, we adopt ENT as our basic AL sampling strategy for our POAL framework. We compare against baseline methods without OOD detection: 1) normal ENT; 2) random sampling (RAND); 3) Mahalanobis distance as sampling strategy (MAHA). To show the effectiveness of our MC Pareto optimization, we compare against 2 alternative combination strategies: 1) weighted sum optimization (WeightedSum) using weights ; 2) two-stage optimization (TwoStage) using threshold . We also compare against several widely adopted AL techniques, -Means, LPL (Yoo and Kweon, 2019) and BALD (Gal et al., 2017), to observe the performance under OOD data scenarios. Finally, we report the oracle results of ENT where only ID data is selected first (denoted as IDEAL-ENT), which serves as an upper-bound of our POAL.

Implementation details.

The training/test split of the datasets are fixed in the experiments, while the initial label set and unlabeled set are randomly generated from the training set. Experiments are repeated times in classical ML tasks and times for DL tasks. We use the same basic classifier for each dataset (details in Appendix A.2.2). To evaluate model performance, we measure accuracy and plot accuracy vs. budget curves to present the performance change with increasing labeled samples. To calculate average performance, we compute area under the accuracy-budget curve (AUBC) (Zhan et al., 2021b), with higher values reflecting better performance under varying budgets. More details about the experiments are in Appendix A.2, including dataset splits, ratios, basic learner settings, and AL hyper-parameters (budget , batch size , and initial label set size), etc.

4.2 Results on classical ML tasks

The overall performance on various datasets are shown in Figure 6. We first compare the performance of POAL against each single component score, ENT and MAHA. POAL is closest to the oracle performance of IDEAL-ENT, and both ENT and MAHA are not effective when used as a single selection strategy under OOD scenarios. Next we compare POAL against other combination methods using the same and scores. On all datasets, POAL is superior to WeightedSum and TwoStage, demonstrating that joint Pareto optimization better considers the two conflicting criteria.

(a) EX8
(b) vowel
(c) letter(a-k)
(d) letter(a-z)
(e) letter(AUBC)
Figure 3: (a)-(d) are accuracy vs. budget curves for classical ML tasks. The AUBC performances are shown in parentheses in the legend. To observe the effect of increasing ID:OOD ratio on letter datasets, we plot AUBC vs. dataset curves in (e). The complete figures (more letter datasets) are shown in Appendix Figure A2.

We next analyze the results for each dataset. The synthetic dataset EX8 has two properties: the ID data is non-linearly separable and the OOD data is far from ID data (see data distribution in Appendix Figure A1-a). These properties make the calculation of more accurate. Meanwhile, both OOD and ID data close to the decision boundaries have high entropy score (see Figure 1). As shown in Figure 6-a, ENT always selects OOD data with higher entropy until all OOD data are selected (210 OOD data are in EX8), and it performs even worse than RAND. MAHA prefers to select ID samples first (see Appendix Figure A3), but the data samples that have smaller Mahalanobis distance are also easily classified and far from decision boundaries, and thus not informative. This confirms the claim that both informativeness/uncertainty-based AL measure and ID confidence could not be directly used in AL under OOD scenarios. The curve of our POAL is close to the oracle IDEAL-ENT, which indicates that POAL selects the most informative ID data, while excluding the OOD samples.

For real-life datasets, POAL also demonstrates its superiority on vowel (see Figure 6-b), a multi-class classification task. In letter, we fixed the ID data (letters a-j) and gradually increase the OOD data (letters k-z). From Figure 6e, we observe that except for IDEAL-ENT, all methods are influenced by increasing OOD data, e.g., the AUBC of RAND is in Figure 6c, in Figure 6d. Although our method is also influenced by increasing OOD data, it is still superior to all baselines. MAHA performs better on distinct ID-/OOD- distribution data scenarios. However, if there is overlap between the two distributions, MAHA does not perform very well due to the overlap of ID/OOD distributions (see appendix Figures A1 and A3). Similar conclusions were also reported in (Ren et al., 2019), where MAHA does not perform well on genomic datasets, since OOD bacteria classes are interlaced under the same taxonomy.

4.3 Results on DL tasks

We next present experiments showing that our POAL also works on large-scale datasets together with deep AL. The accuracy-budget curves for CIFAR10 and CIFAR100 with ID:OOD ratios 6:4 and 4:6, together with their number of OOD samples selected during the AL processes, are presented in Figure 4. POAL outperforms both uncertainty- and representative/diversity-based baselines like LPL, BALD and -Means on all tasks. Although LPL performs fairly well on normal CIFAR10 and CIFAR100 datasets (Yoo and Kweon, 2019; Zhan et al., 2022), under OOD data scenarios, OOD samples have larger predicted loss values, and thus influence the selection decision. Similar phenomenon is observed for BALD and ENT. The performances of -Means are close to RAND, since both methods sampled ID/OOD data with the same ratio. Although -Means will not select OOD samples first, like uncertainty-based measures, it still failed to provide comparable performances. POAL performs well by selecting less OOD samples during the AL iterations, as shown in Figure 4(e-h). Although the pre-selecting strategy in POAL makes the search space smaller, i.e., changes the global solutions to local solution, POAL still performs significantly better than baseline AL methods. Finally, POAL outperforms the other combination strategies, WeightedSum and TwoStage, by large margins.

(a) CIFAR10-04
(b) CIFAR10-06
(c) CIFAR100-04
(d) CIFAR100-06
(e) CIFAR10-04 OOD
(f) CIFAR10-06 OOD
(g) CIFAR100-04 OOD
(h) CIFAR100-06 OOD
Figure 4: Results of POAL with Pre-Selecting (POAL-PS) on DL datasets. (a-d) are accuracy vs. budget curves. We present the mean and standard deviation (in parentehsis) of AUBC. (e-h) plot the number of OOD samples selected. More baseline comparisons like (Ash et al., 2020), (Du et al., 2021) and (Kothawade et al., 2021) are shown in Appendix Figure A4.

5 Conclusion, Discussion and Future Work

In this paper, we proposed an effective and flexible Monte-Carlo POAL framework for improving AL when encountering OOD data. Our POAL framework is able to i) incorporate various AL sampling strategies; ii) handle large-scale datasets; iii) support batch-mode AL with fixed batch size; iv) prevent trade-off hyper-parameter tuning; and v) work well on both classical ML and DL tasks. Our work has two limitations: i) for the ID confidence score calculation, Mahalanobis distance only performs well on distinct ID-/OOD- distributions and thus influence POAL performance; ii) we need many iterations for the Pareto set converge based on MC sampling (see Appendix A.3.2 for timing cost comparison). Future work could improve OOD detection criterion by introducing OOD-specific feature representations and other techniques for better distinguishing ID/OOD distributions. Although MC sampling requires more iterations, compared with other sampling schemes like importance sampling and Metropolis-Hasting, it is efficient and keeps the method free from initialization problems. We will try to find more efficient sampling schemes while reducing the impact of initialization.
