# Parallel Concatenation of Bayesian Filters: Turbo Filtering

In this manuscript a method for developing novel filtering algorithms through the parallel concatenation of two Bayesian filters is illustrated. Our description of this method, called turbo filtering, is based on a new graphical model; this allows us to efficiently describe both the processing accomplished inside each of the constituent filter and the interactions between them. This model is exploited to develop two new filtering algorithms for conditionally linear Gaussian systems. Numerical results for a specific dynamic system evidence that such filters can achieve a better complexity-accuracy tradeoff than marginalized particle filtering.

## Authors

• 6 publications
• 4 publications
• 5 publications
• 2 publications
07/01/2019

### Multiple Bayesian Filtering as Message Passing

In this manuscript, a general method for deriving filtering algorithms t...
08/26/2020

### Stochastic filters based on hybrid approximations of multiscale stochastic reaction networks

We consider the problem of estimating the dynamic latent states of an in...
01/04/2019

### Practical Verifiable In-network Filtering for DDoS defense

In light of ever-increasing scale and sophistication of modern DDoS atta...
07/11/2019

### Optimized Sharing of Coefficients in Parallel Filter Banks

Filters are the basic and most important blocks of most signal processin...
07/07/2000

### Using Learning-based Filters to Detect Rule-based Filtering Obsolescence

For years, Caisse des Depots et Consignations has produced information f...
09/12/2016

### Optimal Encoding and Decoding for Point Process Observations: an Approximate Closed-Form Filter

The process of dynamic state estimation (filtering) based on point proce...
10/04/2011

### Non-Gaussian Scale Space Filtering with 2 by 2 Matrix of Linear Filters

Construction of a scale space with a convolution filter has been studied...
##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## 1 Introduction

The nonlinear filtering problem consists of inferring the posterior distribution of the hidden state of a nonlinear dynamic system from a set of past and present measurements [1]. A general recursive solution to this problem, known as Bayesian filters (e.g., see [1, Sect. II, eqs. (3)-(5)]), is available, but, unluckily, can be put in closed form in few cases [4]. In the past, various filtering methods generating a functional approximation of the desired posterior pdf have been developed; these can be divided into local and global methods on the basis of the way the posterior pdf is approximated [2], [3]. On the one hand, local techniques, like

extended Kalman filtering

(EKF) [4], are computationally efficient, but may suffer from error accumulation over time; on the other hand, global techniques, like sequential Monte Carlo (SMC) algorithms [5], [6] (also known as  particle filtering, PF [7], [8]) may achieve high accuracy at the price, however, of unacceptable complexity and numerical problems. These considerations have motivated the investigation of other methods able to achieve high accuracy under given computational constraints. Some of such solutions are based on the idea of combining (i.e., concatenating) local and global methods; relevant examples of this approach are represented by a) marginalized particle filtering (MPF) [9] and other techniques related to it (e.g., see [3] and [10]) and b) cascaded architectures based on the joint use of EKF and PF (e.g., see [11] and [12]). Note that, in all these cases, two heterogeneous methods are combined in a way that the resulting filtering algorithm is forward only and, within its recursion, each of such methods is executed only once; for this reason, if the jargon of coding theory is adopted in this context, such filtering algorithms can be seen as specific instances of the general concept of serial concatenation [13], [14] of two (constituent) filtering methods.

In this manuscript, we focus on the novel concept of parallel concatenation (PC) of Bayesian filterings, i.e. on the idea of combining two (constituent) filters in a way that, within each recursion of the resulting concatenated algorithm, they can iteratively refine their statistical information through the mutual exchange of probabilistic (i.e., soft) information; this concept is dubbed turbo filtering (TF) for its resemblance to the iterative (i.e., turbo) decoding of concatenated channel codes [15]. More specifically, we first develop a general graphical model that allows us to: a) represent the PC of two Bayesian filters as the interconnection of two soft-in soft-out (SISO) modules, b) represent the iterative processing accomplished by these modules as a message passing technique and c) to derive the expressions of the passed messages by applying the sum-product algorithm (SPA) [16], [17], together with a specific scheduling procedure, to the graphical model itself. Then, the usefulness of this approach is exemplified by developing two TF algorithms for the class of conditionally linear Gaussian (CLG) SSMs [9]. Our computer simulations for a specific CLG SSM evidence that, in the considered case, these algorithms perform very closely to MPF, but are substantially faster.

It is worth mentioning that the TF principle has been formulated for the first time in [18], where it has also been successfully applied to inertial navigation. However, all the theoretical results illustrated in this manuscript have been obtained later and have been inspired by various results available in the literature about: a) the representation of filtering methods as message passing procedures on factor graphs (e.g., see [16], [17] and [19]); b) the use of  graphical models in the derivation and interpretation of turbo decoding and turbo equalization [16], [17], [20].

The remaining part of this manuscript is organized as follows. A description of the considered SSM is illustrated in Section 2. In Section 3 a new graphical model describing the TF principle is devised; then, a specific case of that model, referring to the use of an extended Kalman filter and particle filter as constituent filters, and a CLG SSM is analysed. The derivation of two TF algorithms based on the last model is illustrated in Section 4, whereas their interpretation from a coding theory perspective is discussed in Section 5. Such algorithms are compared with EKF and MPF, in terms of accuracy and execution time, in Section 6. Finally, some conclusions are offered in Section 7.

## 2 Model Description

In the following we focus on a discrete-time CLG SSM [9], whose -dimensional hidden state in the -th interval is partitioned as ; here, , ( ) is the so called linear (nonlinear) component of , with (). Following [9] and [10], the models

 x(Z)l+1=A(Z)l(x(N)l)x(L)l+f(Z)l(x(N)l)+w(Z)l (1)

and

 yl ≜ [y0,l,y1,l,...,yP−1,l]T (2) = gl(x(N)l)+Bl(x(N)l)x(L)l+el

are adopted for the update of the linear () and nonlinear () components, and for the

-dimensional vector of noisy measurements available in the

-th interval, respectively. In the state update model (1) () is a time-varying -dimensional real function ( real matrix) and is the -th element of the process noise sequence ; this sequence consists of -dimensional independent and identically distributed (iid) Gaussian noise vectors, each characterized by a zero mean and a covariance matrix (independence between and is also assumed for simplicity). Moreover, in the measurement model (2), is a time-varying real matrix, is a time-varying -dimensional real function and the -th element of the measurement noise sequence ; this sequence consists of -dimensional iid Gaussian noise vectors (each characterized by a zero mean and a covariance matrix ), and is independent of both and .

In the following we take into consideration not only the detailed models (1) and (2), but also their more compact counterparts

 xl+1=fl(xl)+wl (3)

and

 yl=hl(xl)+el (4)

respectively, which refer to the whole state; here, () is a -dimensional function (Gaussian noise vector111The covariance matrix of can be easily computed on the basis of the matrices and .) deriving from the ordered concatenation of the vectors and ( and ; see (1)), and . Moreover, since EKF is employed in the TF algorithms developed in the following, the linearized versions of (3) and (4) are also considered; these can be expressed as (e.g., see [4, pp. 194-195])

 xl+1=Flxl+ul+wl (5)

and

 yl=HTlxl+vl+el, (6)

respectively; here, ,

is the (forward) estimate of

evaluated by EKF in its -th recursion, , , is the (forward) prediction computed by EKF in its -th recursion and .

In the following Section we focus on the so-called filtering problem, which concerns the evaluation of the posterior pdf at an instant , given a) the initial pdf and b) the -dimensional measurement vector .

## 3 Graphical Modelling for Turbo Filtering

Let us consider first a SSM described by the Markov model and the observation model for any . In this case, the computation of the posterior pdf for can be accomplished by means of an exact Bayesian recursive procedure, consisting of a measurement update (MU) step followed by a time update (TU) step. Following [16, Sec. II, p. 1297], the equations describing the -th recursion of this procedure (with ) can be easily obtained by applying the SPA to the Forney-style FG shown in Fig. 1, if the joint pdf is considered in place of the associated a posteriori pdf . In fact, given the measurement message , if the input message222In the following the acronyms fp and fe are employed in the subscripts of various messages, so that readers can easily understand their meaning; in fact, the messages these acronyms refer to represent a form of one-step forward prediction and of forward estimation, respectively. enters this FG, the message going out of the equality node is given by

 →mfe(xl) = →mfp(xl)→mms(xl) (7) =

and, consequently, the message emerging from the function node referring to the pdf is expressed by

 ∫f(xl+1|xl)→mfe(xl)dxl=f(xl+1,y1:l)=→mfp(xl+1). (8)

Eqs. (7) and (8) express the MU and the TU, respectively, that need to be accomplished in the -th recursion of Bayesian filtering.

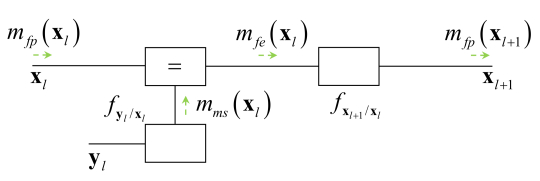

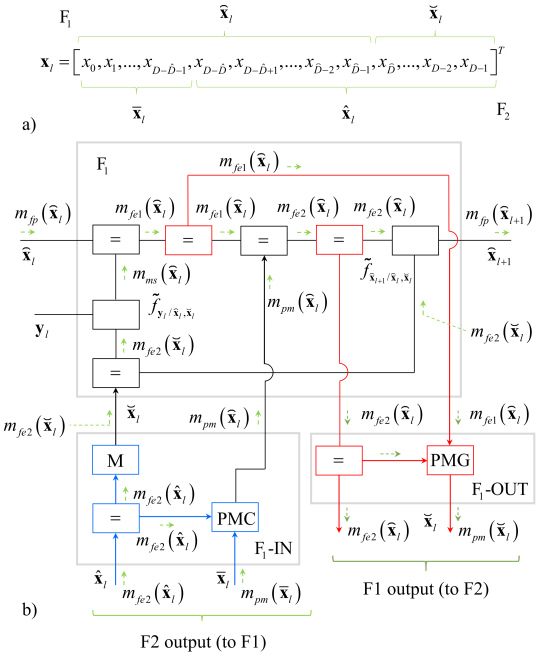

Let us see now how the FG illustrated in Fig. 1 can be exploited to devise a graphical model efficiently representing the TF concept. As already stated in the Introduction, any TF scheme results from the parallel concatenation of two constituent Bayesian filters (denoted F and F in the following), that can iteratively improve their accuracy through the exchange of their statistical information. In practice, in developing TF techniques, the following general rules are followed: R1) the constituent filters operate on partially overlapped portions of system state; R2) the filter F (F) is the core of a processing module (called soft-in soft-out, SISO, module in the following) receiving statistical information from F (F) and generating new statistical information useful to F (F); R3) each constituent filter relies on exact Markov/observation models or approximate (e.g., linearized) versions of them. These rules can be motivated and implemented as follows. The first rule (i.e., R1) ensures that any TF filtering algorithm contains a form of redundancy, that represents the first of the two fundamental properties characterizing each error correction method employed in digital communications [13]. In our general description of a TF scheme, it is assumed that (see Fig. 2-(a)): 1) filter F (F) estimates the state vector () of size (), with (); 2) the portion () of not included in ( ) is contained in (or at most coincides with) (). This entails that: a) an overall estimate of the system state can be generated on the basis of the posterior pdfs of  and  evaluated by F and F, respectively; b) the portion of , consisting of

 Nd≜\raisebox{-2.15pt}[0.0pt][0.0pt]% {⌢}D+^D−D (9)

elements, is estimated by both F and F. Consequently, rule R1 requires the parameter (9), that represents the degree of redundancy of the overall filtering algorithm, to be strictly positive.

The second rule (i.e., R2) has been inspired by the fact that, generally speaking, iterative decoders of concatenated channel codes are made of multiple SISO modules, one for each constituent code. The implementation of this rule in TF requires accurately defining the nature of the statistical information to be passed from each constituent filter to the other one. Actually, this problem has been already tackled in the development of MPF, where the information passed from a particle filter to a bank of Kalman filters takes the form of pseudo-measurements (PMs) evaluated on the basis of the mathematical constraints established by state update equations [9]. The use of PMs allows us to exploit the memory characterizing the time evolution of dynamic models (and representing the second fundamental property of each error correction method employed in digital communications). Moreover, PMs can be processed as they were real measurements [9]; for this reason, their use can be incorporated in the FG shown in Fig. 1 by including a new MU, i.e. by adding a new equality node through which the message emerging from the first MU (i.e., from the MU based on real measurements) is merged with a message conveying PM information. This idea is implemented in the graphical model333Note that oriented edges are used in our graphical models wherever message passing along such edges can be accomplished along a single direction only. shown in Fig. 2-(b) and providing a detailed description of the overall processing accomplished by a SISO module based on F (a similar model can be easily drawn for F by interchanging the couple , with , in that figure). In fact, this model represents the F filtering algorithm (F block), the conversion of the statistical information provided from F into a form useful to F (F-IN block) and the generation of the statistical information made available by F to F (F-OUT block). Its structure can be explained as follows:

1. The algorithm employed by F is based on the Markov model and on the observation model , that represent the exact models and , respectively, or approximations of one or both of them (as required by the third rule, i.e. by R3). The pdf of the state component (unknown to F) is provided by F through the message . Morever, as already stated above, the forward estimate of is computed by F in two distinct MU steps, the first one involving the message (based on the measurement ), the second one involving the message (conveying the PM information computed by F); these steps generate the messages and , respectively.

2. The forward estimate computed by F is passed to F together with the PM message . The last message is evaluated on the basis of the messages and , i.e. on the basis of the forward estimates available before and after the second MU of F. Note also that the computation of is carried out in the block called PM generation (PMG) inside the F-OUT block.

3. The statistical information made available by F to F is condensed in the messages and . The message acquired by F can be computed by marginalizing the message , since, generally speaking, is a portion of (marginalization is accomplished in block labelled with the letter M in Fig. 2-(b)); moreover, is processed jointly with to generate the PM message (this is accomplished in the block called PM conversion, PMC, inside the F-IN block).

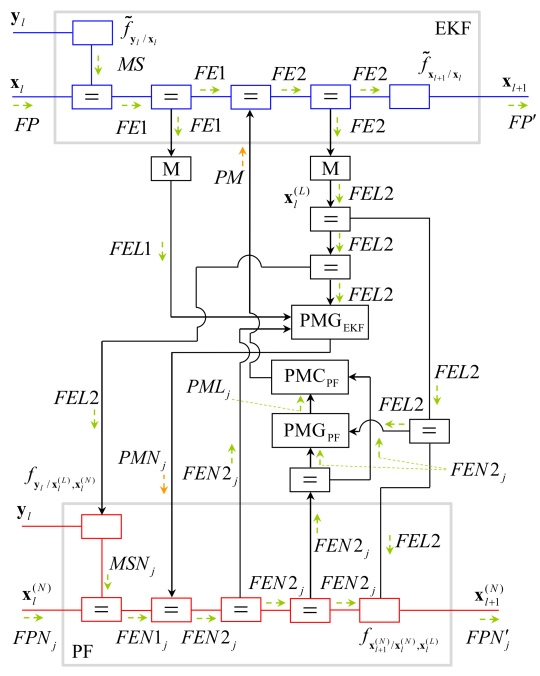

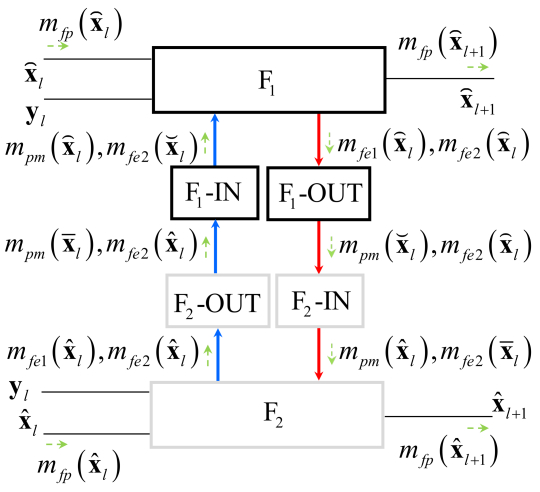

Merging the graphical model shown in Fig. 2-(b) with its counterpart referring to F results in the PC architecture shown in Fig. 3. This model, unlike the one illustrated in Fig. 1, is not cycle free. For this reason, generally speaking, the application of the SPA to it leads to iterative algorithms with no natural termination and whose accuracy can be substantially influenced by the adopted message scheduling [16], [17]. This consideration and the possibility of choosing different options for F and F lead easily to the conclusion that the graphical models shown in Figs. 2-(b) and 3 can be employed to develop an entire family of filtering algorithms, called turbo filters.

In the remaining part of this manuscript we focus on a specific instance of the proposed PC architecture, since we make specific choices for both the SSM and the two filters. In particular, we focus on the CLG SSM described in Section 2 and assume that F is an extended Kalman filter operating over the whole system state (so that and is an empty vector), whereas  F is a particle filter (in particular, a sequential importance resampling, SIR, filter [1]) operating on the nonlinear state component only (so that and ); note that, in this case, the degree of redundancy is (see (9)). Our choices aim at developing a new concatenated filtering algorithm in which an extended Kalman filter is aided by a particle filter in its most difficult task, i.e. in the estimation of the nonlinear state component. Moreover, the proposed TF scheme can be easily related to MPF, since the last technique can be considered as a form of serial concatenation of PF with Kalman filtering. However, our TF instance employs, unlike MPF, a single (extended) Kalman filter in place of a bank of Kalman filters; morever, such a filter estimates the whole system state, instead of its nonlinear component only. Based on the general models shown in Figs. 2-(b) and 3, the specific graphical model illustrated in Fig. 4 can be drawn for the considered case. This model deserves the following comments:

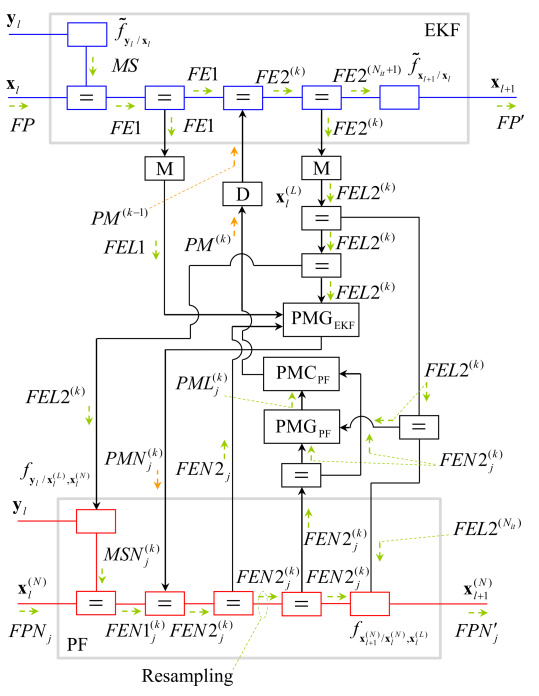

1. The upper (lower) rectangle delimited by a grey line allow to easily identify the message passing accomplished by EKF (PF).
