1 Introduction and Related Work
1.1 Conditional Computation
Exploiting scale in both training data and model size has been central to the success of deep learning. When datasets are sufficiently large, increasing the capacity (number of parameters) of neural networks can give much better prediction accuracy. This has been shown in domains such as text
(Sutskever et al., 2014; Bahdanau et al., 2014; Jozefowicz et al., 2016; Wu et al., 2016), images (Krizhevsky et al., 2012; Le et al., 2012), and audio (Hinton et al., 2012; Amodei et al., 2015). For typical deep learning models, where the entire model is activated for every example, this leads to a roughly quadratic blowup in training costs, as both the model size and the number of training examples increase. Unfortunately, the advances in computing power and distributed computation fall short of meeting such demand.
Various forms of conditional computation have been proposed as a way to increase model capacity without a proportional increase in computational costs (Davis & Arel, 2013; Bengio et al., 2013; Eigen et al., 2013; Ludovic Denoyer, 2014; Cho & Bengio, 2014; Bengio et al., 2015; Almahairi et al., 2015)
. In these schemes, large parts of a network are active or inactive on a perexample basis. The gating decisions may be binary or sparse and continuous, stochastic or deterministic. Various forms of reinforcement learning and backpropagation are proposed for trarining the gating decisions.
While these ideas are promising in theory, no work to date has yet demonstrated massive improvements in model capacity, training time, or model quality. We blame this on a combination of the following challenges:

Modern computing devices, especially GPUs, are much faster at arithmetic than at branching. Most of the works above recognize this and propose turning on/off large chunks of the network with each gating decision.

Large batch sizes are critical for performance, as they amortize the costs of parameter transfers and updates. Conditional computation reduces the batch sizes for the conditionally active chunks of the network.

Network bandwidth can be a bottleneck. A cluster of GPUs may have computational power thousands of times greater than the aggregate interdevice network bandwidth. To be computationally efficient, the relative computational versus network demands of an algorithm must exceed this ratio. Embedding layers, which can be seen as a form of conditional computation, are handicapped by this very problem. Since the embeddings generally need to be sent across the network, the number of (example, parameter) interactions is limited by network bandwidth instead of computational capacity.

Depending on the scheme, loss terms may be necessary to achieve the desired level of sparsity perchunk and/or per example. Bengio et al. (2015) use three such terms. These issues can affect both model quality and loadbalancing.

Model capacity is most critical for very large data sets. The existing literature on conditional computation deals with relatively small image recognition data sets consisting of up to 600,000 images. It is hard to imagine that the labels of these images provide a sufficient signal to adequately train a model with millions, let alone billions of parameters.
In this work, we for the first time address all of the above challenges and finally realize the promise of conditional computation. We obtain greater than 1000x improvements in model capacity with only minor losses in computational efficiency and significantly advance the stateoftheart results on public language modeling and translation data sets.
1.2 Our Approach: The SparselyGated MixtureofExperts Layer
Our approach to conditional computation is to introduce a new type of general purpose neural network component: a SparselyGated MixtureofExperts Layer (MoE). The MoE consists of a number of experts, each a simple feedforward neural network, and a trainable gating network which selects a sparse combination of the experts to process each input (see Figure
1). All parts of the network are trained jointly by backpropagation.While the introduced technique is generic, in this paper we focus on language modeling and machine translation tasks, which are known to benefit from very large models. In particular, we apply a MoE convolutionally between stacked LSTM layers (Hochreiter & Schmidhuber, 1997), as in Figure 1. The MoE is called once for each position in the text, selecting a potentially different combination of experts at each position. The different experts tend to become highly specialized based on syntax and semantics (see Appendix E Table 9). On both language modeling and machine translation benchmarks, we improve on best published results at a fraction of the computational cost.
1.3 Related work on Mixtures of Experts
Since its introduction more than two decades ago (Jacobs et al., 1991; Jordan & Jacobs, 1994), the mixtureofexperts approach has been the subject of much research. Different types of expert architectures hae been proposed such as SVMs (Collobert et al., 2002), Gaussian Processes (Tresp, 2001; Theis & Bethge, 2015; Deisenroth & Ng, 2015), Dirichlet Processes (Shahbaba & Neal, 2009), and deep networks. Other work has focused on different expert configurations such as a hierarchical structure (Yao et al., 2009), infinite numbers of experts (Rasmussen & Ghahramani, 2002), and adding experts sequentially (Aljundi et al., 2016). Garmash & Monz (2016) suggest an ensemble model in the format of mixture of experts for machine translation. The gating network is trained on a pretrained ensemble NMT model.
The works above concern toplevel mixtures of experts. The mixture of experts is the whole model. Eigen et al. (2013) introduce the idea of using multiple MoEs with their own gating networks as parts of a deep model. It is intuitive that the latter approach is more powerful, since complex problems may contain many subproblems each requiring different experts. They also allude in their conclusion to the potential to introduce sparsity, turning MoEs into a vehicle for computational computation.
Our work builds on this use of MoEs as a general purpose neural network component. While Eigen et al. (2013) uses two stacked MoEs allowing for two sets of gating decisions, our convolutional application of the MoE allows for different gating decisions at each position in the text. We also realize sparse gating and demonstrate its use as a practical way to massively increase model capacity.
2 The Structure of the MixtureofExperts layer
The MixtureofExperts (MoE) layer consists of a set of “expert networks" , and a “gating network" whose output is a sparse
dimensional vector. Figure
1 shows an overview of the MoE module. The experts are themselves neural networks, each with their own parameters. Although in principle we only require that the experts accept the same sized inputs and produce the samesized outputs, in our initial investigations in this paper, we restrict ourselves to the case where the models are feedforward networks with identical architectures, but with separate parameters.Let us denote by and the output of the gating network and the output of the th expert network for a given input . The output of the MoE module can be written as follows:
(1)
We save computation based on the sparsity of the output of . Wherever , we need not compute . In our experiments, we have up to thousands of experts, but only need to evaluate a handful of them for every example. If the number of experts is very large, we can reduce the branching factor by using a twolevel hierarchical MoE. In a hierarchical MoE, a primary gating network chooses a sparse weighted combination of “experts", each of which is itself a secondary mixtureofexperts with its own gating network. In the following we focus on ordinary MoEs. We provide more details on hierarchical MoEs in Appendix B.
Our implementation is related to other models of conditional computation. A MoE whose experts are simple weight matrices is similar to the parameterized weight matrix proposed in (Cho & Bengio, 2014). A MoE whose experts have one hidden layer is similar to the blockwise dropout described in (Bengio et al., 2015), where the droppedout layer is sandwiched between fullyactivated layers.
2.1 Gating Network
Softmax Gating:
A simple choice of nonsparse gating function (Jordan & Jacobs, 1994) is to multiply the input by a trainable weight matrix and then apply the function.
(2)
Noisy TopK Gating:
We add two components to the Softmax gating network: sparsity and noise. Before taking the softmax function, we add tunable Gaussian noise, then keep only the top k values, setting the rest to (which causes the corresponding gate values to equal ). The sparsity serves to save computation, as described above. While this form of sparsity creates some theoretically scary discontinuities in the output of gating function, we have not yet observed this to be a problem in practice. The noise term helps with load balancing, as will be discussed in Appendix A. The amount of noise per component is controlled by a second trainable weight matrix .
(3)
(4)
(5)
Training the Gating Network
We train the gating network by simple backpropagation, along with the rest of the model. If we choose , the gate values for the top k experts have nonzero derivatives with respect to the weights of the gating network. This type of occasionallysensitive behavior is described in (Bengio et al., 2013) with respect to noisy rectifiers. Gradients also backpropagate through the gating network to its inputs. Our method differs here from (Bengio et al., 2015) who use boolean gates and a REINFORCEstyle approach to train the gating network.
3 Addressing Performance Challenges
3.1 The Shrinking Batch Problem
On modern CPUs and GPUs, large batch sizes are necessary for computational efficiency, so as to amortize the overhead of parameter loads and updates. If the gating network chooses out of experts for each example, then for a batch of examples, each expert receives a much smaller batch of approximately examples. This causes a naive MoE implementation to become very inefficient as the number of experts increases. The solution to this shrinking batch problem is to make the original batch size as large as possible. However, batch size tends to be limited by the memory necessary to store activations between the forwards and backwards passes. We propose the following techniques for increasing the batch size:
Mixing Data Parallelism and Model Parallelism:
In a conventional distributed training setting, multiple copies of the model on different devices asynchronously process distinct batches of data, and parameters are synchronized through a set of parameter servers. In our technique, these different batches run synchronously so that they can be combined for the MoE layer. We distribute the standard layers of the model and the gating network according to conventional dataparallel schemes, but keep only one shared copy of each expert. Each expert in the MoE layer receives a combined batch consisting of the relevant examples from all of the dataparallel input batches. The same set of devices function as dataparallel replicas (for the standard layers and the gating networks) and as modelparallel shards (each hosting a subset of the experts). If the model is distributed over devices, and each device processes a batch of size , each expert receives a batch of approximately examples. Thus, we achieve a factor of improvement in expert batch size.
In the case of a hierarchical MoE (Section B), the primary gating network employs data parallelism, and the secondary MoEs employ model parallelism. Each secondary MoE resides on one device.
This technique allows us to increase the number of experts (and hence the number of parameters) by proportionally increasing the number of devices in the training cluster. The total batch size increases, keeping the batch size per expert constant. The memory and bandwidth requirements per device also remain constant, as do the step times, as does the amount of time necessary to process a number of training examples equal to the number of parameters in the model. It is our goal to train a trillionparameter model on a trillionword corpus. We have not scaled our systems this far as of the writing of this paper, but it should be possible by adding more hardware.
Taking Advantage of Convolutionality:
In our language models, we apply the same MoE to each time step of the previous layer. If we wait for the previous layer to finish, we can apply the MoE to all the time steps together as one big batch. Doing so increases the size of the input batch to the MoE layer by a factor of the number of unrolled time steps.
Increasing Batch Size for a Recurrent MoE:
We suspect that even more powerful models may involve applying a MoE recurrently. For example, the weight matrices of a LSTM or other RNN could be replaced by a MoE. Sadly, such models break the convolutional trick from the last paragraph, since the input to the MoE at one timestep depends on the output of the MoE at the previous timestep. Gruslys et al. (2016) describe a technique for drastically reducing the number of stored activations in an unrolled RNN, at the cost of recomputing forward activations. This would allow for a large increase in batch size.
3.2 Network Bandwidth
Another major performance concern in distributed computing is network bandwidth. Since the experts are stationary (see above) and the number of gating parameters is small, most of the communication involves sending the inputs and outputs of the experts across the network. To maintain computational efficiency, the ratio of an expert’s computation to the size of its input and output must exceed the ratio of computational to network capacity of the computing device. For GPUs, this may be thousands to one. In our experiments, we use experts with one hidden layer containing thousands of RELUactivated units. Since the weight matrices in the expert have sizes
__ and __, the ratio of computation to input and output is equal to the size of the hidden layer. Conveniently, we can increase computational efficiency simply by using a larger hidden layer, or more hidden layers.4 Balancing Expert Utilization
We have observed that the gating network tends to converge to a state where it always produces large weights for the same few experts. This imbalance is selfreinforcing, as the favored experts are trained more rapidly and thus are selected even more by the gating network. Eigen et al. (2013) describe the same phenomenon, and use a hard constraint at the beginning of training to avoid this local minimum. Bengio et al. (2015) include a soft constraint on the batchwise average of each gate.^{1}^{1}1Bengio et al. (2015) also include two additional losses. One controls perexample sparsity, which we do not need since it is enforced by the fixed value of . A third loss encourages diversity of gate values. In our experiments, we find that the gate values naturally diversify as the experts specialize (in a virtuous cycle), and we do not need to enforce diversity of gate values.
We take a soft constraint approach. We define the importance of an expert relative to a batch of training examples to be the batchwise sum of the gate values for that expert. We define an additional loss
, which is added to the overall loss function for the model. This loss is equal to the square of the coefficient of variation of the set of importance values, multiplied by a handtuned scaling factor
. This additional loss encourages all experts to have equal importance.(6)
(7)
While this loss function can ensure equal importance, experts may still receive very different numbers of examples. For example, one expert may receive a few examples with large weights, and another may receive many examples with small weights. This can cause memory and performance problems on distributed hardware. To solve this problem, we introduce a second loss function, , which ensures balanced loads. Appendix A contains the definition of this function, along with experimental results.
5 Experiments
5.1 1 Billion Word Language Modeling Benchmark
Dataset:
This dataset, introduced by (Chelba et al., 2013) consists of shuffled unique sentences from news articles, totaling approximately 829 million words, with a vocabulary of 793,471 words.
Previous StateoftheArt:
The best previously published results (Jozefowicz et al., 2016)
use models consisting of one or more stacked Long ShortTerm Memory (LSTM) layers
(Hochreiter & Schmidhuber, 1997; Gers et al., 2000). The number of parameters in the LSTM layers of these models vary from 2 million to 151 million. Quality increases greatly with parameter count, as do computational costs. Results for these models form the top line of Figure 2right.MoE Models:
Low Computation, Varied Capacity:
To investigate the effects of adding capacity, we trained a series of MoE models all with roughly equal computational costs: about 8 million multiplyandadds per training example per timestep in the forwards pass, excluding the softmax layer. We call this metric (ops/timestep). We trained models with flat MoEs containing 4, 32, and 256 experts, and models with hierarchical MoEs containing 256, 1024, and 4096 experts. Each expert had about 1 million parameters. For all the MoE layers, 4 experts were active per input.

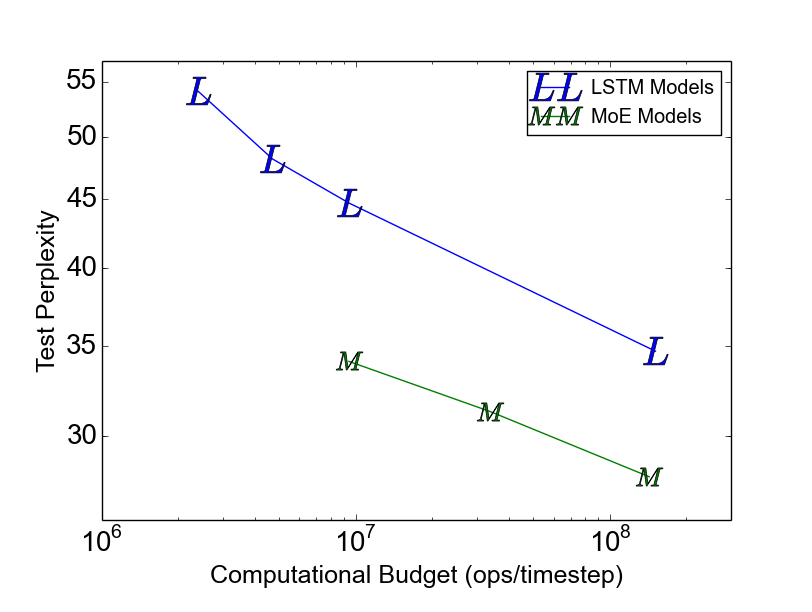

The results of these models are shown in Figure 2left. The model with 4 alwaysactive experts performed (unsurprisingly) similarly to the computationallymatched baseline models, while the largest of the models (4096 experts) achieved an impressive 24% lower perplexity on the test set.
Test  Test  #Parameters  ops/timestep  Training  TFLOPS
Perplexity  Perplexity  excluding embedding  Time  /GPU
10 epochs
100 epochs  and softmax layers  10 epochs
Best Published Results  34.7  30.6  151 million  151 million  59 hours, 32 k40s  1.09
LowBudget MoE Model  34.1  4303 million  8.9 million  15 hours, 16 k40s  0.74
MediumBudget MoE Model  31.3  4313 million  33.8 million  17 hours, 32 k40s  1.22
HighBudget MoE Model  28.0  4371 million  142.7 million  47 hours, 32 k40s  1.56
Varied Computation, High Capacity:
In addition to the largest model from the previous section, we trained two more MoE models with similarly high capacity (4 billion parameters), but higher computation budgets. These models had larger LSTMs, and fewer but larger and experts. Details can be found in Appendix C.2. Results of these three models form the bottom line of Figure 2right. Table 1 compares the results of these models to the best previouslypublished result on this dataset . Even the fastest of these models beats the best published result (when controlling for the number of training epochs), despite requiring only 6% of the computation.
Computational Efficiency:
We trained our models using TensorFlow
(Abadi et al., 2016) on clusters containing 1632 Tesla K40 GPUs. For each of our models, we determine computational efficiency in TFLOPS/GPU by dividing the number of floating point operations required to process one training batch by the observed step time and the number of GPUs in the cluster. The operation counts used here are higher than the ones we report in our ops/timestep numbers in that we include the backwards pass, we include the importancesamplingbased training of the softmax layer, and we count a multiplyandadd as two separate operations. For all of our MoE models, the floating point operations involved in the experts represent between 37% and 46% of the total.For our baseline models wtih no MoE, observed computational efficiency ranged from 1.071.29 TFLOPS/GPU. For our lowcomputation MoE models, computation efficiency ranged from 0.740.90 TFLOPS/GPU, except for the 4expert model which did not make full use of the available parallelism. Our highestcomputation MoE model was more efficient at 1.56 TFLOPS/GPU, likely due to the larger matrices. These numbers represent a significant fraction of the theoretical maximum of 4.29 TFLOPS/GPU claimed by NVIDIA. Detailed results are in Appendix C, Table 7.
5.2 100 Billion Word Google News Corpus
On the 1billionword corpus, adding additional capacity seems to produce diminishing returns as the number of parameters in the MoE layer exceeds 1 billion, as can be seen in Figure 2left. We hypothesized that for a larger training set, even higher capacities would produce significant quality improvements.
We constructed a similar training set consisting of shuffled unique sentences from Google’s internal news corpus, totalling roughly 100 billion words. Similarly to the previous section, we tested a series of models with similar computational costs of about 8 million ops/timestep. In addition to a baseline LSTM model, we trained models augmented with MoE layers containing 32, 256, 1024, 4096, 16384, 65536, and 131072 experts. This corresponds to up to 137 billion parameters in the MoE layer. Details on architecture, training, and results are given in Appendix D.
Results:
Figure 3 shows test perplexity as a function of capacity after training on 10 billion words (top line) and 100 billion words (bottom line). When training over the full 100 billion words, test perplexity improves significantly up to 65536 experts (68 billion parameters), dropping 39% lower than the computationally matched baseline, but degrades at 131072 experts, possibly a result of too much sparsity. The widening gap between the two lines demonstrates (unsurprisingly) that increased model capacity helps more on larger training sets.
Even at 65536 experts (99.994% layer sparsity), computational efficiency for the model stays at a respectable 0.72 TFLOPS/GPU.
5.3 Machine Translation (Single Language Pair)
Model Architecture:
Our model was a modified version of the GNMT model described in (Wu et al., 2016). To reduce computation, we decreased the number of LSTM layers in the encoder and decoder from 9 and 8 to 3 and 2 respectively. We inserted MoE layers in both the encoder (between layers 2 and 3) and the decoder (between layers 1 and 2). Each MoE layer contained up to 2048 experts each with about two million parameters, adding a total of about 8 billion parameters to the models. Further details on model architecture, testing procedure and results can be found in Appendix E.
Datasets:
We benchmarked our method on the WMT’14 EnFr and EnDe corpora, whose training sets have 36M sentence pairs and 5M sentence pairs, respectively. The experimental protocols were also similar to those in (Wu et al., 2016): newstest2014 was used as the test set to compare against previous work (Luong et al., 2015a; Zhou et al., 2016; Wu et al., 2016), while the combination of newstest2012 and newstest2013 was used as the development set. We also tested the same model on a Google’s Production English to French data.
Model  Test  Test  ops/timenstep  Total  Training

Perplexity  BLEU  #Parameters  Time
MoE with 2048 Experts  2.69  40.35  85M  8.7B  3 days/64 k40s
MoE with 2048 Experts (longer training)  2.63  40.56  85M  8.7B  6 days/64 k40s
GNMT (Wu et al., 2016)  2.79  39.22  214M  278M  6 days/96 k80s
GNMT+RL (Wu et al., 2016)  2.96  39.92  214M  278M  6 days/96 k80s
PBMT (Durrani et al., 2014)  37.0
LSTM (6layer) (Luong et al., 2015b)  31.5
LSTM (6layer+PosUnk) (Luong et al., 2015b)  33.1
DeepAtt (Zhou et al., 2016)  37.7
DeepAtt+PosUnk (Zhou et al., 2016)  39.2
Model  Test  Test  ops/timestep  Total  Training

Perplexity  BLEU  #Parameters  Time
MoE with 2048 Experts  4.64  26.03  85M  8.7B  1 day/64 k40s
GNMT (Wu et al., 2016)  5.25  24.91  214M  278M  1 day/96 k80s
GNMT +RL (Wu et al., 2016)  8.08  24.66  214M  278M  1 day/96 k80s
PBMT (Durrani et al., 2014)  20.7
DeepAtt (Zhou et al., 2016)  20.6
Model  Eval  Eval  Test  Test  ops/timestep  Total  Training

Perplexity  BLEU  Perplexity  BLEU  #Parameters  Time
MoE with 2048 Experts  2.60  37.27  2.69  36.57  85M  8.7B  1 day/64 k40s
GNMT (Wu et al., 2016)  2.78  35.80  2.87  35.56  214M  278M  6 days/96 k80s
Results:
Tables 2, 3, and 4 show the results of our largest models, compared with published results. Our approach achieved BLEU scores of 40.56 and 26.03 on the WMT’14 EnFr and EnDe benchmarks. As our models did not use RL refinement, these results constitute significant gains of 1.34 and 1.12 BLEU score on top of the strong baselines in (Wu et al., 2016). The perplexity scores are also better.^{2}^{2}2Reported perplexities relative to the tokenization used by both our models and GNMT. On the Google Production dataset, our model achieved 1.01 higher test BLEU score even after training for only one sixth of the time.
5.4 Multilingual Machine Translation
Dataset:
(Johnson et al., 2016) train a single GNMT (Wu et al., 2016) model on a very large combined dataset of twelve language pairs. Results are somewhat worse than those for 12 separately trained singlepair GNMT models. This is not surprising, given that the twelve models have 12 times the capacity and twelve times the aggregate training of the one model. We repeat this experiment with a single MoEaugmented model. See Appendix E for details on model architecture. We train our model on the same dataset as (Johnson et al., 2016) and process the same number of training examples (about 3 billion sentence pairs). Our training time was shorter due to the lower computational budget of our model.
Results:
Results for the singlepair GNMT models, the multilingual GNMT model and the multilingual MoE model are given in Table 5. The MoE model achieves 19% lower perplexity on the dev set than the multilingual GNMT model. On BLEU score, the MoE model significantly beats the multilingual GNMT model on 11 of the 12 language pairs (by as much as 5.84 points), and even beats the monolingual GNMT models on 8 of 12 language pairs. The poor performance on English Korean seems to be a result of severe overtraining, as for the rarer language pairs a small number of real examples were highly oversampled in the training corpus.
GNMTMono  GNMTMulti  MoEMulti  MoEMulti vs.
GNMTMulti
Parameters  278M / model  278M  8.7B
ops/timestep  212M  212M  102M
training time, hardware  various  21 days, 96 k20s  12 days, 64 k40s
Perplexity (dev)  4.14  3.35  19%
French English Test BLEU  36.47  34.40  37.46  +3.06
German English Test BLEU  31.77  31.17  34.80  +3.63
Japanese English Test BLEU  23.41  21.62  25.91  +4.29
Korean English Test BLEU  25.42  22.87  28.71  +5.84
Portuguese English Test BLEU  44.40  42.53  46.13  +3.60
Spanish English Test BLEU  38.00  36.04  39.39  +3.35
English French Test BLEU  35.37  34.00  36.59  +2.59
English German Test BLEU  26.43  23.15  24.53  +1.38
English Japanese Test BLEU  23.66  21.10  22.78  +1.68
English Korean Test BLEU  19.75  18.41  16.62  1.79
English Portuguese Test BLEU  38.40  37.35  37.90  +0.55
English Spanish Test BLEU  34.50  34.25  36.21  +1.96
6 Conclusion
This work is the first to demonstrate major wins from conditional computation in deep networks. We carefully identified the design considerations and challenges of conditional computing and addressed them with a combination of algorithmic and engineering solutions. While we focused on text, conditional computation may help in other domains as well, provided sufficiently large training sets. We look forward to seeing many novel implementations and applications of conditional computation in the years to come.
Acknowledgments
We would like to thank all of the members of the Google Brain and Google Translate teams who helped us with this project, in particular Zhifeng Chen, Yonghui Wu, and Melvin Johnson. Thanks also to our anonymous ICLR reviewers for the helpful suggestions on making this paper better.
References
 Abadi et al. (2016) Martín Abadi, Ashish Agarwal, Paul Barham, Eugene Brevdo, Zhifeng Chen, Craig Citro, Gregory S. Corrado, Andy Davis, Jeffrey Dean, Matthieu Devin, Sanjay Ghemawat, Ian J. Goodfellow, Andrew Harp, Geoffrey Irving, Michael Isard, Yangqing Jia, Rafal Józefowicz, Lukasz Kaiser, Manjunath Kudlur, Josh Levenberg, Dan Mané, Rajat Monga, Sherry Moore, Derek Gordon Murray, Chris Olah, Mike Schuster, Jonathon Shlens, Benoit Steiner, Ilya Sutskever, Kunal Talwar, Paul A. Tucker, Vincent Vanhoucke, Vijay Vasudevan, Fernanda B. Viégas, Oriol Vinyals, Pete Warden, Martin Wattenberg, Martin Wicke, Yuan Yu, and Xiaoqiang Zheng. Tensorflow: Largescale machine learning on heterogeneous distributed systems. CoRR, abs/1603.04467, 2016. URL http://arxiv.org/abs/1603.04467.
 Aljundi et al. (2016) Rahaf Aljundi, Punarjay Chakravarty, and Tinne Tuytelaars. Expert gate: Lifelong learning with a network of experts. CoRR, abs/1611.06194, 2016. URL http://arxiv.org/abs/1611.06194.
 Almahairi et al. (2015) A. Almahairi, N. Ballas, T. Cooijmans, Y. Zheng, H. Larochelle, and A. Courville. Dynamic Capacity Networks. ArXiv eprints, November 2015.
 Amodei et al. (2015) Dario Amodei, Rishita Anubhai, Eric Battenberg, Carl Case, Jared Casper, Bryan Catanzaro, Jingdong Chen, Mike Chrzanowski, Adam Coates, Greg Diamos, Erich Elsen, Jesse Engel, Linxi Fan, Christopher Fougner, Tony Han, Awni Y. Hannun, Billy Jun, Patrick LeGresley, Libby Lin, Sharan Narang, Andrew Y. Ng, Sherjil Ozair, Ryan Prenger, Jonathan Raiman, Sanjeev Satheesh, David Seetapun, Shubho Sengupta, Yi Wang, Zhiqian Wang, Chong Wang, Bo Xiao, Dani Yogatama, Jun Zhan, and Zhenyao Zhu. Deep speech 2: Endtoend speech recognition in english and mandarin. arXiv preprint arXiv:1512.02595, 2015.
 Bahdanau et al. (2014) Dzmitry Bahdanau, Kyunghyun Cho, and Yoshua Bengio. Neural machine translation by jointly learning to align and translate. arXiv preprint arXiv:1409.0473, 2014.
 Bengio et al. (2015) Emmanuel Bengio, PierreLuc Bacon, Joelle Pineau, and Doina Precup. Conditional computation in neural networks for faster models. arXiv preprint arXiv:1511.06297, 2015.
 Bengio et al. (2013) Yoshua Bengio, Nicholas Léonard, and Aaron Courville. Estimating or propagating gradients through stochastic neurons for conditional computation. arXiv preprint arXiv:1308.3432, 2013.
 Chelba et al. (2013) Ciprian Chelba, Tomas Mikolov, Mike Schuster, Qi Ge, Thorsten Brants, Phillipp Koehn, and Tony Robinson. One billion word benchmark for measuring progress in statistical language modeling. arXiv preprint arXiv:1312.3005, 2013.
 Cho & Bengio (2014) K. Cho and Y. Bengio. Exponentially Increasing the CapacitytoComputation Ratio for Conditional Computation in Deep Learning. ArXiv eprints, June 2014.
 Collobert et al. (2002) Ronan Collobert, Samy Bengio, and Yoshua Bengio. A parallel mixture of SVMs for very large scale problems. Neural Computing, 2002.
 Davis & Arel (2013) Andrew Davis and Itamar Arel. Lowrank approximations for conditional feedforward computation in deep neural networks. arXiv preprint arXiv:1312.4461, 2013.
 Deisenroth & Ng (2015) Marc Peter Deisenroth and Jun Wei Ng. Distributed Gaussian processes. In ICML, 2015.
 Duchi et al. (2010) John Duchi, Elad Hazan, and Yoram Singer. Adaptive subgradient methods for online learning and stochastic optimization, 2010.
 Durrani et al. (2014) Nadir Durrani, Barry Haddow, Philipp Koehn, and Kenneth Heafield. Edinburgh’s phrasebased machine translation systems for wmt14. In Proceedings of the Ninth Workshop on Statistical Machine Translation, 2014.
 Eigen et al. (2013) David Eigen, Marc’Aurelio Ranzato, and Ilya Sutskever. Learning factored representations in a deep mixture of experts. arXiv preprint arXiv:1312.4314, 2013.

Garmash & Monz (2016)
Ekaterina Garmash and Christof Monz.
Ensemble learning for multisource neural machine translation.
In staff.science.uva.nl/c.monz, 2016.  Gers et al. (2000) Felix A. Gers, Jürgen A. Schmidhuber, and Fred A. Cummins. Learning to forget: Continual prediction with lstm. Neural Computation, 2000.
 Gruslys et al. (2016) Audrunas Gruslys, Rémi Munos, Ivo Danihelka, Marc Lanctot, and Alex Graves. Memoryefficient backpropagation through time. CoRR, abs/1606.03401, 2016. URL http://arxiv.org/abs/1606.03401.

He et al. (2015)
Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun.
Deep residual learning for image recognition.
IEEE Conference on Computer Vision and Pattern Recognition
, 2015.  Hinton et al. (2012) Geoffrey Hinton, Li Deng, Dong Yu, George E. Dahl, Abdelrahman Mohamed, Navdeep Jaitly, Andrew Senior, Vincent Vanhoucke, Patrick Nguyen, Tara N. Sainath, et al. Deep neural networks for acoustic modeling in speech recognition: The shared views of four research groups. IEEE Signal Processing Magazine, 2012.
 Hochreiter & Schmidhuber (1997) Sepp Hochreiter and Jürgen Schmidhuber. Long shortterm memory. Neural Computation, 1997.
 Ioffe & Szegedy (2015) Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. arXiv preprint arXiv:1502.03167, 2015.
 Jacobs et al. (1991) Robert A. Jacobs, Michael I. Jordan, Steven J. Nowlan, and Geoffrey E. Hinton. Adaptive mixtures of local experts. Neural Computing, 1991.
 Johnson et al. (2016) Melvin Johnson, Mike Schuster, Quoc V. Le, Maxim Krikun, Yonghui Wu, Zhifeng Chen, Nikhil Thorat, Fernanda B. Viégas, Martin Wattenberg, Greg Corrado, Macduff Hughes, and Jeffrey Dean. Google’s multilingual neural machine translation system: Enabling zeroshot translation. CoRR, abs/1611.04558, 2016. URL http://arxiv.org/abs/1611.04558.
 Jordan & Jacobs (1994) Michael I. Jordan and Robert A. Jacobs. Hierarchical mixtures of experts and the EM algorithm. Neural Computing, 1994.
 Jozefowicz et al. (2016) Rafal Jozefowicz, Oriol Vinyals, Mike Schuster, Noam Shazeer, and Yonghui Wu. Exploring the limits of language modeling. arXiv preprint arXiv:1602.02410, 2016.
 Kingma & Ba (2015) Diederik Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In ICLR, 2015.
 Kneser & Ney (1995) Reinhard Kneser and Hermann. Ney. Improved backingoff for mgram language modeling., 1995.
 Krizhevsky et al. (2012) Alex Krizhevsky, Ilya Sutskever, and Geoffrey E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.

Le et al. (2012)
Quoc V. Le, Marc’Aurelio Ranzato, Rajat Monga, Matthieu Devin, Kai Chen,
Greg S. Corrado, Jeffrey Dean, and Andrew Y. Ng.
Building highlevel features using large scale unsupervised learning.
In ICML, 2012.  Ludovic Denoyer (2014) Patrick Gallinari Ludovic Denoyer. Deep sequential neural network. arXiv preprint arXiv:1410.0510, 2014.
 Luong et al. (2015a) MinhThang Luong, Hieu Pham, and Christopher D. Manning. Effective approaches to attentionbased neural machine translation. EMNLP, 2015a.
 Luong et al. (2015b) MinhThang Luong, Ilya Sutskever, Quoc V. Le, Oriol Vinyals, and Wojciech Zaremba. Addressing the rare word problem in neural machine translation. ACL, 2015b.
 Rasmussen & Ghahramani (2002) Carl Edward Rasmussen and Zoubin Ghahramani. Infinite mixtures of Gaussian process experts. NIPS, 2002.

Sak et al. (2014)
Hasim Sak, Andrew W Senior, and Françoise Beaufays.
Long shortterm memory recurrent neural network architectures for large scale acoustic modeling.
In INTERSPEECH, pp. 338–342, 2014.  Schuster & Nakajima (2012) Mike Schuster and Kaisuke Nakajima. Japanese and Korean voice search. ICASSP, 2012.
 Shahbaba & Neal (2009) Babak Shahbaba and Radford Neal. Nonlinear models using dirichlet process mixtures. JMLR, 2009.
 Sutskever et al. (2014) Ilya Sutskever, Oriol Vinyals, and Quoc V. Le. Sequence to sequence learning with neural networks. In NIPS, 2014.
 Theis & Bethge (2015) Lucas Theis and Matthias Bethge. Generative image modeling using spatial LSTMs. In NIPS, 2015.
 Tresp (2001) Volker Tresp. Mixtures of Gaussian Processes. In NIPS, 2001.
 Wu et al. (2016) Yonghui Wu, Mike Schuster, Zhifeng Chen, Quoc V. Le, Mohammad Norouzi, Wolfgang Macherey, Maxim Krikun, Yuan Cao, Qin Gao, Klaus Macherey, Jeff Klingner, Apurva Shah, Melvin Johnson, Xiaobing Liu, Łukasz Kaiser, Stephan Gouws, Yoshikiyo Kato, Taku Kudo, Hideto Kazawa, Keith Stevens, George Kurian, Nishant Patil, Wei Wang, Cliff Young, Jason Smith, Jason Riesa, Alex Rudnick, Oriol Vinyals, Greg Corrado, Macduff Hughes, and Jeffrey Dean. Google’s neural machine translation system: Bridging the gap between human and machine translation. arXiv preprint arXiv:1609.08144, 2016.
 Yao et al. (2009) Bangpeng Yao, Dirk Walther, Diane Beck, and Li Feifei. Hierarchical mixture of classification experts uncovers interactions between brain regions. In NIPS. 2009.
 Zaremba et al. (2014) Wojciech Zaremba, Ilya Sutskever, and Oriol Vinyals. Recurrent neural network regularization. arXiv preprint arXiv:1409.2329, 2014.
 Zhou et al. (2016) Jie Zhou, Ying Cao, Xuguang Wang, Peng Li, and Wei Xu. Deep recurrent models with fastforward connections for neural machine translation. arXiv preprint arXiv:1606.04199, 2016.
Appendices
A LoadBalancing Loss
As discussed in section 4
, for loadbalancing purposes, we want to define an additional loss function to encourage experts to receive roughly equal numbers of training examples. Unfortunately, the number of examples received by an expert is a discrete quantity, so it can not be used in backpropagation. Instead, we define a smooth estimator
of the number of examples assigned to each expert for a batch of inputs. The smoothness allows us to backpropagate gradients through the estimator. This is the purpose of the noise term in the gating function. We defineas the probability that
is nonzero, given a new random choice of noise on element , but keeping the alreadysampled choices of noise on the other elements. To compute , we note that the is nonzero if and only if is greater than the greatest element of excluding itself. The probability works out to be:(8)
Where means the kth highest component of , excluding component . Simplifying, we get:
(9)
Where
is the CDF of the standard normal distribution.
(10)
We can now define the load loss to be the square of the coefficient of variation of the load vector, multiplied by a handtuned scaling factor .
(11)
Initial Load Imbalance:
To avoid outofmemory errors, we need to initialize the network in a state of approximately equal expert load (since the soft constraints need some time to work). To accomplish this, we initialize the matrices and to all zeros, which yields no signal and some noise.
Experiments:
We trained a set of models with identical architecture (the MoE256 model described in Appendix C), using different values of and . We trained each model for 10 epochs, then measured perplexity on the test set. We also measured the coefficients of variation in and , as well as ratio of the load on the most overloaded expert to the average load. This last value is significant for load balancing purposes on distributed hardware. All of these metrics were averaged over several training batches.
Test Perplexity

0.0
0.0  39.8  3.04  3.01  17.80
0.2  0.0  35.6  0.06  0.17  1.47
0.0  0.2  35.7  0.22  0.04  1.15
0.1  0.1  35.6  0.06  0.05  1.14
0.01  0.01  35.7  0.48  0.11  1.37
1.0  1.0  35.7  0.03  0.02  1.07
Results:
Results are reported in Table 6. All the combinations containing at least one the two losses led to very similar model quality, where having no loss was much worse. Models with higher values of had lower loads on the most overloaded expert.
B Hierachical Mixture of Experts
If the number of experts is very large, we can reduce the branching factor by using a twolevel hierarchical MoE. In a hierarchical MoE, a primary gating network chooses a sparse weighted combination of “experts", each of which is itself a secondary mixtureofexperts with its own gating network.^{3}^{3}3 We have not found the need for deeper hierarchies. If the hierarchical MoE consists of groups of experts each, we denote the primary gating network by , the secondary gating networks by , and the expert networks by . The output of the MoE is given by:
(12)
Our metrics of expert utilization change to the following:
(13)
(14)
and deonte the functions for the primary gating network and secondary gating network respectively. denotes the subset of for which .
It would seem simpler to let , but this would not have a gradient with respect to the primary gating network, so we use the formulation above.
C 1 Billion Word Language Modeling Benchmark  Experimental Details
c.1 8MillionOperationsperTimestep Models
Model Architecture:
Our model consists of five layers: a word embedding layer, a recurrent Long ShortTerm Memory (LSTM) layer (Hochreiter & Schmidhuber, 1997; Gers et al., 2000), a MoE layer, a second LSTM layer, and a softmax layer. The dimensionality of the embedding layer, the number of units in each LSTM layer, and the input and output dimensionality of the MoE layer are all equal to 512. For every layer other than the softmax, we apply drouput (Zaremba et al., 2014) to the layer output, dropping each activation with probability , otherwise dividing by
. After dropout, the output of the previous layer is added to the layer output. This residual connection encourages gradient flow
(He et al., 2015).MoE Layer Architecture:
Each expert in the MoE layer is a feed forward network with one ReLUactivated hidden layer of size 1024 and an output layer of size 512. Thus, each expert contains
parameters. The output of the MoE layer is passed through a sigmoid function before dropout. We varied the number of experts between models, using ordinary MoE layers with 4, 32 and 256 experts and hierarchical MoE layers with 256, 1024 and 4096 experts. We call the resulting models MoE4, MoE32, MoE256, MoE256h, MoE1024h and MoE4096h. For the hierarchical MoE layers, the first level branching factor was 16, corresponding to the number of GPUs in our cluster. We use NoisyTopK Gating (see Section
2.1) with for the ordinary MoE layers and at each level of the hierarchical MoE layers. Thus, each example is processed by exactly 4 experts for a total of 4M ops/timestep. The two LSTM layers contribute 2M ops/timestep each for the desired total of 8M.ComputationallyMatched Baselines:
The MoE4 model does not employ sparsity, since all 4 experts are always used. In addition, we trained four more computationallymatched baseline models with no sparsity:

MoE1Wide: The MoE layer consists of a single "expert" containing one ReLUactivated hidden layer of size 4096.

MoE1Deep: The MoE layer consists of a single "expert" containing four ReLUactivated hidden layers, each with size .

4xLSTM512: We replace the MoE layer with two additional 512unit LSTM layers.

LSTM2048512: The model contains one 2048unit LSTM layer (and no MoE). The output of the LSTM is projected down to 512 dimensions (Sak et al., 2014). The next timestep of the LSTM receives the projected output. This is identical to one of the models published in (Jozefowicz et al., 2016). We reran it to account for differences in training regimen, and obtained results very similar to the published ones.
Training:
The models were trained on a cluster of 16 K40 GPUs using the synchronous method described in Section 3. Each batch consisted of a set of sentences totaling roughly 300,000 words. In the interest of time, we limited training to 10 epochs, (27,000 steps). Training took 1216 hours for all models, except for MoE4, which took 18 hours (since all the expert computation was performed on only 4 of 16 GPUs). We used the Adam optimizer (Kingma & Ba, 2015). The base learning rate was increased linearly for the first 1000 training steps, and decreased after that so as to be proportional to the inverse square root of the step number. The Softmax output layer was trained efficiently using importance sampling similarly to the models in (Jozefowicz et al., 2016). For each model, we performed a hyperparmeter search to find the best dropout probability, in increments of 0.1.
Results:
We evaluate our model using perplexity on the holdout dataset, used by (Chelba et al., 2013; Jozefowicz et al., 2016). We follow the standard procedure and sum over all the words including the end of sentence symbol. Results are reported in Table 7. For each model, we report the test perplexity, the computational budget, the parameter counts, the value of , and the computational efficiency.
Model  Test  Test  ops/timestep  #Params excluding  Total    TFLOPS

Perplexity  Perplexity  (millions)  embed. & softmax  #Params  per GPU
10 epochs  (final)  (millions)  (billions)  (observed)
KneserNey 5gram*  67.6  0.00001  1.8
LSTM512512*  54.1  2.4  2.4  0.8  0.1
LSTM1024512*  48.2  4.7  4.7  0.8  0.1
LSTM2048512*  45.0  43.7  9.4  9.4  0.8  0.1  0.61
LSTM2048512  44.7  9.4  9.4  0.8  0.1  1.21
4xLSTM512  46.0  8.4  8.4  0.8  0.1  1.07
MoE1Wide  46.1  8.4  8.4  0.8  0.1  1.29
MoE1Deep  45.7  8.4  8.4  0.8  0.1  1.29
MoE4  45.0  8.4  8.4  0.8  0.1  0.52
MoE32  39.7  8.4  37.8  0.9  0.1  0.87
MoE256  35.7  8.6  272.9  1.1  0.1  0.81
MoE256h  36.0  8.4  272.9  1.1  0.1  0.89
MoE1024h  34.6  8.5  1079.0  1.9  0.2  0.90
MoE4096h  34.1  8.9  4303.4  5.1  0.2  0.74
2xLSTM81921024*  34.7  30.6  151.0  151.0  1.8  0.25  1.09
MoE34M  31.3  33.8  4313.9  6.0  0.3  1.22
MoE143M  28.0  142.7  4371.1  6.0  0.4  1.56
c.2 More Expensive Models
We ran two additional models (MoE34M and MoE143M) to investigate the effects of adding more computation in the presence of a large MoE layer. These models have computation budgets of 34M and 143M ops/timestep. Similar to the models above, these models use a MoE layer between two LSTM layers. The dimensionality of the embedding layer, and the input and output dimensionality of the MoE layer are set to 1024 instead of 512. For MoE34M, the LSTM layers have 1024 units. For MoE143M, the LSTM layers have 4096 units and an output projection of size 1024 (Sak et al., 2014). MoE34M uses a hierarchical MoE layer with 1024 experts, each with a hidden layer of size 2048. MoE143M uses a hierarchical MoE layer with 256 experts, each with a hidden layer of size 8192. Both models have 4B parameters in the MoE layers. We searched for the best for each model, and trained each model for 10 epochs.
The two models achieved test perplexity of and respectively, showing that even in the presence of a large MoE, more computation is still useful. Results are reported at the bottom of Table 7. The larger of the two models has a similar computational budget to the best published model from the literature, and training times are similar. Comparing after 10 epochs, our model has a lower test perplexity by .
D 100 Billion Word Google News Corpus  Experimental Details
Model Architecture:
The models are similar in structure to the 8millionoperationspertimestep models described in the previous section. We vary the number of experts between models, using an ordinary MoE layer with 32 experts and hierarchical MoE layers with 256, 1024, 4096, 16384, 65536 and 131072 experts. For the hierarchical MoE layers, the first level branching factors are 32, 32, 64, 128, 256 and 256, respectively.
Training:
Models are trained on a cluster of 32 Tesla K40 GPUs, except for the last two models, which are trained on clusters of 64 and 128 GPUs so as to have enough memory for all the parameters. For all models, training batch sizes are approximately 2.5 million words. Models are trained oncethrough over about 100 billion words.
We implement several memory optimizations in order to fit up to 1 billion parameters per GPU. First, we do not store the activations of the hidden layers of the experts, but instead recompute them on the backwards pass. Secondly, we modify the optimizer on the expert parameters to require less auxiliary storage:
The Adam optimizer (Kingma & Ba, 2015)
keeps first and second moment estimates of the perparameter gradients. This triples the required memory. To avoid keeping a firstmoment estimator, we set
. To reduce the size of the second moment estimator, we replace it with a factored approximation. For a matrix of parameters, instead of maintaining a full matrix of secondmoment estimators, we maintain vectors of rowwise and columnwise averages of that matrix. At each step, the matrix of estimators is taken to be the outer product of those two vectors divided by the mean of either one. This technique could similarly be applied to Adagrad (Duchi et al., 2010).Model  Test  Test  ops/timestep  #Params excluding  Total  TFLOPS

Perplexity  Perplexity  (millions)  embed. & softmax  #Params  per GPU
.1 epochs  1 epoch  (millions)  (billions)  (observed)
KneserNey 5gram  67.1  45.3  0.00001  76.0
4xLSTM512  54.5  47.0  8.4  8.4  0.1  1.23
MoE32  48.5  40.4  8.4  37.8  0.1  0.83
MoE256h  42.8  35.3  8.4  272.9  0.4  1.11
MoE1024h  40.3  32.7  8.5  1079.0  1.2  1.14
MoE4096h  38.9  30.9  8.6  4303.4  4.4  1.07
MoE16384h  38.2  29.7  8.8  17201.0  17.3  0.96
MoE65536h  38.2  28.9  9.2  68791.0  68.9  0.72
MoE131072h  39.8  29.2  9.7  137577.6  137.7  0.30
Results:
We evaluate our model using perplexity on a holdout dataset. Results are reported in Table 8. Perplexity after 100 billion training words is 39% lower for the 68billionparameter MoE model than for the baseline model. It is notable that the measured computational efficiency of the largest model (0.30 TFLOPS/GPU) is very low compared to the other models. This is likely a result of the fact that, for purposes of comparison to the other models, we did not increase the training batch size proportionally to the number of GPUs. For comparison, we include results for a computationally matched baseline model consisting of 4 LSTMs, and for an unpruned 5gram model with KneserNey smoothing (Kneser & Ney, 1995).^{4}^{4}4While the original size of the corpus was 130 billion words, the neural models were trained for a maximum of 100 billion words. The reported KneserNey 5gram models were trained over 13 billion and 130 billion words respectively, giving them a slight advantage over the other reported results.
E Machine Translation  Experimental Details
Model Architecture for Single Language Pair MoE Models:
Our model is a modified version of the GNMT model described in (Wu et al., 2016). To reduce computation, we decrease the number of LSTM layers in the encoder and decoder from 9 and 8 to 3 and 2 respectively. We insert MoE layers in both the encoder (between layers 2 and 3) and the decoder (between layers 1 and 2). We use an attention mechanism between the encoder and decoder, with the first decoder LSTM receiving output from and providing input for the attention ^{5}^{5}5For performance reasons, we use a slightly different attention function from the one described in (Wu et al., 2016)  See Appendix G. All of the layers in our model have input and output dimensionality of 512. Our LSTM layers have 2048 hidden units, with a 512dimensional output projection. We add residual connections around all LSTM and MoE layers to encourage gradient flow (He et al., 2015). Similar to GNMT, to effectively deal with rare words, we used subword units (also known as “wordpieces") (Schuster & Nakajima, 2012) for inputs and outputs in our system.
We use a shared source and target vocabulary of 32K wordpieces. We also used the same beam search technique as proposed in (Wu et al., 2016).
We train models with different numbers of experts in the MoE layers. In addition to a baseline model with no MoE layers, we train models with flat MoE layers containing 32 experts, and models with hierarchical MoE layers containing 512 and 2048 experts. The flat MoE layers use and the hierarchical MoE models use at each level of the gating network. Thus, each input is processed by exactly 4 experts in each MoE layer. Each expert in the MoE layer is a feed forward network with one hidden layer of size 2048 and ReLU activation. Thus, each expert contains parameters. The output of the MoE layer is passed through a sigmoid function. We use the strictlybalanced gating function described in Appendix F.
Model Architecture for Multilingual MoE Model:
We used the same model architecture as for the singlelanguagepair models, with the following exceptions: We used noisytopk gating as described in Section 2.1, not the scheme from Appendix F. The MoE layers in the encoder and decoder are nonhierarchical MoEs with experts, and . Each expert has a larger hidden layer of size . This doubles the amount of computation in the MoE layers, raising the computational budget of the entire model from 85M to 102M ops/timestep.
Training:
We trained our networks using the Adam optimizer (Kingma & Ba, 2015). The base learning rate was increased linearly for the first 2000 training steps, held constant for an additional 8000 steps, and decreased after that so as to be proportional to the inverse square root of the step number. For the singlelanguagepair models, similarly to (Wu et al., 2016), we applied dropout (Zaremba et al., 2014) to the output of all embedding, LSTM and MoE layers, using . Training was done synchronously on a cluster of up to 64 GPUs as described in section 3. Each training batch consisted of a set of sentence pairs containing roughly 16000 words per GPU.
Metrics:
We evaluated our models using the perplexity and the standard BLEU score metric. We reported tokenized BLEU score as computed by the multibleu.pl script, downloaded from the public implementation of Moses (on Github), which was also used in (Luong et al., 2015a).
Results:
Tables 2, 3 and 4 in Section 5.3 show comparisons of our results to other published methods. Figure 4 shows test perplexity as a function of number of words in the (training data’s) source sentences processed for models with different numbers of experts. As can be seen from the Figure, as we increased the number of experts to approach 2048, the test perplexity of our model continued to improve.
We found that the experts indeed become highly specialized by syntax and/or semantics, as can be seen in Table 9. For example, one expert is used when the indefinite article “a" introduces the direct object in a verb phrase indicating importance or leadership.
Expert 381  Expert 752  Expert 2004
… with researchers , …  … plays a core …  … with rapidly growing …
… to innovation .  … plays a critical …  … under static conditions …
… tics researchers .  … provides a legislative …  … to swift ly …
… the generation of …  … play a leading …  … to dras tically …
… technology innovations is …  … assume a leadership …  … the rapid and …
… technological innovations , …  … plays a central …  … the fast est …
… support innovation throughout …  … taken a leading …  … the Quick Method …
… role innovation will …  … established a reconciliation …  … rec urrent ) …
… research scienti st …  … played a vital …  … provides quick access …
… promoting innovation where …  … have a central …  … of volatile organic …
…  …  …
F Strictly Balanced Gating
Due to some peculiarities in our infrastructure which have since been fixed, at the time we ran some of the machine translation experiments, our models ran faster if every expert received exactly the same batch size. To accommodate this, we used a different gating function which we describe below.
Recall that we define the softmax gating function to be:
(15)
Sparse Gating (alternate formulation):
To obtain a sparse gating vector, we multiply componentwise with a sparse mask and normalize the output. The mask itself is a function of and specifies which experts are assigned to each input example:
(16)
TopK Mask:
To implement topk gating in this formulation, we would let , where:
(17)
Batchwise Mask:
To force each expert to receive the exact same number of examples, we introduce an alternative mask function, , which operates over batches of input vectors. Instead of keeping the top values per example, we keep the top values per expert across the training batch, where , so that each example is sent to an average of experts.
(18)
As our experiments suggest and also observed in (Ioffe & Szegedy, 2015), using a batchwise function during training (such as ) requires modifications to the inference when we may not have a large batch of examples. Our solution to this is to train a vector of perexpert threshold values to approximate the effects of the batchwise mask. We use the following mask at inference time:
(19)
To learn the threshold values, we apply an additional loss at training time which is minimized when the batchwise mask and the threshold mask are identical.
(20)
G Attention Function
The attention mechanism described in GNMT (Wu et al., 2016) involves a learned “Attention Function" which takes a “source vector" and a “target vector" , and must be computed for every source time step and target time step . In GNMT, the attention function is implemented as a feed forward neural network with a hidden layer of size . It can be expressed as:
(21)
Where and are trainable weight matrices and is a trainable weight vector.
For performance reasons, in our models, we used a slightly different attention function:
(22)
With our attention function, we can simultaneously compute the attention function on multiple source time steps and multiple target time steps using optimized matrix multiplications. We found little difference in quality between the two functions.
