# Outage Analysis of Ambient Backscatter Communication Systems

This paper addresses the problem of outage characterization of an ambient backscatter communication system with a pair of passive tag and reader. In particular, an exact expression for the effective channel distribution is derived. Then, the outage probability at the reader is analyzed rigorously. Since the expression contains an infinite sum, a tight truncation error bound has been derived to facilitate precise numerical evaluations. Furthermore, an asymptotic expression is provided for high signal-to-noise ratio (SNR) regime.

## Authors

• 3 publications
• 8 publications
• 10 publications
• 7 publications
• ### A Simple Evaluation for the Secrecy Outage Probability Over Generalized-K Fading Channels

A simple approximation for the secrecy outage probability (SOP) over gen...
07/03/2019 ∙ by Hui Zhao, et al. ∙ 0

• ### Outage Analysis of 2×2 MIMO-MRC in Correlated Rician Fading

This paper addresses one of the classical problems in random matrix theo...
11/16/2018 ∙ by Prathapasinghe Dharmawansa, et al. ∙ 0

• ### Unified Composite Distribution and Its Applications to Double Shadowed α-κ-μ Fading Channels

In this paper, we propose a mixture Gamma shadowed (MGS) distribution as...
11/16/2020 ∙ by Hussien Al-Hmood, et al. ∙ 0

• ### Reliability Analysis of Large Intelligent Surfaces (LISs): Rate Distribution and Outage Probability

Large intelligent surfaces (LISs) have been recently proposed as an effe...
03/27/2019 ∙ by Minchae Jung, et al. ∙ 0

• ### Distribution of the Sum of Fisher-Snedecor F Random Variables and Its Applications

The statistical characterization of the sum of random variables (RVs) ar...
10/23/2019 ∙ by Hongyang Du, et al. ∙ 0

• ### Performance Analysis of Distributed Intelligent Reflective Surfaces for Wireless Communications

In this paper, a comprehensive performance analysis of a distributed int...
10/23/2020 ∙ by Diluka Loku Galappaththige, et al. ∙ 0

• ### Deep Transfer Learning for Signal Detection in Ambient Backscatter Communications

Tag signal detection is one of the key tasks in ambient backscatter comm...
09/11/2020 ∙ by Chang Liu, et al. ∙ 0

##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

## I Introduction

Backscatter communication systems, such as Radio Frequency Identification (RFID) system, enable connecting massive small computing devices specially for applications in Internet of Things (IoT) [1]. The traditional RFID system typically consists of a tag and a reader. The reader first generates and transmits an electromagnetic wave signal to the tag, and then the tag receives and backscatters the signal to the reader.

One disadvantage for the RFID system is that the reader needs an oscillator to transmit a carrier signal, for which dedicated encoding/decoding circuitry and power supply are required [2]. While these are essential components for a successful communication, such in-built technology may no longer be promising for small-scale devices. To overcome such overheads, ambient backscatter prototypes are proposed in [3, 4].

The ambient backscatter technology utilizes environmental wireless signals (e.g., digital TV broadcasting, cellular or Wi-Fi) for both energy harvesting and information transmission, which avoids battery as well as manual maintenance. Specifically, the tag indicates bit 1 or bit 0 through reflecting or non-reflecting state, and the reader decodes the received backscattered signal accordingly [5]. Ambient backscatter may be widely used for future applications (e.g., many applications in IoT with sensors located in dangerous spots filled with poisonous gases/liquids, or inside building walls) that are inconvenient and unsafe for wired communications [6].

The performance analysis of the ambient backscatter communication is considered over real Gaussian channels in [7], and complex Gaussian channels in [8, 9]. The bit error rate (BER) is derived and the BER-based outage probability is obtained in [7] for ambient bakcscatter communication systems with energy detector. In addition, the outage capacity optimization problem is investigated in [8] when successive interference cancellation (SIC) method is applied. Besides, the BER-based outage probability of a semi-coherent detection scheme is calculated in [9] in the case of perfect and imperfect channel state information (CSI), respectively.

To our best knowledge, effective channel distribution for ambient backscatter communication systems has not be addressed and the outage performance based on signal-to-noise ratio (SNR) remains an open problem, which is the focus of this paper.

In this paper, we consider an ambient backscatter communication system over real Gaussian channels. We derive an exact expression for the effective channel distribution in this system. Particularly, we evaluate the outage performance and analyse its asymptotic outage performance at high transmit SNR. Moreover, since the derived outage probability is the summation of infinite items, the corresponding truncation error bound is calculated.

## Ii System Model

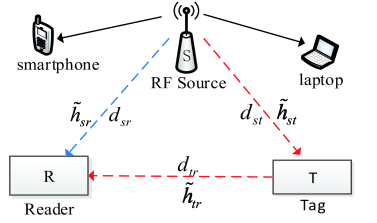

We consider an ambient backscatter communication system comprised of an ambient RF source () and a pair of passive tag () and reader () (Fig. 1). While the RF source communicates with its legacy users (e.g., smartphones, laptops, etc.), both tag and reader may also receive that source signal. The tag first harvests energy from the source signal, and then communicates with the reader via ambient backscatter. Particularly, the tag can backscatter or consume the energy of the received signal to represent two states “1” or “0” for the reader, respectively [5].

The fading channels of , , and links are denoted as , and

, respectively, which are real Gaussian random variables (RVs) distributed as

, and , where , and

are channel variances. Further, the corresponding distances are

, and , respectively. Without loss of generality, we consider time instance . The signal received at the tag can be given as

 yt(n)=~hst√dαsts(n), (1)

where is the source signal with the average power , and is the path-loss exponent. The signal backscattered by the tag can be written as

 x(n)=ηB(n)yt(n), (2)

where is a binary symbol and is the attenuation factor. Then, the received signal at the reader can be given as [5]

 yr(n)=~hsr√dαsrs(n)+~htr√dαtrx(n)+w(n)=hs(n)+w(n), (3)

where is the additive white Gaussian noise (AWGN) at the reader with zero mean and variance, and is the effective channel gain which can be given for two states as

 h ={hsr,B(n)=0,hsr+ηhsthtr,B(n)=1, (4)

where , , and with , and .

## Iii Performance Analysis

### Iii-a Effective Channel and SNR Distributions

We first derive the probability density function (PDF) of the effective channel,

, which can be given as

 (5)

where and are the Whittaker function [10, eq. (9.223)] and the Gamma function [10, eq. (8.310.1)], respectively. The proof is in Appendix -A.

The receive SNR at the reader is where may be the average transmit SNR. With a variable transformation for (5), we can derive the PDF of , , as

 fρ(x)=[fh(√x¯ρ)+fh(−√x¯ρ)]2√¯ρx=fh(√x¯ρ)√¯ρx, (6)

where the second equality follows as the PDF is an even function, i.e., .

### Iii-B Outage Probability

The outage probability is the probability that the SNR at the reader falls below a certain predetermined threshold . Thus, it can be derived as

 Po =Pr[ρ≤ρt]=∫ρt0fρ(x)dx =⎧⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪⎨⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪⎩erf(√ρt2¯ρσ2sr),B(n)=0,∞∑k=022kΓ2(k+12)√π3(2k)!W−k,0(σ2sr2η2σ2stσ2tr)×eσ2sr4η2σ2stσ2trγ(k+12,ρt2¯ρσ2sr),B(n)=1, (7)

where and are the error function [10, eq. (8.250.1)] and the incomplete gamma function [10, eq. (8.350.1)], respectively. The equation (7) can be obtained by following from [10, eq. (3.321.2)], [10, eq. (8.250.1)] and [10, eq. (3.381.1)].

### Iii-C Truncation Error Bound

Since the outage probability expression for case in (7) is with an infinite sum, it is a challenge for numerical calculation. We therefore truncate it into a finite number of terms in order to ensure a given numerical accuracy requirement. Then, we bound the truncation error as

 |ϵT|≤Ψ(12,0,ν)√πνT![√2ρtσ2sr¯ργ(T+1,ρt2σ2sr¯ρ)       −2γ(T+32,ρt2σ2sr¯ρ)], (8)

where , and is the confluent hypergeometric function [10, eq. (9.211.4)]. The proof is in Appendix -B.

### Iii-D Asymptotic Analysis for High SNR

To further investigate the ambient backscatter system, we approximate outage of the reader for large SNR as

 Po≈⎧⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪⎨⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪⎩√2ρtπσ2sr1√¯ρ,B(n)=0,√2ρteσ2sr4η2σ2stσ2trW0,0(σ2sr2η2σ2stσ2tr)√πσ2sr1√¯ρ,B(n)=1. (9)

The proof is in Appendix -C.

Interestingly, when transmit SNR tends to infinity, we get that the diversity gain is for both cases and . Accordingly, when power is big enough, the outage probability of the reader is inversely proportional to square root of the power.

## Iv Numerical and Simulation Results

This section provides simulation results based on the system model in Section II and numerical results based on the analytical results in Section III. Here, the attenuation factor is set as 0.7. Besides, we assume and , unless otherwise specified.

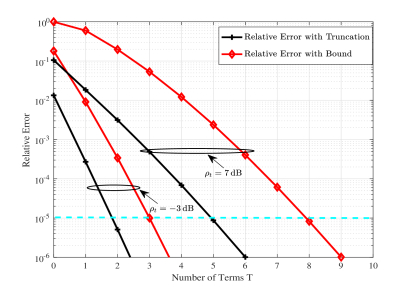

For the state , we derive a truncation error bound (8). Fig. 2 shows the relative error versus the number of terms when dB for dB and dB. We calculate the relative error with truncation as ; the relative error with bound as ; the exact value with numerical integration; and the truncated value for different by using (7). The relative error with truncation is less than when and for dB and dB, respectively. The relative error with bound is less than when and for dB and dB, respectively. This shows the tightness of the bound. Moreover, by observation, we may say that a very accurate value can be calculated using small .

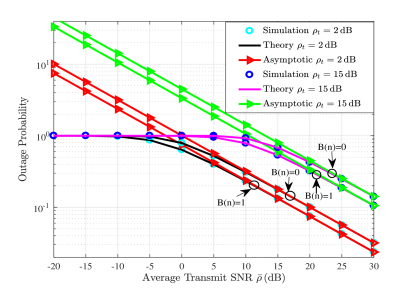

Fig. 3 illustrates the outage probability versus the average transmit SNR when dB and dB. The outage probability decreases with the increasing average transmit SNR. The asymptotic expressions (9) also approach the exact values asymptotically at high SNR. Since the diversity gain is 1/2, the slope of the asymptotic outage curves is 1/2.

Fig. 4 depicts the outage probabilities versus the distance between the tag and the reader. We consider both cases of SNR dB and dB, respectively. We set dB, , meters and meters. Besides, the channel variances , and are set as 1, 1 and 3, respectively. The outage probability is a constant in the case of due to no transmission between the tag and the reader. However, when enlarging the distance between the tag and the reader, the outage probability witnesses a upward trend in the case of . For example, if we expect , the distance between the tag and the reader should not exceed 3 meters when dB and 7 meters when dB.

## V Conclusion

Ambient backscatter, a new form of wireless communication, has potential commercial value as well as a series of open problems. In this paper, we first derived the effective channel distribution for the ambient backscatter communication system. We next analyzed the outage probabilities, its truncation error bound as well as the asymptotic outage probabilities at high SNR. It was found that the asymptotic outage probabilities could well approach the exact values, and our truncation error bound could provide a reasonable estimation of the truncation terms.

### -a Proof of (5)

The distribution of any real Gaussian channel is

 fhab(x)=1√2πσ2abe−x22σ2ab, (10)

where .

In the case of , we have . The distribution of can be shown as [11]

 fξ(x)=1πη√σ2stσ2trK0⎛⎜ ⎜⎝|x|η√σ2stσ2tr⎞⎟ ⎟⎠, (11)

where is the modified Bessel function of the second kind [10].

Since the two random variables and are independent, the distribution is the convolution of and . Therefore, we can obtain

 fh(x) =∫∞−∞fhsr(x−z)fξ(z)dz (a)=e−x22σ2srδφ∫∞0K0(zφ)e−z22σ2sr(exzσ2sr+e−xzσ2sr)dz (b)=2e−x22σ2srδφ∫∞0K0(zφ)e−z22σ2srcosh(xzσ2sr)dz (c)=2e−x22σ2srδφ∞∑k=0x2kσ4ksr(2k)!∫∞0K0(zφ)e−z22σ2srz2kdz (d)=eν2δ∞∑k=02kΓ2(k+12)W−k,0(ν)(2k)!σ2ksre−x22σ2srx2k, (12)

where

 δ=√2π3σ2sr,φ=η√σ2stσ2tr,ν=σ2sr2η2σ2stσ2tr, (13)

(a) follows by two integrals having identical bounds, (b) follows by using the definition of hyperbolic cosine , (c) follows by replacing with its series expression , and (d) follows from [10, eq. (6.631.3)].

### -B Proof of (8)

On the basis of (7), the truncation error with the number of terms can be bounded as

 ϵ(T) = eν2√ππ∞∑k=T+122kΓ2(k+12)W−k,0(ν)(2k)!γ(k+12,ρt2σ2sr¯ρ) (a)= √νπ∞∑k=T+11k!∫∞0e−νxxk+12(1+x)k+12dx∫ρt2σ2sr¯ρ0e−yyk−12dy (b)= √νπ(T+1)!∫∞0∫ρt2σ2sr¯ρ0e−νxxT+32(1+x)T+32e−yyT+12 ×1F1(1;T+2;xyx+1)dydx (c)= √νπT!∫∞0∫ρt2σ2sr¯ρ0e−νxx12(1+x)12e−yy−12 ×exyx+1γ(T+1,xyx+1)dydx
 (d)< √νπT!∫∞0e−νxx12(1+x)12dx∫ρt2σ2sr¯ρ0γ(T+1,y)√ydy = Ψ(12,0,ν)√πνT![√2ρtσ2sr¯ργ(T+1,ρt2σ2sr¯ρ) −2γ(T+32,ρt2σ2sr¯ρ)],

where is defined in (13), (a) is obtained from [10, eq. (9.222.1)] and [10, eq. (8.350.1)], (b) follows by setting and leveraging the integral representation of Hypergeometric function [10, eq. (9.211.4)], (c) utilizes the following equation

 1F1(1;T+2;xyx+1)=(T+1)(xyx+1)−(T+1)exyx+1 ×γ(T+1,xyx+1),

(d) is based on for , and is the confluent hypergeometric function [10, eq. (9.211.4)].

### -C Proof of (9)

In the case of and using series representation of the error function [10, eq. (8.253.1)], we can expand (7) as

 erf⎛⎝√ρt2¯ρσ2sr⎞⎠=2√π∞∑k=0(−1)kρtk+1/2k!(2k+1)(2¯ρσ2sr)k+1/2.

For , we consider the lowest exponent for , i.e., the index . Similarly, in the case of , we can expand in (7) as

 γ(a,x)=∞∑j=0(−1)jxa+jj!(a+j).

We then consider the lowest exponent for , i.e., the indies and . Thereby, when average transmit SNR tends to infinity, namely, , the asymptotic outage probability can be simplified as (9).

## References

• [1] A. Al-Fuqaha, M. Guizani, M. Mohammadi, M. Aledhari, and M. Ayyash, “Internet of things: A survey on enabling technologies, protocols, and applications,” IEEE Commun. Surveys Tuts., vol. 17, pp. 2347–2376, Jun. 2015.
• [2] T. H. Lee, The design of CMOS Radio-Frequency integrated circuits. Cambridge Univ. Press, 1998.
• [3] V. Liu, A. Parks, V. Talla, S. Gollakota, D. Wetherall, and J. R. Smith, “Ambient backscatter: wireless communication out of thin air,” in Proc. ACM SIGCOMM, Aug. 2013, pp. 39–50.
• [4] A. N. Parks, A. Liu, S. Gollakota, and J. R. Smith, “Turbocharging ambient backscatter communication,” in Proc. ACM SIGCOMM, Aug. 2014, pp. 619–630.
• [5] G. Wang, F. Gao, R. Fan, and C. Tellambura, “Ambient backscatter communication systems: Detection and performance analysis,” IEEE Trans. Commun., vol. 64, pp. 4836–4846, Nov. 2016.
• [6] D. Kuester and Z. Popovic, “How good is your tag?: RFID backscatter metrics and measurements,” IEEE Microwave Mag., vol. 14, pp. 47–55, Jul. 2013.
• [7] Y. Zhang, J. Qian, F. Gao, and G. Wang, “Ambient backscatter system with real source,” in IEEE Workshop on Signal Processing Advances in Wireless Commun., 2017, to be published.
• [8] S. Xing, R. Long, Y. Liang, M. Ding, and Z. Lin, “Outage capacity analysis for ambient backscatter communication systems,” in IEEE Wireless Commun. and Networking Conf. (WCNC), 2017, to be published.
• [9] J. Qian, F. Gao, G. Wang, S. Jin, and H. Zhu, “Semi-coherent detection and performance analysis for ambient backscatter system,” IEEE Trans. Commun., 2017, to be published.
• [10] I. S. Gradshteyn and I. M. Ryzhik, Table of Integrals, Series and Products. Academic Press Inc, 7th revised edition ed., 2007.
• [11] M. K. Simon, Probability distributions involving Gaussian Random Variables: a handbook for engineers and scientists. Springer, 2006.
