1 Introduction

With the increase of available remote sensing images, efficient interpretation of remote sensing images becomes more and more important. Object detection is an efficient interpretation method to process massive remote sensing images. In recent years, with the rapid development of deep learning, object detection technology has been developed by leaps and bounds

[10, 4, 9, 2]. Object detection in remote sensing images has also made great progress. A series of high-efficiency detectors are proposed to achieve high-precision object detection in remote sensing images [3, 5, 6, 7, 14, 1, 8, 15].

Unlike general object detection that uses a horizontal bounding box (HBB) to annotate objects, object detection in remote sensing images often take oriented bounding boxes (OBB) to characterize objects. Compared with HBB, OBB contains less background, so it can more effectively describe the contour information of the targets, which is beneficial for the convolutional neural networks (CNNs) to distinguish boundary features. The current mainstream methods all preset rotated priori bounding boxes or generating rotated proposals, such as RoI-Transformer

[1], CFC-Net [5].

However, most of the current detectors inherit from the generic detection methods and do not pay attention to the unique problems in remote sensing images. That is, it is difficult to distinguish similar targets of different categories when viewed from a high altitude. For example, DOTA [12] is currently the largest remote sensing dataset with OBB annotations, which contains 15 categories. And there are big differences between the appearance of these categories. Even in remote sensing images, it is not hard to distinguish different categories (such as bridges and airplanes). These methods performed well on the DOTA dataset may achieve poor performance when distinguishing fine-grained targets. As shown in Figure 1, it is difficult to distinguish the different types of aircraft unless you are an expert in the field.

Figure 1: Visualization of fine-grained aircraft recognition in optical remote sensing images.
Figure 2: The distribution of the number of instances per category in the training set of FAIR1M.

Fine-grained object recognition in remote sensing images is a challenging task. Objects have few texture features at high viewing distances, and thus it is hard to identify them. Besides, the long-tail distribution of instances will further degrade the recognition accuracy. In this technical report, we use an oriented feature alignment network (OFA-Net) to achieve high-precision fine-grained object recognition in remote sensing images. OFA-Net is an anchor-free method that lays dense anchor boxes on the images. These anchor boxes generate candidate proposals to capture the possible positions of the objects to improve the recall rate. Specifically, we use an additional oriented box refinement module to adjust the position of the obtained proposals. For the classification task, we designed the oriented feature alignment branch to extract the features in the rotated proposal for fine-grained classification task.

Category imbalance is another problem that affects detection accuracy. As shown in Figure 2, there is a huge gap in the number of instances of different categories. In order to achieve a balanced training process, we performed class-balanced sampling to expand the dataset. At the same time, data augmentations111Implementation: https://github.com/ming71/toolbox such as random cropping, flipping, optical distortion, etc. are used to expand the dataset. These methods can effectively improve the accuracy of recognition.

The main contributions of this technical report are as follows:

  1. We analyzed the technical difficulties in fine-grained object recognition and developed solutions for it.

  2. OFA-Net is adopted to decouple the fine-grained object detection task into localization subtask and classification subtask. Then rotated anchor refinement module (RARM) and accurate detection module (ADM) are applied to achieves high-precision localization and classification.

  3. We designed an effective data augmentation strategy to greatly improve the recognition accuracy. Besides, we have tried series of tricks and reported the effects in detail.

2 Methodology

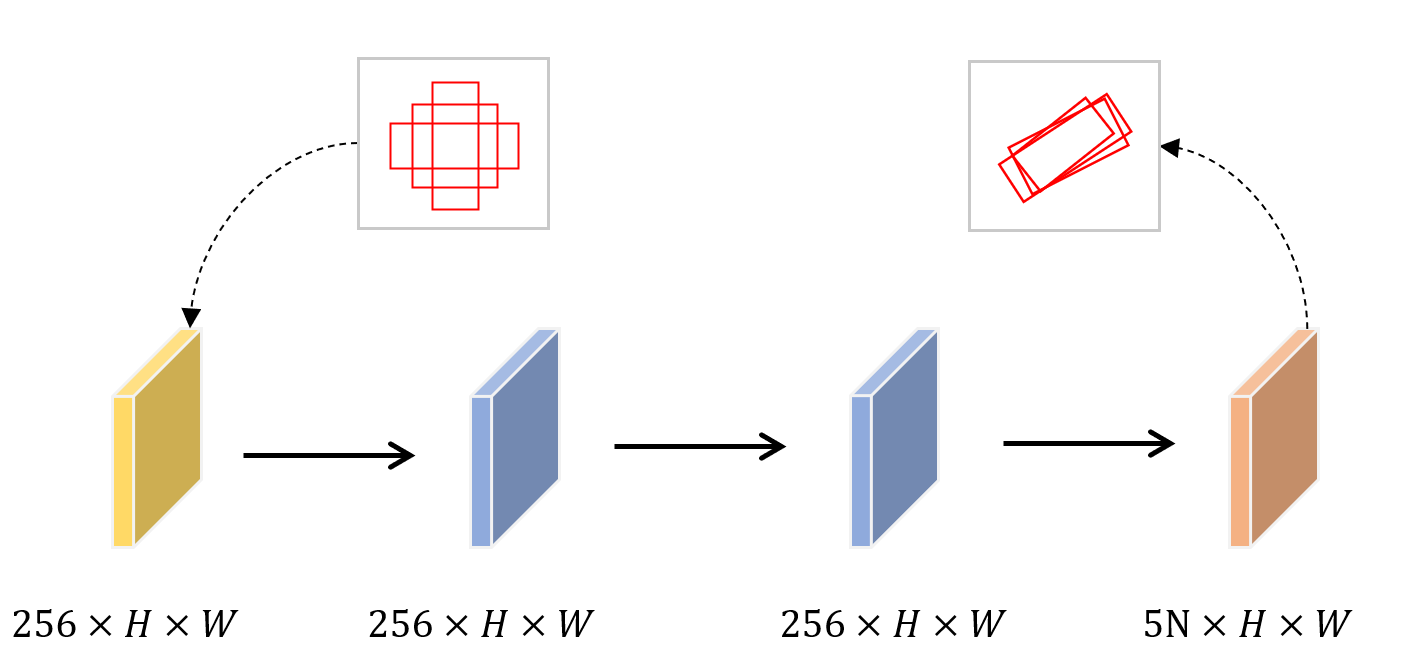

Figure 3: The structure of the proposal refinement module for bounding box localization branch.

We suggest that the fine-grained object recognition task can be decoupled into a localization task and a classification subtask. Then, we design effective structures for the two subtasks to achieve high performance.

The purpose of the localization subtask is to achieve high recall and precision for bounding box regression. To this end, we adopt a cascade oriented refinement module in the detection branch. As shown in Figure 3, the localization branch consists of two parts: rotated anchor refinement module (RARM) and accurate detection module (ADM). Among them, RARM uses a low IoU threshold to select positive samples (set to 0.4 in our experiment), so as to improve the recall rate as much as possible. The high-quality proposals obtained after oriented anchor refinement are sent to the ADM for final localization output, thereby achieving high result accuracy. The superiority of the cascade refinement module has been confirmed in some previous work [5, 3, 13].

The classification task is one of the points of the fine-grained object recognition task. The fine-grained features need to be captured to achieve accurate discrimination for similar classes. Therefore, we suggest extracting as much effective texture information as possible, while ignoring the backgrounds. To this end, we use AlignConv in SANet [3] to achieve the alignment and extraction of local features. AlignConv extracts aligned convolutional features from the proposal area that may contain objects, and extract texture information efficiently to help achieve high-performance classification. The details of AlignConv are shown in Figure 4.

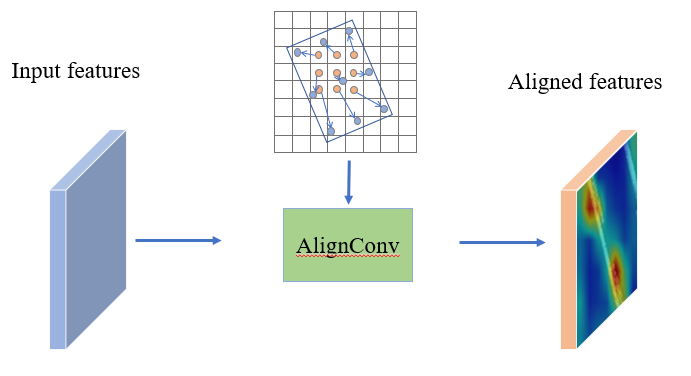

Figure 4: The detailed structure of AlignConv.
ID 1 2 3 4 5 6 7 8 9 10 11
Epoch 12 6 6 12 6 12 12 9 6 6 6
Backbone R-50 R-50 R-50 R-50 R-50 R-50 R-50 R-50 R-50 R-50 R-50
IoU thres 0.5/0.5 0.5/0.5 0.5/0.5 0.5/0.5 0.5/0.5 0.5/0.5 0.5/0.5 0.5/0.5 0.5/0.6 0.5/0.6 0.5/0.6
Lr 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.02 0.01
DOTA pretrain
GF AIR pretrain
Augmentation
mAP 40.7887 39.4929 39.0654 40.9713 40.6944 40.7576 41.5011 41.5650 41.3631 40.8882 43.7304
B737 39.7084 37.9241 37.5311 40.0455 40.4168 37.4206 41.0263 41.3432 41.3122 39.8741 43.2032
B747 84.8311 84.672 84.2292 84.8716 84.7938 84.5244 85.1451 85.4570 84.2687 84.6369 87.5791
B777 16.0072 13.4221 12.3952 16.2657 20.777 15.8530 20.1906 19.4324 25.4138 17.4337 23.5836
C919 27.6657 29.6156 29.4787 27.7799 0.7919 22.4250 26.5894 28.6857 23.2224 20.6797 30.7125
A220 51.3761 49.8609 49.6541 52.3854 52.5156 52.4346 52.9216 53.3567 52.3169 50.0491 54.3105
A321 68.3039 62.8309 62.1537 68.8290 70.3504 66.3956 68.7606 68.8555 69.2549 67.6381 67.8270
A330 72.6854 65.7713 65.5798 72.7667 75.8461 66.5879 73.7539 73.1206 73.0727 72.1643 73.6505
A350 70.3734 66.65 65.9373 70.3735 75.6009 71.2745 74.2873 73.8647 73.7684 73.2839 73.5631
ARJ21 26.2759 30.3777 29.8765 26.4851 26.3329 30.6652 28.8742 28.8546 27.5266 28.8618 29.2502
PS 12.1353 11.1162 10.7433 12.2696 9.9621 11.0566 9.1320 9.3924 10.0265 8.2911 9.8989
MB 58.2737 58.1658 57.6889 58.6086 60.9869 61.2956 61.4033 61.5985 61.0369 62.3887 68.1542
FB 8.8339 6.9411 6.6453 8.9604 9.56 9.5880 9.9439 10.1361 9.7975 10.2011 11.6979
TB 27.0258 28.8266 28.5602 27.1061 20.2742 22.4229 23.6130 24.2323 25.9330 25.9567 30.3681
ES 9.2314 10.562 10.2186 9.3889 11.0026 11.7107 9.6942 9.9039 9.5188 8.0573 11.8250
LCS 21.8006 21.4709 20.8064 21.9911 23.2248 20.8399 22.5316 21.8622 21.3641 21.7128 26.8041
DCS 39.3406 35.155 34.4924 39.6285 38.8381 38.5661 38.2908 38.3285 41.1210 41.1528 38.6832
WS 30.5194 21.9942 19.8088 31.4485 34.4608 34.8139 36.5231 35.8599 36.6920 35.9102 35.4155
SC 67.3107 68.9919 68.8422 67.3881 65.2224 66.1761 65.3095 65.5542 65.5790 65.7107 69.6212
Bus 47.237 44.5228 44.1516 47.2995 43.4714 37.5358 36.1380 37.1110 38.9024 43.3436 33.6659
CT 43.2981 44.4982 43.4257 43.4072 43.9681 43.2695 43.1941 43.2861 43.8268 43.5153 44.6937
DT 45.3287 46.1024 45.8578 45.4140 40.7919 43.9990 41.5088 41.7621 40.3844 40.4241 49.2335
Van 65.2316 66.304 66.1225 65.2860 62.7584 64.4427 62.6035 62.9158 62.5761 62.6648 71.6140
Trailer 11.6865 13.081 12.8507 11.7254 12.7795 14.6236 14.9420 14.8581 11.7114 12.8089 13.4503
Tractor 1.6189 1.4166 1.2066 1.6343 3.2018 2.2870 2.9026 2.8953 1.6872 2.3507 6.0550
Excavator 17.28 18.2321 17.8421 17.3518 14.7494 15.7700 16.0721 17.1267 14.4945 12.3239 17.3645
TT 5.2196 3.2102 3.0169 5.2491 2.9084 5.3504 2.2923 1.7956 1.0404 1.8090 5.3458
BC 38.6951 35.4245 34.9380 38.9421 42.3296 45.9467 42.1421 41.3522 41.5195 41.1315 49.2033
TC 76.8179 76.197 76.0087 76.9637 87.4435 80.8257 87.2986 87.0596 86.7541 87.1786 83.7470
FF 62.8118 61.597 61.2147 62.9605 65.1404 62.9778 64.9985 65.0109 63.4872 62.5057 61.2931
BF 87.4028 84.3917 84.0975 87.5050 87.6035 86.5839 87.7207 87.8594 87.7355 87.8116 88.7665
Intersection 55.9009 55.1087 54.8128 55.9881 54.2318 57.1986 54.9236 54.4243 53.5892 53.1332 57.9687
Roundabout 19.5186 20.2041 20.1930 19.5463 13.763 20.7725 18.6329 18.4380 20.1613 18.9133 24.6793
Bridge 24.7308 24.1289 24.0228 24.7419 33.3394 31.2905 33.2344 33.8300 37.2813 35.8941 35.8224
Table 1: Performance evaluation on FAIR1M dataset.

Moreover, in order to further improve the performance of fine-grained object recognition, we have tried many tricks. To solve the problem of long-tail distribution in fine-grained object recognition, we adopted class-balanced sampling on the original dataset. It’s known that some categories such as ARJ21 have relatively fewer instances, we resample them to expand the dataset. Secondly, the scale of some objects (such as ships) varies greatly in different scenarios. We used multi-scale training and testing to make the network adapt to variations in different scales. Finally, to enable the network to learn a certain degree of translation and rotation invariance, we adopted the data augmentations of affine transformations.

There are more data analysis and processing techniques such as pre-training weights, training schedule, and adjustment of the learning rate, etc. We will give them in detail in the experimental part.

3 Experimental Results

3.1 Dataset and Implementation Details

The data set we used includes the fine-grained object recognition competition in the GaoFen Challenge and FAIR1M dataset [11]. FAIR1M is the ISPRS benchmark on object detection in high-resolution satellite images which contains 37 classes. The object categories in the FAIR1M dataset are Boeing 737, Boeing 777, Boeing 747, Boeing 787, Airbus A320, Airbus A220, Airbus A330, Airbus A350, COMAC C919, COMAC ARJ21, other-airplane, passenger ship, motorboat, fishing boat, tugboat, engineering ship, liquid cargo ship, dry cargo ship, warship, other-ship, small car, bus, cargo truck, dump truck, van, trailer, tractor, truck tractor, excavator, other-vehicle, baseball field, basketball court, football field, tennis court, roundabout, intersection, and bridge. In the dataset, each object is annotated by an oriented bounding box (OBB). We conducted evaluation on the test set of the FAIR1M dataset and submit the final submission on servers for GaoFen Challenge.

The input images are cropped into 800*800 patches with a gap of 150. We use the SGD optimizer to train the network with a learning rate of 0.05. We train the models for 12 epochs on 2 RTX 2080ti GPUs. Random cropping, flipping, affine transformation, and optical distortion are used for data augmentation. We train the model on the train set of FAIR1M and eval on the test set on FAIR1M. Finally, we test the model on the GaoFen challenge. The total results on FAIR1M are shown in Table 1.

3.2 Evaluation of pretrain models

We have tried to use additional data for pre-training, including the DOTA dataset and 300 images of fine-grained aircraft recognition data in the GaoFen2020 competition, and then fine-tune the model on FAIR1M. Experiments of ID1 and ID6 in Table 1 (40.7887% vs. 40.7576%) show that the DOTA pre-training weight provides good prior knowledge in some categories with higher scene similarity (such as baseball field, basketball court, football field, tennis court). The performance of the related classes is improved. On the other hand, fine-grained aircraft images are very similar to FAIR1M data. Experiments of ID5 and ID6 in Table 1 show that the use of a pre-trained model effectively improves the performance of aircraft recognition. Moreover, the pre-trained model speeds up the model convergence. For example, with the DOTA pre-training weights, the model fine-tuned for 1 epoch on FAIR1M can achieve an accuracy comparable to 6 epoch training from scratch.

3.3 Evaluation of IoU threshold for training sample selection

Different IoU thresholds will lead to various training sample distributions and affect the detection performance. A low IoU threshold for positive samples helps to improve the recall rate but reduces the detection accuracy. A high IoU threshold will achieve higher accuracy, but the recall rate may not be good. We have tried different threshold settings. As shown in ID5 and ID9 in Table 1 (40.6944% vs. 41.3631%), we can a low IoU threshold in the first stage to ensure the recall rate, and set a high IoU threshold in the second stage to improve accuracy can achieve higher detection performance.

3.4 Evaluation of detection confidence

The model using a high detection confidence threshold can output more credible detection results, while the one using a low detection threshold achieves a higher recall rate. We need to make trade-offs among them. The experimental results of ID1 (40.7887%) compared with ID4 (40.9713%) and ID2 (39.4929%) compared with ID3 (39.0654%) show that a lower confidence threshold can get higher mAP.

3.5 Evaluation of data augmentation

We use a variety of data augmentation methods, including random flips, affine transformations, and optical distortions. Methods such as cutout, random noise, and random pixel dropping have also been tried, but they did not work well. In addition, we resample categories with few instances to expand the training set. With these augmentations, we doubled the dataset. Then multi-scale training and testing were performed, and a substantial performance improvement was achieved, as shown by ID10 and ID11 (40.8882% vs. 43.7304%). This single model achieved the mAP of 46.1747% in the GaoFen fine-grained aircraft recognition track (ranking 10/213), improved by more than 6 points compared with the baseline.

3.6 Outlook and other analysis

The above experimental results are obtained from the single-model evaluation. Due to constraints of time and available GPU resources, we are not able to further apply complex data augmentation and multi-model ensemble for higher mAP. And we believe our methods and training strategies could have achieved better performance.

We have also tried other strategies. For example, the single model ensemble helps to slightly improve performance (about 0.5 points in the GaoFen challenge). It’s also interesting that the expert model for certain categories cannot significantly improve the detection accuracy even complex data augmentations are attached to the tiny data. Maybe caused by overfitting? or the misjudgment between similar classes? I’m not sure. The first thing is to figure out whether the classification or detection is a real problem, or the both. I’ll make it clear in the future. There’s one more thing, class-agnostic NMS never works. Obviously, recall is more important than precision in mAP in most cases, which is consistent with the conclusion in Section 3.4.

4 Conclusion

In this technical report, we analyzed the difficulties of fine-grained object recognition in optical remote sensing images and designed effective strategies to achieve high-precision object detection. Specifically, we decompose the fine-grained object recognition detection task into the detection subtask and the classification subtask. The rotated anchor refining module is designed to obtain accurate object positioning, while the oriented feature alignment module is applied to effectively extract the texture features of the object. Besides, we designed customized data augmentation strategies and resampling strategies to alleviate the problem of category imbalance. Even the single model of our methods achieved impressive results. There is still a lot of room for improvement and we will figure out the solutions in the future.
