1 Introduction

By what principles can we break up agent policies into sub-policies to allow complex, hierarchical behaviour? How do we resolve the seemingly circular “chicken or the egg” nature of sub-policies discovery? If we have good sub-policies for a complex environment, then it is usually straightforward to form a strong overall policy out of them; conversely if we have a strong overall policy, it is often easy to divide this up into useful sub-policies. However, doing one without the other remains challenging – discovering good options can be as hard as solving the environment. This paper explores how other agents in multi-agent reinforcement learning provide sufficient structure to ground option discovery and resolve this “chicken or the egg” dilemma.

Discovering meaningful behavioural primitives and learning to use them to improve learning is the focus of hierarchical reinforcement learning (HRL). The options framework Sutton et al. (1999); Precup (2000) provides a canonical formalisation of a two-level HRL algorithm. The bottom level—an option—is a sub-policy, which takes in environment observations and outputs actions. An agent switches between options by using its policy-over-options (the top level). The framework doesn’t specify any particular grounding for options—i.e. via which principles they break up the overall policies, which signal is to be used for switching between them and how they are to be learnt. Yet grounding is the key aspect by which different HRL methods vary. For instance, in feudal learning Dayan and Hinton (1993); Vezhnevets et al. (2017), options are grounded in the agent’s state space. The least restrictive grounding of Bacon et al. (2017) is strictly temporal, where options simply correspond to any policy followed for some time. Others have grounded options in tasks Hausman et al. (2018) or complex action spaces Merel et al. (2019).

Focused on single agent case, these approaches still suffer from “chicken or the egg” paradox, where discovering options is as hard as solving the environment. This might explain why, despite recent progress, the state-of-the-art agents on the popular ATARI benchmark are flat Kapturowski et al. (2019); Wu et al. (2017) – i.e. non hierarchical – and why the most impressive displays of the power of deep RL Silver et al. (2016); OpenAI (2018); Vinyals et al. (2019) did not use a hierarchical model either. In this work, we propose to explore a different grounding for options: concealed information about the states of other agents in multi-agent environments.

Consider this example – a modified game of rock-scissors-paper, where each strategy (e.g. rock), rather than being executed in one shot as an atomic action, requires a long sequence of actions that, taken as a whole, constitutes the chosen strategy. In keeping with the terminology introduced in Leibo et al. (2019), we call such a policy an implementation of the strategy. Both strategic decisions and their implementations must be learned by reinforcement learning.

We propose a stateful extension of the classic matrix game rock-paper-scissors, called Running With Scissors. In this spatialised extension, two players move around on a 2D grid, only observing a small window around their current location (the environment is partially observed). They can pick up resources (i.e. rocks, papers and scissors), which are scattered semi-randomly, and at any point decide to confront their opponent (see full details in Section 4.1). Once the confrontation occurs, or the episode times out, then the payoffs accruing to each player are calculated according to the standard anti-symmetric matrix formulation of rock-paper-scissors (as in, e.g., Hofbauer and Sigmund (2003)). In this game, to implement a strategy—say the ‘rock’ pure strategy—an agent must seek out tiles with rock resources, while avoiding collecting non-rock resources, and then confront the opponent.

All the rich game theoretic structure of the rock-paper-scissors game is maintained in Running With Scissors. In addition, agents also have to cope with the complexity of learning implementations of strategies. For example, the game’s intransitive response dynamics (rock beats scissors, which beat paper, which in turn beats rock), may induce endlessly recurring cyclic reinforcement learning challenges Balduzzi et al. (2018); Leibo et al. (2019); Omidshafiei et al. (2019). Furthermore, because they have imperfect information, agents cannot easily figure out their opponent’s strategy and select the appropriate best response. However, they have ways to gather information about their opponent’s intent. In Running With Scissors, agents are able to move around the map and observe what resources are missing, implying they were already collected by the adversary. A smart way to play this game is to first attempt to scout around and determine to what resource the adversary has committed itself, and then implement the best response to that strategy. The crucial point in this setup is that these sub-policies are all naturally grounded – the top level deals with the choice of strategy as a response to the opponent’s strategy, and the bottom level with its implementation. They are also precisely what one hopes would be discovered by any option-discovery hierarchical reinforcement learning algorithm.

We cast the multi-agent learning problem as hierarchical RL and ground the hierarchy of behaviour in the latent representation, , capturing the concealed information about other agents in the environment. We propose a hierarchical agent OPRE (OPtions as REsponses): at the low level of the hierarchy, each option is learning a best response policy to a particular configuration of

, while the top level of the hierarchy estimates

and thereby picks an option. We learn the latent representation by factorising the value function over the concealed information using a mixture model. For training, we assume that we have access to this concealed information in hindsight for the purpose of generating learning signal;111This is a reasonable assumption, akin to a sportsman watching a replay of the game to analyse their play a posteriori. StarCraft 2 players routinely watch replays with opponent play revealed during championships. we never use concealed information to generate any behaviour. This is similar to hindsight policy gradient Rauber et al. (2017) and experience replay  Andrychowicz et al. (2017) and other counterfactual RL works Buesing et al. (2019); Foerster et al. (2018); Lowe et al. (2017). This grounding helps the agent distinguish between two types of mistakes: i) wrongly guessing the concealed information, thereby picking an inadequate strategy (e.g. rock vs paper) or ii) picking the right strategy, but executing it poorly. This way, the agent is capable of correctly assigning credit from strategic decisions and their execution to the corresponding part of the model – the policy over options (choice of strategy) versus the policy of an option (execution). This grounding resolves the “chicken or the egg” dilemma, by providing a clear training signal for the policy over options—the activations of latent variables that factorise the informed value function. To the best of our knowledge, this hierarchical approach grounded in opponents’ state is unique; related works either do not assume a hierarchy of policies Foerster et al. (2018); Lowe et al. (2017); Iqbal and Sha (2018); Rashid et al. (2018), function with a centralised manager as top-level Ahilan and Dayan (2019), or do not ground their hierarchy in game-theoretic fashion Tang et al. (2018).

For experimental evaluation, we look at two measurements. First we propose to exploit the benefits of multi-agent environments, which opens richer possibilities in terms of measuring generalisation in reinforcement learning (as recently advocated Machado et al. (2018); Henderson et al. (2018)). One such approach is to evaluate agents against diverse, pre-trained opponents that have not been encountered during training. In turn, training is performed via self-play or population-play, where agents respectively encounter copies of themselves, or agents of the same kind (architecture and learning method) training in parallel to them (see Section 5

for details). This measure of generalisation brings RL closer to the classic supervised learning setup, with clearly separates training and test sets. OPRE generalises better by separately extracting strategic and tactical knowledge of the game into separate levels of hierarchy. It then generates new behaviours by recombining learnt options given an unfamiliar opponent. Experiments show that OPRE significantly outperforms baselines on Running with Scissors, when evaluated against held-out opponents that the agents did not see in training.

Second, we demonstrate that OPRE successfully resolves the social dilemma game Allelopathy (Leibo et al., 2018) in self-play. In the game a high return for all the participants is possible if each occupies their niche. As (Leibo et al., 2017; Lerer and Peysakhovich, 2017) showed, regular reinforcement learning agents in self-play suffer from a drive to greedily maximise their return, which leads to the collapse of the common good and, consequently, low return. In self-play this problem is accentuated by the fact that all agents are copies of each other, so if one does discover a free niche it will tend to immediately get swamped. We show that OPRE, due to its hierarchical representation of the policy, is able to dynamically choose the right niche and avoid the collapse of the common good.

The rest of the paper is organised as follows. In Section 2, we define the multi-agent RL setup formally, and we introduce the OPRE model in Section 3. We describe the test domains in Section 4 and present the experimental results in Section 5. We conclude in Section 6.

2 Multi-agent RL with concealed information

We consider an -player partially observable Markov game defined on a finite set of states . The observation function , specifies each player?s -dimensional view on the state space. In each state, each player is allowed to take an action from its own set . Following their joint action , the state changes obeys the stochastic transition function (

denotes the set of discrete probability distributions over

) and every player receives an individual reward defined as for player . Finally, let be the observation space of player .

Each agent learns independently through their own experience of the environment by optimising for their own individual return, without direct communication to other agents. Notice that this is different from a large part of the recent work on multi-agent RL Foerster et al. (2018); Rashid et al. (2018); Iqbal and Sha (2018), where agents are working towards a common goal by optimising a shared reward (with the notable exception of Lowe et al. (2017), which allows for cooperative-competitive environments), often coordinating via an explicit communication channel.

The rest of the paper considers an “egocentric” view of one of the agents in the environment, thereby we will denote its observations and actions simply as and . The information concealed from the agent is denoted as . Here, we define it as the observations of all other agents. So for the agent of interest, .

3 OPRE model

This section introduces the OPtions as REsponses (OPRE) model – a hierarchical agent for multi-agent RL. Figure 1 illustrates the structure of the model which consists of two parts. The first part (Figure 1, red box on the left) builds the latent space by factorising the value function over the concealed information, while the second part (Figure 1, blue box on the right) re-uses that latent space to factorise the agent’s policy into options. Both value and policy are mixture models, where a categorical latent variable selects the mixture component. These mixture models are kept in sync via a KL term, which pulls the mixture weights to be similar in both for each step.

Figure 1: OPRE illustration. The first module (red box) uses concealed information, available in hindsight, to factorise the value function and target policy. The second module (blue box) produces behaviour policy, by approximating the latent distribution .

Building the latent space via value function factorisation.

We model the value function of the agent as a mixture model, where the mixture weights depend on the concealed information , while the mixture components depend on the agent’s own history of observations :

(1)

Here the latent variable is assumed to be categorical and can be marginalised away. This construction compresses the concealed information into the distribution over the latent space , but only focusing on the part which is relevant to learning the value.

Inducing options.

The key idea is to use the same latent space to factorise the policy. Consider first this mixture policy:

(2)

where is a mixture component of the policy – an option. In this form, an option is a behavioural response to a particular latent representation of concealed information . corresponds to a group of opponent states for which a certain mixture component is activated (i.e. for which is high). To compute the agent needs to know , which depends on the concealed information . However, by definition, this quantity is not available to the agent. Therefore, we introduce the behaviour policy, which approximates it from the agent observation alone:

(3)

In this way, becomes the policy over options, which is learned separately as described below.

3.1 Learning

We use an IMPALA Espeholt et al. (2018) based computational setup for training the agents. A few hundred CPU actors generate game trajectories, which are then batched and consumed by a GPU learner (one per unique agent). The learner receives temporally truncated sequences of steps of trajectories in batches of . The parameters are periodically synced between the actors and the learner. The concealed information about other agents is only available to the learner (the actors, which generate behaviour, do not use concealed information). The pseudo-code is provided in the Appendix.

Learning the policy over options

is done via minimising . The agent tries to learn the model of its opponents’ behaviour through approximating via . This makes learning significantly easier than in single agent HRL by avoiding the “chicken or the egg” issue, since there is a clearly defined target for the policy over options .

Learning options and the value function.

During training, on the learner we can compute both and by simply marginalising over via summation, since is categorical. We propose to use the policy gradient of for training options, since it corresponds to using a better policy over options . This avoids the “chicken or the egg” issue again by using the fully informed as policy over options. Since captures all that is necessary from the concealed information to factorise the value, it should be a good basis for factoring the policy into options as well. In other words, we are training options for a “perfect” policy over options and then learning to approximate it with . We use V-trace Espeholt et al. (2018) for off-policy correction of the policy gradient updates and for learning the value function. That is we generate trajectories by following the behaviour policy, , but we learn (off-policy) the mixture-components of policy, , using policy gradients. Importantly, we do not propagate gradients from the policy gradient into , completely leaving its training up to the KL and value function gradients. We also emphasise that we only use the concealed information for learning and never use it to run the agent’s policy.

Regularisation.

We want to encourage options to be smooth in time within an episode (switch less) and diverse across episodes. To this end, we use the following regularisation loss: . The first two terms correspond to the maximisation of the marginal entropy of over a batch and the minimisation of its marginal entropy over time. The last term maximises the entropy of the target policy to encourage exploration and avoid policy collapse.

3.2 Credit assignment in multi-agent RL

Notice, how multi-agent aspect complicates credit assignment as the outcomes the agent is learning from are the product of complex interactions between its own states and actions and the states and actions of others. The same actions by an agent could lead to both high and low reward, depending on the opponents’ actions. For example, if agent chooses to play a ‘rock’ strategy against an opponent who plays ‘paper’, rather than correcting its ‘rock’ option to be more like ‘scissors’, we only want it to change its decision to play ‘rock’ in the first place. Flat agents are not capable of separating these two signals and are likely to cycle between different strategies, as discussed in Balduzzi et al. (2019). Notice how OPRE resolves this by separately learning to credit the policy over options for selecting strategies and the options for executing them. Indeed, if is far from then the off-policy term from V-trace will zero the gradient for and the only training signal will be the KL between and .

4 Domains

All test domains are partially observable, spatially and temporally extended multi-agent games with a game-theoretic payoff structure. Contrary to a large amount of multi-agent studies, the tasks are not cooperative (agents do not share a reward signal) and do not feature a communication channel. The Appendix contains some visualisations of the domains, that will help understanding.

4.1 Running with scissors (RWS)

RWS is a spatial version of the rock-scissors-paper game, where agents get to collect the items in a grid world with partial observability and then play them out against each other. Formally, it is a Markov game Littman (1994)

– Markov games are to matrix games as Markov decision processes are to bandit problems. The grid has dimensions

; each of the two players starts at a random position on the grid and can observe a area around itself. There are evenly spaced resources (i.e. rock, scissors or paper) tiles on the grid, of which always have the same resource while others get a random one. When a player steps on a tile with the resource, it picks it up – the resource is removed from the grid and is allocated into the player’s inventory , which is initialised to contain one of each resource type. Additionally, players receive specialisation bonus, that is that when a resource is picked up, the amount of that resource in their inventory becomes , where is the amount of resource they had before. This is an incentive for specialisation and punishes agents for picking a little bit of everything.

There are two termination conditions for the episode: i) timeout of 1000 steps or ii) one agent tags another. Tagging is a special action that highlights a area in front of the tagging player and is successful if the other player is in that area. Which agent was tagged does not matter; the outcome is the termination of the episode and scoring. The rewards accruing to each player are calculated according to the standard anti-symmetric matrix formulation of rock-paper-scissors (as in, e.g., Hofbauer and Sigmund (2003)) — , where and are the respective inventories and is the anti-symmetric matrix of the game. To get a high reward an agent should correctly identify what it is that its opponent is collecting (e.g. rock) and collect a counter (e.g. paper). In addition, the rules of the game are not assumed given; the agents must explore to discover them. Thus it is simultaneously a game of imperfect information—each player possesses some private information not known to their adversary (as in e.g. poker Sandholm (2015))—and incomplete information—lacking common knowledge of the rules Harsanyi (1967).

4.2 Allelopathy

The Allelopathy game is described in detail in (Leibo et al., 2018) and has two main rules. (1) shrubs grow in random positions on an open field. Shrubs “allelopathically” suppress one another’s growth in a local region of radius . That is, the probability that a seed of a given type grows into a shrub in any given timestep is inversely proportional to the number of nearby shrubs of other types. (2) Agents can eat either type of shrub. However, switching frequently between digesting different shrub types imposes a switching cost, since this makes them harder to digest. Thus, agents benefit from specialising in eating only a single type of shrub. Agents receive increasing rewards for repeatedly harvesting the same type of shrub (up to a maximum of ). Rewards drop back down to their lowest level, , when the agent harvests a different type of shrub (paying the switching cost). Importantly, one of the shrubs is less valuable than another, with maximum reward of only . Thus an agent that randomly harvests any shrub they come across is likely to receive low rewards. An agent that only harvests a particular type of shrub while ignoring others will obtain significantly greater rewards. The combined effect of these rules is to make it so that a specialist in any one shrub type benefits from the presence of others who specialise in different shrub types since their foraging increases the growth rate of all the shrubs they do not consume. Yet specialists in more valuable shrub will reap immensely higher rewards. Thereby we create a social dilemma – there exists an equilibrium state with high rewards for everyone (albeit less for some), but egoistically each agent would benefit from harvesting the expensive shrub, which creates danger of over-harvesting and ecosystem collapse.

5 Experiments

This section presents our experimental results on the domains described above. We aim to validate that OPRE has superior generalisation through the grounding of its behavioural hierarchy. The next paragraph explains the baselines we compare to. We then describe the training and evaluation regimes, and present the actual results. Please refer to the Appendix for more details on networks design and the exact values of hyper-parameters.

Baselines.

We use IMPALA Espeholt et al. (2018) to train all of our agents (see section 3.1). V-trace is used to correct for off-policy due to lag of parameter synchronisation on actors and learners. Our first baseline uses a standard architecture with a convolutional network base and a LSTM on top, with linear policy and value head. The second baseline is designed to test whether improvement can be achieved by conditioning the value function (but not the policy) on the concealed information. We call it the baseline oracle V. This is very similar to works Lowe et al. (2017); Foerster et al. (2018), which use a critic with access to concealed information at training time and do not have a hierarchical structure – although their focus is mostly in the collaborative setup, where agents share the reward. Concealed information is processed in the same way as in OPRE and then concatenated to the value head’s input. The last baseline is a version of OPRE, in which additional policy gradient from the behavioural policy is used for training options; coined OPRE mix PG. The hyper-parameters were tuned on RWS in the regime of training and evaluating against competitors; we first tuned the parameters of the baseline, then tuned the extra hyper-parameters of OPRE (see the Appendix for all hyper-parameters and their values).

Training regimes.

We use three training regimes. First, self-play, where during training the agent is playing with copies of itself (however many the game requires). Second, population-play, where the agent is playing with a population of agents with shared architecture, but each member of the population has its own parameters which it trains individually. For some experiments with RWS we also train directly against a separately pre-trained set of competitors. This setup is very similar to multi-task learning. In all cases we run for learning steps.

Running with scissors

is where we focus on measuring generalisation to a held-out set of pre-trained competitors, which were generated as follows. We trained a set of 14 agents in simultaneous population-play.222As the self-play setup was too hard for any of the methods to take off, we omit the results to save space. 12 of them were augmented with pseudorewards during training that incentivised them to learn a particular pure strategy. For example, four agents implementing ‘rock’ pure strategies were obtained using a pseudoreward of for each rock resource collected and for each non-rock resource collected. Eight more agents, four of them implementing ‘paper’ and four implementing ‘scissors’ pure strategies were obtained analogously. The remaining two out of the 14 simultaneously learning agents were given no pseudorewards for robustness. We use separate CPU jobs that evaluate current networks against the pre-trained agents in parallel throught the training.

We compare the performance of OPRE and the baselines in two settings: i) trained directly against the held-out set – measuring reward fitting power; ii) trained in population-play, evaluated on the held-out set – measuring generalisation. This lays bare if the methods overfit, i.e. perform well in the first case, but not in the second. Figure. 2 plots the respective reward curves.

First, we notice that OPRE generalises from population-play to held-out competitors best, with 5 times higher average return than the baseline. Second, while OPRE with mixed policy gradient is the best method for training directly against the hold-out, it drops to second place when generalisation is required. One hypothesis is that using a ‘perfect’ policy over options yields more delineated options, whereas options learnt over are less specialised (as they receive learning signal even when picked the wrong ). Third, we see that the baseline whose value function is conditioned on concealed information flips from being second best (if trained directly against the held-out) to being the worst if required to generalise, getting zero average return. This demonstrates that conditioning the value function on concealed information (as in Foerster et al. (2018); Iqbal and Sha (2018); Rashid et al. (2018)), might induce overfitting. Qualitatively, oracle V baseline learns an unsystematic policy, which collects random resources and engages the opponent at the first opportunity, without any responsiveness to the opponent. In contrast OPRE, is sensitive to information that reveals opponents strategy – e.g. if it notices that rocks are gone, it picks paper. OPRE is less directly exposed to privileged information, which results in better generalisation properties. Further, although the ‘oracle’ value function can account for the opponent’s state, the flat policy cannot correctly represent the multi-modality of the required response. In comparison, OPRE explicitly models the latent state of the opponent and can reuse this latent space to efficiently factor its policy.

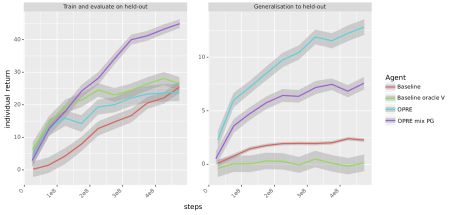

Figure 2:

Running with scissors. Reporting average individual return at a training step with confidence intervals of 0.95, averaged over the population. Left: training and evaluating on held-out set; Right: training in population-play and evaluating on the held-out set. Notice overfitting in the baseline with access to concealed information and OPRE with mixed policy gradient.

Allelopathy

allows us to evaluate whether OPRE agents are better at finding an ecological niche in a non-zero-sum game, where the optimality of an agent’s individual policy depends on the behaviour of others. In allelopathy, it pays to specialise in whatever is in low demand. Miss-balance between the value of shrubs creates a drive to over-harvest the more valuable one. A good policy tracks the demand on shrub types (which depends on others) and strikes the trade-off between value of the shrub and its presence just right. In population-play, this specialisation can be established slowly, over the episodes across different agents, such that each agent picks a niche and stays in it. Self-play is, on the other hand, much more challenging since the policy has to be able to specialise within one episode by observing the opponents and adjusting its niche accordingly. As for RWS, we have pre-trained competitors that received a negative pseudo-reward for eating a less rewarding shrub, thereby making them specialist in the most rewarding shrub. Evaluating against them probes whether an agent can identify that a niche of expensive shrub is taken and specialise correctly on the cheaper one. Figure 3 shows results for self-play and Figure 4 for population-play. In population-play, OPRE is second best in terms of collective return in training and is the best when generalising to the hold-out set. The oracle V baseline demonstrates a similar overfitting behaviour as on RWS, getting the best collective return in training, but marginally under-performing on held-out competitors. In self-play OPRE demonstrates a stable, high return in both training and generalisation. Notice how the oracle V baseline is unstable – oscillating between 6 and 12 thousand points, unlike OPRE, which monotonically increases its return. OPRE mix PG underperforms, validating the choice of policy gradient for training options. Interestingly, the gains demonstrated by OPRE over the baselines are bigger in the harder case of self-play, where a single policy needs to be able to represent several meaningful policies and choose the right one in a single episode, than the easier one of population-play where specialisation can happen over the course of many episodes, and it is the model architecture (not a single policy) that needs to be able to represent several strategies.

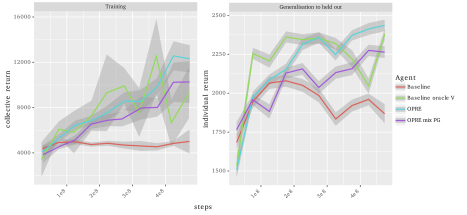

Figure 3: Allelopathy, trained in self-play. Left: average collective return at a training step; Right: average individual return at training step, evaluated against held-out competitors.

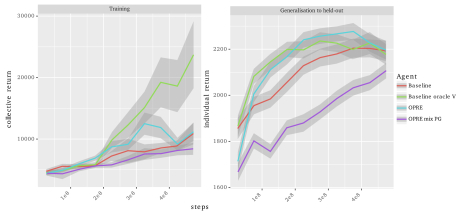

Figure 4: Allelopathy, trained population-play. Left: average collective return at a training step; Right: average individual return at training step, evaluated against held-out competitors.

6 Conclusions

The options framework suffers from the fact that discovering meaningful options is often as hard as solving the initial environment. We have proposed a solution to this issue by grounding the option selection in the concealed information of other agents in multi-agent environments. We introduced OPRE – a new agent, which factorises the value function over the latent representation of other agents’ concealed information, and then reuses this latent representation to factor the policy into options. It only requires access to concealed information for learning the value function during training and never uses it to generate behaviour. We demonstrated improved performance above strong baselines on two domains: the newly introduced Running with Scissors and a social dilemma Allelopathy.

Our key insight is that a policy can be factored into options by re-using a factorisation of the value function over concealed information, if it is available during training. As many domains fit this description, this insight may have implications beyond multi-agent environments. One exciting direction for future work is extending OPRE to multi-task learning with concealed task definition, where the agent has to both figure out which task it is solving as well as how to solve it. Another promising idea consists in performing the factorisation not only on the value function, but also on the environment dynamics through, for example, generalised value functions Sutton et al. (2011).

References

Appendix A Network designs

Given the perceptual simplicity of environments, we use a very slim architecture. We first describe the baseline and then build from it. The network starts with a 1D convolutional layer with 6 channels, followed by an MLP with neurons, then by an LSTM with hidden neurons, and concluding with two linear heads for policy and value. For OPRE we have policy heads, where each is an MLP with hidden neurons. We use the same convolutional network with a new MLP on top to produce from the concealed information. The policy over options is produced via a linear layer from LSTM activations. For Allelopathy, which has several other agents in the game, we process each of their observations with the same convolutional net and then pool using summation.

Appendix B Hyper-parameters

We use discount of for all games. The learning rate was set to

, and the weight of entropy regularisation of the policy logits for all method was

. The weight of entropy regularisation for was . The hyper-parameters were tuned on RWS in the regime of training and evaluating against competitors; we first tuned the parameters of the baseline, then tuned the extra hyper-parameters of the OPRE.

Appendix C Optimization

We used RMS-prop optimiser with the following parameters: learning rate=0.0004, =1e-5, momentum=0.0, decay=0.99

Appendix D Domain illustrations

Here we provide illustrations of the domains. Figure 5 visualises the initial grid configuration of Running with Scissors and Figure 6 of Allelopathy.

Figure 5: Running with scissors. This is the initial configuration of the grid. Players spawn at any random location, except for those occupied by resources. Some resources are placed deterministicaly (shown by green rectangles), others spawn randomly.
Figure 6: Allelopathy. This is the initial configuration of the grid. Players spawn at any random location, except for those occupied by shrubs. Shrub locations are initialised randomly.

Appendix E Pseudo code

Algorithm 1 presents the pseudo code for learners and actors for training OPRE agents. In population play, we launched learners and actors, in parallel. In self-play only one learner and actors.

1:procedure Actor() // takes max number of steps and number of agents
2:     while  do
3:          if time to sync or  then
4:                // every once in a while, sync parameters with learner
5:          , // draw two agents to play at random
6:           // generate trajectory by playing behaviour policies
7:           // queue the trajectory for the learner
8:           // sync learning step counter with the learner
9:procedure Learner() // takes max number of steps, agent index, batch dimensions
10:
11:
12:     while  do
13:           // get a batch for a respective agent of size
14:           // run target policy and get gradients with V-trace Espeholt et al. [2018]
15:           // gradients from regularisation
16:           // update parameters with backprop
17:           // increment step
Algorithm 1 Training OPRE
