Optically Connected Memory for Disaggregated Data Centers

08/25/2020
by   Jorge Gonzalez, et al.
0

Recent advances in integrated photonics enable the implementation of reconfigurable, high-bandwidth, and low energy-per-bit interconnects in next-generation data centers. We propose and evaluate an Optically Connected Memory (OCM) architecture that disaggregates the main memory from the computation nodes in data centers. OCM is based on micro-ring resonators (MRRs), and it does not require any modification to the DRAM memory modules. We calculate energy consumption from real photonic devices and integrate them into a system simulator to evaluate performance. Our results show that (1) OCM is capable of interconnecting four DDR4 memory channels to a computing node using two fibers with 1.07 pJ energy-per-bit consumption and (2) OCM performs up to 5.5x faster than a disaggregated memory with 40G PCIe NIC connectors to computing nodes.

READ FULL TEXT VIEW PDF

page 1

page 3

03/22/2018

iBrownout: An Integrated Approach for Managing Energy and Brownout in Container-based Clouds

Energy consumption of Cloud data centers has been a major concern of man...
05/04/2022

DNA Pre-alignment Filter using Processing Near Racetrack Memory

Recent DNA pre-alignment filter designs employ DRAM for storing the refe...
03/10/2019

Processing Data Where It Makes Sense: Enabling In-Memory Computation

Today's systems are overwhelmingly designed to move data to computation....
11/10/2020

ARENA: Asynchronous Reconfigurable Accelerator Ring to Enable Data-Centric Parallel Computing

The next generation HPC and data centers are likely to be reconfigurable...
03/26/2018

Reactive NaN Repair for Applying Approximate Memory to Numerical Applications

Applications in the AI and HPC fields require much memory capacity, and ...
11/25/2018

A multi-dimensional extension of the Lightweight Temporal Compression method

Lightweight Temporal Compression (LTC) is among the lossy stream compres...
08/02/2021

Analysing digital in-memory computing for advanced finFET node

Digital In-memory computing improves energy efficiency and throughput of...

I Introduction

Scaling and maintaining conventional memory systems in modern data centers is challenging for three fundamental reasons. First, the dynamic memory capacity demand is difficult to predict in the short, medium, and long term. As a result, memory capacity is usually over-provisioned [Luo2020, panwar2019quantifying, Chen2018, reiss2012towards, Di2012], which wastes resources and energy. Second, workloads are limited to using the memory available in the local server (even though other servers might have unused memory), which could cause memory-intensive workloads to slow down. Third, memory maintenance might cause availability issues [Meza2015]; in case a memory module fails, all running applications on the node may have to be interrupted to replace the faulty module. A promising solution to overcome these issues is to disaggregate the main memory from the computing cores [lim2009disaggregated]. As depicted in Figure 1, the key idea is to organize and cluster the memory resources such that they are individually addressable and accessible from any processor in the data center [bergman2018pine]. Memory disaggregation provides flexibility in memory allocation, improved utilization of the memory resources, lower maintenance costs, and lower energy consumption in the data center [papaioannou2016benefits].

Fig. 1: Disaggregation concept for data centers.

Disaggregating memory and processors remains a challenge, although the disaggregation of some resources (e.g., storage) is common in production data centers [legtchenko2017understanding]. Electrical interconnections in rack-distances do not fulfill the low latency and high bandwidth requirements of modern DRAM modules. The primary limitation of an electrical interconnect is that it constrains the memory bus to onboard distance [endofmoorelaw] because the electrical wire’s signal integrity loss increases at higher frequencies.

This loss dramatically reduces the Signal-to-Noise Ratio (SNR) when distances are large. An optical interconnect is more appealing than an electrical interconnect for memory disaggregation due to three properties: its (1) high bandwidth density significantly reduces the number of IO lanes, (2) power consumption and crosstalk do

not increase with distance, and (3) propagation loss is low. Silicon Photonic (SiP) devices are likely suitable for disaggregation, delivering Gbps range bandwidth, as well as efficient and versatile switching .

The goal of this work is to pave the way for designing high-performance optical memory channels (i.e., the optical equivalent of an electrical memory channel) that enable main memory disaggregation in data centers. Our work provides an optical link design for DDR DRAM memory disaggregation, and it defines its physical characteristics, i.e., i) number of Micro-Ring Resonator (MRR) devices, ii) bandwidth per wavelength, iii) energy-per-bit, and iv) area. We evaluate the performance (see Section IV-A) and energy consumption (see Section IV-B) of a system with disaggregated commodity DDR DRAM modules.

We make three key contributions: (1) we propose the Optically Connected Memory (OCM) architecture for memory disaggregation in data centers based on state-of-the-art photonic devices, (2) we perform the first evaluation of the energy-per-bit consumption of a SiP link using the bandwidth requirements of current DDR DRAM standards, and (3) we model and evaluate OCM in a system-level simulator and show that it performs up to 5.5x faster than a 40G NIC-based disaggregated memory.

Ii Motivation

Photonics is very appealing for memory disaggregation because: (1) the integration (monolithic and hybrid) between electronics and optics has already been demonstrated [absil2015imec], which allows the design and fabrication of highly-integrated and complex optical subsystems on a chip, and (2) optical links offer better scaling in terms of bandwidth, energy, and IO compared to electrical links; e.g., optical switches (o-SW) show better port count scaling [sato2018realization]).

New electrical interfaces, such as GenZ, CCIX, and OpenCAPI, can disaggregate a wide range of resources (e.g., memory, accelerators) [benton2017ccix]. Optical devices can enable scalable rack-distance, and energy-efficient interconnects for these new interfaces, as demonstrated by a previous work that disaggregates the PCIe interface with silicon photonics [zhu2019flexible]. Our OCM proposal extends the memory interface with optical devices and does not require substantial modifications to it, e.g., the memory controllers remain on the compute nodes.

Figure 2 shows the IO requirements in the memory controller for electrical [marino2018architectural], and optical interconnects to achieve a specific aggregated bandwidth. We define IO as the number of required electrical wires or optical fibers in the interconnects. We use, for both electrical and optical interconnects, 260-pin DDR4-3200 DRAM modules with 204.8 Gbps maximum bandwidth per memory channel. We make two observations. First, the required number of optical IOs (left y-axis) is up to three orders of magnitude smaller than the electrical IOs because an optical fiber can contain many virtual channels using Wavelength Division Multiplexing (WDM) [57798, bahadori2016comprehensive]. Second, a single optical IO achieves up to 800 Gbps based on our evaluation, requiring 2 IOs for bidirectional communication (see Section IV-B). An optical architecture could reach the required throughput for a 4 memory channel system using only 2 IOs (two fibers) and for a 32-channel system with only 10 IOs.

Fig. 2: Required electrical and optical IO counts (lower is better) for sustaining different amounts of aggregated bandwidth.

Iii OCM: Optically Connected Memory

To overcome the electrical limitations that can potentially impede memory disaggregation, we introduce an OCM that does not require modifications in the commonly-used DDR DRAM protocol. OCM places commodity DRAM Dual Inline Memory Modules (DIMMs) at rack-distance from the processor, and it sustains multiple memory channels by using different wavelengths for data transmission. OCM uses conventional DIMMs and memory controllers, electro-optical devices, and optical fibers to connect the computing cores to the memory modules. Our work explores the idea of direct point-to-point optical interconnects for memory disaggregation and extends prior works [brunina4, anderson2018reconfigurable], to reduce the latency overhead caused by additional protocols such as remote direct memory access (RDMA) and PCIe [Zervas:18]. OCM is versatile and scales with the increasing number of wavelengths per memory channel expected from future photonic systems [Glick:18].

Fig. 3: Optically Connected Memory organization: optical memory channels for disaggregation of the main memory system.

Iii-a Architecture Overview

Figure 3a shows the main components of the OCM architecture configured with state-of-the-art photonic devices and DDR memories. OCM uses N optical memory channels, each one consisting of X memory modules (DIMM 1 to X) operating in lockstep. OCM uses two key mechanisms to take advantage of the high aggregated bandwidth of the optical domain while minimizing the electrical-optical-electrical conversion latency overhead. First, it implements an optical memory channel with multiple wavelengths that can support multiple DIMMs in a memory channel. Second, it achieves high throughput by increasing the cache line size and splitting it across all the DIMMs in a memory channel. For example, if OCM splits a single cache line between two DIMMs, it halves the bus latency (i.e., data burst duration ), compared to a conventional DDR memory.

In our evaluation (Section IV), we use two DDR channels operating in lockstep to get a cache line of 128 bytes with similar latency as a cache line of 64 bytes in a single DDR channel (Section III-B). OCM benefits from the use of a wide -bit interface, where is the number of DIMMs, and is the width in bits of a DIMM bus. OCM transfers depend on the serialization capabilities of the SiP transceiver. The serialization/deserialization latency increases with the number of DIMMs in lockstep. Notice that, a commercial SERDES link (e.g.,  [hadidi2017demystifying]) supports serialization up to 256B (i.e., four 64B cache lines). As shown in Figure 3a, on the CPU side, there is a Master controller, and on the memory side, there are N Endpoint controllers that respond to CPU requests. Both controllers have a structure called SiP Transceiver, and Figure 3b shows a difference in the organization of the SiP transceivers per controller. Figure 3c shows the SiP transceivers present in the Transmitter (TX) and Receiver (RX) lanes in both Master and Endpoint controllers. A TX lane consists of a serializer (SER) and Modulator (MOD) for transmitting data. An RX lane contains a Demodulator (DEMOD), a Clock and Data Recovery (CDR) block, and a Deserializer (DES) for receiving data. Both TX and RX lanes connect with a -bit (e.g., =2 and =64 in our evaluation) bus to the Endpoint controller, which forms the bridge between the lanes and the DRAM module.

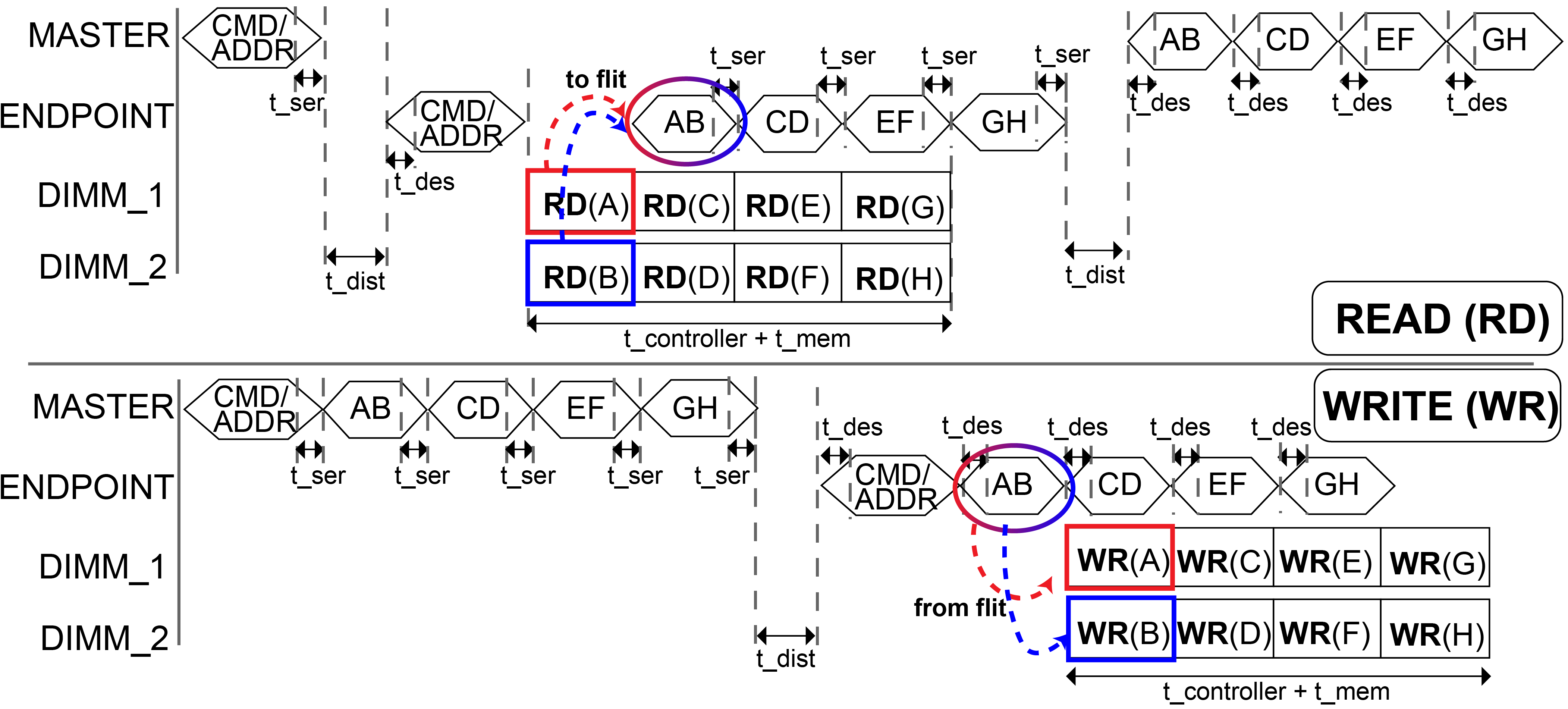

Fig. 4: OCM timing diagram for Read (top) and Write (bottom) requests.

Iii-B Timing Model

OCM transfers a cache line as a serialized packet composed of smaller units called flits, whose number depends on the serialization capabilities of the SiP transceiver. Figure 4 presents the timing diagram of the OCM Read (RD) and Write (WR) operations. For reference, a conventional DDR DRAM memory channel uses 64B cache lines; a data bus transfers each line as 8B data blocks in 8 consecutive cycles, and the 1B Command (CMD) and 3B Address (ADDR) use separate dedicated buses. In OCM, as depicted in Figure 4, the cache line is transferred in AB-GH flits. We show OCM timing with a size that doubles the width of the memory channel data bus, and is the reason for dividing the cache line between DIMMs 1 and 2 to perform parallel access and decrease latency. OCM splits a single cache line between two DIMMs, which halves the bus latency (i.e., [jedecddr4]), compared to conventional DDR DRAM memory.

For the RD operation, data A and B are read from different DIMMs to compose a flit (AB). Flit AB serialization and transmission occur after the Master controller receives the CMD/ADDR flit. For the WR operation, the Master controller sends the flit containing data blocks AB immediately after the CMD/ADDR flit. After Endpoint deserialization, DIMM 1 stores A, and DIMM 2 stores B. For example, OCM with a commercial Hybrid Memory Cube (HMC) serializer [hadidi2017demystifying] and 128B cache line size, transfers 2 (4 16B of data) with 1 4B CMD/ADDR initiator message (or extra flit).

Compared to conventional electrical DDR memory, OCM adds serialization and optical packet transport latency to the overall memory access time (see Section IV). The DIMM interface can support the latency overhead that is imposed by our optical layer integration. In our evaluation, we consider both optimistic and worst-case scenarios. Past experimental works [anderson2018reconfigurable] show that the overhead is low in the order of a few nanoseconds, requiring no modification to the memory controller. However, if there is high latency imposed by the optical layer, the signaling interface from the memory controller needs to be adapted. Equation 1 shows the OCM latency model , which is defined as the sum of the DIMM controller latency , DIMM WR/RD latency (latency is equal for both DIMMs), serialization/deserialization latency , modulation/demodulation latencies and , distance propagation latency penalty , and system initialization time (e.g., Clock Data Recovery (CDR) latency, modulator resonance locking [padmaraju2013wavelength]) .

(1)

equals zero because it has no impact on the system once it is configured [anderson2018reconfigurable]. In the optical and millimeter wavelength bands, and are in the order of [bahadori2016comprehensive], due to the small footprint of ring modulators (tens of micrometers) and the high dielectric constant of silicon.

Iii-C Operation

Figure 3a illustrates the five stages of a memory transaction.

  Stage

1
: the processor generates a Read/Write (RD/WR) memory request. In the photonic domain, a laser source generates light in wavelengths simultaneously [bahadori2017energy].
  Stage

2
: the data from the processor is serialized (SER) onto the Master Controller’s TX lane, and the generated electrical pulses drive the cascaded array of Micro-Ring Resonators (MRRs) for modulation (MOD), represented as rainbow rings. We use non-return-to-zero on-off keying (NRZ-OOK) that represents logical ones and zeros imprinted on the envelope of light [bahadori2016comprehensive].
  Stage

3
:
the optical signal is transmitted through an optical fiber. At the end of the fiber, the combined optical WDM channels are coupled into an optical receiver.
  Stage

4
:
first, in the RX lane of an Endpoint, the WDM Demodulator (DEMOD) demultiplexes the optical wavelengths using MRRs. Each MRR works as an optical band-pass filter to select a single optical channel from . Second, these separated channels are then fed to DEMOD’s integrated photo-detectors (PD) followed by transimpedance amplifiers (TIA). Together the PD and TIA convert and amplify the optical signal to electrical pulses suitable for sampling. Third, the data is sampled, deserialized (DES), and sent to the memory controller.

Stage

5
:
the processor accesses memory with the DDR protocol using a RD or WR command and a memory address. For a RD command, the Endpoint TX transmits to the processor a with the wavelengths (similar to Stages 1 to 4). For a WR command, the data received from the processor is stored in memory.

Iii-D Enabling Reconfigurability

OCM supports reconfigurability by placing an o-SW between the Endpoints and the Master controller, similar to previous work [anderson2018reconfigurable]. OCM uses optical switching to connect or disconnect a master controller from an endpoint. Switching can happen (1) in the setup phase, which is the first time that the system is connected before starting execution, or (2) before executing a workload, to adapt the amount of assigned memory to the requirements of the workload.

As depicted in Figure 5, an optical switch has multiple ports, through which a set of N processors can be connected to a configurable set of M OCMs, where N and M depend on the aggregated bandwidth of the SiP links. In Section IV, we evaluate OCM with a single CPU, and assume that the setup phase is already completed.

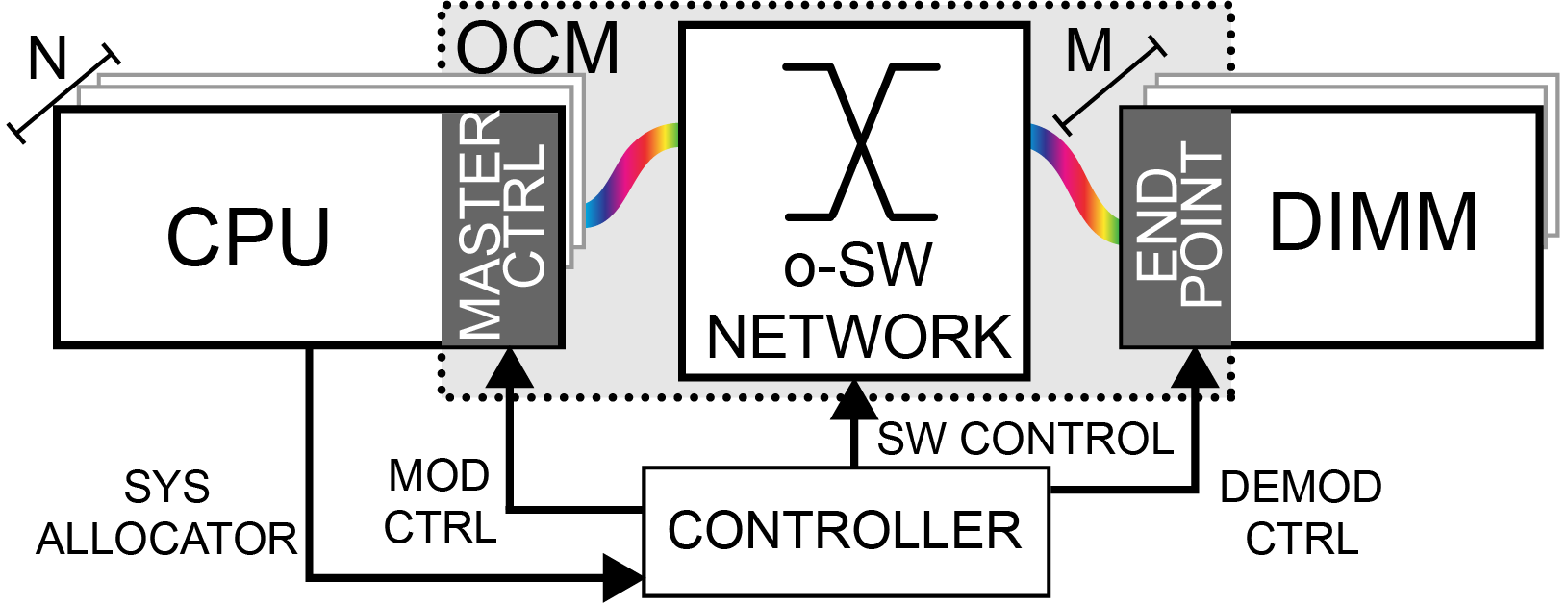

Fig. 5: Reconfigurable OCM with optical switches (o-SW).

Iii-E High Aggregated Bandwidth

OCM uses WDM [bahadori2016comprehensive, 57798] to optimize bandwidth utilization. WDM splits data transmission into multiple colors of light (i.e., wavelengths, s).

To modulate data into lightwaves, we use Micro-Ring Resonator (MRR) electro-optical modulators, which behave as narrowband resonators that select and modulate a single wavelength. We use MRRs because they have a small hardware footprint and low power consumption [bahadori2017energy], and they are tailored to work in the communications C-band (1530-1565 nm). For more detail on photonic devices, please see [Glick:18, extremescale, bahadori2018thermal].

OCM achieves high aggregated bandwidth by using multiple optical wavelengths (see laser in Figure 3a) via WDM in a single link. The K wavelengths are evenly distributed among the controllers, where the TX/RX lanes of a single DDR memory channel have the same number () of optical wavelengths (, see Figure 3c). All wavelengths have the same bit rate , and the aggregated bandwidth for memory channels is . Assuming that is higher than the required bandwidth for a single memory channel , then . The total number of MRRs is because each TX or RX lane requires MRRs. OCM has two unidirectional links; each link needs both TX and RX lanes, and these lanes are located in both Endpoint controllers and Master controllers.

Iv Evaluation

To evaluate system-level performance, we implement OCM architecture in the ZSIM simulator [Sanchez:2013:ZFA:2485922.2485963]. To evaluate the interconnection between processor and memory as a point-to-point SiP link, we use PhoenixSim [rumley2016phoenixsim] with parameters extracted from state-of-the-art optical devices [bahadori2016comprehensive, 7462281, 7483019]. The SiP link energy-per-bit modeling allows us to find: (1) the required number of optical wavelengths (), and (2) the bit rate per . Table I lists OCM optical devices and their main characteristics used in our simulation model.

Fig. 6: Slowdowns of OCM and 40G NIC-based disaggregated systems, compared to a non-disaggregated baseline with MemConf1, for three randomly-selected mixes of SPEC06 benchmarks (lower is better).
Parameter Design Criteria Details Ref.
Optical power 20 dBm Max. aggregated
Center wavelength 1.55 m
Laser 30% Laser wall-plug efficiency [8478238]
Waveguide loss 5 dB/cm fabrication roughness [grillot2004size]
0.02 dB/bend waveguide bend loss
Coupler loss 1 dB off-chip coupler [chen2011subwavelength]
Modulator Q = 6500 Ring resonator Q factor  [7462281]
ER = 10 dB MRR extinction rate
65 fF Junction capacitance
-5 V Maximum drive voltage
1 mW Thermal-tuning power/ring [bahadori2018thermal]
Mod. mux and receiver demux MRR power penalties Crosstalk model [bahadori2016comprehensive]
Photodetector 1 A/W Current per o-power [vivien200942]
Modulator driver 28 nm Semicond. tech. for OOK-WDM  [7462281]
SERDES power model 28 nm Semicond. tech.  [7462281]
Digital receiver 28 nm Semicond. tech. for OOK-NRZ  [7462281]
Element positioning 100 m

Modulator padding

TABLE I: Optical and electrical models for OCM SiP link devices

Table II shows the configuration of our baseline system (a server processor), the two DDR4 memory configurations used in our evaluation (MemConf1 and MemConf2), the latencies of an OCM disaggregated system, and the latencies of a disaggregated system using 40G PCIe NICs. MemConf1 has 4 DDR4 memory channels as in conventional server processors, and MemConf2 has a single DDR4 memory channel, and an in-package DRAM cache on the processor side. The goal of the DRAM cache is to reduce the optical disaggregation overhead [Zervas:18], which can have a significant performance impact in memory-bound applications. Our DRAM cache resembles the Banshee DRAM cache [yu2017banshee] that tracks the contents of the DRAM cache using TLBs and page table entries, and replaces pages with a frequency-based predictor mechanism. We configure our DRAM cache to have the same operation latency as commodity DDR4 memory.

Baseline Processor 3 GHz, 8 cores, 128B cache lines
Cache 32KB L1(D+I), 256KB L2, 8MB L3
MemConf1 Mem 4 channels, 2 DIMMs/channel, DDR4-2400 [jedecddr4]
MemConf2 Mem 1 channel, 2 DIMMs/channel, DDR4-2400
DRAM cache 4GB stacked, 4-way, 4K pages, FBR [yu2017banshee], DDR4-2400
OCM SERDES latency: 10/150/340 cycles
Fiber latency: 30/60/90 cycles (2/4/6 meters roundtrip)
NIC 40G PCIe [neugebauer2018understanding] latency: 1050 cycles
TABLE II: Baseline processor, memory, OCM, and NIC.

We calculate the SERDES link

latency values for the upcoming years. We estimate the

minimum at 10 cycles, which assumes 3.2 ns serialization/deserialization latency [hmcpact]. We use 340 cycles (113ns) maximum latency reported in a previously demonstrated optical interconnection system [proietti2018low]. We simulate rack distances of 2m, 4m, and 6m with a 5 ns/m latency [abali2015disaggregated], which translates into 30, 60, and 90 cycles latency in our system.

For the 40G NIC-based system configuration, we evaluate a scenario using a PCIe Network Interface Card (NIC) latency of 1050 cycles (350 ns) [abali2015disaggregated] (a realistic NIC-through-PCIe latency is in the order of microseconds [neugebauer2018understanding]). We evaluate the system-level performance of OCM with applications from four benchmark suites: (1) SPEC06 [henning2006spec] using Pinpoints (warmup of 100 million instructions, and detailed region of 30 million instructions), (2) PARSEC [bienia2008parsec] with native inputs, (3) SPLASH2 [bienia2008splash] with simlarge inputs, (4) SPEC17 [bucek2018spec] speed with reference inputs, and (5) GAP graph benchmarks [BeamerAP15] executing 100 billion instructions with the Web graph input, and 30 billion instructions with the Urand graph input. The Urand input has very poor locality between graph vertices compared to the Web input. Table III lists the SPEC benchmark mixes we use in our multiprogrammed workload evaluation. Table IV summarizes the measured memory footprint values for all the benchmarks used in our evaluation.

SPEC06 mix1 soplex_1, h264, gobmk_3, milc, zeusm, bwaves, gcc_1, omnetpp
mix2 soplex_1, milc,povray, gobmk_2, gobmk_3, bwaves, calculix, bzip2_2
mix3 namd, gromacs, gamess_1, mcf, lbm, h264_2, hmmer, xalancbmk
SPEC17 mix1 exchange2, cactus, gcc_2, imagick, fotonik3d, xalancbmk, xz_2, lbm
mix2 gcc_1, nab, lbm, leela, mcf, xz_1, sroms, omnetpp
mix3 xalancbmk, nab, cactus, mcf, imagick, xz_1, fotonik3d, deepjeng
TABLE III: Evaluated SPEC06 & SPEC17 benchmark mixes.
SPEC06 [henning2006spec] MIX1: 2.2 GB, MIX2: 3.1 GB, MIX3: 2.4 GB
SPEC17 [bucek2018spec] MIX1: 19.9 GB, MIX2: 36.4 GB, MIX3: 34.7 GB.
PARSEC [bienia2008parsec]

canneal: 716.7 MB, streamcluster: 112.5 MB, ferret: 91.9 MB,

raytrace: 1.3 GB, fluidanimate: 672 MB

SPLASH [bienia2008splash]

radix: 1.1 GB, fft: 768.8 MB, cholesky: 44.2 MB,

ocean_ncp: 26.9 GB, ocean_cp: 891.8 MB.

GAP [BeamerAP15] Urand graph: 18 GB, Web graph: 15.5 GB
TABLE IV: Measured memory footprints.

Iv-a System-level Evaluation

Multiprogrammed Evaluation. Figure 6 shows the slowdown of OCM and 40G NIC-based disaggregated memory systems with MemConf1, compared to a non-disaggregated MemConf1 baseline, for three mixes of SPEC06 benchmarks (Table III). Notice that a system with disaggregated main memory is expected to perform worse than the non-disaggregated baseline, because of the extra latency introduced by the interconnects (see Eq. 1).

We make two observations. First, the 40G NIC-based system is significantly slower than our OCM system, even though the Ethernet configuration we evaluate is very optimistic (350 ns average latency, equivalent to 1050 cycles in Table II). OCM is up to faster than 40G NIC for the minimum SERDES latency, and faster for the maximum SERDES latency. Second, the results show the feasibility of low-latency disaggregation with OCM as future SERDES optimizations become available. OCM has an average slowdown (across all rack-distances) of only compared to the baseline with a SERDES latency of 10 cycles, and average slowdown with a SERDES latency of 340 cycles.

Figure 7 shows the speedup of a disaggregated OCM system (green bars) compared to a non-disaggregated baseline, both configured with MemConf1. Figure 7 also shows the speedup of OCM with MemConf2 (red bars), and the speedup of a non-disaggregated system with MemConf2 (blue bars), both compared to a MemConf2 baseline without a DRAM cache and without disaggregation. OCM has a conservative SERDES latency of 150 cycles, and a distance of 4m.

Fig. 7: OCM speedup results with 4m distance and a SERDES latency of 150 cycles (higher is better), compared to a disaggregated baseline, with or without a DRAM cache. Left: Speedup for SPEC17. Right: Speedup for GAP [BeamerAP15] graph benchmarks

.

Figure 7 (left) shows the results for SPEC17 mixes (see Table III). We make two observations. First, the average slowdown of OCM without DRAM cache (green bars) is 17%, which is in the same order as the SPEC06 results (Figure 6). Second, with a DRAM cache, the performance of the OCM disaggregated system (red bars), and the non-disaggregated system (blue bars) is very close, as the memory intensity of these benchmarks is not very high. As expected, the performance of the disaggregated system is always lower than the non-disaggregated system.

Multithreaded Evaluation. Figure 7 (right) shows the results for multithreaded graph applications. We make two observations. First, the maximum slowdown of OCM without a DRAM cache (green bars) is up to 45% (pagerank (PR)), which is in the same order as SPEC17 results, despite the Web input having very high locality. The extra latency of the OCM disaggregated system has a clear negative effect on performance. Second, graph workloads dramatically benefit from using a DRAM cache (red and blue bars), e.g., PR with Urand input shows a speedup of compared to the baseline, which is 50% lower speedup than the non-disaggregated scenario. We believe that the performance degradation of OCM with DRAM cache is still reasonable. However, adding a DRAM cache also brings new challenges that need further investigation in a disaggregated setting, such as page replacement mechanisms and caching granularity [yu2017banshee, Li2017, Meza2012, yoon2014efficient, meza2013case, Yoon2012, Ramos2011, Jiang2010].

Figure 8 shows the slowdown of OCM compared to the baseline, using MemConf1 with PARSEC and SPLASH2 benchmarks. We show results for the memory-bound benchmarks only. We also test other compute-bound benchmarks (not shown in the figure) that show less than 5% slowdown. We make three observations. First, with the lower bound SERDES latency (10 cycles) and lowest rack distance (2 m), applications such as streamcluster, canneal and cholesky, experience an average 3 speedup. This small improvement occurs as a result of reduction ( related) due to splitting of a cache line into two DIMMs. Second, the slowdowns increase slightly as distance increases. Third, with large rack-distance and maximum SERDES latency, the slowdown is significant. The highest slowdown measured is for streamcluster at 6m and 340 SERDES cycles; the average slowdown is for SPLASH2 and for PARSEC.

Fig. 8: OCM slowdown compared to the baseline for PARSEC and SPLASH2 benchmarks (lower is better).

We conclude that OCM is very promising because of its reasonably low latency overhead (especially with the use of a DRAM cache), and the flexibility of placing memory modules at large distances with small slowdowns.

Iv-B SiP Link Evaluation

We evaluate the energy and area consumption of the SiP link to allow the system designer to make tradeoffs about the use of SiP devices in the computing system. We consider unidirectional SiP links using PhoenixSim [rumley2016phoenixsim] using the parameters shown in Table I. We estimate the minimum energy-per-bit consumption and the required number of MRRs for our model, given an aggregated optical bandwidth equivalent to the bandwidth required by DDR4-2400 DRAM memory.

A single DDR-2400 module requires 153.7 Gbps bandwidth [jedecddr4]. 4 memory channels, with 2 DIMMs per channel in lockstep, require 615 Gbps/link. OCM’s maximum feasible bandwidth (while remaining CMOS compatible) is 802 Gbps using the parameters in Table I. More advanced modulation formats, such as PAM4 [extremescale], can be used to achieve higher aggregated bandwidth. Figure 9 shows the energy-per-bit results (y-axis), and the aggregated bandwidth. The aggregated link bandwidth is the multiplication of the number of (bottom x-axis values), and the aggregated bitrate (top x-axis values), i.e., a higher number of implies a lower bitrate per . We consider three feasible and efficient MRR sizes in our model: 156.4 (green), 183.5 (orange), and (blue).

Fig. 9: SiP link energy-per-bit. Left: at 615 Gbps bandwidth, Right: at 802 Gbps bandwidth.

In OCM with 615 Gbps links, the minimum energy consumption overhead compared to the electrical memory system is 1.07 pJ/bit for 35 optical wavelengths () per link, each operating at 17.57 Gbps. In OCM with 802 Gbps links, the minimum energy consumption is 1.57 pJ/bit for 39 s per link, each operating at 20.56 Gbps.

We make three observations from Figure 9. First, as in electrical systems, it is expected that a higher bandwidth per link increases the link energy-per-bit consumption. However, the optical energy-per-bit is lower compared to electrical systems. For reference, the energy-per-bit of a DDR4-2667 DRAM module is 39 pJ [ddr4energy]; thus, the energy-per-bit caused by an additional SiP link in the memory subsystem is less than 5%. Second, there is a non-smooth behavior on the energy-per-bit curves due to the energy consumption model of the optical receiver, which depends on the data rate. In our model, we set the photodetector current to a minimum value. As the data rate increases, the received signal becomes less distinguishable from noise. Our model forces the photocurrent to step into a new minimum value to avoid this, causing the repeated decrease and increase of the energy-per-bit values [bahadori2017energy]. For both SiP links, the rings consume the lowest energy. The estimated area overhead is 51.4E-3 mm with Gbps links, and 57.3E-3 mm with Gbps links. In our case study of 4 DDR4 memory channels, OCM uses fewer physical interconnects (optical fibers) than 40G PCIe NIC links (copper cables). In other words, to achieve the required aggregated link bandwidth, we require 2 optical fibers with OCM or 30 copper cables with 40G PCIe NICs.

We conclude that a bidirectional SiP link, formed by two unidirectional links using current SiP devices, can fit the bandwidth requirements of commodity DDR4 DRAM modules. OCM incurs a low energy overhead of only 10.7% compared to a non-disaggregated DDR4 DRAM memory (the energy consumption of current DDR4 DRAM technology is pJ/bit [extremescale]).

V Related Work

To our knowledge, this is the first work to propose an optical point-to-point disaggregated main memory system for modern DDR memories that (1) evaluates a SiP link with state-of-the-art optical devices, (2) demonstrates that OCM incurs only 10.7% energy overhead compared to a non-disaggregated DDR4 DRAM memory, and (3) quantifies the performance implications of the proposed optical links at the system level on commonly-used application workloads.

Brunina et al. [brunina1, brunina3] introduce the concept of optically connected memory in a mesh topology connected with optical switches. Both works propose point-to-point direct access to the DRAM modules using Mach Zender modulators. These works motivate our study in optically connected memory. Brunina et al. [brunina4] also experimentally demonstrate that microring modulators can be used for optically connecting DDR2 memory. Our work builds on [brunina4] to design the microring modulators used in our SiP links. There are several recent works [bahadori2016comprehensive, extremescale, bahadori2017energy] that propose analytical models of the microring used in our SiP links. Anderson et al. [anderson2018reconfigurable] extend the work of Brunina et al. [brunina1, brunina3, brunina4] to experimentally demonstrate the optical switches using FPGAs for accessing memory.

These prior works [anderson2018reconfigurable, brunina4, brunina3, brunina1] are all experimental demonstrations to show photonic capabilities. In contrast, our work addresses three important questions prior work does not: (1) How many optical devices (i.e., MRRs) do we need for current DDR technology? (Section IV-B), (2) What is the energy and area impact on the system? (Section IV-B), and (3) How does the processor interact with a disaggregated memory subsystem? (Section IV-A).

Some other works, such as [weiss2014optical, zhu2019flexible], point out, without evaluation, that existing disaggregation protocols (i.e., PCIe and Ethernet) could lead to high-performance loss. Our work uses system-level simulation to measure the performance overhead of such protocols. We propose to alleviate the optical serialization overhead by using the DDR protocol (Section III-A). As photonic integration improves, we believe that the optical point-to-point links will become the main candidate for interconnecting disaggregated memory. With our PhoenixSim [rumley2016phoenixsim] model, we explore the design of SiP links based on DDR requirements. Our proposal can be used to improve existing PCIe+photonics works, such as [yan2016all].

Yan et al. [yan2016all] propose a PCIe Switch and Interface Card (SIC) to replace Network Interface Cards (NIC) for disaggregation. SIC is composed of commercial optical devices and is capable of interconnecting server blades in disaggregated data centers. The evaluated SIC shows a total roundtrip latency up to 426 ns. In contrast, the scope of our work is point-to-point DDR DRAM disaggregation without PCIe or other additional protocols.

Other related prior works (1) explore silicon photonics integration with a many-core chip in an optical network-on-chip design [batten2009building], (2) propose the design of a DRAM chip with photonic inter-bank communication [beamer2010re], (3) present an optoelectronic chip for communication in disaggregated systems with 4- and an energy consumption of 3.4 pJ/bit [akhter2017wavelight], (4) evaluate a memory disaggregation architecture with optical switches focusing on re-allocation mechanisms [Zervas:18], (5) analyze the cost viability of optical memory disaggregation [abali2015disaggregated], and (6) evaluate memory disaggregation using software mechanisms with high latency penalties in the order of s [gu2017efficient]. Unlike [Zervas:18, akhter2017wavelight, beamer2010re, abali2015disaggregated, gu2017efficient], our work evaluates i) system performance with real applications, ii) the design of the SiP link for DDR DRAM requirements, and iii) SiP link energy for a disaggregated memory system.

Vi Conclusions

We propose and evaluate Optically Connected Memory (OCM), a new optical architecture for disaggregated main memory systems, compatible with current DDR DRAM technology. OCM uses a Silicon Photonics (SiP) platform that enables memory disaggregation with low energy-per-bit overhead. Our evaluation shows that, for the bandwidth required by current DDR standards, OCM has significantly better energy efficiency than conventional electrical NIC-based communication systems, and it incurs a low energy overhead of only 10.7% compared to DDR DRAM memory. Using system-level simulation to evaluate our OCM model on real applications, we find that OCM performs 5.5 times faster than a 40G NIC-based disaggregated memory. We conclude that OCM is a promising step towards future data centers with disaggregated main memory.
