Online Trajectory Optimization for Rotary-Wing UAVs in Wireless Networks

05/05/2019 ∙ by Matthew Bliss, et al. ∙ 0

This paper studies the trajectory optimization problem in an online setting for a single rotary-wing UAV acting as the source of data for random downlink transmission requests by two ground nodes (GNs) in a wireless network. The goal is to optimize the UAV trajectory in order to minimize the expected average communication delay of requests to transmit a fixed payload to the GNs. It is shown that the problem can be cast as a semi-Markov decision process (SMDP), and the resulting minimization problem is solved via multi-chain policy iteration. It is proved that the optimal trajectory in the communication phase greedily minimizes the communication delay of the current request while moving between target start and end positions, with the end positions selected to minimize the expected average long-term delay in the SMDP. Numerical simulations show that the expected average delay is minimized when the UAV moves towards the geometric center of the GNs during phases in which it is not actively servicing transmission requests, and demonstrate significant improvements over sensible heuristics. Finally, it is revealed that the optimal end positions of communication phases become increasingly independent of the payload, for large payload values.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Recently, much research has gone into UAVs operating in wireless networks [1, 2, 3, 4, 5]

. The drive for this is due to the unique benefits that UAVs acting as flying base stations, mobile relays, etc., provide in enhancing the overall network performance, thanks to their unique advantages over terrestrial counterparts in terms of mobility, maneuverability, and higher line-of-sight (LoS) link probability

[1]. However, the design of UAV deployment strategies comes with challenges, namely the determination of optimal positioning or trajectories in the face of constraints imposed on UAV energy consumption, network throughput, and/or delay requirements [1, 2, 3, 4].

Some research has focused on the optimization of trajectory under energy constraints, as in [2] and [3]. In [6], the fine-grained structure of LoS conditions is exploited to position UAVs optimally as to maximize throughput. In [4], a model-free Q-learning approach was taken in the trajectory design so as to maximize the transmission sum-rate.

All of these efforts consider situations that are solved in the offline case, i.e., the pattern of transmission requests is known in advance, so that the trajectory may be pre-planned accordingly. However, this may be impractical as transmission requests are often random and cannot be determined in advance. In these cases, trajectory design is much more challenging, since it must be continuously adjusted based on the realization of these random processes, and incorporate the uncertainty in the future evolution of the system dynamics. In this paper, we investigate this problem and develop online policies, which adapt the trajectory based on the random realization of downlink transmission requests by two GNs.

In this context, the minimum communication delay to serve one particular GN is achieved by flying as close as possible to the GN, but this design in turn may incur a higher average communication delay if the UAV is to also service other GNs farther away in the network which may request downlink transmission in the future, according to a random process. The UAV may need to travel a long distance to serve the next GN, and thus incur a large communication delay. Therefore, we need to incorporate this uncertainty in the trajectory design.

To address this question, we consider a scenario in which a UAV is serving two GNs far apart, and receives transmission requests according to a Poisson random process. We formulate the problem as that of designing an online trajectory, so as to minimize the average long-term communication delay incurred to serve the requests of both GNs. We prove that the optimal trajectory in the communication phase operates as follows: first, the UAV selects a target end position, which optimizes the trade-off between minimizing the delay of the current request, and minimizing the expected average long-term delay; then, the UAV travels to the selected end point while communicating, following the trajectory that minimizes the communication delay for the current request, provided in closed form. We utilize a multi-chain policy iteration algorithm to optimize the selection of the end position in the communication phase and the trajectory during the waiting phase, in which the UAV is not actively servicing downlink transmission requests. Our numerical results reveal that the UAV should always move towards the geometric center of the two GNs during the waiting phase, and that the optimal trajectory during communication phases becomes independent of the payload and only determined by system parameters as the payload value becomes sufficiently large.

The rest of the paper is organized as follows. In Sec. II, we introduce the system model and state the optimization problem; in Sec. III, we formalize the problem as a semi-Markov decision process (SMDP); in Sec. IV, we provide numerical results; lastly, in Sec. V, we conclude the paper with some final remarks.

Ii System Model and Problem Formulation

Ii-a System Model

Consider the scenario where one rotary-wing UAV services two ground nodes (GNs) with random downlink transmission requests of bits, as depicted in Fig. 1. The two ground units GN and GN are located at positions and along the x-axis, respectively, both at ground level (height ). The UAV moves along the line segment connecting the two GNs, at height from the ground. We let be the UAV’s position along the x-axis at time , and we assume that it is either hovering or moving at speed , hence , where denotes derivative of over time.

We assume that the communication intervals experience LoS links, that the communication power of the UAV is fixed and equal to , and that the channel faces no probabilistic elements. This is motivated by the fact that UAVs in low-altitude platforms generally tend to have a much higher occurrence of LoS links [7]. We model the instantaneous communication rate between the UAV in position and GN in position as

(1)

where is the squared distance between the UAV and GN, is the channel bandwidth, and is the SNR referenced at meter (see [3]).

When the UAV has no active transmission requests, future requests arrive according to a Poisson process with mean requests/second, independently at each GN. Each request requires the transmission of bits to the corresponding destination. Upon receiving a request from GN, the UAV enters the communication phase, where it services it by transmitting the bits to GN; any additional requests received during this communication interval are dropped (see also Fig. 1). After the data transmission is completed, the UAV enters the waiting phase, where it awaits for new requests (with rate for each GN), and the process is repeated indefinitely. During this periodic process of communication and waiting for new requests, the UAV follows a trajectory, part of our design, with the goal to minimize the average long-term communication delay, as discussed next.

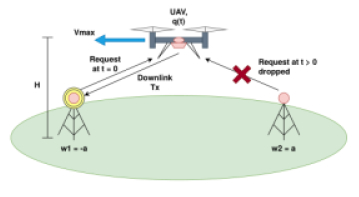

Fig. 1: System model depicting downlink transmission request from GN; the request from GN is dropped during the active communication interval.

Ii-B Problem Formulation

In this work, we consider the unconstrained delay minimization and neglect the propulsion energy consumption from our problem. In fact, it has been shown that a rotary-wing UAV exhibits comparable energy consumption when both moving and hovering [3]; in the special case when the moving and hovering powers are equal (for instance, based on the model in [3], this occurs at speed m/s), the UAV energy constraint is equivalent to a constraint on the total service time of the UAV, independent of trajectory.

The goal is to define the optimal policy (UAV trajectory) so as to minimize the average communication delay. To this end, let be the delay incurred to complete the transmission of the th request serviced by the UAV. Let be the total number of requests served and completed up to time . Then, we define the expected average delay under a given trajectory policy (to be defined), starting from as111While in practice the operation time of the UAV is constrained by the amount of energy stored in its battery, and the policy should depend on the amount of time left, the asymptotic case is convenient since it gives rise to stationary policies (i.e., time-independent); this is a good approximation when the dynamics of the waiting and communication phases occur at much faster time scales than the total travel time, i.e., when in (2) is large for practical values of the travel time . For perspective, [8] places typical rotary-wing hovering endurance times in the 15-30 minute range.

(2)

We then seek to determine to minimize , i.e.,

(3)

Note that this is a non-trivial optimization problem. While the minimum delay to serve a request, say from GN, is achieved by flying towards GN at maximum speed to improve the link quality, this strategy may not be optimal in an average delay sense: if the UAV receives a new request from GN immediately after completing the request to GN, the delay to serve this second request may be large due to the large distance that must be covered by the UAV.

Ii-C Semi-Markov Decision Process (SMDP) formulation

In general, a solution to (3) would involve the optimization of an intractable number of variables over time (i.e., all possible trajectories followed by the UAV at any given time), over a continuous state space (the interval ). Therefore, it is advantageous to approximate the system model through discretization and reformulate (3) as an average-cost SMDP.

We define the state space as , where denotes the request status, i.e., no active request (), a request is received from GN (), and a request is received from GN (), respectively, and

(4)

is the set of indices corresponding to discretized positions along the interval . This is a good approximation for sufficiently large , as , making the expected number of requests received over the travel time between two adjacent discretized positions much smaller than one. It is also useful to further partition the state space into waiting states, , and communication states, .

We now define the actions in each state, the transition probabilities, and duration of each state visit. To define this SMDP, we sample the continuous time interval to define a sequence of states with the Markov property, as specified below.

If the UAV is in state at time , i.e., it is in the discretized position and there are no active requests, then the actions available are, , i.e. move right ( to position ), hover (), or move left by one discretized position ( to ). The amount of time required to take this action, i.e., to fly between two adjacent discretized positions, is

(5)

The new state is then sampled at time , and is given by , where the transition probability from state under action is defined as

(6)

depending on whether no request is received during this time interval (, with probability ), or a request is received from GN (, with probability for each GN).

Upon reaching state with at time , the UAV has received a request to serve bits to GN. The actions available to the UAV at this point are all trajectories that start from and allow the UAV to transmit the entire payload of bits. Assuming a move and transmit strategy (see [3]), the selected trajectory must satisfy

(7)

since all bits need to be transmitted during this phase, and its duration, defining the communication delay, is thus . We define the action space in state as the set of all feasible trajectories, , where we have defined as the set of feasible trajectories starting in , ending in , and serving GN, i.e.,

(8)

Upon completing the communication phase, the UAV enters the waiting phase again; the new state is then sampled at time (the amount of time elapsed to complete the selected trajectory), and is given by , where is the position reached at the end of the communication phase. Thus, we have defined the transition probability in the SMDP from state under action as

(9)

In other words, the trajectory selection process in the communication phase can be described as follows: 1) given , i.e., the current position of the UAV and the request received from GN, the UAV first selects some , which defines the target position reached at the end of the communication phase; 2) the UAV selects a feasible trajectory from , executes the trajectory while communicating to GN, and terminates the communication phase in the new position , corresponding to state . After this point, the UAV is in the waiting phase again.

With the states and actions defined, we can define a policy . Specifically, for states , . Likewise, for states , , where (position reached at the end of the communication phase) and (feasible trajectory starting in , ending in , to serve GN).

The communication delay cost during the waiting phase is zero, i.e. , for all states and actions . When the UAV is in a communicating phase, we denote the communication delay incurred in state under action as . Compactly, we write to denote the delay incurred in state under the action dictated by policy .

With this notation, and having now defined a stationary policy , we can rewrite the average delay in (2) in the context of the SMDP as

(10)

where is the indicator function of the event . In fact, the numerator in (2) counts the sample average delay incurred in the communication phases up to slot of the SMDP, whereas the denominator in (2) counts the sample average number of communication slots in the SMDP up to slot . Now, using Little’s Theorem [9], we can rewrite (10) as

(11)

where is the steady-state probability in the SMDP of the UAV being in state under policy , and the second equality holds since and for .

Iii Analysis of Policy Optimization

In this section, we tackle the solution to the optimization problem (3), with given by (II-C). However, (3) cannot be directly solved using dynamic programming techniques, due to the presence of the denominator in (II-C), which depends on the policy selected , hence it affects the optimization. The next lemma demonstrates that the denominator of (II-C) can be expressed as a positive constant, independent from policy and only dependent on system parameters. In doing so, the optimization of only needs to focus on the minimization of , so that (3) can be cast as an average cost per stage problem, solvable with standard dynamic programming techniques.

Lemma 1.

Let and be the steady-state probabilities that the UAV is in the waiting and communication phases, and . We have that

(12)
Proof.

Let , , , and be the probabilities of a state request status, , transitioning in the SMDP as , , , and , respectively. Then, (if no request is received, the SMDP remains in the waiting state), , , and (if the SMDP is in the communication state, the next state of the SMDP will be a waiting state, see (9)). Therefore, the steady-state probabilities of being in the waiting and communication states, and , satisfy

(13)

whose solution is given as in the statement of the lemma. ∎

When we refer to the denominator of (II-C), it is evident that it is equal to the steady-state probability that the UAV is in a communication state while following policy , . However, with the result of Lemma 1, is simply a positive constant determined by system parameters, yielding

(14)

which we now aim to minimize with respect to policy .

As the problem stands now, the communication phase selects an action from , which is a set containing an uncountable number of trajectories. We now demonstrate, by exploiting a decomposition of policy and the structure of the problem, that only a finite set of trajectories from are eligible to be optimal, for each state , hence making the problem a finite state and action SMDP.

Iii-a Decomposition of Policy

Note from (9) that the transition probability from a communication state under action is only affected by the selection of and not the particular trajectory that leads from to during the communication phase. From this independence, it follows that the steady-state probability under is only affected by the selection of and not the specific trajectory within .

By establishing this property, we decompose the policy into the waiting policy , which defines the optimal action in state of the waiting phase; the end position policy , which selects the end position with to be reached at the end of the communication phase; and the trajectory policy , which, given , selects a trajectory from . Owing to the independence of on the trajectory policy , the delay minimization problem can then be rewritten as

Letting

(15)

we can finally write

(16)

Note that yields the trajectory that minimizes the communication delay when starting from state , ending in position while serving GN. This result proves that, for any communication state , there exist only trajectories that are eligible to be optimal, one for each possible ending position . Hence, the problem is finally reduced to that of finding the optimal waiting policy and end position policy , which can be solved efficiently via dynamic programming (Algorithm 1). In the next section, we provide a closed form expression of the delay-minimizing trajectories of .

Iii-B Closed-form Delay Minimizing Trajectory

With the complete independence of the steady-state probabilities from , we can proceed to solve (15) and then provide the dynamic programming algorithm to solve for and in (16). By definition of the set in (8), can also be written as

(17)

The minimizing trajectory is the one that the UAV should follow when receiving a request from GN starting in position and ending in position .

In defining the optimal trajectory, the following definitions will be useful. Let be the amount of time needed to fly at maximum speed from to . Along this trajectory, let

(18)

be the amount of bits transmitted when moving at maximum speed from to , when serving GN.

Clearly, (), (), and (). The integral can be determined in closed form and is found in [2], for example. We also define the trajectory , as the one in which the UAV starts at position , flies at maximum speed to , hovers at for amount of time, and finally flies at maximum speed from to . Mathematically,

(19)

Clearly, the payload delivered to GN when following this trajectory is , with delay . With these definitions, we are now ready to state the main result.

Theorem 1.

Let be the trajectory that minimizes the communication delay .

If , then

(20)

i.e., the UAV flies at maximum speed from to without interruption; otherwise, if , then

where

(21)

i.e., the UAV flies at maximum speed from to , hovers over for amount of time, and then flies to ; finally, if , but , then

where is the unique solution in (if ) or (if ) of ; i.e., the UAV flies at maximum speed towards to the farthest point and then back to , with uniquely defined in such a way as to transmit exactly the payload.

Proof.

Due to space limitations, we provide an outline of the proof. Assume (a similar argument applies to by symmetry). 1) for any trajectory of duration , one can construct another trajectory of same duration , and such that ; such trajectory is obtained by flying at maximum speed towards GN, possibly hovering on top of GN for amount of time (if time allows), and then returning to , yielding , for a proper choice of and such that ; 2) note that the UAV is always closer to GN under than it is under , hence it delivers a larger payload than while incurring the same delay; therefore, is suboptimal; 3) can be further improved by minimizing the delay (by optimizing ), yielding the three cases provided in the statement of the theorem.∎

Iii-C Multi-chain Policy Iteration Algorithm

We opt to use a multi-chain PI algorithm to solve (16

), as there exist some policies whose induced Markov chain structures are multi-chain. For example, if the

waiting policy is , and the end position policy is , then the induced Markov chain has recurrent classes (hence multi-chain). To accommodate this structure, the pseudocode that follows is based upon the multi-chain PI methods of [10] and succinctly describes how to solve for .

In Algorithm 1

, we use a vector notation for

and , which denote the average delay and relative value for all states, respectively, following the th policy iterate . Likewise, is the vector notation for the delay cost function under policy , supplemented by the optimal minimized trajectory times described by (15) and (17), and is the transition matrix under policy .

1:Initialize , arbitrary policy , and loop termination variable;
2:repeat
3:
4:     Evaluation: Solve for gain and relative value by gain-relative value optimality equations [10];
5:     Improvement: Find ; choose if ;
6:     if  then
7:         Find ; choose if ;
8:     end if
9:until ; return .
Algorithm 1 Multi-chain PI to solve (16)

Iv Numerical Results

We use the following system parameters, unless specified otherwise: number of states ; channel bandwidth ; -meter reference SNR ; UAV height ; GN locations , ; UAV speed ; and request arrival rate requests/second.

We vary the payload across a range of values and find numerically that, regardless, the optimal policy optimized with Algorithm 1 for states of the waiting phase is

(22)

In other words, it is optimal for the UAV while in the waiting phase to move towards the geometric center of the two GNs along the line segment connecting the two. Intuitively, under this policy the UAV can more readily service a request that is originated equally likely from GN or GN, when it is located in the geometric center between the two.

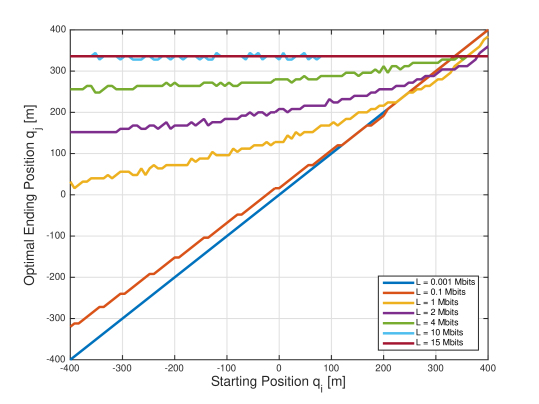

Fig. 2: End position in the communication phase as a function of the start position under the optimal policy, when transmitting to GN in position , for different values of the payload. The small fluctuations are due to the discretization of the state space.

In Fig. 2, we plot the optimal end position policy for different loads.222We omit the figure for states , due to the inherent symmetry of the problem. Specifically, if the optimal end point is observed, then is also observed. We note that, for a sufficiently large payload value, , the optimal end position in the communication phase becomes independent of the initial position (in this case, , irrespective of for ). This is due to the fact that, for large payload , the UAV hovers over the receiver for a significant amount of time during the communication phase (see the case in Theorem 1), hence the final part of the trajectory from to the selected end position becomes irrespective of the actual payload value. However, does depend on other system parameters, such as the request rate and UAV height , as seen in Fig. 3. Interestingly, as the request rate increases (the inter-arrival request time decreases) the end position is closer to the geometric center (i.e., farther away from the receiver); this is because requests arrive more often, hence it is desirable for the UAV to terminate the communication phase closer to the center, in order to more readily serve future requests.

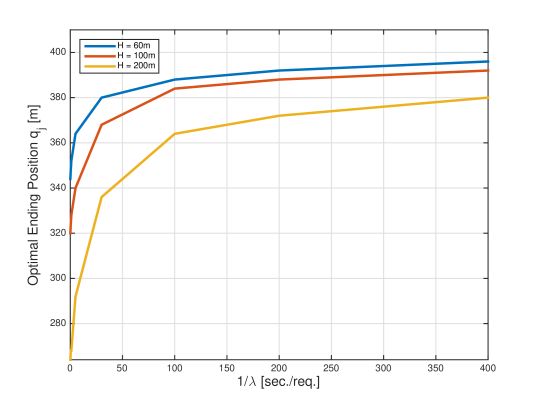

Fig. 3: End position for all states in the communication phase as a function , when transmitting to GN in position , for a fixed large payload Mbits (varied across UAV height).

Next, we illustrate how the optimal expected average delay , across the same set of payload values, fares against the following heuristic policy: hover until receiving a request; when a request is received, fly at maximum speed towards the receiver until completion; after completion, hover again while waiting for the next request; and repeat this process. The comparison between the optimal policy and the heuristic policy is shown for the span of payload values in Fig. 4. Note that the slope of the line for both the optimal and heuristic policies saturates to . In fact, when , the UAV spends most of the communication time hovering above the receiver (case in Theorem 1), hence in (16), yielding

Overall, the heuristic scheme performs worse, roughly by seconds for large . In fact, when hovering during the waiting phase instead of moving towards the center, the UAV incurs a larger delay to serve a request generated by the more distant GN, due to the longer distance that needs to be covered.

V Conclusions

In this paper, we studied the online trajectory optimization problem of one UAV servicing random downlink transmission requests by two GNs, to minimize the expected communication delay. We formulated the problem as an SMDP, exploited the structure of the problem to simplify the trajectory design in the communication phase, and showed that the problem can be solved efficiently via dynamic programming. Numerical evaluations demonstrate an interesting structure in the optimal trajectory and consistent improvements in the delay performance over a sensible heuristic, for a variety of payload values.

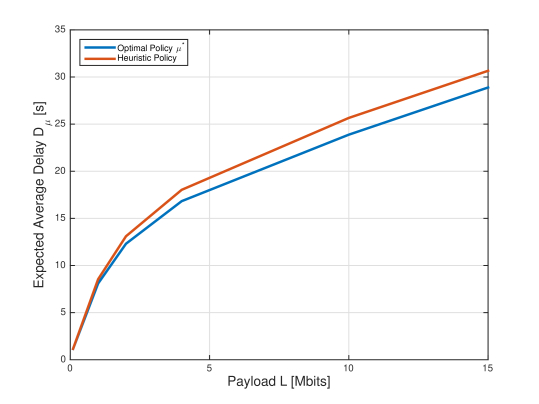

Fig. 4: Comparison of expected average delay vs. payload for both optimal and heuristic policy.
