I Introduction

Research activities to develop increased autonomy in unmanned aerial vehicles (UAVs) have taken a centre stage in the recent years due to their usefulness in providing cost-effective solutions to dangerous, dirty and dull tasks, such as aerial grasping [1], emergency evacuation [2] and building inspection [3]. In these applications, it is crucial for UAVs to be able to fly autonomously in uncertain environments with variations in operating conditions [4]. Therefore, in such conditions, adaptability is a must rather than a choice.

Given the ability of artificial neural networks (ANNs) to generalise knowledge from training samples, an ANN-based controller can be used to control nonlinear dynamic systems [5]. On the other hand, deep neural networks (DNNs) can approximate non-linear functions with exponentially lower number of training parameters and higher sample complexity when compared to ANNs [6]. Therefore, DNNs propose a novel approach to enhance the control strategies [7].

In the literature, ANNs have successfully been integrated with control system design to improve tracking performance in uncertain environments [8]. In [9], the unknown part of the dynamical model of a quadcopter is modelled by DNN. In [10], DNN is used for direct inverse control of the quadrotor in simulation. In [11] and [12], DNNs are used to learn the dynamics of helicopter and multicopter, respectively. In [13], DNN pre-cascaded module is used to improve the performance of UAV in tracking arbitrary hand-drawn trajectory. However, in all these works, DNNs are trained offline and, then, used online without further learning. In other words, while the dynamics are learnt in the training phase, the controller is not updated in the testing phase – DNN simply mimics the conventional controller – and the operational uncertainties are no longer learnt.

Unlike the traditional use of DNNs in literature, in this work, we propose an online DNN-based approach for improving trajectory tracking performance of UAVs. After an offline pre-training phase with past flight data, a DNN-based controller is used in real-time to control the UAV. Without any prior knowledge of the system, besides the training data, the proposed approach shows its capability to reduce the trajectory tracking error online by compensating for internal uncertainties and external disturbances. Moreover, it is shown that the DNN module is computationally suitable for real-time operations and adequate for arbitrary trajectory, making it applicable to the real-world tasks. Furthermore, the proposed approach employs the expert knowledge for the online training. The overall control architecture and its training process are depicted in Fig. 1.

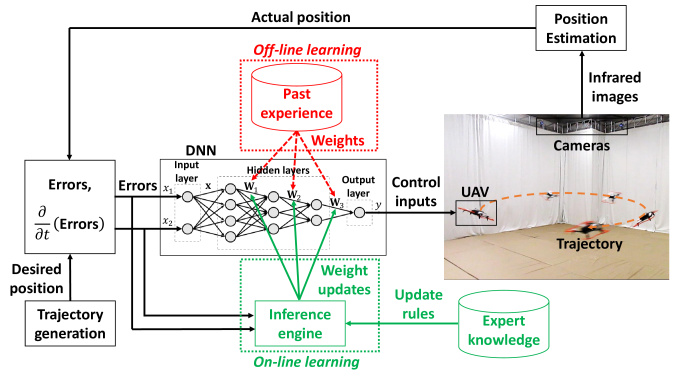

Fig. 1: Illustration of the proposed online learning-based control scheme. During the offline learning phase, a conventional controller performs a set of trajectories and the input-output dataset is used for the offline training of DNN. During the online learning phase, DNN controls the UAV and, by using the expert knowledge, improves further the performance in real-time.

This work is organised as follows. The problem is formulated in Section II. Section III introduces the proposed approach. Then, Section IV presents the experimental setup. Section V provides real-time experiments with quadcopter UAV, to validate the proposed method. Finally, Section VI summarises this work with conclusions and future work.

Ii Problem Formulation

In this work, we consider a problem of designing a learning feedback control algorithm for a dynamical system, such as UAV. Our objective is to learn a control strategy of the system to achieve a high-accuracy tracking. To describe the problem, we introduce the dynamical model of UAV first.

Ii-a Dynamical Model of Unmanned Aerial Vehicle

The world-fixed reference frame is and the body frame is . The absolute position of UAV is given by three Cartesian coordinates at its center of gravity in , and its attitude is given by three Euler angles. The rotation matrix from to is given by the combination of three single rotation matrices around , and . The time derivative of the position gives the linear velocity of UAV expressed in . Equivalently, the time derivative of the attitude gives the angular velocity in and is the angular velocity in .

The vector of control inputs

is chosen as:

(1)

where is the total thrust along , whereas , and

are moments around

, and , respectively. Finally, the dynamical model of UAV is given as in [14]:

(2)

where is the mass of UAV, is the gravity acceleration constant, is the inertia matrix, , and denote , and , respectively.

Remark 1

The dynamical system in (2) is nonlinear, coupled and underactuated. Therefore, an advanced controller is required.

The system in (2) can be written in a general form as:

(3)

where ,

is the disturbance term, and is defined in (1).

Ii-B Problem Description

If a precise model of the system exists, then the inversion of the system can be computed. Let denote the composition of functions and ; while denote the -th composition of function , i.e., and [15]. Let define the dimension of the system’s input, i.e., , and let define the vector of relative degrees of the system, s.t. . Then, the input and the output of the system are related by

(4)

If is affine in , then (4) becomes

(5)

where and are the decoupling matrices. Finally, the control law at time to track the desired output of the system can be written as in [16]:

(6)

However, in a real system, the system’s parameters might be unknown and difficult to estimate, e.g., moments of inertia. What is more, these parameters might change during the operation of the system, e.g., mass. Moreover, it is not always possible to predict the external disturbance term. Therefore, an adaptive controller which can learn online is required. Our objective is to learn the control of the system by only looking at the performance of the system, i.e., in our case, the tracking error:

(7)

and its time derivative:

(8)

Thus, and is the only required information about the system.

Iii Methodology

By their nature, DNNs are distinguished from more common single-hidden-layer ANNs by their depth. The neurons are organised in input, multiple-hidden and output layers. In DNN, like in classical ANNs, the weights are modified using a learning process governed by the training rules.

Iii-a Offline Pre-Training

During the offline pre-training phase, a supervised learning approach is used, in which a feed-forward DNN learns to control the system from a conventional controller – proportional-integral-derivative (PID) controller, in our case. In this control scheme, shown in Fig.

(a)a, PID controller controls the system alone. Hence, it is utilized as an ordinary feedback controller to ensure the global asymptotic stability of the system and provide labelled training samples for DNN. The training of DNN requires the availability of a large number of labelled training samples. Each labelled training sample consists of an input and expected output pair . The training of DNN involves back-propagation to minimize the loss over all training examples. After the training, DNN can approximate the mapping from the training inputs to the outputs. The pseudo-code of offline pre-training is provided in Algorithm 1.

(a) Block diagram of the offline pre-training of DNN by PID.
(b) Block diagram of the online post-training of DNN by FLS.
Fig. 2: Block diagrams of two control paradigms: offline pre-training and online post-training.

Iii-B Online Training

During the online training phase, DNN controls the system, and, at the same time, learns how to improve the control performances. Since DNN training requires supervised learning, another process has to provide a feedback about its performances. In our case, fuzzy logic system (FLS) is used to provide this information. By definition, FLS incorporates the expert knowledge in form of rules and uses this knowledge to provide some useful information [17]. The control structure for online training is illustrated in Fig. (b)b.

In our approach, FLS observes the behaviour of the system controlled by DNN, and, depending on the situation, corrects the action of DNN. The possible evolutions of the error are depicted in Fig. 3. If the error is positive, i.e, , and its time derivative is also positive, i.e., , then the system diverges (top red curve in Fig. 3). In this case, FLS will force DNN to decrease the control signal significantly to stabilize the system, i.e., . In another possible case, if the error is negative, i.e., , and its time derivative is zero, i.e., , then the error is steady (bottom blue line in Fig. 3). In this case, DNN falls down in a local minimum and FLS will give a small positive perturbation, i.e., . Finally, if the error is zero, i.e., , and its time derivative is also zero, i.e., , then, this is the optimal case (green line in Fig. 3) and no action has to be taken, i.e., .

Input: -
Output: Pre-trained DNN
begin
       while  MaxSamples do
             Get , , , and by using (7) by using (8) Collect
       end while
      DNN ConstructNetworkLayers() InitializeWeights() Train DNN on
end
Algorithm 1 Offline pre-training of DNN.

These empirical rules can be formally described by a Mamdani FLS with triangular membership functions to represent the fuzzy sets. The rules for each possible case are summarized by the rule-base in Table I. The inputs to the FLC are selected to be the tracking error and its time derivative, i.e., and ; while the output is the correction signal, i.e., . The input is represented by three fuzzy sets: negative, zero and positive; while the output can belong to five fuzzy sets: big decrease, small decrease, no changes, small increase and big increase.

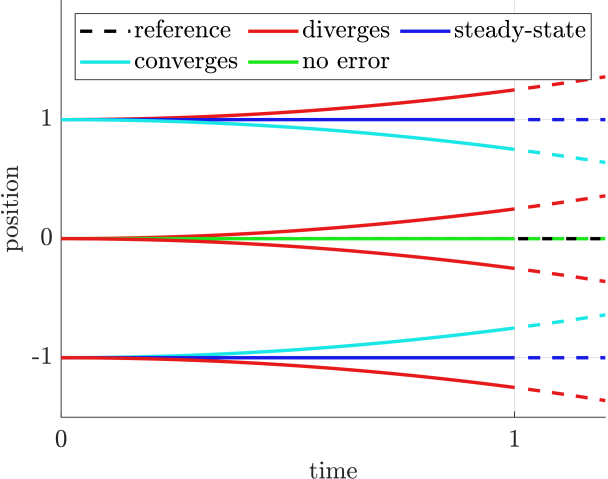

Fig. 3: Possible evolution of the tracking error in a dynamical system. The system can diverge (red curves), converge (cyan curves), it can have a steady-state error (blue lines), or the error can be zero (green line).

However, FLS requires operations among fuzzy sets which are time-consuming. Therefore, by using a similar approach to the one described in [18], a fuzzy mapping which represents the FLS in Table I can be generated for a general multidimensional case:

(9)

where denotes Hadamard product and is the adaptation rate. The fuzzy mapping reduces significantly the computation time which makes this approach suitable for real-time systems [19]. The pseudo-code of online training is provided in Algorithm 2.

Negative Zero Positive
Negative Big decrease Small decrease No changes
Zero Big decrease No changes Big increase
Positive No changes Small increase Big increase
TABLE I: Rule-base for the updates of .

Iv Experimental Setup

The experimental platform used in this work is Parrot Bebop 2 quadcopter UAV. This UAV is controlled via a Wi-Fi connection and the robot operating system (ROS) is used to communicate with UAV. The motion capture system provides the UAV’s real-time position at . This position is fed into the ground station computer (CPU: , , quad-core; GPU: ; RAM: DDR4) where the algorithms are executed. Once the control signal is computed, it is sent to the UAV at rate.

For the attitude/velocity tracking, the onboard nonlinear geometric controller on is used [20]. The attitude controller is responsible for mapping the high-level control inputs, i.e., , to the low-level control commands, i.e., in (1).

Iv-a Deep Neural Network Structure

Three feed-forward DNNs with hyperbolic tangent (

) activation functions are used to learn the control mapping for each controlled axis:

, and . The inputs to DNN for the -axis are the errors and their time derivatives on the -axis, , and the output is the desired pitch angle, . Similarly, the inputs to DNN for the -axis are the errors and their time derivatives on the -axis, , and the output is the desired roll angle, . Finally, the inputs to DNN for the -axis are the errors and their time derivatives on the -axis, , and the output is the desired vertical velocity, .

Remark 2

Both DNN controllers with and without online learning consist of three parallel sub-networks for , and axes.

In our case, after some heuristic analysis and experimental trials, the architecture of each network is chosen to consist of

input neurons (), scaling neurons, fully connected hidden layers () with neurons in each layer (), unscaling neuron and output neuron (

). From the asymptotic analysis, the runtime complexity for the forward-propagation is

. While the runtime complexity for the back-propagation is , where is the number of iterations in the quasi-Newton method. Moreover, the runtime complexity for the fuzzy mapping in (9) is constant w.r.t. the architecture of the network, i.e., . The dominant operation in DNN is the forward-propagation; therefore, the runtime complexity of DNN is polynomial. However, DNN with online learning involves both forward-propagation and back-propagation; therefore, the runtime complexity of DNN is also polynomial but asymptotic to . Therefore, the proposed architecture was chosen as a compromise between the learning capability of the neural network and the update time through the back-propagation.

The error type is an important term in the loss index, and, in our case, it is chosen as the normalized squared error. The initialization algorithm is used to bring the neural network to a stable region of the loss function, and, in our case, it is selected as the random search. The training algorithm is the core part of the training, and, in our case, the quasi-Newton method is the most suitable choice for both offline and online training.

Input: Pre-trained DNN
Output: Trained DNN
Result: Learns and controls the system online
begin
       DNN DNN repeat
             Get , , and by using (7) by using (8) FLS by using (9) Calculate by forward-propagation Update by back-propagation
      until landing
end
Algorithm 2 Online post-training of DNN.

Iv-B Data Collection

To prepare the training samples of the flight data, the system was controlled by a conventional controller alone, while the position errors and their time derivatives were collected as training inputs, and the control signal was saved as the labelled output. By using PID controller, instances have been collected in the training dataset for each axis. This dataset is large enough for our application, however, the proposed method does not have any limitations on the dataset size. The training data include slow circular and eight-shaped trajectories on -, - and -planes with the reference speed of .

(a) 3D view for the tracking of the slow circular trajectory.
(b) Projection of the slow circular trajectory tracking on , and axes.
(c) Euclidean error for the slow circular trajectory tracking.
(d) 3D view for the tracking of the fast circular trajectory.
(e) Projection of the fast circular trajectory tracking on , and axes.
(f) Euclidean error for the fact circular trajectory tracking.
(g) 3D view for the tracking of the square-shaped trajectory.
(h) Projection of the square-shaped trajectory tracking on , and axes.
(i) Euclidean error for the square-shaped trajectory tracking.
Fig. 4: Experimental results for different controllers (PID, DNN and DNN) on three trajectories (slow circular, fast circular and square-shaped). The slow circular trajectory has been used for the offline pre-training of DNN, while fast circular and square-shaped trajectories have not been used during the pre-training. It is possible to observe that DNN controller with online training is able to learn the system dynamics and improve the tracking performances on all tested trajectories.

V Experimental Results

In order to validate the capabilities of the proposed controller in Section III, the trajectory following problem of a quadcopter UAV is considered. The proposed control architecture and its training process are depicted in Fig. 1. Three different types of trajectories have been tested: slow circular, fast circular and square-shaped. In order to show the efficiency and efficacy of the DNN-based controller, it is compared with a well-tuned PID controller (used during the offline pre-training) and DNN controller without online training, DNN.

The first study case is the tracking of the slow circular trajectory with radius at which has been used during the pre-training phase. Fig. (a)a shows the results of the 3D trajectory tracking for the first case. The projections on , and axes of this portion of the trajectory are shown on Fig. (b)b. The evolution of the Euclidean error for the tested controllers is illustrated in Fig. (c)c. The second study case is the tracking of the fast circular trajectory with radius at which has not been used during the pre-training phase. Fig. (d)d shows the results of the 3D trajectory tracking of the second case. The projections on , and axes of this portion of the trajectory are shown on Fig. (e)e. The evolution of the Euclidean error for the tested controllers is illustrated in Fig. (f)f. The third study case is the tracking of the square-shaped trajectory with side length at which also has not been used during the pre-training phase. Fig. (g)g shows the results of the 3D trajectory tracking of the third case. The projections on , and axes of this portion of the trajectory are shown on Fig. (h)h. The evolution of the Euclidean error for the tested controllers is illustrated in Fig. (i)i.

V-a Discussion

A sample of experimental results for three controllers (PID, DNN and DNN) on three trajectories (slow circular, fast circular and square-shaped) are illustrated on Figs. 4. It is possible to observe that DNN controller with online training is able to learn the system dynamics and decrease the tracking error over time on all tested trajectories. As visualized from Figs. (b)b(e)e and  (h)h, DNN has faster responses, since it is able to estimate the desired control signal in (6) and predict the evolution of the system dynamics. It has to be emphasised that online DNN evolves from pre-trained DNN during the learning process. Moreover, as expected, DNN without online learning has poor performances on the trajectories which have not been used for its training.

For a statistical analysis of control performances, the experiments are repeated five times for each trajectory-controller combination under the same conditions. Fig. 5

presents a box-plot to compare the tracking performances of three different controllers on three tested trajectories. It is possible to observe that on average DNN controller with online learning outperforms other controllers on the tested trajectories. In addition, the maximum absolute error is also lower for the online DNN-based controller, even for previously unseen trajectory. Finally, the variance of the error is similar for PID and DNN with online learning controllers.

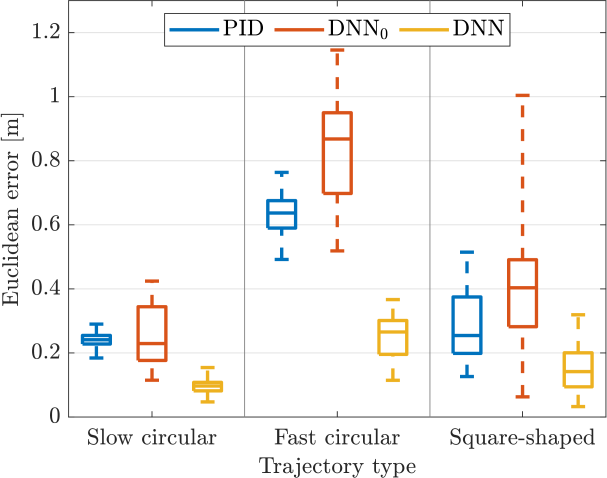

Fig. 5: Box-plot of the tracking performances of different controllers on three trajectories. For each trajectory, the experiments are repeated five times under the same conditions. It is possible to observe that in average the DNN controller with online learning outperforms other controllers on the tested trajectories.

As can be seen from Table II, the DNN-based controller with online learning outperforms both PID and DNN for all tested trajectory in terms of mean absolute error (MAE). Averaged results from numerous experiments depict that the overall improvement of , and in MSE is achieved as compared to a well-tuned PID controller for slow circular, fast circular and square-based trajectories, respectively. While this ratio goes up to , and when compared with pre-trained DNN for the same trajectories.

Trajectory PID DNN DNN
Slow circle
Fast circle
Square-shaped
TABLE II: Comparison of different controllers in terms of MAE [.

Though the online DNN-based controllers can learn promptly how to control the system, the computing time is still the main drawback of this controller with online back-propagation. The computing time is polynomially proportional to the number of hidden layers and the number of neurons in each layer. Therefore, deeper is the network, more complex functions it can learn but more computational power it requires. The average experimental computation time for DNN with online back-propagation is around , while for PID and DNN without online learning this time is only and , respectively. However, is still an acceptable time for real-time applications, which allows the controller to run at almost .

Vi Conclusions

In this work, we have presented a novel approach for a high-level control of UAV that improves online the trajectory tracking performances by using deep learning and expert knowledge. The learning is subdivided into two phases: offline pre-training and online training. During the offline learning phase, a conventional controller performs a set of trajectories and the batch of training samples is collected. Then, DNN-based controller, DNN, is pre-trained on the collected data samples. However, DNN cannot adapt to the new flying conditions unseen during the pre-training; therefore, the online training is required. During the online learning phase, DNN controls the system and adapts the control input to improve the tracking performance. The expert knowledge encoded into the rule-base, thanks to the fuzzy mapping, provides the adaptation information to DNN allowing the real-time learning. Once DNNs are trained during the flight on UAV, the experimental results show that the proposed approach improves the performance by around 50%. We believe that the results of this study will open the doors to a wider use of DNN-based controllers with online training in real-world control applications as the proposed structure is suitable to deploy in real-time control systems.

In the future, we will test the DNN-based controller for the aerial transportation where the system dynamics change drastically. In addition, we will extensively analyse the parameters and architecture of DNN and their performances. Moreover, the analytical stability proof of the proposed approach will be provided.

Acknowledgment

This research was partially supported by the Singapore Ministry of Education (RG185/17).
