Although querying streaming data with 100 accuracy may be possible by using cutting edge servers equipped with a large memory and powerful processor(s), enabling power efficient devices such as single-board computers (SBCs), e.g., Arduino, Raspberry Pi, Odroid, with smarter algorithms and data structures yields cheaper and energy efficient solutions. These devices are indeed cheap, are equipped with multicore processors, and portable enough to be located at the edge of a data ecosystem, which is where the data is actually generated. Furthermore, SBCs can be enhanced with various hardware such as cameras, sensors, and software such as network sniffers. Hence, exploiting their superior price/performance ratio for data streams is a promising approach. A comprehensive survey of data stream applications can be found in .
Sketches can be defined as data summaries and there exist various sketches in the literature tailored for different applications. These structures help us process a query on a massive dataset with small, usually sub-linear amount of memory [1, 3, 9, 10]. Furthermore, each data stream can be independently sketched and then these sketches can be combined to obtain the final sketch. Due to the implicit compression, there is almost always a trade-off between the accuracy of the final result and the sketch size. A complete analysis and comparison of various sketches can be found in .
Count-Min Sketch (CMS) is a probabilistic sketch that helps to estimate the frequencies, i.e., the number of occurrences, of the items in a stream . The frequency information is crucial to find heavy-hitters or rare items and detecting anomalies [4, 6]. A CMS stores a small counter table to keep the track of the frequencies. The accesses to the sketch are decided based on the hashes of the items and the corresponding counters are incremented. Intuitively, the frequencies of the items are not exact due to the hash collisions. An important property of a CMS is that the error is always one sided; that is, the sketch never underestimates the frequencies.
Since independent sketches can be combined, even for a single data stream, generating a sketch in parallel is considered to be a straightforward task; each processor can independently consume a different part of a stream and build a partial sketch. However, with threads, this straightforward approach uses times more memory. Although this may not a problem for a high-end server, when the cache sizes are small, using more memory can be an important burden. In this work, we focus on the frequency estimation problem on single-board multicore computers. Our contributions can be summarized as follows:
We propose a parallel algorithm to generate a CMS and evaluate its performance on a high-end server and two multicore SBCs; Raspberry Pi 3 Model B+ and Odroid-XU4. We restructure the sketch construction phase while avoiding possible race-conditions on a single CMS table. With a single table, a careful synchronization is necessary, since race-conditions not only degrade the performance but also increase the amount of error on estimation. Although we use CMS in this work, the techniques proposed in this paper can easily be extended to other table-based frequency estimation sketches such as Count-Sketch and Count Min-Min Sketch.
Today, many SBCs have fast and slow cores to reduce the energy consumption. However, the performance difference of these heterogenous cores differ for different devices. Under this heterogeneity, a manual optimization is required for each SBC. As our second contribution, we propose a load-balancing mechanism that distributes the work evenly to all the available cores and uses them as efficient as possible. The proposed CMS generation technique is dynamic; it is not specialized for a single device and can be employed on various devices having heterogeneous cores.
As the hashing function, we use tabulation hashing which is recently proven to provide strong statistical guarantees  and faster than many hashing algorithms available; a recent comparison can be found in . For some sketches including CMS, to reduce the estimation error, the same item is hashed multiple times with a different function from the same family. As our final contribution, we propose a cache-friendly tabulation scheme to compute multiple hashes at a time. The scheme can also be used for other applications using multiple tabulation hashes.
2 Notation and Background
Let be the universal set where the elements in the stream are coming from. Let be size of the stream where denotes the th element in the stream. We will use to denote the frequency of an item. Hence,
Given two parameters and , a Count-Min Sketch is constructed as a two-dimensional counter table with rows and columns. Initially, all the counters inside the sketch are set to .
There are two fundamental operations for a CMS; the first one is insert() which updates internal sketch counters to process the items in the stream. To insert , the counters are incremented for , i.e., a counter from each row is incremented where the column IDs are obtained from the hash values. Algorithm 1 gives the pseudocode to sequentially process of size and construct a CMS.
The second operation for CMS is query() to estimate the frequency of as
With memory, the sketch satisfies that and Hence, the error is additive and always one-sided. Furthermore, for and
small enough, the error is also bounded with high probability. Hence, especially for frequent items with large, the ratio of the estimation to the actual frequency approaches to one.
CMS requires pairwise independent hash functions to provide the desired properties stated above. A separate hash function is used for each row of the CMS with a range equal to the range of columns. In this work, we use tabulation hashing  which has been recently analyzed by Patrascu and Thorup et al. [13, 16] and shown to provide strong statistical guarantees despite of its simplicity. Furthermore, it is even as fast as the classic multiply-mod-prime scheme, i.e., .
Assuming each element in is represented in 32 bits (the hash function can also be used to hash 64-bit stream items ) and the desired output is also 32 bits, tabulation hashing works as follows: first a table is generated and filled with random 32-bit values. Given a 32-bit input , each character, i.e., 8-bit value, of is used as an index for the corresponding row. Hence, four 32-bit values, one from each row, are extracted from the table. The bitwise XOR of these 32-bit values are returned as the hash value.
3 Merged Tabulation with a Single Table
Hashing the same item with different members of a hash family is a common technique in sketching applied to reduce the error of the estimation. One can use a single row for CMS, i.e., set and answer the query by reporting the value of the counter corresponding to the hash value. However, using multiple rows reduces the probability of having large estimation errors.
Although the auxiliary data used in tabulation hashing are small and can fit into a cache, the spatial locality of the accessed table elements, i.e., their distance in memory, is deteriorating since each access is performed to a different table row (of length 256). A naive, cache-friendly rearrangement of the entries in the tables is also not possible for applications performing a single hash per item; the indices for each table row are obtained from adjacent chunks in the binary representation of the hashed item which are usually not correlated. Hence, there is no relation whatsoever among them to help us to fix the access pattern for all possible stream elements.

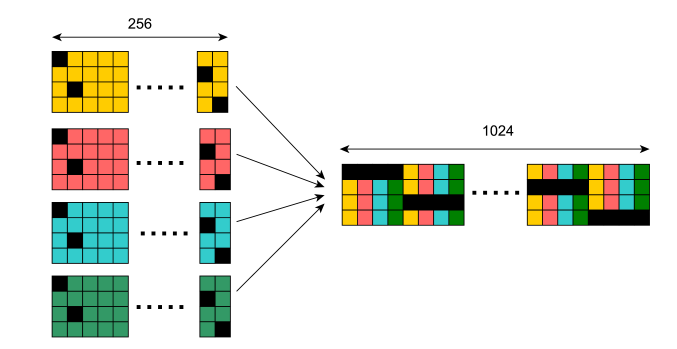

For many sketches, the same item is hashed more than once. When tabulation hashing is used, this yields an interesting optimization; there exist multiple hash functions and hence, more than one hash table. Although, the entries in a single table is accessed in a somehow irregular fashion, the accessed coordinates in all the tables are the same for different tables as can be observed on the left side of Figure 1. Hence, the columns of the tables can be combined in an alternating fashion as shown in the right side of the figure. In this approach, when only a single thread is responsible from computing the hash values for a single item to CMS, the cache can be utilized in a better way since the memory locations accessed by that thread are adjacent. Hence, the computation will pay the penalty for a cache-miss only once for each 8-bit character of a 32-bit item. This proposed scheme is called merged tabulation.
4 Parallel Count-Min Sketch Construction
Since multiple CMS sketches can be combined, on a multicore hardware, each thread can process a different part of the data (with the same hash functions) to construct a partial CMS. These partial sketches can then be combined by adding the counter values in the same locations. Although this approach has been already proposed in the literature and requires no synchronization, the amount of the memory it requires increases with increasing number of threads. We included this one sketch to one core approach in the experiments as one of the baselines.
Constructing a single CMS sketch in parallel is not a straightforward task. One can assign an item to a single thread and let it perform all the updates (i.e., increment operations) on CMS counters. The pseudocode of this parallel CMS construction is given in Algorithm 2. However, to compute the counter values correctly, this approach requires a significant synchronization overhead; when a thread processes a single data item, it accesses an arbitrary column of each CMS row. Hence, race conditions may reduce the estimation accuracy. In addition, these memory accesses are probable causes of false sharing. To avoid the pitfalls stated above, one can allocate locks on the counters before every increment operation. However, such a synchronization mechanism is too costly to be applied in practice.
In this work, we propose a buffered parallel execution to alleviate the above mentioned issues; we (1) divide the data into batches and (2) process a single batch in parallel in two phases; a) merged-hashing and b) CMS counter updates. In the proposed approach, the threads synchronize after each batch and process the next one. For batches with elements, the first phase requires a buffer of size to store the hash values, i.e., column ids, which then will be used in the second phase to update corresponding CMS counters. Such a buffer allows us to use merged tabulation effectively during the first phase. In our implementation, the counters in a row are updated by the same thread hence, there will be no race conditions and probably much less false sharing. Algorithm 3 gives the pseudocode of the proposed buffered CMS construction approach.
5 Managing Heterogeneous Cores
A recent trend on SBC design is heterogeneous multiprocessing which had been widely adopted by mobile devices. Recently, some ARM-based devices including SBCs use the big.LITTLE architecture equipped with power hungry but faster cores, as well as battery-saving but slower cores. The faster cores are suitable for compute-intensive, time-critical tasks where the slower ones perform the rest of the tasks and save more energy. In addition, tasks can be dynamically swapped between these cores on the fly. One of the SBCs we experiment in this study has an 8-core Exynos 5422 Cortex processor having four fast and four relatively slow cores.
Assume that we have rows in CMS and cores on the processor; when the cores are homogeneous, Algorithm 3 works efficiently with static scheduling since, each thread performs the same amount of merged hashes and counter updates. When the cores are heterogeneous, the first inner loop (for merged hashing) can be dynamically scheduled: that ia a batch can be divided into smaller, independent chunks and the faster cores can hash more chunks. However, the same technique is not applicable to the (more time consuming) second inner loop where the counter updates are performed: in the proposed buffered approach, Algorithm 3 divides the workload among the threads by assigning each row to a different one. When the fast cores are done with the updates, the slow cores will still be working. Furthermore, faster cores cannot help to the slower ones by stealing a portion of their remaining jobs since when two threads work on the same CMS row, race conditions will increase the error.

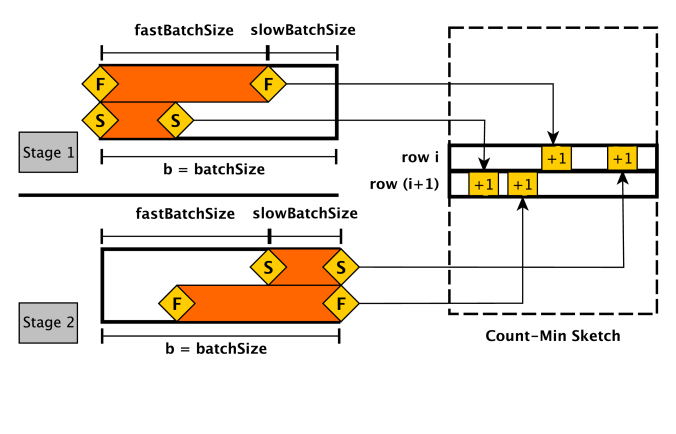

To alleviate these problems, we propose to pair a slow core with a fast one and make them update two rows in an alternating fashion. The batch is processed in two stages as shown in Figure 2
; in the first stage, the items on the batch are processed in a way that the threads running on faster cores update the counters on even numbered CMS rows whereas the ones running on slower cores update the counters on odd numbered CMS rows. When the first stage is done, the thread/core pairs exchange their row ids and resume from the item their mate stopped in the first stage. In both stages, the faster threads processitems and the slower ones process items where
To avoid the overhead of dynamic scheduling and propose a generic solution, we start with and and by measuring the time spent by the cores, we dynamically adjust them to distribute the workload among all the cores as fairly as possible. Let and be the times spent by a fast and slow core, respectively, on average. Let and be the speed of these cores for the same operation, e.g., hashing, CMS update etc. We then solve the equation for and update the values as
for the next batch. One can apply this method iteratively for a few batches and use the average values to obtain a generic and dynamic solution for such computations. To observe the relative performances, we applied this technique both for hashing and counter update phases of the proposed buffered CMS generation algorithm.
6 Experimental Results
We perform experiments on the following three architectures:
Arch-1 is a server running on 64 bit CentOS 6.5 equipped with 64GB RAM and an Intel Xeon E7-4870 v2 clocked at 2.30 GHz and having 15 cores. Each core has a 32KB L1 and a 256KB L2 cache, and the size of L3 cache is 30MB.
Arch-2 (Raspberry Pi 3 Model B+) is a quad-core 64-bit ARM Cortex A-53 clocked at 1.4 GHz equipped with 1 GB LPDDR2-900 SDRAM. Each core has a 32KB L1 cache, and the shared L2 cache size is 512KB.
Arch-3 (Odroid XU4) is an octa-core heterogeneous multi-processor. There are four A15 cores running on 2Ghz and four A7 cores running on 1.4Ghz. The SBC is equipped with a 2GB LPDDR3 RAM. Each core has a 32KB L1 cache. The fast cores have a shared 2MB L2 cache and slow cores have a shared 512KB L2 cache.
For multicore parallelism, we use C++ and OpenMP. We use gcc 5.3.0 on Arch-1. On Arch-2 and Arch-3, the gcc version is 6.3.0 and 7.3.0, respectively. For all architectures, -O3 optimization flag is also enabled.
To generate the datasets for experiments, we used Zipfian distribution . Many data in real world such as number of paper citations, file transfer sizes, word frequencies etc. fit to a Zipfian distribution with the shape parameter around . Furthermore, the distribution is a common choice for the studies in the literature to benchmark the estimation accuracy of data sketches. To cover the real-life better, we used the shape parameter . Although they seem to be unrelated at first, an interesting outcome of our experiments is that the sketch generation performance depends not only the number of items but also the frequency distribution; when the frequent items become more dominant in the stream, some counters are touched much more than the others. This happens with increasing and is expected to increase the performance since most of the times, the counters will already be in the cache. To see the other end of the spectrum, we also used Uniform distribution to measure the performance where all counters are expected to be touched the same number of times.
We use and to generate small, medium and large sketches where the number of columns is chosen as the first prime after . Hence, the sketches have columns and rows. For the experiments on Arch-1, we choose elements from a universal set of cardinality . For Arch-2 and Arch-3, we use and . For all architectures, we used as the batch size. Each data point in the tables and charts given below is obtained by averaging ten runs.
6.1 Multi Table vs. Single Table
Although one-sketch-per-core parallelization, i.e., using partial, multiple sketches, is straightforward, it may not be a good approach for memory/cache restricted devices such as SBCs. The memory/cache space might be required by other applications running on the same hardware and/or other types of skeches being maintained at the same time for the same or a different data stream. Overall, this approach uses counters where each counter can have a value as large as ; i.e., the memory consumption is bits. On the other hand, a single sketch with buffering consumes
bits since there are entries in the buffer and each entry is a column ID on CMS. For instance, with threads, and , the one-sketch-per-core approach requires 3.85Mbits whereas using single sketch requires 0.57Mbits. Hence, in terms of memory footprint, using a single table pays off well. Figure 3 shows the case for execution time.
-axis shows the runtimes in seconds; it does not start from 0 for a better visibility of performance differences. The first bar of each group shows the case when the data is generated using uniform distribution. The second and the thirds bars show the case for Zipfian distribution with the shape parameterand , respectively.
In Figure 3.(a), the performance of the single-table (ST+) and multi-table (MT and MT+) approaches are presented on Arch-1. Although ST+ uses much less memory, its performance is not good due to all the time spent while buffering and synchronization. The last level cache size on Arch-1 is 30MB; considering the largest sketch we have is 6.4MB (with 4-byte counters), Arch-1 does not suffer from its cache size and MT+ indeed performs much better than ST+. However, as Fig. 3.(b) shows for Arch-2, with a KB last-level cache, the proposed technique significantly improves the performance, and while doing that, it uses significantly much less memory. As Fig. 3.(c) shows, a similar performance improvement on Arch-3 is also visible for medium (640KB) and especially large (6.4MB) sketches when only the fast cores with a 2MB last-level cache are used.
shows that the performance of the algorithms vary with respect to the distribution. As mentioned above, the variance on the frequencies increases with increasing. For uniform and Zipfian(), the execution times tend to increase with sketch sizes. Nevertheless, for , sketch size does not have a huge impact on the performance, since only the hot counters of the most frequent items are frequently updated. Although each counter has the same chance to be a hot counter, the effective sketch size reduces significantly especially for large sketches. This is also why the runtimes for many configurations are less for .
6.2 Managing Heterogeneous Cores
To utilize the heterogeneous cores on Arch-3, we applied the smart load distribution described in Section 5. We pair each slow core with a fast one, virtually divide each batch into two parts, and make the slow core always run on smaller part. As mentioned before, for each batch, we dynamically adjust the load distribution based on the previous runtimes. Figure 4 shows the ratio for the first batches of small and medium sketches. The best F2S changes w.r.t. the computation performed; for hashing, a 4-to-1 division of workload yields a balanced distribution. However, for CMS updates, a 1.8-to-1 division is the best. As the figure shows, the F2S ratio becomes stable after a few batches for both phases. Hence, one can stop the update process after batches and use a constant F2S for the later ones. As Fig. 3.(d) shows, ST++, the single-table approach both with merged tabulation and load balancing, is always better than ST+. Furthermore, when , with the small 512KB last-level cache for slower cores, the ST++ improves MT+ much better (e.g., when the medium sketch performance in Figs. 3.(c) and 3.(d) are compared). Overall, smart load distribution increases the efficiency by – for threads.
6.3 Single Table vs. Single Table
For completeness, we compare the performance of the proposed single-table approach. i.e., ST+ and ST++, with that of Algorithm 2. However, we observed that using atomic updates drastically reduces its performance. Hence, we use the algorithm in a relaxed form, i.e., with non-atomic updates. Note that in this form, the estimations can be different than the CMS due to race conditions. As Table 1 shows, with a single thread, the algorithms perform almost the same except for Arch-1 for which Alg 2 is faster. However, when the number of threads is set to number of cores, the proposed algorithm is much better due to the negative impact of false sharing generated by concurrent updates on the same cache line. In its current form, the proposed algorithm can process approximately 60M, 4M, and 9M items on Arch-1, Arch-2 and Arch-3, respectively.
|Zipfian||Alg 3 (ST+ and ST++)||Alg 2 - relaxed||Zipfian||Alg 3 (ST+ and ST++)||Alg 2 - relaxed|
7 Related Work
CMS is proposed by Cormode and Muthukrishnan to summarize data streams . Later, they comment on its parallelization  and briefly mention the single-table and multi-table approaches. There are studies in the literature employing synchronization primitives such as atomic operations for frequency counting . However, synchronization free approaches are more popular; Cafaro et al. propose an augmented frequency sketch for time-faded heavy hitters . They divided the stream into sub-streams and generated multiple sketches instead of a single one. A similar approach using multiple sketches is also taken by Mandal et al. . CMS has also been used as an underlying structure to design advanced sketches. Recently, Roy et al. developed ASketch which filters high frequent items first and handles the remaining with a sketch such as CMS which they used for implementation . However, their parallelization also employs multiple filters/sketches. Another advanced sketch employing multiple CMSs for parallelization is FCM .
Although other hash functions can also be used, we employ tabular hashing which is recently shown to provide good statistical properties and reported to be fast [16, 7]. When multiple hashes on the same item are required, which is the case for many sketches, our merging technique will be useful for algorithms using tabular hashing.
To the best of our knowledge, our work is the first cache-focused, synchronization-free, single-table CMS generation algorithm specifically tuned for limited-memory multicore architectures such as SBCs. Our techniques can also be employed for other table-based sketches such as Count Sketch  and CMS with conservative updates.
8 Conclusion and Future Work
In this work, we investigated the parallelization of Count-Min Sketch on SBCs. We proposed three main techniques: The first one, merged tabulation, is useful when a single is item needs to be hashed multiple times and can be used for different sketches. The second technique buffers the intermediate results to correctly synchronize the computation and regularize the memory accesses. The third one helps to utilize heterogeneous cores which is a recent trend on today’s smaller devices. The experiments we performed show that the propose techniques improve the performance of CMS construction on multicore devices especially with smaller caches.
As a future work, we are planning to analyze the options on the SBCs to configure how much data/instruction cache they use, and how they handle coherency. We also want to extend the architecture spectrum with other accelerators such as FPGAs, GPUs, and more SBCs with different processor types. We believe that similar techniques we develop here can also be used for other sketches.
Alon, N., Matias, Y., Szegedy, M.: The space complexity of approximating the frequency moments. In: Proceedings of the Twenty-eighth Annual ACM Symposium on Theory of Computing. pp. 20–29. STOC ’96, ACM, New York, NY, USA (1996)
-  Cafaro, M., Pulimeno, M., Epicoco, I.: Parallel mining of time-faded heavy hitters. Expert Systems with Applications 96, 115 – 128 (2018)
-  Charikar, M., Chen, K., Farach-Colton, M.: Finding frequent items in data streams. In: Proceedings of the 29th International Colloquium on Automata, Languages and Programming. pp. 693–703. ICALP ’02, Springer-Verlag, Berlin, Heidelberg (2002)
-  Cormode, G., Korn, F., Muthukrishnan, S., Srivastava, D.: Finding hierarchical heavy hitters in data streams. In: Proc. 29th Int. Conf. on Very Large Databases (VLDB’03). pp. 464–475
-  Cormode, G., Muthukrishnan, M.: Approximating data with the count-min sketch. IEEE Softw. 29(1), 64–69 (2012)
-  Cormode, G., Muthukrishnan, S.: An improved data stream summary: the count-min sketch and its applications. Journal of Algorithms 55(1), 58 – 75 (2005)
-  Dahlgaard, S., Knudsen, M.B.T., Thorup, M.: Practical hash functions for similarity estimation and dimensionality reduction. In: Advances in Neural Information Processing Systems (NIPS). pp. 6618–6628 (2017)
-  Das, S., Antony, S., Agrawal, D., El Abbadi, A.: Thread cooperation in multicore architectures for frequency counting over multiple data streams. VLDB Endow. 2(1), 217–228 (Aug 2009)
-  Dobra, A., Garofalakis, M., Gehrke, J., Rastogi, R.: Processing complex aggregate queries over data streams. In: Proceedings of the 2002 ACM SIGMOD International Conference on Management of Data. pp. 61–72. SIGMOD ’02, ACM, New York, NY, USA (2002)
Gilbert, A.C., Kotidis, Y., Muthukrishnan, S., Strauss, M.J.: How to summarize the universe: Dynamic maintenance of quantiles. In: Proceedings of the 28th International Conference on Very Large Data Bases. pp. 454–465. VLDB ’02, VLDB Endowment (2002)
-  Mandal, A., Jiang, H., Shrivastava, A., Sarkar, V.: Topkapi: Parallel and fast sketches for finding top-K frequent elements. In: NeurIPS 2018, Montréal, Canada. pp. 10921–10931 (2018)
-  Muthukrishnan, S.: Data streams: Algorithms and applications. Found. Trends Theor. Comput. Sci. 1(2), 117–236 (Aug 2005)
-  Pǎtraşcu, M., Thorup, M.: The power of simple tabulation hashing. J. ACM 59(3), 14:1–14:50 (Jun 2012)
-  Roy, P., Khan, A., Alonso, G.: Augmented sketch: Faster and more accurate stream processing. In: Proceedings of the 2016 International Conference on Management of Data. pp. 1449–1463. SIGMOD ’16, ACM, New York, NY, USA (2016)
-  Thomas, D., Bordawekar, R., Aggarwal, C., Yu, P.S.: A Frequency-aware Parallel Algorithm for Counting Stream Items on Multicore Processors. Tech. rep., IBM (2007)
-  Thorup, M.: Fast and powerful hashing using tabulation. Commun. ACM 60(7), 94–101 (2017)
-  Zipf, G.: The Psychobiology of Language: An Introduction to Dynamic Philology. M.I.T. Press, Cambridge, Mass. (1935)
-  Zobrist, A.L.: A new hashing method with application for game playing. Technical Report 88 (University of Wisconsin, Madison, Wisconsin, 1970)
